- Make Lagoon
- Model 60
- Year 2024
- LOA 59ft/18m
- Class Multihull
- Hull Glass Reinforced Plastic
- Keel Multi-Hull
- Rig Sloop
- Engine Twin Diesel
- Layout Aft Cockpit
- Berths 10
- Cabins 4
- Aft Cabins 2
- Ancasta Ref 43040
- Name Lagoon 60 New Build
Lagoon 60 | 2024
1,910,714 Tax Not Paid
Lagoon 60 - Ref 43040 has been saved to your account.
Your account cannot save boats.
You must login or register to save boats

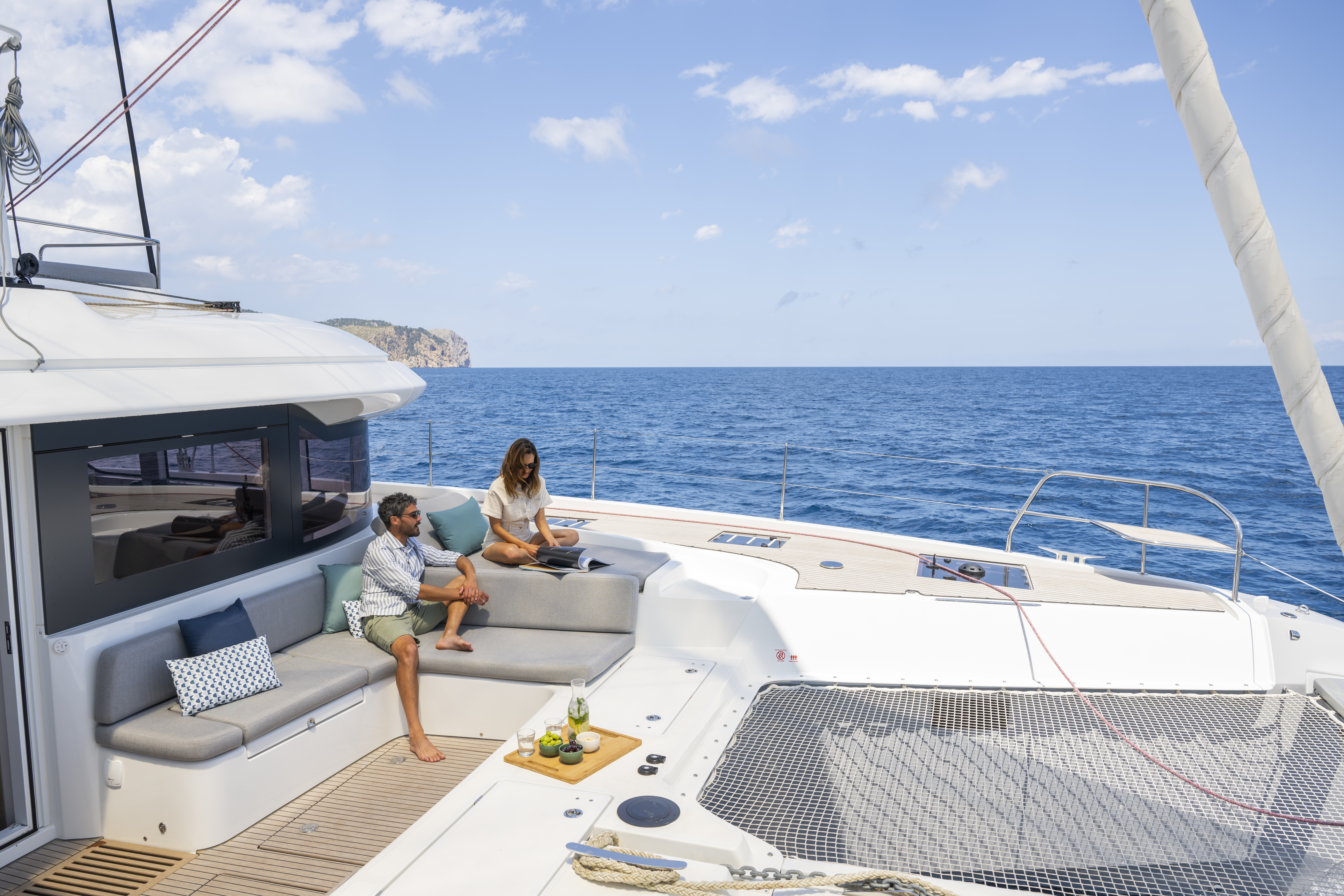

The greatly anticipated new Lagoon 60 has arrived, incorporating new, modern stylings and ingenuity.
The first is now available as part of Lagoon's 40th anniversary celebrations.

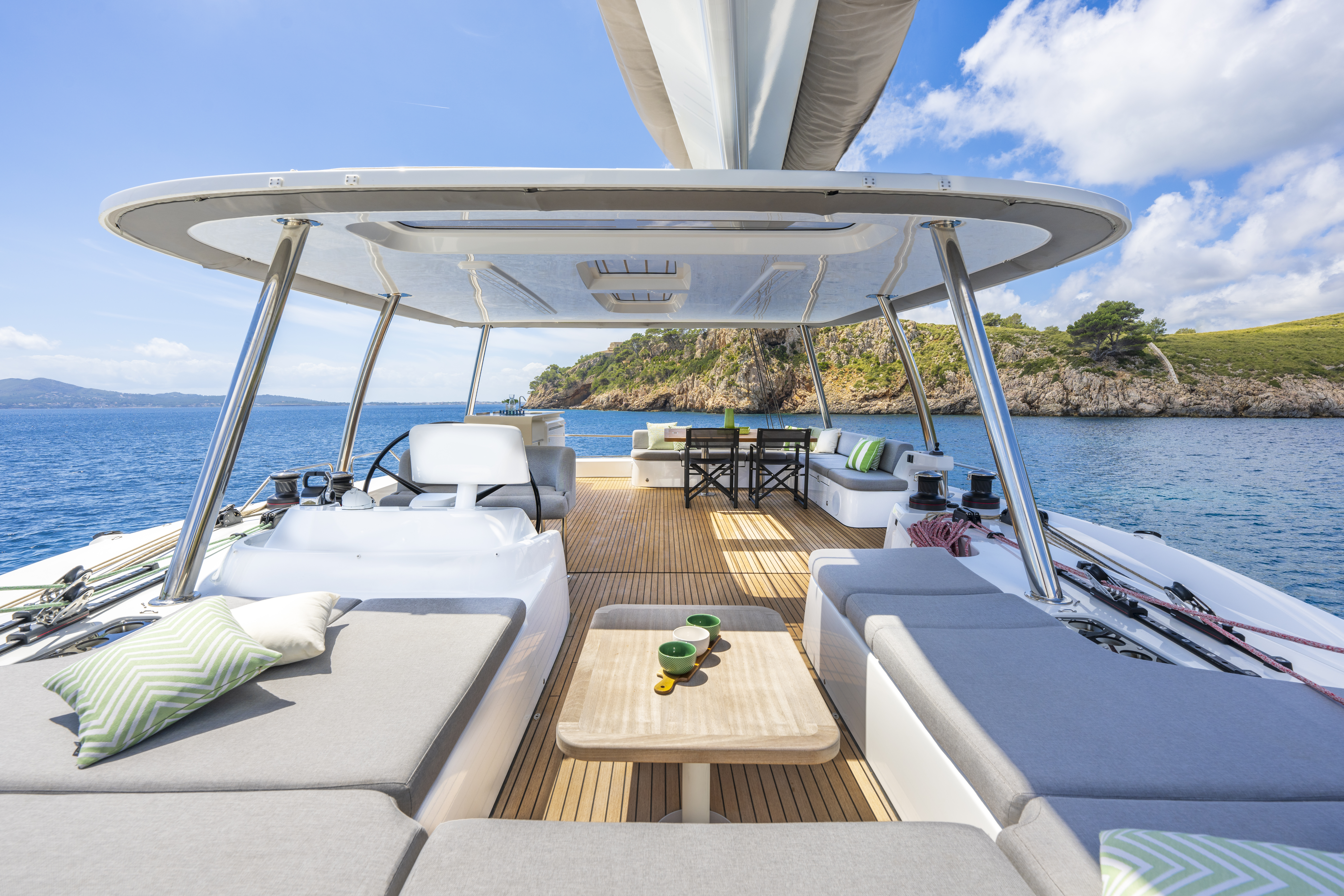

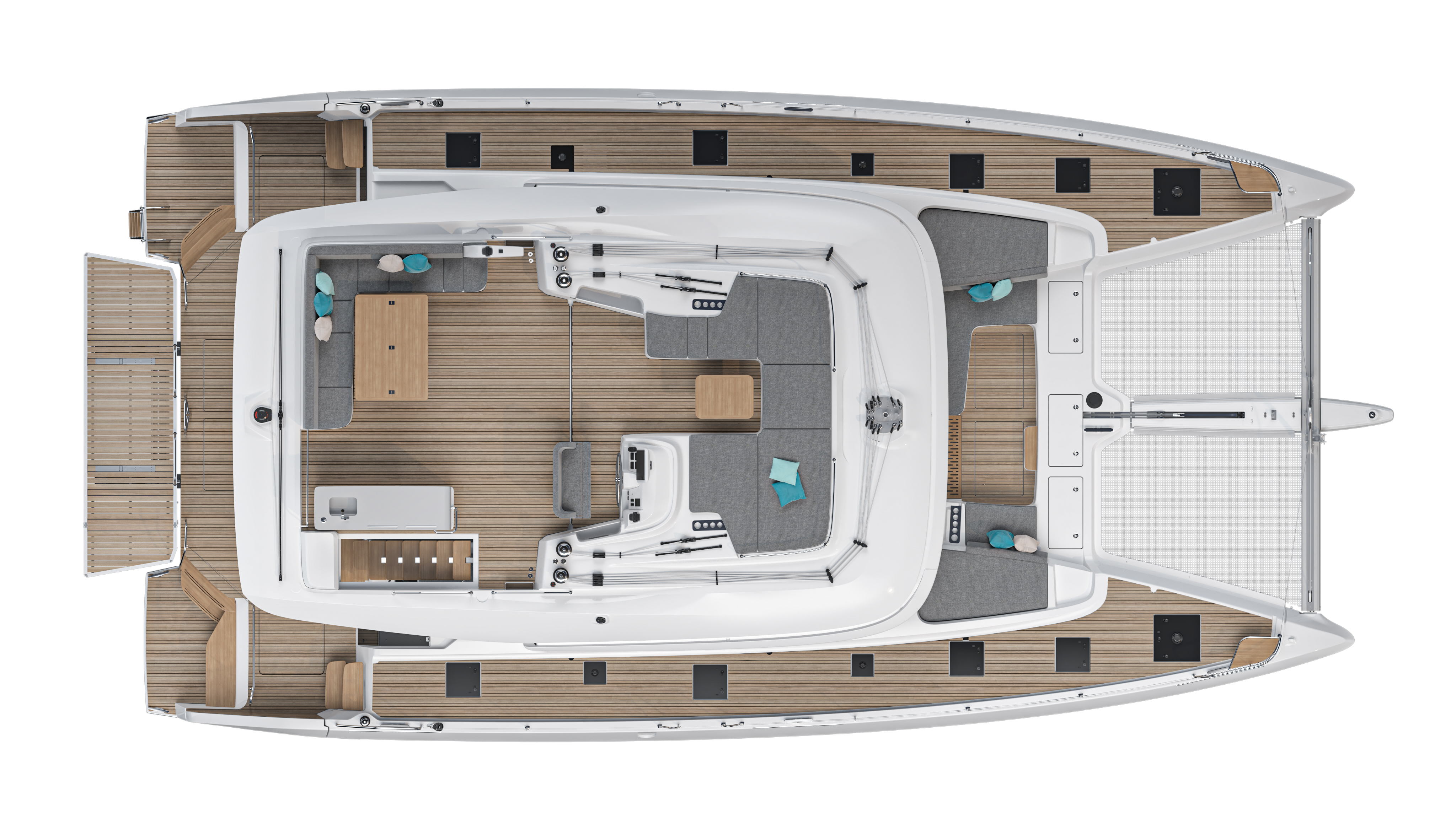

Unique features include opening bulwarks for open vistas, more space and better water access. The flybridge has been designed to be the largest in the 60 ft market, with space for dining, relaxing and embracing the sailing lifestyle.
Designed to create open plan living at sea, the smooth lines and open spaces welcome you onboard and allow you to move seamlessly from the transom to bow.
The first is now available as part of Lagoon's 40th anniversary celebrations.
Unique features include opening bulwarks for open vistas, more space and better water access. The flybridge has been designed to be the largest in the 60 ft market, with space for dining, relaxing and embracing the sailing lifestyle.
Designed to create open plan living at sea, the smooth lines and open spaces welcome you onboard and allow you to move seamlessly from the transom to bow.
Layout
Layout Side Profile

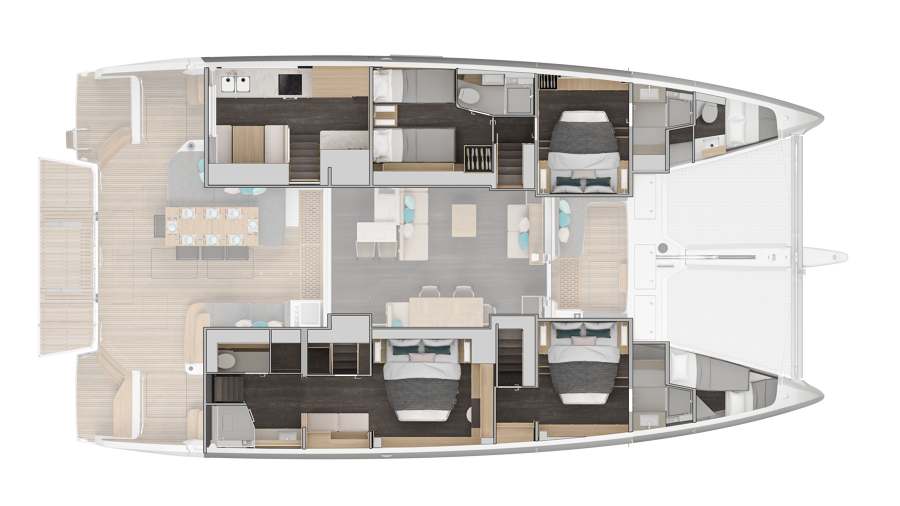

Layout Lower Deck
Polyester and high quality anti-osmotic resin
Hull, deck and coachroof laminated by infusion
Balsa core hull and deck, solid laminated under waterline, white gel coat
Laminated or glued plywood composite bulkheads
Architects VPLP Design
Exterior design Patrick le Quément
Interior design Nauta Design
CE certification A : 14 - B : 14 - C : 20 - D : 20
Length overall 18,27 m / 59’11’’
Waterline length 18,18 m / 59’8’’
Beam 9,87 m / 32’5’’
Air draft 30 m / 98’5’’
Draft 1,65 m / 5’5’’
Displacement (CE) 34,6 T / 76,293 Lbs
Hull, deck and coachroof laminated by infusion
Balsa core hull and deck, solid laminated under waterline, white gel coat
Laminated or glued plywood composite bulkheads
Architects VPLP Design
Exterior design Patrick le Quément
Interior design Nauta Design
CE certification A : 14 - B : 14 - C : 20 - D : 20
Length overall 18,27 m / 59’11’’
Waterline length 18,18 m / 59’8’’
Beam 9,87 m / 32’5’’
Air draft 30 m / 98’5’’
Draft 1,65 m / 5’5’’
Displacement (CE) 34,6 T / 76,293 Lbs
Upwind sail area (Standard mainsail) 222 m² / 2.389 sq.ft
Upwind sail area (Optional mainsail) 230 m² / 2.475 sq.ft
Full battened mainsail 135 m² / 1.453 sq.ft
Square top mainsail (option) 143 m² / 1.539 sq.ft
Genoa 87 m² / 936 sq.ft
Code 0 (option) 160 m² / 1.722 sq.ft
Sails
High roach mainsail in Dacron with battens
Genoa in Dacron with UV protective band
Standing rigging
Anodized aluminium mast
Anodized aluminium boom
2 spreaders rigs
Coated shrouds
Electric furling forestay for genoa
2 forestay chainplates and 1 shroud chainplates
Ajustable lazy-jacks
Upwind sail area (Optional mainsail) 230 m² / 2.475 sq.ft
Full battened mainsail 135 m² / 1.453 sq.ft
Square top mainsail (option) 143 m² / 1.539 sq.ft
Genoa 87 m² / 936 sq.ft
Code 0 (option) 160 m² / 1.722 sq.ft
Sails
High roach mainsail in Dacron with battens
Genoa in Dacron with UV protective band
Standing rigging
Anodized aluminium mast
Anodized aluminium boom
2 spreaders rigs
Coated shrouds
Electric furling forestay for genoa
2 forestay chainplates and 1 shroud chainplates
Ajustable lazy-jacks

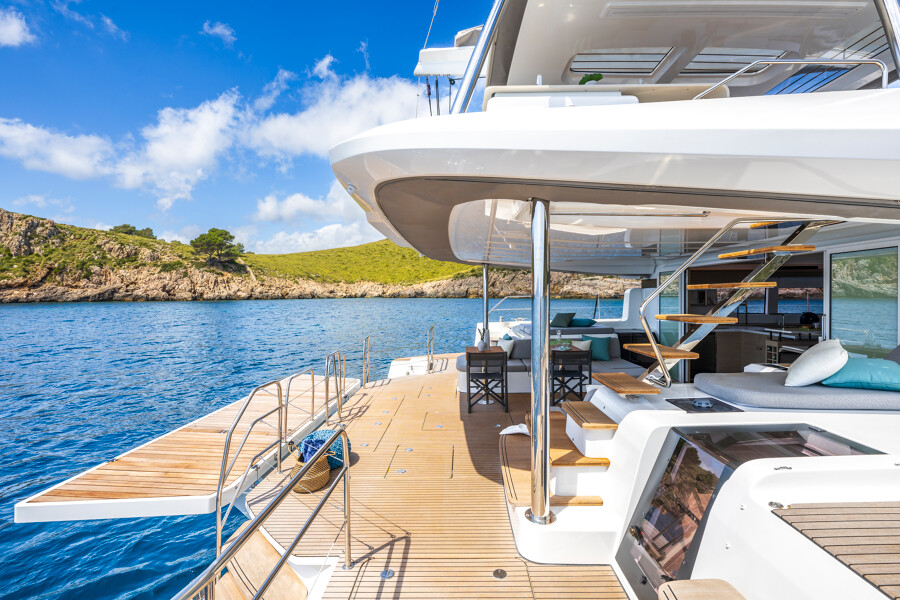

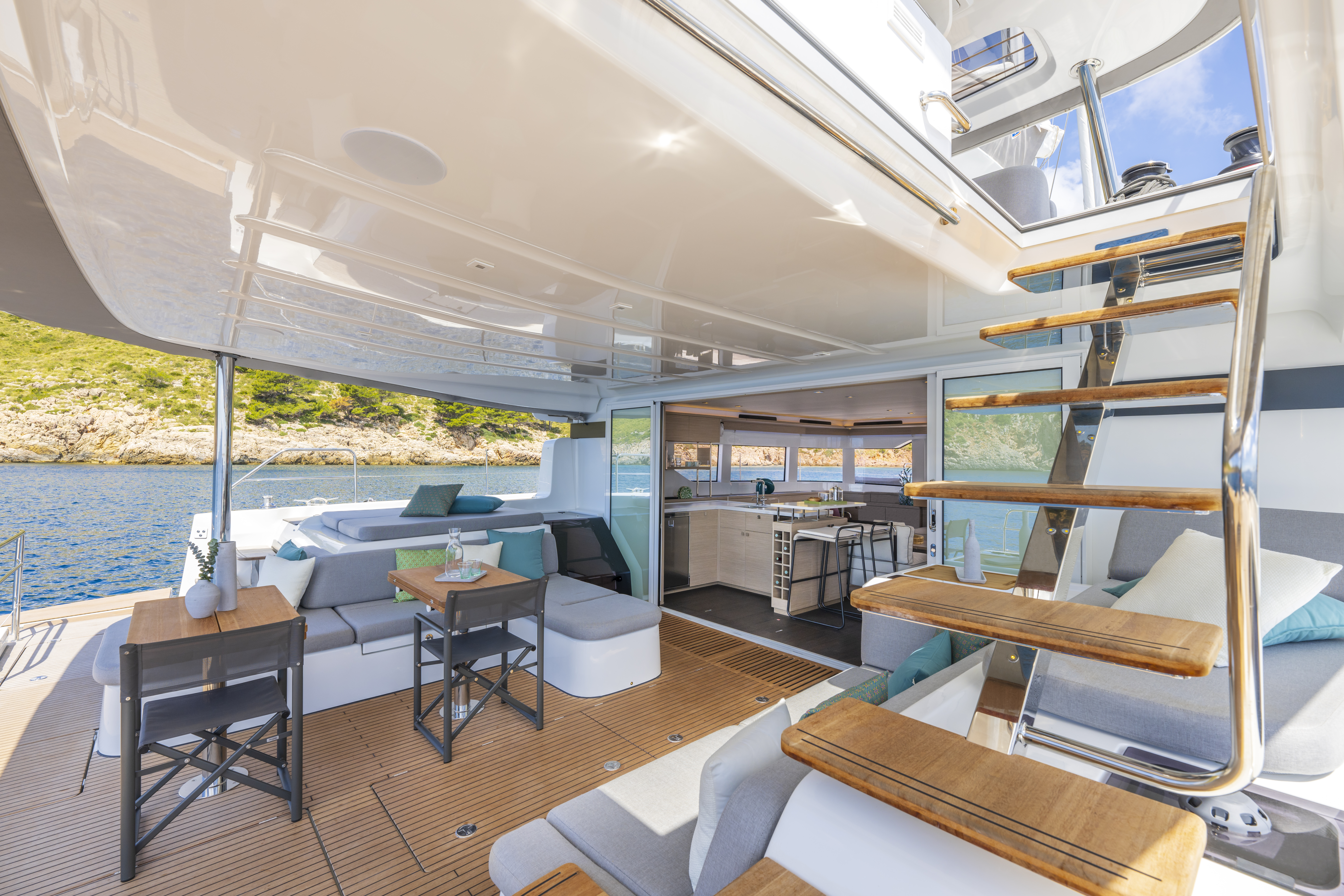

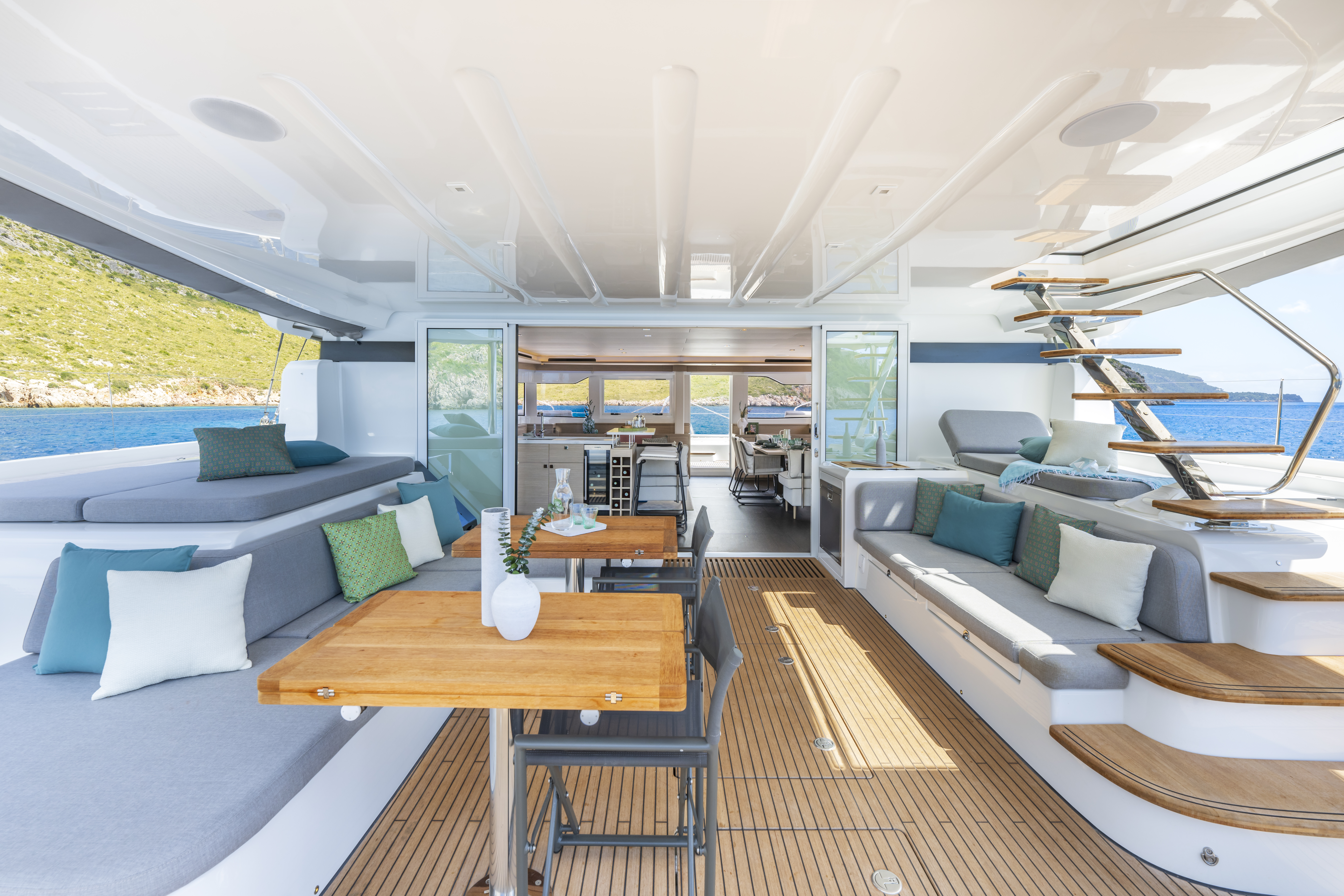

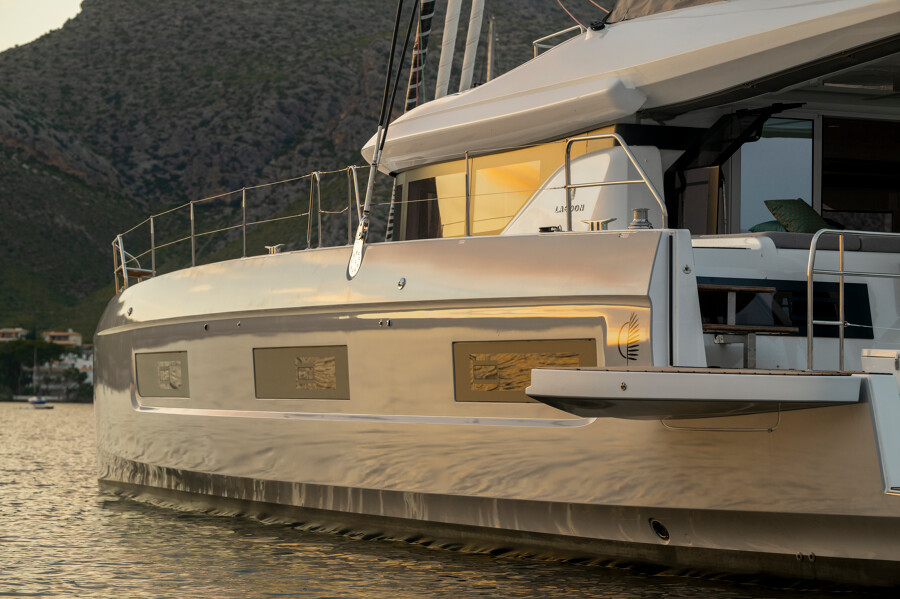

For reliable, welcoming access on board, angled steps lead naturally from the aft swim platforms to the cockpit. A new feature for Lagoon, the aft terraces open out, opening the cockpit to the sea at the sides, augmenting living space at anchor while providing additional access to the sea.

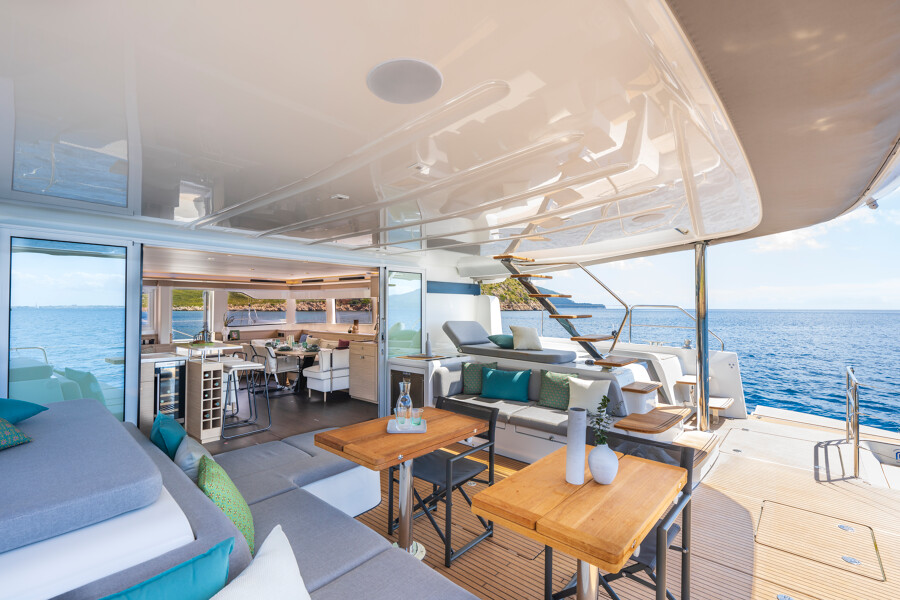

Flush flooring leads continuously from the aft cockpit, through the salon, to the forward cockpit. The additional access forward from the salon connects living spaces and enables easy, fluid access to the forward cockpit, a really popular spot on the yacht for relaxing and entertaining.

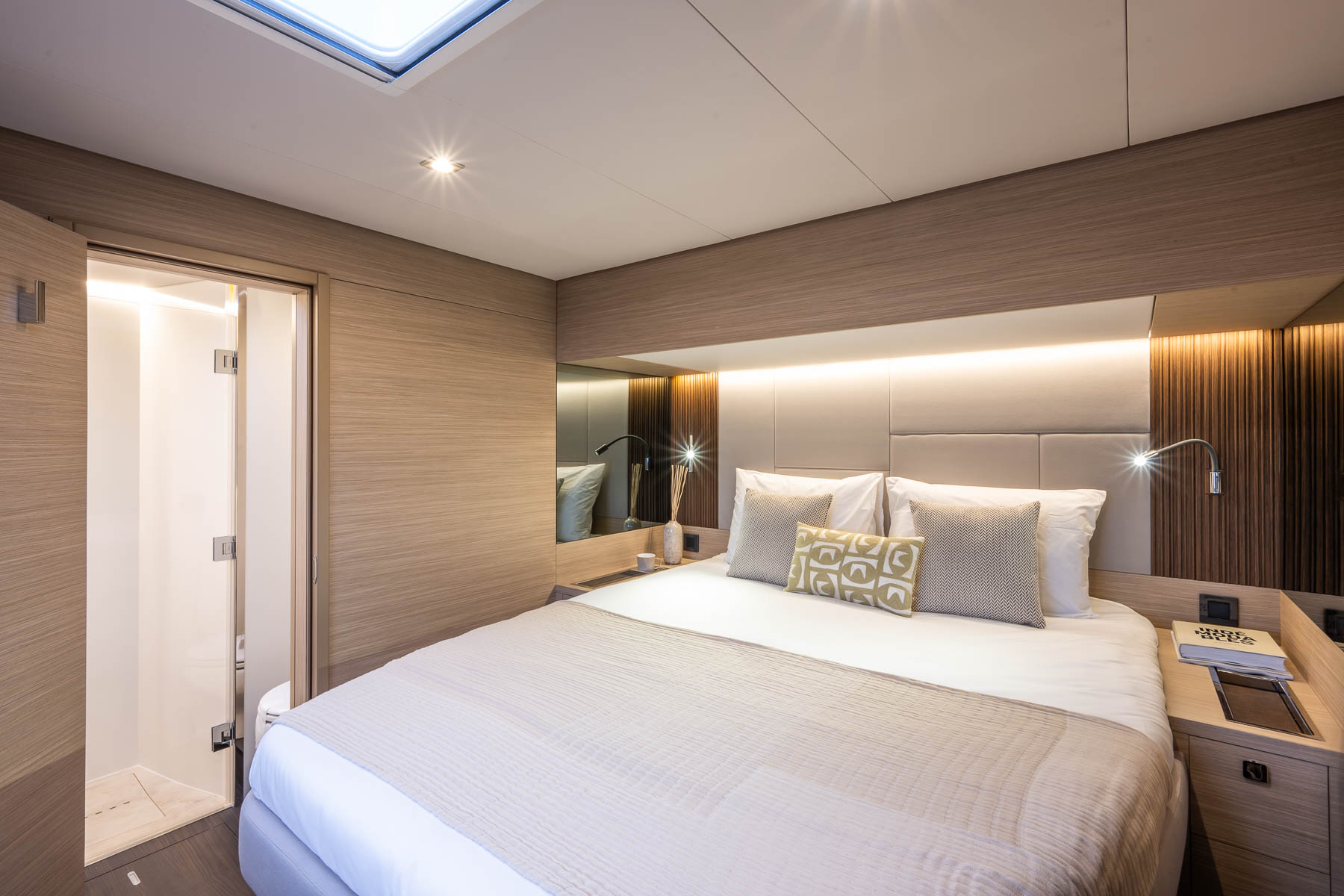

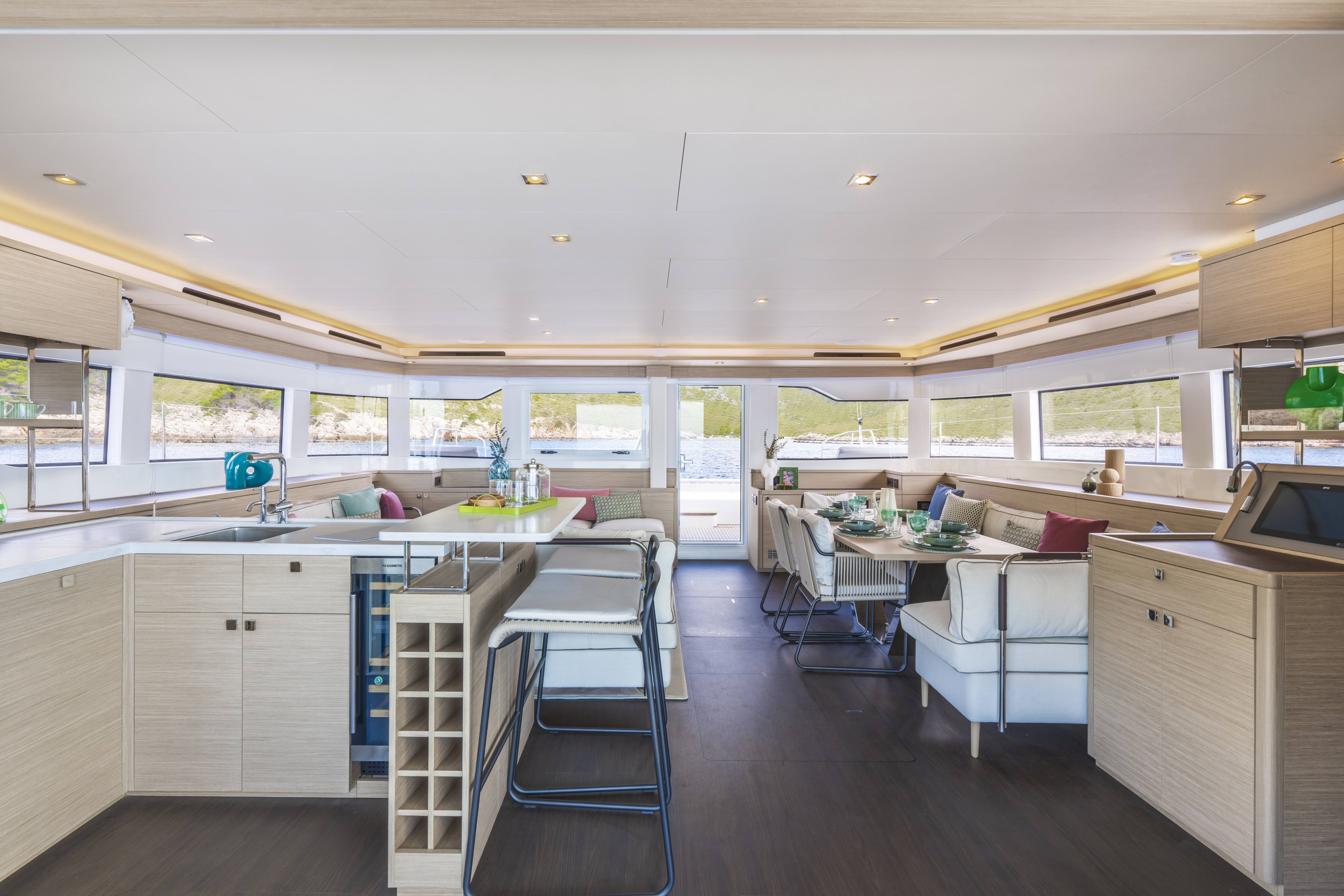

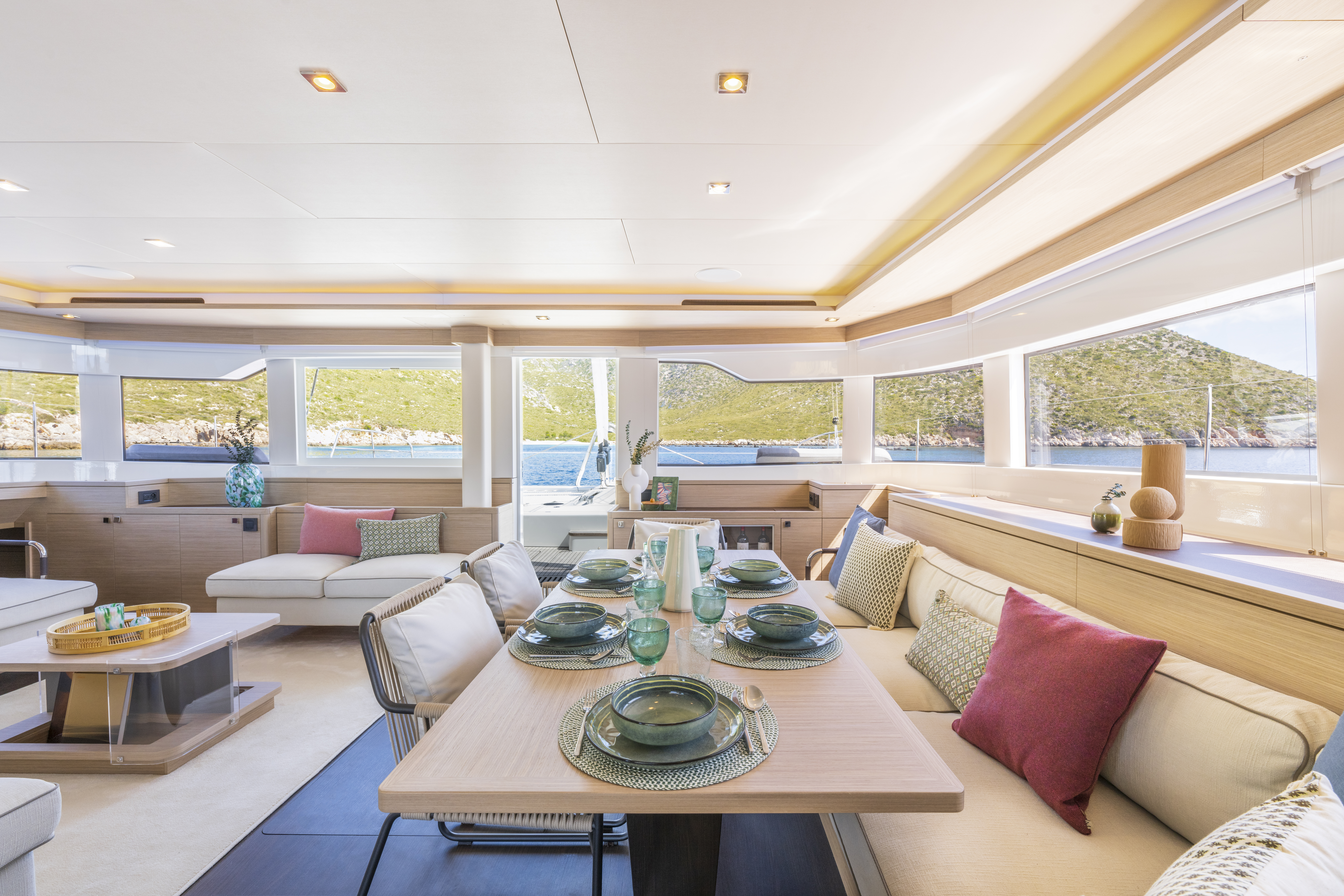

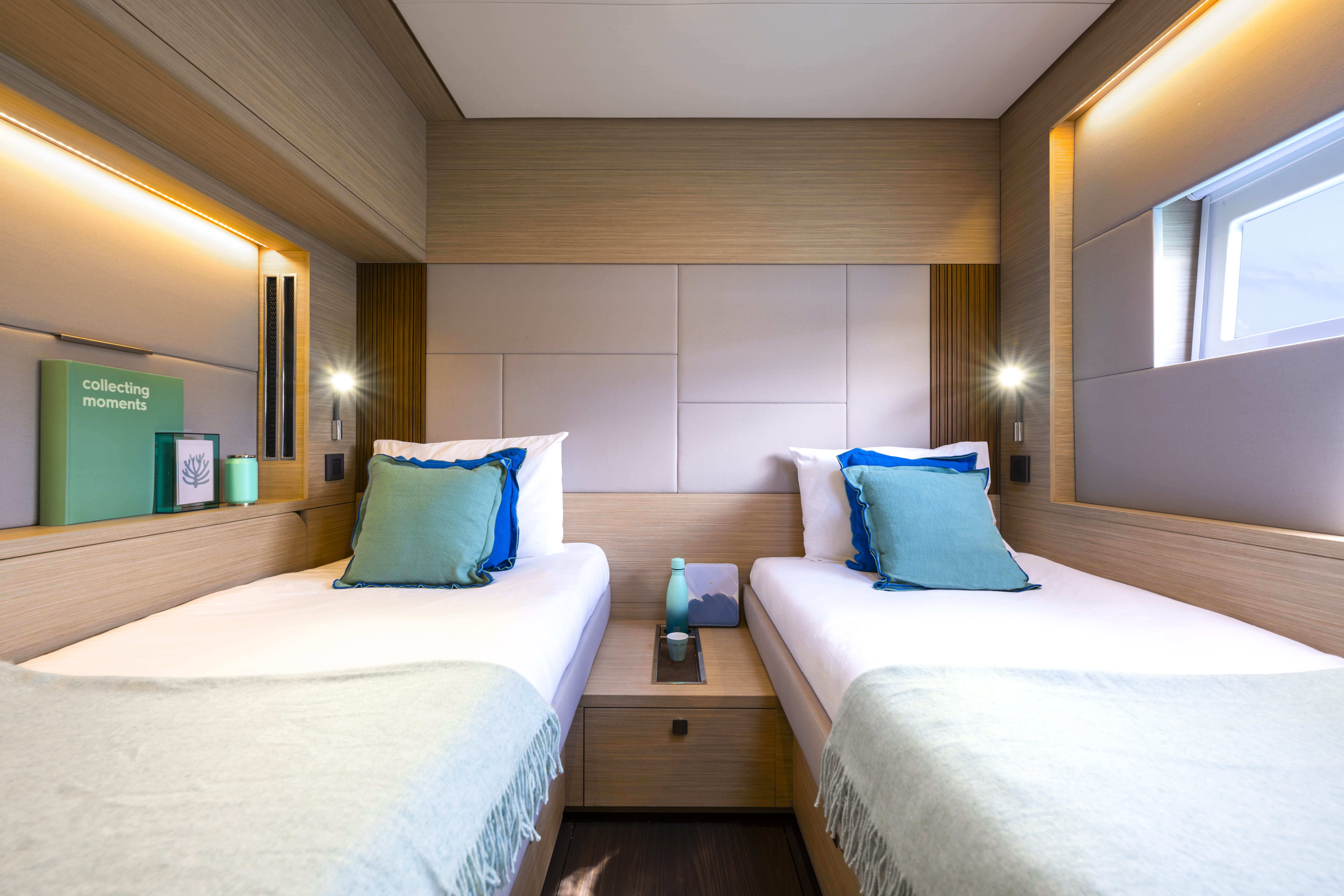

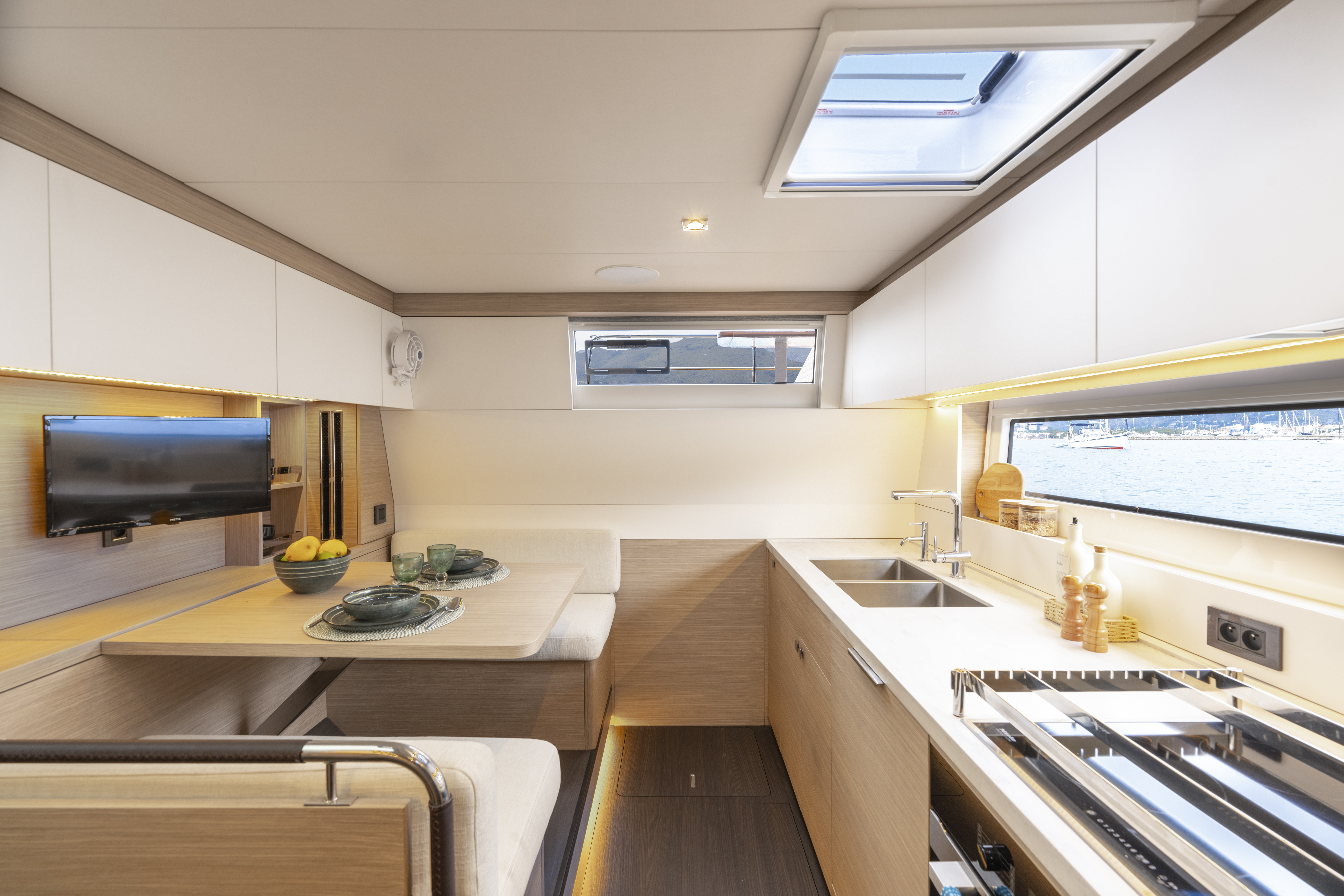

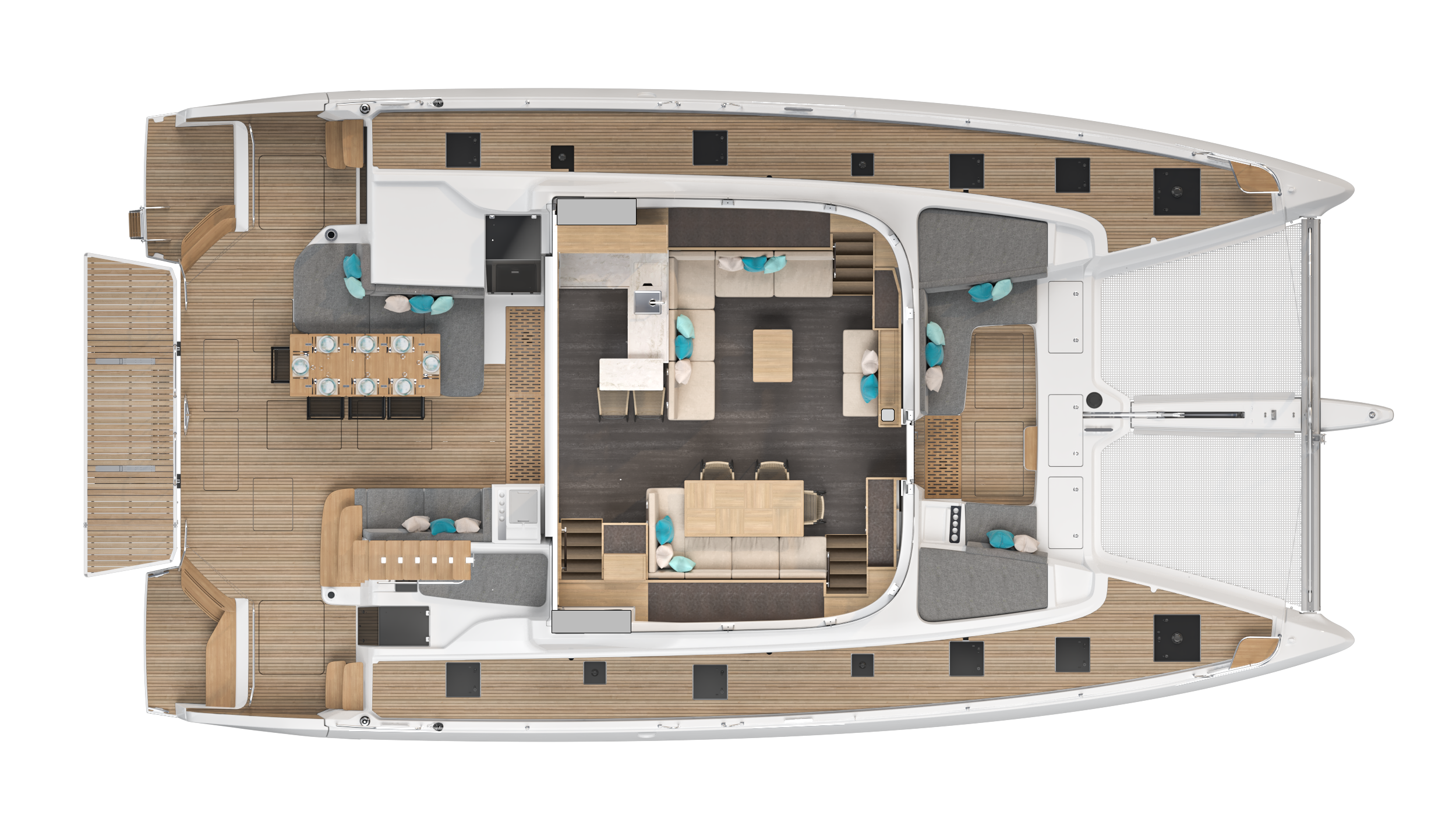

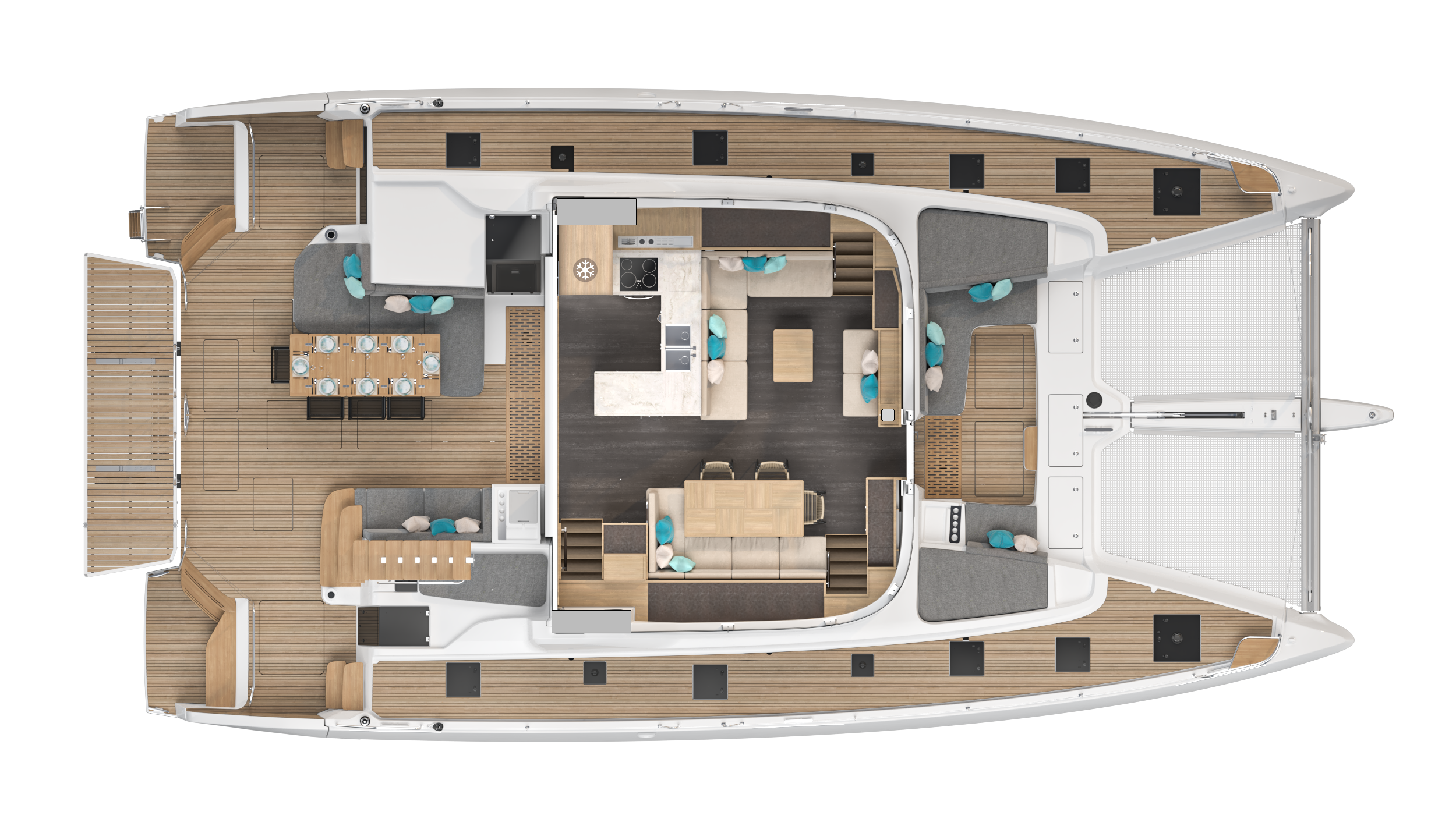

The entirely modular salon is turned toward the exterior views. Two configurations are available, galley down and galley up. Five cabin or four cabin configurations are available in the lower hulls.
Flush flooring leads continuously from the aft cockpit, through the salon, to the forward cockpit. The additional access forward from the salon connects living spaces and enables easy, fluid access to the forward cockpit, a really popular spot on the yacht for relaxing and entertaining.
The entirely modular salon is turned toward the exterior views. Two configurations are available, galley down and galley up. Five cabin or four cabin configurations are available in the lower hulls.
ENGINES
2 diesel engines YANMAR 4LV150 150CV SailDrive
Fixed 4-blade propeller
Sea water filter
Electrical engine throttles at the helm station
Engine compartment ventilation: 24V electrical extraction in the aft transom
TANKAGE
Fresh water capacity 960 L / 254 US gal
Fuel capacity 1,300 L / 343 US ga
2 diesel engines YANMAR 4LV150 150CV SailDrive
Fixed 4-blade propeller
Sea water filter
Electrical engine throttles at the helm station
Engine compartment ventilation: 24V electrical extraction in the aft transom
TANKAGE
Fresh water capacity 960 L / 254 US gal
Fuel capacity 1,300 L / 343 US ga
The full inventory and options will be published in January 2024 we can not wait to bring you details.
Sign in or register an account to start saving boats
Don't have an account? Register
Broker Comments
Since 1984, Lagoon has been opening the world’s seven seas with award winning multihulls. With nearly 7 000 yachts delivered around the world, experience and expertise have enabled Lagoon to become a leader in the construction of catamarans, with a range of ten models. The Lagoon 60 is the latest, an evolution of the popular Lagoon 55. With a galley up or down option she promises to be extremely popular.
