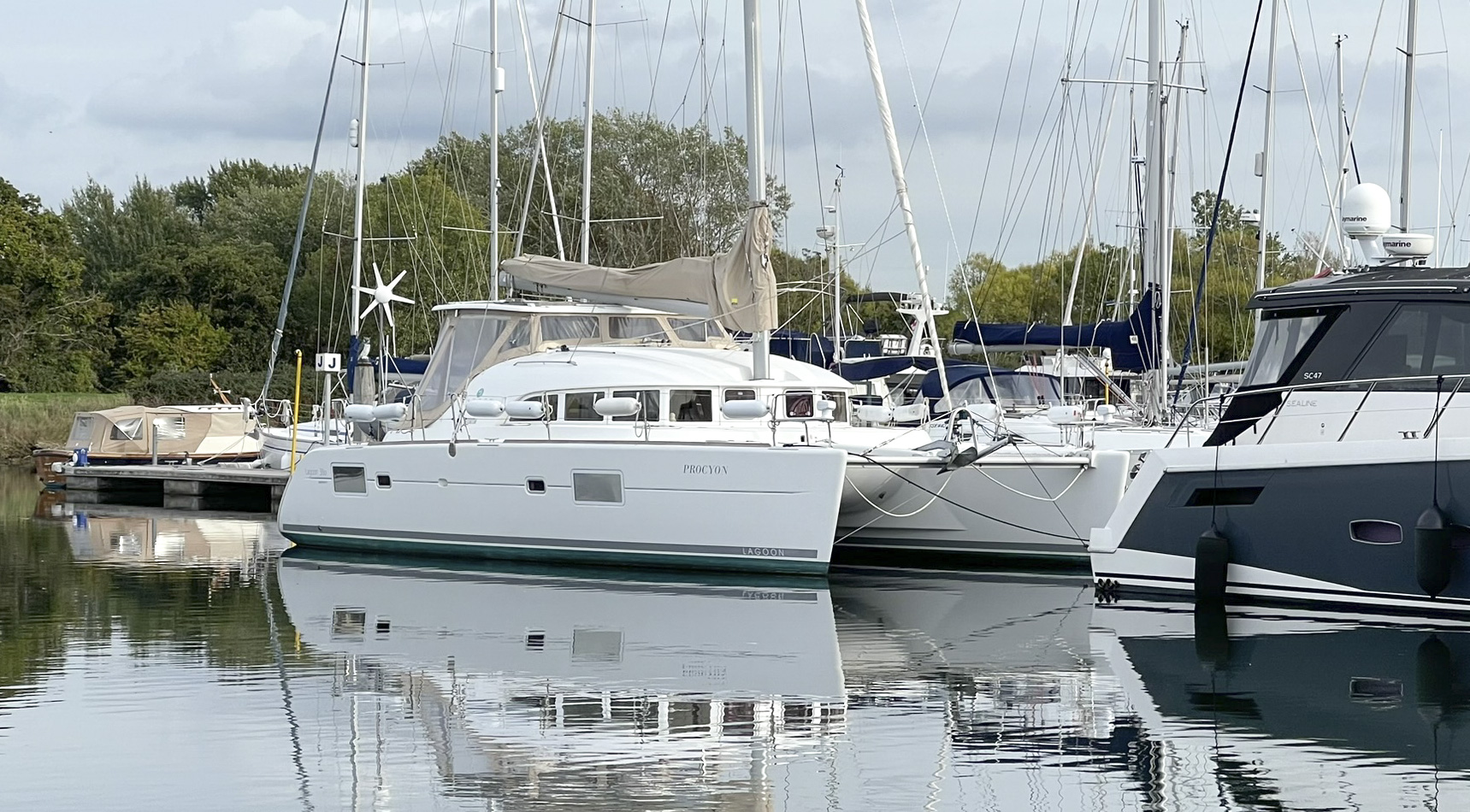

Lagoon 380 s2

189,000 Tax Paid | Chichester Marina United Kingdom
Enquire

Summary

  • Make Lagoon
  • Model 380 s2
  • Year 2010
  • LOA 38ft/12m
  • Class Multihull
  • Hull Glass Reinforced Plastic
  • Keel Multi-Hull
  • Rig Sloop
  • Engine Twin Diesel
  • Drive Sail Drive
  • Berths 6
  • Cabins 3
  • Aft Cabins 2
  • Ancasta Ref 33692

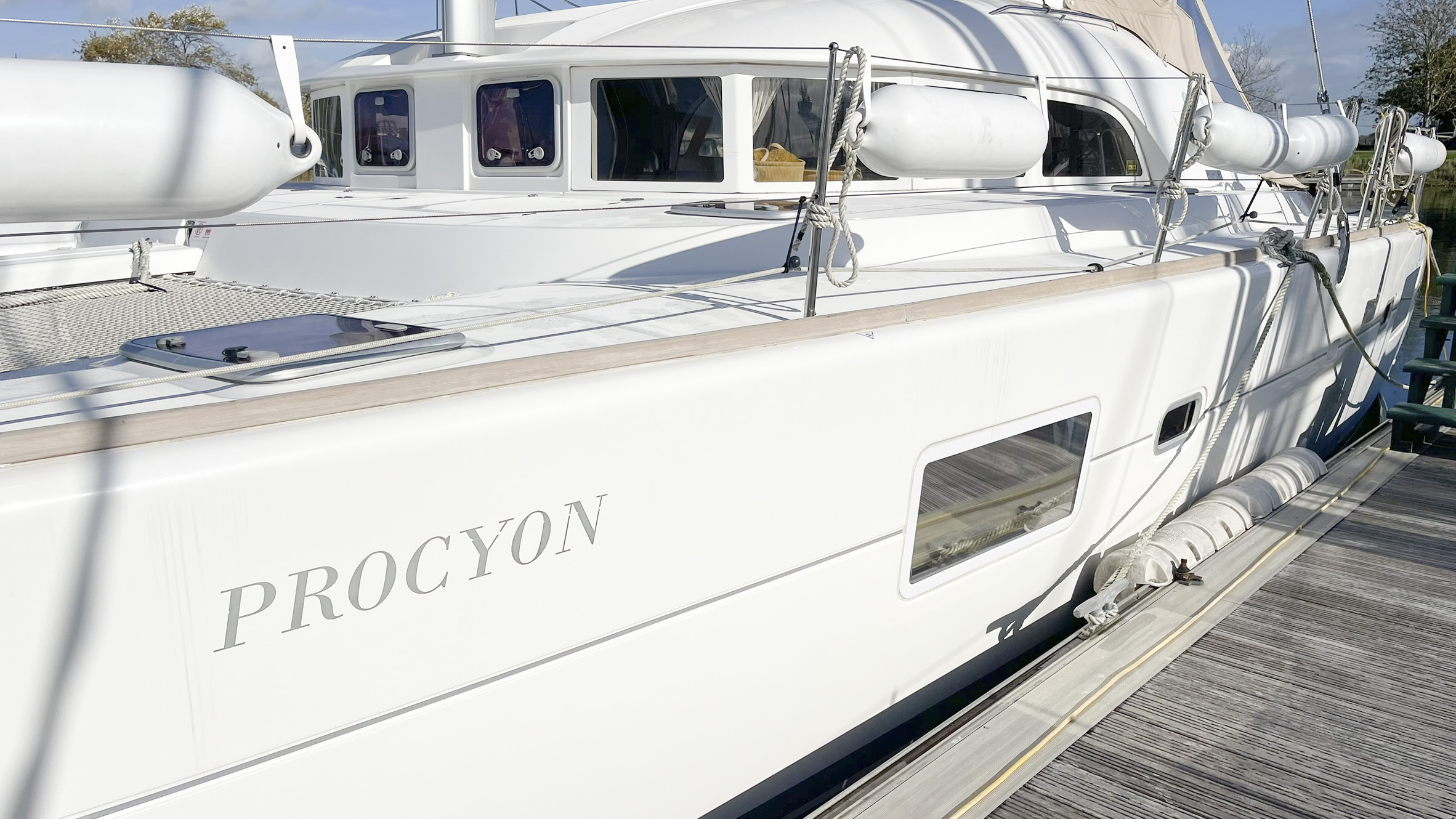

  • Name Procyon

Overview

Lagoon 380 s2. A very well presented UK MCA Coded 3 cabin version, of this enormously popular catamaran from 2010. With a capacity for eight(8) persons, the inventory includes a hard / fixed Bimini top, Dacron square top main and self-stow lazy bag, Gennaker with snuffer, ISO Charter eight(8) man MCA approved liferaft with Hydrostatic release, A full Raymarine Navigational suite including conning position MFD C140W, autopilot, flux gate compass, Echosounder, Anemometer, two station VHF(DSC) and ‘wireless’ remote helm control and navigational data monitor, AIS transiever, Garmin 500 secondary GPS and chart plotter. GN Espace four(4) ring stainless steel cooker/hob/grill, Corian galley worktop, Radio and CD player. LED lighting throughout and at aft access. Multiple solar panels and wind generator. Twin independent, Eberspacher D4LC3 heating systems. Twin Electric Jabsco Toilets, Twin bathrooms and showers Digital TV antenna within main deck and owners cabin. Sockets 230v and 12 v sockets throughout.

Please click on the following link to see her full 360 tour - https://my.matterport.com/show/?m=fFAxL4mXuKS

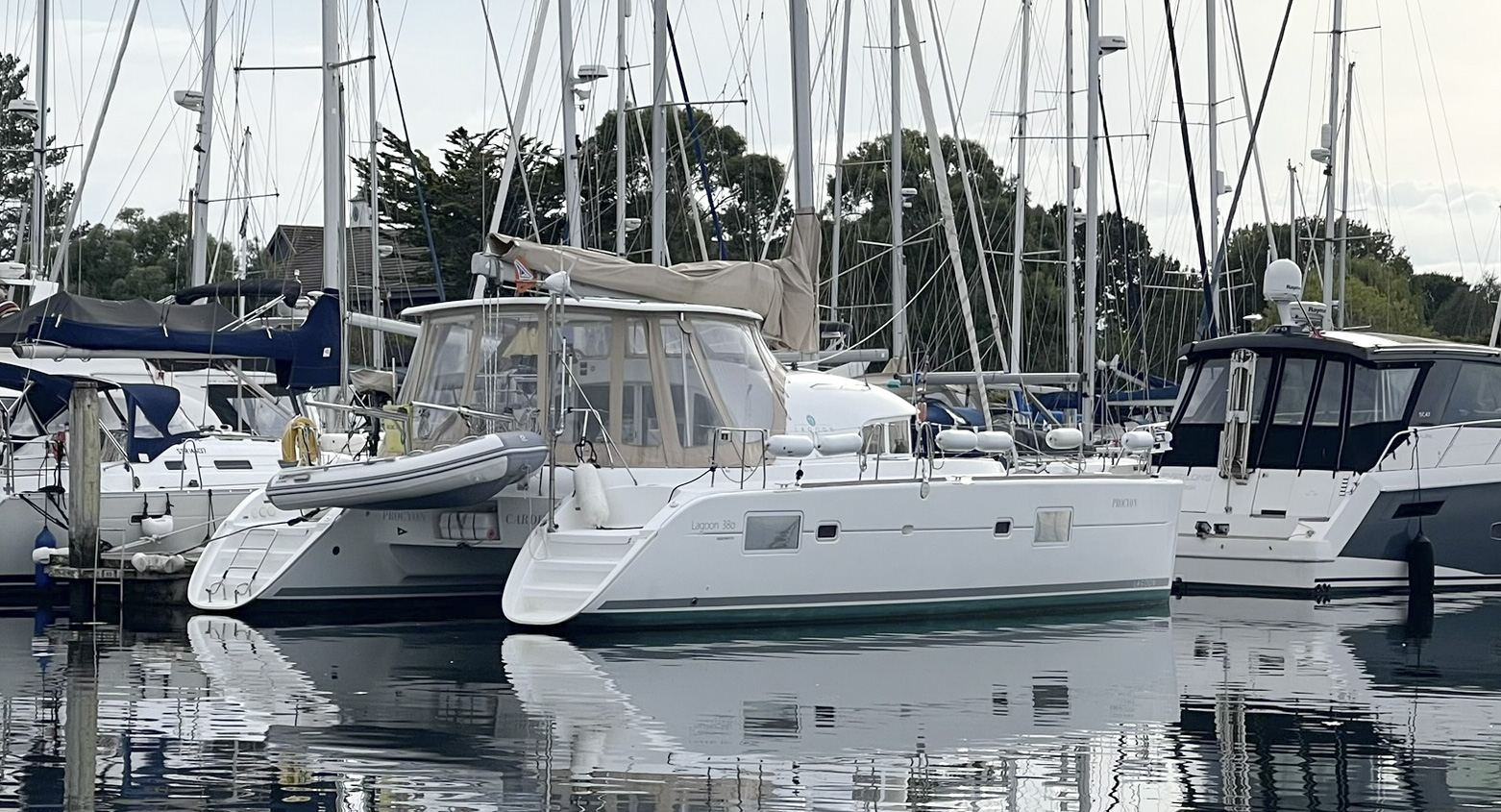

On the water at Chichester Marina she is available for viewing 7 days a week by appointment. Sold by Ancasta new to her current owner and tax paid.

360 Tour

Build

LAGOON 380 S2 BUILT IN 2010
Stunning catamaran in three cabin (owners version) layout.
Designed by Marc Van Peteghem and Vincent Lauriot Prevost
Built by Construction Navale Bordeaux / Lagoon, France

L.O.A. 37'11"/11.53M
BEAM 21'5"/6.53M
DRAFT 3'9"/1.15M
GROSS / NET TONNAGE 21.36
DISPLACEMENT (LIGHT EEC) 7260 Kg
SAIL AREA (MAIN AND GENOA) 82 SQ.m.
All figures are approximate.

CONSTRUCTION
White GRP hull and deck
Vinylester resin in outer hull and laminate
Balsa sandwich hull construction
Solid GRP below waterline
Spade rudders
Wheel steering with cable linkage
GRP long keels (part of hull moulding)
Boarding steps moulded into hull sides
Aft boarding steps and ladder on Port Hull
Vertical saloon windows, sliding saloon door and sliding galley window

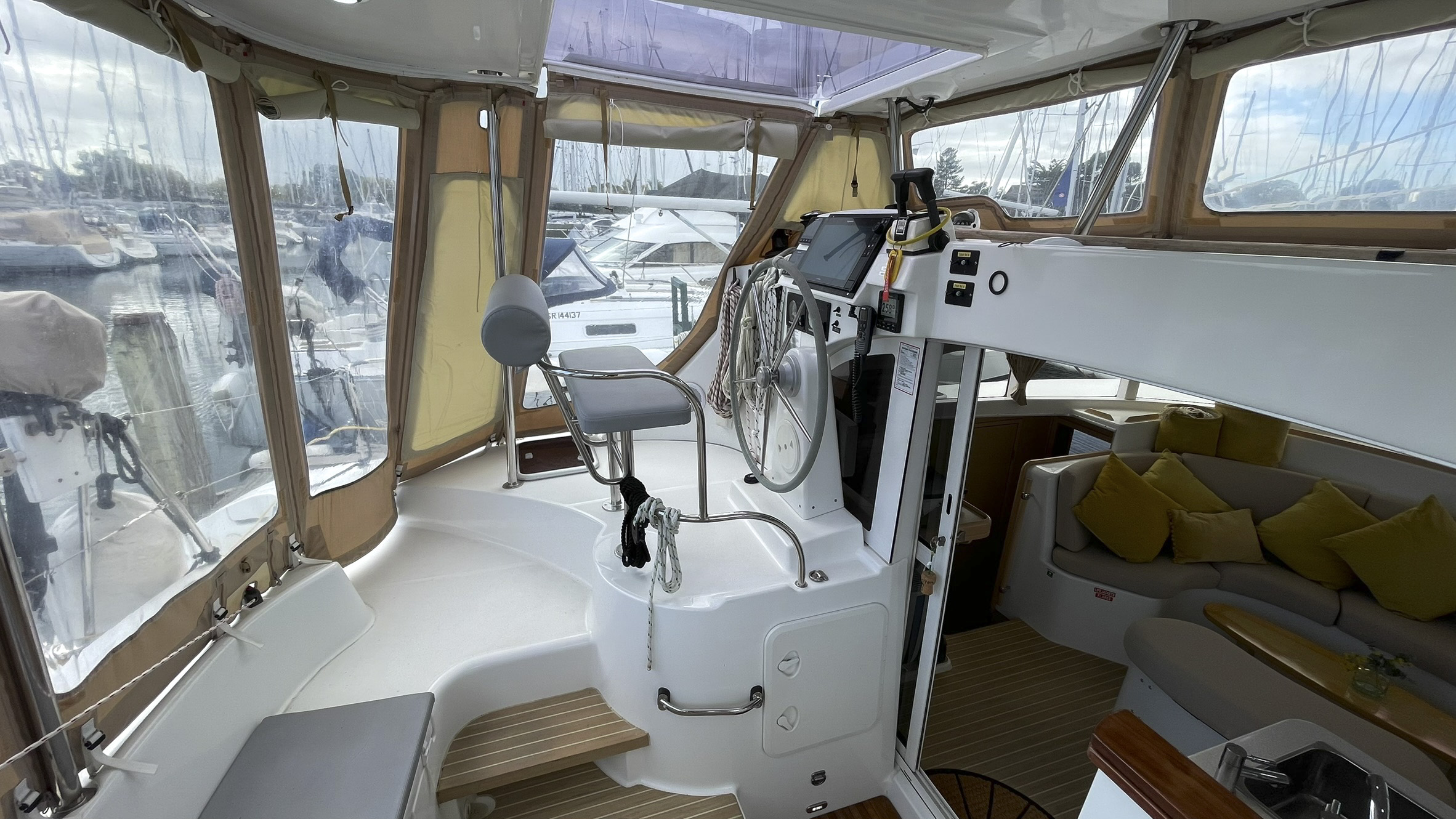

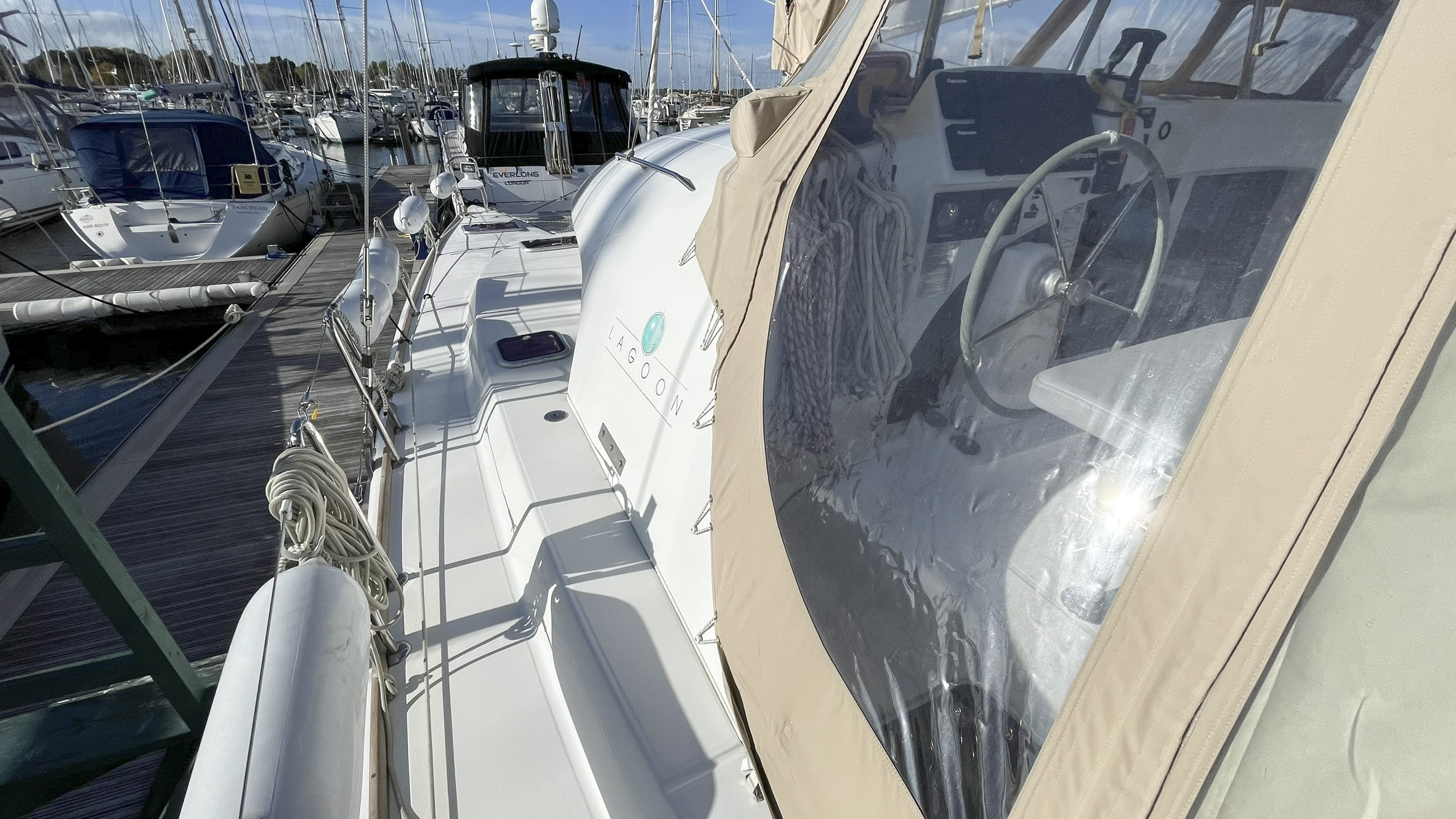

Helm station to port of main saloon door

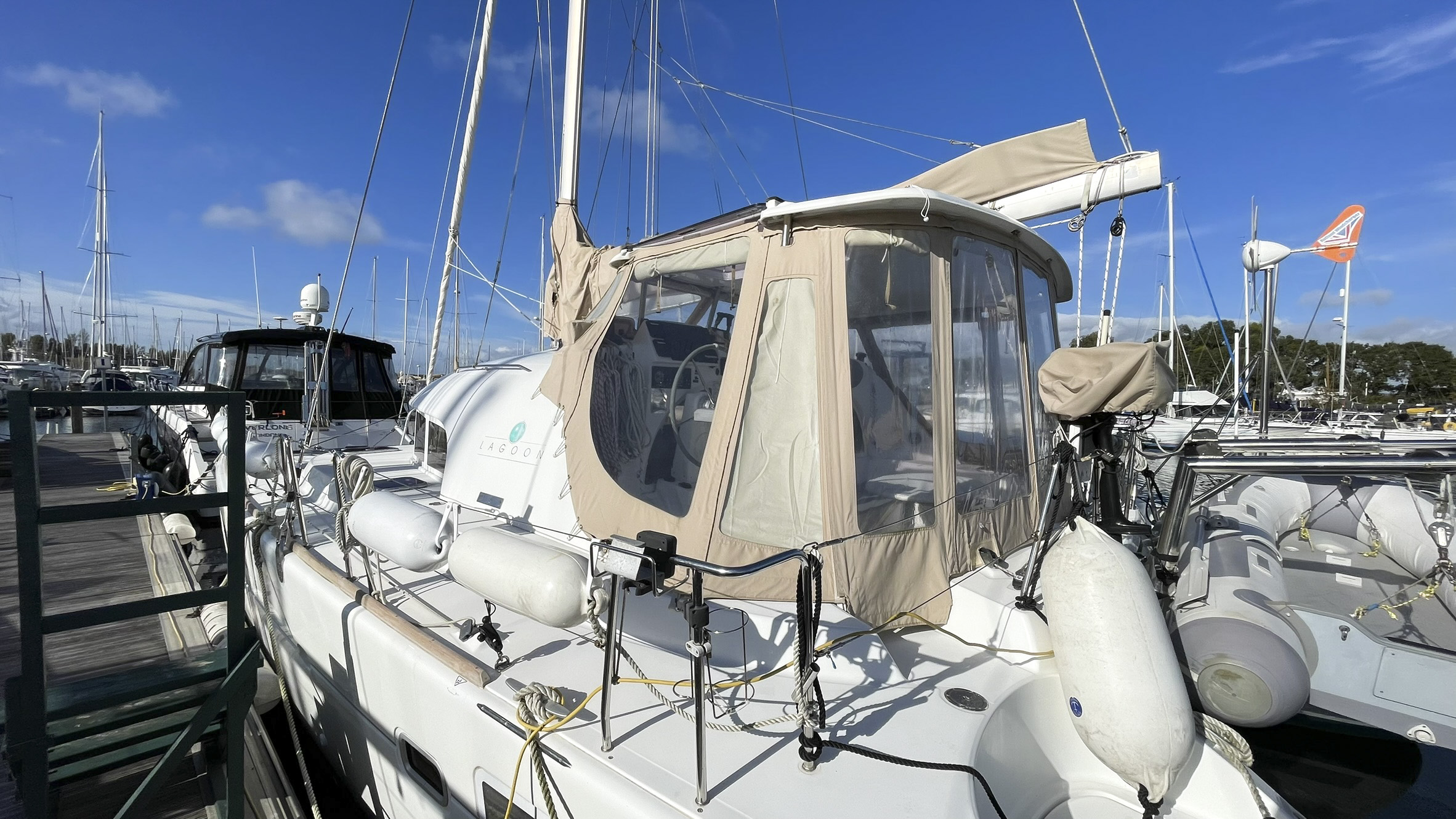

Manufactures installed hard Bimini top

Rig

SLOOP RIG
49'/ 15m anodised aluminium mast with mainsail track and luff cars
Single integral mast spreaders
Anodised aluminium boom
Double purchase main halyard to conning position
Main topping lift to conning position
Main sheet to conning position
Main sheet purchase quarter deck sliding / adjustable car
Twin mainsail reefing lines to conning position
Genoa halyard
Genoa furling line
Genoa sheets
Gennaker halyard to Stbd winch
Gennaker sheets
Storm Jib with sheets
Nine manual release locking cleats
Lazy bag and adjustable lazy jacks


SAILS
Square top mainsail (fully battened) approx. 560 sq. ft. / 52 sq. m
Furling Genoa area approx. 323 sq. ft / 30 sq. m. with UV protective strip
Gennaker with snuffer
Storm jib

WINCHES

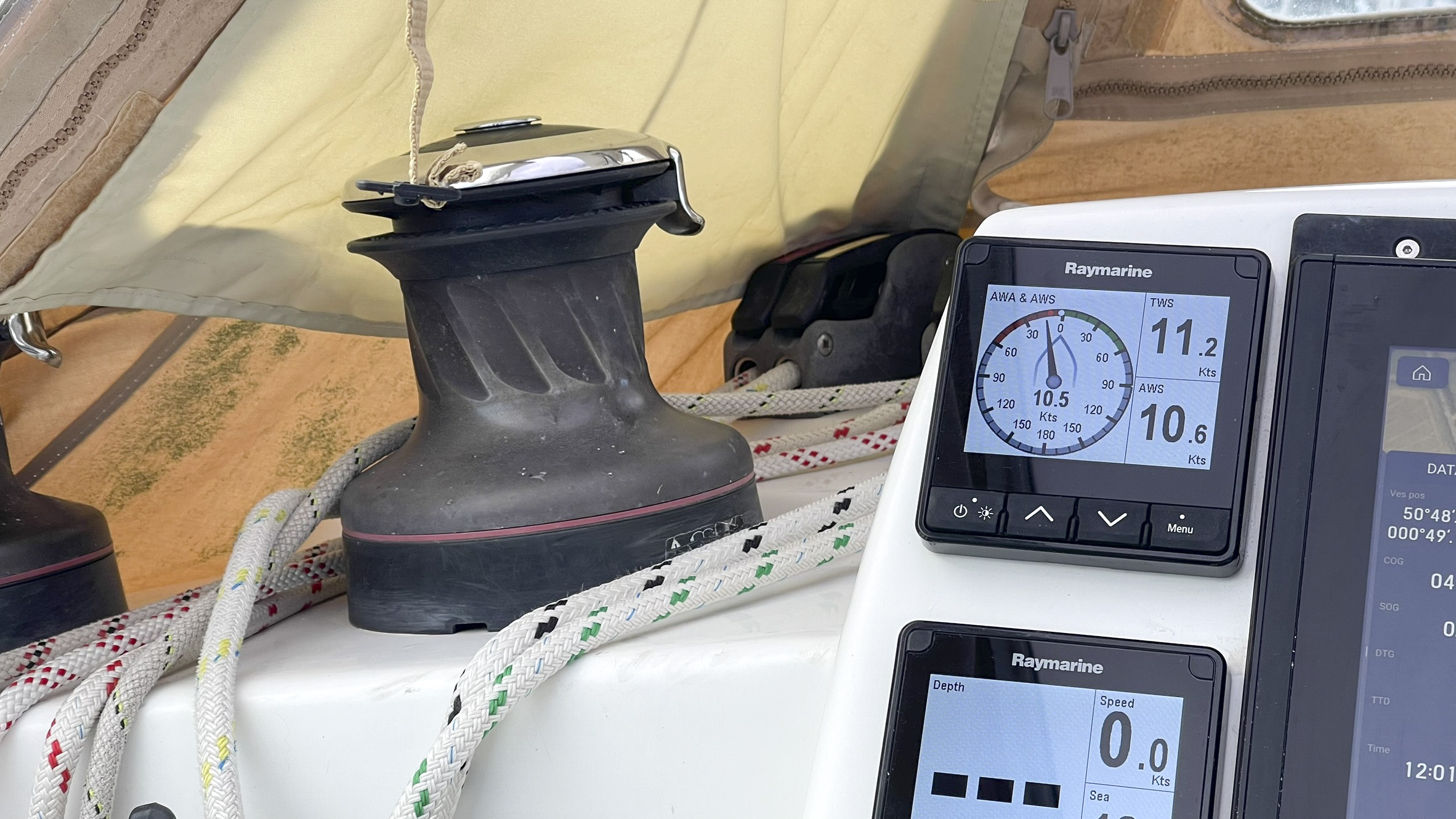

1 off Harken electric 46.2 STEAH (with two speed foot controls)
2 off Harken manual winches Port and Stbd with winch handles

Accommodation

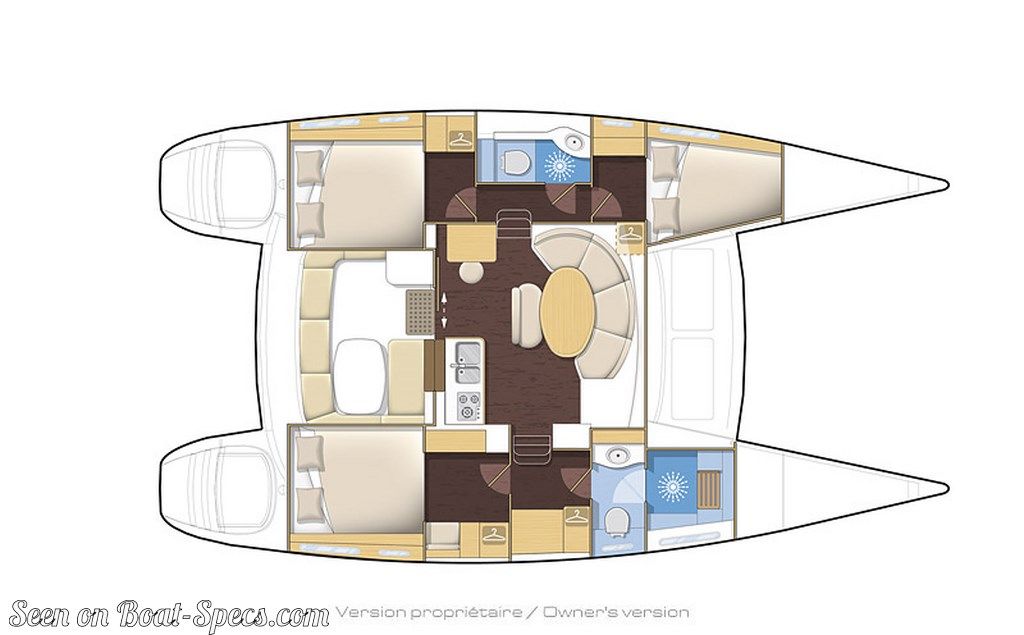

SLEEPS EIGHT IN THREE CABINS PLUS SALOON

STARBOARD HULL

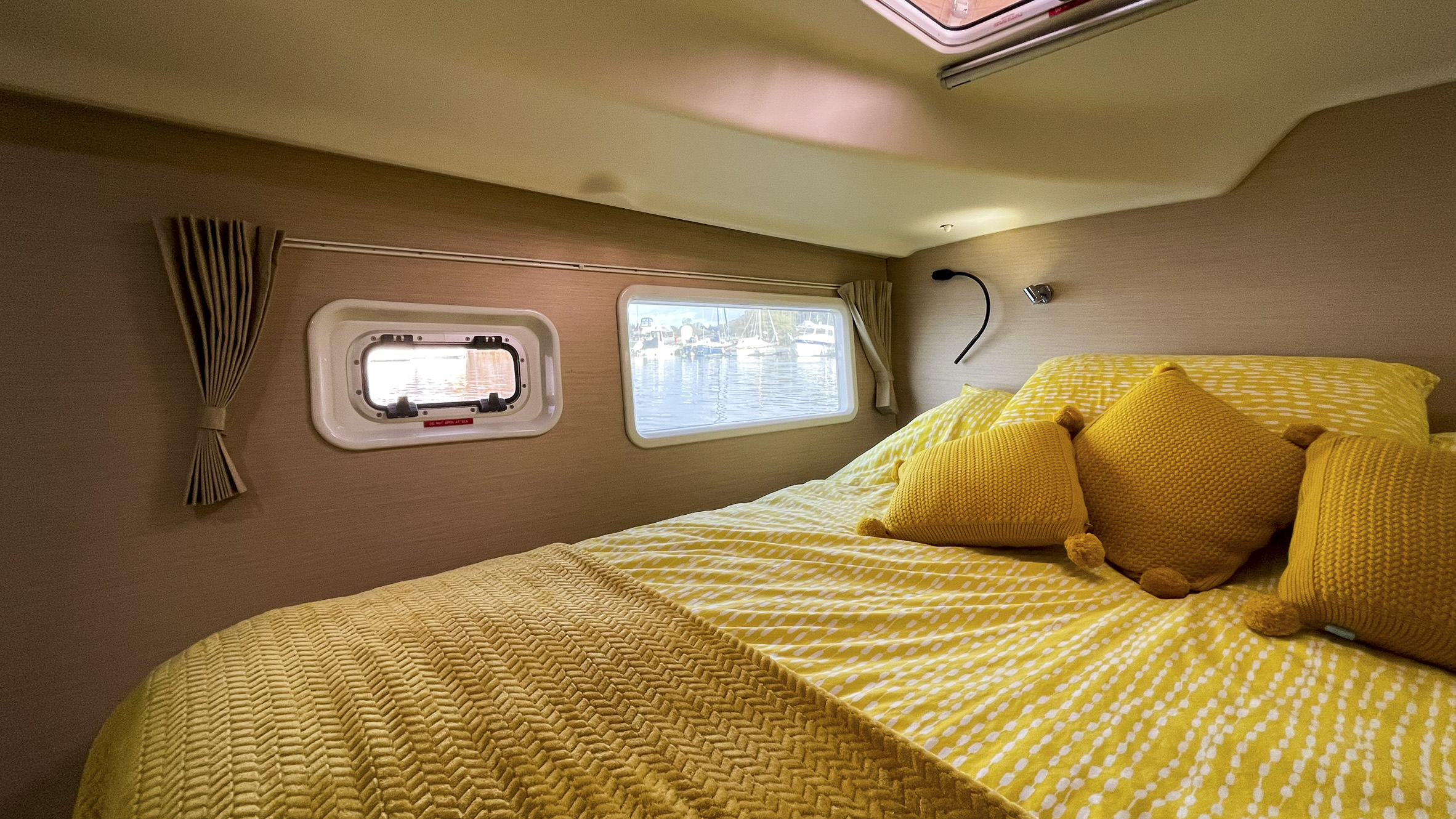

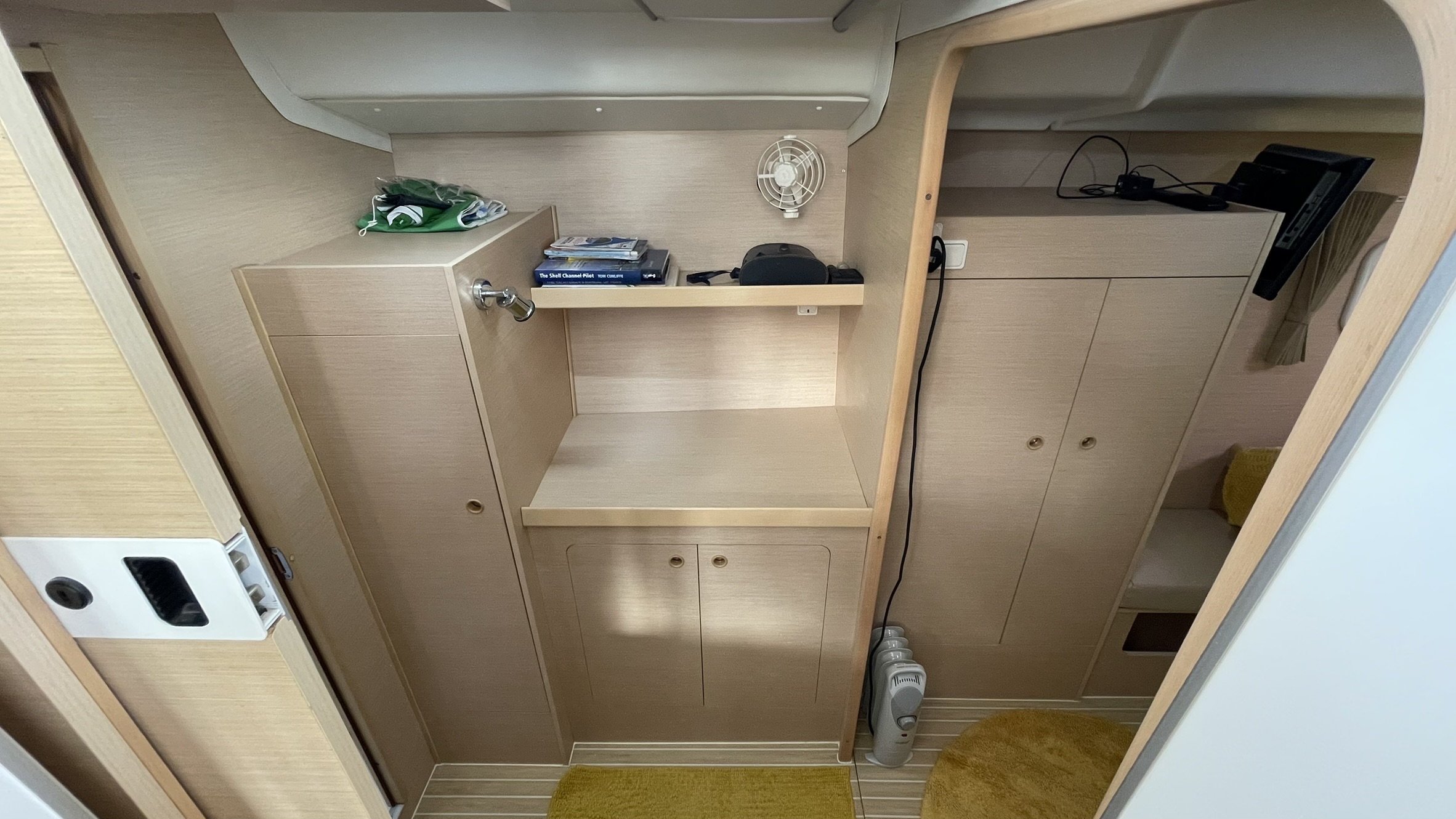

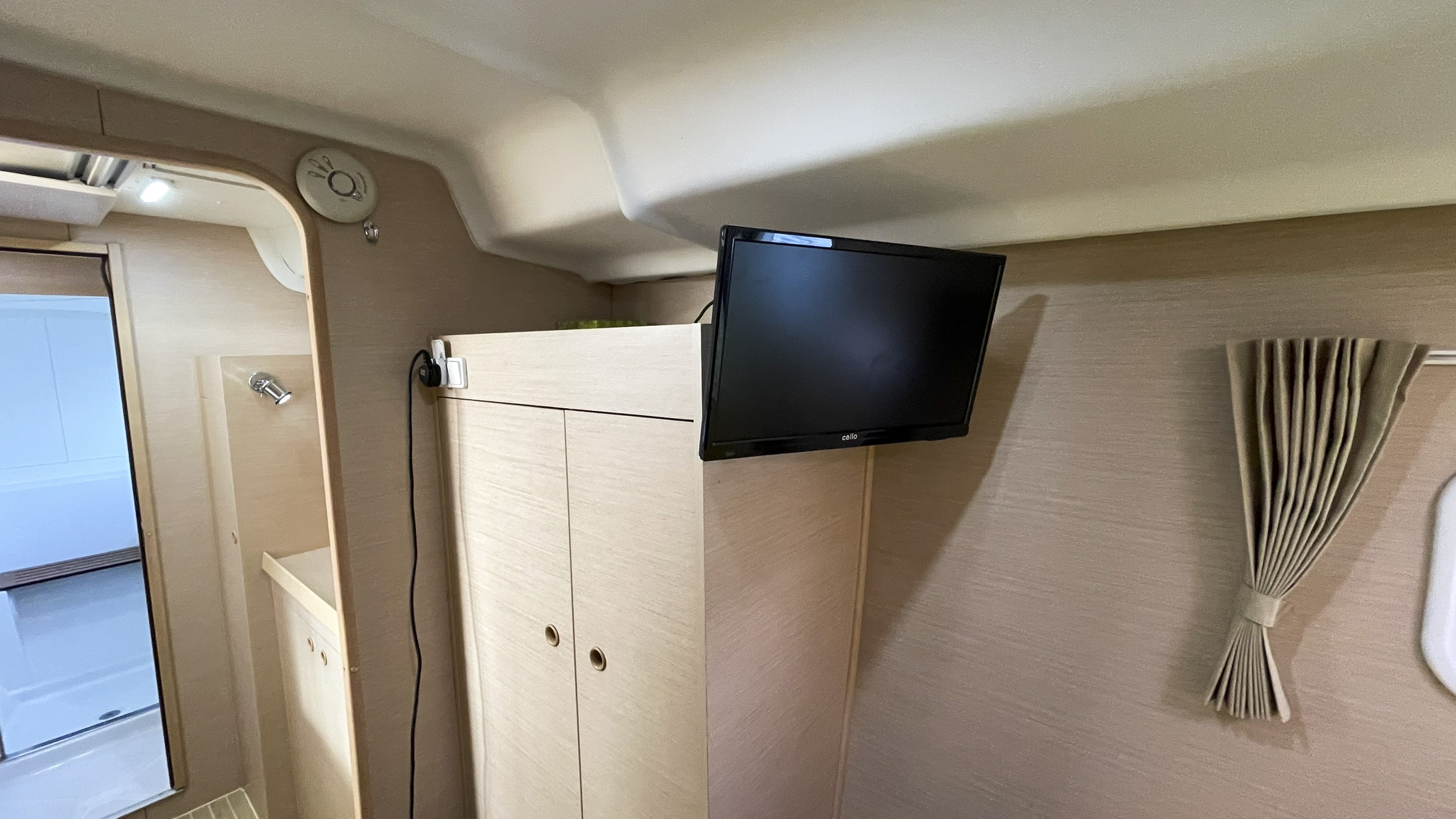

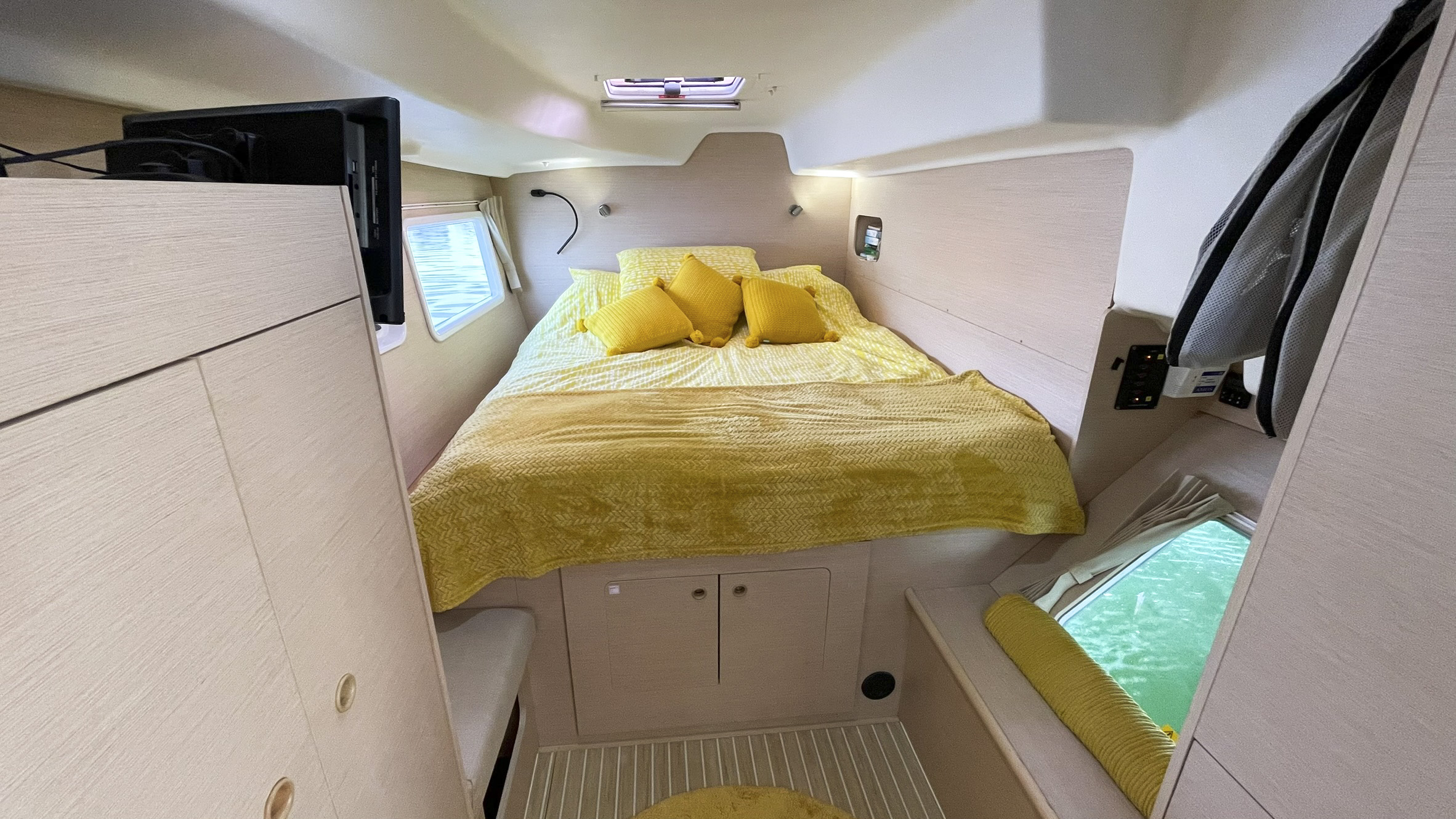

Owner's suite to starboard with king size bunk / cabin aft, panoramic window with privacy screen, openable porthole, Deckhead openable skylight.

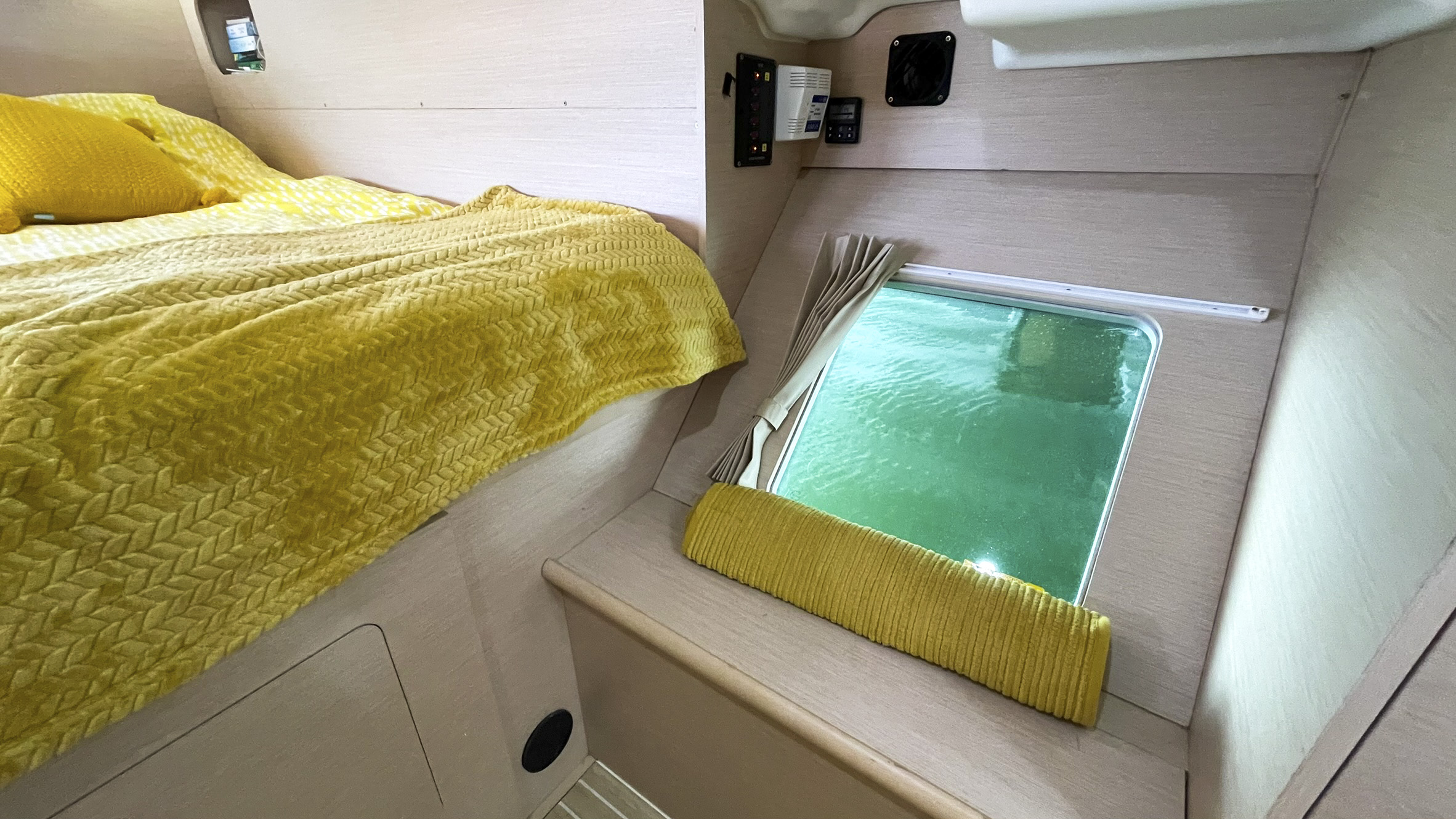

Two large hanging wardrobes, shelf storage, two locker storage, 2 m3 below bunk storage,

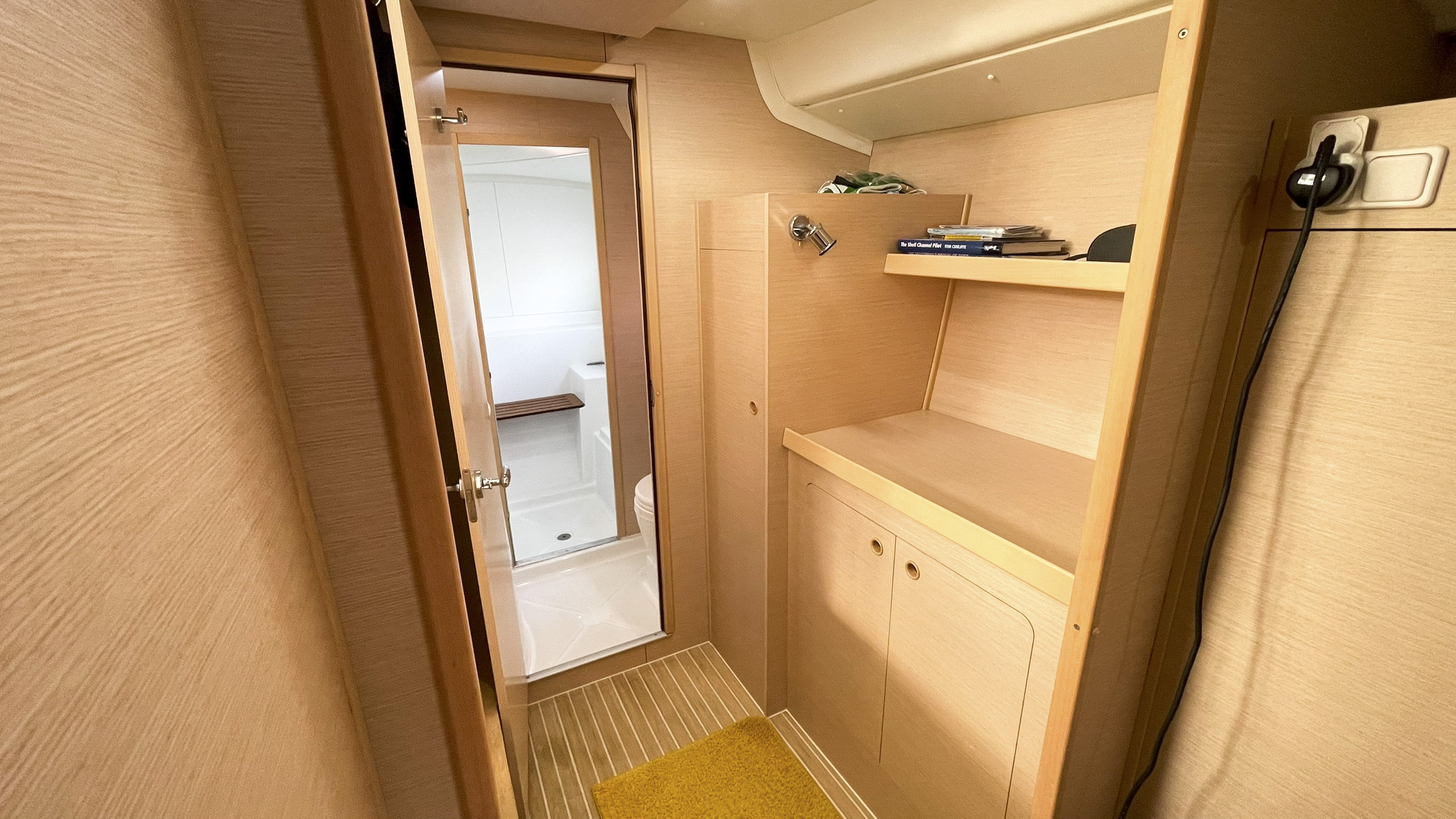

Office/dressing area with shelves and desk. One(1) desk light and one(1) deckhead LED touch sensitive low profile strip light.

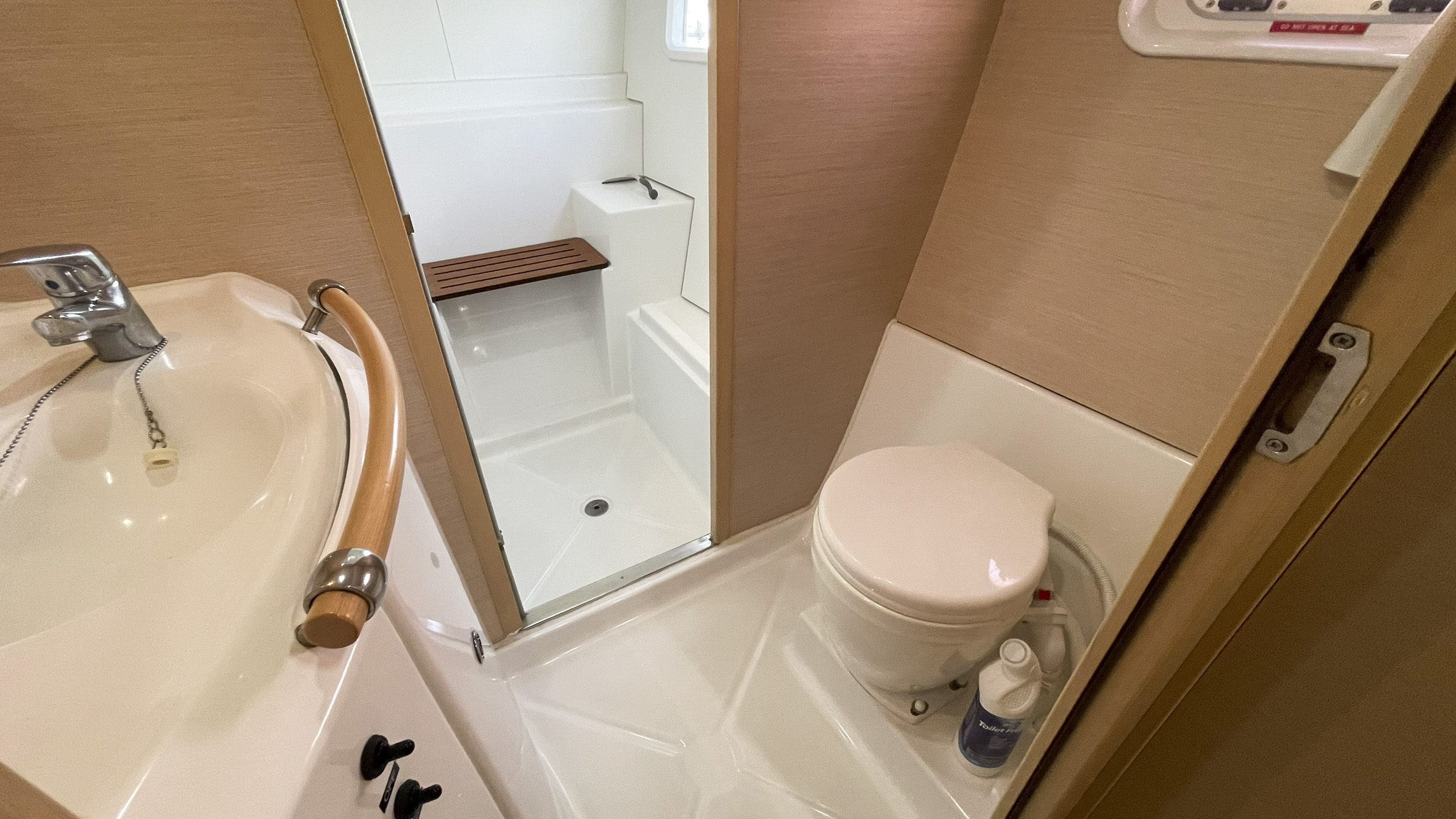

A large head with Lite flush 12v Jabsco toilet, openable porthole.

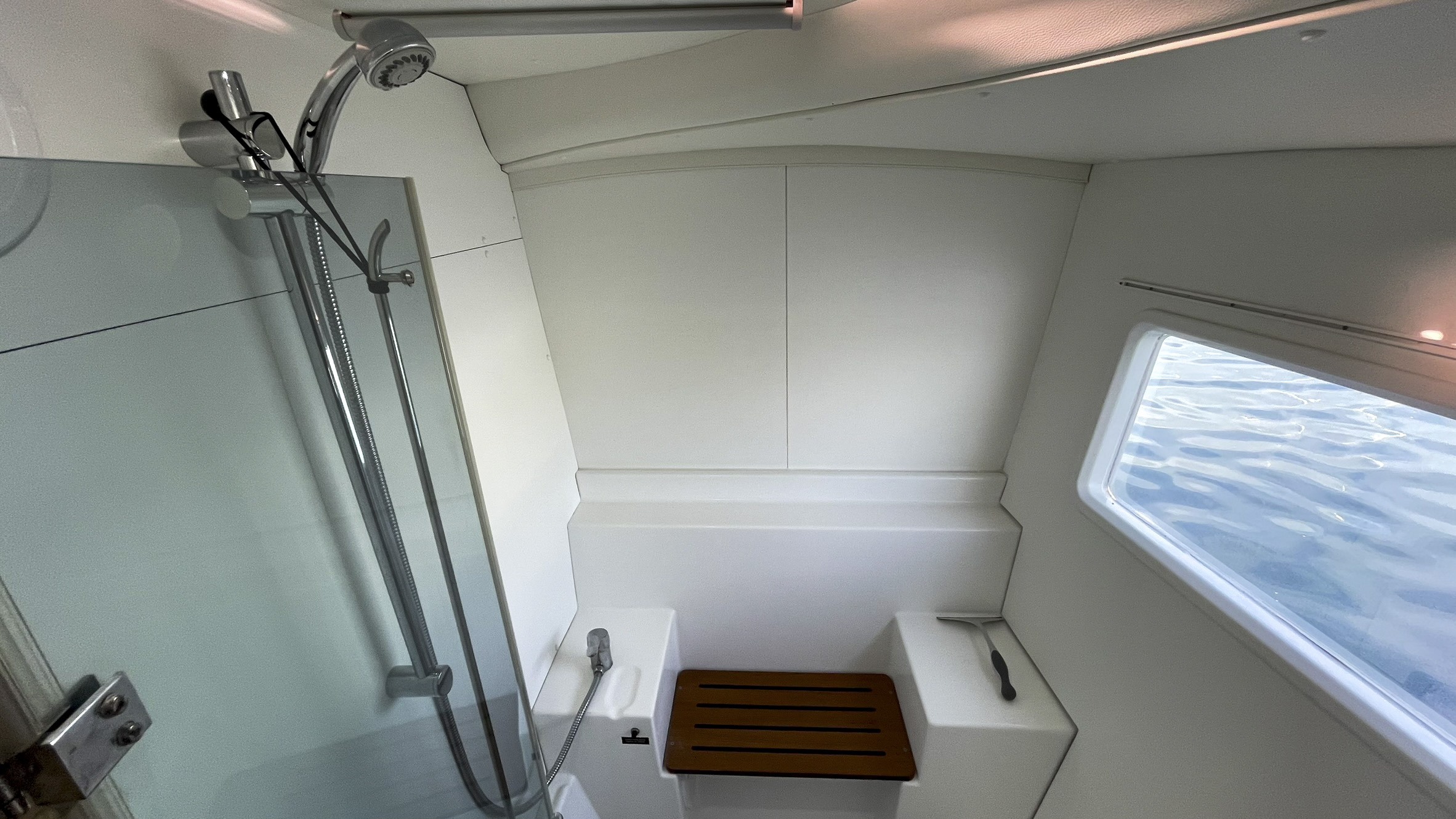

Separate large shower area forward with panoramic window with privacy screen, openable deck skylight.
230v and 12v sockets with twin USB charging point adjacent to bunk shelf.
One(1) bunk LED reading light fitted for optional white/red night vision lighting.
Two(2) bunk general reading lights
Stbd Eberspacher D4LC 3 outlet heating to cabin and bathroom area, with independent heating and timer control for stbd hull.

PORT HULL

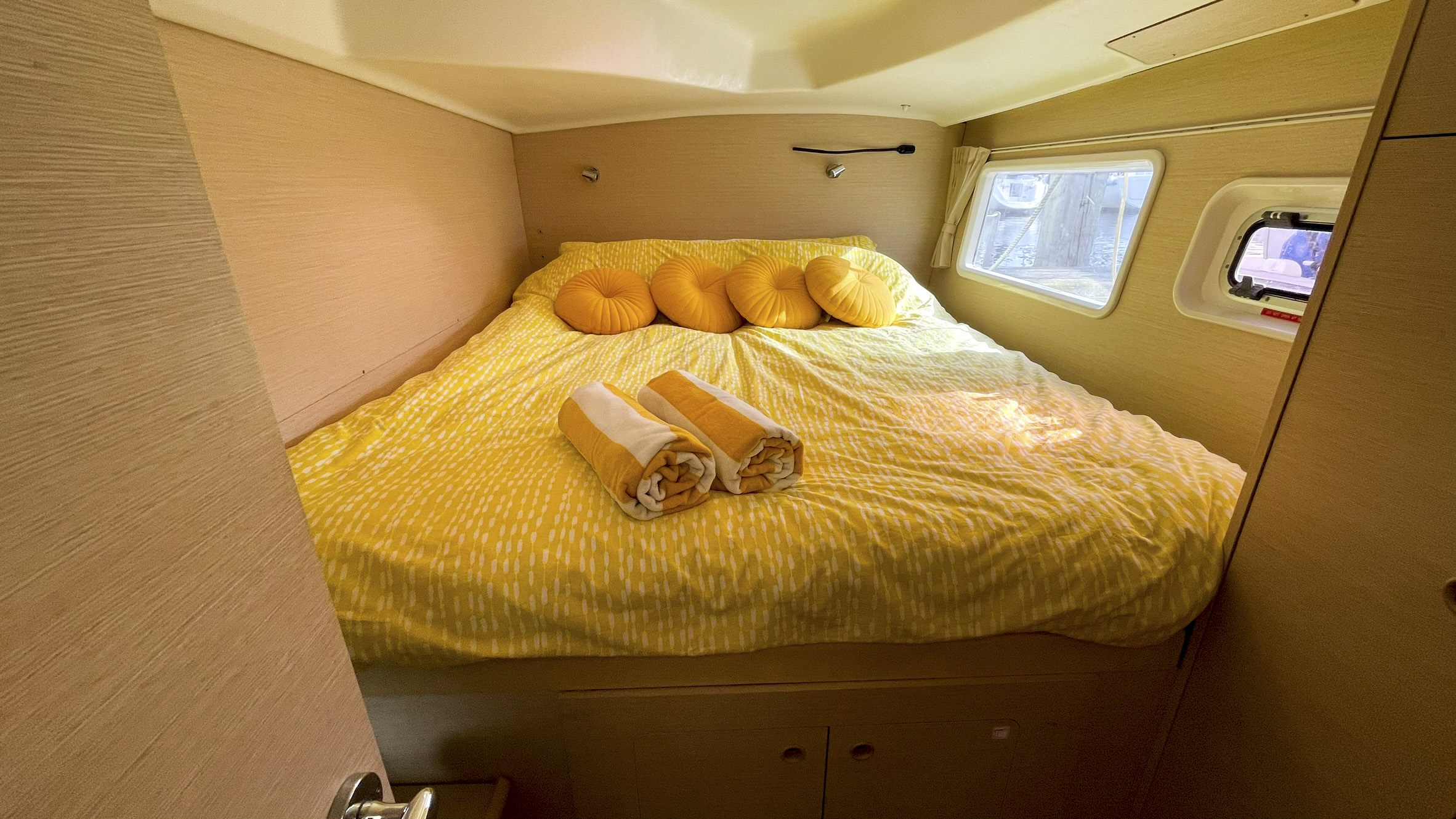

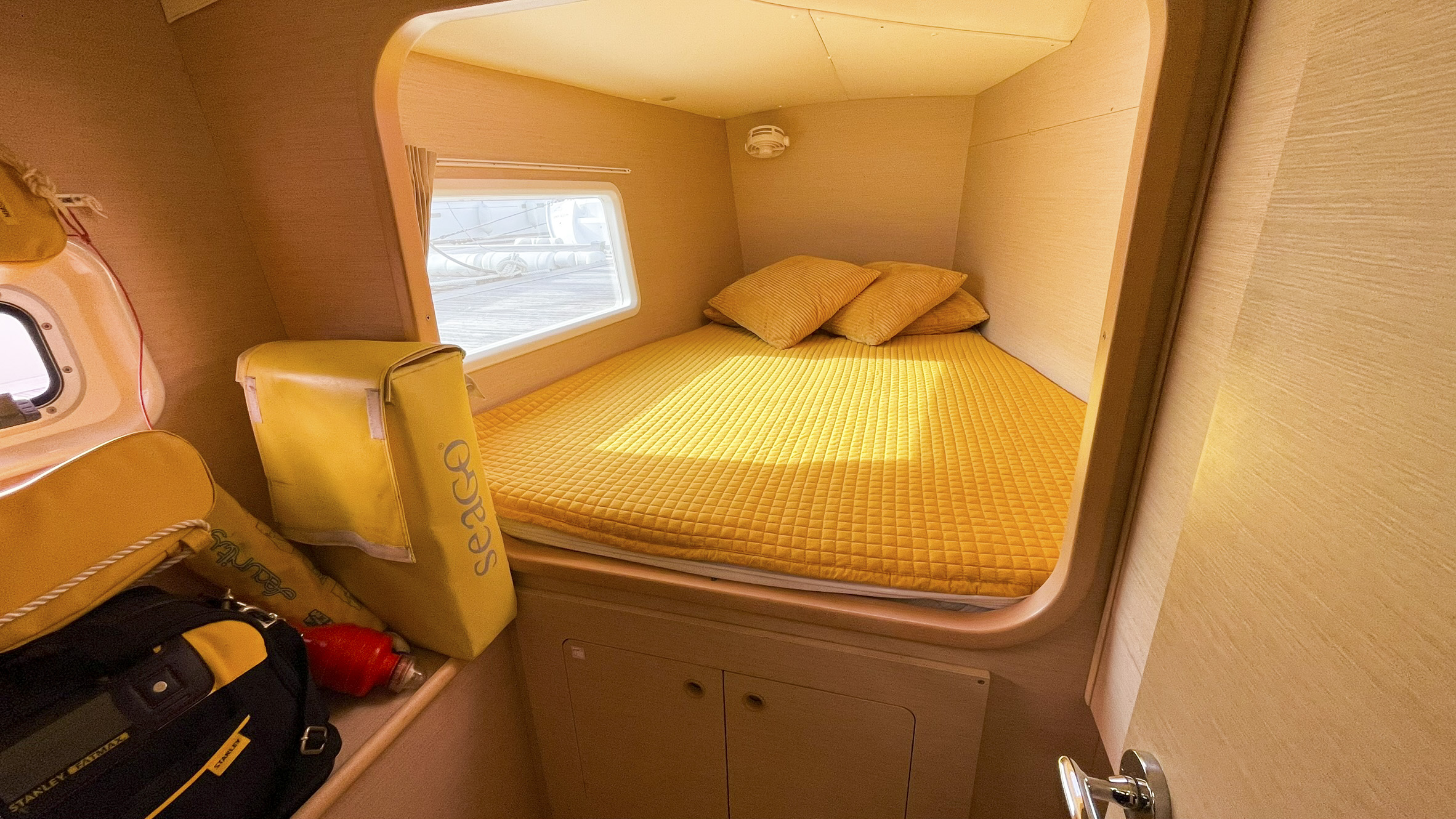

Port hull has one king size bunk in aft cabin, and a double cabin in forward compartment.
Each cabin has independent hanging wardrobes and shelving, with below bunk storage areas. Forward port side additionally has approximately 1.5m3 of storage space.
230v and 12v sockets.
One(1) bunk LED reading light fitted for optional white/red night vision lighting.
Two(2) bunk general reading lights
Stbd Eberspacher D4LC 3 outlet heating to cabin

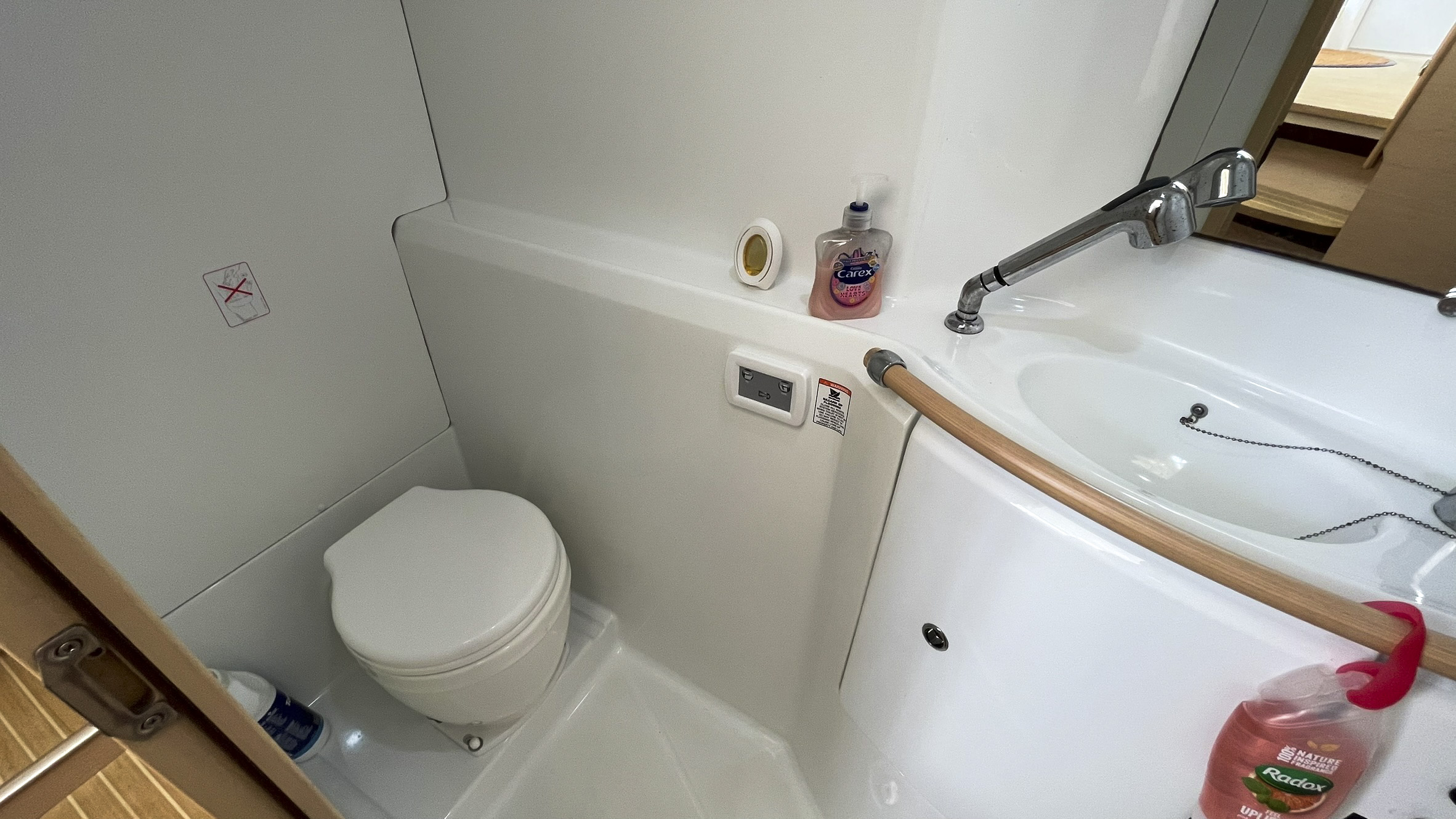

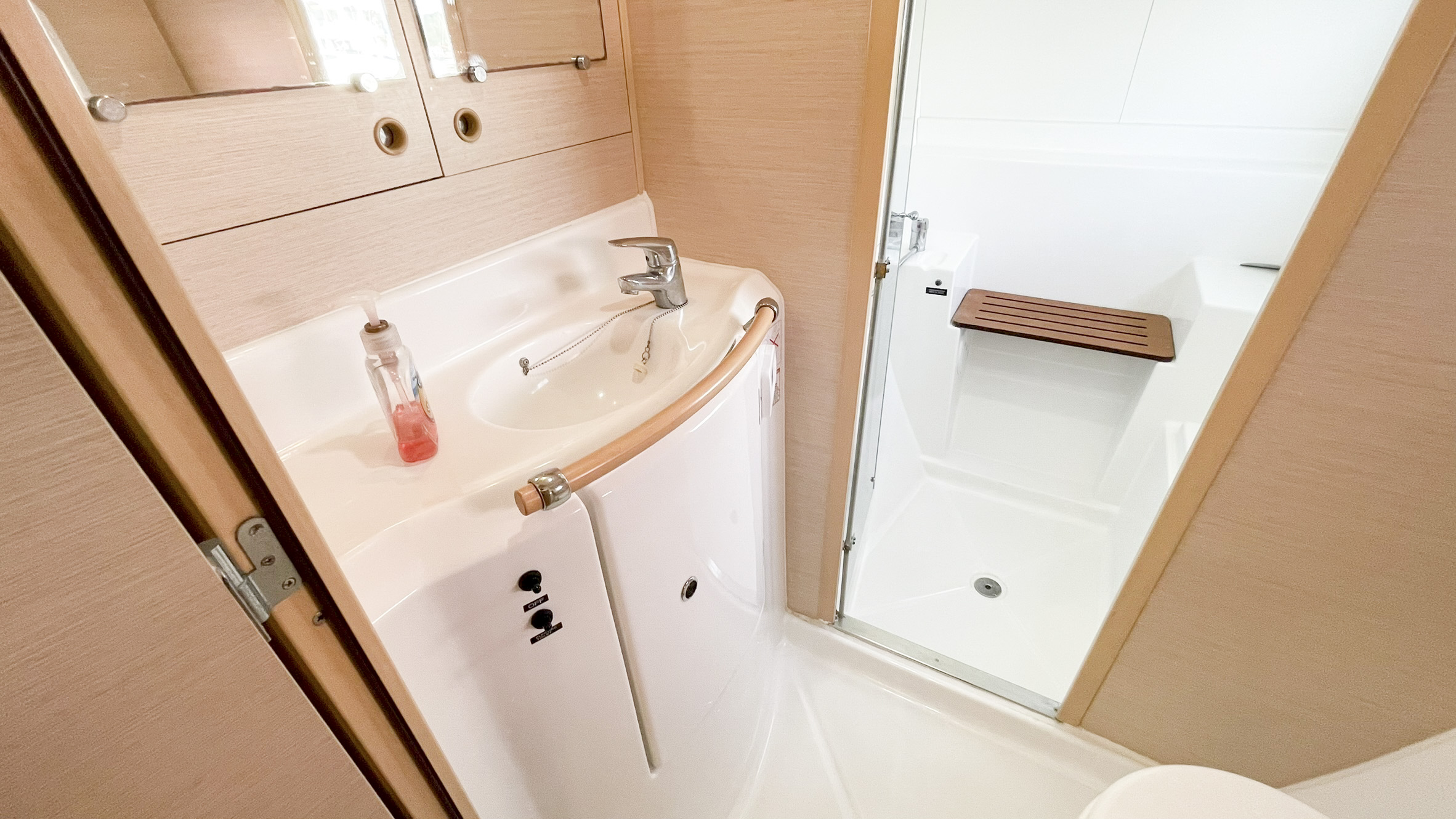

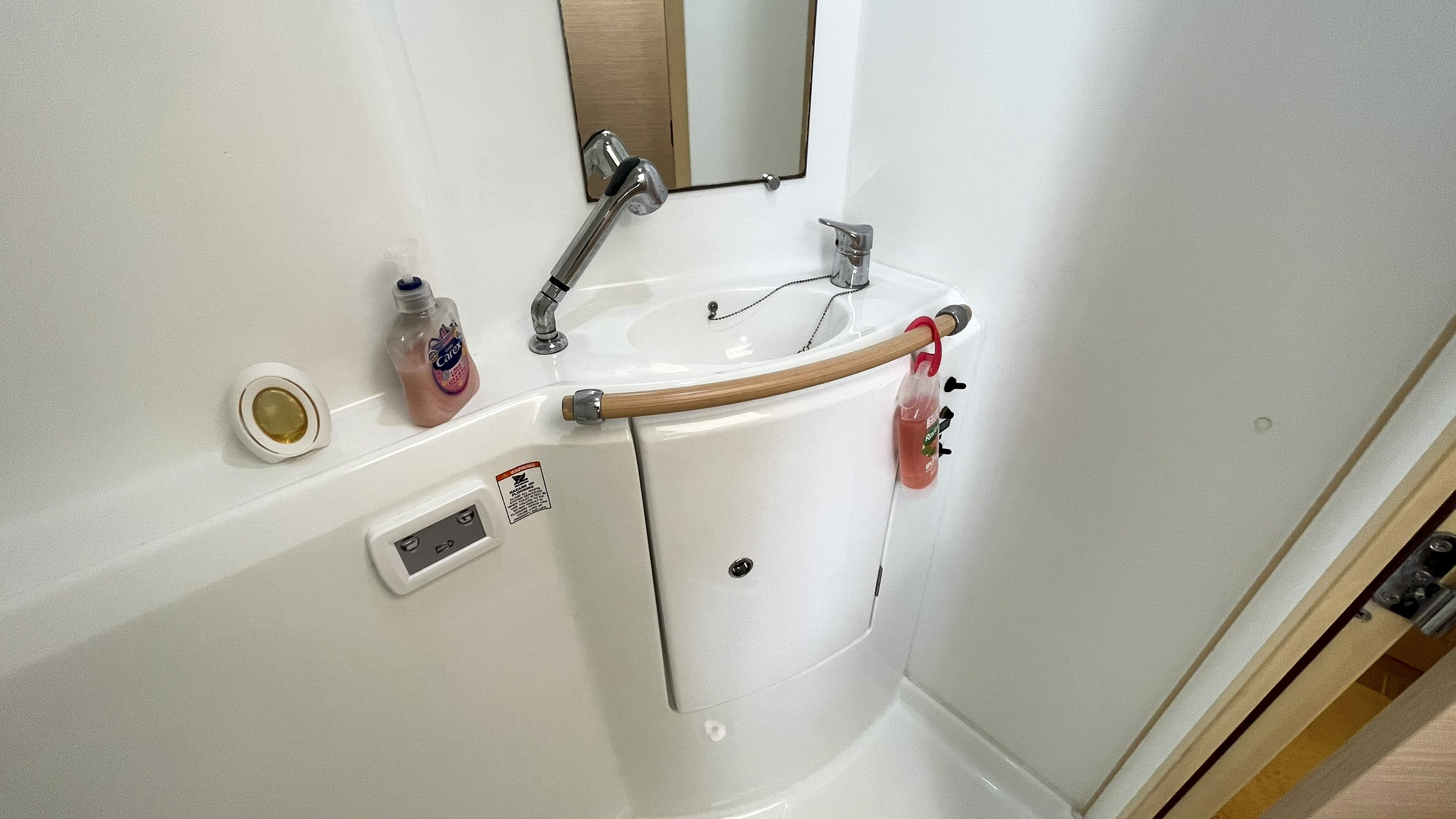

A combined head/shower compartment amidships with Lite flush 12v Jabsco head
Openable deck skylight with privacy screen.
230 v and 12 volt sockets

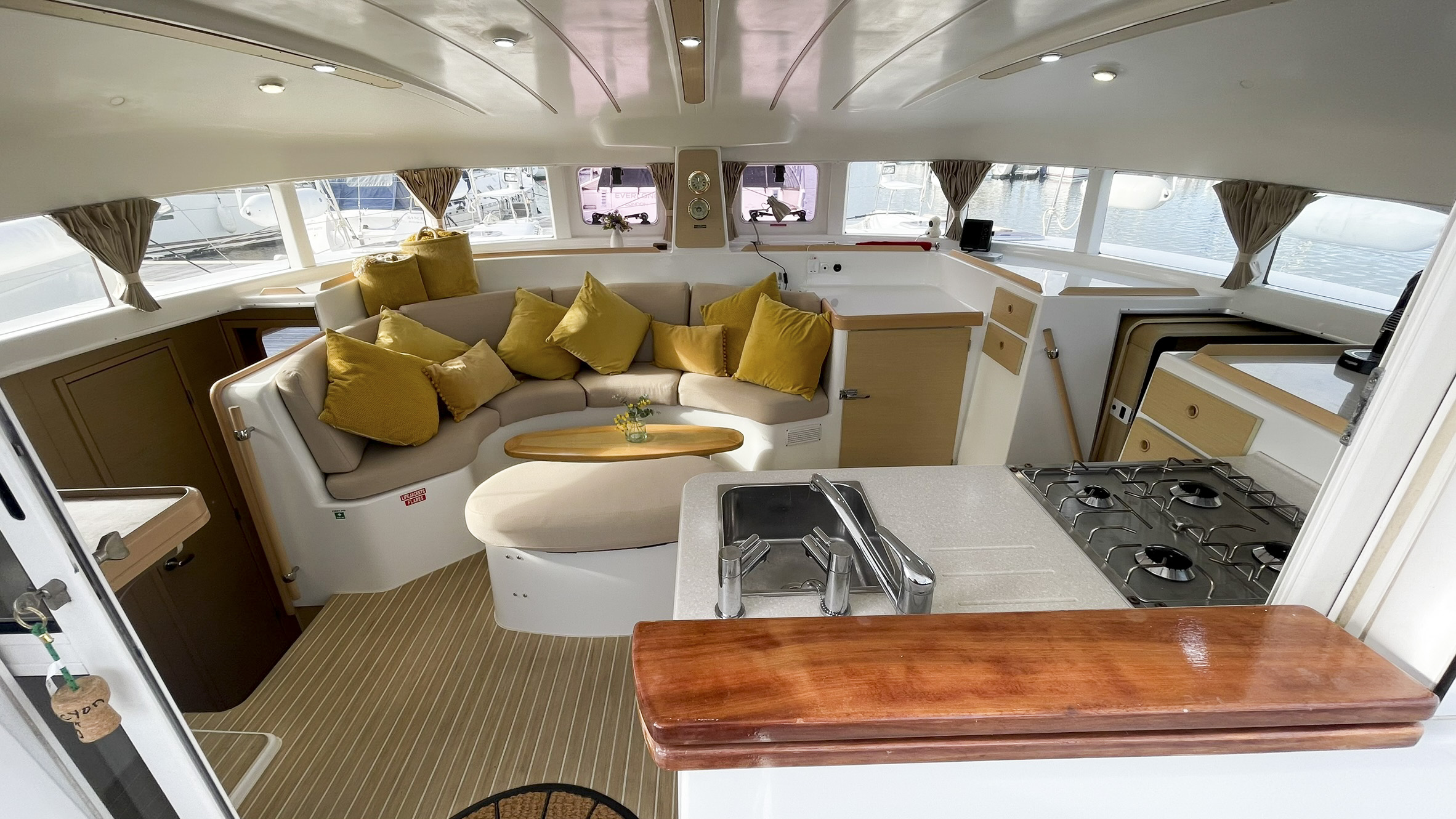

MAIN DECK

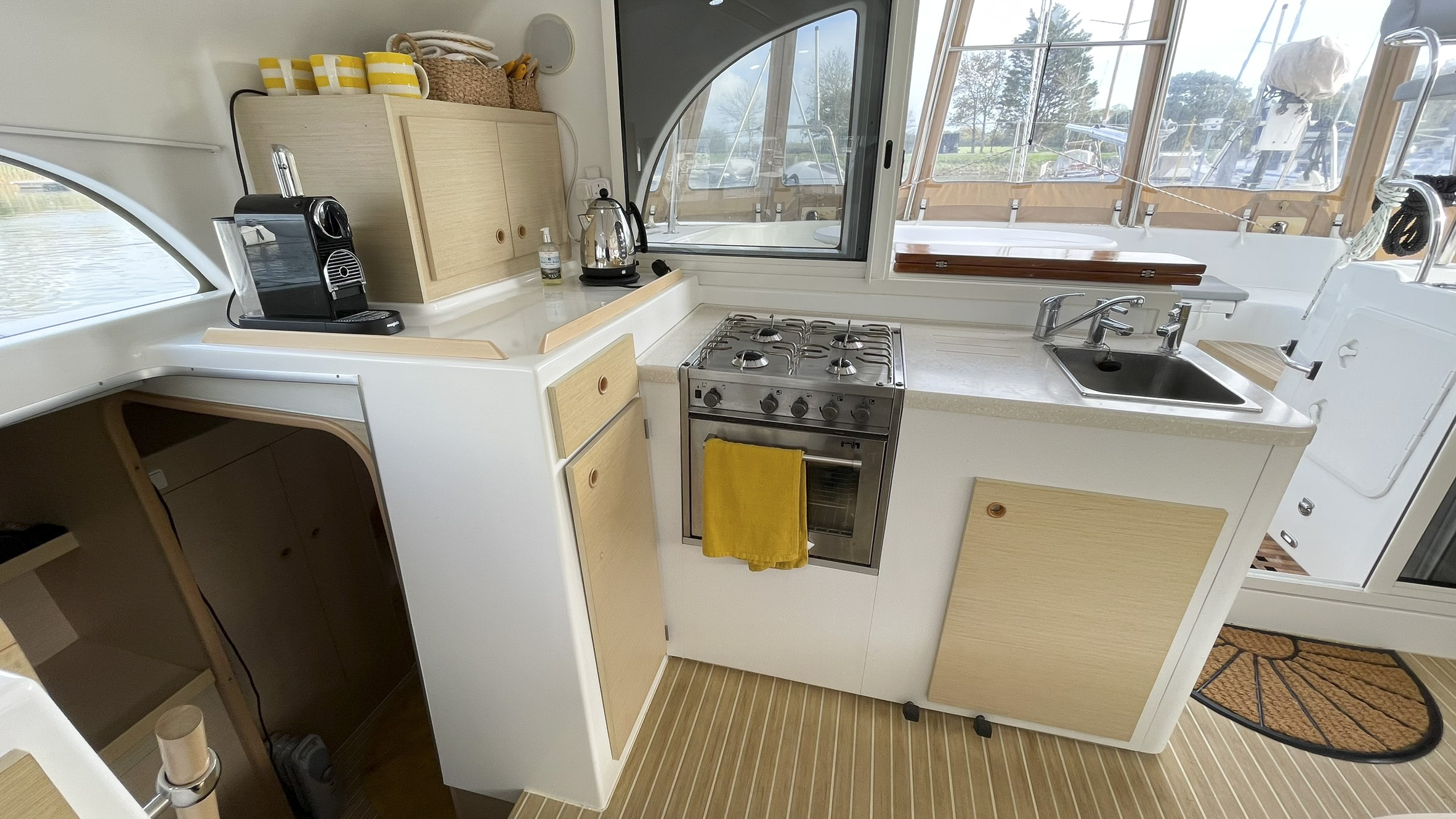

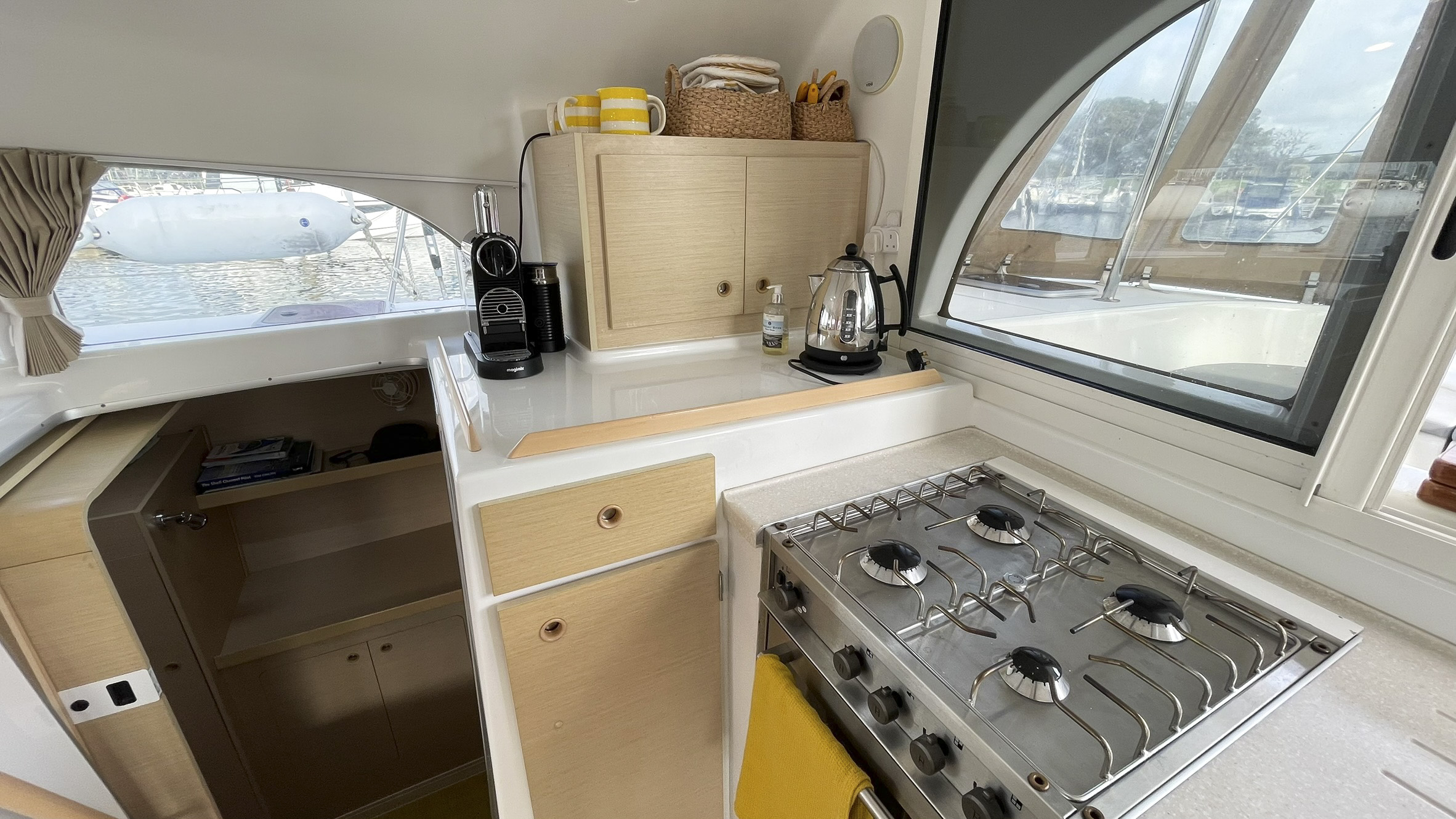

Aft facing galley with CORIAN work top and integral GN Espace 4 ring cooker / grill / oven and single sink with combined hot/cold pressurised fresh water tap plus a manual pumped cold fresh water tap, with an additional tap for manual pumped SW.
Stbd side cutlery drawers with high and low level plate and storage lockers.
A sliding window above the galley work top opens to stbd and the maindeck interlocking access door slides to port for access to the external quarterdeck.

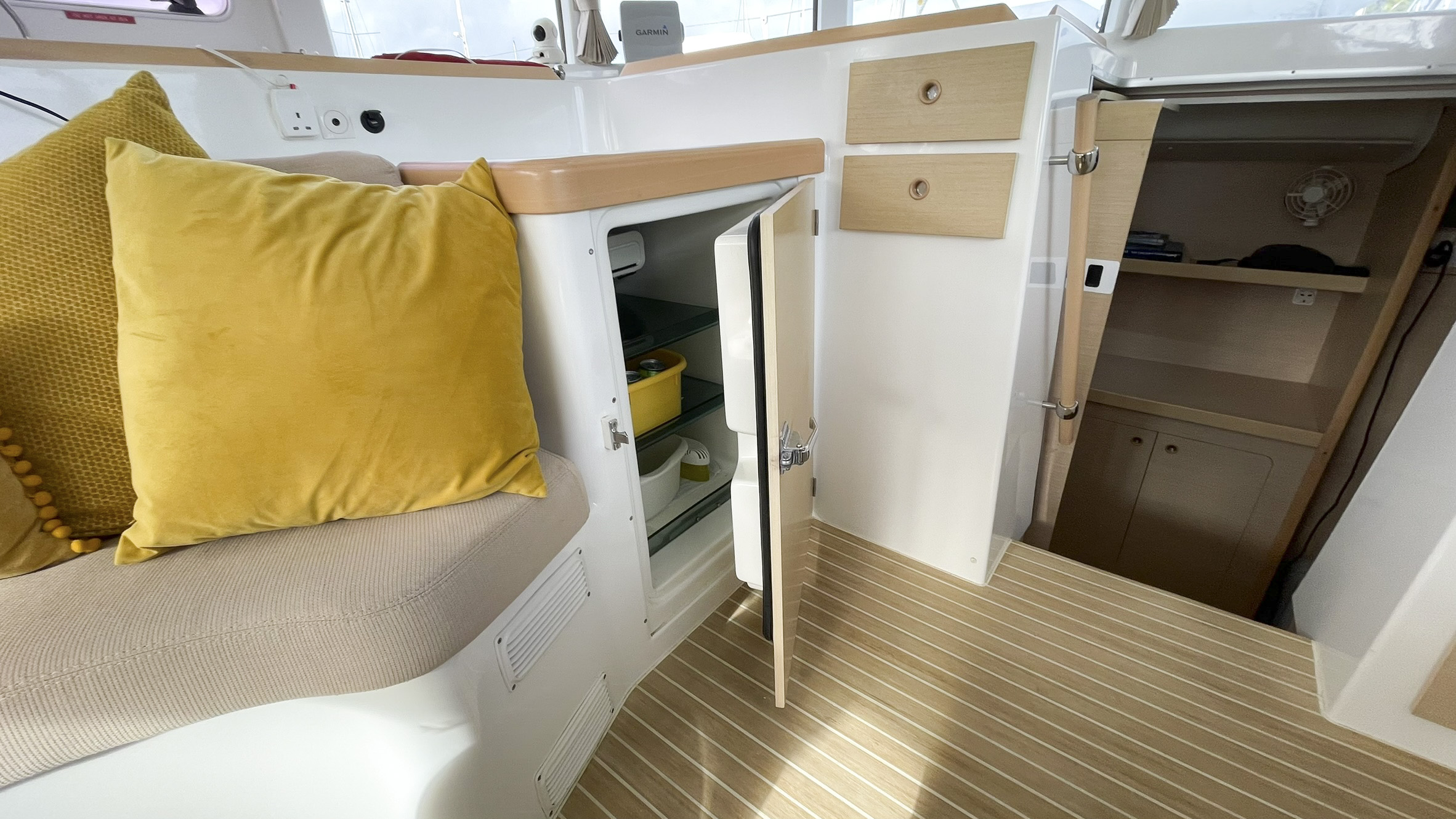

A 150 litre SW cooled 12v fridge in built integral to the main deck saloon area.

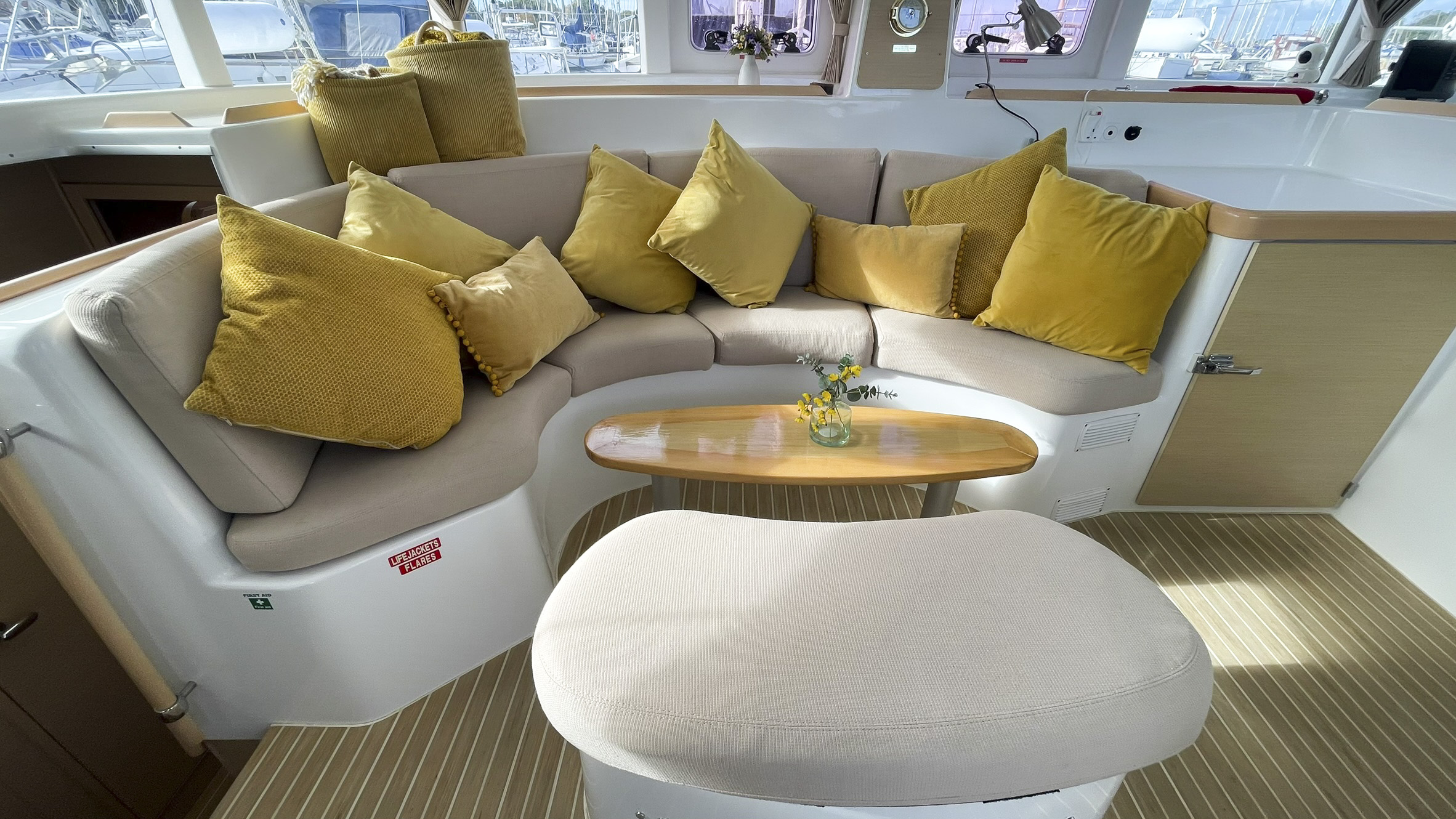

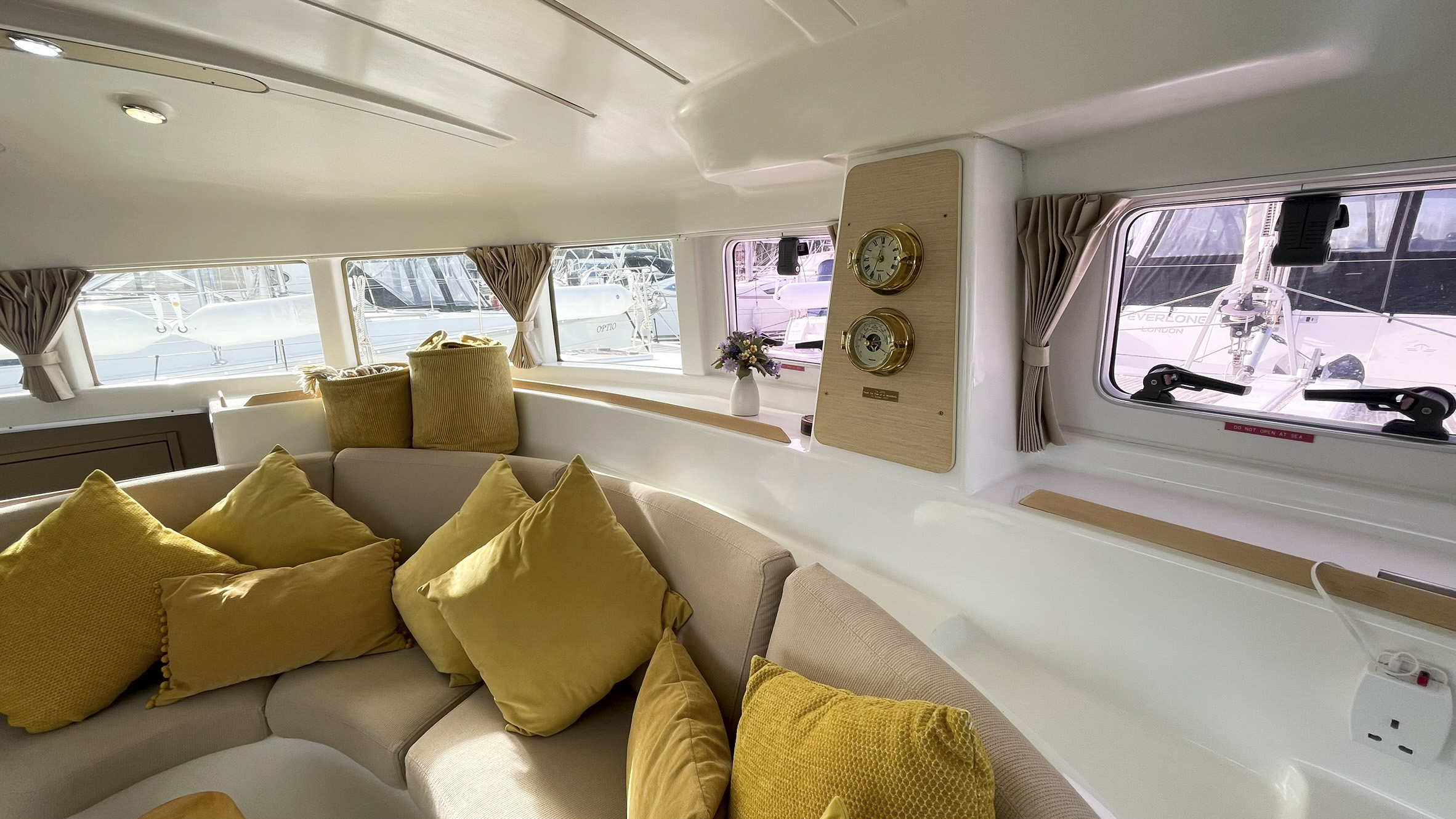

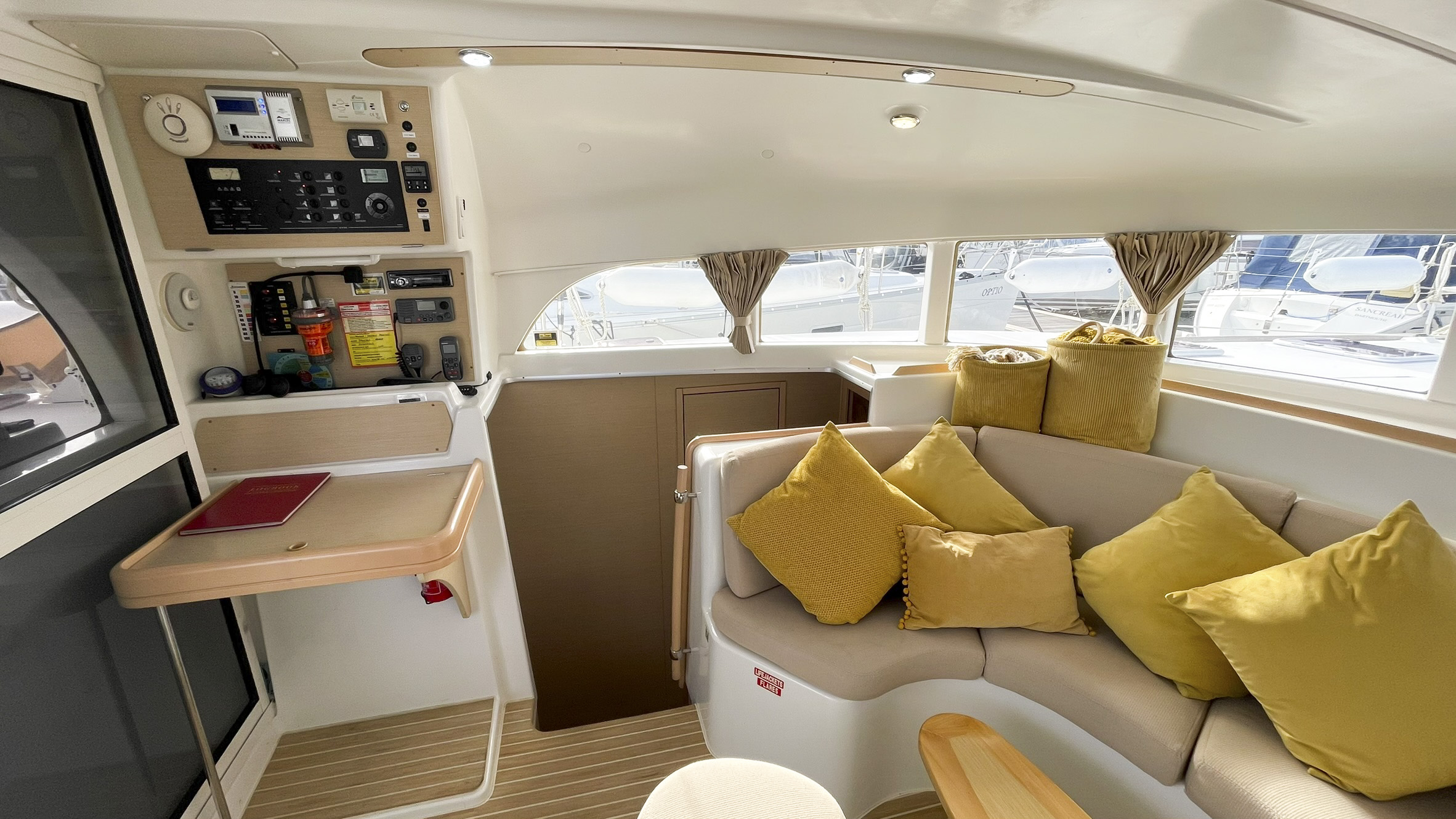

Wide saloon with curved settee forward and padded bench with stowage under all seating.
Vertical saloon windows with two large opening ports

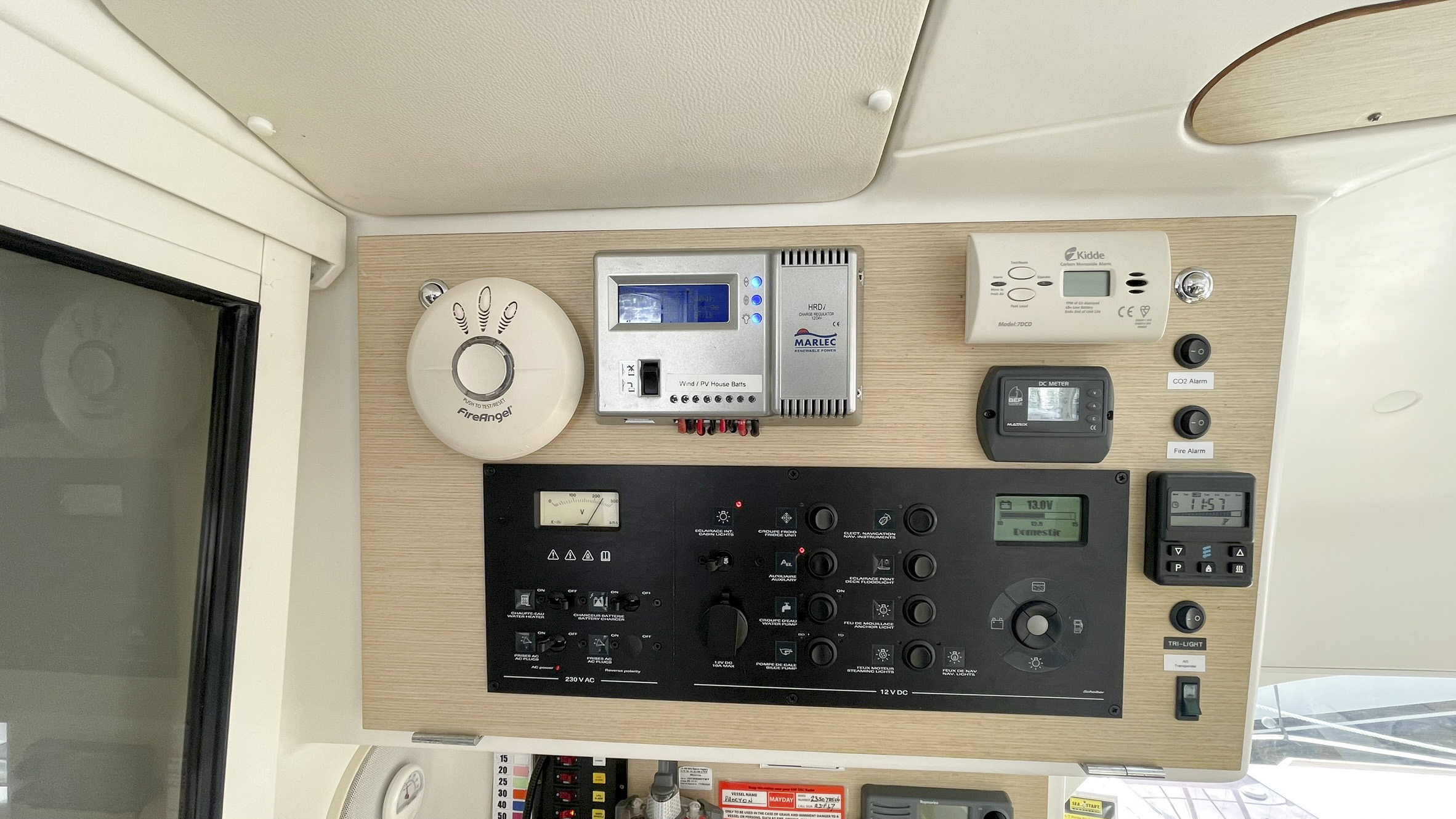

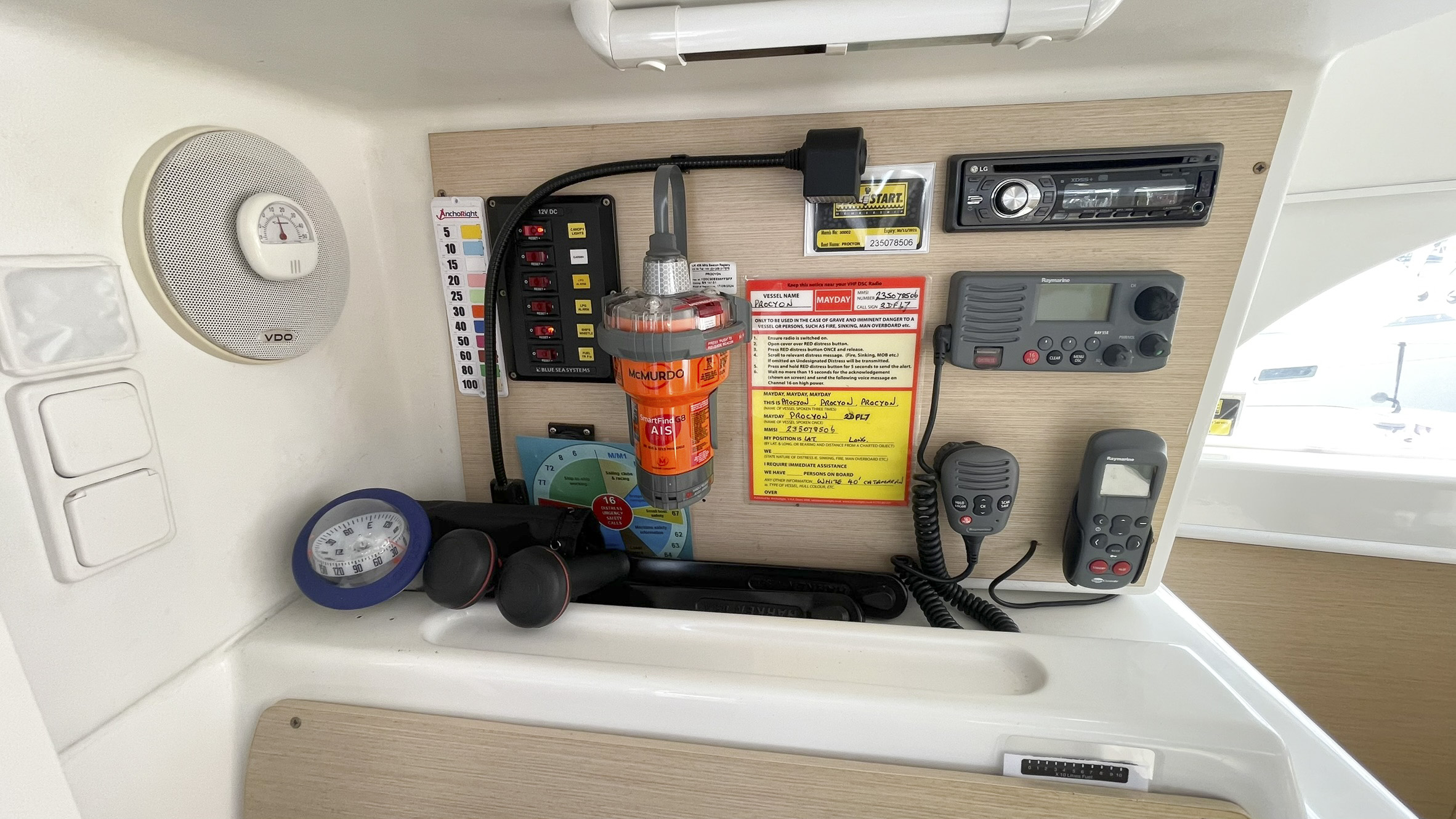

Navigation table to port with instrument console and CD/MP3 player. (Adjustable stool supplied but presently not fitted at owners option)
Two(2) internal speakers and two(2) additional waterproof speaker fitted to quarterdeck.
Three independent LED lighting arrangements for the internal areas
230v and 12 volt sockets.
Port Eberspacher D4LC 3 outlet heating to main deck, Port aft cabin, forward cabin and Port bathroom area, with independent heating and timer control for Port hull and main deck areas.

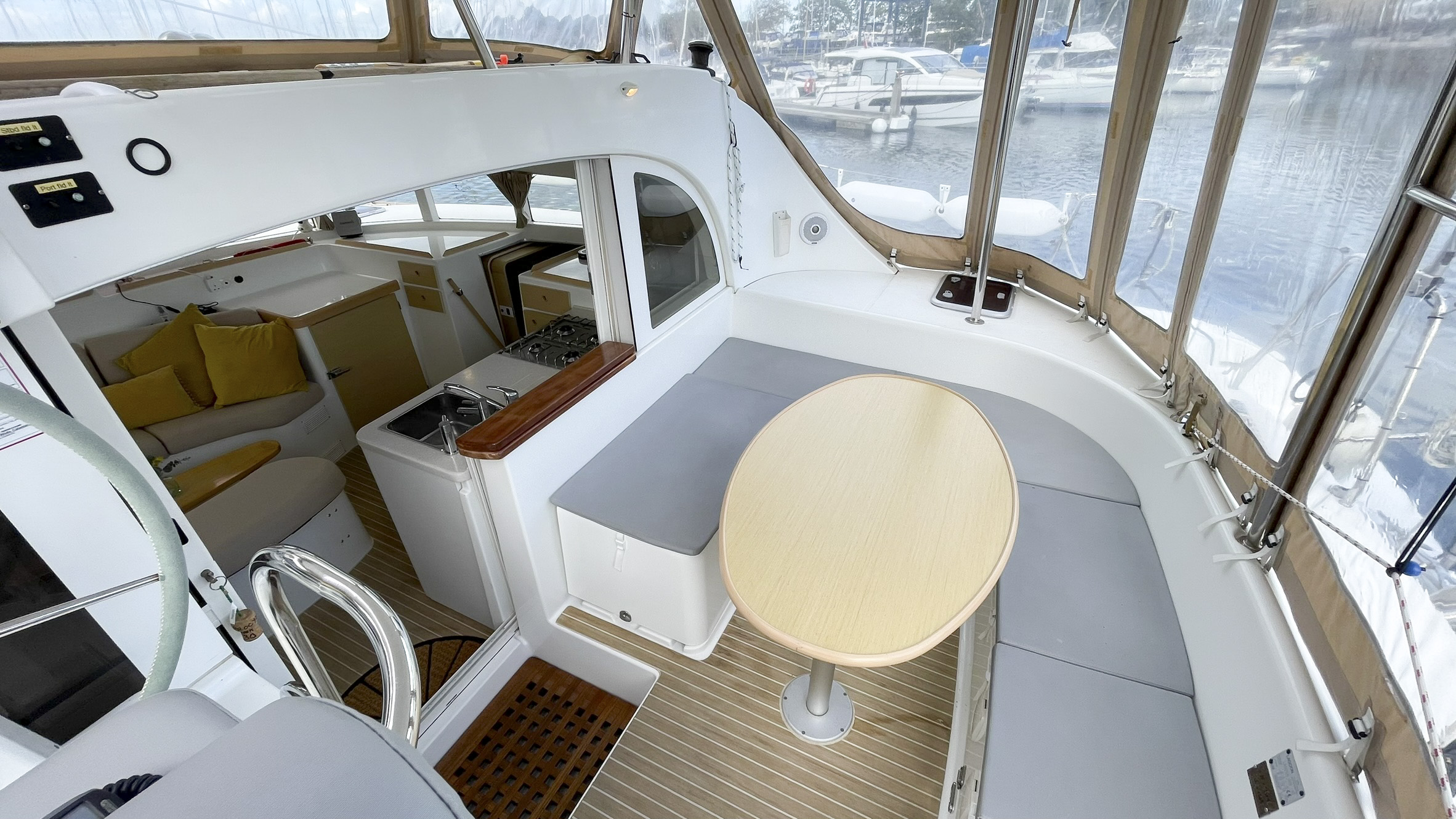

QUARTER DECK
LPG storage locker for one(1) 5kg Propane Bottle with independent isolation valve and manual leak detector unit.
Spare main engine fuel plastic diesel only jerry cans five(5) x 20 Ltrs capacity.
Portable heavy weather Fuel transfer pump locker beneath conning position.
Large cold box beneath hinged locker and seating area.
Port Main engine access area – Hot/Cold external swimming shower hose.
Swimming ladder from Port Hull aft steps.

MAIN DECK FORWARD AREA (PORT HULL)
Port deep locker
Gennaker sail storage
Emergency Jib sail storage
Emergency steering tiller storage
Fresh water supply portable hose storage
Port Fresh water tank 330 Ltr

Port Forward deep lazarette
Fender storage via main deck hatch

MAIN DECK FORWARD AREA (STBD HULL)
Stbd Fresh water tank 330 Ltr
Anchor / chain locker
120 mtrs of 10 mm chain. Marked at 10 m intervals
Bitter end secured within locker
Electric winch with electric winch controls.
Anchor mooring buoy with line.

Stbd Forward deep lazarette
50 mtrs of 10 mm emergency anchor chain spliced to 50 mtrs of 14 mm Octiplat rope tail.

Machinery

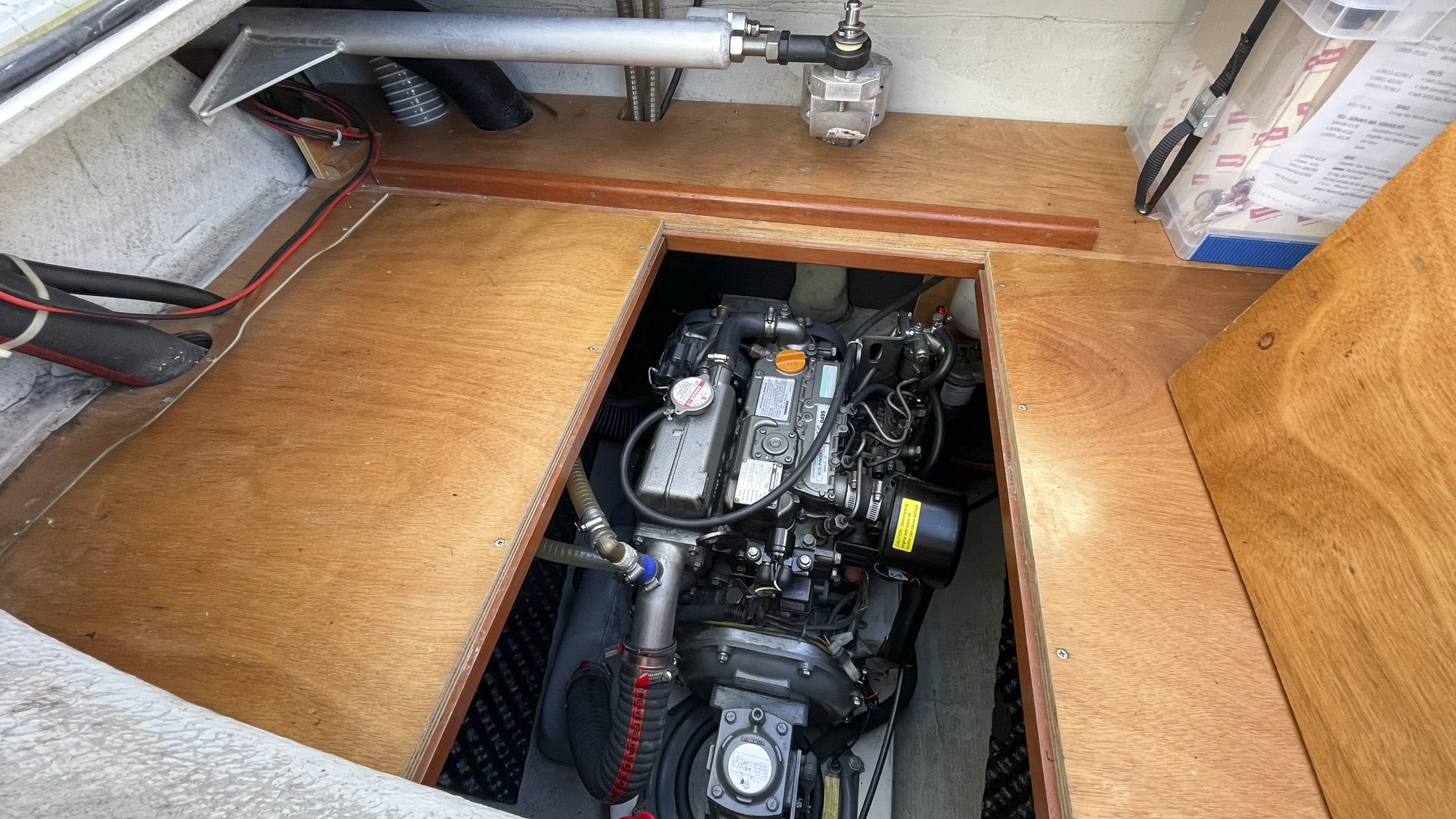

Two(2) independent Yanmar 3YM30 SD 29HP electric start diesel engines with electrical supply alternators to both domestic and 12 volt main engine start batteries (port and stbd).
Two(2) Yanmar direct sail drives with two blade fixed pitch props.
Two(2) x 100 ltr independent DO ME Fuel tanks
Electric anchor winch for 25 kg Delta anchor

ELECTRICS
4 off 120ah domestic supply batteries.
BEP battery monitor
2 off 12 v ME start batteries

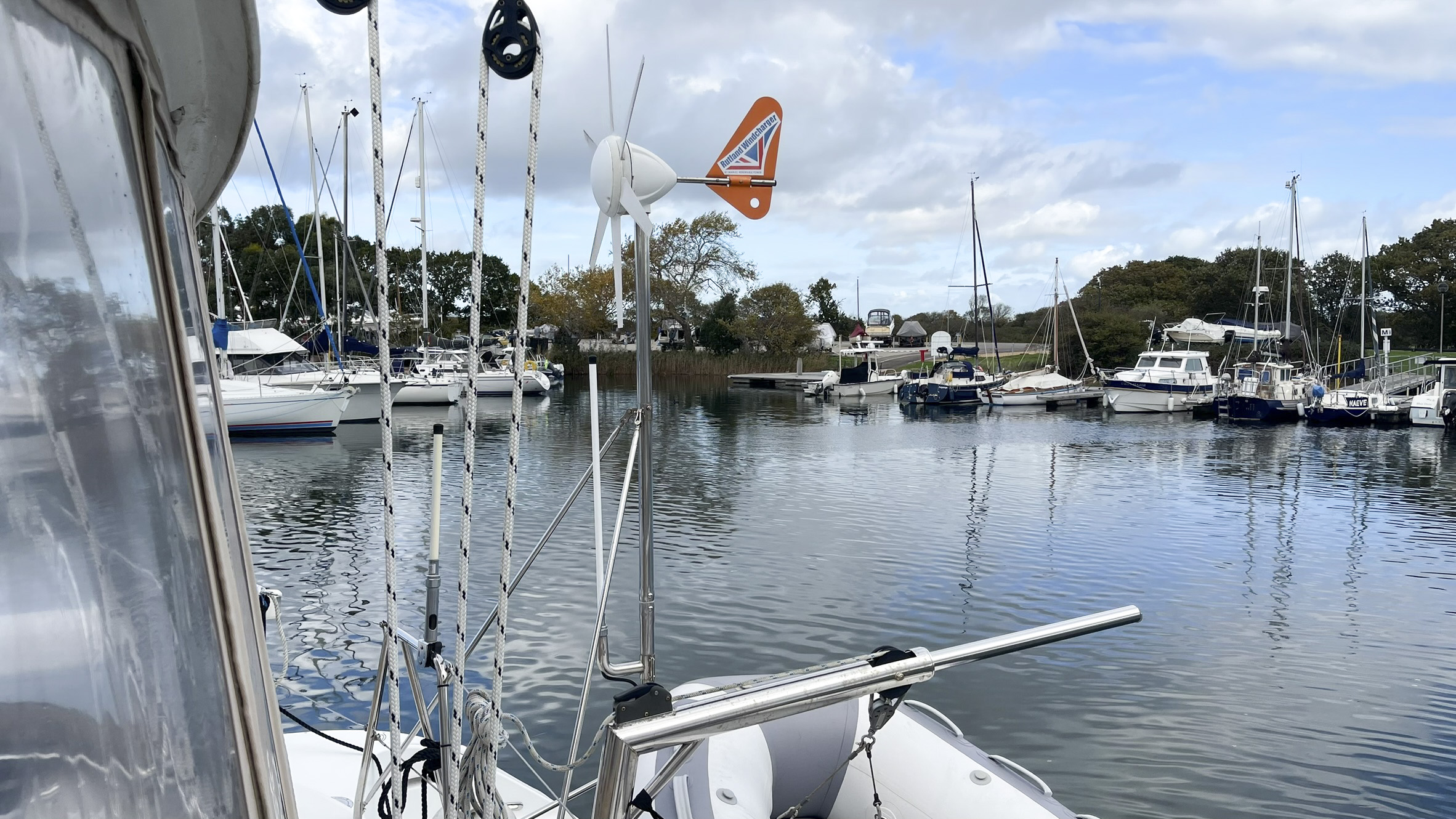

Rutland 913 Wind Generator
Solara Solar Panels 2 x SM 2 25M, 2 x SM 120M, 2 x SM 160M

TANKAGE
ME DO Fuel tank capacity 2 x 100 litres
Fresh water capacity 2 x 330 litres
Holding tanks 2 x 85 litres


Inventory

NAVIGATION AIDS
Compass

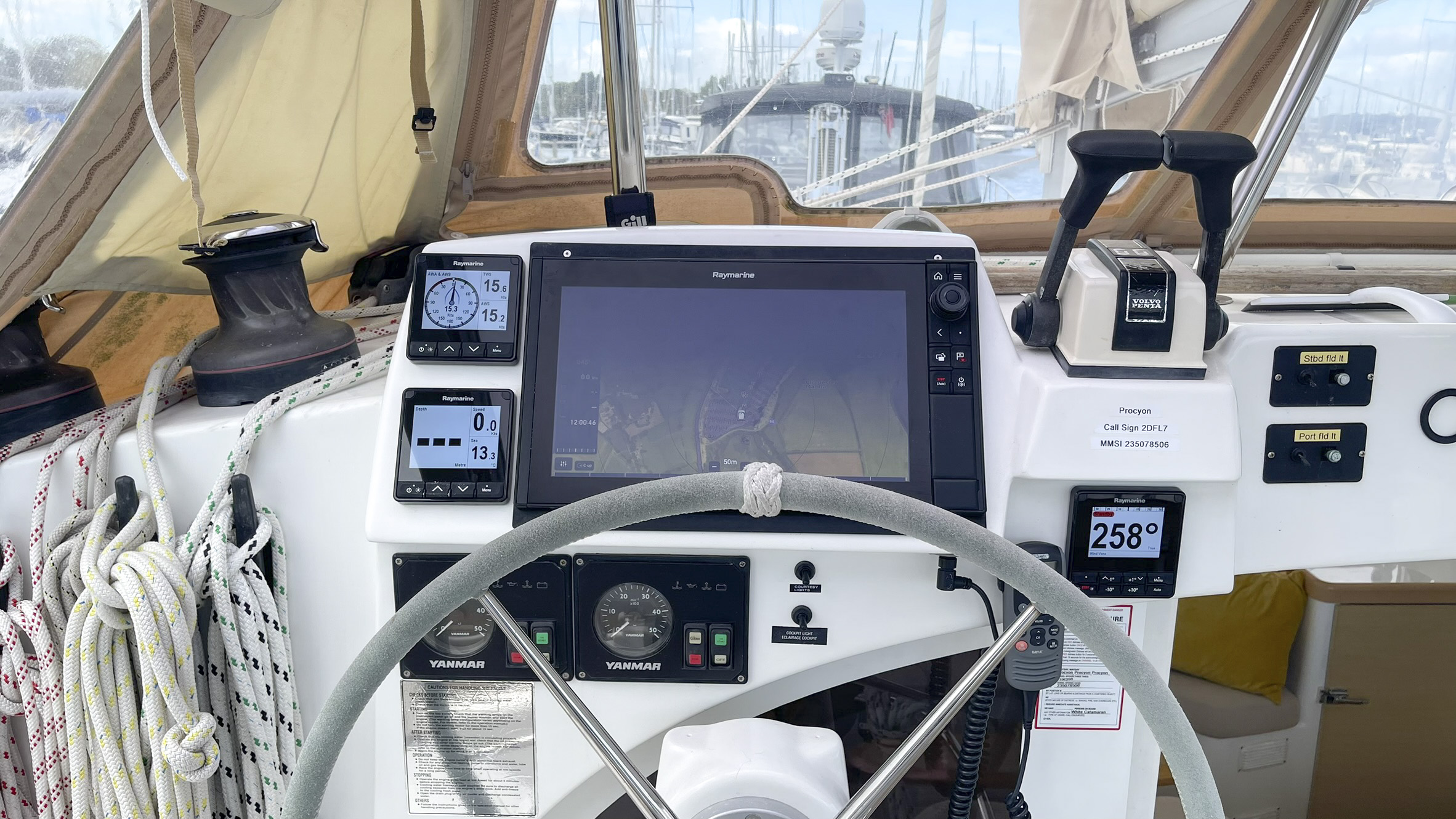

Raymarine C140W at helm station
Radar 18" 4KW HD digital Raydome
Raymarine 55E with DSC

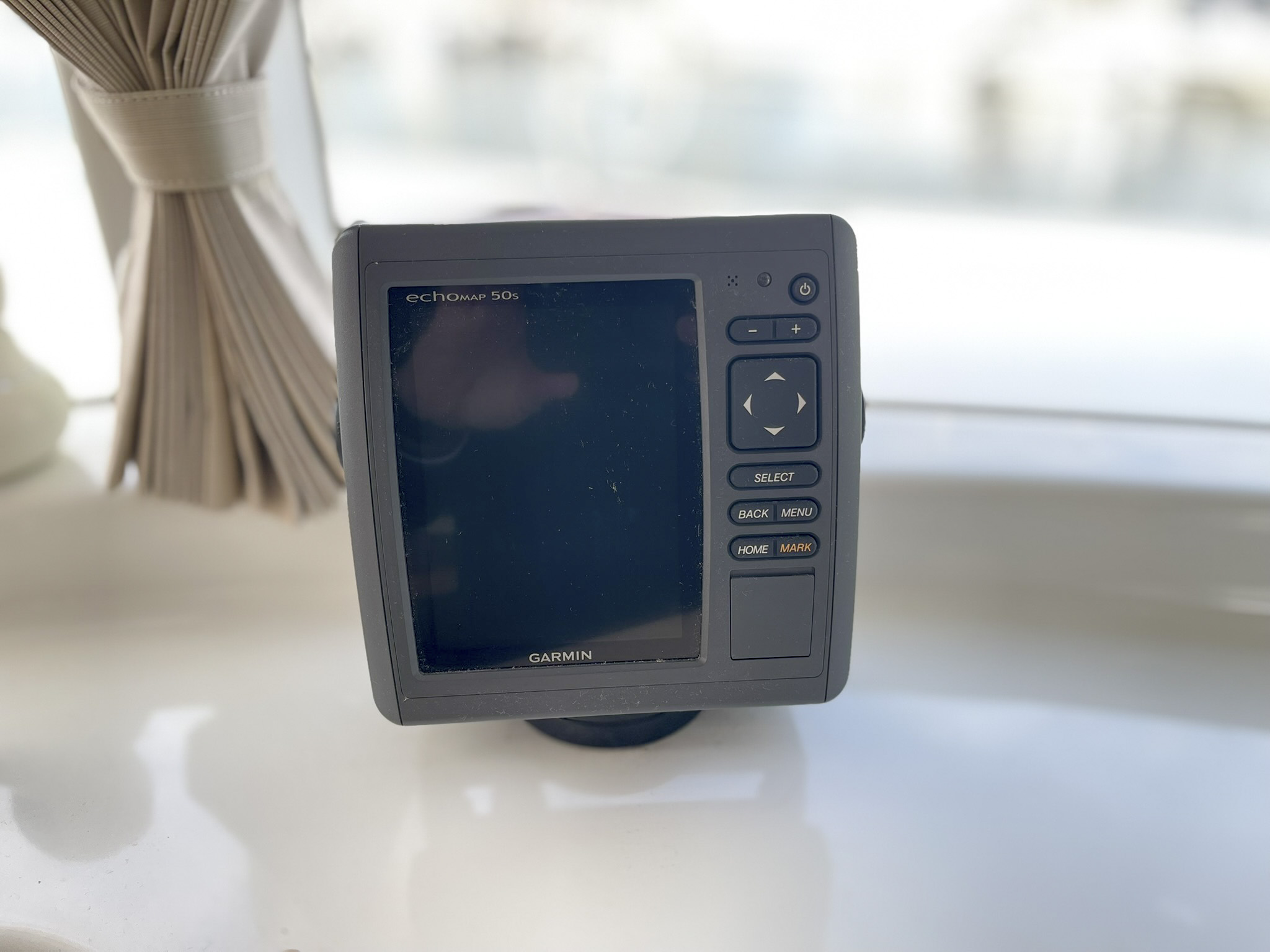

Garmin 500 GPS
Raymarine Smart Controller wireless remote
Raymarine AIS transceiver
Integral Raymarine Speed/log and echo-sounder.
Navigation lights
Deck light on mast


GROUND TACKLE
25Kg delta anchor with 120M chain
Spare anchor chain and rope 50M
Electric windlass


GENERAL EQUIPMENT
Cockpit cushions in Silver Grey
Internal cushions in Sand
Status masthead digital TV
Additional TV socket
