- Make Beneteau
- Model 57
- Year 2003
- LOA 57ft/17m
- Class Sailing Cruiser
- Hull Glass Reinforced Plastic
- Keel Fin Keel
- Rig Sloop
- Engine Single Diesel
- Drive Shaft Drive
- Layout Centre Cockpit
- Berths 8
- Cabins 4
- Aft Cabins 1
- Ancasta Ref 51034
- Name AKKA
Beneteau 57 | 2003
349,000 Tax Paid
|
Badalona - Barcelona Spain
Beneteau 57 (2003), a Bruce Farr design with a good slippery hull, capable of good turns of speed and yet still manageable by a short-handed crew. Bluewater cruiser crossing any ocean or even on a world cruise, the 57 is the ideal boat for the ARC race. With her enormous aft decks leading down to a transom platform via her patented aft access system, her own separate galley, the walk-in engine room, the comfortable crew quarters, the cavernous sail locker and enormous navigation station, as well as a helmsman's position better described as "the bridge", everything about this boat has a "big boat" feel to it.
One of the most extensively upgraded Beneteau 57s currently available, Akka has undergone a major programme of upgrades and servicing through 2023-2026, including a fully rebuilt Yanmar engine, serviced generator and 200l/h watermaker, new 800Ah service battery bank, updated navigation and communications equipment, new tender and numerous systems renewed.
A genuinely turn-key ocean-ready 57.
BENETEAU 57
Designed by Farr and AB Concept / Franck Darnet Design, built by Beneteau, France in 2003
Stunning centre cockpit blue water cruiser
CONSTRUCTION
'Steel blue' GRP hull
The topsides have been wrapped using a dark grey satin foil.
Bulkhead wheel steered
Remote controlled rear/swim platform
Cast iron keel fixed with stainless steel bolts.
Balanced spade rudder blade, stock and bearings are of composite glass and stainless steel
Self-aligning Jefa rudder
DIMENSIONS
LOA: 17.60m / 57’9”
LWL: 15.00m / 49’3”
Beam: 4.93m / 16’2”
Draft: 2.60m / 8’6”
Displacement: 21,499kgs / 47,399 lbs
Ballast: 6,894 kg / 15,200 lbs
Rig:
• Anodised aluminium keel stepped masthead rigged mast with Facnor electric in-mast furler and three sets of swept back spreaders (with spreader lights).
• Anodised aluminium boom usable as a cargo boom for launching and retrieving the tender.
• Anodised aluminium boom vang.
• Facnor electric genoa roller furler
• Manual furler for staysail
• Stainless steel standing rigging with twin backstays – replaced 2015 – checked 2021
• Factory fitted spinnaker gear.
• Spinnaker pole stowed on the front of the mast.
• Asymmetric spinnaker pole mounted on port side bow roller position
• Code Zero furler for gennaker
• Side deck positioned genoa tracks and cars.
• Mainsheet track positioned to the aft of the cockpit on the aft cabin superstructure.
• Running rigging including burgee halyards as appropriate – replaced 2015/2021.
• Topping lift replaced 2025
In 2022, the mast was taken out, completely inspected and the mast and boom were wrapped with black carbon-look vinyl.
The 2 lower cap shrouds were replaced.
The D1’s and the forestay were replaced in 2025
Winches:
• 2x Lewmar 66 electric self-tailing genoa sheet winches – serviced 2025
• 2x Lewmar ST48 electric self-tailing the mainsheet winches – serviced 2025
• 1x Lewmar ST48 manual self-tailing winch at mast – serviced 2025
Sails:
All Sails washed and checked 2026
• North Sails in mast furling mainsail – 2021
• North Sails furling genoa – 2019
• Furling staysail – 2012
• Furling Gennaker
Up to 8-berths in 4-cabins (includes the crew cabin to starboard) plus the saloon. Four heads.
Accommodation Finish:
• The complete interior wrapped in a light wood-look vinyl wrap giving it a fresh and modern look.
• Iroko parquet covering the cabin sole.
• Leather upholstery – 2012
• Corian counters in galley - 2012
• Galley wrapped in light grey vinyl
• The woodwork in three cabin toilets / showers has been cladded with white vinyl. The day head has been renovated 2024 and painted white.
Accommodation Description from Forward:
Port and Starboard En-suite Heads Each Have:
• Marine head (electric toilets)
• Wash basin inset to a countertop with hot and cold mixer tap.
• Each of these forward guest en-suite heads shares a shower cubicle with a thermostatic valve and shower head, grating to the sole of the shower cubicle with a sump bilge pump.
• Cabin superstructure hatch for ventilation.
• Holding tank

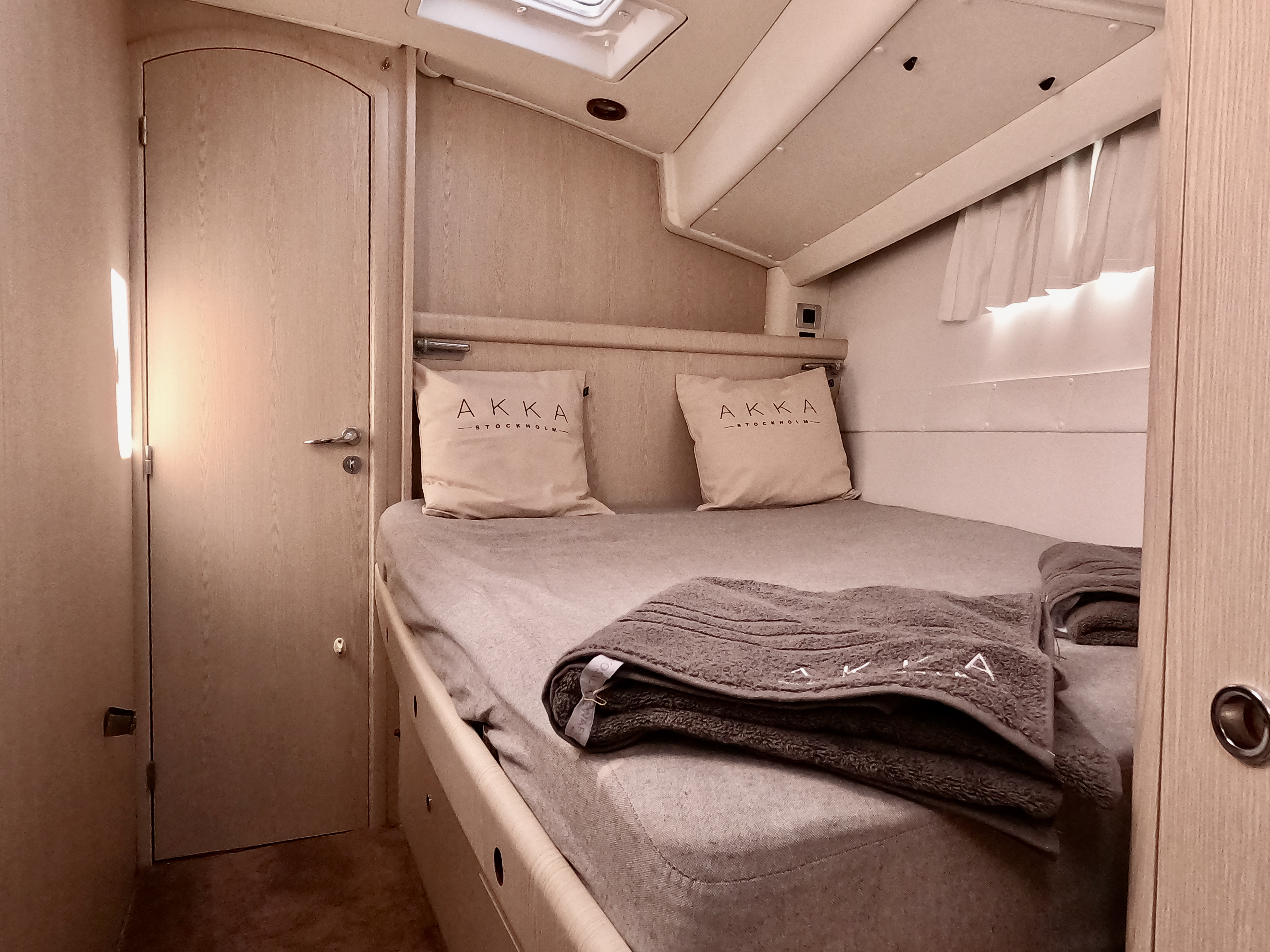

Port and Starboard Guest Cabins to Forward Each Have:
• A double berth positioned to the side of the cabin.
• Door to en-suite heads.
• Hanging locker.
• Fixed porthole to the hull side with a curtain.
• Cabin superstructure hatch with blind for ventilation.
• Door to the Saloon.

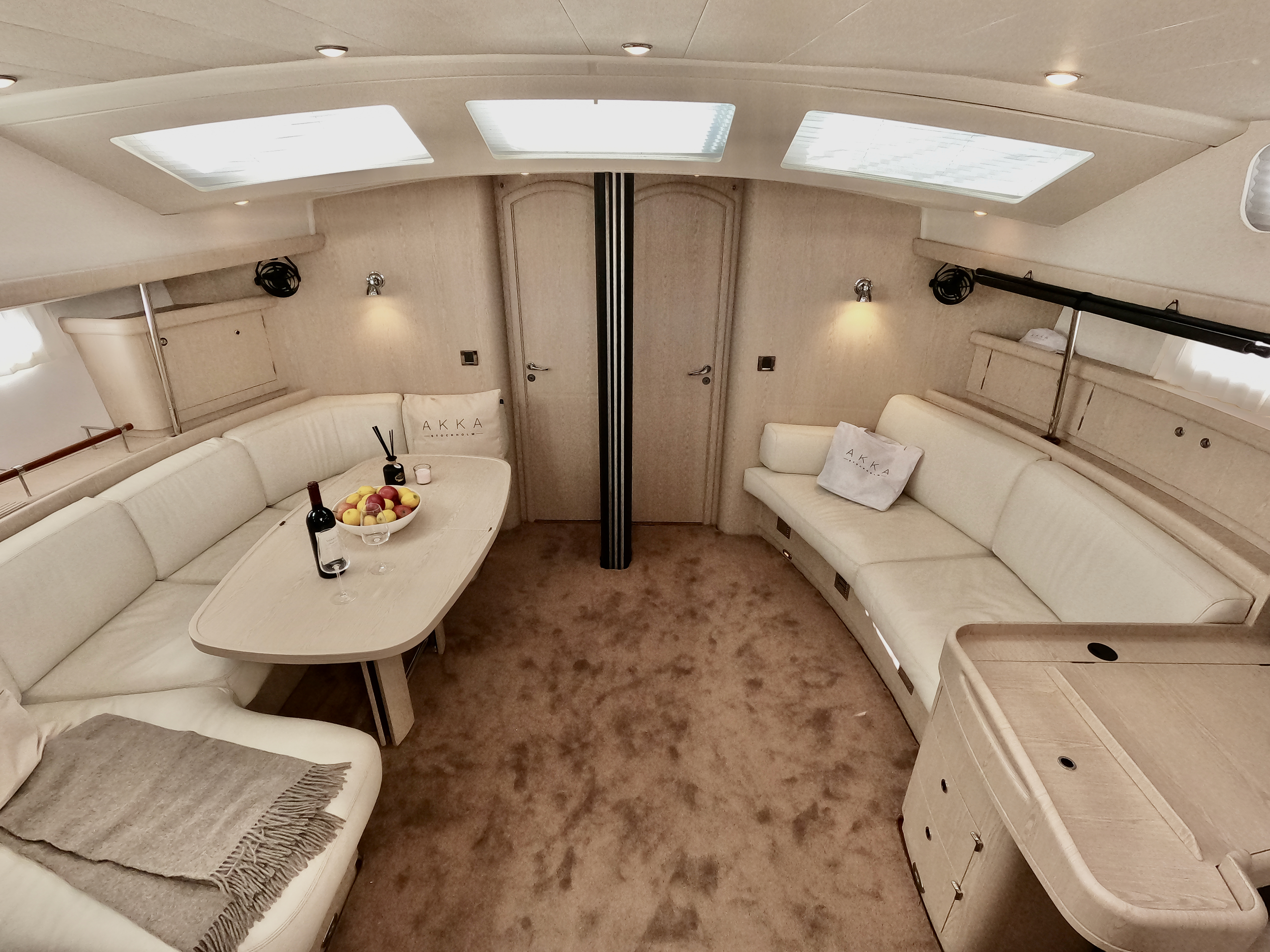

Saloon:
• U-shaped sofa positioned to the portside with a central table
• Sofa with armrests on starboard side
• Cabin superstructure opening hatches and further port holes.
• Port holes to the hull on both sides.
• Book shelving.
• Reading lights.

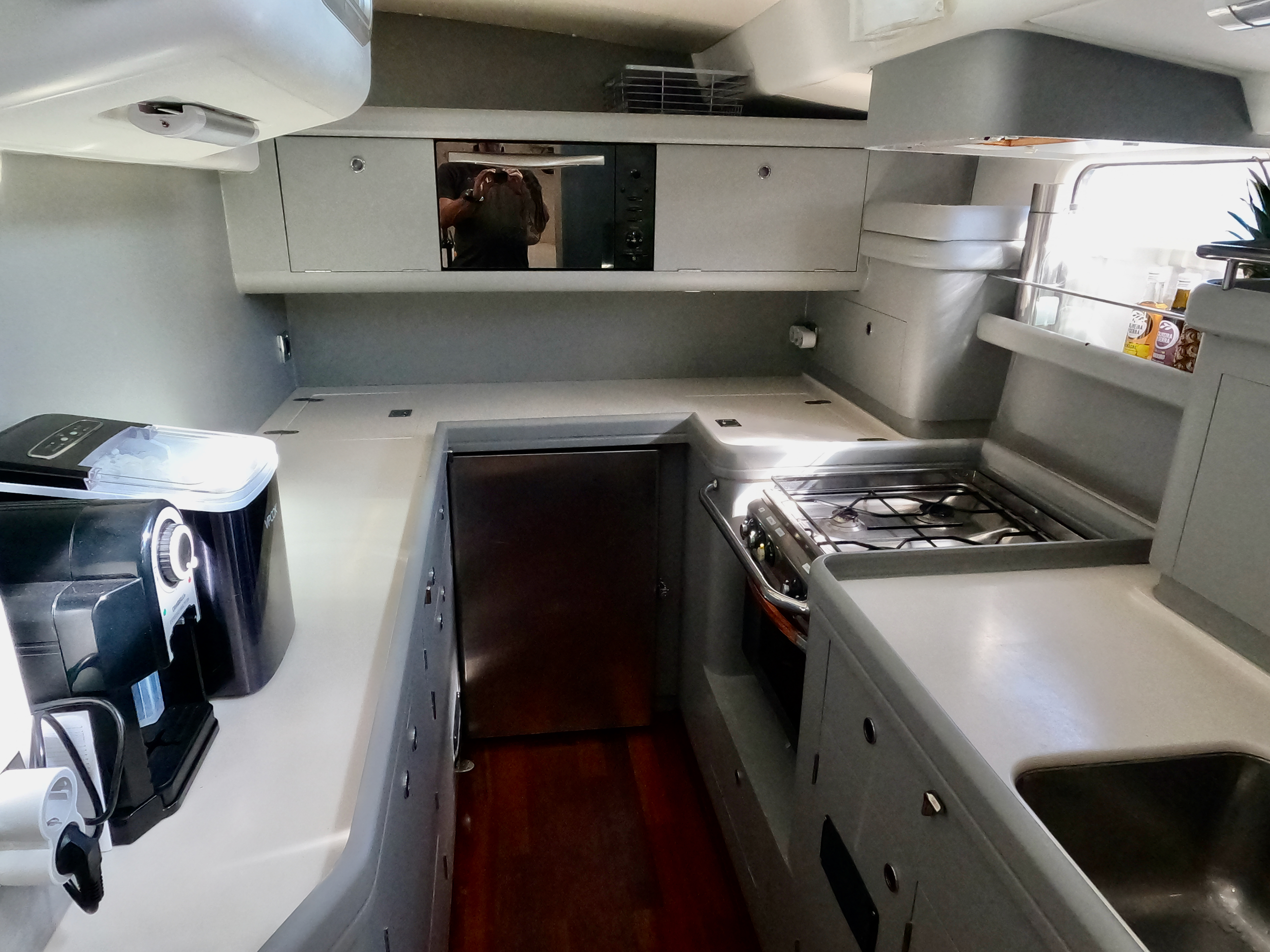

Galley:
• U-shaped galley area positioned to the portside making for a safe enclosed area to work in, particularly whilst at sea.
• Range of cupboards and draws with worktops and raised fiddled edges.
• Twin bowl stainless steel sinks with hot and cold mixer tap.
• Gimballed stainless steel gas oven with a 4-burner stove on top.
• Extractor fan.
• Fixed port hole to the hull side.
• 1x 130 litre front opening stainless steel refrigerator.
• 1x 100 litre GRP top opening refrigerator.
• 1x 30 litre freezer

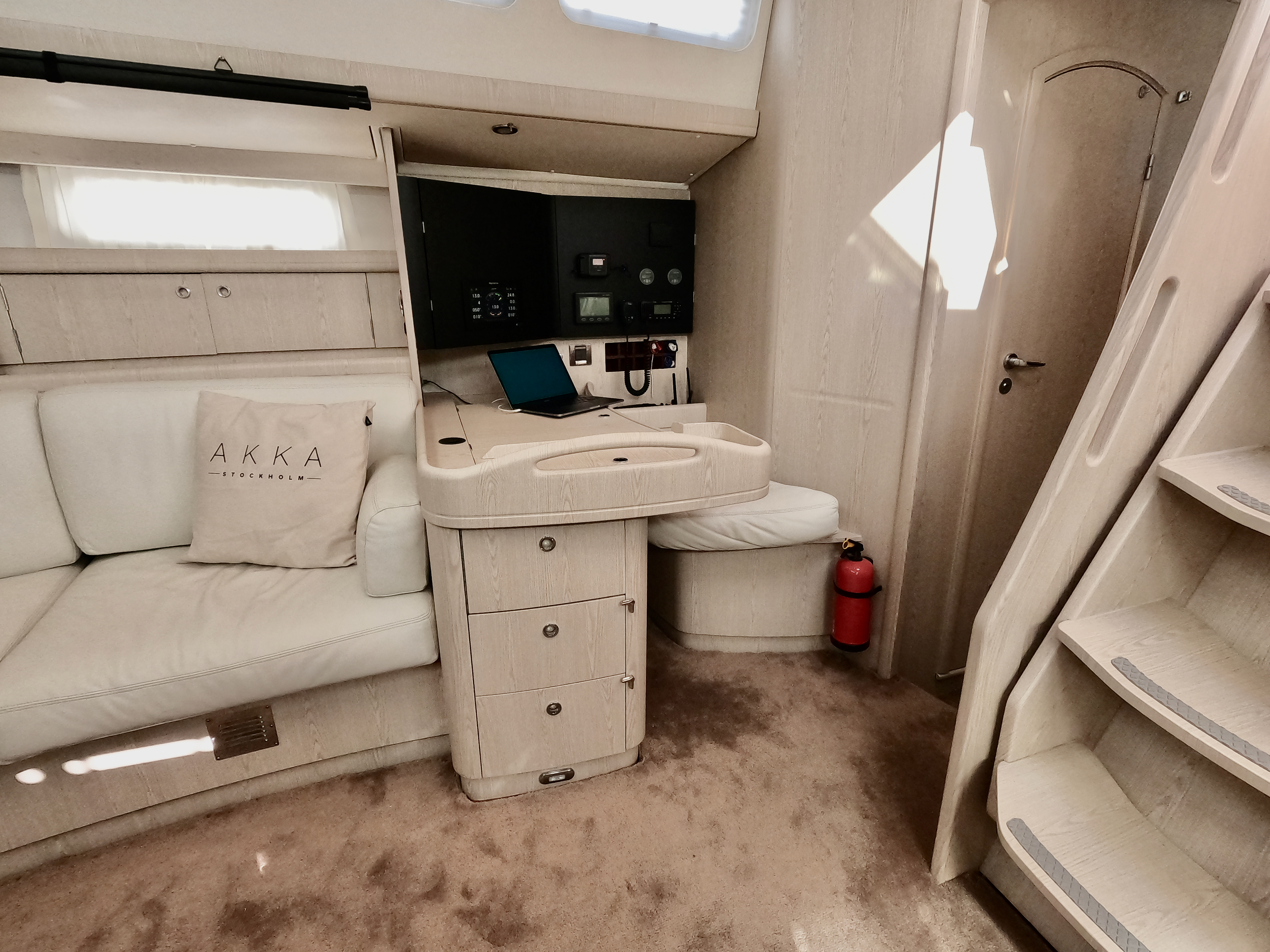

Chart Table:
• Positioned to the starboard side aft of the Saloon and adjacent to the Galley.
• Chart table with opening lid providing for internal storage.
• Navigator’s seat.
• Panel the hull side with electronics/navigation/communication equipment
Day/Guest head
• Rebuilt 2024
• Electric marine head
• Shower
• Holding tank
Crew Cabin:
• Positioned to the starboard side aft of the Day/Guest Head
• Twin single bunk berths.
• Cupboard space.
• Fixed porthole to the hull side.
• 7kg washing machine

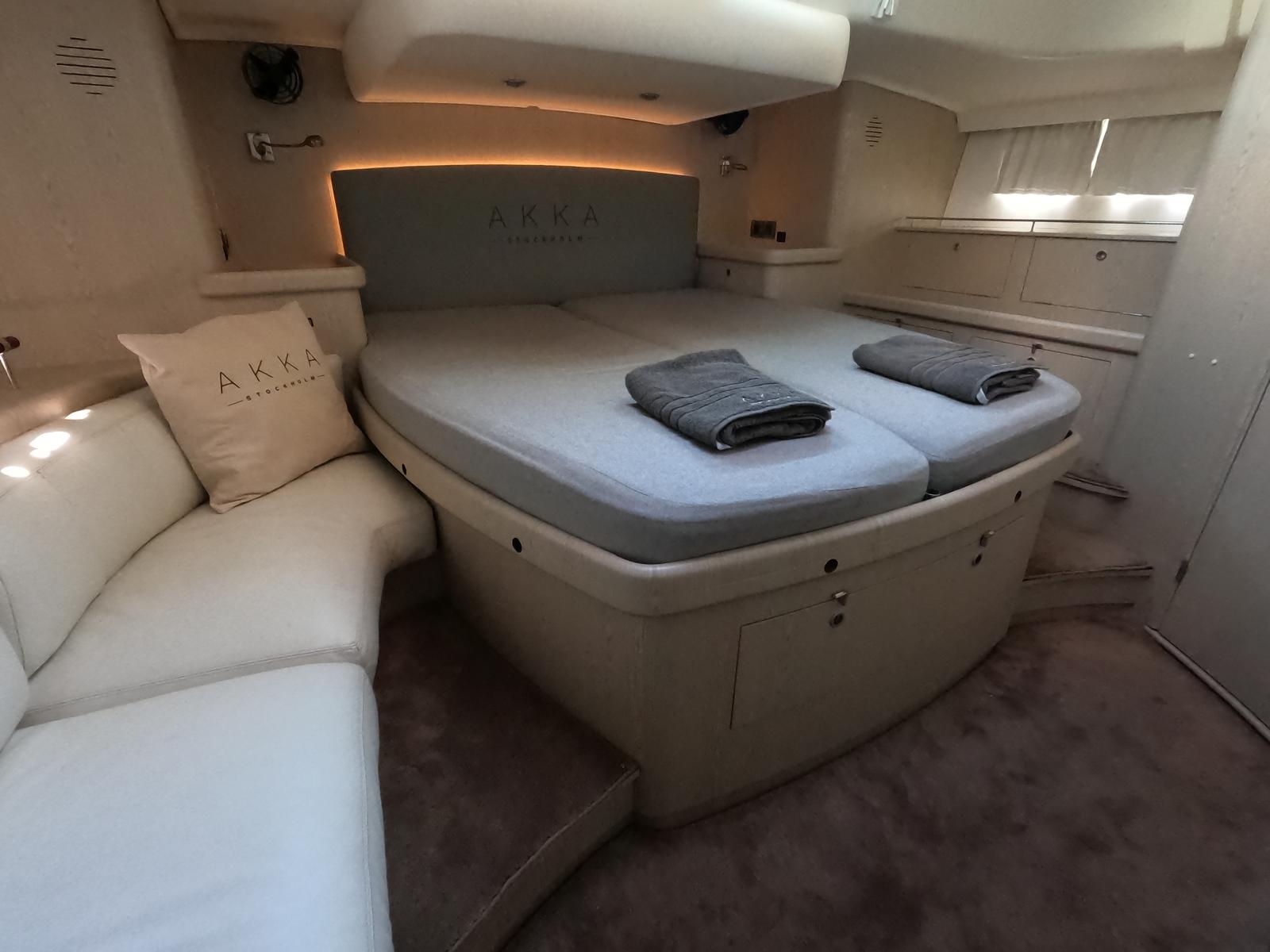

Owner’s Aft Cabin:
• Impressive full width aft cabin accessed via a passageway to the starboard side.
• Centrally positioned double bed.
• Sofa to the starboard side.
• Hanging locker and draw space.
• Dressing table. To the centreline facing forward.
• Port holes to the hull side and further ones to the cabin superstructure.
• Cabin superstructure opening hatches for ventilation.
Owner’s En Suite Heads:
• Positioned to the portside.
• Electric marine heads
• Wash basin inset to a countertop with a hot and cold-water mixer tap.
• Shower cubicle with a thermostatic valve and shower head, grating to the sole of the cubicle with a sump pump.
• Holding tank

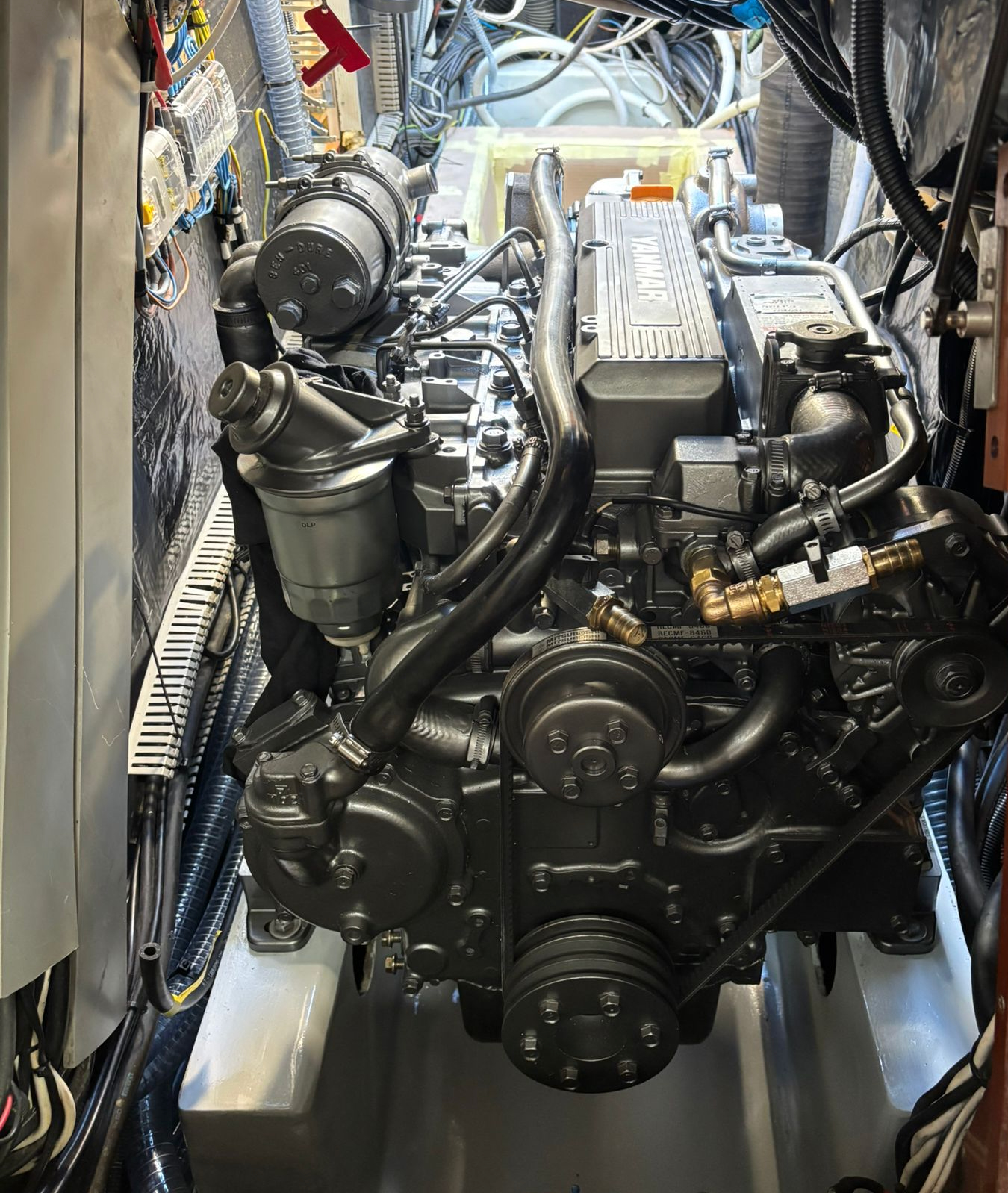

Engine & gearbox:
• Yanmar 4LHA-HTP 4-cylinder turbo charged inboard diesel engine producing approximately 160hp at 3,300rpm
• Vertical water cooled.
• Direct injection.
• Constant high temperature fresh-water cooling (2-systems: sea and fresh water).
• Forced lubrication system with trochoidal gear pump.
• Counter-clockwise engine rotation (viewed from the flywheel side).
• Single lever engine control.
Engine Hours & Maintenance:
• Engine fully rebuilt and painted 2026
• Engine hours approx. 5300
The seacocks and skin fittings and hoses related to them in the engine room for engine, generator and water maker have been replaced with Tru-design. (2026)
Propulsion & Steering:
• Gori 3-blade folding propeller 2023
• Shaft driven with 40mm stainless steel propeller shaft 2024
• Stainless steel steering wheel with a leather cover positioned to the forward end on the port side of the cockpit.
• Hydraulic steering system
• Emergency tiller.
• MaxPower 24vDC 11hp bowthruster
Diving compressor
• Coltri MCH-6
ELECTRICAL SYSTEMS
Voltage systems:
• 24vDC domestic system with 12vDC starting circuit and 240vAC via shore power, generator or inverter.
Battery Banks:
• 1x 80Ah Mastervolt AGM 12vDC engine start battery – 2025
• 1x 80Ah Mastervolt AGM 12vDC generator start battery – 2025
• 400Ah AGM 12vDC electronics battery bank - 2025
• 24vDC service battery bank with 800Ah capacity - 2026
• 24vDC bowthruster battery bank – 2026
• Mastervolt Masterlink MICC advanced battery monitoring systems
Charging:
• Mastervolt 60Amp 12vDC battery charger
• Mastervolt 100Amp 24vDC battery charger
• 24vDC battery charger for bowthruster battery bank
• Victron charge controllers
Generator:
• Onan 9.5kva 220vAC diesel generator
• Generator last serviced – 2026 (fully serviced with lift out and painted white)
Inverter:
• Mastervolt 24vDC/240vAC 2,500w inverter
Alternator:
• 12vDC 100Amp engine-mounted alternator
• 24vDC 100Amp engine-mounted alternator
Solar Generation:
• 750W Victron solar panels
• Charge controller and regulator for solar panels (24V and 12V)
Other Electrical:
• Electrical control panel with thermal breakers.
• Shore power cable 32A (3x6mm) 25 meters
• 12v sockets, voltmeter, ampere meter and battery test at DC panel.
• 220vAC shore power connections.
• Shore power supply protected with differential breaker and distribution system.
• 220vAC sockets throughout interior.
PLUMBING & GAS SYSTEMS
Fresh Water:
• The hot freshwater circuit is led into a well-insulated hot water tank, heated by engine or 220v AC immersion heater element.
• Hot & cold fresh-water shower at bathing platform.
Watermaker:
• Dessaltor HR4 220vAC reverse osmosis watermaker producing approx. 200 litres per hour
• Watermaker fully serviced 2026 (pump, motor, membranes, filters...)
Bilge Pumps:
• 9 x Electric bilge pumps.
• 1 x Manual bilge pump.
Seacocks:
• All seacocks and skin-fittings replaced 2021/2026
TANKAGE
Fuel:
• 665 litres fuel capacity in standard 2 tanks proving 480 litres plus further additional 185 litre tank under saloon sole..
• Filling of fuel tanks is through deck inlets.
Fresh Water:
• 2x freshwater tanks with a total capacity of 1000 litres.
• Filling of water tanks is through deck inlet.
Holding tanks
• 3x holding tanks, can all be emptied from deck.
NAVIGATION & COMMUNICATION EQUIPMENT
• Raymarine Axiom+ 12” plotter
• Raymarine Radar Quantum 18" Q24W
• Raymarine p70s autopilot
• Raymarine p70s secondary autopilot
• Raymarine Evolution pilot ACU-400
• Autopilot hydraulic drive
• 4x Raymarine i70 graphic multidisplays (wind, depth, speed and much more)
• NMEA 2000 network
• Steering compass
At Chart Table
• Raymarine Axiom 9” plotter
• Raymarine AIS 700
• 2x Victron BMV-712 Smart.
• Navtex
Communications Equipment
• Icom VHF with DSC
• VHF handset in cockpit
• Iridium GO! Exec.
• Glomex weBBoat 4G Lite / 4G Lite High Speed.
DOMESTIC EQUIPMENT
Galley:
• Gimballed stainless steel 4-burner gas stove and oven.
• 220vAC microwave oven.
• Twin stainless steel bowl sink with mixer tap
• Extractor fan.
• 100 litre front-opening stainless steel refrigerator – keel cooled
• 150 litre GRP top-opening refrigerator – keel cooled
• 130 litre freezer – keel-cooled
Heads:
• 4x electric marine heads
• Hot & cold pressurised water supplies with showers.
Ventilation:
• DC ventilation fans throughout
Interior Lighting:
• Interior deckhead and LED reading lights as appropriate to each cabin.
Deck equipment:
• 2x stainless-steel aft pushpits.
• Stainless-steel pushpit with bow roller.
• Stainless steel wire guardrails with stainless steel stanchions.
• Gates in guard rails to the; port, starboard and the transom.

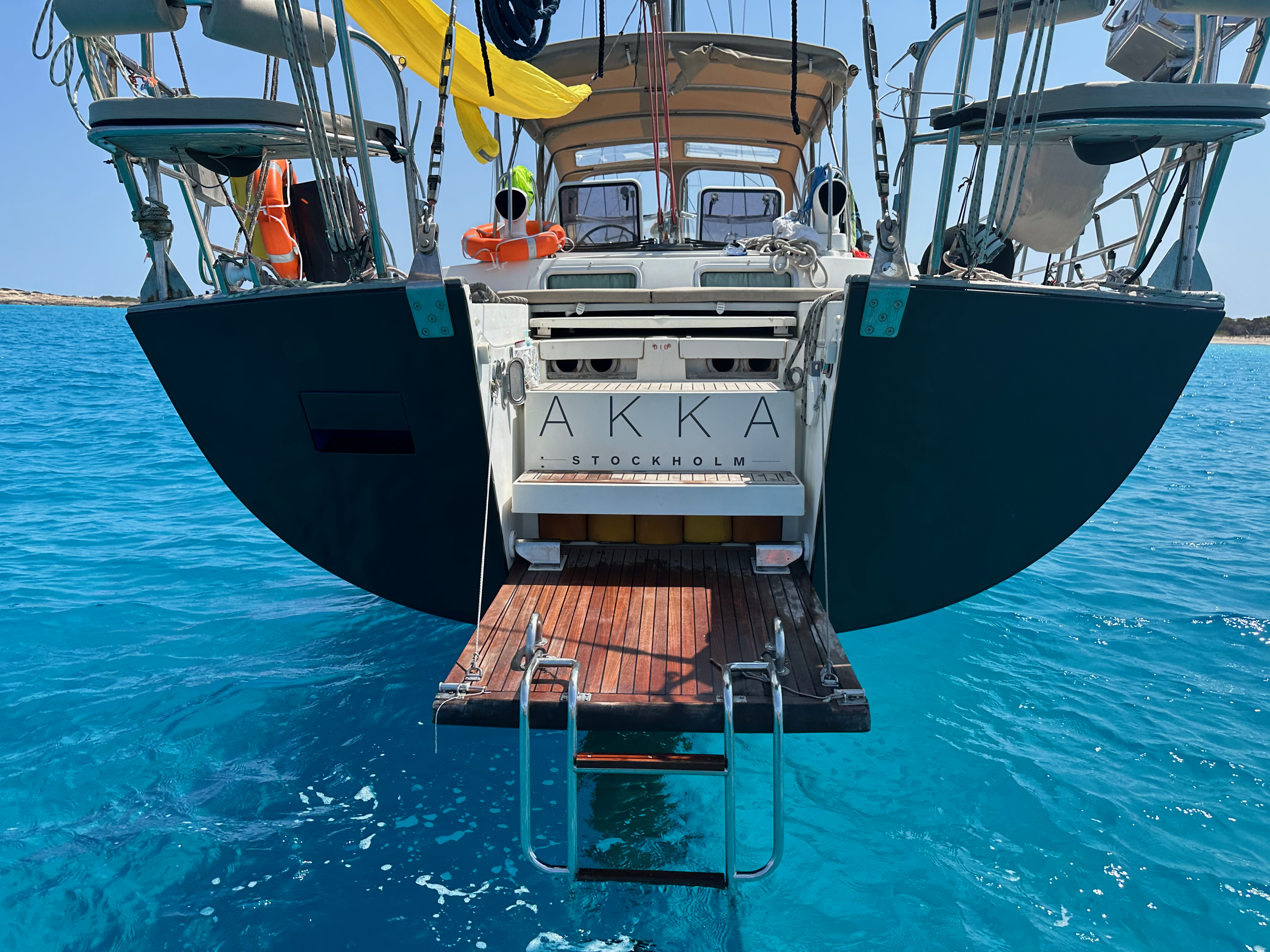

• Hinge down hydraulic bathing platform to the transom with a folding stainless-steel bathing ladder, matching grab rails and teak and caulked covering.
• Fresh water shower hot and cold
• Teak capping to the raised bulwarks.
• Hatches to the aft deck giving access to underdeck storage.
• All hatches, windows and portlights replaced except the forward sail locker one (2023).

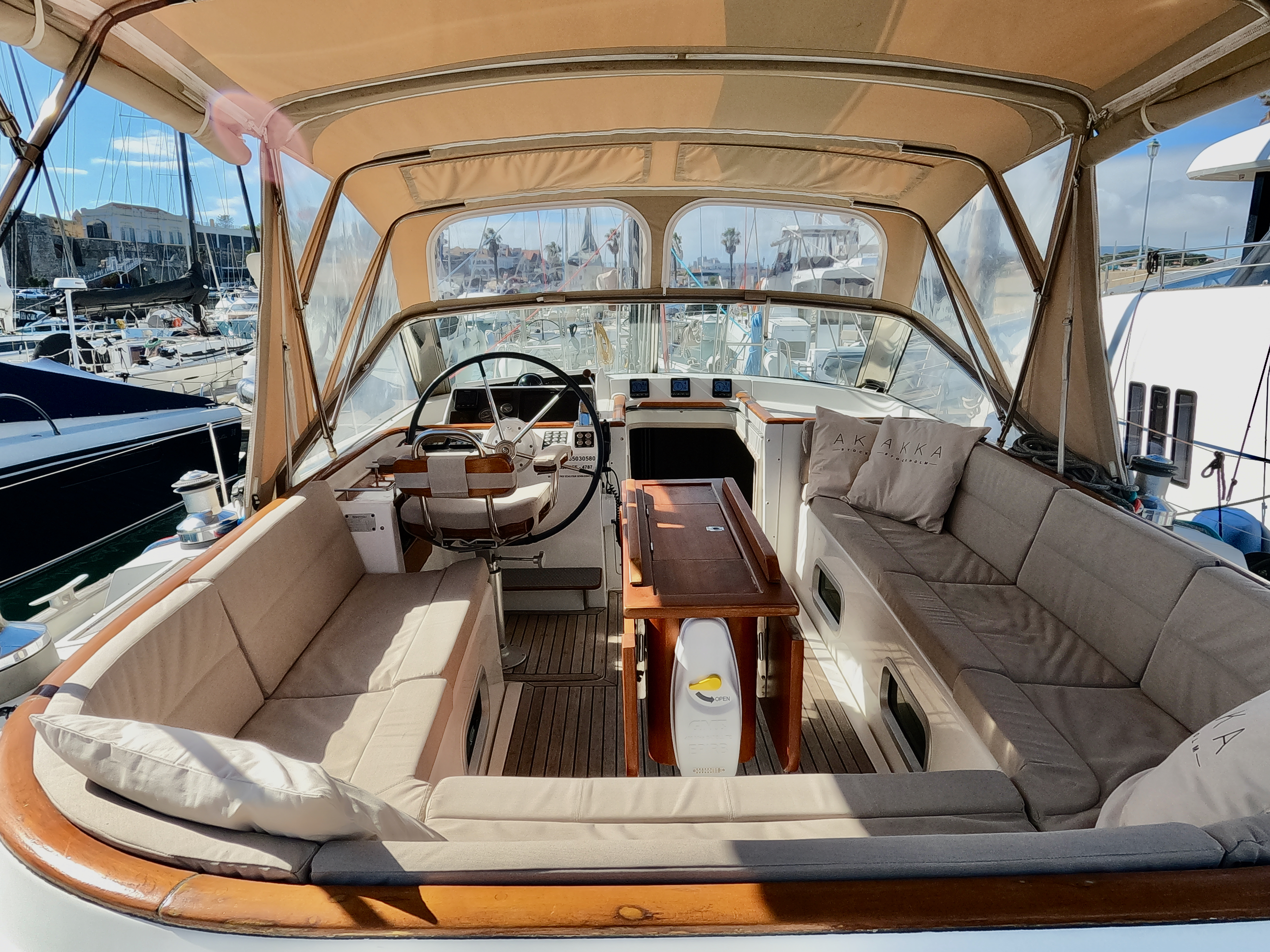

• Fixed windscreen with an aluminium frame and toughened glass.

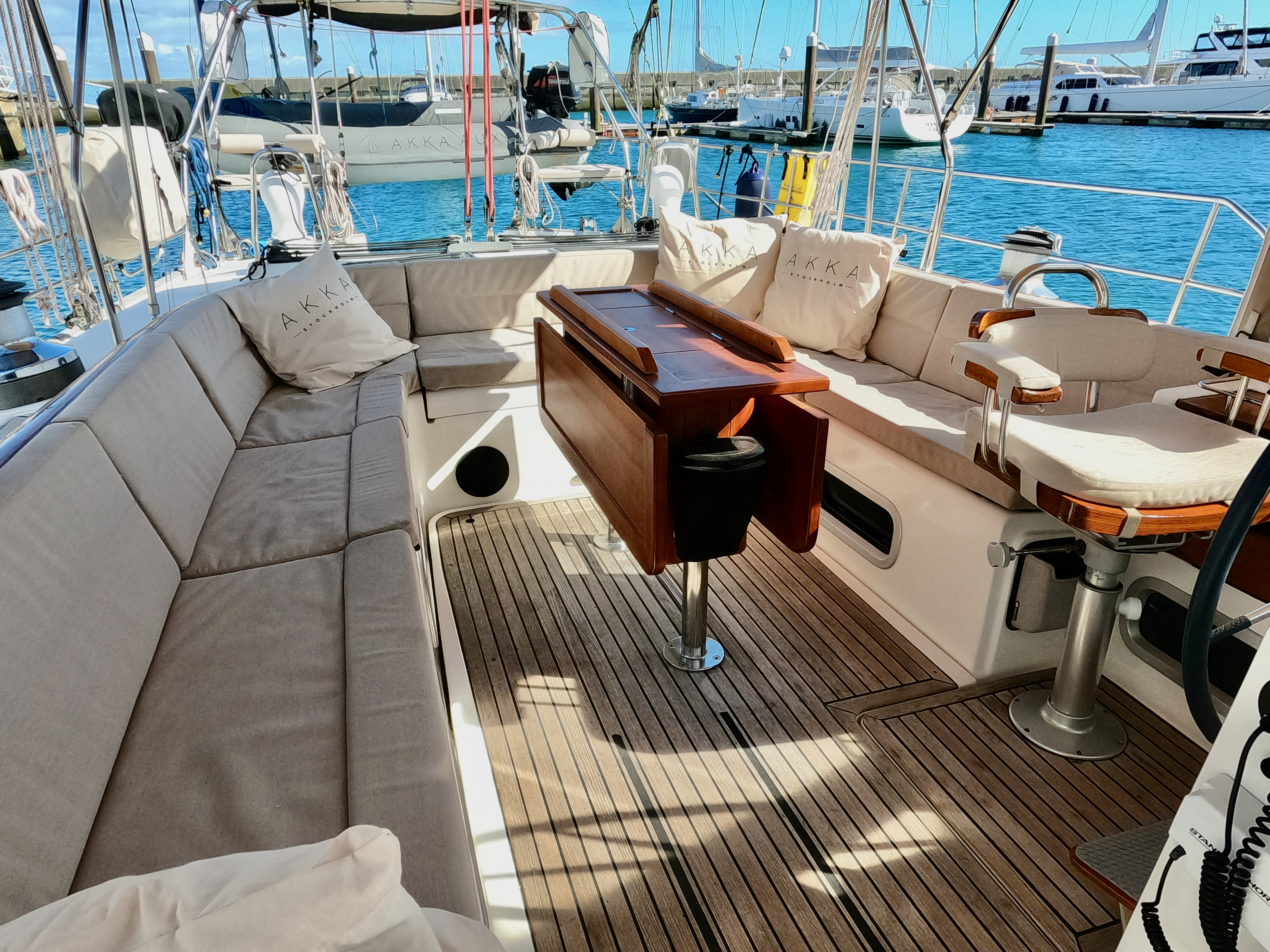

• Fixed timber cockpit table with drop leaves, a raised stainless-steel grab rail and internal storage compartment.

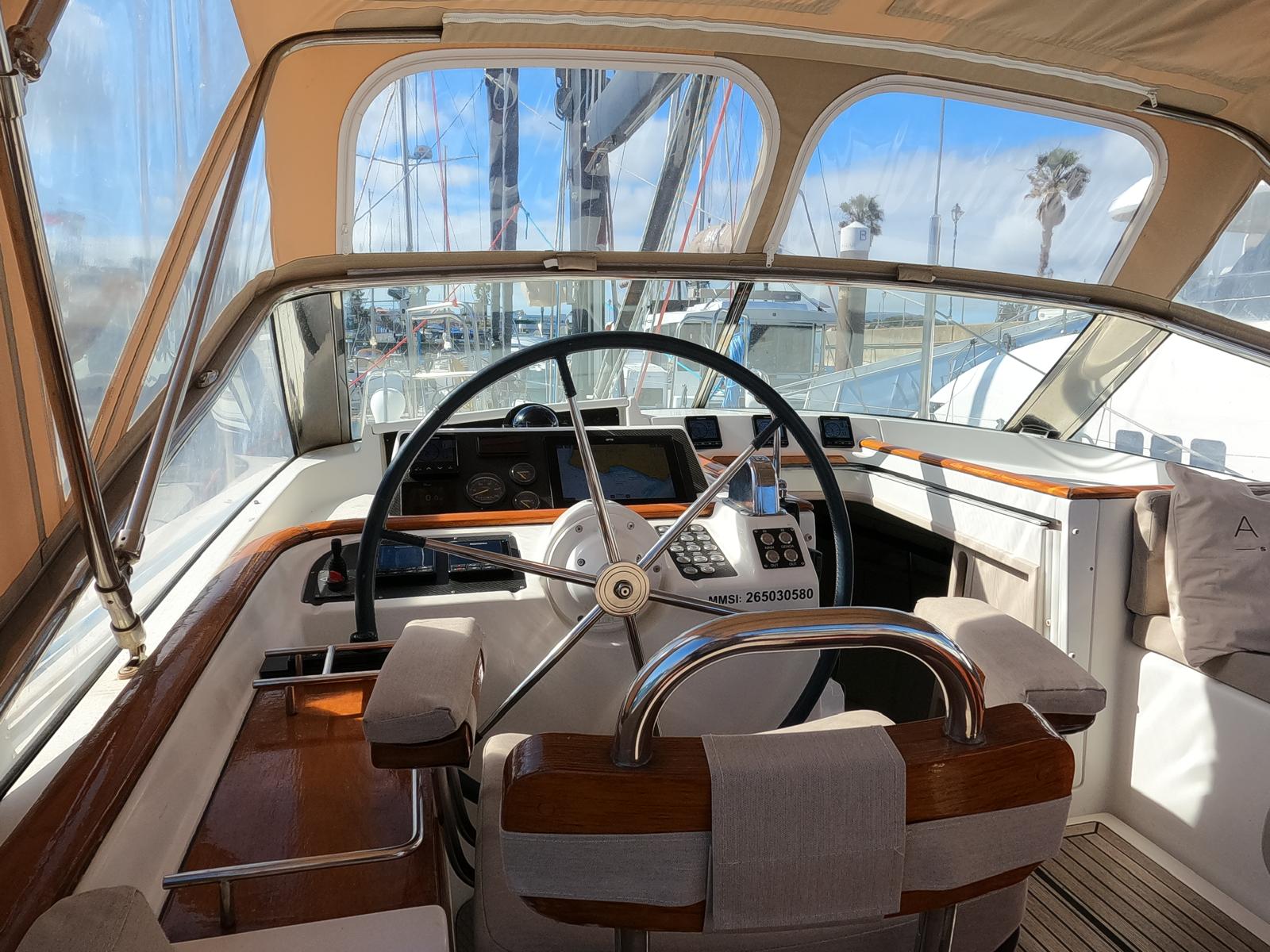

• Helming position to the port side forward end of the cockpit with the leather covered stainless steel steering wheel, engine throttle lever control, bow thruster control and navigation equipment. Helming seat with a stainless-steel frame back support and cushion.
• Stainless-steel grab rails to the roof of the cabin superstructure.
Anchoring & Mooring:
• Lewmar V5 high 2000w 24V 12mm gipsy, controls in the cockpit and on the foredeck 2023
• Mantus M2 galvanized steel anchor 57kg and approximately 100m of chain 2023
• Warps and fenders
Covers, Cushions & Canvas:
• Sprayhood with stainless steel frame and windows 2024
• Bimini top sunbrella 2024, with stainless steel frame
• Cockpit cushions, Sunbrella 2023
• Interior carpets 2024
Tender & Outboard:
• Stainless steel tender davits
• Highfield tender 2026
• Suzuki 6Hp 4-stroke
SAFETY EQUIPMENT:
Lifesaving Equipment:
• 406Mhz Epirb
• Liferaft ISSO 9650 - 1 >24h 10pax, serviced 2026
• MOB recovery device
All equipment approved by Portuguese authorities in 2026
Fire Control
• Automatic fire extinguisher in machinery space
• Manual fire extinguishers
• Fire blanket.
Ancasta are acting as brokers for the vendor who is not selling in the course of business unless otherwise stated. These details are prepared from information provided by the vendor and are intended only as a guide to give a fair description of the vessel but their accuracy cannot be guaranteed and they do not constitute part of any contract.
A prospective buyer is strongly advised to check the particulars and to have the vessel fully surveyed by a qualified marine surveyor. Details are supplied on the understanding that all negotiations shall be through Ancasta brokerages. This vessel is offered subject to prior sale, price change or withdrawal without notice. Please Note: where the vessel's status shows as "Preliminary", details of the vessel have not yet been confirmed by the Vendor.
