Amel 54 For Sale | 2009

470,000 Tax Paid | S. France France

Your account cannot save boats.

Summary

  • Make Amel
  • Model 54
  • Year 2009
  • LOA 56ft/17m
  • Class Sailing Cruiser
  • Hull Glass Reinforced Plastic
  • Keel Fin Keel
  • Rig Ketch
  • Engine Single Diesel
  • Drive Sail Drive
  • Layout Centre Cockpit
  • Berths 7
  • Cabins 2
  • Aft Cabins 1
  • Ancasta Ref 37773
  • Name Kamada

Overview

For sale Amel 54 from 2009, second hand. Pack comfort plus. Certainly the most equipped Amel 54 on the market today. 100L/h watermaker,Webasto cabin air heating, 11 Kva generator, additional freezer, two windlass, staysail furling system, 2 black waters tanks, full electronique, two auto pilots,s/s aft davit, winter cover..Contact Ancasta Port Napoleon +33 442 058 888 / [email protected]

Layouts

Layout

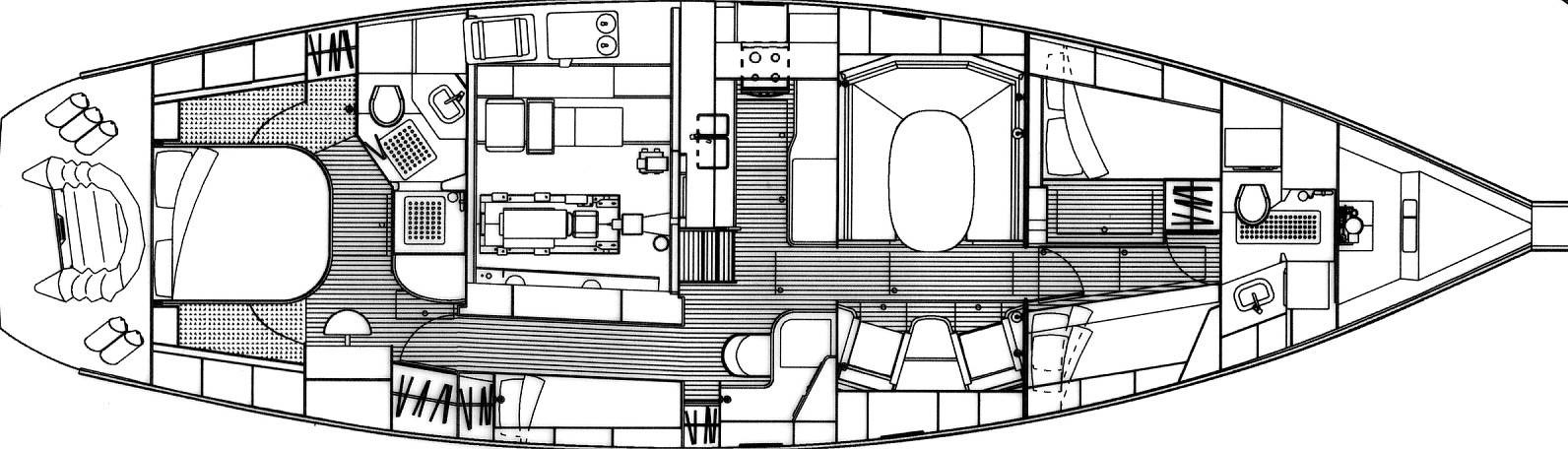

Amel 54 - layout

Build

AMEL 54 Built by AMEL Shipyard in France in 2009 – 2nd owner

Hull & superstructure in GRP

4 watertight bulkheads with isolating valves

>> PACK CONFORT +

DIMENSIONS

L.O.A: ———————————- 17.20m ————— 56’5?
Hull lenght: —————————- 16.40m ————— 53’1?
L.W.L: ——————————— 13.75m ————— 5’2?
Beam: ——————————— 4.80m —————- 15’9?
Ballast: ——————————– 5t1
Displacement: ———————— 17t50
Draft: ———————————- 2.10m —————- 6’9?

CAPACITY

Water: ——————————— 900 L
>> Watermaker DESSALATOR 24v/220v -100 l/h – 176 running hours
Fuel : ——————————— 900 L
2 x black water tanks ——————— 90L + 90L

New epoxy primer and copper coat antifouling 2021/11

Rig

RIG

Ketch rig
Aluminum spars
24V electric genoa furling system
24 V electric main furling system
24 V electric staysail furling system
Manual mizzen furling system
6 ST winches on the mast
1 pole in aluminium. Just replaced by a second hand one in ALU
New boom breaker Walder 2022/02
New Changing Genua fuller for bigger unit BAMAR MEJ 2.02 (before was MEJ 1.02)

SAILS

Genoa – triradial cut – hydranet – INCIDENCES- from 2017 – Genua UV cover replaced 2024/10
Staysail – triradial cut
Main sail – triradial cut – hydranet – DEMEE – from 2023
Mizzen sail
Mizzen head sail
>>ALL SAILS SERVICED in 2021

Accommodation

>>REVERSIBLE AIR CONDITIONNING throughout the boat (3 units)
+ WEBASTO cabin air heating 5000 W

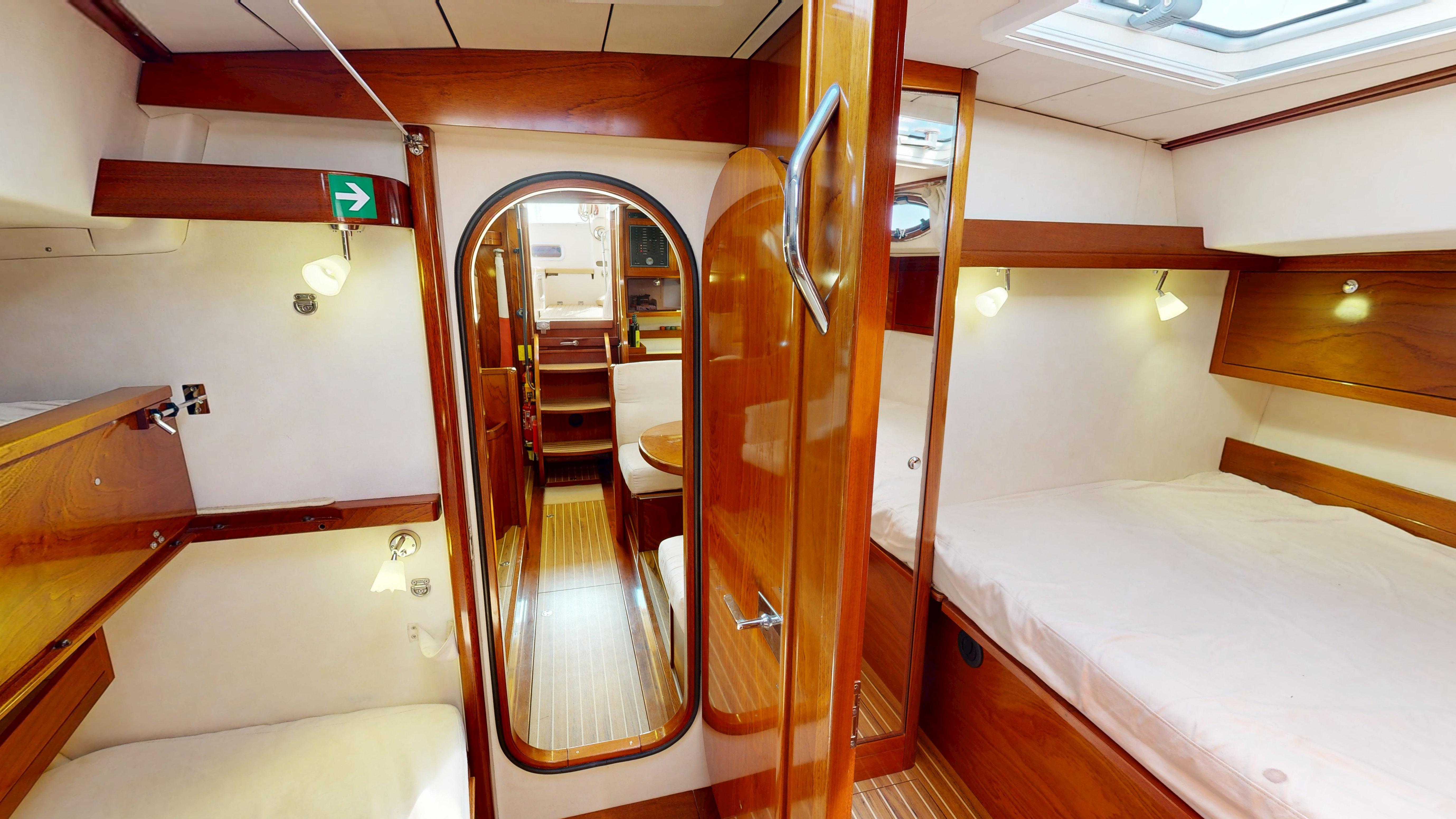

PORTSIDE FRONT DOUBLE CABIN

1 double bed with leeboard
Hanging locker
Shelves
Book cases
Voluminous space under berth and sole
Reading lamps
220 V air con and heat

STARBOARD FRONT CABIN

Upper and lower single berth with lee clothes
Reading lamp
Air con and heat

FORWARD HEAD

Sink with mixer tap
Separate shower wit mixer tap
Shelves, mirror
24 V electric toilet with freshwater flushing
Holding tank
220v Outlets
220 V washing machine (4 Kg)
220 V dryer
Opening hatch
Forward watertight bulkhead

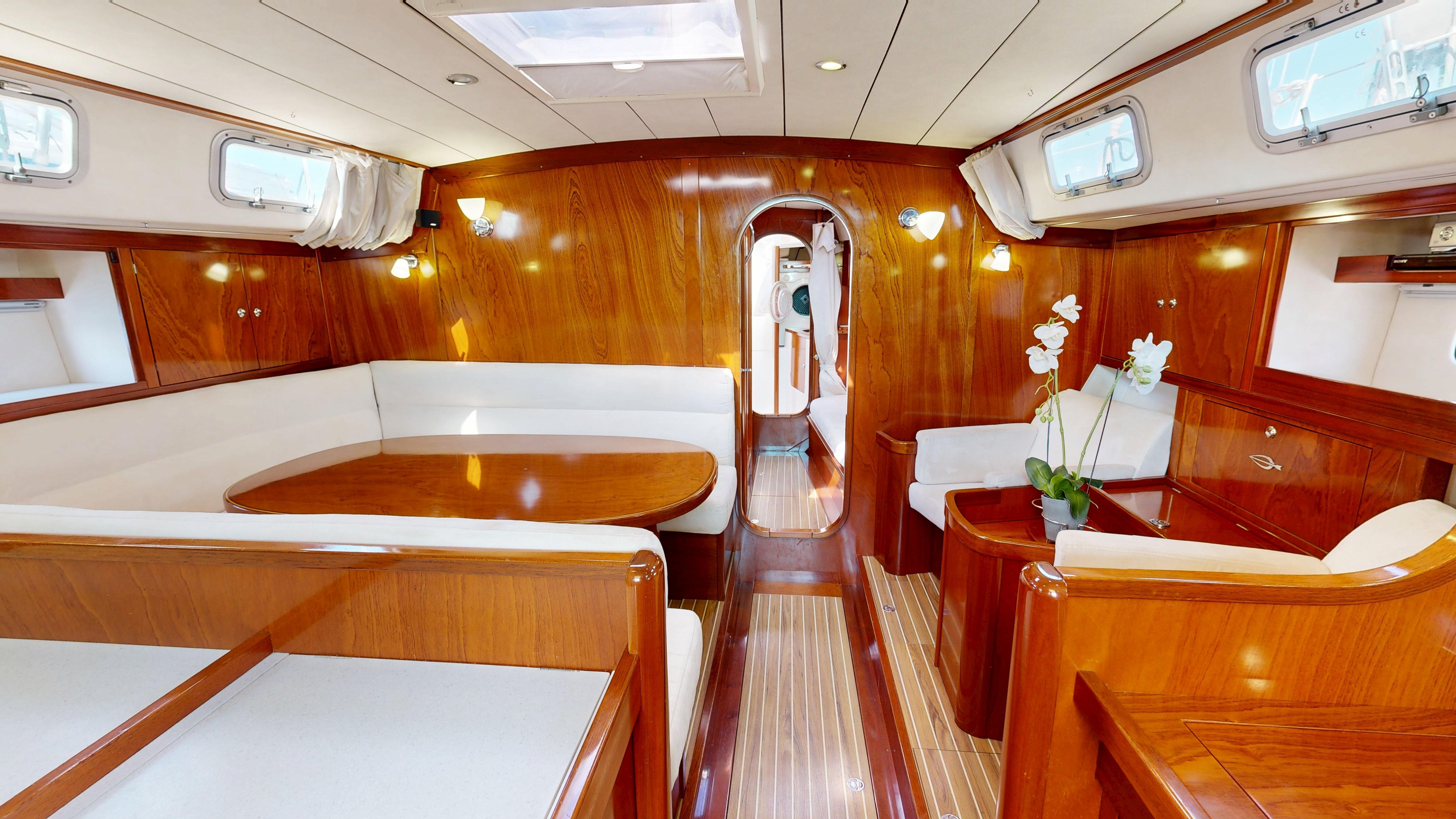

SALOON

U shaped saloon on port side
Shelves, book cases, dry storage… Armchairs
1 large opening overhead hatch
TV
220 V aircon and heat

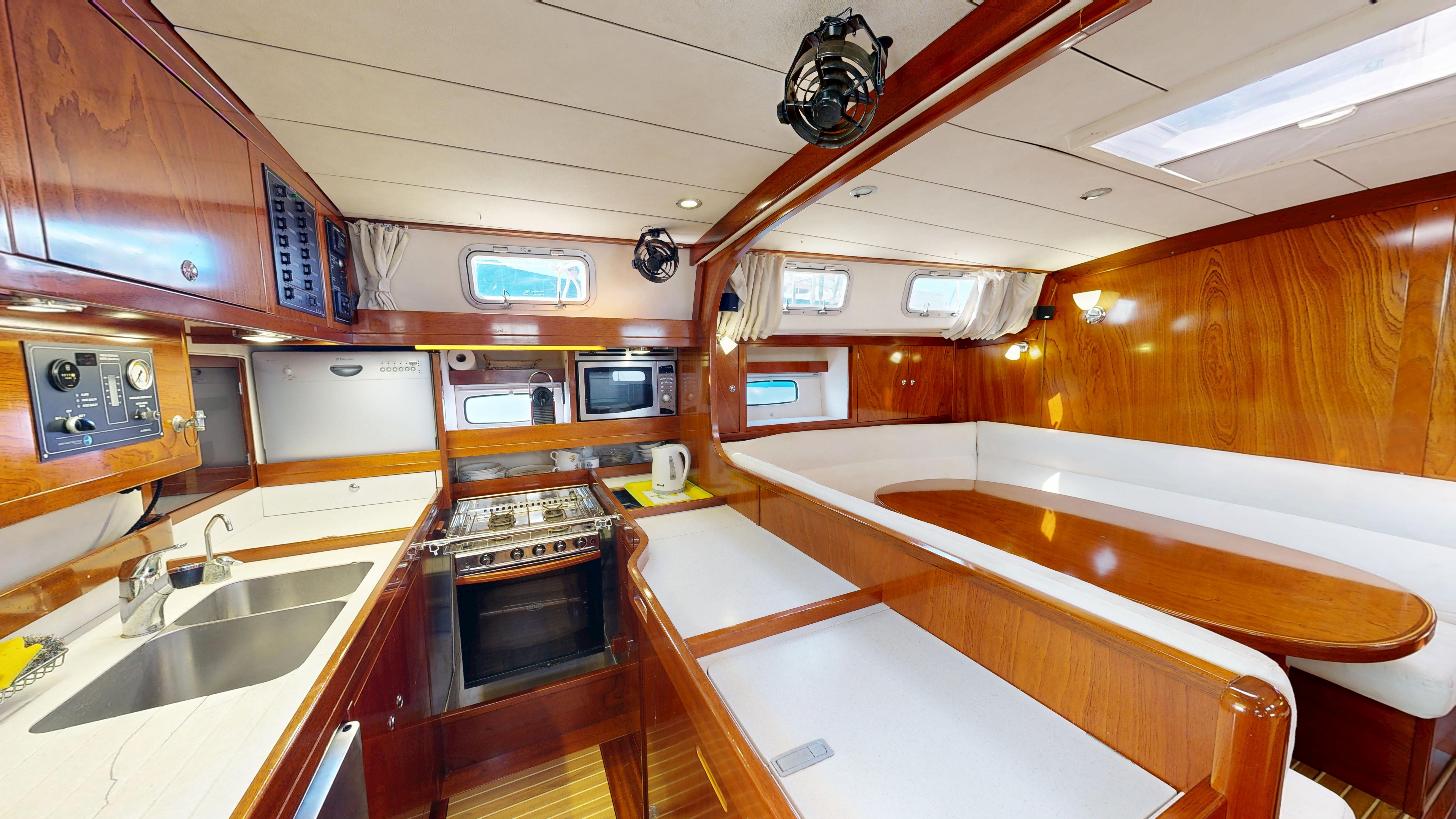

GALLEY

U shapped galley
Top loading 24 deep freezer
Second freezer in the saloon
24 v s/s front loading fridge, New door open fridge 2023
220 V dishwasher
220 V micro waves/oven
Gas stove with 4 burners and an oven/grill + Extractor
Corian countertop
S/S double sink, mixer tap
Fresh water filters
Watermaker panel control

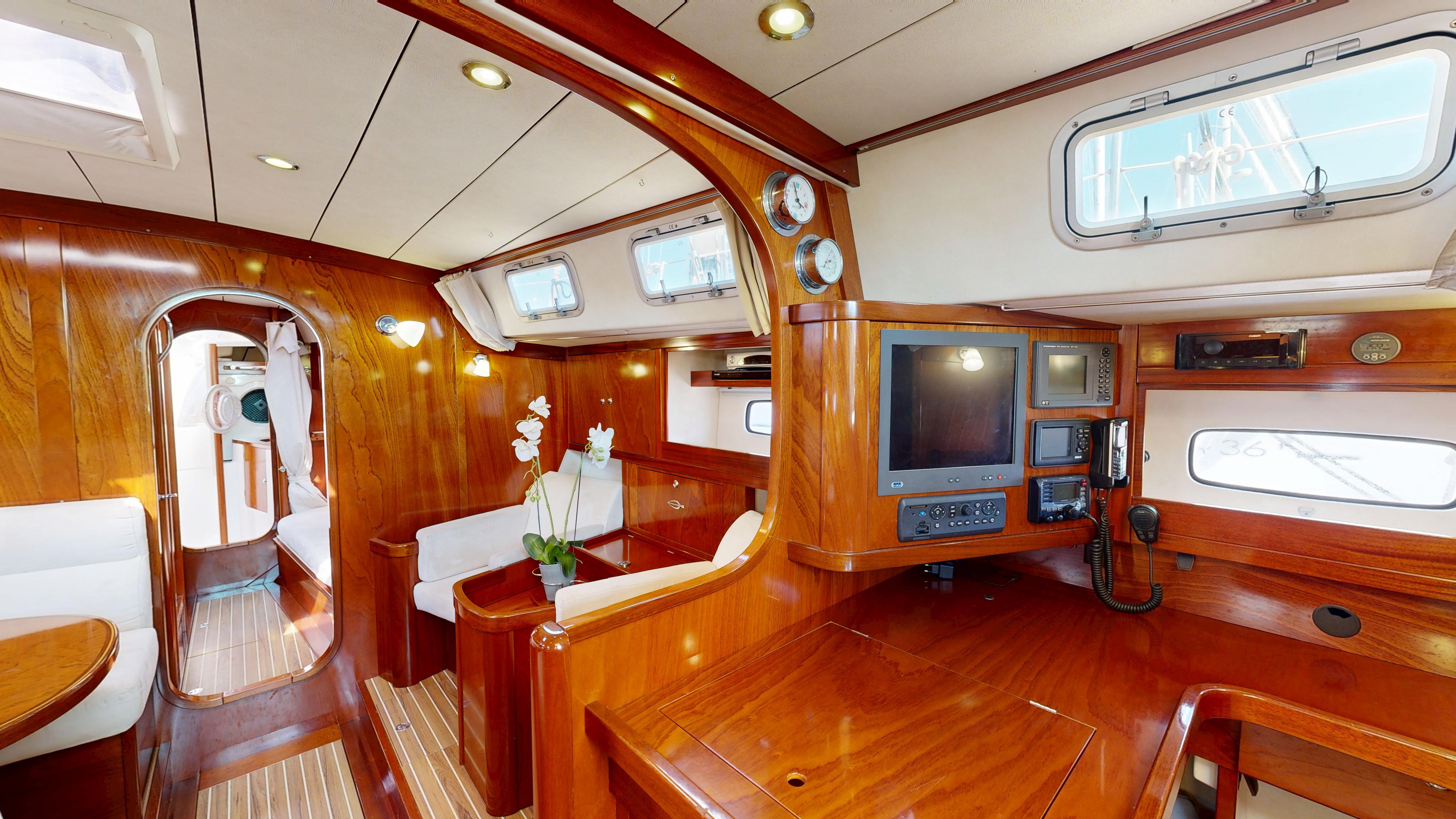

NAV STATION

Chart table
Storage for charts and guide
4 drawers, shelves and book case
24V and 220 V outlets
Locker for 24 to 12V inverter
Electronic navigation instruments
Seat
Hanging locker for wet clothes

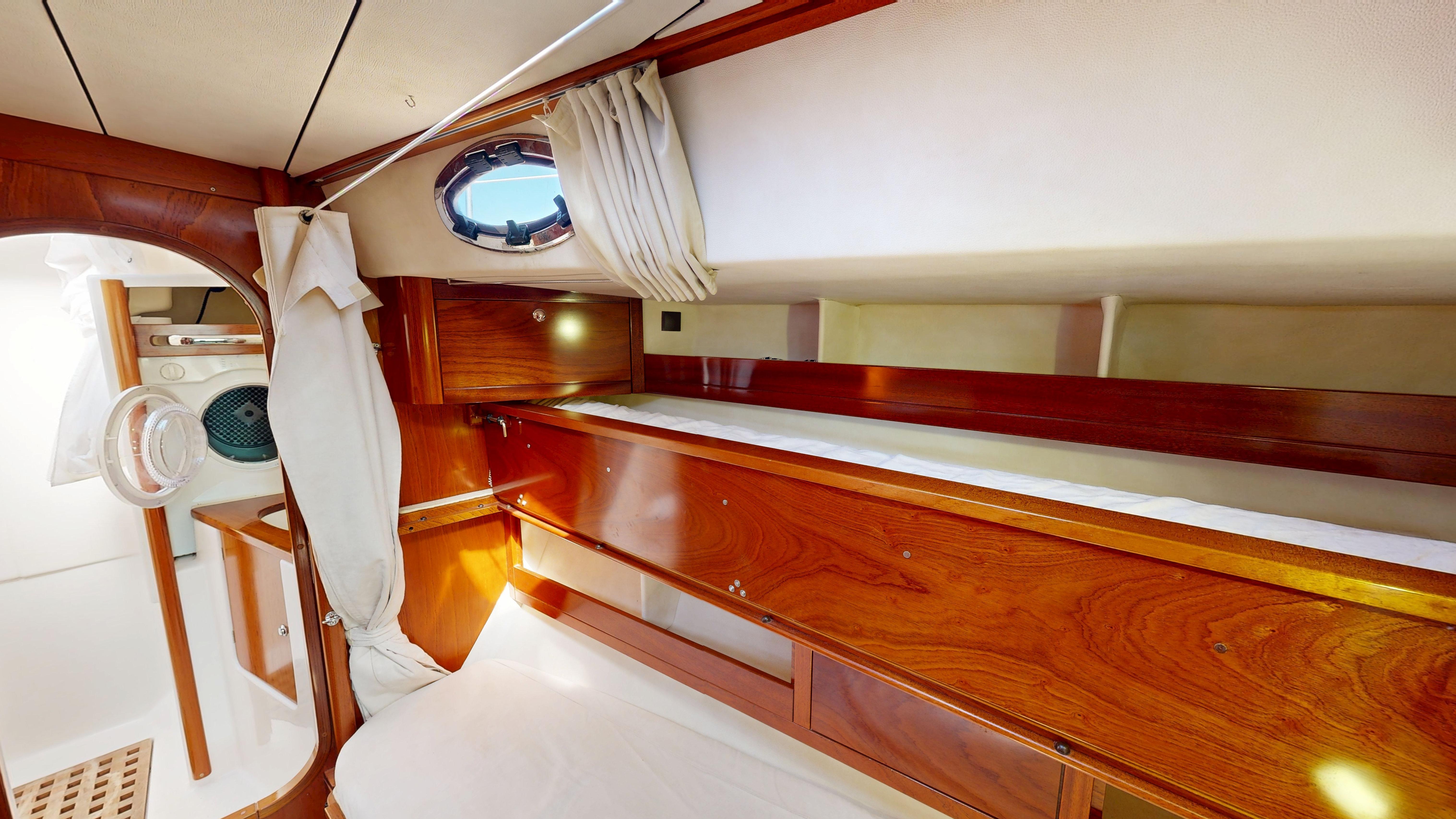

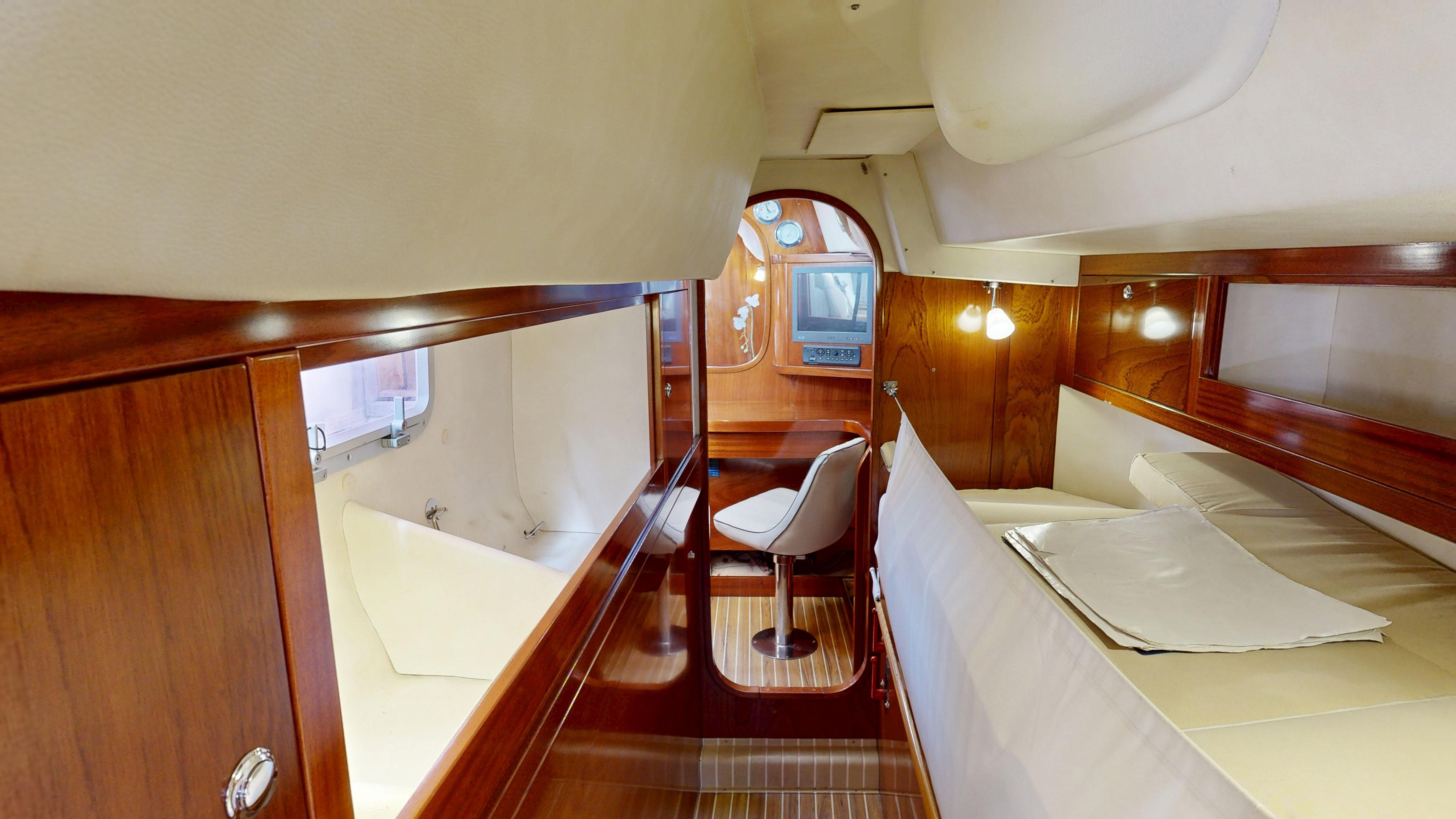

AFT PASSAGE WAY CABIN

Single berth with lee board
Shelves, storage…
Opening porthole to the cockpit
Batteries storage under the berth

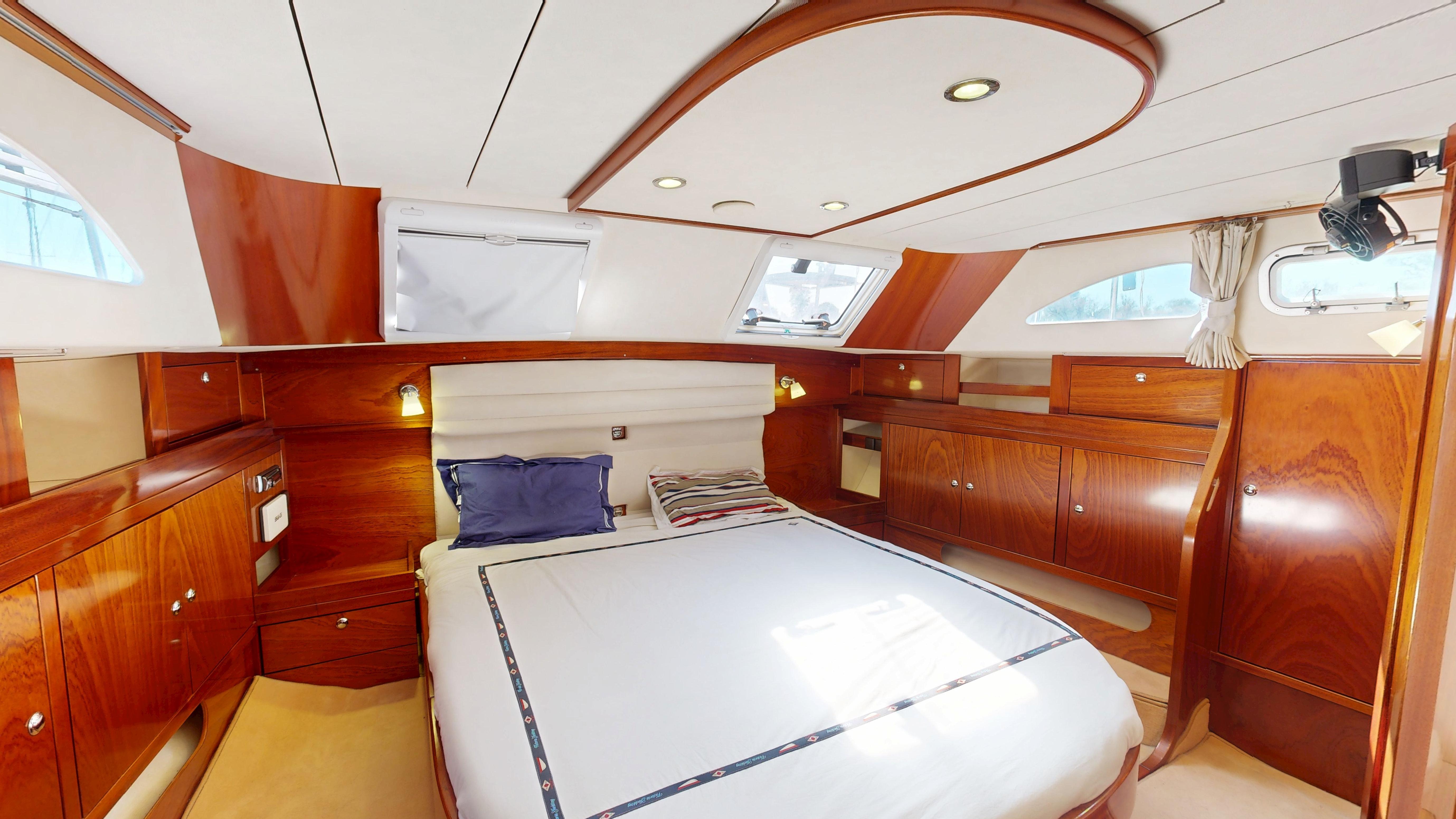

AFT CABIN

Owner cab 2 * 160
Safe locker
Removable lee boards
Pressured gas cylinders to access dry storage as well as rudder quadrant
Plenty of storage
2 hanging lockers
Writing desk/table with mirror and drawer
220 V air con and heat
220 V outlets
Lightings, reading lamps,…
Watertight bulkhead at the entry
Fixed watertight bumkhead from the aft deck locker

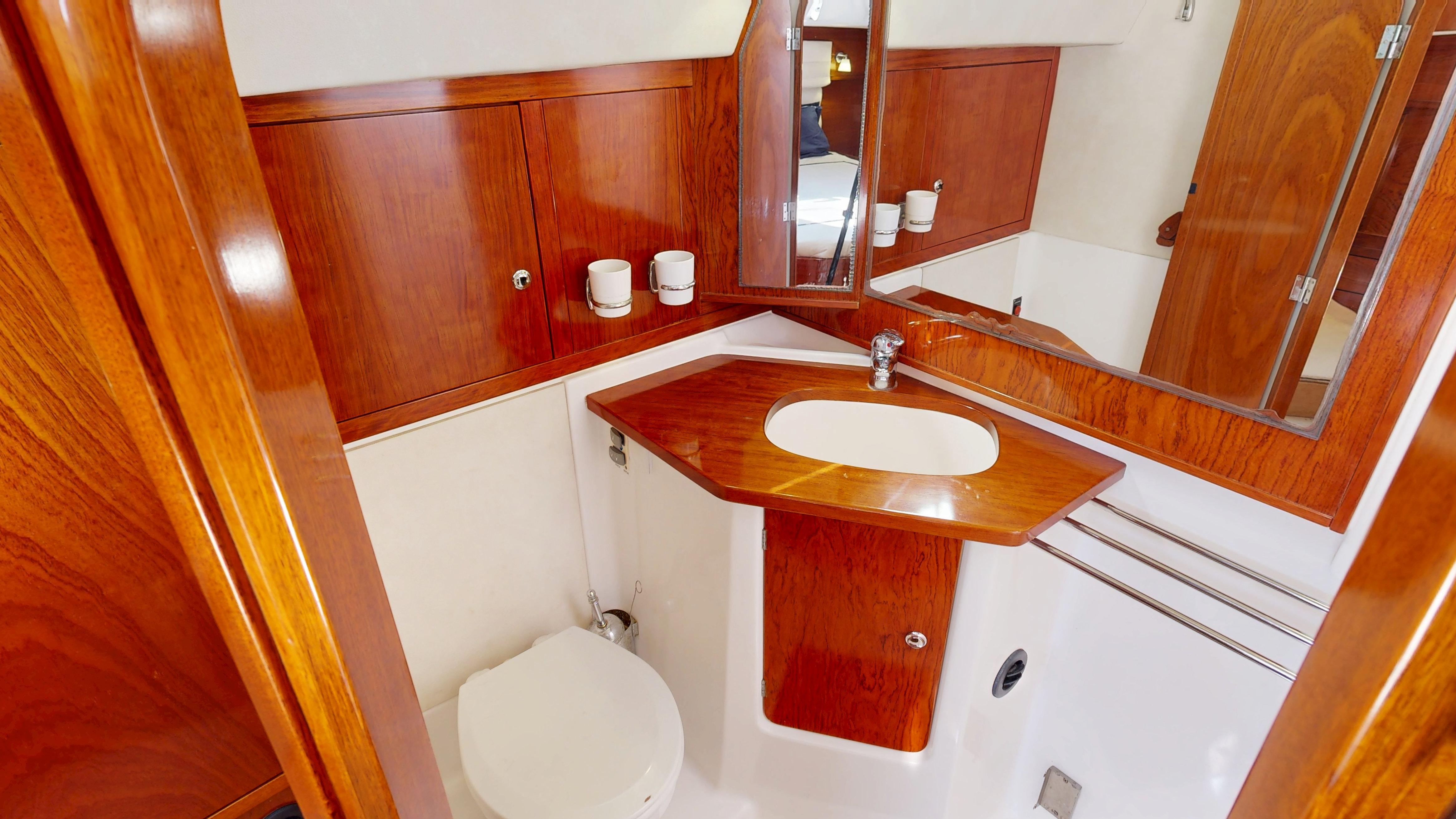

AFT HEAD

Washbasin with mixer tap
Separate shower
24V electric toilet wxit freshwater flushing
Holding tank (80 L)
220 V outlet

Machinery

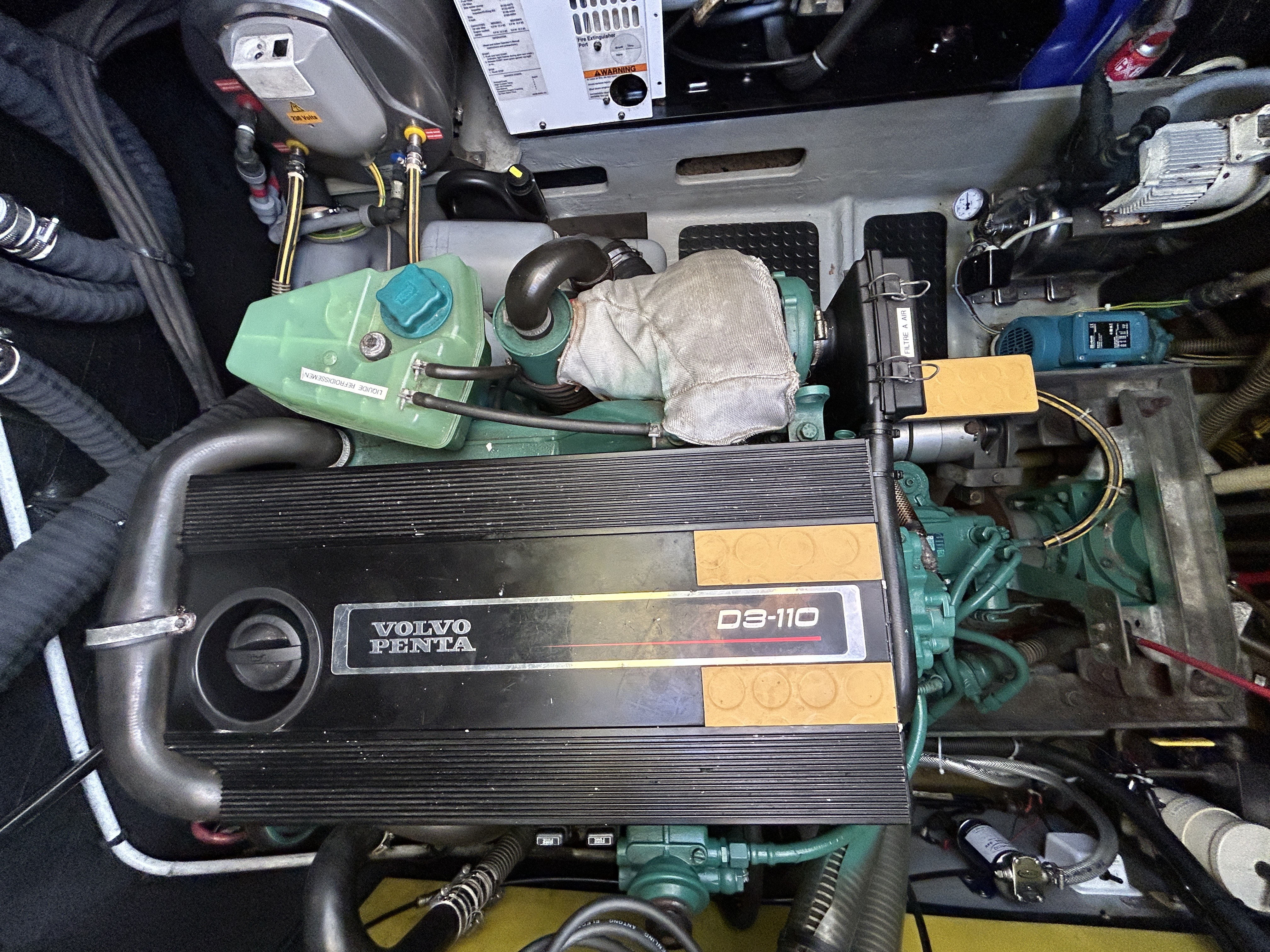

ENGINE

VOLVO. 110 HP TurboDiesel engine
Circa 4700 running hours
AUTOPROP folding propeller
SPURS rope cutter
Double RACOR diesel fuel filters with 3 ways valve
Hydraulic gearbox with automatic shaft brake
Automatic extinguisher
New C-drive shaft sealing replaced 2024/02
New Marco marine Oil pump UP4/OIL to changing the engine oil 2024/10
Last serviced in 2024
New gearbox from 2021

ELECTRICITY

220V :
>>Generator ONAN 11 Kva – 1500 tr/min – Circa 1427 hrs
Battery charger 110 Amp

24V :
New batteries 12 x 110Ah victron energy (like original one)
New mastervolt 40A charger 2024/07
Hydrovane wind self steering unit 2022/01
24 V engine alternator 110 A/H

12V :
1 starting battery – 105 Amp
12V engine alternator – 80 Amp
Inverter 24V/220V / 2500 W
LED navigation lights
LED Steaming lights
LED deck lights

Inventory

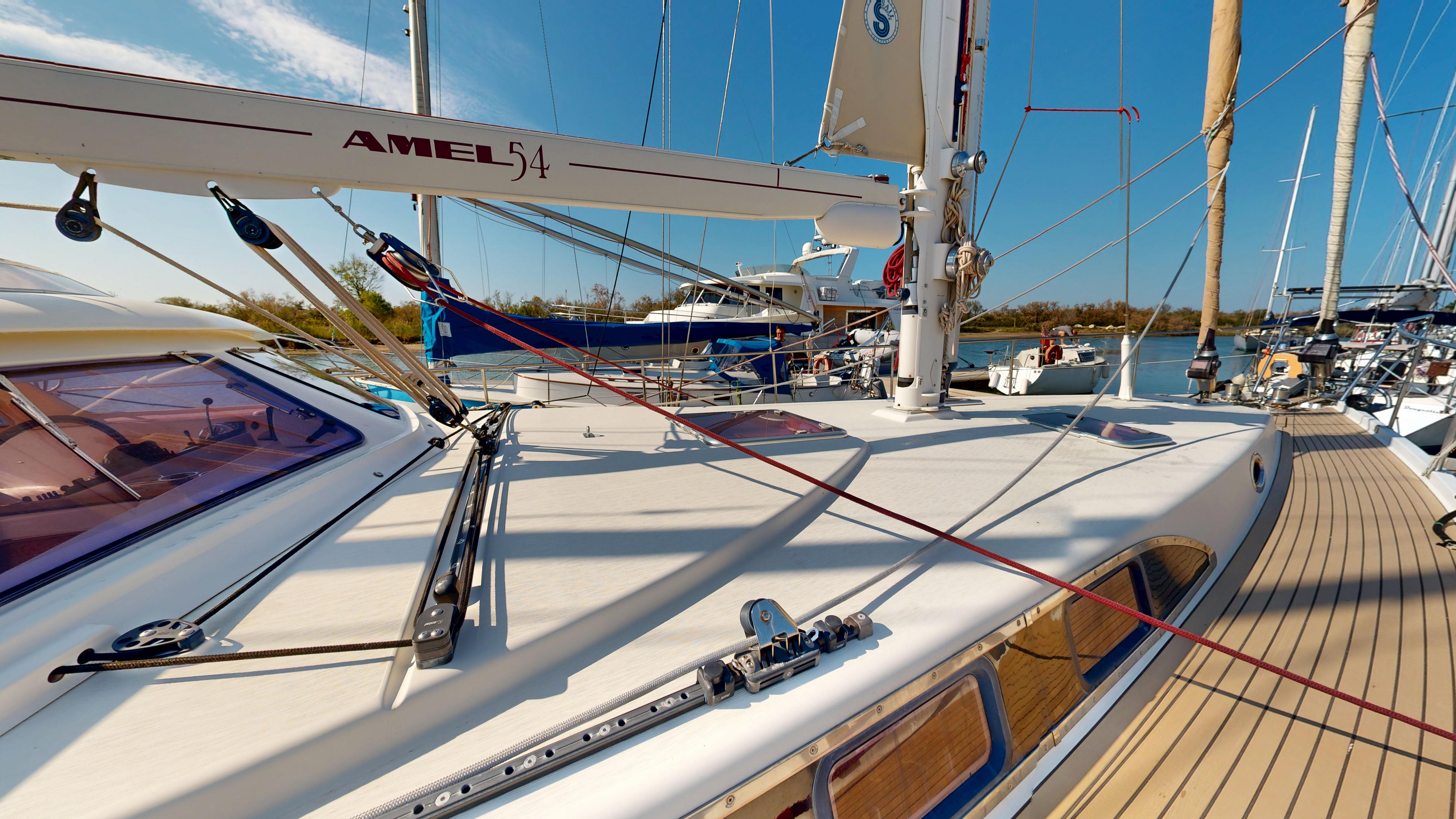

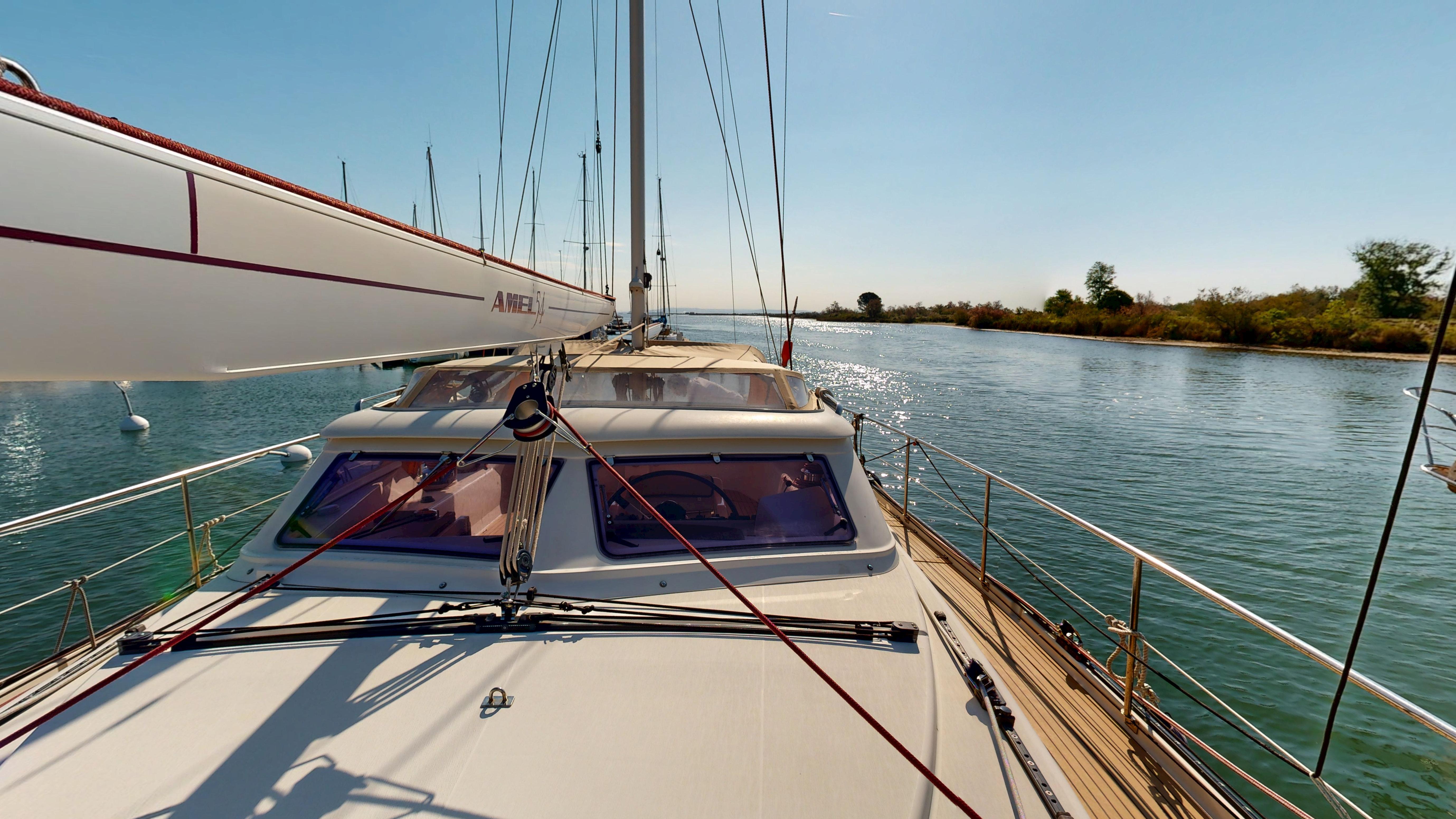

DECK and GEAR

S/S stemhead/bow roller configured to receive and secure 2 anchors and mooring lines
Pressured salt water anchor wash system
10 s/s mooring cleats mounted on the toerail
Rigid guardrail
7 watertights lockers with secured locks
* 1 front locker with chains locker and bow thruster
*1 for gas and fuel
* 1 for liferaft and safety equipment
* 1 very large aft locker for the dinghy, fenders..
* 3 in the cockpit
5 opening hatches

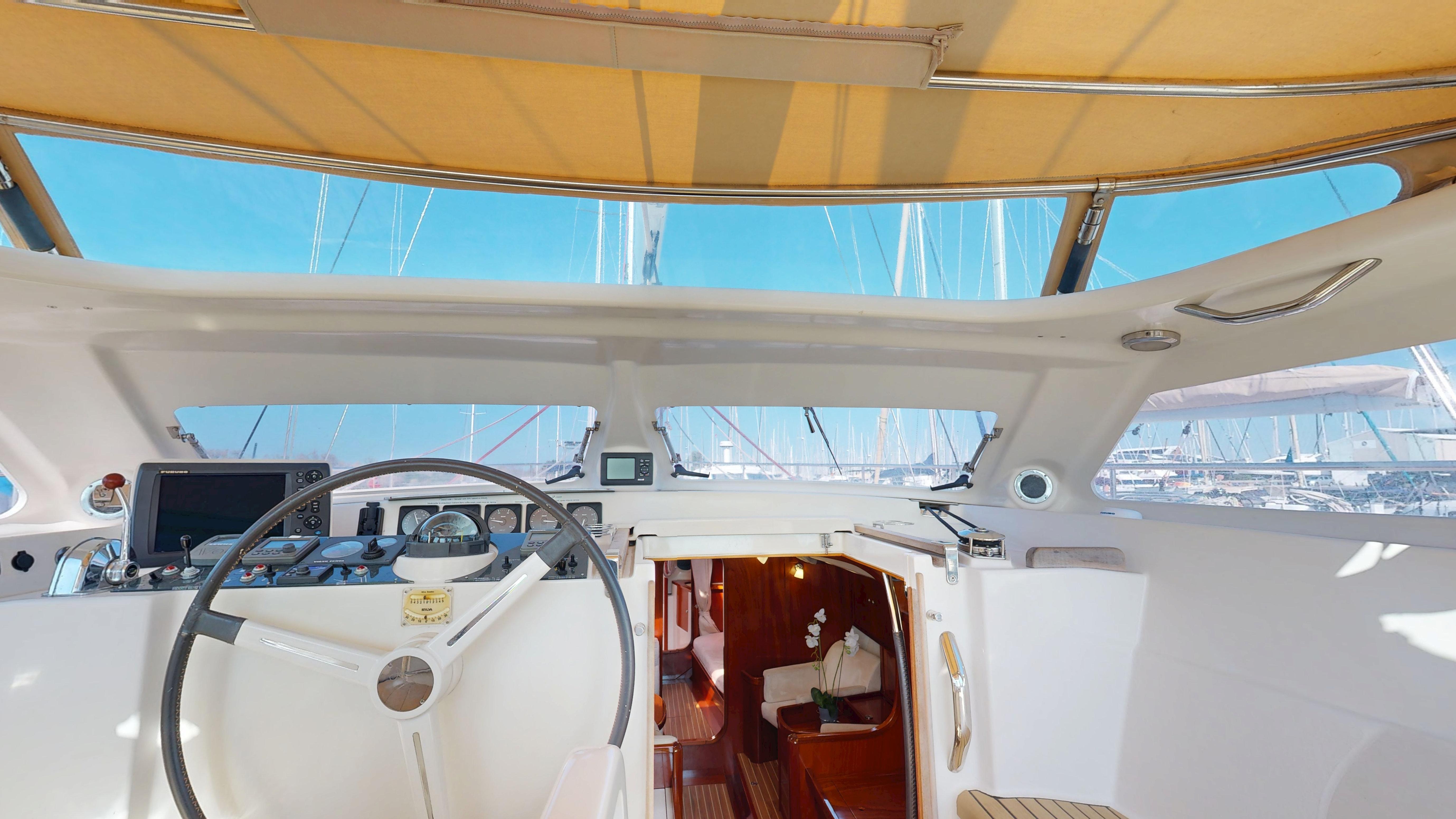

Fully protected central cockpit
Hard dodger with foldable bimini, opening windshield
All control lines lead back to the cockpit
Main and jib travellers adjustable
Foldable table

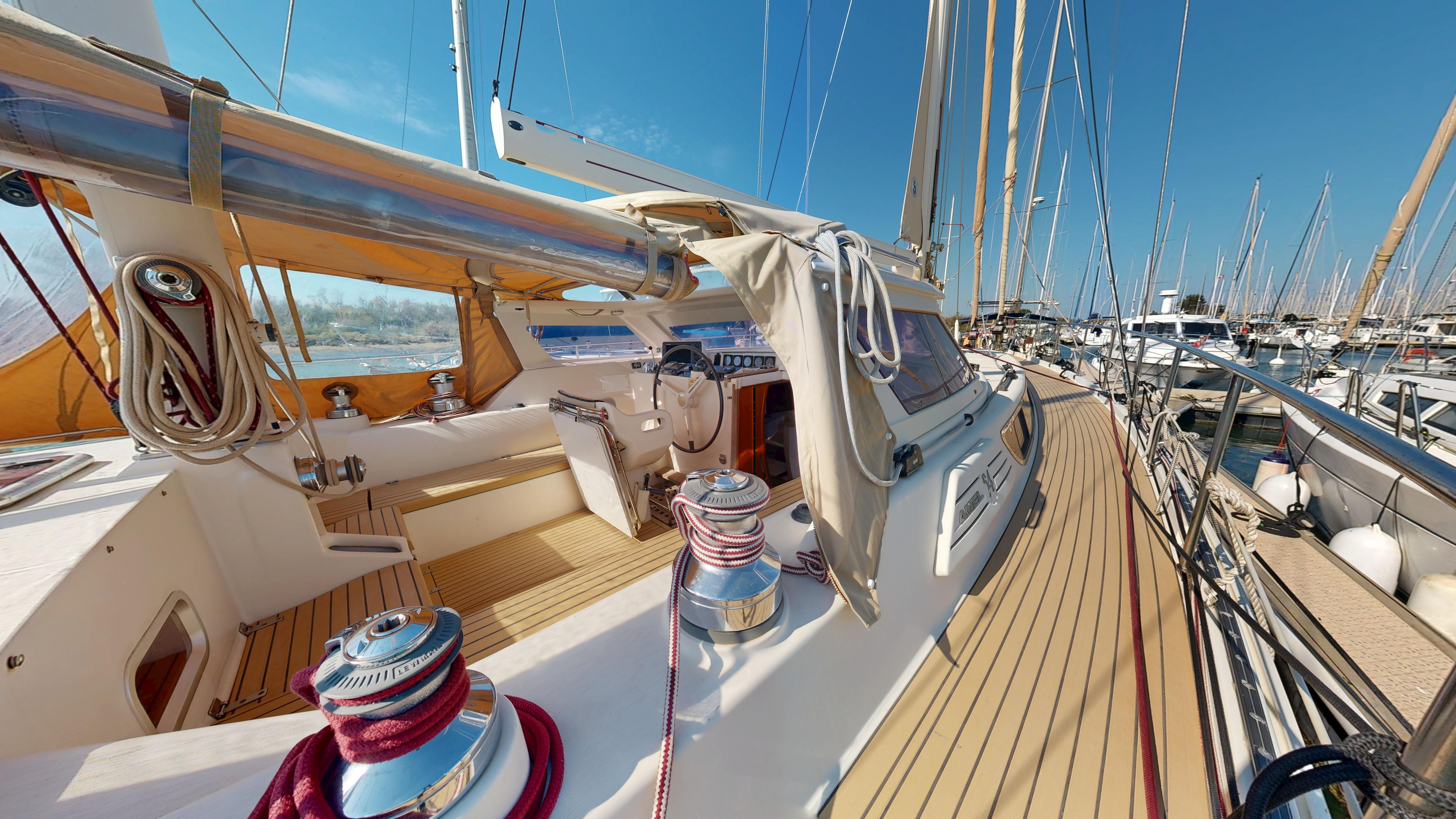

5 xSelf-tailings winches- 3 of which are 24V powered

ELECTRONIC and NAVIGATION AIDS

GPS FURUNO GP 150
New Spotlight Marinco with camera on Mizzen mast
NEW Echomax radar transponder on mizzen mast
Radar/plotteur -*17’’ screen NAVNET 3D at chart table
12’’ screen in cockpit for NAVNET 3D
AIS FA 50 (Receiver/transceiver) with Navnet
Additional GP330 GPS Antenna
NAVTEX
Interphase depth sounder ISCAN V90
RADAR FURUNO FR 1832
VHF ICOM
Second VHF hanset – ICOM
Central navigation B&G Hydra 3000 with Sonic Speed
2 x autopilots Furuno Navpilot 511
Stereo system Bose
Magnetic compass

PACK TV/DVD

Flat screen LCD 26’’
DVD player
inverter 24/220V – 800W
TV Satellite KVH antenna / support peint s/ starboard spreader
SAT PhoneT&T

GROUND TACKLE

AMEL retractable bow thruster – 15Hp – controlled from cockpit
new engine of bow thruster 2023/06
Twin 24 V Vertical windlass LOFRANS
1 s/s steel anchor 30 Kg with 80 m chain + second mooring line
S/S Aft davits
S/S toerail
2 aft teak settees on aft pushpit

DINGHY

– Highfield pontoon classic 310 with steering pedestal 2023/04 (engine Yamaha 20hp from the 2009/full refit 2023)

MISCELLANEOUS

Mooring lines
Fenders
Gangway
Additional s/s handset on transom and saloon companionway
Cockpit cushions
Sun cushions
New sprayhood and Bimini 2022
New cockpit winter cover 2023
Full winter cover
Sun cover

SAFETY

Liferaft for 6 Pax ;ast serviced in 2019
EPIRB from 2021
New bilge pump VETUS 2023/07
New lifraft Viking 2021/10
