- Make SANLORENZO
- Model SL96A
- Year 2023
- LOA 96ft/29m
- Class Performance Power
- Hull Glass Reinforced Plastic
- Engine Twin Diesel
- Drive Shaft Drives
- Layout Flybridge
- Berths 11
- Cabins 5
- Ancasta Ref 44016
- Name JICJ
SANLORENZO SL96A | 2023
8,950,000 Tax Not Paid
|
Sibenik Croatia
SANLORENZO SL96A - Ref 44016 has been saved to your account.
Your account cannot save boats.
You must login or register to save boats
Sanlorenzo SL96a 'JICJ' was launched in 2023 and offers exceptional volumes for a yacht of her size with the innovative asymmetric design which provides 15% additional volume on the main deck. Large floor-to-ceiling windows allows natural light flow through the yacht whilst giving the owner and guests a beautiful view and connection to the sea. Interior designed by Sanlorenzo and exterior design by Zuccon International Project makes the SL96a a sleek, stylish and elegant whilst remaining comfortable giving all onboard the ultimate experience on the water. 'JICJ' benefits from multiple upgrades including, diamond Raymarine navigation package, Starlink maritime system, electric blades opening roof on the hardtop, zero-speed stabilizers and much more.

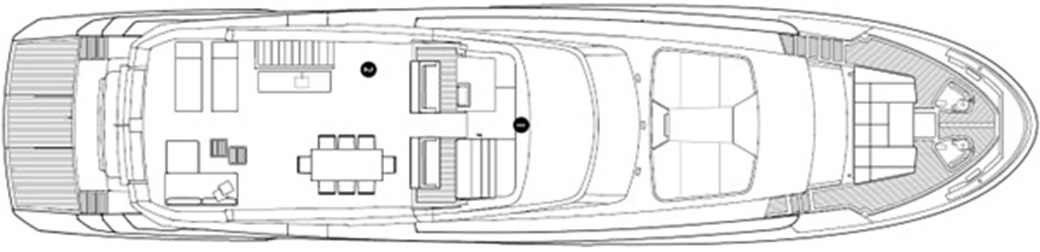

Layout Flybridge

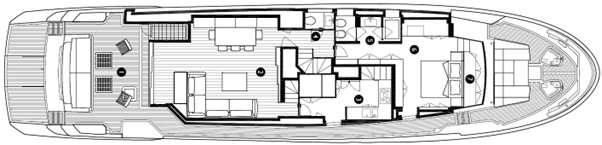

Layout Main Deck

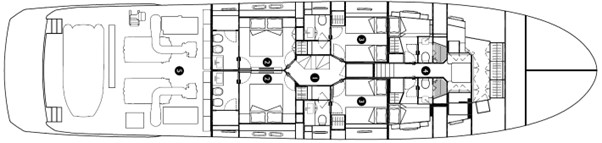

Layout Lower Deck
SANLORENZO SL96a
Build by Sanlorenzo yachts in Ameglia, Italy in 2023
Interior design Zuccon International Project
Croatia flagged
CONSTRUCTION
Built with composite material, with appropriately spaced transverse frames and girders, which run longitudinally as an extension of the engine foundation
The main deck and the superstructure will be sandwich laminated using closed cell PVC foam core
Teak deck throughout
DIMENSIONS
Length Overall - 29.06m
Hull length - 23.97m
Maximum Beam - 6.76m
Draft at half load - 1.98m
Displacement at half load - 100 tons
Build by Sanlorenzo yachts in Ameglia, Italy in 2023
Interior design Zuccon International Project
Croatia flagged
CONSTRUCTION
Built with composite material, with appropriately spaced transverse frames and girders, which run longitudinally as an extension of the engine foundation
The main deck and the superstructure will be sandwich laminated using closed cell PVC foam core
Teak deck throughout
DIMENSIONS
Length Overall - 29.06m
Hull length - 23.97m
Maximum Beam - 6.76m
Draft at half load - 1.98m
Displacement at half load - 100 tons
FIVE CABIN LAYOUT WITH TWO CREW CABINS
Sanlorenzo interior design
Airconditioning throughout -180,000 Btu/h

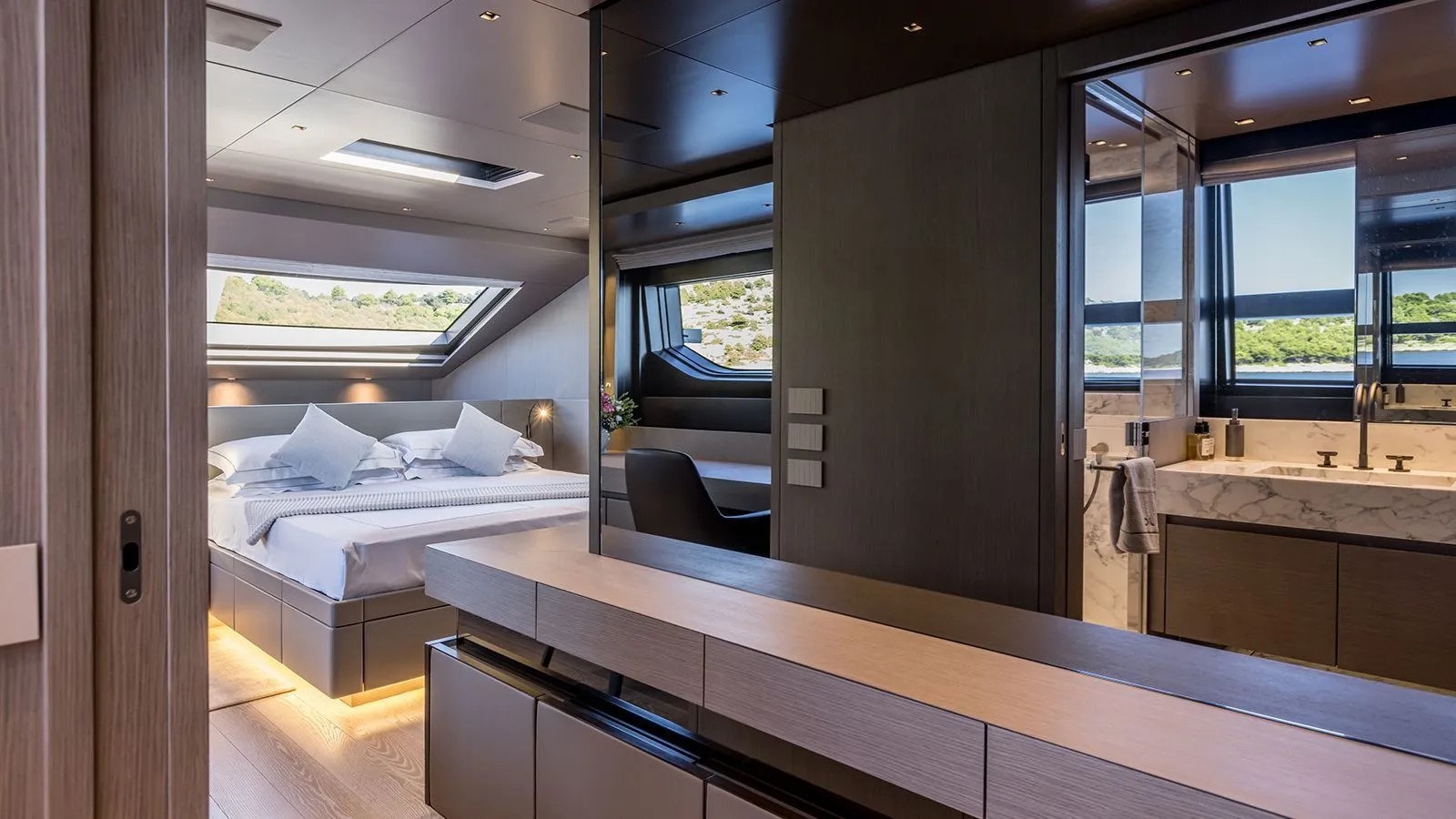

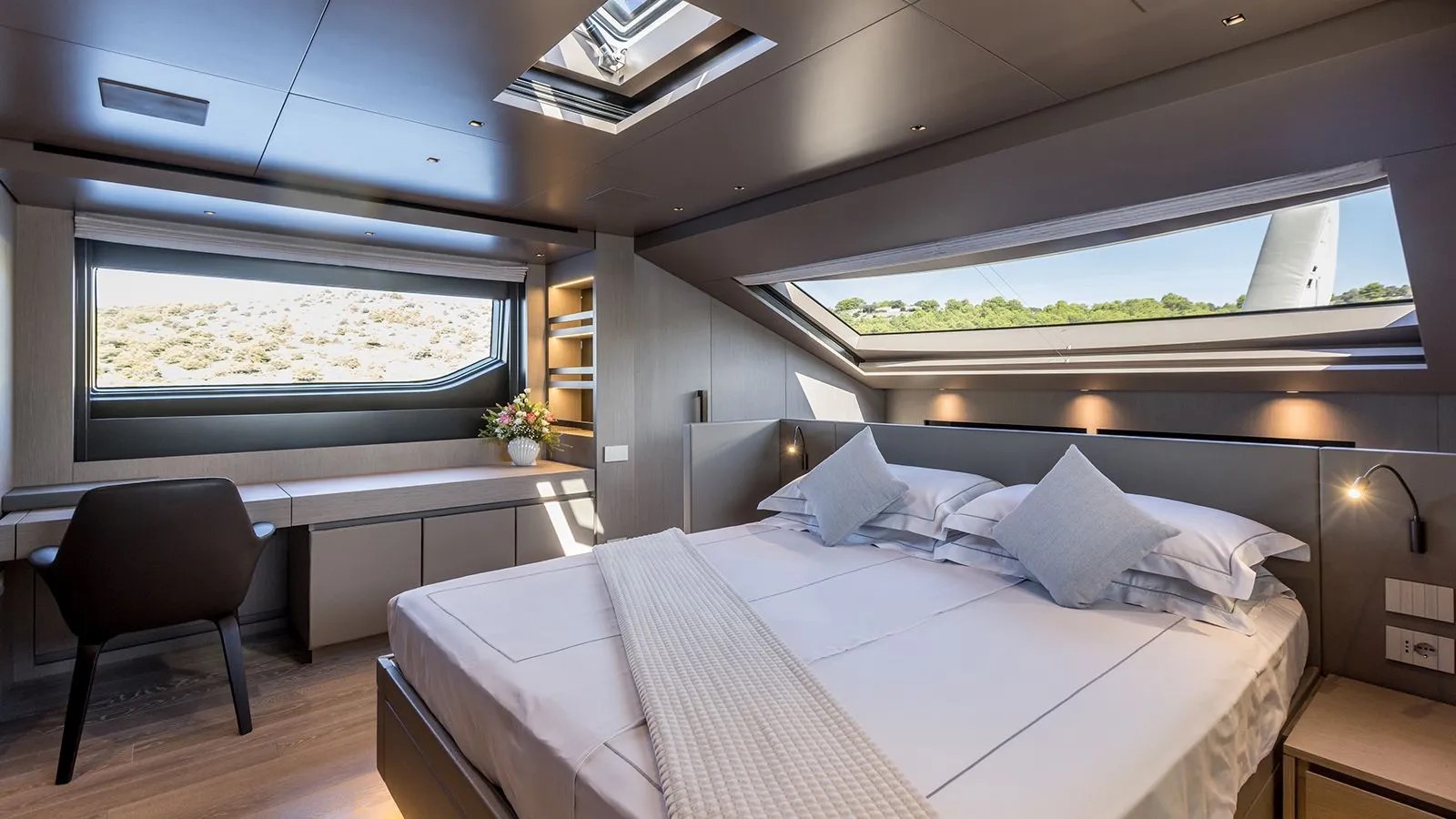

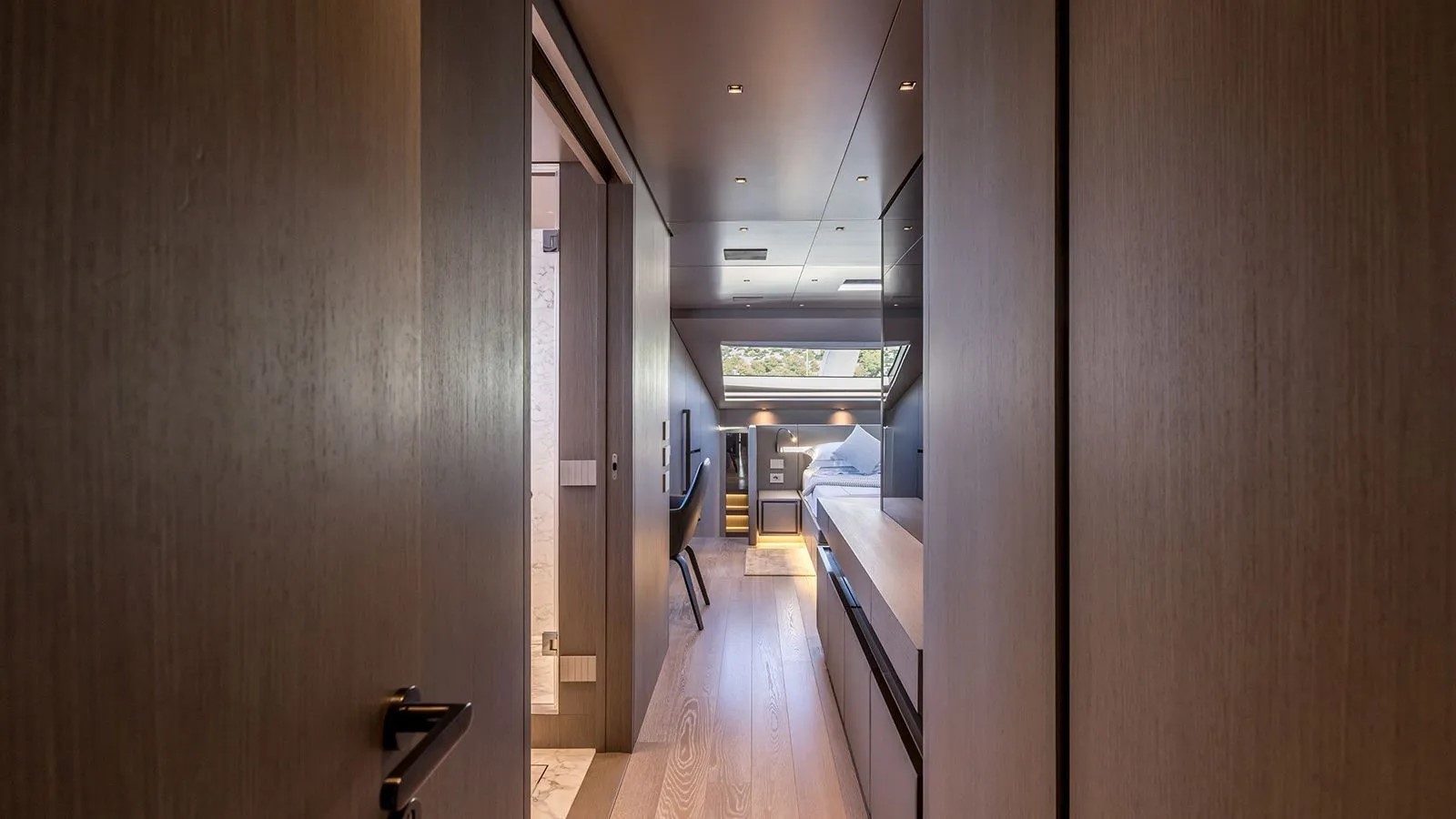

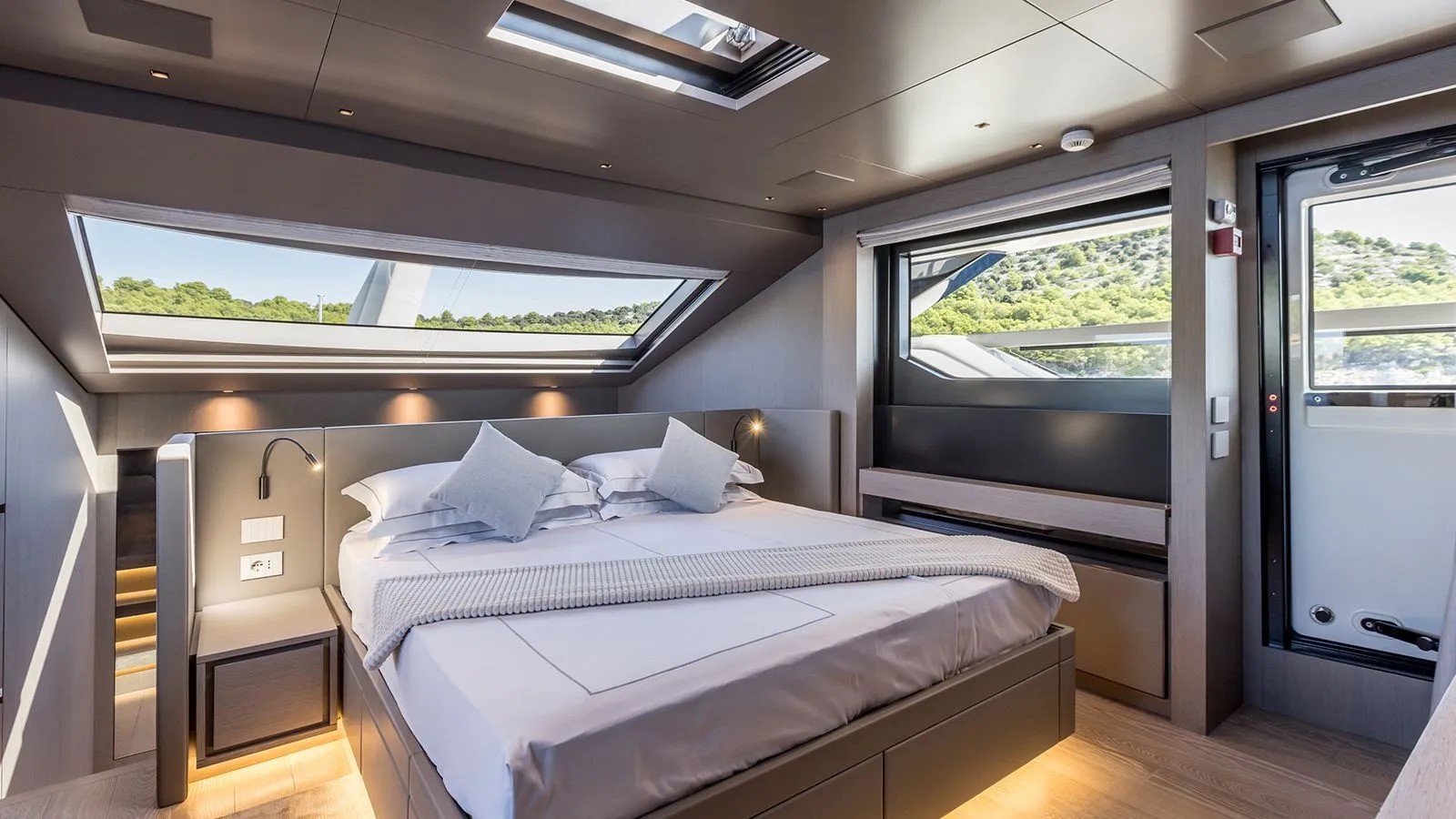

OWNER'S CABIN
Entrance foyer with bathroom on the portside and storage cabinet on the starboard side, double bed with four drawers, two nightstands with drawers, integrated TV, vanity cabinet with chair on port side, safe, door to starboard external passageway, curtains, electric skylight and carpet

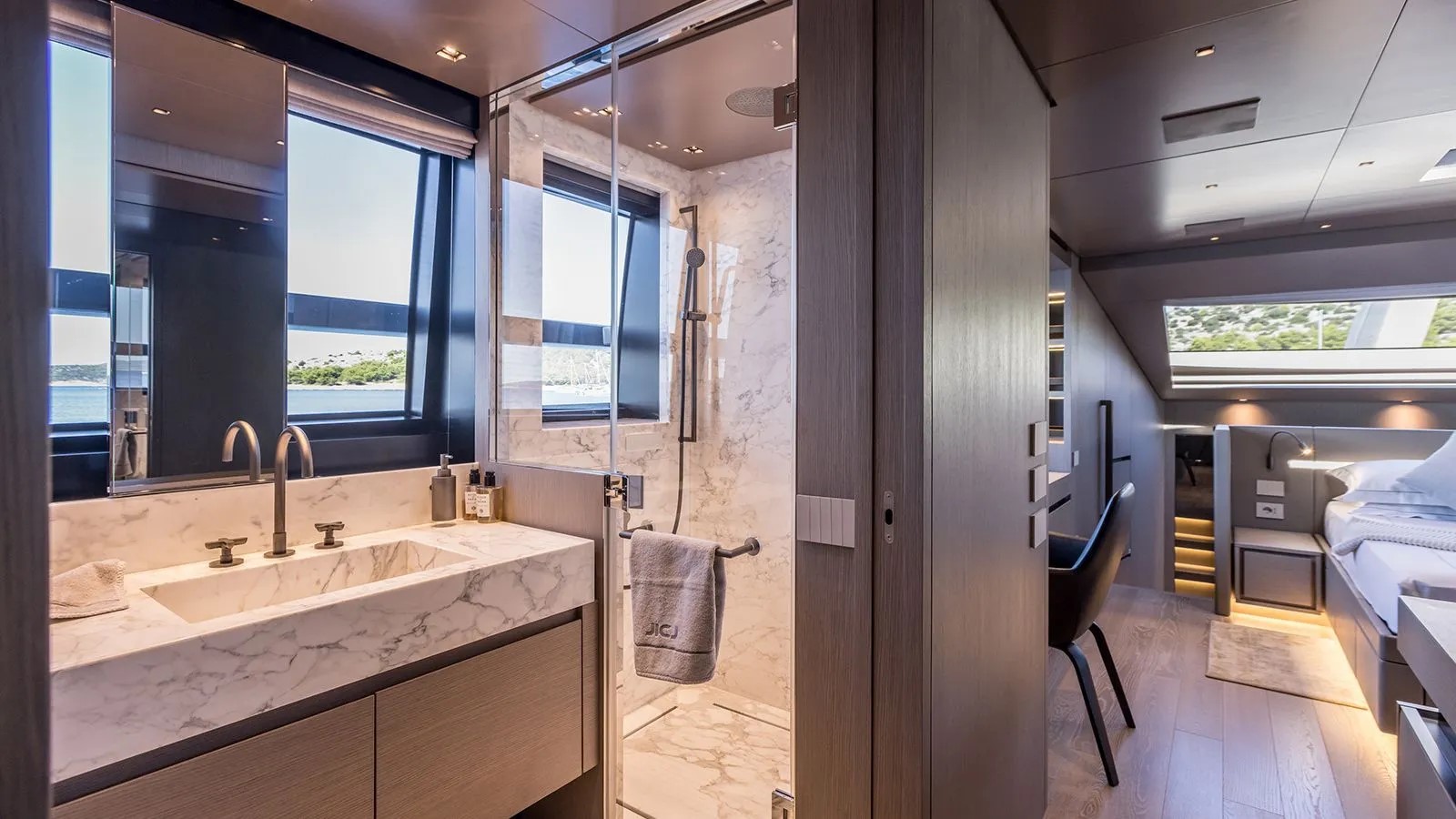

OWNERS BATHROOM
Located on portside, washbasin with marble top & drawers, mirrors, curtains, WC with hydro brush, bidet, curtains, overhead shower with hand set and tempered glass door, extractor fan, marble floor
OWNERS WALK IN WARDROBE
Full height wardrobe, low level furniture with two drawers

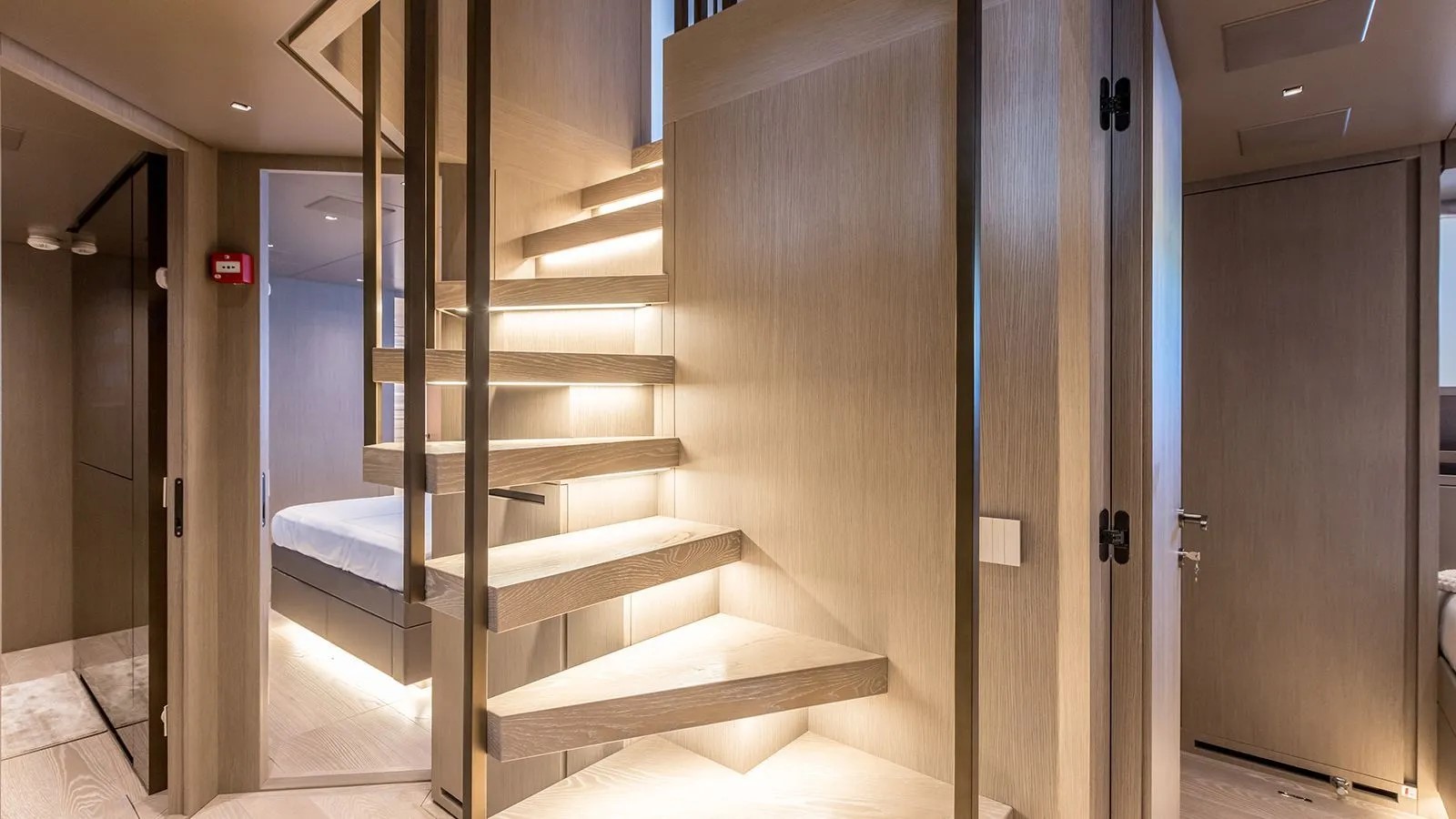

LOWER DECK FOYER
Staircase in wood with anti-slip treatment, ambient lighting and handrail
Wardrobe, electrical subpanel and carpet
VIP CABIN PORT
Double bed with four drawers, two nightstands with drawers, vanity unit with pouf, one big fixed porthole and one big openable porthole in stainless steel with tempered glass, curtains, full height wardrobe, mirror and carpet floor
VIP BATHROOM PORT
WC with hydro brush, washbasin with marble top, cupboard, mirror, overhead shower with handset and tempered glass shower door, extractor fan, one stainless steel with tempered glass opening porthole, curtains and marble floor
VIP CABIN STARBOARD
Double bed with four drawers, two nightstands with drawers, vanity unit with pouf, one big fixed porthole and one big openable porthole in stainless steel with tempered glass, curtains, full height wardrobe, mirror and carpet floor
VIP BATHROOM STARBOARD
WC with hydro brush, washbasin with marble top, cupboard, mirror, overhead shower with handset and tempered glass shower door, extractor fan, one stainless steel with tempered glass opening porthole, curtains and marble floor

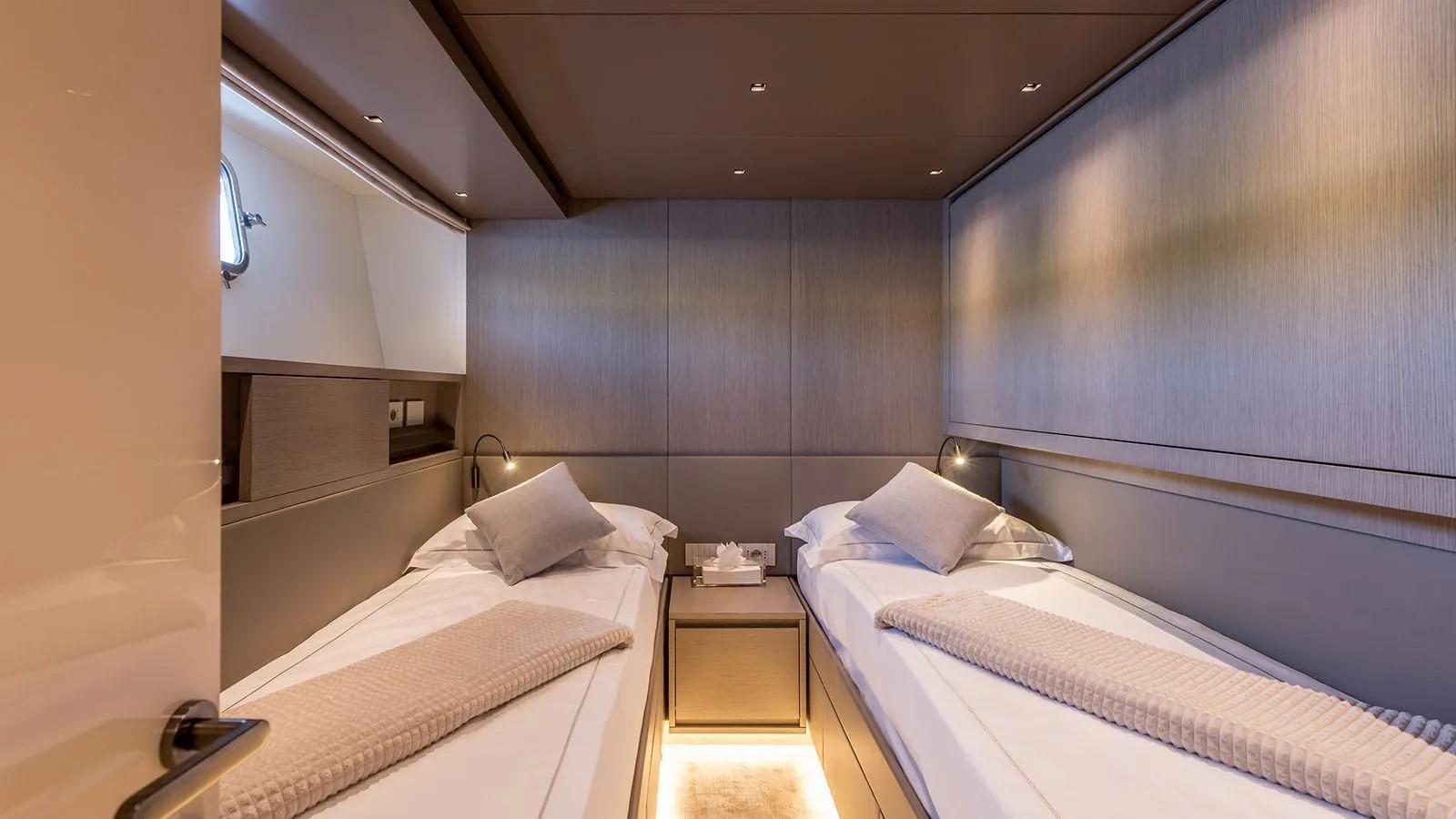

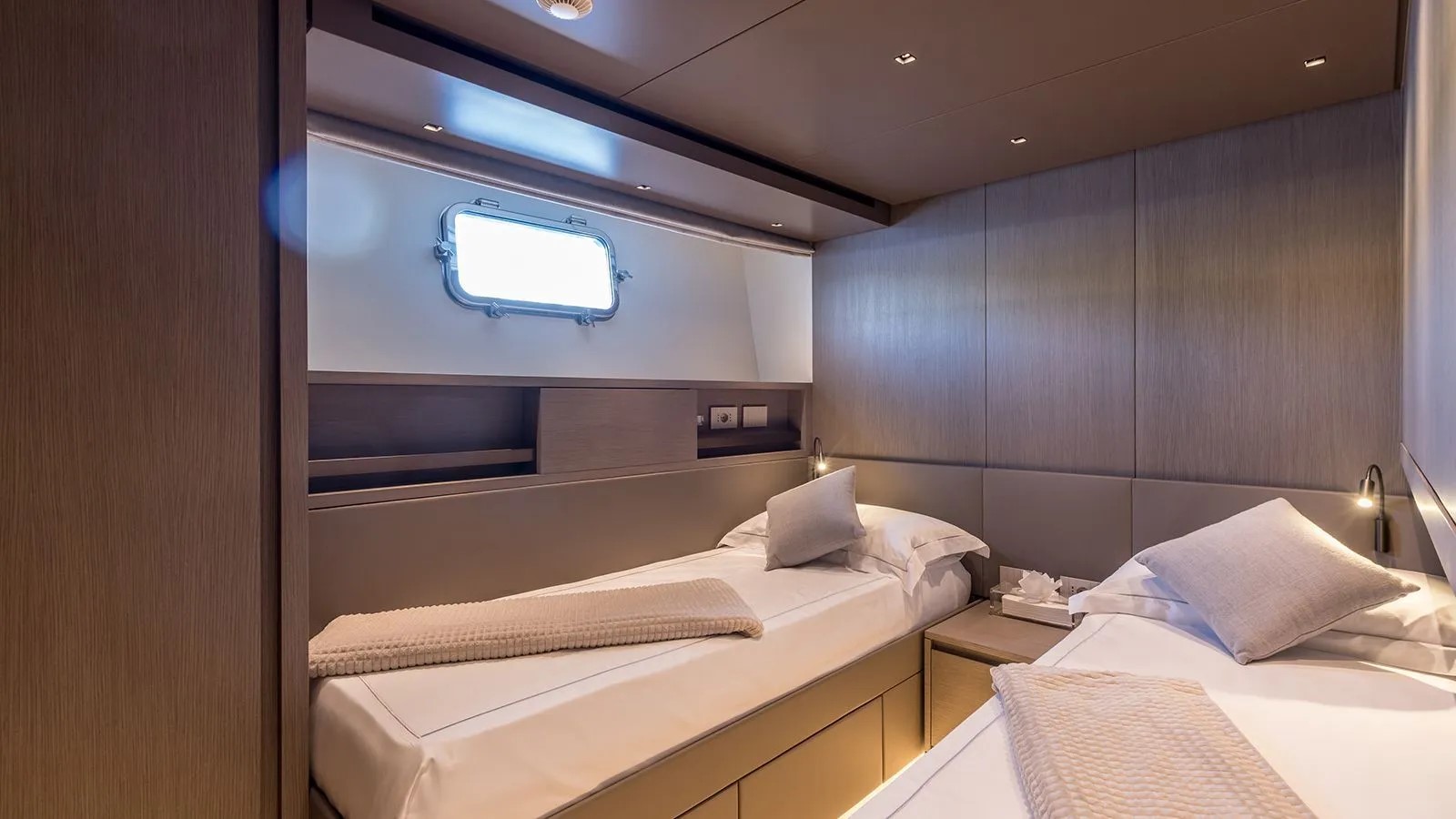

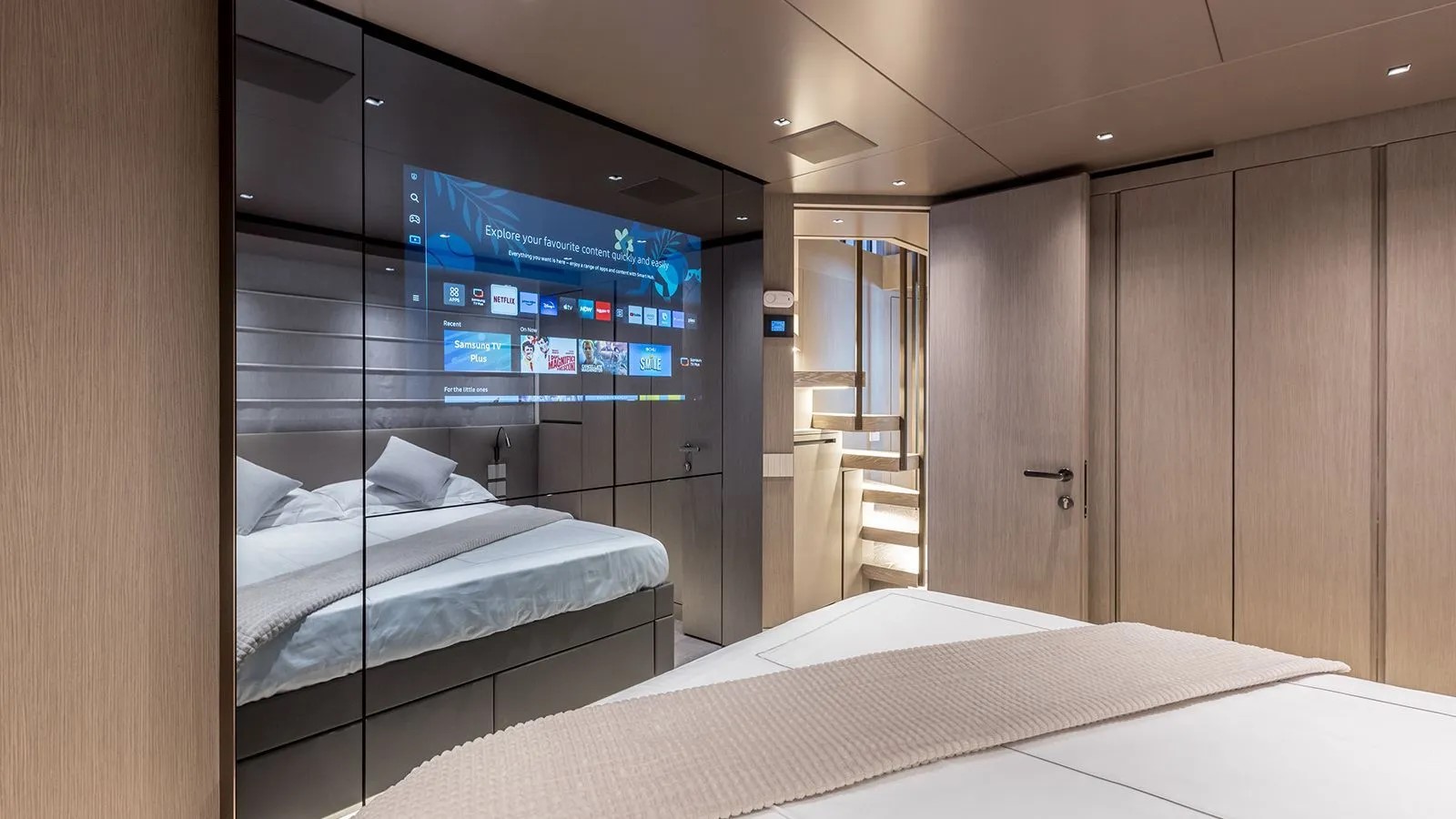

GUEST CABIN PORT
Two singular beds with two drawers, additional pullman bed, nightstand with two drawers, wardrobe, integrated TV, stainless steel and tempered glass openable porthole, curtains and carpet floor

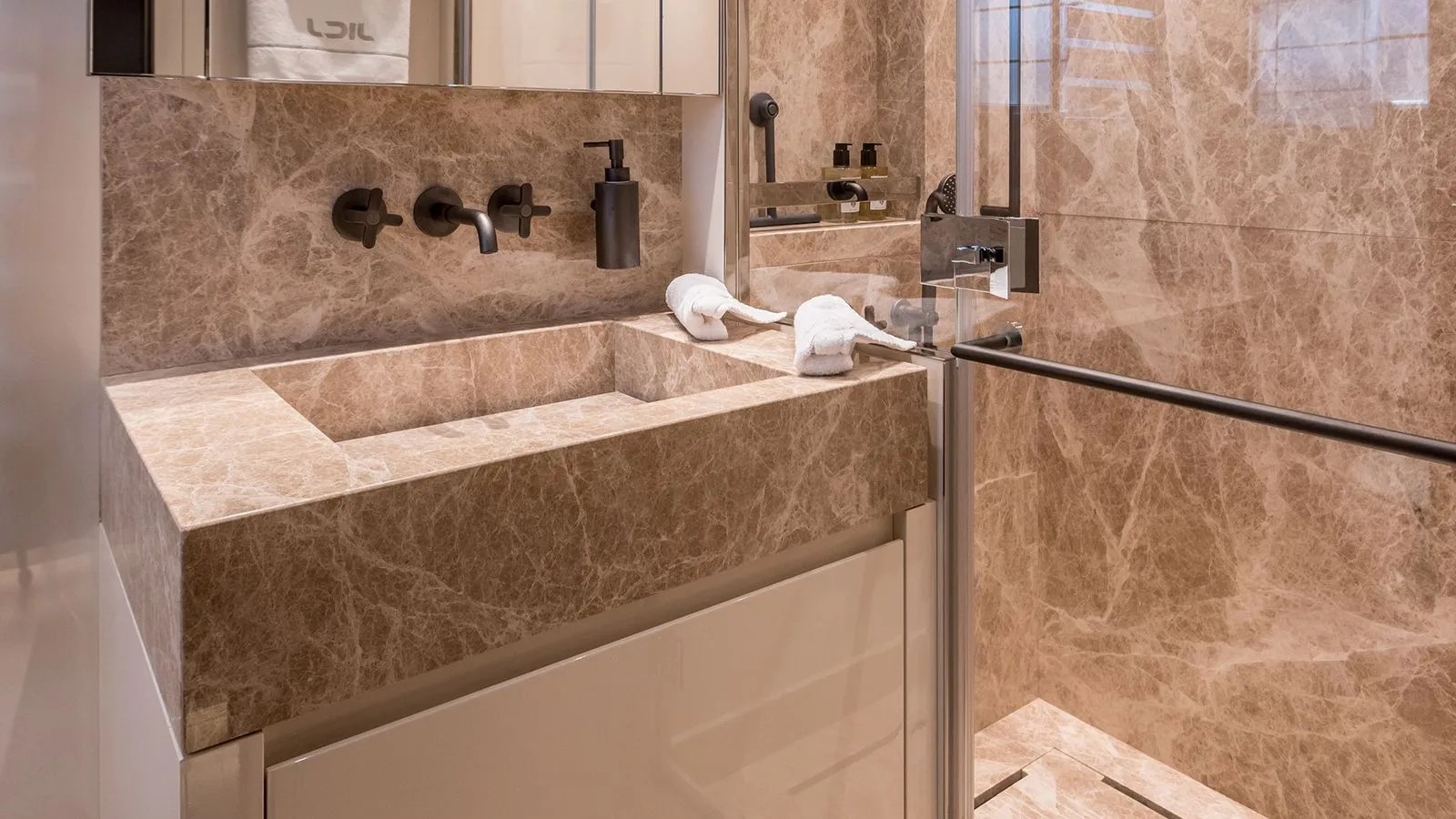

GUEST BATHROOM PORT
WC with hydro brush, washbasin with marble top, cupboard, mirror, overhead shower with handset and tempered glass shower door, extractor fan, one stainless steel with tempered glass opening porthole, curtains and marble floor

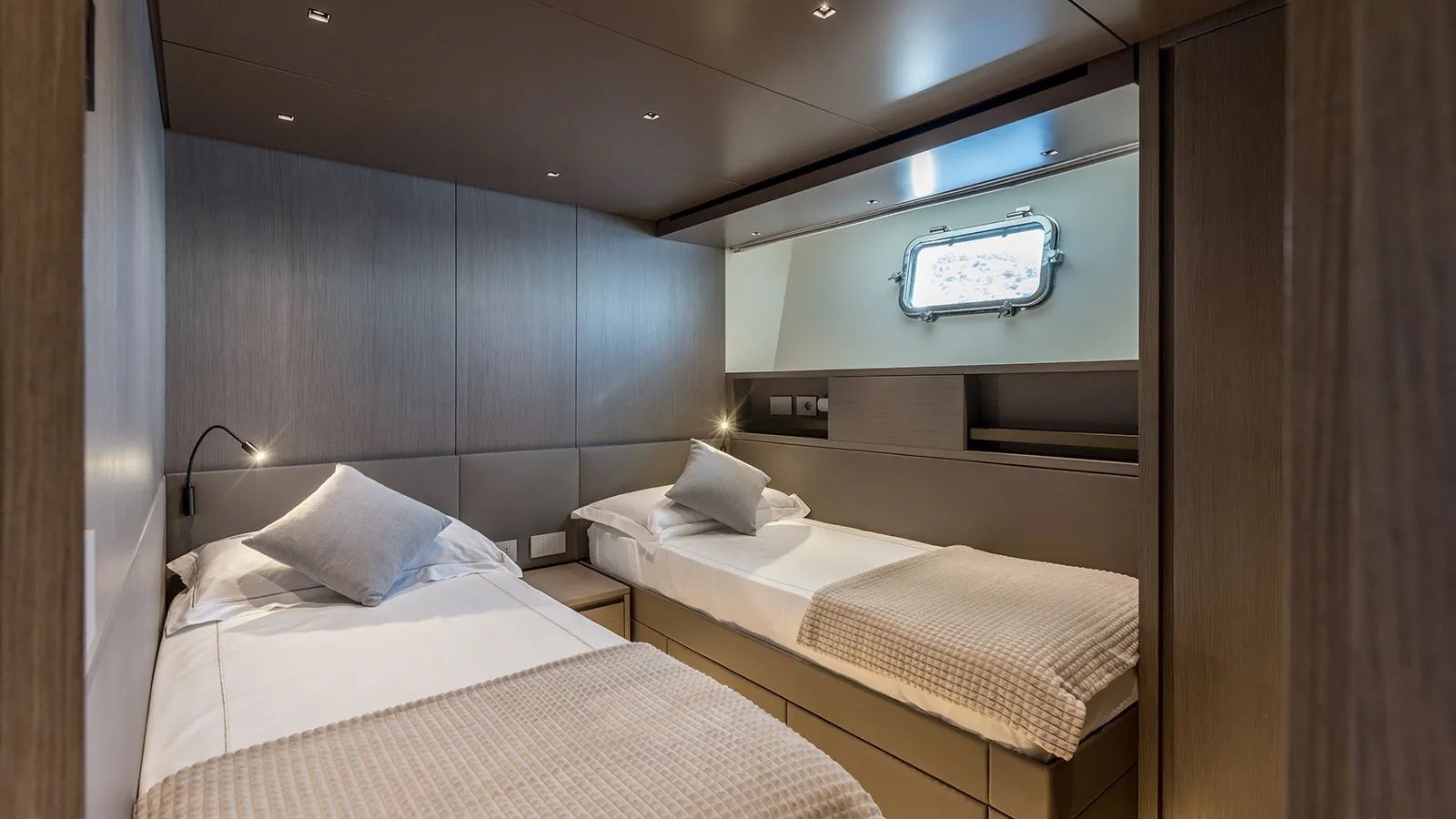

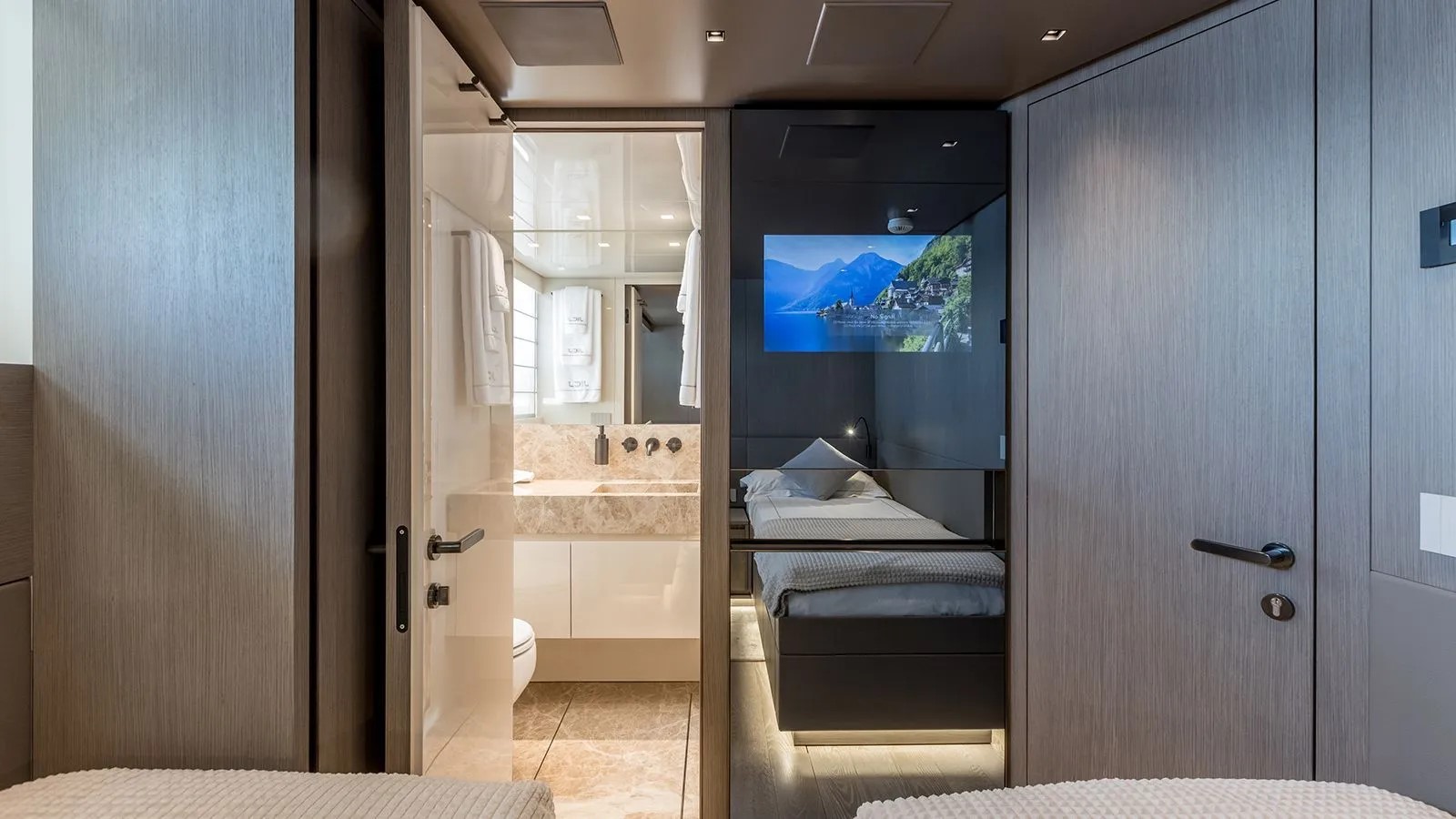

GUEST CABIN STARBOARD
Two singular beds with two drawers, nightstand with two drawers, wardrobe, integrated TV, stainless steel and tempered glass openable porthole, curtains and carpet floor
GUEST BATHROOM STARBOARD
WC with hydro brush, washbasin with marble top, cupboard, mirror, overhead shower with handset and tempered glass shower door, extractor fan, one stainless steel with tempered glass opening porthole, curtains and marble floor
CREW QUATERS
From the galley, via an independent stair, you can access the crew quarters, made up of a crew mess and laundry area, two cabins with bunk beds and two bathrooms with separate shower area
CREW ACCOMADATION
Bunk beds with mattress, drawer under lower bed, wardrobe with hanging space, cupboards and shelves, one stainless steel with tempered glass openable porthole, curtains, vinylic flooring, air conditioning with dedicated control panel
CREW BATHROOMS
WC, washbasin, wall cupboard with mirror, curtains, vinylic floor, shower with handset and temperate glass door, extractor fan

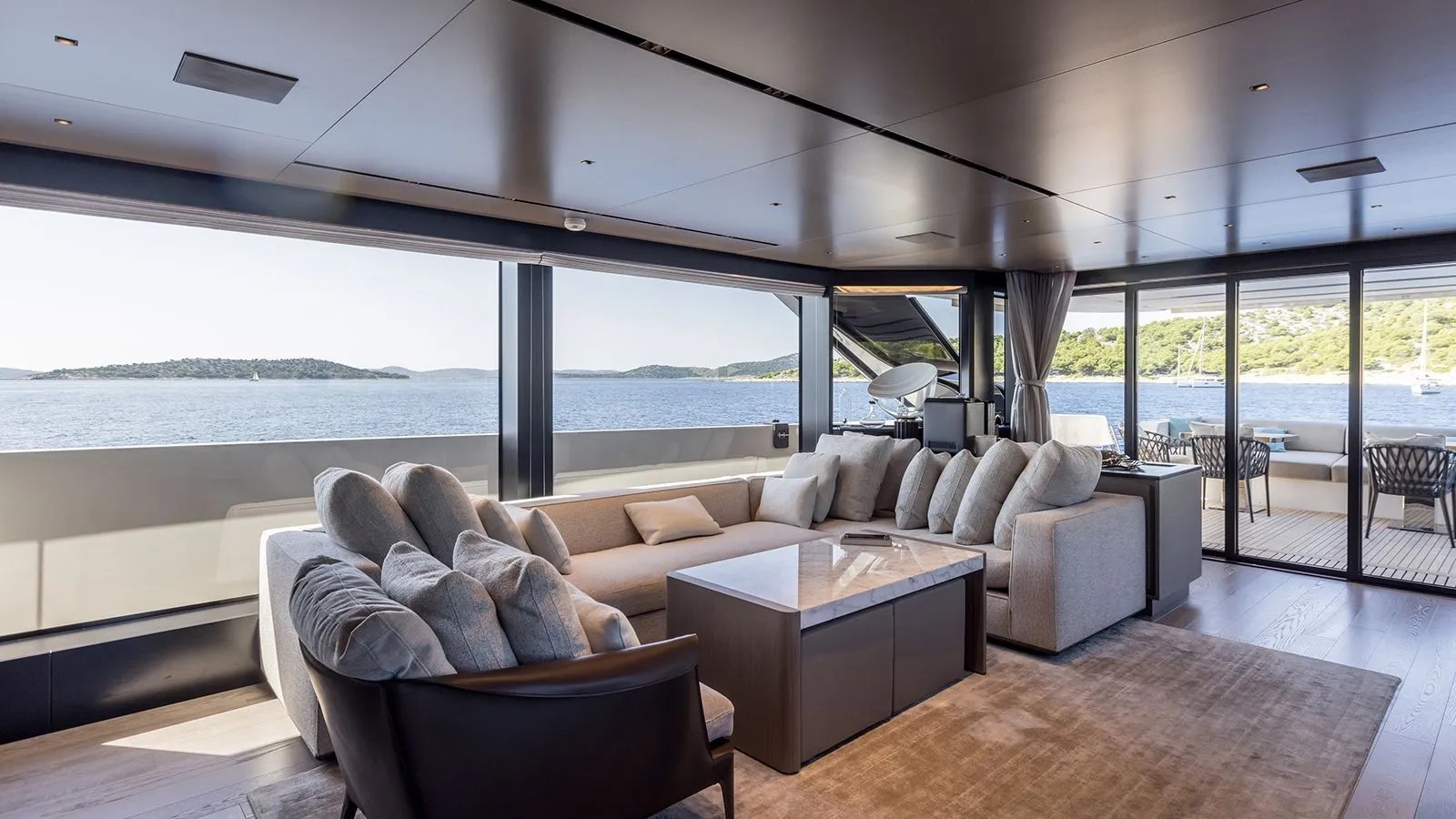

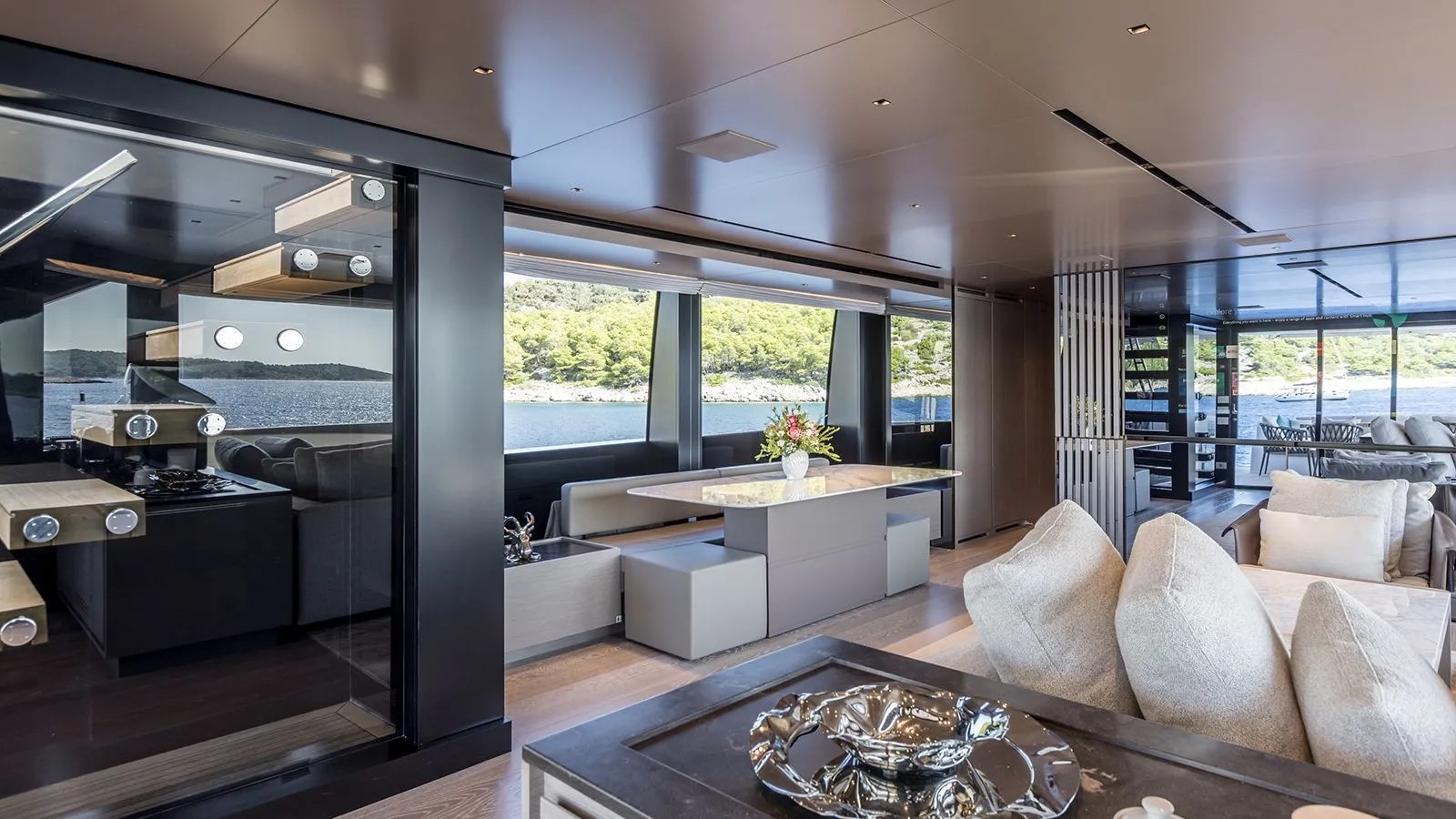

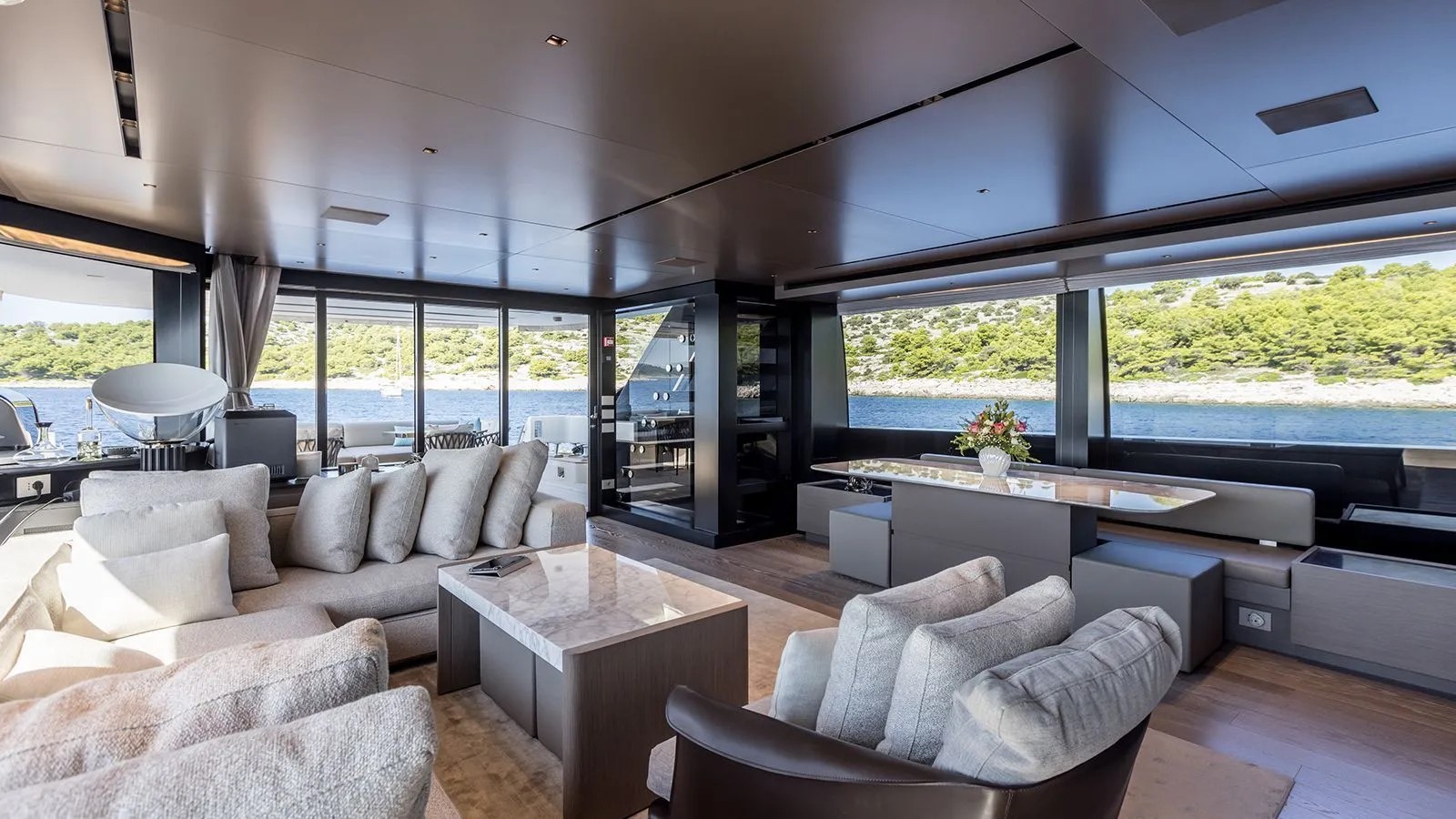

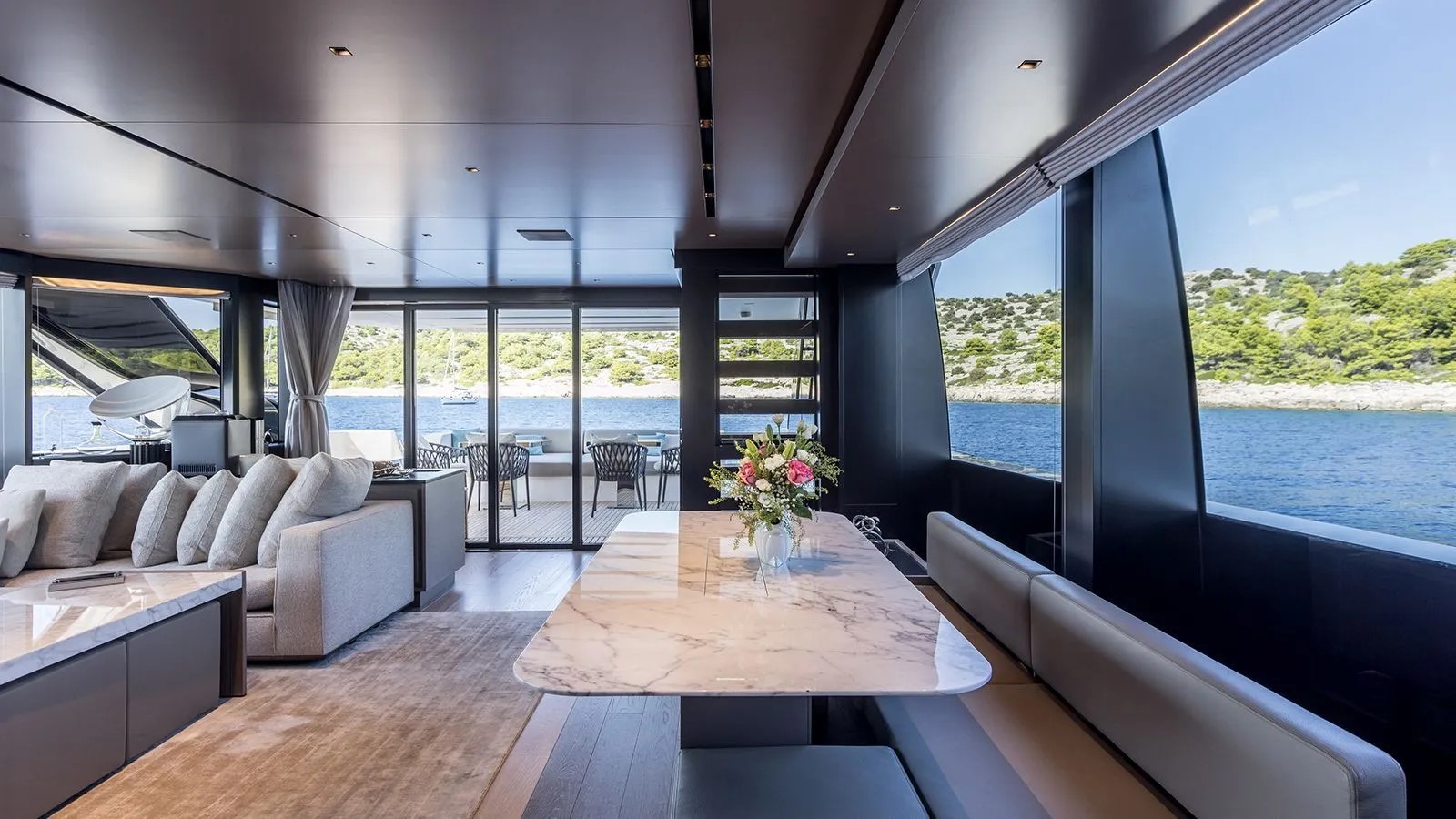

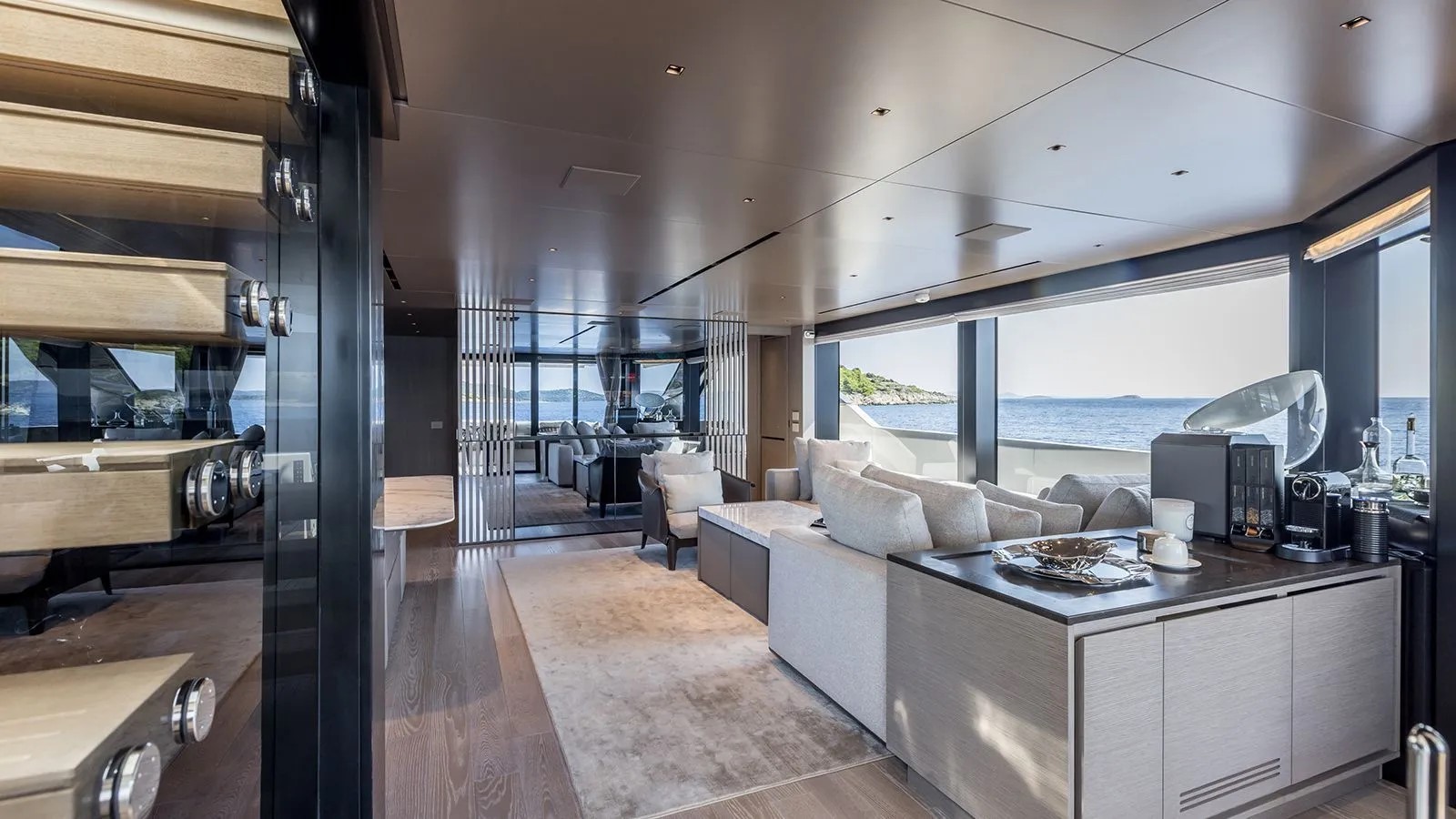

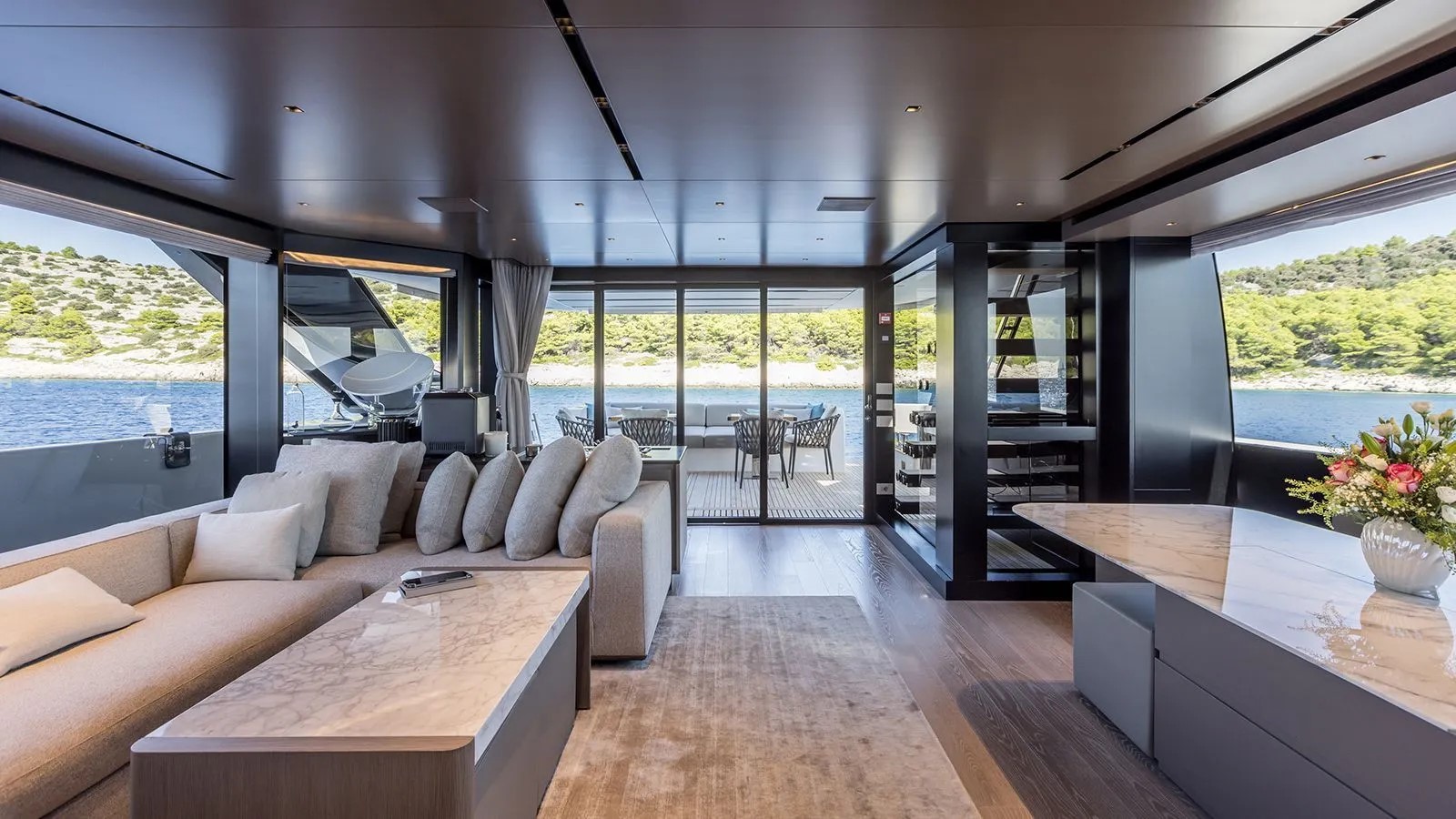

SALOON
Sofa, coffee table, wall-mounted TV, bar with fridge & icemaker, curtains, timber flooring, full height windows to port & starboard, table to port with chairs and 3-seats bench, two cabinets to hold plates, glasses, and crockery on each side

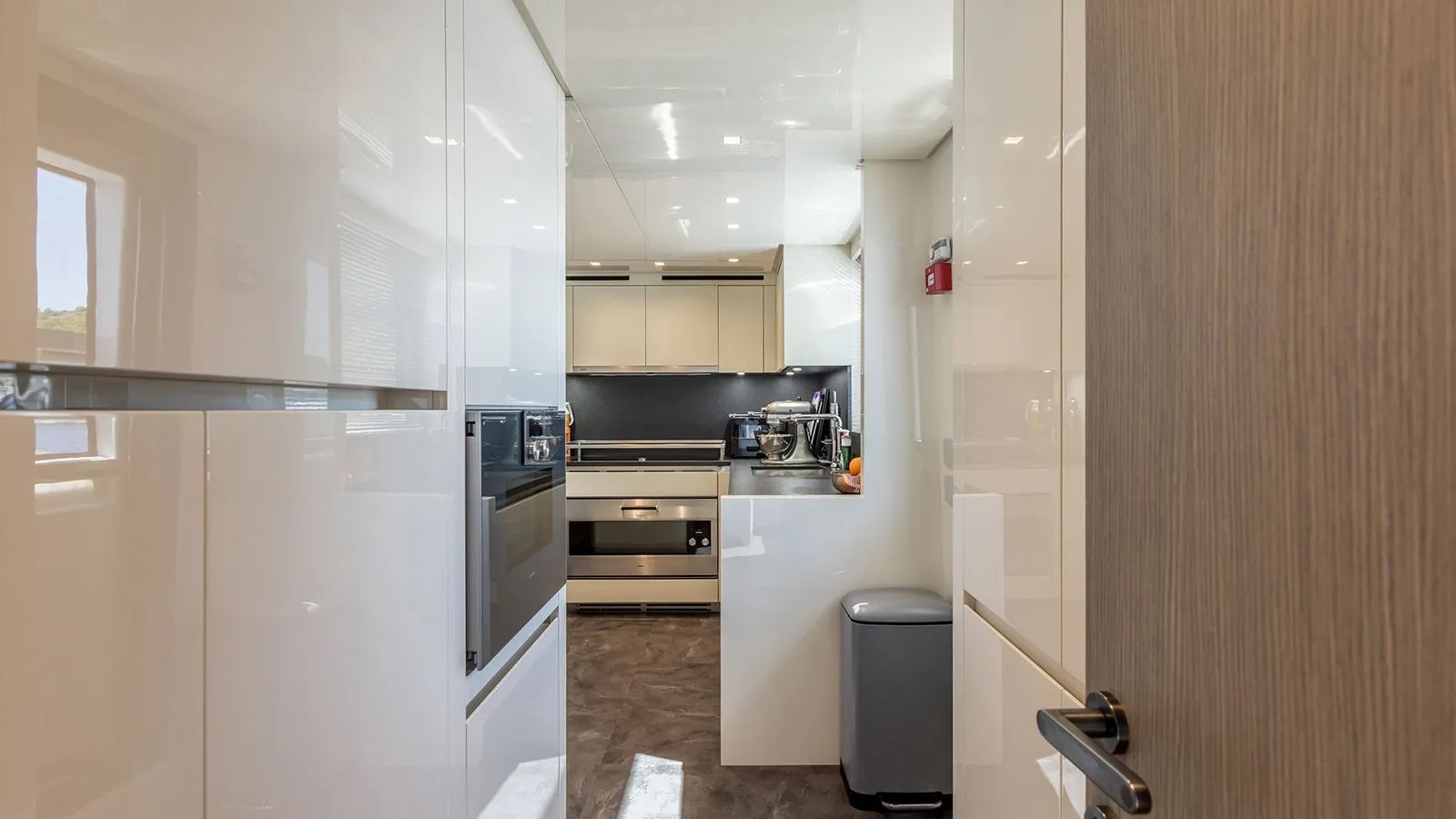

GALLEY
The galley is forward of starboard foyer, separated by a door, electric cook top, integrated extraction hood, dishwasher, conventional oven, commercial fridge/freezer, curtains, flooring in vinylic material
From the galley you can access the crew quarters through a separate staircase (timber stairs treated with a non-slip finish)
DAY HEAD
WC with hydro brush, washbasin, mirror, extractor fan and marble floor

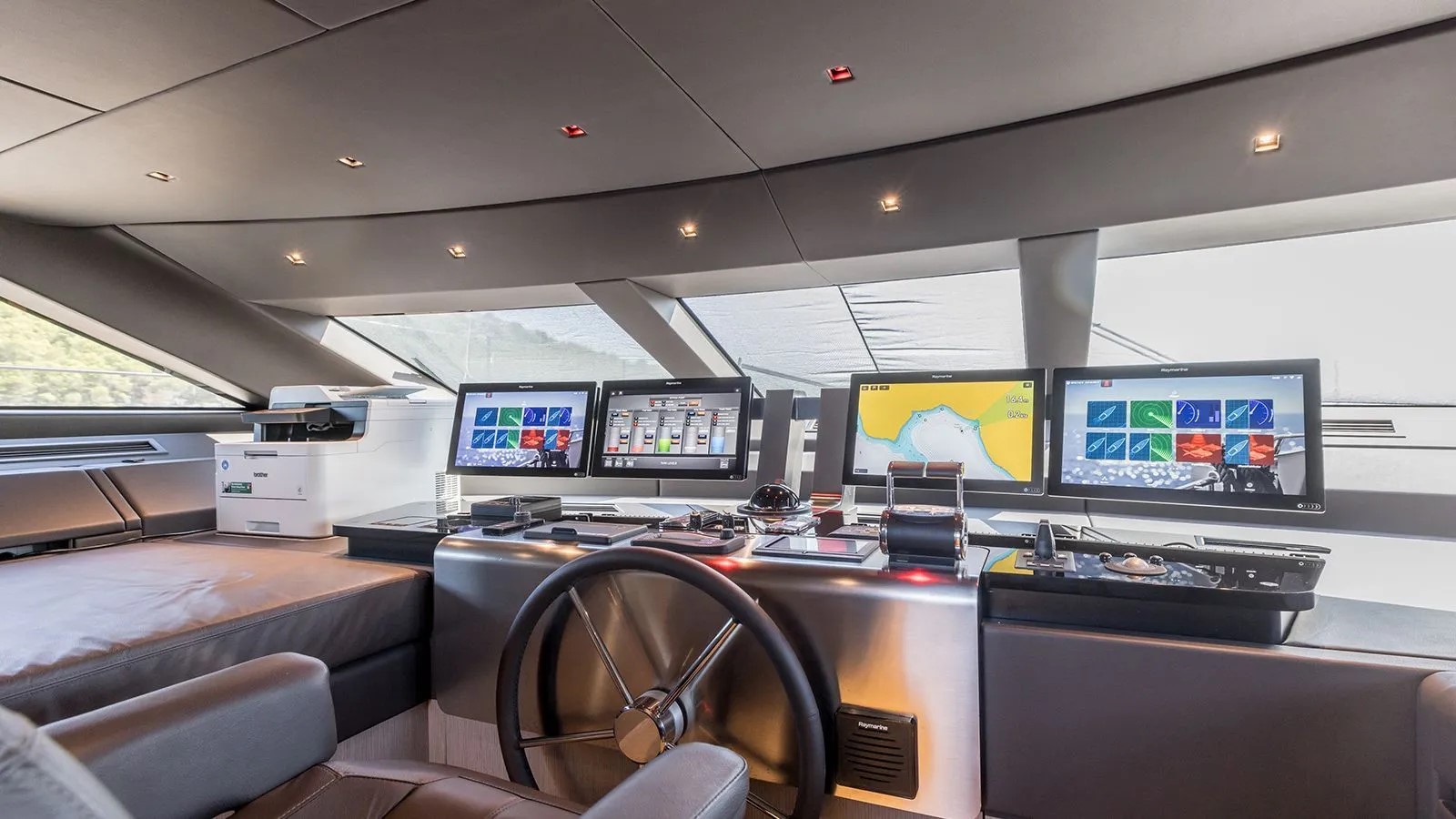

WHEELHOUSE
Leather covered dashboard with navigation instruments, pilot’s armchair with electrical movement, chart table storage cabinet, stairs to access fly-bridge and stairs leading down to the starboard foyer
Helm station supplied with:
Main Engine throttles navigation equipment; bow thruster controls, stabilizer controls, trim tab controls and indicator, electric control panel for alarms repetition and controls, touch screen monitor to control the main onboard systems, subpanel, synoptic panel for navigation lights with manual control, synoptic panel for bilge alarms and pumps, manual controls for windows wipers, horn, autopilot and searchlight

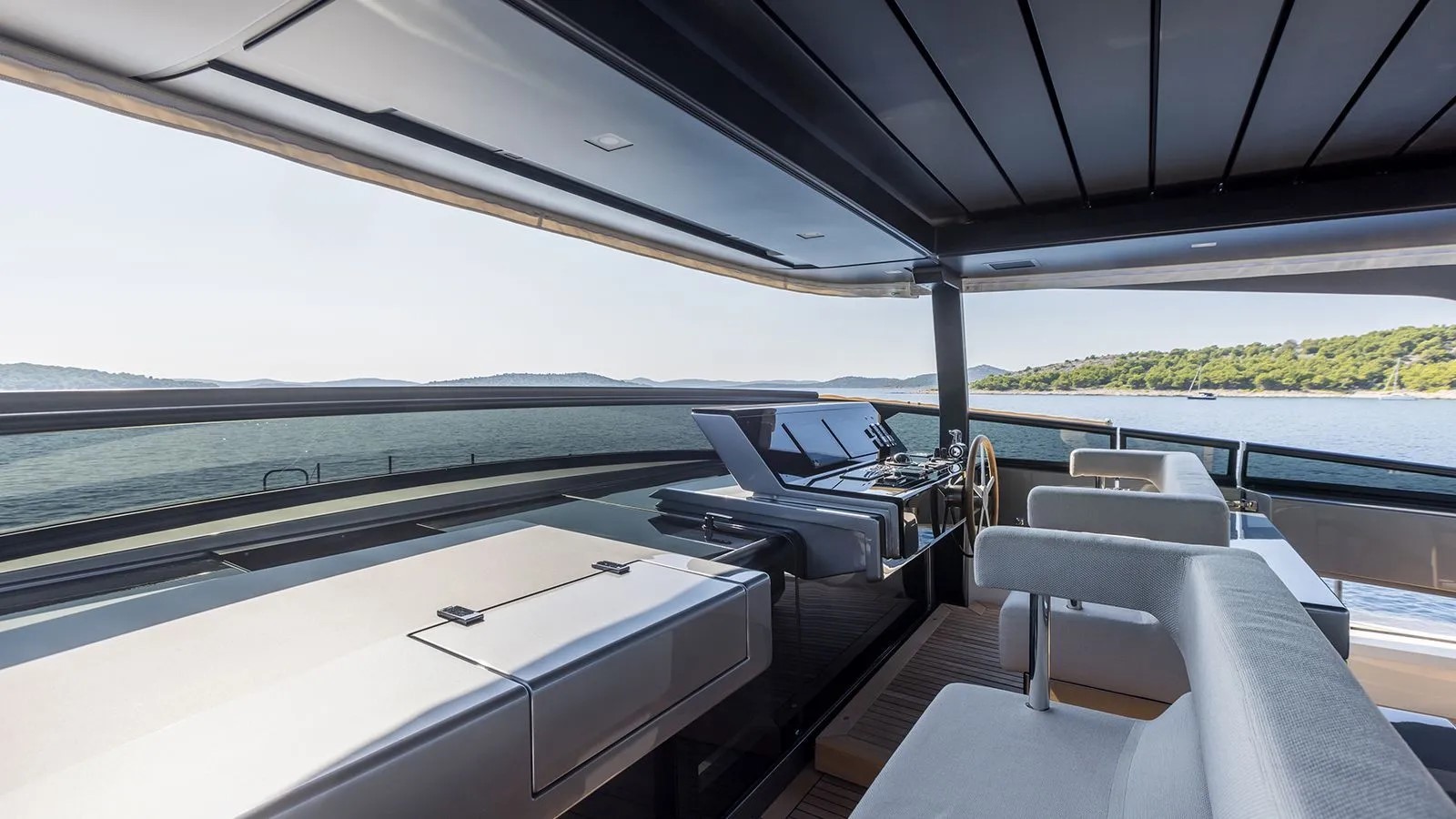

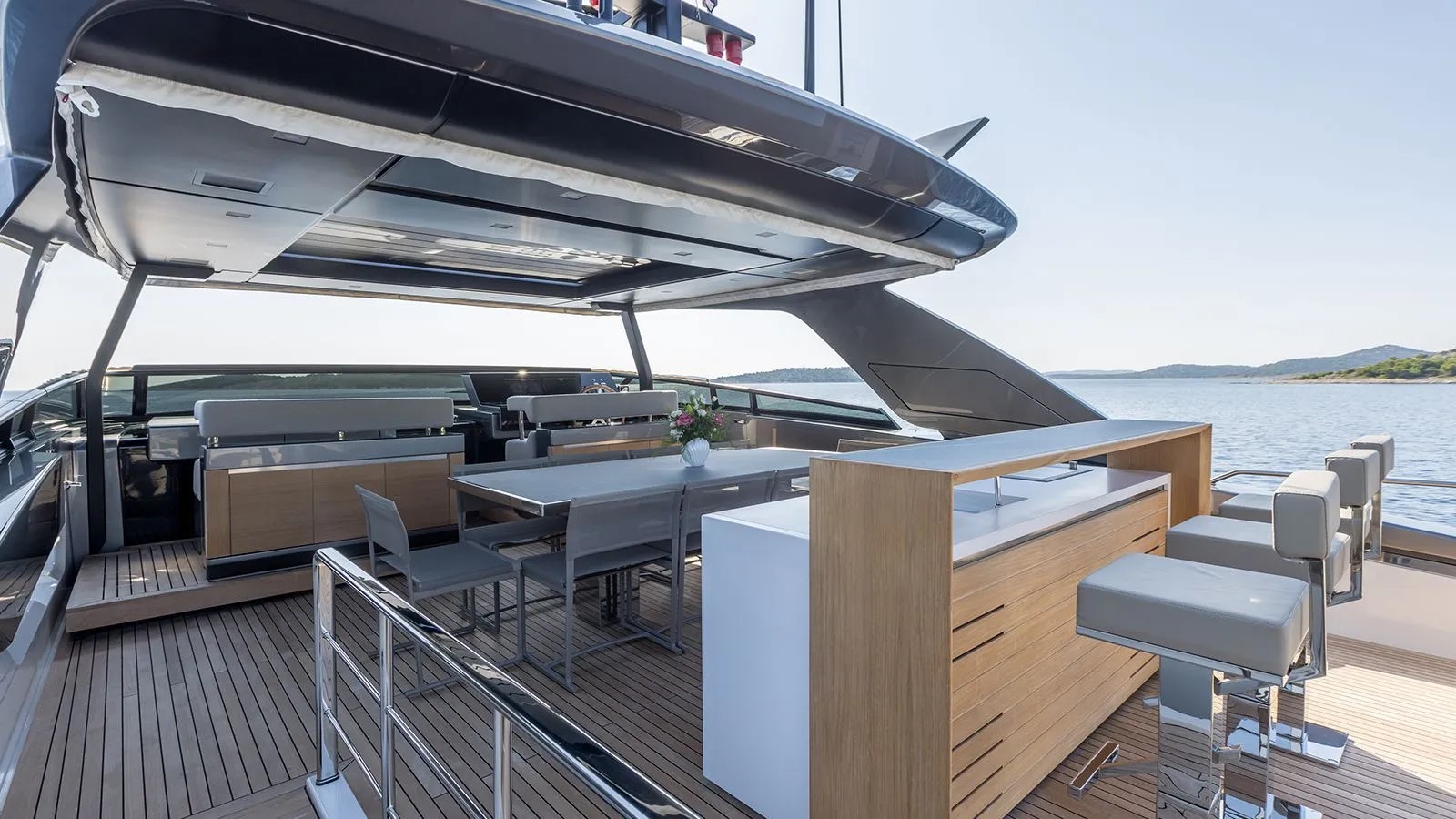

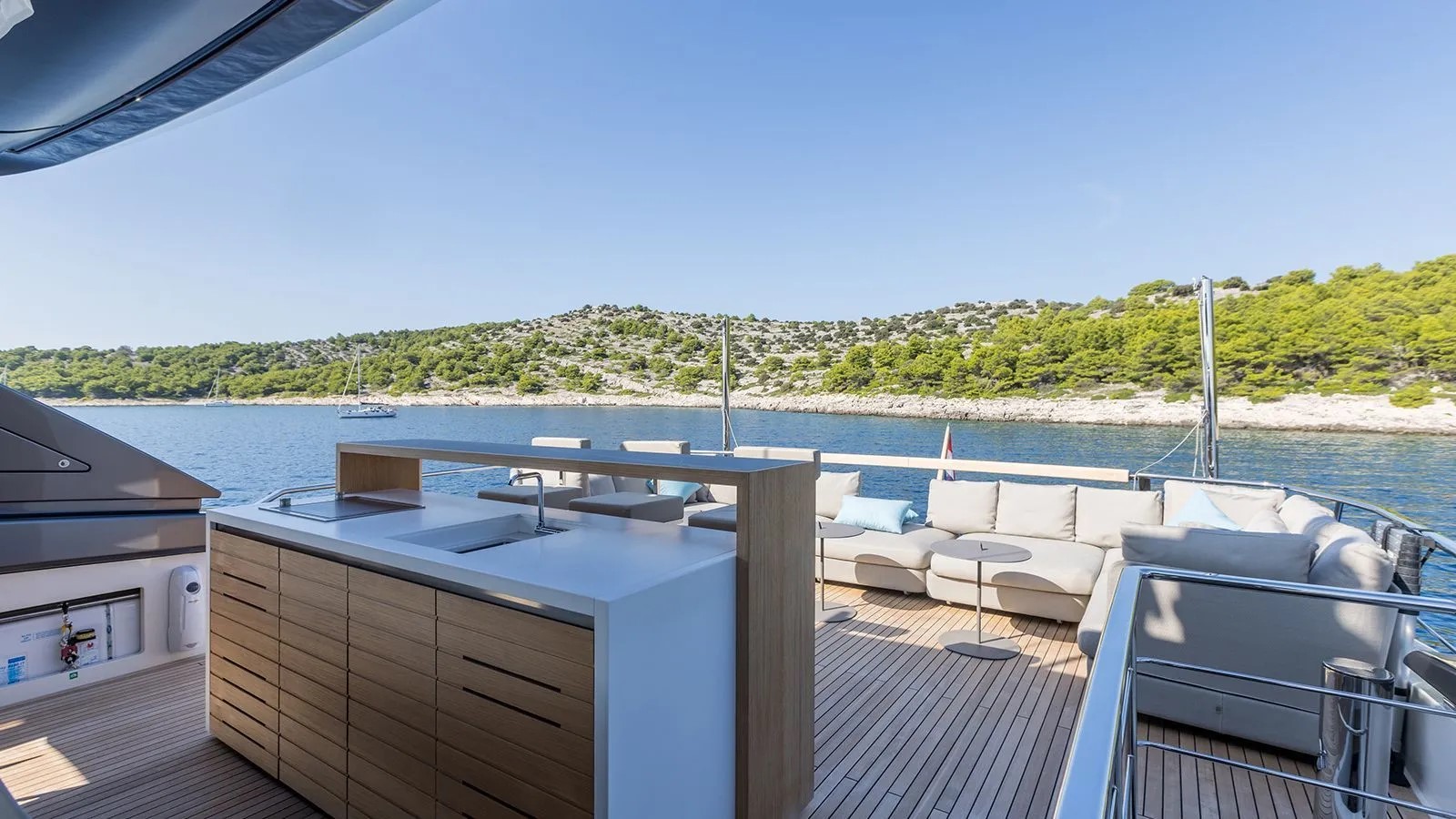

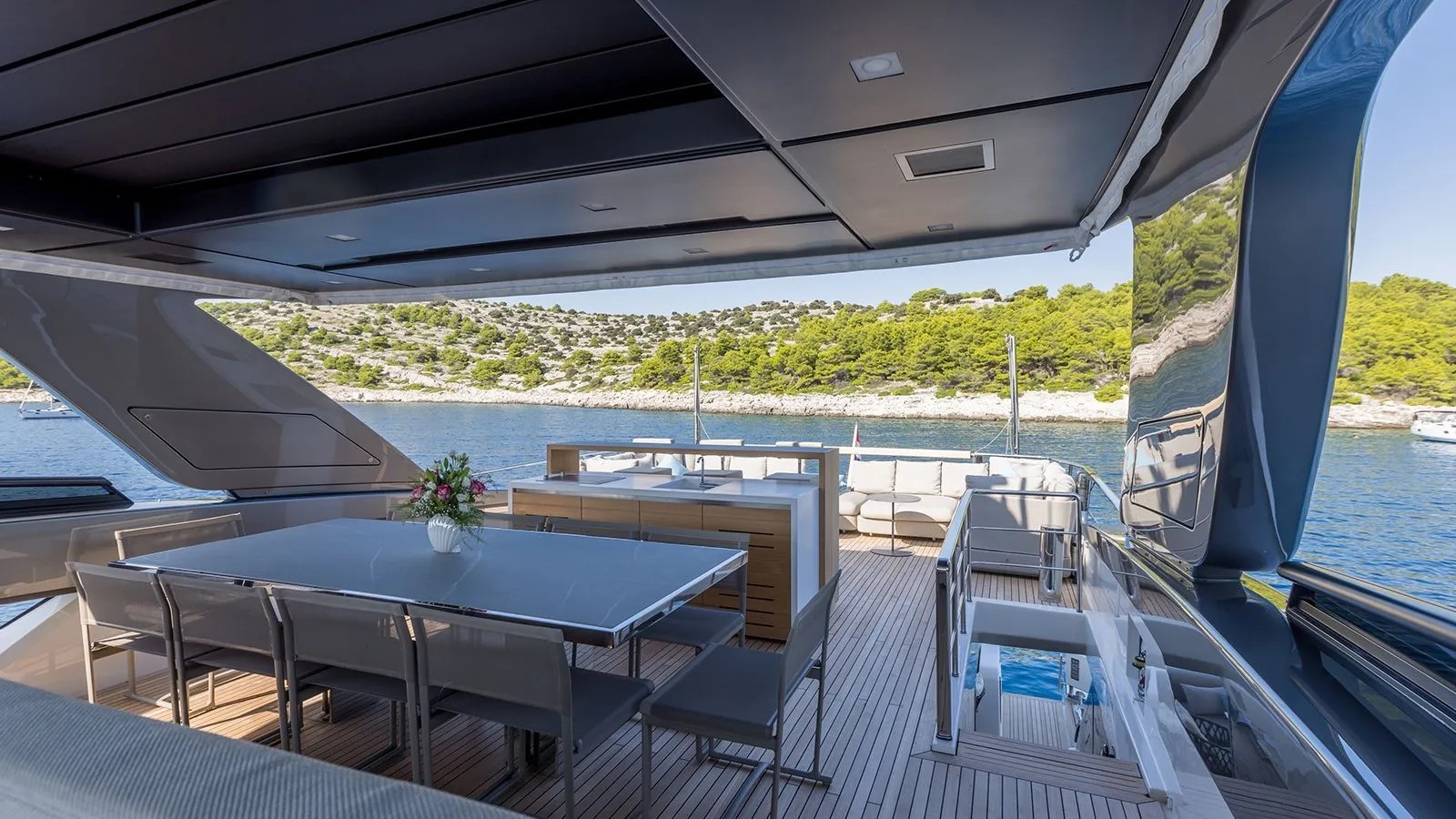

FLYBRIDGE
Fly-bridge may be reached through an external staircase coming up from the cockpit port side or from the bow area, through an external passageway on the starboard side or with an internal staircase from the wheelhouse
Starboard side door with access the foredeck sunpad, seating to port and starboard for two with integrated cupboard, mounted on teak grating raised platform, GRP Hard top with electric blades opening roof,bar area with fridge and sink, deck washing outlet in the bar area, dining table with chairs, sofas, drinks tables, sunbathing area with sunbed/sofa's and external cushions
BOW LOUNGE
Seating area with fixed table, quick water connection, blackout shades for wheelhouse windows, structural stairs to access the external passageway to the fly-bridge, watertight hatch to access technical and chain lockers

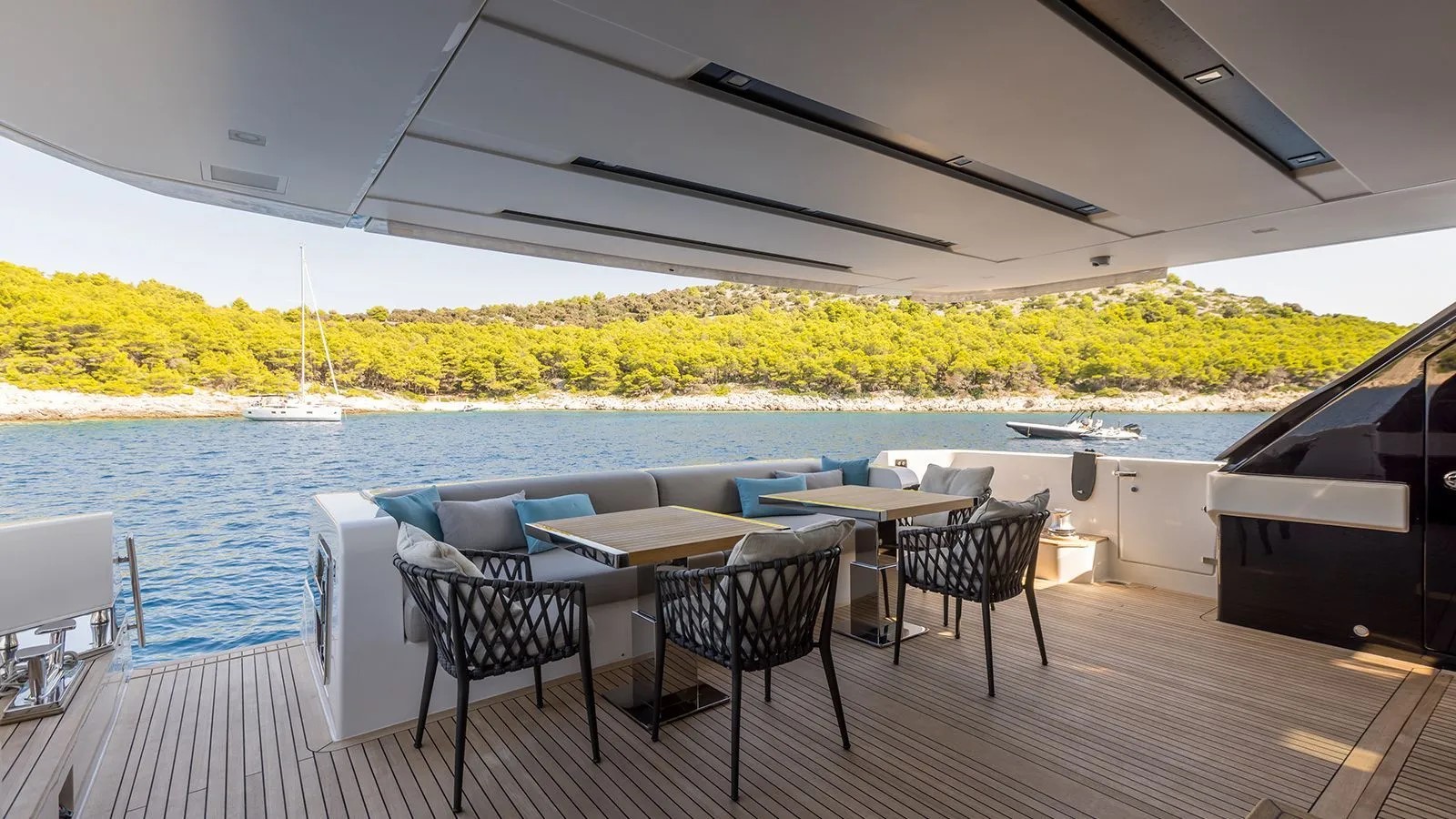

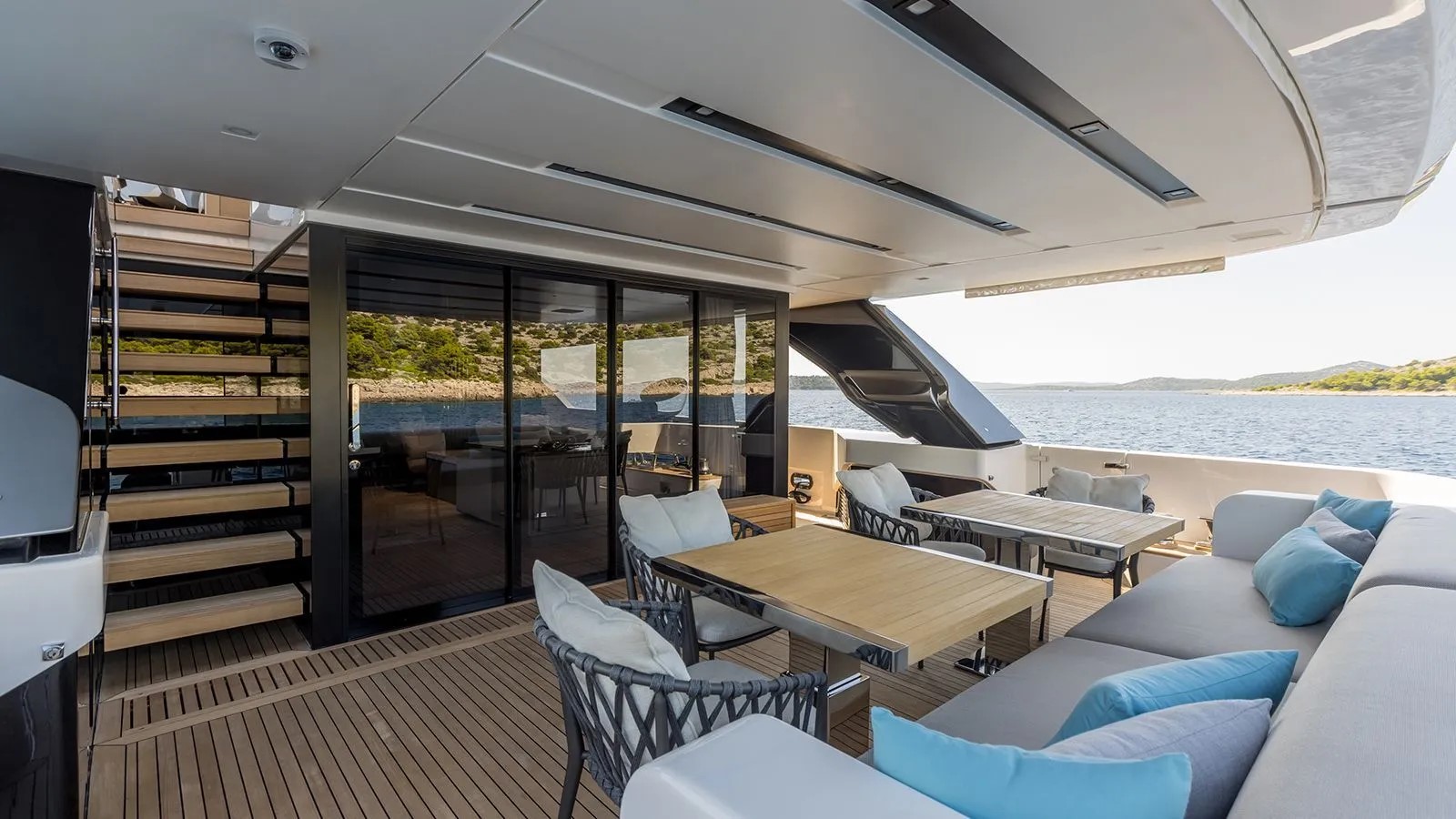

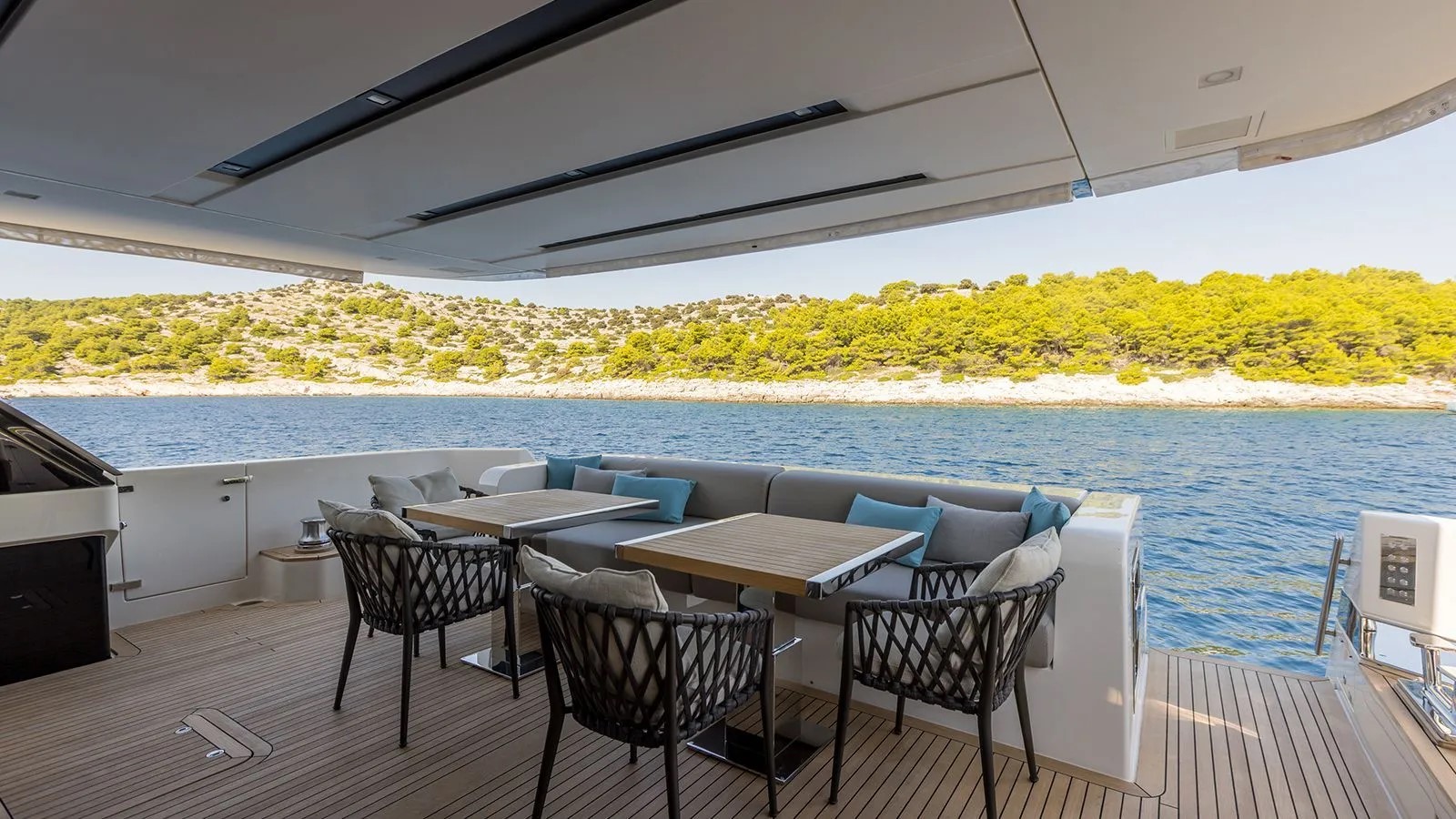

AFT COCKPIT
Saloon sliding door in tempered glass with aluminium powder painted frame, port and starboard side doors for side mooring boarding, teak and stainless-steel structural stairs to access the fly-bridge from the aft cockpit portside, boarding gates in stainless steel, integrated sofa/seating, two tables, two armchairs, two electric winches and access door to the engine room from the port side
TENDER GARAGE
From the lift swimming platform, you can access the garage by an electro-hydraulic hatch, tender hauling/launching system, fire detection system and power socket 220V (disabled with aft hatch closed), space for a 4.5m tender (max weight 700kg)
Sanlorenzo interior design
Airconditioning throughout -180,000 Btu/h
OWNER'S CABIN
Entrance foyer with bathroom on the portside and storage cabinet on the starboard side, double bed with four drawers, two nightstands with drawers, integrated TV, vanity cabinet with chair on port side, safe, door to starboard external passageway, curtains, electric skylight and carpet
OWNERS BATHROOM
Located on portside, washbasin with marble top & drawers, mirrors, curtains, WC with hydro brush, bidet, curtains, overhead shower with hand set and tempered glass door, extractor fan, marble floor
OWNERS WALK IN WARDROBE
Full height wardrobe, low level furniture with two drawers
LOWER DECK FOYER
Staircase in wood with anti-slip treatment, ambient lighting and handrail
Wardrobe, electrical subpanel and carpet
VIP CABIN PORT
Double bed with four drawers, two nightstands with drawers, vanity unit with pouf, one big fixed porthole and one big openable porthole in stainless steel with tempered glass, curtains, full height wardrobe, mirror and carpet floor
VIP BATHROOM PORT
WC with hydro brush, washbasin with marble top, cupboard, mirror, overhead shower with handset and tempered glass shower door, extractor fan, one stainless steel with tempered glass opening porthole, curtains and marble floor
VIP CABIN STARBOARD
Double bed with four drawers, two nightstands with drawers, vanity unit with pouf, one big fixed porthole and one big openable porthole in stainless steel with tempered glass, curtains, full height wardrobe, mirror and carpet floor
VIP BATHROOM STARBOARD
WC with hydro brush, washbasin with marble top, cupboard, mirror, overhead shower with handset and tempered glass shower door, extractor fan, one stainless steel with tempered glass opening porthole, curtains and marble floor
GUEST CABIN PORT
Two singular beds with two drawers, additional pullman bed, nightstand with two drawers, wardrobe, integrated TV, stainless steel and tempered glass openable porthole, curtains and carpet floor
GUEST BATHROOM PORT
WC with hydro brush, washbasin with marble top, cupboard, mirror, overhead shower with handset and tempered glass shower door, extractor fan, one stainless steel with tempered glass opening porthole, curtains and marble floor
GUEST CABIN STARBOARD
Two singular beds with two drawers, nightstand with two drawers, wardrobe, integrated TV, stainless steel and tempered glass openable porthole, curtains and carpet floor
GUEST BATHROOM STARBOARD
WC with hydro brush, washbasin with marble top, cupboard, mirror, overhead shower with handset and tempered glass shower door, extractor fan, one stainless steel with tempered glass opening porthole, curtains and marble floor
CREW QUATERS
From the galley, via an independent stair, you can access the crew quarters, made up of a crew mess and laundry area, two cabins with bunk beds and two bathrooms with separate shower area
CREW ACCOMADATION
Bunk beds with mattress, drawer under lower bed, wardrobe with hanging space, cupboards and shelves, one stainless steel with tempered glass openable porthole, curtains, vinylic flooring, air conditioning with dedicated control panel
CREW BATHROOMS
WC, washbasin, wall cupboard with mirror, curtains, vinylic floor, shower with handset and temperate glass door, extractor fan
SALOON
Sofa, coffee table, wall-mounted TV, bar with fridge & icemaker, curtains, timber flooring, full height windows to port & starboard, table to port with chairs and 3-seats bench, two cabinets to hold plates, glasses, and crockery on each side
GALLEY
The galley is forward of starboard foyer, separated by a door, electric cook top, integrated extraction hood, dishwasher, conventional oven, commercial fridge/freezer, curtains, flooring in vinylic material
From the galley you can access the crew quarters through a separate staircase (timber stairs treated with a non-slip finish)
DAY HEAD
WC with hydro brush, washbasin, mirror, extractor fan and marble floor
WHEELHOUSE
Leather covered dashboard with navigation instruments, pilot’s armchair with electrical movement, chart table storage cabinet, stairs to access fly-bridge and stairs leading down to the starboard foyer
Helm station supplied with:
Main Engine throttles navigation equipment; bow thruster controls, stabilizer controls, trim tab controls and indicator, electric control panel for alarms repetition and controls, touch screen monitor to control the main onboard systems, subpanel, synoptic panel for navigation lights with manual control, synoptic panel for bilge alarms and pumps, manual controls for windows wipers, horn, autopilot and searchlight
FLYBRIDGE
Fly-bridge may be reached through an external staircase coming up from the cockpit port side or from the bow area, through an external passageway on the starboard side or with an internal staircase from the wheelhouse
Starboard side door with access the foredeck sunpad, seating to port and starboard for two with integrated cupboard, mounted on teak grating raised platform, GRP Hard top with electric blades opening roof,bar area with fridge and sink, deck washing outlet in the bar area, dining table with chairs, sofas, drinks tables, sunbathing area with sunbed/sofa's and external cushions
BOW LOUNGE
Seating area with fixed table, quick water connection, blackout shades for wheelhouse windows, structural stairs to access the external passageway to the fly-bridge, watertight hatch to access technical and chain lockers
AFT COCKPIT
Saloon sliding door in tempered glass with aluminium powder painted frame, port and starboard side doors for side mooring boarding, teak and stainless-steel structural stairs to access the fly-bridge from the aft cockpit portside, boarding gates in stainless steel, integrated sofa/seating, two tables, two armchairs, two electric winches and access door to the engine room from the port side
TENDER GARAGE
From the lift swimming platform, you can access the garage by an electro-hydraulic hatch, tender hauling/launching system, fire detection system and power socket 220V (disabled with aft hatch closed), space for a 4.5m tender (max weight 700kg)

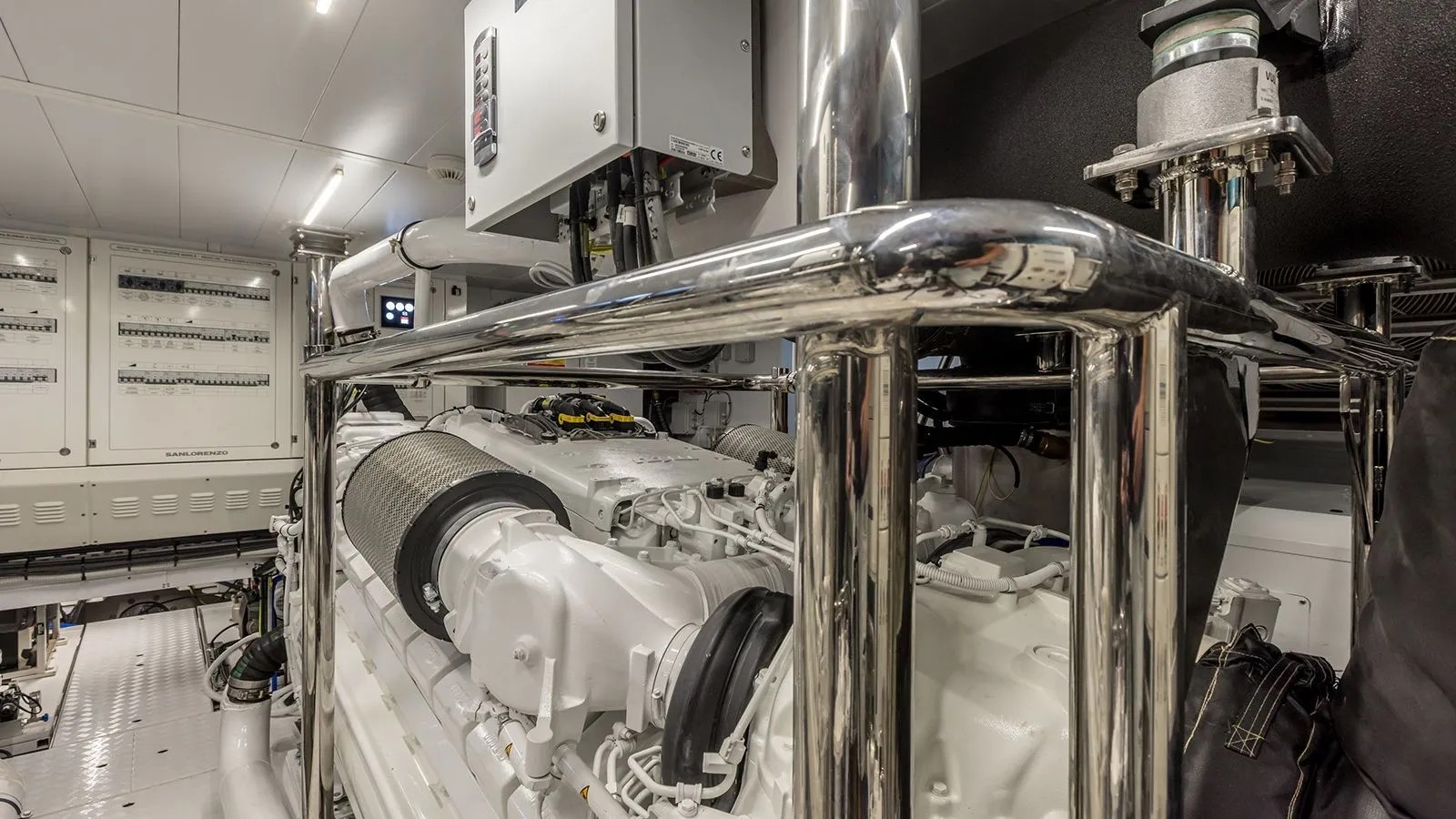

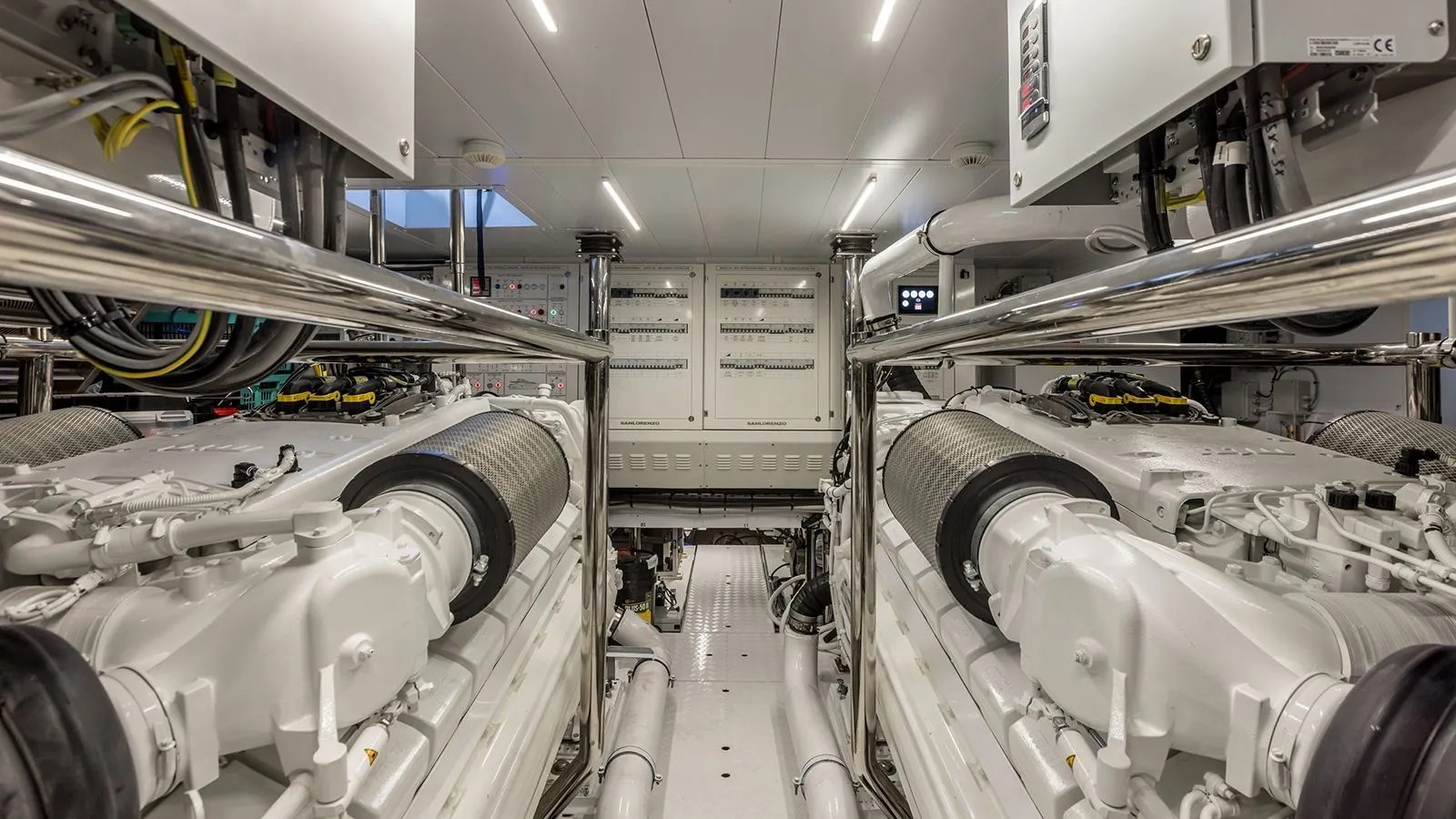

TWIN MTU 16V2000M86 DIESEL ENGINE 2.216HP
V-Drive transmission
Maximum speed approx. 28 knots
Cruising speed approx. 24 knots
Hydraulic bow thruster
Electric stabiliser fins with zero speed function
TANKAGE & WATER SYSTEM
Fuel tank capacity - 7100 litres
Daily fuel tank capacity - 3.250 litres
Fresh water tank capacity - 1.500 litres
Black water tank capacity - 560 litres
Grey water tank capacity - 760 litres
ELECTRICAL SYSTEMS
Two 45kw Kohler generators
Shore power cable
Shore power connection on the stern and connected to an isolation transformer
400Vac/tri phase/50 Hz for main power circuits
230Vac/single phase/50Hz for lighting systems, domestic appliances and other users not supplied by 400Vac system
24Vdc with negative to earth for small power circuits, visual signals, emergency lighting, electronics, communication systems, propulsion system and main engine starting system
12Vdc for main generators starting system and VHF.
The main electrical switchboard is placed in the engine room, subpanels positioned in strategic areas so that they can be easily recognized, reached and operated
Batteries
Service batteries
Main engine starting batteries: Two sets of gel/AGM batteries
Generator starting batteries: Two sets of gel/AGM batteries
Battery chargers
Two automatic battery chargers 75A/24Vdc to recharge service batteries
One automatic battery charger 25A/24Vdc with related switchboard to recharge main engine starting and electronic batteries
One automatic battery charger 25A/12Vdc, to recharge gen sets starting batteries
One automatic battery charger 10A/12Vdc, to recharge VHF batteries
V-Drive transmission
Maximum speed approx. 28 knots
Cruising speed approx. 24 knots
Hydraulic bow thruster
Electric stabiliser fins with zero speed function
TANKAGE & WATER SYSTEM
Fuel tank capacity - 7100 litres
Daily fuel tank capacity - 3.250 litres
Fresh water tank capacity - 1.500 litres
Black water tank capacity - 560 litres
Grey water tank capacity - 760 litres
ELECTRICAL SYSTEMS
Two 45kw Kohler generators
Shore power cable
Shore power connection on the stern and connected to an isolation transformer
400Vac/tri phase/50 Hz for main power circuits
230Vac/single phase/50Hz for lighting systems, domestic appliances and other users not supplied by 400Vac system
24Vdc with negative to earth for small power circuits, visual signals, emergency lighting, electronics, communication systems, propulsion system and main engine starting system
12Vdc for main generators starting system and VHF.
The main electrical switchboard is placed in the engine room, subpanels positioned in strategic areas so that they can be easily recognized, reached and operated
Batteries
Service batteries
Main engine starting batteries: Two sets of gel/AGM batteries
Generator starting batteries: Two sets of gel/AGM batteries
Battery chargers
Two automatic battery chargers 75A/24Vdc to recharge service batteries
One automatic battery charger 25A/24Vdc with related switchboard to recharge main engine starting and electronic batteries
One automatic battery charger 25A/12Vdc, to recharge gen sets starting batteries
One automatic battery charger 10A/12Vdc, to recharge VHF batteries
NAVIGATION EQUIPMENT
Wheelhouse & flybridge helm control station
Multi-function colour display
Speed, depth, wind and temperature indicator, rudder angle indicator
Autopilot
VHF
Hard Top
GPS antenna
Radar open array antenna 48” – 72Nm
Two VHF antenna
Air signalling horns
Wind transducer
Starlink maritime antenna
GENERAL EQUIPMENT
Starlink maritime system
Covers for all outdoor furniture
Two spare lines 15m long
Ten fenders with ropes
AUDIO/VIDEO EQUIPMENT
Saloon
Smart LED TV, multi area amplifier with AIR play, kit home theatre with subwoofer and five speakers, connected to the aft cockpit and fly-bridge deck, DVD player Blue Ray 3D, IPAD Mini for centralized control with docking station
Owner’s Cabin
Smart LED TV, amplifier with AIR play, kit home theatre with subwoofer and two speakers, DVD player Blue Ray 3D IPAD Mini for centralized control with docking station
VIP Cabins port and starboard
Smart LED TV, amplifier media center with streaming music function, Bluetooth, with two speakers and infrared repeater
Guest Cabins port and starboard
Smart LED TV, amplifier media center with streaming music function, Bluetooth, with two speakers and infrared repeater
Crew Cabins
TV, stereo and speakers prearrangement
Crew mess
LED TV, amplifier media center with streaming music function, Bluetooth, with two speakers and infrared repeater
Flybridge
Four speakers in the ceiling of hard top connected to the saloon system, control with saloon IPAD Mini
Cockpit
Two speakers in the ceiling connected to the Saloon system, control with Saloon IPAD Mini
Wheelhouse
Compact Stereo Bluetooth with two speakers
GROUND TACKLE
The chain locker can be accessed via a weather-tight hatch (the same used to access to the bow technical locker), inside the chain locker there will be the two anchor windlasses motors and separated storage space for fenders
Two anchor windlasses with integrated capstan, windlass control
Two high-holding power galvanized steel anchors, 125 Kg each
Two chains 14mm, length 110 m each (2 x 4 lengths)
Chain washing system.
SAFETY EQUIPMENT
Two self-inflatable life-rafts for 8 people each, integrated in the flybridge superstructure and provided with hydrostatic release
Centralized Firefighting system FM200 for the engine room. The activation of this system is positioned on the main deck aft cockpit
Salt-Water Fire Fighting System located in the engine room and connected to two fire hoses accessible from the main deck
Smoke detection system in the engine room, garage, all cabins, salon, galley and crew area - engine room and galley there is also one high temperature sensor
Portable powder, foam and CO² fire extinguishers will be positioned ad per CE Rule
ALARMS & SECURITY
Engine and gearbox alarm repeaters in the wheelhouse and on the fly-bridge dashboard
Fuel high/low level alarm on wheelhouse touch screen monitor
Wheelhouse & flybridge helm control station
Multi-function colour display
Speed, depth, wind and temperature indicator, rudder angle indicator
Autopilot
VHF
Hard Top
GPS antenna
Radar open array antenna 48” – 72Nm
Two VHF antenna
Air signalling horns
Wind transducer
Starlink maritime antenna
GENERAL EQUIPMENT
Starlink maritime system
Covers for all outdoor furniture
Two spare lines 15m long
Ten fenders with ropes
AUDIO/VIDEO EQUIPMENT
Saloon
Smart LED TV, multi area amplifier with AIR play, kit home theatre with subwoofer and five speakers, connected to the aft cockpit and fly-bridge deck, DVD player Blue Ray 3D, IPAD Mini for centralized control with docking station
Owner’s Cabin
Smart LED TV, amplifier with AIR play, kit home theatre with subwoofer and two speakers, DVD player Blue Ray 3D IPAD Mini for centralized control with docking station
VIP Cabins port and starboard
Smart LED TV, amplifier media center with streaming music function, Bluetooth, with two speakers and infrared repeater
Guest Cabins port and starboard
Smart LED TV, amplifier media center with streaming music function, Bluetooth, with two speakers and infrared repeater
Crew Cabins
TV, stereo and speakers prearrangement
Crew mess
LED TV, amplifier media center with streaming music function, Bluetooth, with two speakers and infrared repeater
Flybridge
Four speakers in the ceiling of hard top connected to the saloon system, control with saloon IPAD Mini
Cockpit
Two speakers in the ceiling connected to the Saloon system, control with Saloon IPAD Mini
Wheelhouse
Compact Stereo Bluetooth with two speakers
GROUND TACKLE
The chain locker can be accessed via a weather-tight hatch (the same used to access to the bow technical locker), inside the chain locker there will be the two anchor windlasses motors and separated storage space for fenders
Two anchor windlasses with integrated capstan, windlass control
Two high-holding power galvanized steel anchors, 125 Kg each
Two chains 14mm, length 110 m each (2 x 4 lengths)
Chain washing system.
SAFETY EQUIPMENT
Two self-inflatable life-rafts for 8 people each, integrated in the flybridge superstructure and provided with hydrostatic release
Centralized Firefighting system FM200 for the engine room. The activation of this system is positioned on the main deck aft cockpit
Salt-Water Fire Fighting System located in the engine room and connected to two fire hoses accessible from the main deck
Smoke detection system in the engine room, garage, all cabins, salon, galley and crew area - engine room and galley there is also one high temperature sensor
Portable powder, foam and CO² fire extinguishers will be positioned ad per CE Rule
ALARMS & SECURITY
Engine and gearbox alarm repeaters in the wheelhouse and on the fly-bridge dashboard
Fuel high/low level alarm on wheelhouse touch screen monitor
Sign in or register an account to start saving boats
Don't have an account? Register
Broker Comments
The SL96a is a extremely popular model in the SL range as she offers 5 beautifully appointed cabins and stays under that all important 24m LLL. Viewing is highly recommended!
