- Make Azimut
- Model Magellano 53
- Year 2015
- LOA 53ft/16m
- Class Semi-Displacement
- Hull Glass Reinforced Plastic
- Engine Twin Diesel
- Drive Shaft Drives
- Layout Flybridge
- Berths 6
- Cabins 3
- Aft Cabins 1
- Ancasta Ref 48728
- Name Circo Marino
Azimut Magellano 53 | 2015
650,000 Tax Not Paid
|
Mallorca Spain

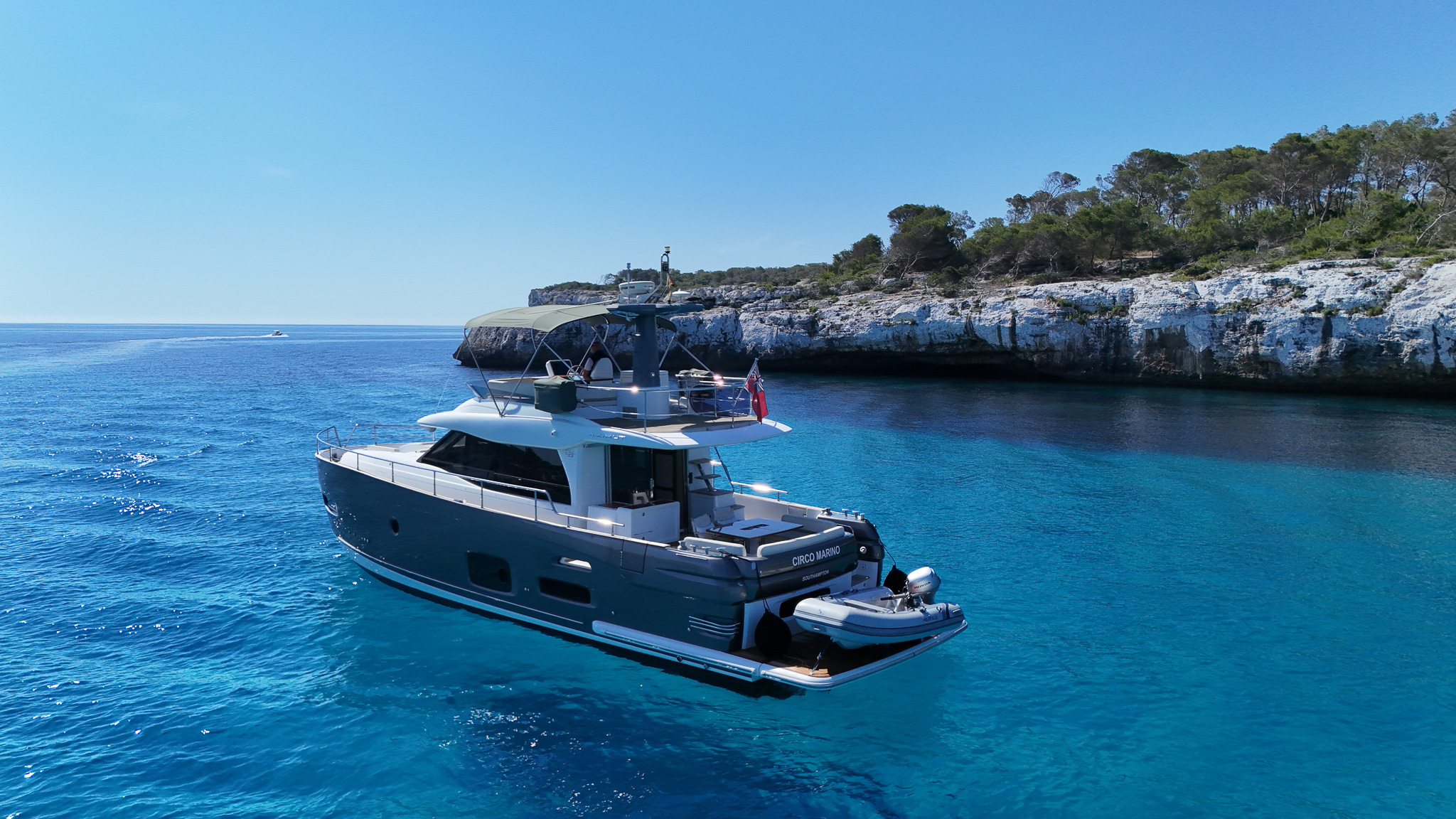

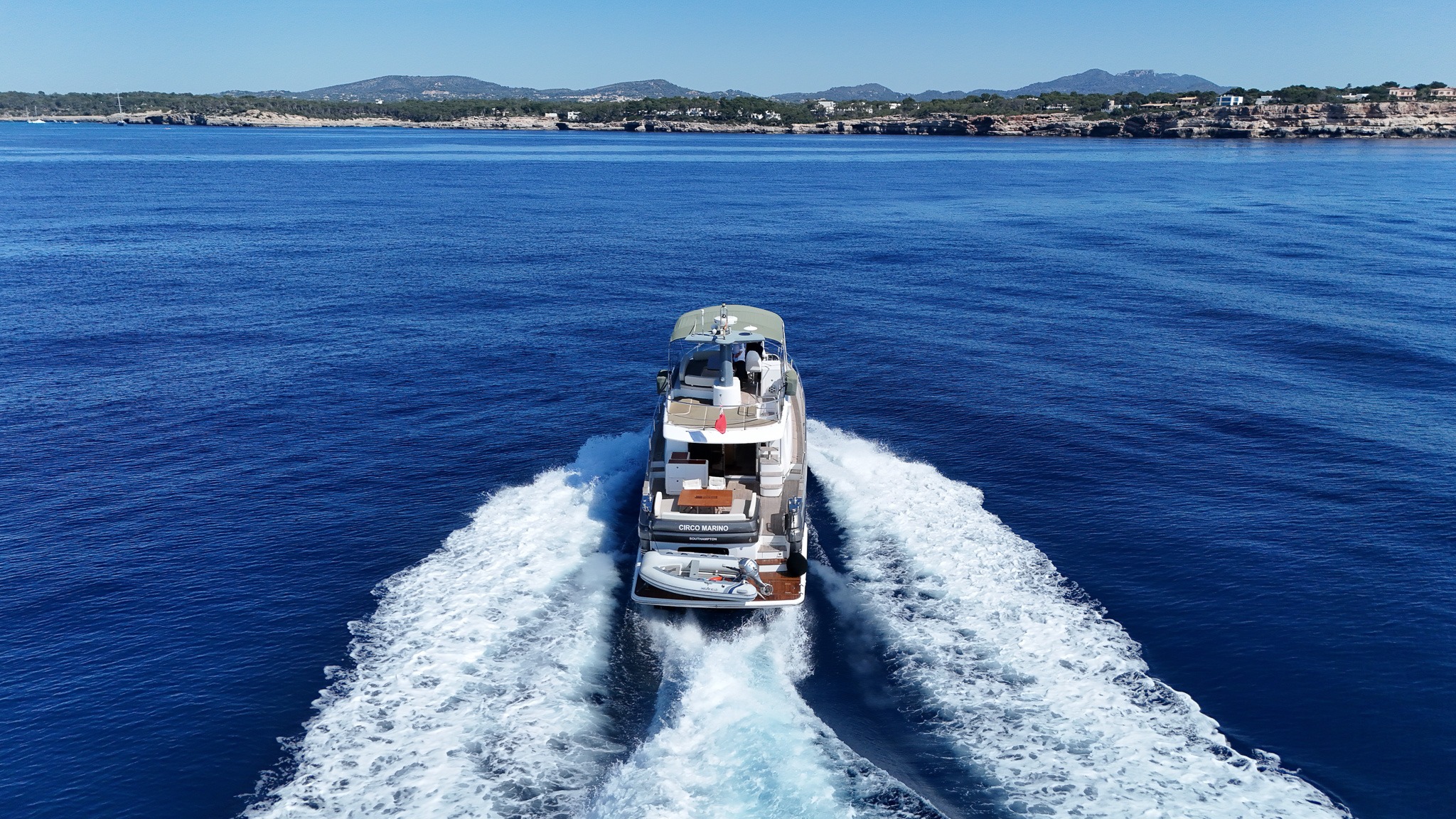

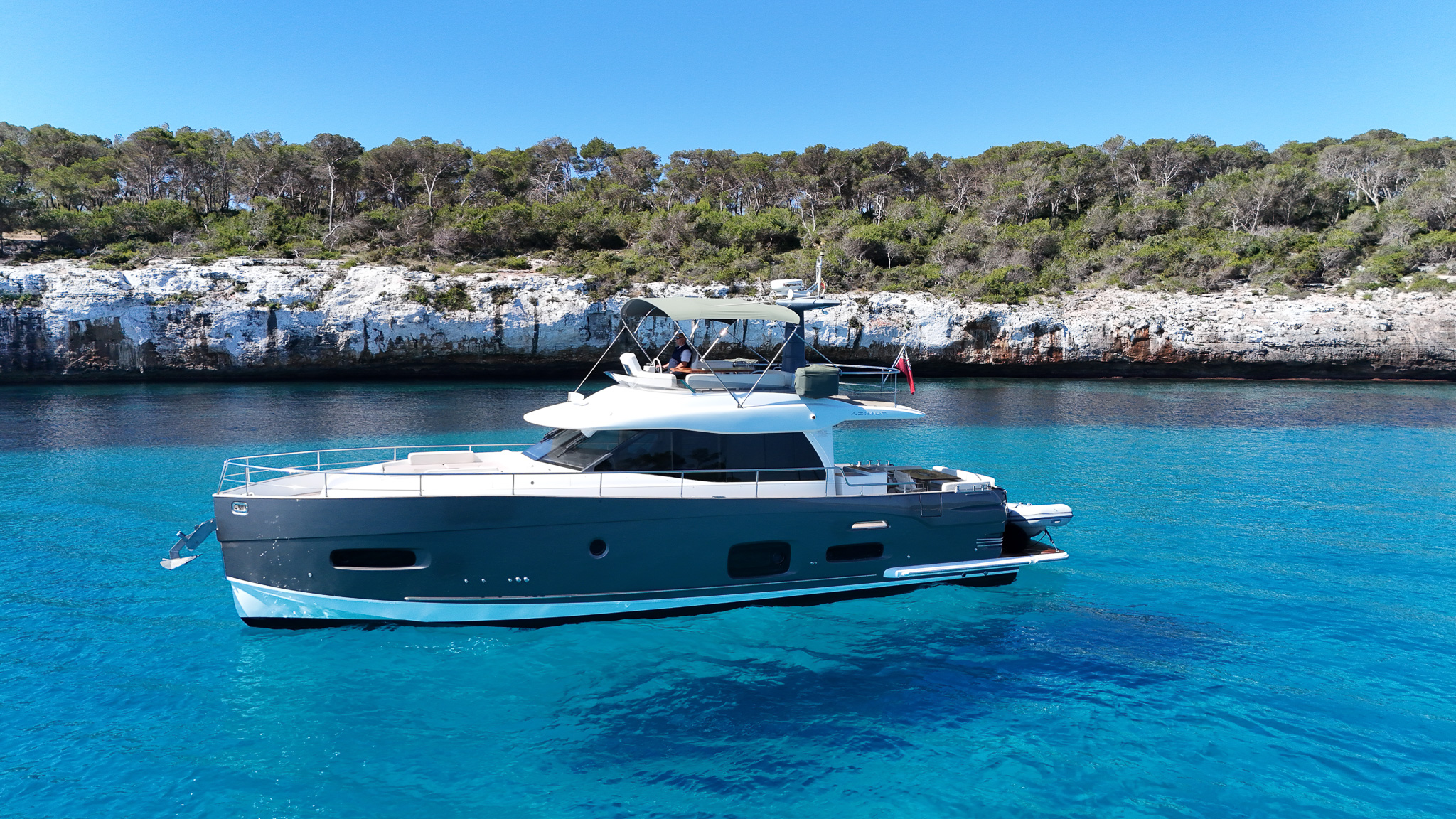

This Azimut Magellano 53, complete with a highly desirable berth in Palma de Mallorca, combines elegant Italian styling with genuine long-range cruising capability, making her one of the most versatile yachts in her class. Highly regarded for her seaworthiness, efficiency and exceptional onboard volume, the Magellano 53 offers a rare balance of performance, comfort and practicality. Her semi-displacement hull delivers comfortable and economical cruising at around 15 knots, with a range of over 1,000 nautical miles and top speeds of approximately 22 knots when required. Equally suited to Mediterranean cruising or longer passages further afield, she is a yacht designed for owners who value both capability and comfort in equal measure.
Accommodation comprises a full-beam owner’s cabin, forward VIP cabin and twin guest cabin, together with separate crew accommodation aft. Generous exterior spaces, centred around a particularly spacious flybridge, make her exceptionally comfortable both underway and at anchor.
Presented in excellent condition and powered by twin Cummins QSC 500 diesel engines, this Magellano 53 represents an excellent opportunity to acquire a refined and highly capable cruising yacht. Recently prepared for the summer season, she is ready to be enjoyed immediately. The possibility to take over her berth in Palma further enhances her appeal, offering immediate access to one of the Mediterranean’s most sought-after cruising grounds.
For further information or to arrange a viewing, please contact Ancasta Palma.

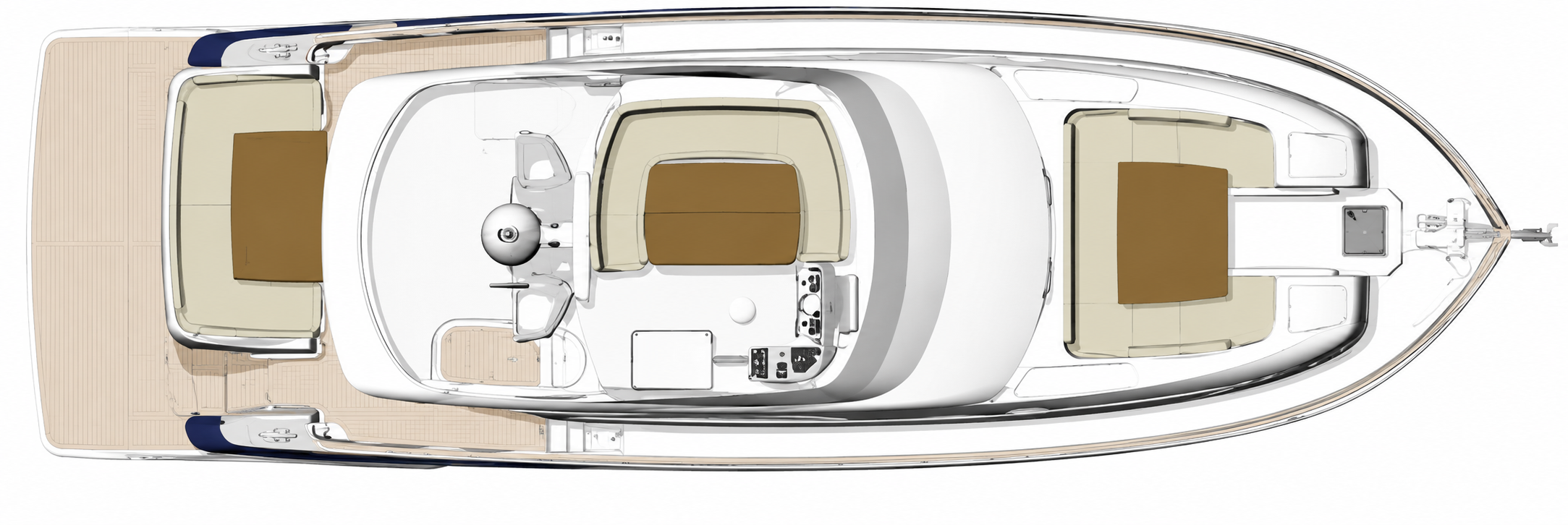

Layout Flybridge

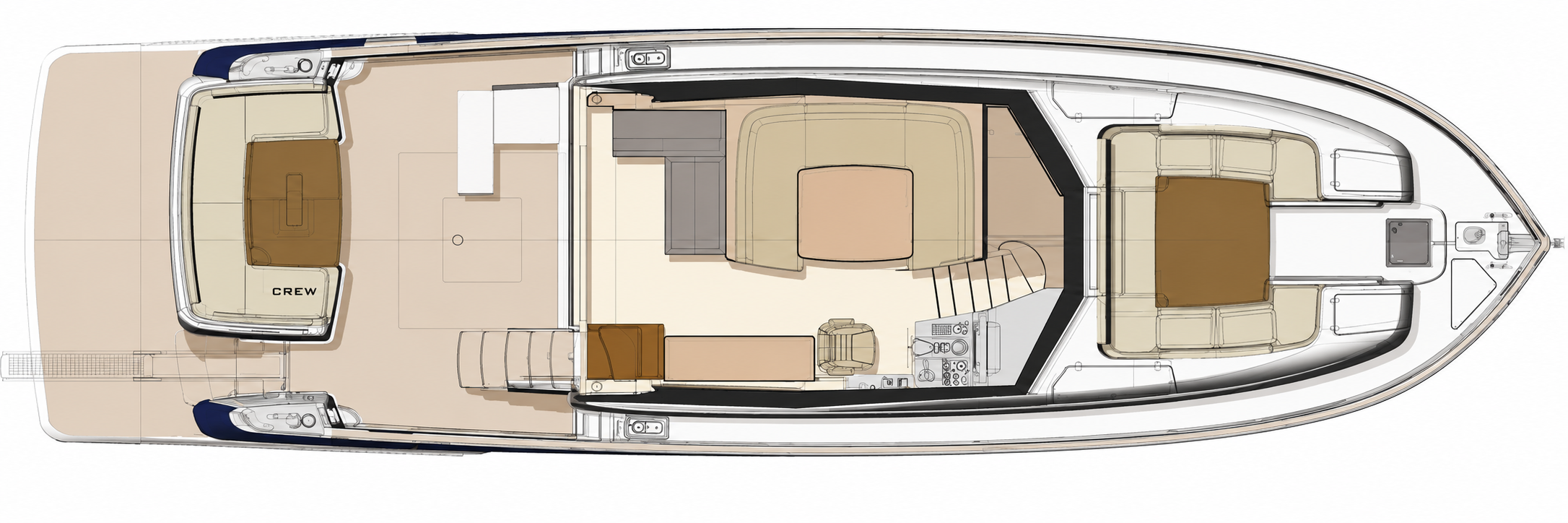

Layout Main Deck

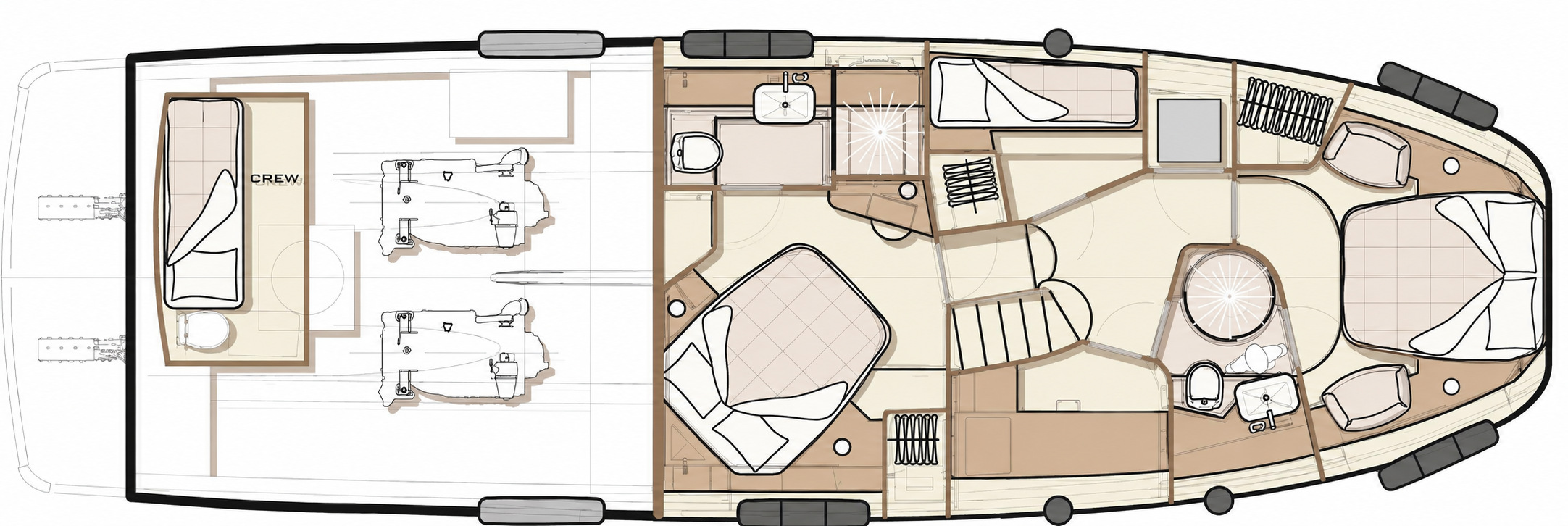

Layout Lower Deck
AZIMUT GALLEANO 53 FLYBRIDGE,
BUILT AND LAUNCHED IN 2015
Designed by Stefano Righini and built by Azimut Yachts in Italy.
CONSTRUCTION
GRP hull, deck and superstructure
Semi-displacement Dual Mode hull
Teak laid cockpit, flybridge and side decks
Hydraulic bathing platform
Flybridge with helm station, wet bar and dining area

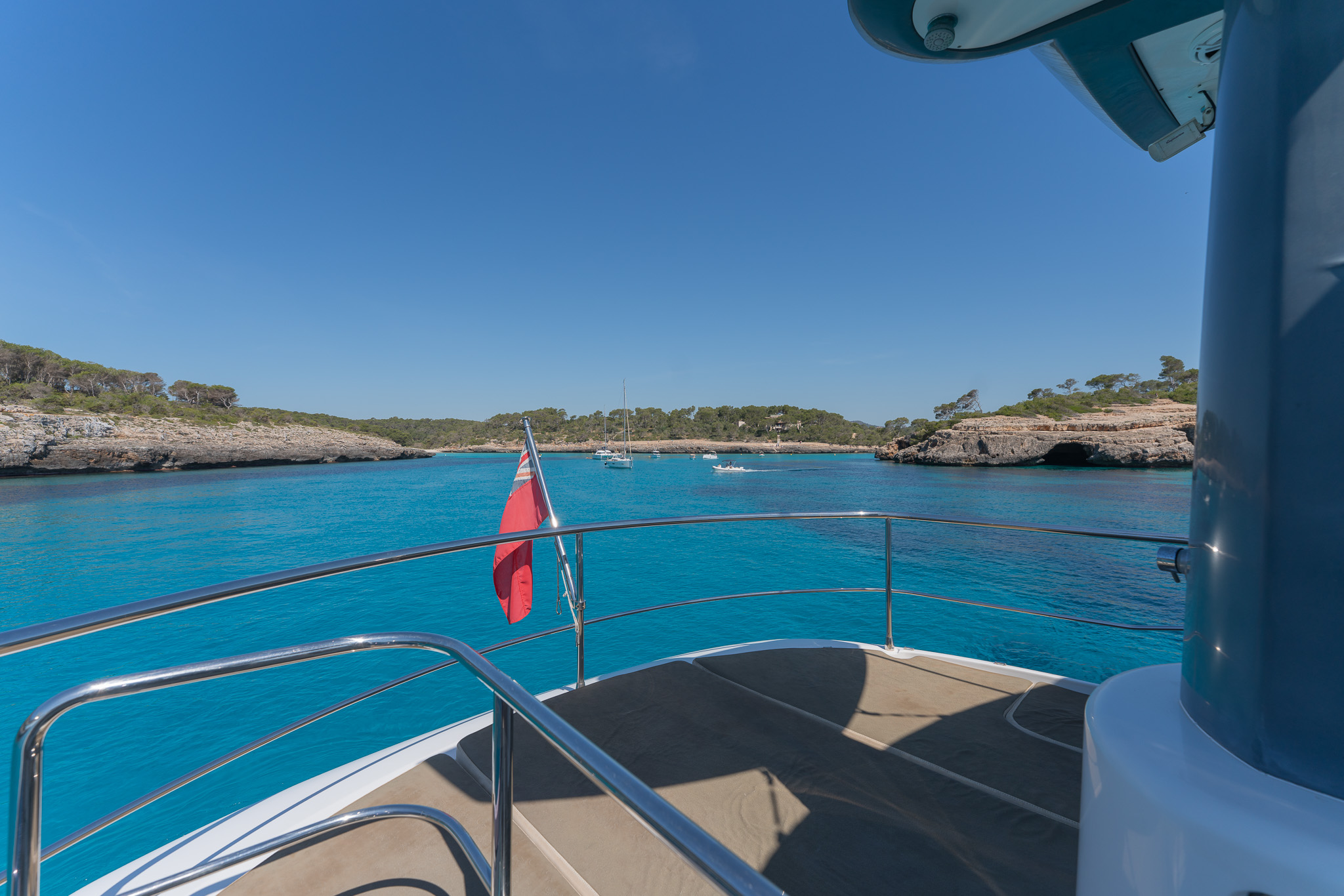

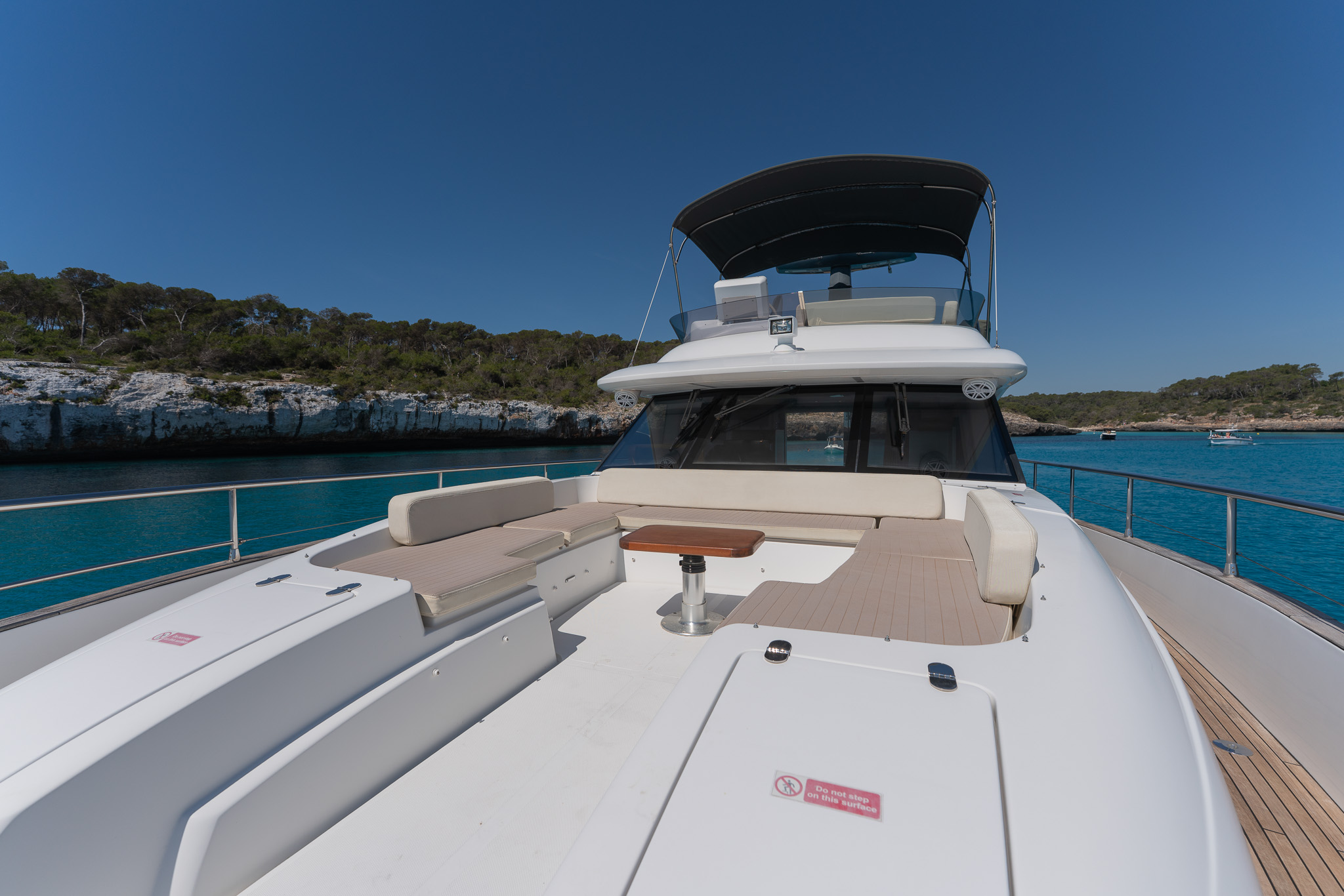

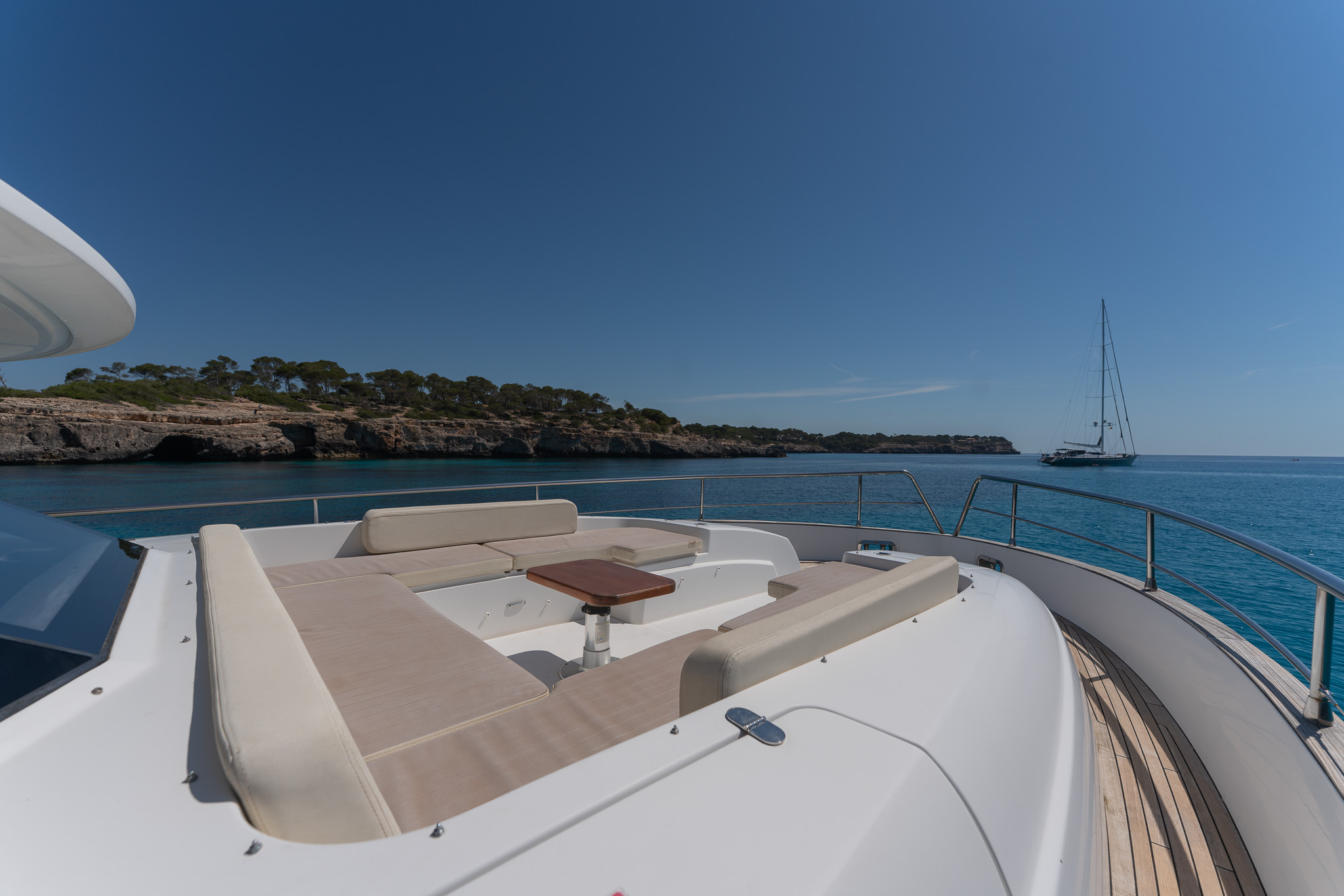

Generous foredeck sunbathing and seating area

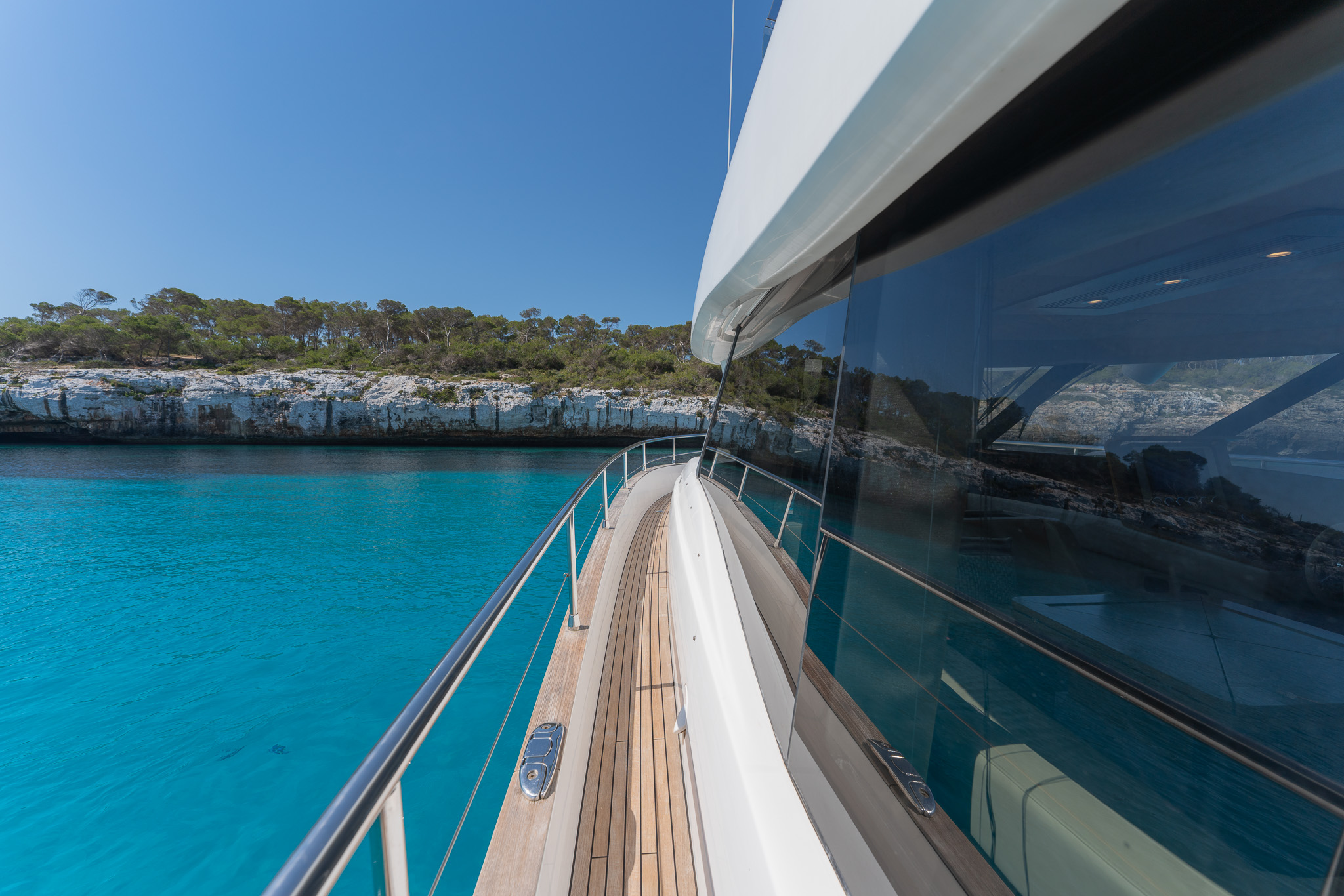

Wide side decks for safe passage underway
Electric trim tabs
Crew cabin aft
DIMENSION:
LOA 55' 5" (16.90m)
Beam 15' 5" (4.70m)
Draft 4' 9" (1.44m)
Displacement Approx. 30,800kg (full load)
SLEEPS SIX GUEST IN 2 DOUBLE CABINS AND 1 BUNK BED CABIN, PLUS CREW ACCOMMEDATION AFT

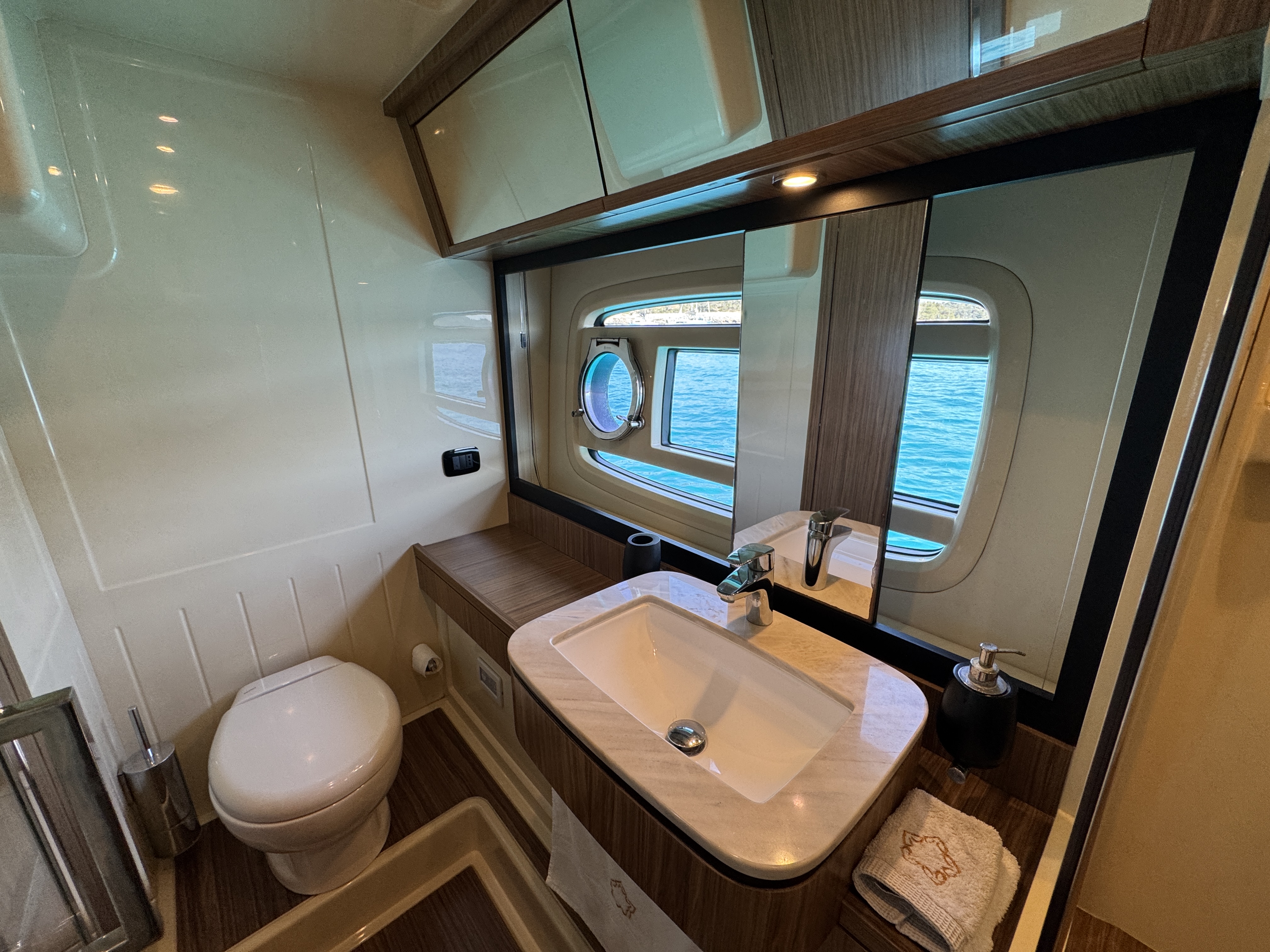

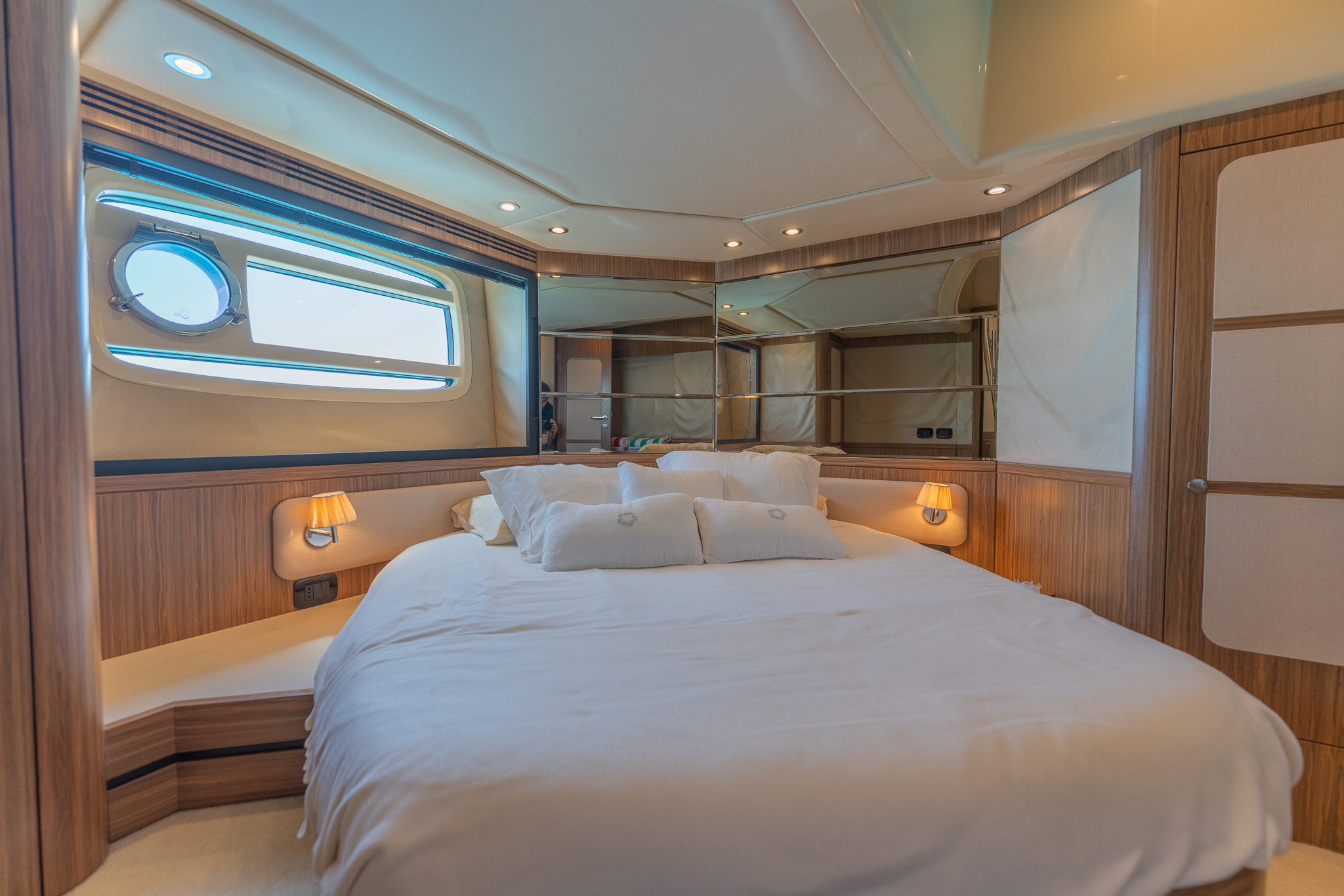

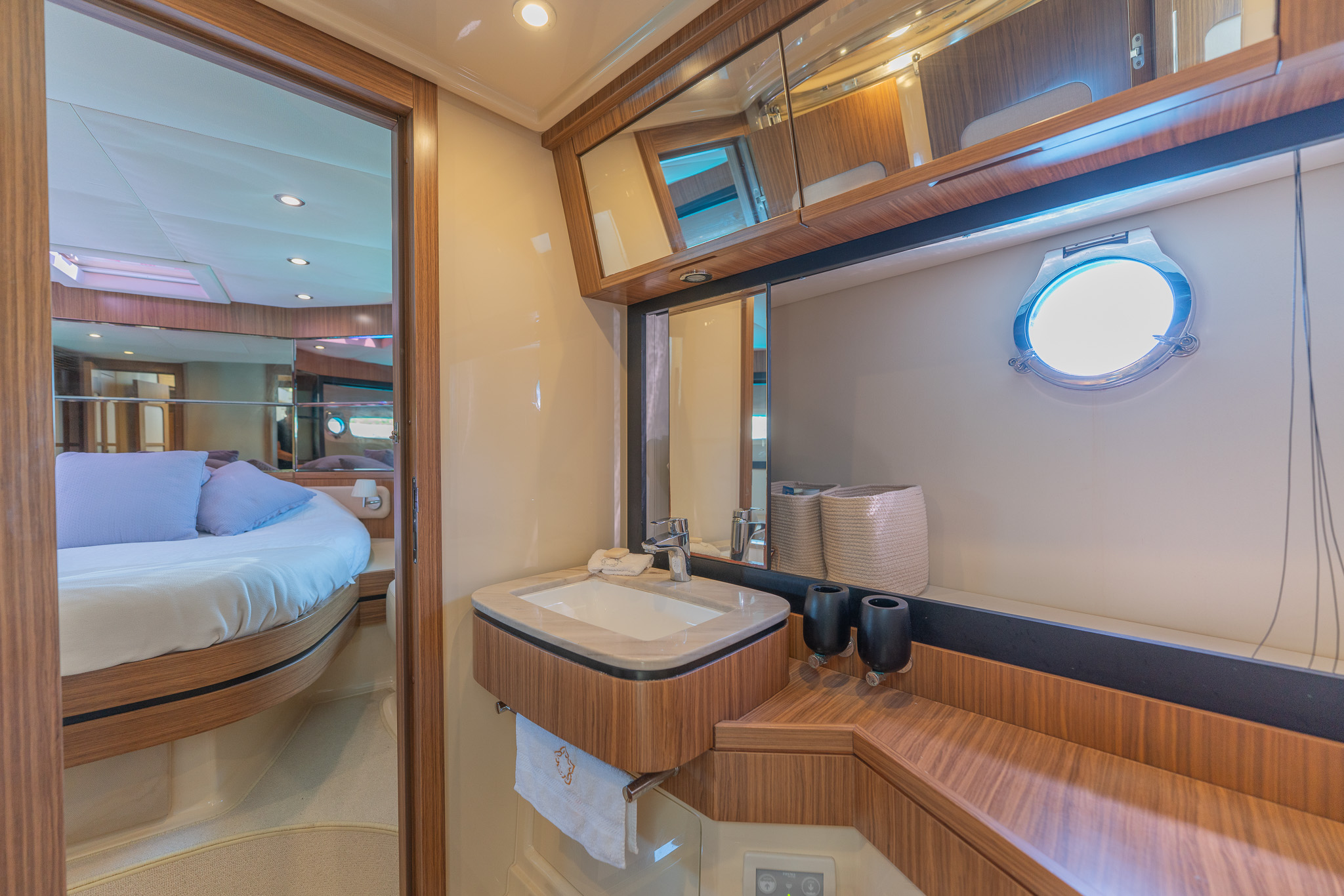

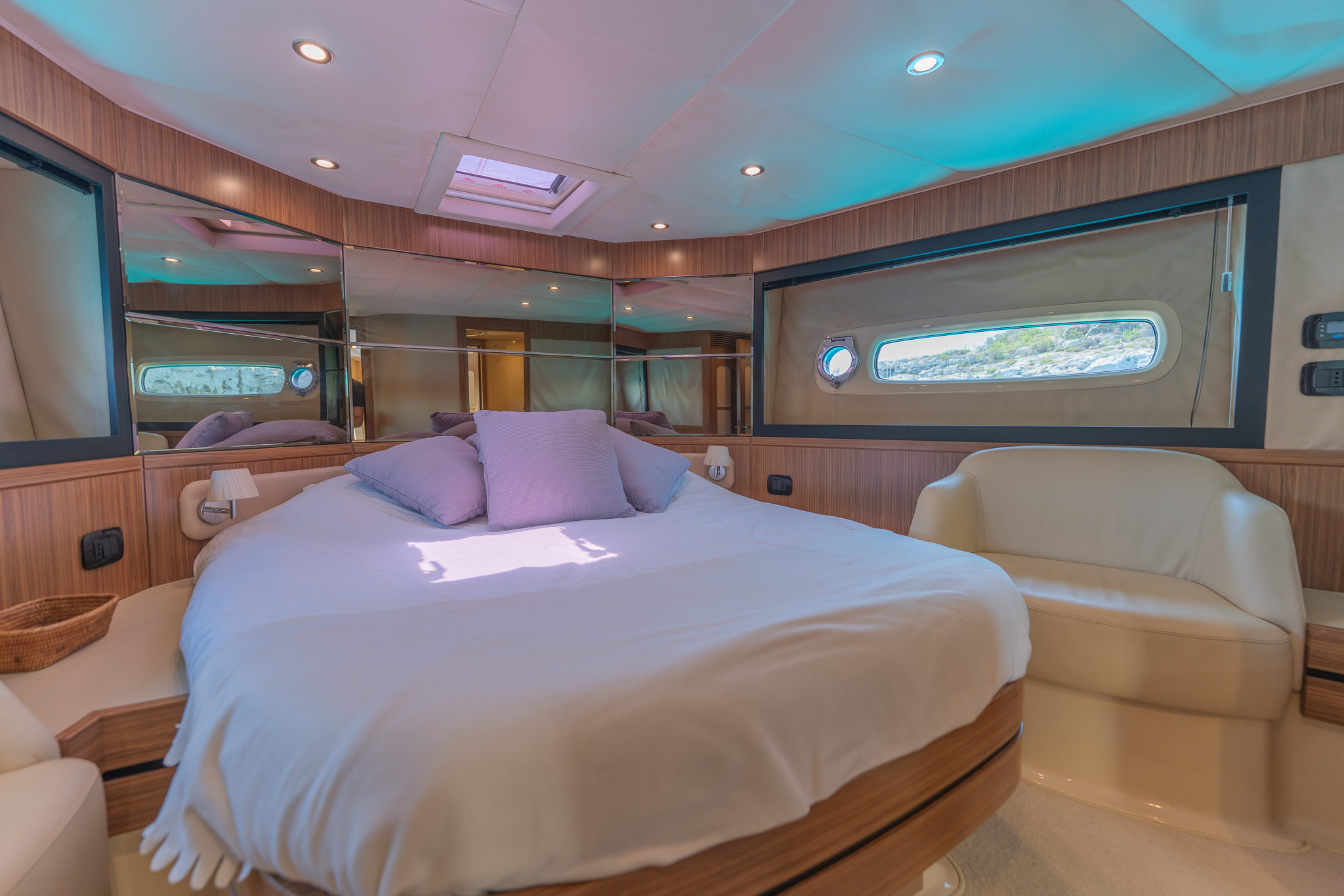

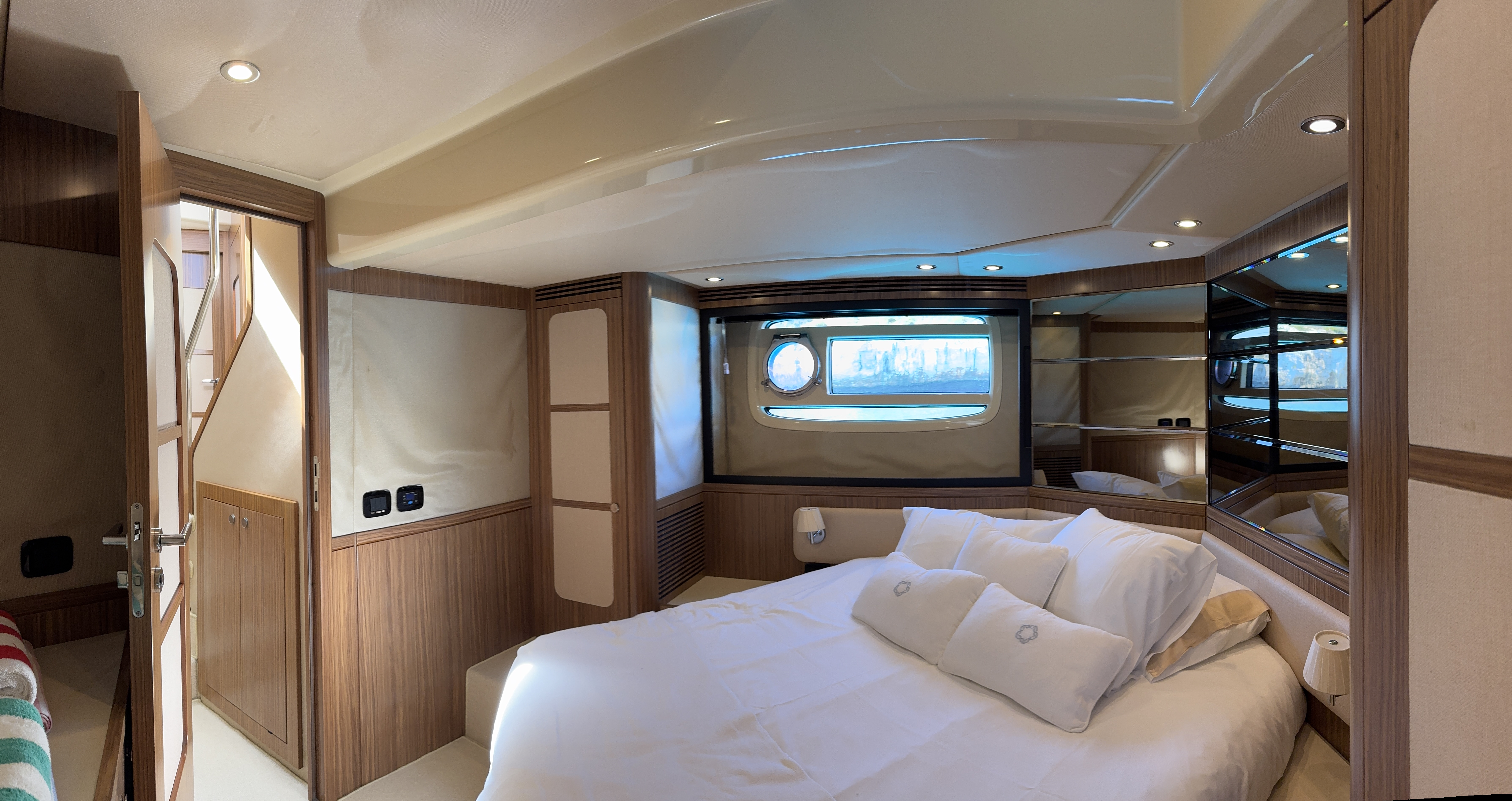

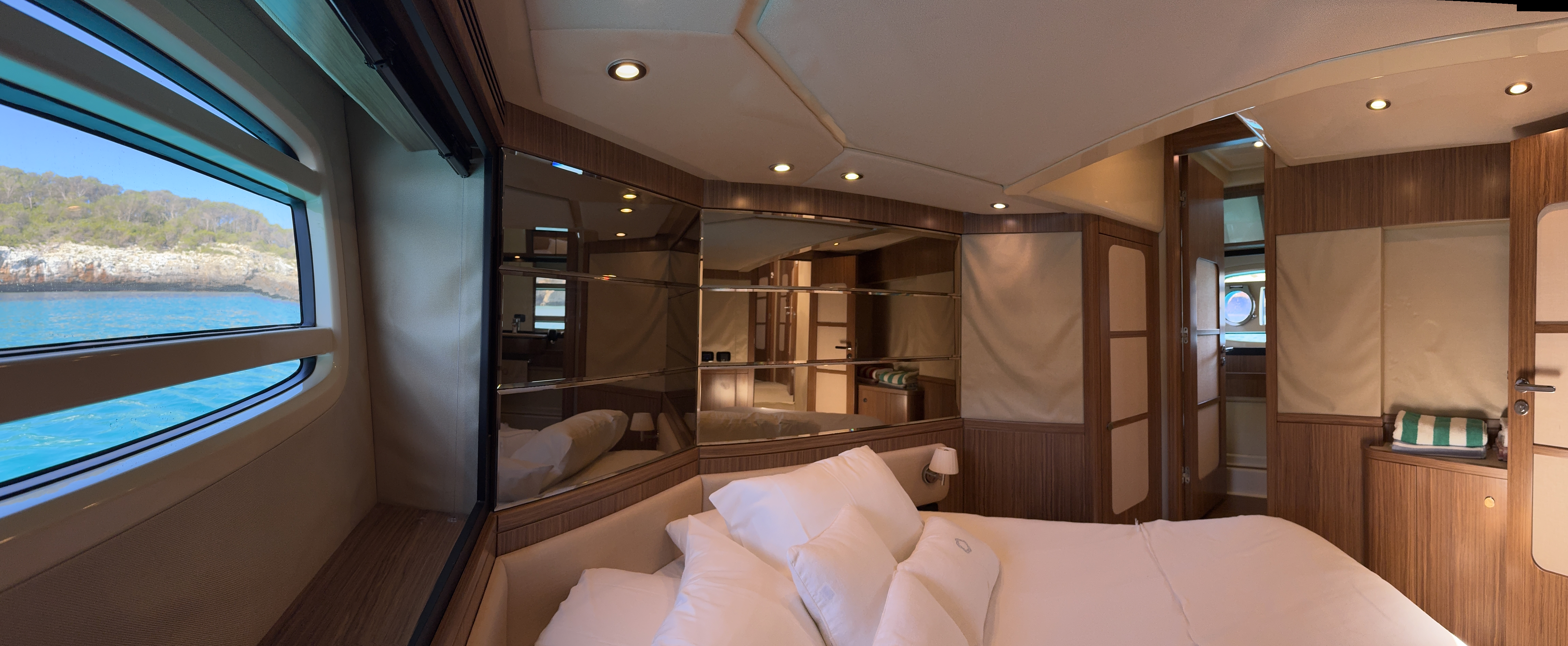

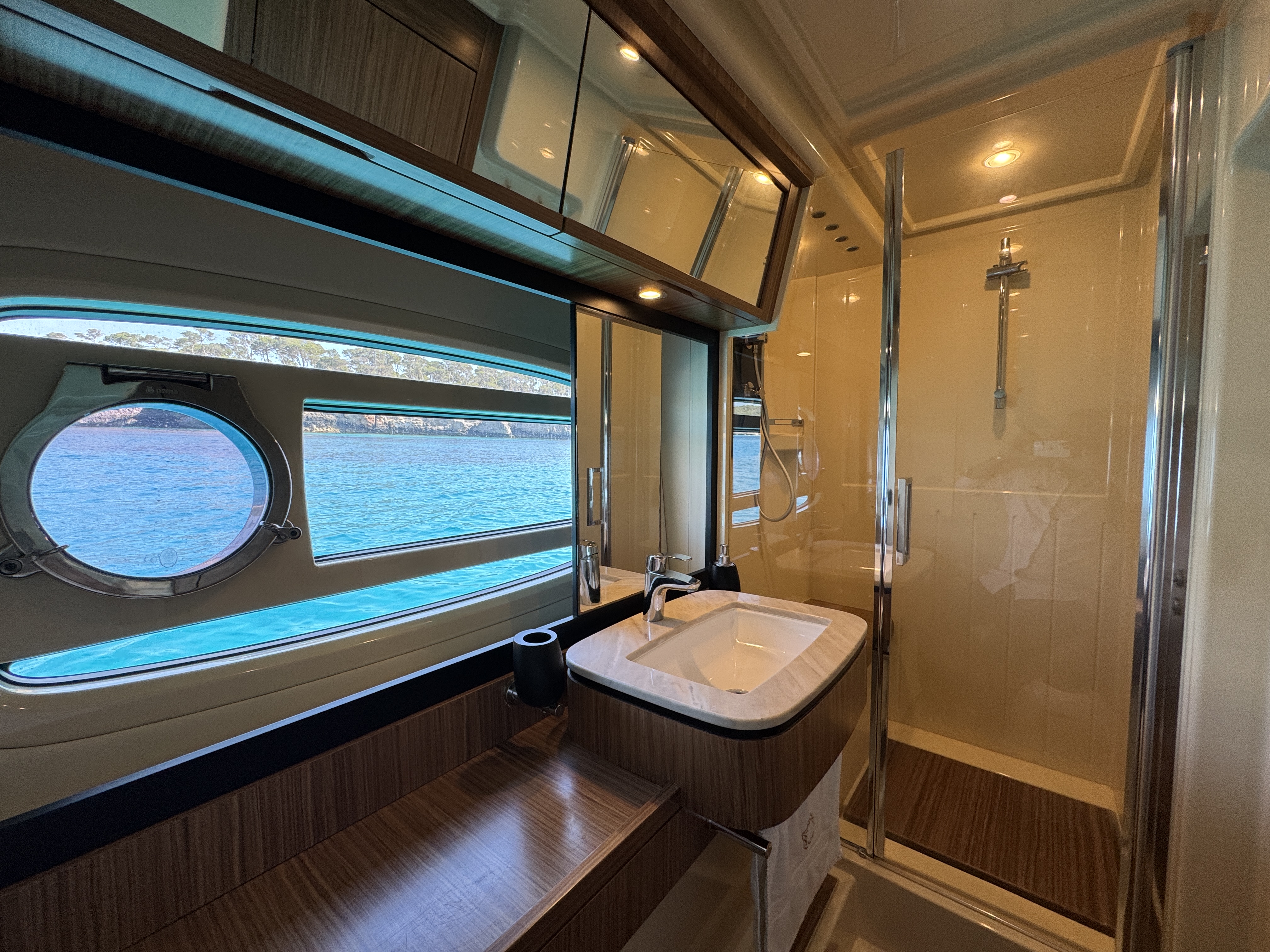

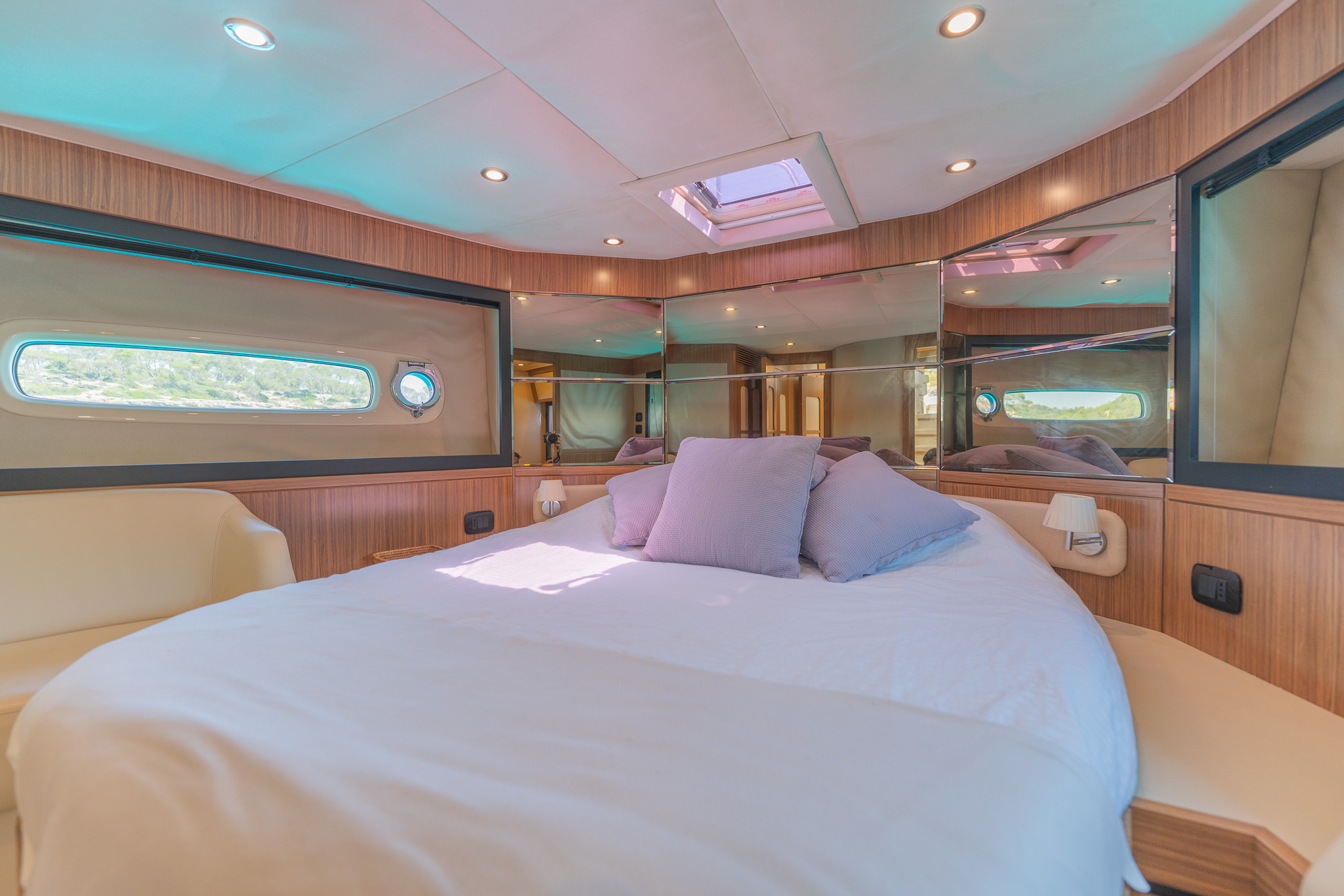

Full-beam master cabin amidships with double berth, en-suite head and separate shower compartment.

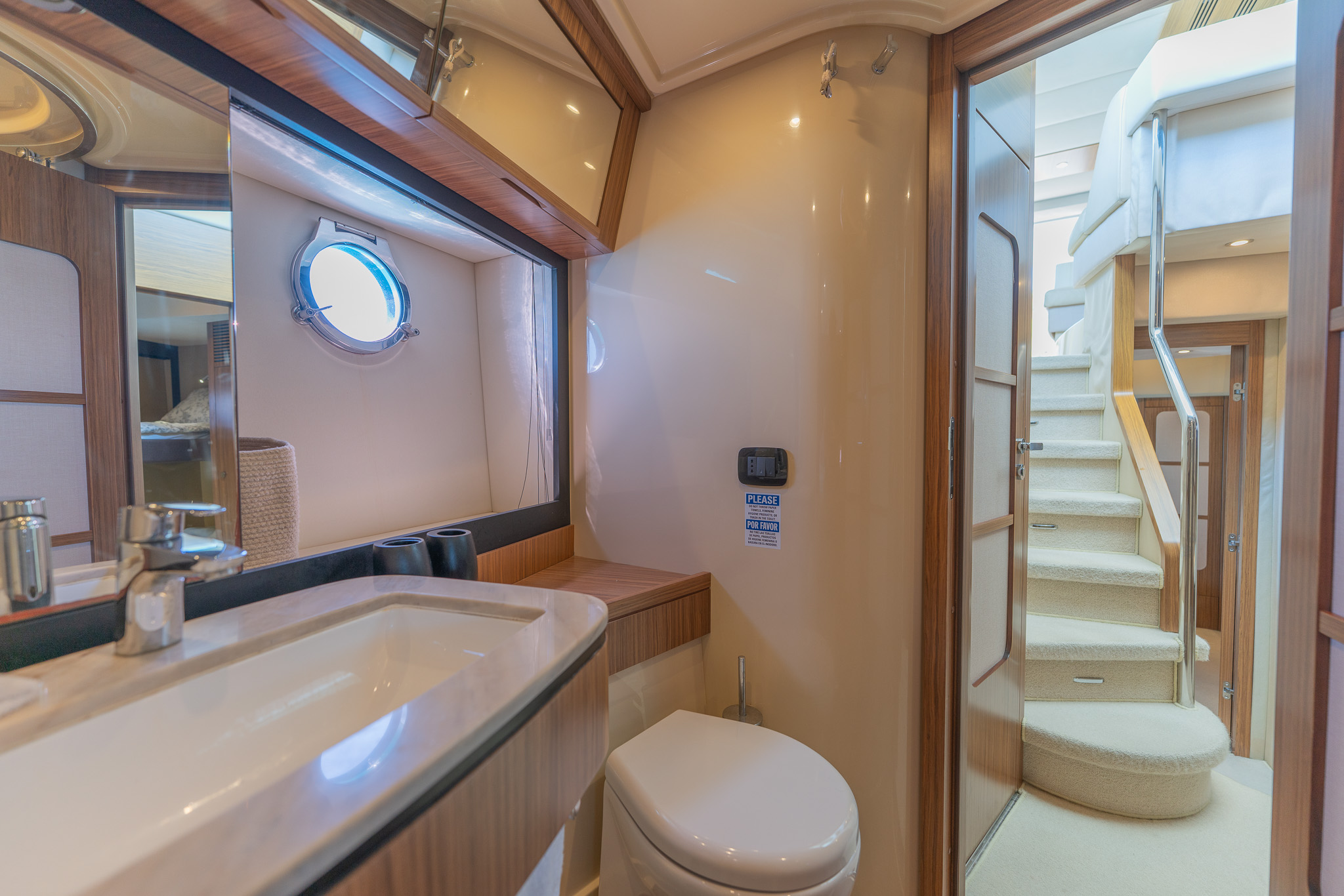

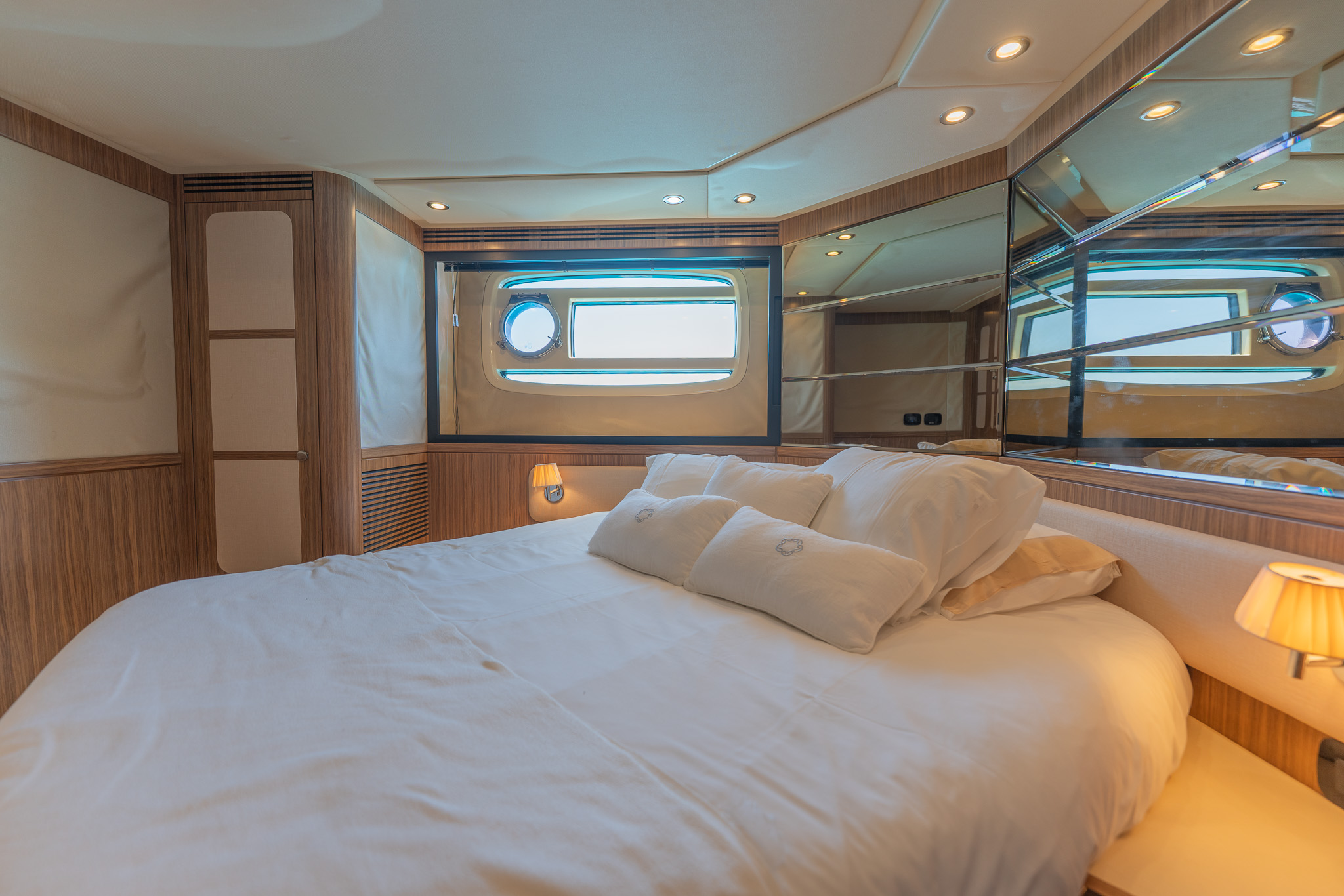

Forward VIP cabin with double berth and en-suite access to the shared day head with separate shower compartment.

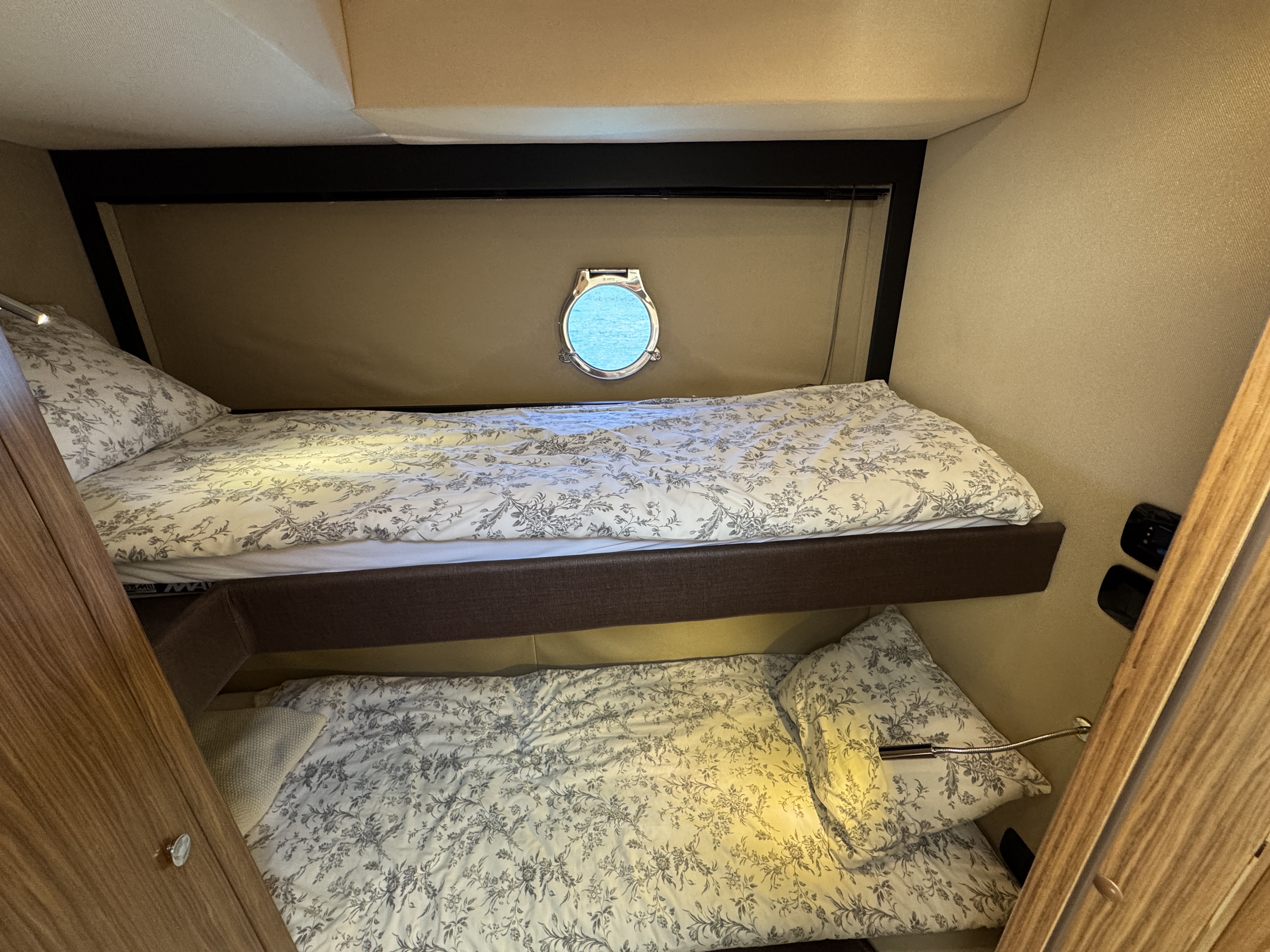

Port guest cabin with upper and lower berths.
Starboard guest cabin currently arranged as a utility room; easily reinstated to provide a 4-cabin layout.
MAIN DECK

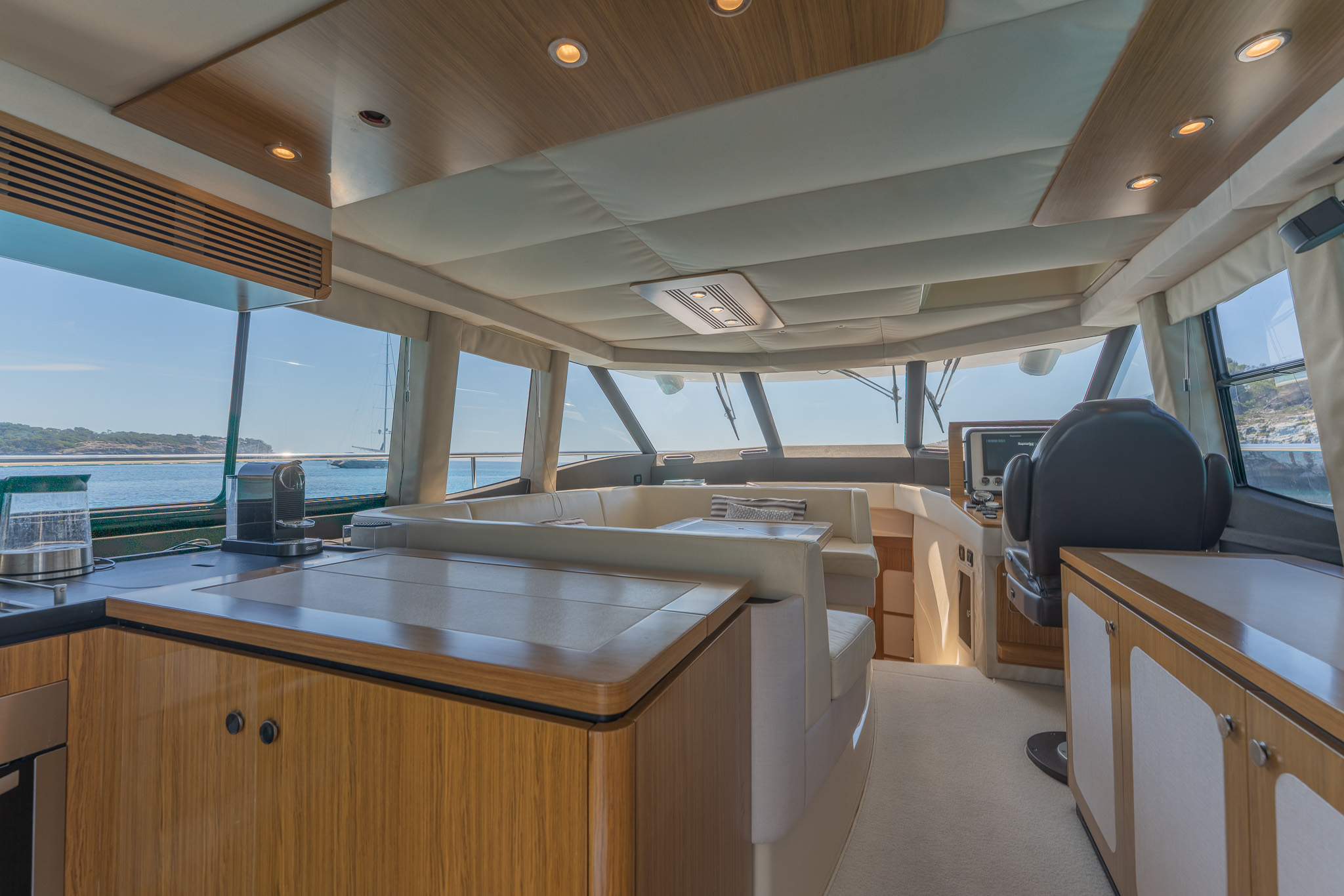

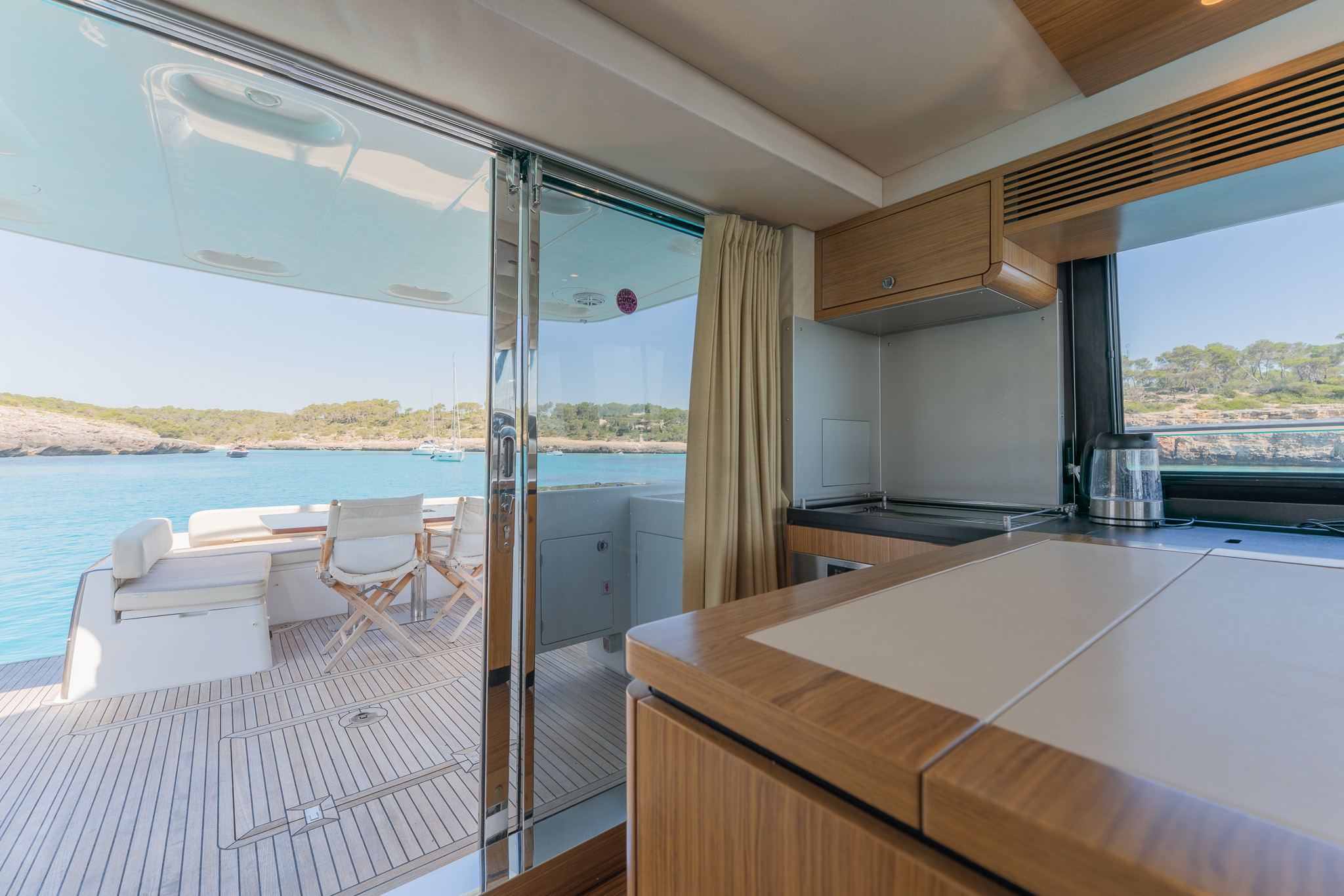

Galley aft on the main deck

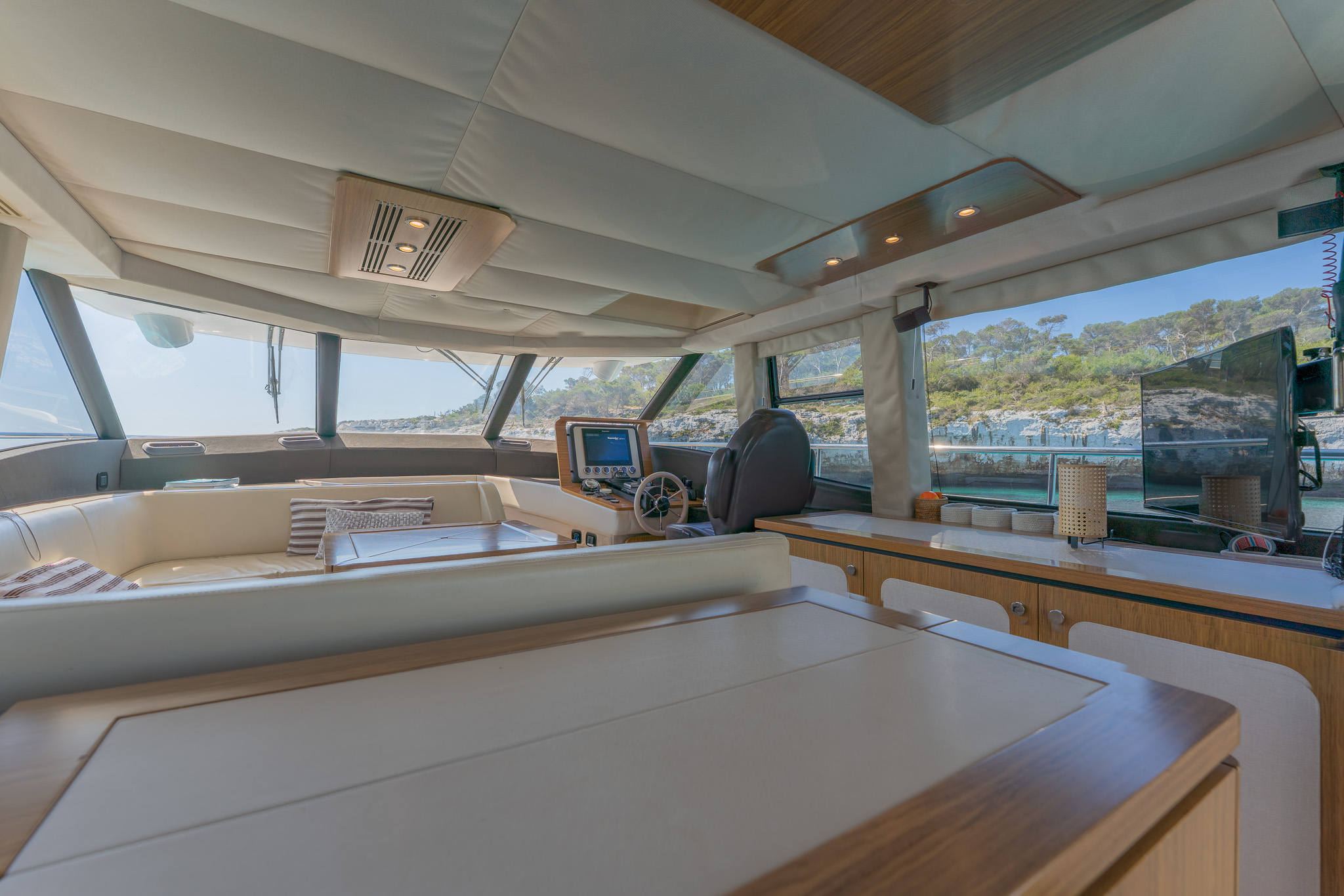

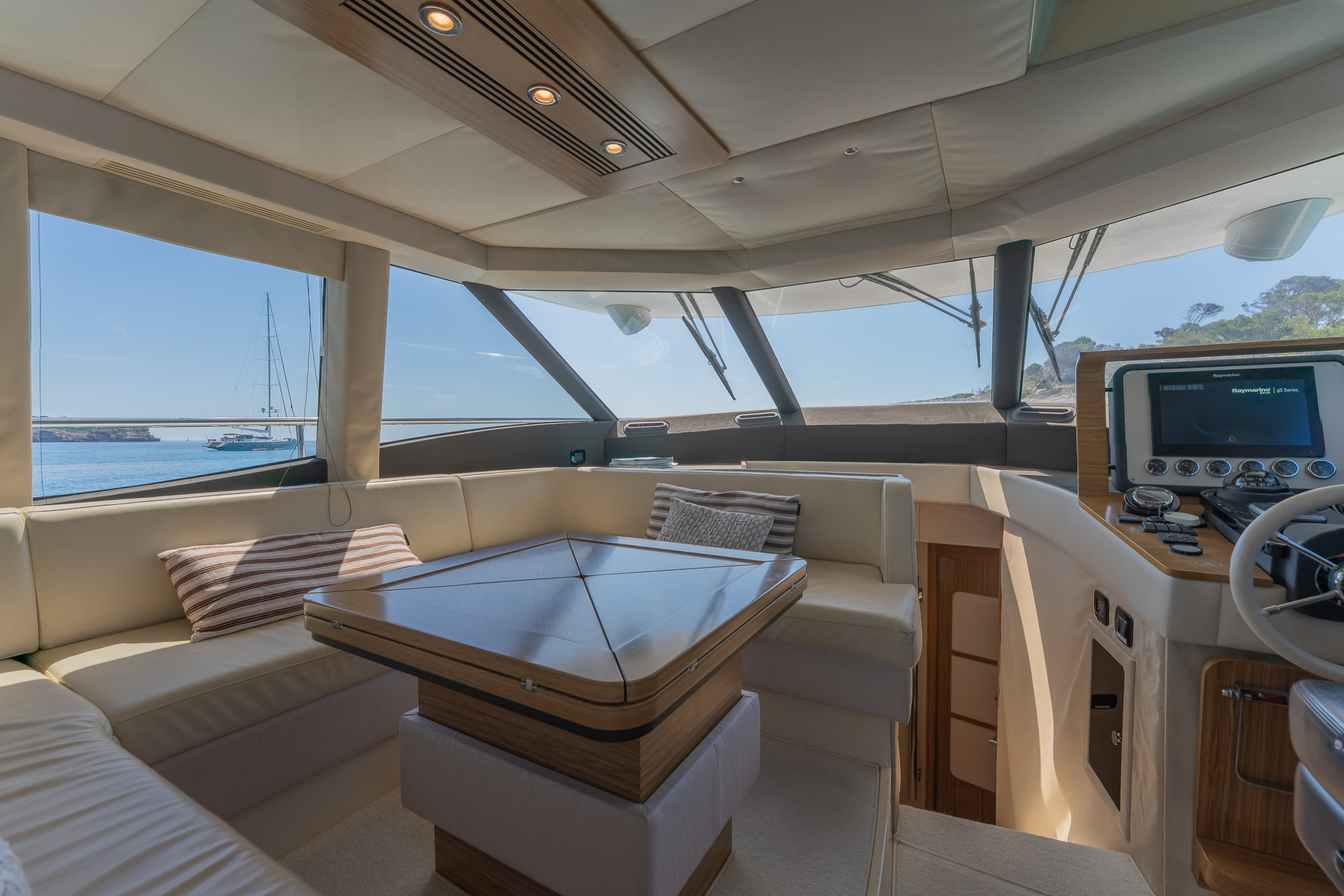

Spacious saloon with large dining table

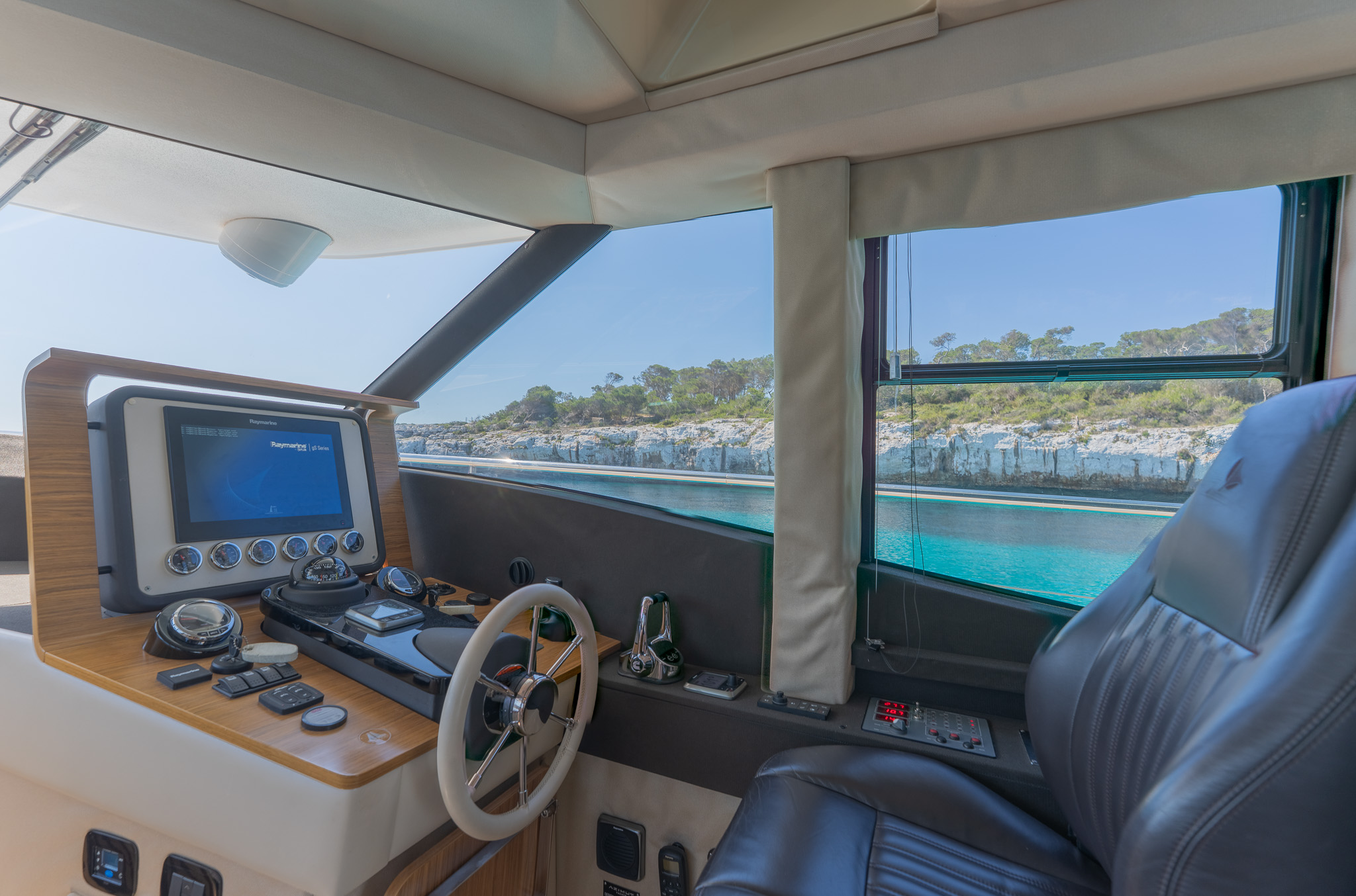

Lower helm station to starboard
EXTERIOR

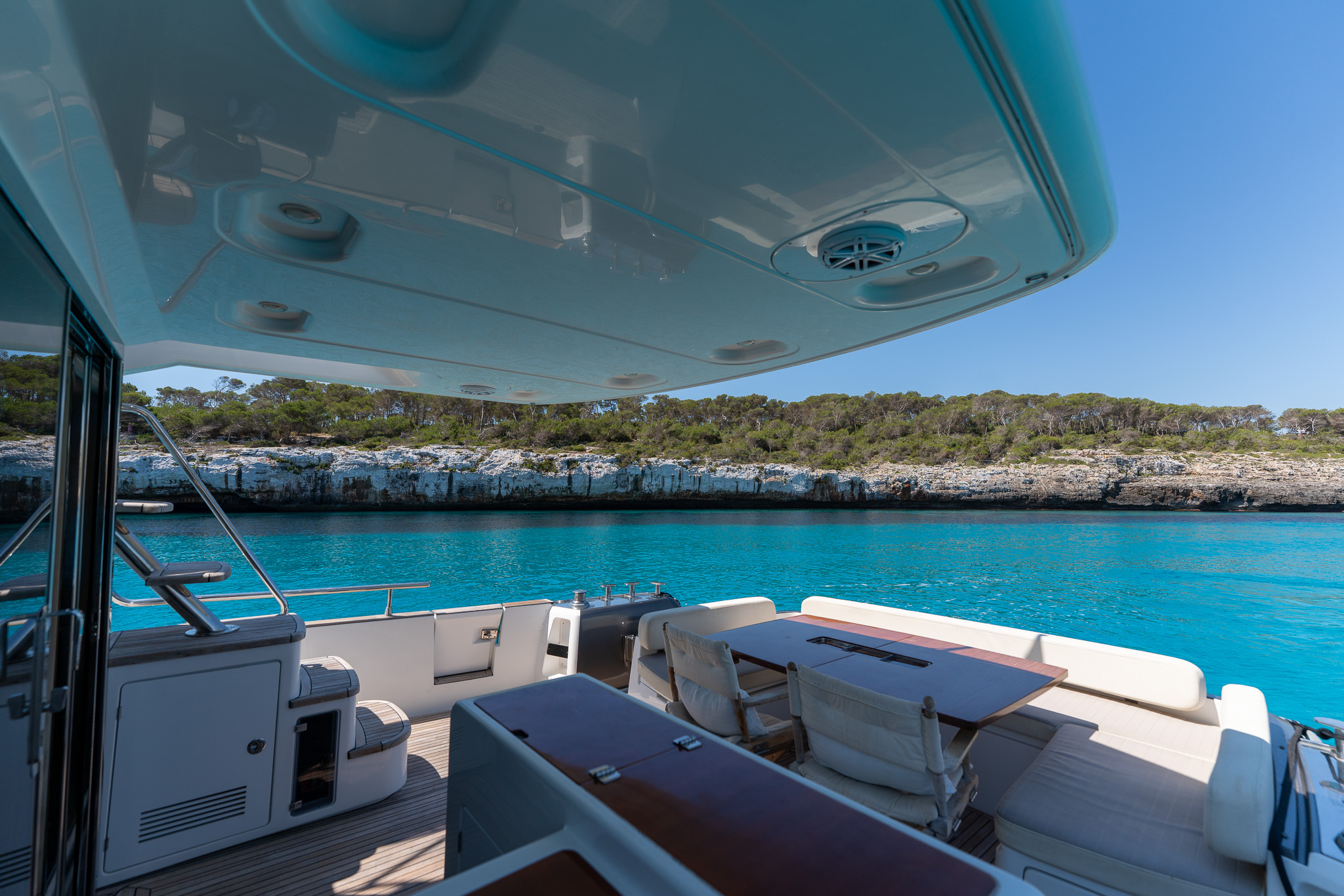

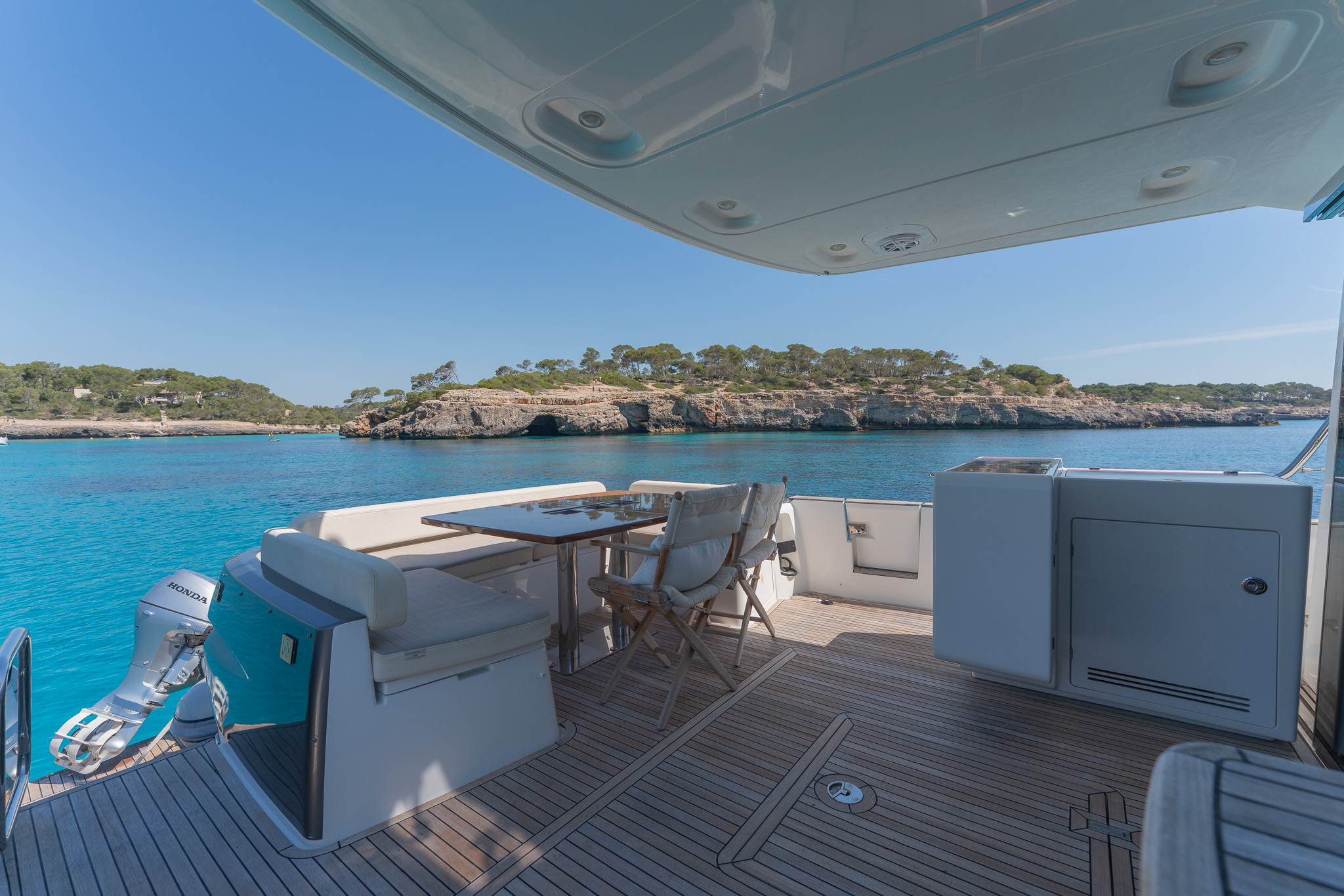

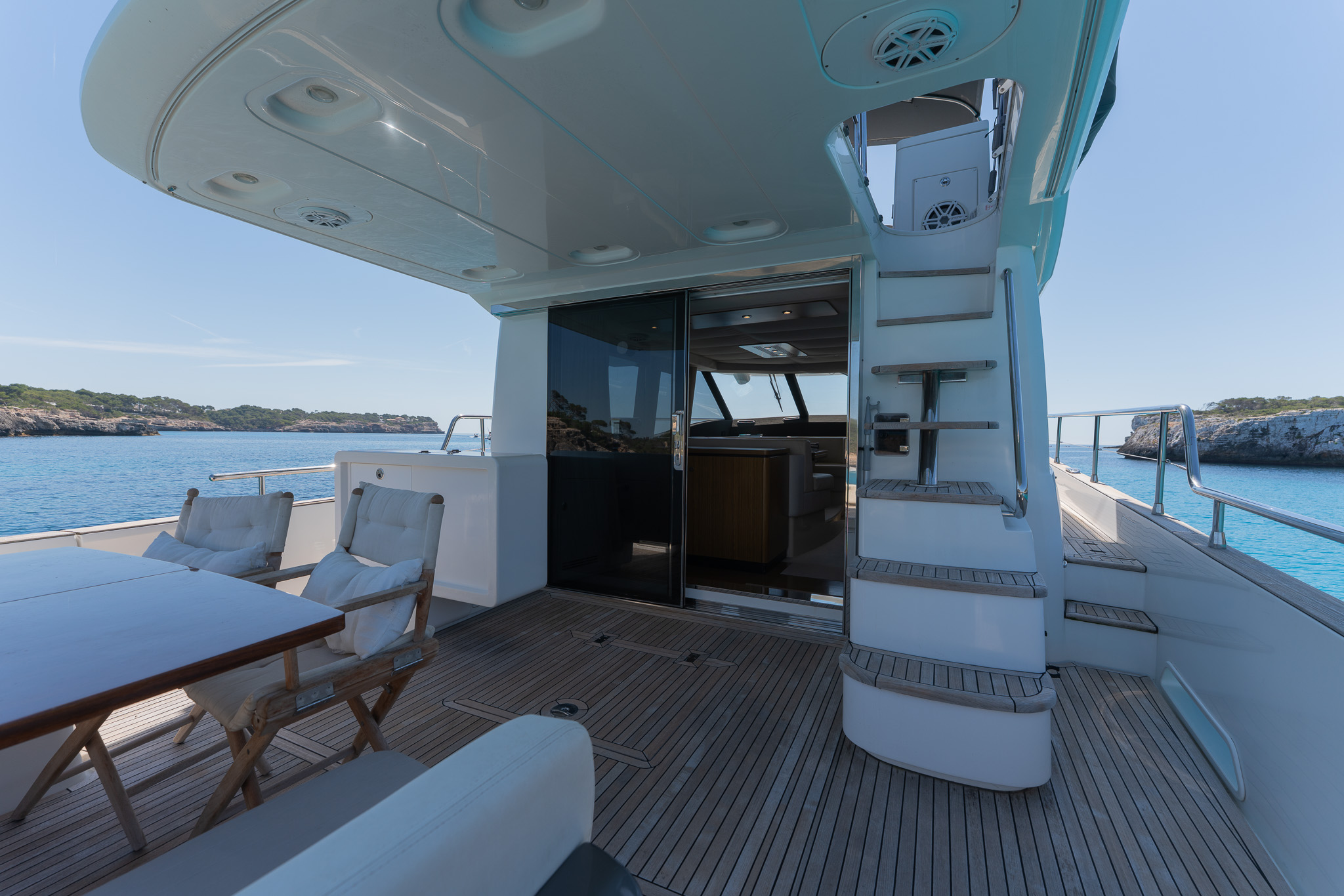

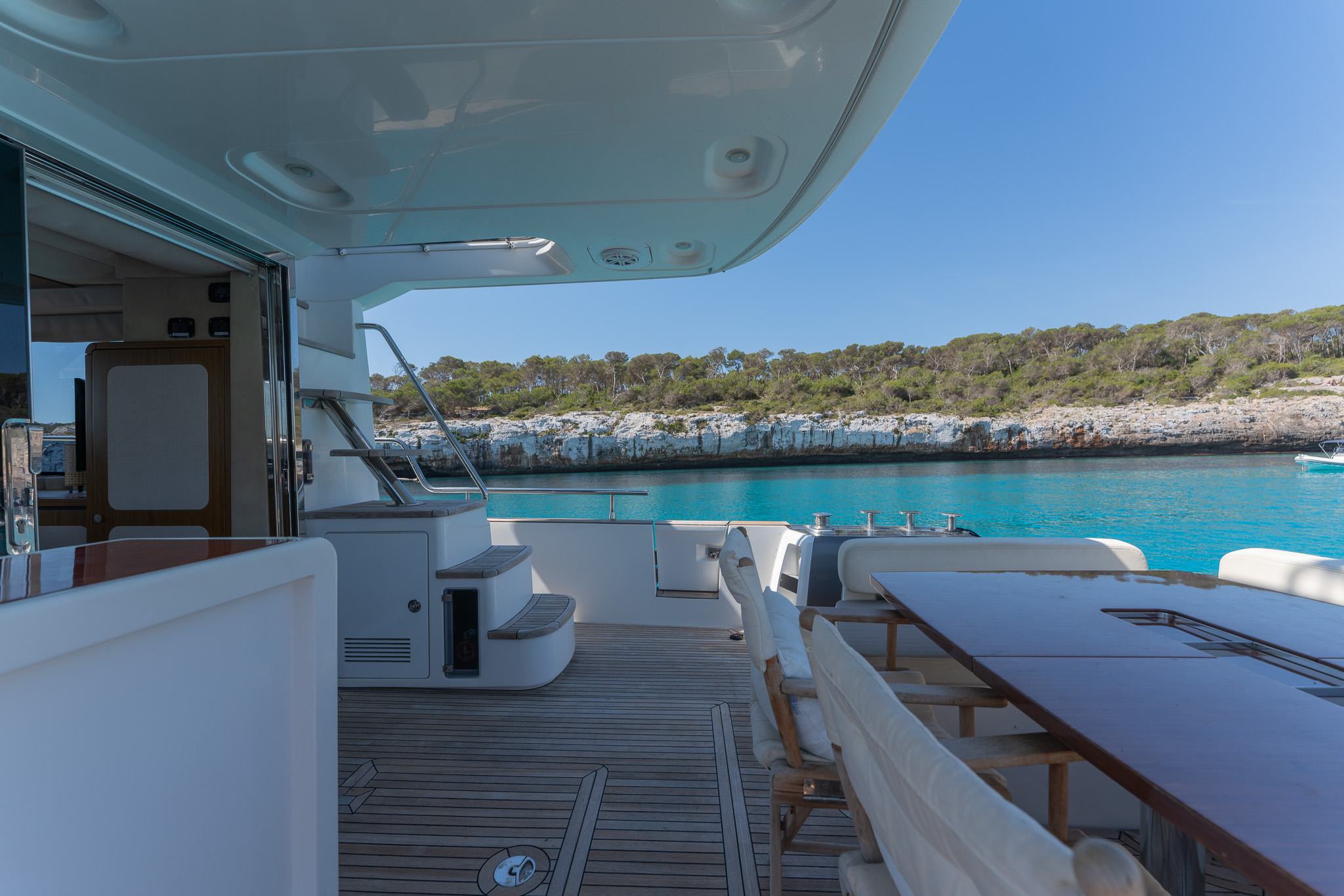

Aft cockpit with wet bar and generous exterior seating area
Crew cabin beneath aft cockpit seating

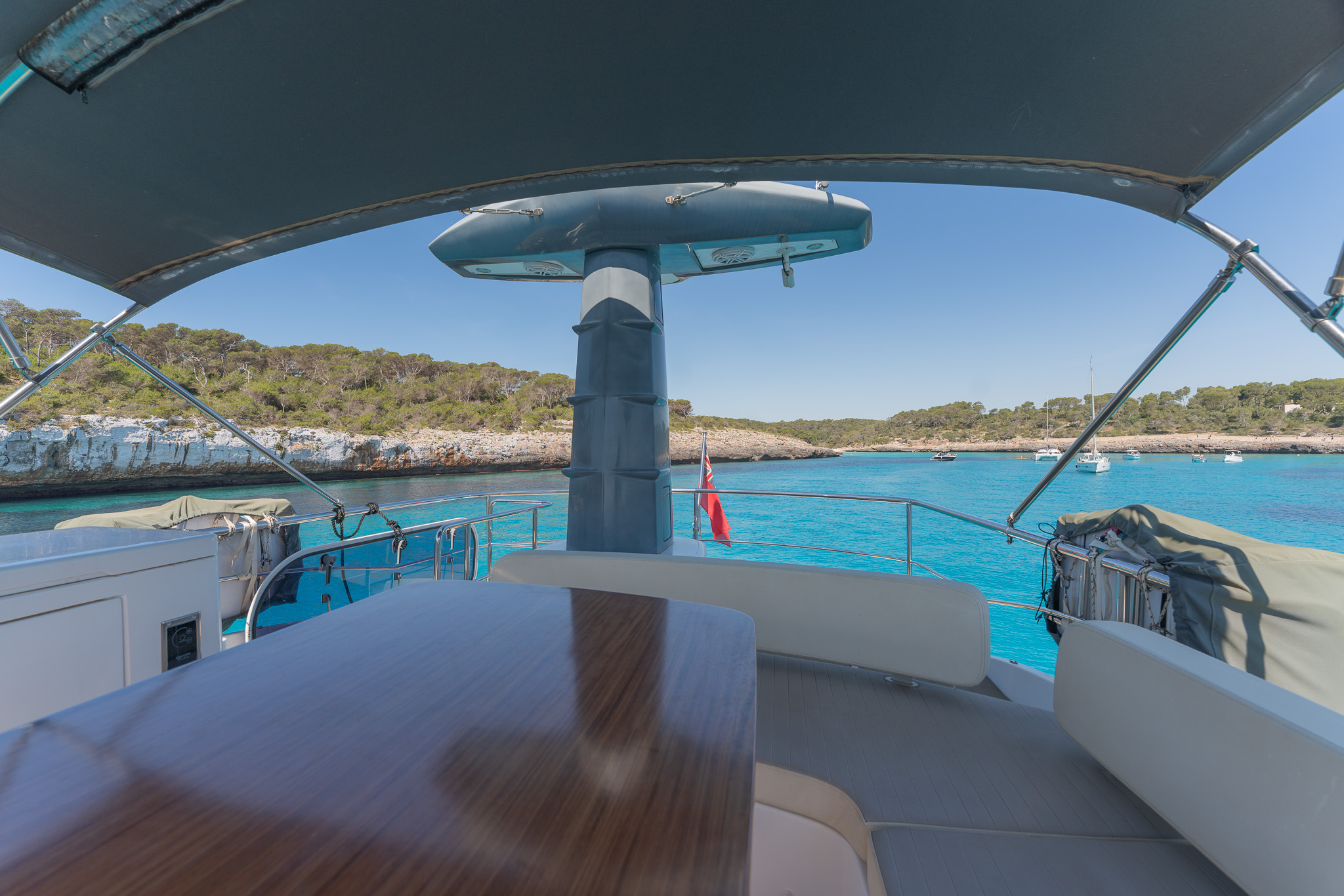

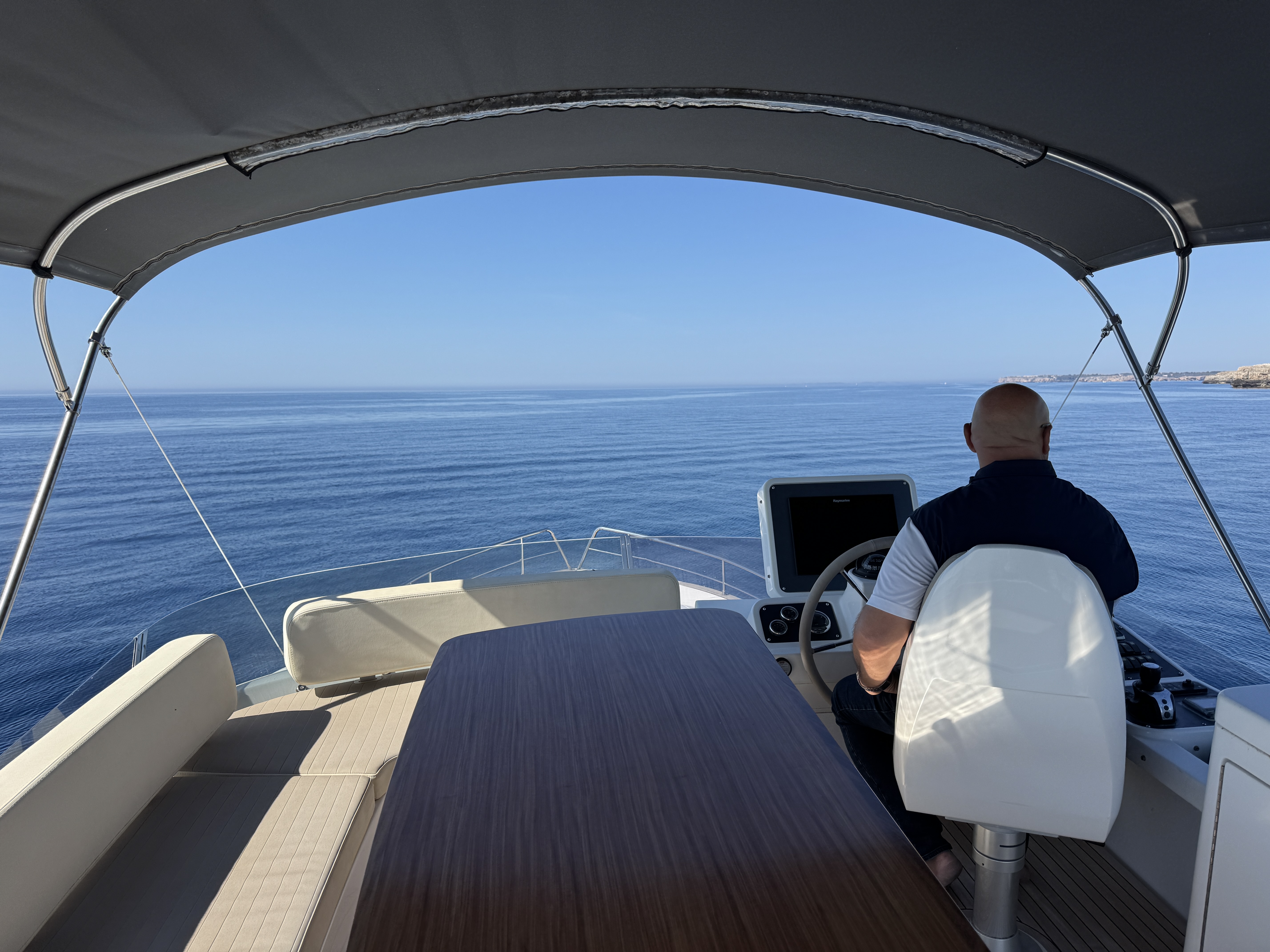

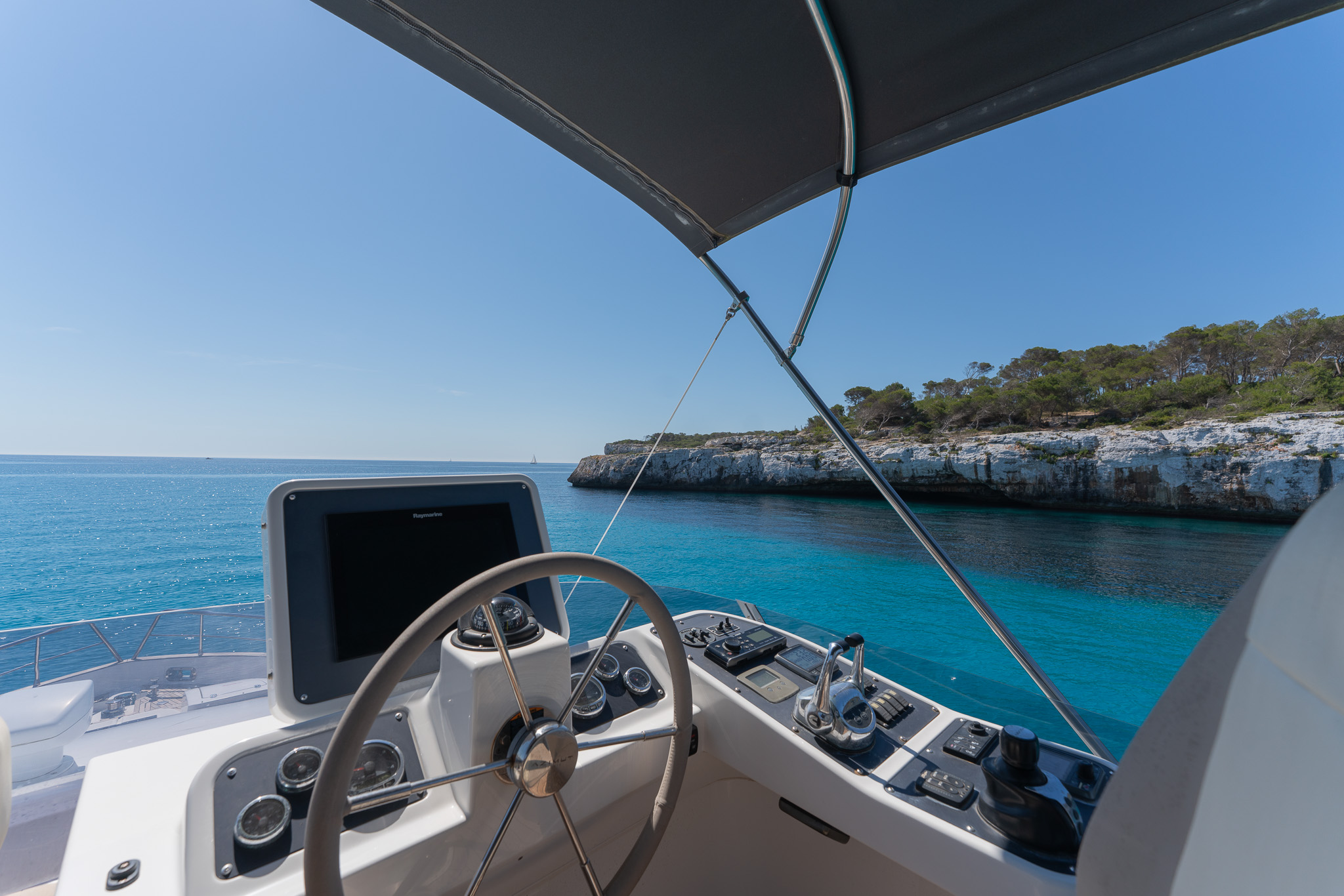

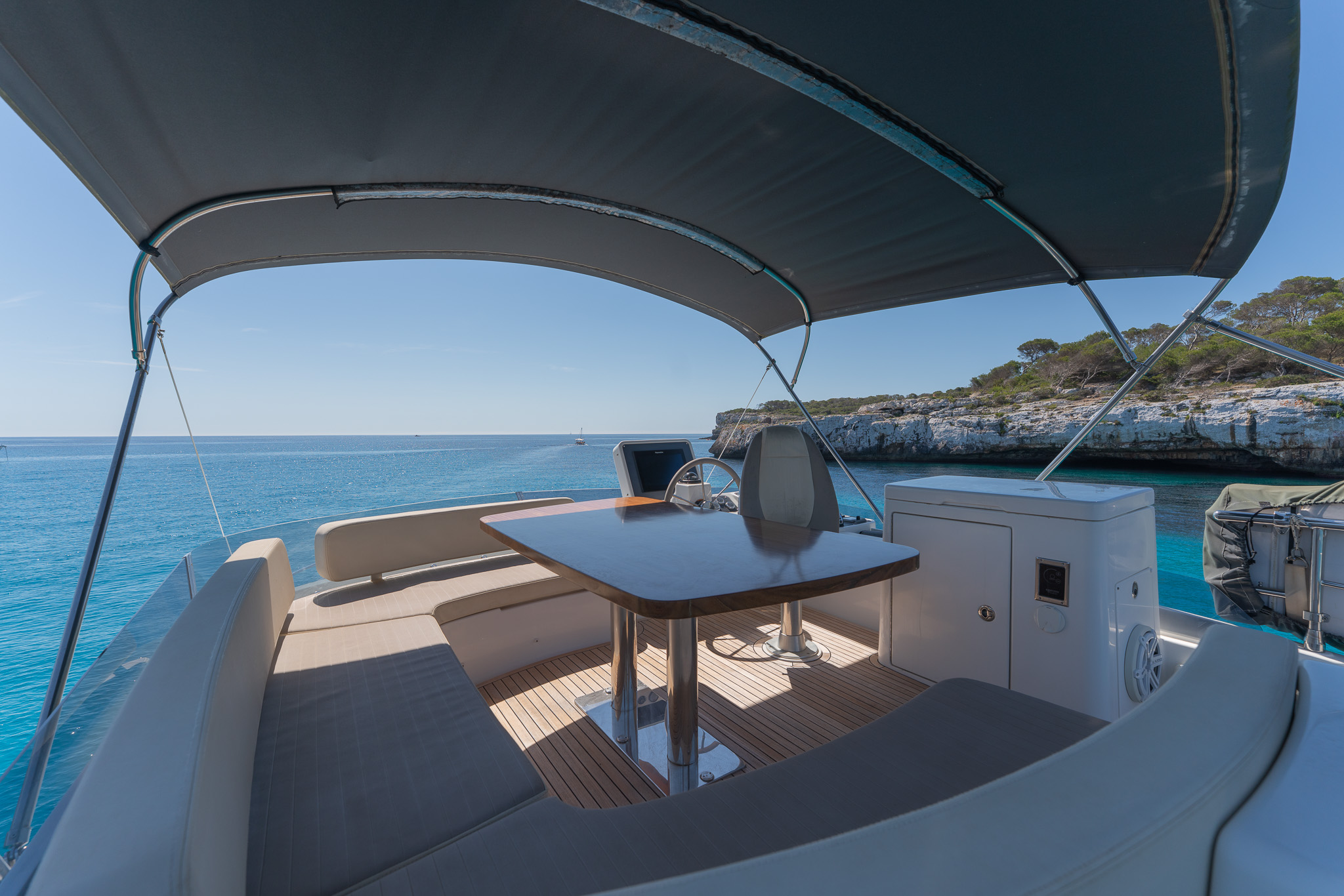

Expansive flybridge with helm station to starboard and lounge seating to port
PROPULSION

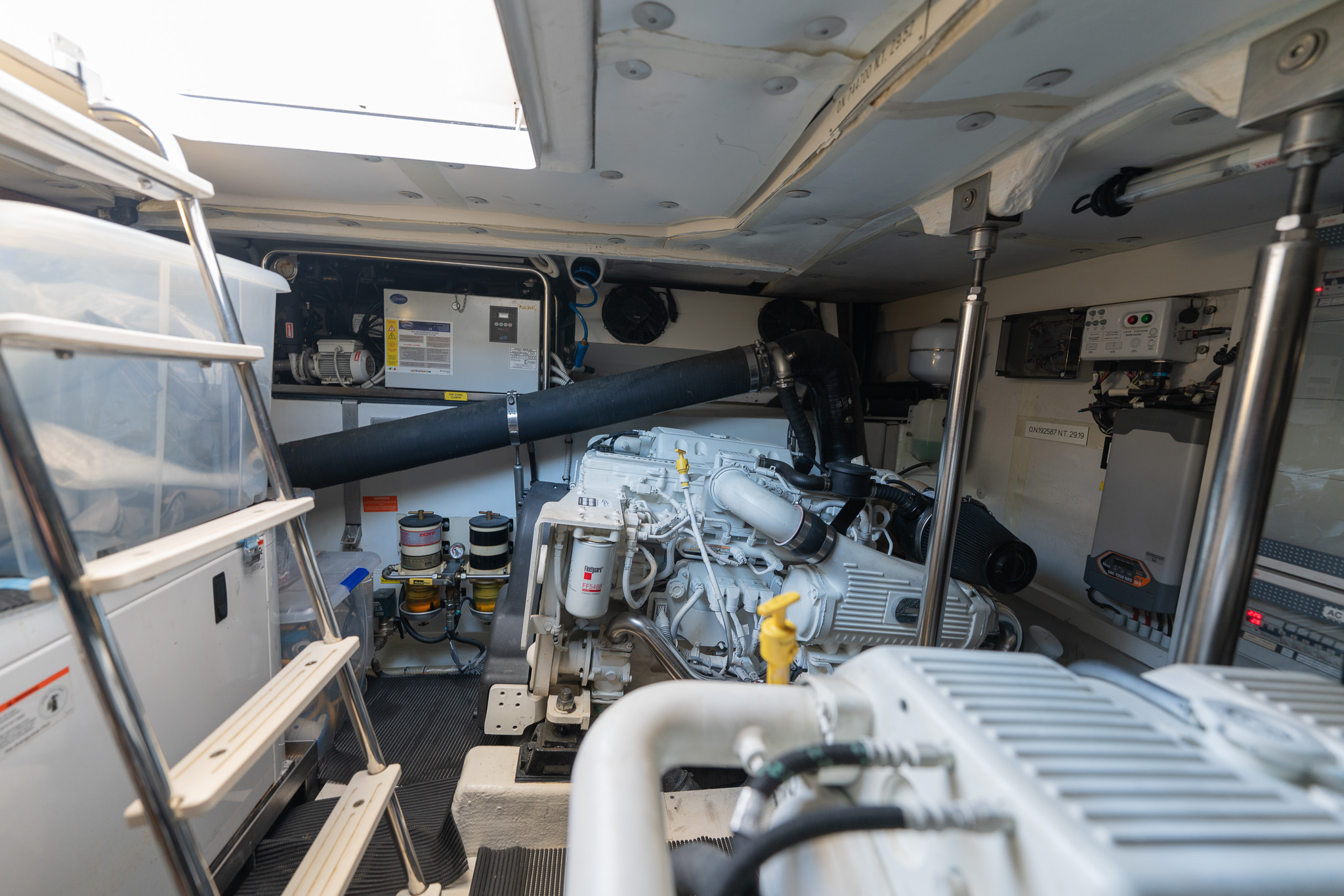

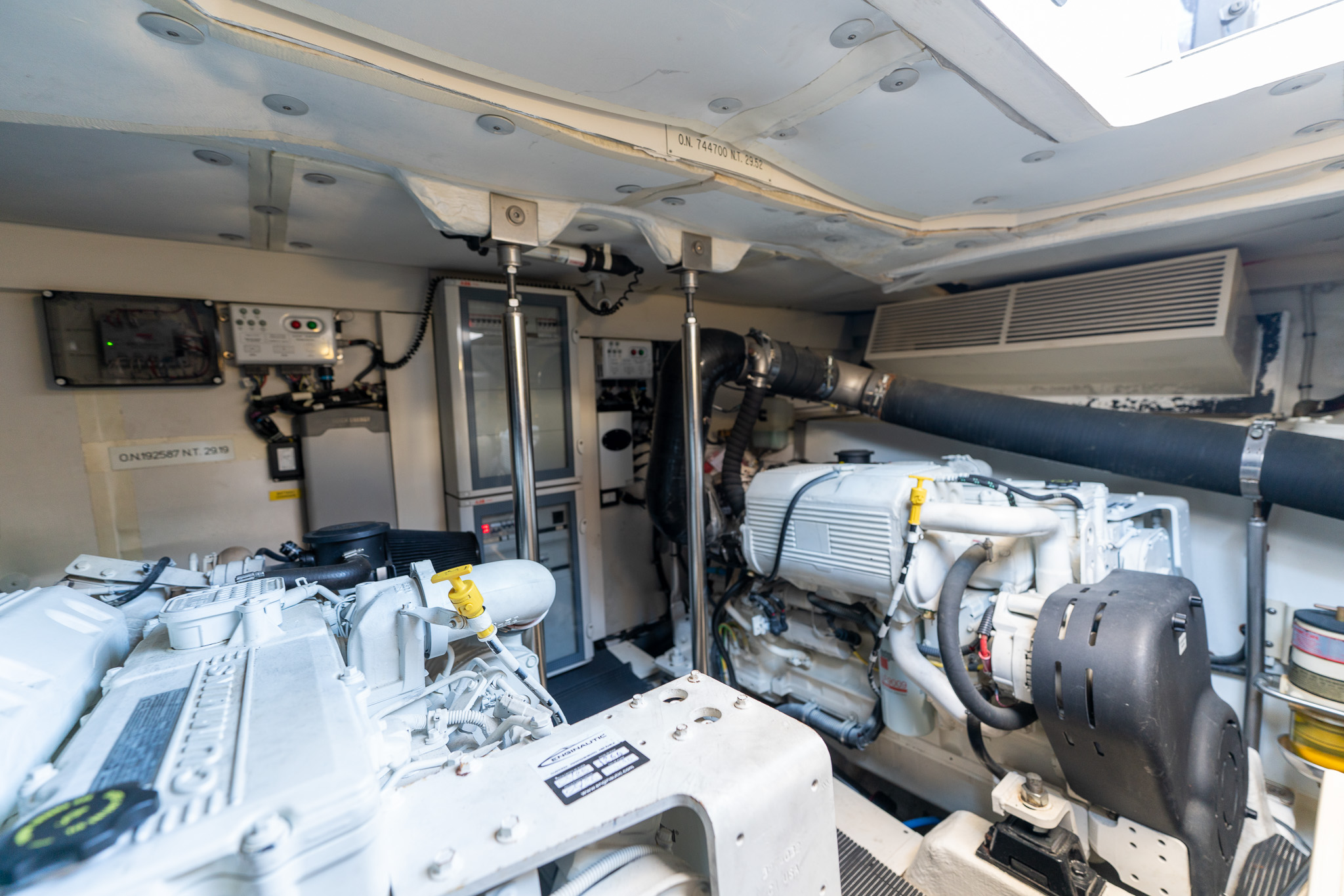

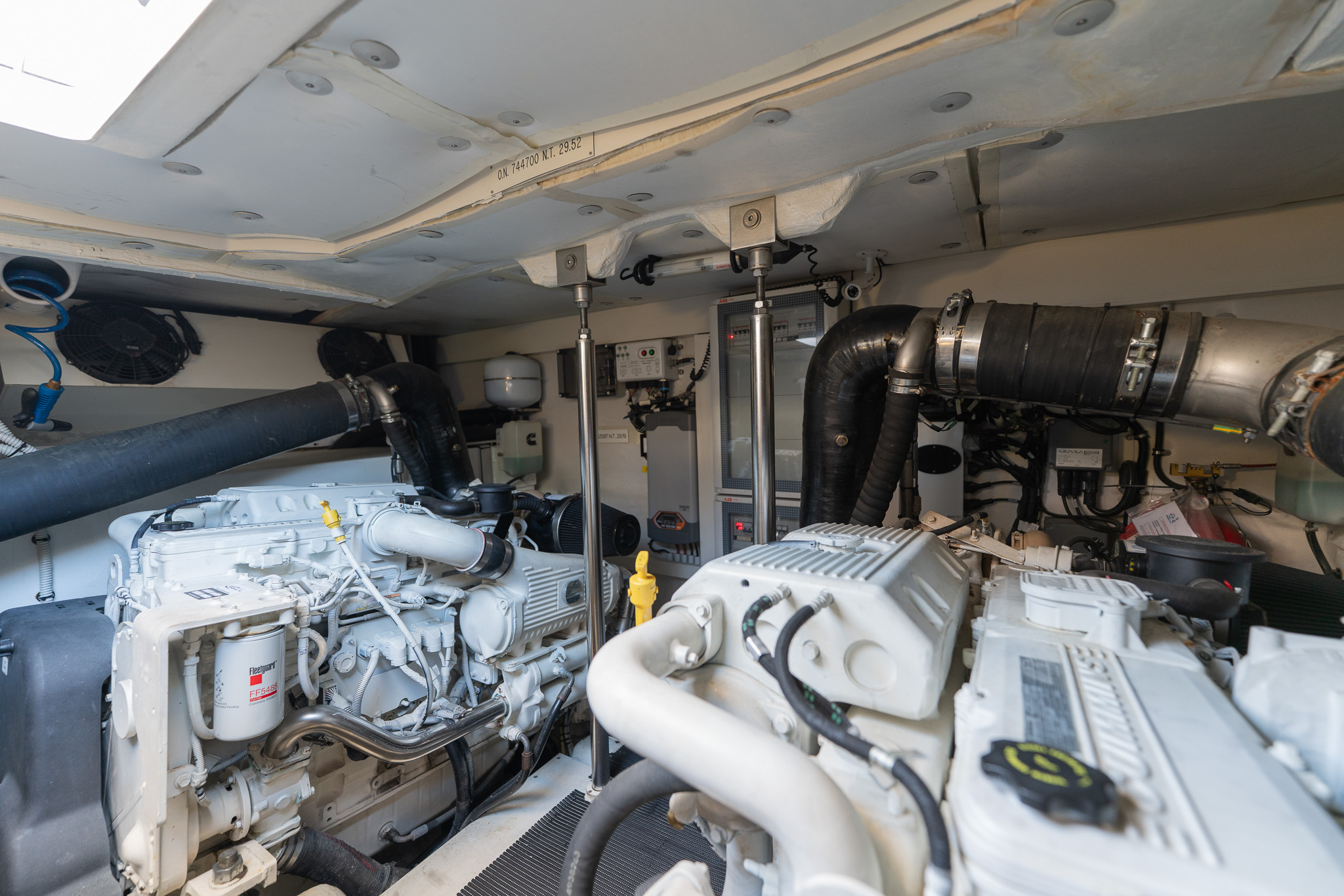

Twin Cummins QSC 8.3 diesel engines
2 x 500HP
Direct shaft drive
Cruising speed approx. 15 knots
Maximum speed approx. 22 knots
Bowthruster
Docking system/joystick by Xenta
Trim taps
TANKAGE
Fuel: 3200L
Fresh water: 700 L
Holding: 140 L
ELECTRICAL
Kohler 20kw generator
Quick battery charger 80Amps
GROUND TACKLE
Anchor and 50m chain with remote control at both helms
Electric windlass with chain counter & wash
WATER SYSTEM
Water maker 100/h
Pressurised water system
Water heated by boiler
Automatic water pump with filter
Transom and Fly hot & cold shower
SAFETY EQUIPMENT
Automatic engine fire suppresion system
2x liferaft 6p
12x lifejackets
EPIRB
Fist Aid Kit
NAVIGATION EQUIPMENT
Raymarine pack with 2x plotter 15.4" on helm and flybridge
Autopilot & Tridata
Radar
DSC VHF both helm and fly & portable VHF Icom ICM35
AIS Class B
Airmar 150 electronic weather station
searchlight
GENERAL EQUIPMENT
Kohler 20kw generator
Aircon throughout 60.000BTU
Water maker 100/h
Gangway Opacmare
Flybridge bimini new 2021
Exterior Cushion covers for and tables
Hifi Fusion music system with independent control for Flybridge, cockpit and foredeck
TV 32"
Bose Home Cinema with blueray
Electric lowerable table in saloon
Electric head x3
GALLEY
Miele electric hob
Miele oven
Fridge in galley, and smaller on flybridge
Bosch dishwasher
Wine cooler 12bottles
Icemaker
Azimut Crockery - Set of 12
