- Make Lagoon
- Model 55
- Year 2024
- LOA 55ft/17m
- Class Multihull
- Hull Glass Reinforced Plastic
- Keel Multi-Hull
- Rig Sloop
- Engine Twin Diesel
- Drive Shaft Drive
- Layout Aft Cockpit
- Berths 8
- Cabins 4
- Aft Cabins 2
- Ancasta Ref 37973
- Name Lagoon 55

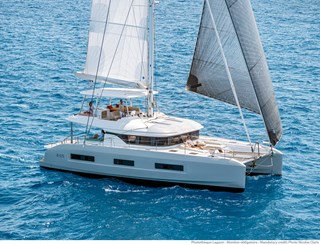

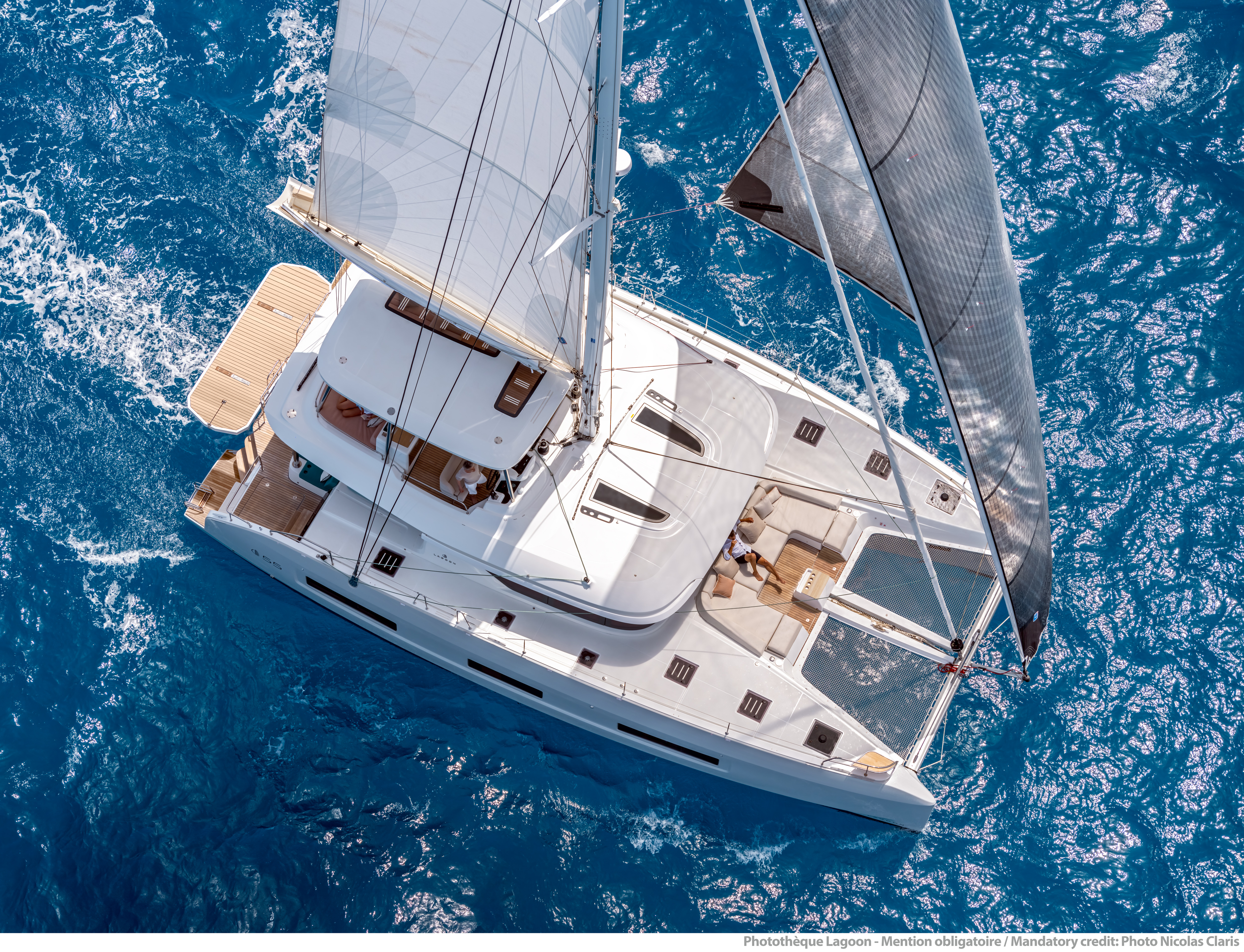

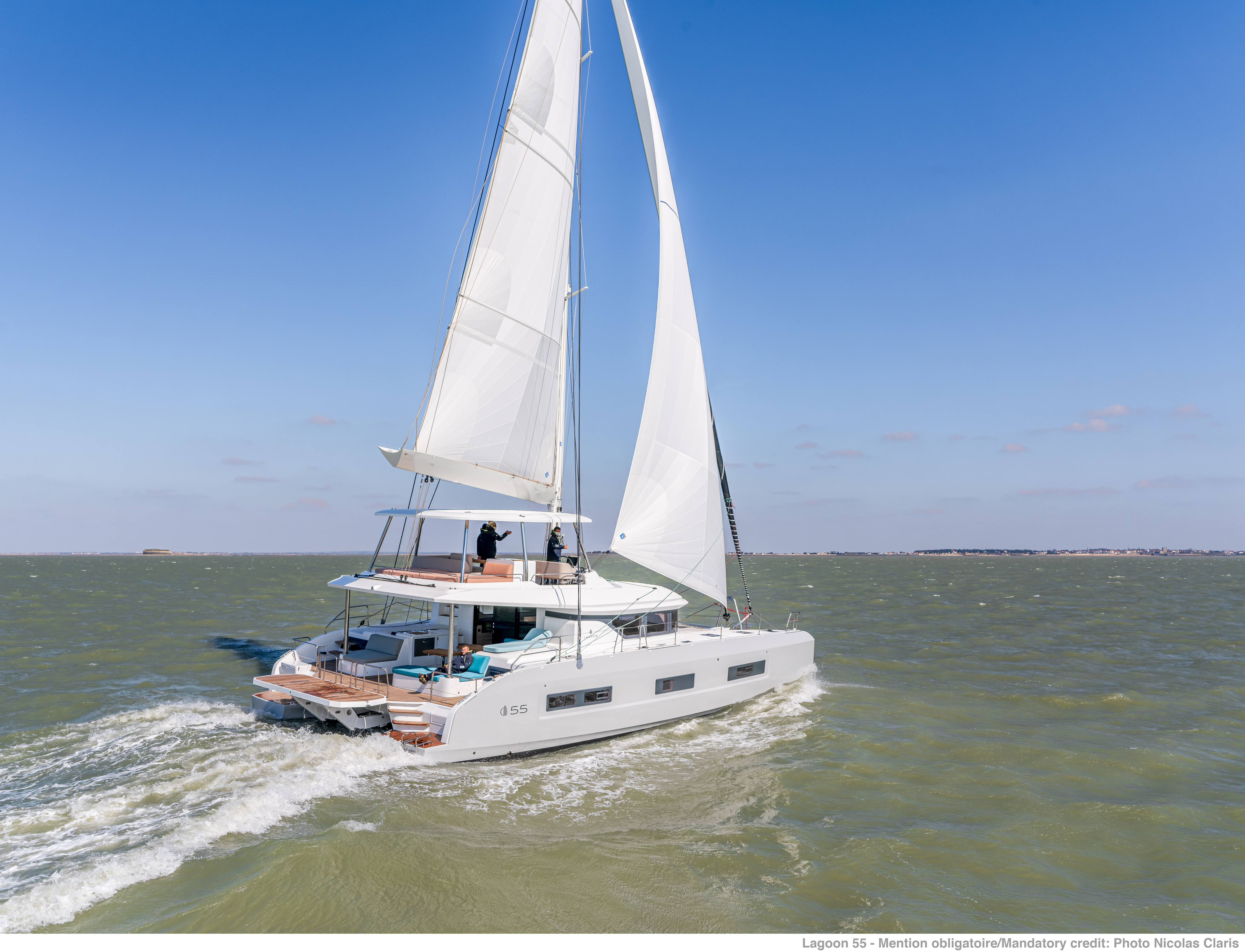

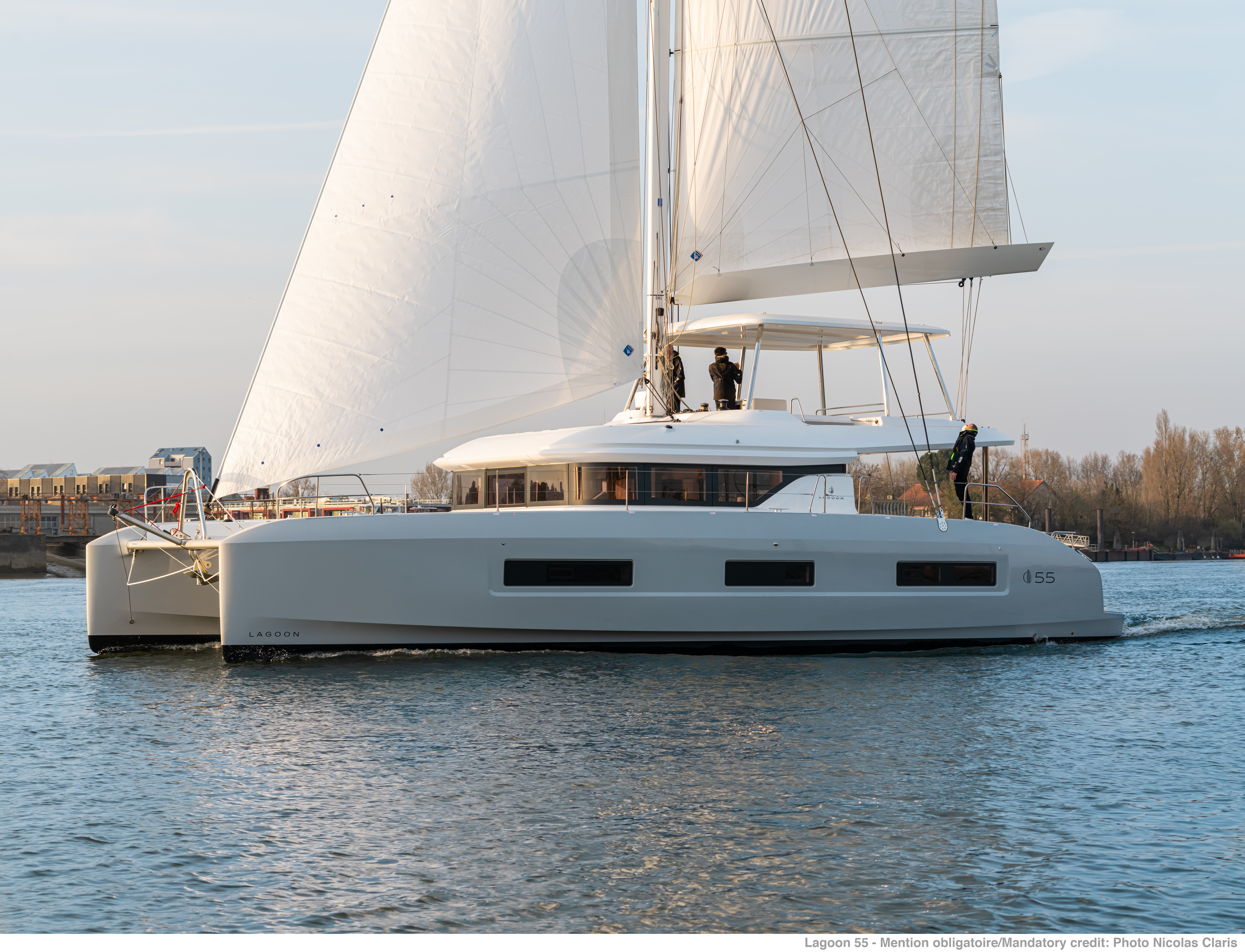

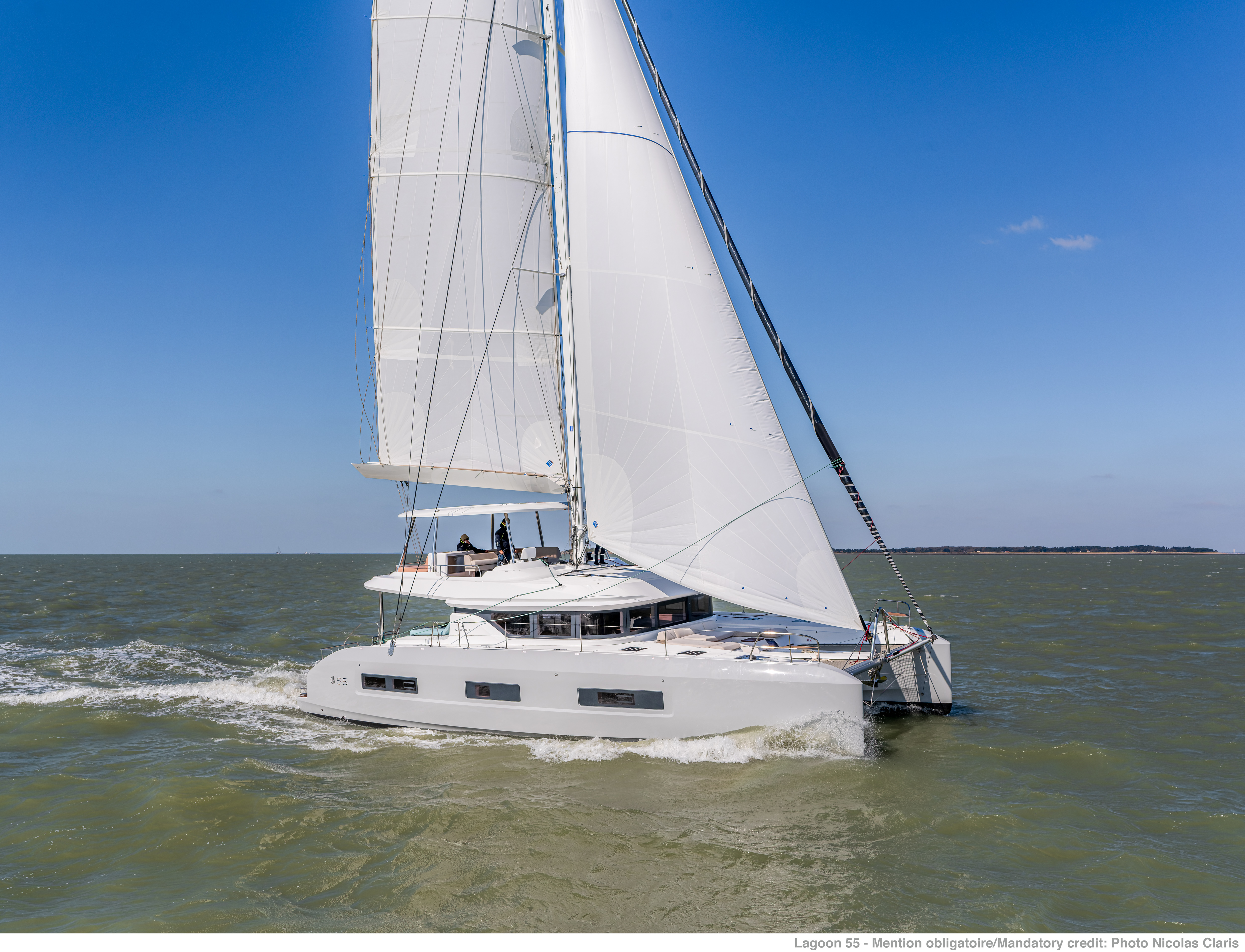

Lagoon 55 | 2024
The Lagoon 55 has been designed around sailing performance and ease of use, combined with supreme comfort and luxury finish, this new design will appeal to those wishing to stretch their cruising legs on long term liveaboard adventures and those simply wanting a comfortable family boat with space and style. The open cockpit with optional hydraulic bathing platform provides a 'terrace on the water', with incomparable cockpit space and open style.
Architects by VPLP Design
Exterior Design by Patrick le Quément
Interior Design by Nauta Design
CONSTRUCTION

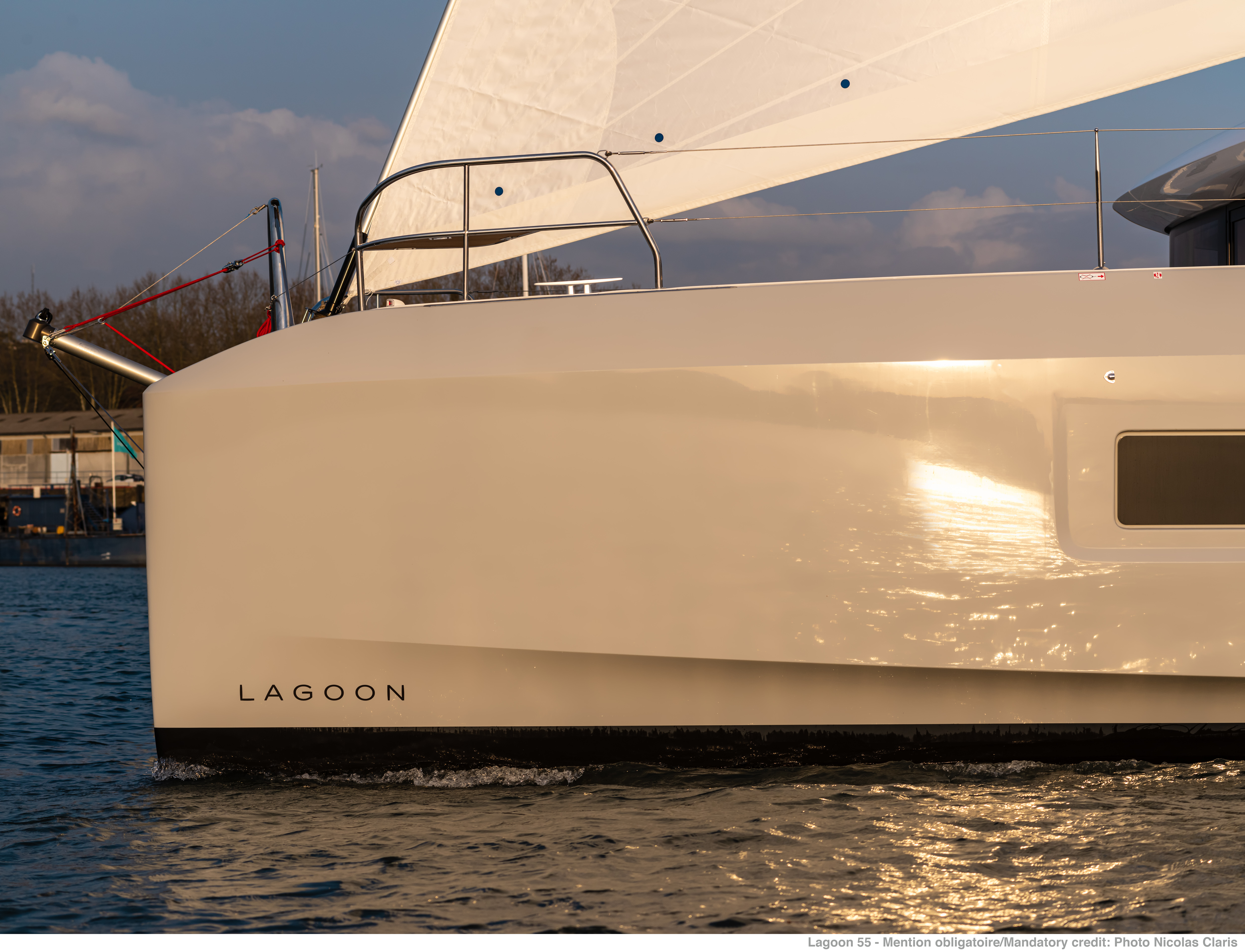

GRP Hull and deck
Polyester and high quality anti-osmotic resin, infusion laminated
Balsa core in hull, with solid laminate under waterline
Balsa core in bridge deck and deck
LOA:..............16.56 m / 54’4’’
Beam:............9m / 29’6’’
Air draft:.........29.431 m / 96'7
Draft:..............1.55 m / 5'1’’
Displacement: 27 T
CE Certification: A: 14 / B: 14 / C: 20 / D: 30
All figures are approximate
Upgrade to White painted aluminium canoe boom with cover
Upgrade to white painted aluminium mast
Two spreader rig
Two encased cap shrouds
Two encased lower shrouds
Two shroud chain plates
Two forestay chain plates
Forestay with furler for genoa
Adjustable lazy-jacks
White aluminium mast and canoe boom with lights and cover
Code 0 rig including electric pole furler, halyard, sheets and blocks
All electric flybridge winches and Harken line feeder in lieu of std.
SAILS
Upgraded Hydranet square top mainsail
Upgraded Hyrdranet genoa
Code 0 sail in Kevlar D4
Upwind sail area (opt.): 186M2/ 2,001SQFT
Full batten mainsail: 107 m² / 1,151 sq.ft
Self tacking jib: 74 m² / 796 sq.ft
Square top mainsail (opt.): 112 m² / 1,205 sq.ft
Code 0 (opt.): 154 m² / 1,657 sq.ft

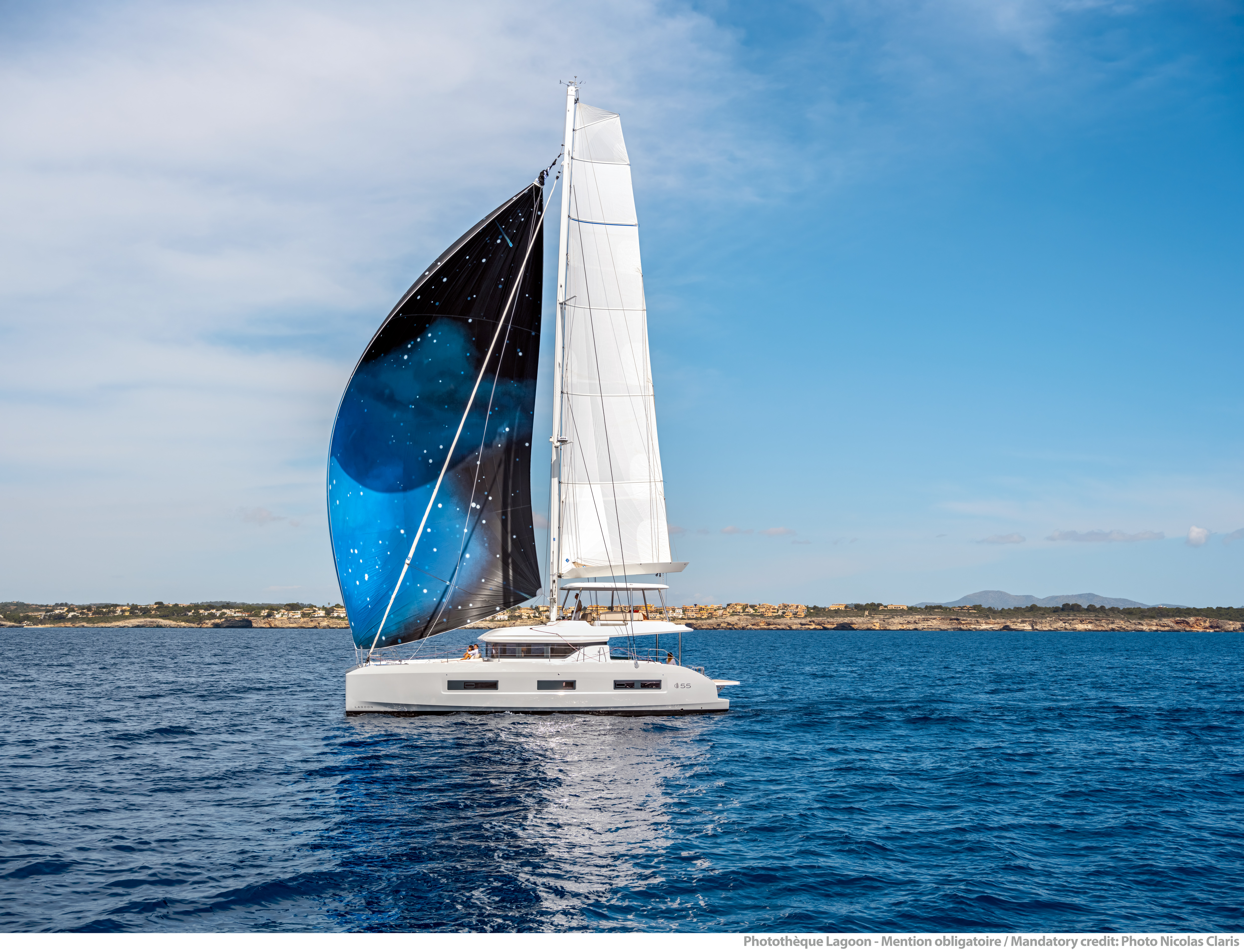

Asymmetrical spinnaker (opt.): 272 m² / 2,927 sq.ft.t
Alpi Sand Oak interior with UV varnish and Dark Oak laminate floors
Standard interior upholstery in Dune
L55 Elegance Line Pack:
Sunbrella fabric head lining
Fabric bed frames
Leather and stainless steel accessories on bedside tables
Sunbrella fabric bedheads
Leather finish on saloon sides
Grey finish in galley furniture and bookshelf

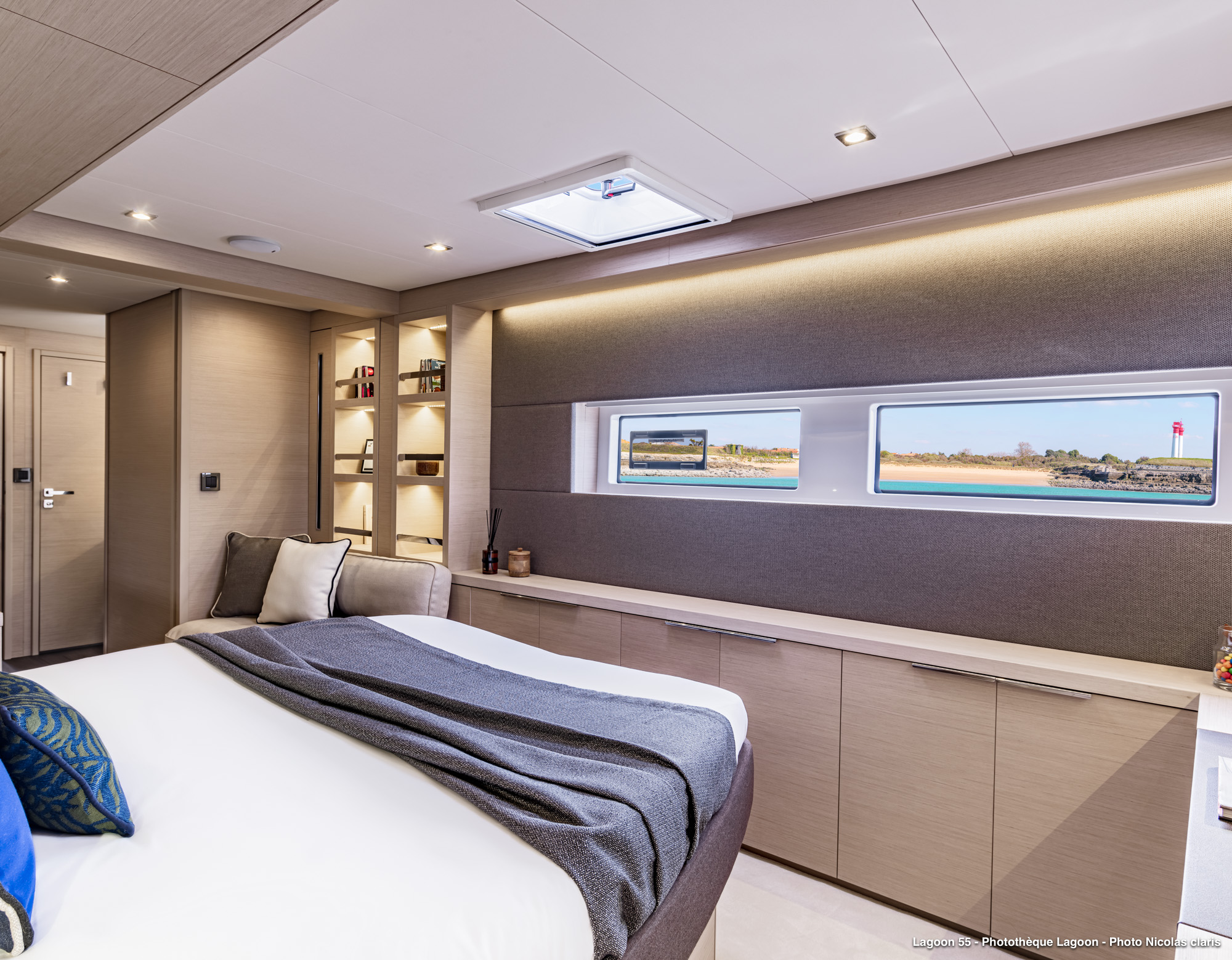

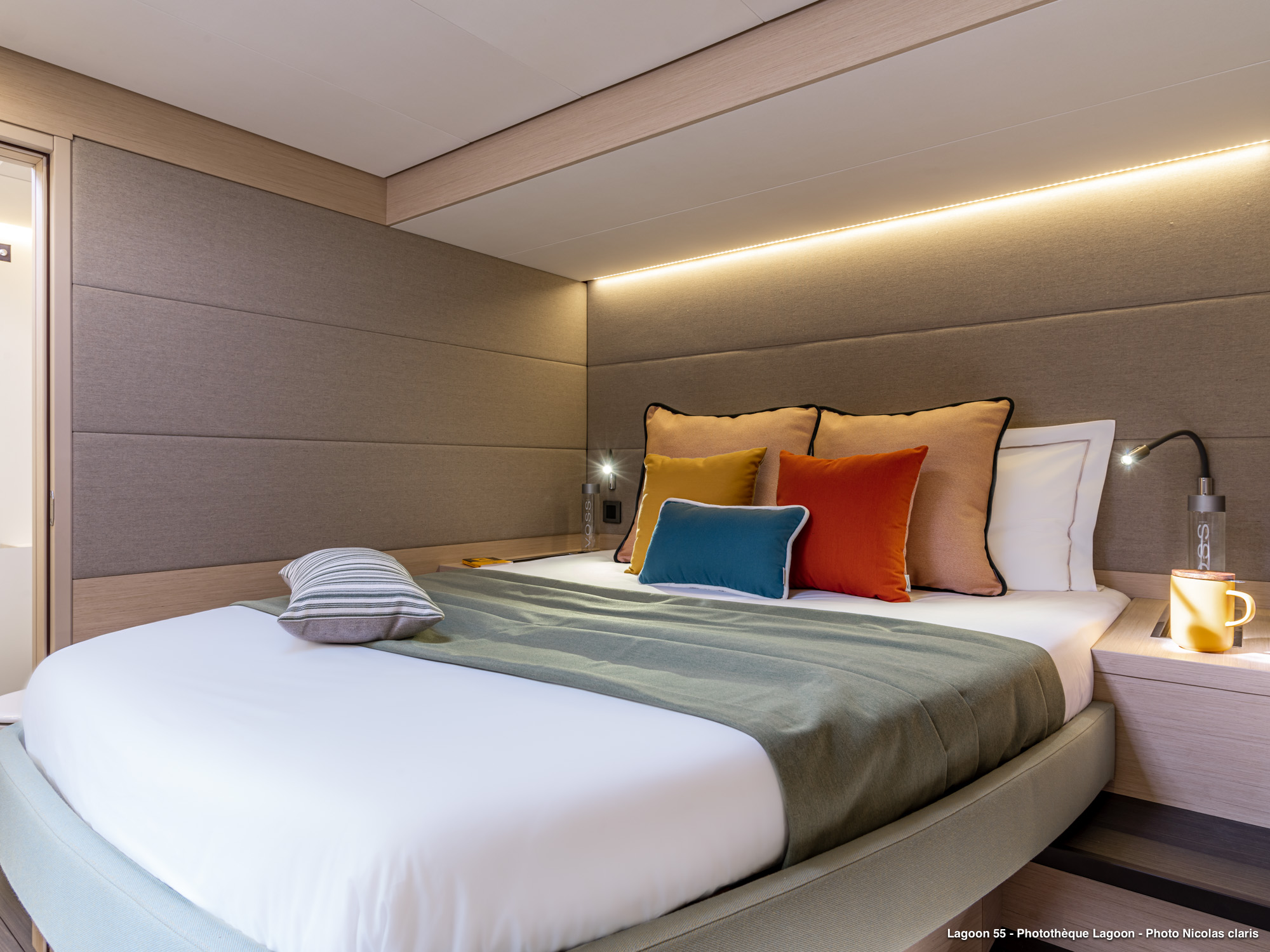

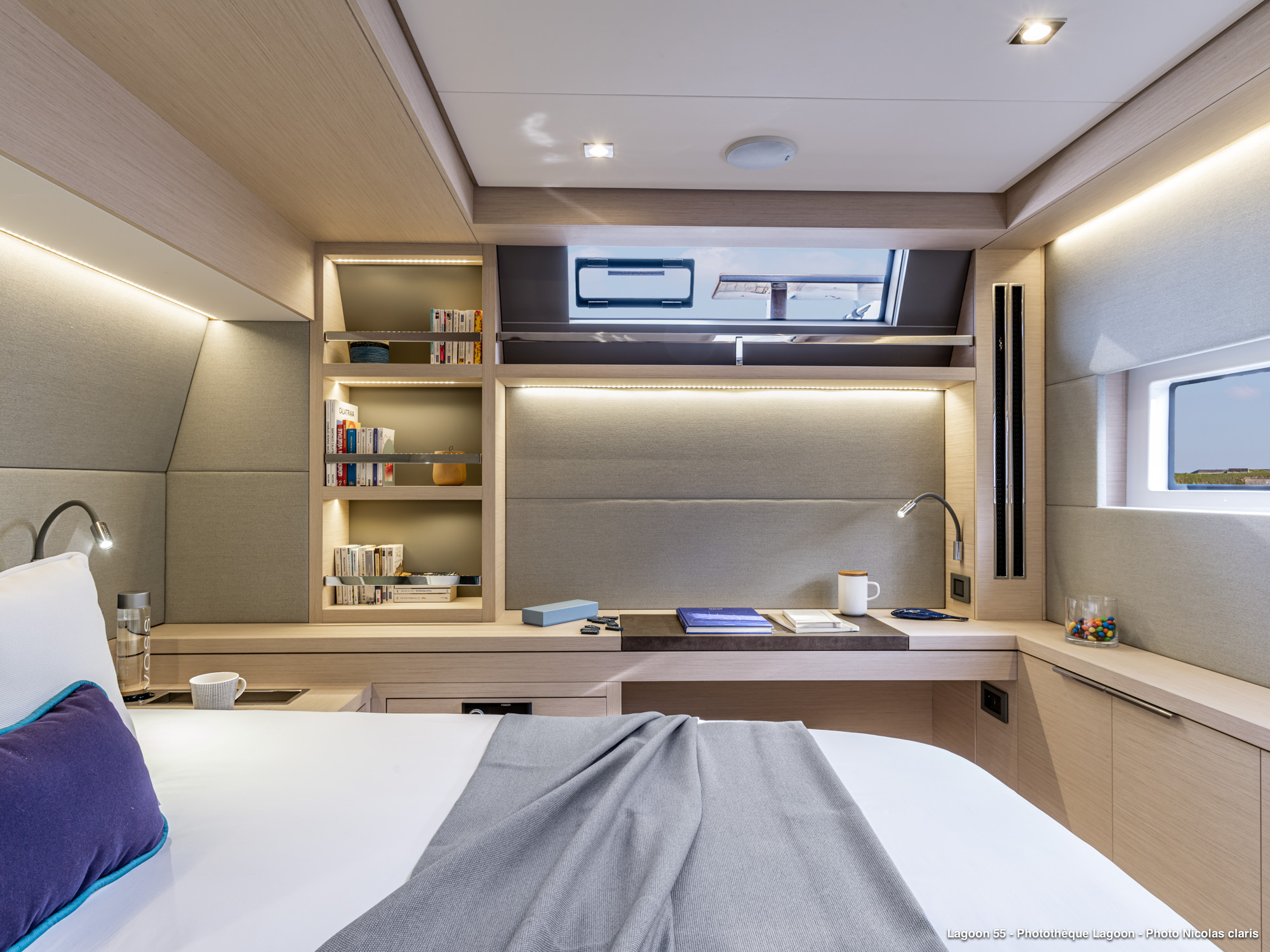

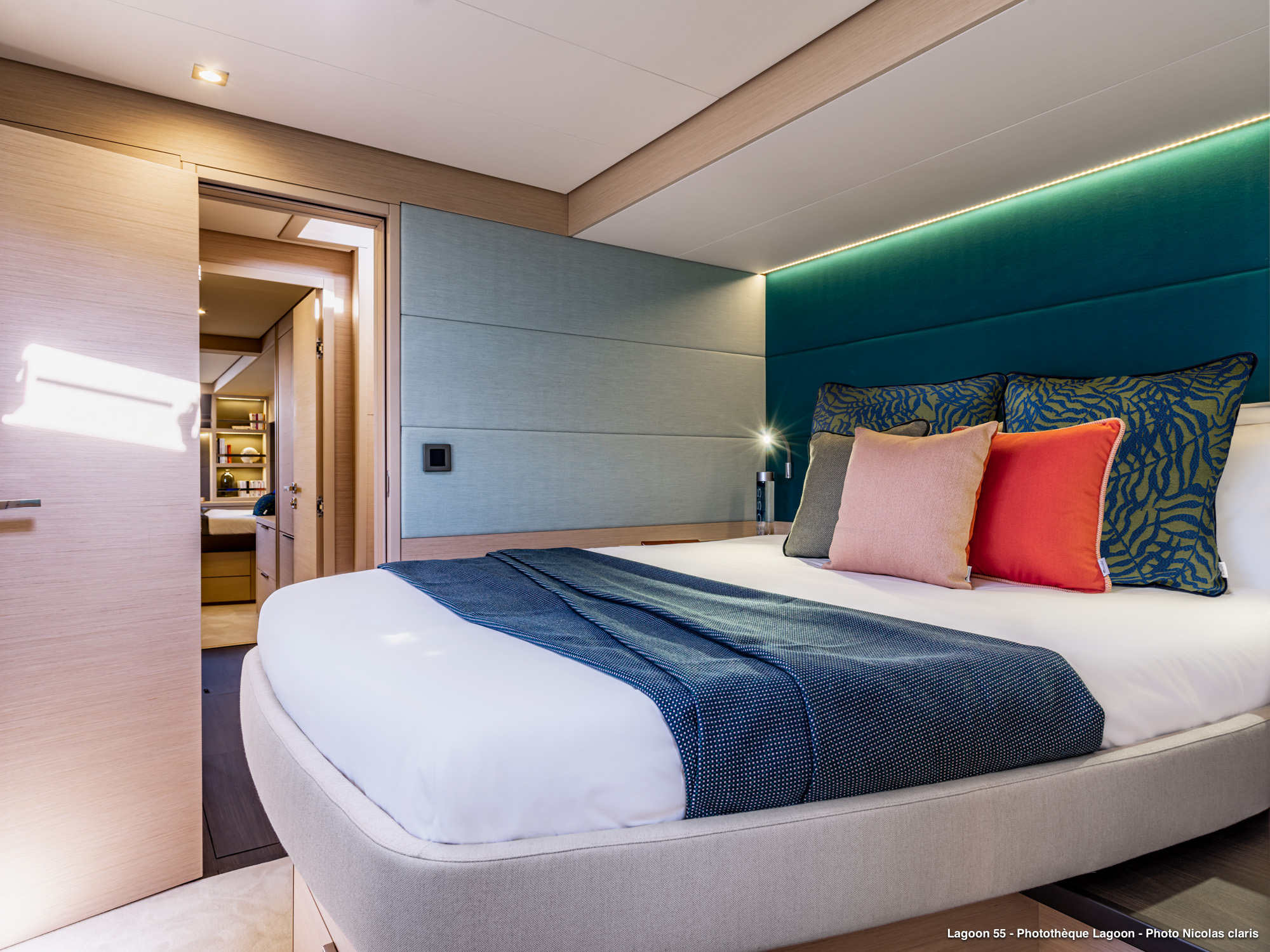

Spacious owners cabin (to starboard) with lateral access double bed, storage units, desk and sofa

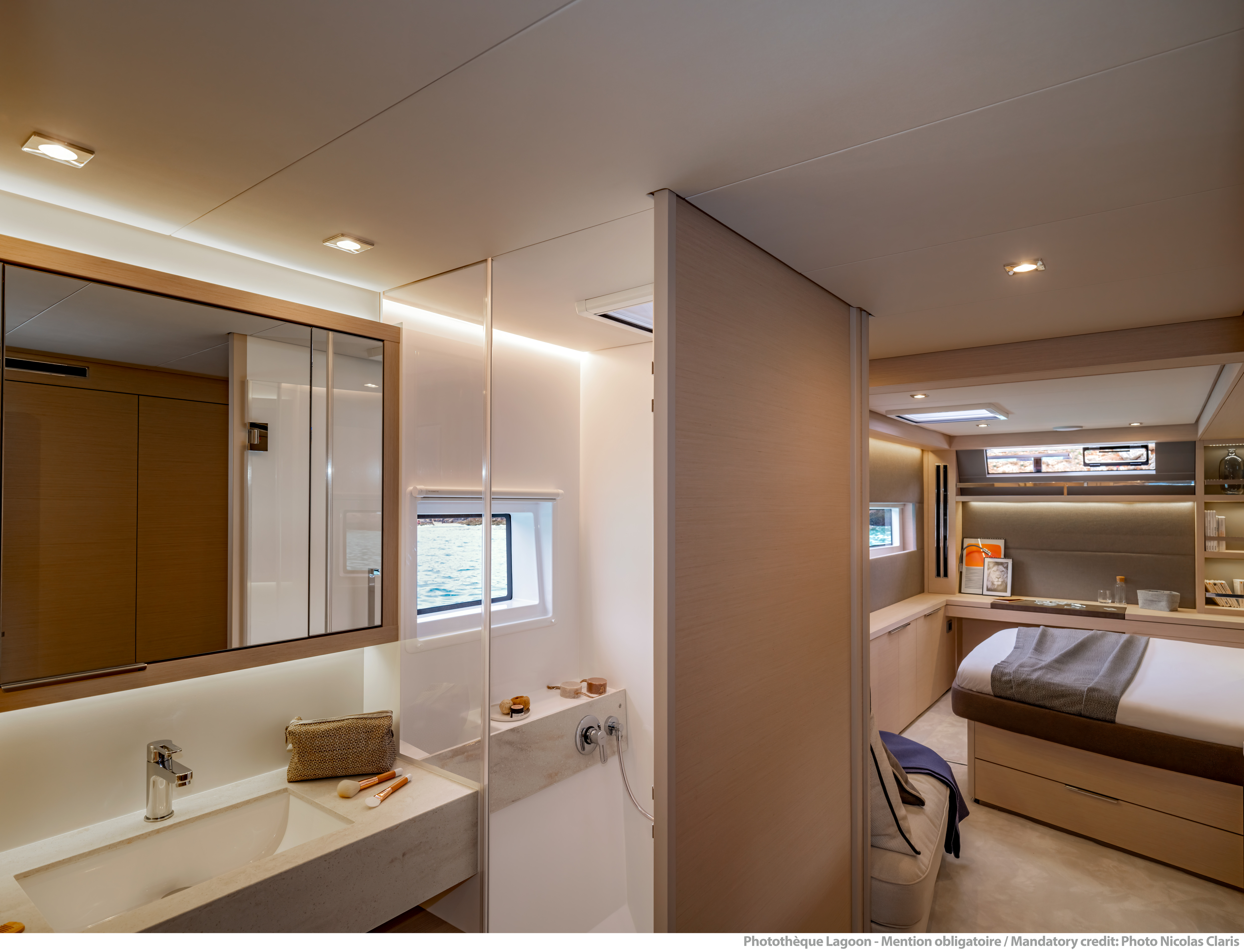

Owner's suite sliding door between night and day areas. Owner’s en suite heads with Corian countertops, integrated sink, contained shower, separate heads

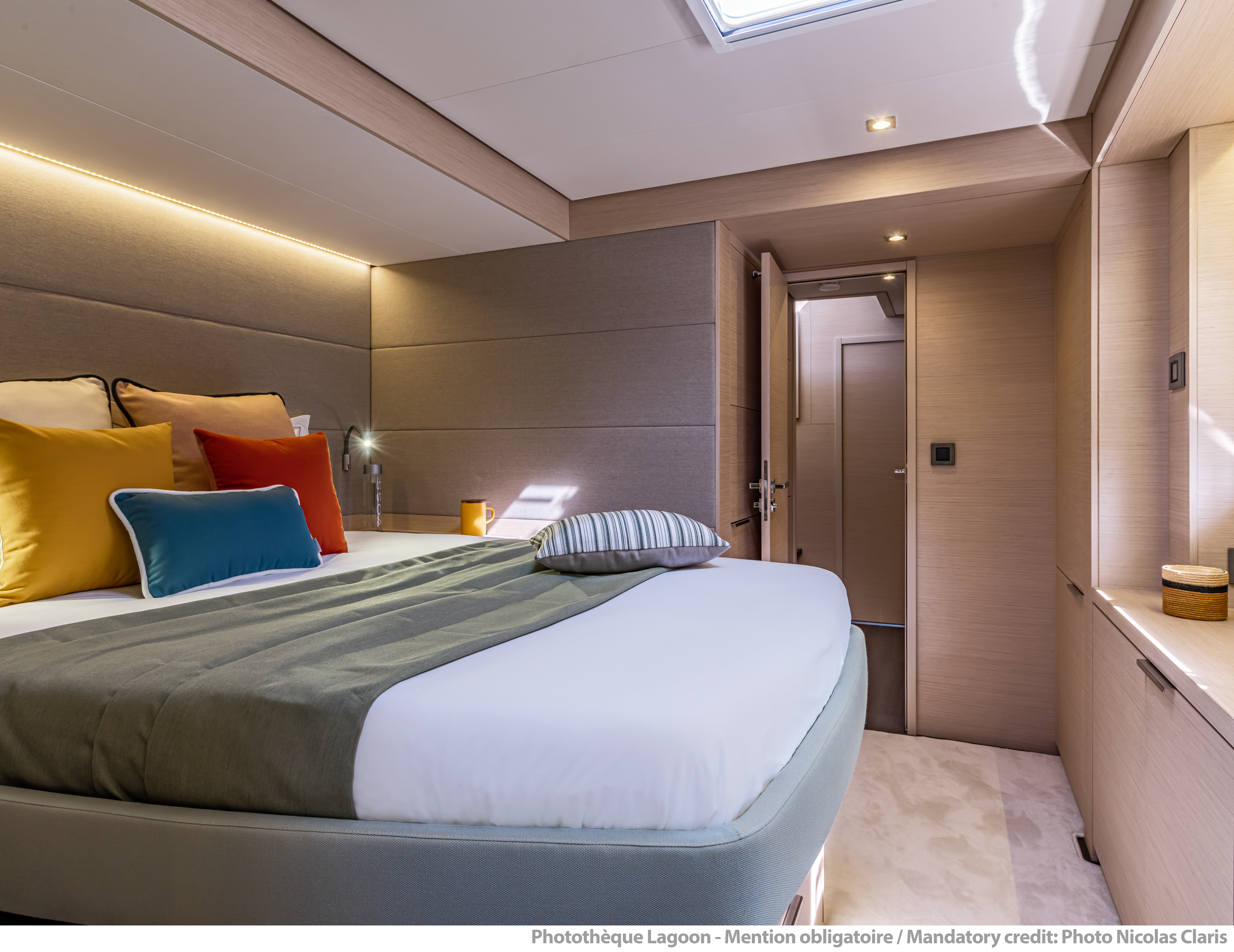

Two guest cabins forward with double bed, storage and ensuite heads with Corian countertops, integrated sink, contained shower and toilet
Aft guest cabin (to port) with double bed, storage and ensuite heads with Corian countertops, integrated sink, contained shower and toilet
Berth, shower and sink in port bow compartment
Fridge and Freezer (220V/ 311L) and storage in central port passageway

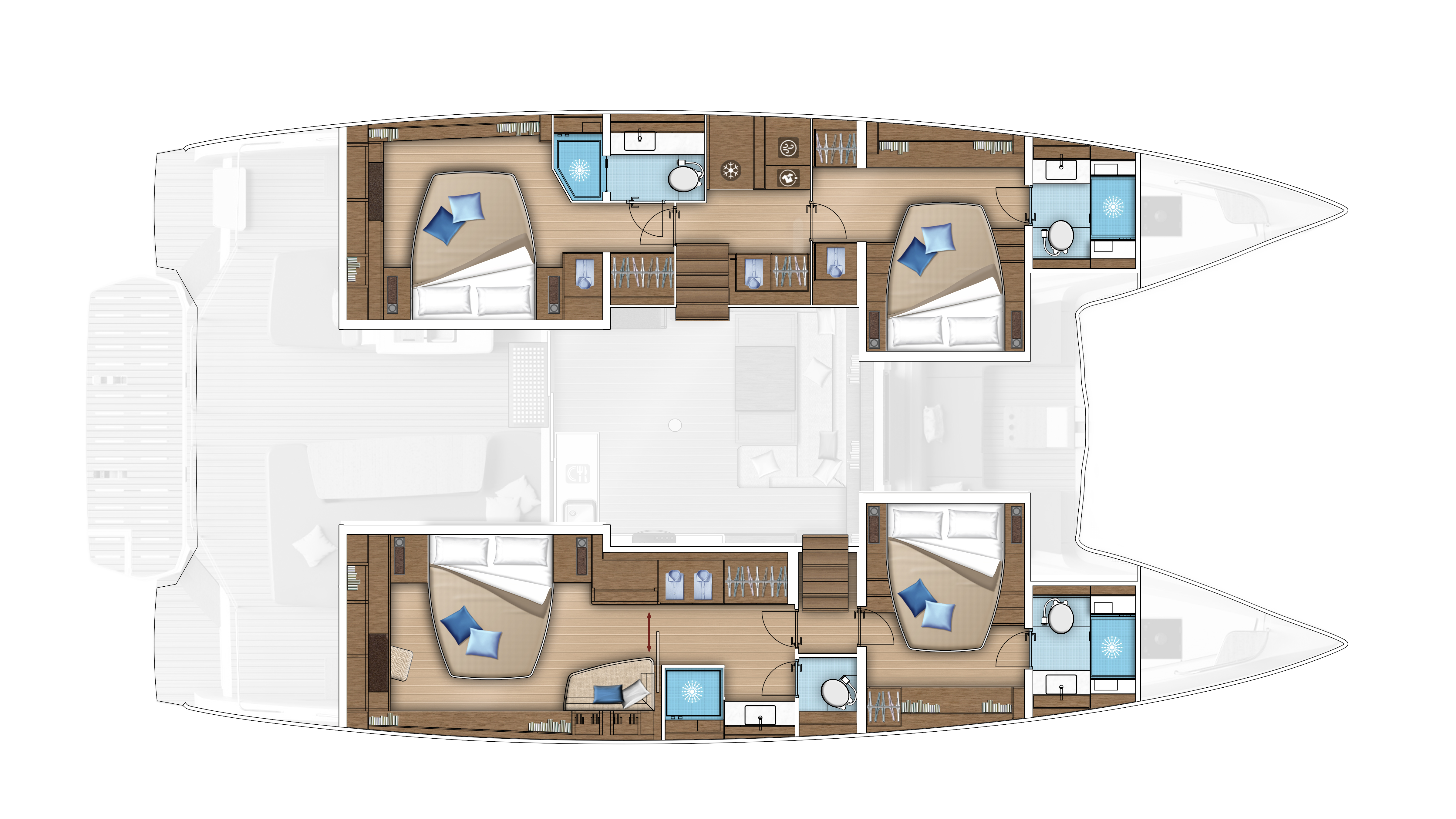

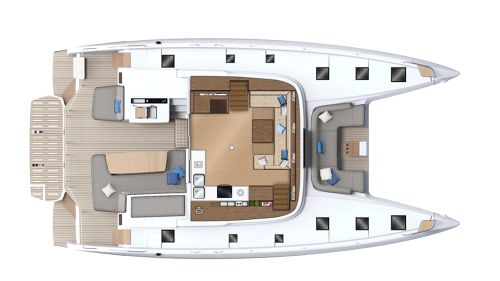

Illustrated price based on four cabin owners layout, five and six cabin layout options also available

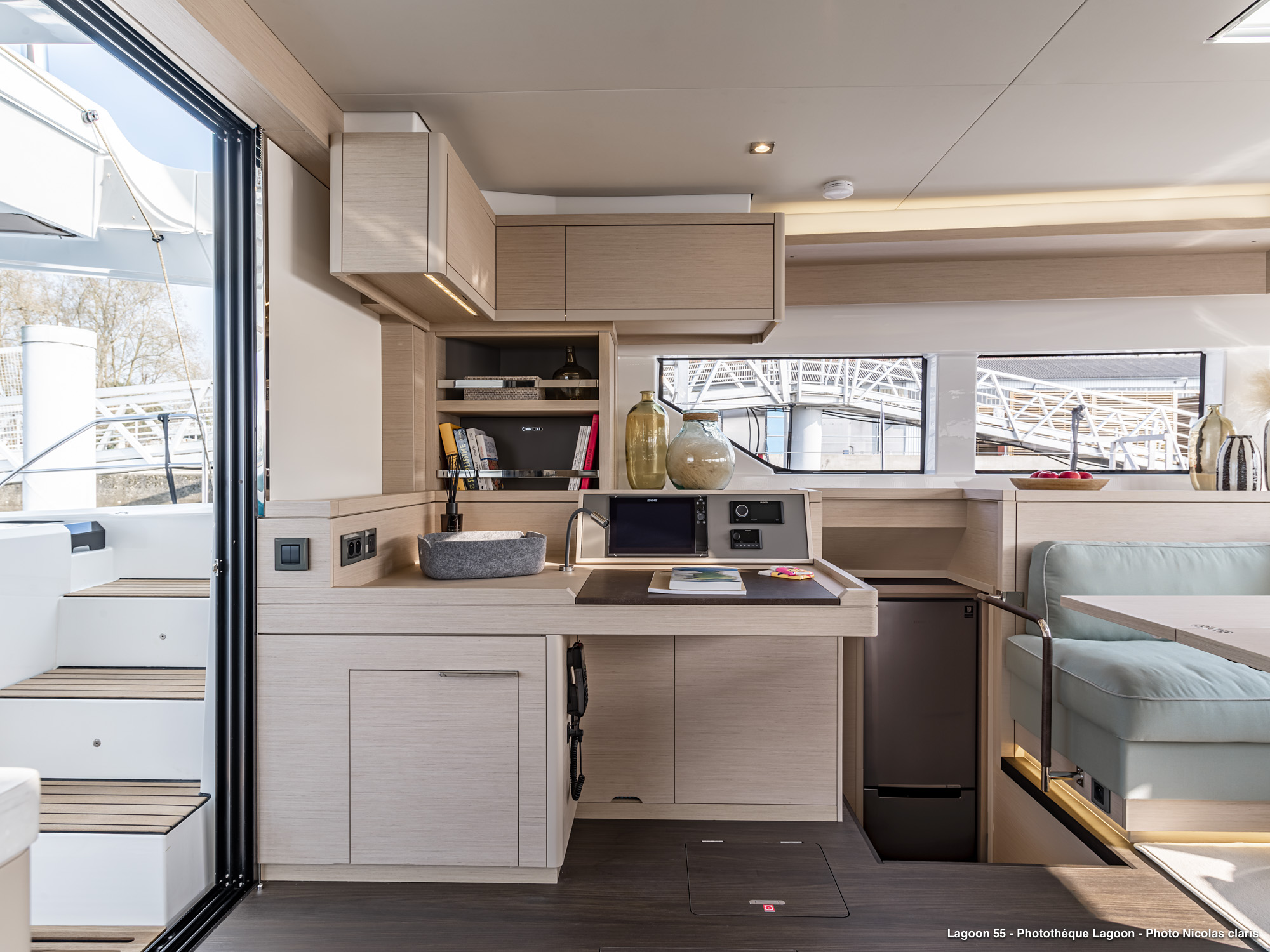

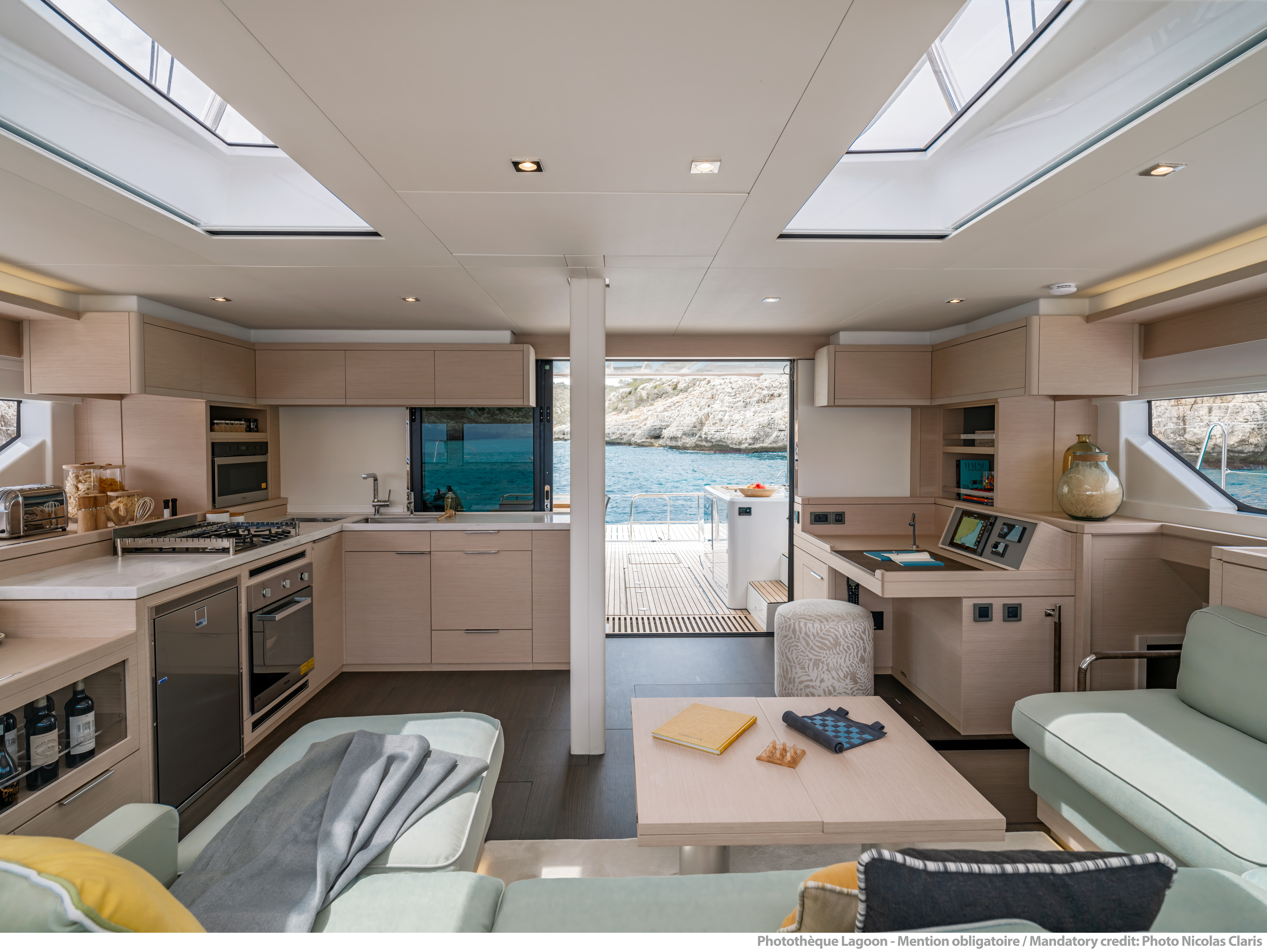

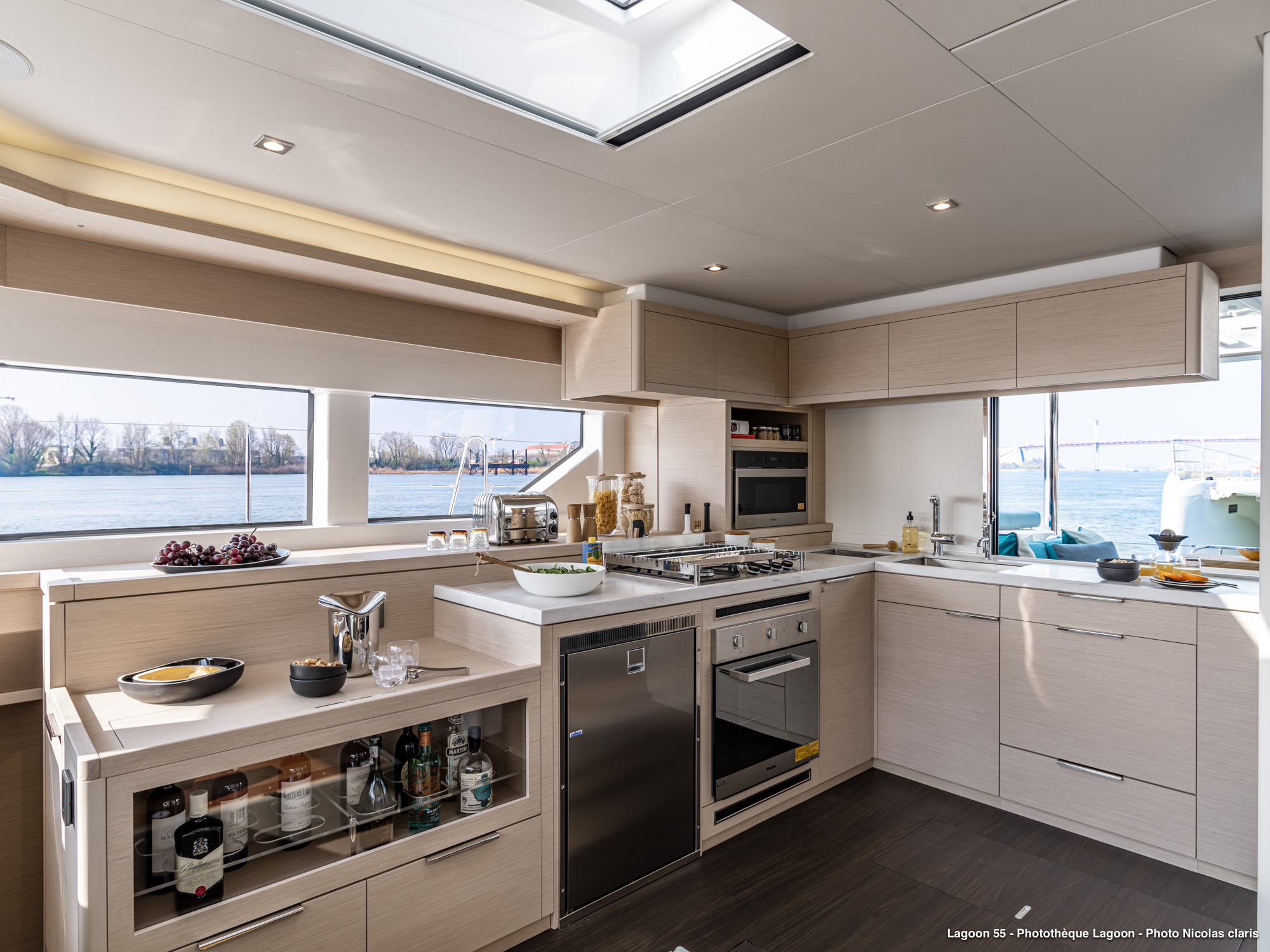

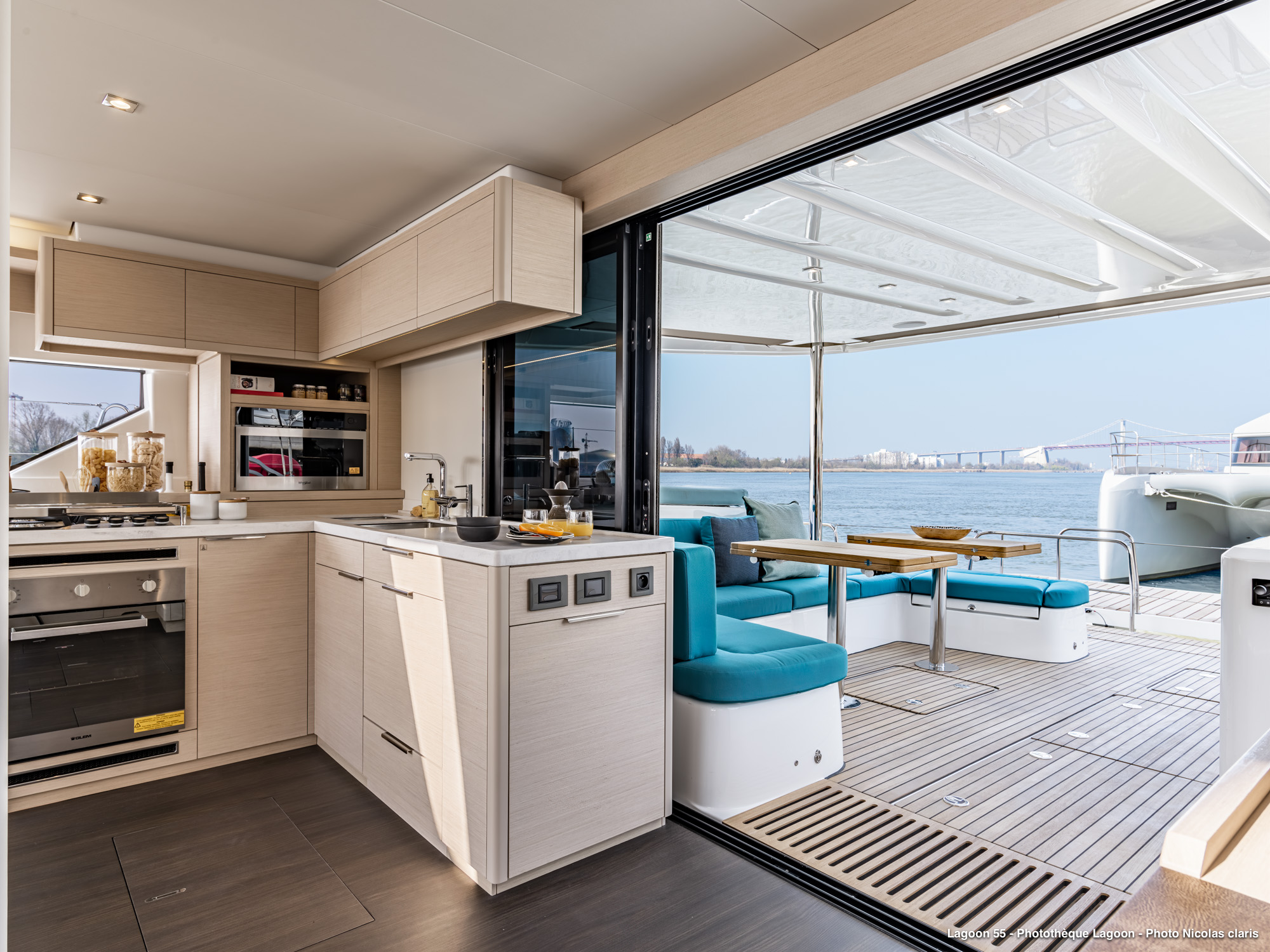

L-shaped galley with Corian countertops, stainless steel sink, gas 4 burner stove, gas oven

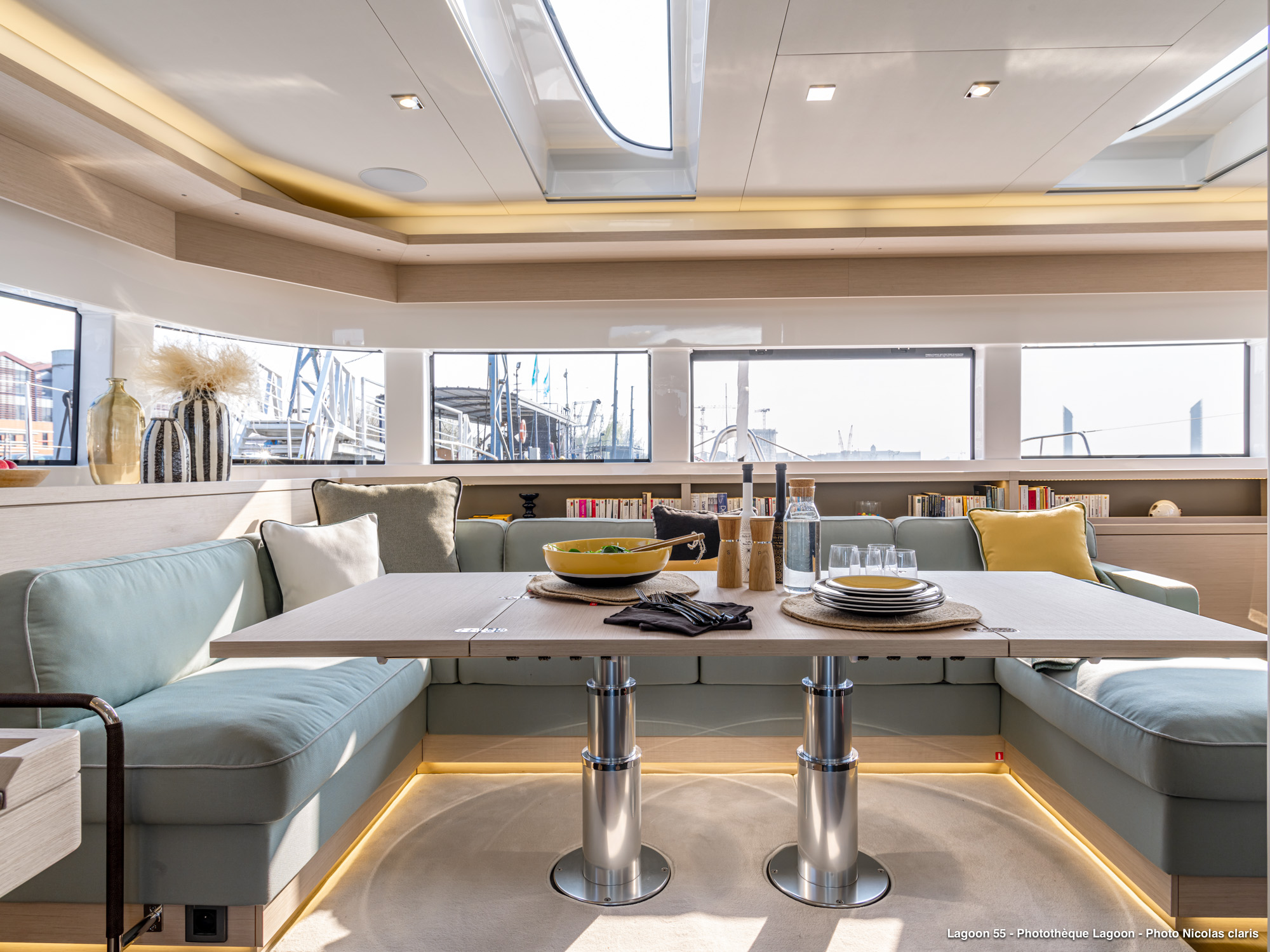

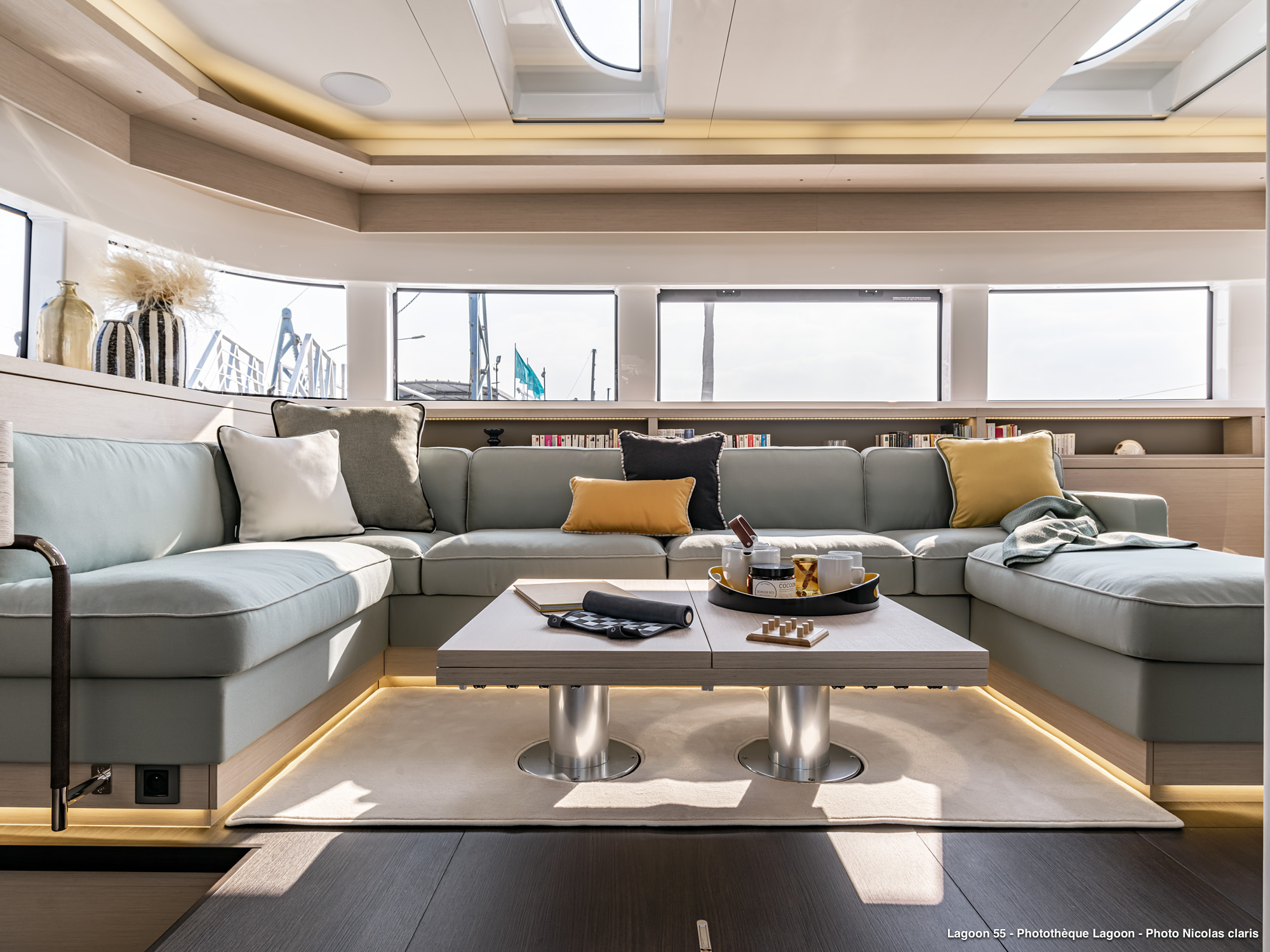

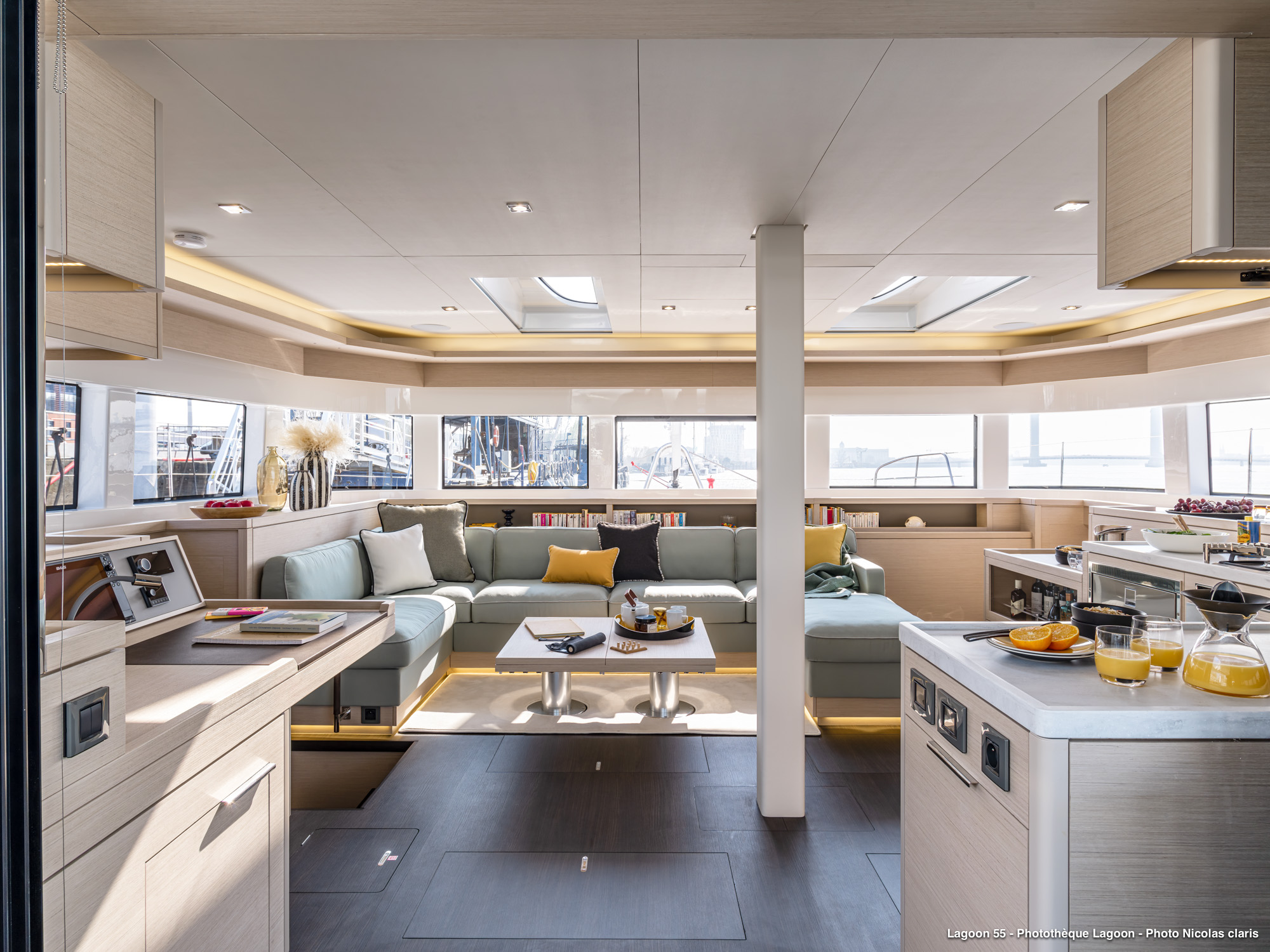

Spacious saloon with U-shaped sofa, wooden dining table, chart table
Berth, toilet, sink and shower in port bow compartment
Upgraded twin Nanni 115HP
4 blade folding props for Nanni 115HP
Electric bow thruster to starboard, 170KGF with dedicated batteries and charger
ELECTRICS
230V circuit with 63A shorepower, 230V outlets and USB sockets
5000VA inverter (in lieu of standard 1200VA)
Four 210A gel service batteries with controller (in lieu of standard 6x140A)
Four additional 210AH gel service batteries (8 x 210AH total)
Yacht management monitoring system
Additional battery charger, 100 Amp
Onan genset 17.5kVA 1500RPM, 220V/50Hz with cocoon & monitor
Battery display monitor
Webasto Reverse cycle air conditioning- 4 cabin version
Windlass with remote control and chain counter at helm
Fusion Apollo stereo system with saloon and cockpit speaker
Four underwater spotlights
Indirect lighting in cabins and saloon
Deck courtesy lights in cockpit, transom and flybridge
TANKAGE
Fuel: 1100 L / 290 US gal
Fresh Water: 960 L / 254 US gal
Grey Water (opt): 2x 120L
Raymarine electronics:
i70s multifunction displays at helm station and chart table
P70s autopilot with ACU-400 actuator control unit and gyro
Speed/depth/temp transducer
Wind transducer
RAY90 VHF with wireless handset at helm station
AIS700 Transceiver
Axiom Pro 16" display at helm station with Navionics Silver chart card
Additional optional electronics:
Raymarine Axiom 12" plotter at nav. station
Raymarine Quantum 2 doppler radar
Two Raymarine cameras under flybridge
Raymarine autopilot remote

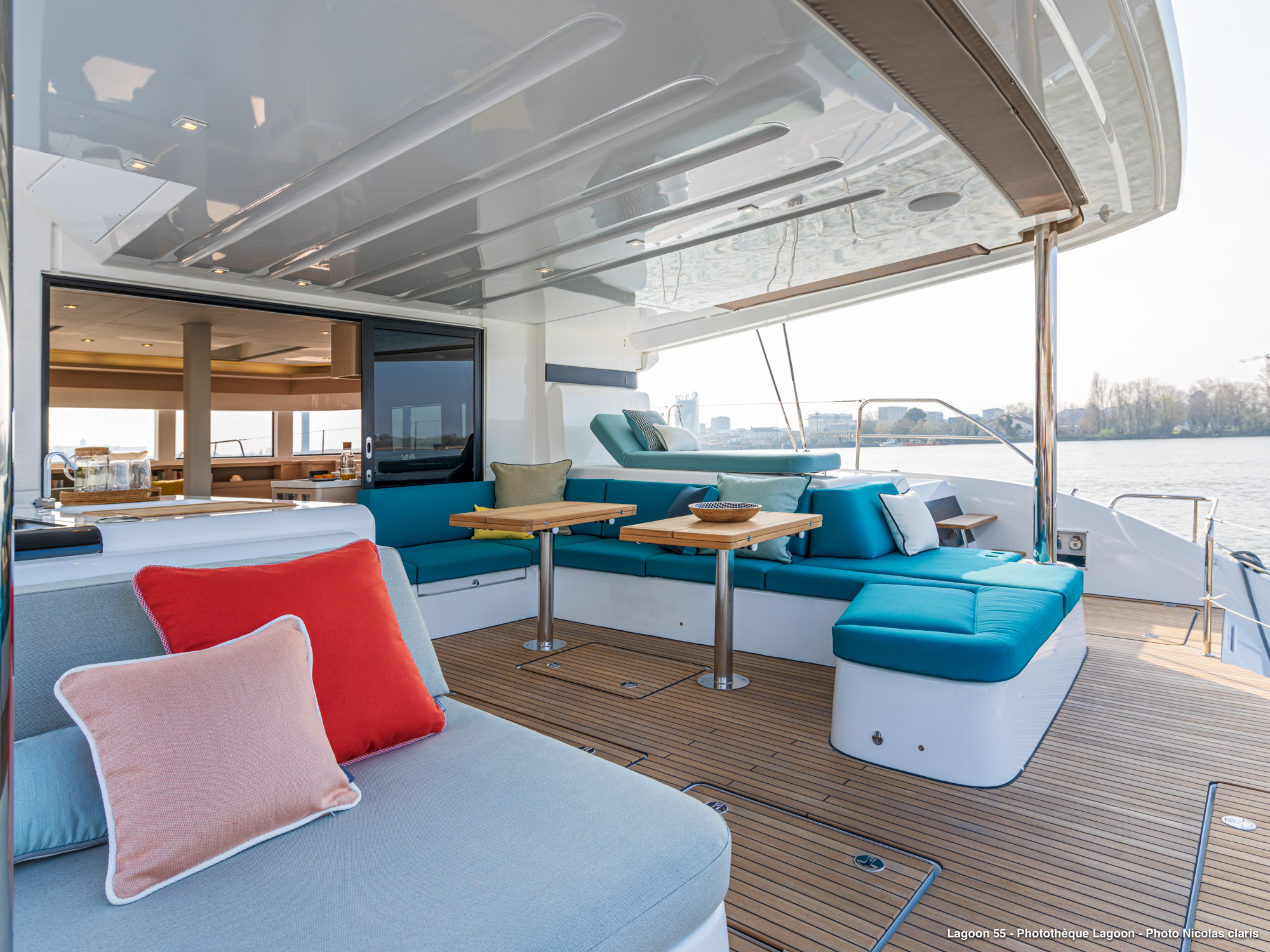

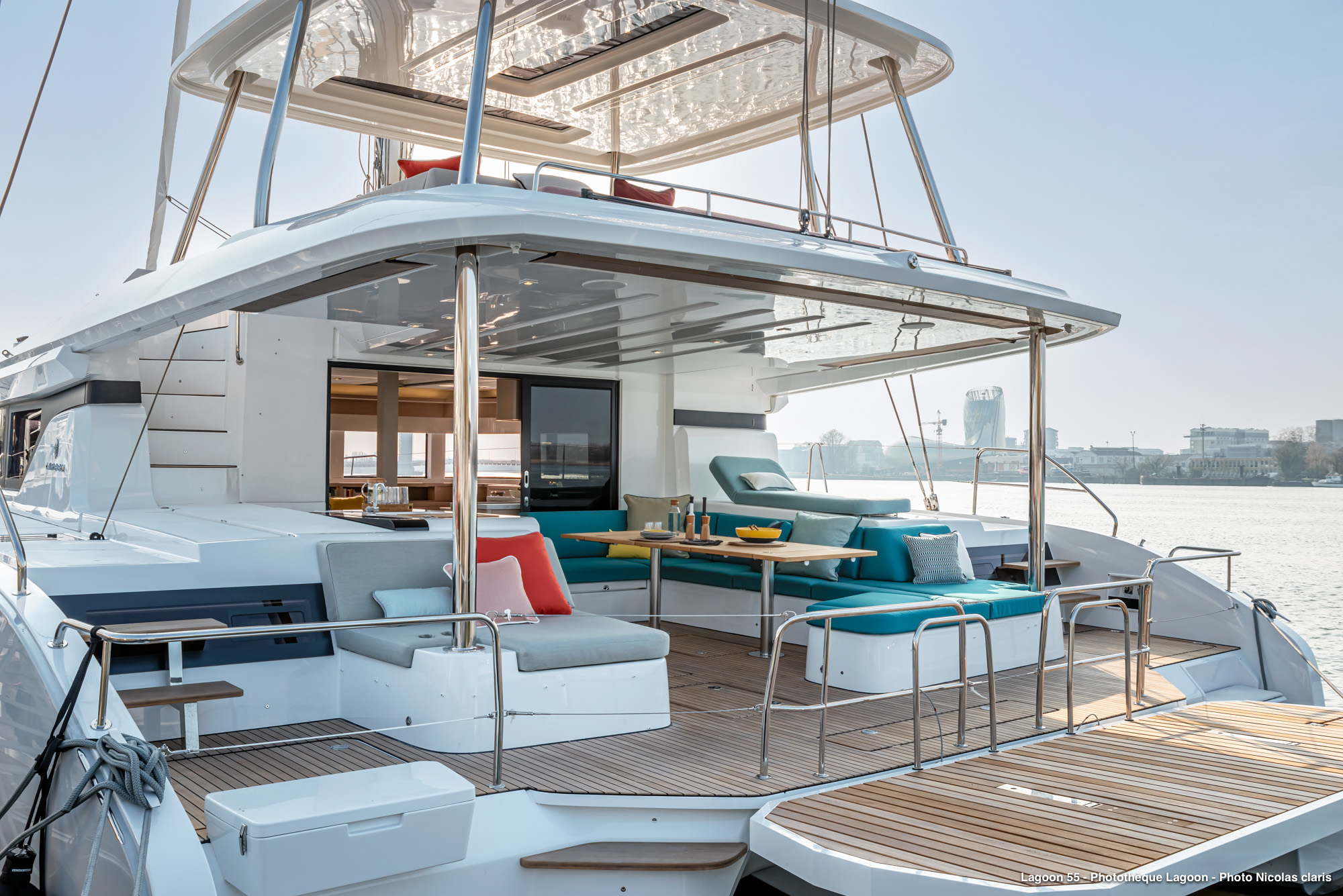

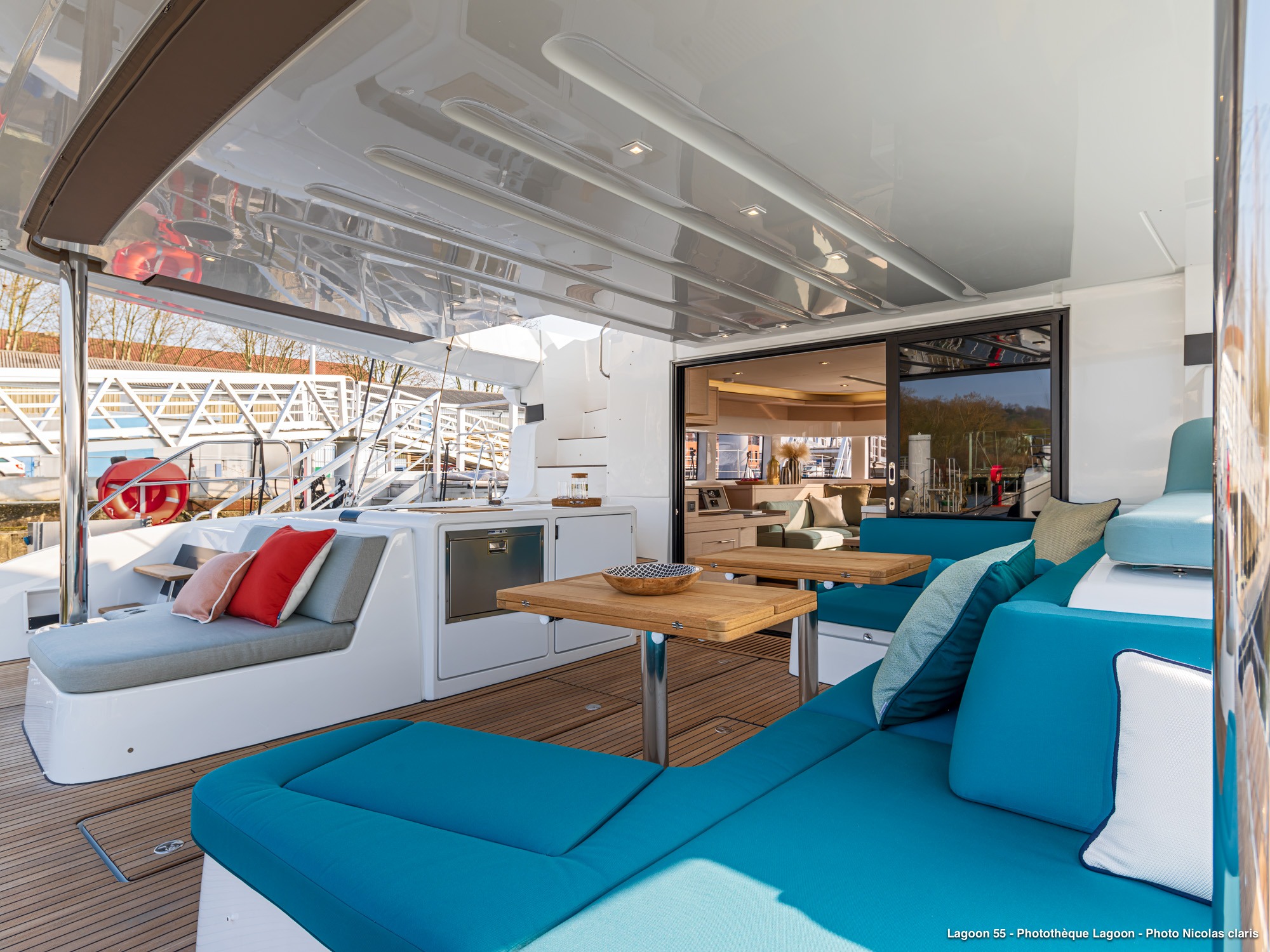

AFT COCKPIT
Natural Wood (Iroko) on forward & aft cockpit & transoms
Aft Cockpit enclosure with windows
Aft Cockpit Cushions
Upgrade to two folding wooden tables in cockpit with covers

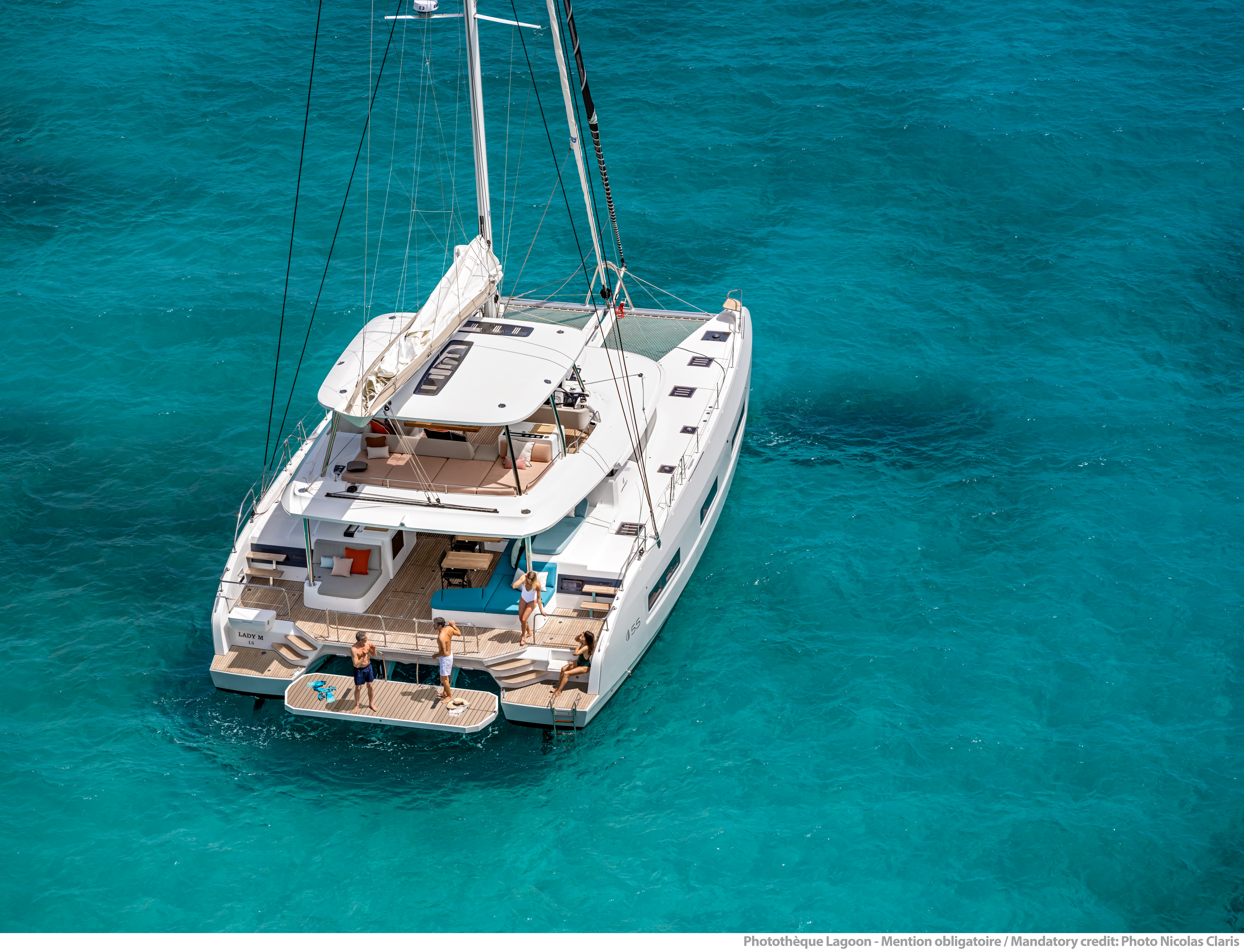

Hydraulic stern platform. Folding on port side with 1 fixed & 2 remote controls
Composite furniture with plancha in port transom
Cockpit fridge 24V/70L

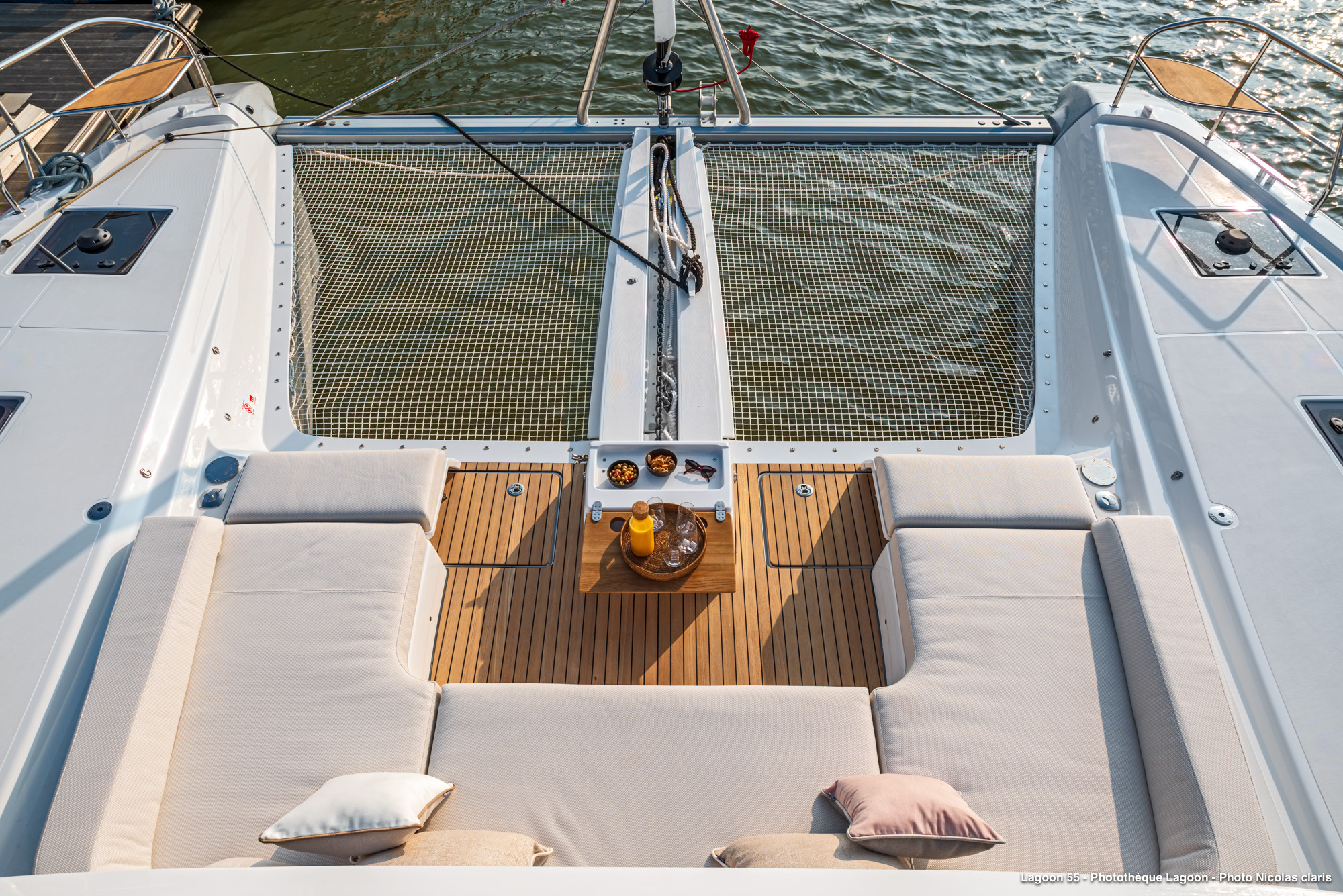

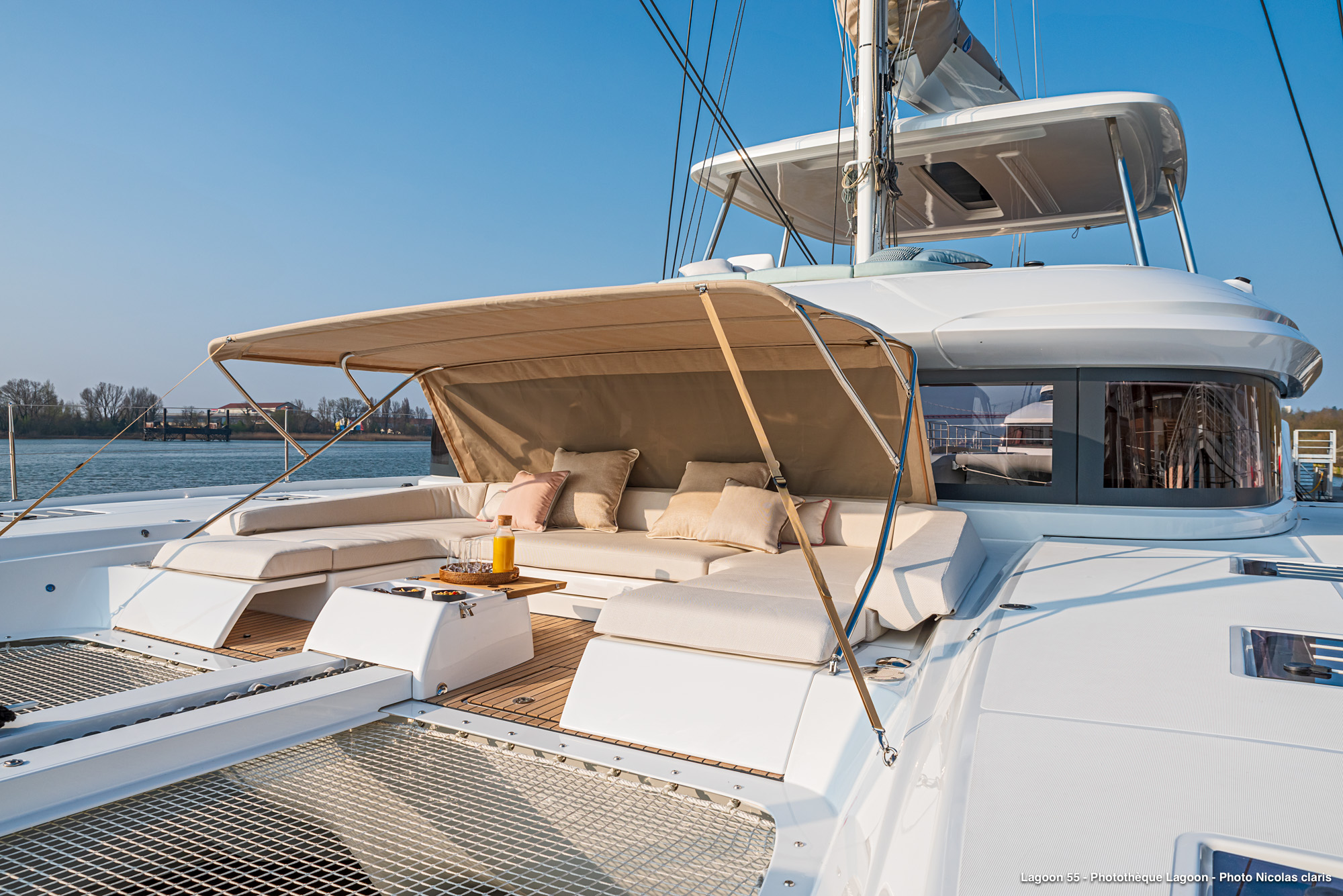

FORWARD COCKPIT
Additional port and starboard seats in forward cockpit with wooden table
Forward cockpit cushions
Forward Canvas Bimini

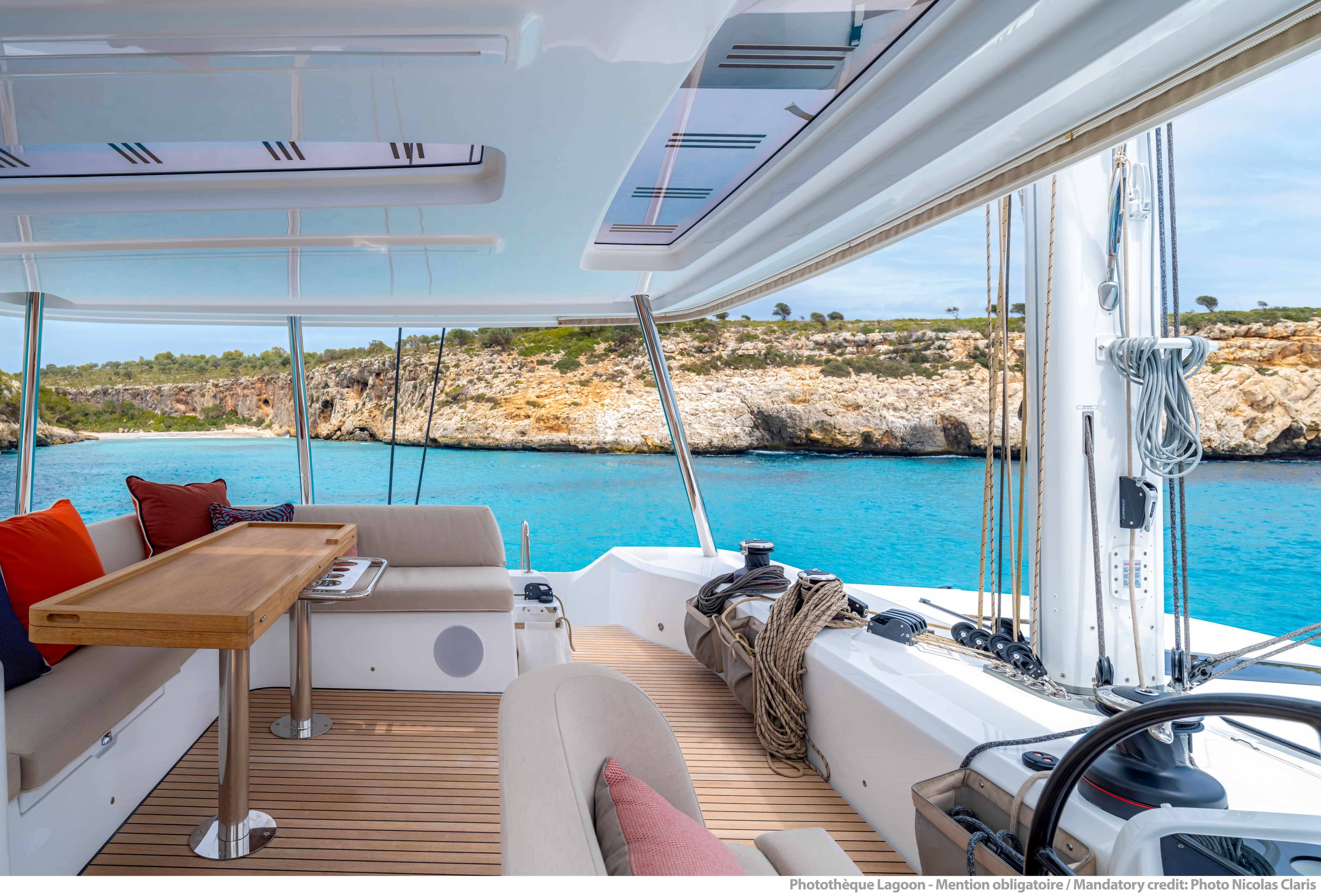

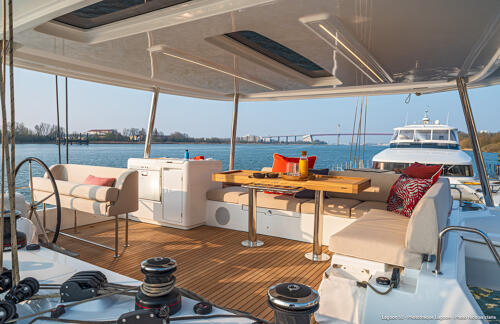

FLYBRIDGE
Composite flybridge bimini with curtained windows, LED lights and windshield with additional side and rear windows
Flybridge seating and sunbathing cushions
Folding wooden table with cover
Additional flybridge access stairs to starboard
Flybridge bar furniture with sink and 70L capacity 24V fridge
Flybridge Floor in Natural Wood (Iroko)
Upgraded upholstered helm seat
INTERIOR UPGRADES and ADDITIONAL APPLICANCES
Saloon: upgrade to adjustable table with electric pedestal
Large drop-down forward saloon window
Fitted carpet in each cabin
Under bed spring slats for 4 cabin version
Luxury shaped bedding for each double cabin
Freshwater electric toilets in each cabin
Fans in saloon and cabins
Additional saloon freezer, 24V/90L
Pre-fitting for 43" 230V TV in saloon with electric lift into ceiling
Dishwasher Miele 220v
Washer/dryer, Siemens 7kg/5kg in port companionway
Watermaker 280l/h Sea Recovery Aquamatic 220V
Water purifier in the galley
Microwave oven with grill 220v
OTHER INVENTORY
Highfield CL420 RIB with Honda BF60HP
Freshwater dock inlet
Deck wash pump (forward cockpit and transom)
