Beneteau Swift Trawler 48

651,000 Tax Not Paid | On order United Kingdom
Enquire

Summary

  • Make Beneteau
  • Model Swift Trawler 48
  • Year 2022
  • LOA 48ft/15m
  • Class Semi-Displacement
  • Hull Glass Reinforced Plastic
  • Engine Twin Diesel
  • Drive Shaft Drives
  • Layout Flybridge
  • Berths 6
  • Cabins 3
  • Ancasta Ref 38918
  • Name Swift Trawler 48

Overview

A brand new Swift Trawler 48 from Beneteau form delivery in 2022.

The latest model in the supremely popular Swift Trawler line up with a host of innovative features and brilliant sea keeping qualities. The new Swift Trawler 48 is built to seek new horizons. A mid size-range boat, the 48 has a strikingly stylish profile which features the new stainless framed teak slat fashion plates, aligning the boat with the Grand Trawler 62. The spacious outdoor areas have been carefully designed to allow the crew to enjoy the sea at any time of the day.

The hull has been optimised to provide a boat that is both comfortable and efficient. The slender bow is remarkably seaworthy, which reduces fuel consumption and makes sailing safer. Over 600 nautical miles of range at 9 knots! The delights of the sea can be enjoyed thanks to the generous Swift Trawler 48 exterior spaces. The aft cockpit fits a folding table and two directors chairs, which together with the large bench seat, maximise the indoor/outdoor living space. The transom double gate opens onto a large swim platform with an optional hydraulic lifting system. The 20 sqm flybridge is a fantastic space for panoramic views. The transform backrests either side of the pilot seat allow plentiful forward facing seating during passage making. Aft there is a great area to eat & relax with a large dining table and a wetbar. On the foredeck the optional sunpad with lift up sections creates forward seating The asymmetrical deck layout allows for a wide and well-protected starboard sidedeck.

Andreani Design totally revisited the interior design and layout. A large fully-equipped L-shaped galley offers plentiful capacity for extended cruising. Forward of the galley a spacious raised U-shaped dinette provides seating for up to 8 with great views all around.
To starboard the professional helm station has an adjacent side door for easy docking and circulation. In the lower accommodation, the forward owner’s cabin features a double berth and plenty of storage. The en-suite bathroom includes a separate shower cubicle. The port guest cabin has two single berths with an infill to make up a double berth. This cabin also features an en-suite door to the portside day head. The starboard guest cabin has two portlights, a transverse double berth and a double door wardrobe that is large enough to take an optional washer/dryer in the base. The hull windows and overheard hatches flood the cabins with natural light and cross ventilation.

There is a lot to like on the new Swift Trawler 48, call Jeremy at Ancasta London on +44 (0) 207 101 4823 or email London@ancasta.com for more details now.

Video

Build

Brand new Swift Trawler 48 from Beneteau for delivery late summer 2022

• L.O.A *: 14,74m 48’4’’
• Hull length: 12,77m 41’11’’
• Overall width: 4,5m 14’9’’
• Beam: 4,42m 14’6’’
• Light displacement (EC): 12 200kg 27,896 lbs
• Air draft: 5,79m 19’
• Draught (including propeller): 1,15m 3’10’’
• Fuel tank: 1 930L 510 US Gal
• Water tank: 640L 169 US Gal
• Sewage tank: 170L 45 US Gal
• Grey water tank (Option): 320L 85 US Gal
• Engine power:
- standard 2 x 380 HP 2 x 380 HP
- Option 2 x 425 HP 2 x 425 HP

ARCHITECTS / DESIGNERS
• Naval Architect: MICAD
• Design: Andreani Design


EC CERTIFICATION **
• Category B: 14 people
• Category C & D: 16 people

Accommodation

Seaworthy, with easy circulation on board, the brand new Swift Trawler 48 accommodation is well thought out and easy to live aboard. The designers at Andreani Design drew from the extensive Swift Trawler experience with other models, seeking to maximise the flow on board and to create a warm, familiar feel to the accommodation.

The main deck features a large galley fitted aft, with full height fridge freezer, Corian worktop & plentiful stowage on portside aft, with a very spacious sideboard on starboard that can be configured with Villeroy & Boch crockery & glassware. This arrangement ensures you are still part of the party, whether catering for guests eating in the forward dinette or aft in the cockpit, its a very convivial, slowing arrangement.

Forward of the galley is a raised large dinette that easily converts to a double berth. The helm station is on starboard adjacent to the signature Swift Trawler sliding side door and bulwark side door for easy docking and circulation.

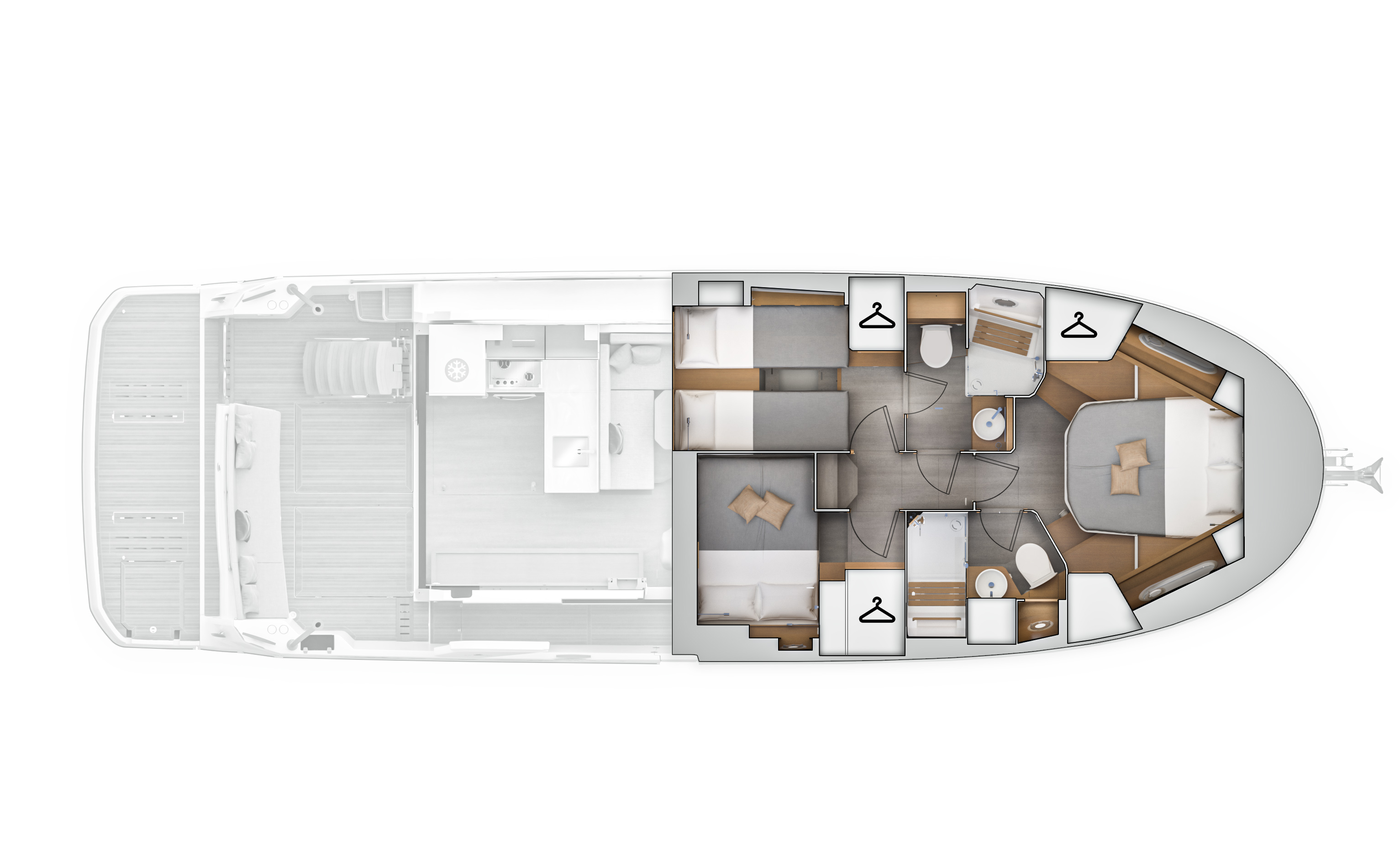

On the lower deck there are three cabins in total, with two doubles and a twin, in addition to the "convertible saloon, for those occasions when overspill guests join you aboard:

The forward owners cabin features a double berth, large hull windows & overhead hatch for plenty of natural light and ventilation. Space is luxury and there is an incredible 8.5 sqm of overall space in this cabin, which is bathed in natural light from the side hull windows, which have openable port holes for keeping the area fresh and changing the air. The en-suite bathroom includes a separate shower cubicle with seat. another openable port hole and is sumptuously well fitted out.

The port guest cabin has a large hull window, wardrobe and an infill to make up a double berth with en-suite door to the day head – in which you find a separate shower cubicle with seat too. This head has a shared door to the lower hallway, making it accessible for the starboard cabin also.

The starboard guest cabin features a transverse double berth with a wardrobe large enough to take a washer/dryer in the base, as well as a double bed.

Machinery

ENGINE ______________________________________________________________________________________________
• Shaft line propulsion
• Four-blade propellers
• Cummins QSB 6,7L engines 2 x 380HP (2 x 279Kw) UPGRADED to 2 x 425 HP
• Fuel filters
• Sea water filters
• Engine room soundproofed with high density foam (40mm thick)
• Air intake for cooling the engine compartment on the port hull plating
• 1 Extinguisher
• Double fuel tank filling cap
• 2 Aluminum fuel tanks (Capacity = 2 x 965L / 2 x 255 US Gal) inter-connected and pre-fitted for FPS (Fuel Polishing System) connection
system
• Steering system:
- 2 Rudders stainless steel
- Hydraulic steering
- Electric trim tabs
ELECTRICITY _________________________________________________________________________________________
• Electrical panel (12V / 220V)
• Shore power socket (220V)
• 12 220V Sockets: 2 in the saloon, 2 in galley, 2 in master cabin, 1 in the VIP cabin, 1 in the 3rd cabin, 1 in the owner head, 1 in the 2nd head),+
2 for TV (Saloon + Owner's cabin)
• 12 USB sockets: 2 in the saloon, 2 at the pilot station, 4 in master cabin, 2 in the VIP cabin, 2 in the 3rd cabin
• 2 double antenna sockets (TNT - SAT)
• 2 12V 140Ah service batteries
• 4 12V 50Ah engine start batteries
• 4 12V 50Ah bow thruster batteries
• 2 Battery chargers 25 Ah
• 1 12 V socket
• Outside and inside lighting (Overhead lights, Reading lights)
• LED indirect lighting
• Outside lighting (Navigation lights, Anchor light with stainless steel mountings)
PLUMBING ___________________________________________________________________________________________
• 1 Manual bilge pump (Cockpit)
• 2 Automatic electric bilge pumps
• Water unit for pressurizing the hot / cold water circuit with accumulator tank
• 40 L / 11 US Gal water heater working off engine exchanger and 220 V
• Water tank filler
• 2 Roto moulded water tanks (2 x 320L / 2 x 85 US Gal)
• Drainage outlet for black water holding tank
SMART BOARD _______________________________________________________________________________________
"SEANAPPS" smart technology:
• For monitoring the boat's status and receiving alerts as well as maintenance advice via the associated mobile application.
• The type of information collected (GPS position, batteries, engine info, navigation data, etc.) varies according to the boat's configuration.
MISCELLANEOUS ITEMS _______________________________________________________________________________
Smoke detector

Inventory

In addition to the standard specification below and number of optional upgrades have been selected for this model:

STANDARD EQUIPMENT CONSTRUCTION
HULL
Composition:
• Sandwich (Polyester resin infusion - Glass fiber)
• White gelcoat 9010
• Structural hull counter moulding in monolithic laminate (Polyester resin infusion - Glass fiber)
Profile:
• Semi-floating hull
DECK
Composition:
• Sandwich (Polyester resin infusion - Glass fiber / Balsa core)
• Structural counter moulding in monolithic laminate (Polyester resin - Glass fiber)
• White gelcoat 9010
• Diamond tip type non-slip covering
AMBIANCE
• Alpi teak woodwork
• Teak deck, black joints
• Marlin Brilliant White PVC interior upholstery
• Pilot seat Anthracite
• Exterior upholstery Marlin Brilliant White PVC

DECK EQUIPMENT
Gangway door to starboard
MOORING LINES - MOORING
• Double stainless steel bow fitting
• 2 000 W Vertical electrical windlass, up / down and remote control from the windlass, wheelhouse and flybridge
• 10 Aluminum mooring cleats (L 400mm / 15 - ¾’’)
• Stainless steel gunwale guards
• 2 Compartments equipped with self-bailers and polyester hoods
SAFETY ON DECK
• Stainless steel pulpit, open and surrounding cockpit up to steps
• Leather covered stainless steel handrails, in the cockpit

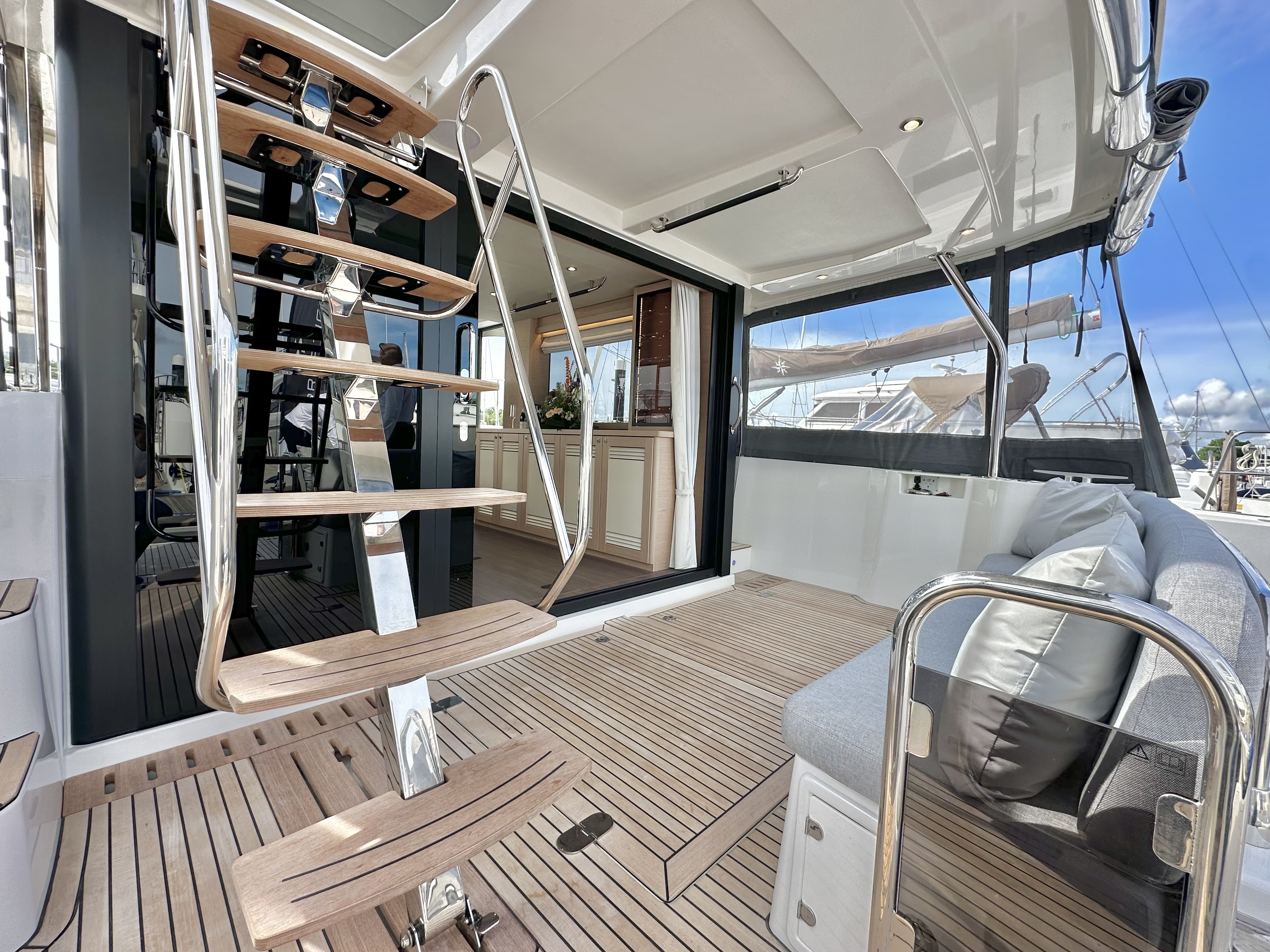

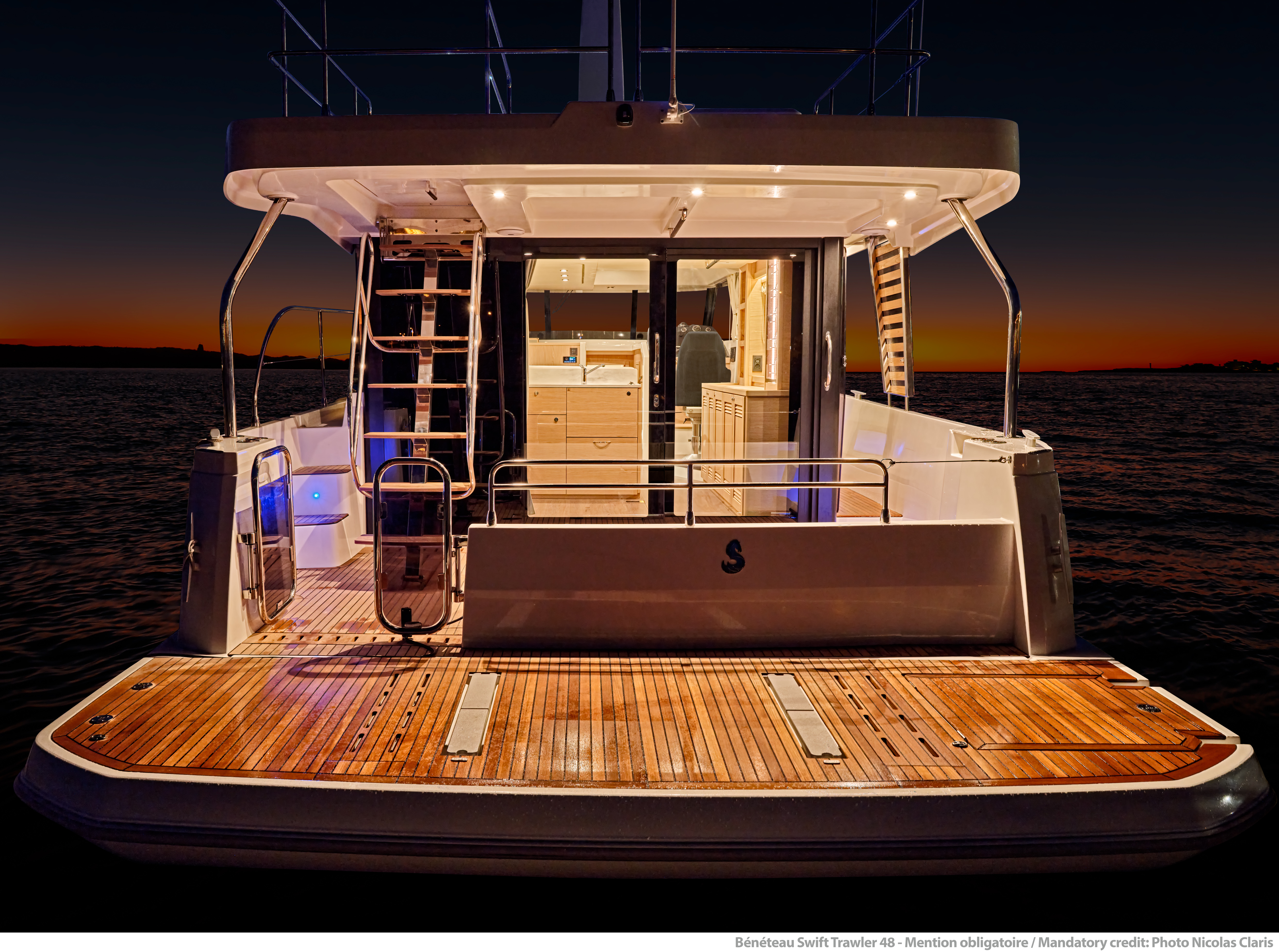

COCKPIT
• Self-draining cockpit
• 2 Lockers in cockpit bottom gas piston assisted and lockable
• Gas cylinder locker integrated into the cockpit aft bench
• Hot/cold water cockpit shower
• Double port cockpit access door
• Swimming platform with stringer and battens in natural teak
(4 x 1,4m / 13’1’’ x 4’7’’)
• Ergonomic bathing ladder with hand holds in the bathing platform
• 1 PMMA access door at the starboard side deck from the cockpit
• Emergency ladder

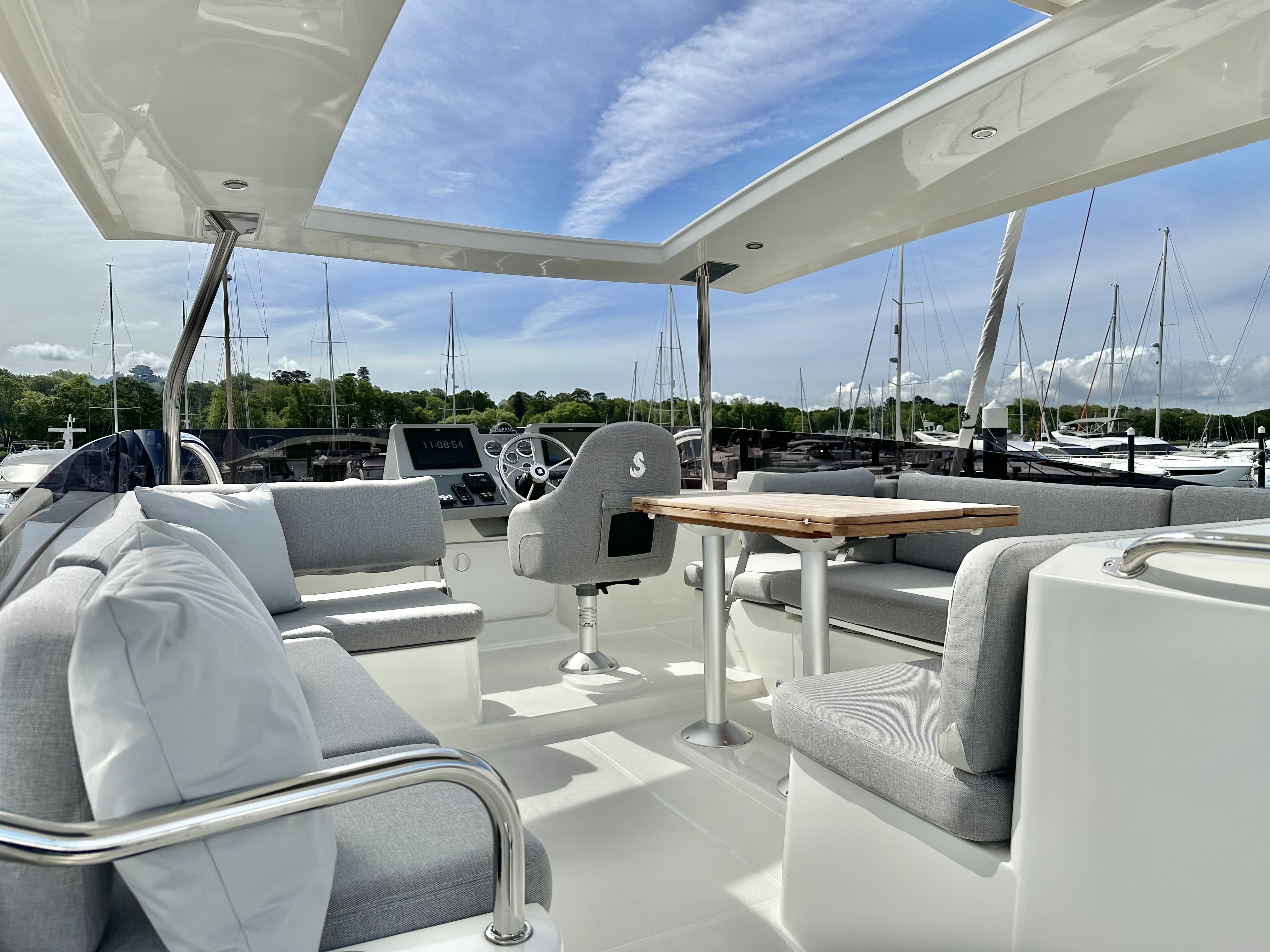

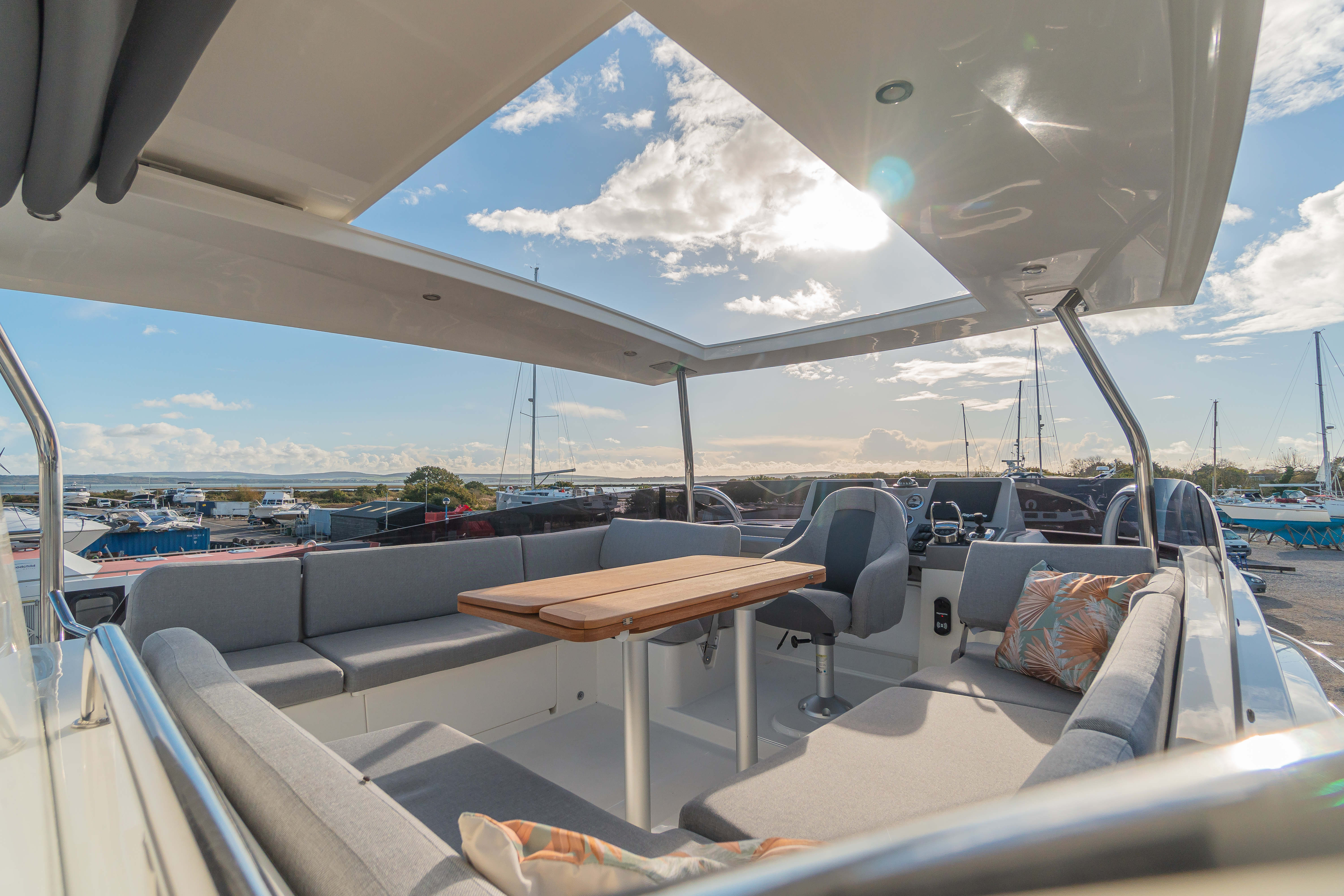

FLYBRIDGE
• Flybridge self-draining
• Retractable stainless steel staircase with double flybridge access ramp with teak steps
• Grey tinted windscreen in PMMA
• Access by polyester hatch
• Stainless steel pulpit surrounding aft of flybridge
• Polyester mast for mounting navigation lights, radar and aerials

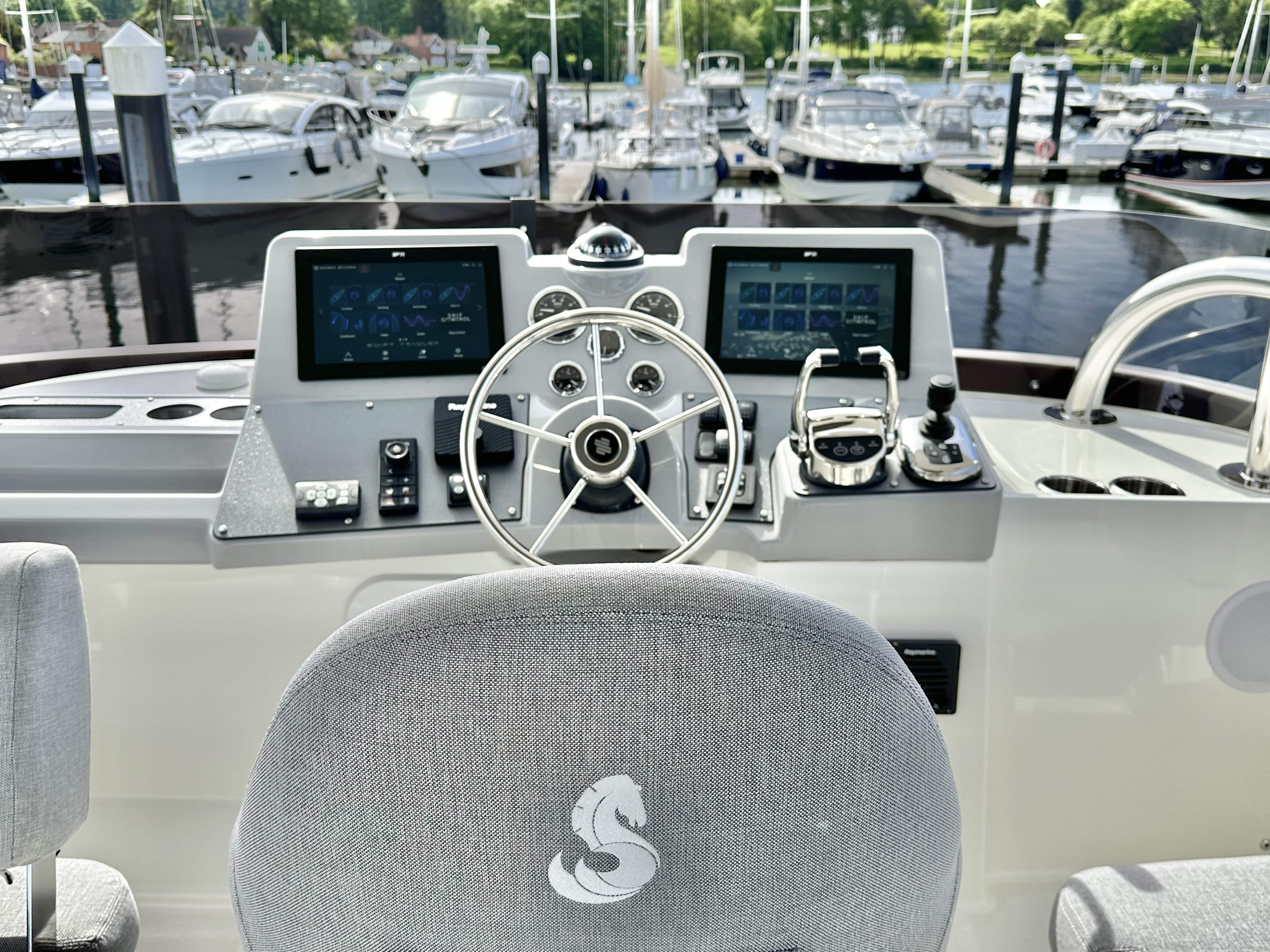

• Central steering console
• Control panel including: Electrical engine controls, Electric windlass control, Thruster and Flaps
• Gauges indicators
• Tiller angle indicator
• Space for navigation electronics
• Steering wheel stainless steel
• Steering compass
• Hydraulic steering
• Fog horn
• USB socket
• 1 Adjustable pilot seat and 3 places for co-pilot with convertible backrest
• Flybridge lounge, composed of * 1 bench seats in L shape with built in storage and an extendable teak table

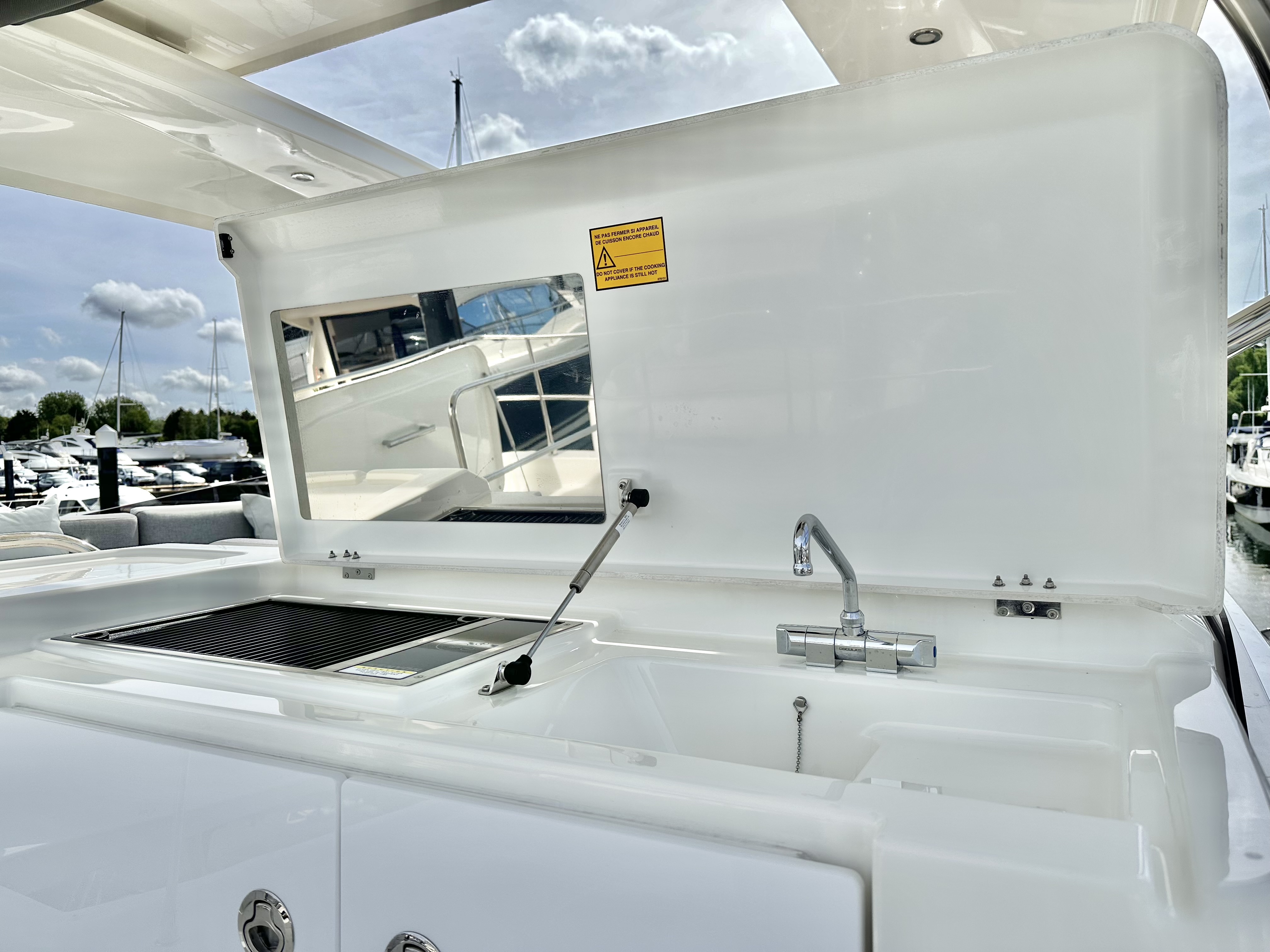

• GRP unit with sink, handrail and stowage
• Space for life raft with stainless steel fixing bolt plates

INTERIOR
SALOON
Headroom: 1,97m / 6’5’’

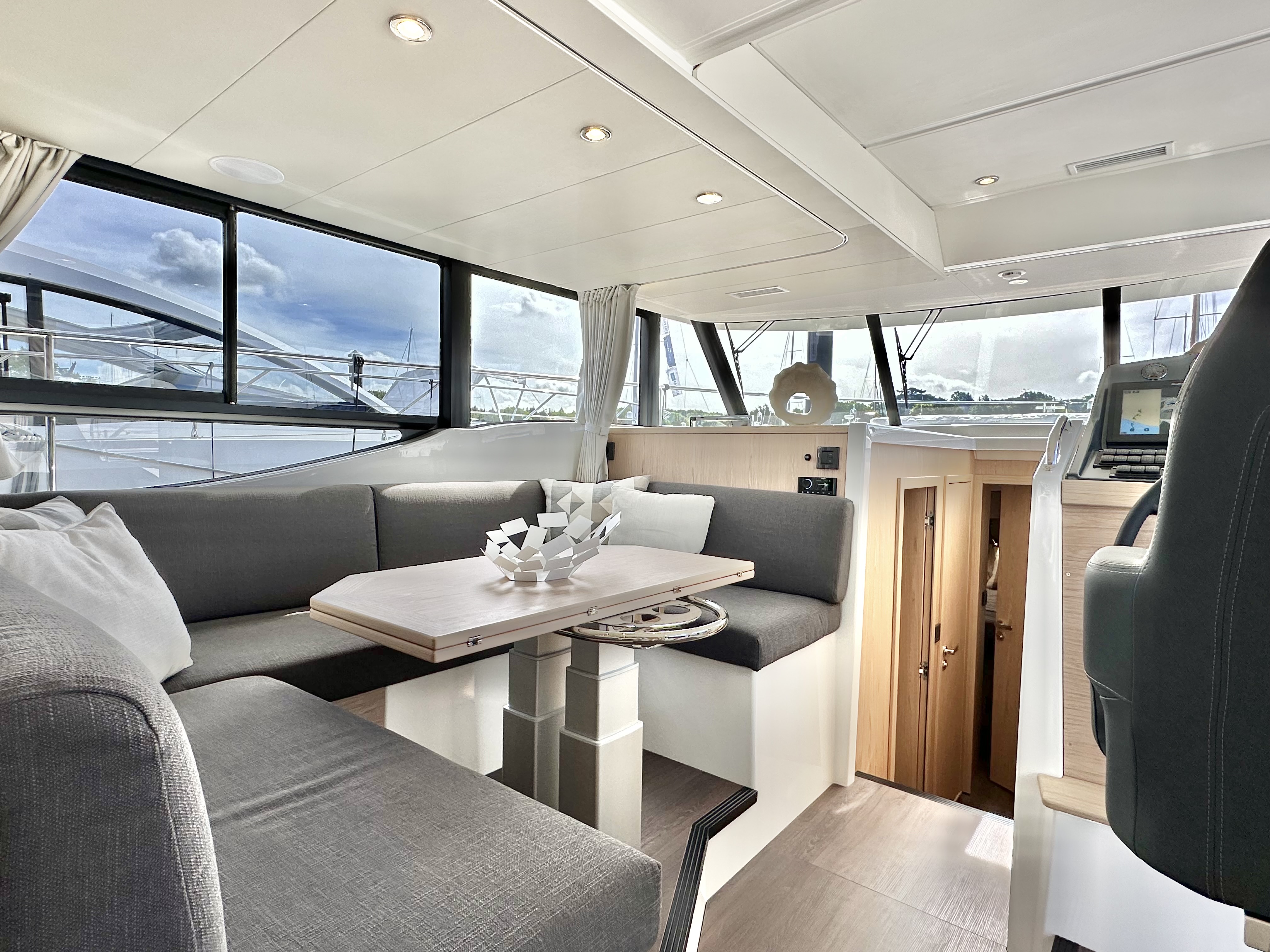

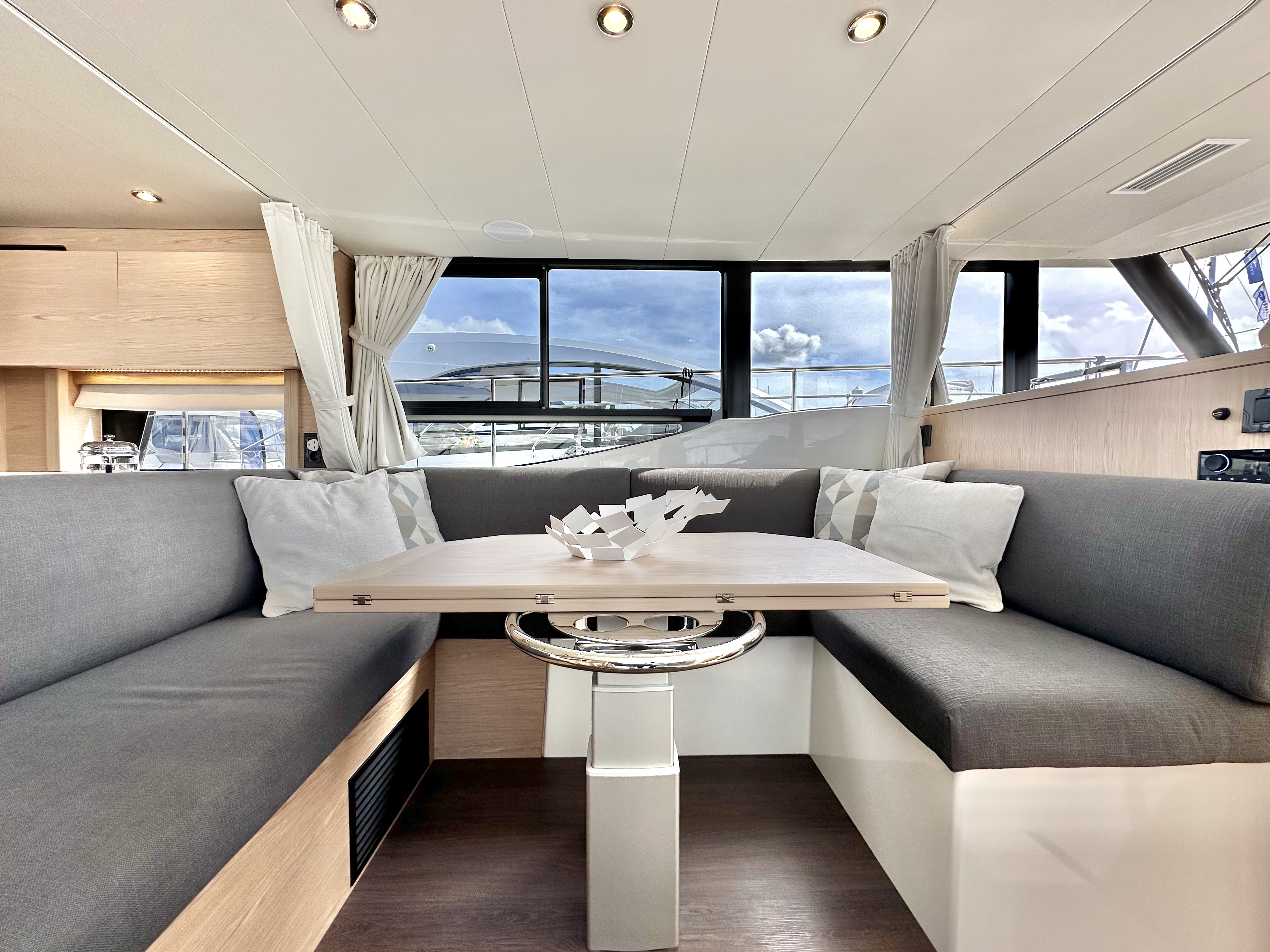

• Raised U-shaped dinette settee convertible to double berth (2,4 x 1,32m / 7’10’’ x 4’4’’)
• Dividing rail and curtains for berth
• Roman blinds with opening window
• Adjustable height, varnished wood dining table

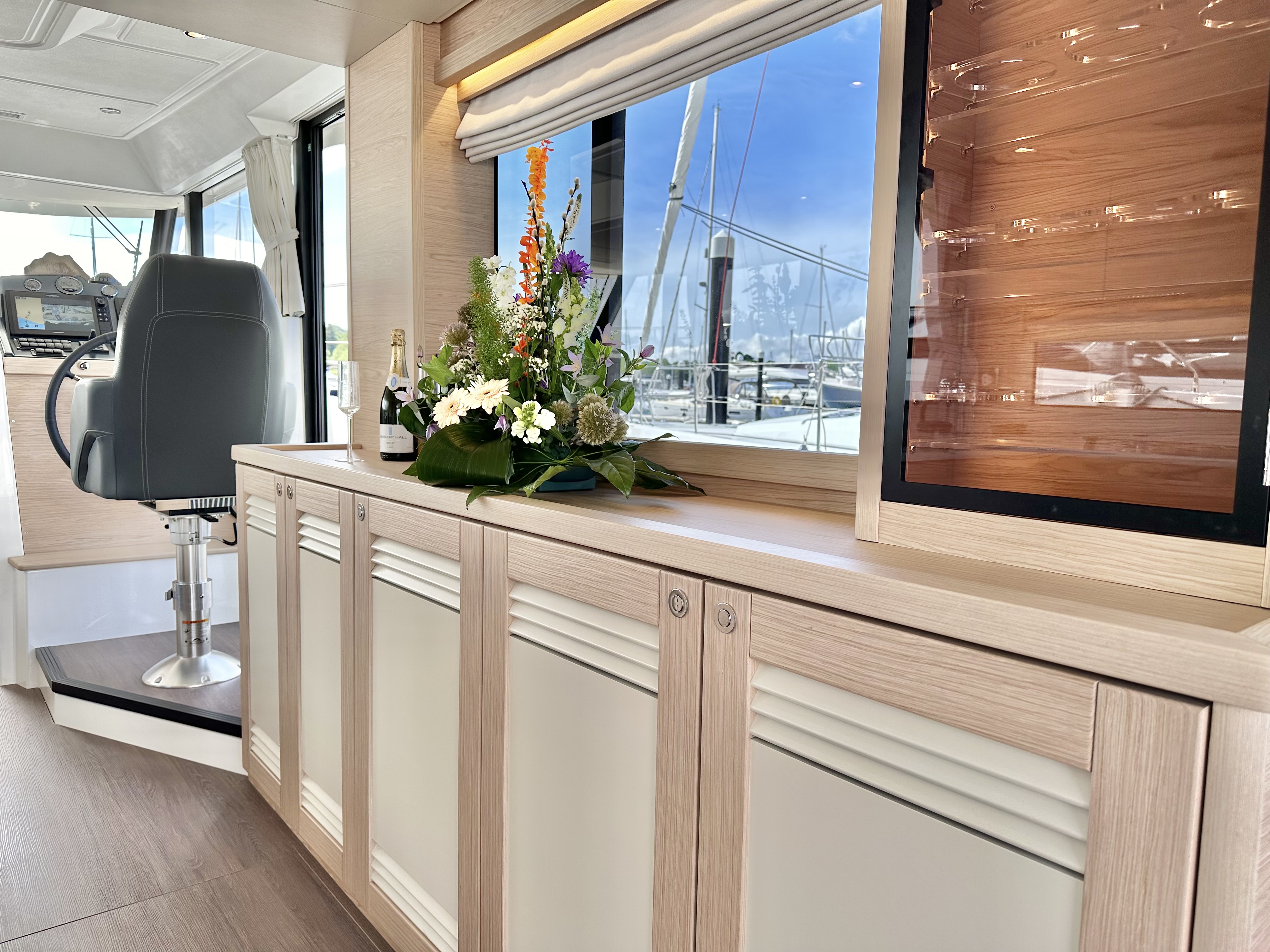

• Sideboard unit with shelved cupboards and winerack
• Sliding door aft 3 panel with black lacquered aluminium frame
• Leatherette sheathed stainless steel handrail in cockpit deckhead
• FUSION RA210 with 2 speakers in the wheelhouse, 2 speakers in the cockpit and 2 flybridge speakers

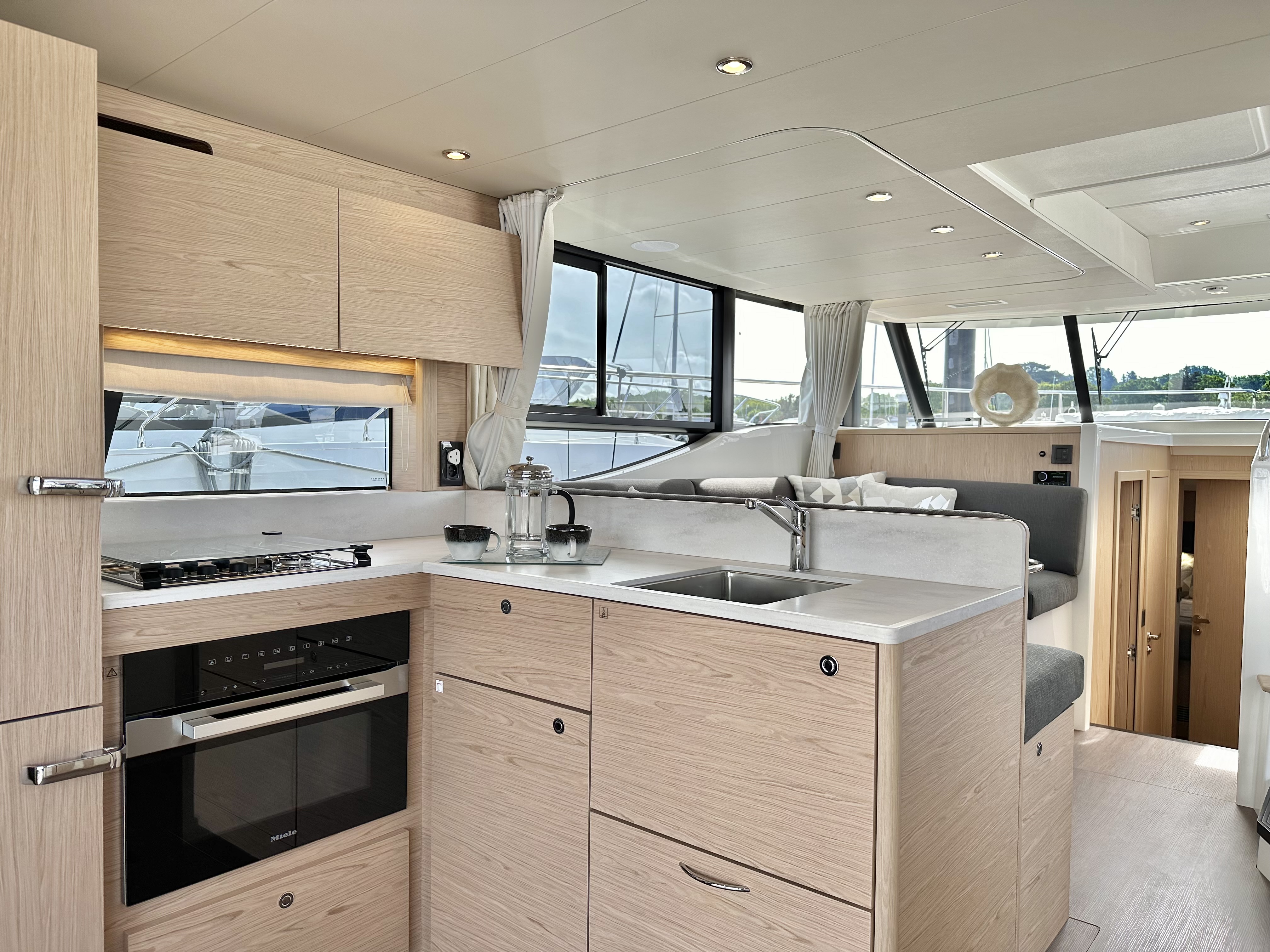

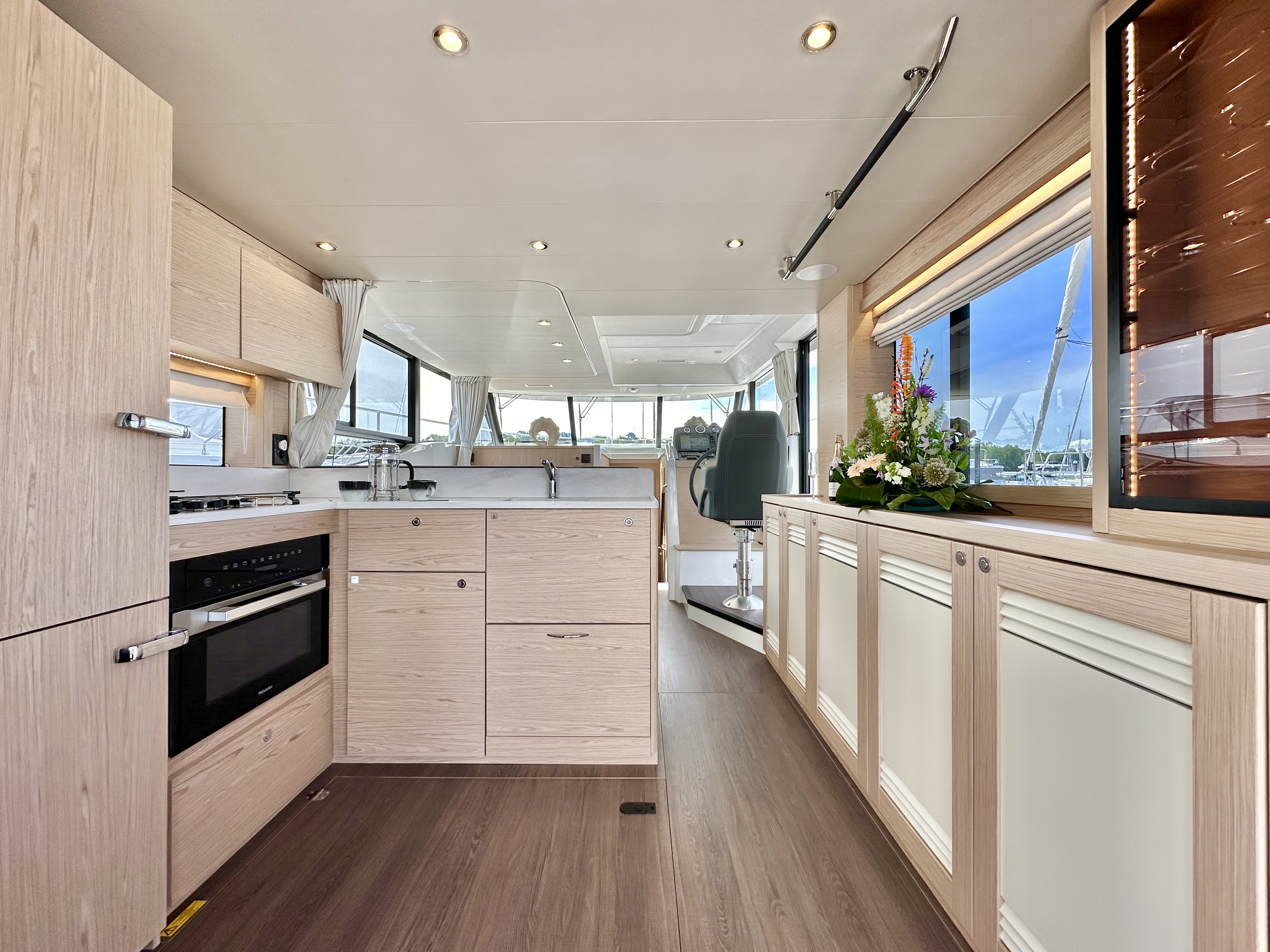

GALLEY
Headroom: 1,97m / 6’5’’
L-shaped galley
• Full height Fridge/Freezer 255 L/67 US Gal
• Corian countertop
• Large stainless steel sink with cold/hot water mixer
• Gas oven
• 3-burner hob with protective glass cover
• Overhead lockers
• Cutlery drawer
• Magic corner stowage, cupboards and drawers
• Double waste bin
• 220 V socket

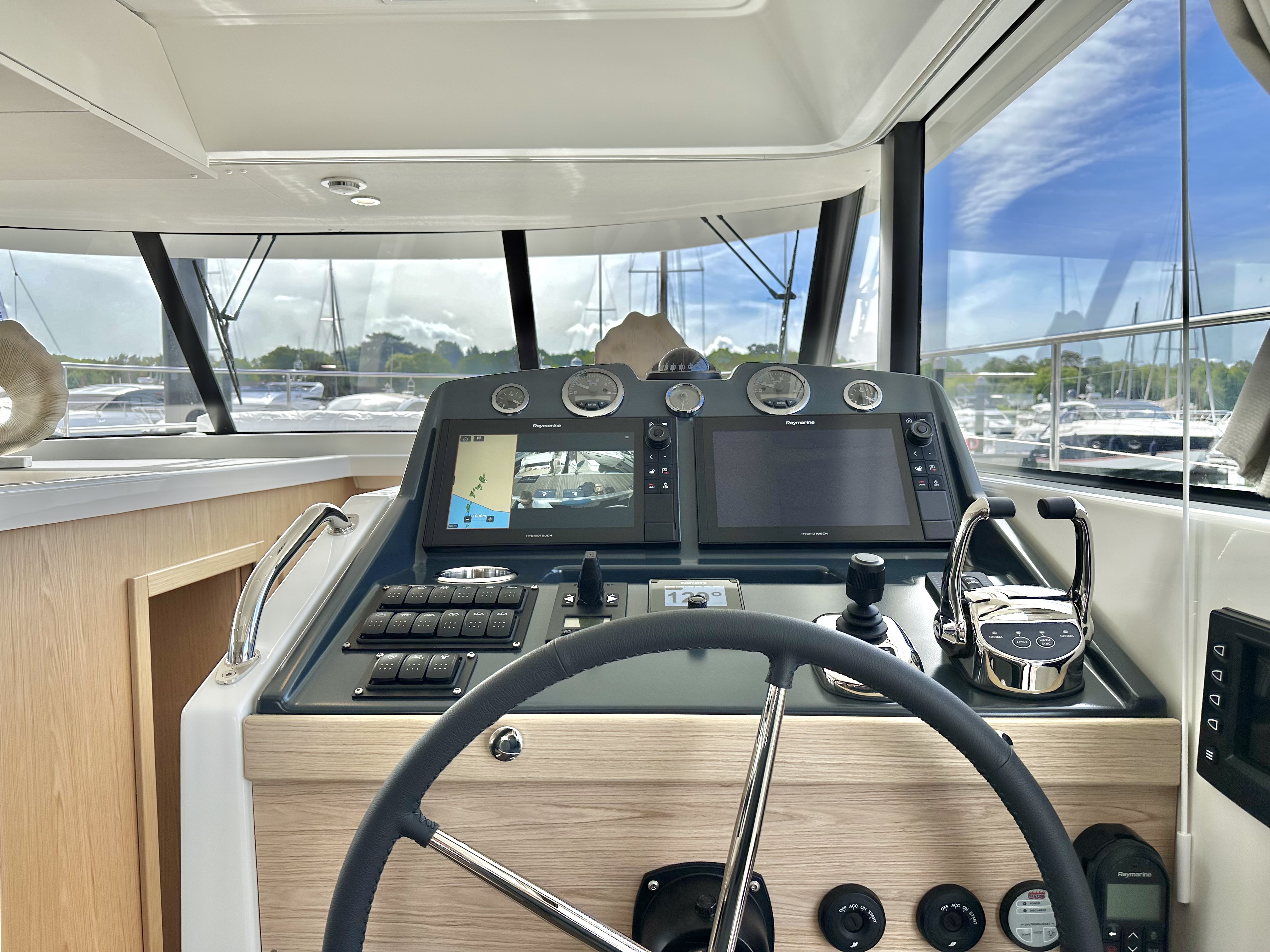

STEERING STATION
• Clear glass windscreen with aluminum frames black lacquered Anti-reflective coating
• 3 Synchronised windscreen wipers & Windscreen washer
• Demister
• Side windows with black lacquered aluminum frames
• Dashboard with place for navigation electronics
• Oddments spaces and storage on port side
• Engine dials: Rev counter, Fuel gauge, Warnings, Tiller angle indicator, Flap indicators
• Control: Electric windlass, Bow thruster, Navigation lights, Electric windscreen wipers and fog horns, Electric dual engine controls
• Steering wheel
• Steering compass
• Cup holder
• Pilot seat with flip up bolster, fully adjustable leg with flip up footrest

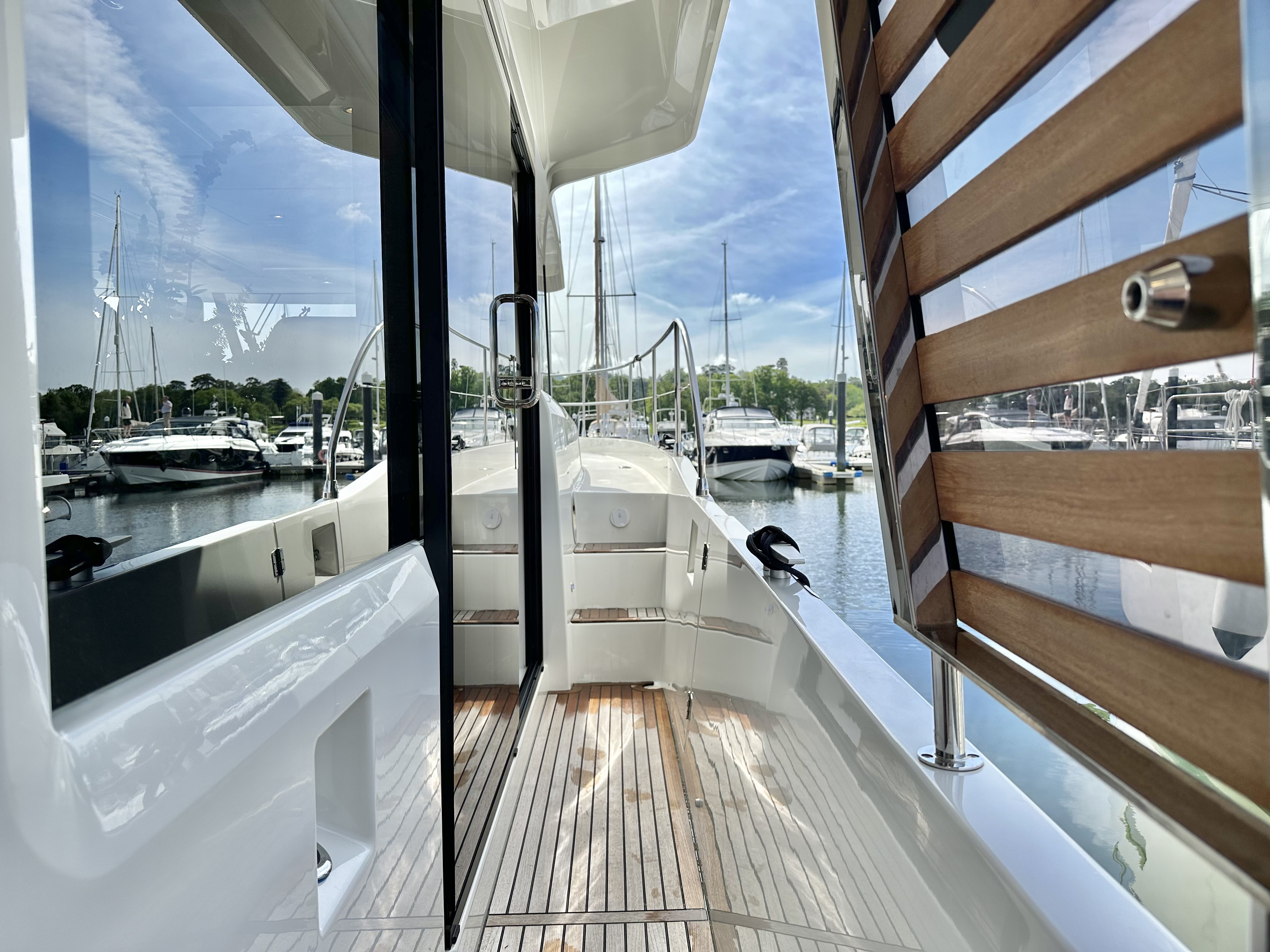

• Sliding side door with direct access to sidedeck

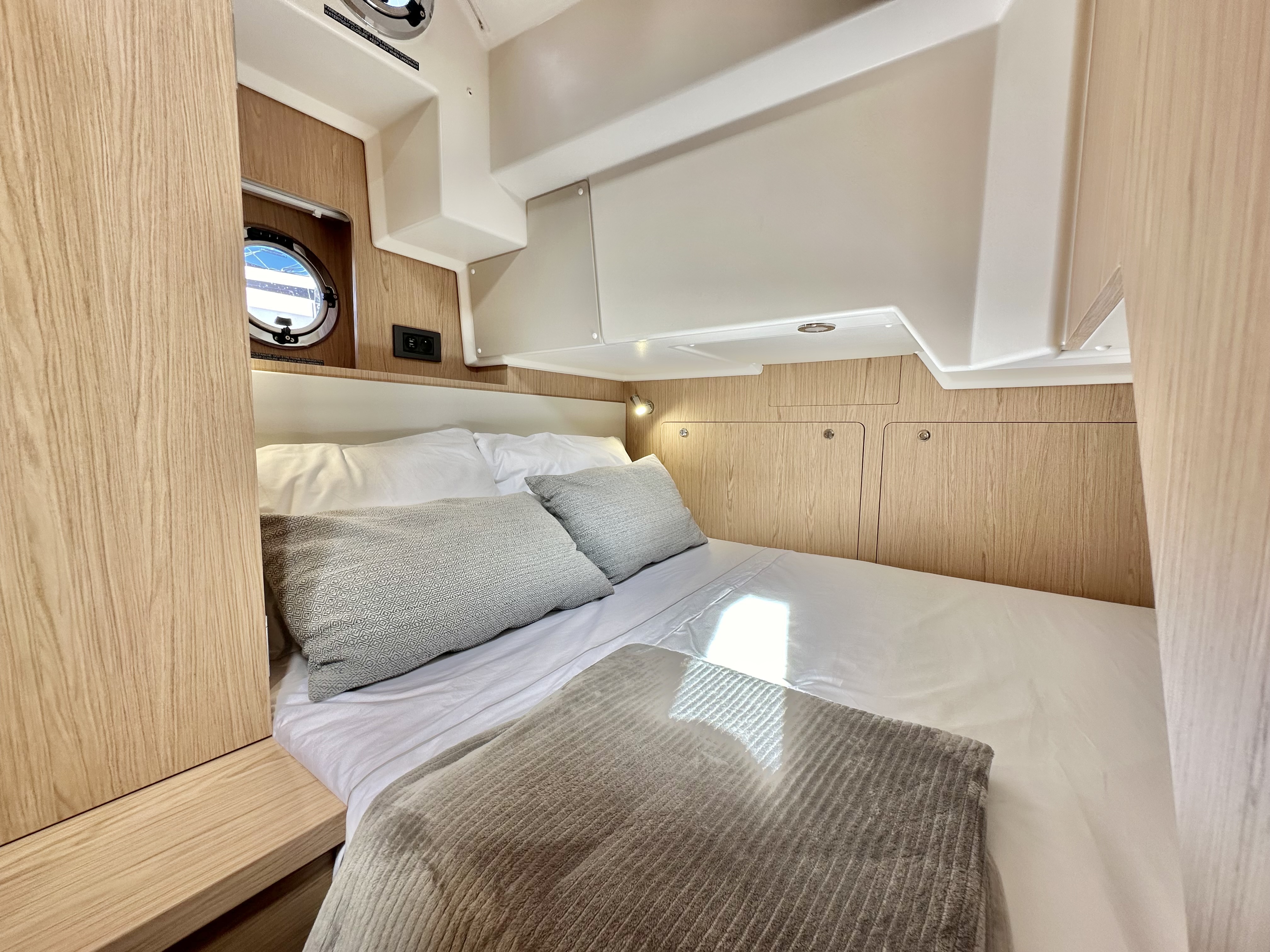

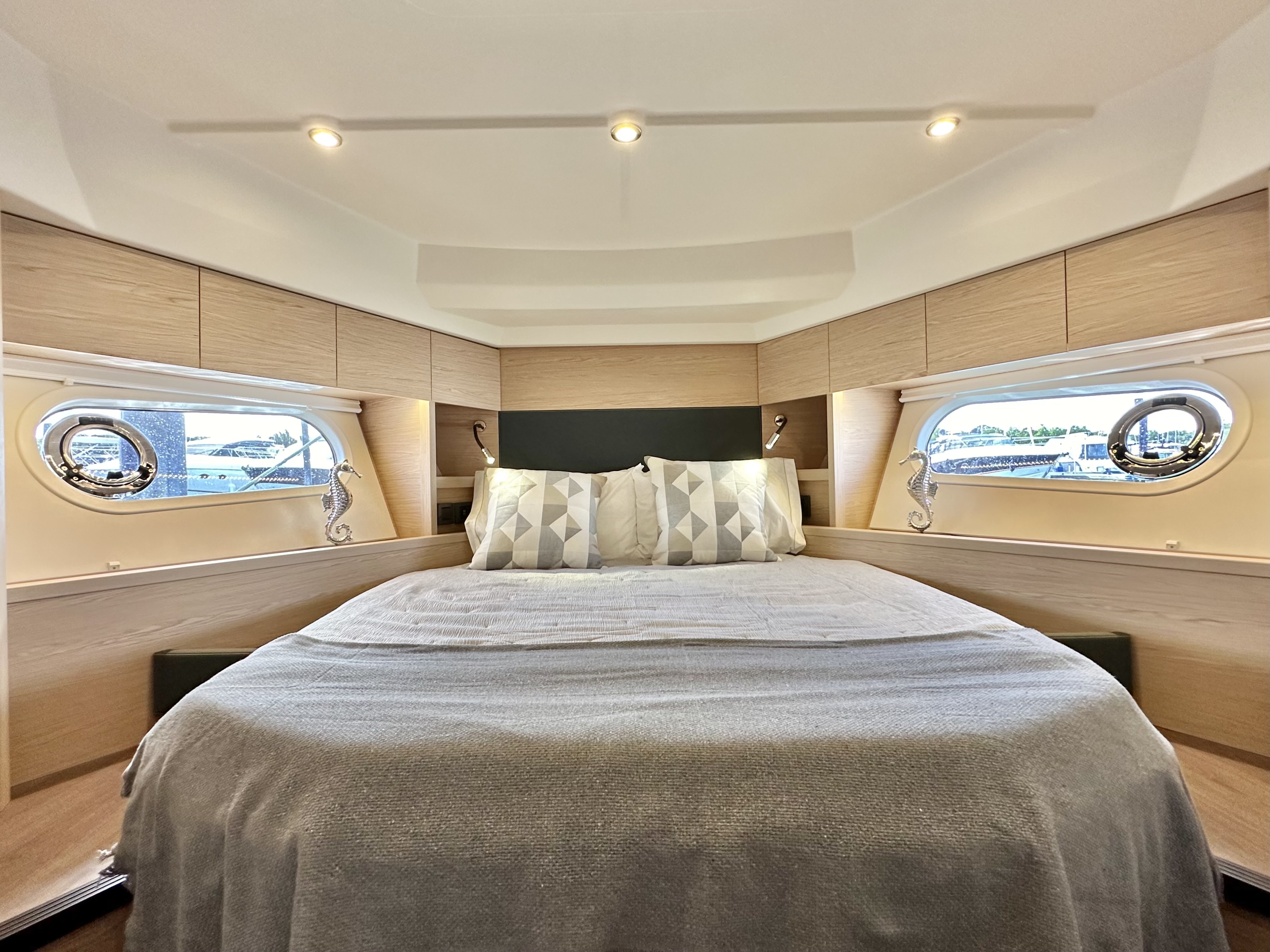

OWNER'S CABIN (FORWARD)
Headroom: 1,96m / 6’5’’
• Double berth (1,99 x 1,60m / 6’6’’ x 5’3’’)
• Storage under berth
• Stowage on both sides of berth
• Large mirror
• 1 Hanging locker with lighting
• 1 Cupboard with shelves
• 1 Opening deck hatch with fitted mosquito screen/blind
• 2 Hull windows with opening portholes and blackout blind

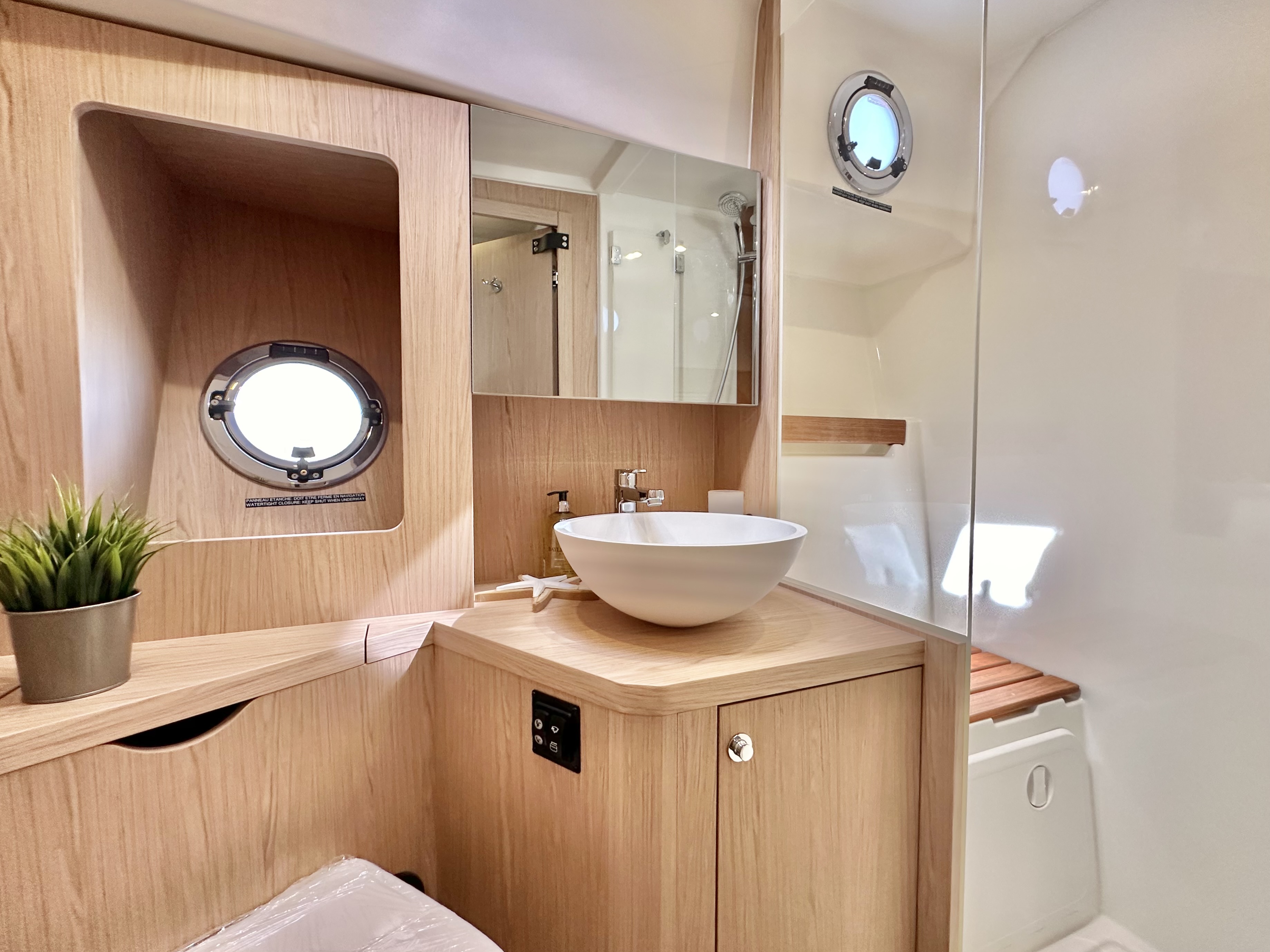

HEAD (OWNER'S CABIN)
Headroom: 1,96m / 6’5’’
Separate shower compartment with seat and hull porthole
Deck hatch with mosquito screen/blind
• Mirror
• Top and bottom cupboard
• Electric toilet flushing with fresh water and salt water
• Oval washbasin
• 1 Opening deck hatch with fitted mosquito screen/blind
• 1 Hull porthole

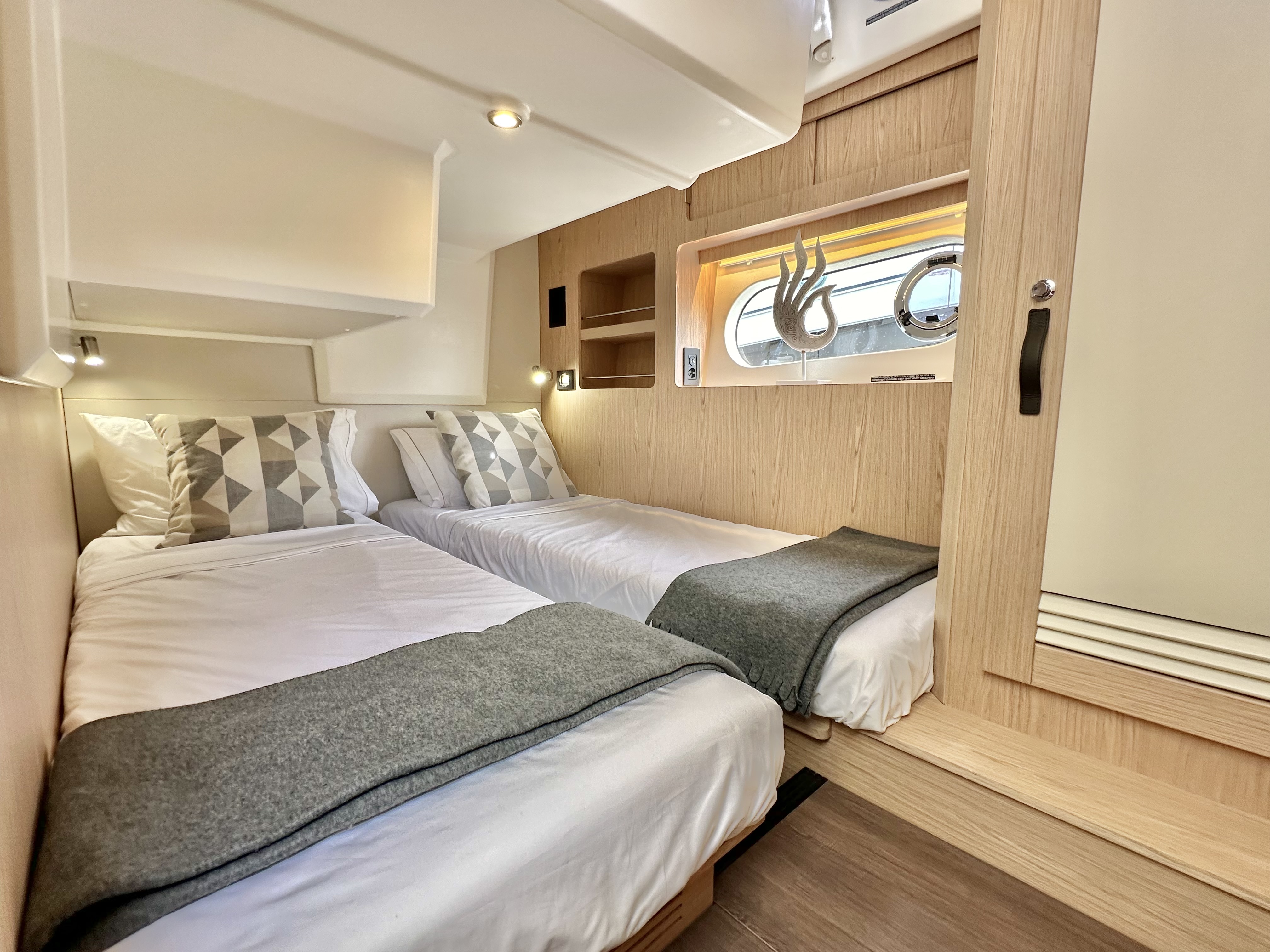

VIP CABIN (PORT)
Headroom: 1,92m / 6’3½’’
• 2 Single beds (1,98 x 0,7m / 6’6’’ x 27½’’)
In-fill cushions to make up double berth
• En-suite door to day head
• Bedside table
• Large mirror
• Wardrobe
• Cupboards
• Storage under berth
• 3 Shelving unit
• Hull window with opening porthole and blackout blind
THIRD CABIN (STARBOARD)
Headroom: 2,01m / 6’7’’
• Double berth (1,94 x 1,40m / 6’4½’’ x 4’7’’)
• Bedside shelf
• Wardrobe
• Storage under berth
• Opening hull portholes with curtains

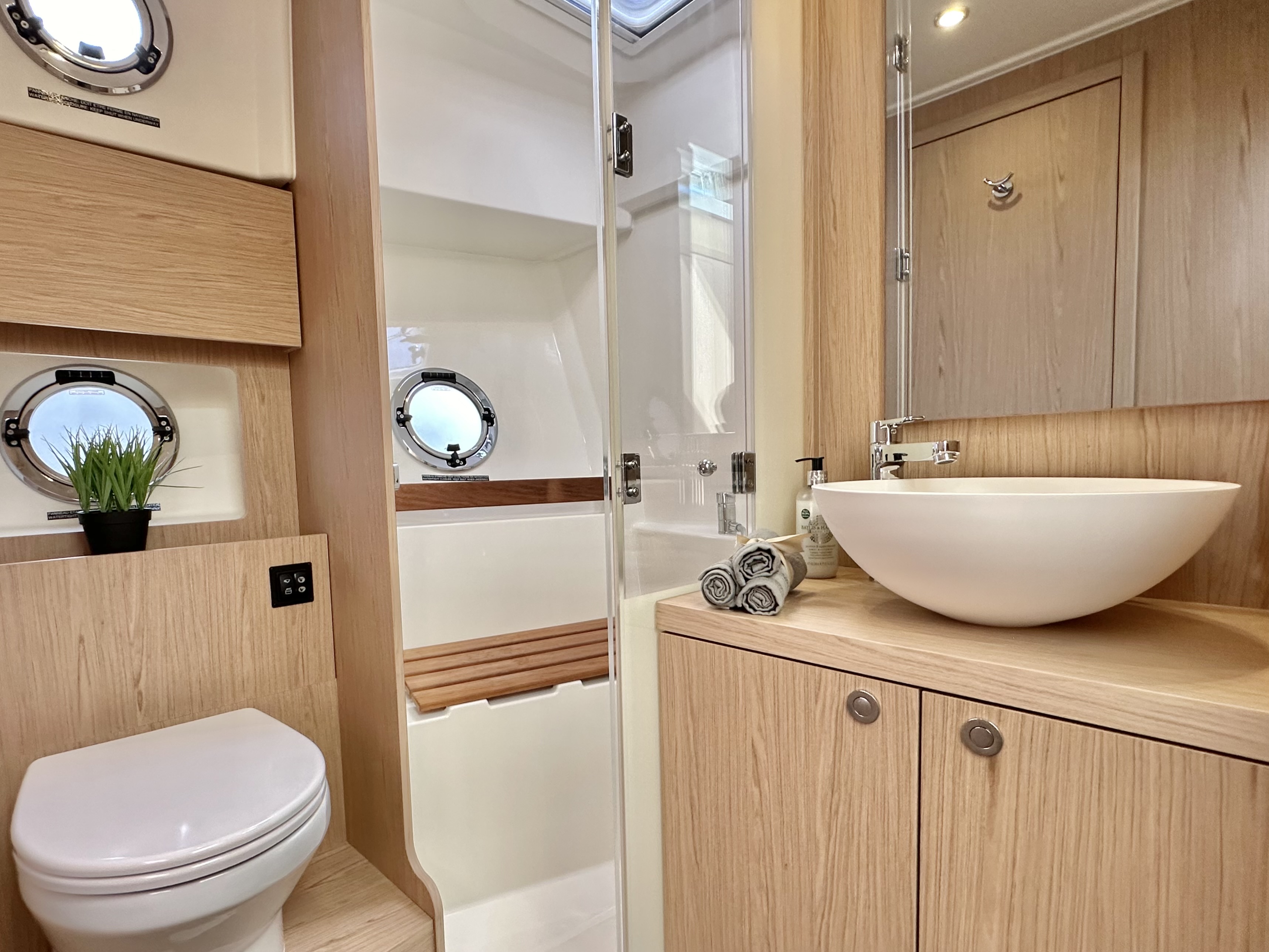

DAY HEAD (PORT SIDE)
Headroom: 1,93m / 6’4’’
• Mirror
• Top and bottom cupboard
• Electric toilet flushing with fresh water and salt water
• Oval washbasin
• Separate shower compartment with seat and hull porthole
• Deck hatch with mosquito screen/blind
• 1 Opening deck hatch with fitted mosquito screen/blind
• 1 Hull porthole


In addition to the standard specification the following optional accessories have been added:

Beneteau Power Fit Options
Twin Cummins QSB 6.7 425HP Diesels
Qty Description
1 3 cabins, 2 heads, Alpi oak
1 ST48 comfort trim level 2023
1 ST48 electronics pack 2023
1 Bolt greige upholstery
1 White hull
1 Solid wood slatted cockpit floor and starboard side deck
1 Hydraulic swim platform
1 Removeable swim ladder
1 Flanelle cockpit aft closing
1 Flybridge white covers for console & seats
1 External upholstery in Dolce 51
1 Foredeck sunpad in Dolce 51
1 Cockpit cushions in Dolce 51
1 Mooring & anchoring kit
1 Dual station sternthruster
1 Dual station bowthruster
1 Automatic fire extinguisher system
1 Raymarine windvane & anenometer
1 Raymarine Quantum Radar
1 Upgrade service battery to AGM
1 TV pre-wiring to saloon

Package Contents - ST48 comfort trim level 2023
1 Bowthruster
10 Cup holders
1 Deck wash pump
1 AMS web server (Ship Control)
1 Pre-wiring for heating installation
1 Pre-installation preparation for air conditioning
2 Additional 140A domestic batteries
1 2 KVA inverter
2 9" Raymarine screens (interior)
2 9" Raymarine screens (flybridge)
1 Autopilot
1 Raymarine VHF
1 Dock water inlet
1 Twin station searchlight
1 40L flybridge fridge

Package Contents - ST48 electronics pack 2023
1 Two Raymarine 12" MFD to interor helm
1 Two Raymarine 12" MFD to flybridge helm
1 Raymarine AIS transceiver

Ancasta Fit Options
Qty Description
1 Navionics Platinum Plus cartridge

Finance Calculator

Ancasta are acting as brokers for the vendor who is not selling in the course of business unless otherwise stated. These details are prepared from information provided by the vendor and are intended only as a guide to give a fair description of the vessel but their accuracy cannot be guaranteed and they do not constitute part of any contract. A prospective buyer is strongly advised to check the particulars and to have the vessel fully surveyed by a qualified marine surveyor. Details are supplied on the understanding that all negotiations shall be through Ancasta brokerages. This vessel is offered subject to prior sale, price change or withdrawal without notice. Please Note: where the vessel’s status shows as “Preliminary”, details of the vessel have not yet been confirmed by the Vendor.

Advanced Rigging

Enjoy a 10% discount

with Advanced Rigging & Hydraulics on new standing and running rigging when you buy a used yacht through the Ancasta Brokerage network. Also, contact Advanced Rigging & Hydraulics about their discounts on mooring and anchoring system for motoryachts purchased via Ancasta.

Call: +44 02380 454 280
Email: info@advancedrigging.co.uk
*quote: “Ancasta Brokerage offer”

Or fill out the form
