- Make Nautor Swan
- Model ClubSwan 43
- Year 2025
- LOA 43ft/13m
- Class Performance Sail
- Hull Foam Core Epoxy
- Keel Fin Keel
- Rig Sloop
- Engine Single Diesel
- Layout Aft Cockpit
- Ancasta Ref 50592
- Name ONDA
Nautor Swan ClubSwan 43 | 2025
950,000
|
Badalona Spain

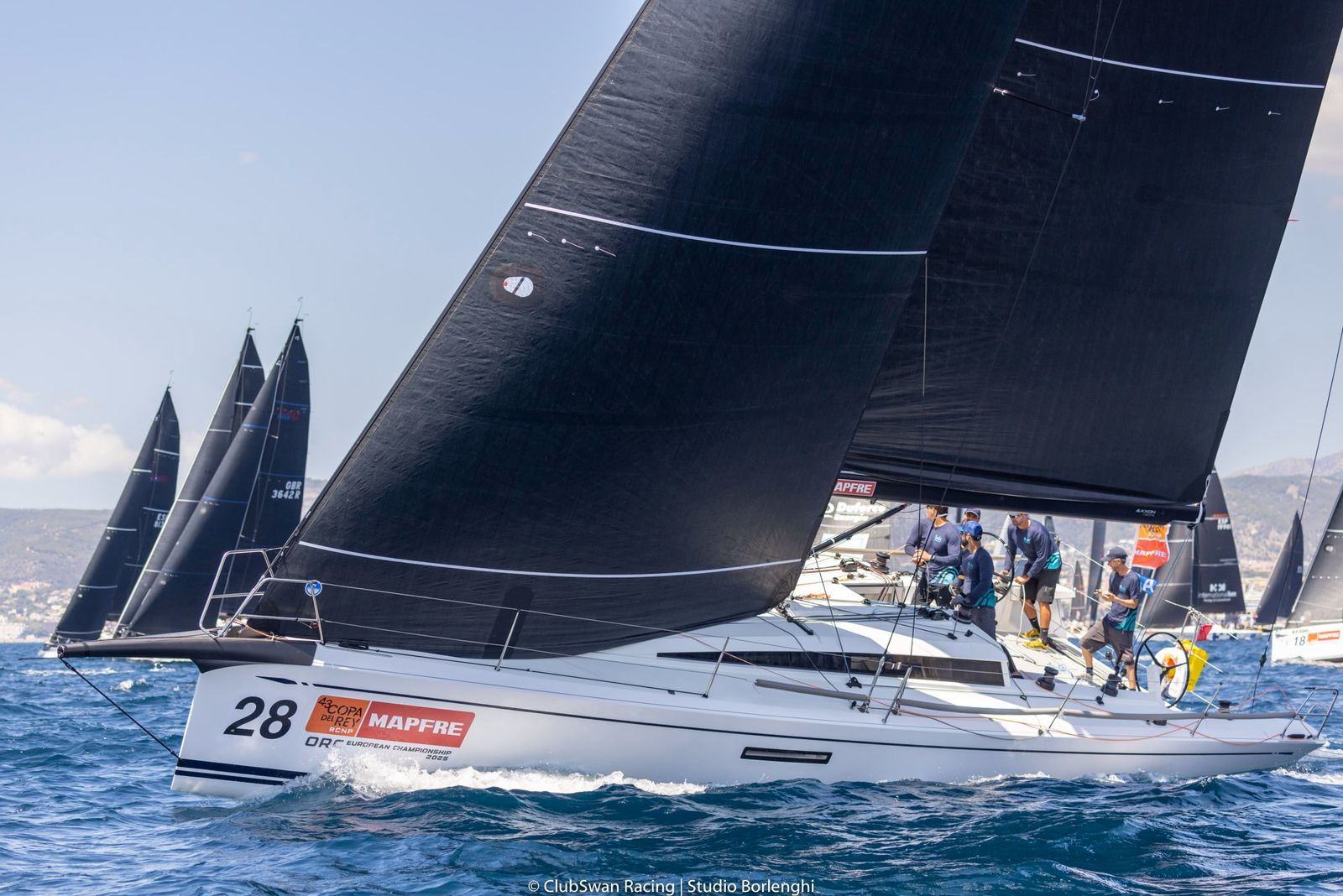

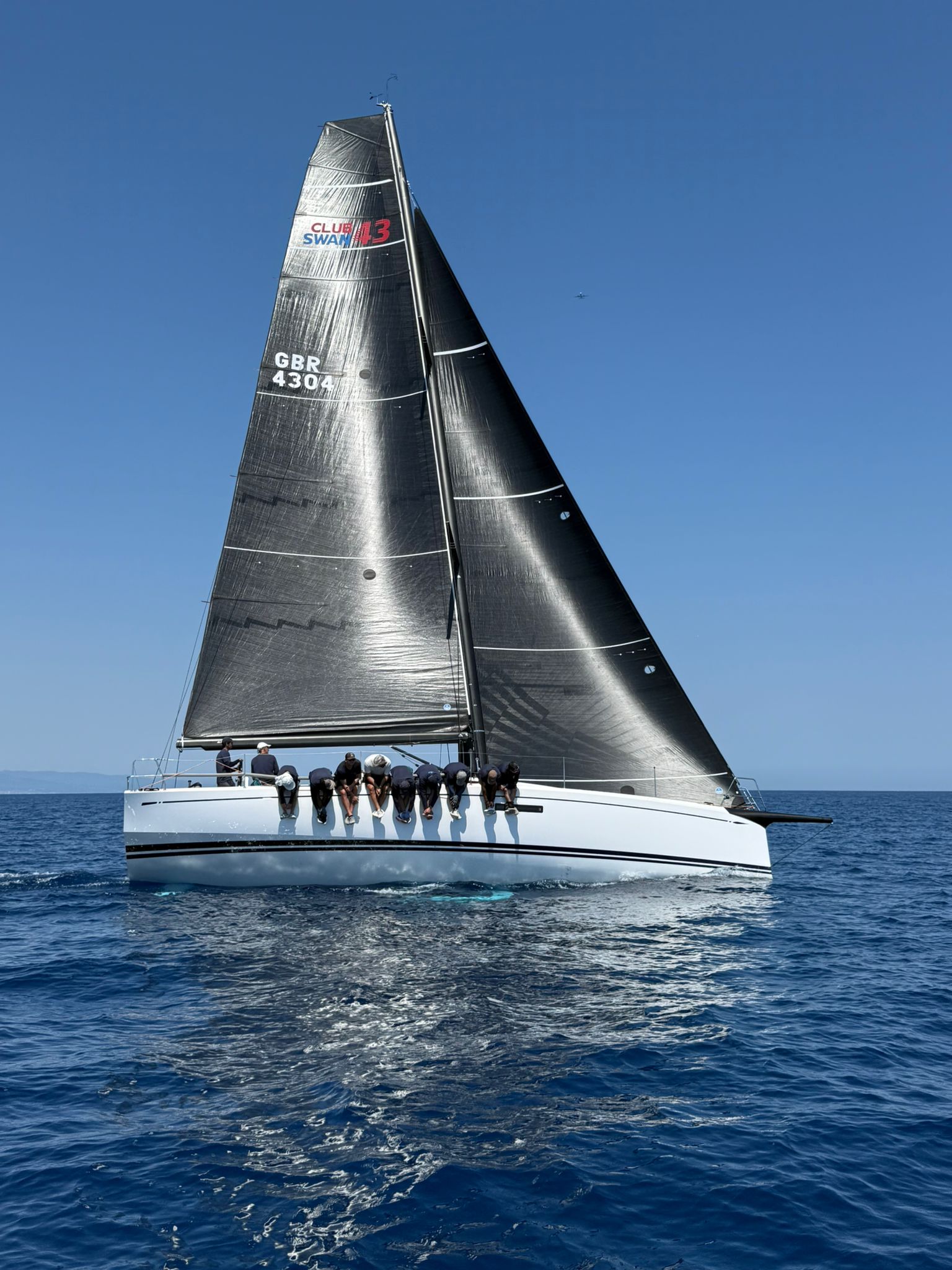

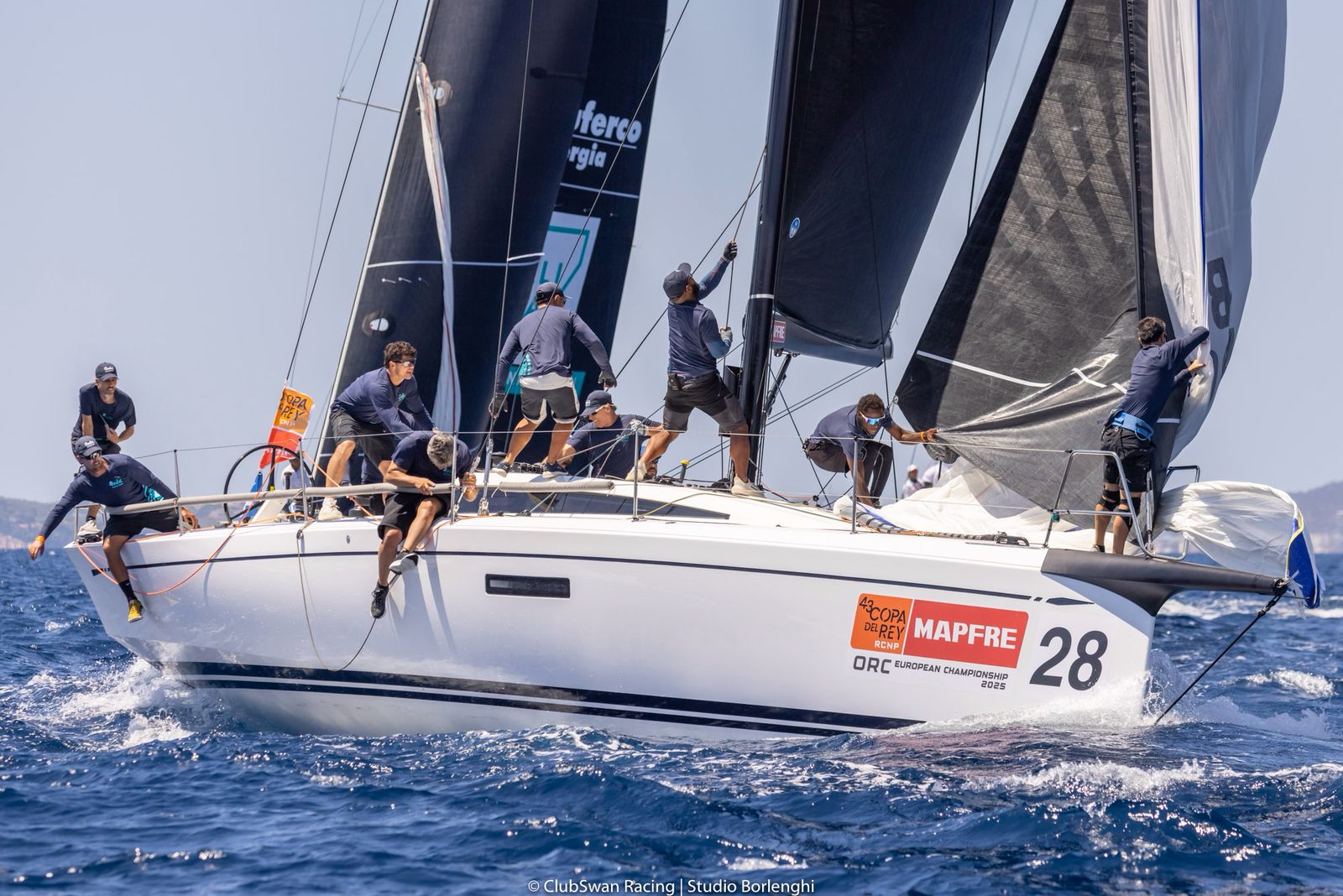

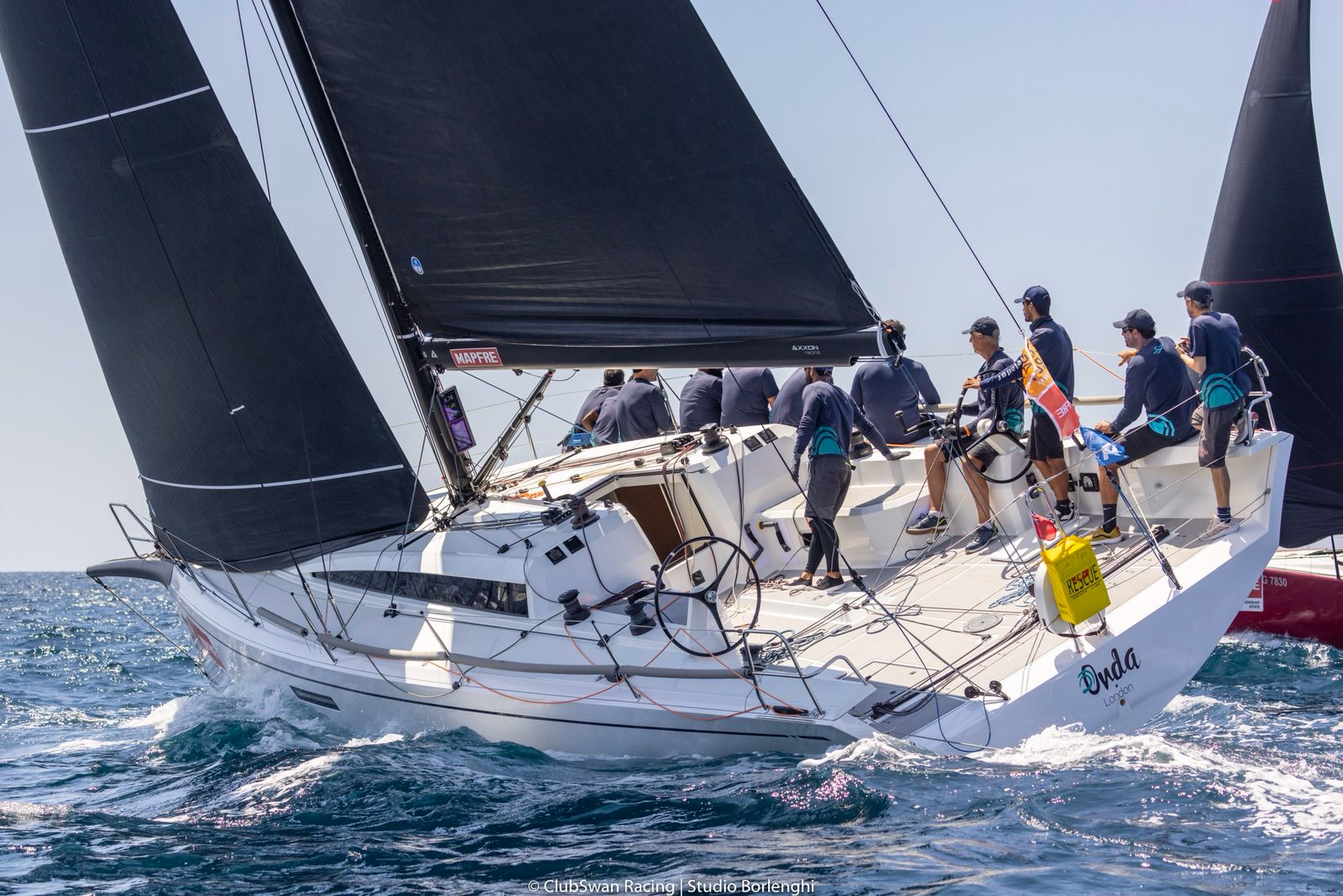

"Onda" is an "as-new" Clubswan 43 that was launched in summer 2025 and designed by the legendary Juan-K.
Designed to replaced the aging CS42, this new 43footer is at the cutting edge of contemporary design, whilst being a true cross-over yacht offering plenty below decks.
Built for an experienced owner, she has the very best B&G inventory onboard, as well as an enviable sails list from North Sails, some of which have only been hoisted to check sizing.
Beyond that she has a comprehensive list of Swan optional extras, including a Durepox bottom, spin take down system and a shore/shipping cradle to name but few.
With the owners plans changing, ONDA is unexpectedly now available and wants for absolutely nothing..

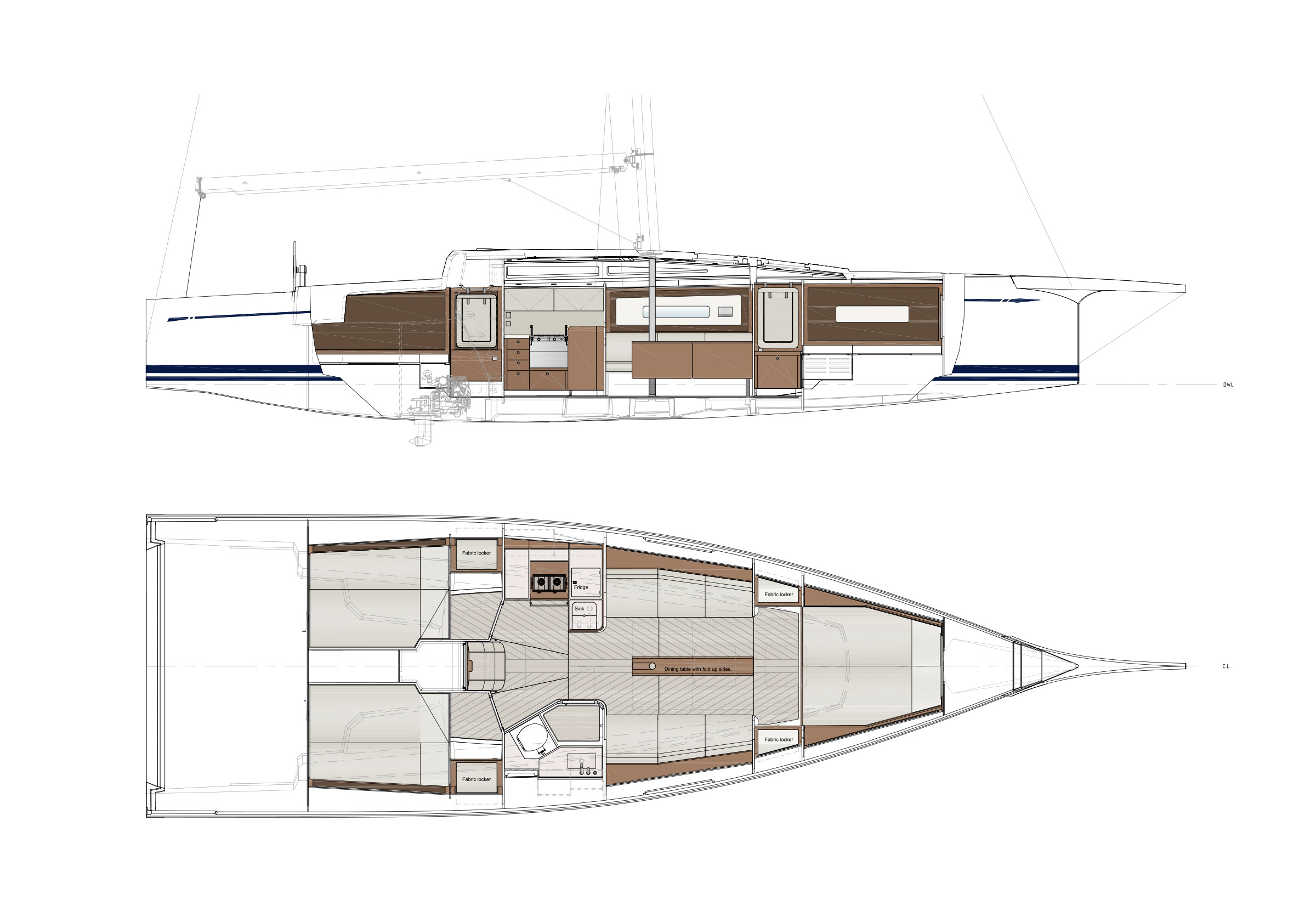

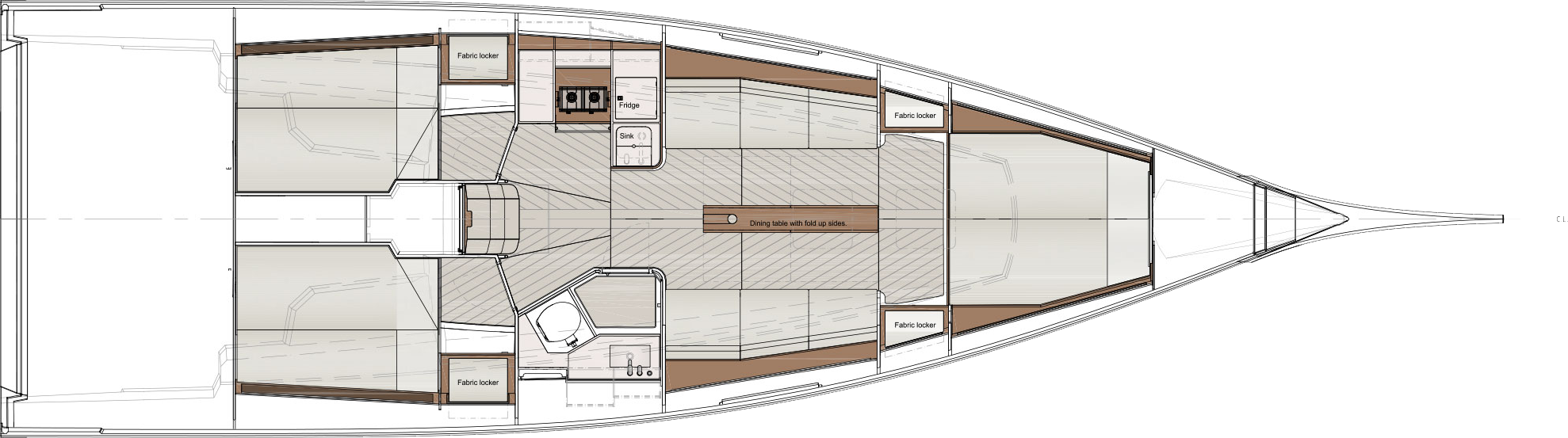

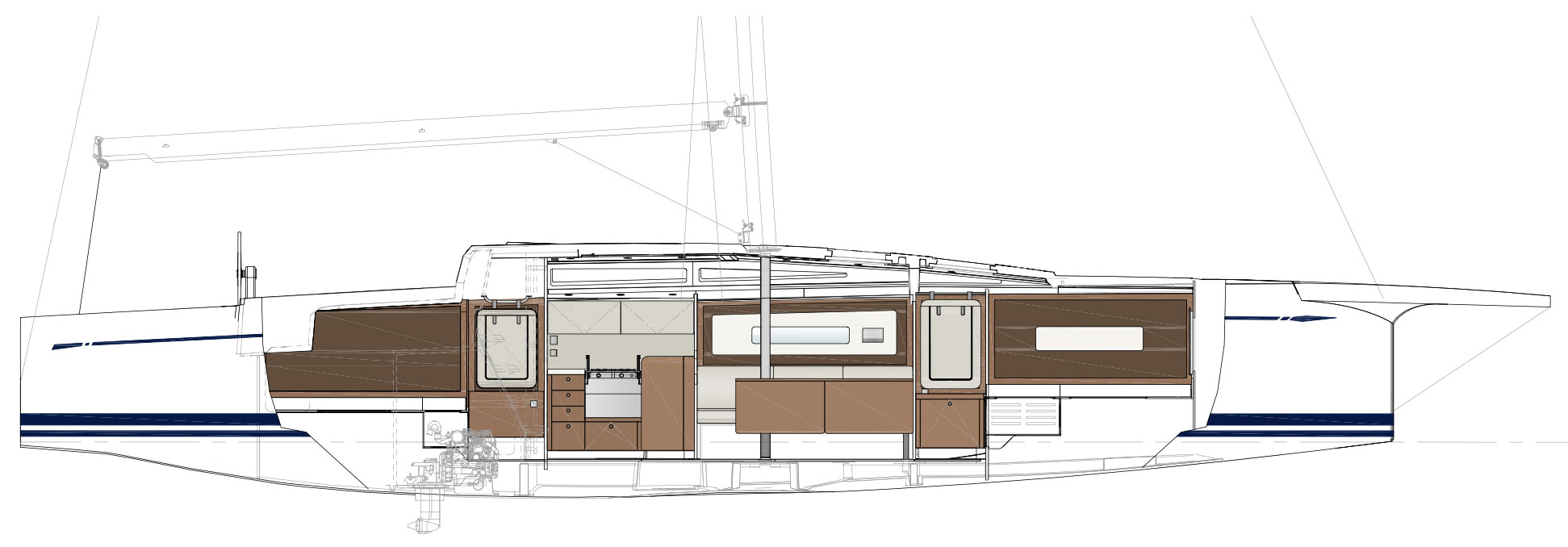

Layout
TECHNICAL SPECIFICATION
HULL LOA (incl. bowsprit):14.56 m / 47.8 ft
HULL CONSTRUCTION LENGTH:13.10 m / 43.0 ft
BEAM MAX:4.25 m / 14 ft
DRAUGHT (light):2.80 m / 9.1 ft
DISPLACEMENT (empty):6.950 kg / 15.322 lbs
ENGINE:Yanmar 30 HP
TOTAL SAIL AREA:118.2 sq m / 1.272 sq ft
FORE TRIANGLE:45.5 sq m / 490 sq ft
MAIN SAIL:72.7 sq m / 782 sq ft
ASYMMETRIC SPINNAKER:174 sq m / 1.873 sq ft
FUEL:140 I / 37 gal (us)
FRESH WATER:300 I / 80 gal (us)
BLACK WATER:50 I / 13.21 gal (us)
The CS43 is fitted with a carbon One Design Axxon mast and boom package, which has a two-spreader arrangement and is deck stepped.
The standing rigging is made from Rod and the boat is supplied with a full, race-ready running rigging package.
The rig and boom are reef capable and she is finished with a satin black overcoat paint.
QSA3519-001 Square Top Mainsail 3Di RAW 870 19,600 Dpi
QSA3519-002 Jib Light 3Di RAW 870 14,700 Dpi
QSA3519-003 Jib Medium 3Di RAW 870 19,600 Dpi
QSA3519-004 Jib Heavy 3Di RAW 870 22,400 Dpi
QSA3519-005 Jib Heavy Weather OSR Max 3Di ENDURANCE 780 22,400 Dpi
QSA3519-006 A1.5 Asymmetric Aerotech Nylon Aerotech N32 Coated Nylon
QSA3519-007 A2 Asymmetric Aerotech Nylon Aerotech N40 Coated Nylon
QSA3519-008 A4 Asymmetric Aerotech Nylon Aerotech N55 Coated Nylon
QSA3519-009 Spinnaker Staysail NPL Code Xi Xi04 CD
QSA3519-010 Storm Jib Polyester High Visibility 10oz Storm Orange
QSA3519-011 Storm Trysail Polyester High Visibility 8oz Storm Orange
ONDA Electronics Package
B&G Hercules Sailing Computer
B& Triton2 4.1" Digital displays
B&G Nemesis 9"
B&G Nemesis Mast Bracket
B&G Wind Sensor VMHU 1050mm (analog)
B&G VMHU Top Mount Bracket
B&G VMHU 36m mast cable
DT800 N2k Depth/Temperature Transducer
Housing Plastic thruhull FLUSH (for DT800)
B&G Speed Sensor Analog - plastic thruhull FLUSH
B&G Precision9 Compass *(também incluso no kit do piloto automático)
B&G ZG100 GPS
B&G 3D Motion sensor 1
B&G V100-B VHF + AIS Transceiver 1
B&G H60 Wireless VHF handset
B&G Zeus S 9inch
Autopilot system
B&G NAC-3 Core Pack (Processor, Compass, Rudder sensor)
B&G Triton2 Pilot Keypad
Jefa Drive DD1, accessories
Nautor Swan factory fit upgrades:
- Hull Durepox for racing. 4 coats sprayed with Durepox primer.
- Winch handle upgrade. One touch winch handles pack.
- Kite retriever system. Gennaker take down system with carbon fiber roller. Additional weight 5 kg.
- Cockpit Seadeck Foam Decking in Storm grey with black markings instead of standard antiskid paint. Additional weight 12 kg
- Staysail sheets.

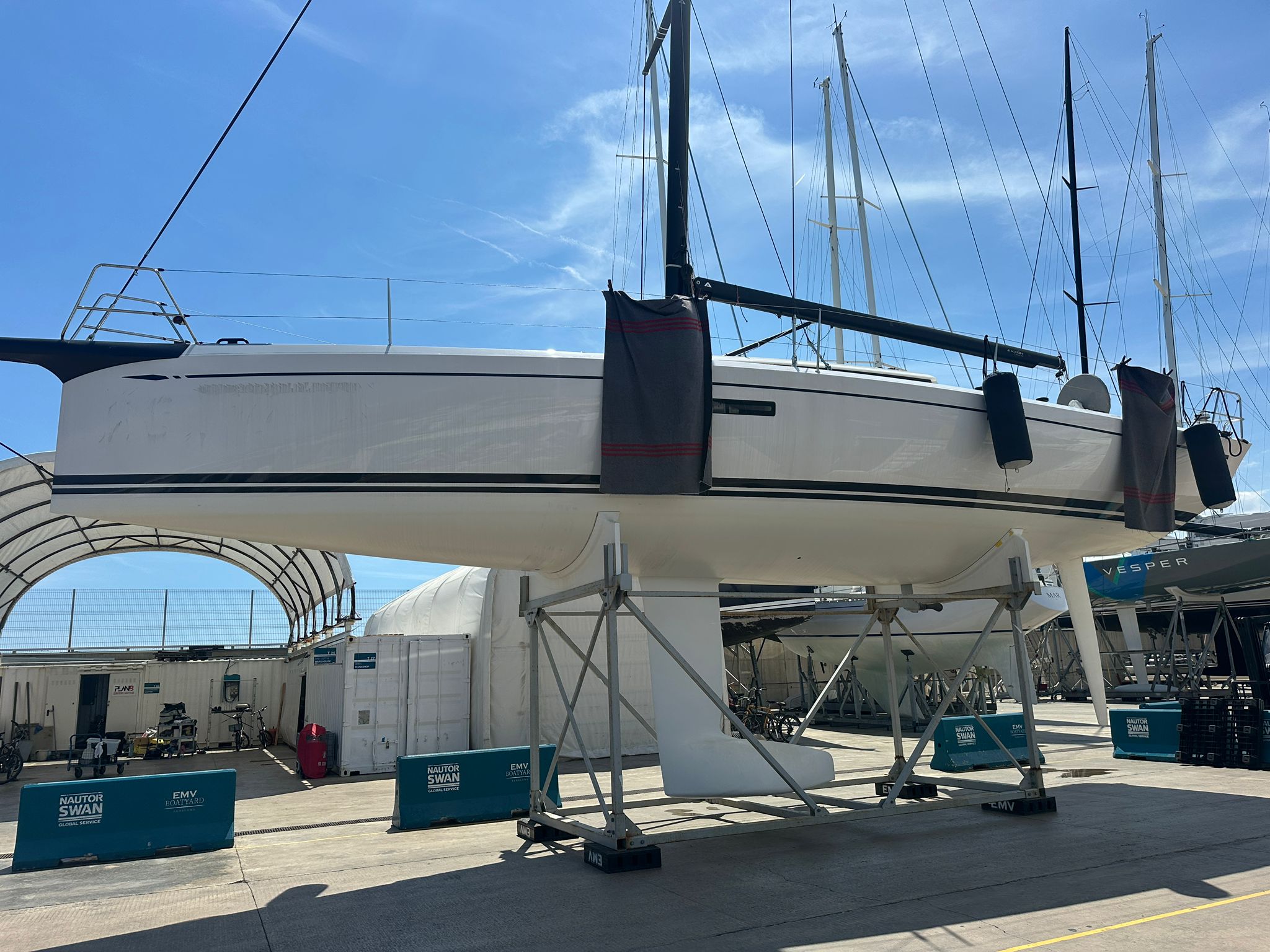

- Yacht and keel cradle. Yacht cradle can be adjusted in two different heights, one height when keel on and one with keel off.
- Inflatable fenders, 6 pcs, easy store 104x32, dark grey covers, black ropes and 12V inflator.
