MILLS 45

850,000 Tax Paid | Location: Adelaide
Enquire

Summary

  • Make MILLS
  • Model 45
  • Year 2015
  • LOA 45ft/14m
  • Class Performance Sail
  • Hull Carbon Fibre
  • Keel Fin Keel
  • Rig Sloop
  • Engine Single Diesel
  • Layout Aft Cockpit
  • Berths 8
  • Ancasta Ref 32951
  • Name Concubine

Overview

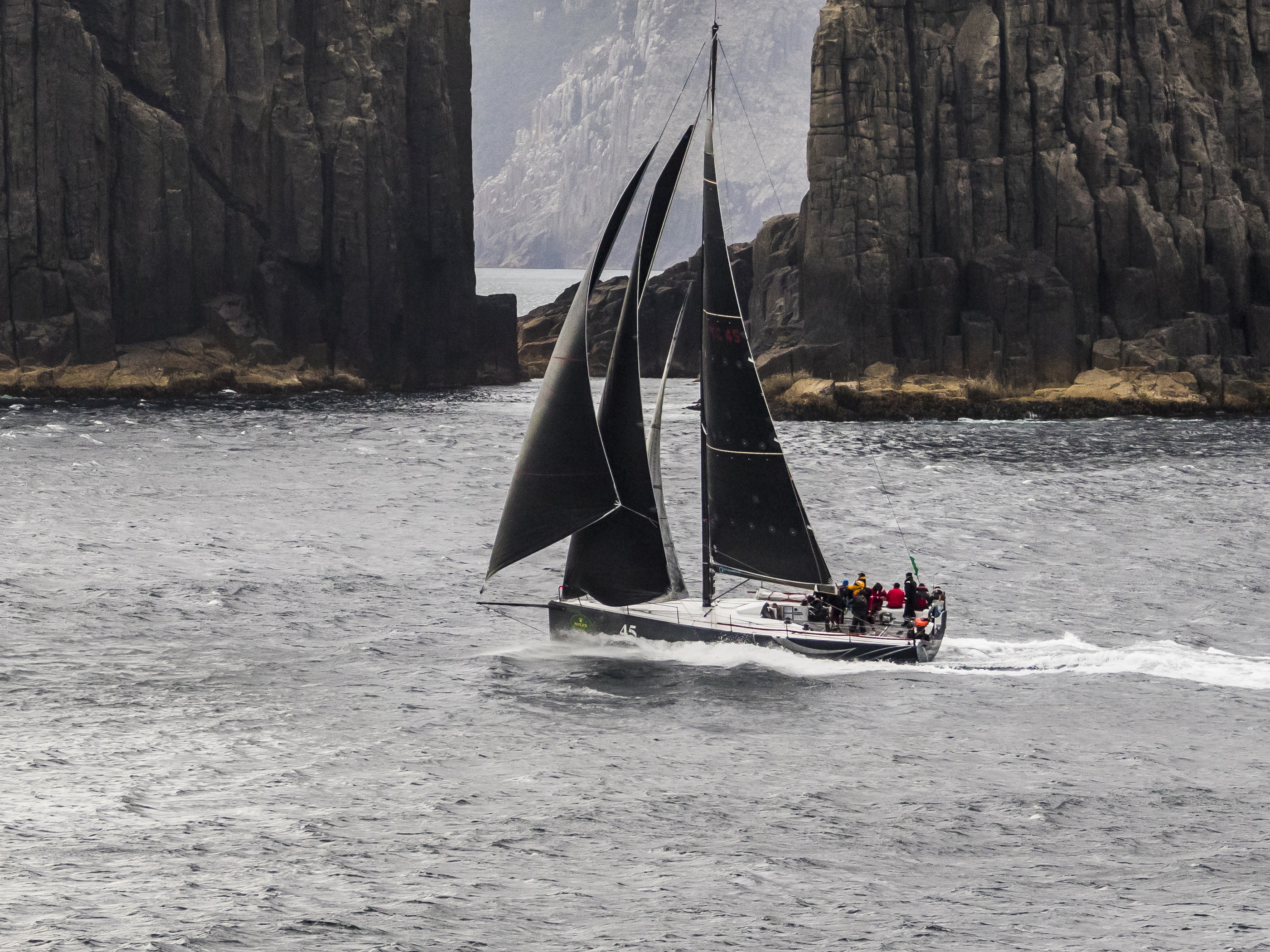

CONCUBINE, launched in mid 2015, is without question one of the stand out boats on the Australian circuit, both in terms of performance and presentation......
A full grand-prix build and meticulous management from start to finish has got the boat to where she is today, consistently challenging for the top spot and affording the owner the chance of winning every time he lines up on the start line.
Most at home offshore, CONCUBINE is a full carbon build from the highly experienced guys at Premier Composites, along with a high-spec Harken deck package and full inshore and offshore GP sail inventories.
If you want a boat that has the chance of winning some of yachting's most iconic races, this boats needs a second look!
Exclusively listed with Ancasta Race Boats.

Build


Boat Name ‘Concubine’ YC45
Located CYCSA Adelaide, South Australia
Designer Mills 45, Mark Mills
Builder Premier Composite Technologies
Year 2015
Length 13.7m, 45ft
Beam 4.5m
Draft 3.3m
Disp. 5519kg

IRC TCC 1.309
Upwind Sail Area 126sqm
SPA 232sqm
ISP 20.77m
P 18.90m
I 18.46m
E 6.00m
J 5.13m
STL 8.24m

Professionally Managed and Maintained full time.
Project managed by Silas Nolan.



Build;
Hull/Deck Construction - Hull & deck constructed of carbon infused epoxy laminate & core cell foam under vacuum, cured in oven
Hull, Deck and liners moulded from CNC female tooling
Keel Construction - Cast spar with Composite fairings
Spare Keel fin
CNC milled lead bulb with weight and trim pocket
Owen & Clarke Design Rudder 2017 – Female moulded pre preg carbon fibre blade with autoclaved stock
Spare Mills design rudder blade
JP3 Bearings upgraded 2017
2 x Wheels with helm platform
Endoscope
Custom Carbon Antenna mast
Composite stanchions + spare set
Composite pulpit and pushpit
Inshore and Offshore Hatch
Halls SCR aerofoil bobstay
Spare bowsprit and rod bobstay

Spars & Rigging


MAST
Hall Spars 236C carbon section with taper
Ultra High modulus HR40 prepreg carbon fibre
Autoclave cured at 120 degrees Celsius at 6 bar
Mast tube made on a mandrel
2 piece join for shipping in a 40ft container
2 sets spreaders high modulus
Rod rigging
Composite Forestay, ECSix 2017
Gorilla Foil
Forestay Load cell
Twin backstays with internal HF aerial
Titanium internal parts
Adjustable Mast Base
Internal Mast Ram + shims
Navtec Forestay Ram and pump
Provisions for deflector system in mast
2 x Mast head Halyard Locks
1 x Fractional Halyard Lock
1 x Jib Halyard Lock
1 x Genoa Staysail Halyard
Main Halyard Lock
Antal Mast Track to take boltrope or slides
Removable lazy jacks
Hall Carbon Reaching Strut

BOOM
34-700 autoclaved cured prepreg carbon fibre
Hall custom 280D mandrel moulded boom
1 x reef lock
Reef 2&3 sheaves and constrictors
Hall carbon stopper vang

RUNNING RIGGING
All running rigging supplied and maintained by Sydney Rigging Specialists,
2 x locking mast head halyards,
Main Halyard 4x lock bullets,
Fractional lock halyard,
Jib lock halyard,
Genoa staysail halyard,
Delivery main halyard,
Delivery Runner Tails,
Lazy Jacks,
5 x Jib Sheets,
4 x inshore spinnaker sheets,
6 x offshore spinnaker sheets,
halyard mouse lines,
removable above deck inshore jib hobble system,
1 x reef lock line,
2 x reef lines with nappies,
4 x PBO runner tails,
Port masthead non-locking inshore halyard,
Spare Vang Strop and steering cables,

Sail Inventory


MAINSAILS
North 3Di raw Offshore – 3 Reefs (2017)
North 3Di raw Inshore – 1 Reef (2016 modified for taller mast 2017)
North Sails Dacron Delivery Main – short hoist 2 Reef (2013)

HEADSAILS
North 3DI Raw Light (2016)
North 3DI Raw Medium (2016)
North 3DI Raw Heavy (2016)
North 3DL #4 (2015)
North 3DL #5 (2015)
North 3DL Light/Medium (2015)
North3DL Medium/Heavy (2015)
Doyle Sails Dacron Delivery Jib (2015)

STAYSAILS
North Sails 3DL Genoa Staysail (2015)
North Sails 3DL Spinnaker Staysail (2015)

SPINNAKERS
Doyle Stratis Fractional Code Zero (2015)
Doyle Stratis Cable-less Masthead Code Zero (2017)
North 3DI Raw Blast Reaching Zero (2017)
North A1.5 (2015)
North A2A (2015)
North A2B (2017)
North A2+ (2016)
North A3 Cuban Fibre Top down furling (2017)
North A4 (2015)
North A6 (2015)
Doyle A2 (2015) Training

STORM SAILS
North Sails Storm Jib (2015)
North Sails Storm Trysail (2015)

Comprehensive rig tuning guide available upon request.

FURLING UNITS
2 x KZ Marine 2t furling units
1 x KZ Marine 1t furling unit
2 x KZ Marine 2t integrator

Hardware



WINCH PACKAGE
2 x Harken 65.3 Mainsheet (pedestal driven)
2 x Harken 65.3 Primary winches with speed base rings. (pedestal driven)
1 x Harken 50.2 pit/snubber winch.
2 x Harken 50.2 Runner winches.

Spinlock Jammers for halyards and custom organiser
2 x Spinlock spin sheet Jammers.
2 x Spinlock Jammers on main sheet used for peeling.
Harken and Ronstan deck blocks throughout.

Harken MX Pedestal system with carbon internal shafts.
Harken string drop wheel for spin retrieval.
Harken foot buttons.
Harken Pro Trim Traveller system
Assorted winch handles.

ELECTRICS
Installed by Olectric Systems and maintained by 33 South Marine Electronics

INSTRUMENTS
Custom Rotating Nav Station
H5000 Hercules Processor
4 x 20/20HV Display Pack for H5000
1 x Garmin Display
3 x H5000 Graphic Display
1 x H5000 Barometric Pressure Sensor
?1 x H5000 3D Motion Sensor
1 x HGSC (Halcyon Gyro Compass)
1 x ZG100 GPS Antenna
2 x VMHU Wind wand 1050mm
1 x H5000 Speed Sensor Plastic Flush
1 x NMEA Depth Sensor Plastic Flanged
2 x Momentary Push Button MOB on steering pedestals
1 x String Pot Rake
1 x Rudder Feedback Unit
1 x Custom Loadcell Pin & AMP forestay

NAVIGATION
1 x Zeus2 9” Multi-Function Display, World Base Map
1 x Fast Output GPS (to computer)

COMMUNICATION
1 x V50 VHF Marine Radio + DSC
1 x H50 VHF Wireless Handset for V50 VHF Radio
1 x NAIS-400 System, Class B-AIS + GPS Antenna
1 x Icom 801E HF with AT140 ATU
2 x HF Backstay Antenna Quick Connect Kits
1 x HF Antenna Whip 15SR
2 x Icom Hand Held Flash & Float VHF Radio
Fleet Broadband 150 Sat Phone

COMPUTER SYSTEM
On Deck WiFi
1 x Industrial 4G Modem
1 x 4G Whip Antenna
1 x Auto Change Over Sat Phone to 4G
1 x Panasonic Rugged Toughbook CF-31
1 x Panasonic Toughpad FZ-G1 10.1" MK1 with 3G & GPS
Ipad in life proof case

DC
5V USB Outlets
12v charging Outlets
1 x 12V 20A Removable Battery Charger System + AC Inlet/Outlet
1 x 12V Inflatable fore hatch System for waterproofing. 2 Sets of Buttons (Downstairs & on Mast Bracket)
240v Shore power charging board + shore power lead


Extras


ENGINE
Volvo Penta D2-40hp
Shaft drive, Lifting Propeller system for reduced drag.
2 x 60lt Diesel Tanks
Batteries 1 x Mastervolt 55Ah 12V (Engine), 2 x Fullriver 100Ah 12V (House)

ENTERTAINMENT
1 x Simrad Sonic Hub Audio Server
1 x Fusion 6" Speaker Set

AUTO PILOT
1 x H5000 Pilot Controller
1 x H5000 Pilot Computer
1 x RF25N Rudder Feedback Unit
1 x Hydraulic Ram T2 12V

PLUMBING
Lightweight Carbon Racing Head, with lightweight removable privacy screen
2 x 50lt vetus water bladders
Katadyn Power Survivor 40E water maker
Galley manual water pump
2 x manual bilge pumps, above and below deck operated
4 x electric auto/manual bilge pumps
1 x high volume roving puppy pump

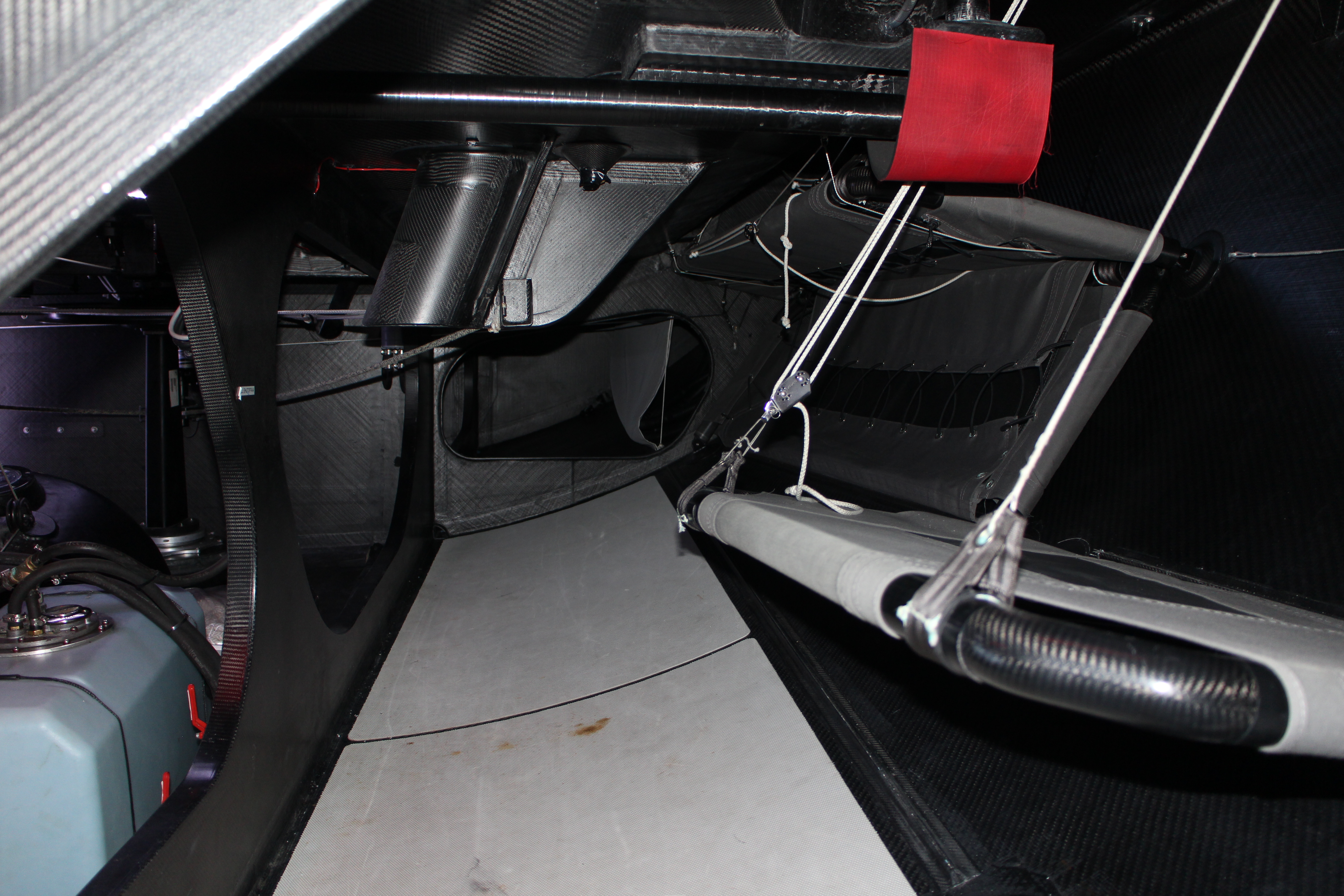

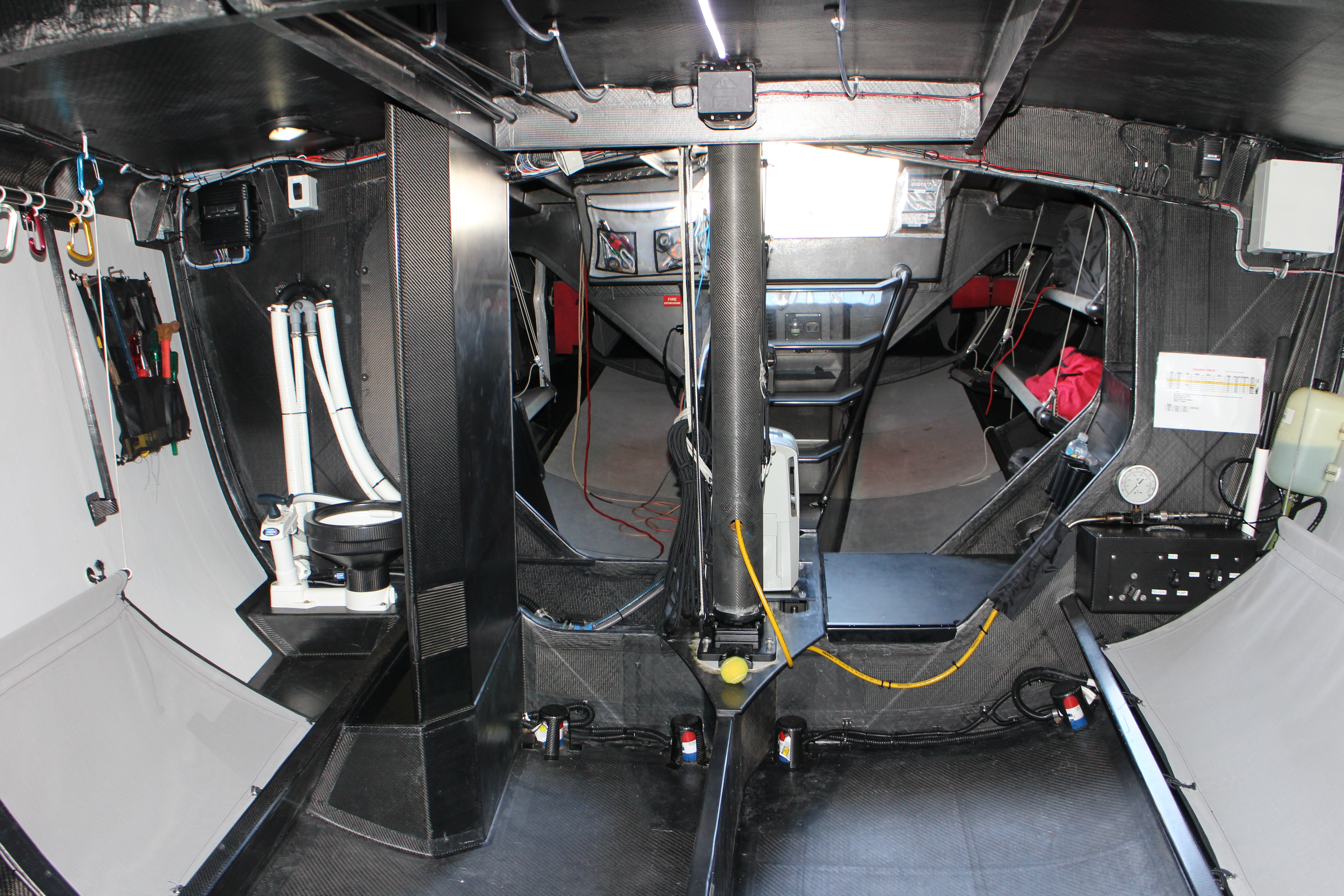

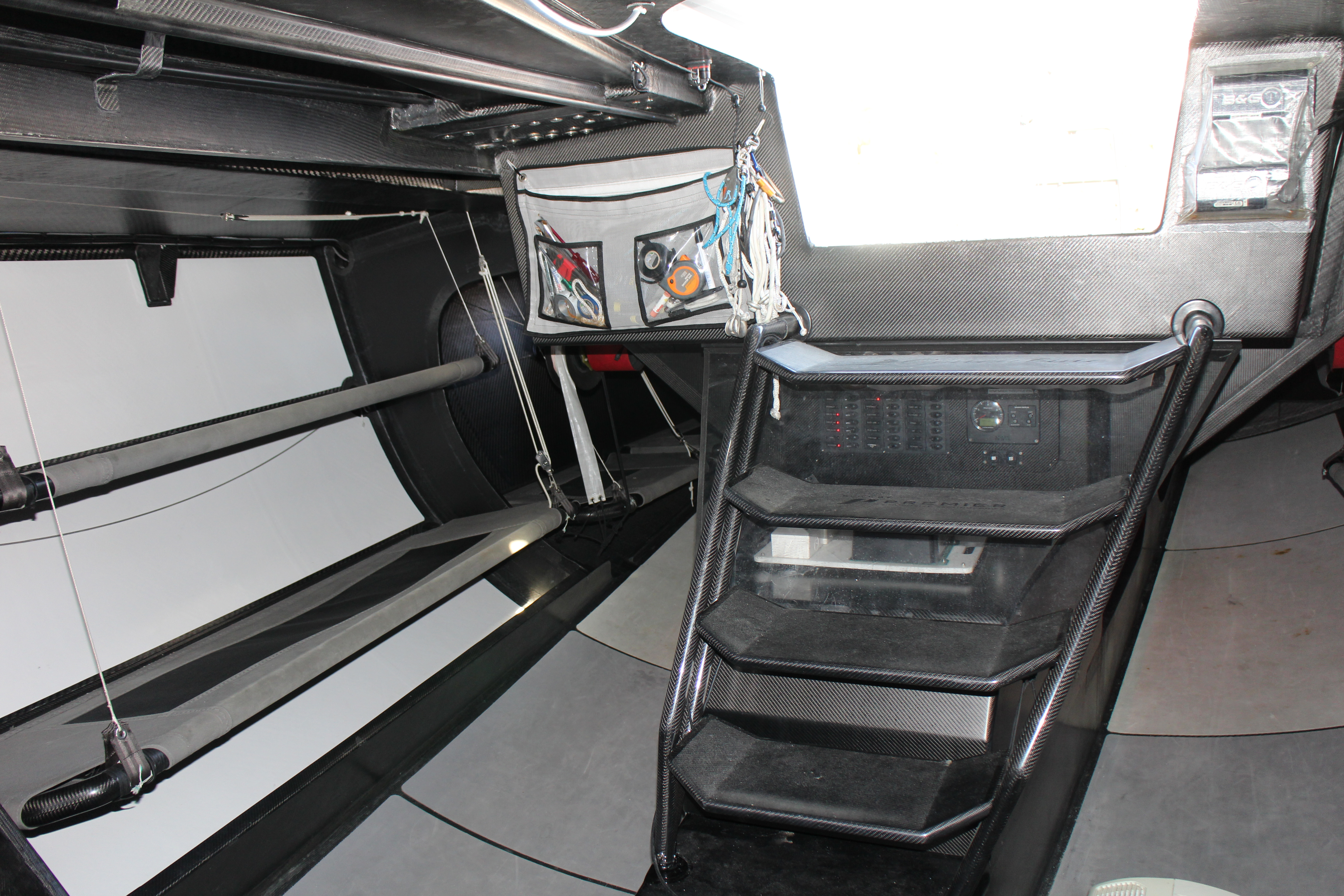

INTERNAL FEATURES
8 carbon pipecots
2 carbon seat pipecots
Custom Galley to fit Pressure cooker, kettle and 5lt thermos
Single burner gimballed gas stove
LED strip lighting white/red
Pneumatic seal front sliding hatch
Offshore removable hanging gear hooks
Fwd/aft storage sheets

OTHER ITEMS
2 position steel shipping cradle + straps and slings
single point lift system
2 x mast trolleys
covers- cockpit deck, boom, winch, wheel, pedestal and boom tent
Dock Sail Bag
Collapsible dock box
Dehumidifier
Dockside water filtration unit
6 x Hauraki Fenders
Mooring lines
AUS paper Charts. Adelaide – Hamilton Island, Sydney – Hobart Race, Sydney – Gold Coast Race, Adelaide – Port Lincoln Race, Port Phillip Bay
Lots of other various tools and spares details on request and inspection
