- Make Lagoon
- Model 52 Flybridge
- Year 2014
- LOA 52ft/16m
- Class Multihull
- Hull Glass Reinforced Plastic
- Keel Multi-Hull
- Rig Sloop
- Engine Twin Diesel
- Drive Sail Drive
- Layout Aft Cockpit
- Berths 9
- Cabins 4
- Aft Cabins 2
- Ancasta Ref 30113
- Name Amea

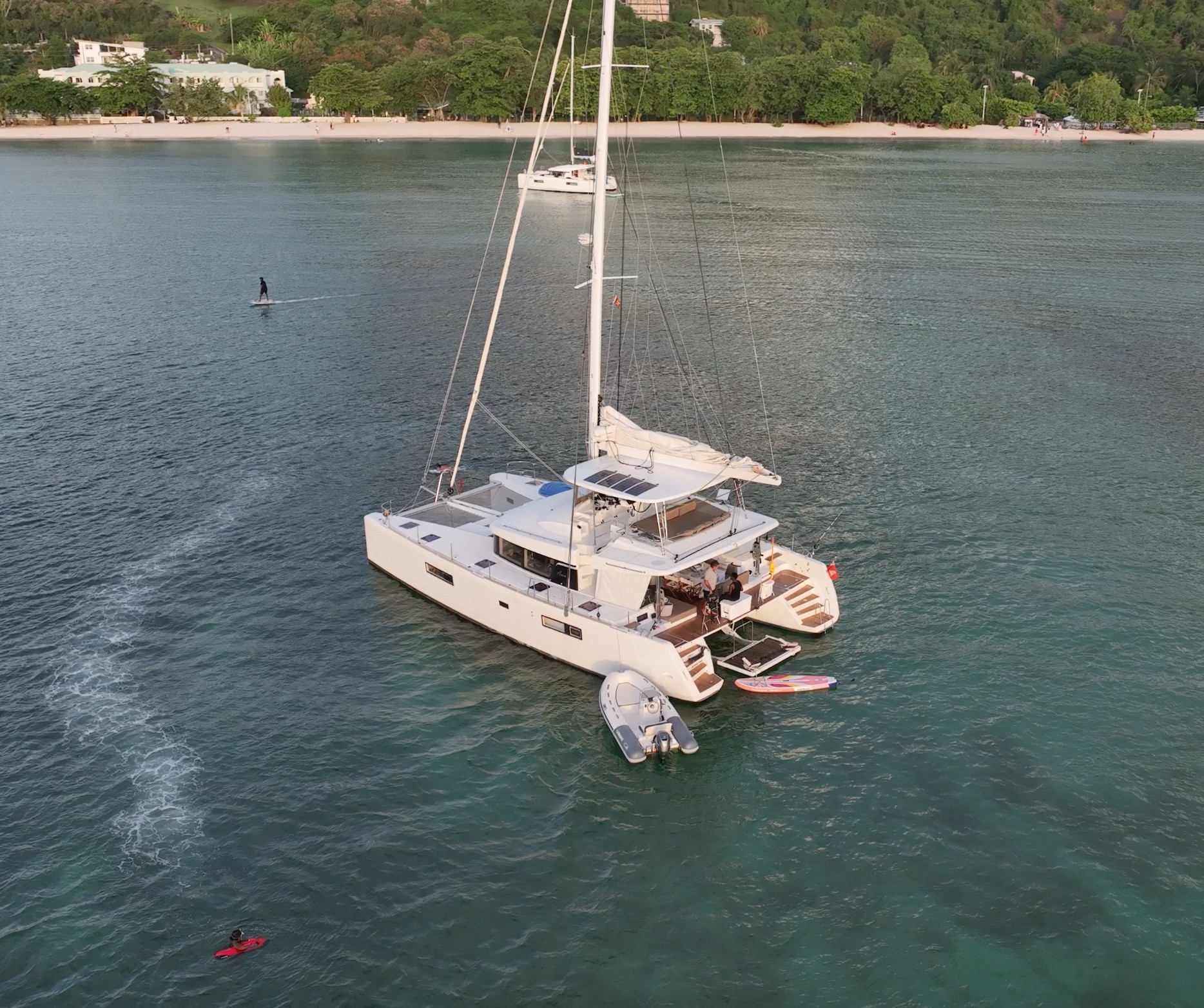

Lagoon 52 Flybridge | 2014
725,610 Tax Paid
|
Grenada Caribbean

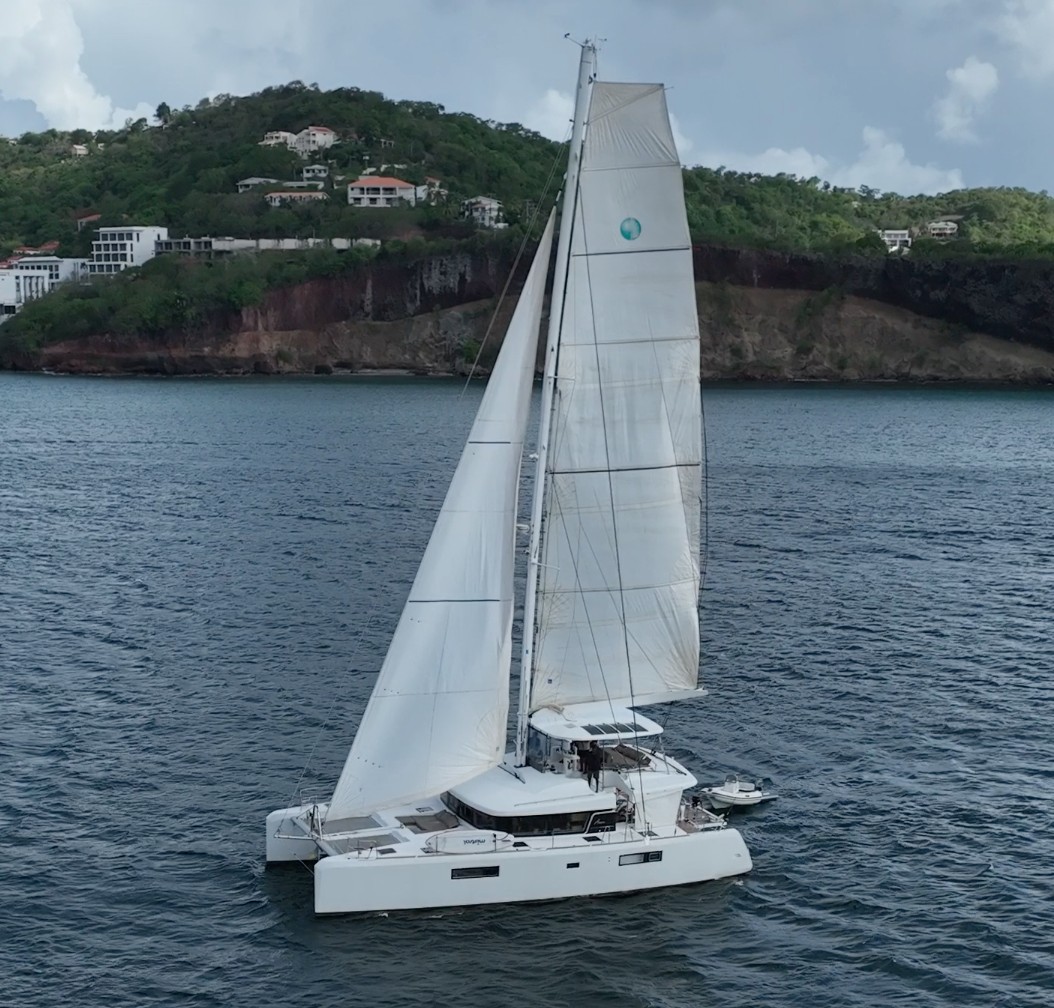

From her expansive, raised flybridge with its commanding views to her powerful performance (12kts with the Code 0 in a 17ts true wind), the Lagoon 52 is a big but accessible and inviting boat to be aboard. With her vast, privately accessed owner's suite (to port aft via the cockpit) and her spacious interior, it is no wonder the 52 is such a popular boat. Add to this the fantastic spec that singles out 'Amea' from other 52s (generator, aircon, water maker, full electronics suite with radar, carbon boom, carbon flybridge bimini, tender lift and underwater lights to name but a few). Only in her 3rd ownership, the yacht reflects its meticulous care the owners have given her, attention and maintenance: when we say she is 'excellent condition', we couldn't be more sincere in our praise for her condition.

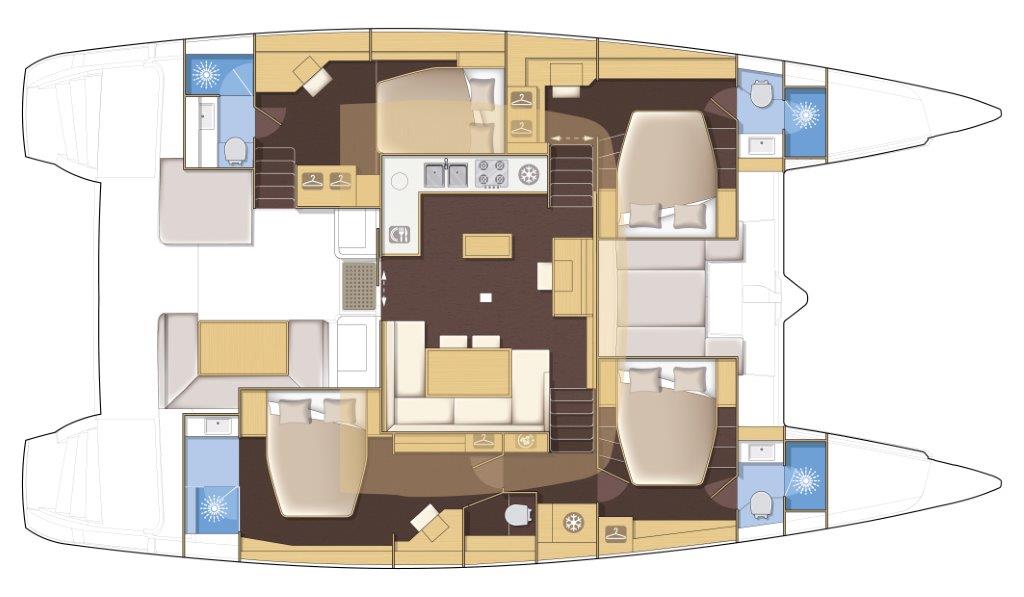

Layout
LAGOON 52 - 2014.
Designed by Marc Van Peteghem & Vincent Lauriot Prevost.
Built by Lagoon, part of the Beneteau Group in Bordeaux, France
Interior deigned by Nauta Interiors.
CONSTRUCTION
Infused FRP and FRP composite with balsa core and polyester and high quality anti-osmotic resin.
Hull bottom and keels in solid infused laminate.
Infused balsa core structural bulkheads.
White gel coat hulls.
White gel coat deck with non-diamond skid areas.
Standard interior wood in light Alpi Oak with Milano floor.
Forward, and aft cockpits and transoms overlaid in teak with grey caulking.
GENERAL DIMENSIONS
LOA: 15.84m / 52'
Length: 15.60m / 51'2"
Beam: 8.74m / 28'8"
Mast Clearance: 27.97m / 91'9"
Draft: 1.55m / 5'1"
Displacement: 26.03t / 57,403Lbs
Carbonfibre flybridge bimini- 2024.
Last antifoul date- September 2024
Last out of water- September 2024.
Fully surveyed- September 2024.
GENERAL DIMENSIONS
LOA: 15.84m / 52'
Length: 15.60m / 51'2"
Beam: 8.74m / 28'8"
Mast Clearance: 27.97m / 91'9"
Draft: 1.55m / 5'1"
Displacement: 26.03t / 57,403Lbs
*All figures approximate
SLOOP RIG
Rigging inspected- 2024.
White painted anodised aluminium mast.
Double spreader rig.

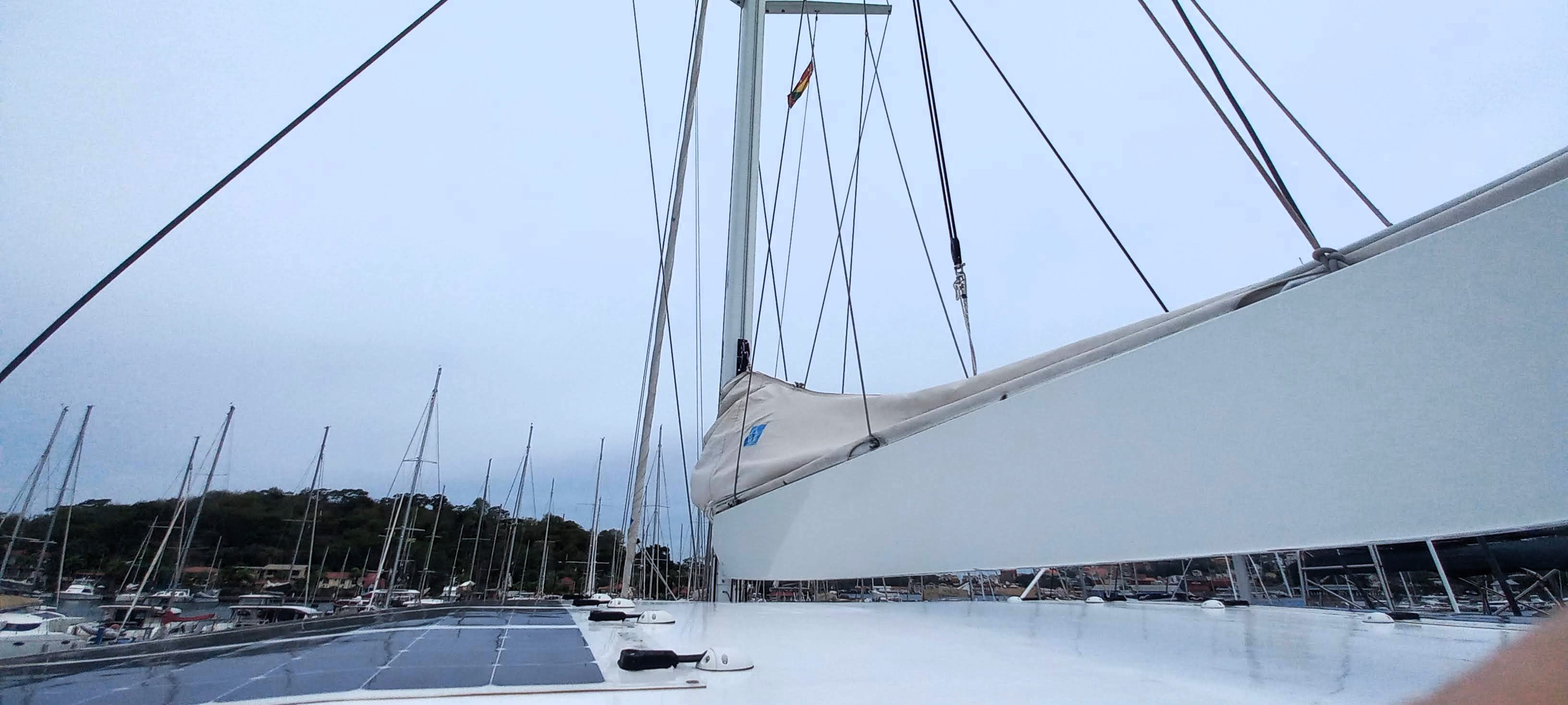

White carbon boom including LED lights.
Adjustable lazy jacks with Lazy bag in natural.
3 reefing lines.
Genoa furler.
Code 0 rig.
Bow sprit and furler.
SAILS
Fully battened square top mainsail 125m2.
Self tacking genoa.
Code 0 Mylar 152m2.
RUNNING RIGGING
1 double purchase spectra mainsail halyard- new 2025.
1 spectra Genoa halyard with tension adjustment track at mast base.
1 boom topping lift- new 2025.
3 reefing lines.
Genoa sheets.
Mainsail sheet led back to helm station- new 2025.
Boom preventer- new 2025.
WINCHES
Four, 2-speed electrical winches on flybridge for managing sheets and halyards.
*All figures approximate.

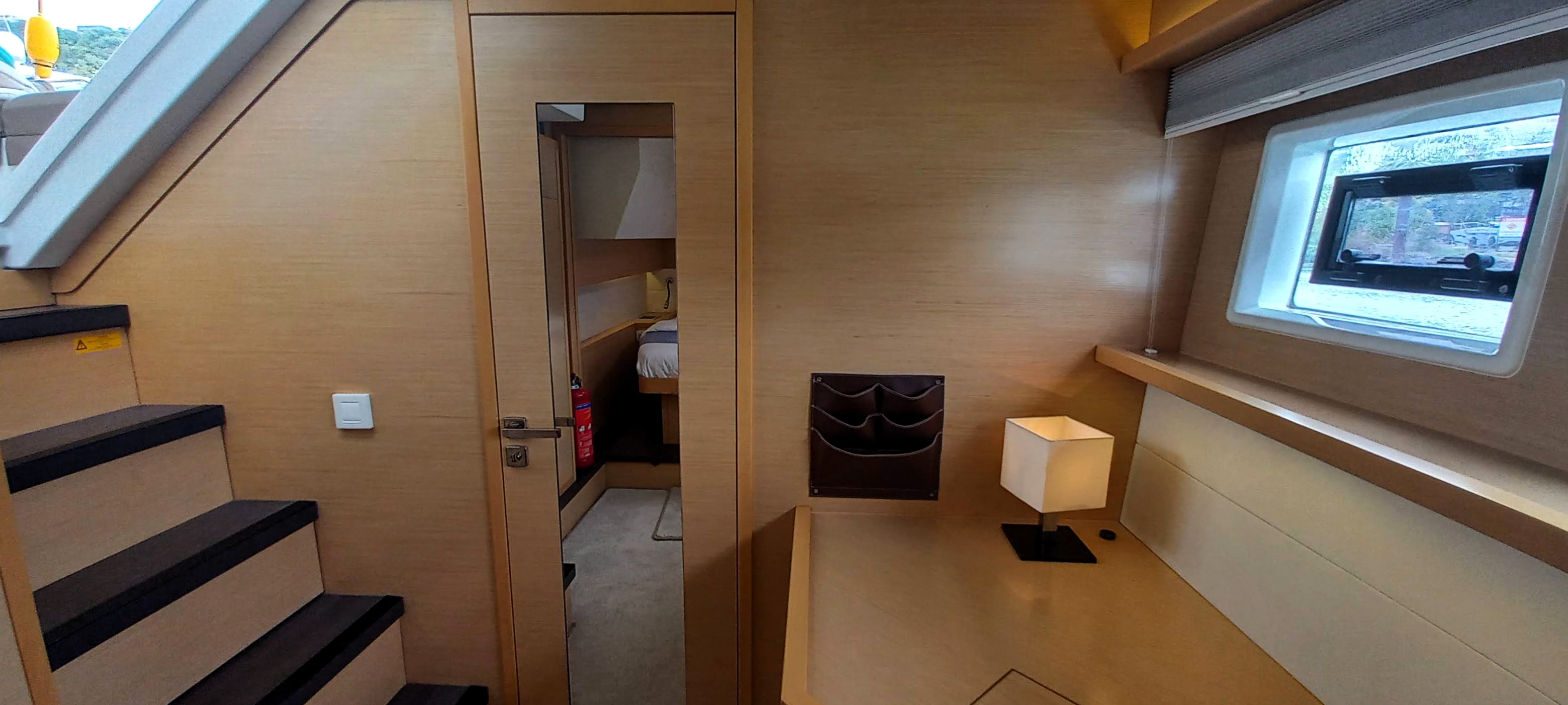

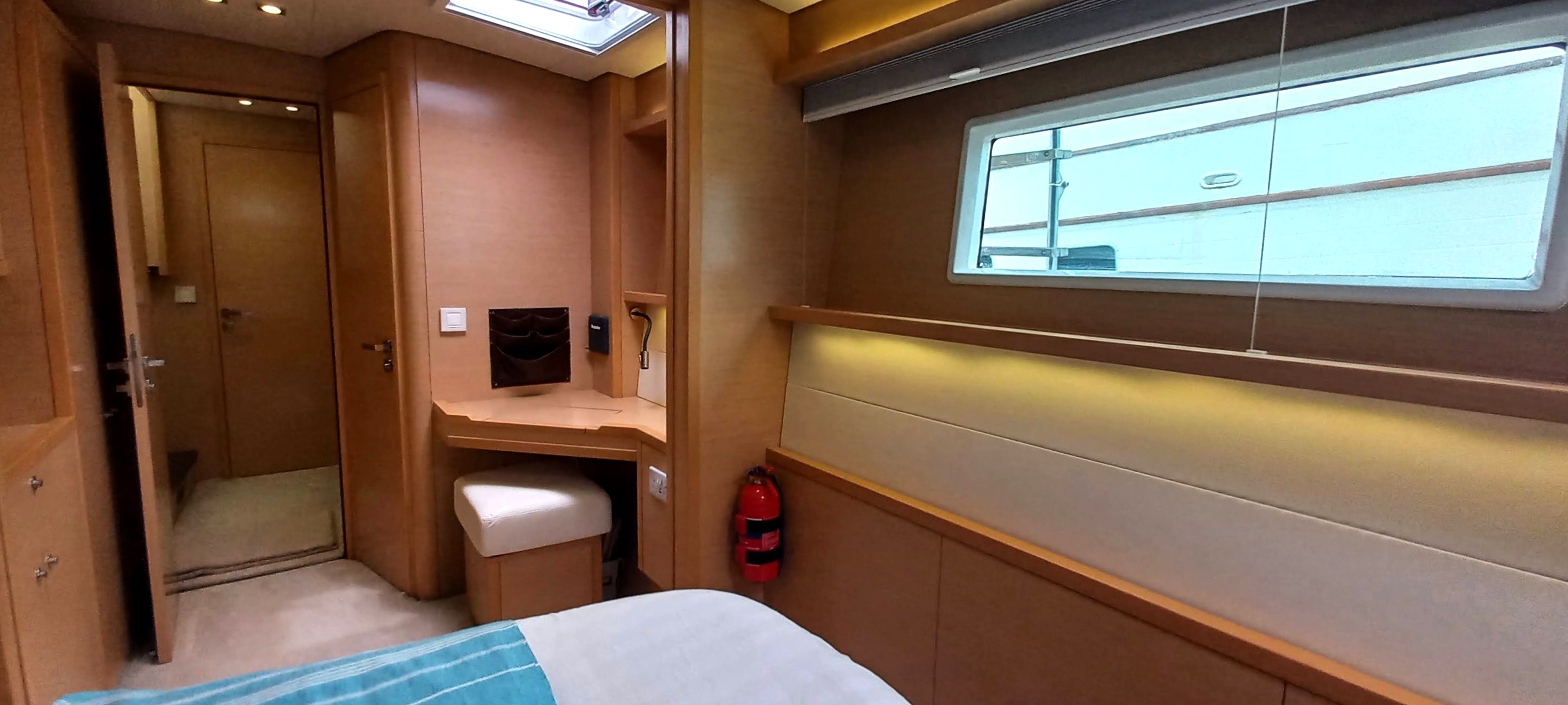

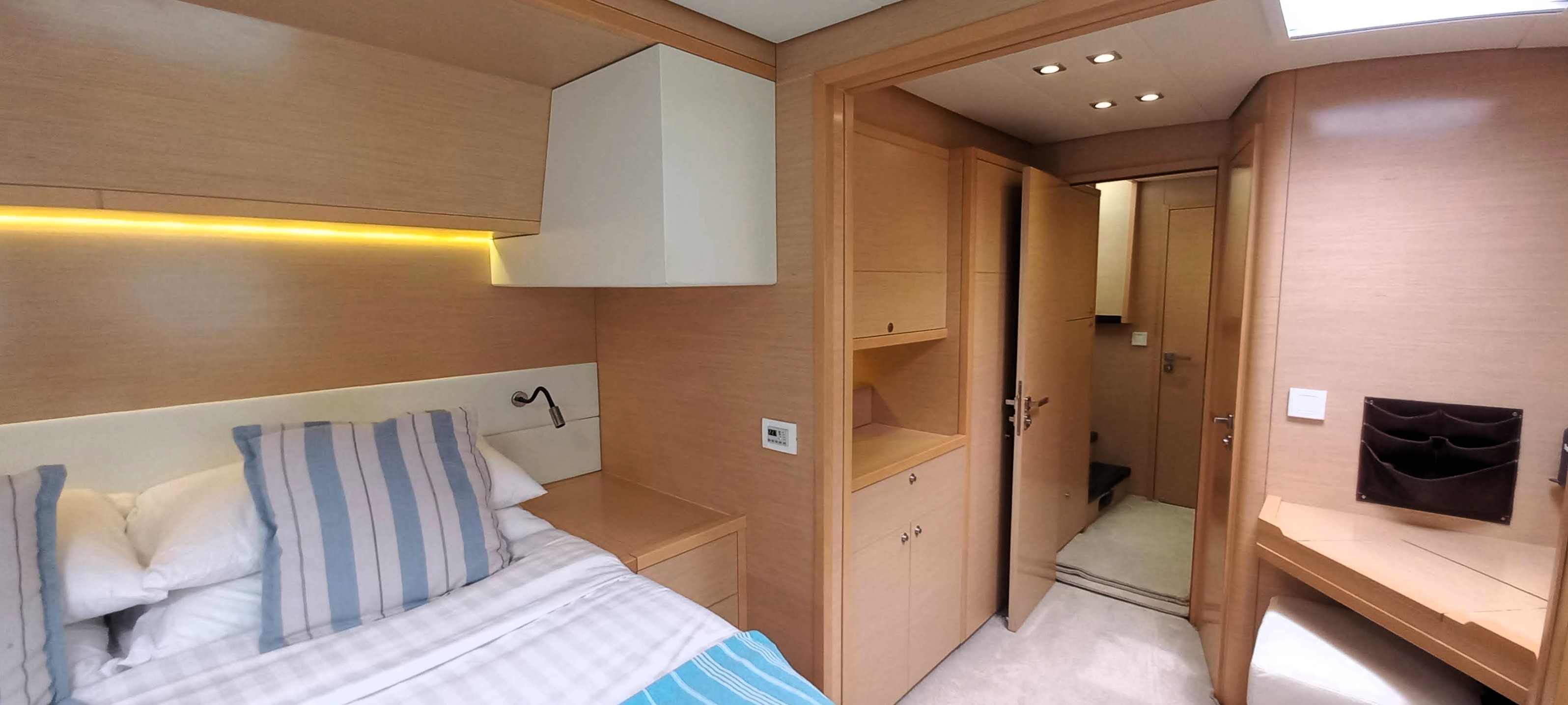

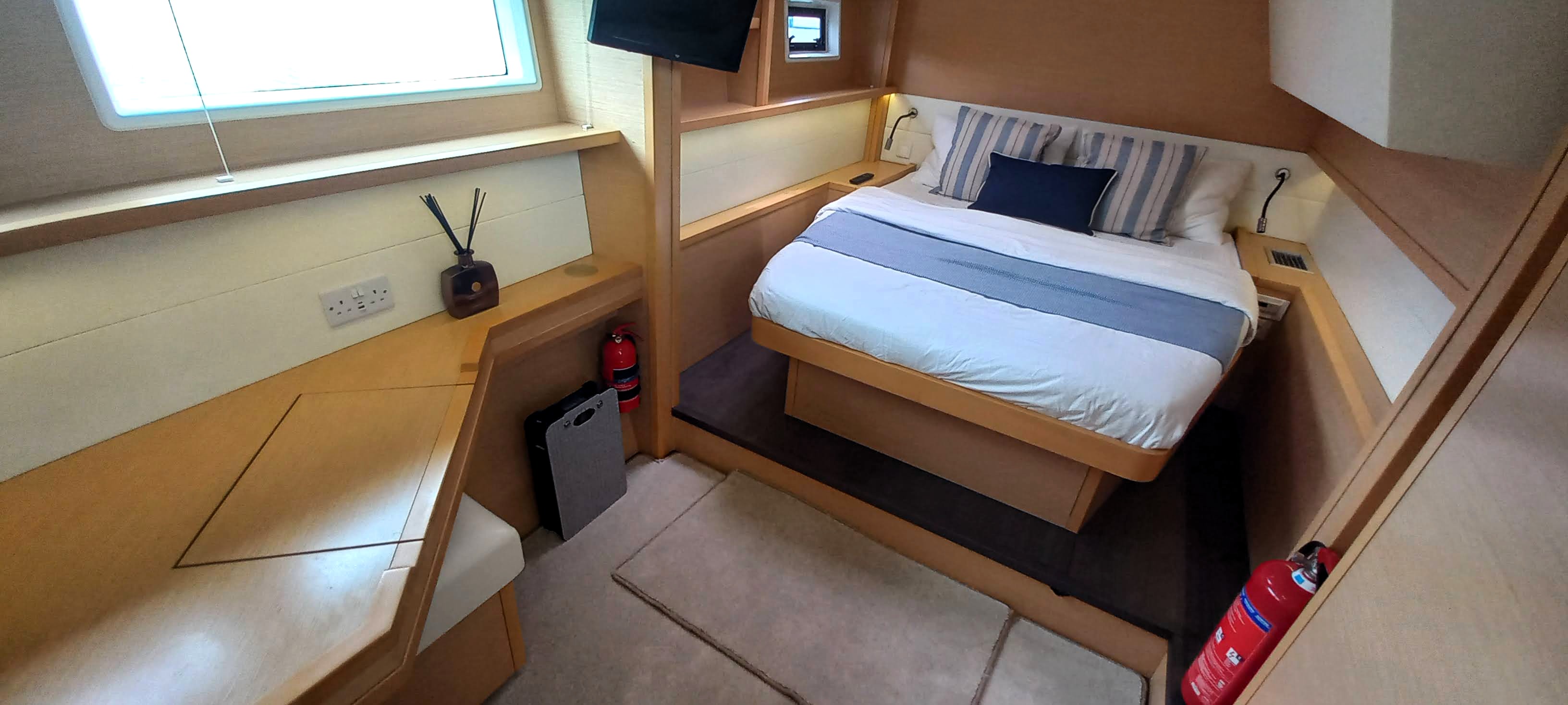

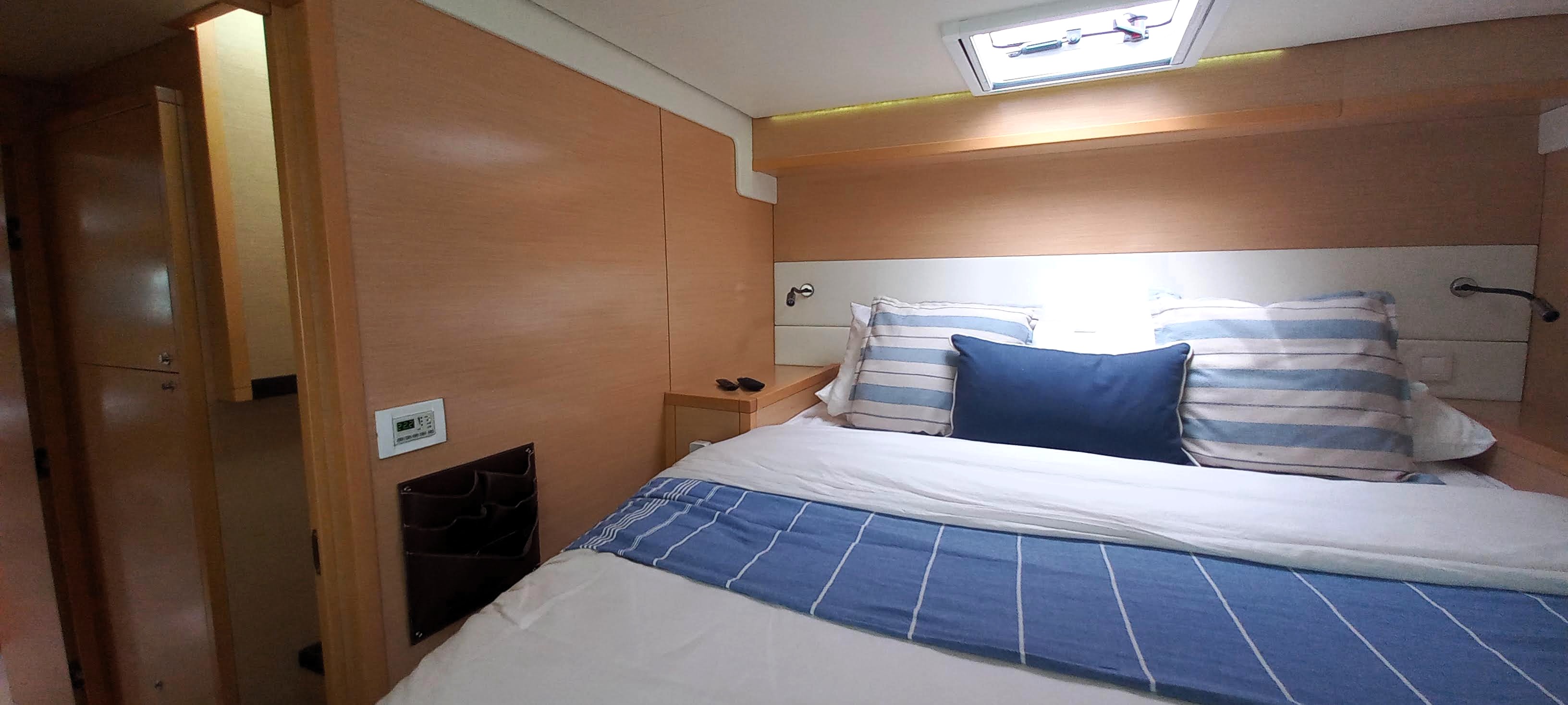

FOUR CABIN, FOUR HEADS COMPARTMENTS WITH BOW ( Portside) CREW CABIN
Alpi Oak blond interior finish.
Reverse cycle 60,000 BTU air conditioning throughout.

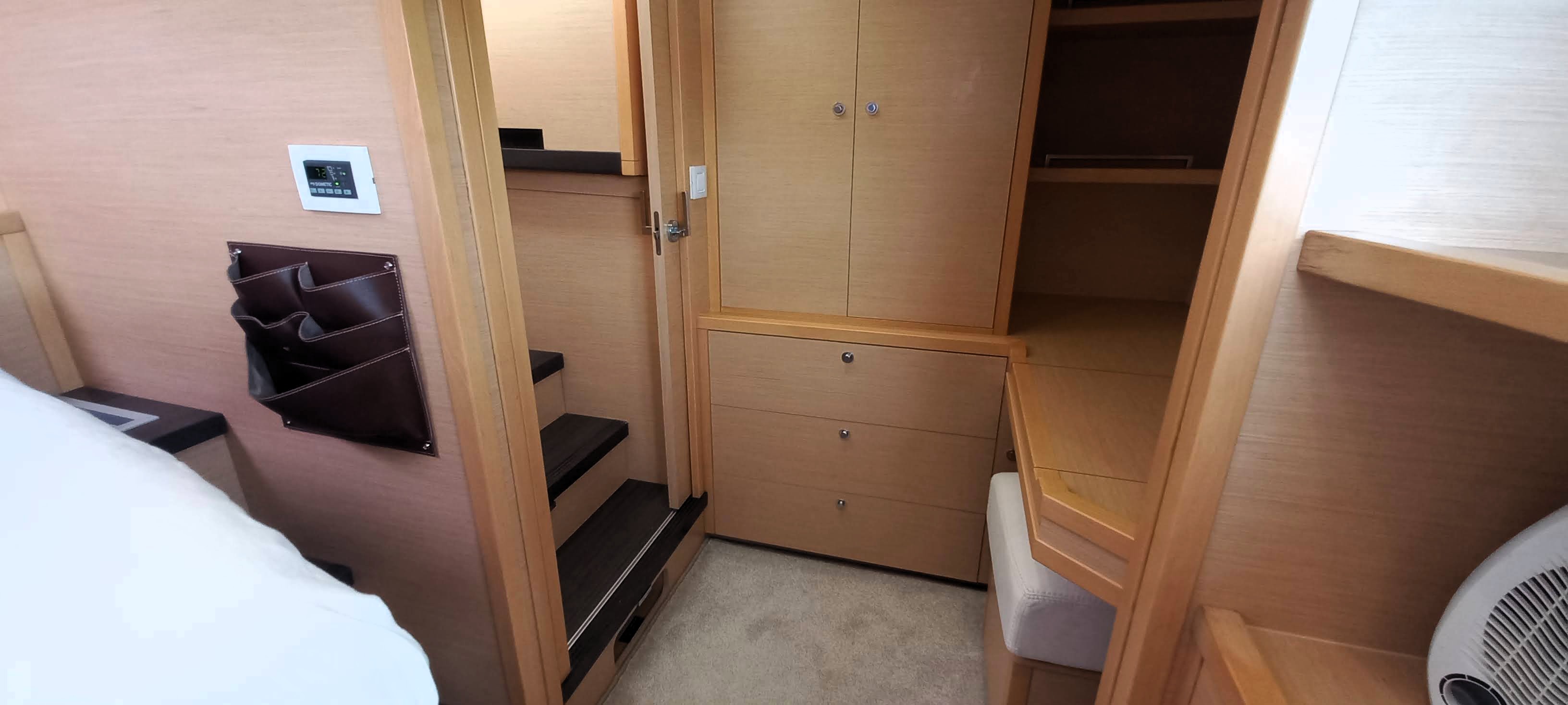

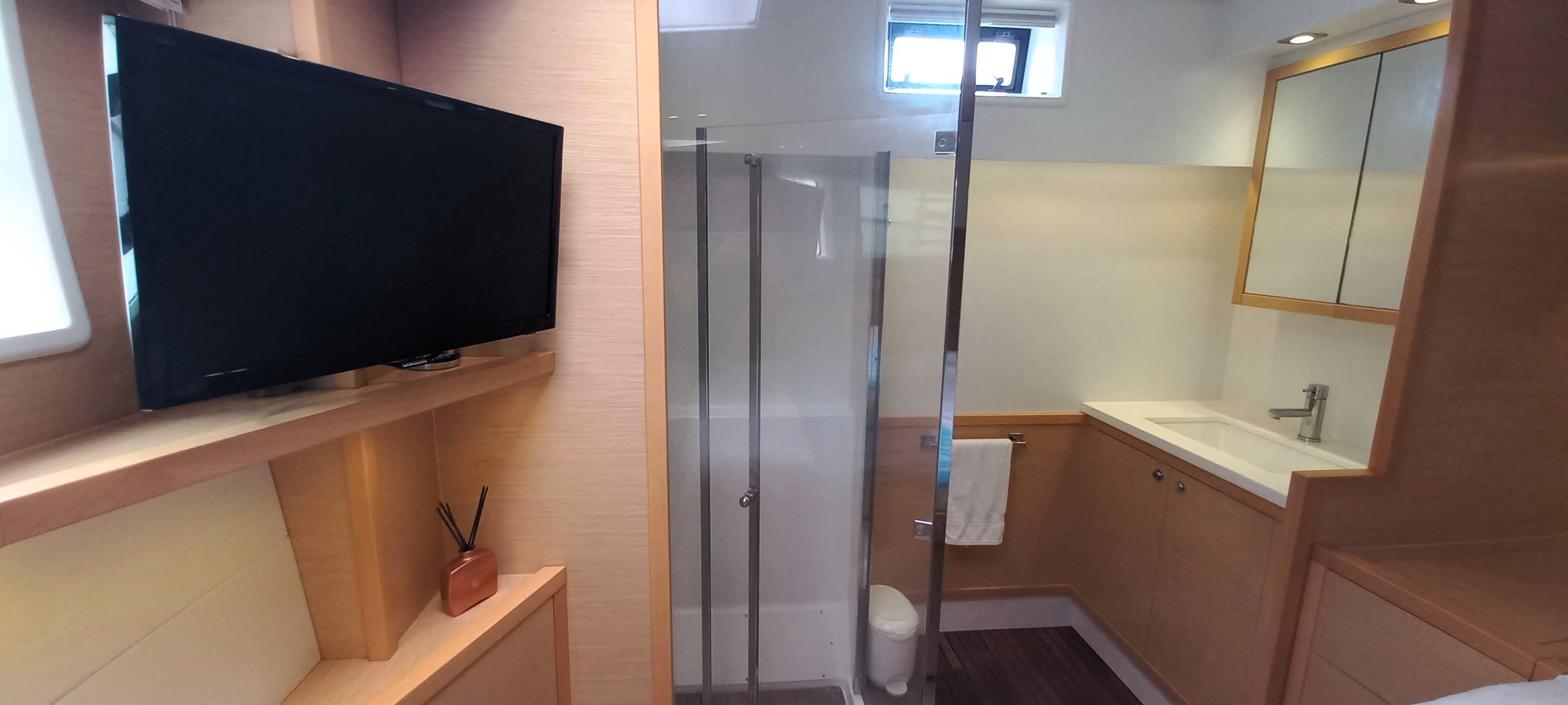

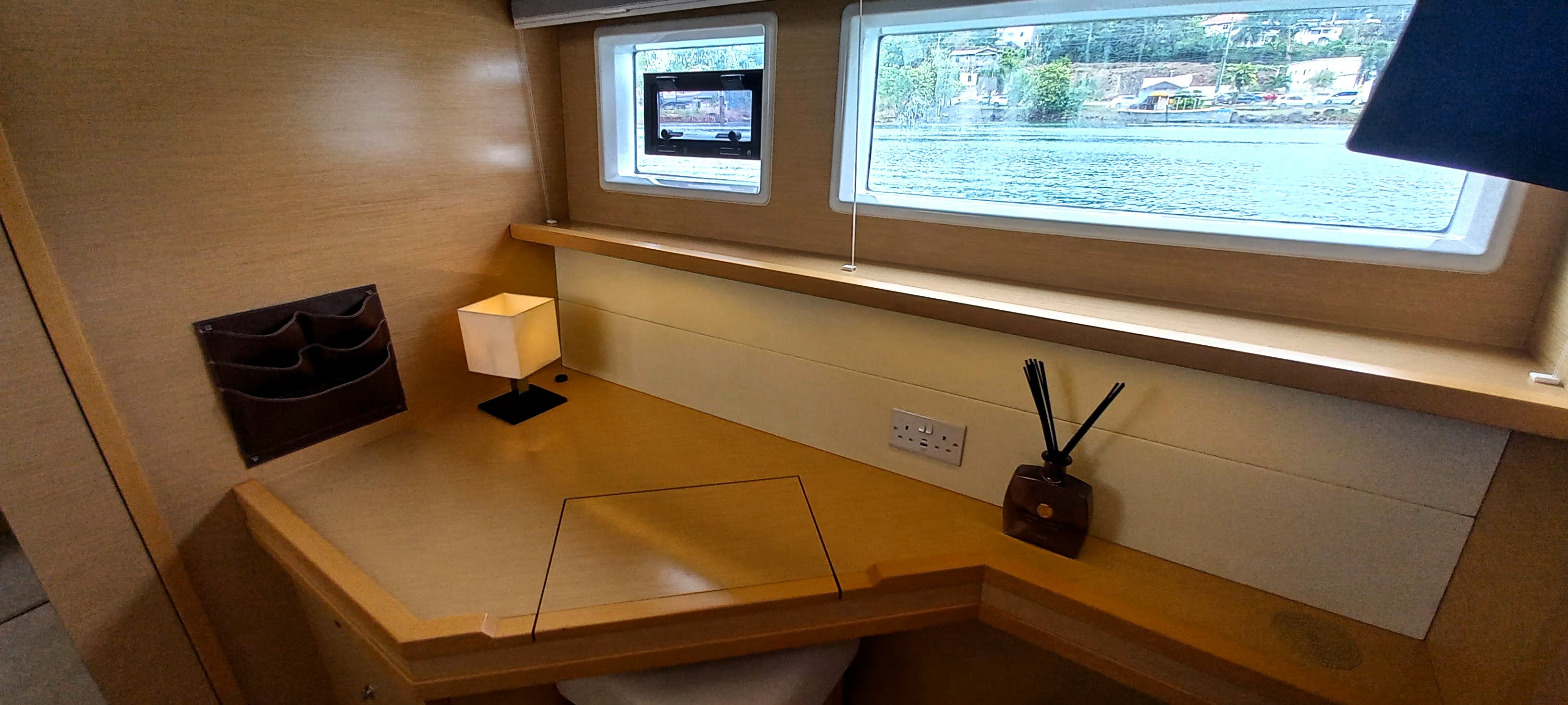

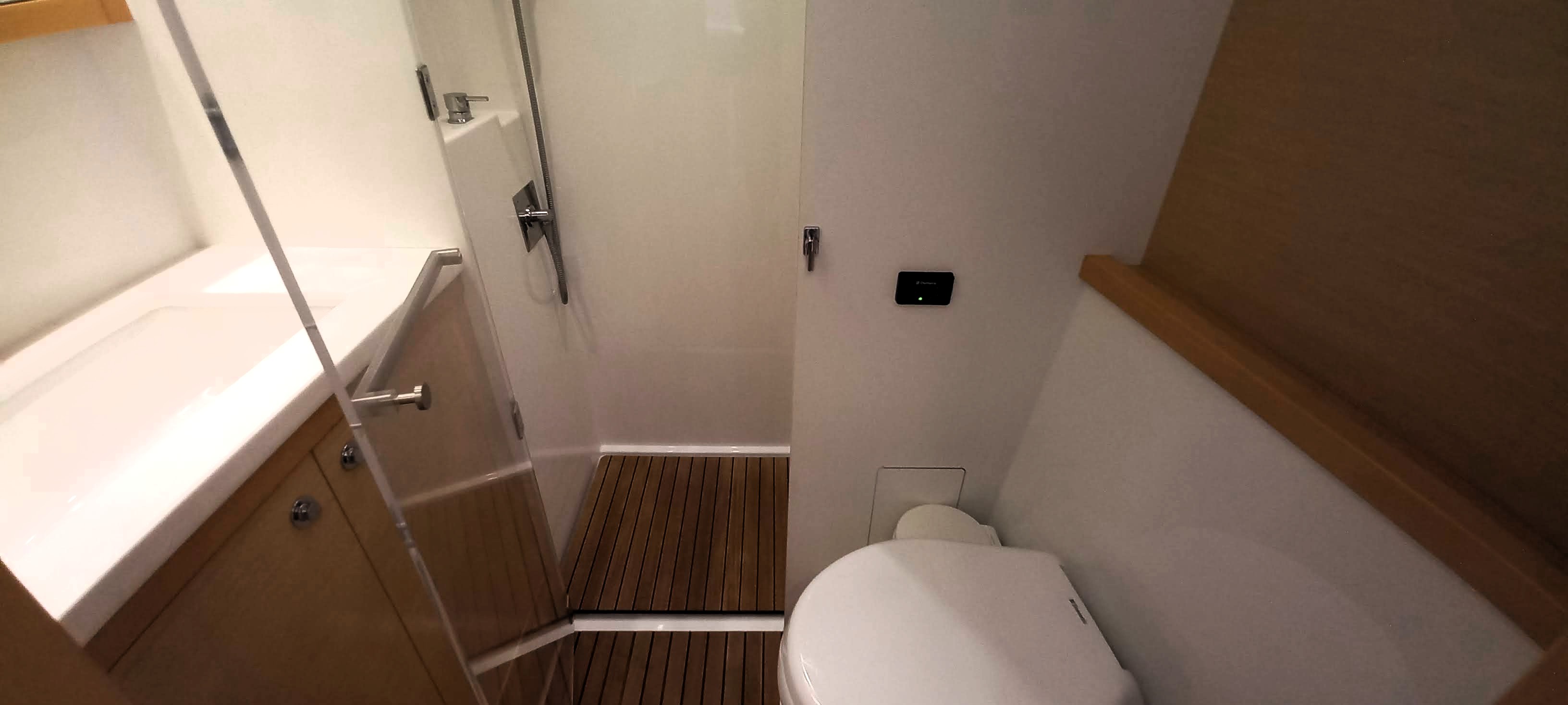

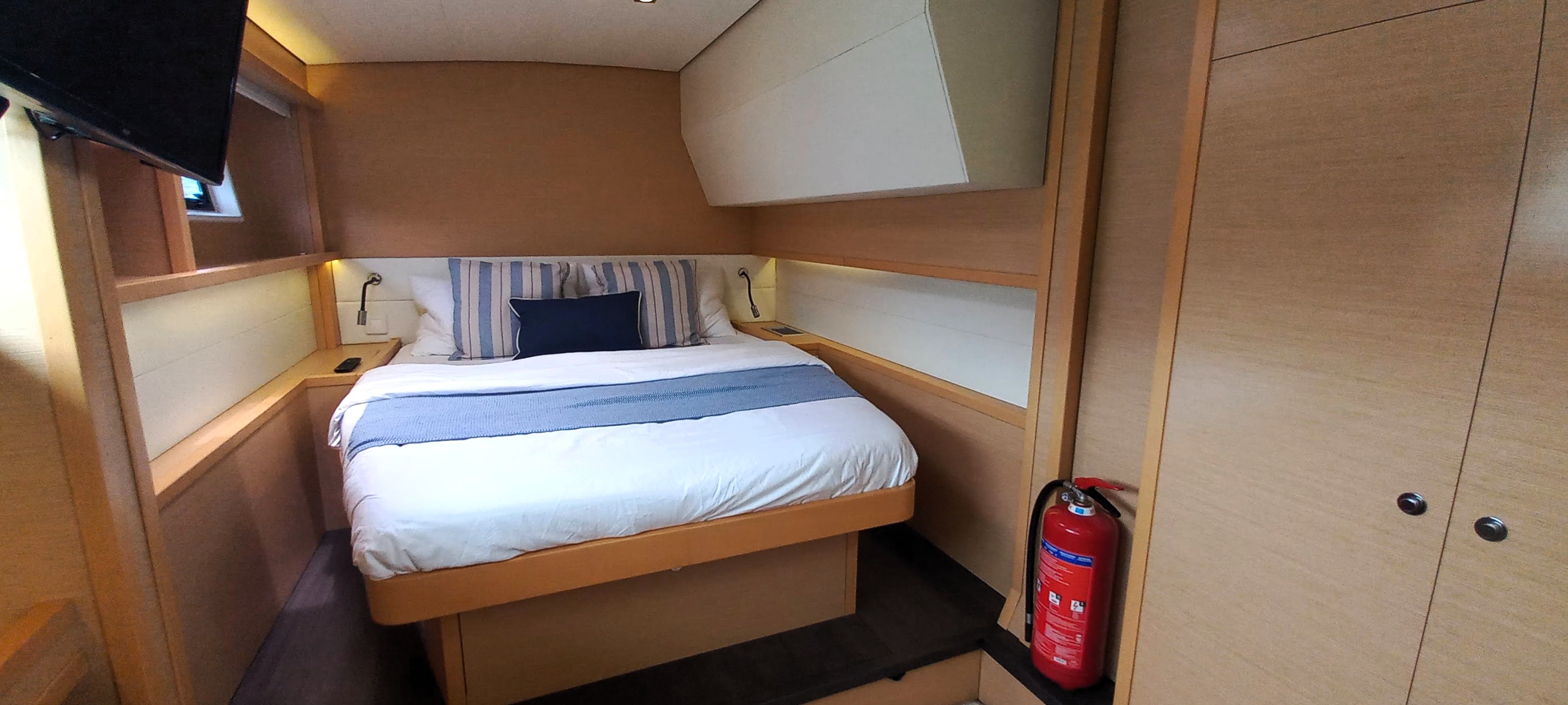

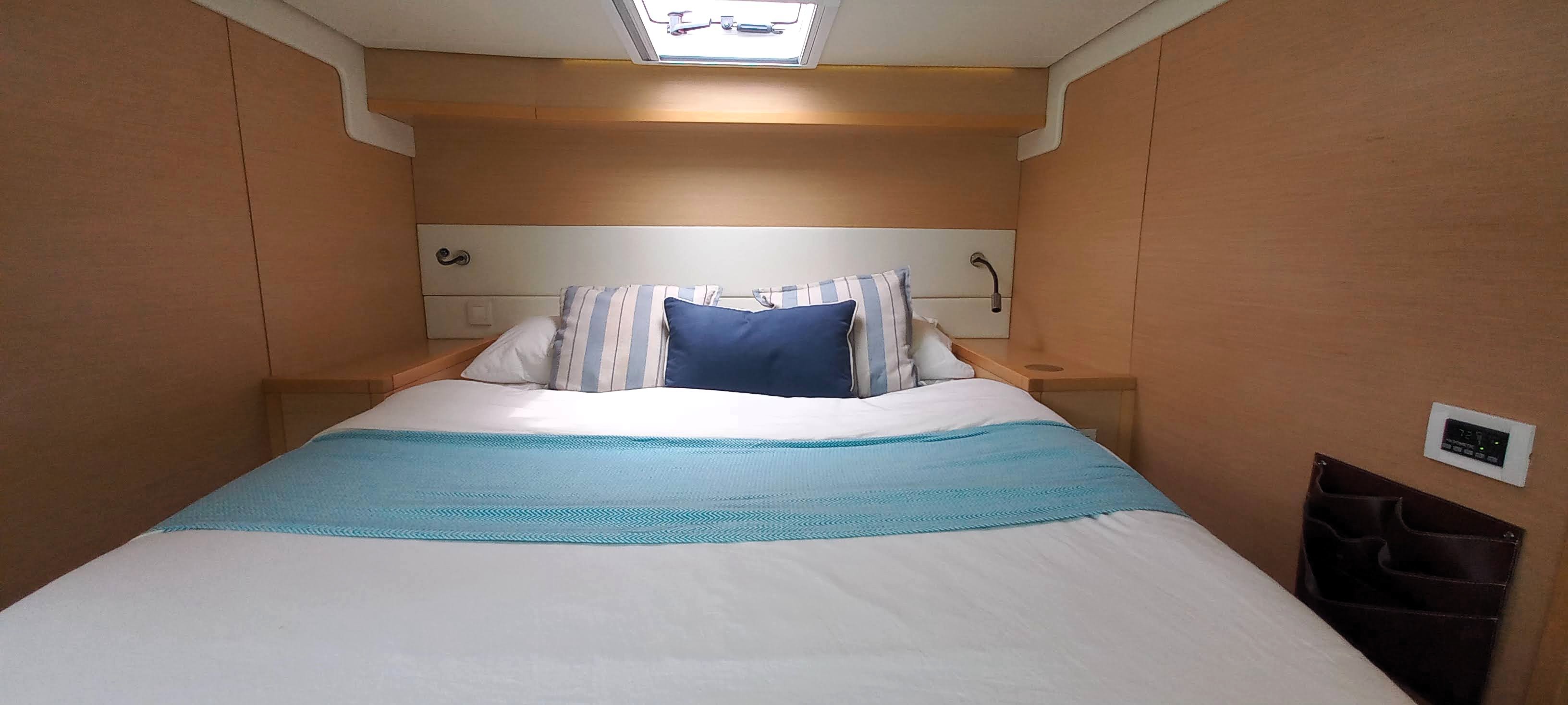

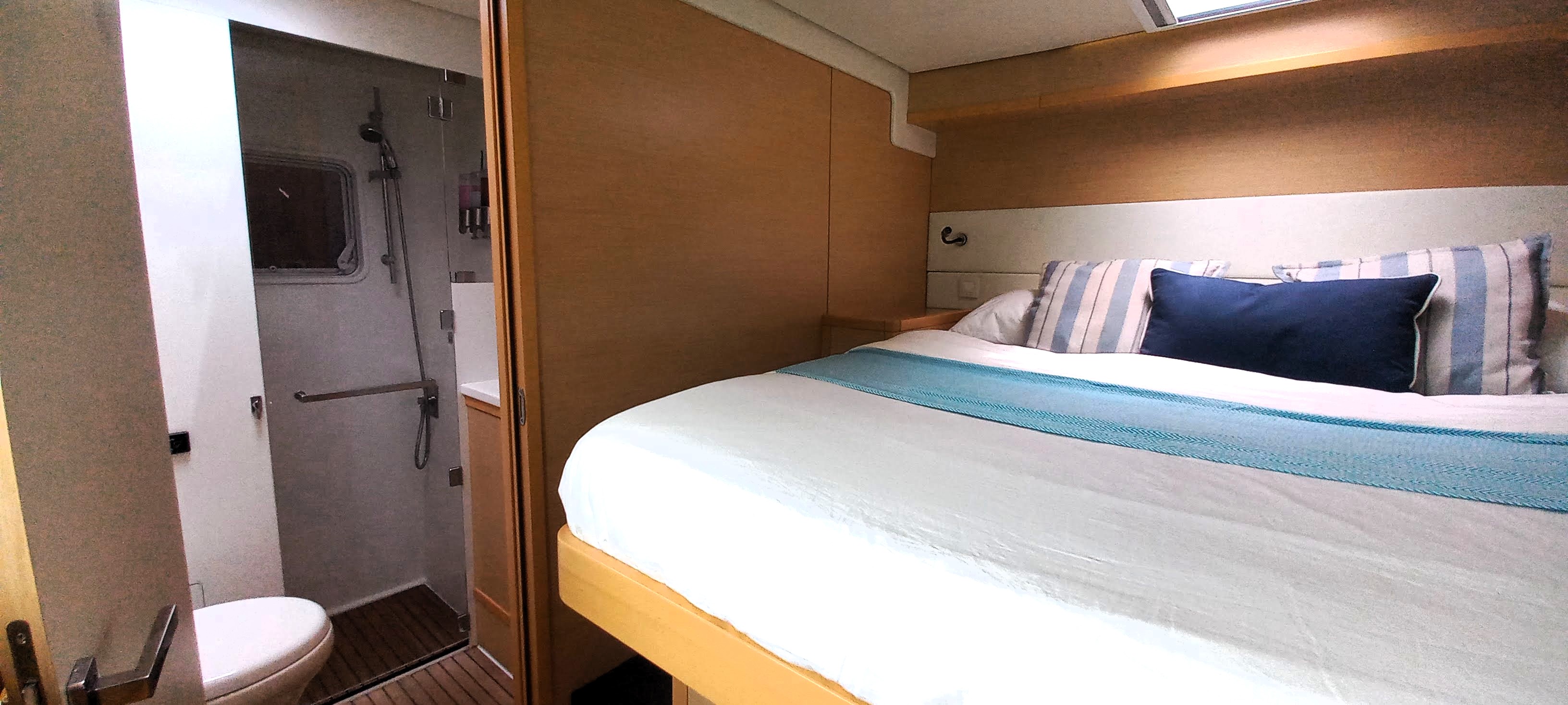

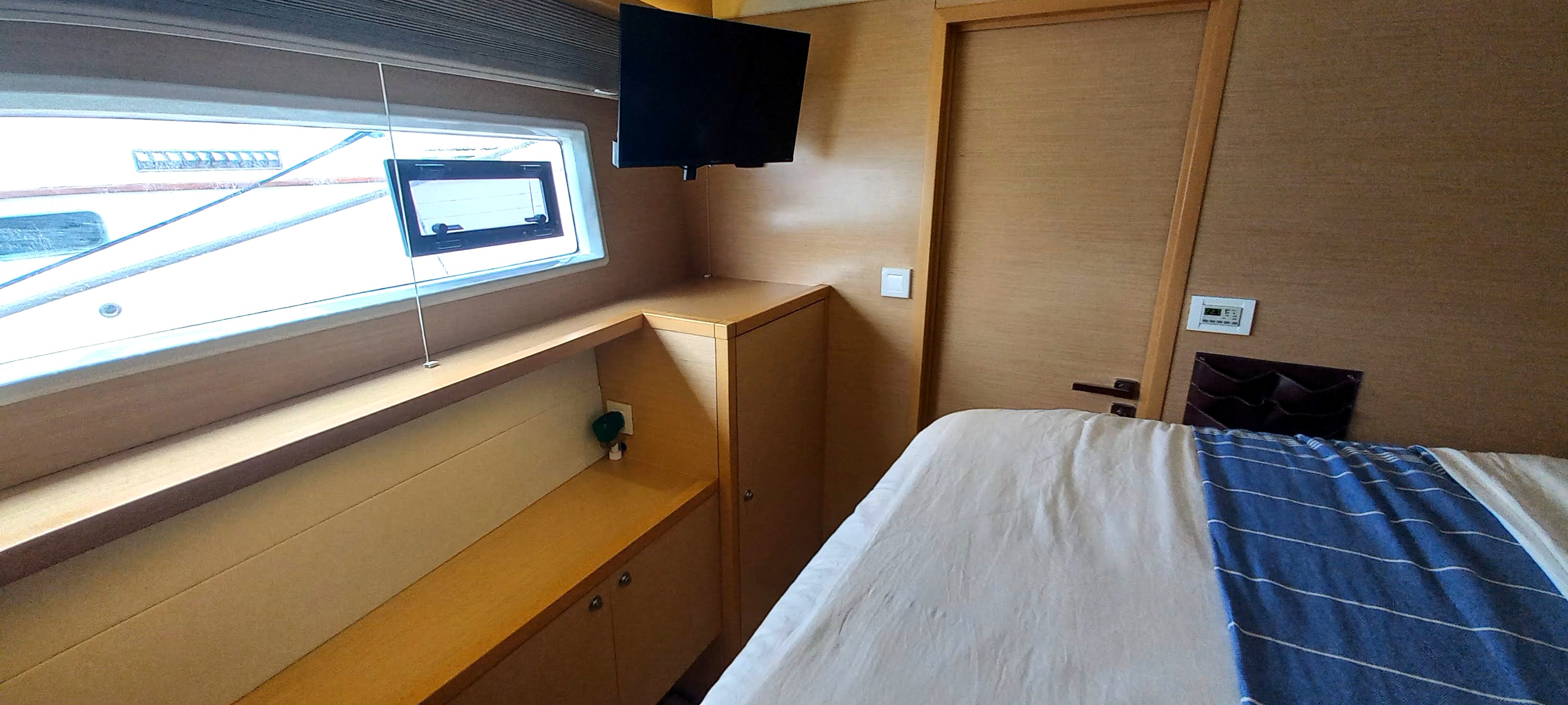

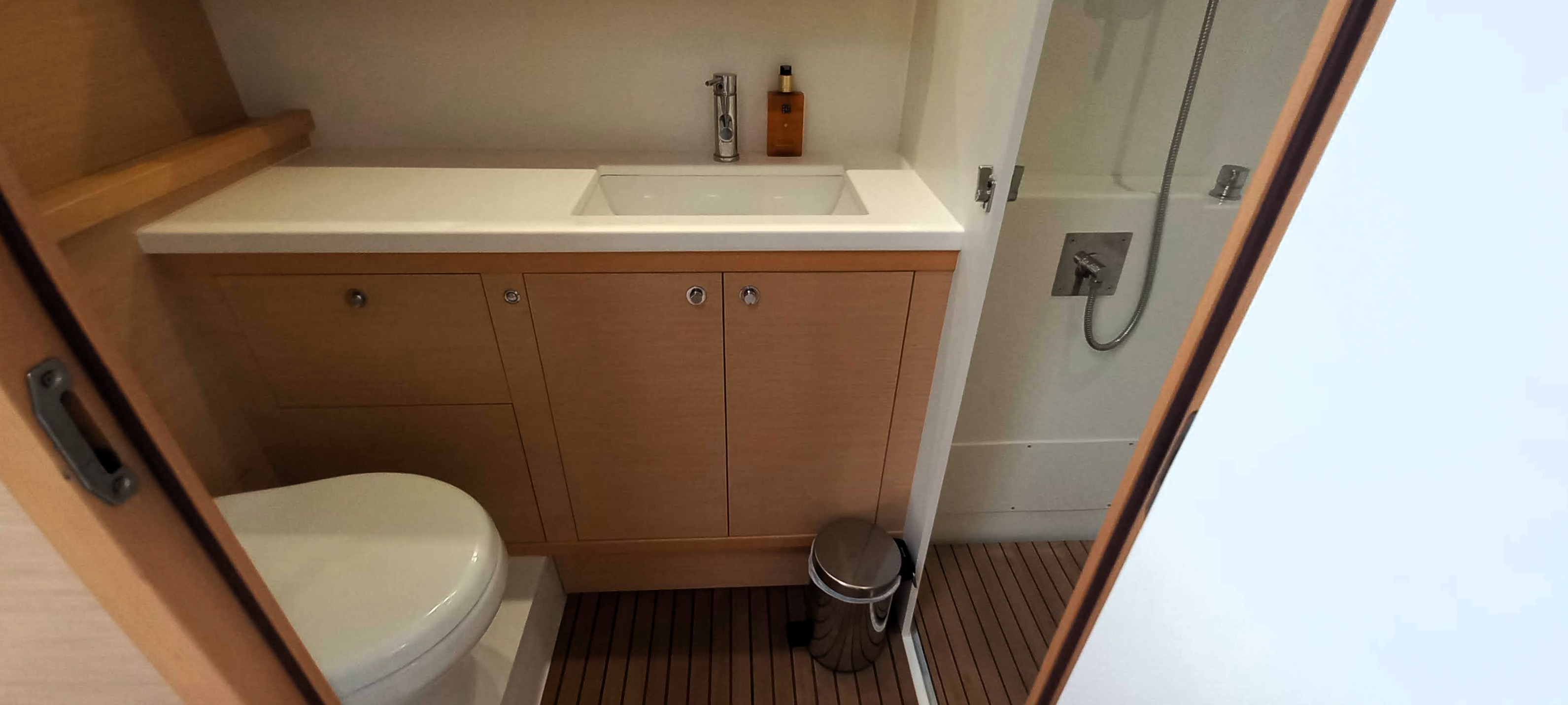

Four cabins with double berths with slats and matrasses, (dressing table & stool in all 3 cabins), storage and ensuite facilities including shower enclosures, quiet-flush electric marine toilets and hand basin.
Interior Specification - "White Devon" upholstery, pleated blinds, indirect cabin lighting.

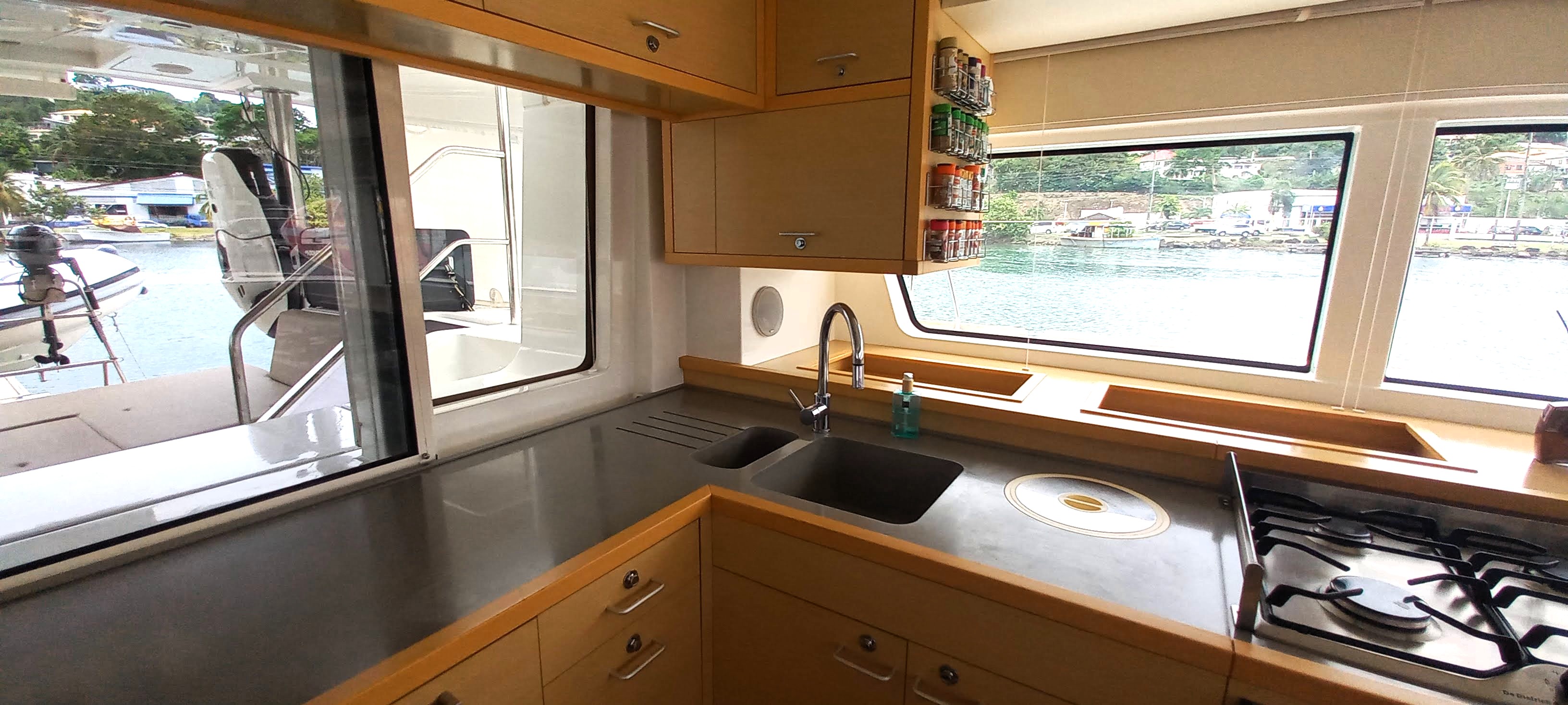

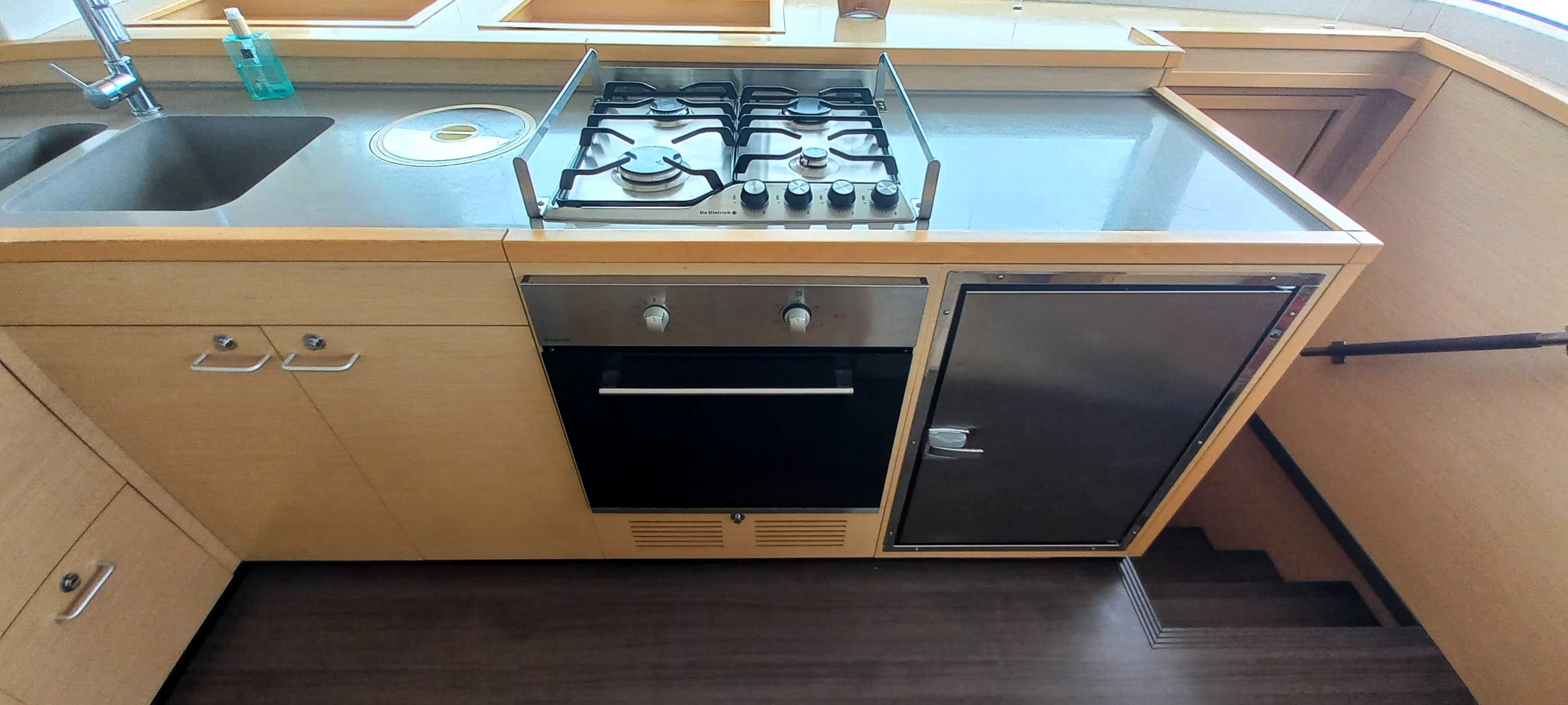

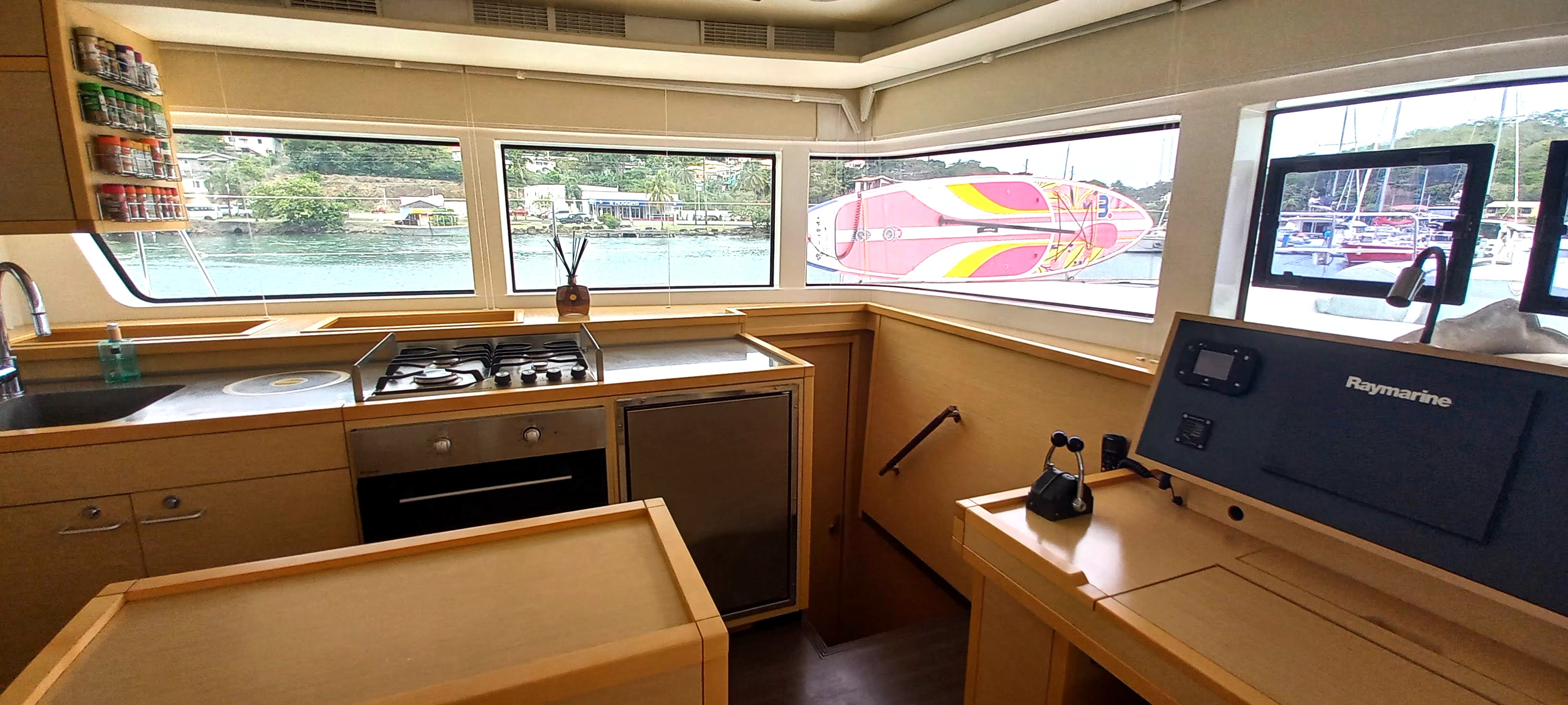

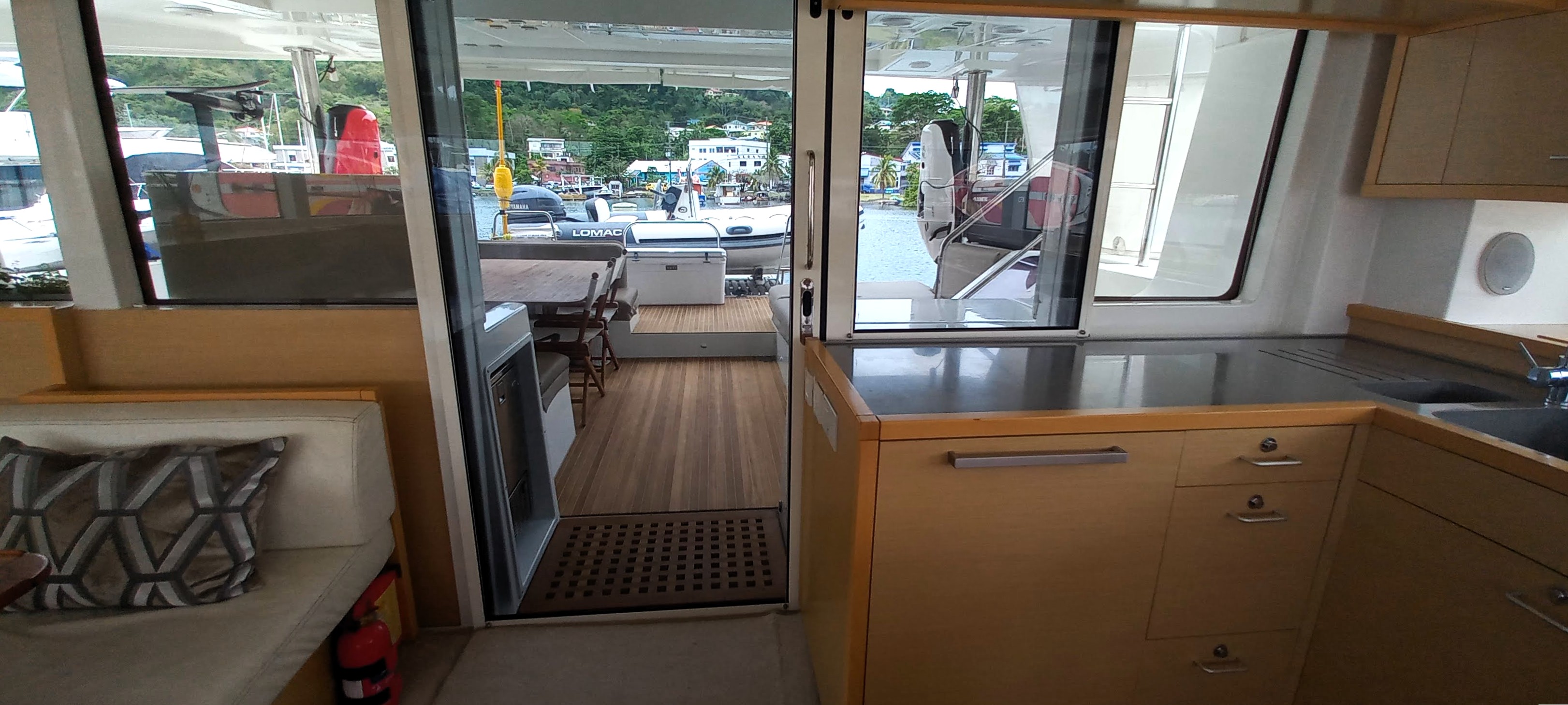

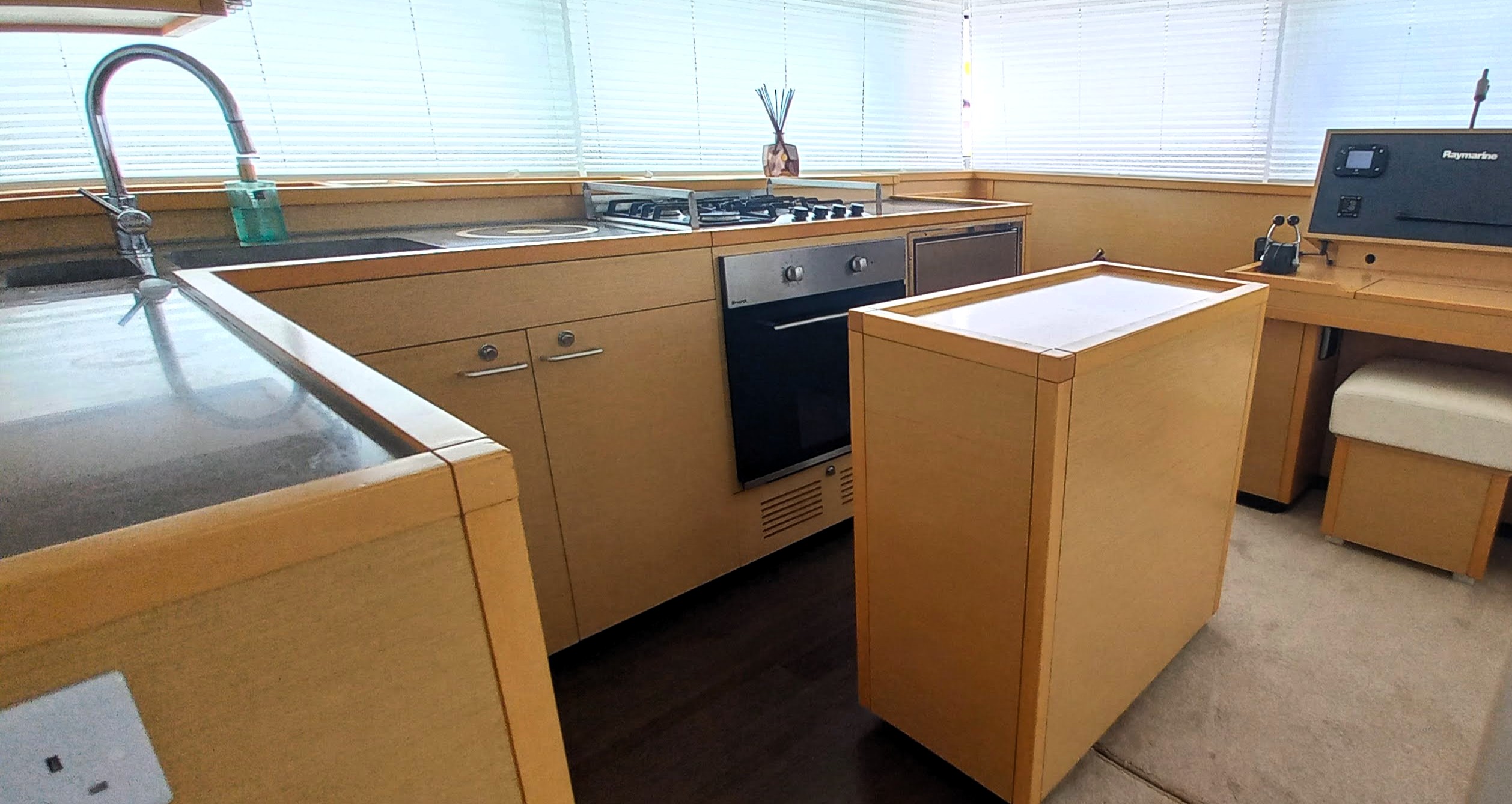

GALLEY
Galley with four-burner gas cooker & oven below.
Miele 12 place setting dishwasher.
Stainless steel fridge.
Tall larder fridge/ freezer- SB.
Corian sink with hot & cold pressurised water.
Gas alarm- 2025.
SALOON

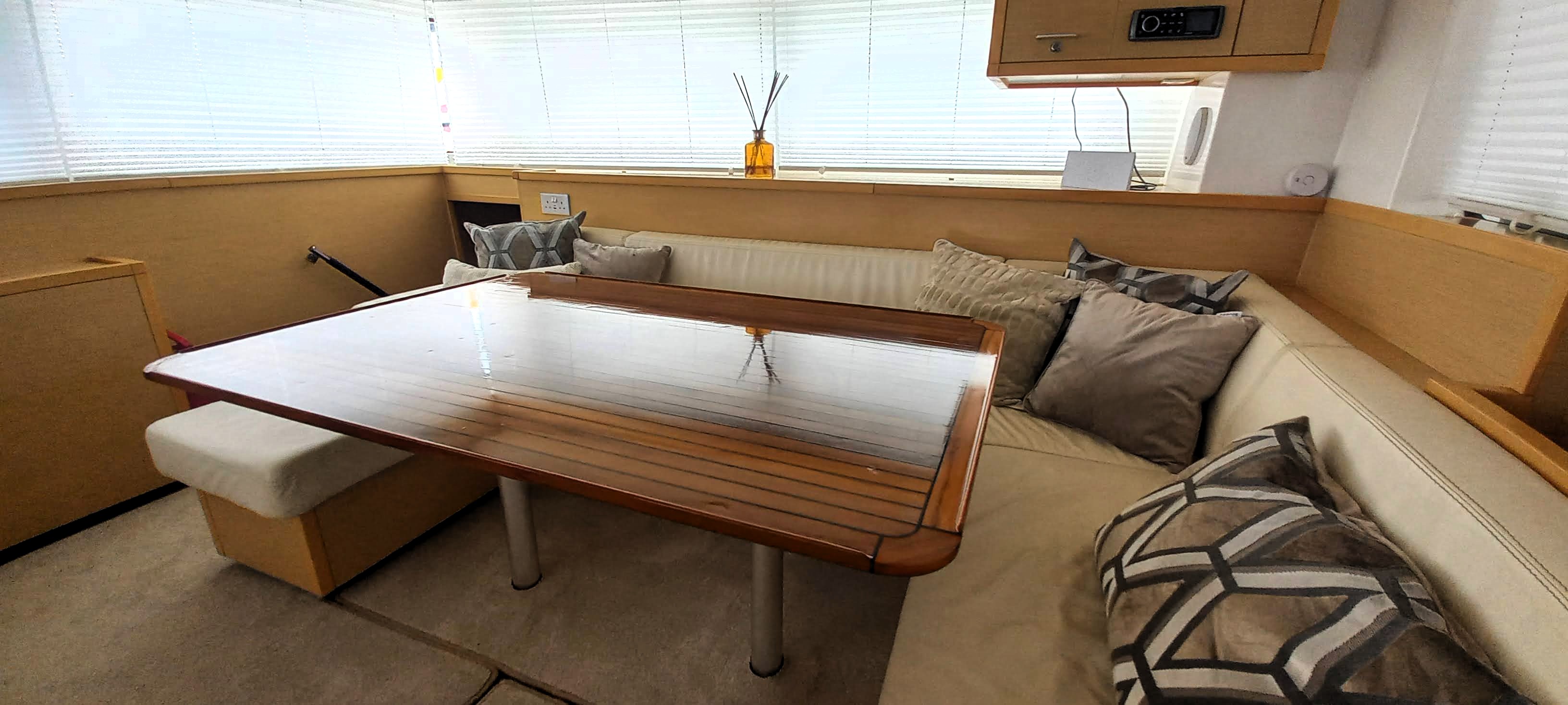

U-shaped saloon seating to starboard with interchangeable dining table and 1 x poof and electrical lift for TV.
Panaromic vertical windows (avoids direct sunlight keeping cabin cooler).
NAV TABLE
Centered forward of mast base.
Two internal engine throttles and a remote.
VHF Radio.
Raymarine E125 At Nav Station.
Autopilot & remote.
Sunscreen protection at all windows and hatches

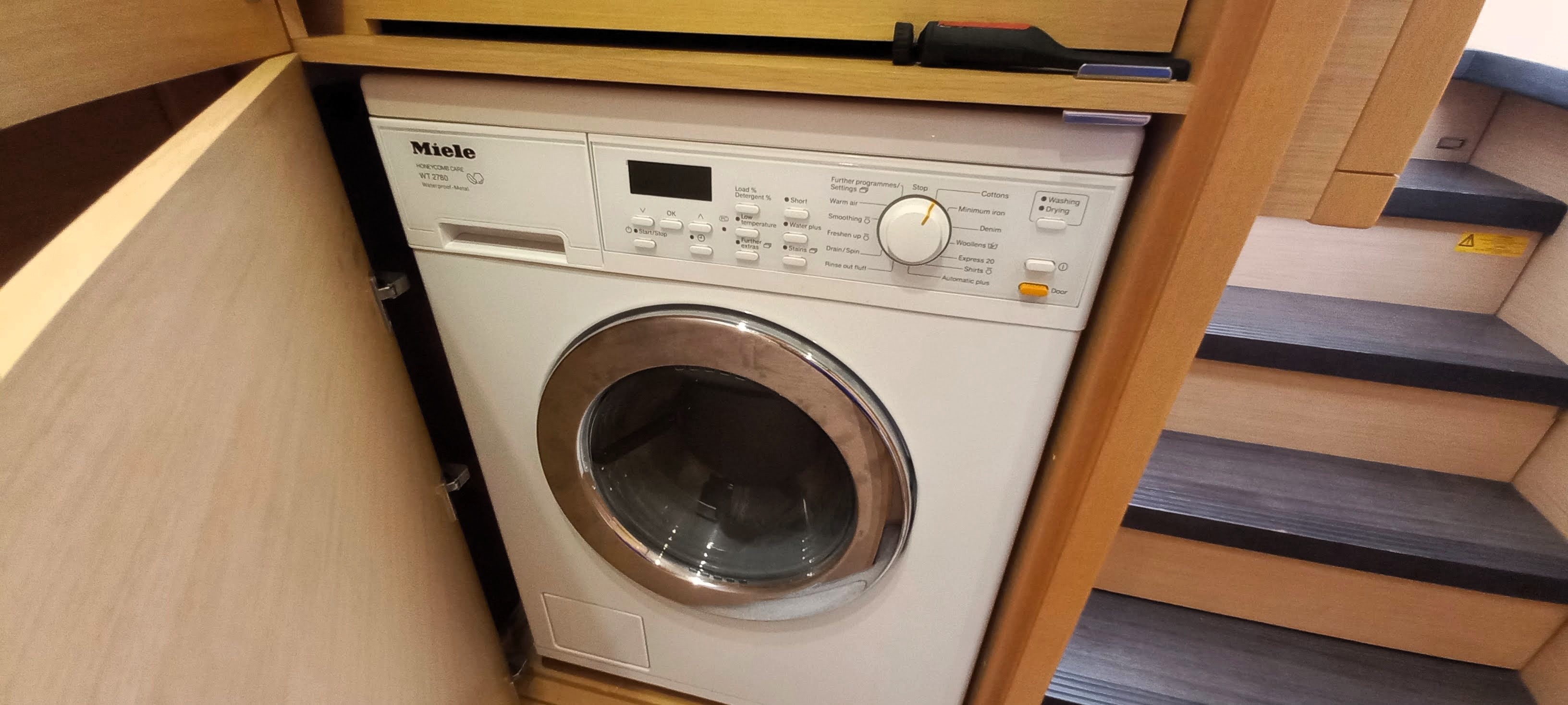

Miele washer/dryer 5KG 220v.
Dishwasher Miele 12p 220v.
Fusion DVD/ Radio in Saloon, Cockpit and flybridge including media box.
2 x Raymarine Cameras CAM100 under flybridge.
5 x LED Tv's Samsung one in Saloon inc. electrical lift and one in each cabin.
EXTERIOR
Helm seat cushions

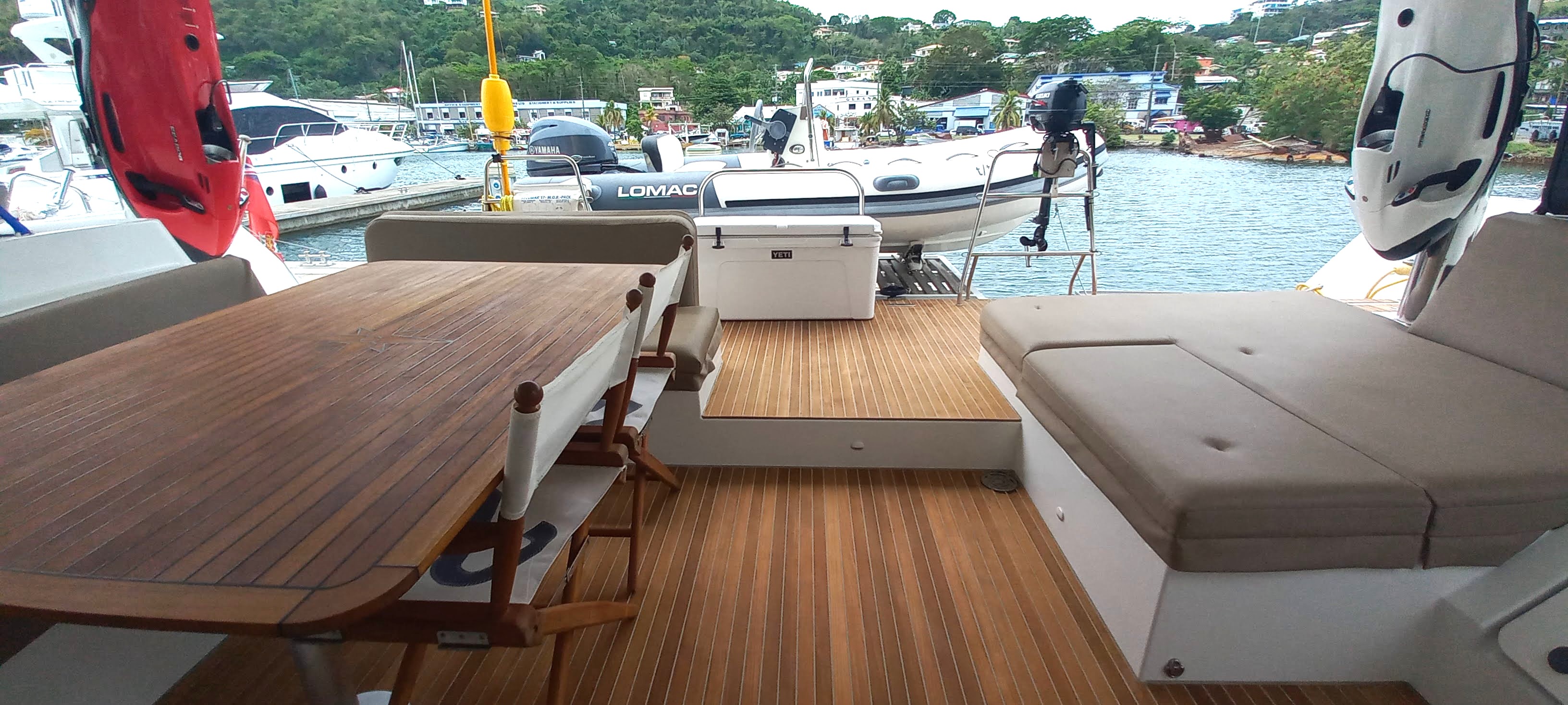

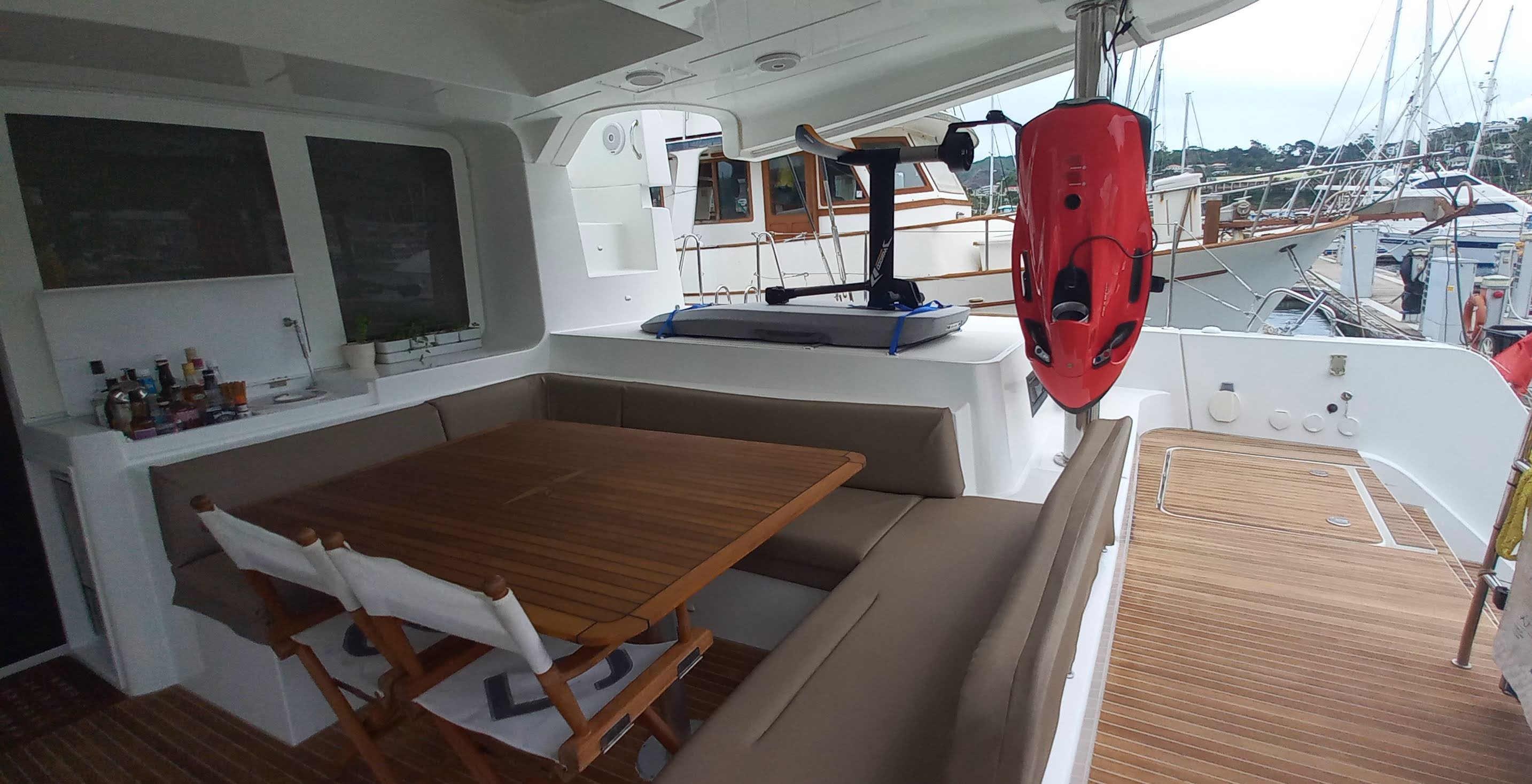

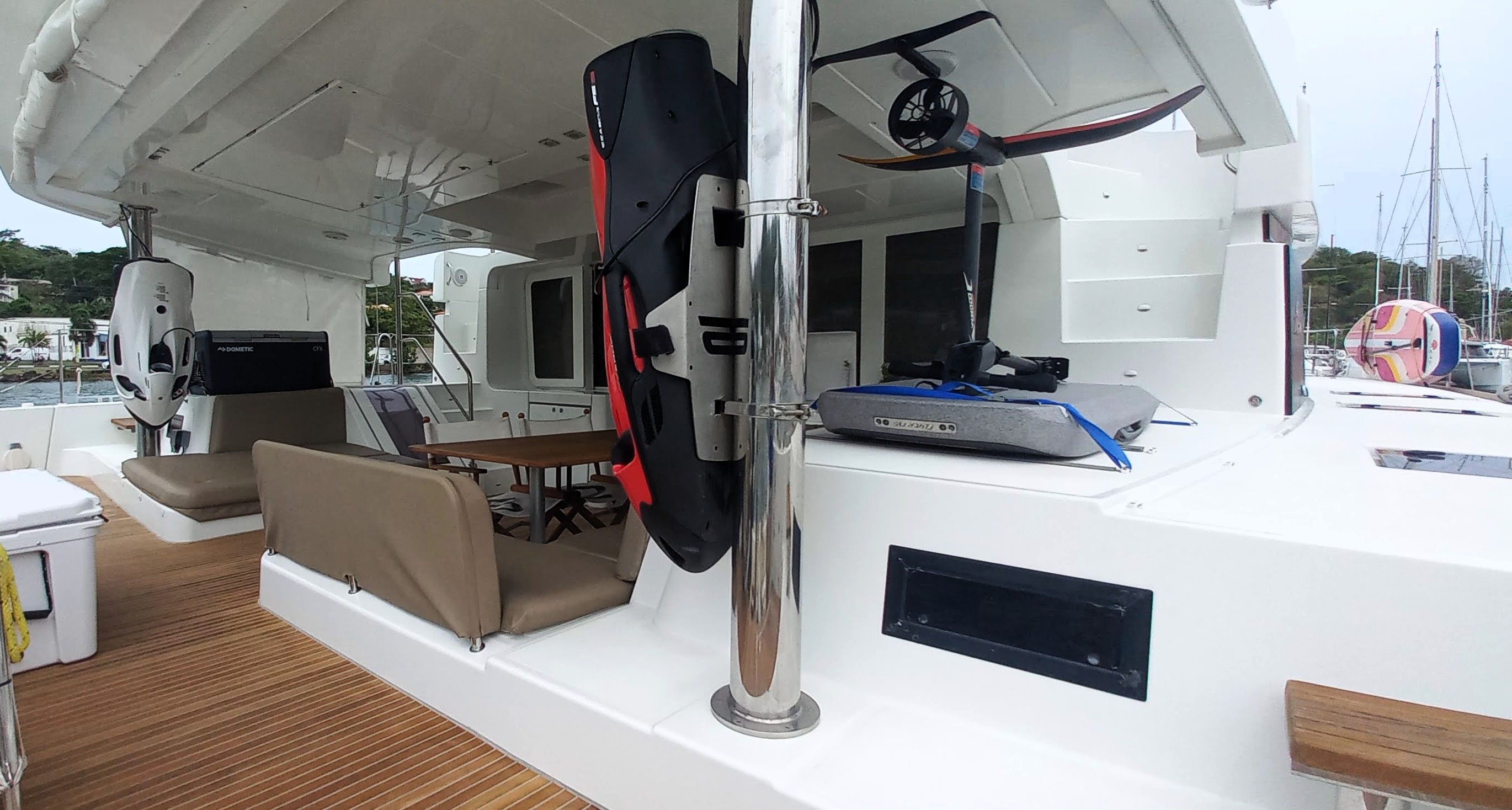

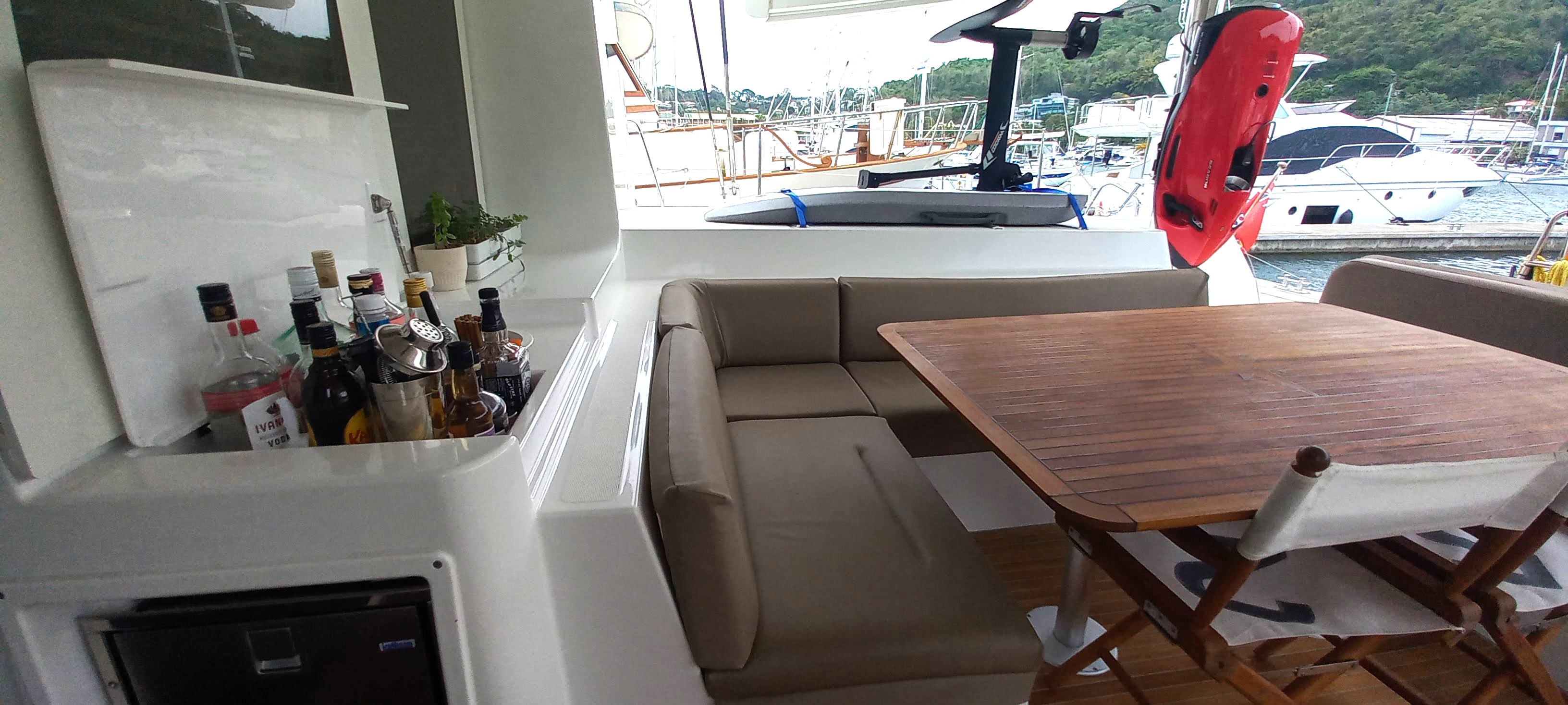

Cockpit has large U-shaped dining area and lounger with cockpit dining table and wet bar with solid bimini over ice maker- new 2024.
LED lights undermounted.
Cushions in Taupe.

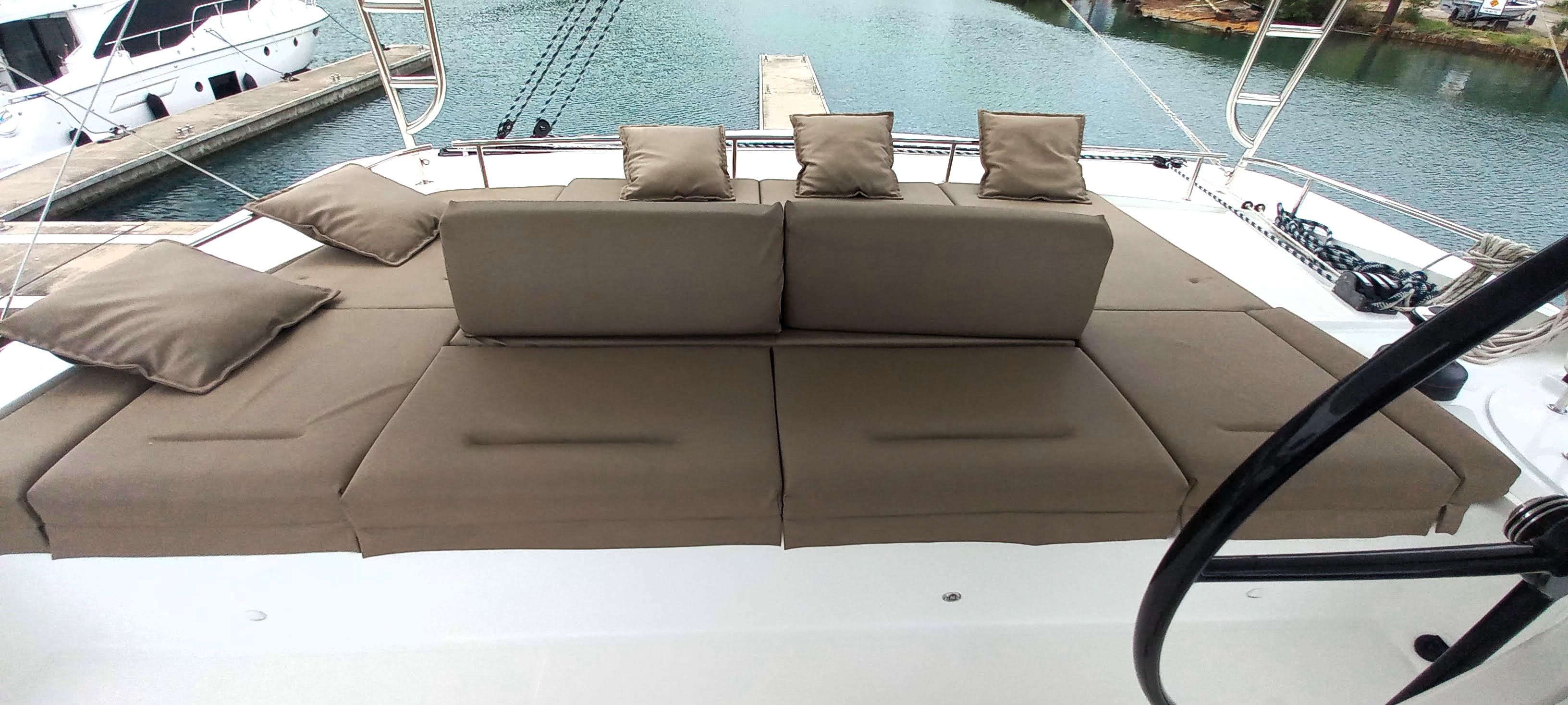

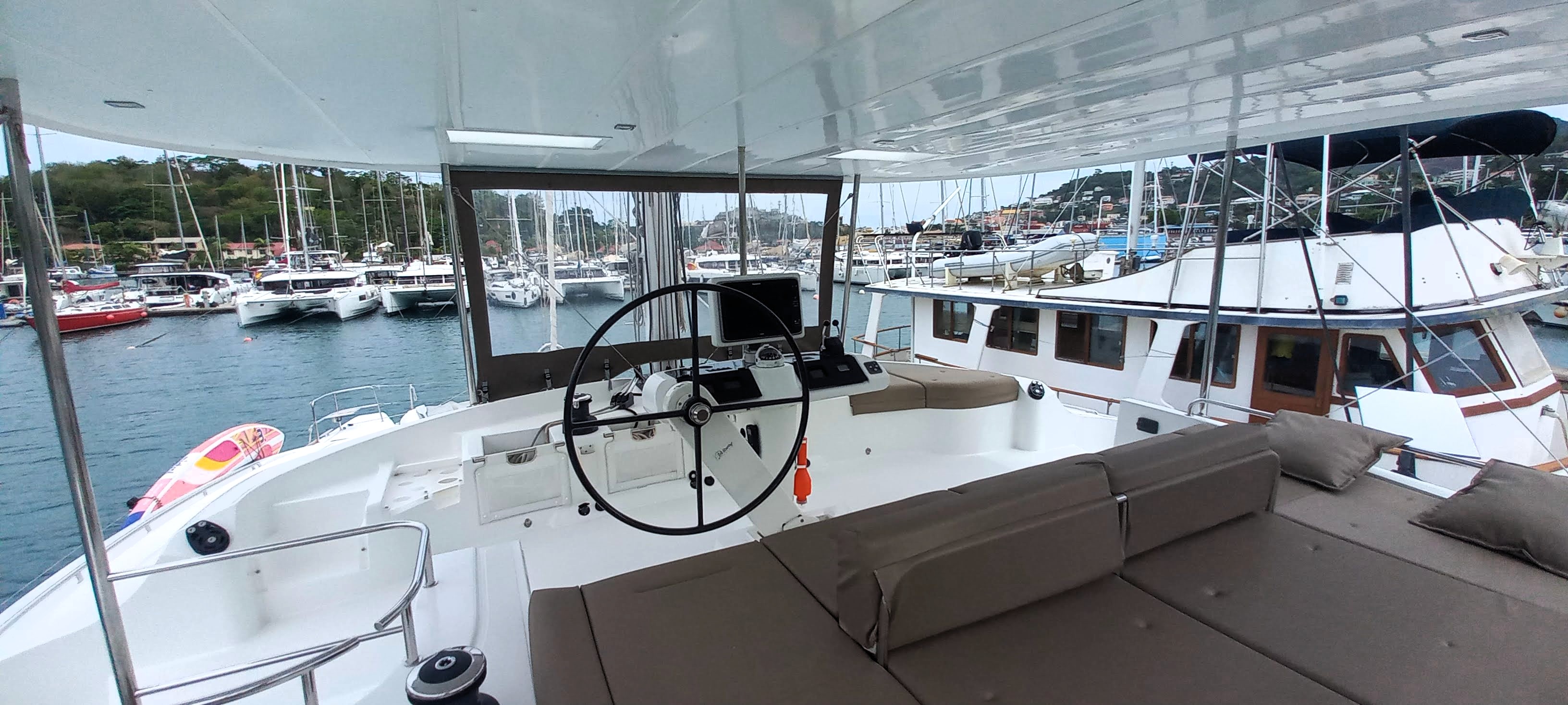

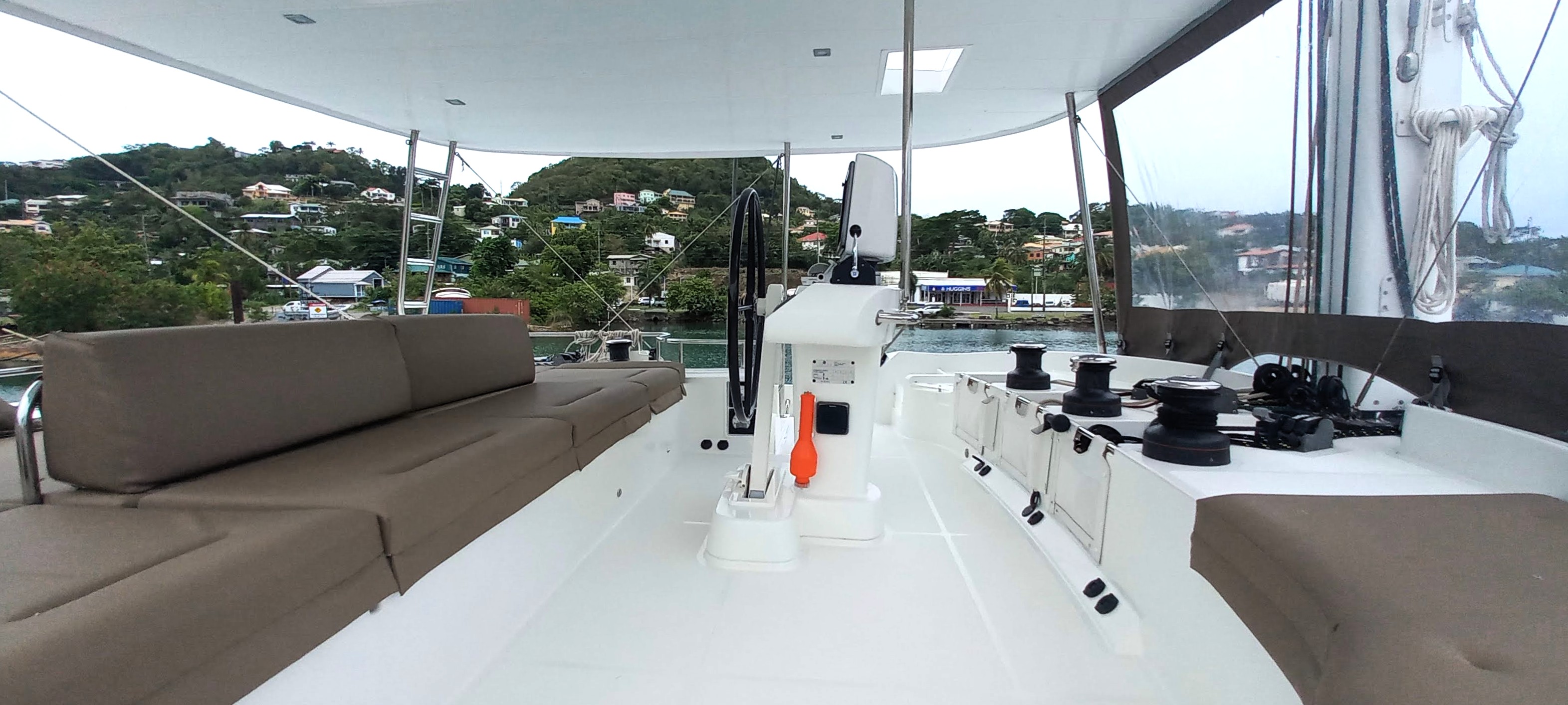

Flybridge - large carbon solid flybridge hardtop- 2024.
Taupe sun lounger pads
All figures approximate

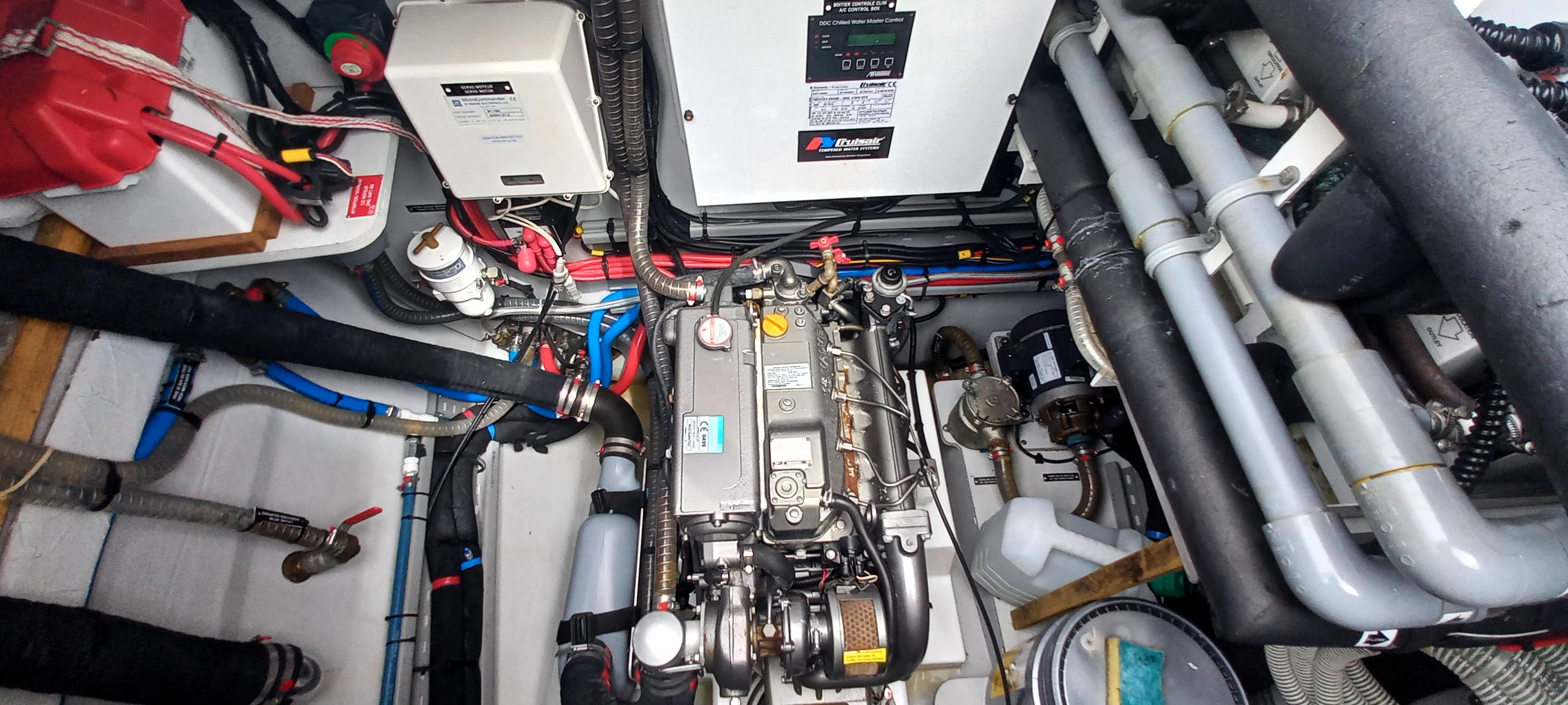

TWIN YANMAR 4JH4TCE 75HP DIESEL ENGINES
Running hours approx. 2,350- September 2025 - last serviced October 2024.
Located in engine rooms below hatches in transoms of hulls under soundproofed boards.
Sail drive with three blade folding propellers- serviced October 2024 (plus fixed props as spares).
Electric 24 volt bow thruster with batteries and charger.
Extra throttle at chart table.
ELECTRICS
ONAN Genset 17.5 KVA 1500tr 220v/50Hz with cocoon- serviced October 2024.
Solar panels (flexible) x 8- 2024.
220 v electrical circuit.
AC monitor, 100 Ah battery charger.
2 x Inverters 2000W.
Gel batteries 1260 AMP (new summer 2024).
AC systems monitor. + digital displays in each cabin.
12v sockets in cabins.
All sockets upgraded with UK & continental outlets including C5+ USB.
TANKAGE
Four fresh water tanks- 960 litres total.
Two Aluminium- 496 litre fuel tanks.
Holding tanks to all guest sleeping cabins.
WATER SYSTEM
Hot and cold water pressurised system- new pump fitted- 2024.
Heated by 60 litre water heater or heat exchanger.
Watermaker Sea Recovery 280 L/H modular system with auto flush built in SB machine room.
Deck wash pump fresh water.
Fresh water dock inlet.
Extra deck wash SB side at stern for cleaning tender lift.
All figures approximate
NAVIGATION AIDS

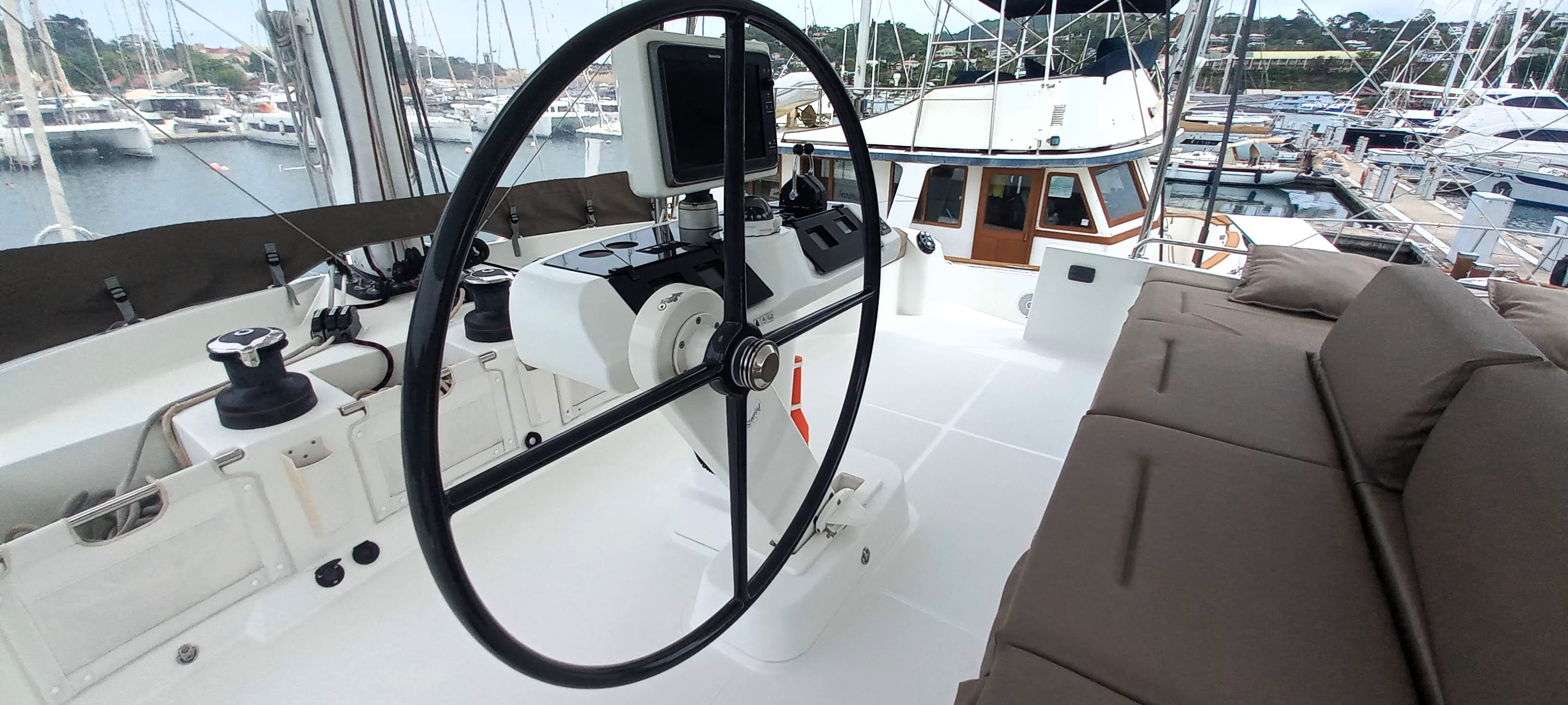

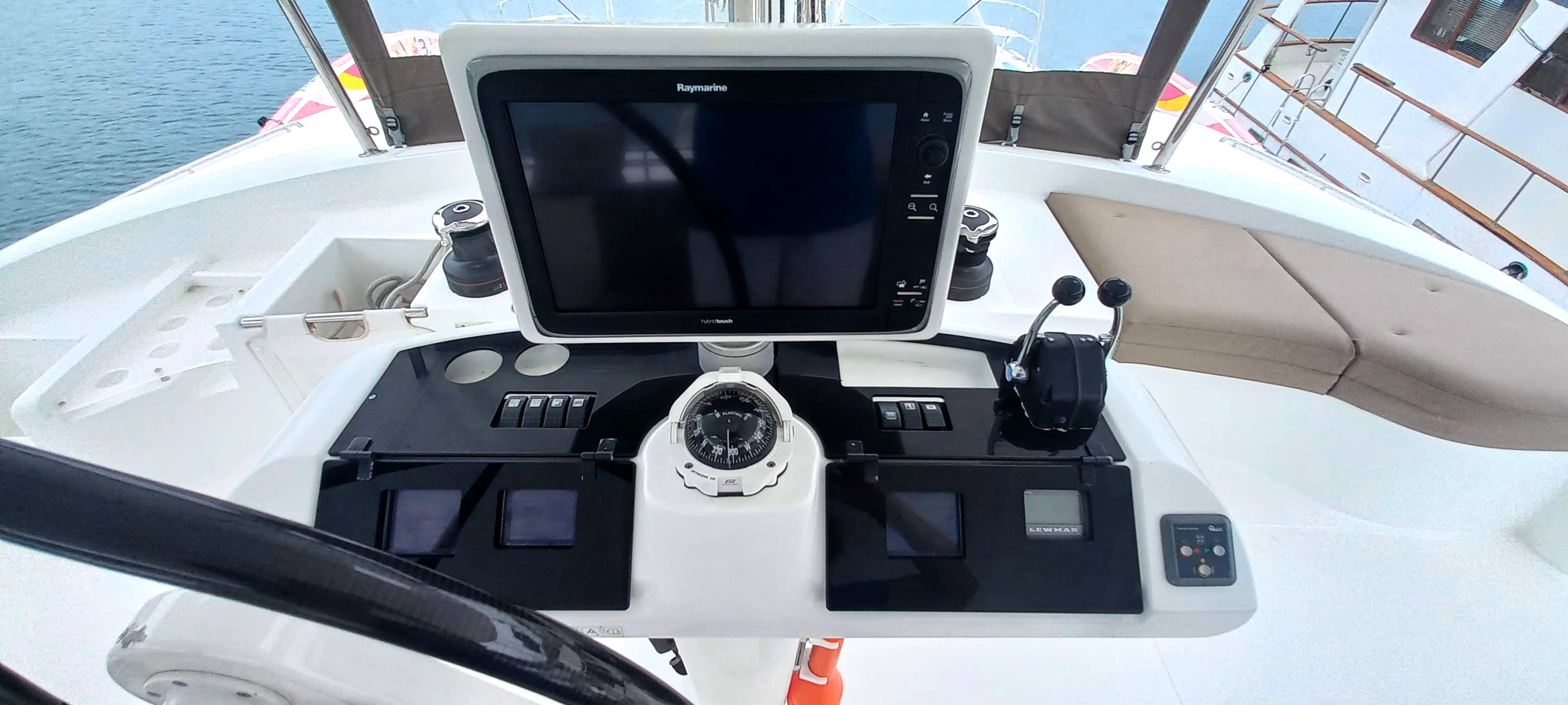

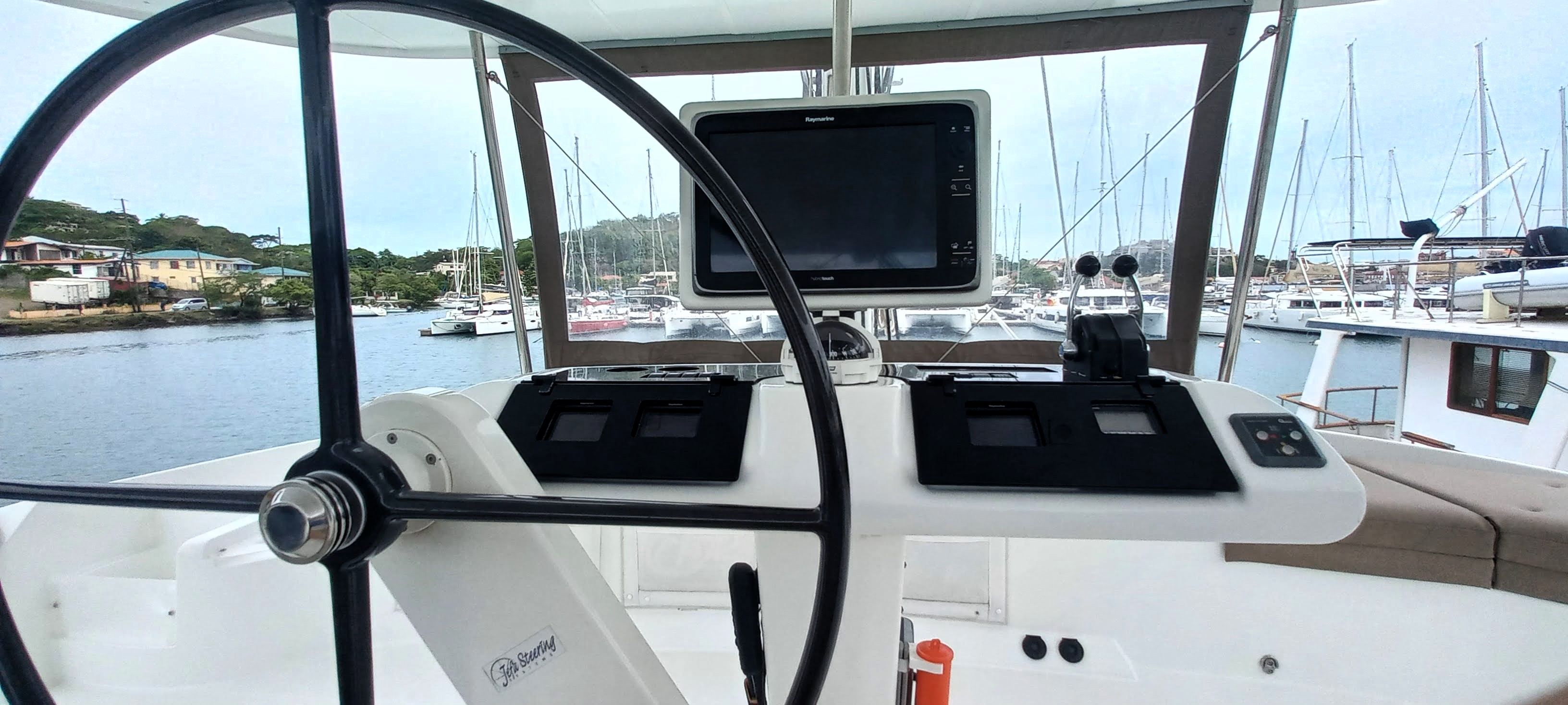

E1675 plotter at helm with rotating nav pod.
Raymarine E125 display at nav station.
Raymarine transmitter and receiver AIS650.
Raymarine HD radar 18" 48 NM with Stainless steel protection.
Raymarine i70 wind/speed direction.
Raymarine i70 Depth/ speed/ log.
Raymarine i70 autopilot with gyropilot.
Raymarine Remote control Smart Pilot.
Raymarine 240E VHF with twin handset.
Interface PC Seatalk USB Raymarine.
Raymarine Extra display i70 in crew cabin.
Raymarine Extra display A65 in owner's cabin.
RR antenna pacific 3G AIS.
GSM/ GPRS 3G Gateway
Badboy wifi + Ericssson router.
2 magnetic compasses.
Raymarine complete. (Additional new inbox) Autopilot- 2024.
Raymarine STERN CAMERAS x 2 viewable at the Helm.
Tricolour light.
COMMUNICATIONS
RR Antenna pacific 3G AIS.
CSM/GPRS 3G Gateway.
Badboy wifi & Erricsson router.
Starlink router & dish.
GROUND TACKLE
2000W 12v electric windlass with horizontal gypsy.
Remote control and chain counter at the helm.
Anchor with 12mm chain.
SAFETY
2 x EPIRB- new 2024.
Liferaft Plastimo 8 persons (serviced 2024).
Swim ladder x 1.
Lifejackets x 8.
Lifelines x 5.
Flares- new 2024.
Bosun's chair x 2.
Gas canisters x 3.
Jerry cans (for tenders) x 2
Battery powered angle grinder for emergency.
1 x dive kit (vest, tank & demand valve).
First aid kit- new 2025.
All new fire extinguishers- 2025.
Carbon monoxide alarm- 2024.
Smoke detectors in all cabins.
Danbouy with light- 2024.
TENDERS

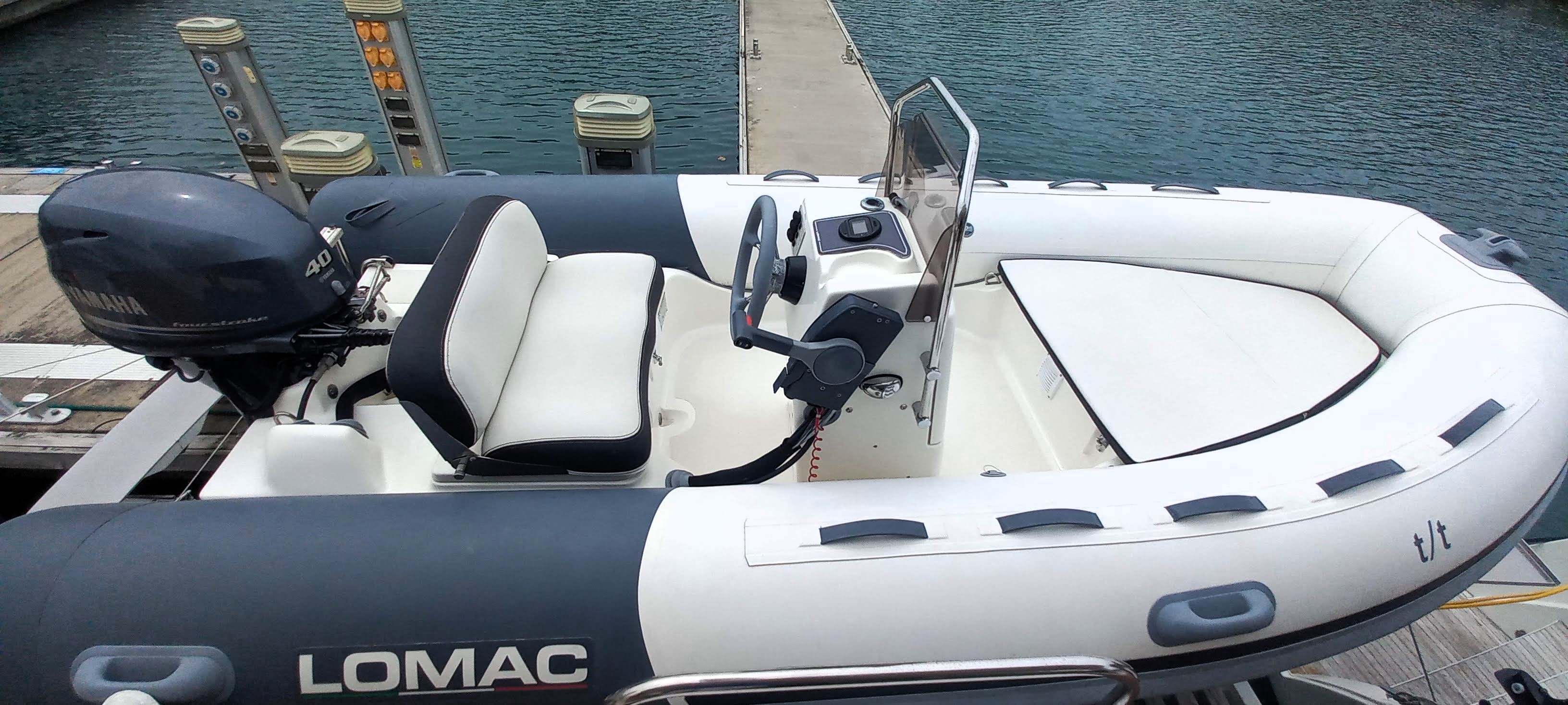

Tenders; 1 x Lomac 3.95 with 40hp Yamaha with cover.
1 x Zodiac 2.70m with 2.5hp Suzuki.
Hydraulic tender lift platform with remote.
GENERAL EQUIPMENT
Black Carbon Steering wheel.
Carbon gangway.
Opening stanchions port and starboard.
Side stair.
Deck wash pump with fresh & sea water at bows.
Deck wash at stern starboard.
4 x Underwater lights.
Leather bulkhead organisers.
Fusion upgrade Radio/ DVD/ CD/ MP3 player with eight speakers - saloon, cockpit & flybridge with remote control.
Crockery.
Utensils.
Inflatable fenders x 6.
Standard fenders x 11.
Boarding ladders x 1.
COVERS
New carbon-fibre Large Bimini on flybridge inc LED lights- perfect for easy main sail stowage.
Taupe covers for steering wheel, wheel station and e165 display.
Helm seat cushions, cockpit cushions, and forward cushions.
Sunscreen protection at all windows and hatches.
Rear sun protection in white.
Pleated Sun blinds through out cabins and saloon.
Special additions:
Dometic CFX3- 100 ltr coolbox/ freezer- new Sept 2024.
Extra demountable wooden floor in SB bow for storage.
Rear window SB same as BB reflective and therefore not behind the wooden stair.
Extra cover for bimini.
Rear sun-protection in white.
Stainless steel support for captain seats.
Navigation books for many European waters.
Additional throttle at chart table
8 x Solar panels – flexible (walk on ) top of flybridge roof- new 2024.
SB &BB rear window reflective therefore not behind wooden stair.
Extra demountable wooden floor in SB bow for storage.
Stainless steel support for captains seats.
Fresh water dock inlet.
X Large Yeti coolbox- new 2024.
Underwater lights.
SPARES
Engine spares (alternator, starter motor, sea water pump, fresh water pump, numerous belts, electrical inline diesel pump, 2xengine remote relays).
Generator spares with (complete electric sea water pump & service kit).
Watermaker spares (filters).
2 x service kits for both steering rams.
2 x sets of gaitors for sail drives.
*All figures approximate.
