- Make Jeanneau
- Model Sun Fast 3300
- Year 2021
- LOA 33ft/10m
- Class Performance Sail
- Hull Glass Reinforced Plastic
- Keel Fin Keel
- Rig Sloop
- Engine Single Diesel
- Layout Aft Cockpit
- Berths 4
- Cabins 2
- Aft Cabins 2
- Ancasta Ref 48701
- Name Orbit
Jeanneau Sun Fast 3300 | 2021
159,950 Tax Paid
|
Cowes, Isle of Wight United Kingdom
Excellently maintained and fast racing Sun Fast 3300 optimised for offshore racing if needed and with incredible results from the father and son owners.
2025 was an excellent year resulting in Overall winner of the Cervantes Trophy Race, 3rd Overall Myth of Malham Race, Winner of IRC3 in De Guingand Bowl.

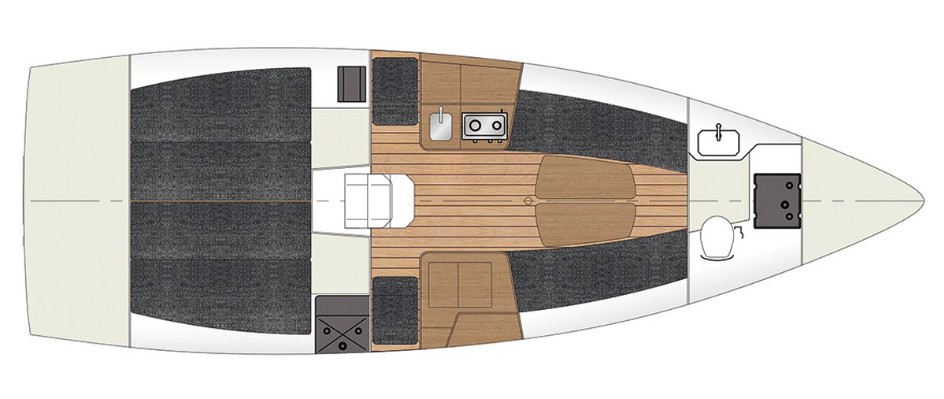

Layout
Designed by naval architects, Daniel Andrieu and Guillaume Verdier, and constructed entirely by infusion moulding, the Sun Fast 3300 benefits from exceptional resistance and rigidity, with considerable weight reduction.
Because of this, it delivers not only excellent performance, but it also benefits from an advantage with regard to IRC handicap rules, notably due to its single fin keel and its adapted sail area.

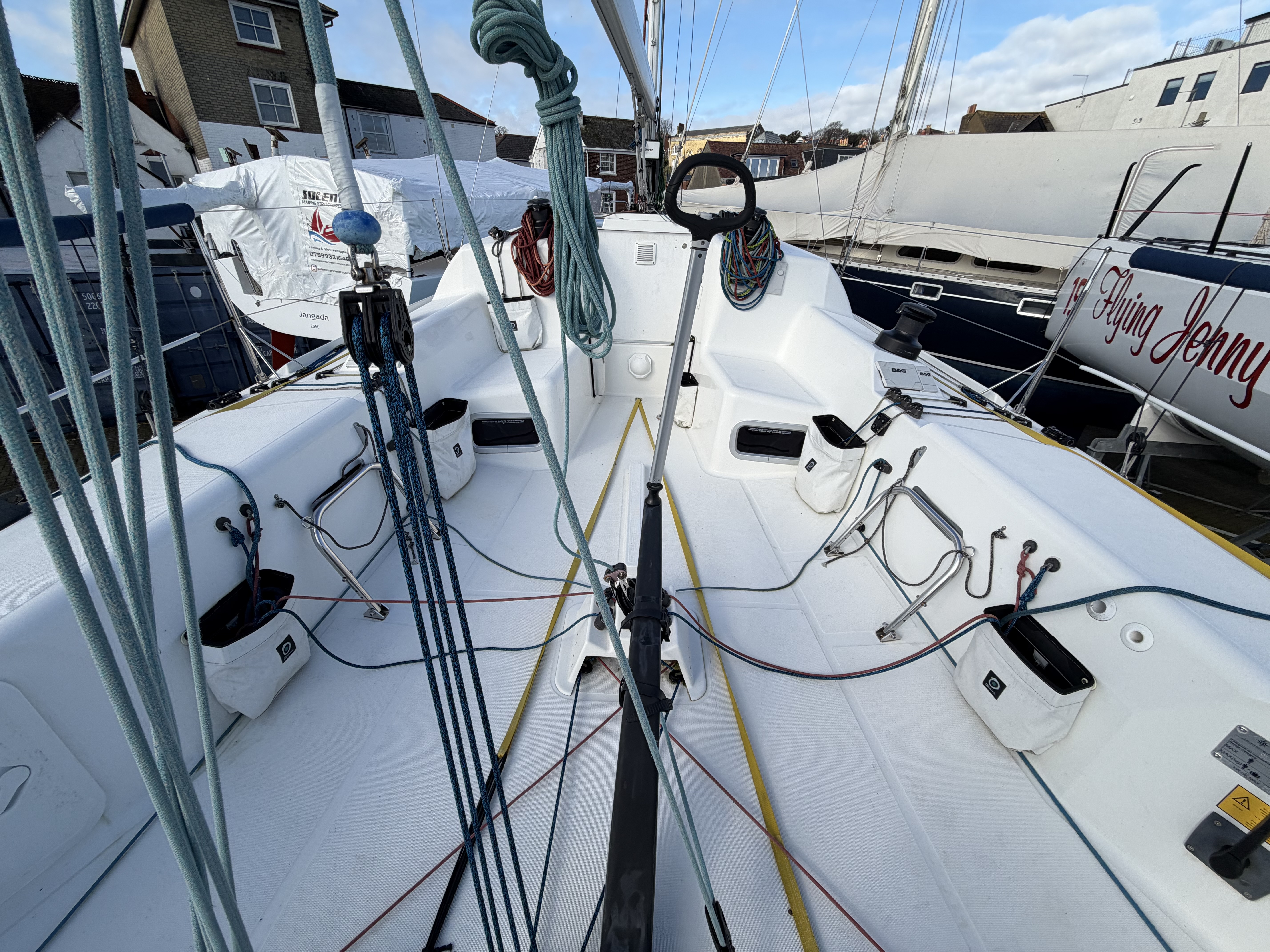

The 3300 boasts an ergonomic design that serves efficiency, with a spacious cockpit to facilitate easy movement about the deck, and sail controls led to the helm for single-handed crossings.
Five percent faster than the 3200 version, the Sun Fast 3300 is still just as stable and balanced on technical courses.
Its hull has been specially designed with the objective of enhancing performance downwind.
With the Sun Fast 3300, exhilarating speeds and surfing down the ocean waves are yours!
General Specs:
Length overall 10.11 m / 33'2"
Hull length 9.99 m / 32'9"
Displacement 3500 kg / 7716 Lbs
Standard keel draught 1.95 m / 6'5"
CONSTRUCTION HULL:
Infusion GRP sandwich with balsa coring.
Infused structural inner liner glued into place.

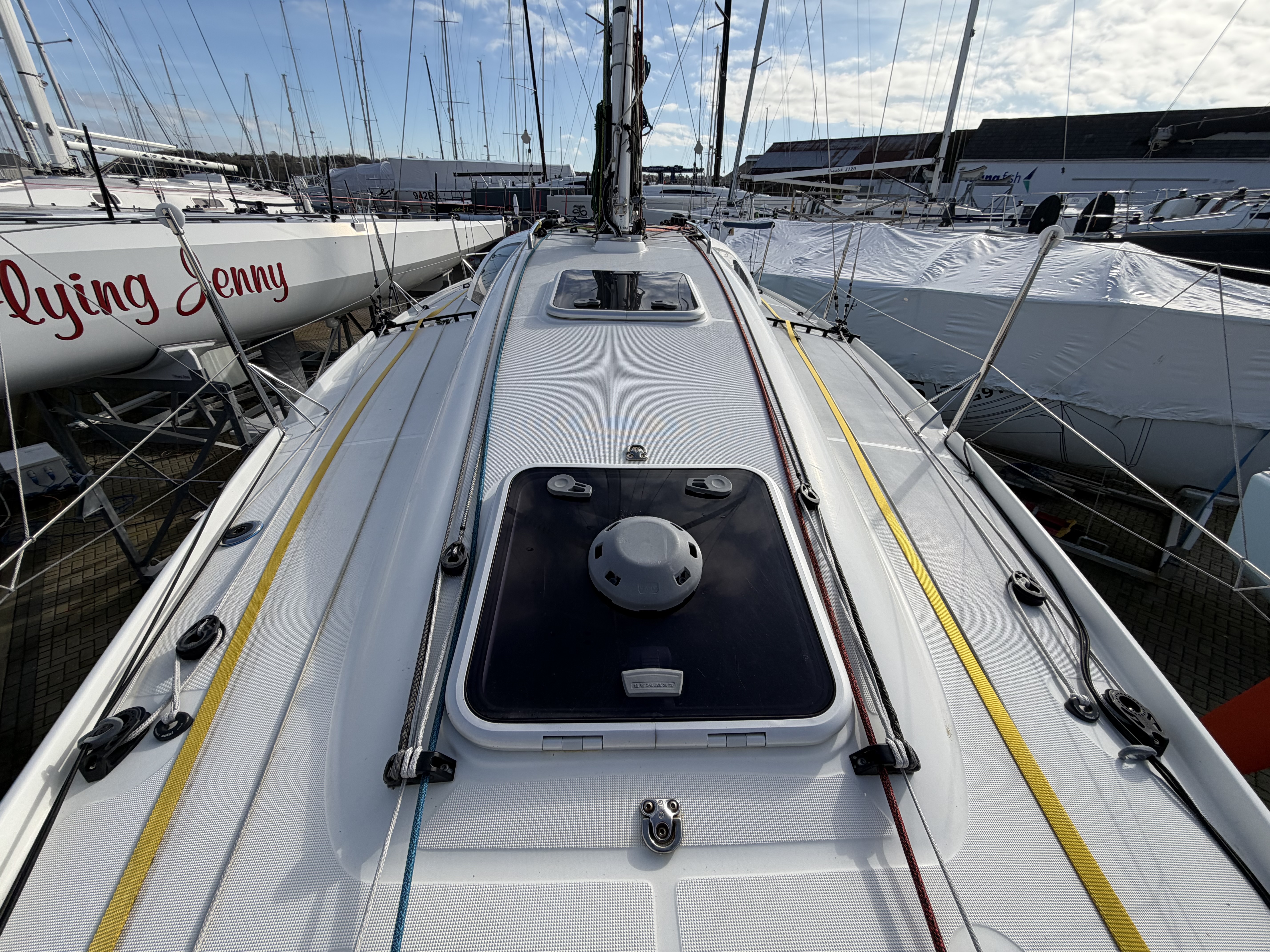

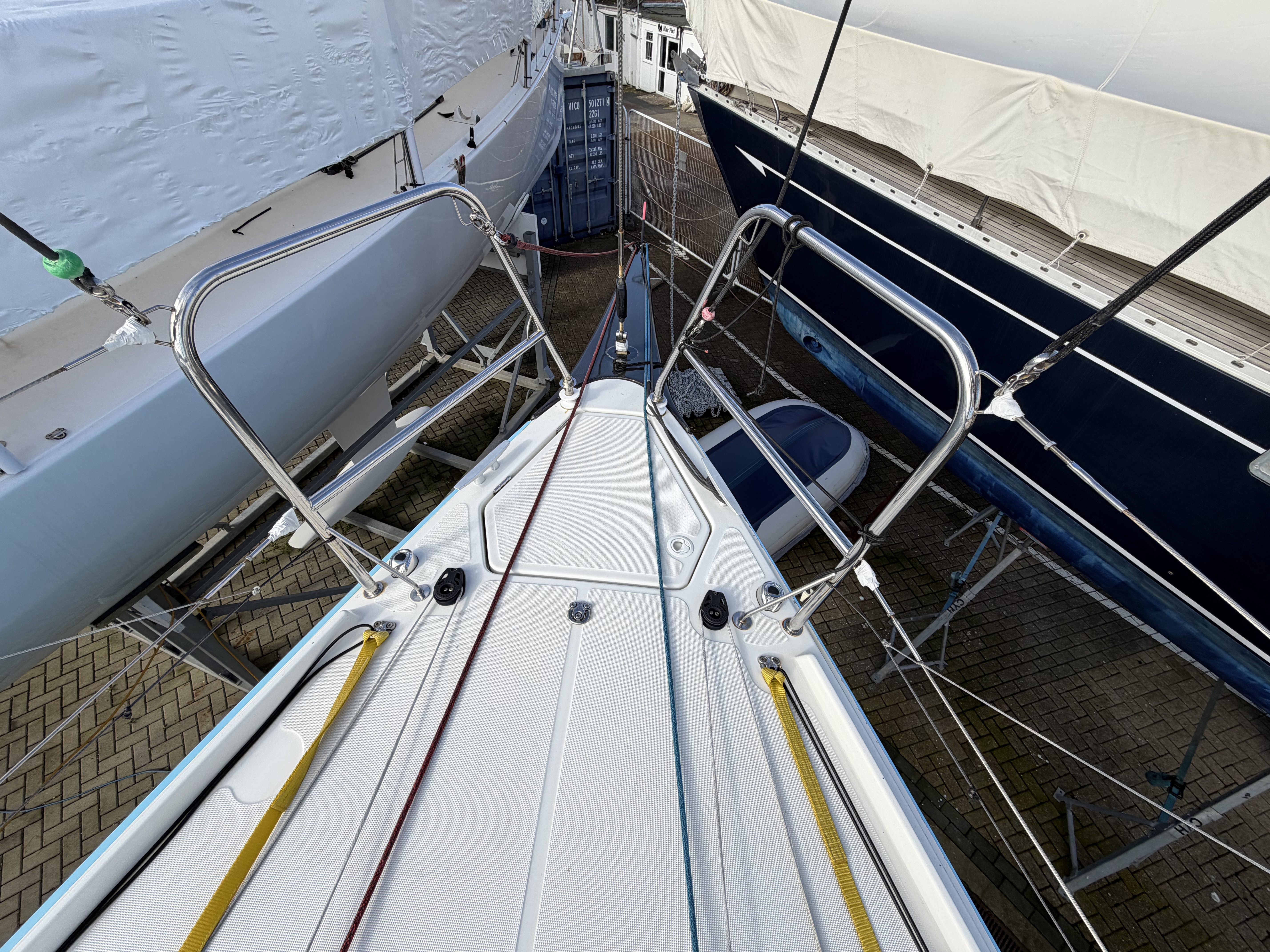

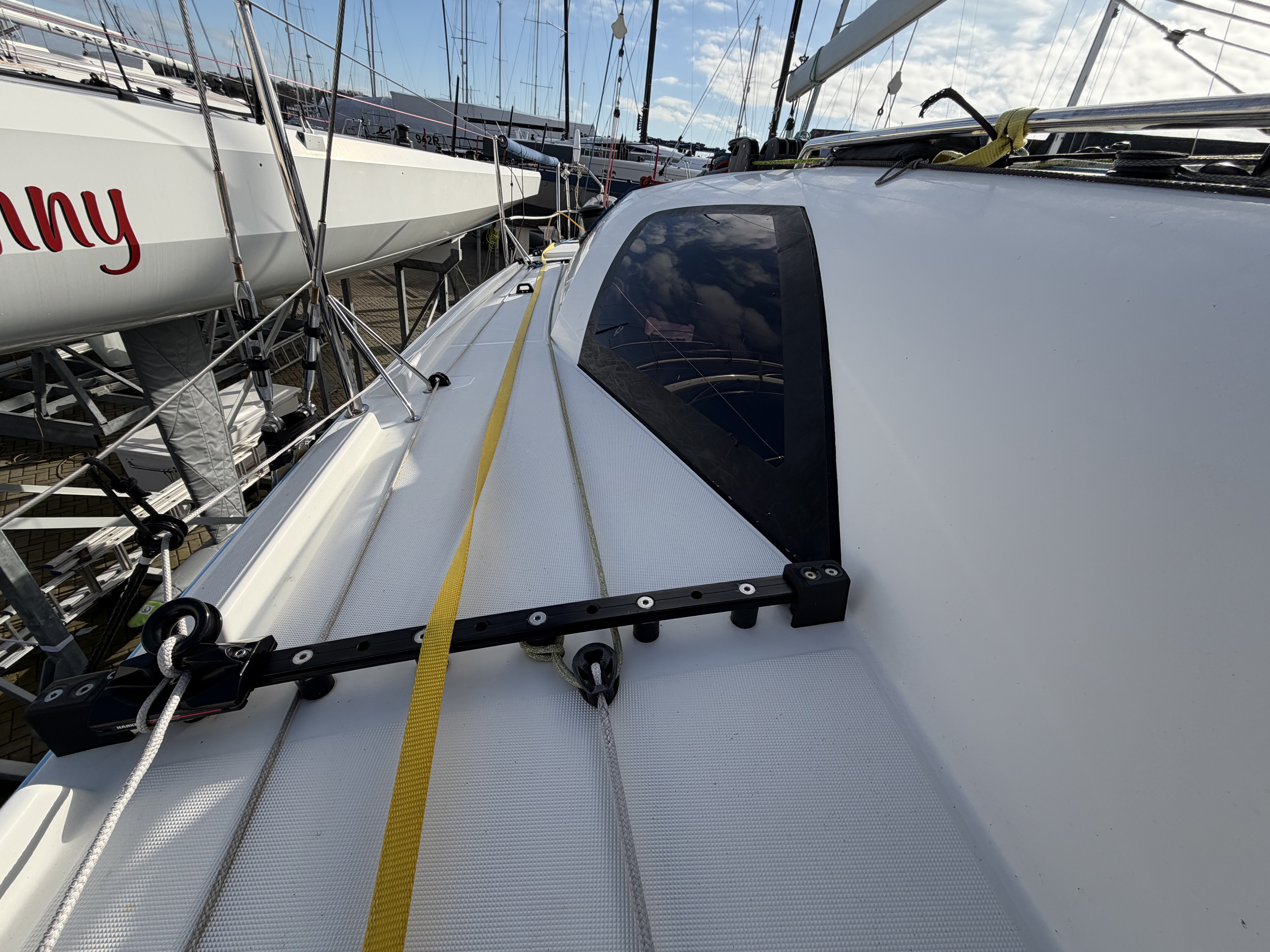

DECK:
Infusion GRP sandwich with foam coring.
BULKHEADS:
Infusion GRP sandwich moulded companionway, mast and forward bulkheads.

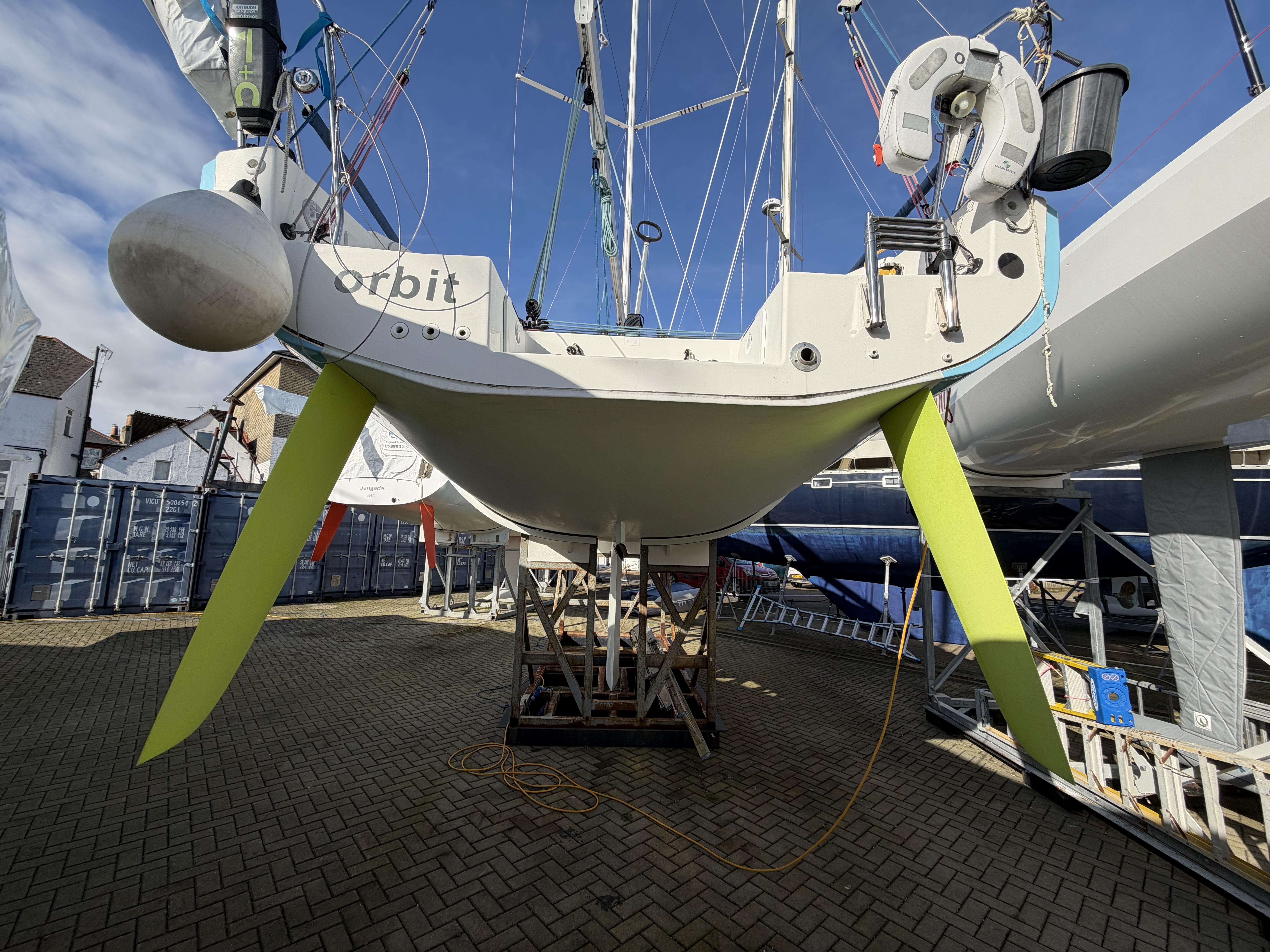

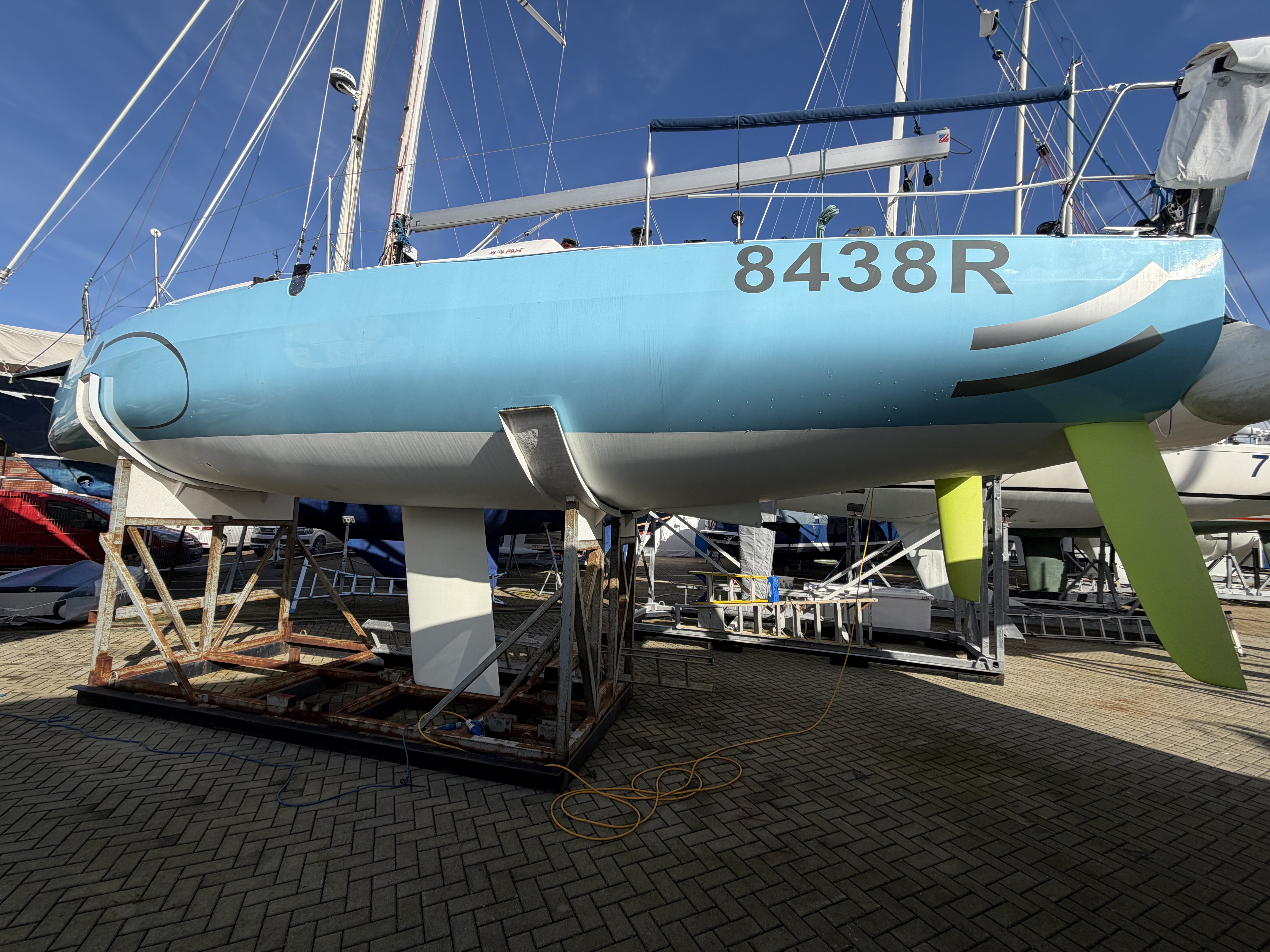

STEERING
Double polyester rudders with stainless steel rudder stock,
Self-aligning rudder bearings,
Composite tiller with telescopic stick,
GRP support for autopilot ram.

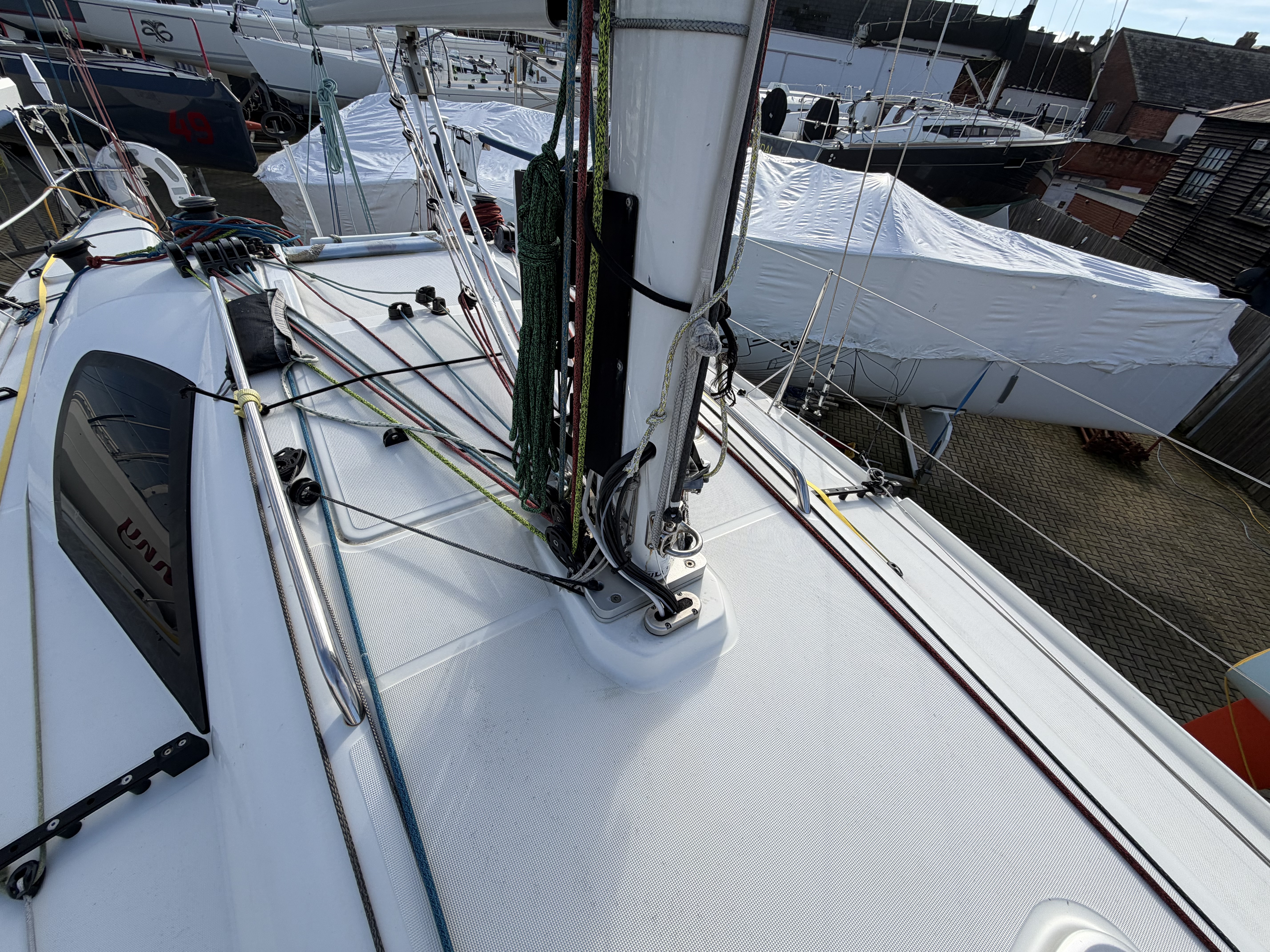

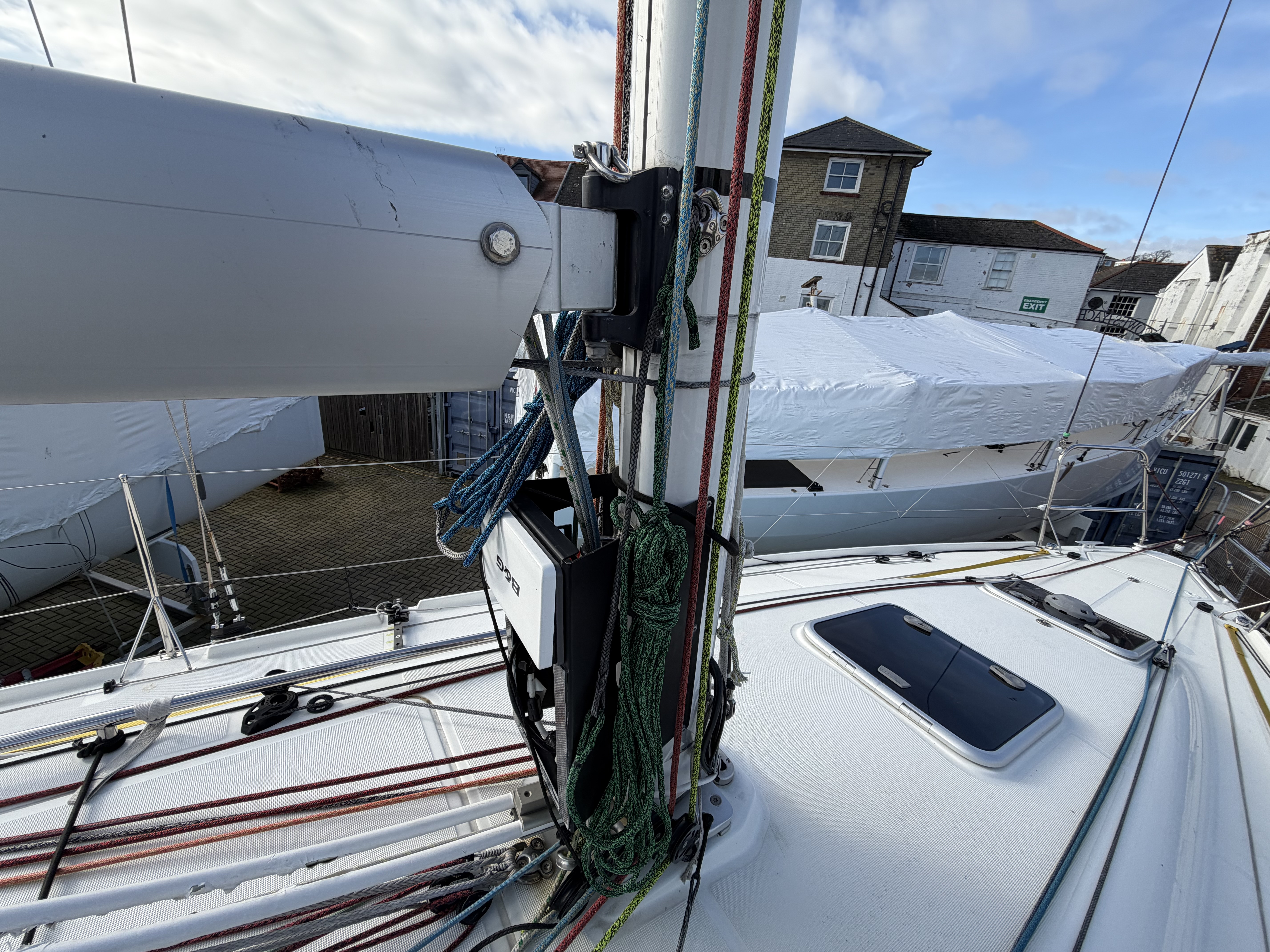

ORBIT is fitted with an Axxon carbon mast painted white and aluminium boom painted white.
Offshore setup and compatible, she has proven her reliability both inshore and offshore.
Rod standing rigging.
Spring vang setup.
Harken racing foil for headstay
Asymmetrical spinnaker rigging upgrade
Genoa staysail tack point upgrade
Additional aft sheets blocks for peeling.
Upgrade to ceramic deck clutches.
RUNNING / RIGGING
1 genoa halyard,
1 doubled mainsail halyard with shackle,
2 masthead spinnaker halyards,
1 forestay attachment spinnaker halyard,
2 genoa sheets, • 2 inhaulers for the genoa,
2 downhaulers for the genoa,
1 mainsheet with fine tune,
1 mainsail outhaul,
2 reefing lines,
FURLERS
1 x Ubi maior and 2 x Facnor furlers
New Sails:
Mainsail by Quantum (new in 2024)
J1 Jib by Quantum ( new in 2024) on Dyneema hanks
J2 Jib by North (new in 2025) on Dyneema hanks
Heavy Weather Jib by Ullman (new in 2025) on Dyneema hanks

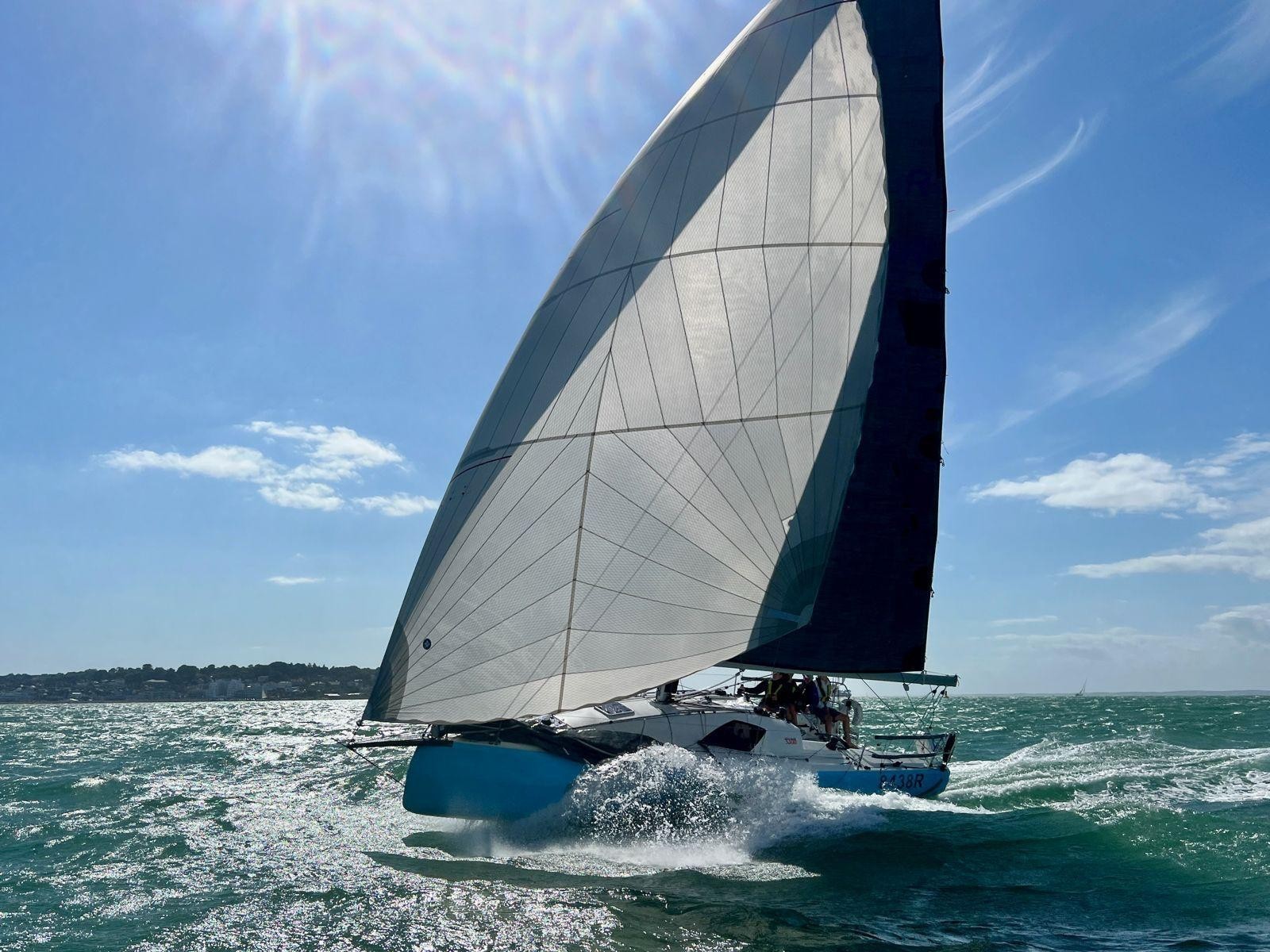

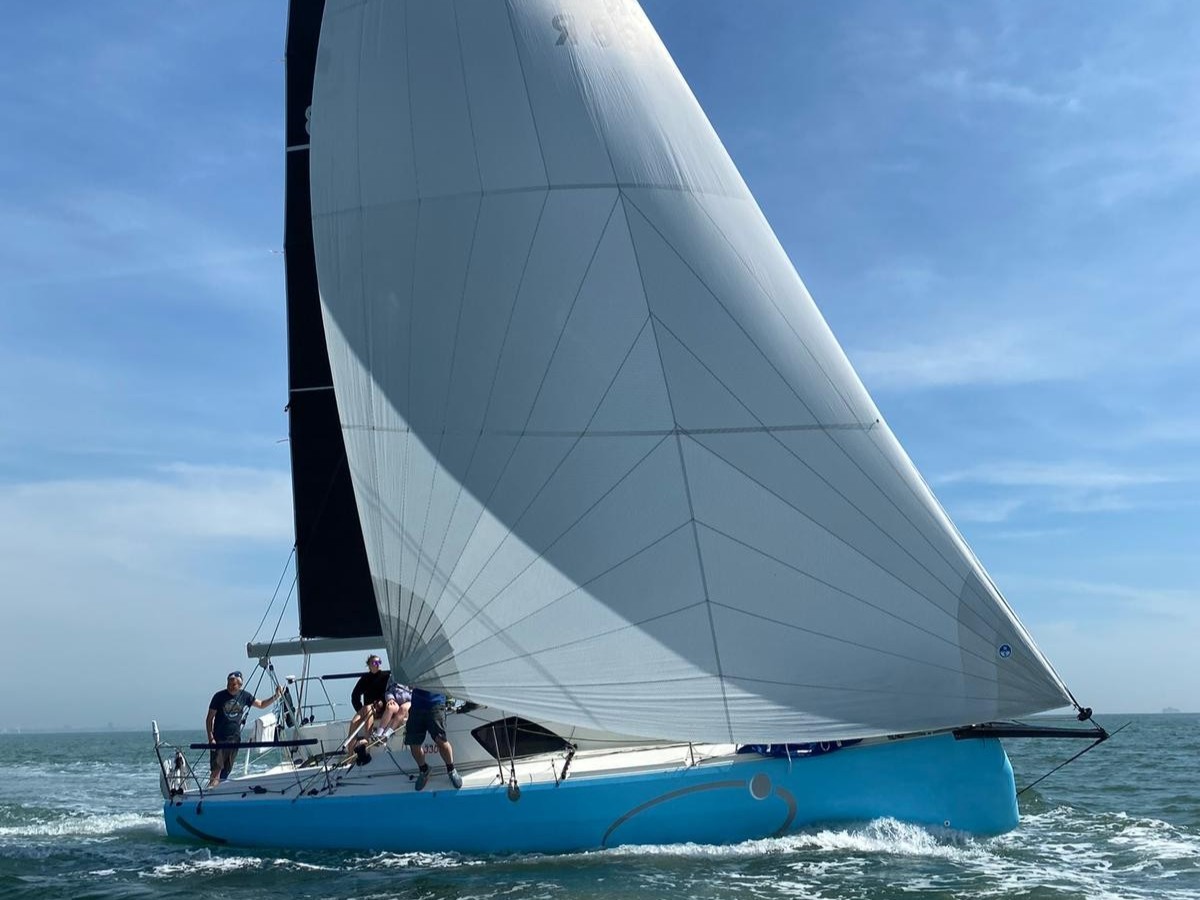

A2 Asymmetric Spinnaker by North (new in 2024)
MHO (Masthead Code Zero) by North (new in 2025) plus furling line
Technique Voile Sails (2021):
Square Top Main - Area 32.88 sq.m - 2 reefs, 5 battens - Regatta Membrane film/film, Batten cars & boxes
Spare Mainsail
J2 Medium Genoa Area 26 sq.m Regatta Membrane film/film, tri-radial, Dyneema hanks
J3 Heavy Jib -Area 23 sq.m - RACE Aramid Black laminate clear film, tri-radial, Dyneema hanks
Storm Jib - Area 6 sq.m - OCEAN Upwind Dacron, Orange, Dyneema hanks
A2 Medium Runner - Area 108 sq.m - Regatta Downwind, Nylon 0.75, Superkote 75
Facnor FX+ 1500 Click furler + associated hardware (includes furling line)
FACTORY FIT OPTIONS:
Asymmetrical running rigging + Bowsprit
White carbon mast - Dyform standing rigging (with Aluminium boom)
4 x Performa Harken winches 40
2 x Halyard bags in cockpit
Additional LED deck navigation lights - World Sailing compliant
2 x Lee cloths in saloon
IRC Saloon Table
2 x 200L Water Ballast tanks
B&G HS000 Hercules System Pack:
H5OOO Pilot (inc Raymarine Type 2 12v short shaft Linear Drive pilot ram)
Precision 9 compass
Rudder reference & feedback unit
Motion Sensor

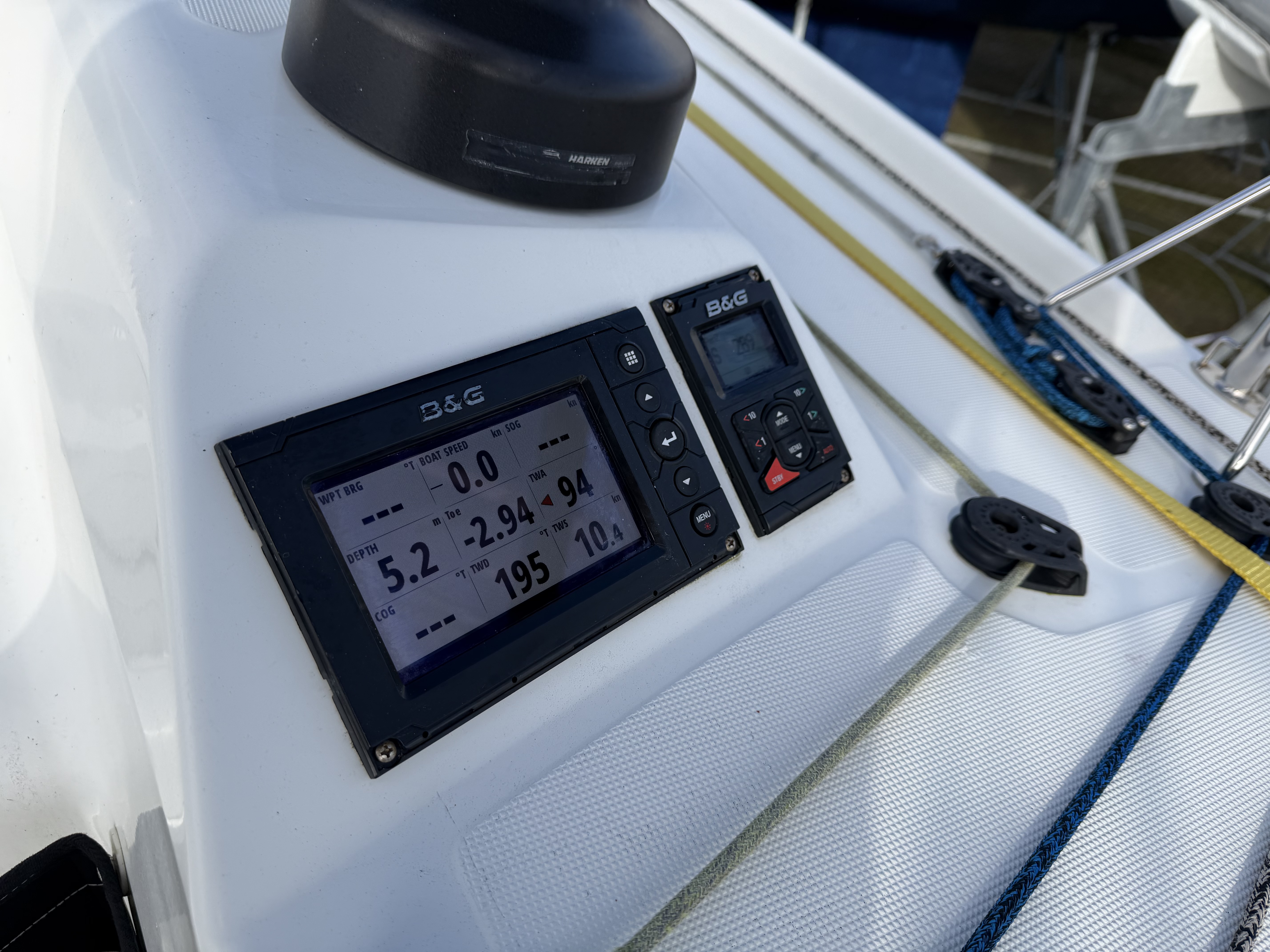

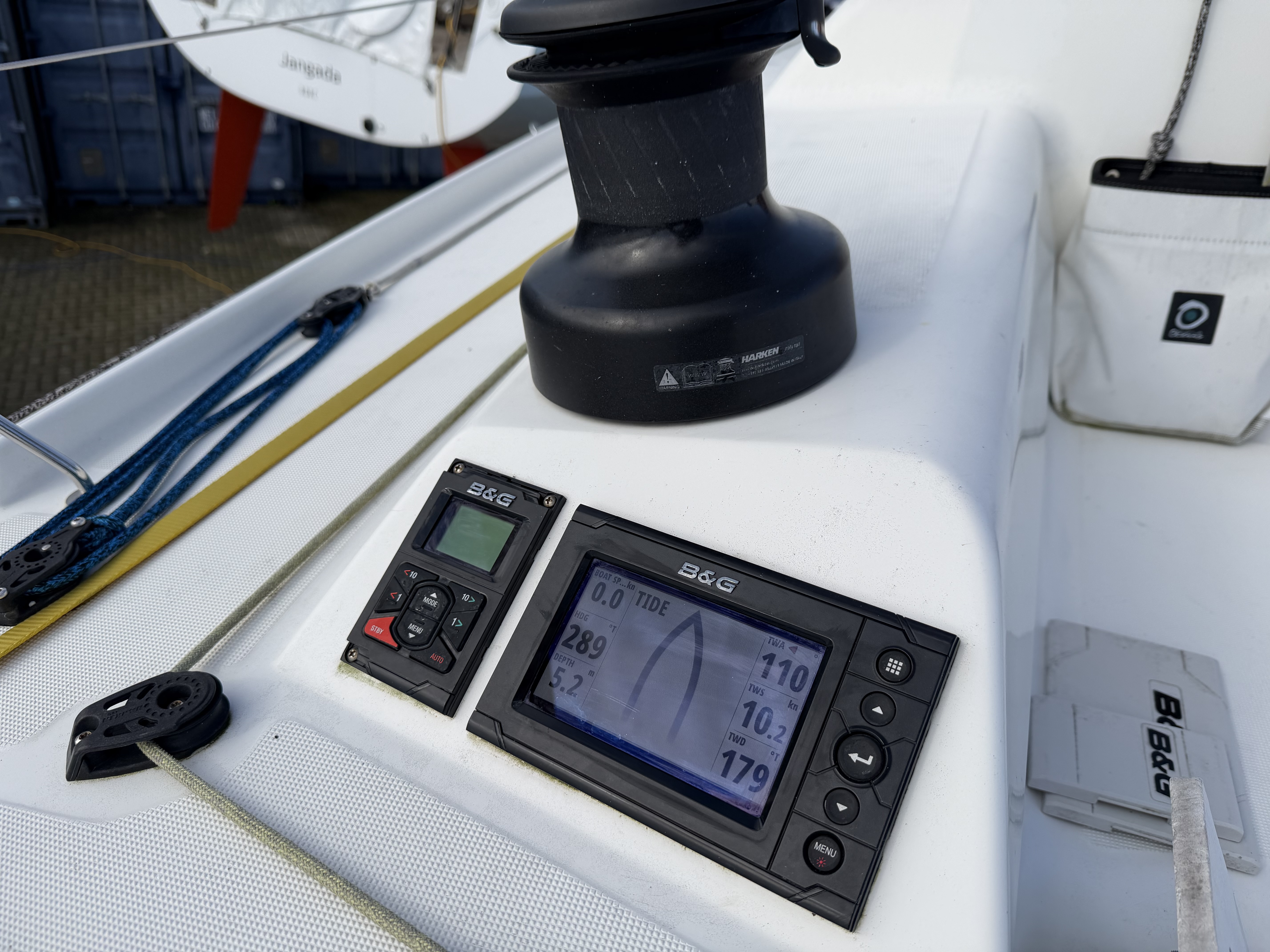

2 x Graphic Displays (one at each helm)
2 x Pilot Controllers (one at each helm)
Zeus 9 chart plotter in cockpit
Nemesis 9 MFD on mast (new in 2025)
1 x 20/20 MFD on mast with custom bracket
Flush fit H3000 speed sensor and DST800 depth sensor
Carbon VHMU (vertical mast head unit - wind sensor)+ bracket Triple 20/20 HV mast displays+ bracket
NMEA 2000 cables+ Ethernet, connectors & installation
Boat computer for navigation
UK Fit Options:
12v Twin USB socket + 12v socket+ cover
Shore power+ waterproof Victron battery charger + 220v socket + lead

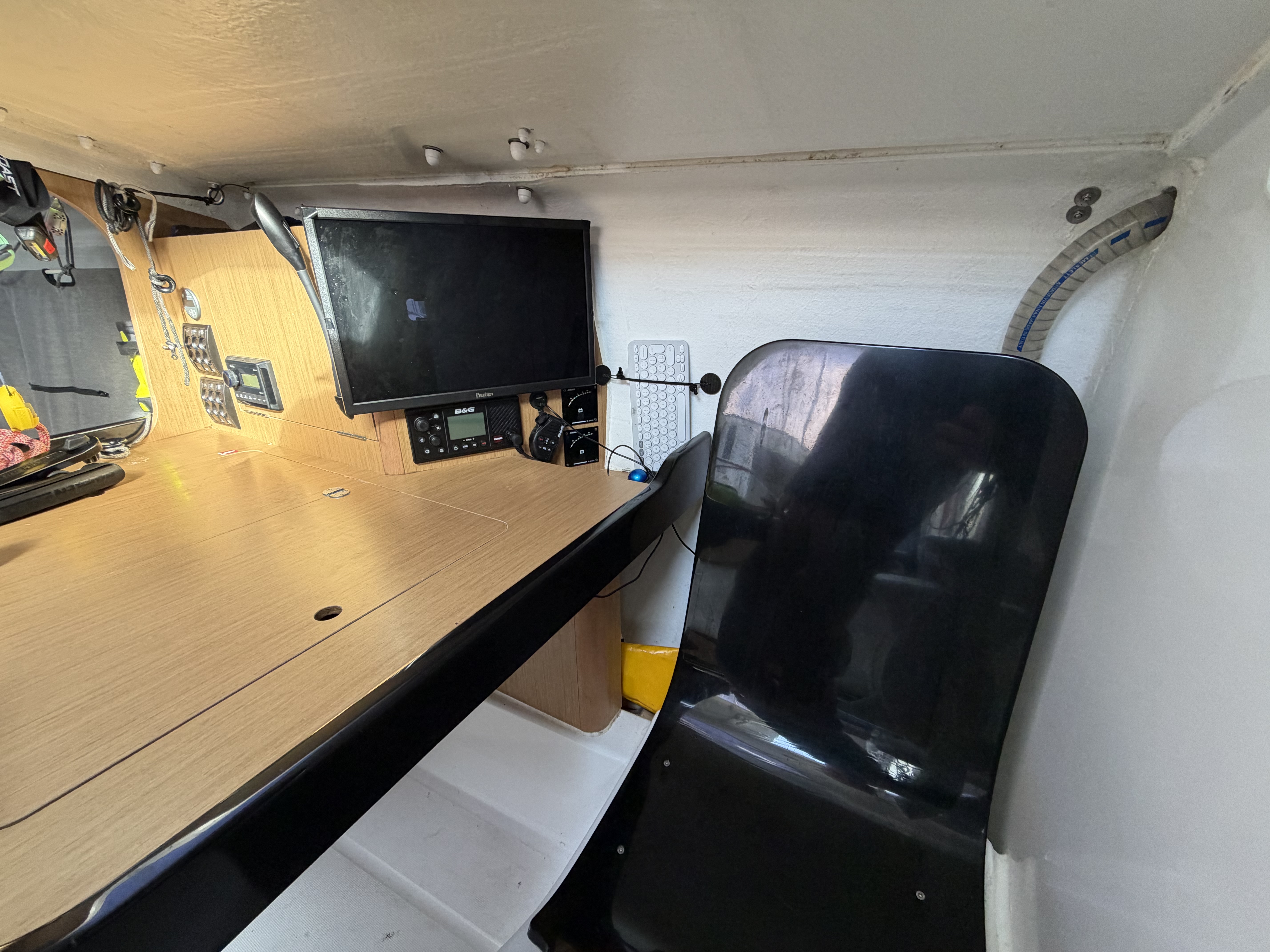

Remote computer screen+ cables+ adaptors ready for PC connection
Cyclops Forestay Loadcell
FourthCape carbon weed wand
Yellowbrick Tracker, wired in, compliant to RORC racing
Jetboil has replaced the factory issued 2 hob burner
Plumbed in marine sea toilet in forepeak
Commissioning & Race Prep:
Fill & fair keel to hull joint. Degrease hull, prep, prime & apply 4 coats of Nautix A4 & flat back to smooth surface

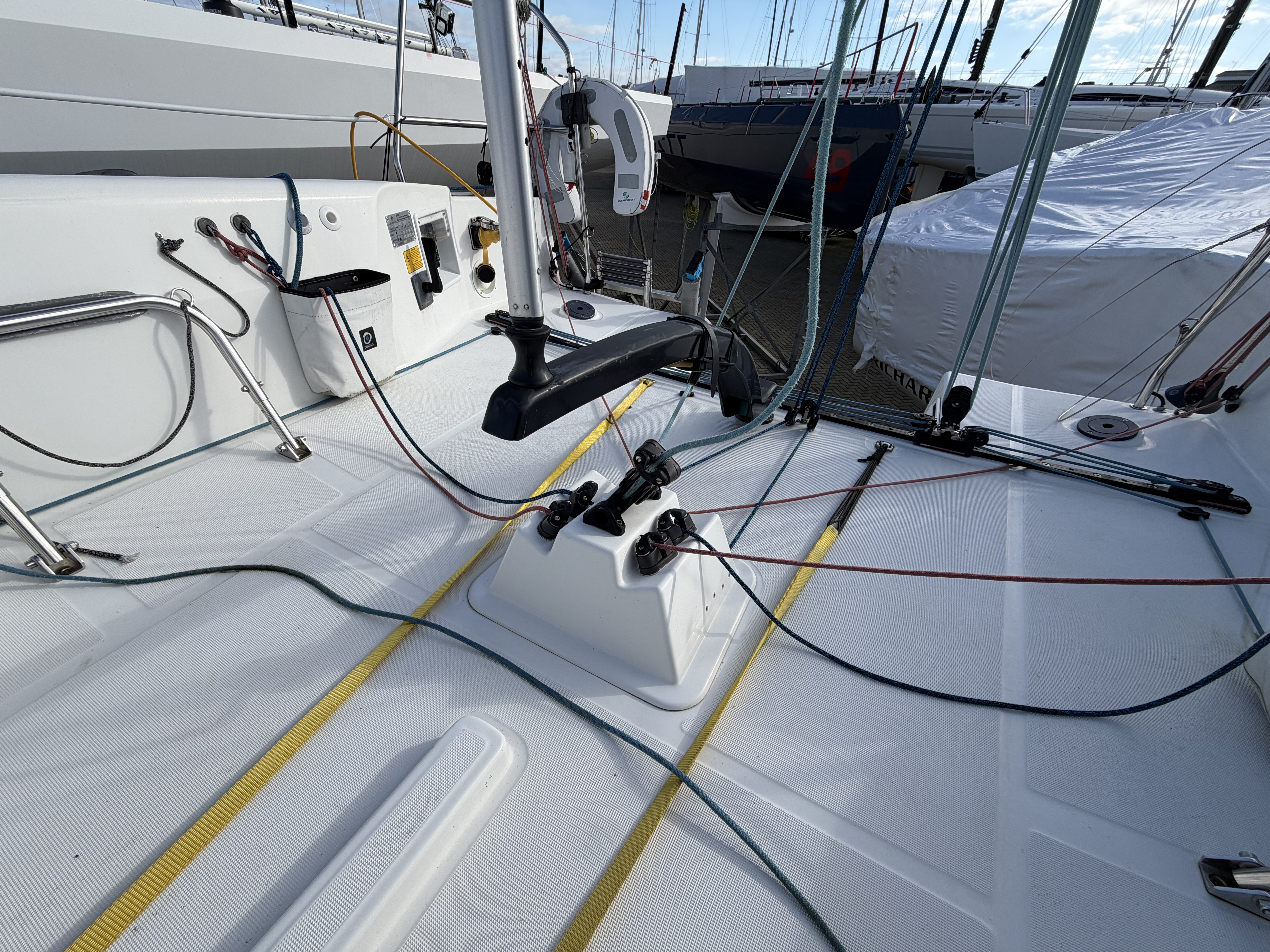

Rig & deck preparation, stepping and tuning, label clutches
Supply & fit mainsail reef shackles & dyneema strops, cunningham, jib outboard reaching strops, runner retrieval lines,extra 2nd sprit tack line Foredeck guardwire lines and bungee retainers for jib stowage
Genoa Staysail tack point
Docusign Envelope ID: 2E52CD2A-57A6-47CA-971D-0D1B75E588ED
Extra pair of sheet blocks at aft end of boat (aids peeling)

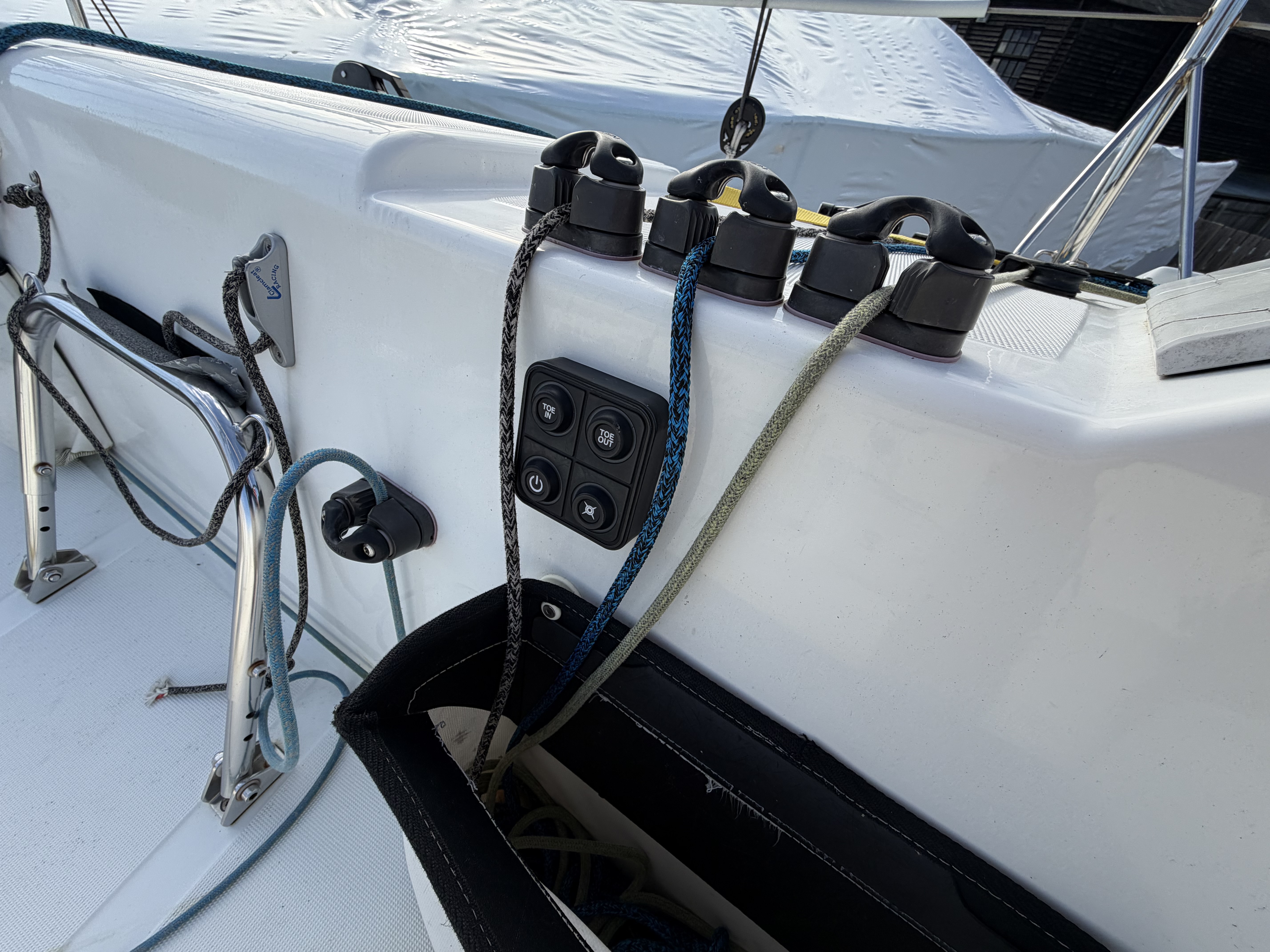

Ceramic jaws in two of the deck clutches
Additional continuous spinnaker sheets, Zero sheet+ tweaker, jib changeover sheets
Mooring kit : Outils Ocean flat fenders & warps
Anchor kit
:
Fortress FX-11 anchor, chain & warp
OSR Cat 2 Basic Equipment Pack Contents:
10l water container Handheld compass Emergency VHF Ariel Softwood bungs - large
Softwood bungs - small
Jackstays, pair off
(certified) Fire blanket
2 x 2kb ABC fire extinguisher
MED torch
12v Searchlight Spare bulb 12v
St John's first aid manual
Offshore first aid kit
Fog horn and canister Fog horn canister
Jonbuoy danbuoy and horseshoe
Horseshoe with Apollo light Retro-Reflective tape 1M
Kim drogue and pocket Whistle
Radar reflector KIM rescue sling Throw line RORC flare pack
Race rescue knife Hacksaw
Hacksaw blades pack off Anchor ball
4 Man Ocean Safety Regatta liferaft in canister
SALOON
2 bench seats with backrest 1,95 m / 6’5" long
Storage under bench seats and behind backrests
1 opening deck hatch
Cushions and backrests have removable covers – Sunbrella®
Removable floorboards
100 L / 26 US gal water tank under saloon seating

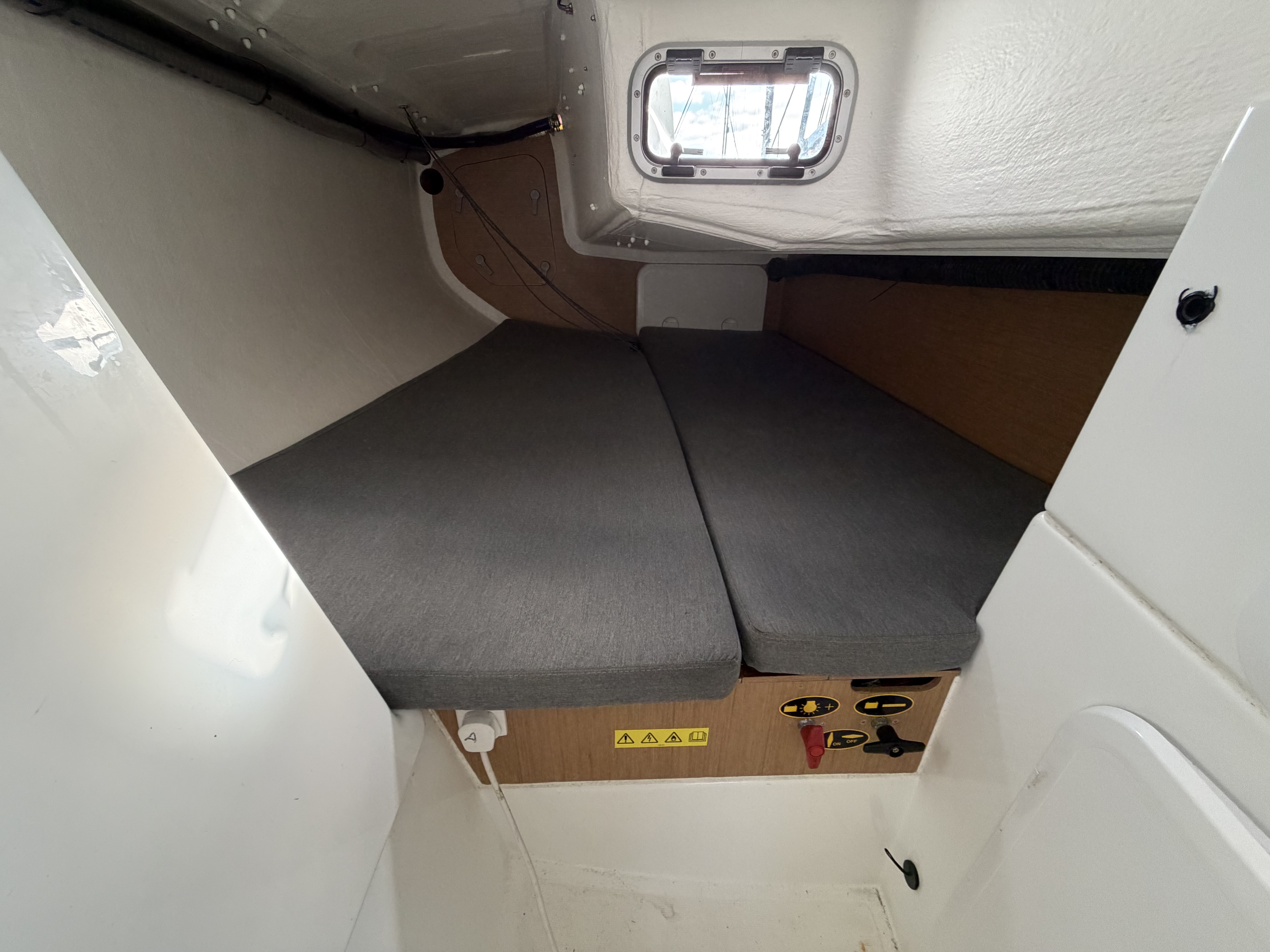

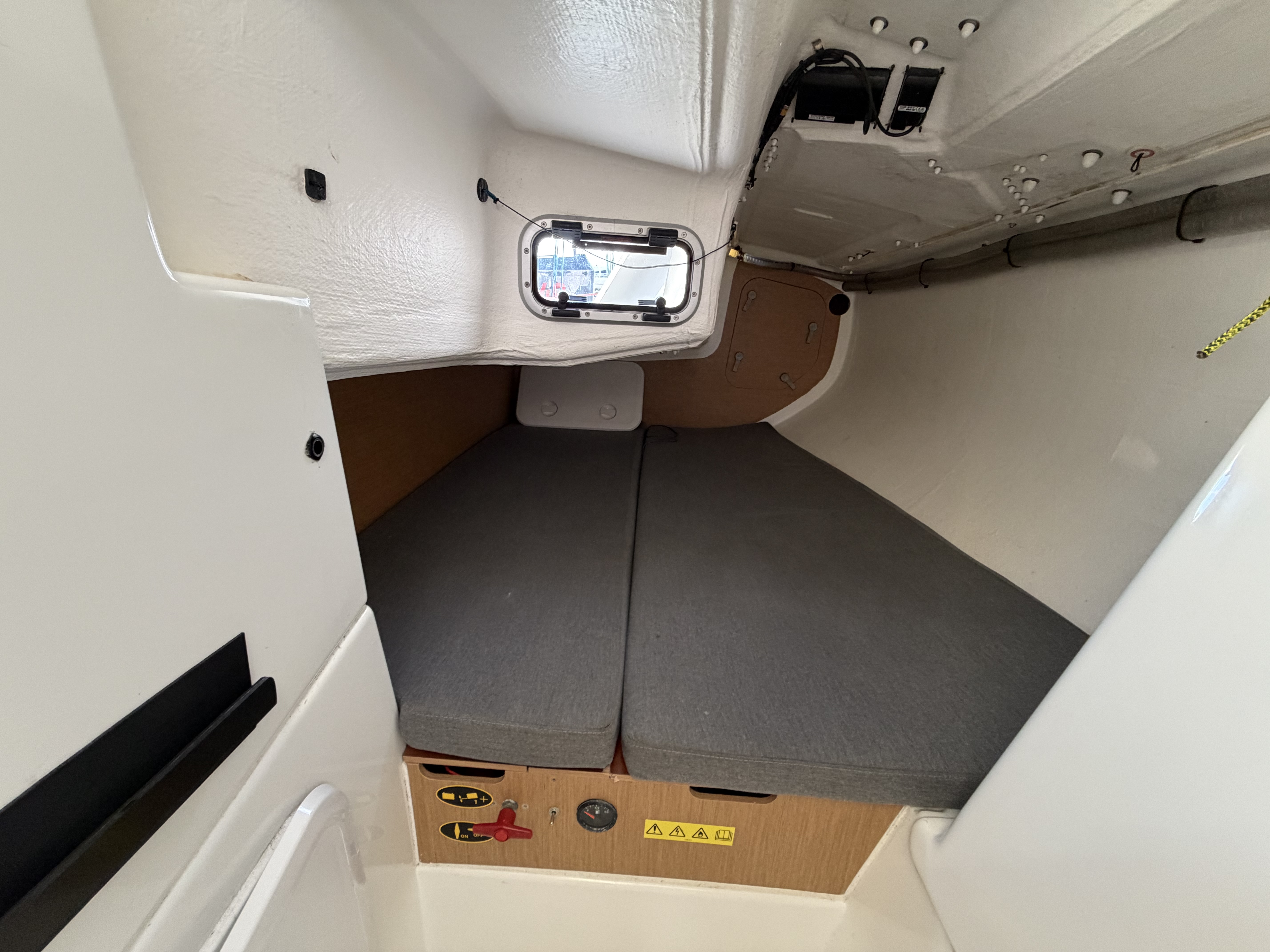

AFT CABINS
Double berth 2,00 m / 6’7" long, one berth can be lifted for sleeping while heeling
Mattresses with removable fabric covers
1 port opening into the cockpit per cabin
1 fabric hanging locker in each cabin
Storage space underneath the berths
Complete access to engine compartment
Access to battery switches
Fabric cabin doorsFuel gauge
HEAD COMPARTMENT
Finished in GRP
Lightweight GRP sink with pressurised water tap
1 opening deck hatch with vent
1 chemical toilet
Access by textile door

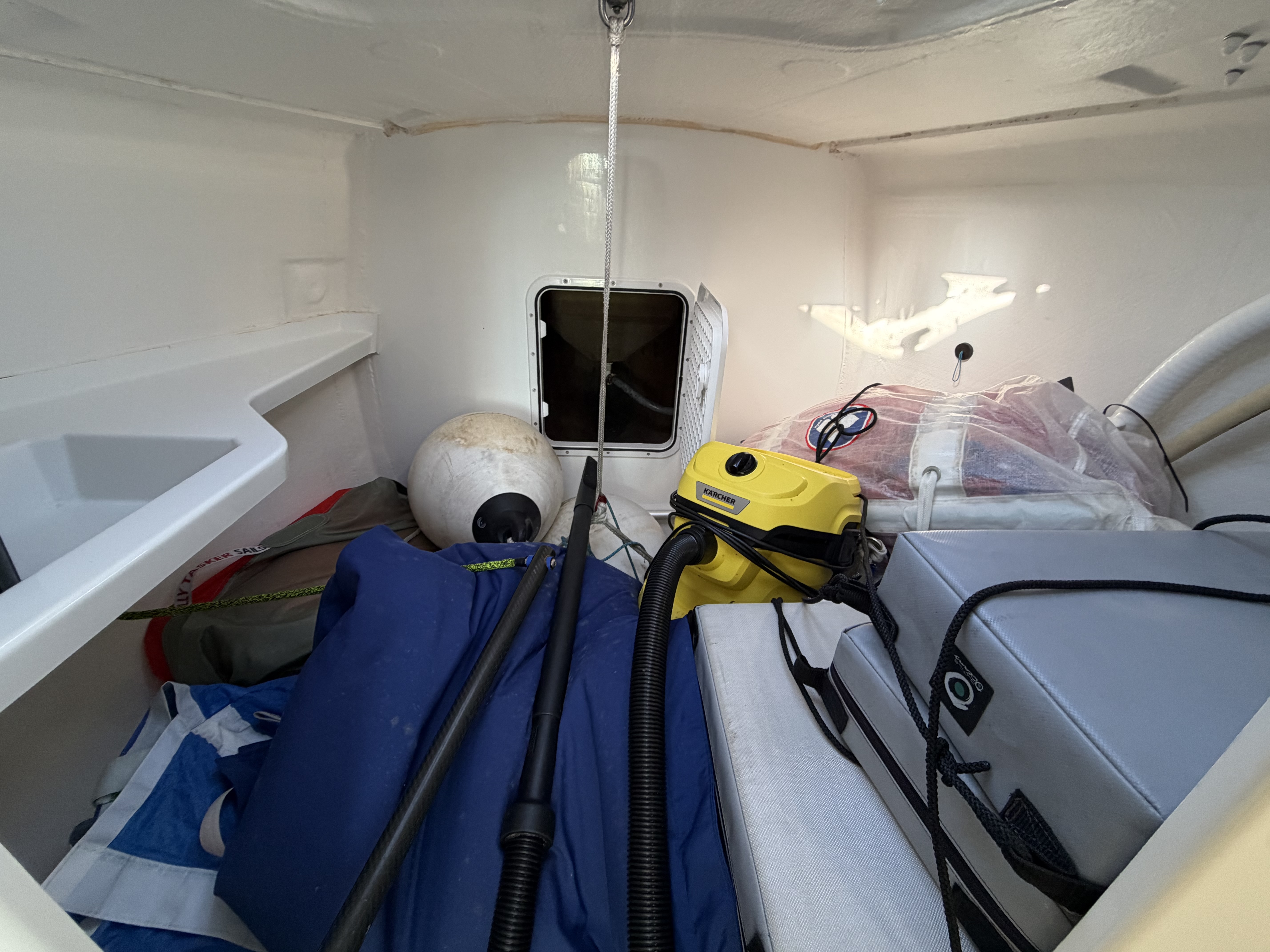

FORWARD SECTION
Composite front bulkhead with through access via a watertight PVC hatch

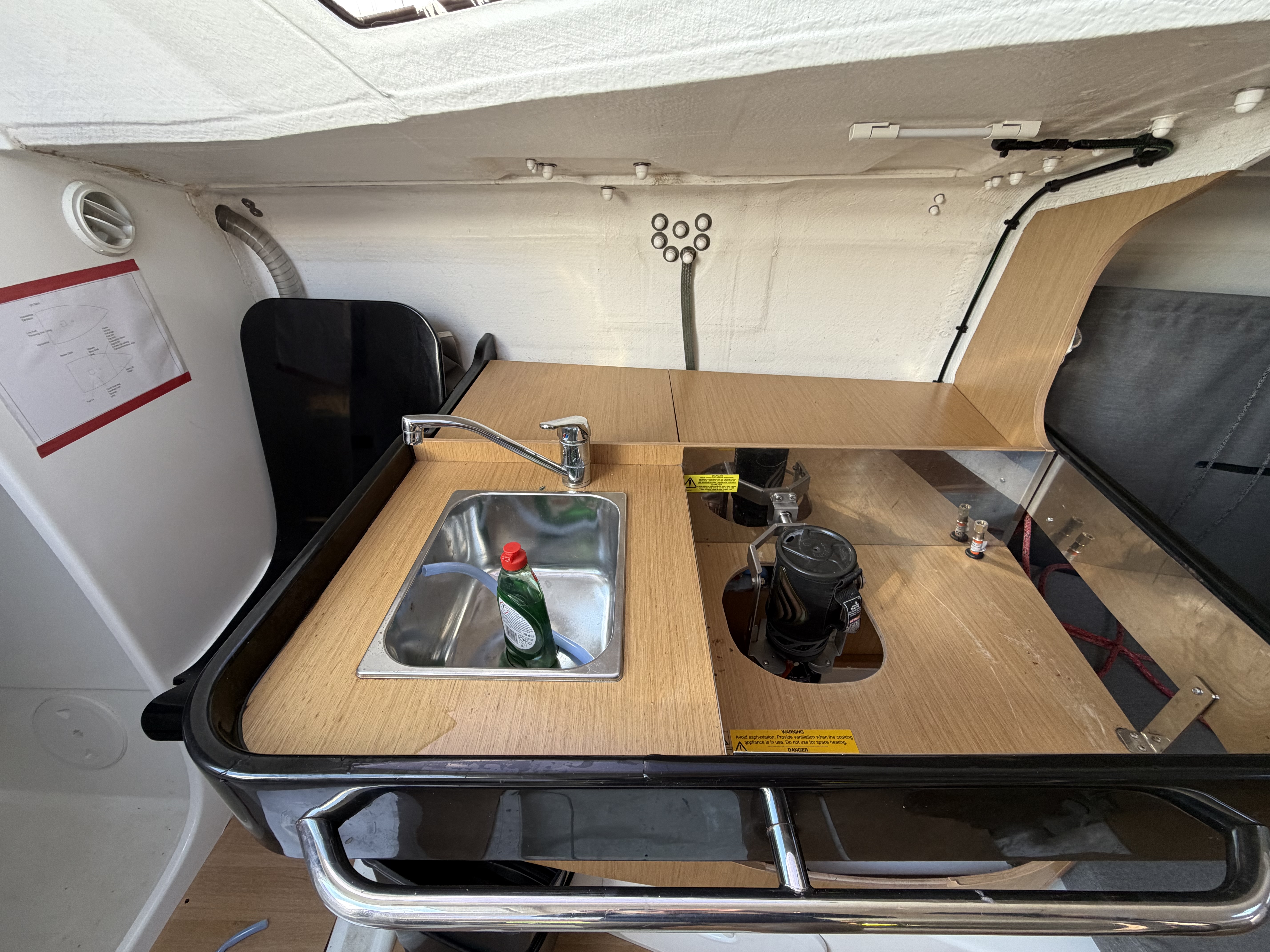

GALLEY
Large galley to port
Storage with countertop
Storage and access to through-hull
Stainless steel sink
Pressurised cold water tap
Storage for flatware
2 burners rotating hob
40 L / 11 US gal icebox
High surrounding fiddle with stainless steel handrail
Misc:
Boom cover
Electric Shore cable
Mooring lines
Flares and related safety kit
2 burner hob
Interior cushions/mattresses supplied with the boat
Fusion music system
Outil fenders.
Lee cloth kit x 2
Additional deck Nav lights
Halyard bags in cockpit
Sea Toilet
4 x Performa Harken winches 40.2
Yanmar 14hp (@YM15) sail drive engine
Two blade folding Gori prop
