- Make HALLBERG-RASSY
- Model 36
- Year 2003
- LOA 36ft/11m
- Class Sailing Cruiser
- Hull Glass Reinforced Plastic
- Keel Fin Keel
- Rig Sloop
- Engine Single Diesel
- Drive Shaft Drive
- Layout Centre Cockpit
- Berths 7
- Cabins 2
- Aft Cabins 1
- Ancasta Ref 50538
- Name Bluebell of Tamar
HALLBERG-RASSY 36 | 2003
127,500 Tax Paid
|
Plymouth United Kingdom

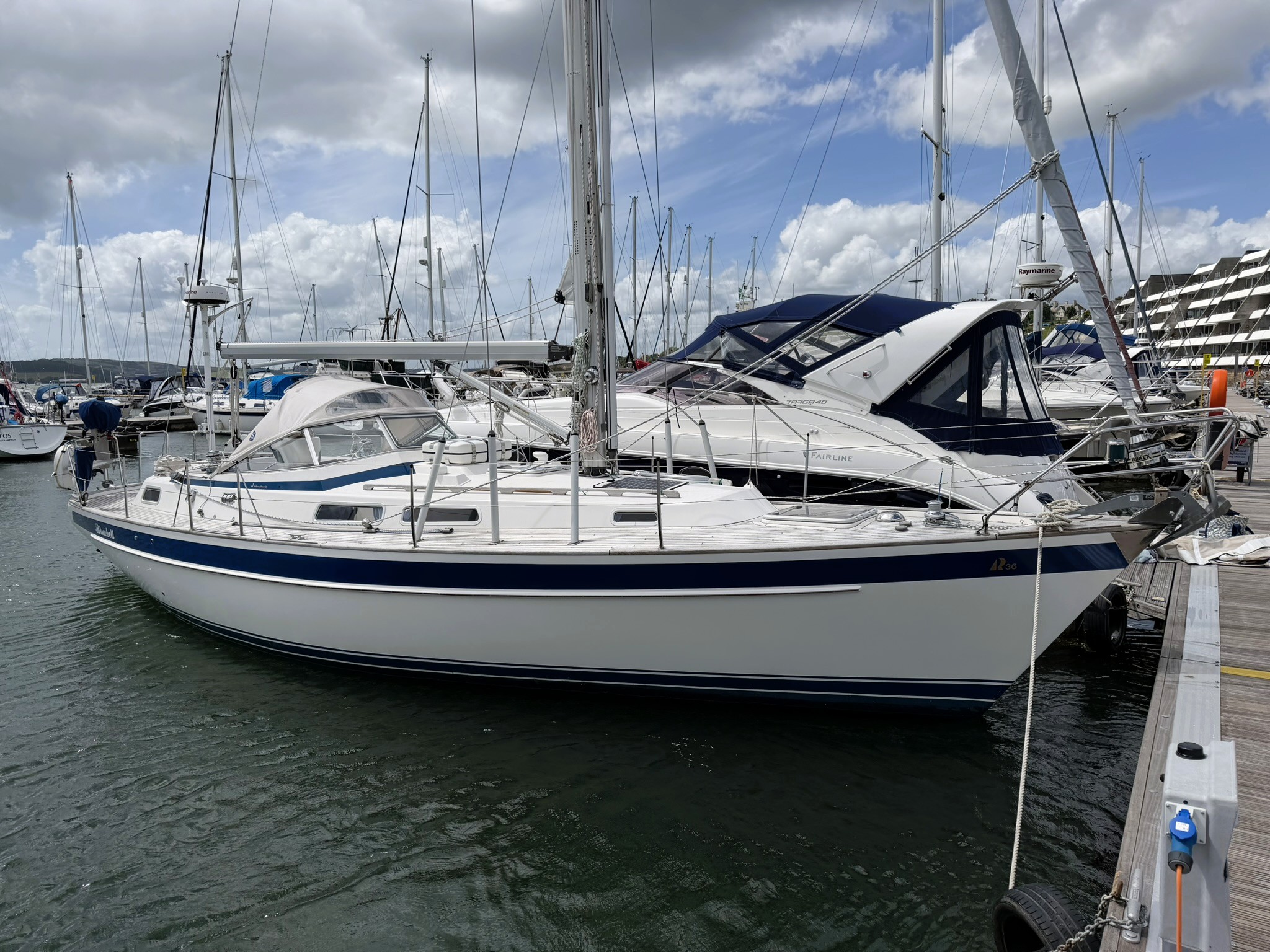

Hallberg-Rassy 36 MKII built in 2003.

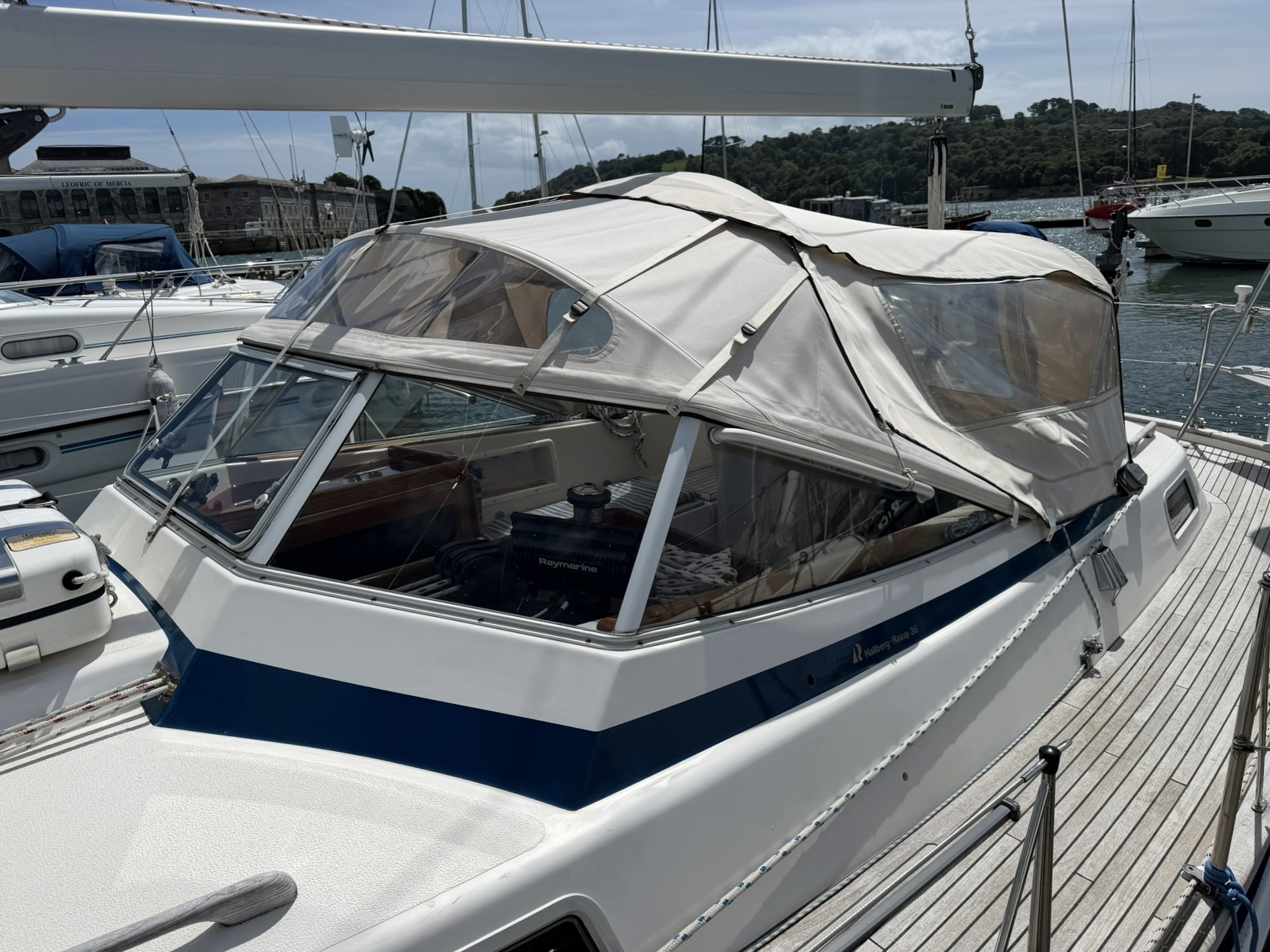

No. 589, "BLUEBELL OF TAMAR" is now looking for her new custodian - A beautiful example of this MKII German Frers designed centre cockpit cruiser presented in a much-loved condition. Swedish high-quality build with teak deck and cockpit seating. Interior finished in satin varnished mahogany with ample stowage throughout. Volvo Penta D2-55 55 HP diesel engine. Sleeps 7 in 2 cabins plus saloon. In-mast furling, electric winches, Hydrovane windvane steering, Webasto cabin heating, AIS, Quantum radar, autopilot, Gori feathering prop, rope cutter, cruising chute, full cockpit enclosure, full winter cover and more. Further photos available upon request.
HALLBERG RASSY 36 MKII (No.589)
Designed by German Frers
Built in 2003 by Hallberg Rassy Varvs AB in Sweden
Category A (Unlimited Ocean Voyages)
CONSTRUCTION
White GRP hull with dark blue band on the topsides and rubbing strake
Bolt on lead fin keel - skeg hung rudder (rudder bearings and seals replaced 2024)

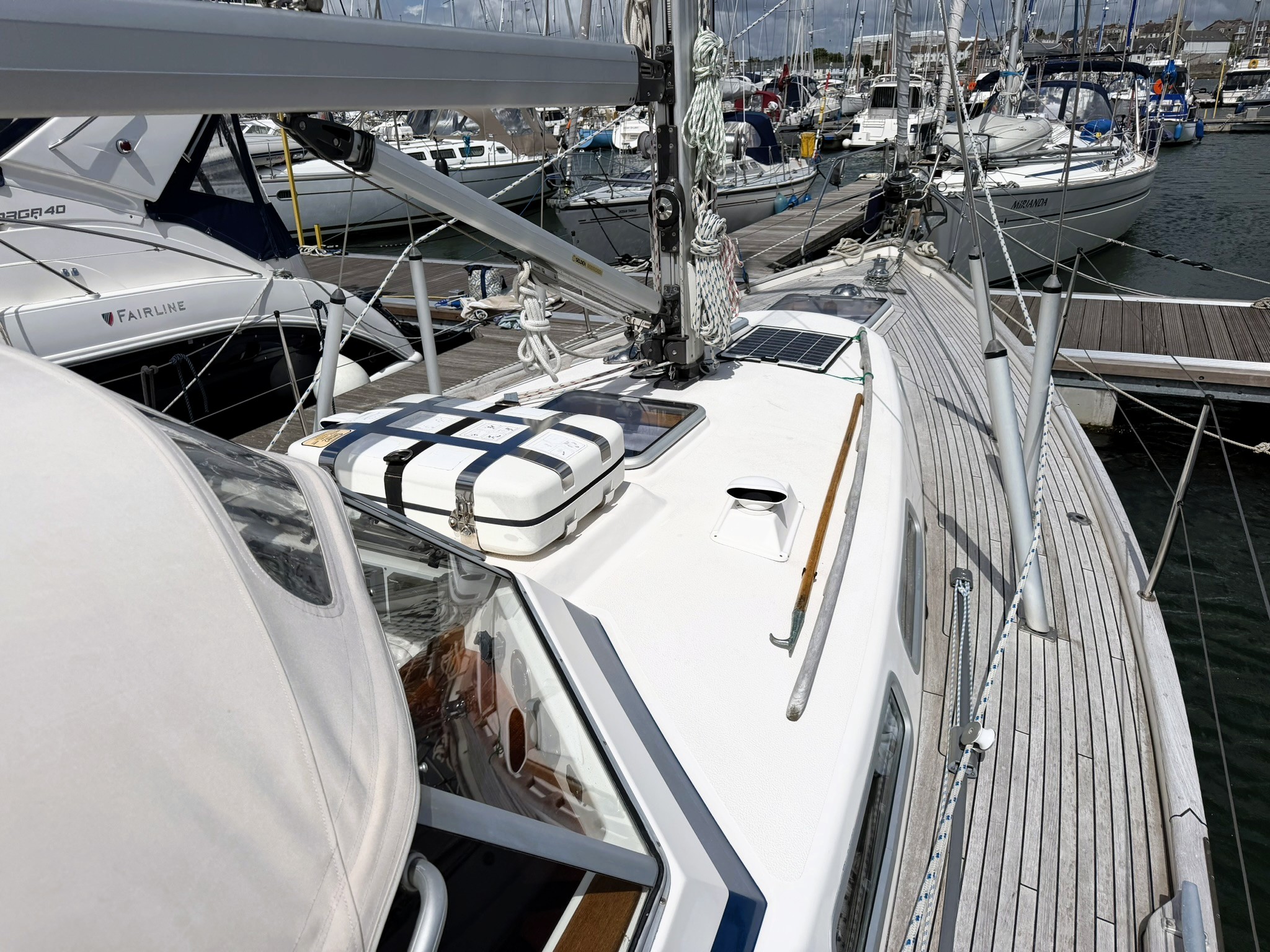

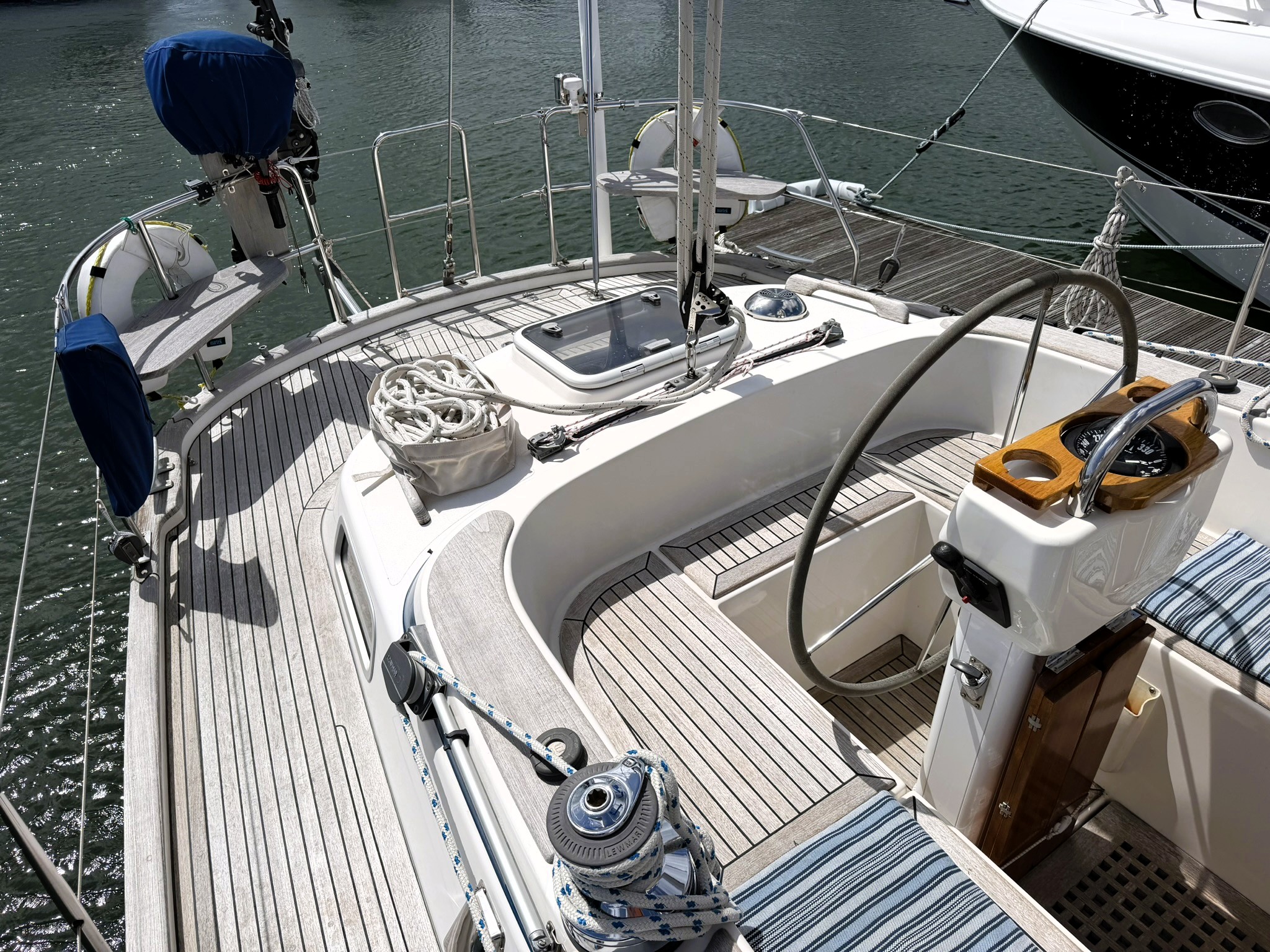

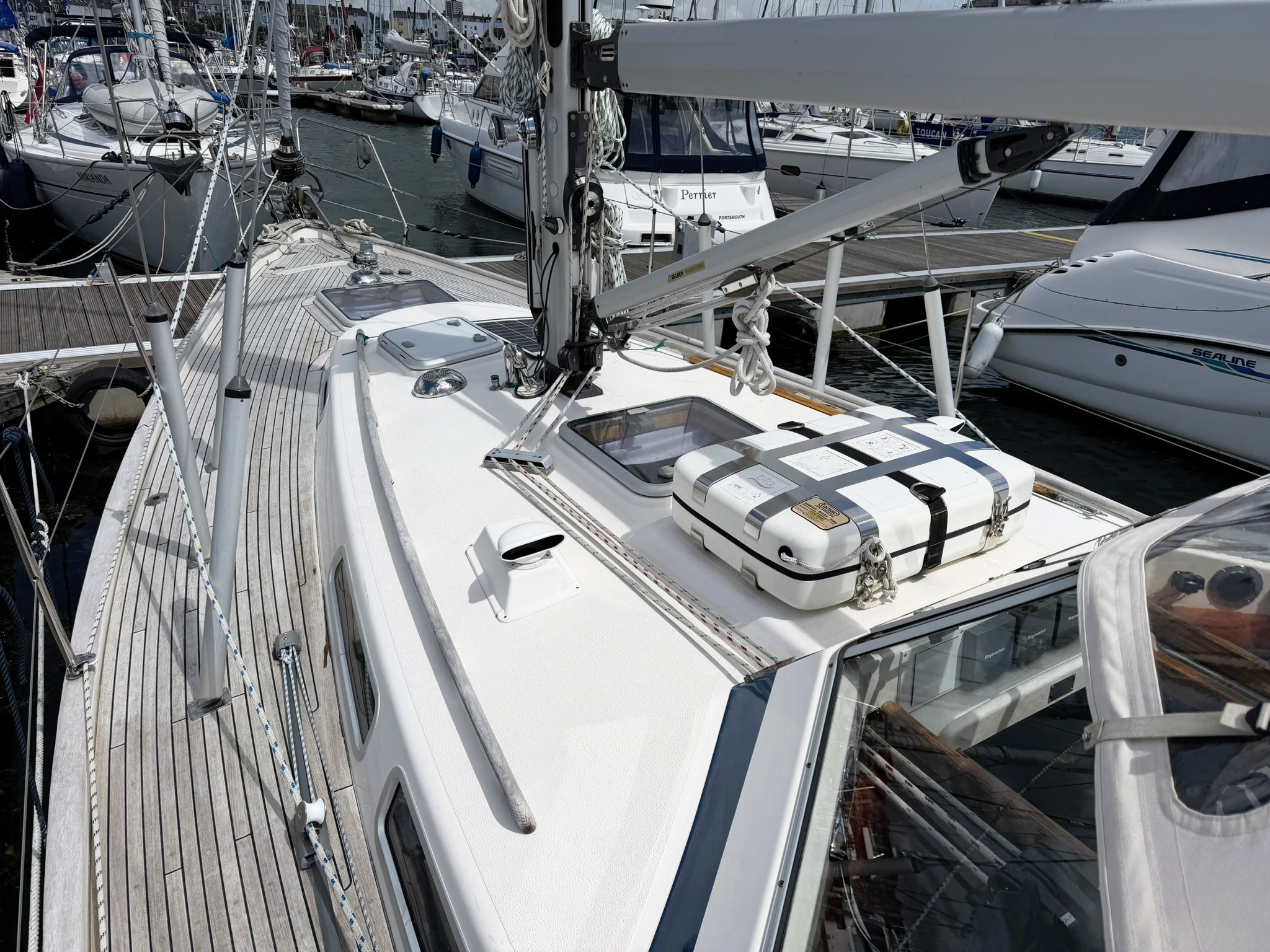

Teak decks and bathing platform

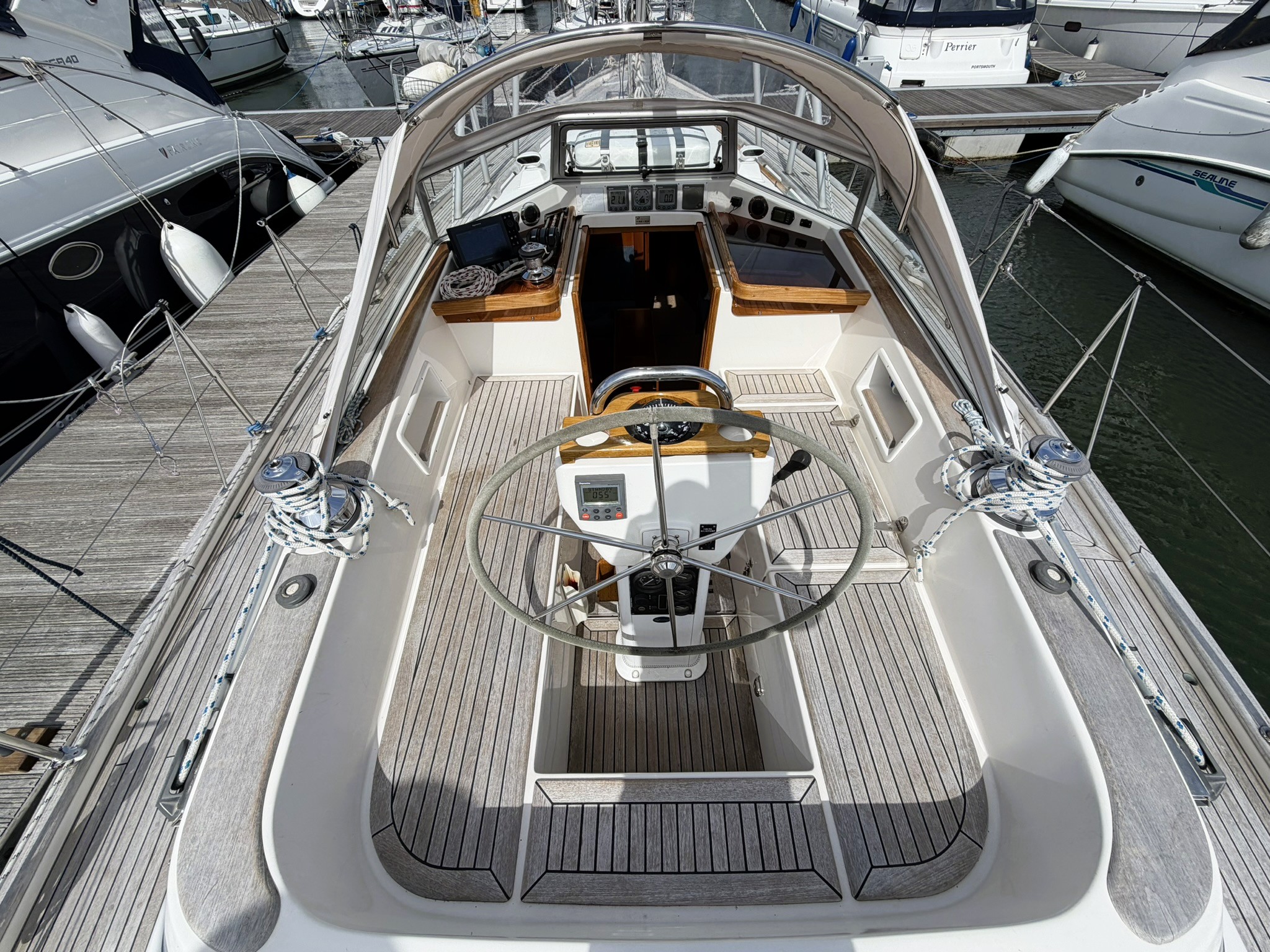

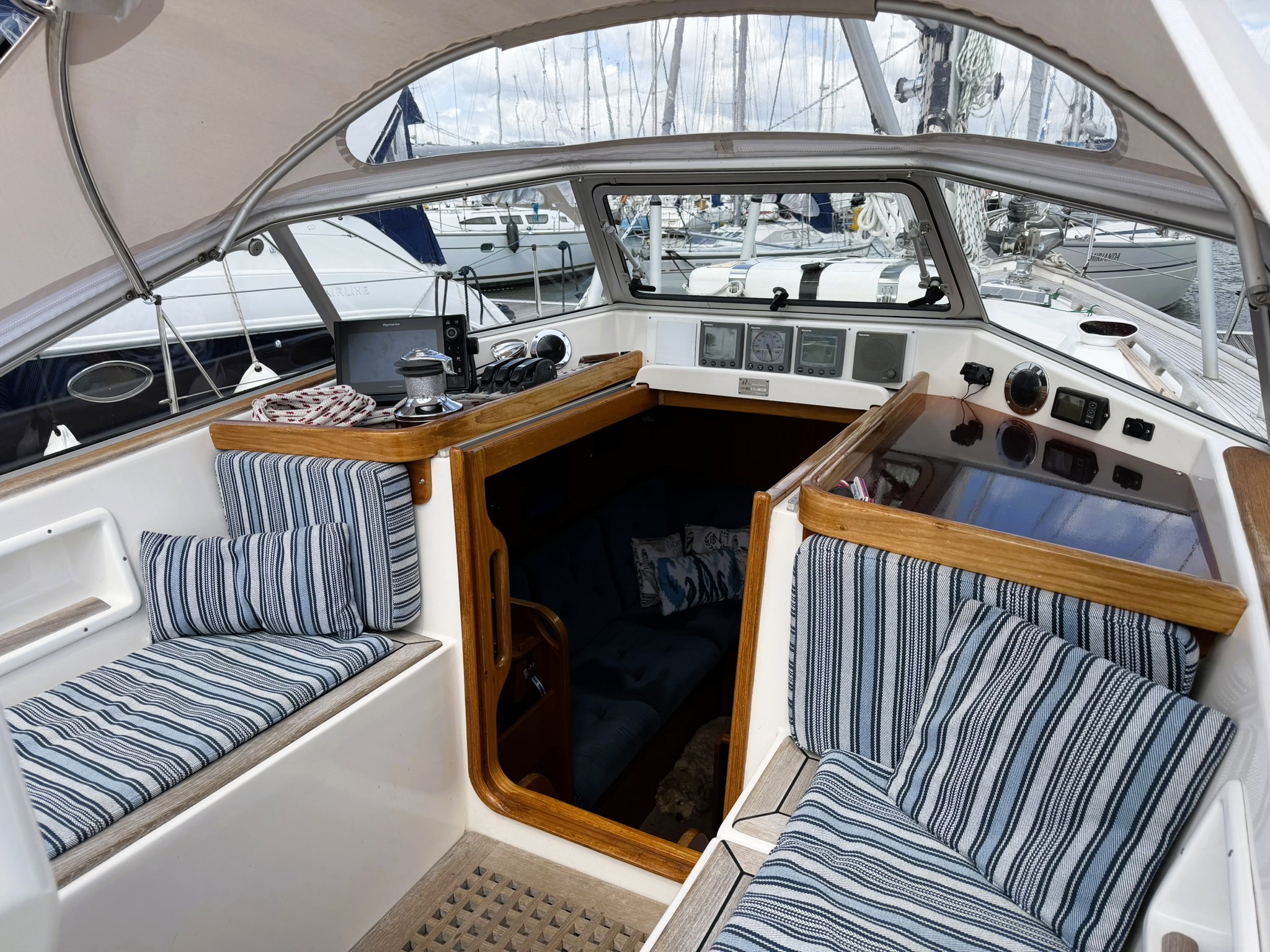

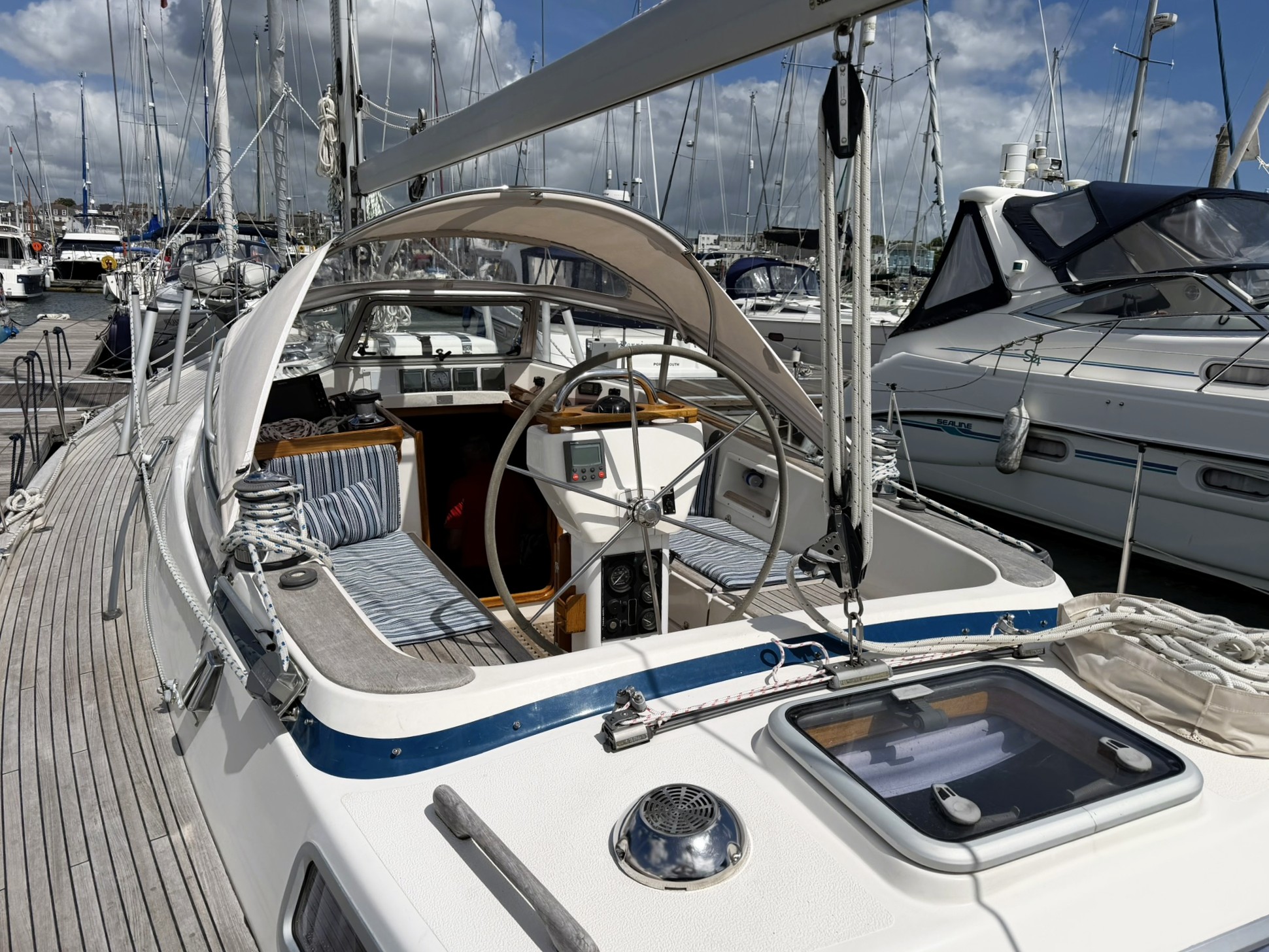

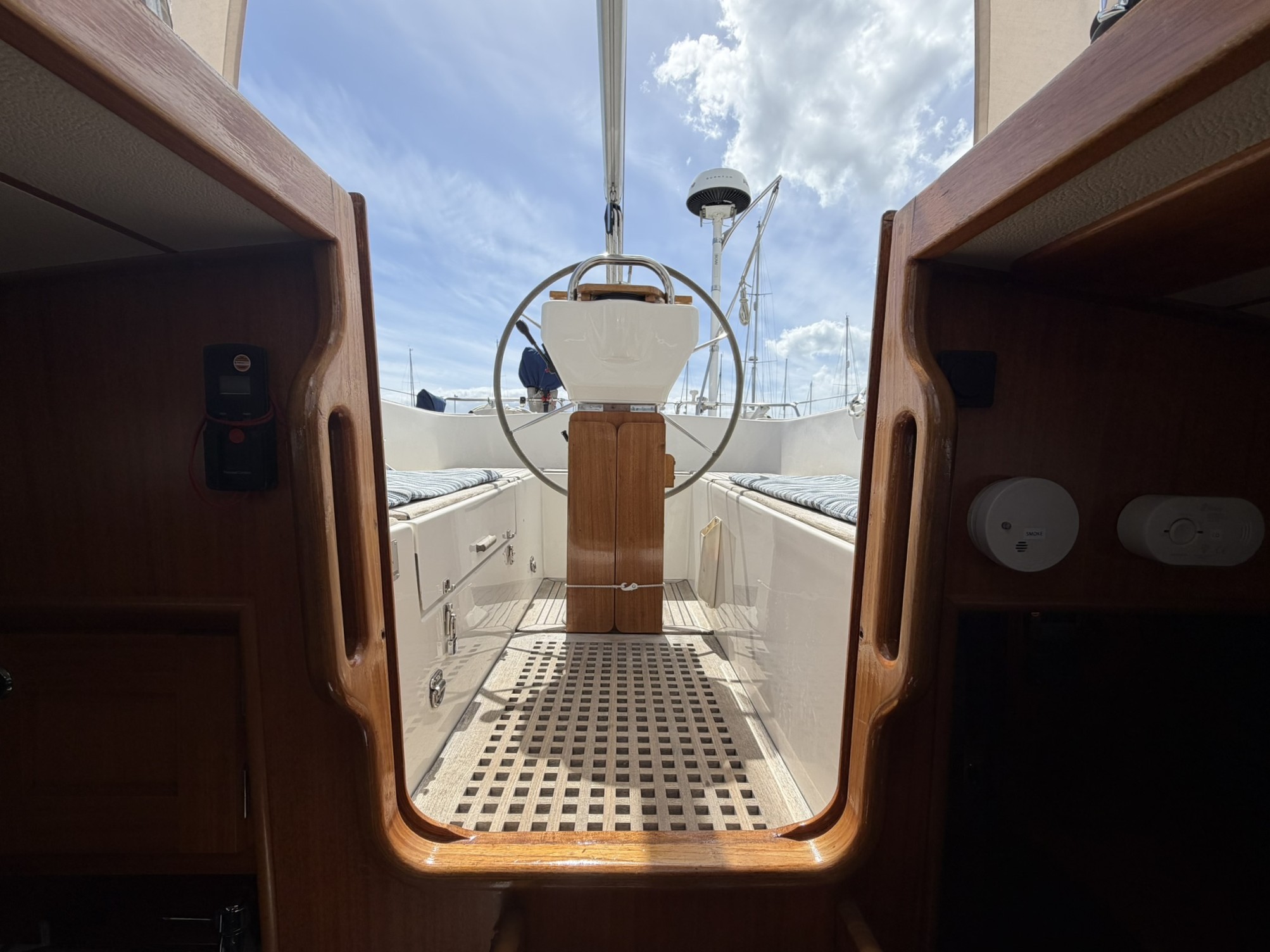

Teak cockpit seats, teak grate cockpit sole
High-gloss varnished louvered washboards in solid teak

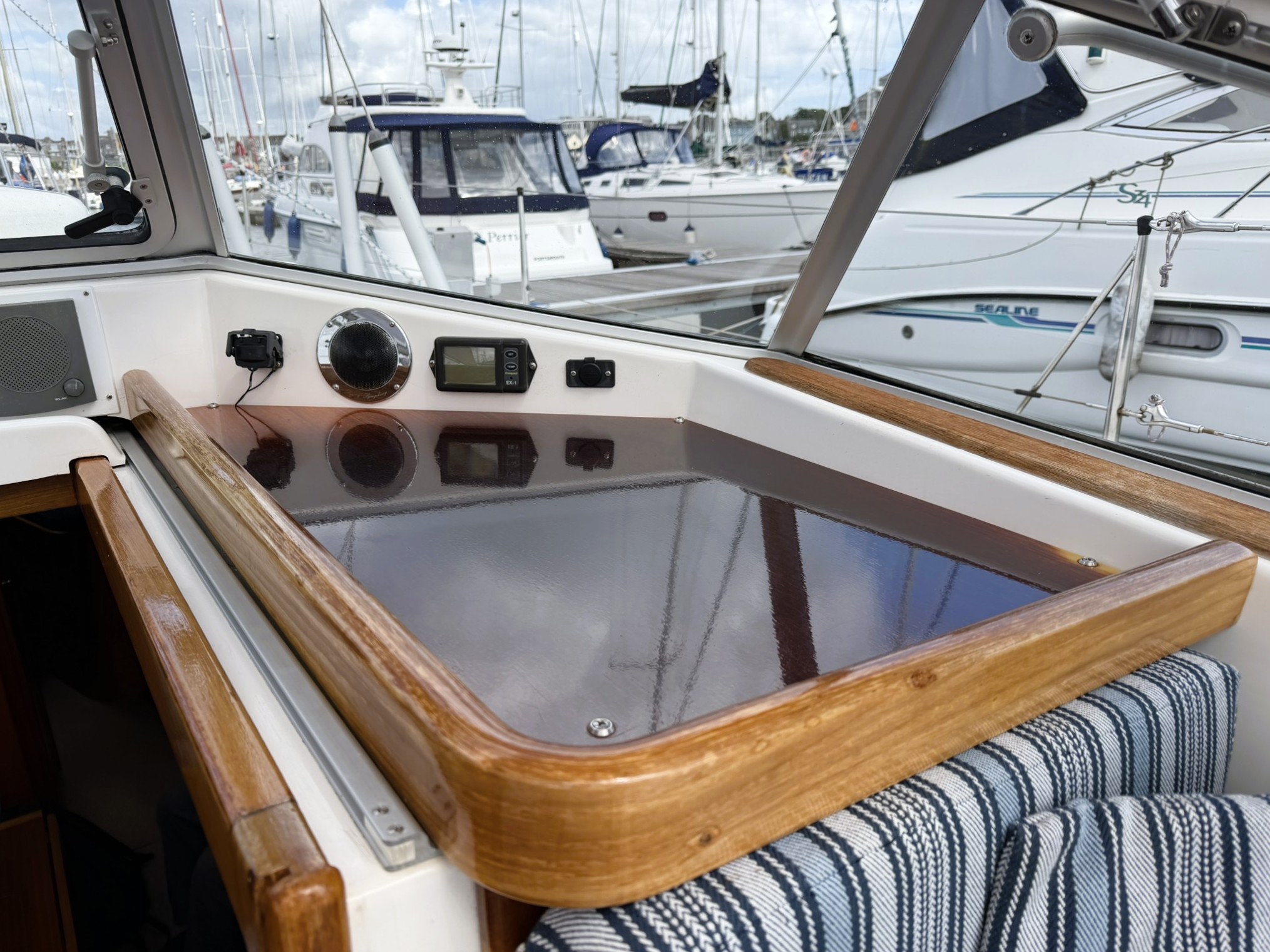

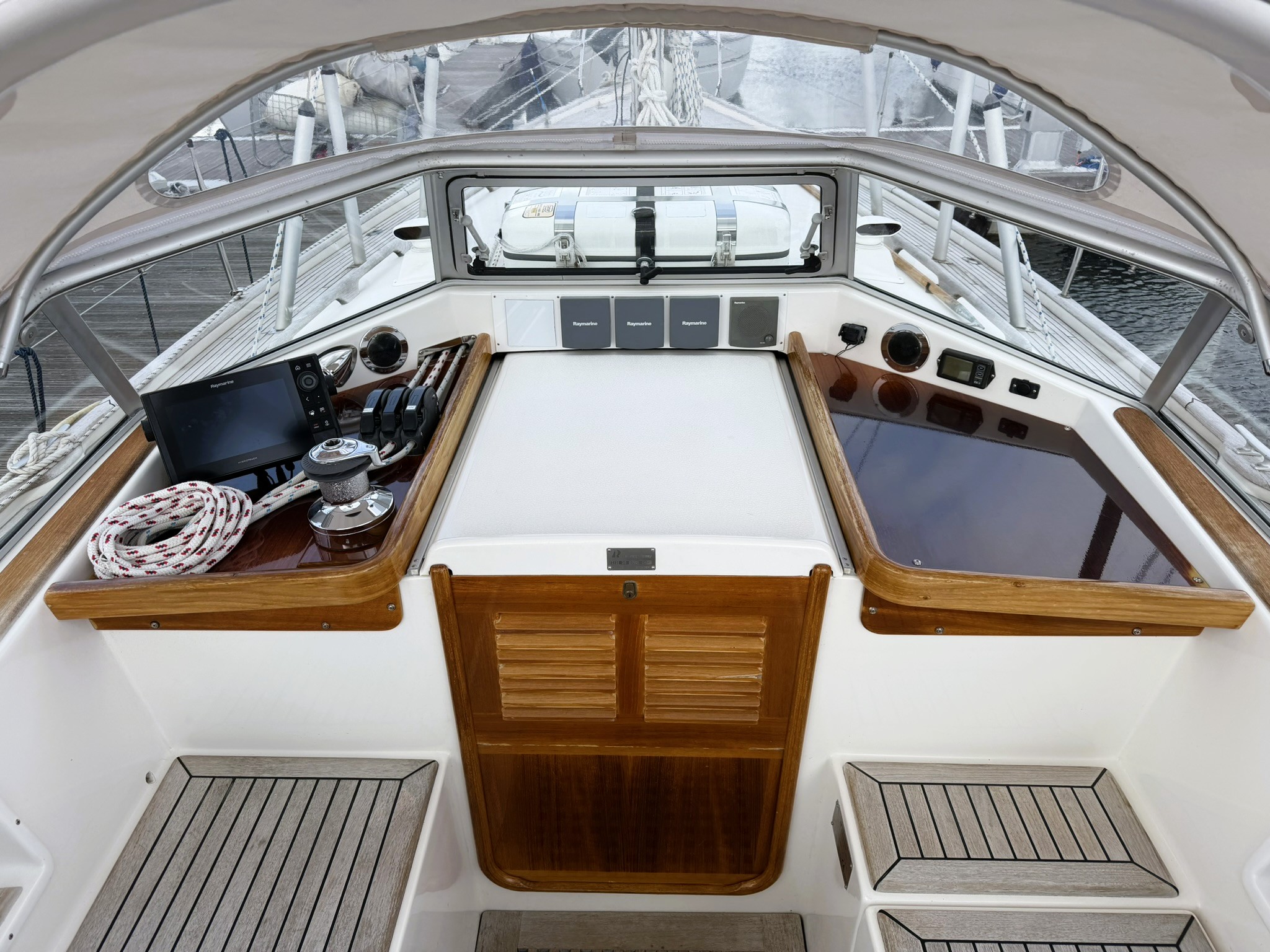

High-gloss varnished teak covered chart tables with fiddle rails on both sides of companionway
Very large starboard-side cockpit locker with designated washboard stowage

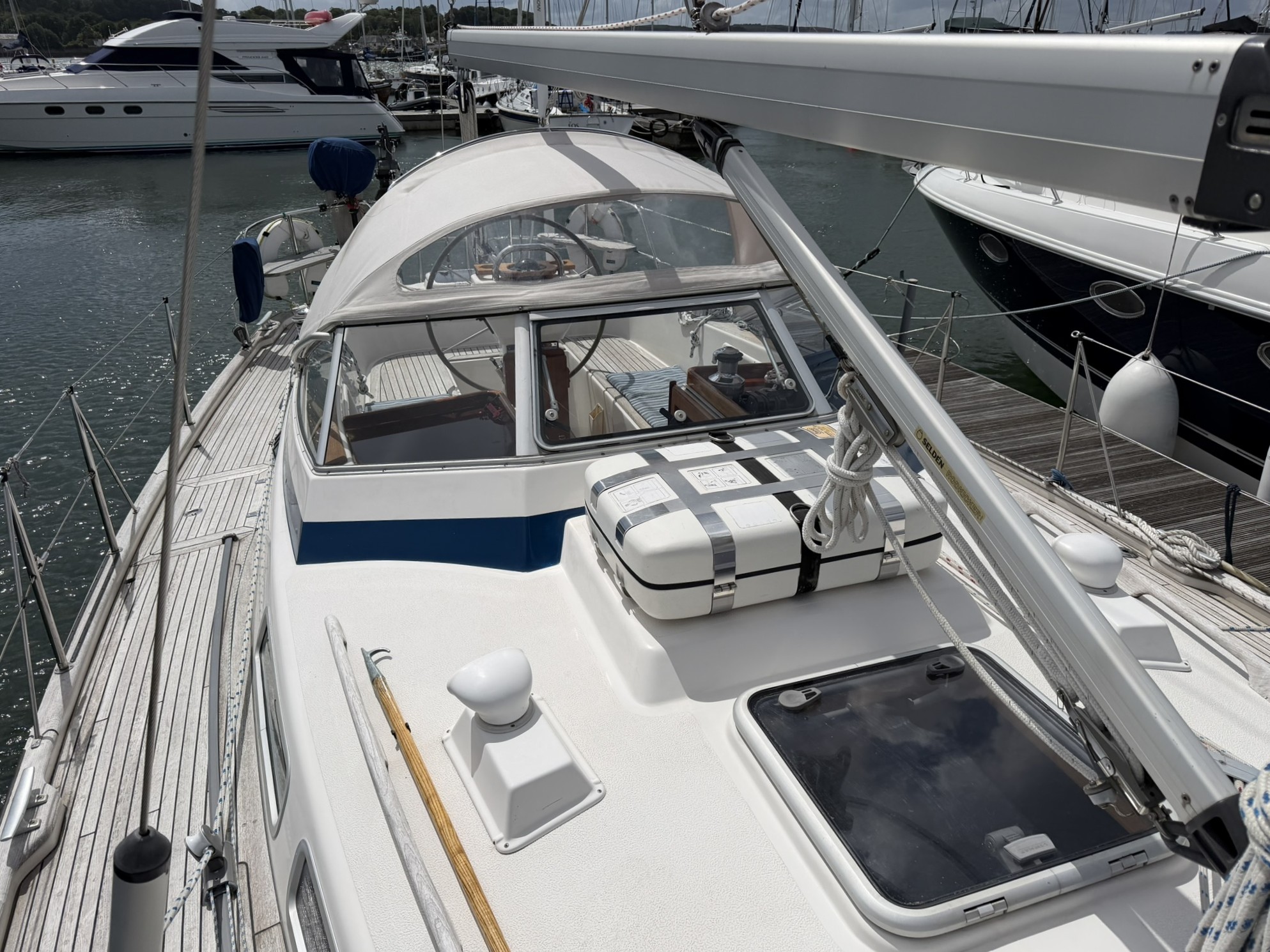

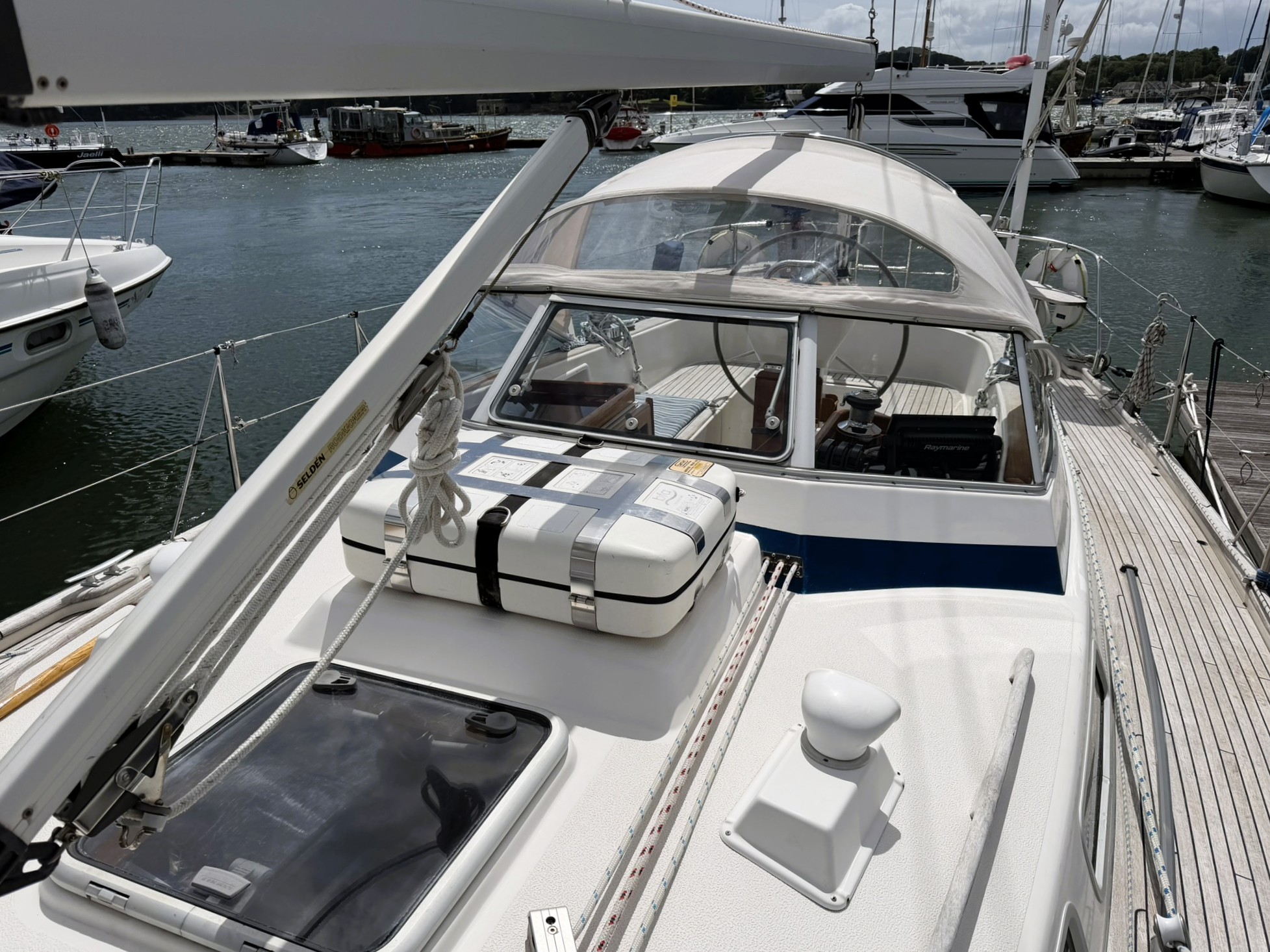

Fixed windscreen in tempered glass (opening centre section)

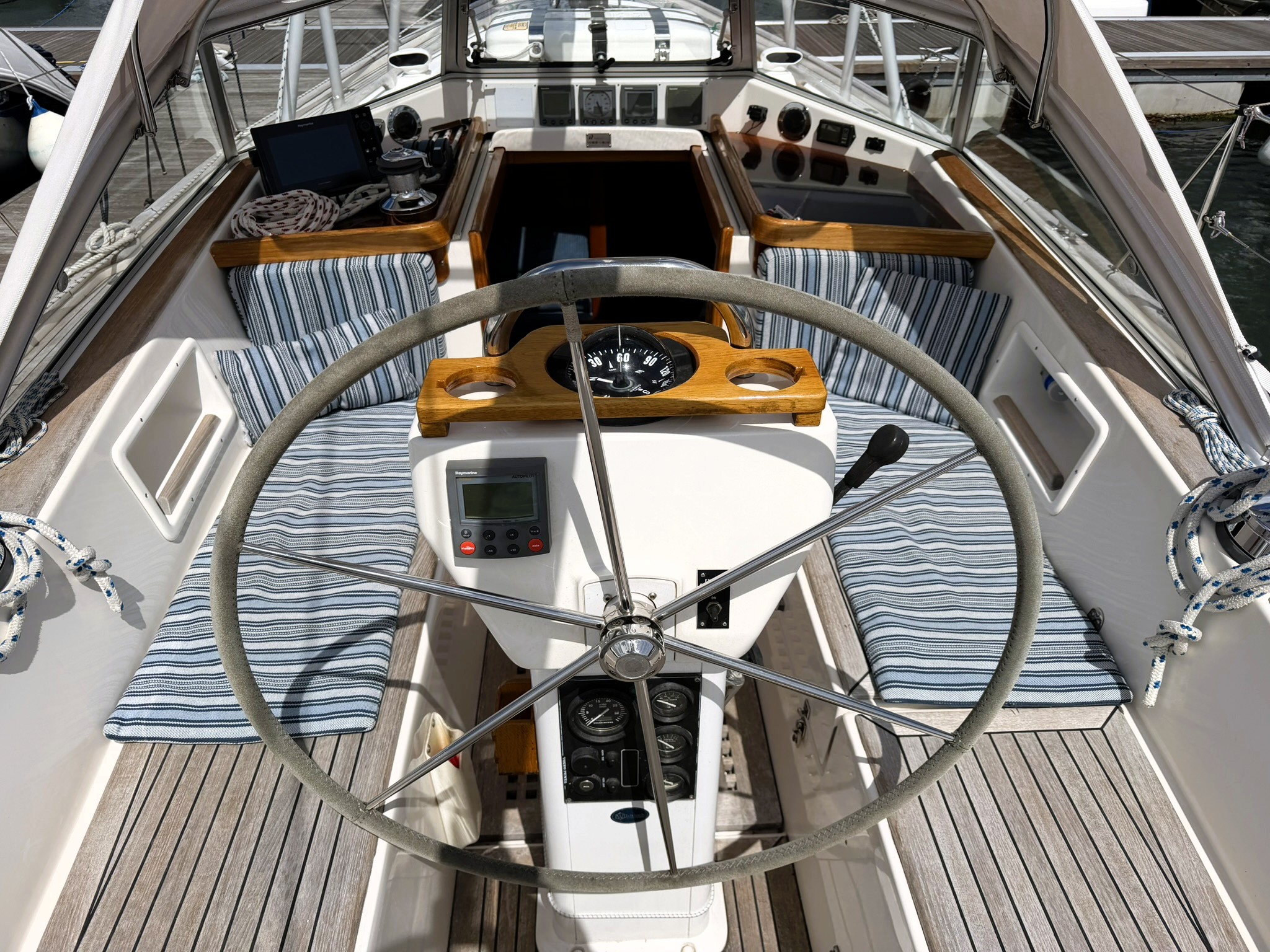

Whitlock binnacle with hide covered lockable wheel
Sugar scoop transom
Last antifouled: April 2026
Anodes replaced: April 2026
Last out of the water: April 2026
DIMENSIONS
L.O.A - 11.31M (37'1")
MAXIMUM SAILING WATERLINE - 10.36M (34'0")
FLOATING WATERLINE - 9.35M (30'8")
BEAM - 3.55M (11'8")
DRAFT - 1.70M (5'7")
MAST OVER WATER - 15.50M (50'10")
DISPLACEMENT - 7500kg (16,535lbs) (Lead keel 3400kg/7715lbs - 45%)
*All figures are approximate
Masthead sloop rig
Selden spars with double spreaders
Selden rodkicker
Standing Rigging (NEW 2018)
Aluminium bottle screw protectors
Selden Furlinmast in-mast furling with cockpit control
Selden Furlex 300S jib furling and reefing system

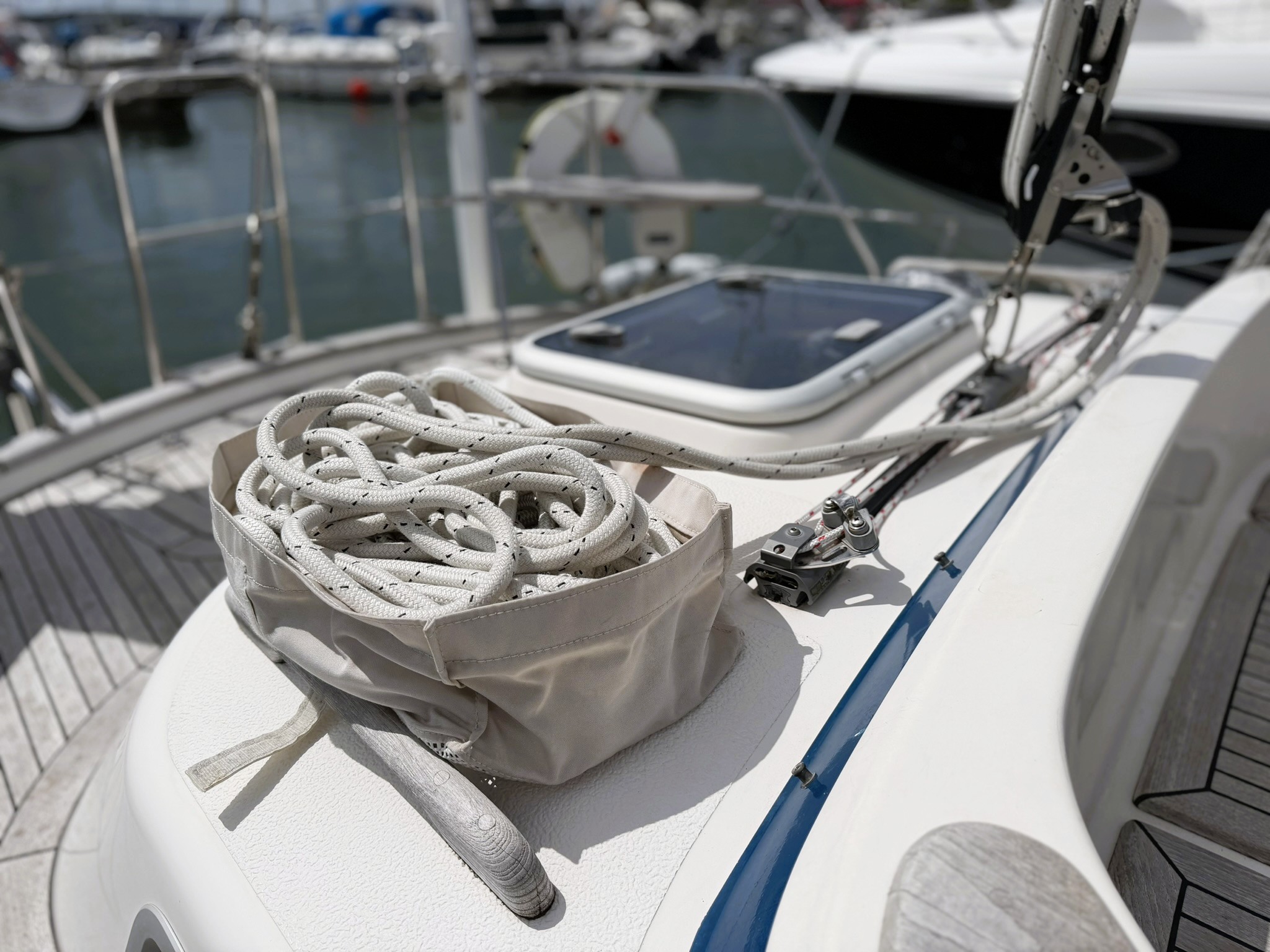

Lewmar mainsheet and genoa tracks with blocks
Spinnaker pole on track with blocks for stowing on mast
Spinnaker halyard
SAILS
Furling mainsail with vertical battens in Alisio EMS by Elvstrom (NEW 2022)
Furling working jib with E-foam luff by Elvstrom (NEW 2016 - re-made in winter 2025 including new sacrificial strip)
Furling genoa, trioptimal, laminated cloth with E-foam luff by Elvstrom (unused)

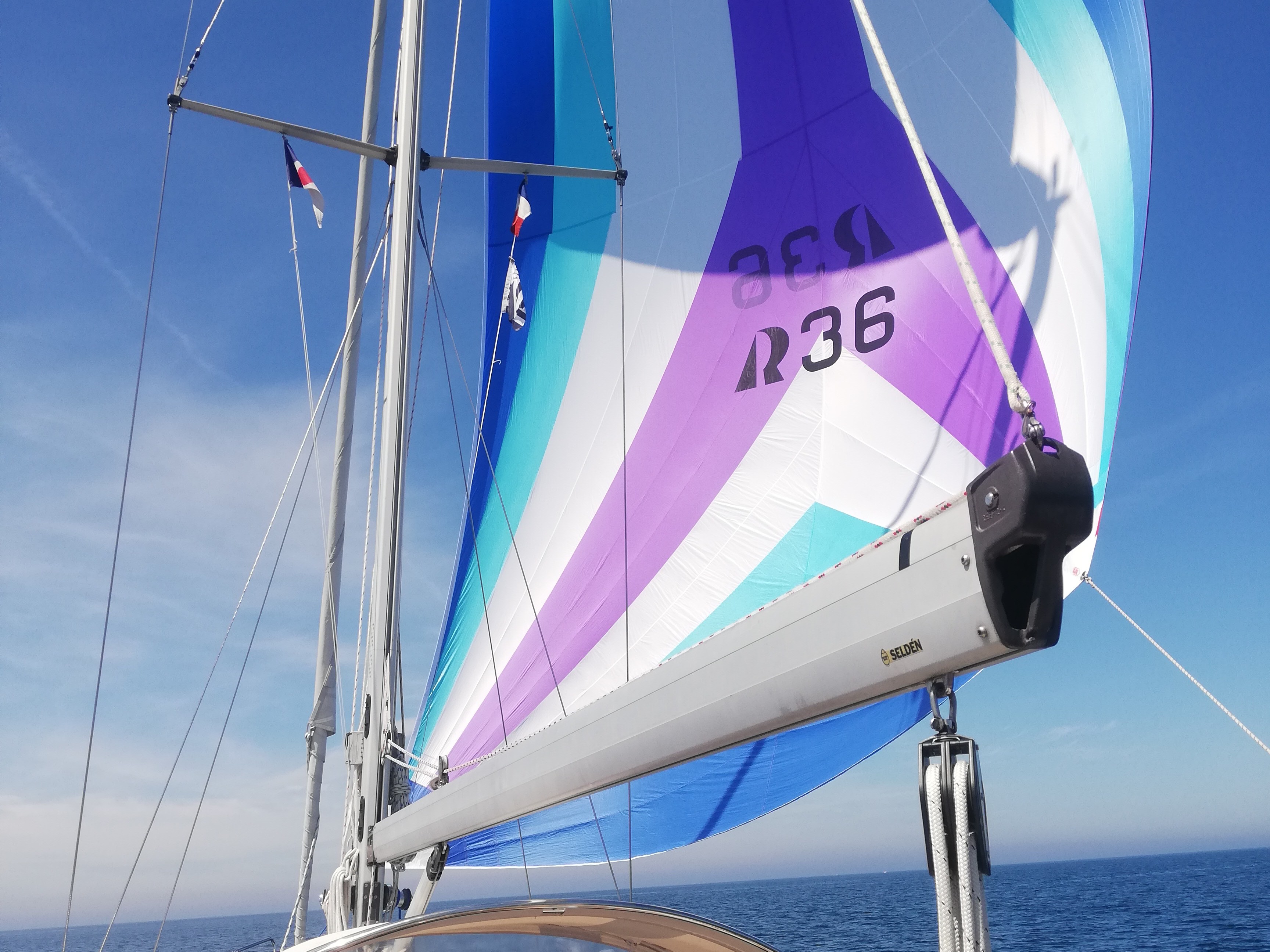

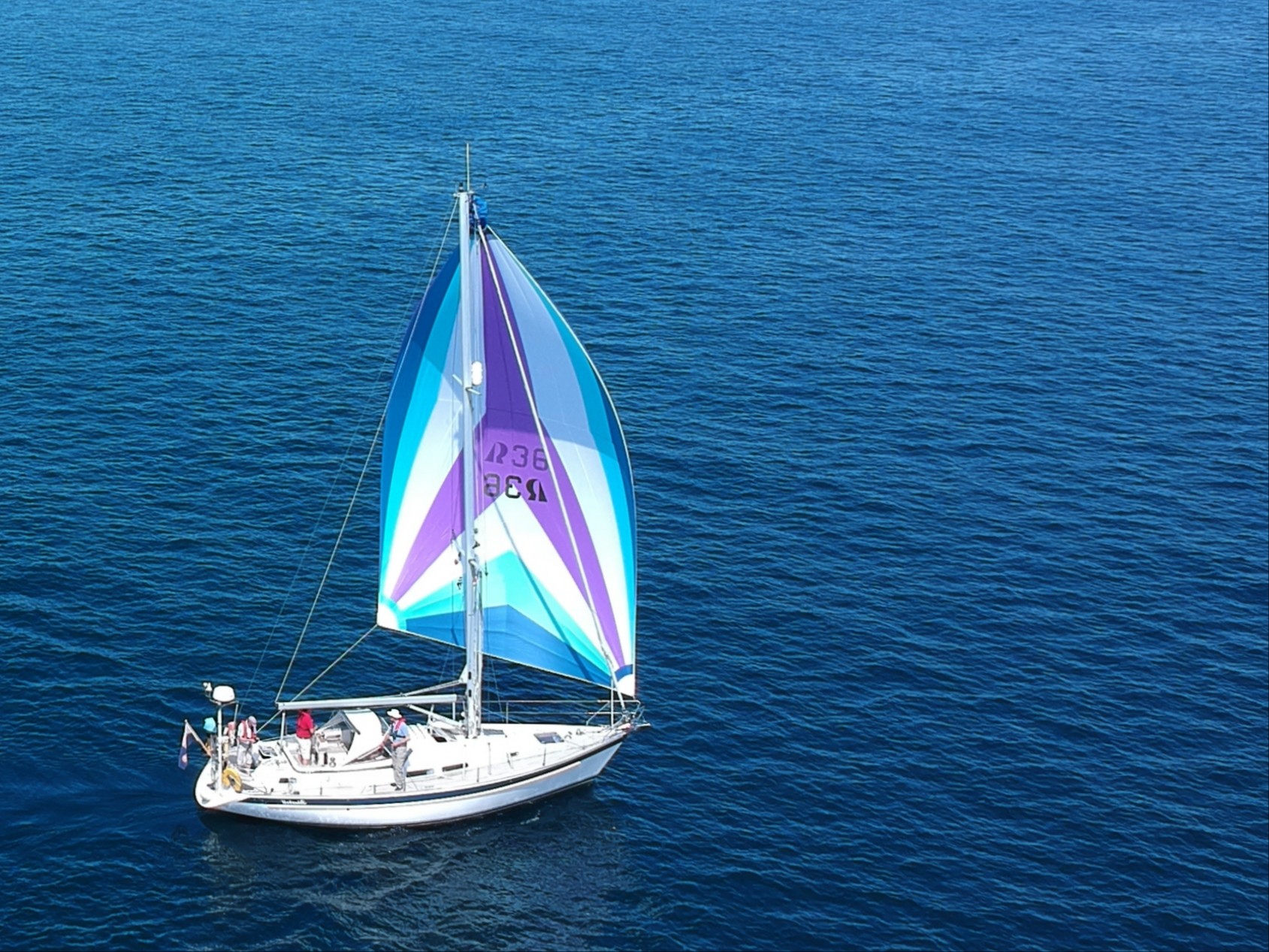

Cruising chute by Crusader Sails
* All sails have been washed and serviced annually.
WINCHES
2x Lewmar 48 CEST self-tailing electric sheet winches
2x Lewmar 16 CST self-tailing halyard winches (at mast)
1x Lewmar 30 CST self-tailing winch for outhaul
1x Ratchet mainsail furling winch at mast
SLEEPS UP TO 7 IN 2 CABINS PLUS SALOON
Interior finished in hand-rubbed satin varnished Mahogany.
Deluxe blue cloth upholstery/colour scheme.
Fitted protective carpet over teak floor.
All locker doors are louvered and all bunk tops drilled to minimise the effects of condensation.
Generous lockers/stowage throughout.
Lewmar hatches to both cabins and saloon.
Blue curtains on all portlights and hatches.
Webasto AirTop 3500 diesel cabin heating (outlets in forward cabin, heads compartment, saloon and aft cabin).

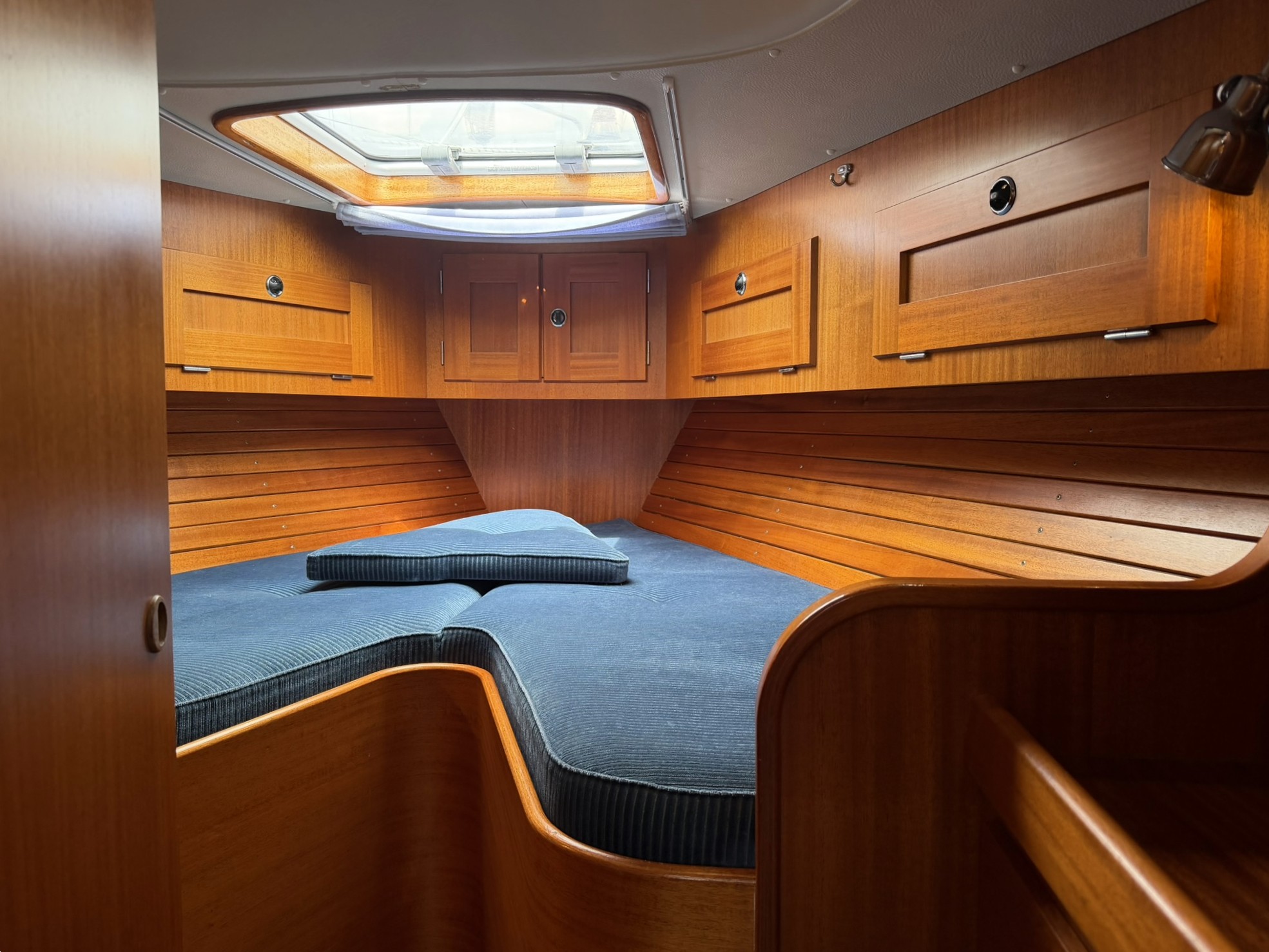

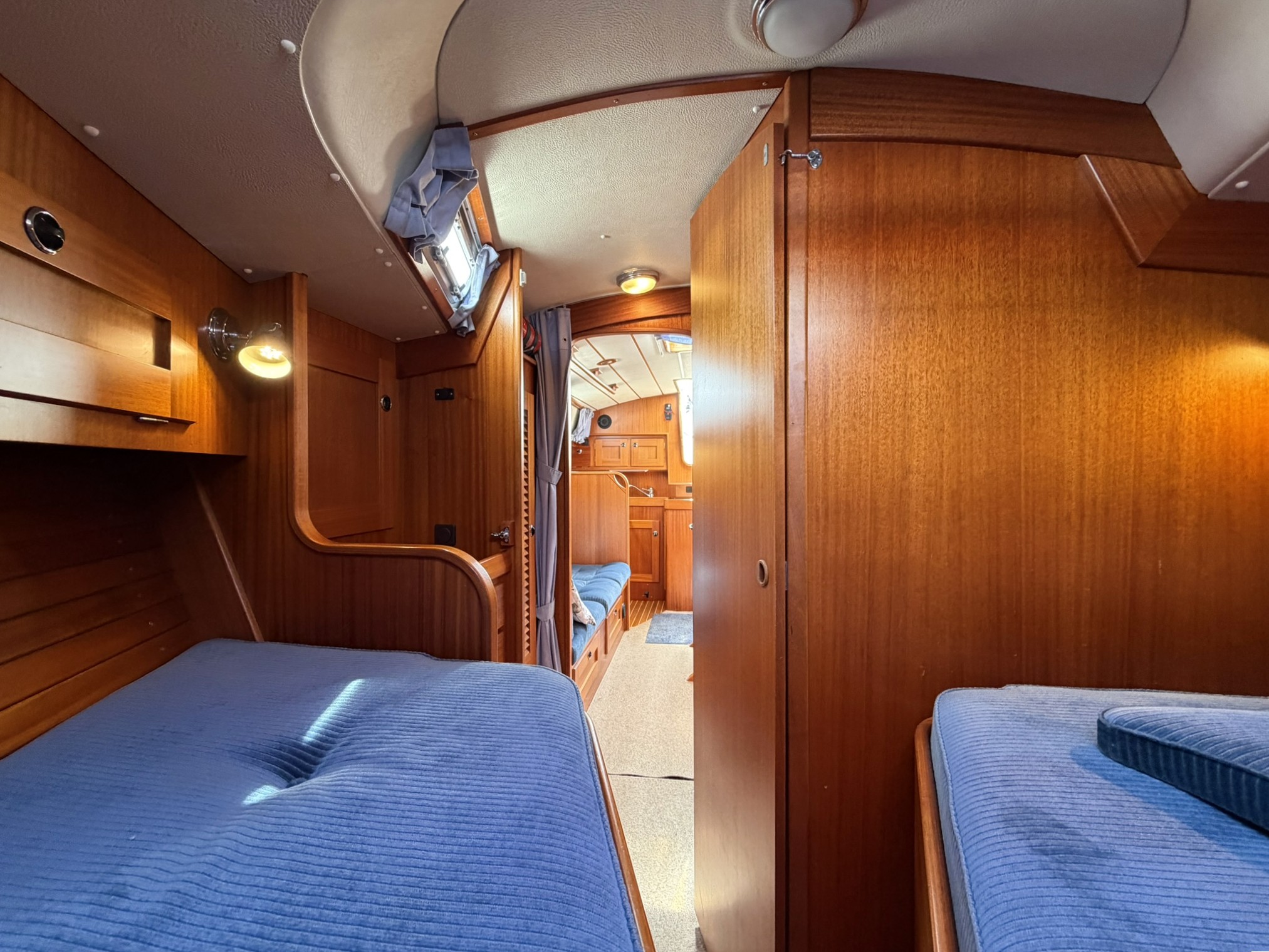

FORECABIN: V-berth with infill to convert into large double berth, ample stowage with vanity unit, drawers, generous hanging wardrobe, shelving and lockers. Reading lights. Portlight and opening hatch.

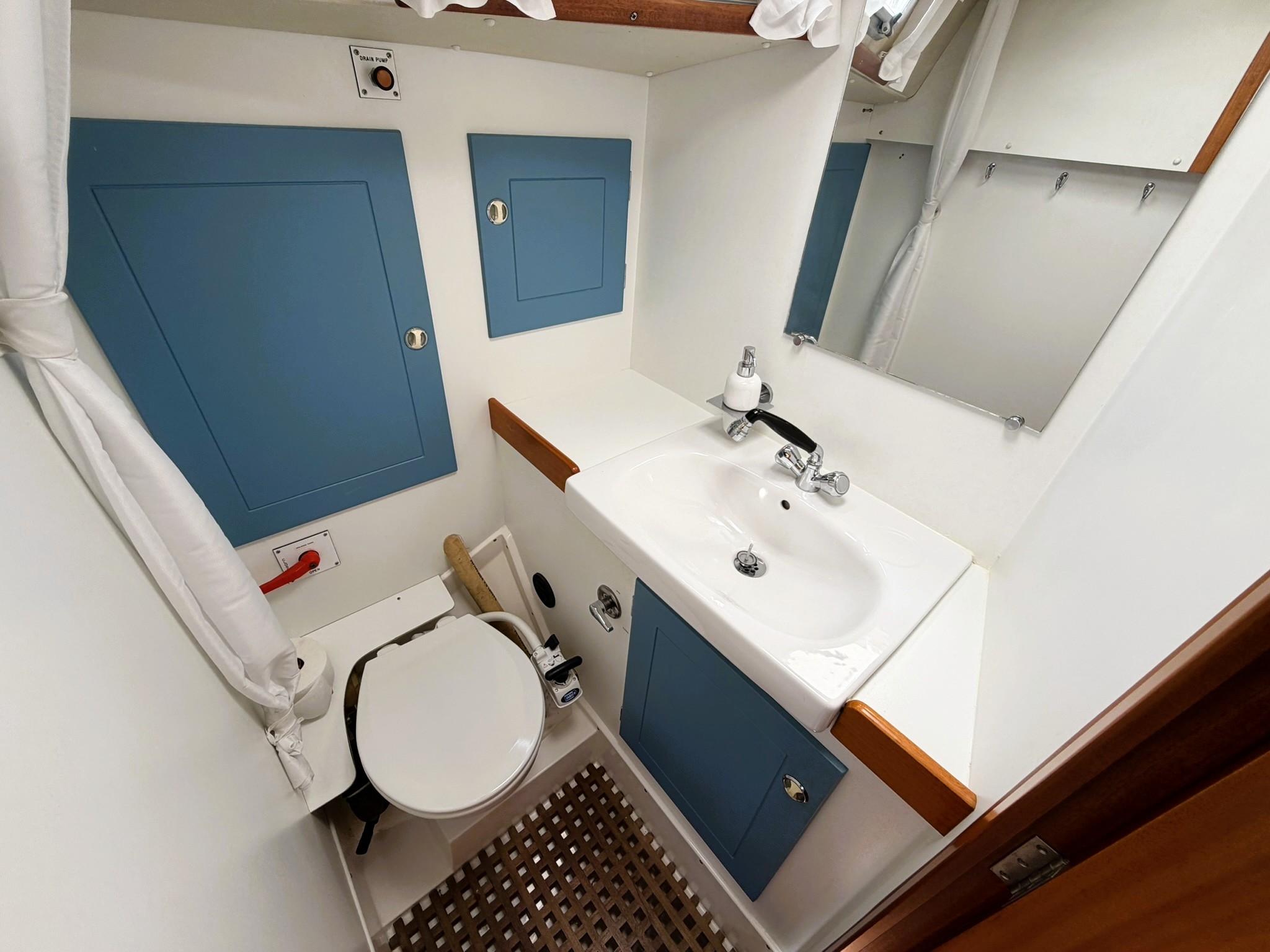

HEADS COMPARTMENT - Jabsco manual sea toilet (anti-syphon loop added to discharge pipe) with holding tank, Porcelain wash basin and shower with teak grate floor and electric shower drain. Large mirror and soap dispenser. Opening portlight, deck hatch and Roca ventilator.

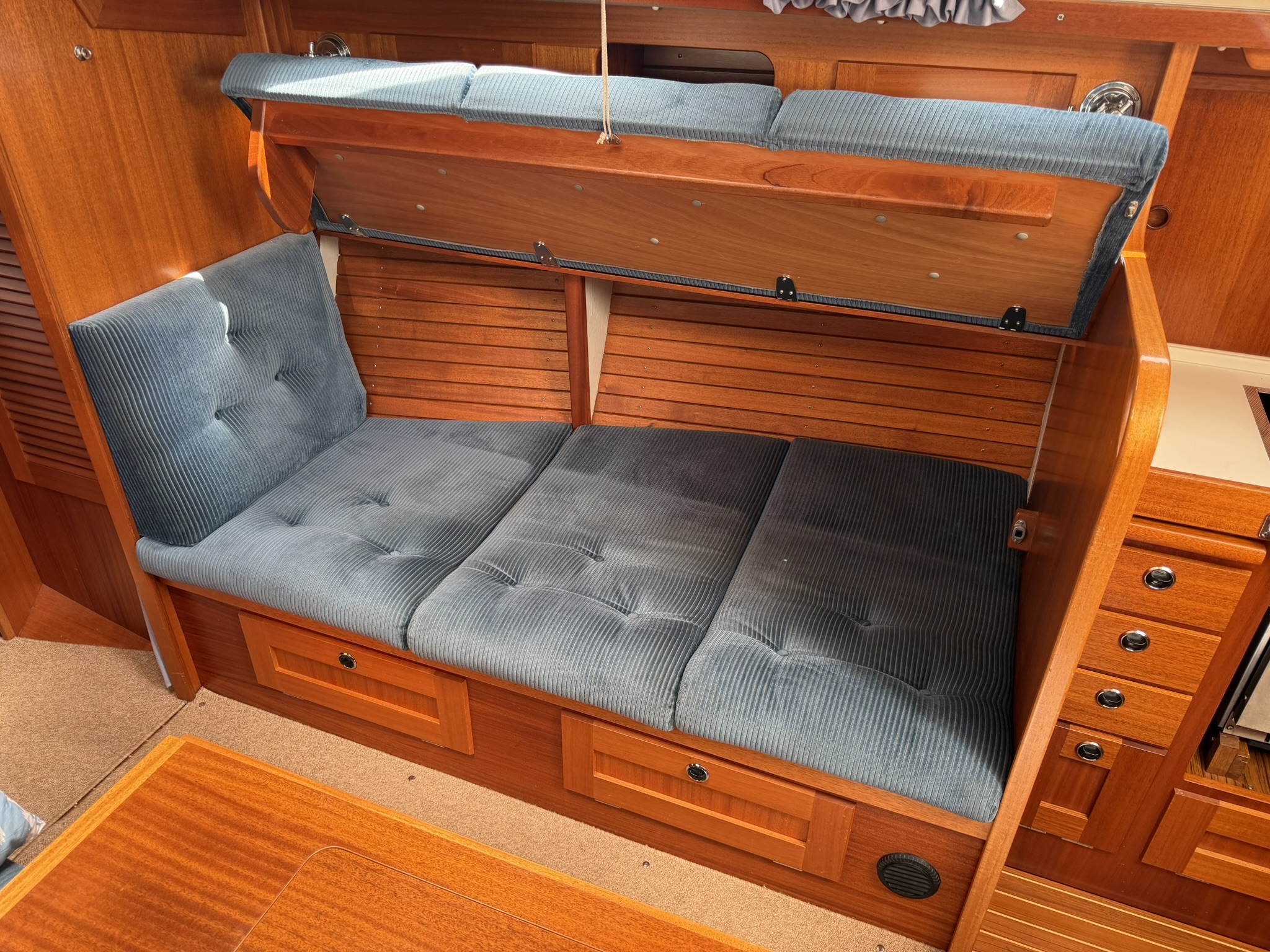

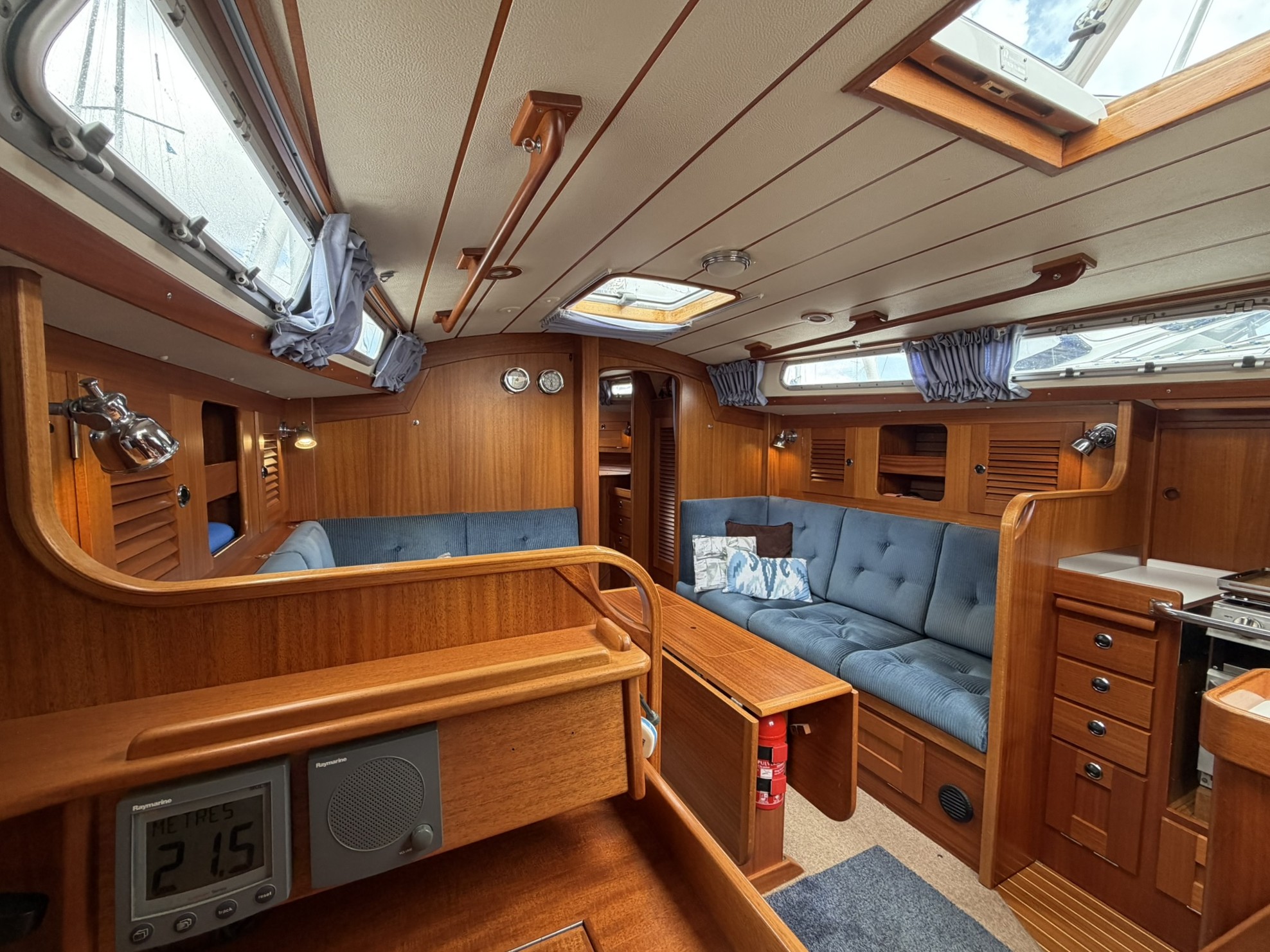

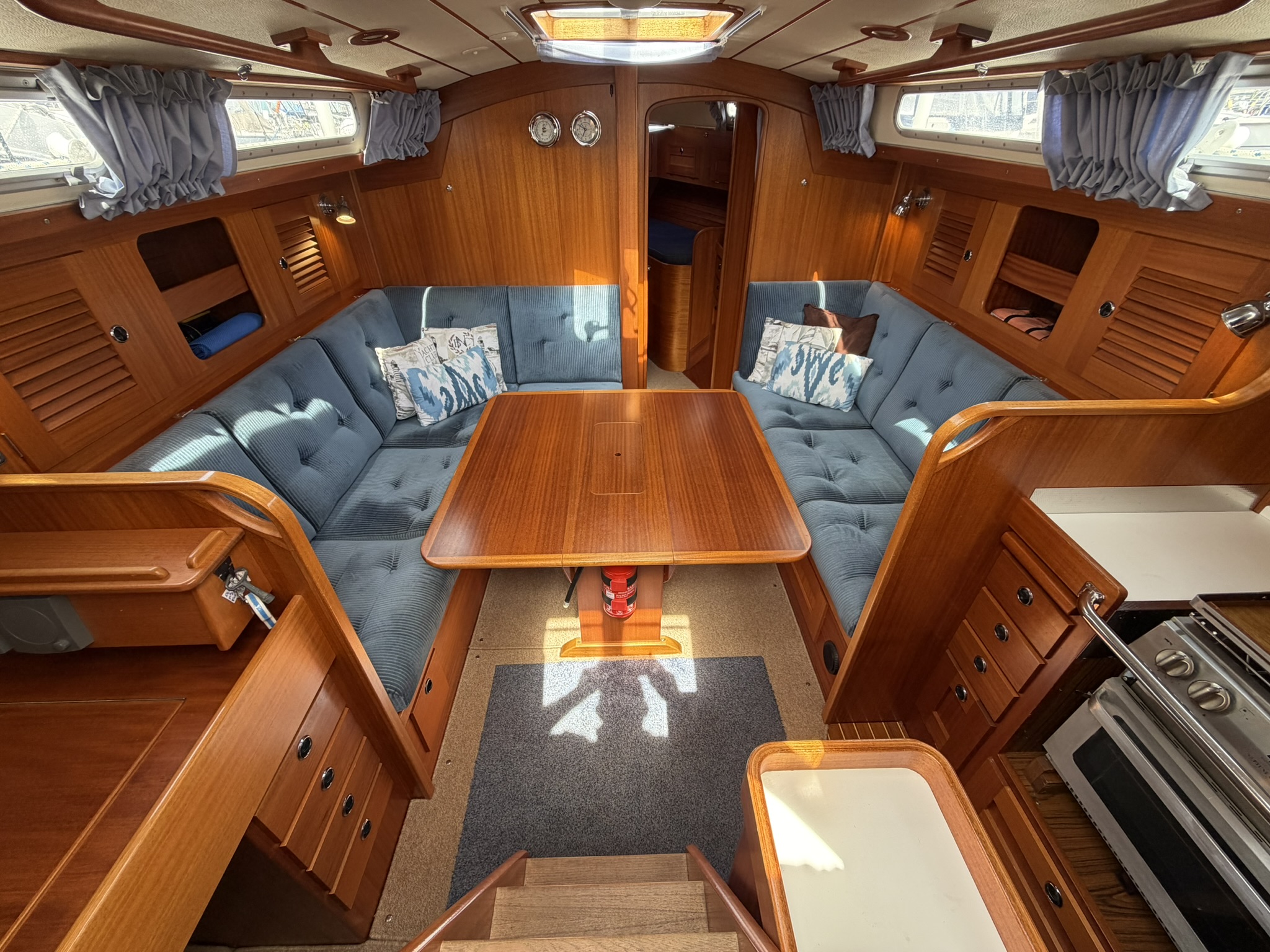

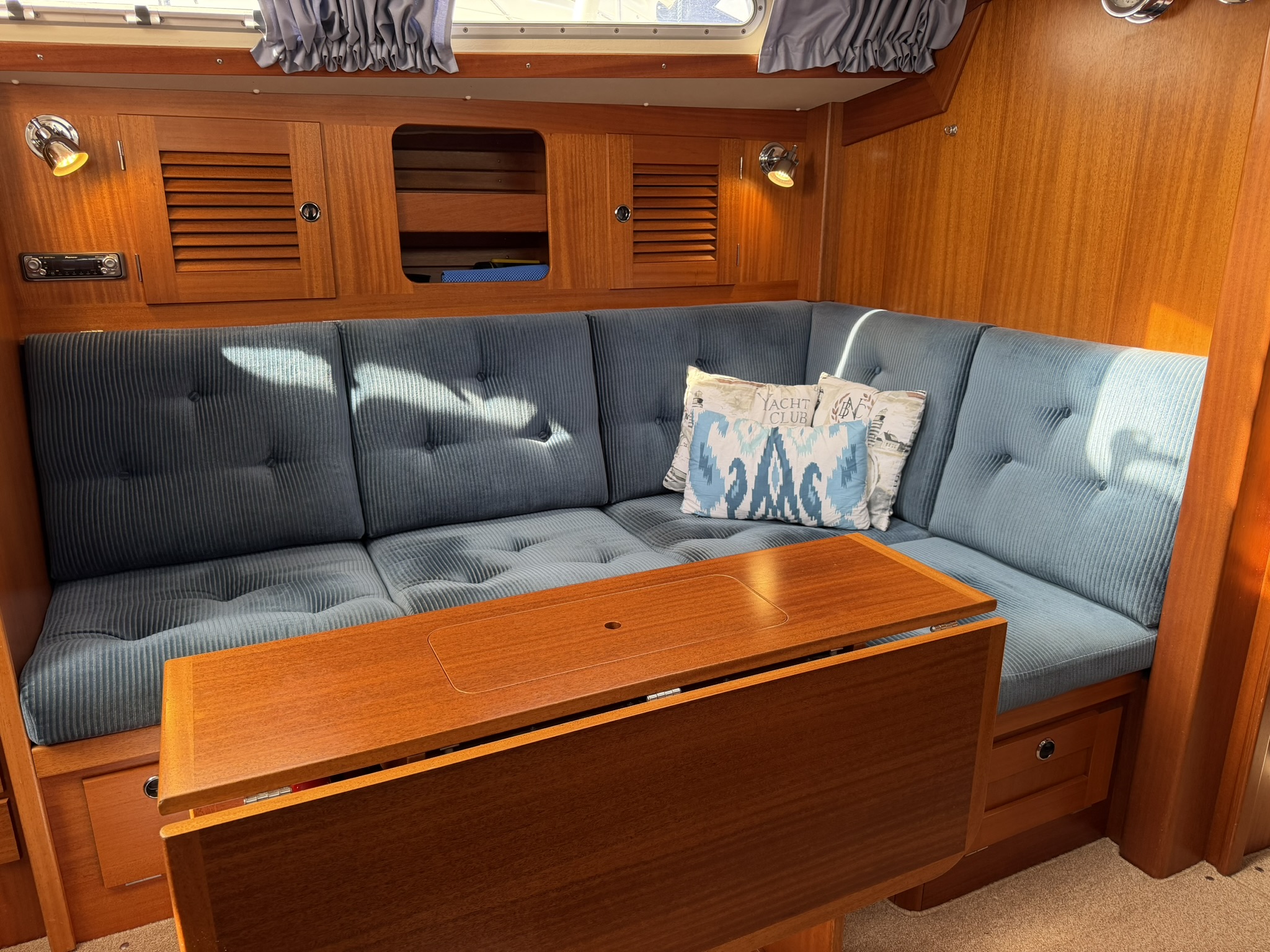

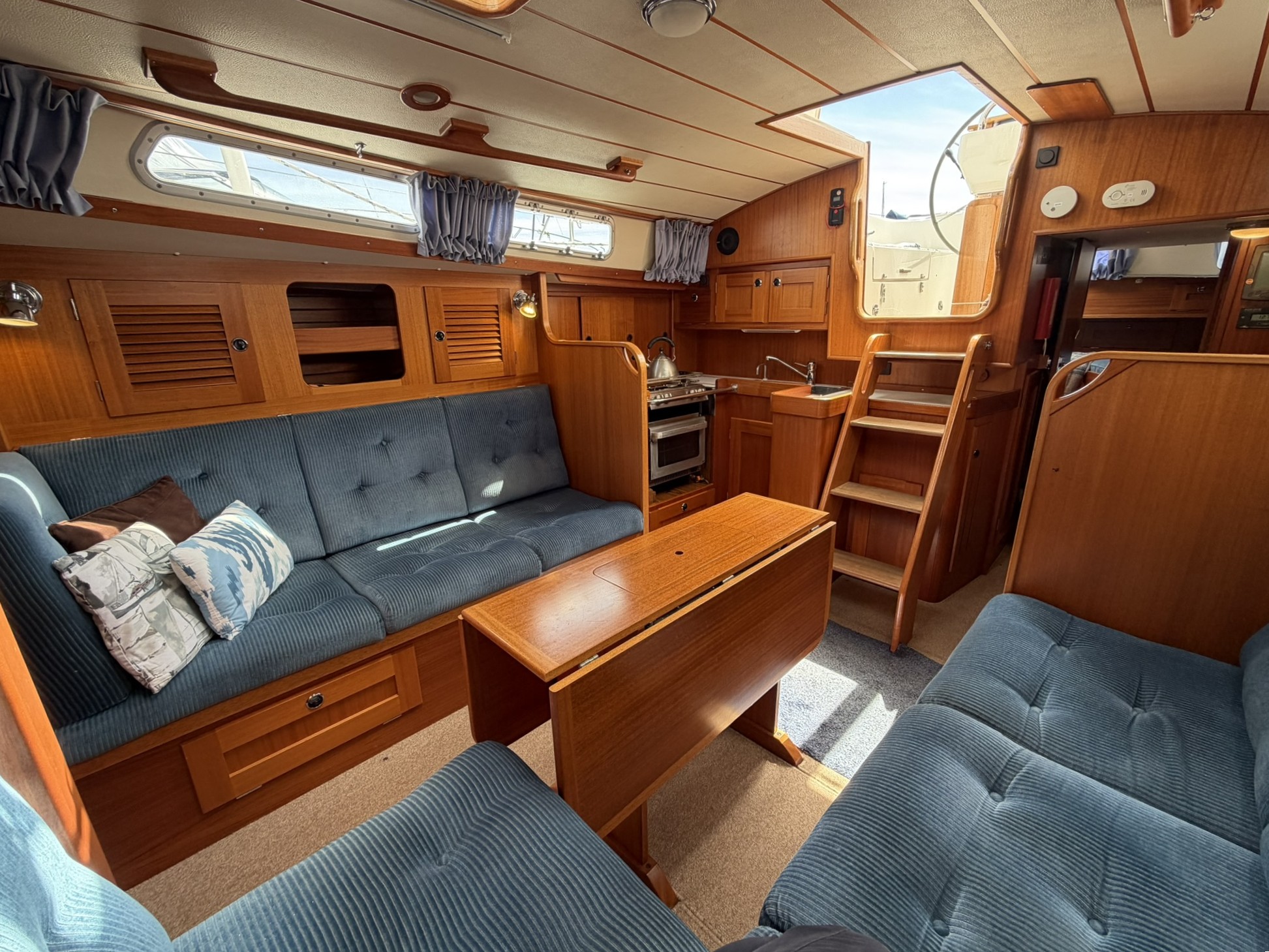

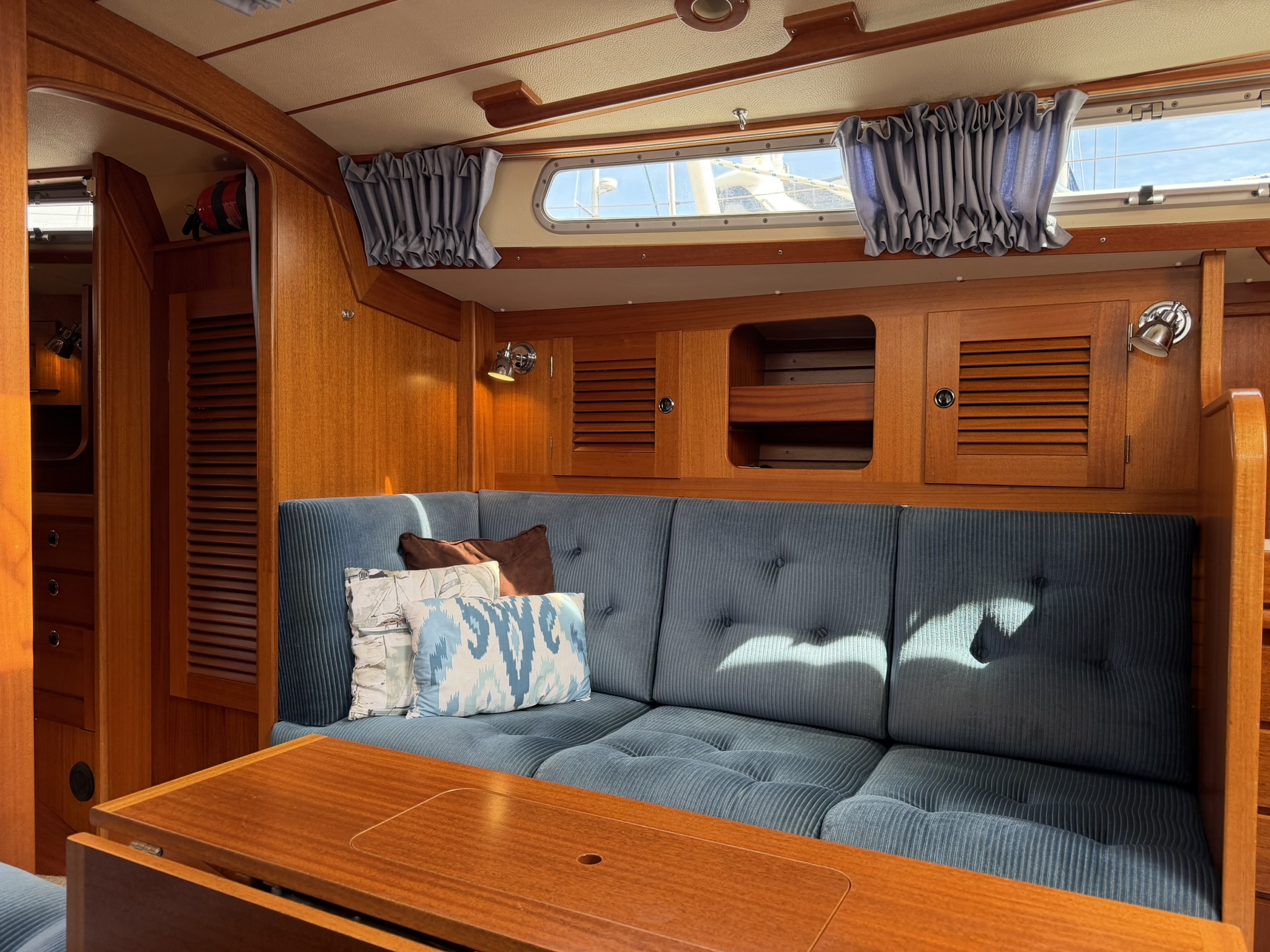

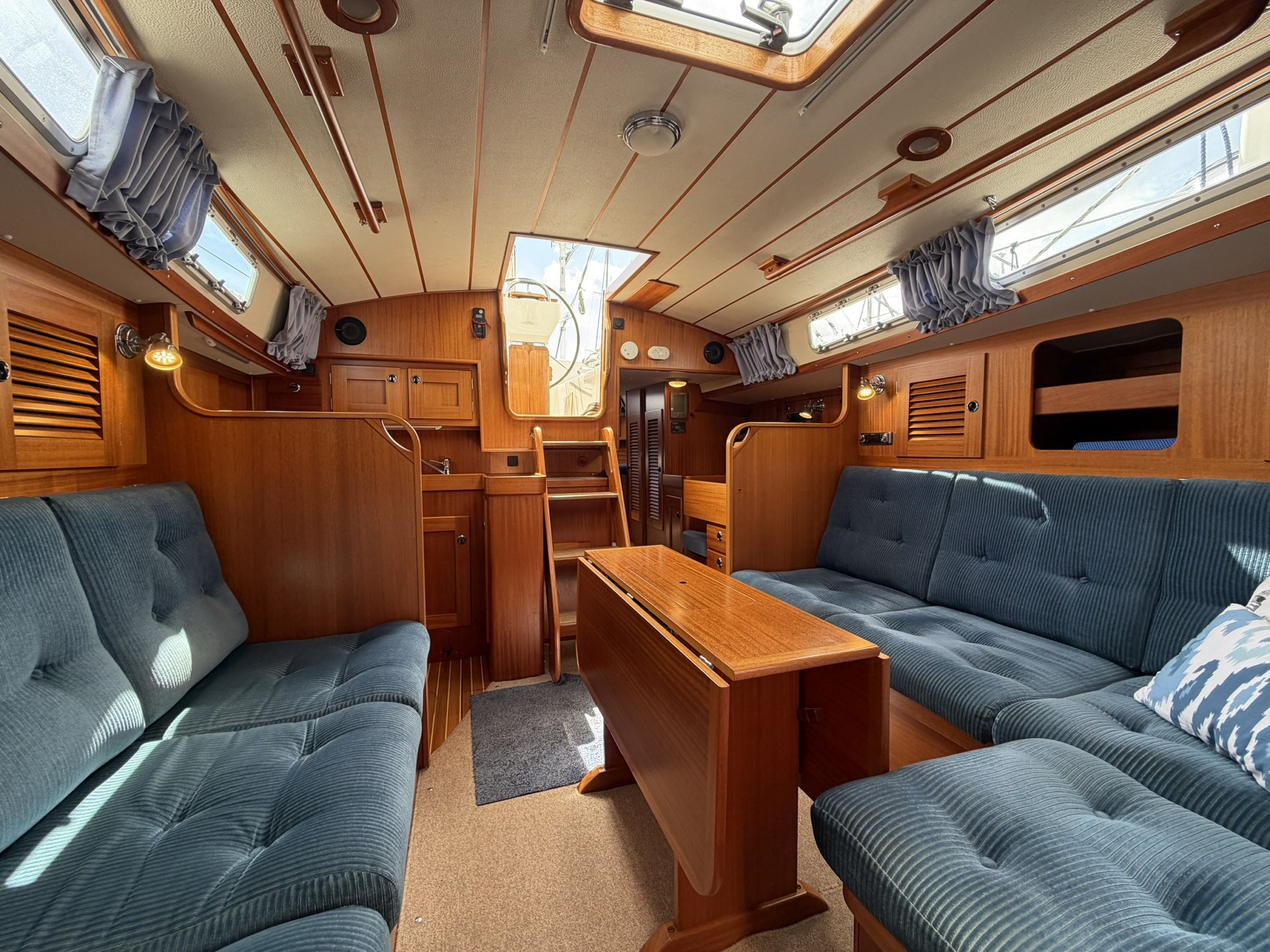

SALOON: L-shaped sofa to port with settee to starboard (lifting backrests to create additional width for port and starboard passage berths with lee cloths and trotter-box). Centreline drop-leaf mahogany table with bottle stowage. Opening hatch, two opening portlights, two Dorade ventilators and coaming windows.

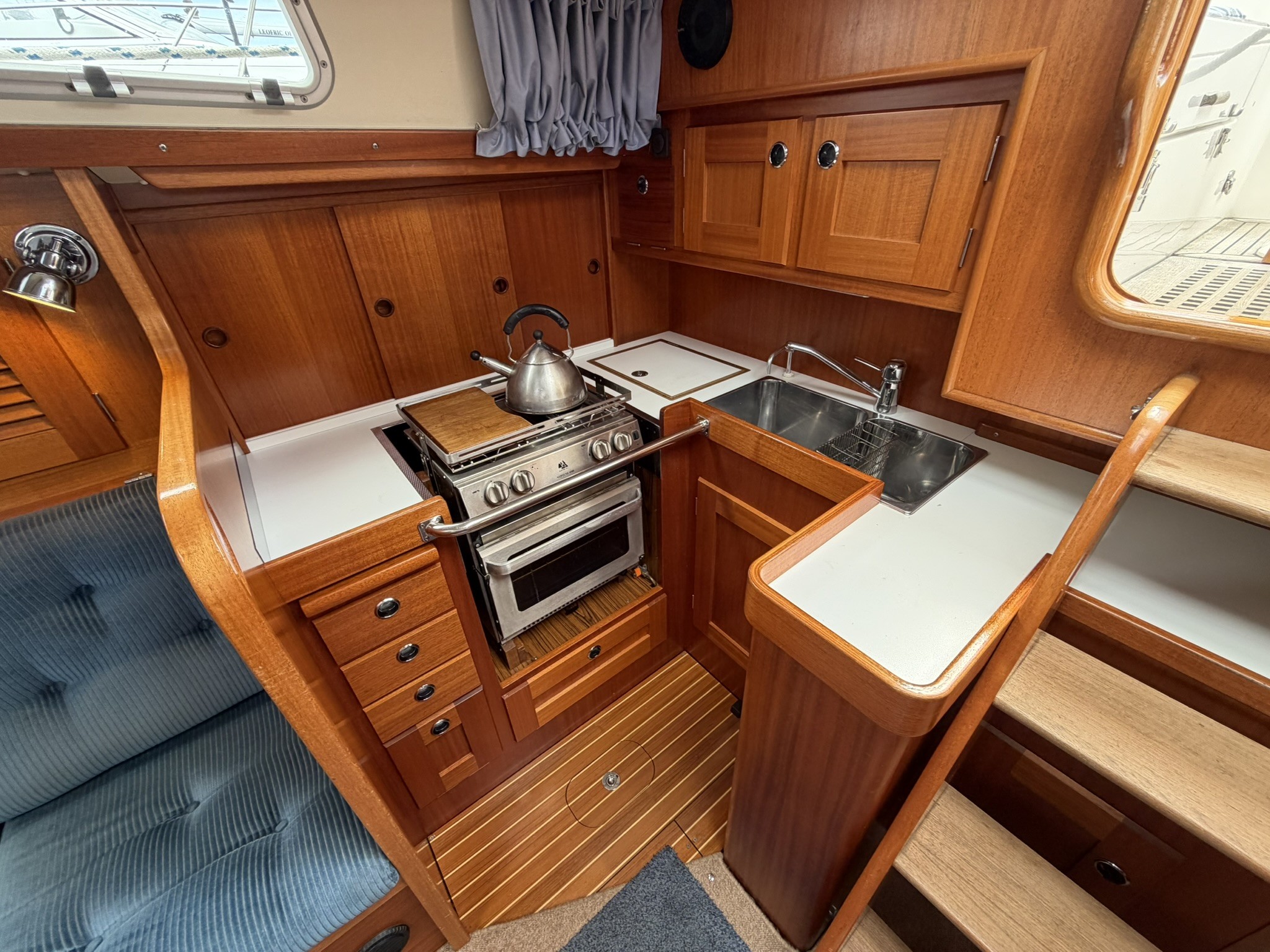

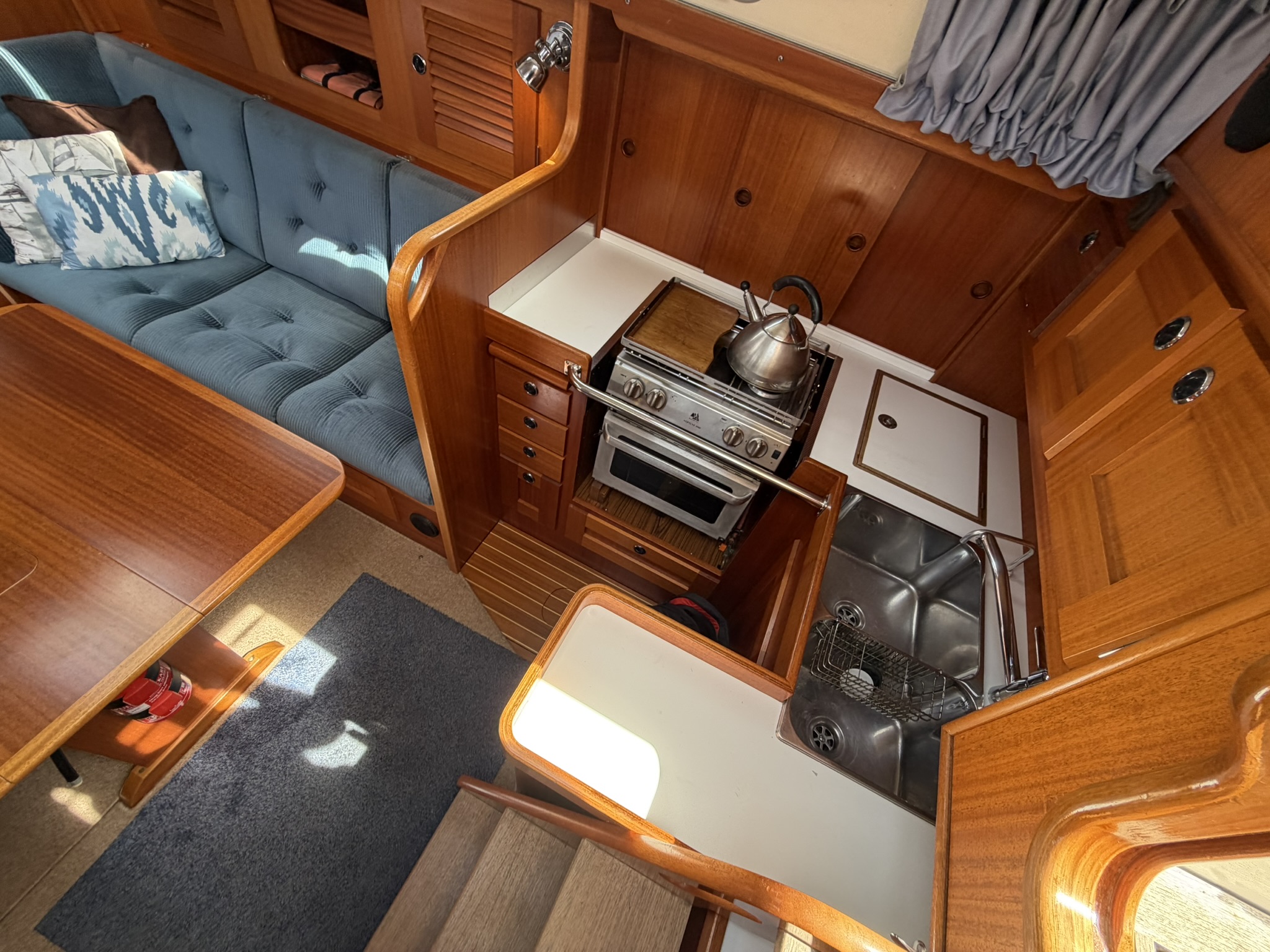

GALLEY - Seagoing to starboard with 2-burner Neptune 4500 gas cooker with oven and grill (gimballed with fiddle rails, grill pan stowage, locking device, crash bar and gas cut-off), double stainless-steel sink, pressurised hot and cold water, foot pump operated fresh water, 12V top-loading icebox with Frigoboat refrigerator, pull-out chopping board. Ample stowage and waste basket beneath sink.

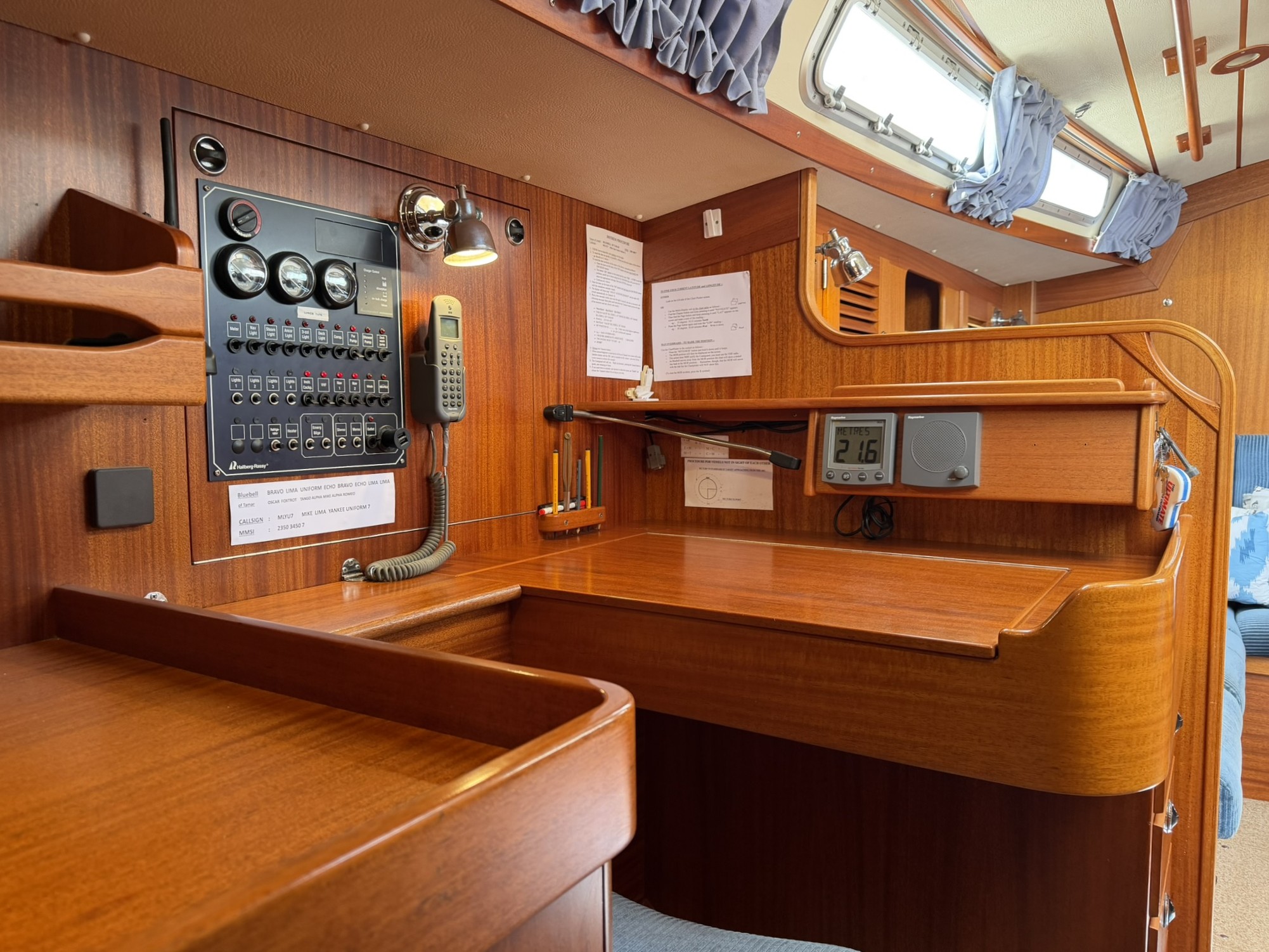

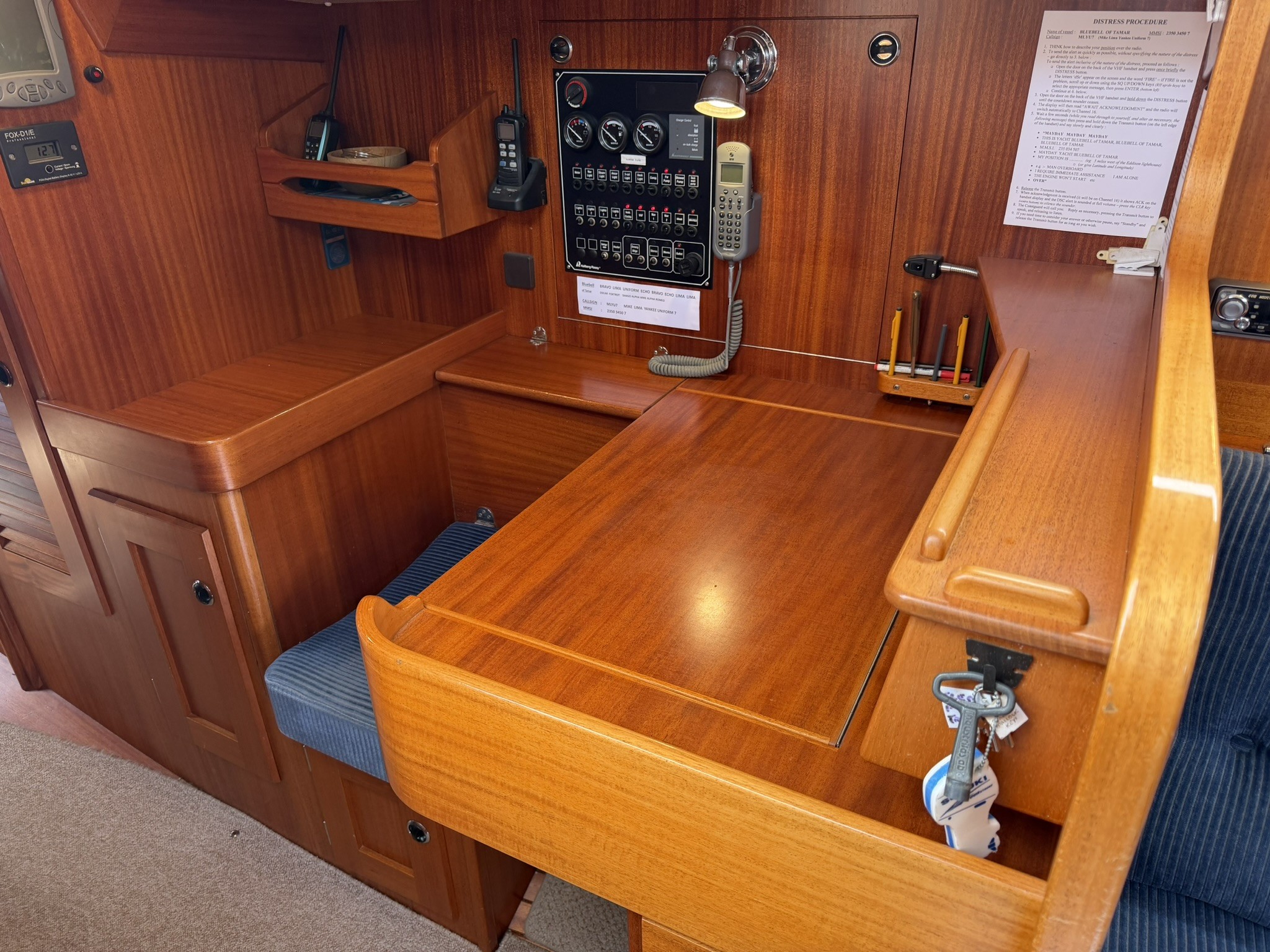

CHART TABLE - Forward-facing to port with purpose built bookshelf, chart stowage, instrument console/gauges and distribution panel, navigators seat with stowage beneath, nav light, hanging locker aft.

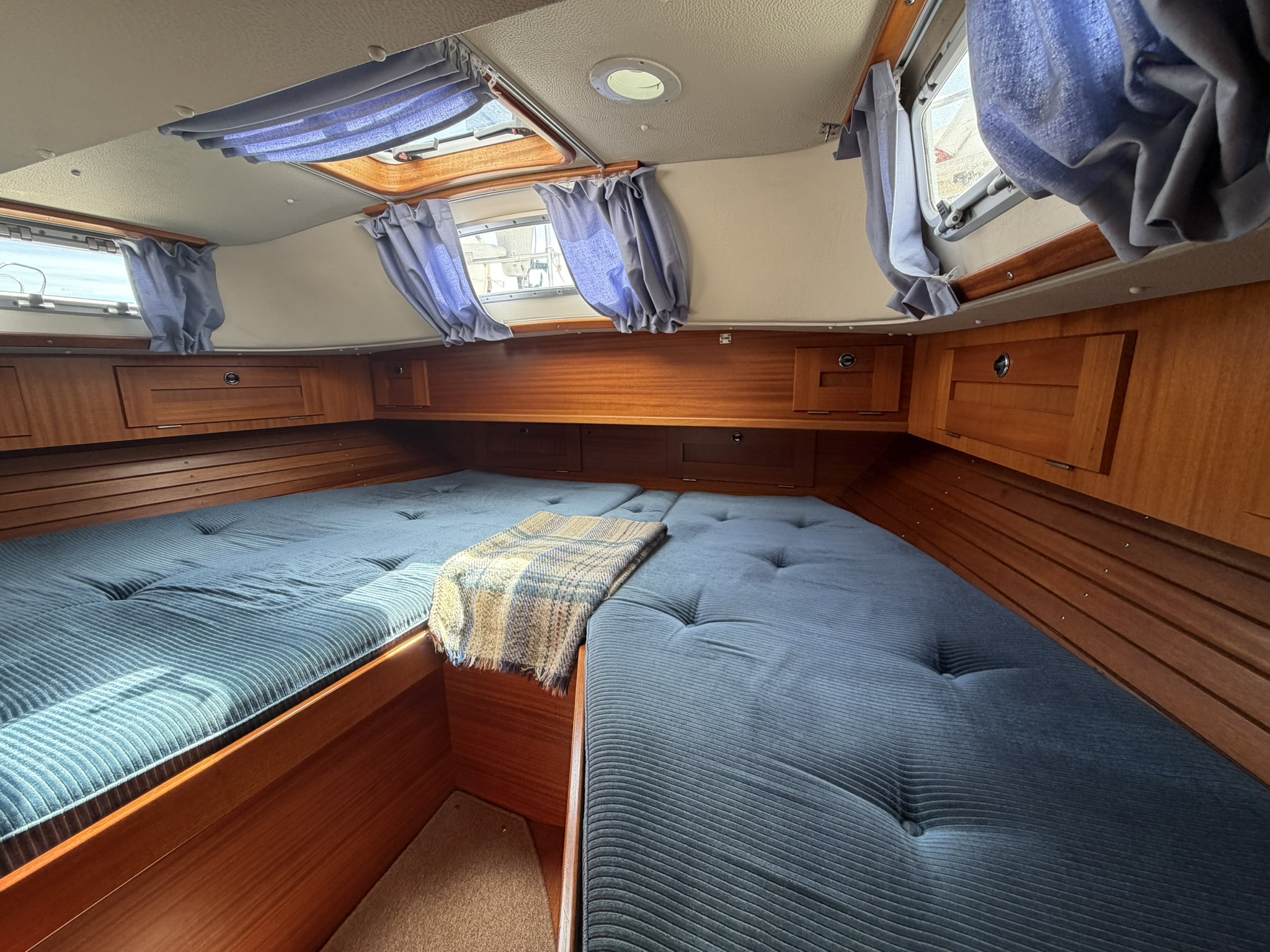

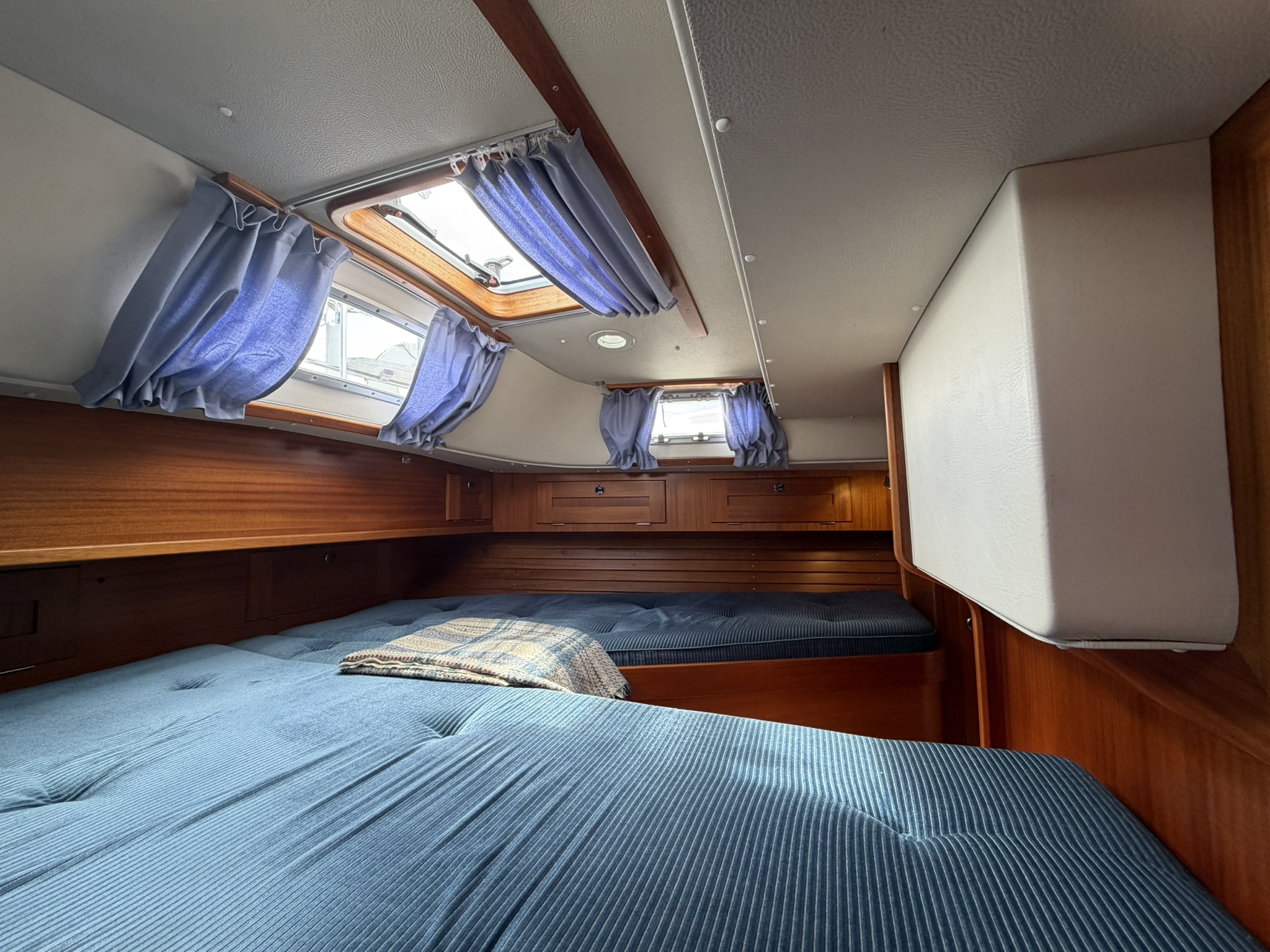

AFT CABIN - Large double berth to starboard and single berth to port (lee cloth to single berth), ample stowage with hanging wardrobe and high-level lockers. Reading lamps, two portlights and opening hatch.
ENGINE

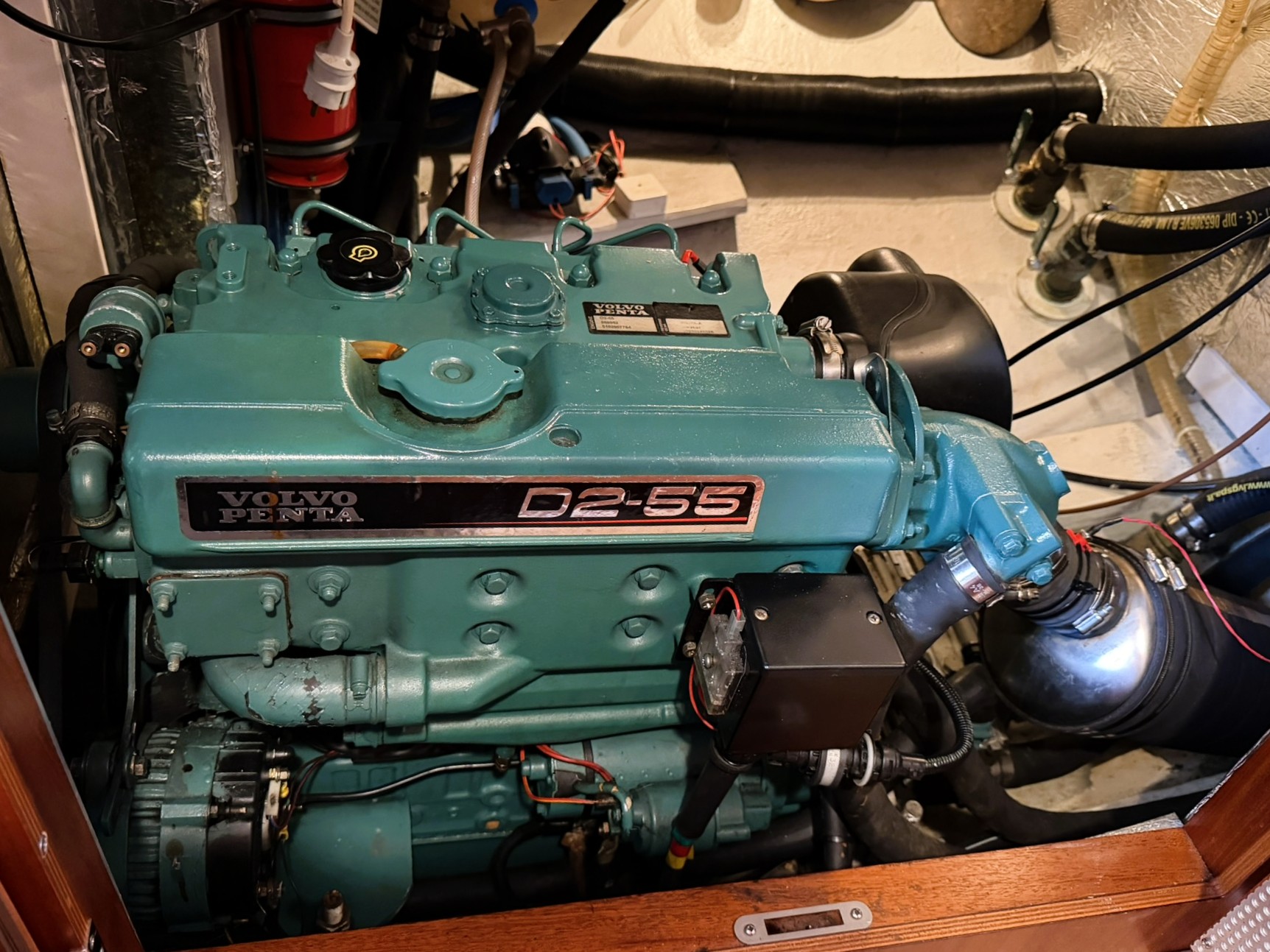

Volvo Penta D2-55 4 cylinder 55hp diesel engine
Full servicing and winterisation annually, with records
Freshwater cooled
Raw water pump bearings replaced 2025/6
Exhaust elbow replaced 2045/5
Exhaust hose replaced 2024/5
Exhaust temperature monitor (cockpit mounted)
Gori 3-bladed feathering propeller (with overdrive function engaged this gives 1/2 to 3/4 knot extra speed for the same revs, or less revs to maintain the same speed)

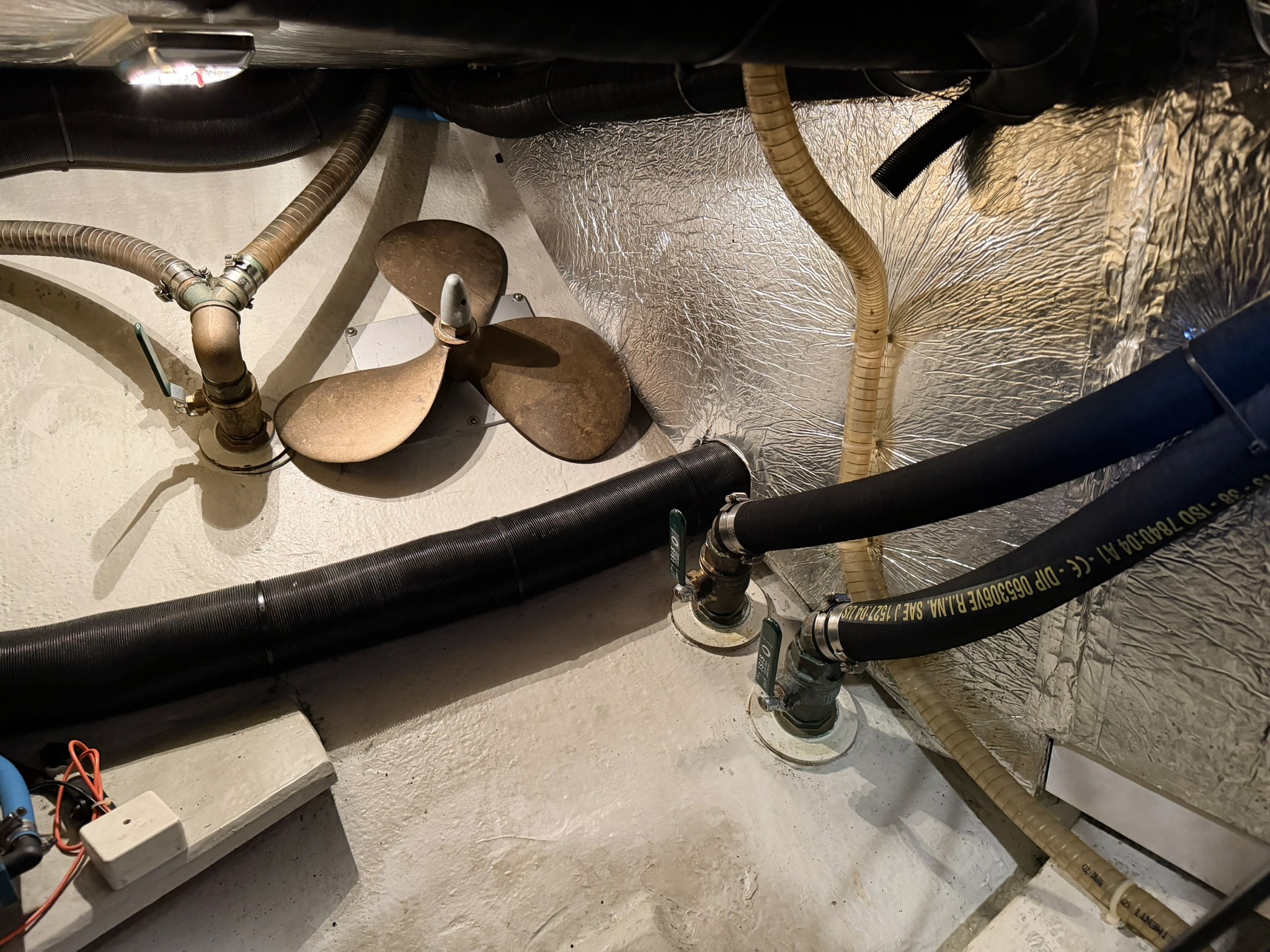

Spare fixed 3-bladed propeller
Rope cutter
60 ah alternator
ELECTRICS
2x 200 Ah domestic gel batteries + 1x 74 Ah engine start battery - located under berth in aft cabin.
Charged via 60A alternator and battery charger
Mastervolt IVO Smart battery charger 230V 25A battery management system
Adverc Battery Management System

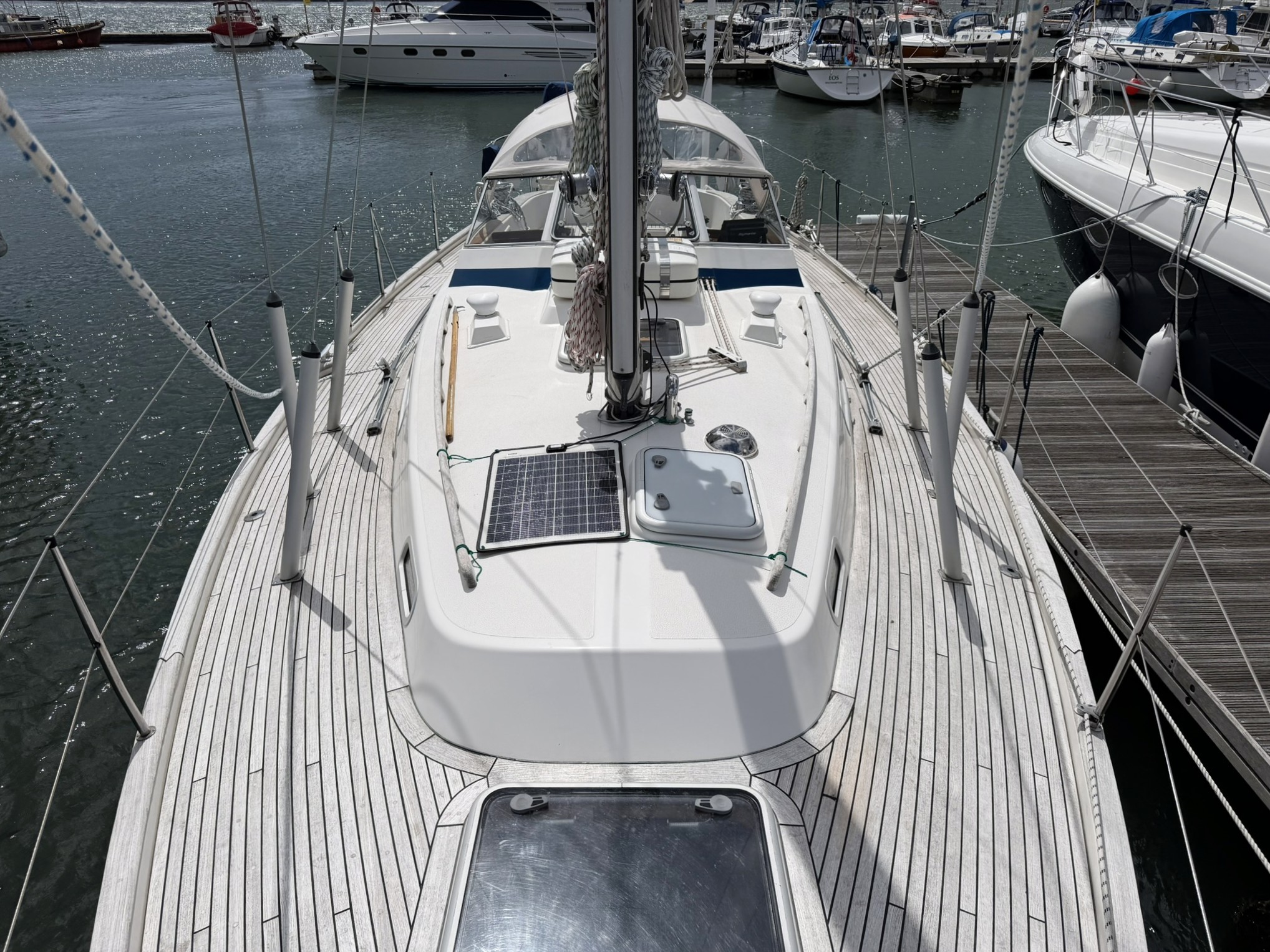

Sunware solar panel, regulator and Fox D1 display
12V sockets at chart table and in cockpit
LED lighting throughout
Full 230V shore power system with circuit breaker in distribution box with breakers for ring main, immersion element and battery charger. and cable
TANKAGE
Fuel capacity 345 litres (2x stainless-steel)
Fresh water capacity 355 litres (2x stainless-steel)
Holding tank capacity 40 litres (1x stainless-steel)
WATER SYSTEM
Pressurised hot and cold water throughout
Insulated calorifier with 230 volt immersion heater
Pumped deckwash system (connection point by mast)
Freshwater shower for bathing platform
GAS SYSTEM
Gas locker located on starboard side deck
2x Flogas 7kg Butane bottles
Gas safety inspection 2024
NAVIGATION AIDS
Raymarine VHF 230E (aerial at masthead)

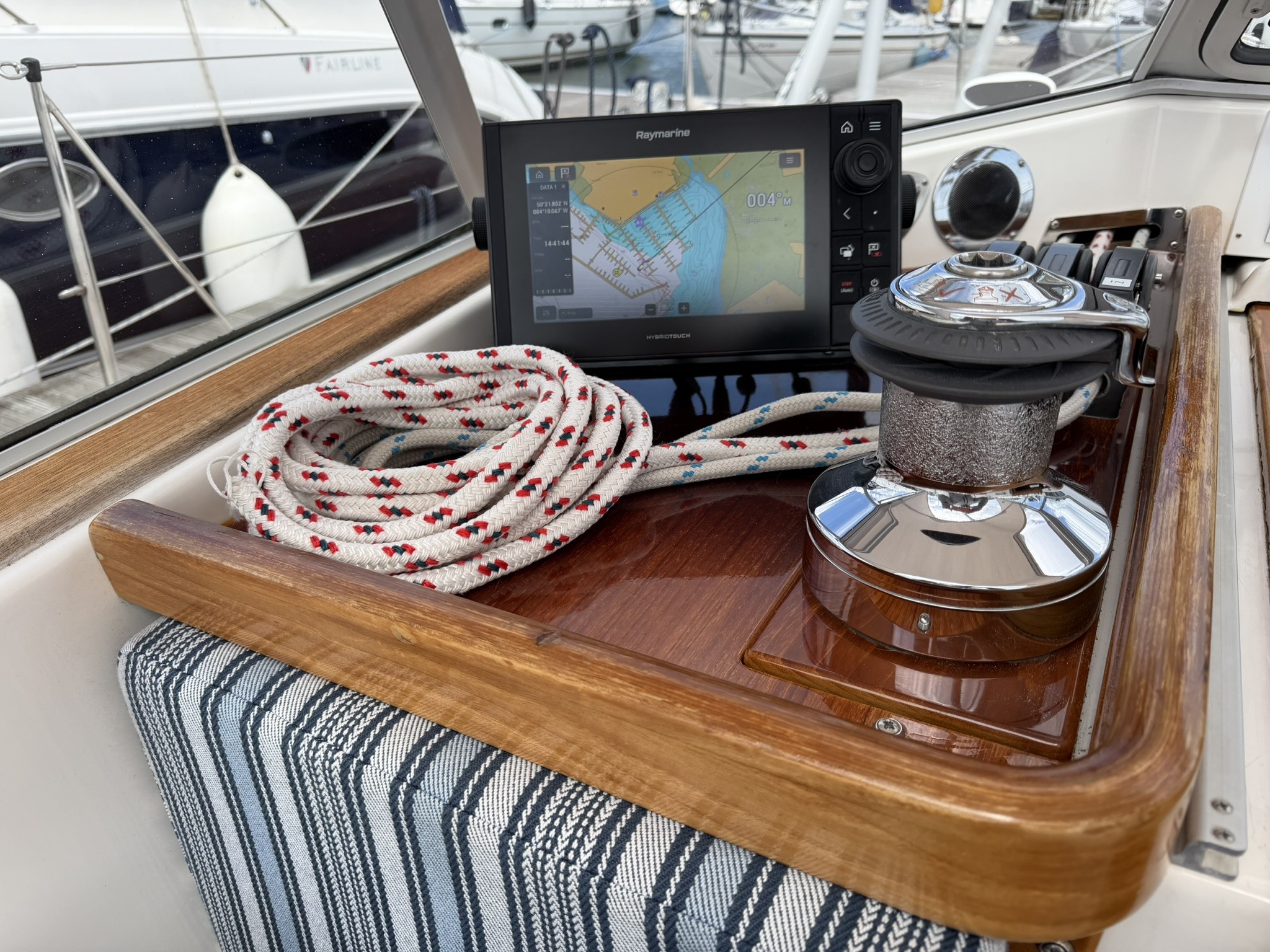

Raymarine Axiom Pro-S 9" MFD
Raymarine ST6001+ autopilot with control on pedestal

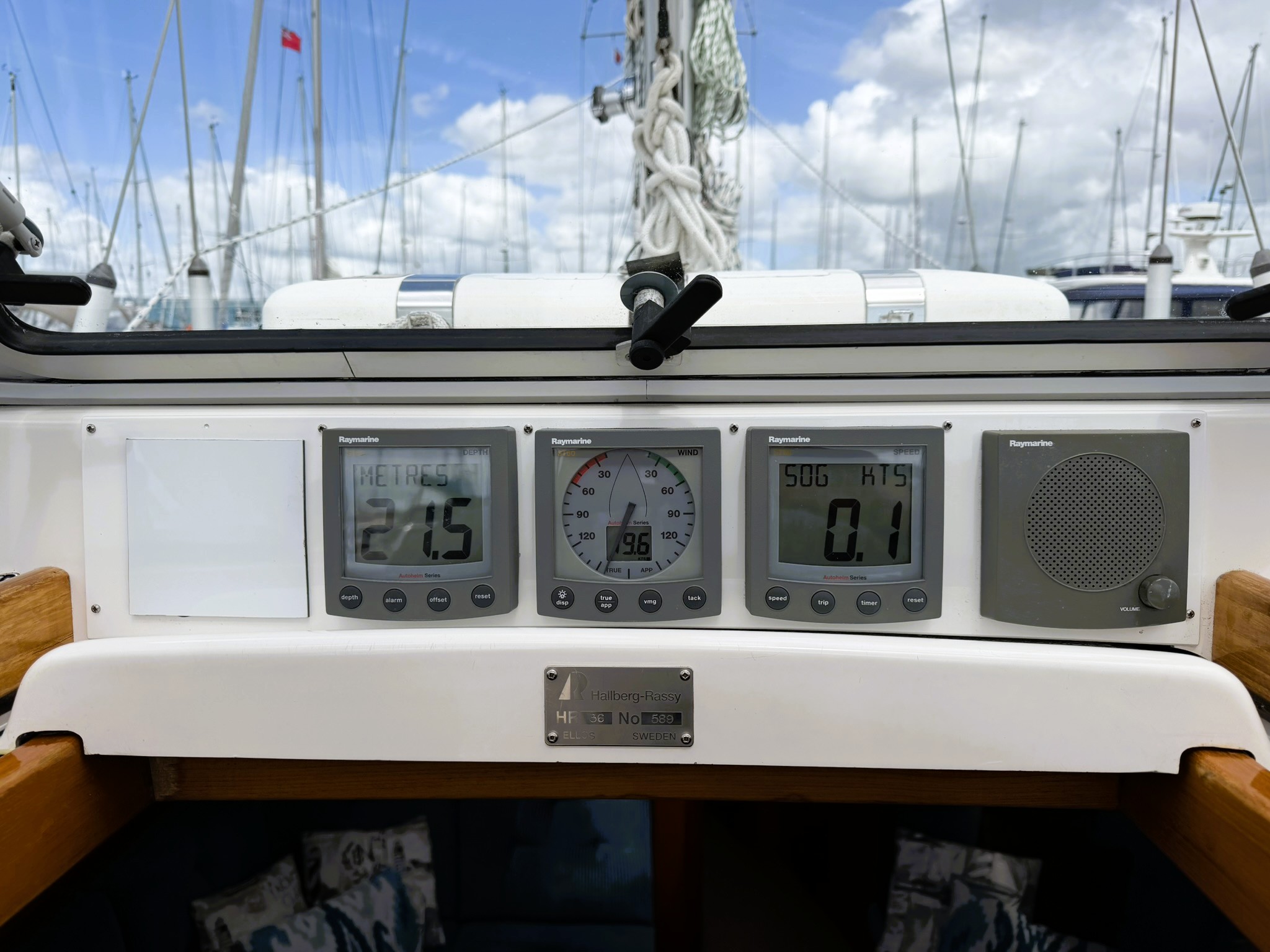

Raymarine ST60 speed, depth and wind instruments over companionway
Raymarine ST60 multifunction display at chart table
Raymarine Quantum 18" CHIRP radar
Raymarine AIS700 Class B transceiver
Navtex receiver
Suunto steering compass with light on binnacle

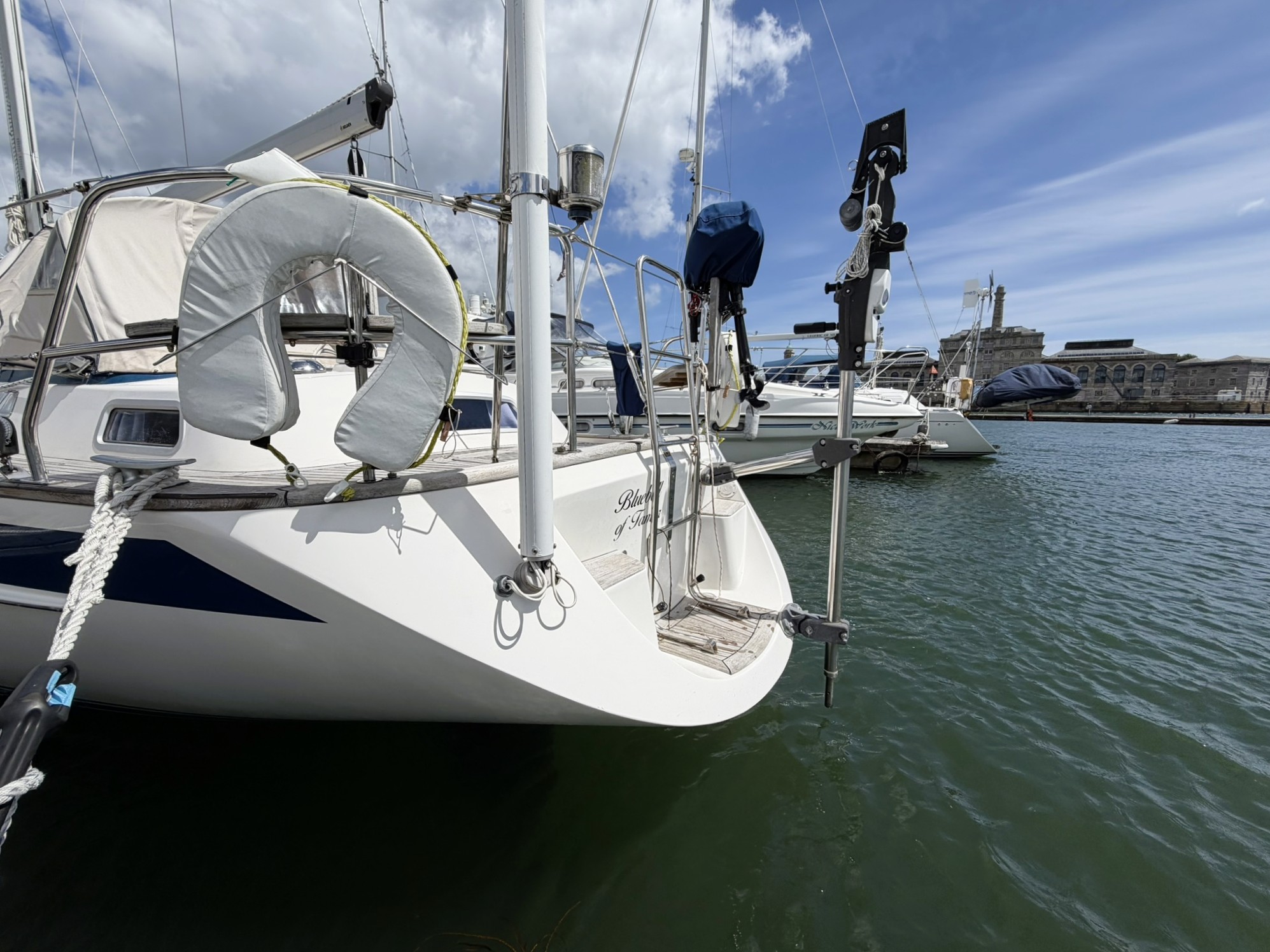

Hydrovane windvane steering (NEW 2020)
*Radome, GPS and AIS antenna mounted on Scanstrut pole on transom
GROUND TACKLE

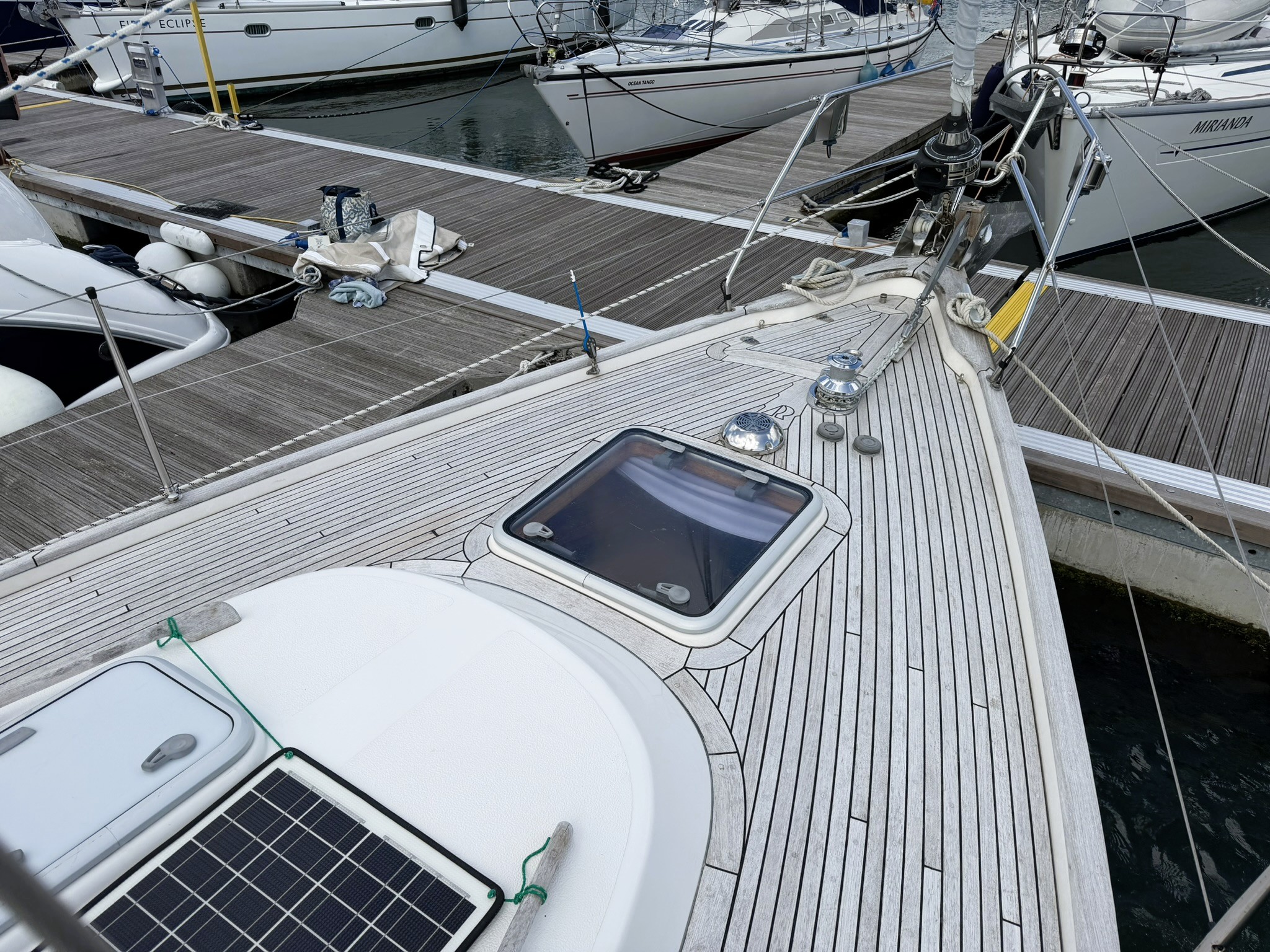

Stainless-steel stemhead fitting with twin bow rollers
Lewmar electric anchor windlass with footswitches on deck
20kg ROCNA anchor with 60m of 8mm chain
Self-draining chain and anchor locker
GENERAL EQUIPMENT
Full winter cover
Wheel cover
Sprayhood (NEW 2025)

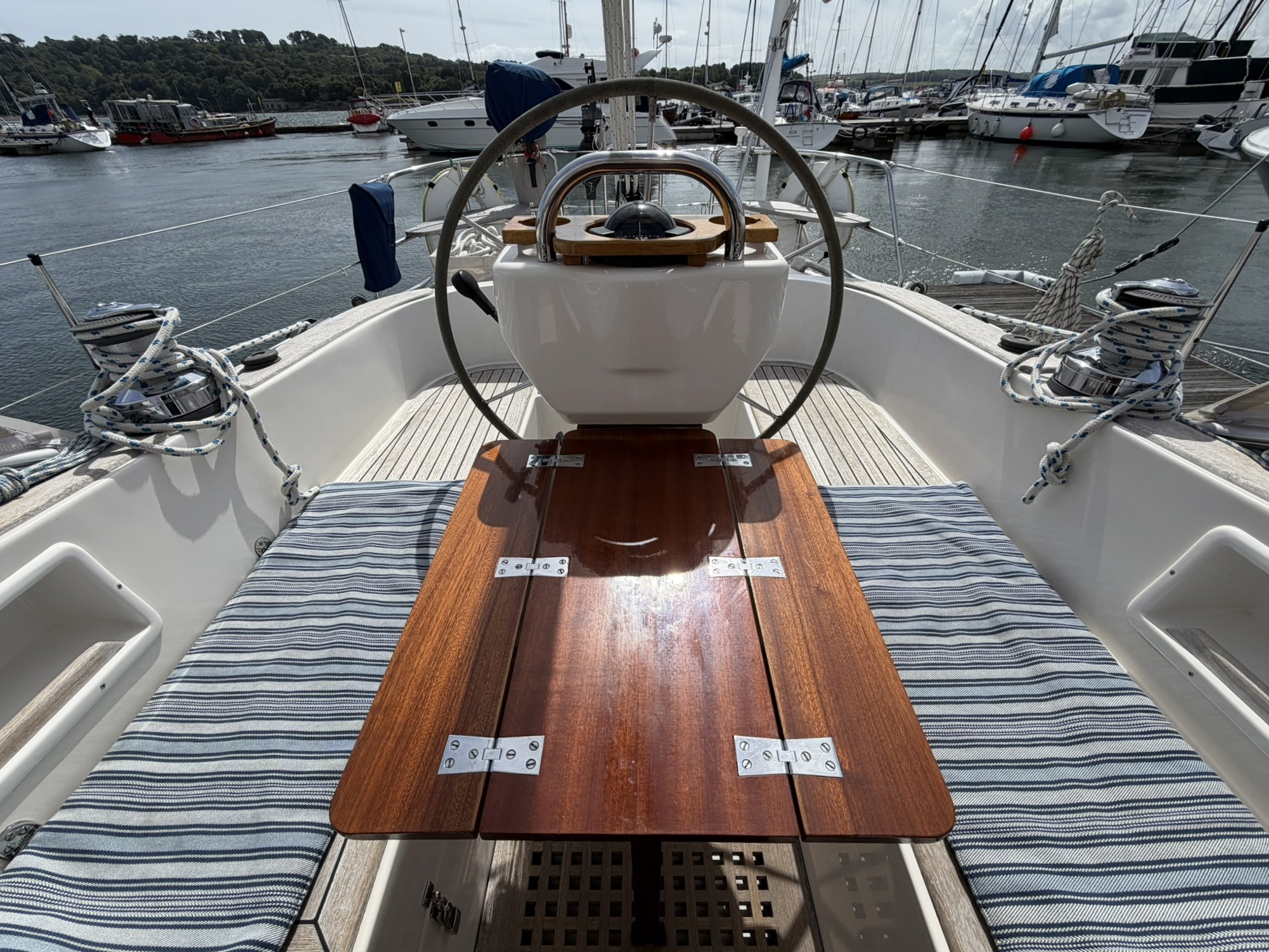

Bespoke folding cockpit table
Bespoke cup holders at binnacle
Cockpit cushions
Teak pushpit "Gin Seats"
Mooring cleats forward, aft and midships with protective brass strips
Warps & fenders
Boat hook
Ships clock and barometer
Stainless-steel bathing ladder
Pioneer AM/FM/LW/CD player with saloon speakers and Sea & Symphony speakers in cockpit
Stainless-steel derrick mounted on Scanstrut pole for lifting outboard engine
Teak bracket for outboard engine
SAFETY EQUIPMENT

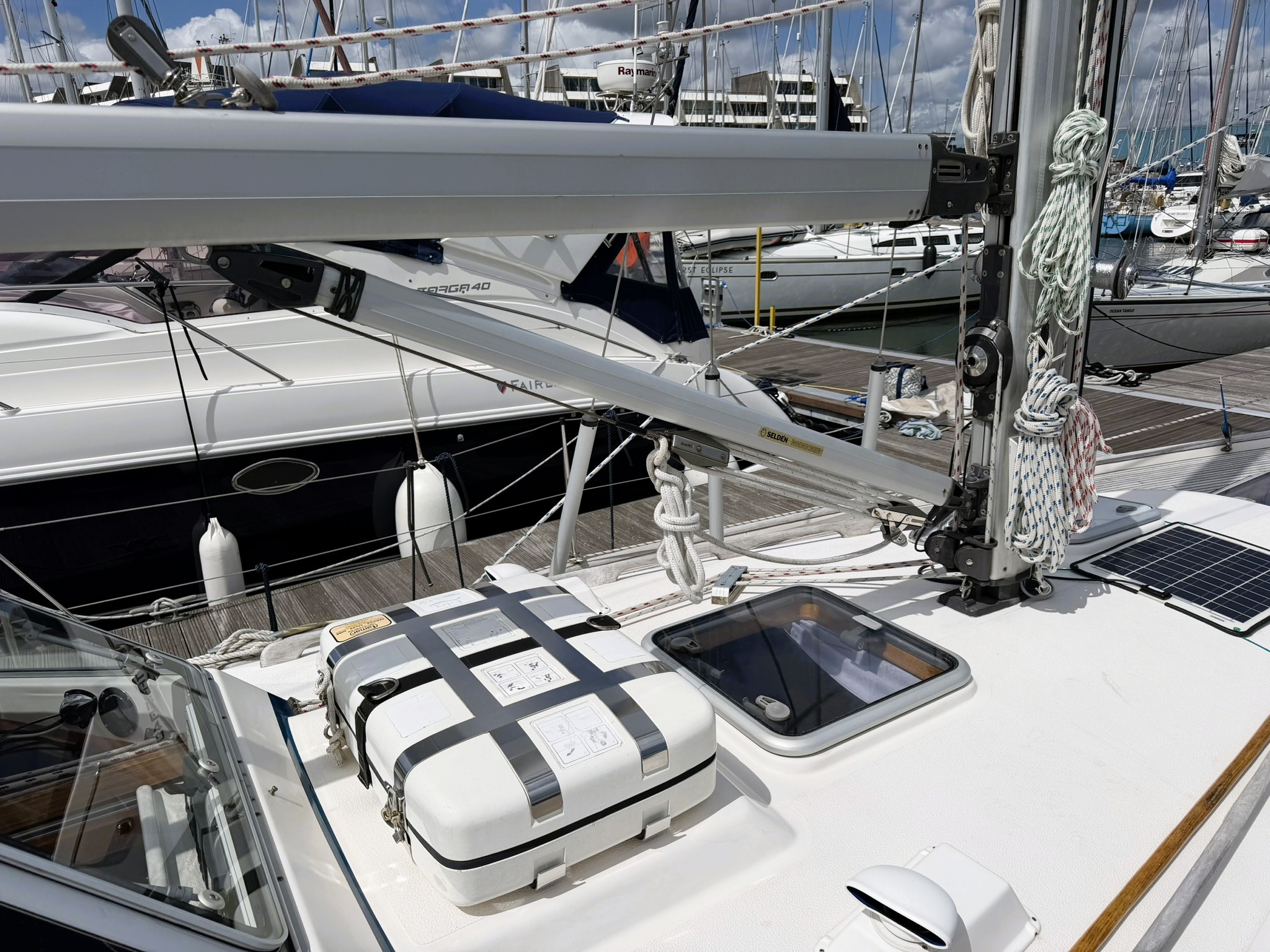

4-man BFA Pacific liferaft (service due)
2x horseshoe lifebuoys
Rescue sling
Danbuoy
Webbing jackstays
Harness points in cockpit and at helm
Firdell Blipper radar reflector
Emergency tiller
Automatic fire extinguisher in engine bay
3x manual fire extinguishers
Fire blanket
Deck floodlight
Stainless-steel pulpit, pushpit and guardwires
Side gates
Steaming light
Smoke and CO detectors
Ancasta are acting as brokers for the vendor who is not selling in the course of business unless otherwise stated. These details are prepared from information provided by the vendor and are intended only as a guide to give a fair description of the vessel but their accuracy cannot be guaranteed and they do not constitute part of any contract.
A prospective buyer is strongly advised to check the particulars and to have the vessel fully surveyed by a qualified marine surveyor. Details are supplied on the understanding that all negotiations shall be through Ancasta brokerages. This vessel is offered subject to prior sale, price change or withdrawal without notice. Please Note: where the vessel's status shows as "Preliminary", details of the vessel have not yet been confirmed by the Vendor.
Sign in or register an account to start saving boats
Don't have an account? Register
Broker Comments
With an unrivalled and deserved reputation for build quality and seakindly manners, this excellent Hallberg Rassy 36 is a very fine example. CE certified by Lloyds for Category A (unlimited ocean voyages) and with a cruising inventory to boot.
