- Make Fountaine Pajot
- Model Marquises 56
- Year 1996
- LOA 56ft/17m
- Class Multihull
- Hull Glass Reinforced Plastic
- Keel Multi-Hull
- Rig Sloop
- Engine Twin Diesel
- Drive Shaft Drive
- Layout Aft Cockpit
- Berths 8
- Cabins 4
- Aft Cabins 2
- Ancasta Ref 42431
- Name M
Fountaine Pajot Marquises 56 For Sale | 1996
395,000 Tax Not Paid
|
S.FRANCE France
Your account cannot save boats.
For sale Fountaine Pajot Marquises 56 with 4 Cab versions, fully equipped with AC, Genset, watermaker, Solar Panels, Hard top Bimini, Dinghy, Davits, Washing machine etc.
FOUNTAINE PAJOT MARQUISES 56 BY FOUNTAINE PAJOT SHIPYARD IN AIGREFEUILLE IN FRNACE IN 1996
Australian flag - VAT Not paid - 3RD Owner Since 2012
GRP construction for hull and deck. White hull

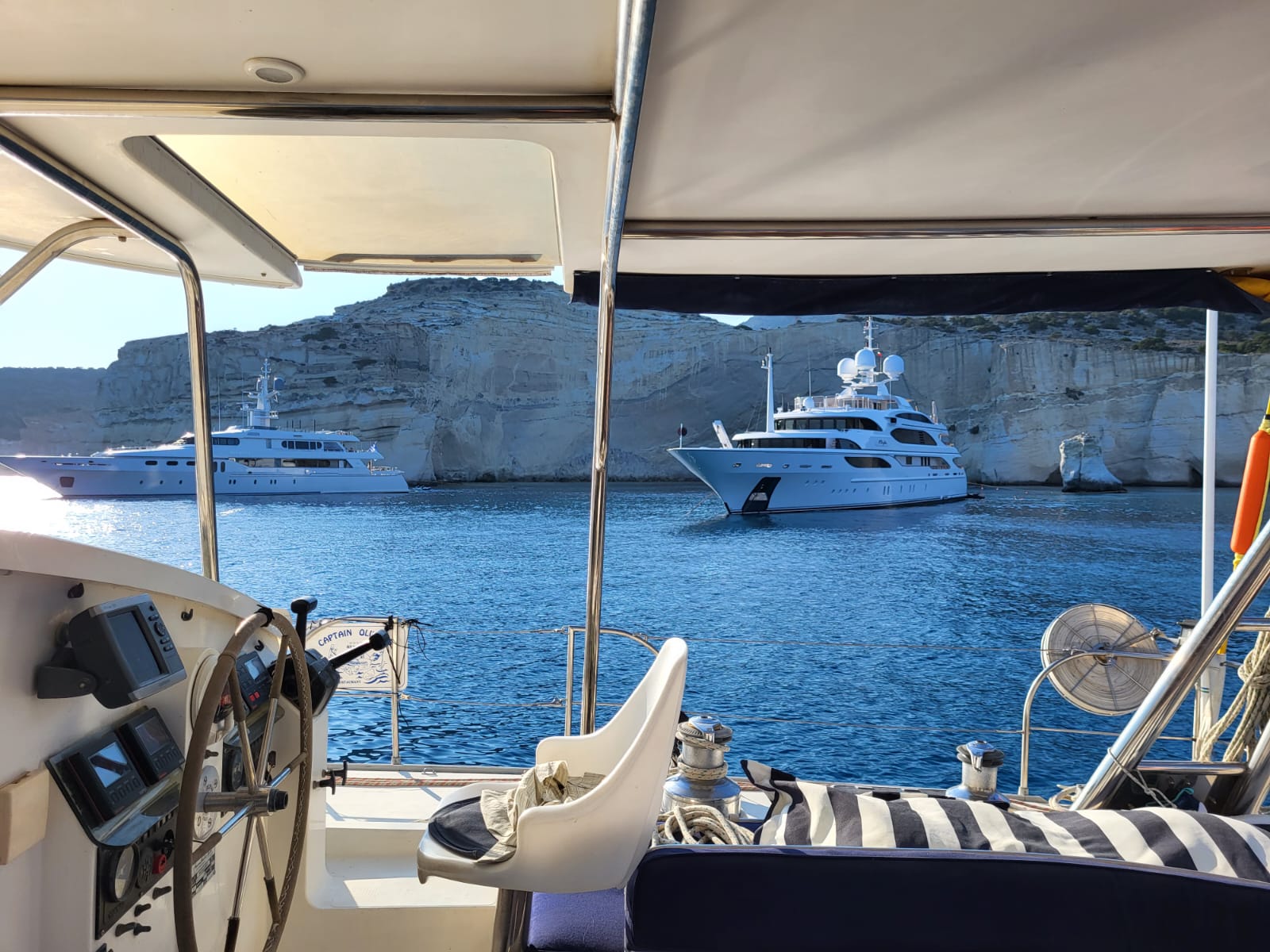

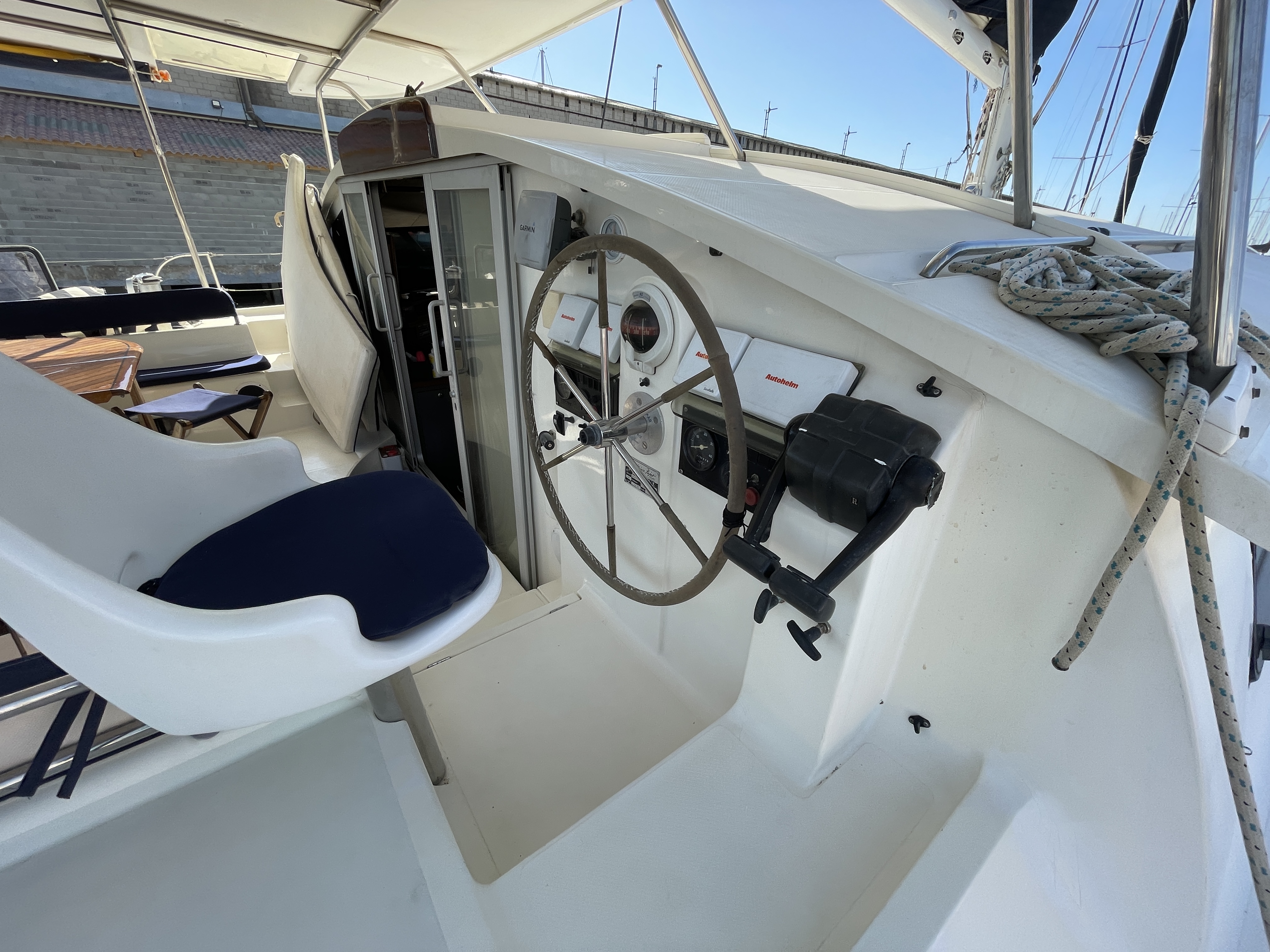

One steering wheels
Double Hung rudder
>> HARD TOP BIMINI
DIMENSIONS
OVERALL LENGTH: ------------------- 17.20 m
BEAM: -------------------------------------- 8.15 m
DRAFT: ----------------------------------- 1.50 m
DISPLACEMENT: ----------------------- 18T
TANKS
FRESH WATER: ------------------------- 1200L IN TWO TANKS
FUEL: --------------------------------------- 600 L IN ONE TANK. REMOVE ONE TANK AND GET 400L IN JERICAIN
1 HOLDING TANK
>> WATERMAKER
>> AC
>> GENSET
>> DAVITS
RIG
Standing and running rigging replaced 2014.
Mast stripped and painted with AWLGRIP in 2014.
Running rig from 2014 + Replaced step by step. Hallyard main need to be replaced
Boom stripped and painted with AWLGRIP in 2021
3 spreaders with LED spreader lights
Extra lines and shackles /blocks etc
ANTAL Ball traveller 2022
SAILS
Cruising mainsail - 101 m2 heavy duty cruising by North Sails. 3 slab reef main double dacron that will last forever. Serviced 2019. Semi automatic reef. Batten Box from 2015
Headsail – 35 m2 approx 100% cruising furling with uv strip heavy duty by North Sails - serviced with new dark navy uv strip May 2022
Furling Gennaker WITH Bow sprit
Profurl Gib furler – N52
Asymmetrical Spinaker – with socket serviced in 19
Lazy Bag - 2019
SAILS WINTERIZE ALL YEARS
WINCHES
4 sheet winches (2 x electric) 2 halyard winches (1 elec) 1 outhaul/reefing winch
2 X 58 ST
2 X 48 ST
MAST: 2 X 44 ST
1 X 48 ST
Serviced in 22

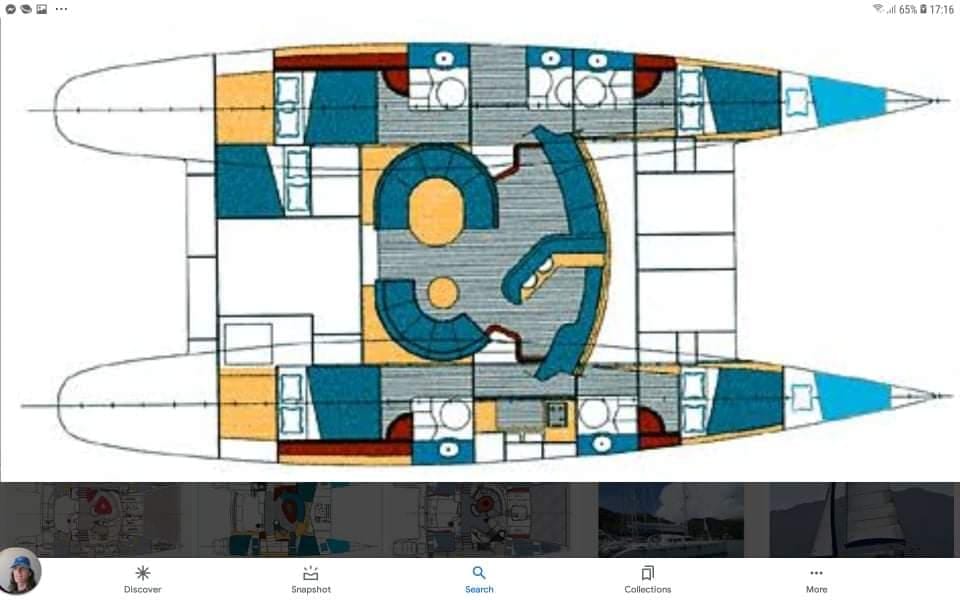

4 CABINS FOR EIGHT BERTHS + 4 HEAD
>> AC WIth pump regaz in 2021

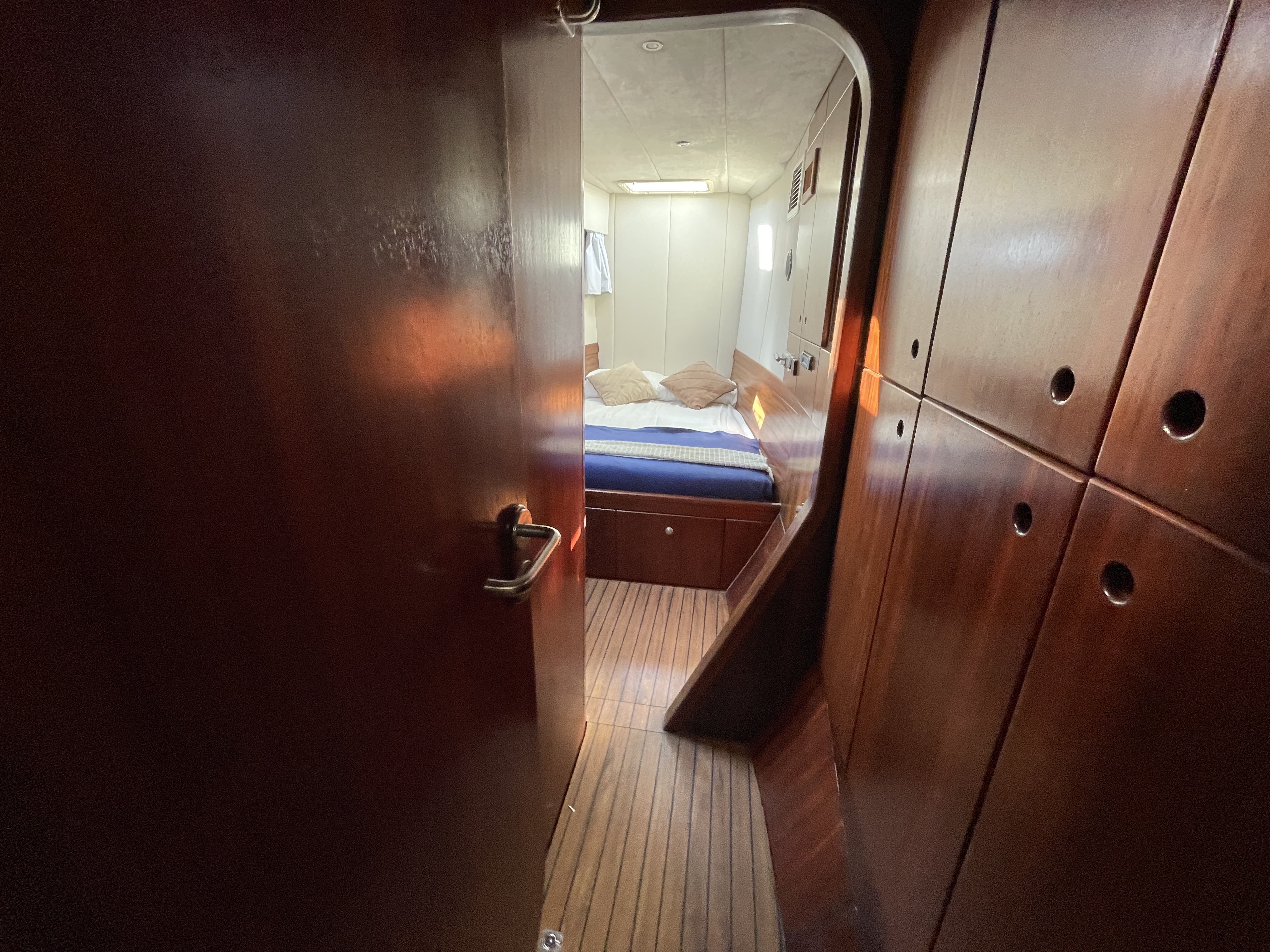

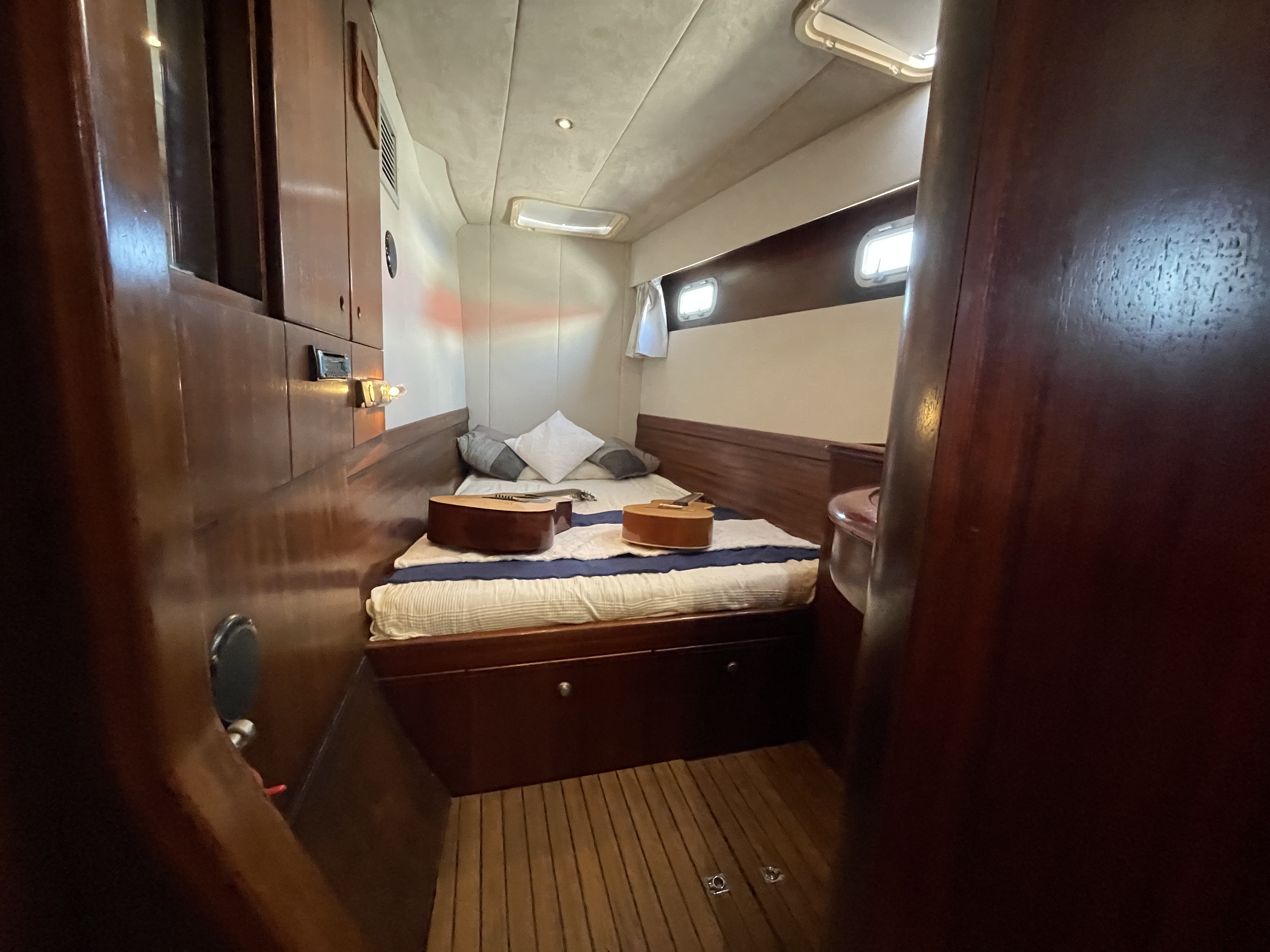

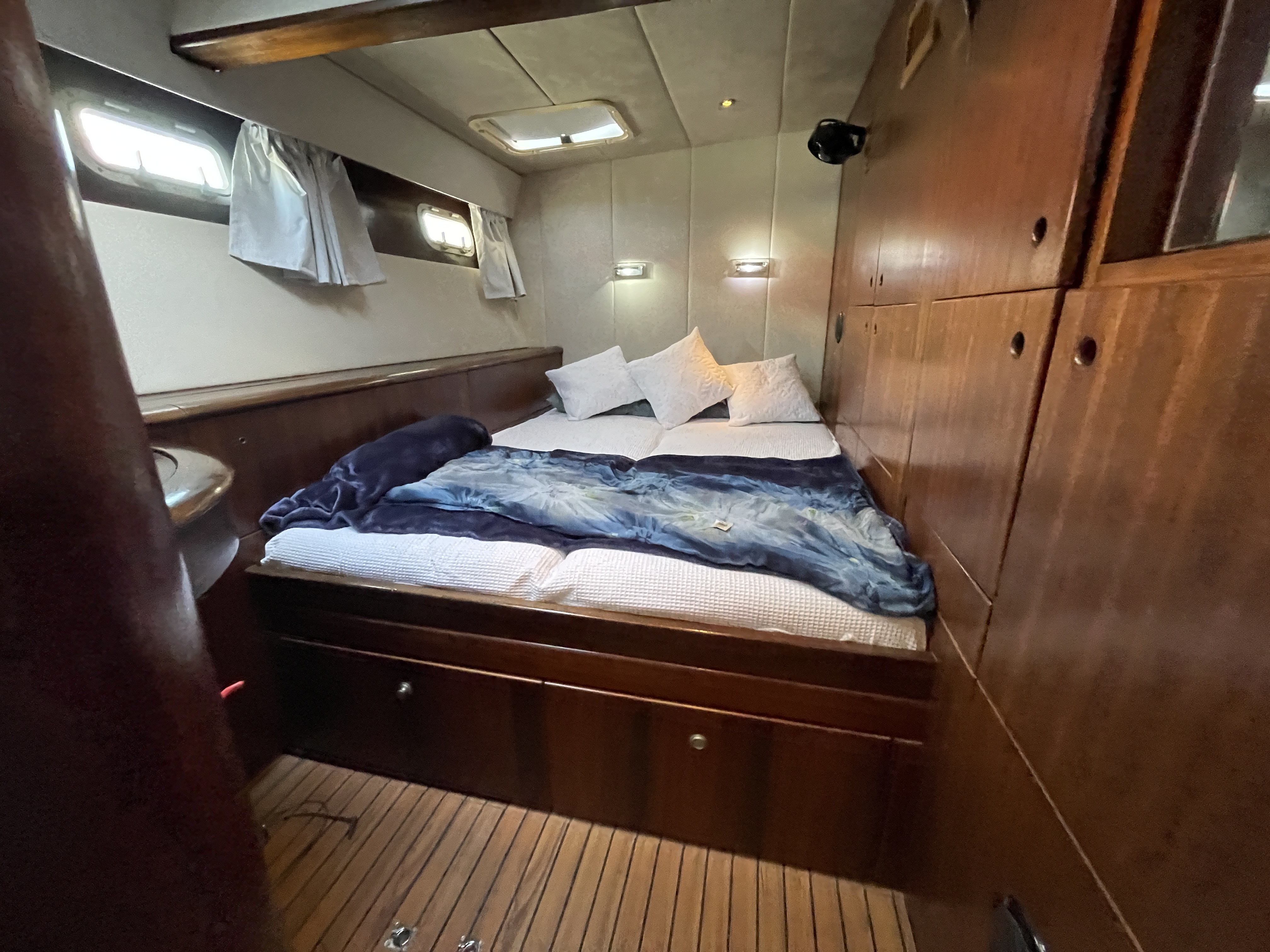

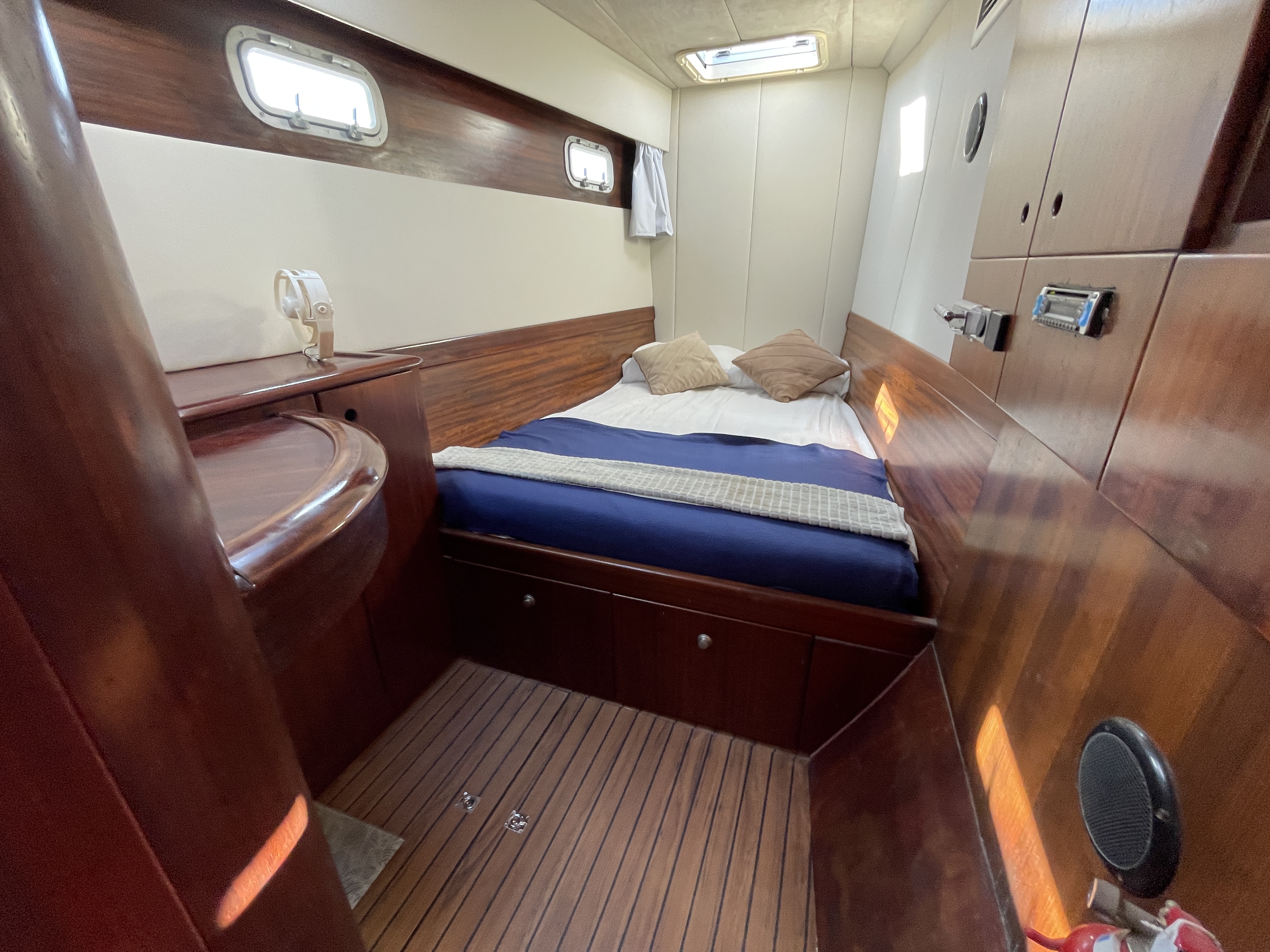

2 x fully airconditioned guest cabins with queen sized beds - inner planking refurbished 2020
2 x fully airconditioned guest cabins with double beds - inner planking refurbished 2020
1 x double crew cabin
2 x single crew cabins

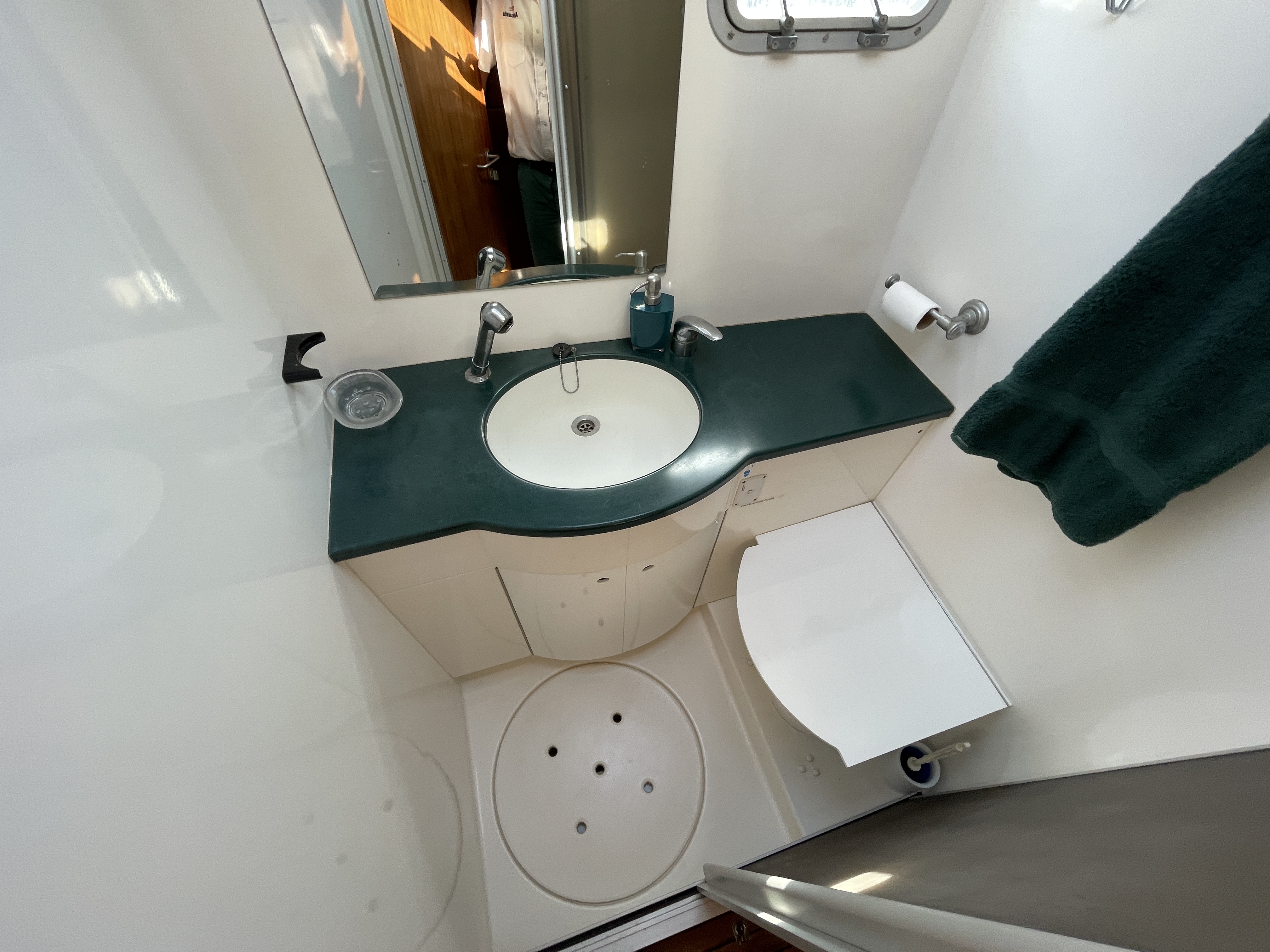

4 x full heads with sinks, showers and greywater tanks 1 x blackwater holding tank
Serious amounts of bed linen and towels

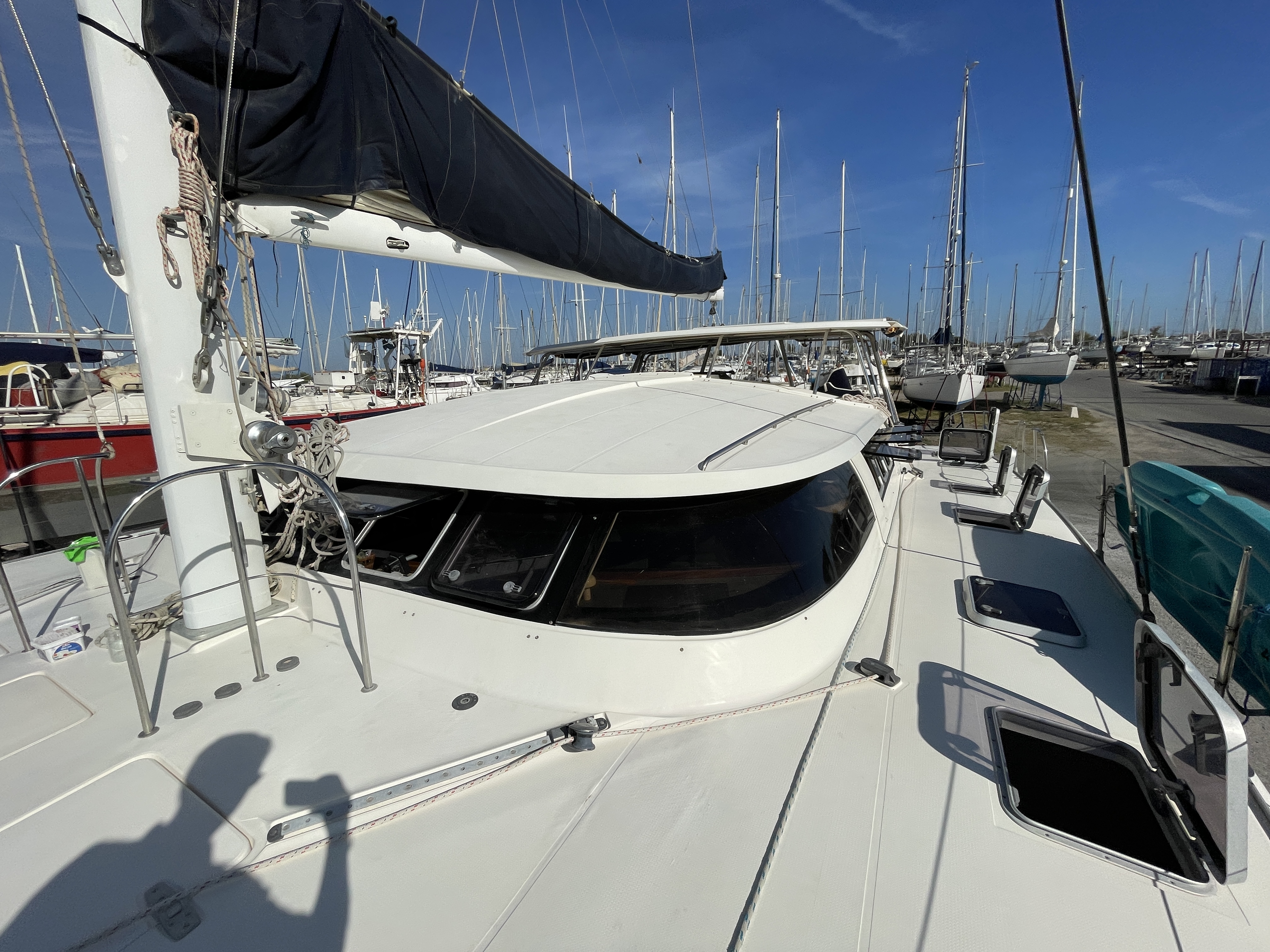

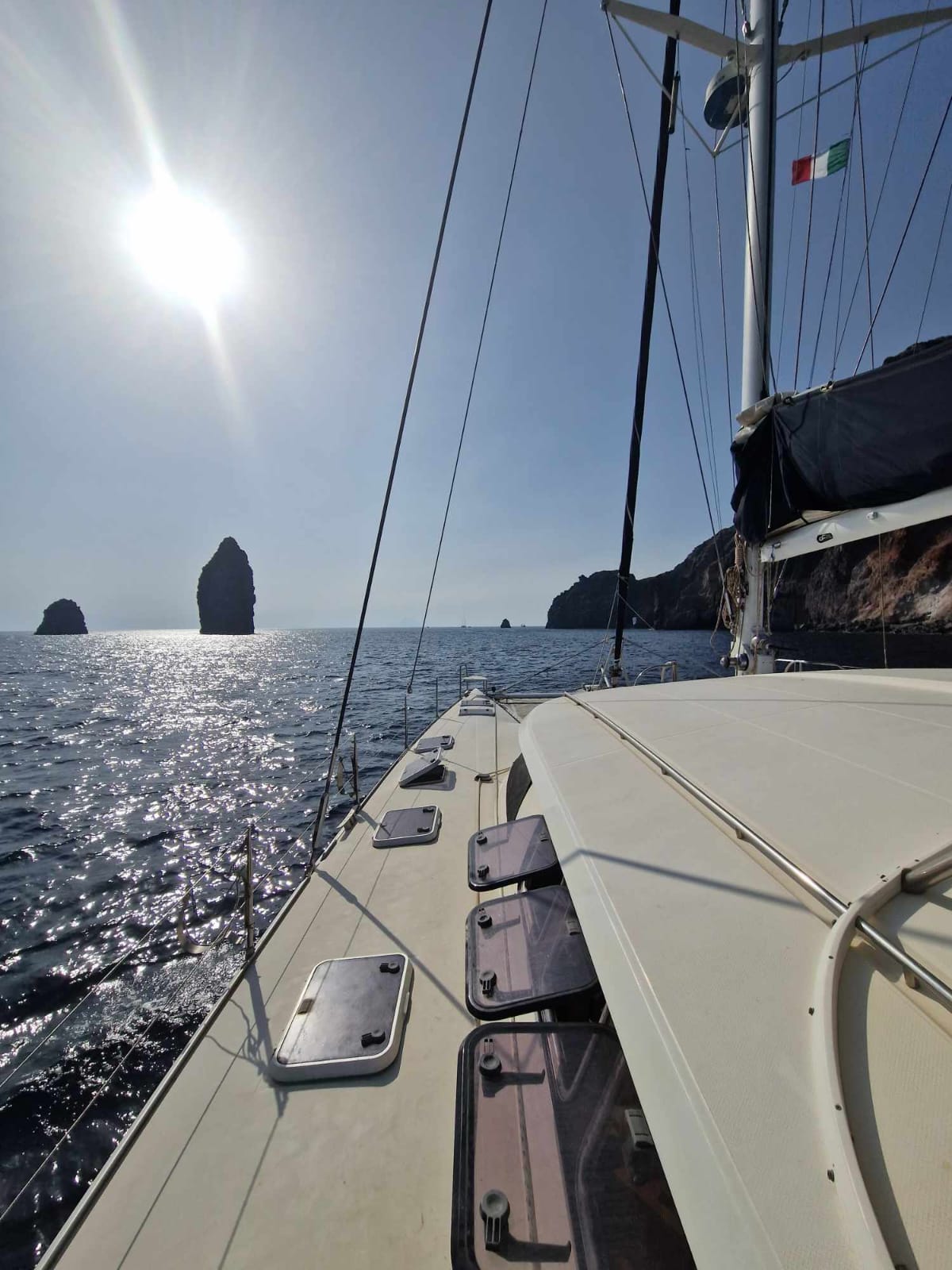

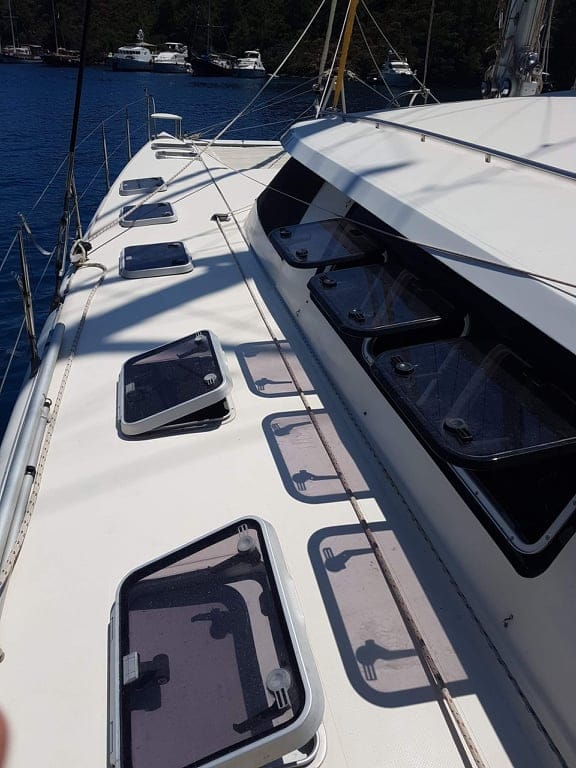

Each guest cabin has 2 deck hatches and 2 opening portlights, each head had 1 hatch and 1 portlight. Saloon has 10 opening hatches and large glass sliding doors with a step through from cockpit which provides protection from water ingress from cockpit. 28 hatches plexiglass replaced 2021(only plexiglas)
3 Manual toilet + 1 electrical toilet

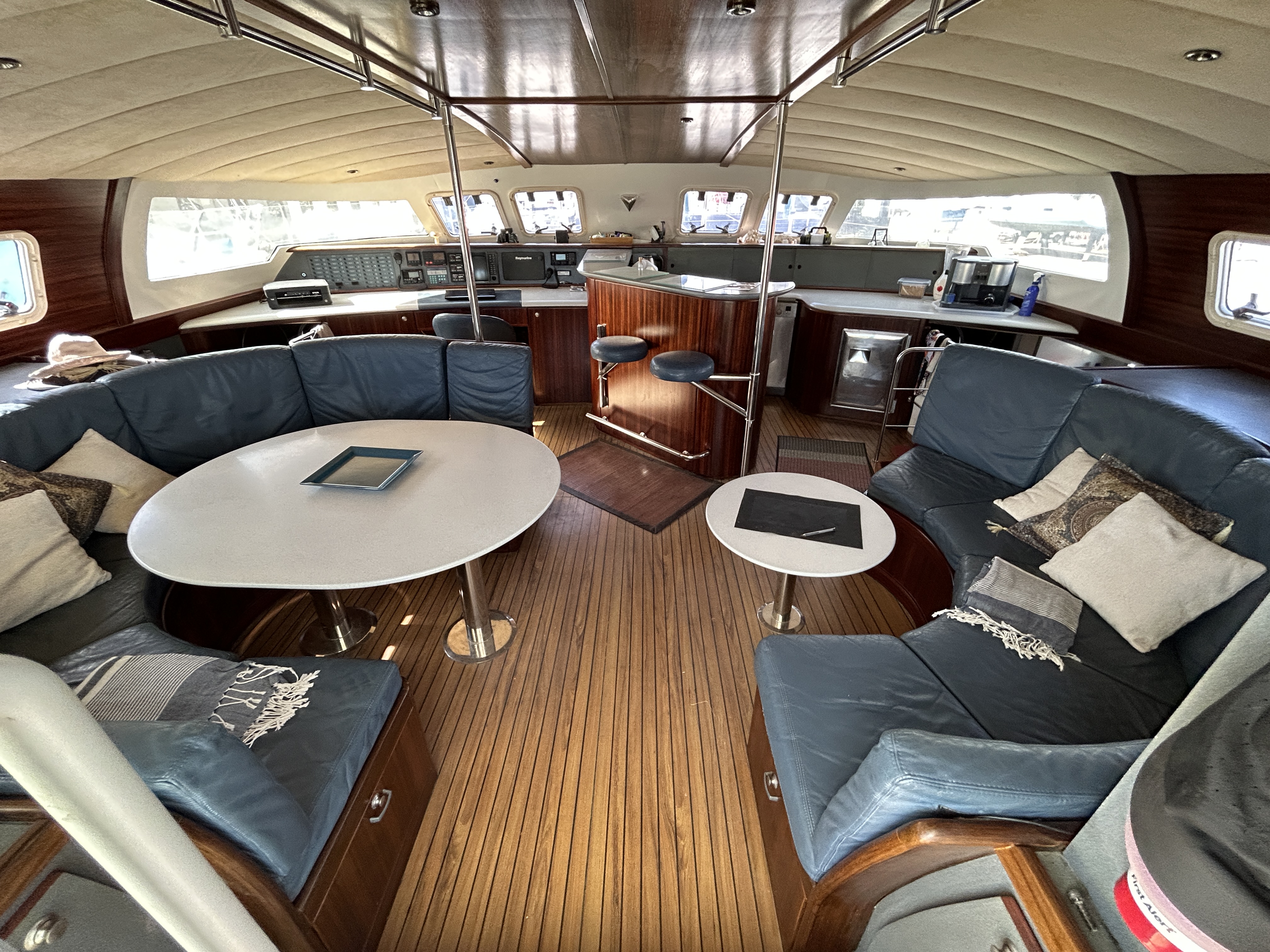

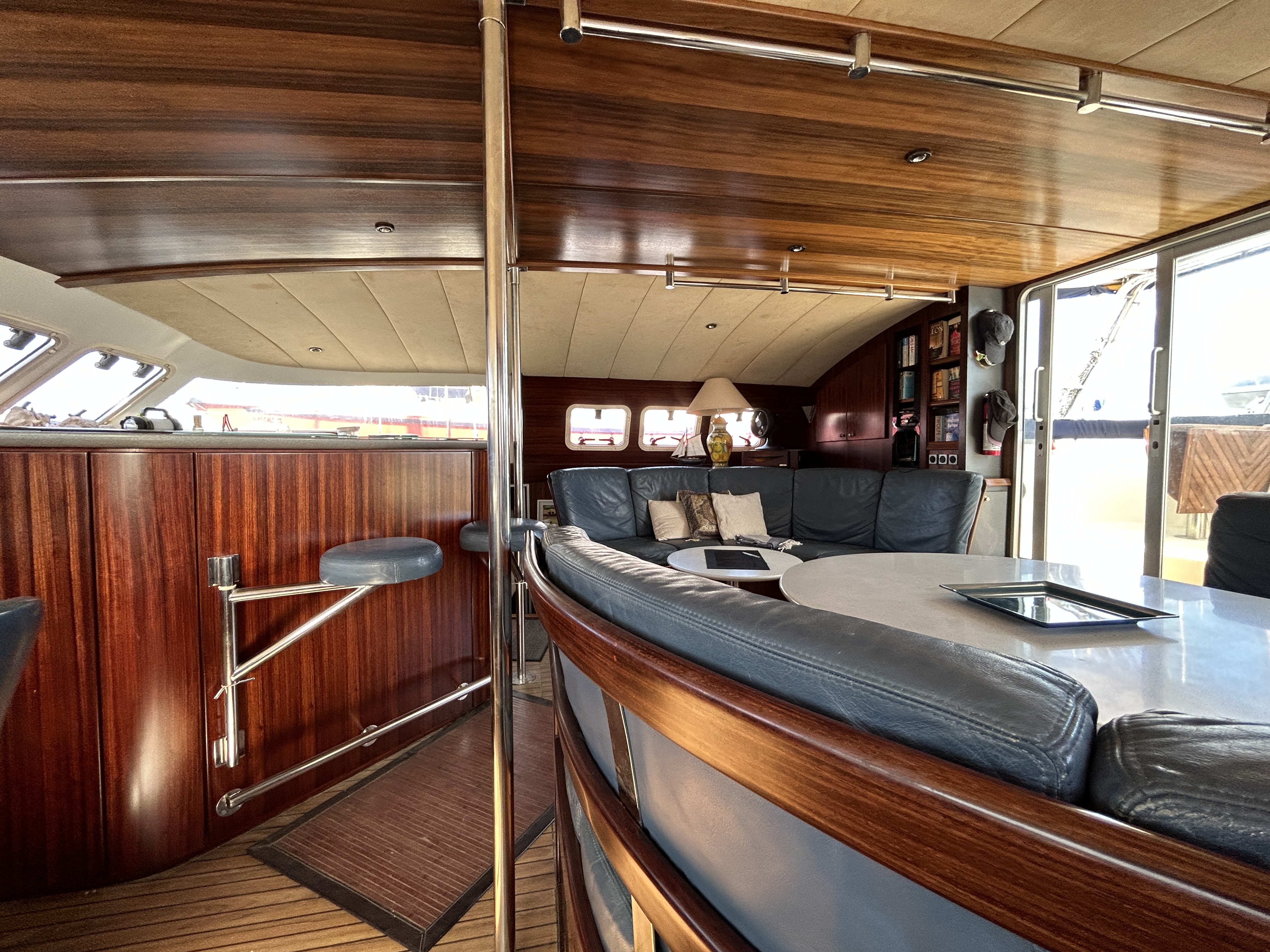

SALOON
All leather dining seating for 7 or 6 + 2, lounge / coffee table for 4, bar seating for 2 and nav station / office.

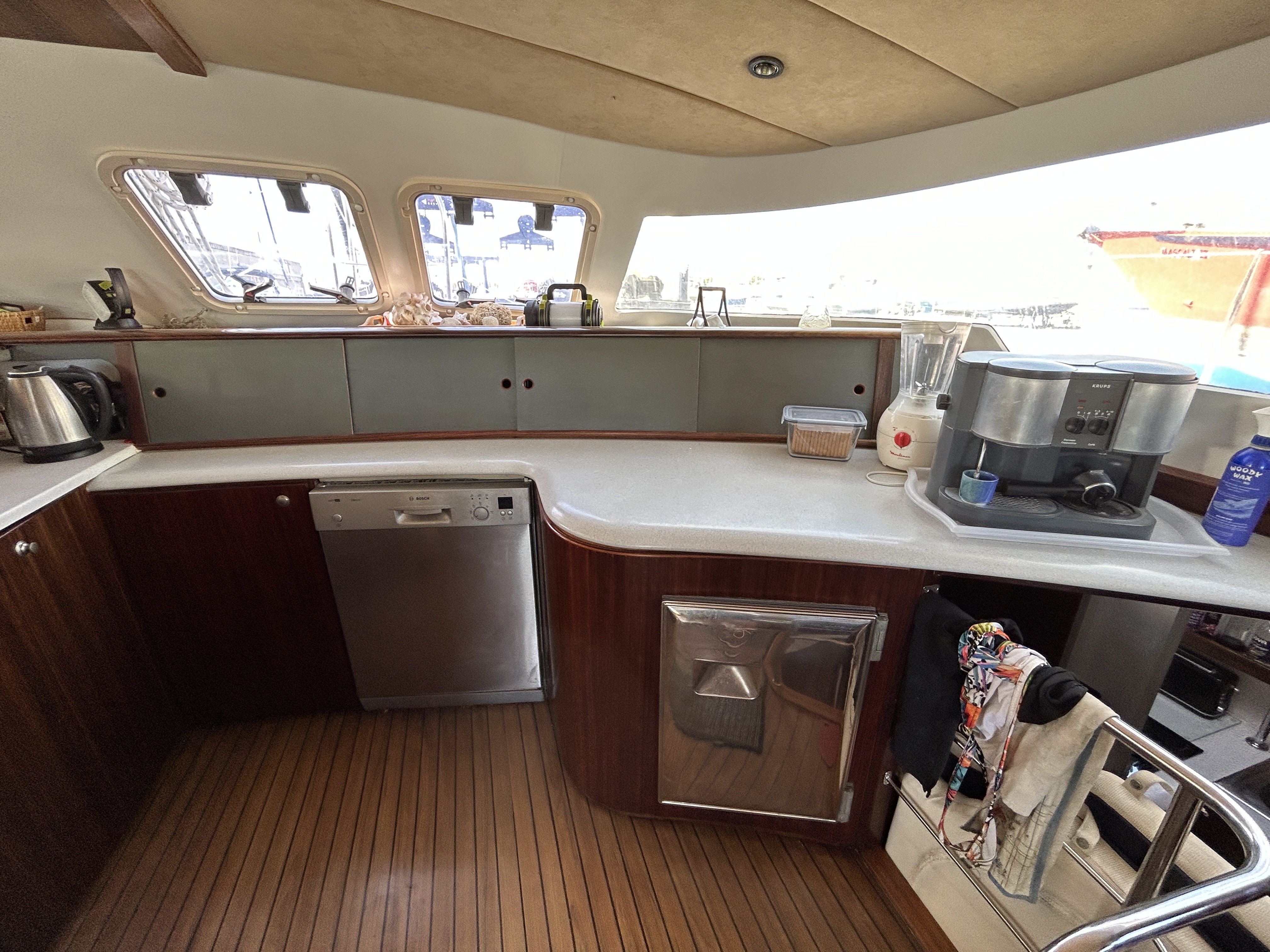

Bar / food prep / galley up, plus galley down.
Hella 12 vl fans in each cabin, large fans in saloon
110 volt 5 kg clothes wash machine

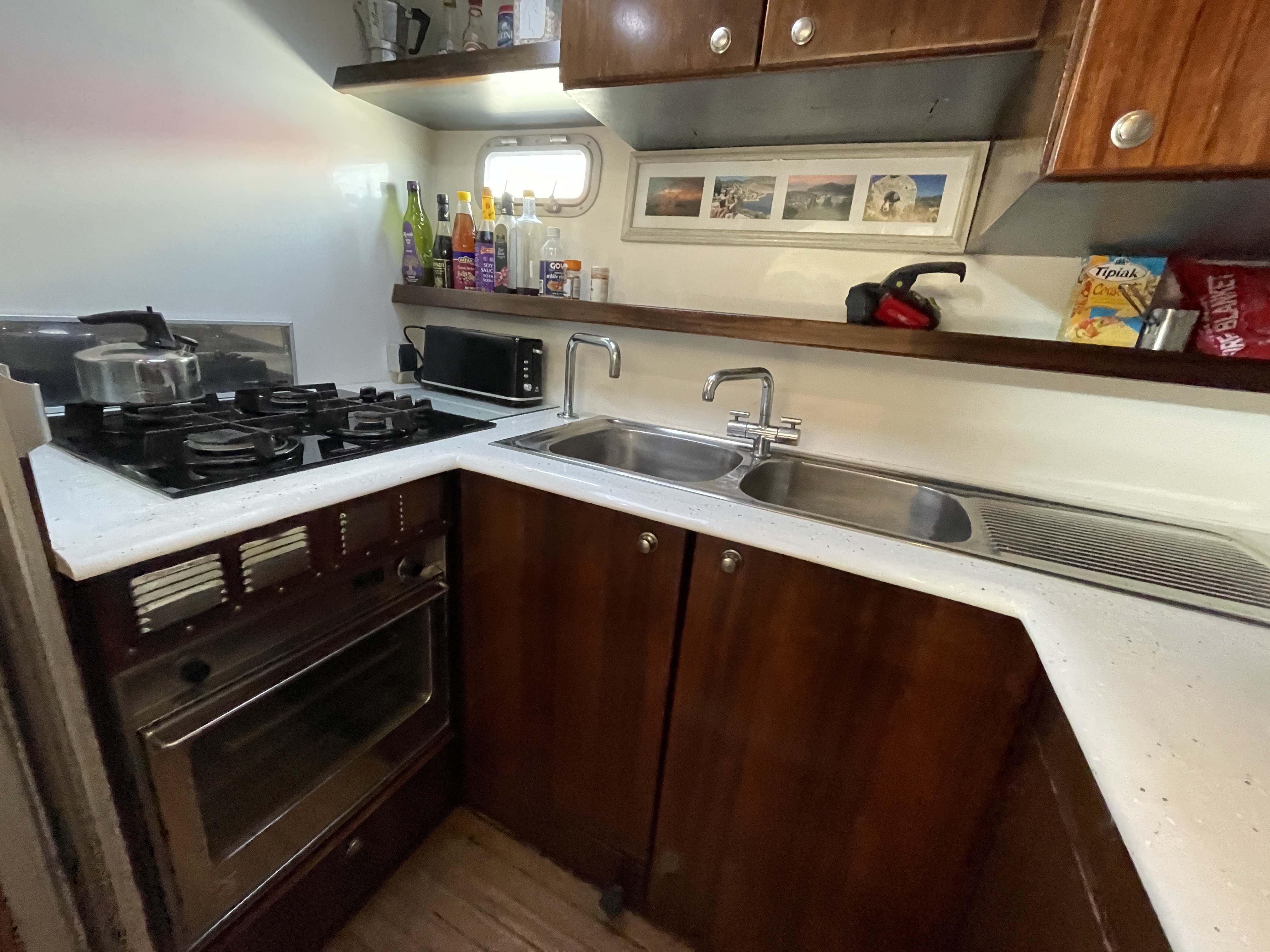

GALLEY AND BAR
4 burner electrolux glass gas cooker and alpes oven
Microwave convection oven samsung
Bar / day fridge 12 volt evaporator plate
Very large fridge / freezer 730 x 800 x 730 with new compressor 2020
Fridge 630 x 630 x 800 freezer With compressor from 2015
Bosch innox dishwasher
Dometic ice maker
Innox bbq
Bread maker, blender, mixer, crockery, flatware, glasses, coffee maker, ice maker, kettles etc.
Galley has 1 hatch and 1 portlight to enable ventilation.
>> ALL EQUIPMENT STAYED ONBOARD

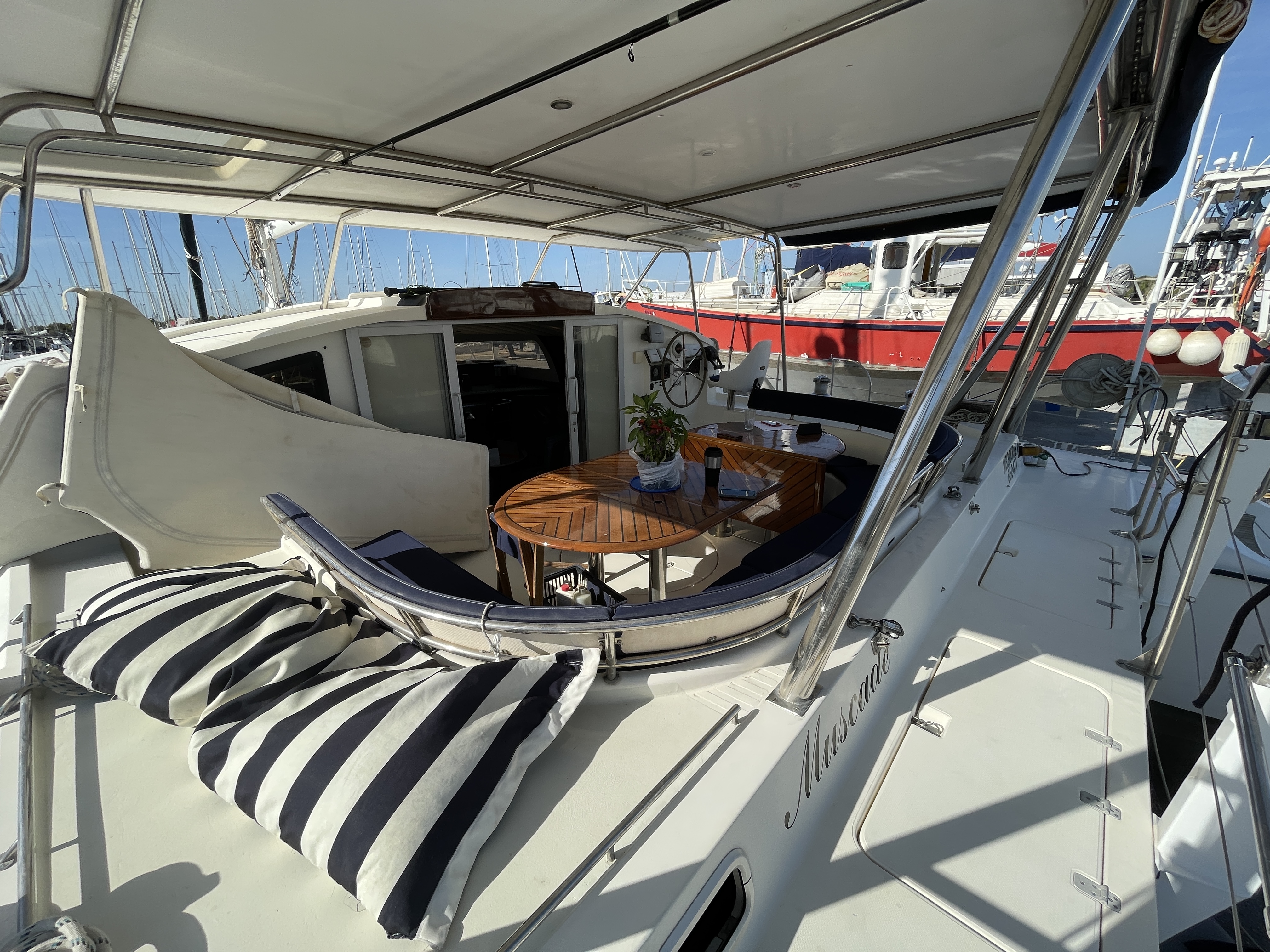

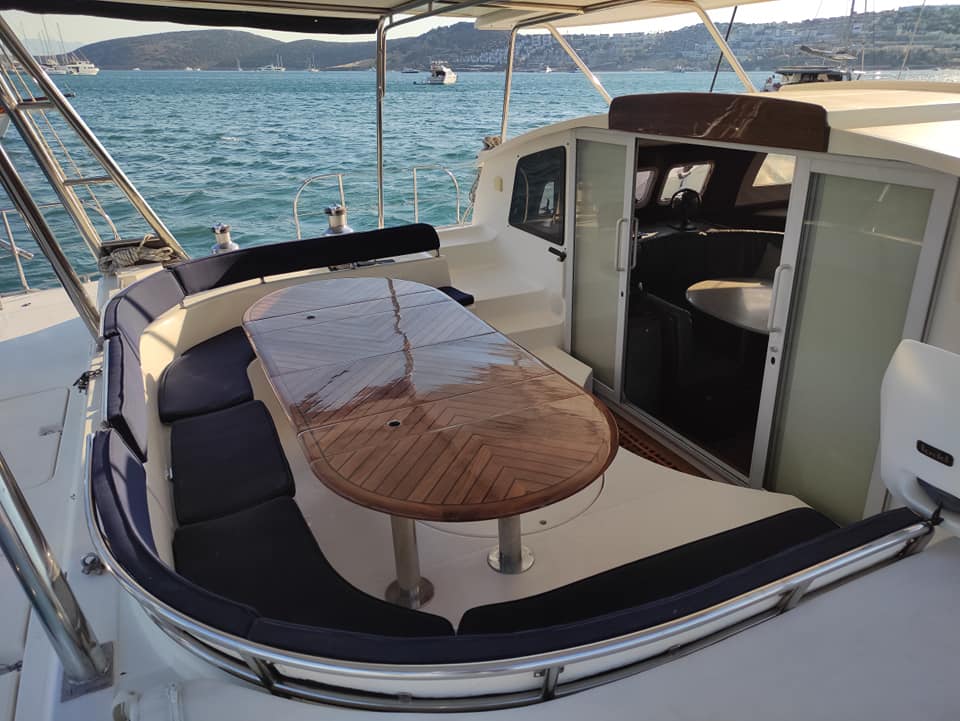

COCKPIT

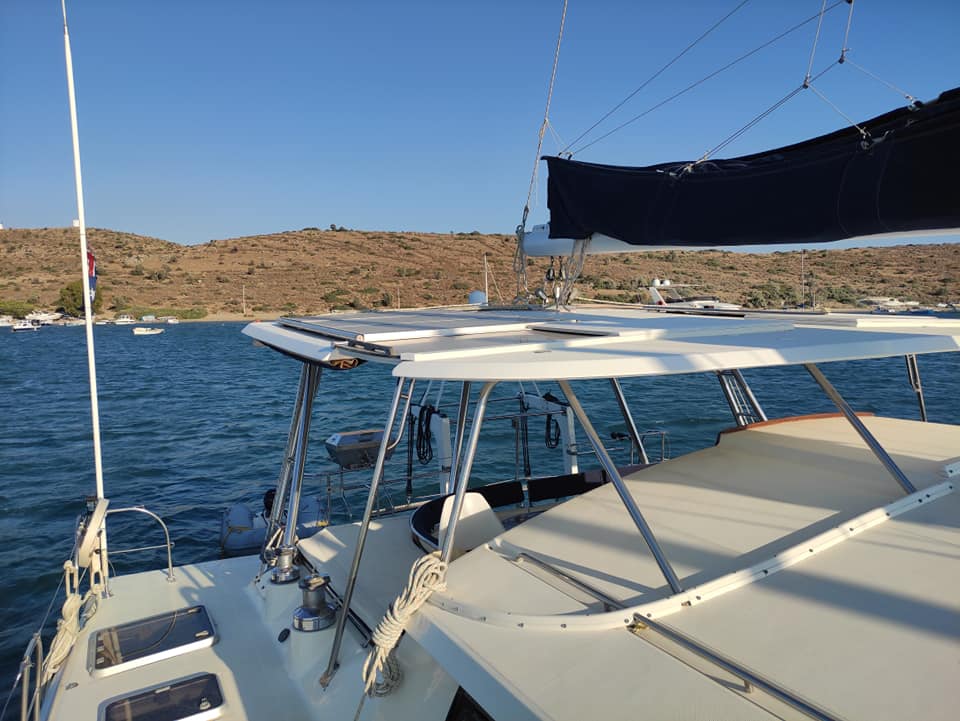

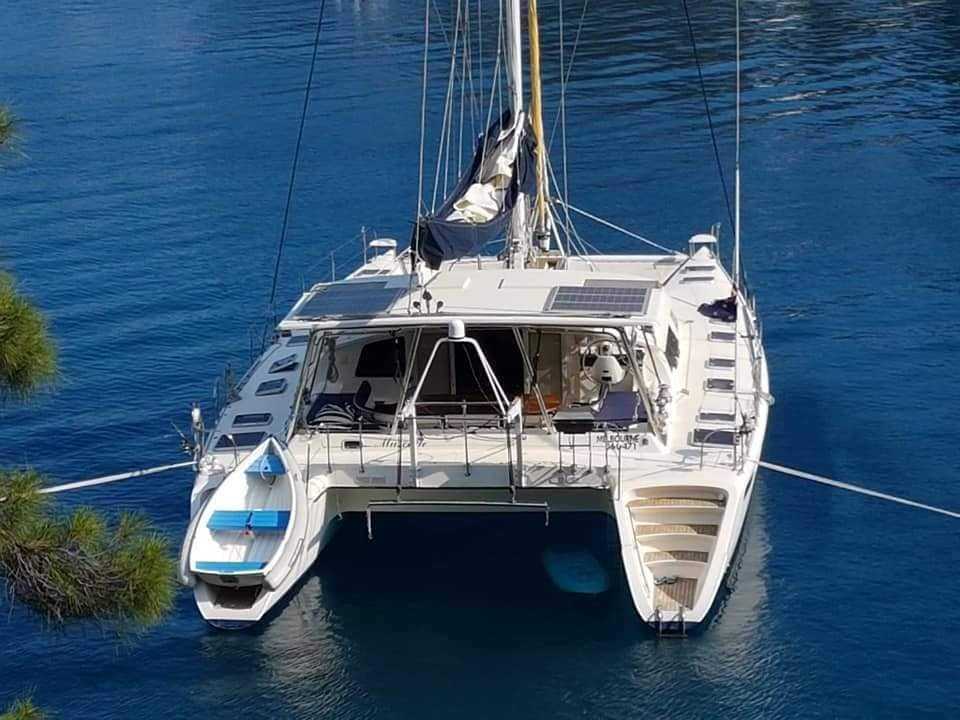

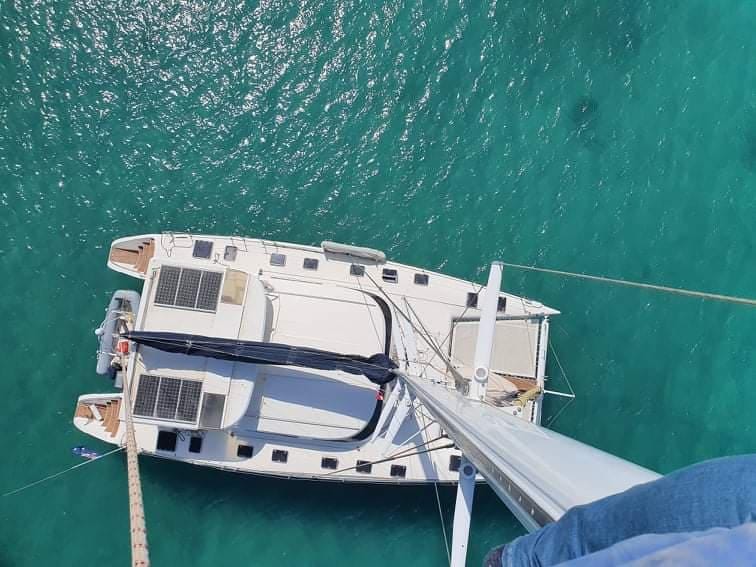

Huge very solid custom designed and made grp and innox bimini which uniquely extends over sunbeds and carries raised traveller and solar panels. This bimini had no expense spared when built and has been envied by many.
Teak seat insets, steps, and bow passarelle (2015)
New seat cushions / backrests / sun beds 2020
Teak varnished high gloss table to seat 12 easily
3 x Stools
Sunbrella side shades. Vinyl screens.
Alumimium reinforced davits capable or carrying 3.9 mt dingy with 50 hp motor
COVERS:
Sun covers
Covers to close all cockpit
Covers in front
ENGINES
Yanmar 4JH4HTE x 2 75 hp port (2600hrs) stbd (2600hrs) serviced including turbos, injectors and all hoses May 2022.
Cutlass bearings replaced 2017
Fixed 3 blade props new aug 2020
600 lt aluminium fuel tanks plus 10 x 25 lt gerry can combination in the fuel store to give total range of around 1500 nautical miles under motor.
Top speed under 2 engines at 3500rpm of 10.4 knots.
Serviced 2022 :
2 turbors serviced
Exhasut elbow replaced starboard
2 Shaft seal
Heat exchanger serviced
Oil, filters, coolant,
Bearing rudder from 2016

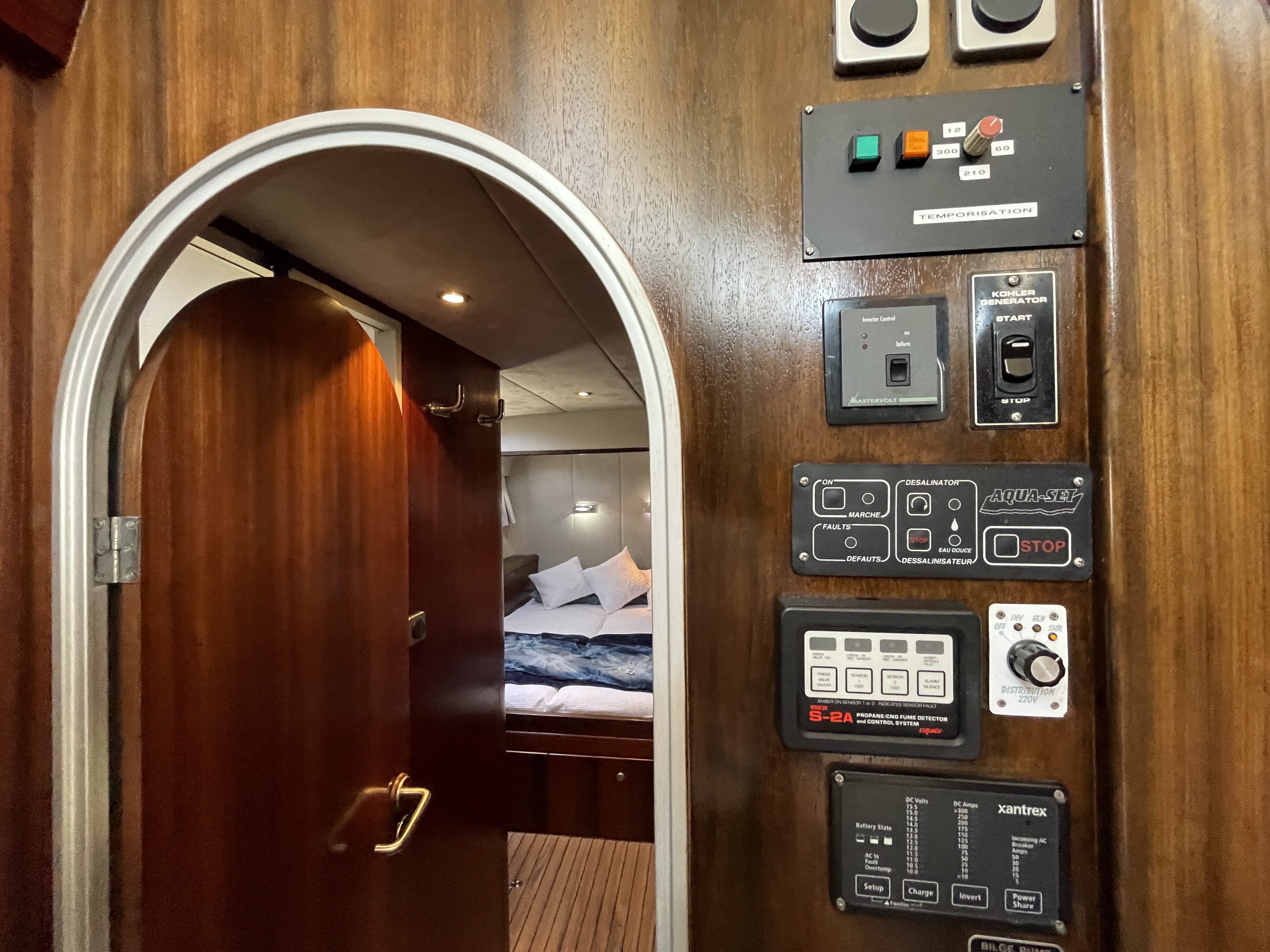

ELECTRICAL
Generator – Mase (Yanmar) 14 kw (285 hrs) replaced 2012
Inverter – Mastervolt 2000w sinewave 2017
Battery Charger – Quick brand 80 amp x 2
Batteries
Port 3 x 210 ah Exide agm 2019
Stb 3 x 225 ah Decker Dominator agm 2011
1 engine battery AGM 2011
1 Genset battery AGM 2015
Spare battery
Shore power – 50 amp x 1 cable 32 amp x 1 cable multiple adapters to suit Med and Carribean.
Led lights
2 x rear facing flood lights cockpit night / nav lights spreader lights
6 x solar panels x 110 watt each (2010)
220 volt setup with 110 and 12 volt internal invertors.
WATER
1200 lt fresh water total (2 x aluminium tanks)
Watermaker 12V - katadyn power survivor (fitted 2021)
Salt water pumps in galley and bar
Deck wash pump

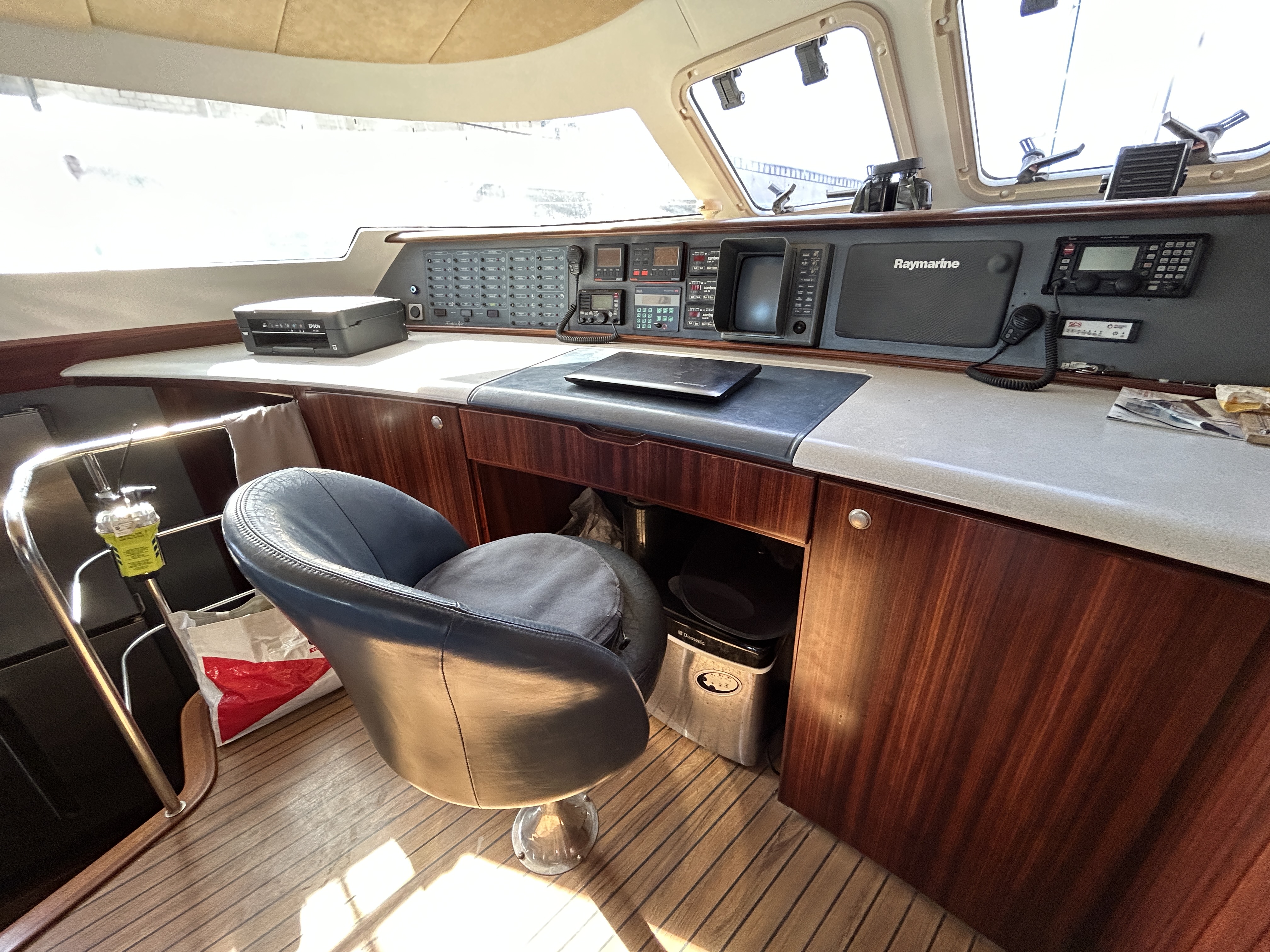

ELECTRONICS
Icom HF IC-m802 HF radio with Pactor P4 modem for email wIth dsc 2016
Icom VHF IC-M504 VHF radio with dsc 2016
ST7000 autohelm with cockpit and nav station controls (only outside)
Spare pilot with computer, screen.
Comptuer with Maxsea
Garmin GPS chartplotter 520 at cockpit
Raymarine Evolution C series chartplotter at nav station 2016
Furuno radar monochrome 36 mile (need to be service)
1 Wind instrument indication outside
2 tridata multi (speed, sounder) outside
AIS receiver (not cokcpit to chartplotter)
GROUND TACKLE
Primary anchor -Inox Ultra type 60kg
Extra additional primary - Danforth Aprox 40kg+
Chain – primary 75mts 13mm 2014
Secondary anchor - Fortress FX 55 with 60 mts rode and 10mts 13mm chain
Third anchor- plow
Goit electric windlass
Fenders
Various lengths of rode
Stripped, epoxied, coppercoat June 2023
SAFETY
Plastimo Transocean 8 person liferaft – needs service
Epirb, Lifesling, lifebouy, danbouy, jackstays, mob recovery system, mob lights, personal strobe light, life jackets, first aid kits, spotlights, fire extinguishers x 8 2018/2019, gas detector.
Emergency tiller, emergency steering cable.
Series drogue.
3 manual emergency bilge pumps, 6 electric bilge pumps, ability for shower pumps to work for each hull as elec bilge pumps plus small portable pumps.
LEWMAR NOT GIOT EMERGENGY HATCHES
TOOLS – EXTRA MECHANICALS
Extensive stock of spares and tools
Cruising trampolines and ocean tramps.
Fishing gear
Swim ladders
Swim toys
DINGHY
Nova Marine (Italian) RH320 3.2mt hyperlon with Tohatsu 9.8 hp outboard July 2020
Polyethelene single person kayak and paddles.
Ancasta are acting as brokers for the vendor who is not selling in the course of business unless otherwise stated. These details are prepared from information provided by the vendor and are intended only as a guide to give a fair description of the vessel but their accuracy cannot be guaranteed and they do not constitute part of any contract.
A prospective buyer is strongly advised to check the particulars and to have the vessel fully surveyed by a qualified marine surveyor. Details are supplied on the understanding that all negotiations shall be through Ancasta brokerages. This vessel is offered subject to prior sale, price change or withdrawal without notice. Please Note: where the vessel’s status shows as “Preliminary”, details of the vessel have not yet been confirmed by the Vendor.
Sign in or register an account to start saving boats
Don't have an account? Register
Broker Comments
This Marquises 56 Australian registered, non vat paid. 3 owner, private history - chartered in name only she is in fantastic largely original condition. Blue water proven and ready to go, sailed by couple in carribean and across to eastern med. These boats are the last of the "coach" built yachts, not a plastic fantastic, incredibly solid and seaworthy. She's also has a custom built spectacular enormous hard top bimini.
