Class 40 Mach 40.5 | 2023

750,000 Tax Not Paid | Brittany France

Class 40 Mach 40.5 - Ref 44611 has been saved to your account.

Your account cannot save boats.


  • Make Class 40
  • Model Mach 40.5
  • Year 2023
  • LOA 40ft/12m
  • Class Performance Sail
  • Hull Glass Reinforced Plastic
  • Keel Fin Keel
  • Rig Sloop
  • Engine Single Diesel
  • Ancasta Ref 44611
  • Name Divoc

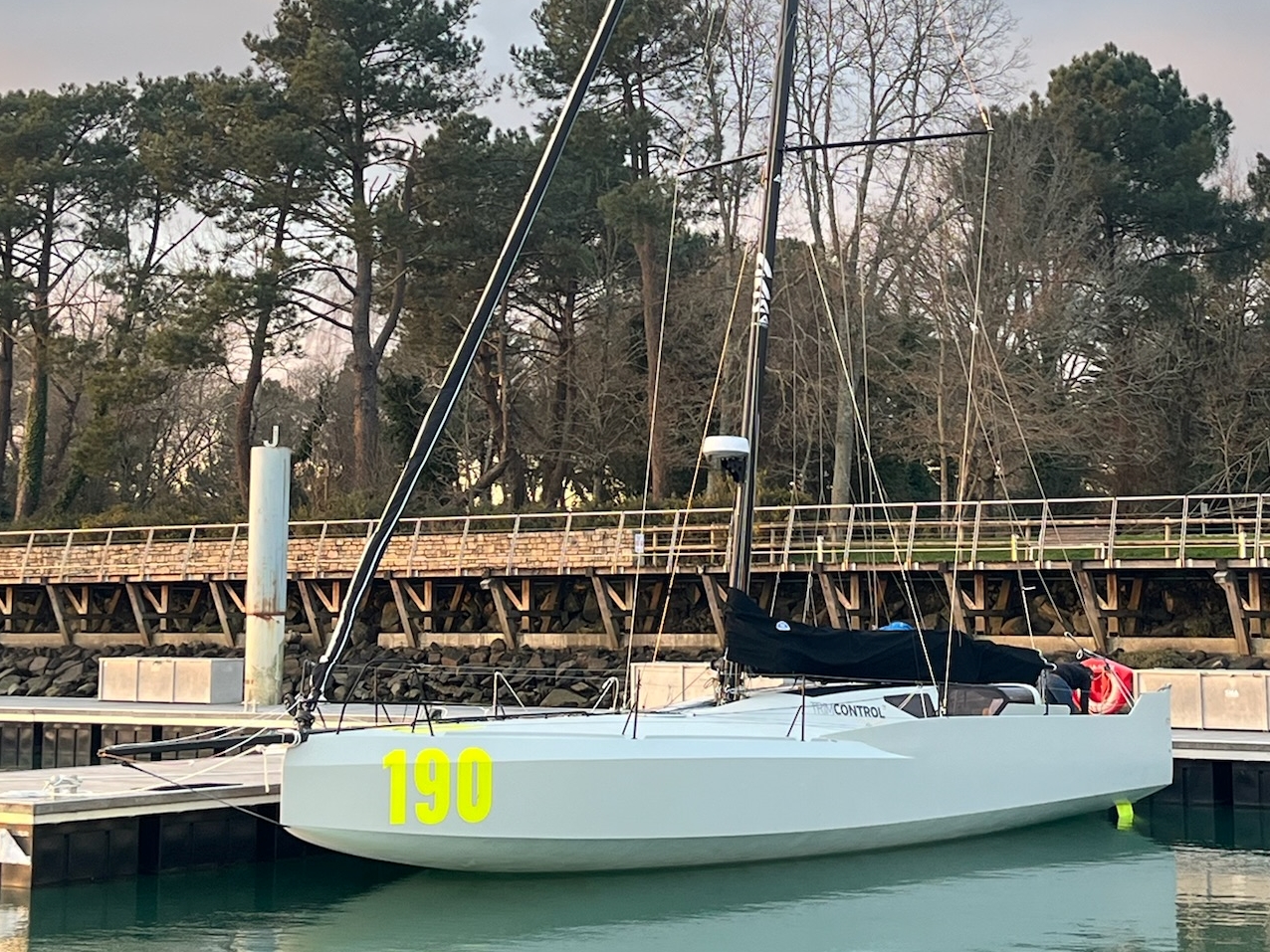

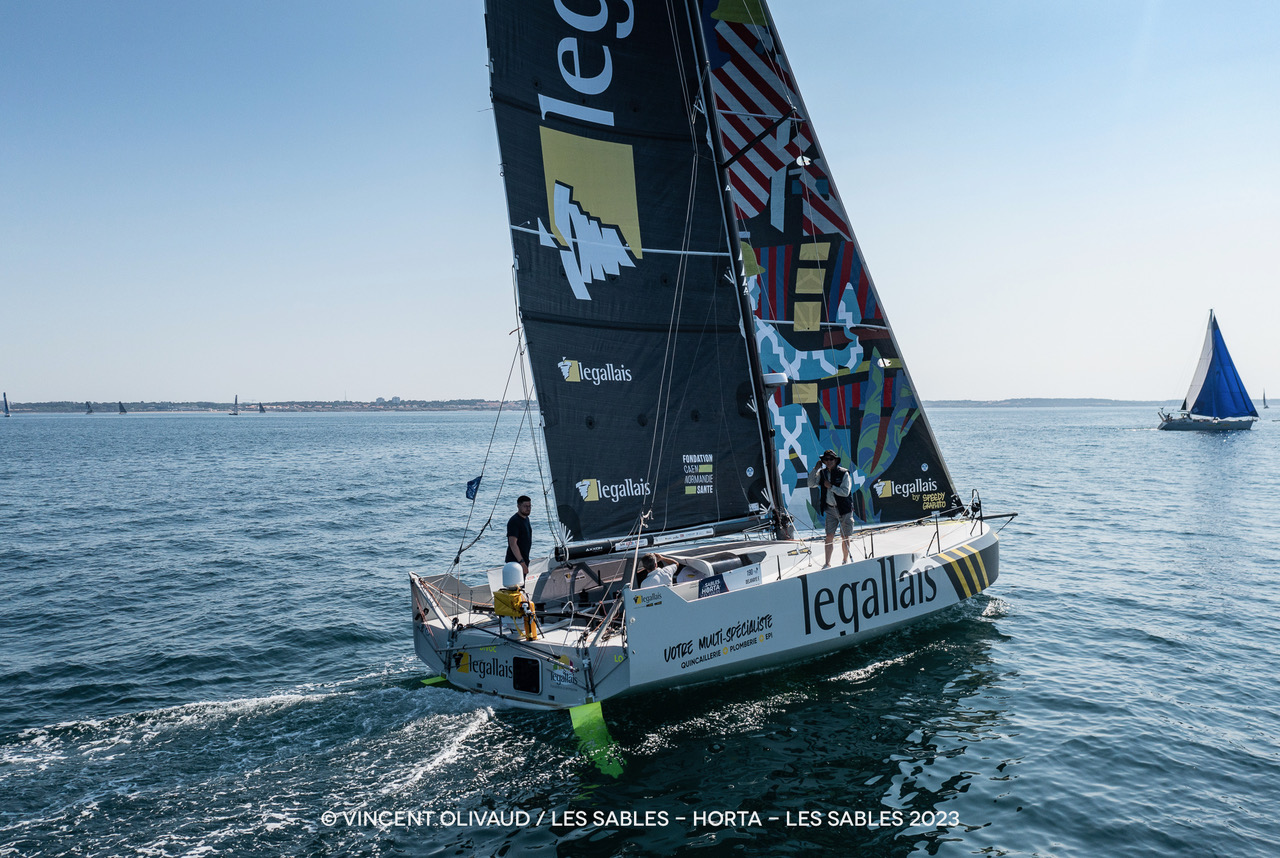

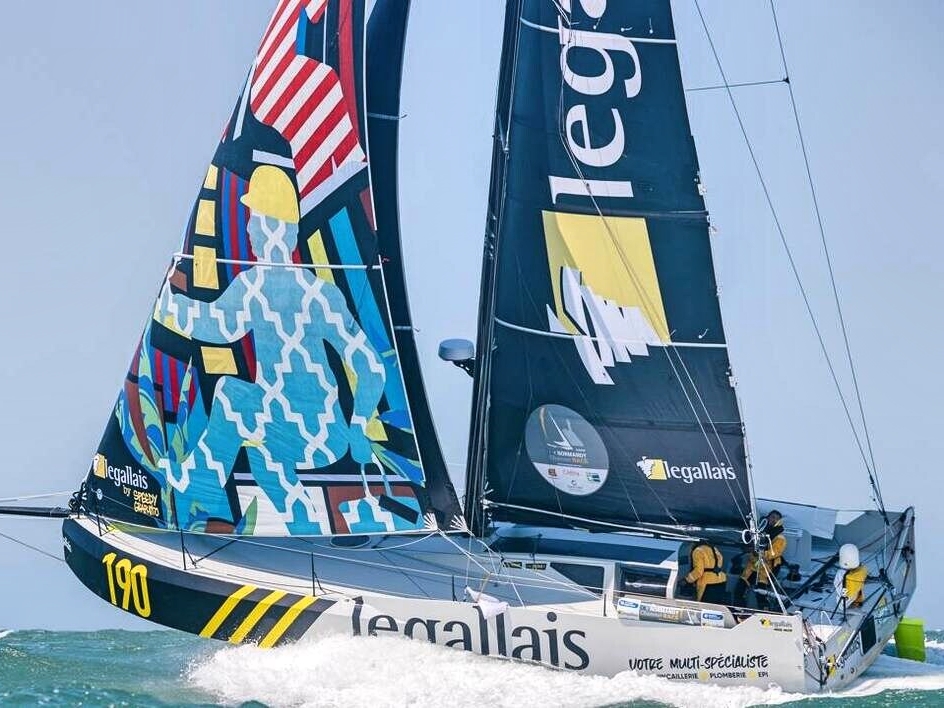

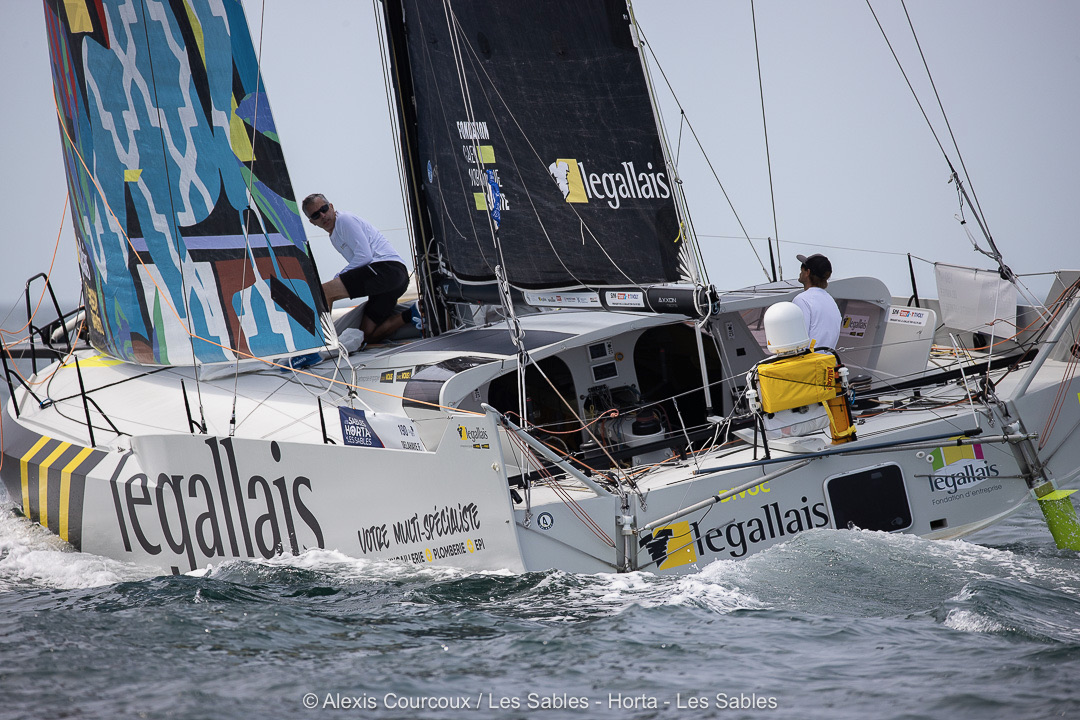

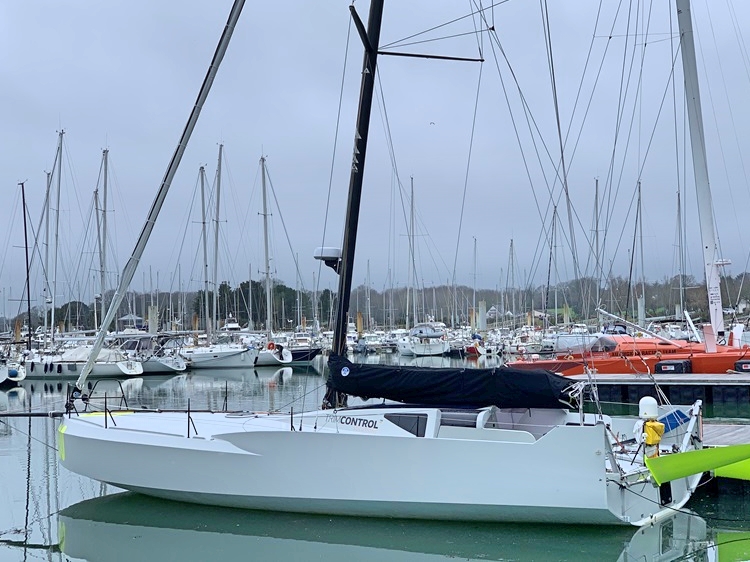

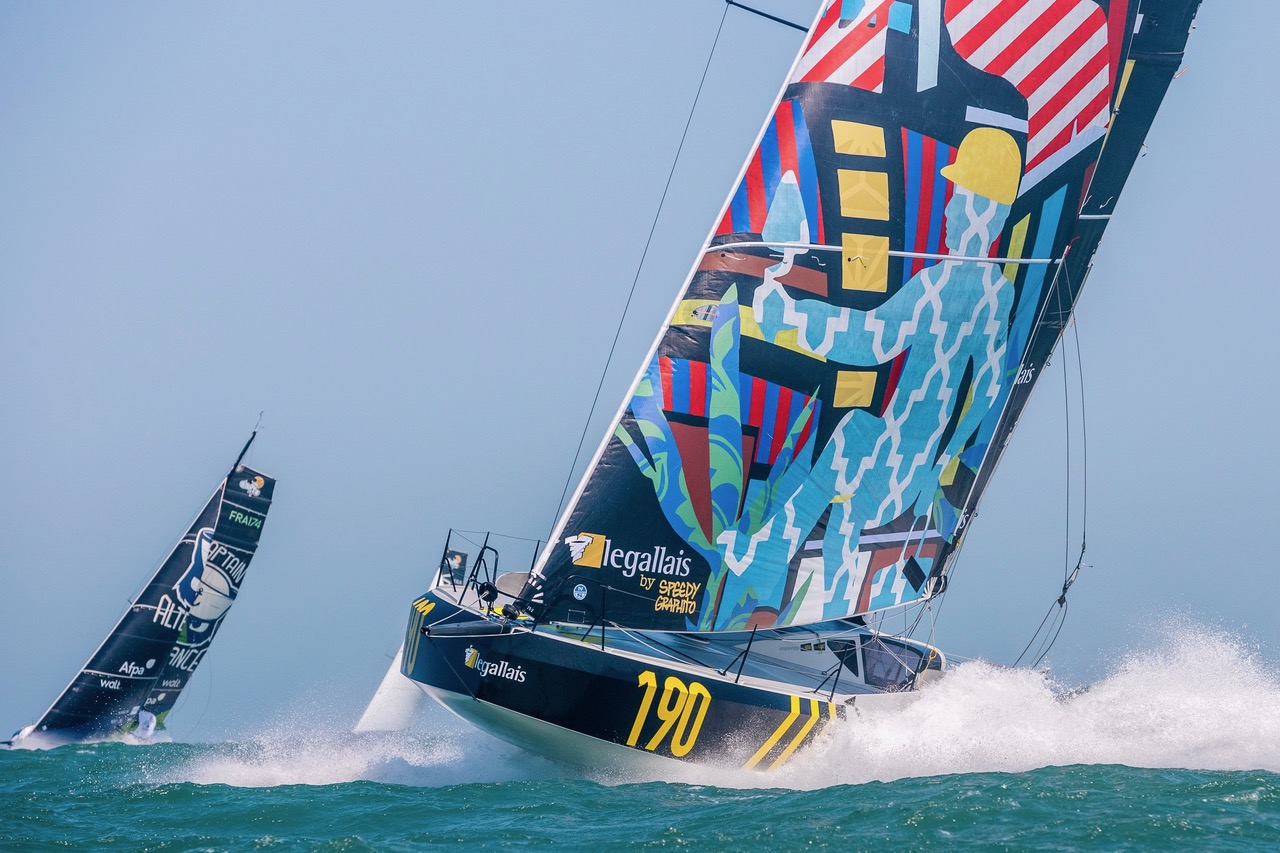

Designed by Sam Manuard ‘Divoc’ is one of the latest additions to the Class 40 fleet and has all the tools to carve out great results. This design has an excellent proven pedigree with her sister ship #186 winning the Class 40 2023 season. Built by the JPS Production shipyard, renowned for the quality of its construction ‘Divoc’ was launched in 2023. A powerful, versatile and an extremely fast boat which performs well in all weathers and on all points of sail.




Prepared by JPS’s Nicolas GROLEAU and then fine-tuned by Fabien DELAHAYE under ‘LEGALLAIS’.

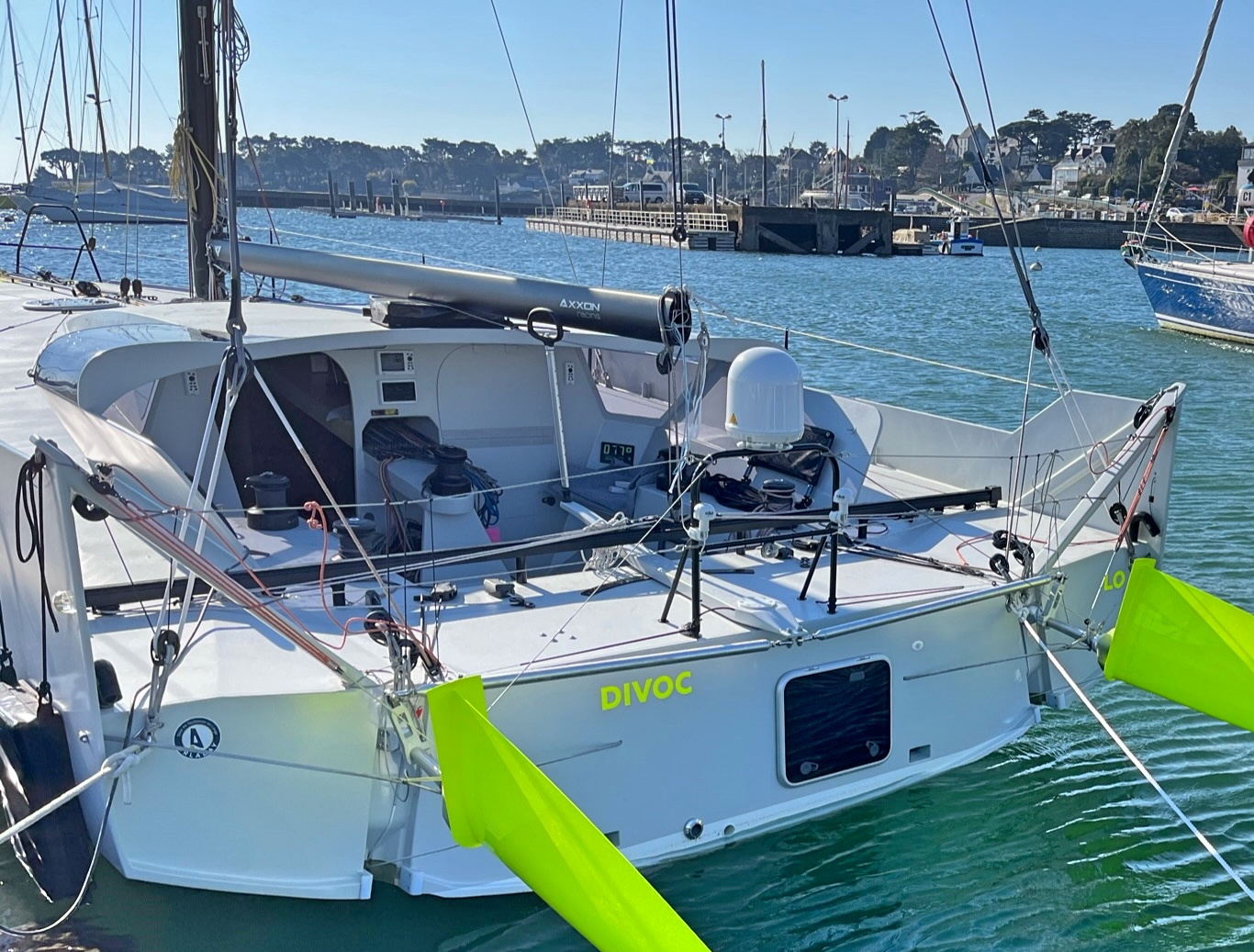

The Mach 40.5 has extremely well-planned ergonomics of the internal and external spaces with increased protection and visibility in the cockpit.
This enhances the ability to adjust sails and tune trajectories ultimately preserving the skipper and crew. This is a true rocket ship of the future and won’t be on the market for long.

LOA: 12.19m
Beam: 4.5m
Draft: 3m
Lying: France
Builder: JPS Production
Designer: Sam Manuard
Launched: 2023

Full NKE with Bus 1 with HR Processor and Bus 2 Gyropilot 3
Full North Sails package
Fully equipped for RSO2 races
Star link Broad Band
Winches Harken Performa (3 of them 3 speed)
Full Karver for hooks etc
Axxon Mast & boom
Twin kick up rudders

Spars & Rigging

Axxon carbon mast and boom, compliant to C40 rules.
Standing rigging cables by Lancelin.

Running rigging by Den-Ran. Full package and assorted spares available.

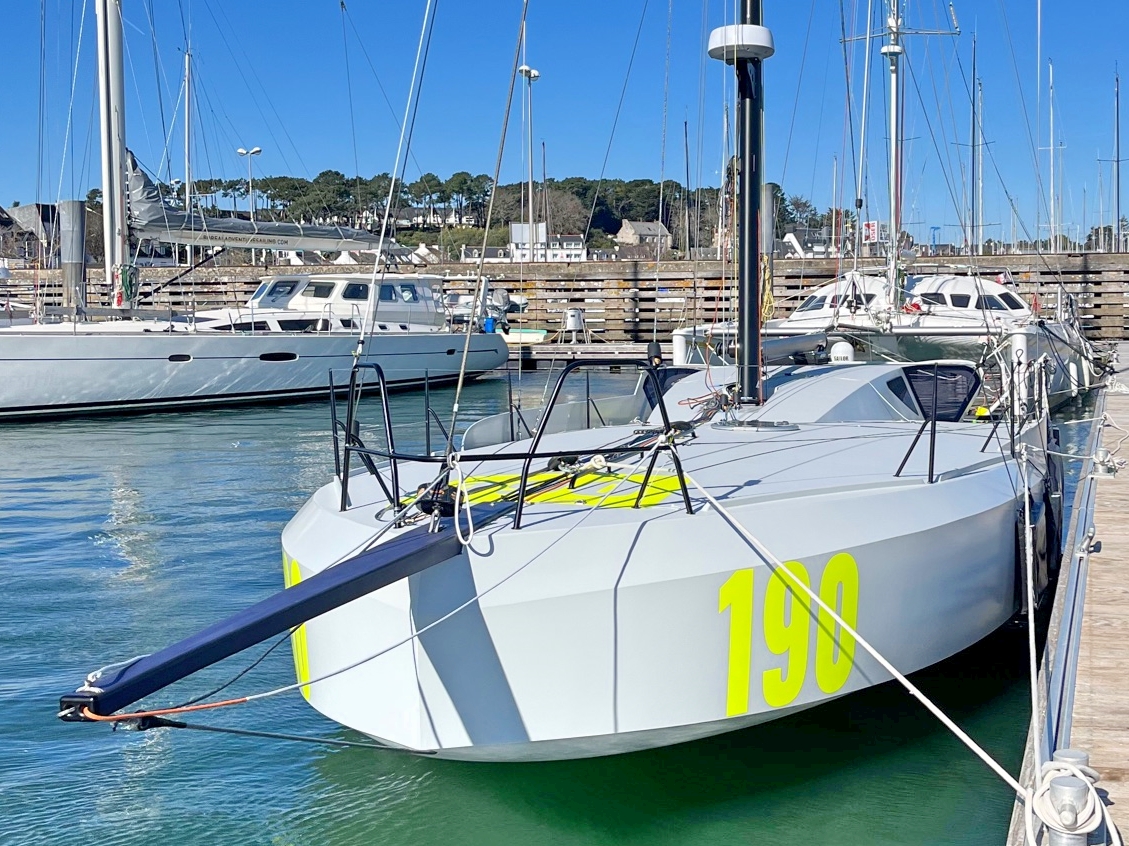

Fixed bowsprit
Furlers: J1, J2 Emmags and Gennaker by Karver

Assorted deck hardware, but primary rope constrictor systems on all halyards and primary control lines.

Sail Inventory

Norths Sails:
Main - 3Di RAW 760 16,800 Dpi
J1 - HELIX 3Di RAW 760 16,800 Dpi
J2 - HELIX 3Di RAW 760 16,800 Dpi
MHO - HELIX 3Di Downwind 303 10,850 Dpi Polyester (105 m2)
FR0 - HELIX 3Di Downwind 303 10,850 Dpi Polyester (80 m2)
A2 - Superkote 90/130 (200 m2)
A4 Medium - Superkote 150 (175 m2)
A6 - Superkote 150/250 (140 m2)

Tourmentin Orange (12.5 m2)
C40 Sheath J1
C40 sock ATN A2
C40 sock ATN A6/A4
C40 sock ATN A5
C40 GV cover
C40 Custom GV slats


5 x Harken Performance winches, including 3 with triple speed gearing.

Electronics & Instruments:
BUS1 :
2 x Multi-display
2 x GNX120 display
1 x 9X compass
1 x ILS
1 x TV & Receiver
1 x HR processor
1 x Gyropilot 2
1 x Multi-graphic
1 x Carbowind HR
1 x GPS HF
1 x Int Pha Wind
1 x Capteur Angle
1 x 3D Sensor
2 x Pad Pilot
1 x Anemo/girouette HR
2 x Speedo
1 x Baro HR100
1 x Linear T2
1 x AIS Transporter

BUS2 :
1 x Multigraphic
1 x GPS HF
1 x 9X compass
1 x Capteur Angle
1 x ILS
1 x Gyropilot 3

Communications :
1 x VHF 25W
1 x Starlink broadband
1 x Iridium 9505 (2 battery)

1 x PC with integrated wireless keyboard/trackpad Logitech
1 x 24" monitor
1 x Twin PC for replacement in place of PC
1 x 3G/4G Dongle
1 x B&G Halo+ 20 radar with Carbon holder
6 x battery 12V/60Ah AGM
2 x SmartSolar MPPT 100/30
1 x shore charger
4 x Flush solar panels
1 x Battery Monitor BMV712
1 x complete electrical box


Emergency vhf antenna
Vhf portable standard horizon hx300e
Fire blanket
Powder fire extinguisher 2kg
Plastimo spot-x projector
Radar reflector 45 cm
Safetics navigation guide and Waterproof flashlight + flash sos
Grab bag seasafe 4 places
Survival rations 500g x4
Survival water seven ocean 0.5 l x12
Rescue buoy
Whistle iso 12402
Floating anchor
Kit 3 hand flares solas
Smoke orange flare solas
Nautical flag 50 x 75 1
Flag signal card
Chart marks card
Atlantic marine tides
Inflatable fac buoy 150n + light + whistle
Inflatable ior pole 4water + lamp
Pocket flag n + c 50 x 60
Plotter + Compass dividers
Mooring ball
Compass iris 100 (removable route and bearing compass)
Outils Ocean Bag

Water jerrycan 10 litre
Plastic Bucket 10 litre
Chart card 7 0 7 6
Chart card 7 3 4 5
Chart Card 6 5 6 1
Chart imray c18 English Channel and bay of Biscay
Floating nautical rope ø 8 yellow
Felco cable cutter 12mm
Wichard rescue knife
Rule pump 14000 l/h 12 v 15.5 a
Fuel jerry can scepter 20 litre
4 x black fenders h. 54 x l. 39 x ep. 11 cm
Anchor 16 kg chain cable g70 ø 8mm avec mooring line 14 mm
Anchor lightweight chain cable g40 ø 8mm avec mooring line 12mm
Radeau Waypoint ISO RACE 9650 4 places (Bag)
Inventory and description to be confirmed and subject to contract

Machinery & Systems:
Lombardini LDW1003M27Hp Engine

Broker Comments

Without doubt a proven design at the top of the current Class 40 fleet. Substantial savings compared to buying new, whilst ensuring all the usual new boat teething problems have been ironed out. A brilliant class that still goes from strength to strength.
