- Make Lagoon
- Model 630 Motor Yacht
- Year 2016
- LOA 63ft/19m
- Class Multihull
- Engine Twin Diesel
- Drive Outdrives
- Layout Flybridge
- Berths 8
- Cabins 4
- Aft Cabins 1
- Ancasta Ref 44925
- Name Lagoon 630

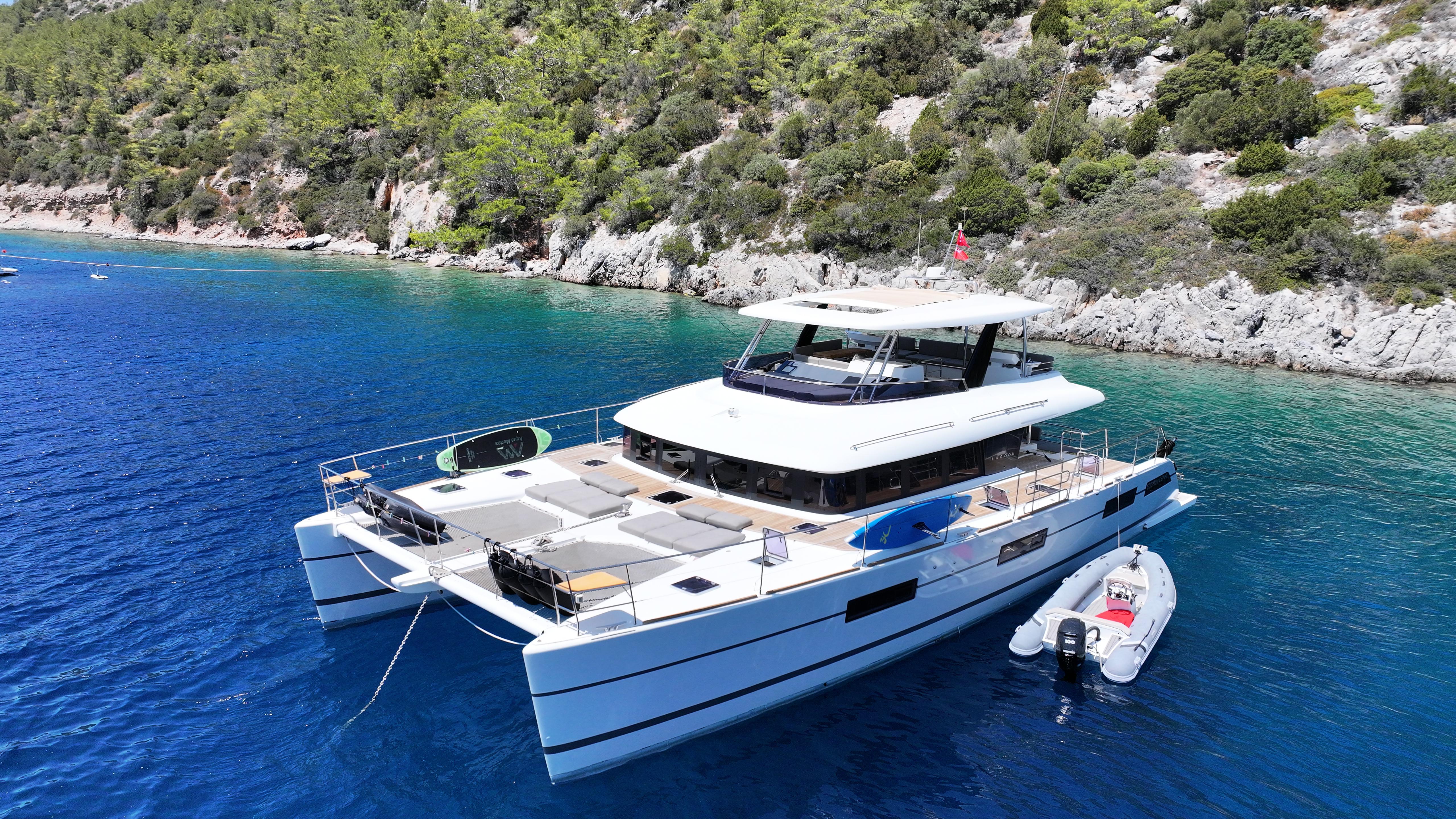

Lagoon 630 Motor Yacht For Sale | 2016
1,900,000 Tax Not Paid
|
Turkey Turkey
Your account cannot save boats.
2016 Lagoon 630 with large owner’s suite in starboard hull and forward guest cabin. The is a linear galley is in the port hull together with two further cabins, one double and one bunk cabin with the crew cabin in port bow. Sensational full beam saloon which connects with aft deck and access the large flybridge with hard top with opening roof. Twin Volvo Penta D4 300, bow thruster, generator and air conditioning. Highfield rib with100hp Mercury outboard engine and Hydraulic platform.
Layout

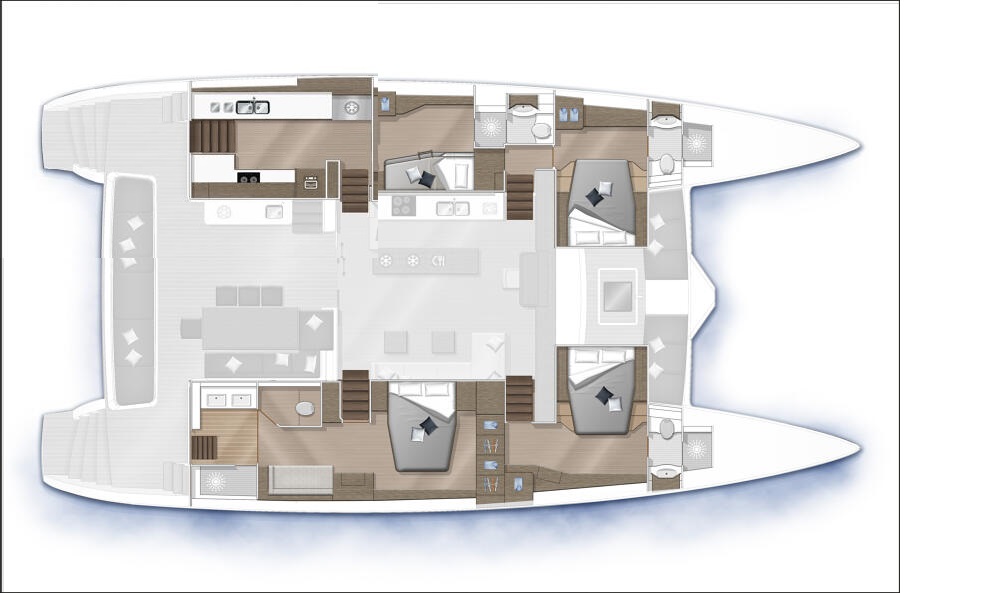

Layout Lower Deck
LAGOON 630 MOTORYACHT 2016 MODEL
Owner version 4 cabin, 4 heads, galley down (all air-conditioned)
Teak on fly-bridge sun pad & teak side decks
Fly-bridge hard top with opening roof
CONSTRUCTION
Infused FRP with a balsa core with polyester and high quality anti-osmotic resins
Hull bottom and keels in solid infused laminate
Infused balsa core structural bulkheads
Hydraulic tender platform with RIB & 100hp outboard
Hydraulic gangway
DIMENSIONS
Overall Length (LOA) 19.50 m / 64'0”
Hull Length (LH) 19.05 m / 62'6"
Maximum Beam 10.00m / 32'10"
Draft (light load) 1.15 m / 3'9"
Height above waterline without radar mast 5.70 m / 18'8"
Height above waterline including radar mast 6.50 m / 21'4"
Displacement (dry) 33.9 tonnes / 74,750 lbs
Displacement (ECC) 34.7 tonnes / 76,515 lbs
Displacement (full) 41tonnes / 90,405 lbs
Design Category B:14 - C:16 - D: 30
All the above figures are approximate
Owner version 4 cabin, 4 heads, galley down (all air-conditioned)
Teak on fly-bridge sun pad & teak side decks
Fly-bridge hard top with opening roof
CONSTRUCTION
Infused FRP with a balsa core with polyester and high quality anti-osmotic resins
Hull bottom and keels in solid infused laminate
Infused balsa core structural bulkheads
Hydraulic tender platform with RIB & 100hp outboard
Hydraulic gangway
DIMENSIONS
Overall Length (LOA) 19.50 m / 64'0”
Hull Length (LH) 19.05 m / 62'6"
Maximum Beam 10.00m / 32'10"
Draft (light load) 1.15 m / 3'9"
Height above waterline without radar mast 5.70 m / 18'8"
Height above waterline including radar mast 6.50 m / 21'4"
Displacement (dry) 33.9 tonnes / 74,750 lbs
Displacement (ECC) 34.7 tonnes / 76,515 lbs
Displacement (full) 41tonnes / 90,405 lbs
Design Category B:14 - C:16 - D: 30
All the above figures are approximate

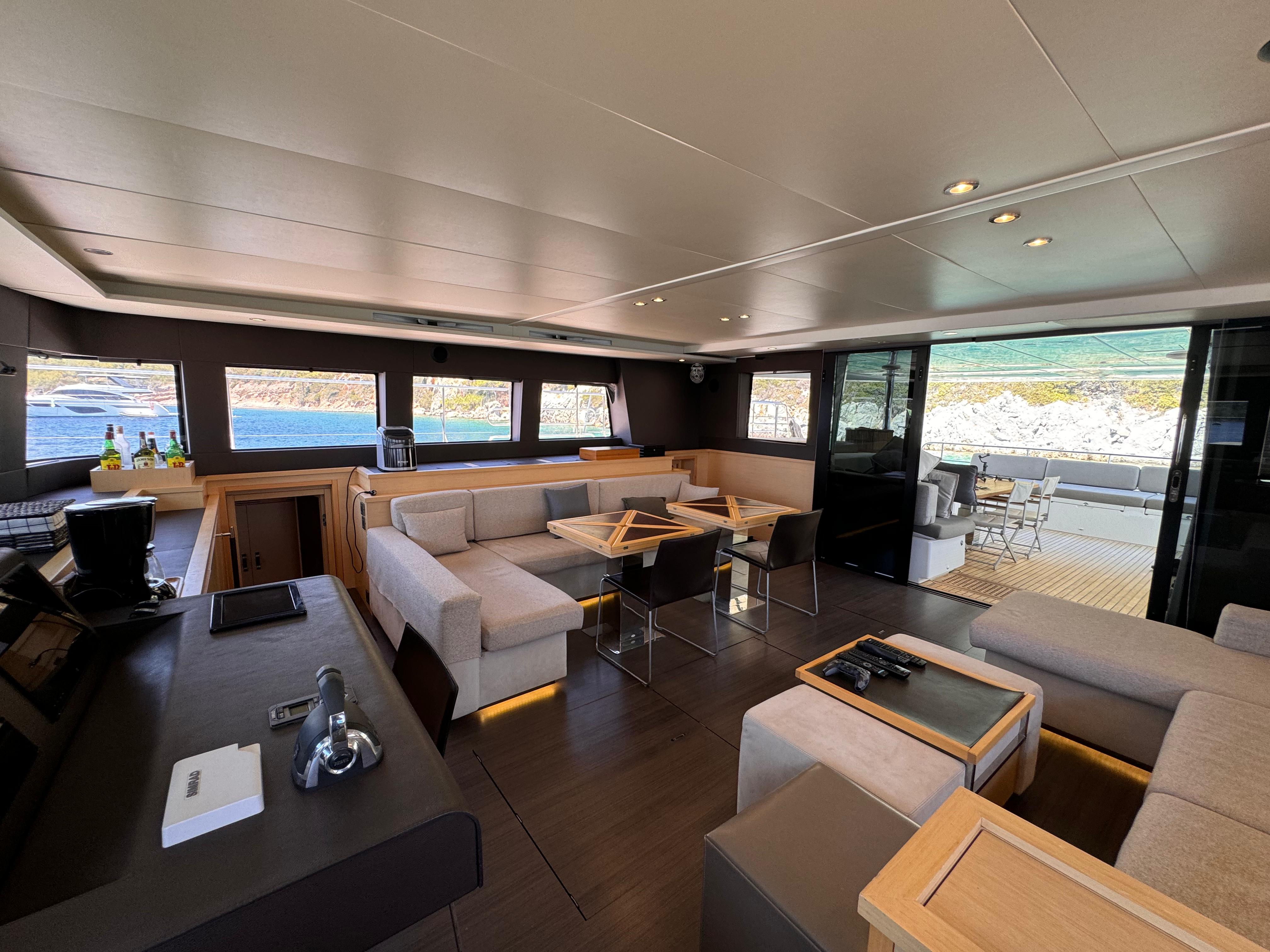

FOUR CABINS COMPRISING OF THREE DOUBLE CABINS & ONE BUNK CABIN PLUS ONE CREW CABIN

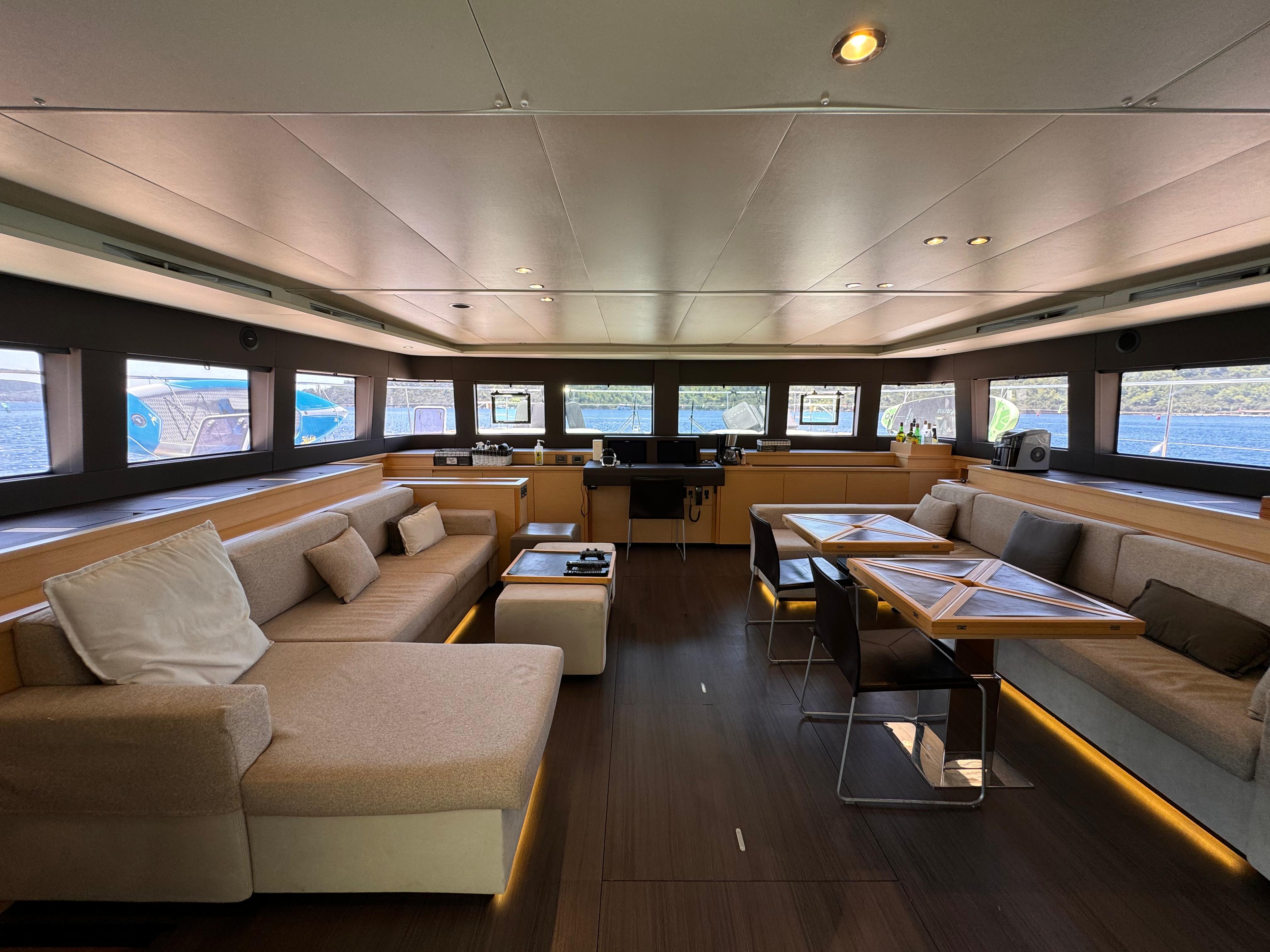

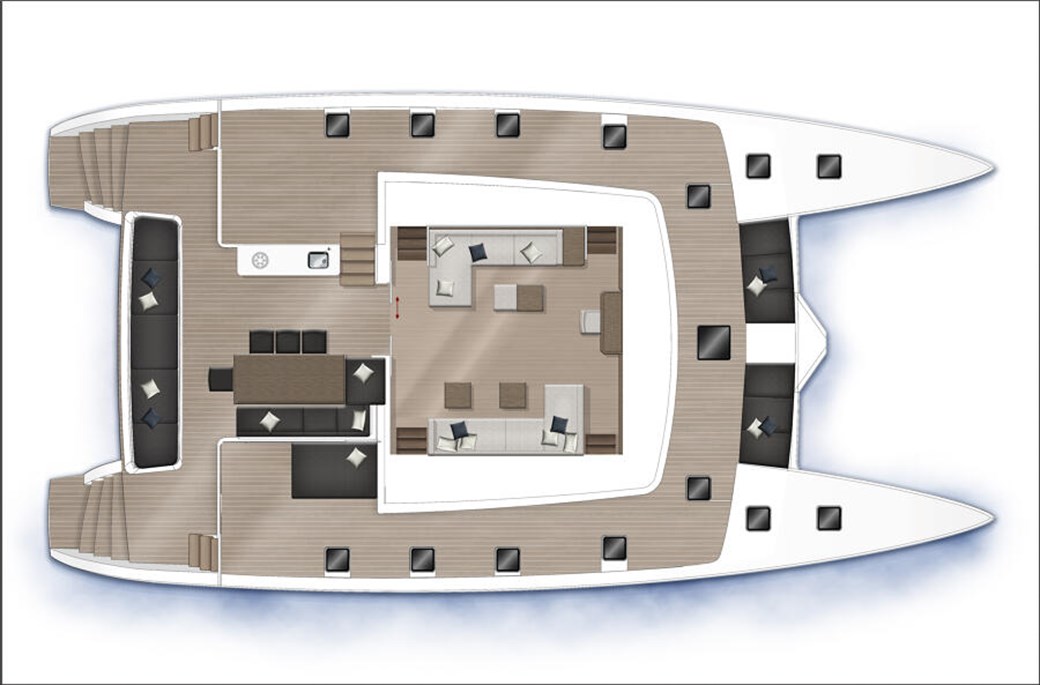

MAIN DECK - SALOON
Access from the cockpit through sliding & locking door. Storage under floors with hinged panels and lifting arm
2 opening hatches on the front port and starboard windows
4 Companionways
Port side:
"L" shape sofa
Cabinet forward of the settee including
Storage at the front
Bottle storage space
TV cabinet with up/down lifting mechanism for a 40" LCD TV (option)
2 x 220 V outlet
Starboard side:
"L" shape sofa
2 leather chairs for dining table
2 coffee tables with leather insert convertible into one large dining table (electrical pedestal) 1X 220 V outlet
Cabinet with shelves on forward bulkhead Direct LED lights on ceilings
NAVIGATION STATION
Instrument console in leather for electronic equipment
Chart top in leather
PORTISDE HULL
GALLEY
Access from cockpit through sliding glass door and steps
Access from the saloon through gangway
2 opening deck hatches
Outboard side:
CORIAN countertop
Stainless steel double sink under countertops with hot/cold fresh water mixer tap
Liquid soap dispenser
Storage with drawers under cooking top and sink
2 Waste bins under countertop
Galley equipment includes:
Samsung fridge and freezer 220V 345 litres +179 litres (91 +47 US Gallons) with ice maker
Bosch dishwasher
Washing machine
2 x 220 V outlets
Inboard side:
CORIAN countertop
Galley equipment includes:
Induction stove
Extractor
Miele electrical oven
Miele microwave oven
Upper storage cupboards
Lower storage cupboards with drawers and shelves
2 x 220 V outlets
AMIDSHIPS CABIN
Access from the salon via aft gangway
Sliding door
Minimum headroom 2.05m (6'9")
Bunk bed with two mattresses
Storage underneath the bed
Shelves on hull side
Vanity/ / desk with storage and shelves es on hull side
1 opening deck hatches with mosquito screens and blinds
PMMA fixed hull windows with integrated opening porthole
2 x 220V outlets
Flatscreen TV
General cabin lighting with switches at the entrance and by bed sides + reading lights
AMIDSHIPS BATHROOM
Direct access from cabin
Minimum headroom 2.05m (6'9")
Solid resin countertop with built in washbasin (Ice white colour)
Separate shower with glass and stainless steel door
Teak floors in bathroom and shower
Vanity cabinet and mirror
Electrical fresh water toilet
1 opening deck hatch with mosquito screen and blind
FORWARD CABIN
Access from the salon via forward gangway
Minimum headroom 2.05m (6'9")
Queen size bed (2.05 m/6'9" x 1.60 m/5'3") with side access and wood slats under
mattress
2 large drawers under bed
Bedside storage with top s/s insert and imitation leather finishing
Hanging locker with shelves
Storage locker on outboard side
Shelves on hull side
1 opening deck hatches with mosquito screens and blinds
PMMA fixed hull windows with integrated opening porthole
2 x 220V outlets
General cabin lighting with switches at the entrance and by bed sides + reading lights.
FORWARD BATHROOM
Direct access from cabin
Minimum headroom 2.05m (6'9")
Solid resin countertop with built in washbasin
Separate shower with glass and stainless steel door
Teak floors in bathroom and shower
Vanity cabinet and mirror
Electrical fresh water toilet
1 opening deck hatch with mosquito screen and blind
STARBOARD HULL

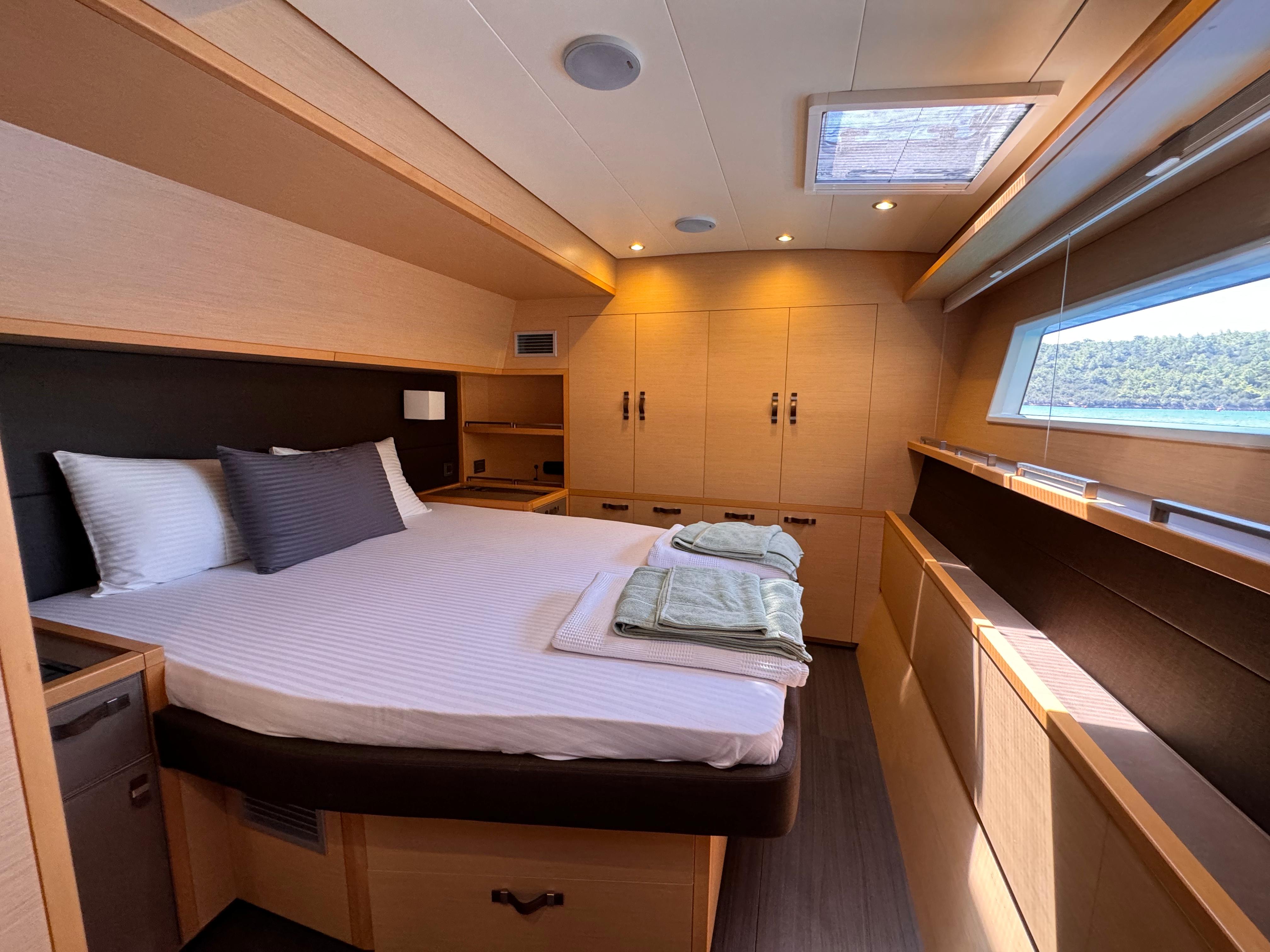

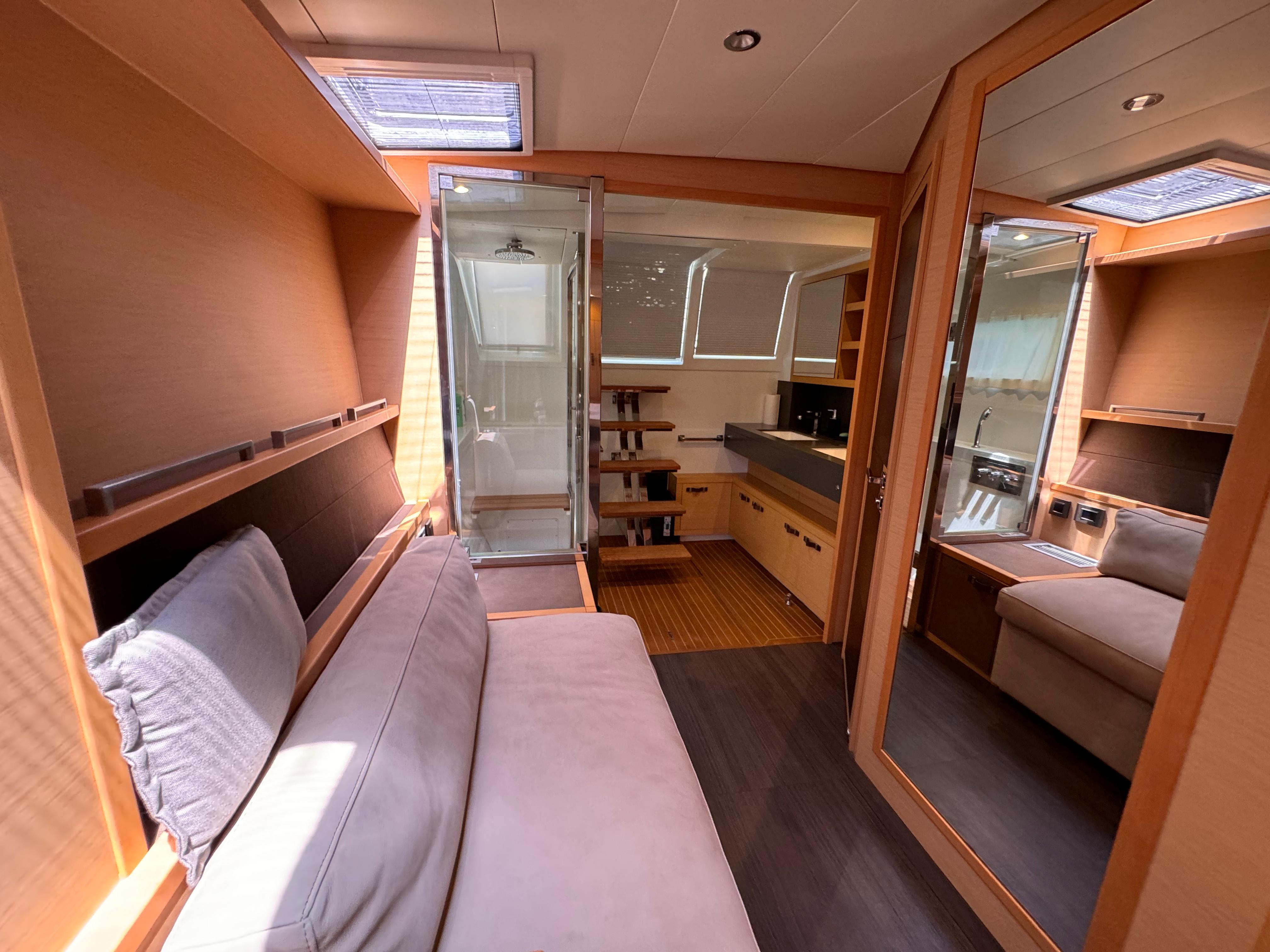

MASTER CABIN
Access from the saloon with private door
Glass sliding access door for direct access to starboard side transom
Minimum headroom 2.05m (69)
Queen size bed (2.05 m/6/9 X 160 m/5'3') with side access and wood slats under
mattress
2 large storage drawers under bed
Bedside storage with top s/s insert and imitation leather finishing Large dressing cabinet with 2 lit wardrobes, & closets with shelves and 6 drawers
Bookshelf and storage area next to dressing cabinet Shelves on hull side
Vanity/desk with storage and shelves on hull side Pouf
Sofa against hull side with side shelf and lower storage area
Large mirror against sofa
3 opening deck hatches with mosquito screens and blinds
PMMA fixed hull windows with integrated opening porthole
3 x 220V outlets
Flatscreen TV
General cabin lighting with switches at the entrance and by bed sides + reading lights.
MASTER BATHROOM
Corian countertop with built-in washbasin
Separate shower with glass and stainless steel door
Teak floors in bathroom and shower
Storage and mirror
PMMA fixed hull windows with integrated opening porthole
Master private WC
Fresh water electric head Electrical extractor

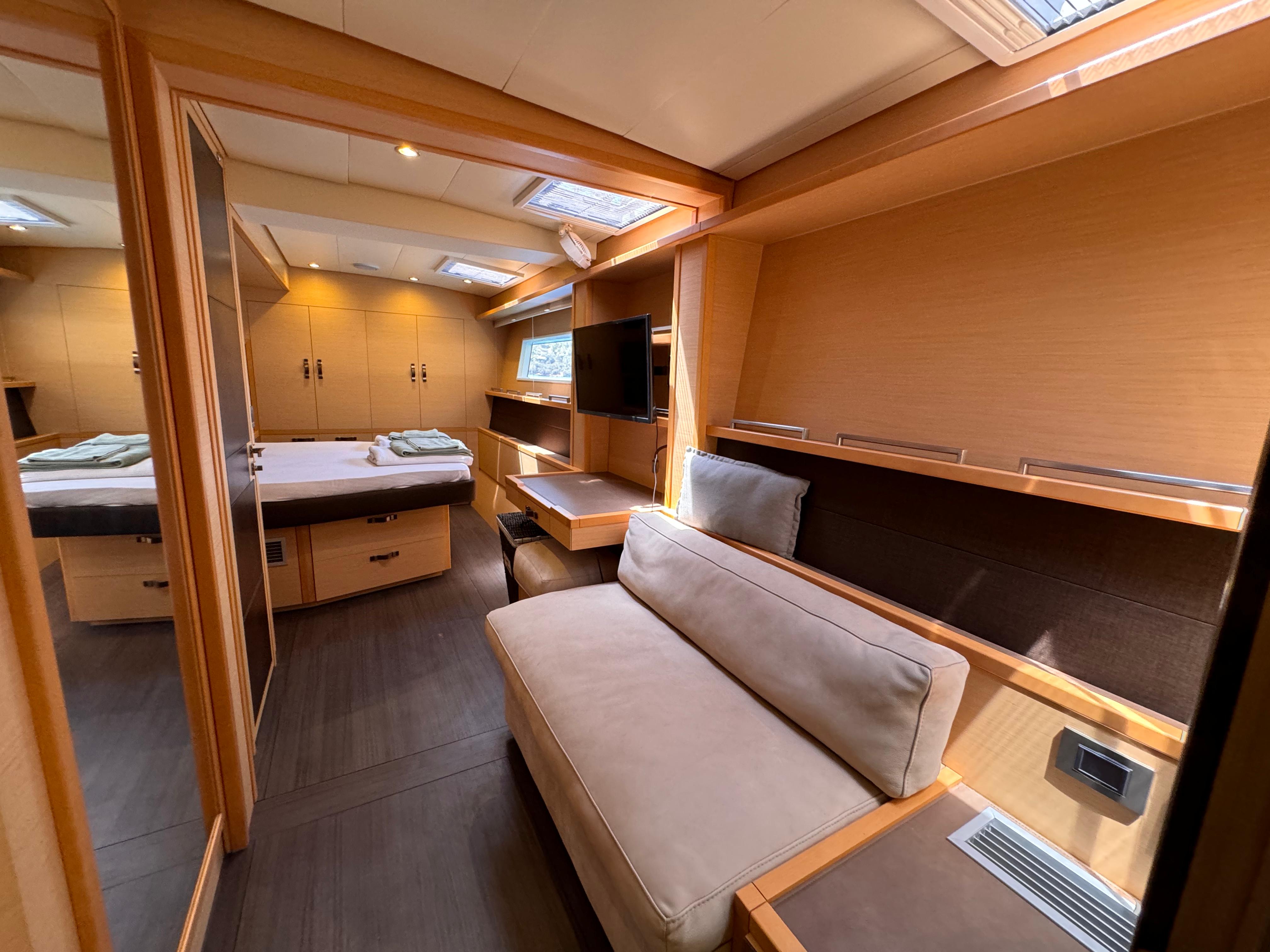

VIP CABIN
Access from the saloon with private door
Minimum headroom 2.05m (6'9")
Queen size bed (2,05 m/6'9" X 1,60 m/5'3") with side access and wood slats under mattress
2 large drawers under bed
Bedside storage with top s/s insert and imitation leather finishing
Double hanging locker with lower storage and drawers on hull side
Bookshelf on hull side
Storage on hull side
Desk with storage and shelf on hull side
1 Opening deck hatches with mosquito screens and blinds
PMMA fixed hull windows with integrated opening porthole
2 x 220V outlets
Flatscreen TV
General cabin lighting with switches at the entrance and by bed sides + reading lights.
VIP BATHROOM
Direct access from cabin
Minimum headroom 2.05m (6'9")
Solid resin countertop with built in washbasin ("Ice white" colour)
Separate shower with glass and stainless steel door
Teak floors in bathroom and shower
Vanity cabinet and mirror
Electrical fresh water toilet
Opening deck hatch with mosquito screen and blind

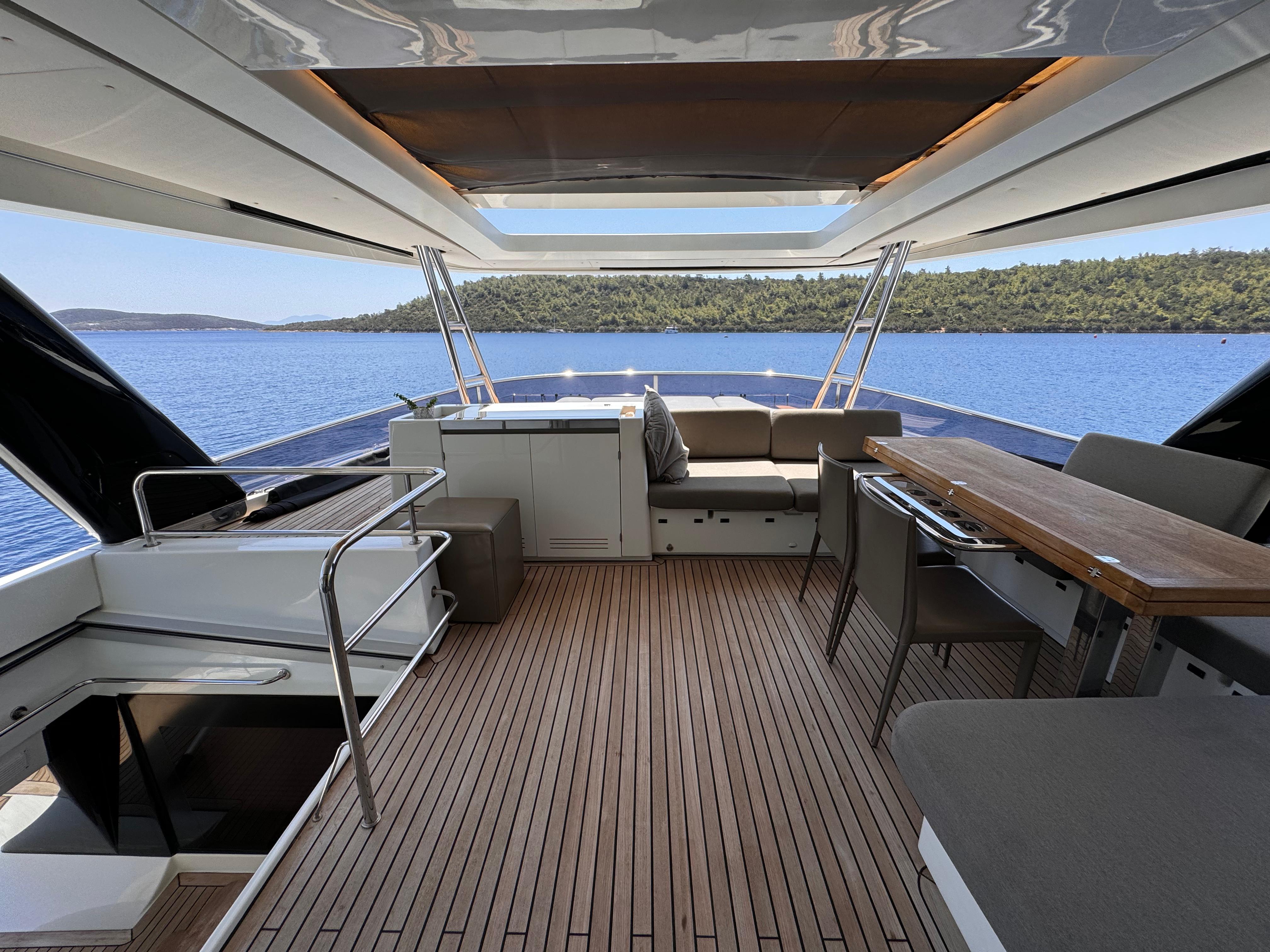

FLYBRIDGE
External staircase with teak steps
Flybridge floor in teak
Aluminium access hatch to flybridge
Plexiglas and stainless steel windscreen
Stainless steel protection pulpit and handrails
Fly-bridge hard top with opening roof and stainless steel support for navigation lights, radar and antennas equipment, foghorn & flybridge lights.
2 helm stations including:
1 wheel each
1 compass each
windlass control and chain counter on port side
Cushions for settees + backrest
Engine throttles and control panel on port side
Foghorn, search light, and others switches for deck systems.
Teak on the sundeck (forward part of the flybridge)
U-shape sofas with large capacity storage on starboard side. cup holders small storage
Teak tables for 10 people with stainless steel leg (foldable)
Sunbathing settee and sun lounging cushions forward
Wet bar with:
• sink, hot and cold water supply
• storages
• cup holders
• dustbin
• retractable indirect lighting

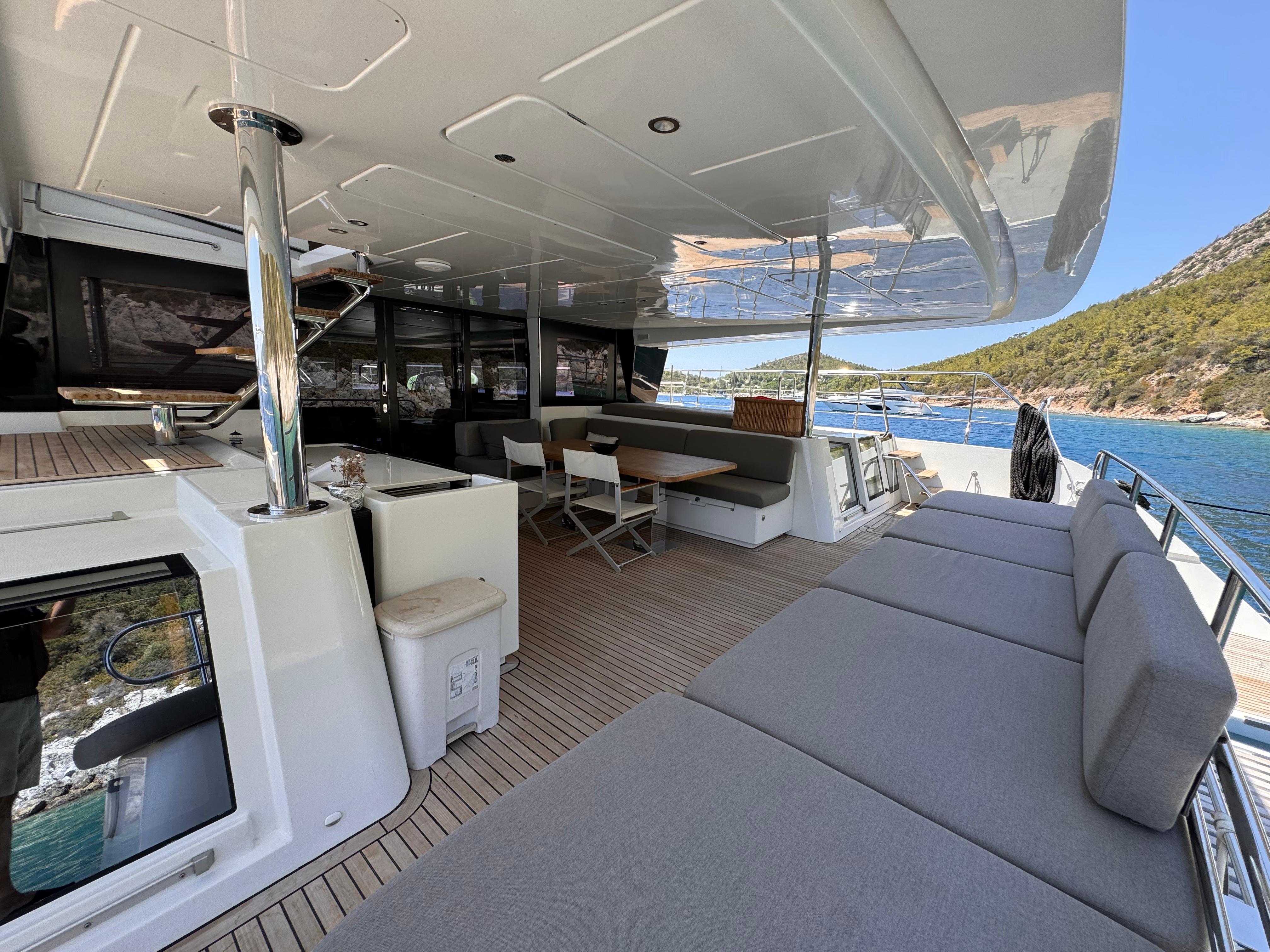

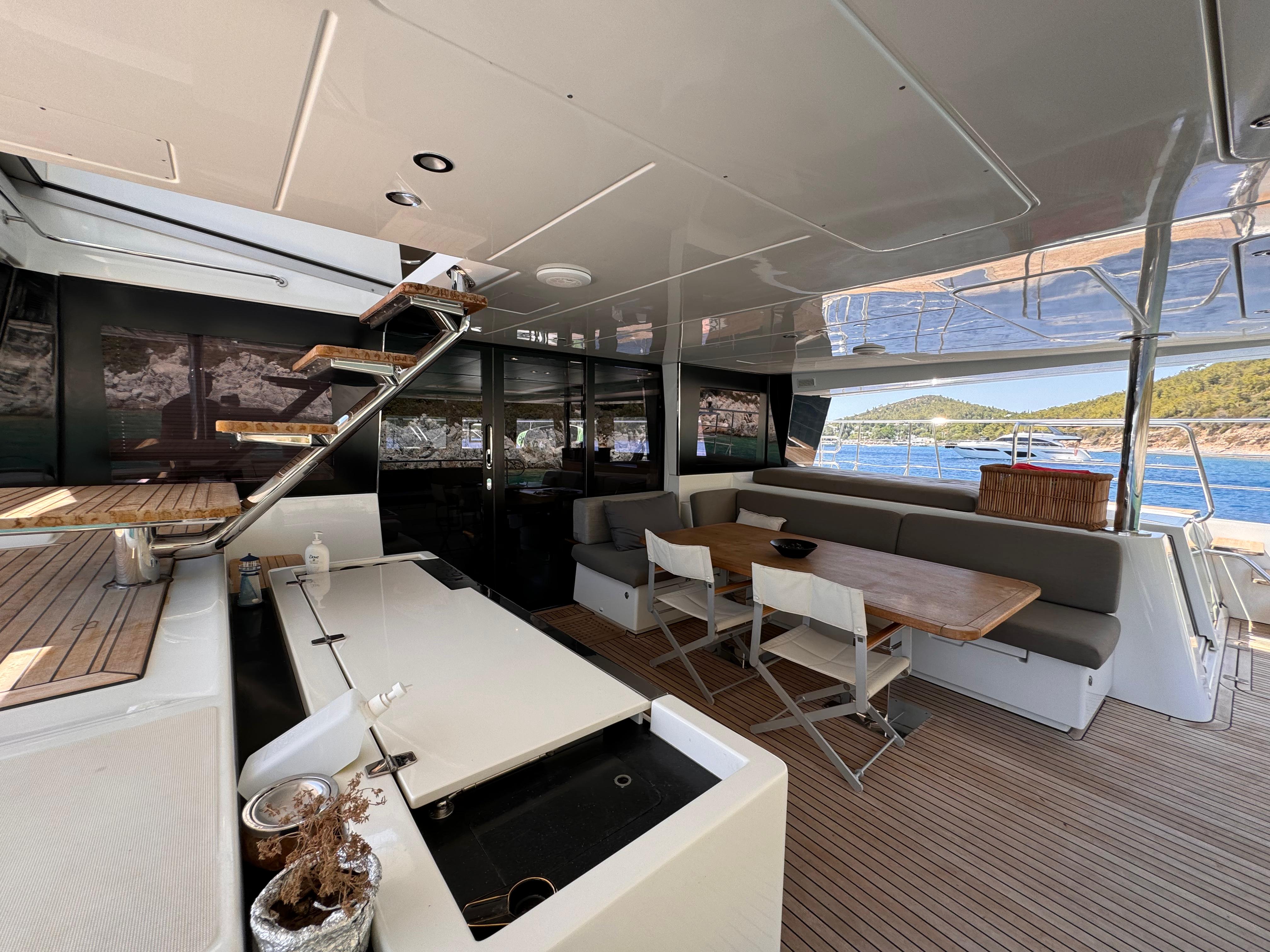

AFT COCKPIT
Teak floor
Saloon door in aluminium/stainless steel and tempered glass
L-shape sofas with large capacity storage on starboard side.
Teak table for 10 people with stainless steel legs
Furniture on port side with:
• sink, hot and cold water supply
• cup holders
• storages
• dustbin
• fridge (53 litres, 14 US Gallons)
2 storages in cockpit ceiling
Aft crossbeam with 4 storage lockers sun lounging area
Dedicated storage for 2 x 10 person life raft

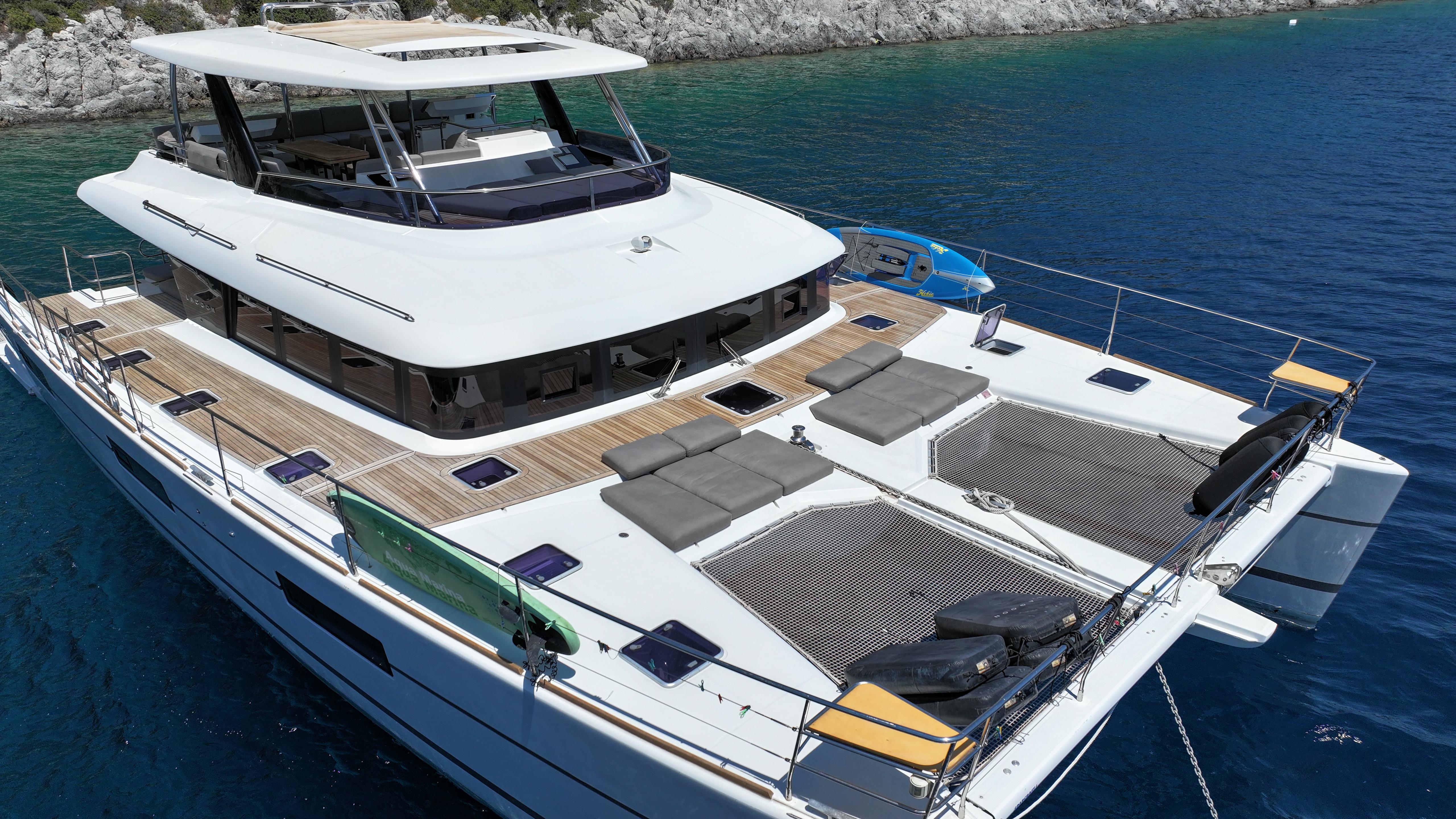

FOREDECK
1 deck hatch for technical compartment access:
• house battery bank
• generator
3 deck lockers 2 to port and 1 to starboard, dedicated to dive compressor
Chain locker to starboard of the windlass
2000W 24V electric windlass on deck with horizontal gipsy a remote control.
Composite longitudinal compulsion beam
BOW COMPARTMENTS
Access through a deck hatch
Stainless steel ladder
Inlet filters for bilge pump
Drain to the sump
Openings
All windows in grey tinted Plexiglas Central roof window in grey tinted glass
Recessed Lewmar deck hatches
Lewmar integrated port holes
Plexiglas fixed hull windows
Plexiglas salon windows
Safety glass salon door with black aluminium frame
All the above figures are approximate
MAIN DECK - SALOON
Access from the cockpit through sliding & locking door. Storage under floors with hinged panels and lifting arm
2 opening hatches on the front port and starboard windows
4 Companionways
Port side:
"L" shape sofa
Cabinet forward of the settee including
Storage at the front
Bottle storage space
TV cabinet with up/down lifting mechanism for a 40" LCD TV (option)
2 x 220 V outlet
Starboard side:
"L" shape sofa
2 leather chairs for dining table
2 coffee tables with leather insert convertible into one large dining table (electrical pedestal) 1X 220 V outlet
Cabinet with shelves on forward bulkhead Direct LED lights on ceilings
NAVIGATION STATION
Instrument console in leather for electronic equipment
Chart top in leather
PORTISDE HULL
GALLEY
Access from cockpit through sliding glass door and steps
Access from the saloon through gangway
2 opening deck hatches
Outboard side:
CORIAN countertop
Stainless steel double sink under countertops with hot/cold fresh water mixer tap
Liquid soap dispenser
Storage with drawers under cooking top and sink
2 Waste bins under countertop
Galley equipment includes:
Samsung fridge and freezer 220V 345 litres +179 litres (91 +47 US Gallons) with ice maker
Bosch dishwasher
Washing machine
2 x 220 V outlets
Inboard side:
CORIAN countertop
Galley equipment includes:
Induction stove
Extractor
Miele electrical oven
Miele microwave oven
Upper storage cupboards
Lower storage cupboards with drawers and shelves
2 x 220 V outlets
AMIDSHIPS CABIN
Access from the salon via aft gangway
Sliding door
Minimum headroom 2.05m (6'9")
Bunk bed with two mattresses
Storage underneath the bed
Shelves on hull side
Vanity/ / desk with storage and shelves es on hull side
1 opening deck hatches with mosquito screens and blinds
PMMA fixed hull windows with integrated opening porthole
2 x 220V outlets
Flatscreen TV
General cabin lighting with switches at the entrance and by bed sides + reading lights
AMIDSHIPS BATHROOM
Direct access from cabin
Minimum headroom 2.05m (6'9")
Solid resin countertop with built in washbasin (Ice white colour)
Separate shower with glass and stainless steel door
Teak floors in bathroom and shower
Vanity cabinet and mirror
Electrical fresh water toilet
1 opening deck hatch with mosquito screen and blind
FORWARD CABIN
Access from the salon via forward gangway
Minimum headroom 2.05m (6'9")
Queen size bed (2.05 m/6'9" x 1.60 m/5'3") with side access and wood slats under
mattress
2 large drawers under bed
Bedside storage with top s/s insert and imitation leather finishing
Hanging locker with shelves
Storage locker on outboard side
Shelves on hull side
1 opening deck hatches with mosquito screens and blinds
PMMA fixed hull windows with integrated opening porthole
2 x 220V outlets
General cabin lighting with switches at the entrance and by bed sides + reading lights.
FORWARD BATHROOM
Direct access from cabin
Minimum headroom 2.05m (6'9")
Solid resin countertop with built in washbasin
Separate shower with glass and stainless steel door
Teak floors in bathroom and shower
Vanity cabinet and mirror
Electrical fresh water toilet
1 opening deck hatch with mosquito screen and blind
STARBOARD HULL
MASTER CABIN
Access from the saloon with private door
Glass sliding access door for direct access to starboard side transom
Minimum headroom 2.05m (69)
Queen size bed (2.05 m/6/9 X 160 m/5'3') with side access and wood slats under
mattress
2 large storage drawers under bed
Bedside storage with top s/s insert and imitation leather finishing Large dressing cabinet with 2 lit wardrobes, & closets with shelves and 6 drawers
Bookshelf and storage area next to dressing cabinet Shelves on hull side
Vanity/desk with storage and shelves on hull side Pouf
Sofa against hull side with side shelf and lower storage area
Large mirror against sofa
3 opening deck hatches with mosquito screens and blinds
PMMA fixed hull windows with integrated opening porthole
3 x 220V outlets
Flatscreen TV
General cabin lighting with switches at the entrance and by bed sides + reading lights.
MASTER BATHROOM
Corian countertop with built-in washbasin
Separate shower with glass and stainless steel door
Teak floors in bathroom and shower
Storage and mirror
PMMA fixed hull windows with integrated opening porthole
Master private WC
Fresh water electric head Electrical extractor
VIP CABIN
Access from the saloon with private door
Minimum headroom 2.05m (6'9")
Queen size bed (2,05 m/6'9" X 1,60 m/5'3") with side access and wood slats under mattress
2 large drawers under bed
Bedside storage with top s/s insert and imitation leather finishing
Double hanging locker with lower storage and drawers on hull side
Bookshelf on hull side
Storage on hull side
Desk with storage and shelf on hull side
1 Opening deck hatches with mosquito screens and blinds
PMMA fixed hull windows with integrated opening porthole
2 x 220V outlets
Flatscreen TV
General cabin lighting with switches at the entrance and by bed sides + reading lights.
VIP BATHROOM
Direct access from cabin
Minimum headroom 2.05m (6'9")
Solid resin countertop with built in washbasin ("Ice white" colour)
Separate shower with glass and stainless steel door
Teak floors in bathroom and shower
Vanity cabinet and mirror
Electrical fresh water toilet
Opening deck hatch with mosquito screen and blind
FLYBRIDGE
External staircase with teak steps
Flybridge floor in teak
Aluminium access hatch to flybridge
Plexiglas and stainless steel windscreen
Stainless steel protection pulpit and handrails
Fly-bridge hard top with opening roof and stainless steel support for navigation lights, radar and antennas equipment, foghorn & flybridge lights.
2 helm stations including:
1 wheel each
1 compass each
windlass control and chain counter on port side
Cushions for settees + backrest
Engine throttles and control panel on port side
Foghorn, search light, and others switches for deck systems.
Teak on the sundeck (forward part of the flybridge)
U-shape sofas with large capacity storage on starboard side. cup holders small storage
Teak tables for 10 people with stainless steel leg (foldable)
Sunbathing settee and sun lounging cushions forward
Wet bar with:
• sink, hot and cold water supply
• storages
• cup holders
• dustbin
• retractable indirect lighting
AFT COCKPIT
Teak floor
Saloon door in aluminium/stainless steel and tempered glass
L-shape sofas with large capacity storage on starboard side.
Teak table for 10 people with stainless steel legs
Furniture on port side with:
• sink, hot and cold water supply
• cup holders
• storages
• dustbin
• fridge (53 litres, 14 US Gallons)
2 storages in cockpit ceiling
Aft crossbeam with 4 storage lockers sun lounging area
Dedicated storage for 2 x 10 person life raft
FOREDECK
1 deck hatch for technical compartment access:
• house battery bank
• generator
3 deck lockers 2 to port and 1 to starboard, dedicated to dive compressor
Chain locker to starboard of the windlass
2000W 24V electric windlass on deck with horizontal gipsy a remote control.
Composite longitudinal compulsion beam
BOW COMPARTMENTS
Access through a deck hatch
Stainless steel ladder
Inlet filters for bilge pump
Drain to the sump
Openings
All windows in grey tinted Plexiglas Central roof window in grey tinted glass
Recessed Lewmar deck hatches
Lewmar integrated port holes
Plexiglas fixed hull windows
Plexiglas salon windows
Safety glass salon door with black aluminium frame
All the above figures are approximate
TWIN VOLVO PENTA D4 300 diesel engines
4 Blades fixed propellers
Bow Thruster.
Electrical hydraulic steering system.
Engine throttles and control panel on port steering station on flybridge
FUEL SYSTEM
4 aluminium fuel tanks:
1,300 Iitres total (343 US Gallons), under floors forward of the engine rooms bulkheads
1,750 litres total (462 US Gallons), under floors forward in the forward cabins
Electronic sensor for level monitoring on the Ipad yacht management system
Fuel fillers caps and vents on aft cross beam
Equipment includes:
Fuel filter systems: pre-filter with water separator and primary filter
Remote fuel shut off valve in aft cabins
FRESH WATER SYSTEM
4 tanks 240 litres , (63 US Gallons)-960 litres (254 US Gallons) total - Under cabin floors
Fresh water tank levels are visible on the electronic management system IPAD at the wheelhouse dashboard.
Fresh water circuit with 2 x 24V pressure pumps (located in engine compartments)
2 x 63 litres (17 US Gallons) electric water heaters linked to engines heat exchangers
Transom shower (hot/cold) to starboard
2 water fillers on deck
Fresh water dock inlet (port side)
Black & Grey water system
BLACK WATER
1 holding tank per toilet 73 litres (19 US Gallons) with deck pump out or gravity drain to sea
Electric TECMA fresh water toilet in each head
GREY WATER
Shower and washbasin drain to grey water collection box (automatic pump out with float switch)
Sinks drain directly overboard
All the above figures are approximate
BILGE SYSTEM
24V AC electric pump control panel at nav station
1 electric bilge pump with auto float switch and manual override + bilge level alarm in each hull
2 manual bilge pumps for use from the cockpit
Self-bailing cockpit following EC regulation
1 electric bilge pump in each engine room with auto float switch
Bilge level alarm at nav station and helm station.
ELECTRICAL SYSTEM
General characteristics
Voltage system as follows:
24V DC with grounded negative for:
• Bilge systems
• Steering systems
• Engine room ventilation
• Internal / External lights
• Engine room lights
• Navigation lights
• Navigation systems
• Mooring winches
• Sliding top and electrical flybridge door
Other small utilities
230V AC, single phase, 50Hz for:
• Monitoring system
• Air conditioning systems
• Galley appliances
• Battery chargers
Electrical outlets
Entertainment systems
Other small utilities
ELECTRICAL PANELS
Main electrical control panels are installed next to the nav station:
AC Change over
AC breakers for Comfort, Power and Aircon bus.
Battery switches
Navigation system switch
Multiplex modules
Main ON/OFF switches for DC equipment
Secondary electrical panels are installed in all the areas of the yacht. DC breakers panels in port and starboard hull
230V AC POWER SOURCES
Shore Power
One 230V AC, 50A shore in the transom
Power sources are protected by breakers
Each shore power line has a multi-meter (Volt, Amp, Watt, frequency).
A second shore power comes with the air-conditioning option: 230V AC, shore inlets
GENERATOR
One generator, 230V AC, 50Hz, 12V DC starter, with sound shield b electronic control panel located in the genset room. Power sources are protected by breakers.
INVERTERS
24/230V 2000 W inverter that supplies standard galley appliances as the main fridge and optional appliance as the salon entertainment system, wine cellar, cooker hood.
230V AC DISTRIBUTION
The AC distribution is split in three circuits:
Domestic:
Sockets (Saloon, cabins and technical compartments)
Microwave
Icemaker
Dishwasher
Stove
Fridge & freezer
Galley hob
Power:
Battery chargers
Water heathers
Microwave
Oven
Washing machine
Aircon:
Air handlers
Compressors
Sea water pump
Each appliance is protected by magneto/thermal breakers.
24V DC POWER SOURCES Batteries
Group of 24V batteries for services
Group of 12V batteries for port engine
Group of 12V batteries for starboard engine
12V battery for main generator
Alternators
24V 110Amp engine alternators are connected via load repartitor to
• service batteries
• engine batteries
MONITORING SYSTEM
Saloon dashboard display
IPAD displays
Fresh water level indicators and alarms
Fuel level indicators, alarms and management
Service battery indicators (Volt, Amp IN/OUT, Charge level, tension, intensity)
230V AC Source selection page with Volt, Amp, frequency
Tension indicator, Start/Stop control of the generator
Navigation lights control and monitoring
Interior/Exterior lighting control and monitoring (except heads and bed lights)
Electronics control
System status. Lighting system & Multiplex system monitoring and alarm status
4 Blades fixed propellers
Bow Thruster.
Electrical hydraulic steering system.
Engine throttles and control panel on port steering station on flybridge
FUEL SYSTEM
4 aluminium fuel tanks:
1,300 Iitres total (343 US Gallons), under floors forward of the engine rooms bulkheads
1,750 litres total (462 US Gallons), under floors forward in the forward cabins
Electronic sensor for level monitoring on the Ipad yacht management system
Fuel fillers caps and vents on aft cross beam
Equipment includes:
Fuel filter systems: pre-filter with water separator and primary filter
Remote fuel shut off valve in aft cabins
FRESH WATER SYSTEM
4 tanks 240 litres , (63 US Gallons)-960 litres (254 US Gallons) total - Under cabin floors
Fresh water tank levels are visible on the electronic management system IPAD at the wheelhouse dashboard.
Fresh water circuit with 2 x 24V pressure pumps (located in engine compartments)
2 x 63 litres (17 US Gallons) electric water heaters linked to engines heat exchangers
Transom shower (hot/cold) to starboard
2 water fillers on deck
Fresh water dock inlet (port side)
Black & Grey water system
BLACK WATER
1 holding tank per toilet 73 litres (19 US Gallons) with deck pump out or gravity drain to sea
Electric TECMA fresh water toilet in each head
GREY WATER
Shower and washbasin drain to grey water collection box (automatic pump out with float switch)
Sinks drain directly overboard
All the above figures are approximate
BILGE SYSTEM
24V AC electric pump control panel at nav station
1 electric bilge pump with auto float switch and manual override + bilge level alarm in each hull
2 manual bilge pumps for use from the cockpit
Self-bailing cockpit following EC regulation
1 electric bilge pump in each engine room with auto float switch
Bilge level alarm at nav station and helm station.
ELECTRICAL SYSTEM
General characteristics
Voltage system as follows:
24V DC with grounded negative for:
• Bilge systems
• Steering systems
• Engine room ventilation
• Internal / External lights
• Engine room lights
• Navigation lights
• Navigation systems
• Mooring winches
• Sliding top and electrical flybridge door
Other small utilities
230V AC, single phase, 50Hz for:
• Monitoring system
• Air conditioning systems
• Galley appliances
• Battery chargers
Electrical outlets
Entertainment systems
Other small utilities
ELECTRICAL PANELS
Main electrical control panels are installed next to the nav station:
AC Change over
AC breakers for Comfort, Power and Aircon bus.
Battery switches
Navigation system switch
Multiplex modules
Main ON/OFF switches for DC equipment
Secondary electrical panels are installed in all the areas of the yacht. DC breakers panels in port and starboard hull
230V AC POWER SOURCES
Shore Power
One 230V AC, 50A shore in the transom
Power sources are protected by breakers
Each shore power line has a multi-meter (Volt, Amp, Watt, frequency).
A second shore power comes with the air-conditioning option: 230V AC, shore inlets
GENERATOR
One generator, 230V AC, 50Hz, 12V DC starter, with sound shield b electronic control panel located in the genset room. Power sources are protected by breakers.
INVERTERS
24/230V 2000 W inverter that supplies standard galley appliances as the main fridge and optional appliance as the salon entertainment system, wine cellar, cooker hood.
230V AC DISTRIBUTION
The AC distribution is split in three circuits:
Domestic:
Sockets (Saloon, cabins and technical compartments)
Microwave
Icemaker
Dishwasher
Stove
Fridge & freezer
Galley hob
Power:
Battery chargers
Water heathers
Microwave
Oven
Washing machine
Aircon:
Air handlers
Compressors
Sea water pump
Each appliance is protected by magneto/thermal breakers.
24V DC POWER SOURCES Batteries
Group of 24V batteries for services
Group of 12V batteries for port engine
Group of 12V batteries for starboard engine
12V battery for main generator
Alternators
24V 110Amp engine alternators are connected via load repartitor to
• service batteries
• engine batteries
MONITORING SYSTEM
Saloon dashboard display
IPAD displays
Fresh water level indicators and alarms
Fuel level indicators, alarms and management
Service battery indicators (Volt, Amp IN/OUT, Charge level, tension, intensity)
230V AC Source selection page with Volt, Amp, frequency
Tension indicator, Start/Stop control of the generator
Navigation lights control and monitoring
Interior/Exterior lighting control and monitoring (except heads and bed lights)
Electronics control
System status. Lighting system & Multiplex system monitoring and alarm status
NAVIGATION EQUIPMENT
Simrad navigation centre including plotter, log speed, depth, GPS, wind speed & direction
Engine throttles at port helm station and navigation station
Radio DVD/CD/MP3 in each cabin
Simrad autopilot remote
2 Simrad screens at Nav station in the saloon and 2 Simrad screens at each helm on the flybridge
VHF with DSC
Compasses
TENDER
Highfield rib with100hp Mercury outboard engine
Hydraulic platform
Simrad navigation centre including plotter, log speed, depth, GPS, wind speed & direction
Engine throttles at port helm station and navigation station
Radio DVD/CD/MP3 in each cabin
Simrad autopilot remote
2 Simrad screens at Nav station in the saloon and 2 Simrad screens at each helm on the flybridge
VHF with DSC
Compasses
TENDER
Highfield rib with100hp Mercury outboard engine
Hydraulic platform
