- Make Lagoon
- Model Eighty 2
- Year 2025
- LOA 82ft/25m
- Class Multihull
- Hull Glass Reinforced Plastic
- Keel Multi-Hull
- Rig Sloop
- Engine Twin Diesel
- Drive Sail Drive
- Layout Aft Cockpit
- Ancasta Ref 47320

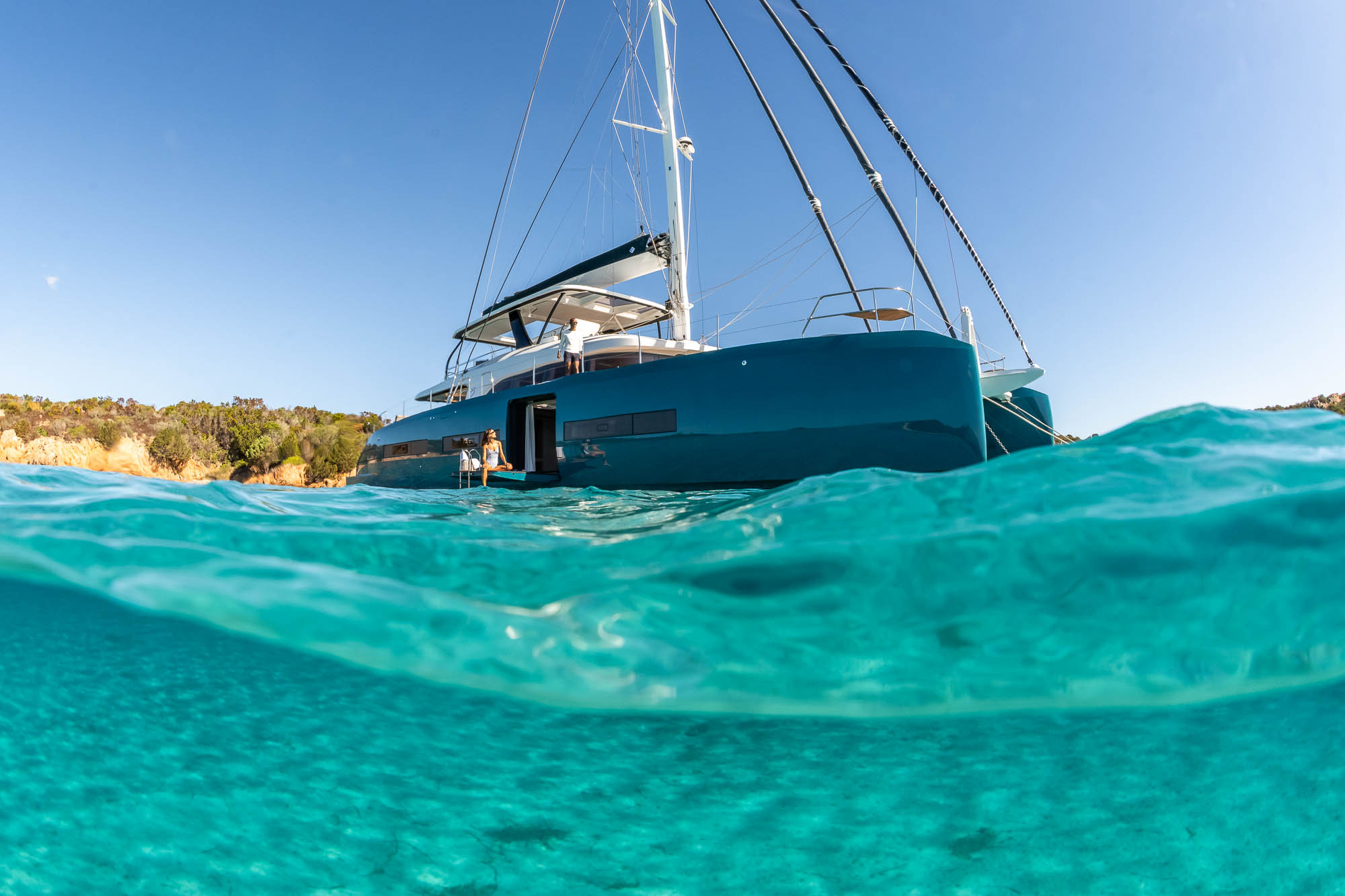

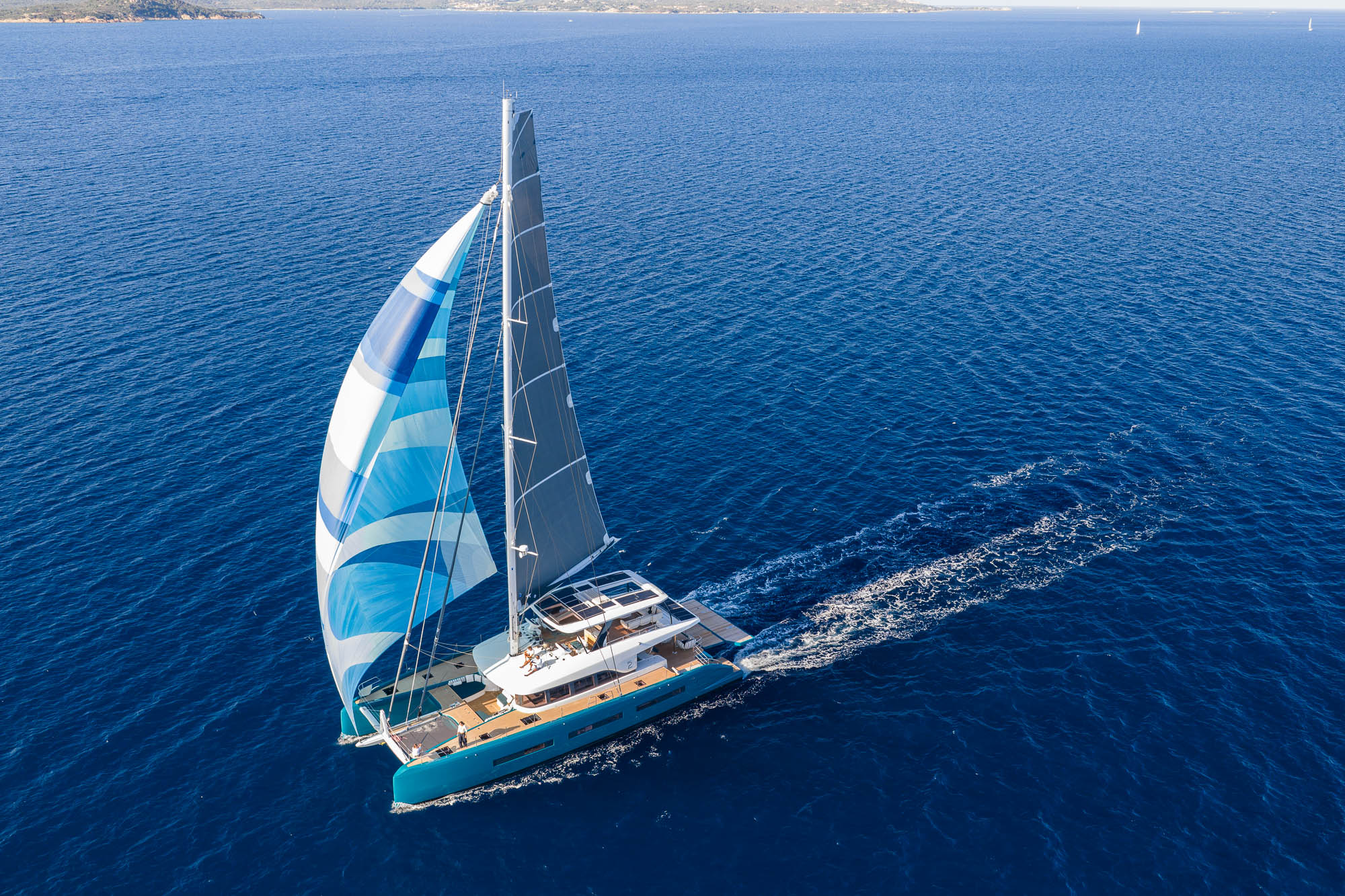

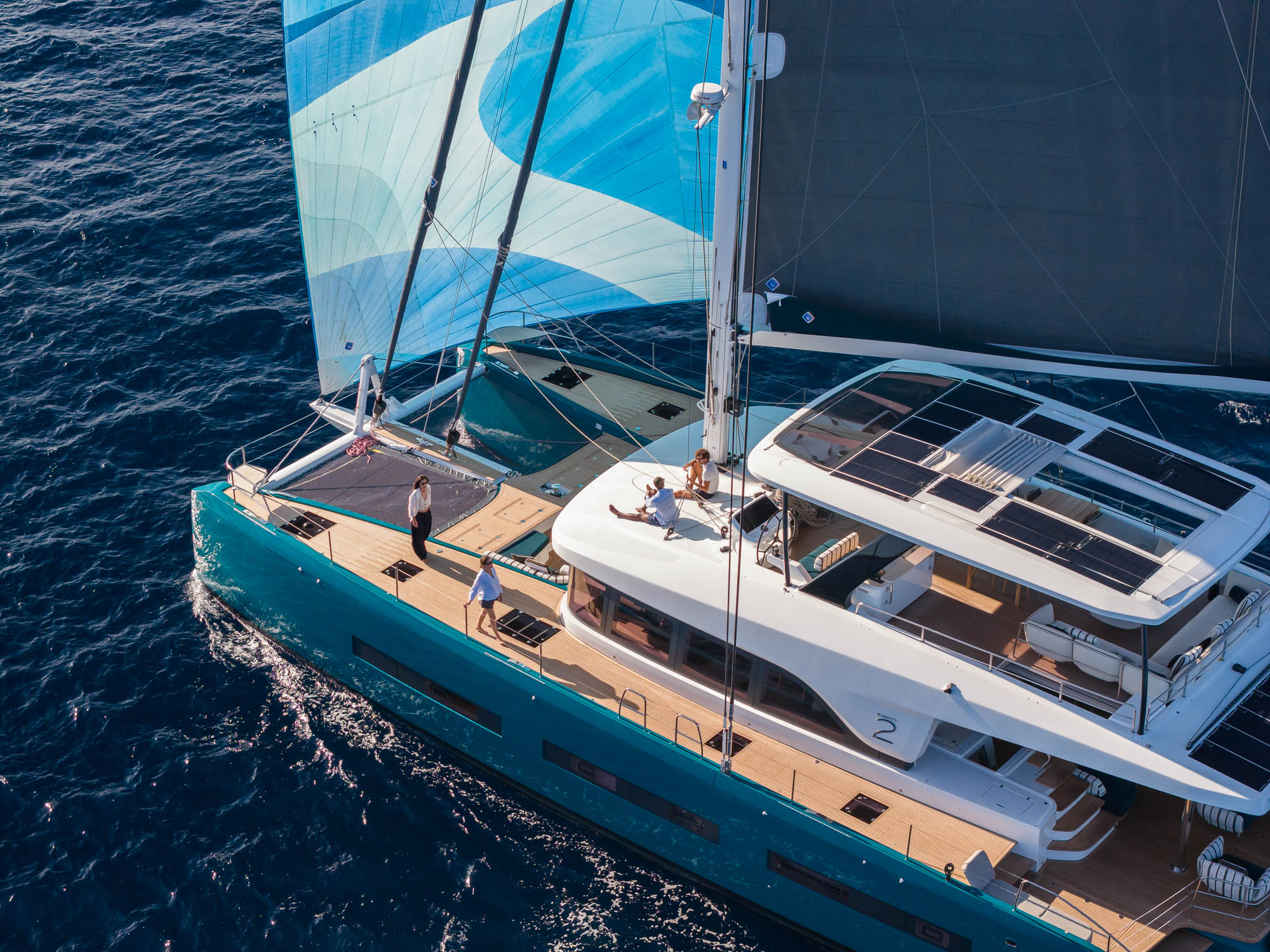

Lagoon Eighty 2 | 2025
6,770,999 Tax Not Paid
Introducing the brand new Lagoon Eighty2 launched at the Cannes Yachting Festival 2025. The very essence of the modern luxury cruising catamaran. Contact us today discuss this stunning new customisable flagship vessel.
Naval architect VPLP Design
Exterior design Patrick Le Quément
Interior design Nauta Design
Design category A : 14 - B : 18 - C : 24 - D : 40
Construction
Vinylester on hard layer
Bio-attributed and anti-osmotic resins on structural parts, hull, deck, roof.
Infusion process on balsa core
Hull bottoms and keels in solid infused laminate
Length overall 24,97 m / 81’9’’
Hull length 23,91 m / 78’4’’
Length on waterline 23,85 m / 78’3’’
Beam overall 11,00 m / 36’1''
Mast clearance 36,60 m / 120’1’’
Draft 1,90 m / 6’3’’
Light displacement (EC) 65 T / 143 300 lbs
Square top mainsail (optional) 221 m² / 2379 sq ft
Genoa (optional) 116 m² / 1249 sq ft
Staysail (optional) 62 m² / 667 sq ft
Code 0 (optional) 210 m² / 2260 sq ft
Asymmetric spinnaker (optional) 448 m² / 4822 sq ft

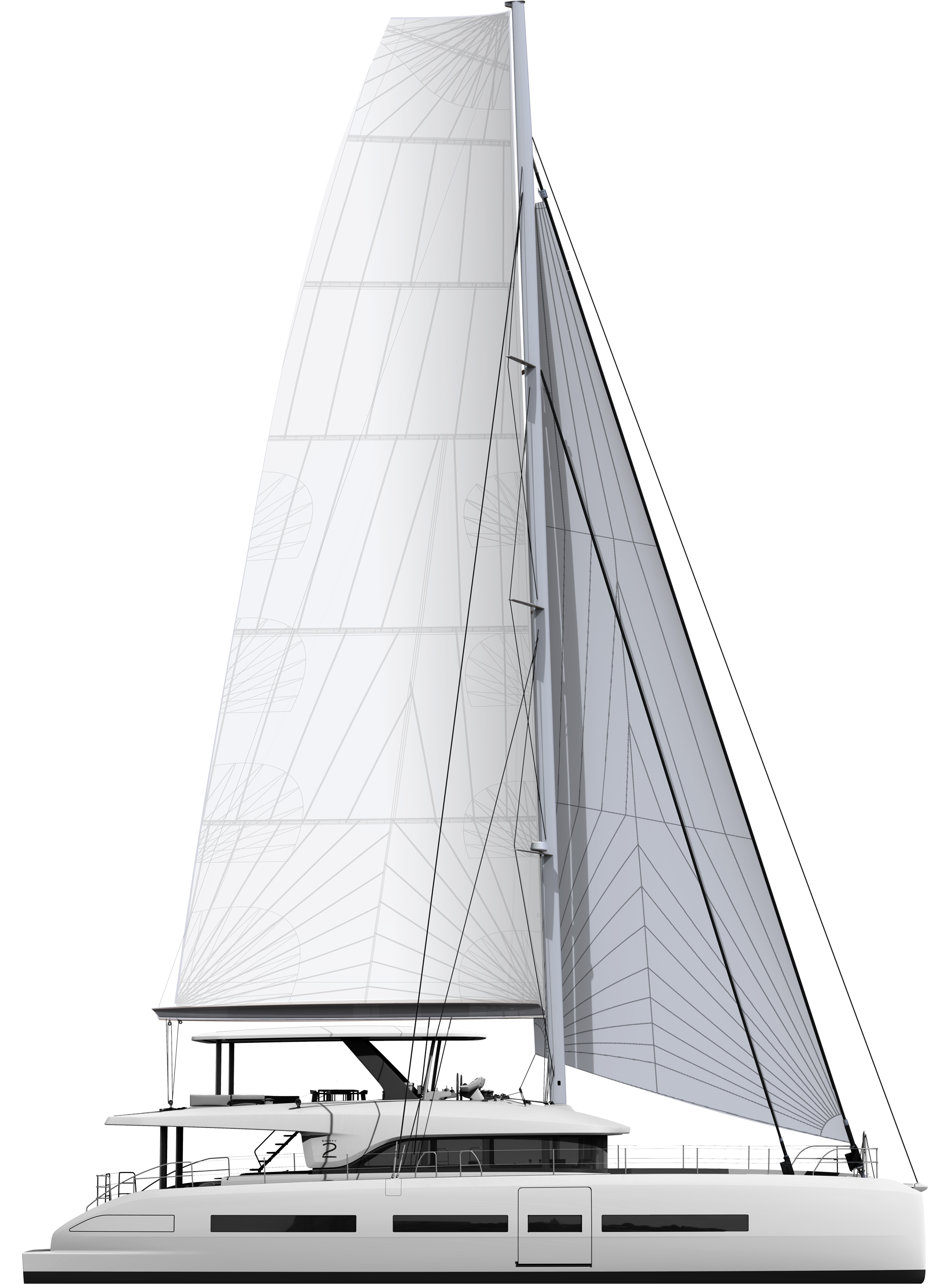

STANDING RIGGING
White-painted aluminum mast with 3 sets of spreaders
Spreaders lighting
Deck light on mast
White-painted canoe carbon boom with integrated spotlights
2 sheathed Kevlar® shrouds
2 sheathed Kevlar® lower shrouds
1 rod forestay for genoa with FACNOR hydraulic furling
1 rod forestay for staysail with FACNOR hydraulic furling
Adjustable lazy-jacks with spacers
RUNNING RIGGING
1 Dyneema® 2:1 main halyard
1 Dyneema® genoa halyard
1 Dyneema® staysail halyard
1 Polyester main halyard
1 Dyneema® boom topping lift
3 Dyneema® rear reef lines
3 Dyneema® front reef lines
Mainsheet led back to winch via boom
2 genoa sheets
2 staysail sheets

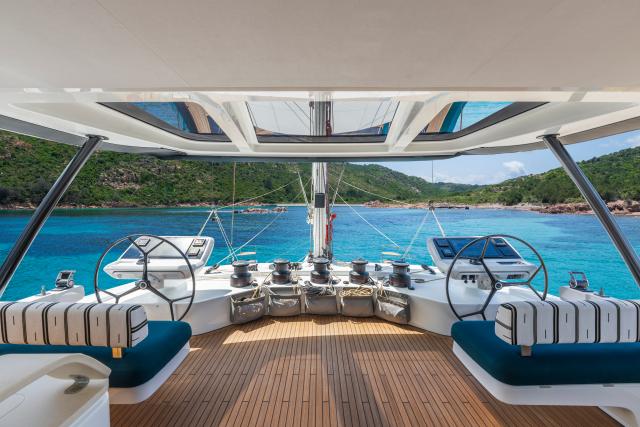

Deck hardware
5 x 24V 80.2 STEA electric winches. 4x two speeds, 1x three speeds for mainsail
ANTAL electric line driver 1000W LD for mainsail traveller
White-painted aluminum crossbeam with genoa hydraulic furler chain plate and anchor davit
Staysail hydraulic furler on longitudinal beam
Customisable layout with various cabin options and galley up/down layouts. Current specification based around 5 cabin owners layout with galley down.

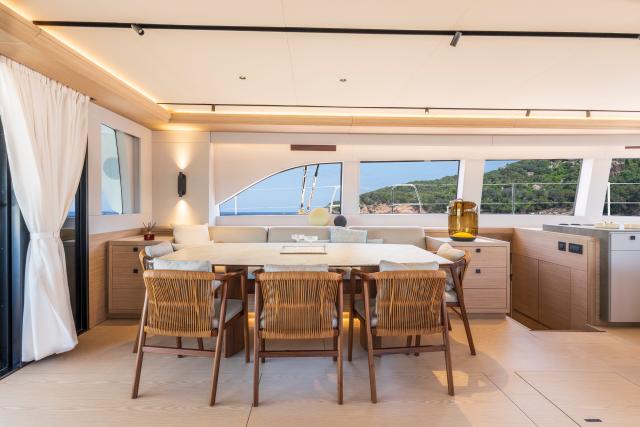

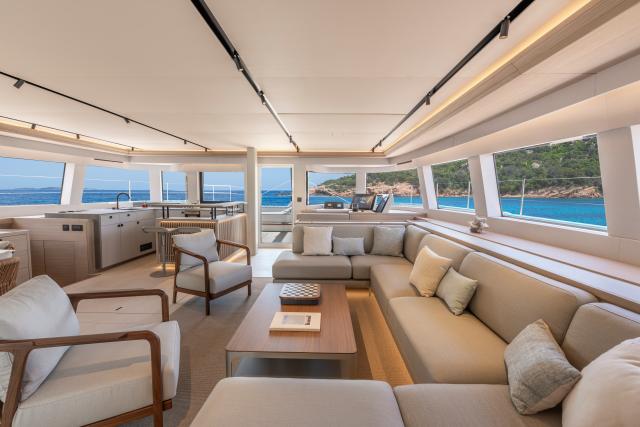

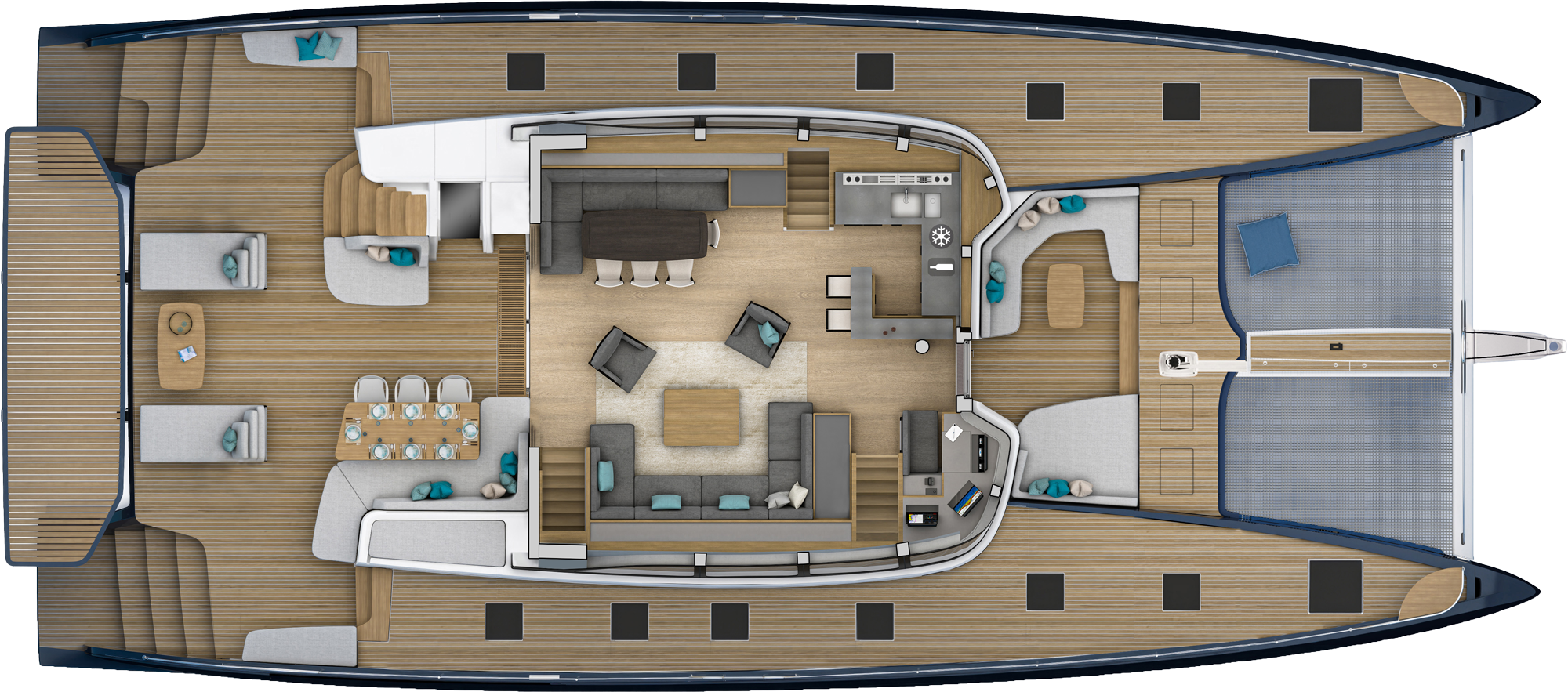

SALOON
TO PORT
On aft:
Sofa
Chairs
1 dining table
Storage furniture
On forward:
1 bar / day-galley with
Storages and lockers unit
Stainless steel galley accessories rack
1 sink
Countertop in laminam
Bar countertop with high chairs
1 manual retractable window
TO STARBOARD
U-shaped sofa
1 low table
1 storage unit
55'' retractable ceiling TV with 4 loudspeakers
CHART TABLE
Chart table furniture with: - - -
Electronics: with 2x AXIOM2 XL 22’’ Raymarine multifunction display with
keyboard, autopilot and VHFs.

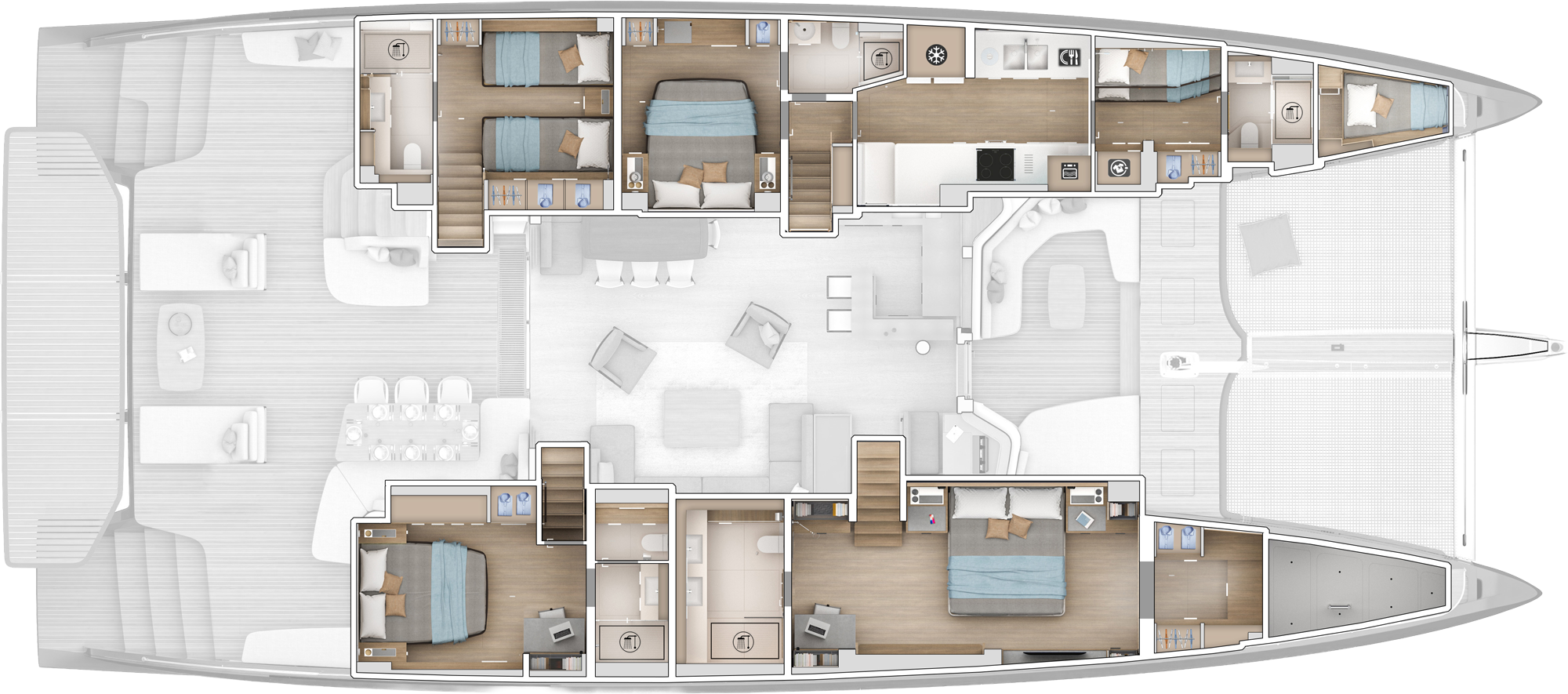

STARBOARD HULL:

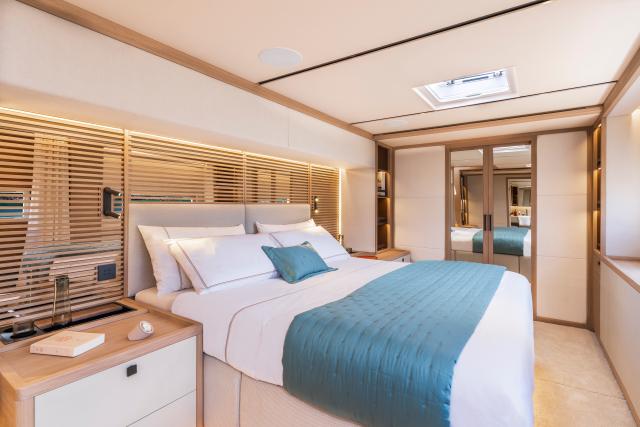

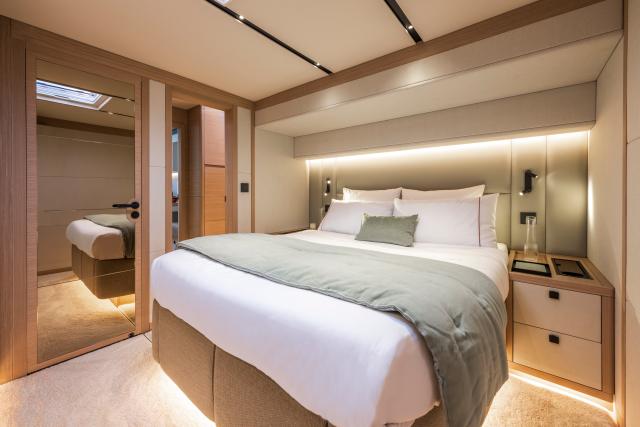

AFR CABIN:
1 island double bed (2.05 x 1.67 m/6’9’’ x 5’6’’)
2 storage drawers under the bed
2 bedside tables with power and USB plugs. Central compartment and 2 drawers on each side
1 unit with hanging locker in the upper section and shelf in the lower section
2 low-level units with 2 doors and 1 shelf each
Low-level unit with 2 doors and shelves
1 T60 opening deck hatch
1 PMMA fixed hull window with 1 integrated T3 opening hull port
Electric blackout roller blinds
AC (and HI-FI when selected) control
Aft head:
Laminam countertop with integrated washbasin
Hot and cold water mixer tap
High-level locker with 1 mirrored door and 3 cubbyholes
Low level storage unit with 2 drawers
Separated shower, peripheral draining and toughened glass swing doors
Head shower and additional hand shower
1 PMMA fixed hull window with 1 integrated T3 opening hull port
Electric blackout roller blinds
Separated toilet : - -
1 large storage unit with 2 mirrored doors with 4 shelves in the upper section and 2 drawers and 2 doors with shelves in the lower section
Electric freshwater toilet (Tecma)

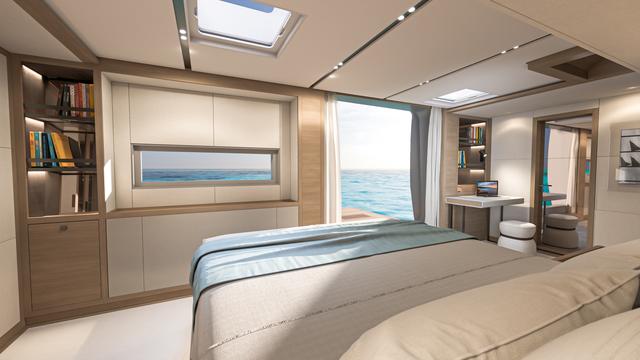

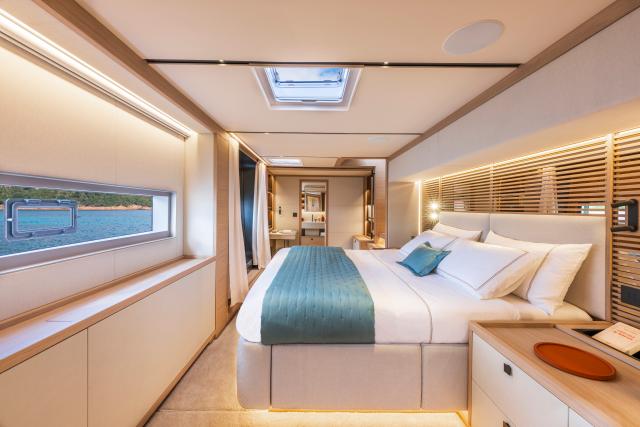

OWNER’S SUITE
Access from the forward salon, through a wooden sliding door
1 island double bed (2.05 x 1.80 m/6’9’’ x 5’11’’)
1 bedside table with power and USB plugs. Central compartment and 2 drawers below
1 bedside table with central compartment and 4 drawers and a bookcase in the upper section
2 storage drawers under the bed
1 unit with 2 drawers in the lower section and bookcases in the upper
1 desk “loose furniture” design
1 stool
T60 opening deck hatches
2 PMMA fixed hull windows with 1 integrated T3 opening hull port
Electric blackout roller blinds
HIFI sound & video system
AC (and HI-FI when selected) control

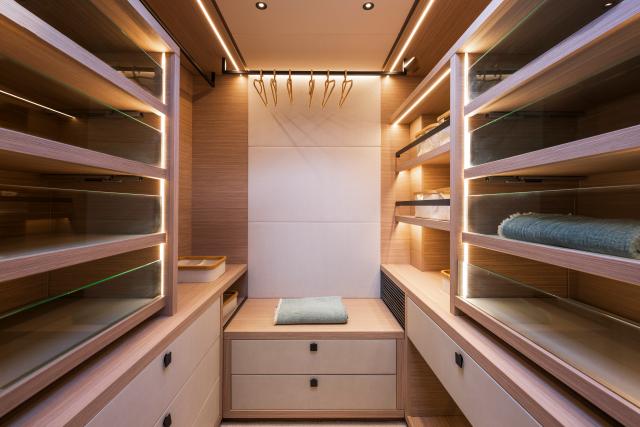

Dressing :
Hanging lockers
6 sliding shelves with leather insert and Plexiglas fiddle
3 drawers inboard side
2 drawers under hanging lockers
Trouser rack
1 T60 opening deck hatch

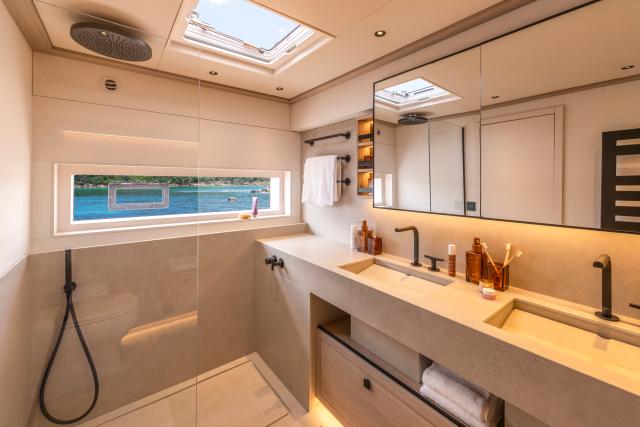

Owner’s head:
Laminam countertop with integrated double washbasin
Wall panels and flooring in Laminam
High-level locker and low-level locker
Electric freshwater toilet (Tecma)
Separated shower, peripheral draining and toughened glass door
Head shower and additional hand shower
1 T60 opening deck hatch
1 PMMA fixed hull window with 1 integrated T3 opening hull port
PORT HULL

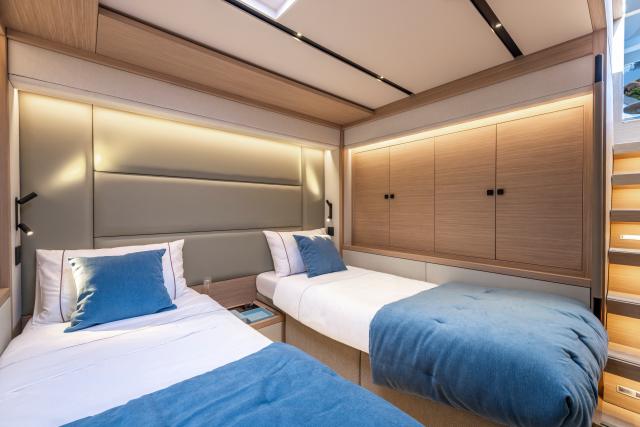

Aft cabin:
2 single beds with side access (2.05 x 0.90 m/6’9’’ x 2’11’’, sliding and convertible into one double bed
1 central bedside table with central compartment, power and USB plugs
2 bedhead wall lamps
1 drawer under each bed
1 hanging locker – outboard side
1 storage locker– inboard side
1 T60 opening deck hatch
1 PMMA fixed hull window with 1 integrated T3 opening hull porthole
Electric blackout roller blinds
AC (and HI-FI when selected) control
Aft head:
Corian® countertop with integrated washbasin
Hot and cold mixer tap
High-level locker with 1 mirrored door and niches
Low-level locker with doors
Separated shower, peripheral draining and toughened glass swing doors
Head shower and additional hand shower
Electric freshwater toilet (Tecma)
Mid-ship cabin:
1 island double bed (2.05 x 1.67 m/6’9’’ x 5’6’’)
2 storage drawers under the bed
2 bedside tables with power and USB plugs. Central compartment and 2 drawers below
1 desk
1 stool
2 bedhead wall lamps
1 hanging locker and 1 storage unit on each side of the desk - outboard side
1 T60 opening deck hatch
1 PMMA fixed hull window with 1 integrated T3 opening hull porthole
Electric blackout roller blinds
AC (and HI-FI when selected) control
Mid-ship head:
Access from companionway as day head and from cabin
Corian® countertop with integrated composite washbasin
Hot and cold mixer tap
High-level locker with 1 mirrored door and 3 cubbyholes
Low-level locker with 2 doors
Separated shower, peripheral draining and toughened glass swing doors
Head shower and additional hand shower
Electric freshwater toilet (Tecma)
1 T60 opening deck hatch
Forward galley:
Access from the port forward companionway
Large opening deck hatch for direct access from the deck through a retractable electrical staircase
1 PMMA fixed hull window with 1 integrated T3 opening hull port
AC (and HI-FI when selected) control
Combined refrigerator/freezer with integrated icemaker (Samsung – Volume
409L/225L // 108 US gal/60 US gal
1 dishwasher (Miele)
Corian® countertop with stainless steel double sink and hot and cold mixer tap
2 doors locker under sink
1 waste receptacle with access from above and door at front
1 door low-level unit with shelves
1 low-level unit with 4 drawers
High-level lockers with flaps
1 PMMA fixed hull window with 1 integrated T3 opening hull port
Corian® countertop
Corian® dining table with bench seat and storage
1 x 4-burner induction hob 230V (Miele) and pan clamps
1 electric oven (Miele)
1 extractor hood (Electrolux)
High and low-level lockers with doors, shelves and drawers
Crew cabin
2 bunk beds (2.05 x 0.90 m/6’9’’ x 2’11’’)
1 drawer under the below bed
1 hanging locker and 1 storage unit – inboard side
High- and low-level lockers
1 washer/dryer (Miele)
1 T60 opening deck hatch
AC (and HI-FI when selected) control
Crew head
Corian® countertop with integrated washbasin
Hot and cold mixer tap
High-level locker with 1 mirrored door and 3 niches
Low-level locker with 2 doors
Separated shower, peripheral draining
Head shower and additional hand shower
Electric freshwater toilet (Tecma)
Access door to forepeak
Forepeak:
Access through deck hatch and from the crew cabin
1 berth
Furniture
Reverse cycle chilled water air conditioning with control
ENGINE
Engines 2x John Deere N5-230 HP
TANKAGE
Fresh water capacity 2 x 800 l / 2 x 211 US gal
Grey water capacity 2 x 300 l / 2 x 79 US gal
Fuel capacity 2 x 1,400 l / 2 x 370 US gal
Fresh water system
Freshwater tanks: 2 x 800 liters / 2 x 211 US Gal with gauge at general distribution panel
Freshwater system with 2 x 24V 50L/min pumps
Hot water system with 2 x 100 liters / 2 x 26 US Gal water heaters with 230V heating element and engine heat exchanger
UVOJI water purifier solution in galley down and bar in salon
Freshwater fillers on deck
Freshwater intake on starboard transom
Freshwater/seawater deck wash pump outlet at forward cockpit
Freshwater wash pump at aft cockpit and outlet at flybridge
Grey water and black water systems
GREY WATER
Grey water tanks : 2 x 300 liters / 2 x 79 US Gal with gauge at general distribution panel
Shower/washbasin and galley sink drained to grey water tank and automatic pump
Manual and/or automatic tanks draining from the general panel
Rainwater drains directly into the sea
BLACK WATER
TECMA Silence Plus electric freshwater toilet in each head (24V)
Black water tanks :
Port: -
1 holding tank per toilet (73 liters)
Starboard: -
1 common holding tank for owner and guest heads (320 liters)
Tank levels are monitored from the main panel
ELECTRICAL SYSTEM
ELECTRICAL PANELS:
Main AC & DC panels in the port forward companionway
Secondary AC & DC electrical panels installed in all areas of the vessel 230V AC, 50HZ SOURCES FOR:
Shore power supply : 63 Ah
Shore power Air conditioning supply : 63 Ah
Alternators: 24V 2x 150 Ah
Inverters: VICTRON 2 kVA 24/230V
Generator: MASE 17,5 kVA located in starboard engine compartment 24V DC SOURCES
WITH NEGATIVE GROUND FOR:
Batteries - - -
Service batteries : Lithium 24V 1200 Ah
Engine starting batteries: 12V 75 Ah
Generator starting batteries: 12V 75 Ah
Battery charger : VICTRON 230V 100 Ah
230V AC DISTRIBUTION:
Service battery chargers
Engine starting battery charger
Bow thruster battery charger
Water maker (option)
Water heater
HiFi and video: salon, cockpits, flybridge & owner cabin per standard and options
Ice-maker in the galley/bar
Refrigerator in the galley/bar (optional)
Wine cooler in the galley/bar (optional)
Electrical appliances in the galley down
Oven
Hob
Extractor hood
Microwave oven (optional)
Coffeemaker (optional)
Electrical appliances in crew cabin:
Dishwasher
Washer-dryer
Exterior electrical appliances:
Ice-maker in flybridge
Refrigerator in flybridge and aft cockpit
Grill in flybridge
Sound, HiFi & Video system
Aft cockpit : 4 loudspeakers
Forward cockpit : 2 loudspeakers
Flybridge : 2 loudspeakers
Salon: 55'' retractable ceiling TV with 4 loudspeakers
Owner cabin: Hifi sound with 2 loudspeakers & 43" TV with electric lift
Air Conditioning
WEBASTO Low Consumption air conditioning system
Reversed A/C system, Heating and Cooling mode
156 000 BTU (output capacity)
BlueCool series - VX72 with 2 compressors :
Eco cooling liquid: R32 (GWP 675)
Increased capacity modulation up to 9% of rated capacity
Energy efficiency ratio (EER / COP) up to 5.6
Titanium condenser
Quiet mode (Option “UPGRADE LITHIUM BATTERIES” compulsory)
Lighting
Engine and generator compartment:
2 x 24V DC neon lamps in the engine and generator compartment

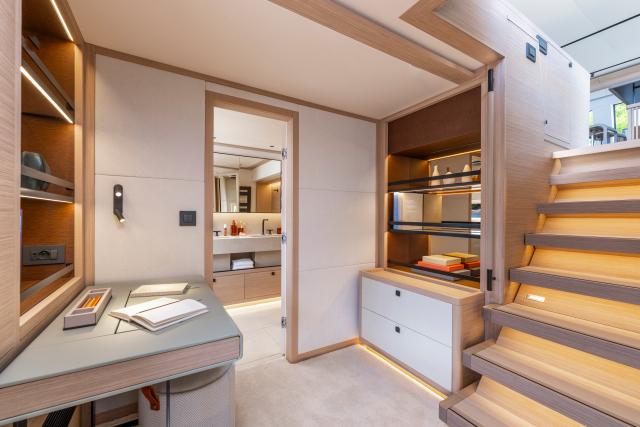

Owner, VIP and guest cabins:
LED spotlights and LED striplights in the ceiling
LED lamps at the bedhead
LED courtesy striplights under the shelves and the furniture
Saloon:
LED spotlights and LED striplights in the ceiling
LED courtesy striplights under the shelves and bar cabinet
Galley:
LED spotlights and LED striplights under the furniture
Heads:
LED spotlights and LED striplights under the furniture
Ventilation and extraction system
INTERNAL VENTILATION
Each cabin has at least two sources of natural ventilation
Each head has at least one source of natural ventilation
Heads equipped with an extractor fan for the toilets with a dedicated control
Ancasta are acting as brokers for the vendor who is not selling in the course of business unless otherwise stated. These details are prepared from information provided by the vendor and are intended only as a guide to give a fair description of the vessel but their accuracy cannot be guaranteed and they do not constitute part of any contract.
A prospective buyer is strongly advised to check the particulars and to have the vessel fully surveyed by a qualified marine surveyor. Details are supplied on the understanding that all negotiations shall be through Ancasta brokerages. This vessel is offered subject to prior sale, price change or withdrawal without notice. Please Note: where the vessel’s status shows as “Preliminary”, details of the vessel have not yet been confirmed by the Vendor.
Sign in or register an account to start saving boats
Don't have an account? Register
