Beneteau Oceanis Yacht 54

570,419 Tax Not Paid
Enquire

Summary

  • Make Beneteau
  • Model Oceanis Yacht 54
  • Year 2021
  • LOA 56ft/17m
  • Class Sailing Cruiser
  • Hull Glass Reinforced Plastic
  • Keel Fin Keel
  • Rig Sloop
  • Engine Single Diesel
  • Drive Sail Drive
  • Layout Aft Cockpit
  • Berths 6
  • Cabins 3
  • Aft Cabins 2
  • Ancasta Ref 35771
  • Name Beneteau Oceanis Yacht 54

Overview

The highly anticipated Oceanis Yacht 54 is the newest addition to the Yacht range and Ancasta are delighted to offer this model for Spring 2021! The specification included is extensive and customisable, specific to your needs.

The hull is used from the high performing First Yacht 53, which makes sailing a pleasure in all weather and lively, even in light air. Her straight bow takes on little water forming a fine spray and she has twin rudders for perfect hull control making her a joy to helm.

She has a fully re-designed cockpit layout with exemplary circulation: safe easy movement with the comfortable area not just limited to the cockpit and perfect access to the gangways aft of the helm stations for the skipper and crew members. The mainsail arch improves comfort on board, with an open cockpit free of all rigging, all leading aft.

Her distinctive profile draws the eye and her interior is an immediate success. Beneteau have done a fantastic job with making you comfortable: a cockpit in which to lay back in relax, a spacious helm station, a really comfortable saloon, a spacious chart table with seat you can rest on, a galley with lots of storage space and top quality appliances.

Contact Ancasta Port Hamble on hamble@ancasta.com or call +44 (0) 2380 450 000 for further details.

Video

Build

2021 BENETEAU OCEANIS YACHT 54 BUILT BY BENETEAU, FRANCE
Naval Architect: BISCONTINI YACHT DESIGN
Exterior & interior design: LORENZO ARGENTO
Luxe trim level 2021

CONSTRUCTION
Pearl grey hull - white transom & toerail
Deep iron keel - attached with bolts and bonded stainless steel backplate
Solid teak deck
Balsa sandwich infusion hull
Vacuum infused structural inner liner (Fabrics - resin) bonded to the hull
Deck in glass fibre/balsa wood sandwich infusion, with non-slip "diamond point" surface
Twin rudders hung with stainless steel stock

L.O.A 17,12m 56’2’’
Hull length 15,98m 52’5’’
L.W.L. 15,40m 50’6’’
Beam 5,00m 16’5’’
Standard draft (T-keel) 2,50m 8’2’’
Standard ballast weight (Cast iron) 4 500kg 9,918 lbs

Category A - 10 people
Category B - 12 people
Category C - 14 people

All figures are approximate

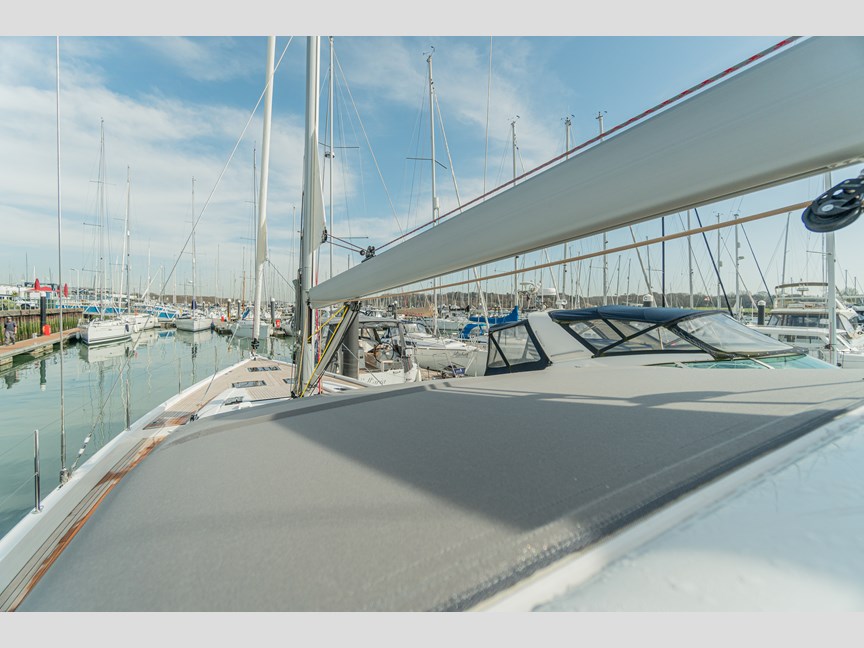

Rig

ALUMINIUM MAST WITH IN-MAST FURLING DECK STEPPED, 2 AFT SWEPT SPREADERS
Self-tacking jib track with traveller

RIGGING
Split backstay (Hydraulic optional extra)
Single-strand rigging
Anodised aluminium boom
Harken blocks at mast foot
Rigid boom vang with tackle
2 Stand-up blocks for mainsail sheet on mainsail cradle
1 Self-tacking jib track with traveller
All lines brought back to the helm stations (except boom uphaul and
Genoa halyard)
Complete running rigging:
- Main halyard
- Genoa halyard with on-mast tensioner
- Boom topping lift with cleat on mast
- Mainsheet
- 1 Self-tacking jib sheet
Mainsail furtler and self-clinching jib furler on deck
7 Halyard clutches (1 triple to starboard, 2 doubles to port)
Halyard covers
1 Flag halyard

WINCHES
1 Manual self-tailing winch to starboard (H50.2 STA)
1 Port side electric self-tailing winch (H50.2 STA) (luxe trim)
1 Aluminium Speed Grip winch handle
Stowage of which handles in dedicated space in rope bags
Optional Electric Genoa Sheet Winches
Optional Electric halyard winch upgrade - starboard

OCEANIS YACHT 54 UP & DOWNWIND PACK:-
German mainsheet system
2 additional clutches to port
2 additional clutches to stbd
2 genoa sheet winches
Asymmetric spinnaker / Code 0 gear
Dacron genoa on furler
Genoa sheet tracks on side decks

SAIL DIMENSIONS
Furling mainsail 63,00m² 678 sq/ft
Furling genoa (105 %) 65,00m² 700 sq/ft

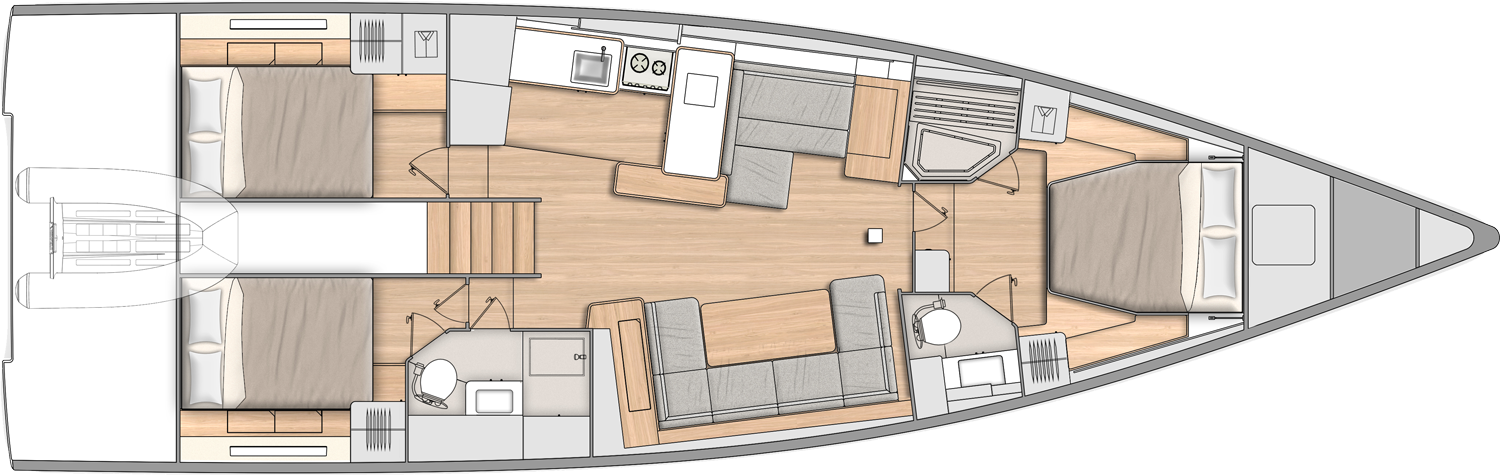

Accommodation

SLEEPS UP TO SIX IN THREE DOUBLE CABINS (3 CABINS 2 HEADS) WITH FULL AIR CONDITIONING THROUGHOUT
Lounge greige 160 upholstery in saloon
Gloss oak alpi interior finish

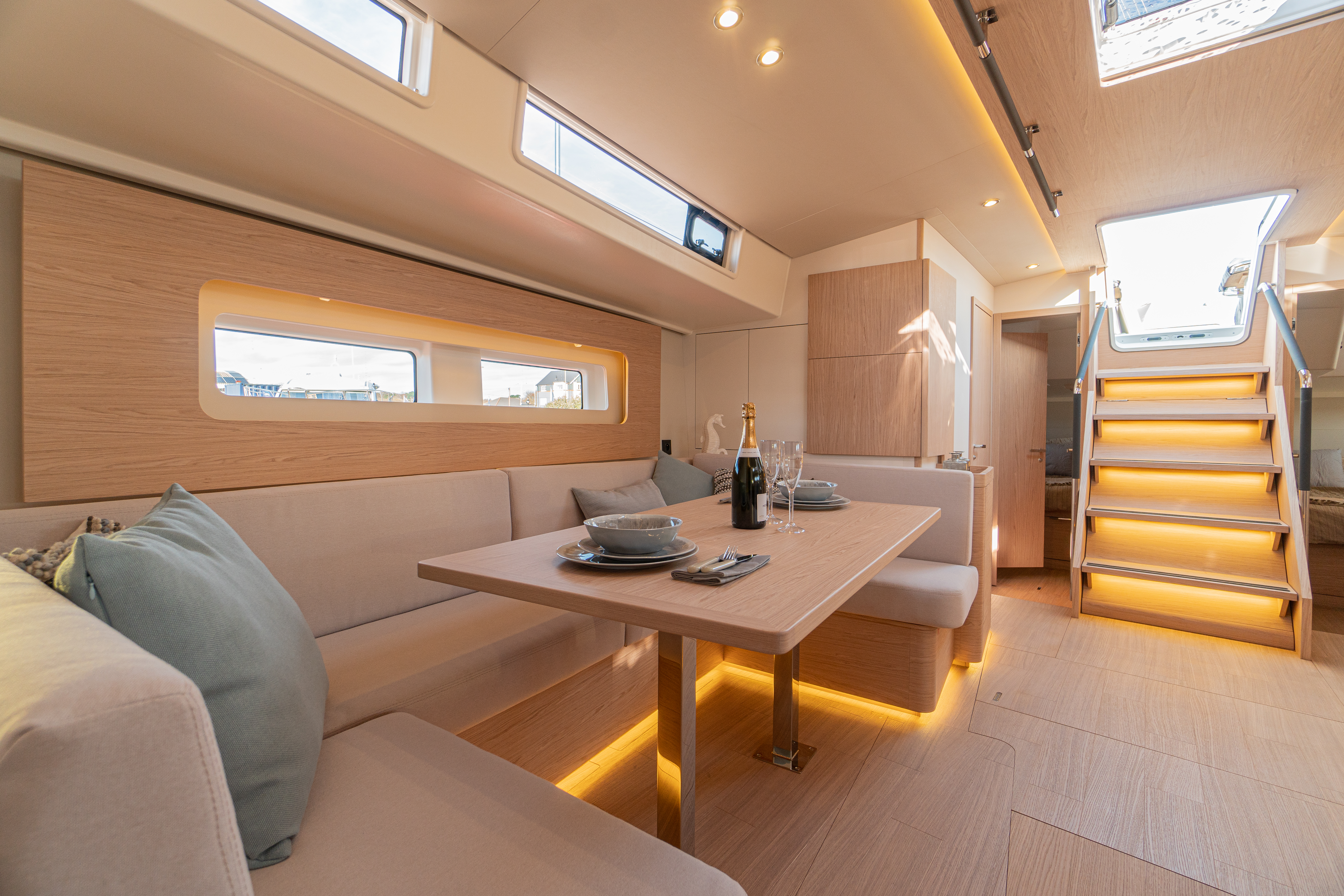

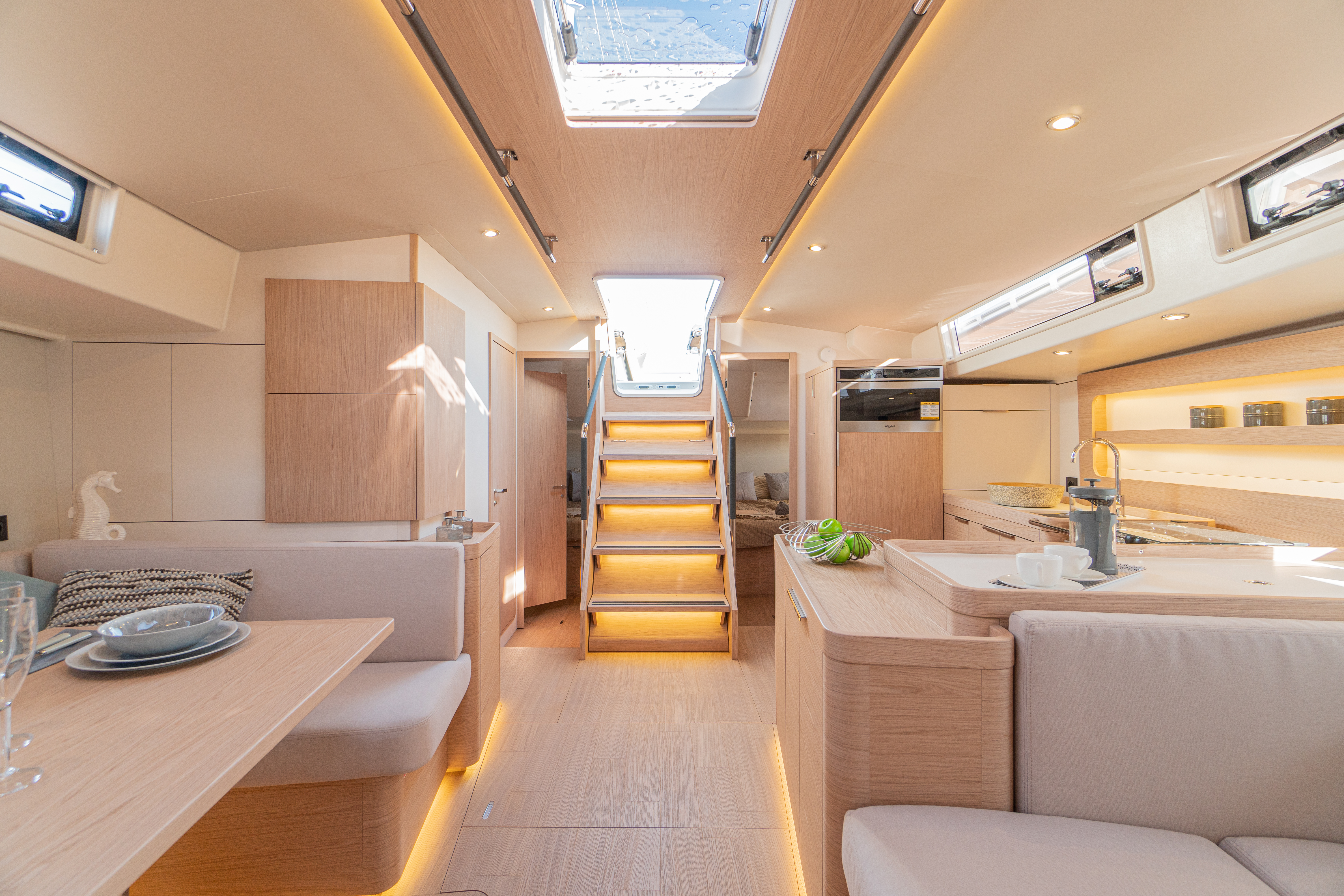

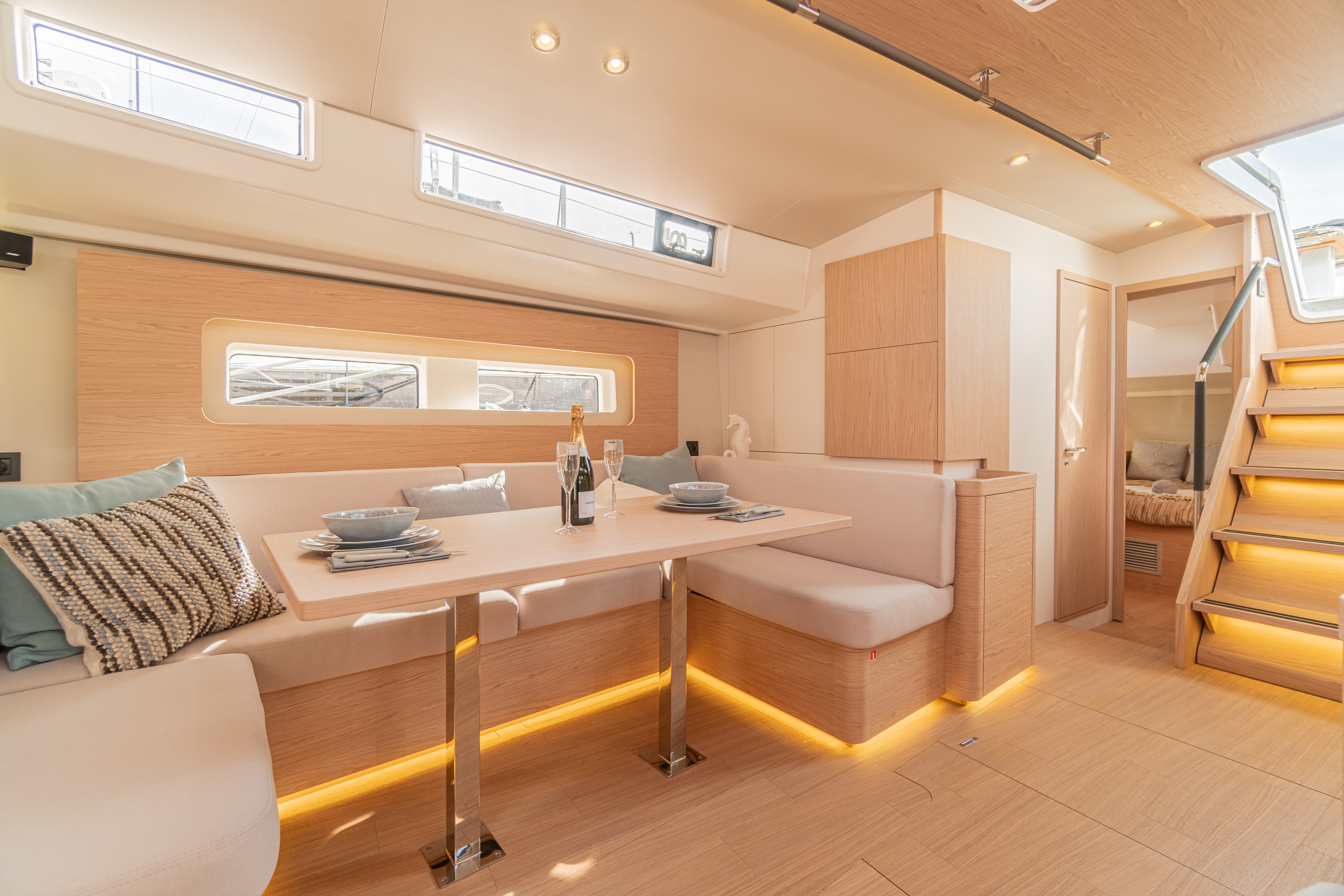

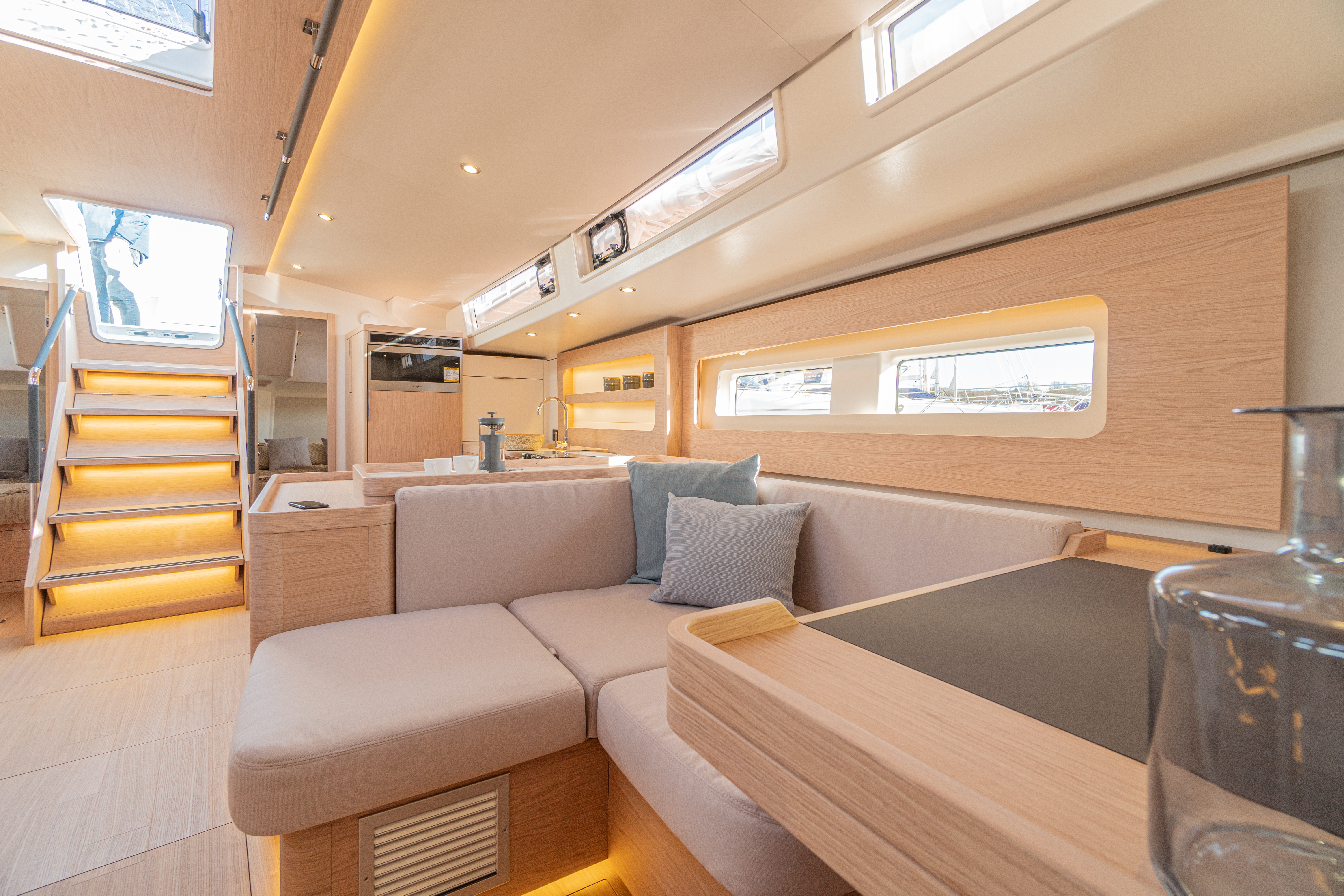

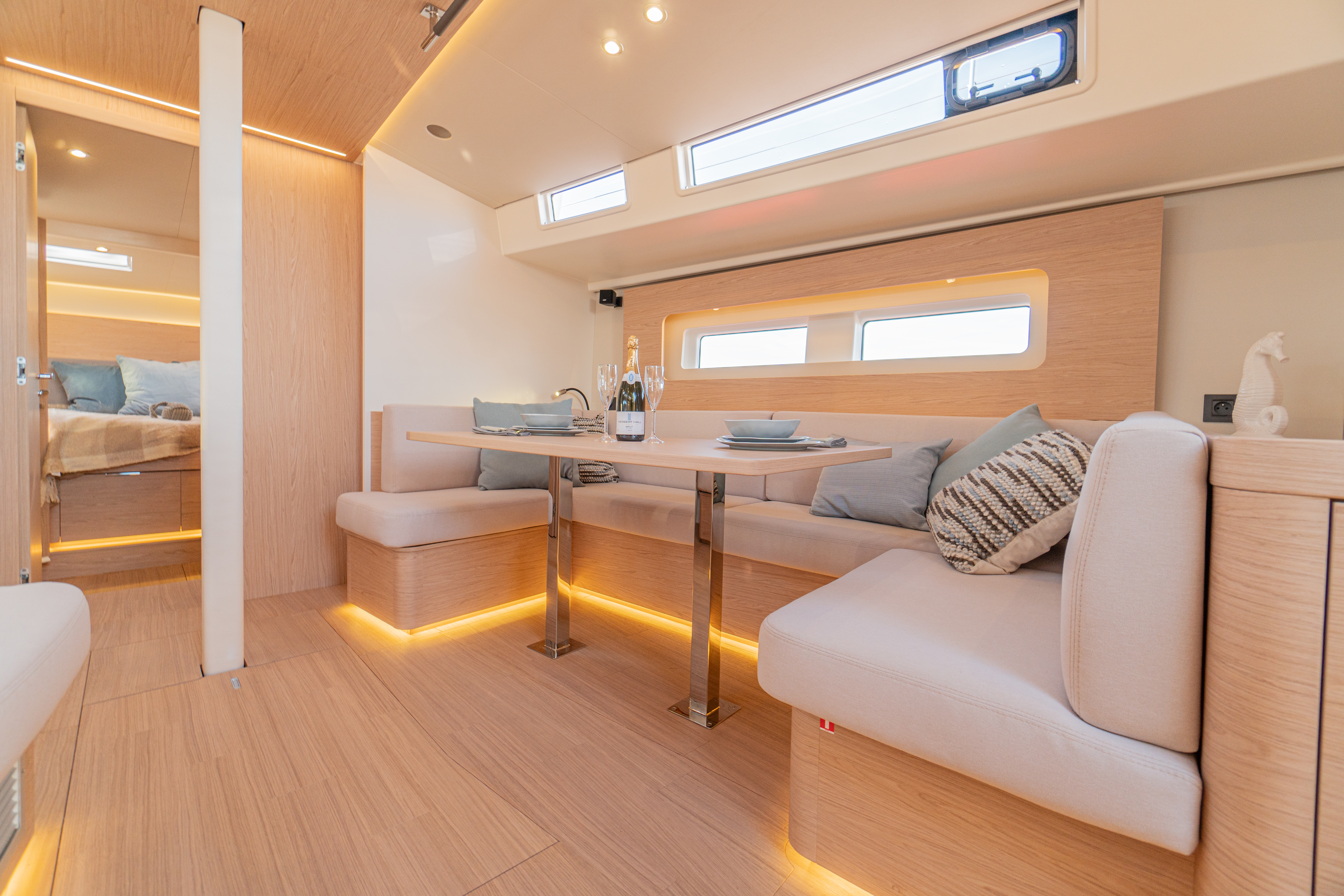

SALOON
Headroom: 2,00 - 1,97m / 6’7’’ - 6’6’’
Bose Speakers in Saloon
Long U-shaped bench seat
Saloon table, wooden top, 2 fixed aluminium legs
Storage under bench seats
Electrical panel to starboard incorporated into a piece of furniture for access to electrical connections
2 Portholes with integrated blind
2 Coach roof windows with pleated blinds including opening porthole with mosquito net
2 Opening deck hatches with mosquito screen/blinds
Indirect LED lighting below the bench seat and the upper part of the portholes
1 Adjustable reading light
1 USB port dual port
1 230V socket
Audio:Fusion RA70N entertainment system with 2 Interior loudspeakers
Tecma electric sea/fresh water flush in owners cabin
Sprung mattress in owner's cabin

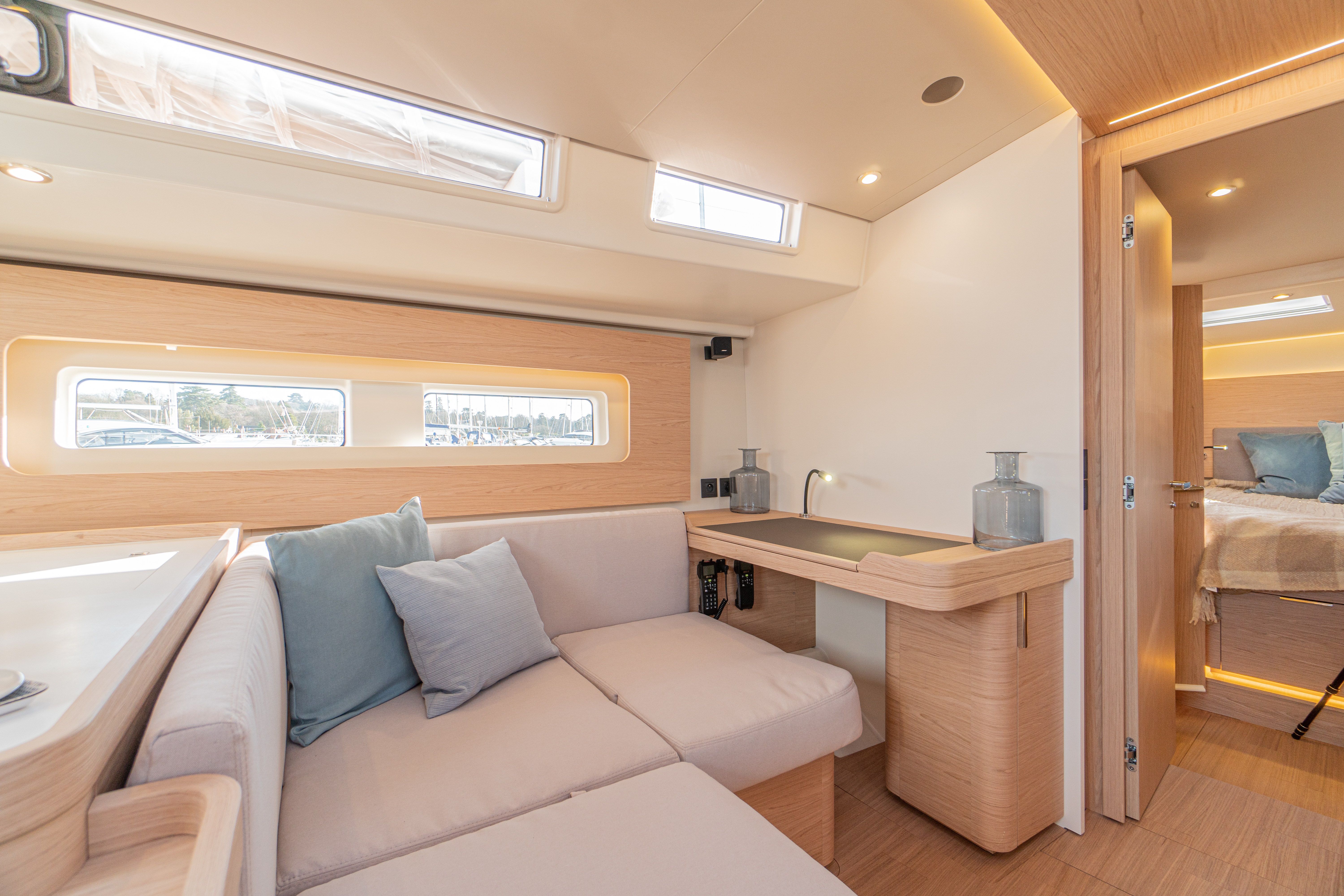

CHART TABLE with storage- moulded wood fiddle - Laminated covering
Long bench seat with back, chaise-longue function and seat with
reclining part to match the list - Seat made from H35 foam + memory
material + 2 trim padding
Storage under bench seats
1 230V socket, close to forward bulkhead
1 USB port dual port

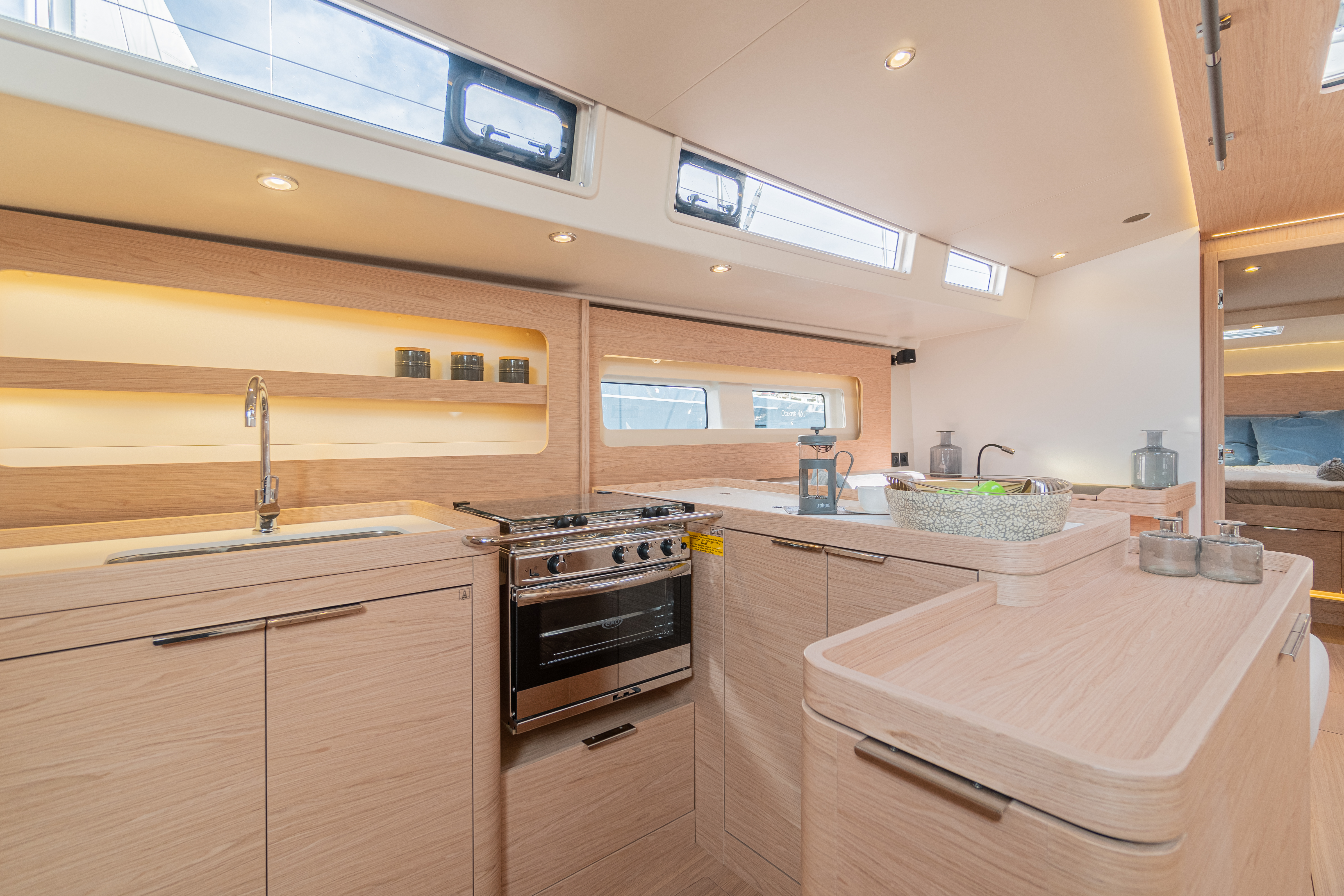

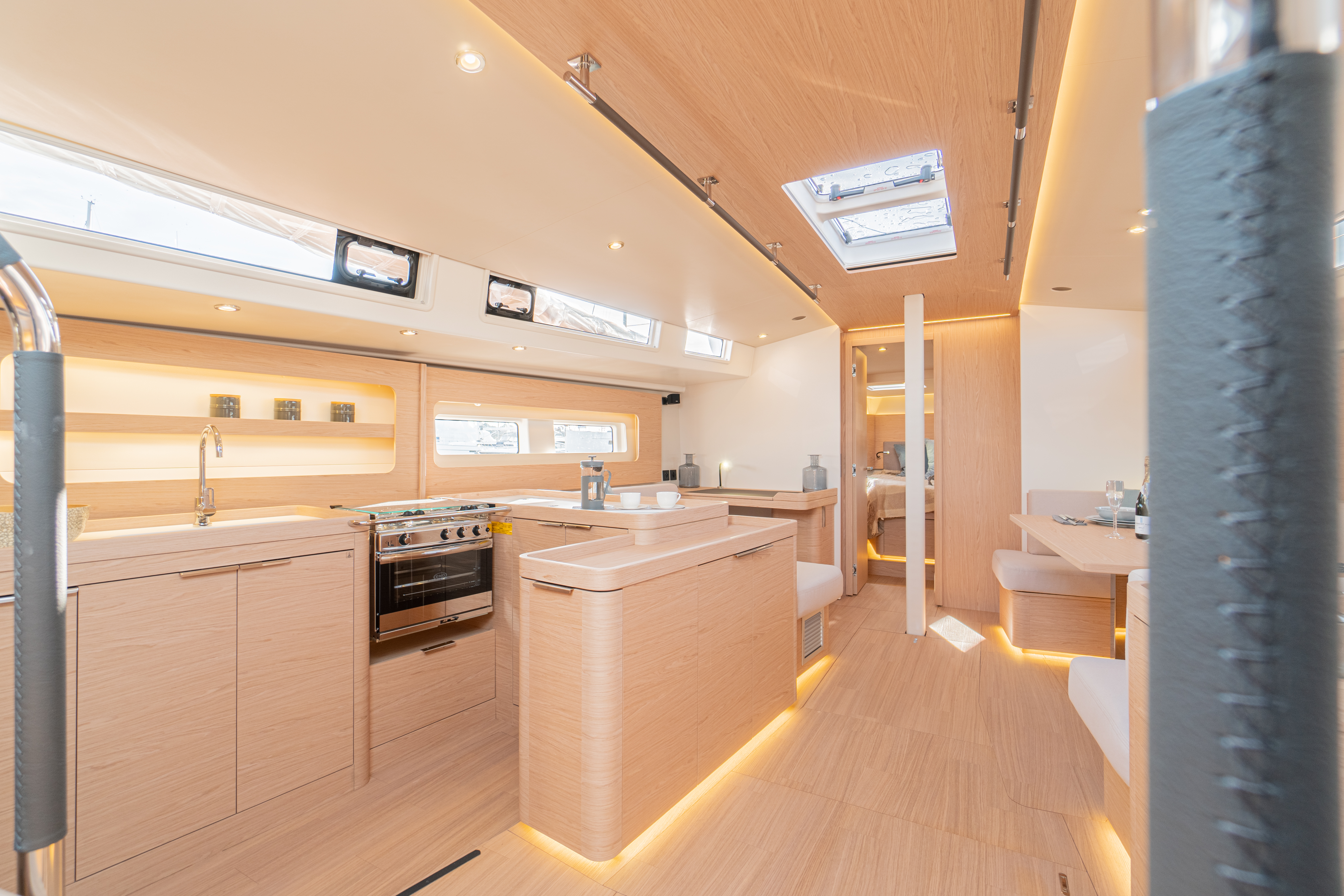

GALLEY
C-shaped galley
Corian Glacier White work surface with Apli walnut moulded rails
1 rectangular stainless steel sink - 1 Mixer tap with hot/cold water
under pressure
Gas cooker 3 burners - Stainless steel grill and oven swivels (17L)
Stowage on work top with top opening (Space for optional 36 L
stainless steel cool box, included in the Luxe trim level)
12 V 174 L fridge with integrated 16 L freezer (-18 °C), 1 Front opening door
1 Bin (20L)
220v Microwave
220v washer-dryer (3kg)
36L coolbox in galley worktop (+10deg to -12deg)

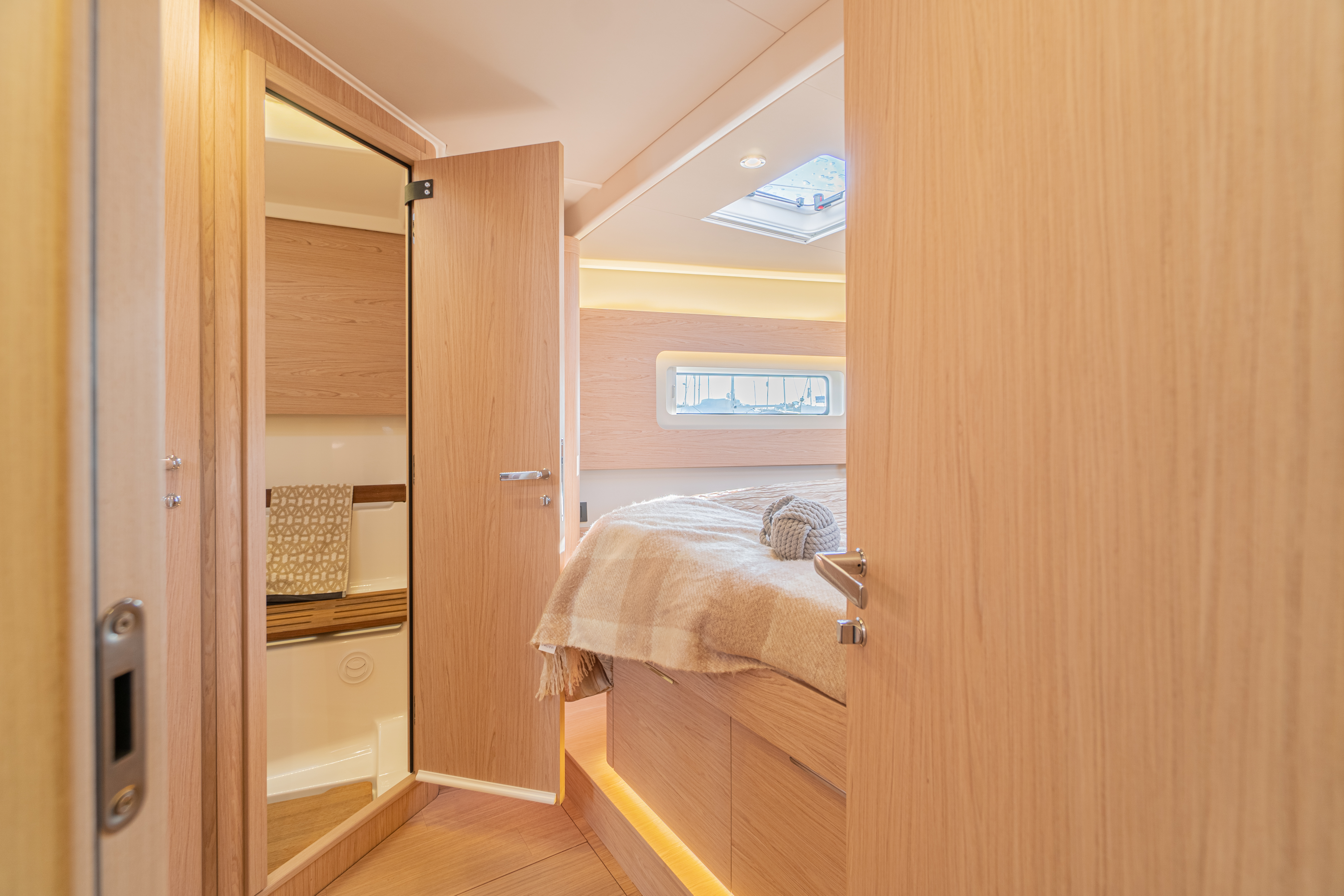

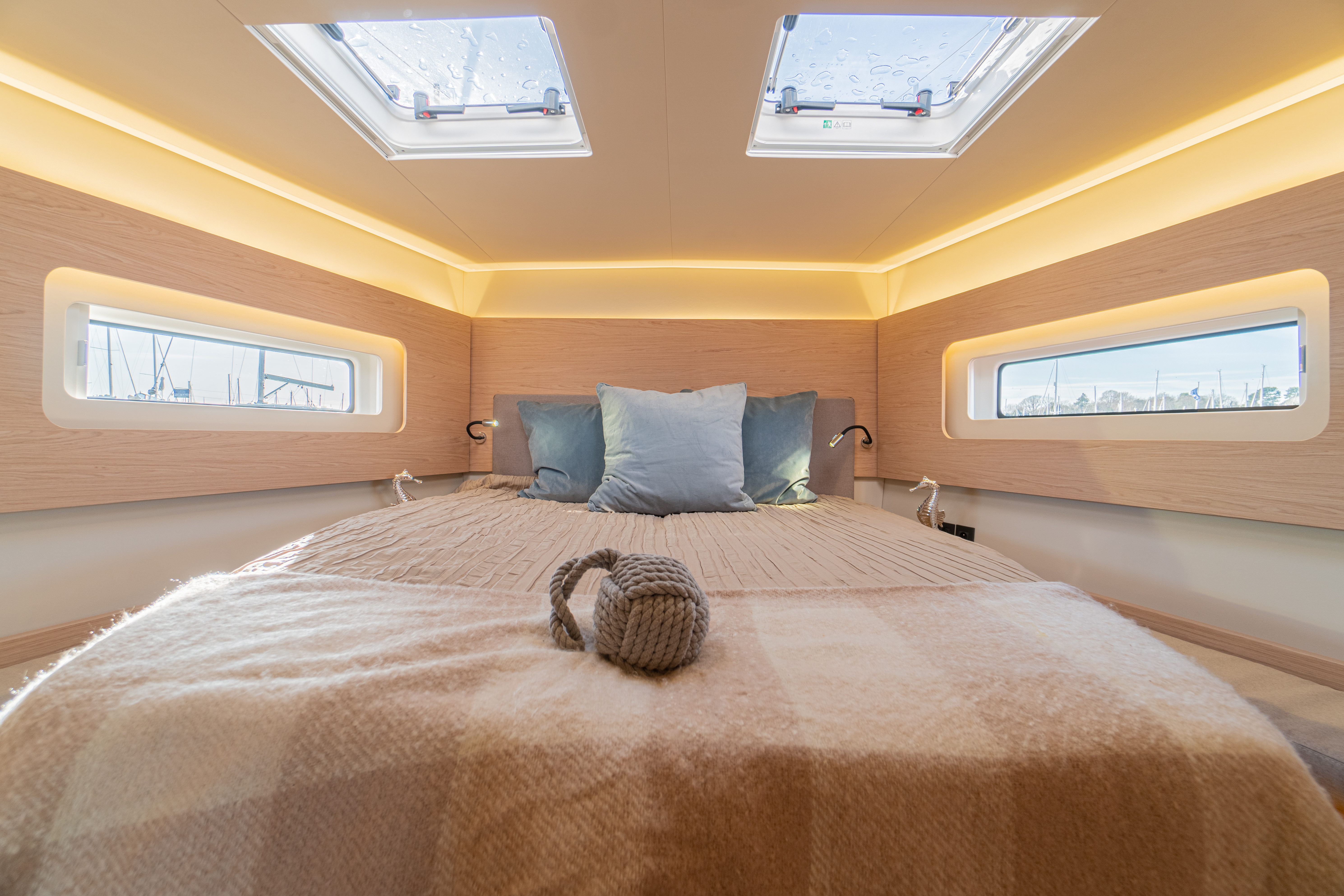

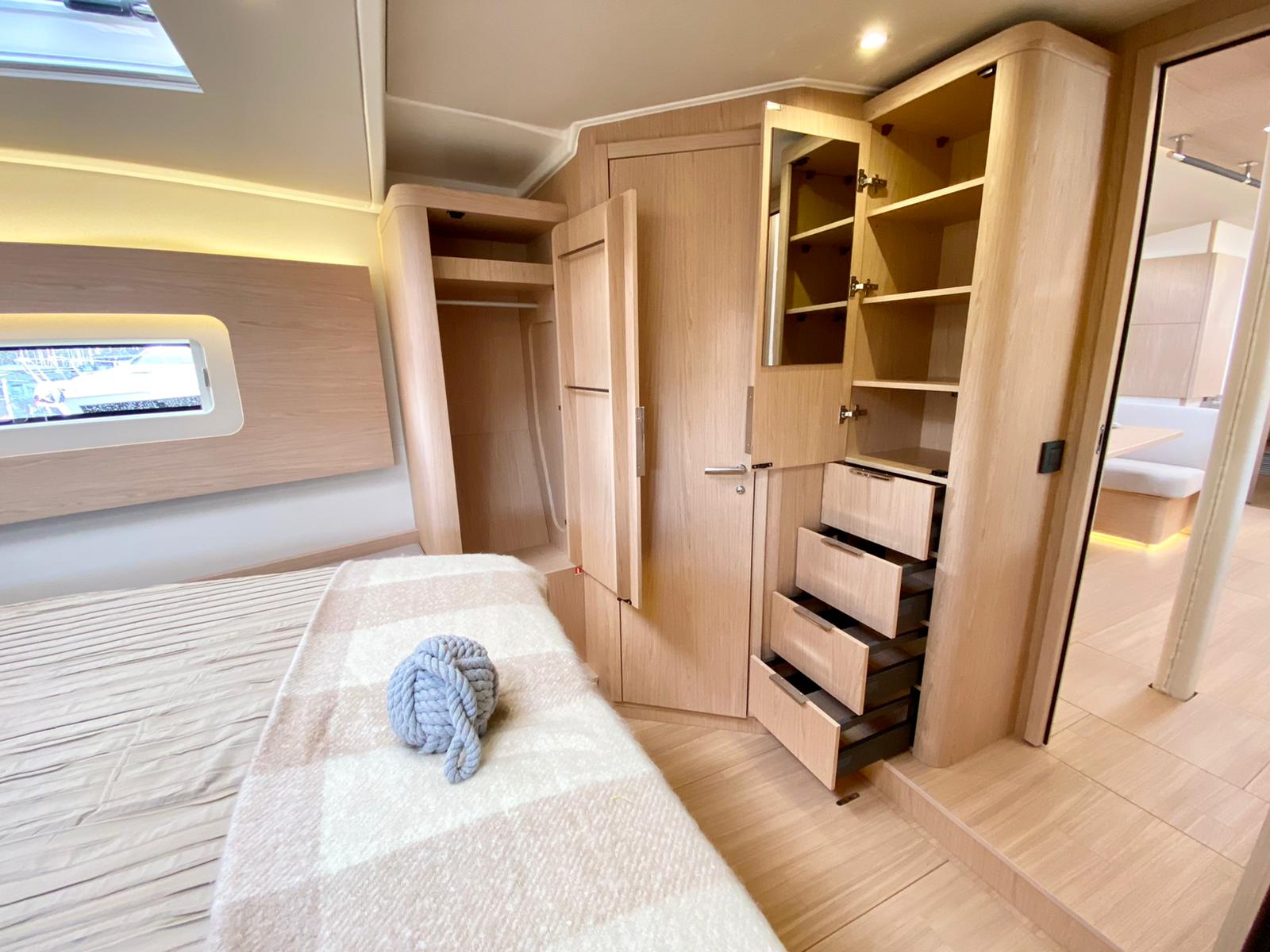

OWNERS CABIN
Headroom: 2,01 - 1,96m / 6’7’’ - 6’5’’
Central double bed (2,00m x 1,60m - 1,15m / 6’9’’ x 5’3’’ - 3’9’’) with Lounge Greige 160 fabric padded bedstead
Chair on each side of bed with Lounge Greige 160 fabric
Shoe stowage beneath the bed
Hanger closets, with incorporated LED lighting
Central full-height unit with LED lighting: 4 drawers at the bottom, door with 4 shelves, mirror inside the door
Night tables
Flexible and adjustable bedside lamps
T60 flush deck hatch with blind/mosquito net
Portholes with rigid sliding blind
230 V power socket on each side of the bed
Dual port USB outlet on each side of the bed
LED indirect lighting + Spot lighting

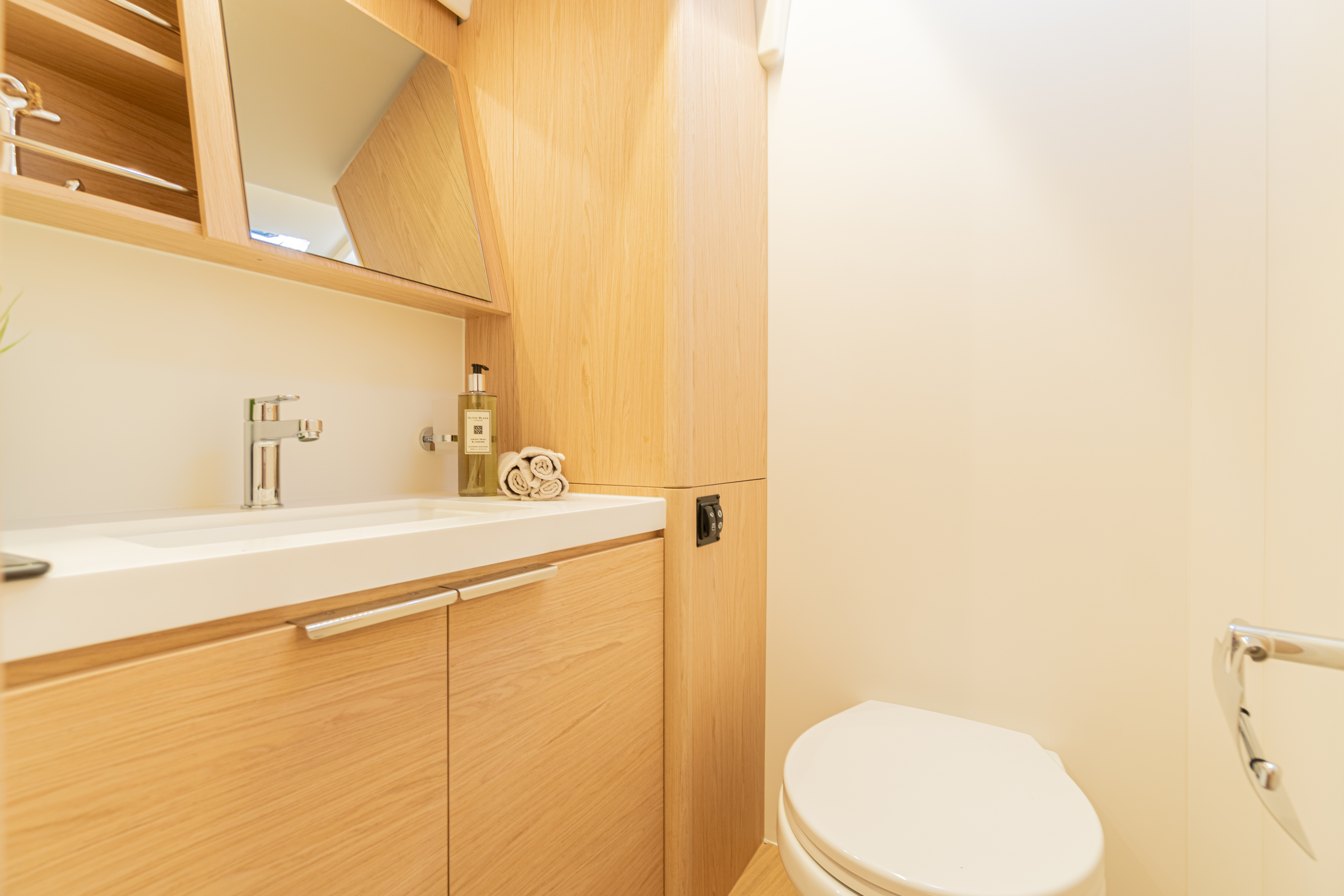

OWNERS CABIN PRIVATE HEAD
To starboard:
Headroom: 1,92m / 6’4’’
Manual toilet
80 L / 13 US Gal rigid holding tank
Work top in Corian Glacier White
Integrated polyester basin - Mixer tap
Cabinet - Mirror
Toilet accessories
1 Deck hatch with mosquito screen/blind
LED indirect lighting + Spot lighting
to port:
Headroom: 1,97m / 6’6’’

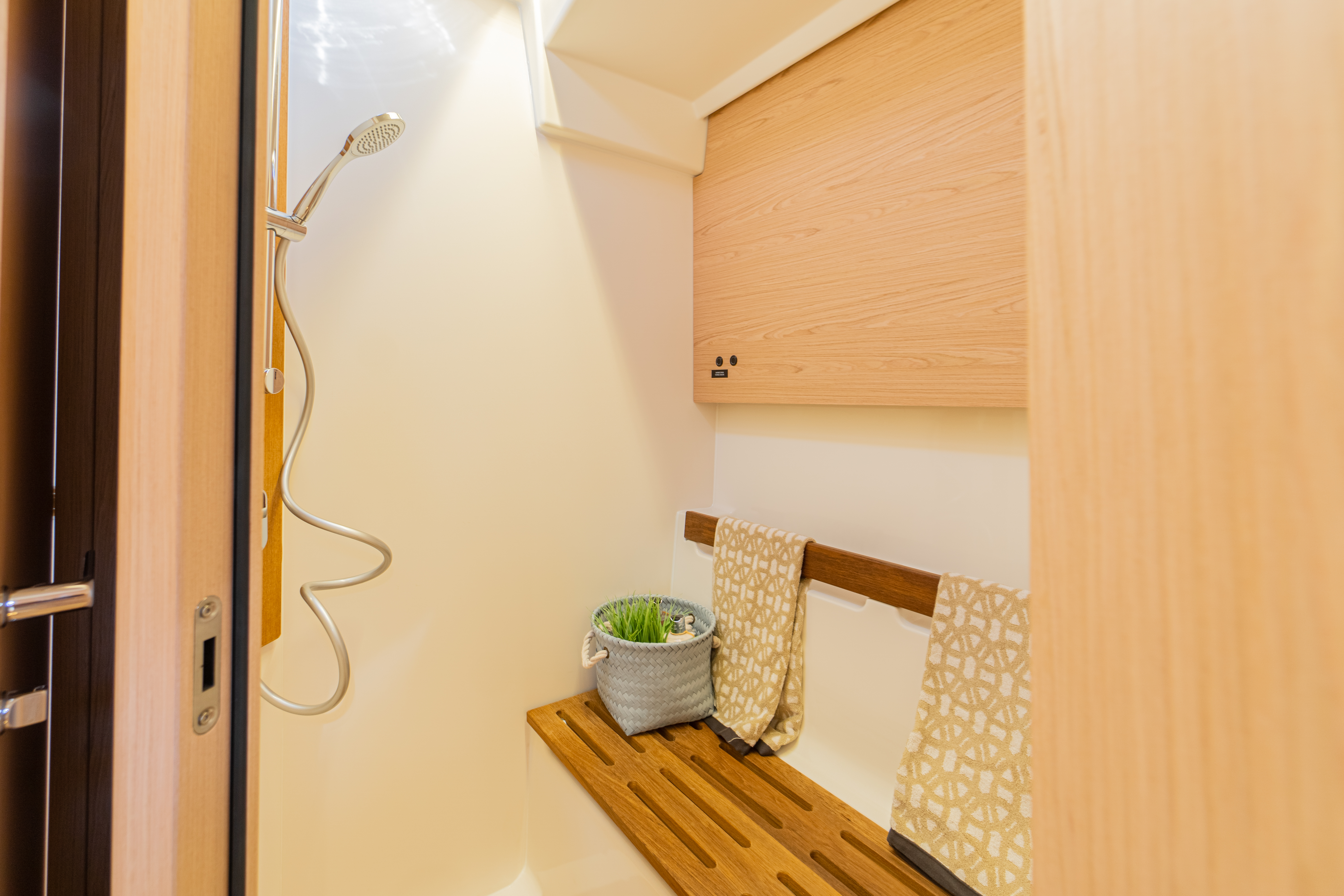

Shower with seat and wooden shower base
Open stowage trays
Deck hatch with mosquito

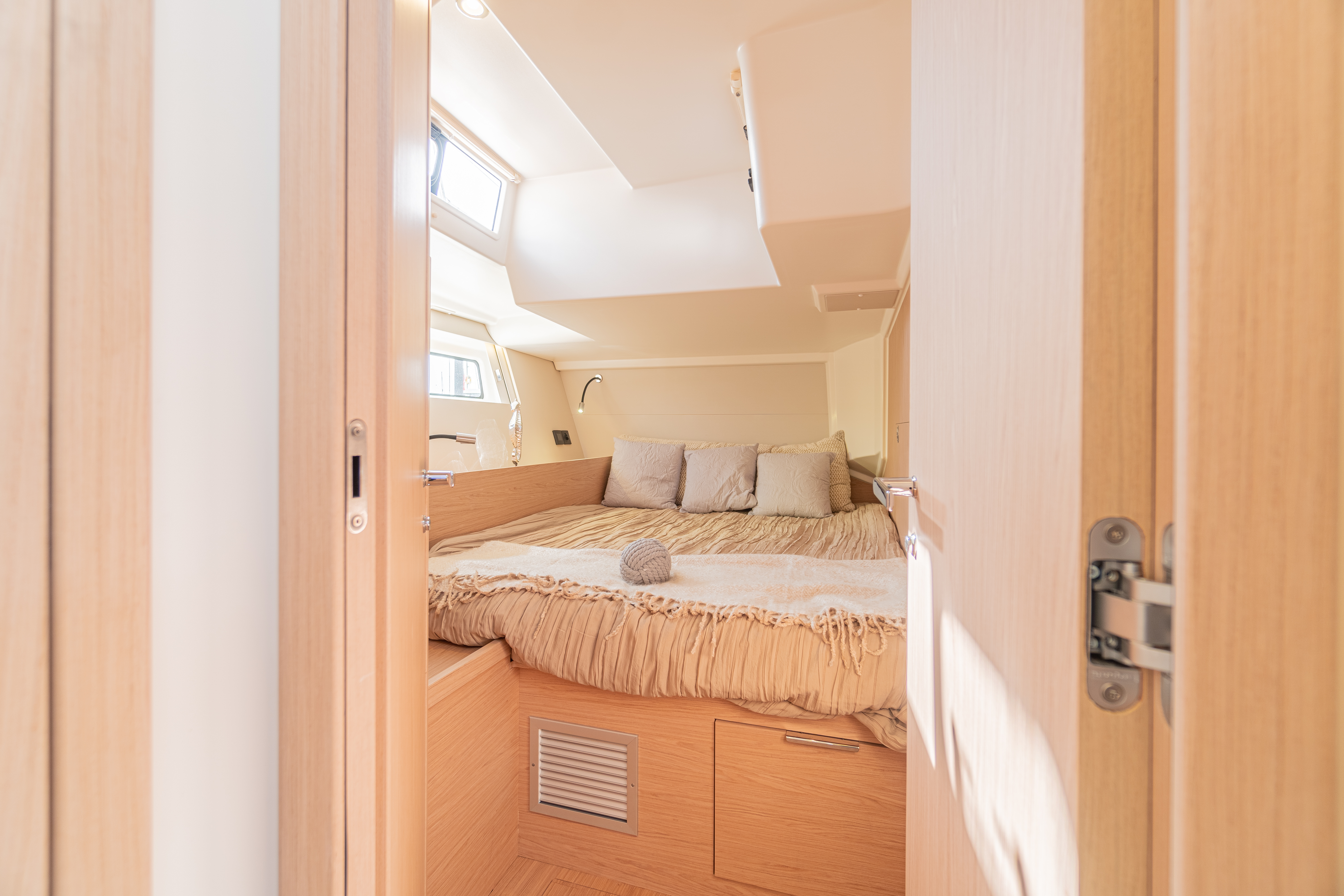

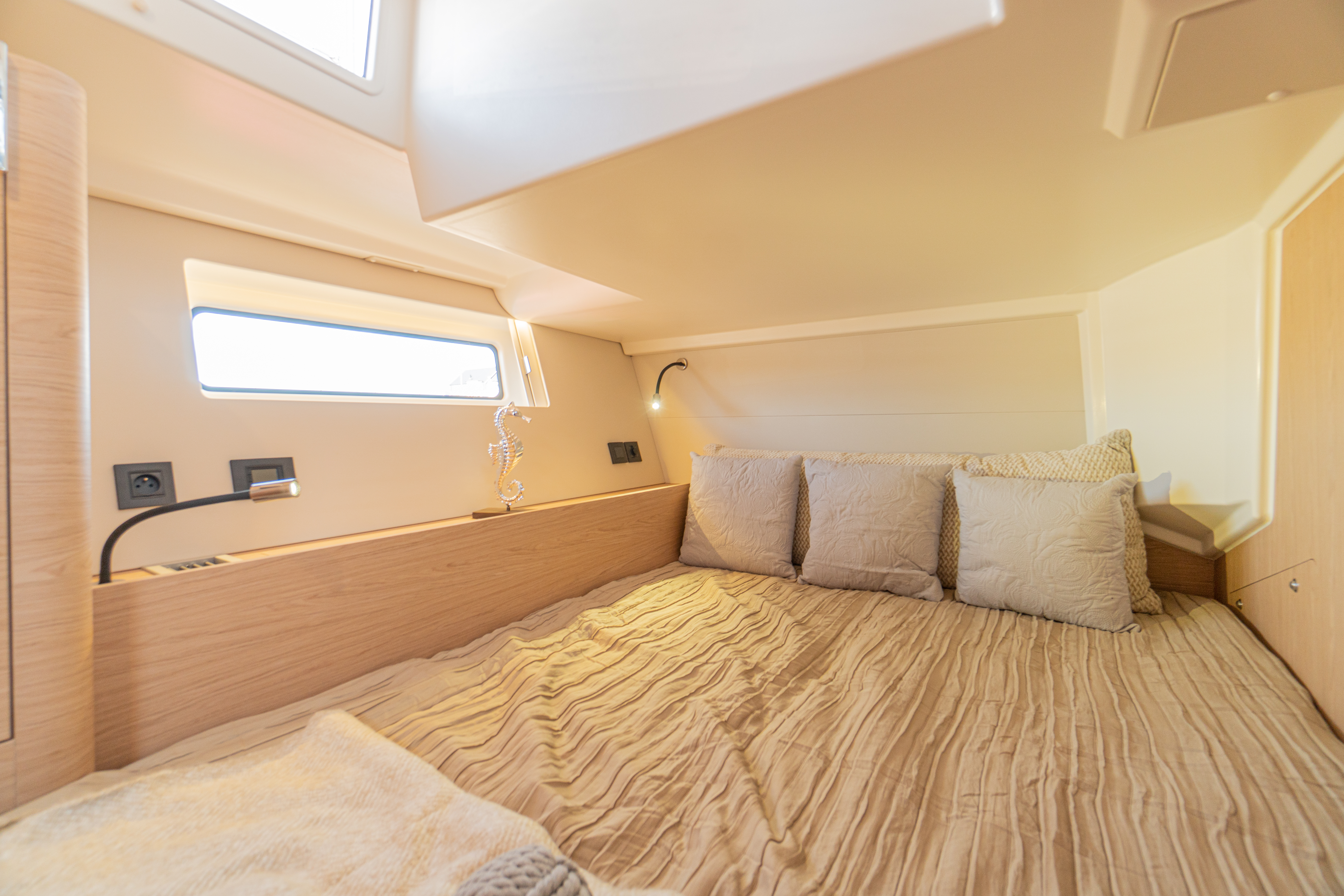

PORT AFT CABIN
Headroom: 1,92m / 6’4’’
Double bed (2,04m x 1,40m / 6’8’’ x 4’7’’)
Hanging locker, 1 Cupboard with shelves, with incorporated LED
lighting
Lockers with top opening along the hull
Bed access sideboard
Drawer under the bed
Large stowage under the bed, top opening (location for air
conditioning option)
Flexible, swivelling reading light at bedhead
Flexible and adjustable reading light on the hanging locker
USB port dual port
230V socket
Porthole with rigid sliding blind
Opening window with below cockpit seat with pleated blind
Opening windows on coaming with pleated blind (1 with the 3
heads version)

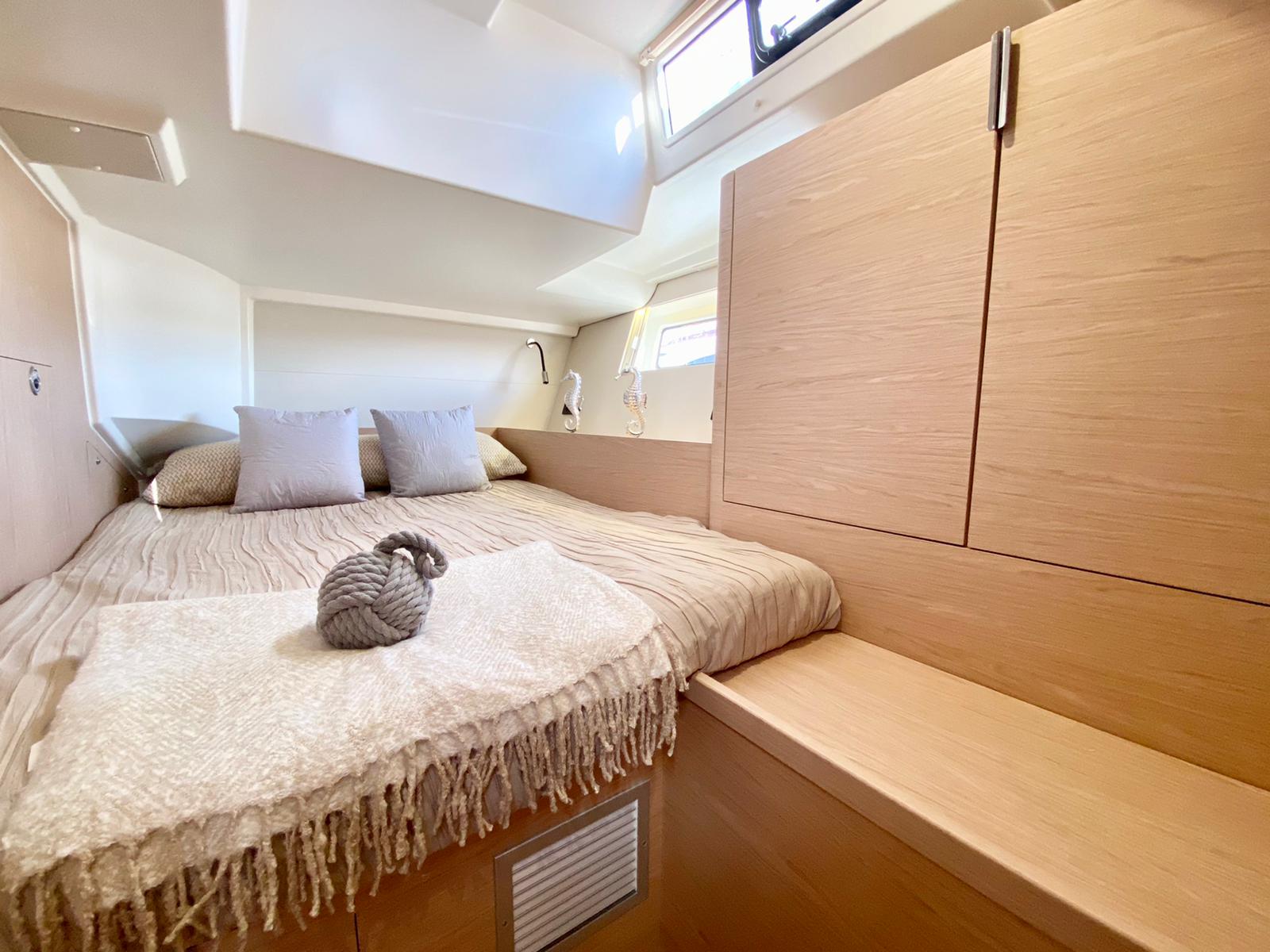

STARBOARD AFT CABIN
Headroom: 1,92m / 6’4’’
Double bed (2,04m x 1,40m / 6’8’’ x 4’7’’)
Hanging locker, 2 lockers with top opening along the hull
Bed access sideboard
Drawer under the bed
Large stowage under the bed, top opening (location for air
conditioning option)
Flexible, swivelling reading light at bedhead
Flexible and adjustable reading light on the hanging locker
USB socket
230V socket
Porthole with rigid sliding blind
Opening windows with below cockpit seat with pleated blind
Opening window on coaming with pleated blind

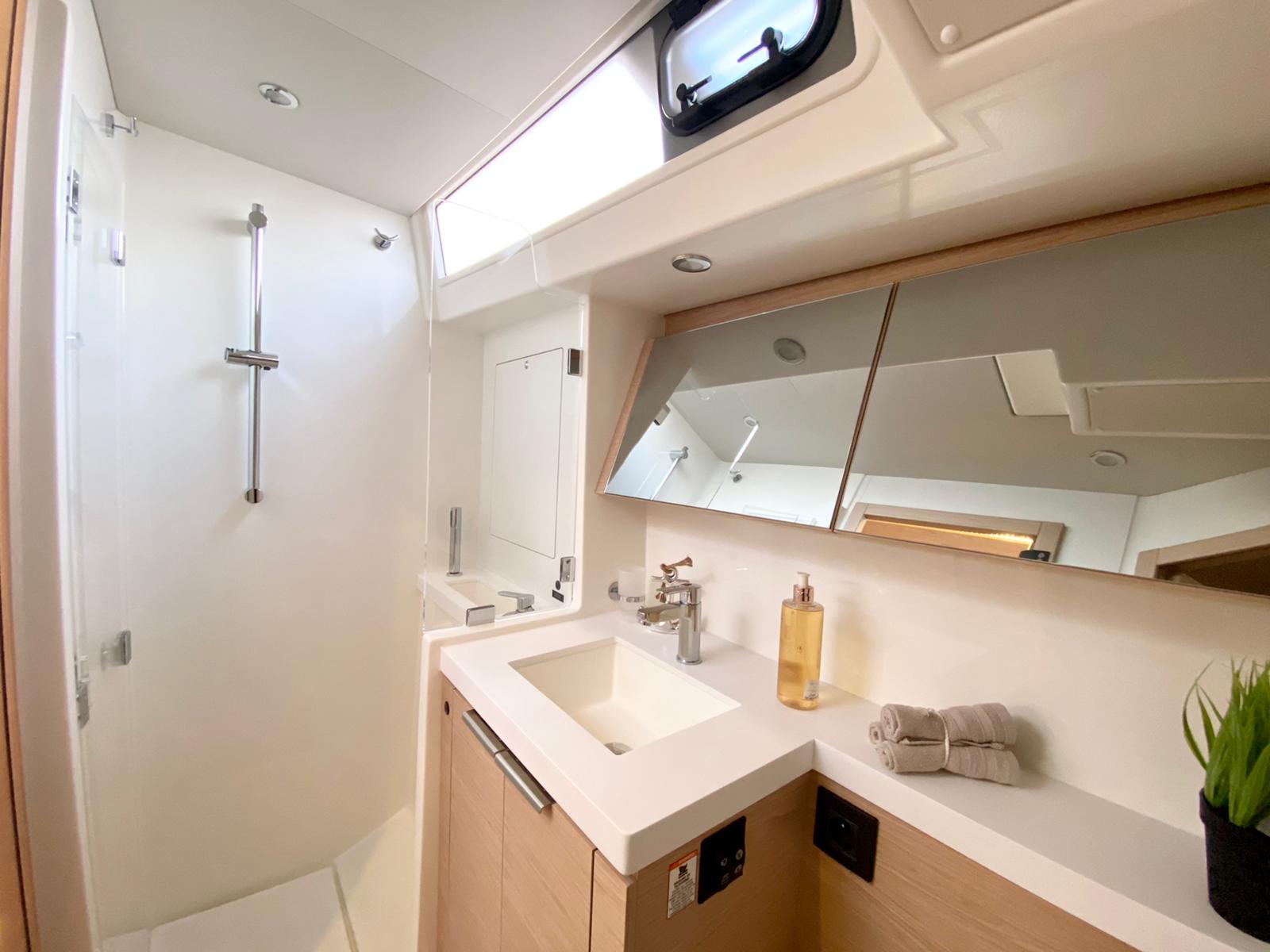

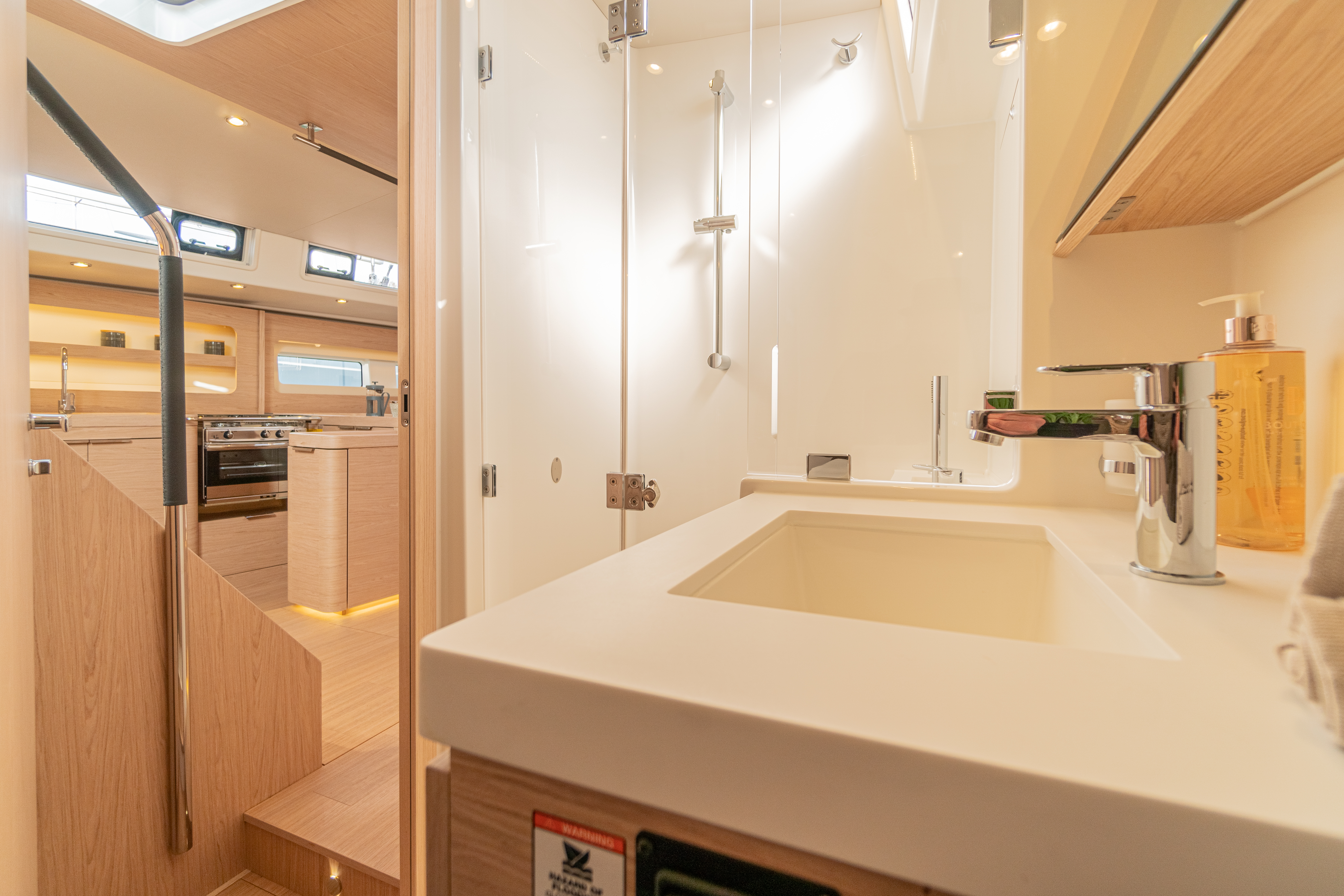

AFT STARBOARD HEAD COMPARTMENT
Headroom: 1,95m / 6’5’’
Access from the saloon or the starboard aft cabin
Separate shower - 1 Mixer tap - White polyester shower base
Corian Glacier White work top with self-draining storage
Manual toilet
80 L / 21 US Gal rigid holding tank
Washbasin - 1 Mixer tap
Cabinet + Storage space under the basin
2 Mirrors
Toilet accessories
Opening porthole on coaming in side window, opaque film, mosquito screen
Tecma electric sea/fresh water flush in stbd aft head

SAIL LOCKER
Access through T70 deck hatch, Passage width: 0,65 x 0,65m /2’2’’ x 2’2’’
Stainless steel ladder
Shelving and stowage trays
LED lighting
230V socket

Air conditioning 44 000 BTU (+ Shore socket extension cord 15m / 49’3’’) - 32A

All figures are approximate


Machinery

ENGINE
Yanmar 4JH80 CR SD 80HP Sail Drive, Common Rail

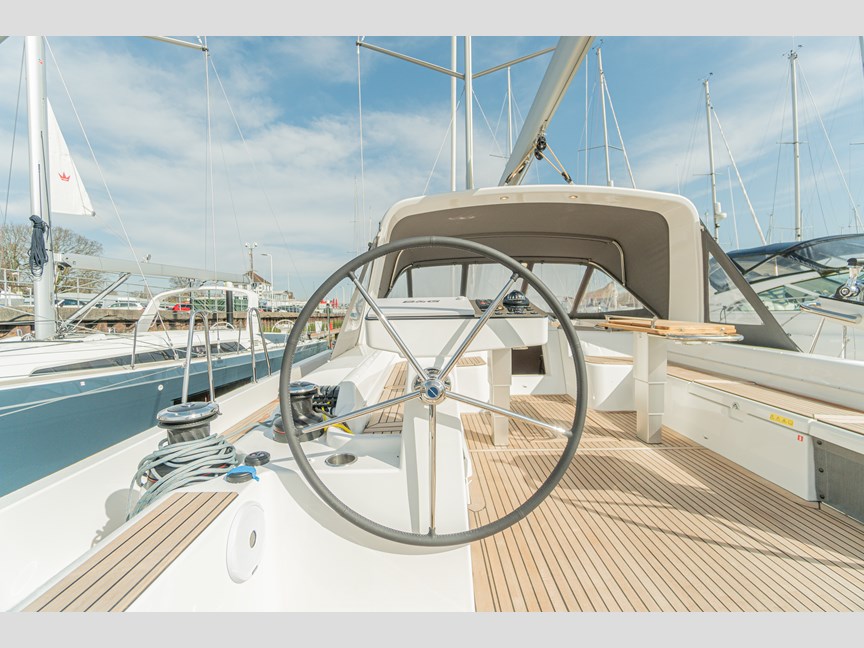

Engine control at the starboard helm station - Control panel
Electric throttle on starboard helm
Engine data visible on the B&G screen
1 Alternator (12V / 125 Ah)
Filters: Seawater - Diesel - Water separator
3 blade folding propeller
Engine access through companionway (opening with 2 gas struts)
Engine access through aft cabins

ELECTRICS
Cockpit windlass control with chain counter
Electric transom remote control
Tunnel bowthruster
3 AGM service batteries (140 Ah)
1 AGM engine battery (100 Ah)
2 additional 140ah service batteries
Additional 40 amp battery charger
Battery cut-off switch easily accessible from the companionway
Battery charger (60 Ah)
Power distributor
10 230V Sockets
Shore power socket 230 V, next to the helm station

MACHINERY
17.5 KVA generator

TANKAGE
Fuel capacity: 400L 106 US Gal
Fresh water capacity: 720L 190 US Gal
Holding tanks 2x 80 L / 13 US Gal
40 L / 11 US Gal Electric water heater (engine use)

Pressurised electric water pump - Expansion tank - Inline filter
Electrical shower drain pumps
1 Electric bilge pump
1 Manual bilge pump

Inventory

NAVIGATION AIDS

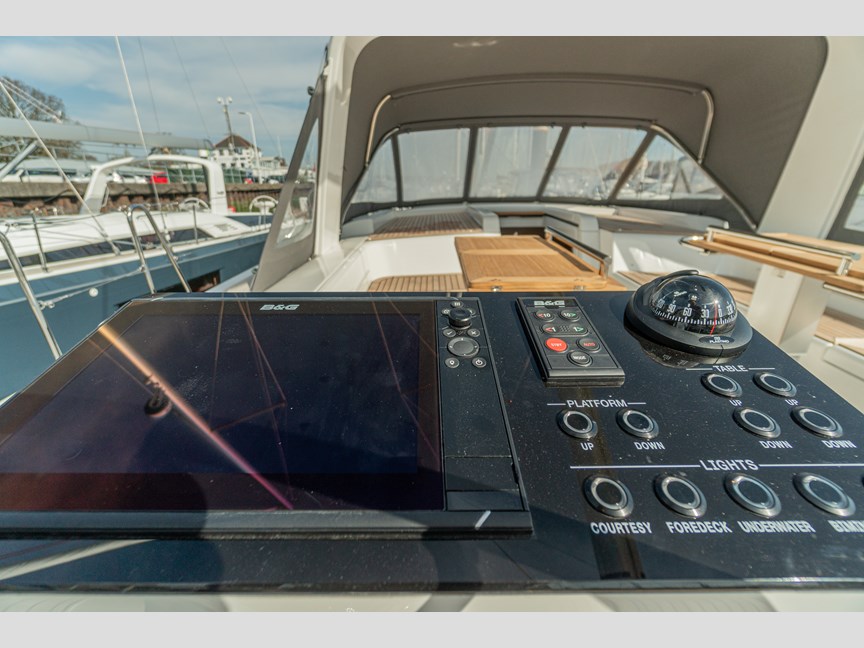

Offshore B&G pack including:
Port and starboard helm stations: 12’’ Zeus3 wide wireless multi-function touchscreen
B&G Windvane, Anenometer
B&G HALO 20+ Radar
B&G AIS 500
Pilot B&G NAC3
Sensor (Log, Speedometer, Temperature)
PC interface
V90S VHF radio fixed to the chart table, AIS receiver function
Windex Windvane
Protective covers for helm & consoles (Charcoal Grey)
WR10 Wireless autopilot remote control
H50 wireless VHF set
Ship Control technology control numerous functions from the navigation screens (or from a tablet or smartphone using a dedicated app)


GENERAL EQUIPMENT
Gas Barbeque in Cockpit
Side Boarding Ladders
Auxiliary Outboard Motor Bracket (for tender)
Sprayhood - charcoal grey
Cockpit bimini - charcoal grey
Outside upholstery - Dolce 51 (for luxe trim level)
Folding GRP gangway
Cockpit tables upgraded to electric for sunpads
Cockpit table covers - cadet grey
Diamante snow outside upholstery -
Seats and backs on benches
Seats and backs on helm seats
Companionway sunpad cushions with adjustable backrests
Cockpit windlass control with chain counter
Electric transom remote control
Cockpit table sunpad cushions


MOORING / ANCHOR PACK
32KG galvanised Delta anchor
40m x 12mm anchor chain
50m x 22mm anchor warp
4 x XL fenders
2 x L fenders
4 x mooring lines - 15m x 18mm

TENDER GARAGE
Accessible from the platform and from the cockpit
Cockpit shower with mixer tap in the tender garage
