Beneteau Oceanis 40.1

286,387 Tax Not Paid
Enquire

Summary

  • Make Beneteau
  • Model Oceanis 40.1
  • Year 2023
  • LOA 40ft/12m
  • Class Sailing Cruiser
  • Hull Glass Reinforced Plastic
  • Keel Fin Keel
  • Rig Sloop
  • Engine Single Diesel
  • Drive Sail Drive
  • Layout Aft Cockpit
  • Berths 6
  • Cabins 3
  • Aft Cabins 2
  • Ancasta Ref 36296
  • Name Beneteau Oceanis 40.1

Overview

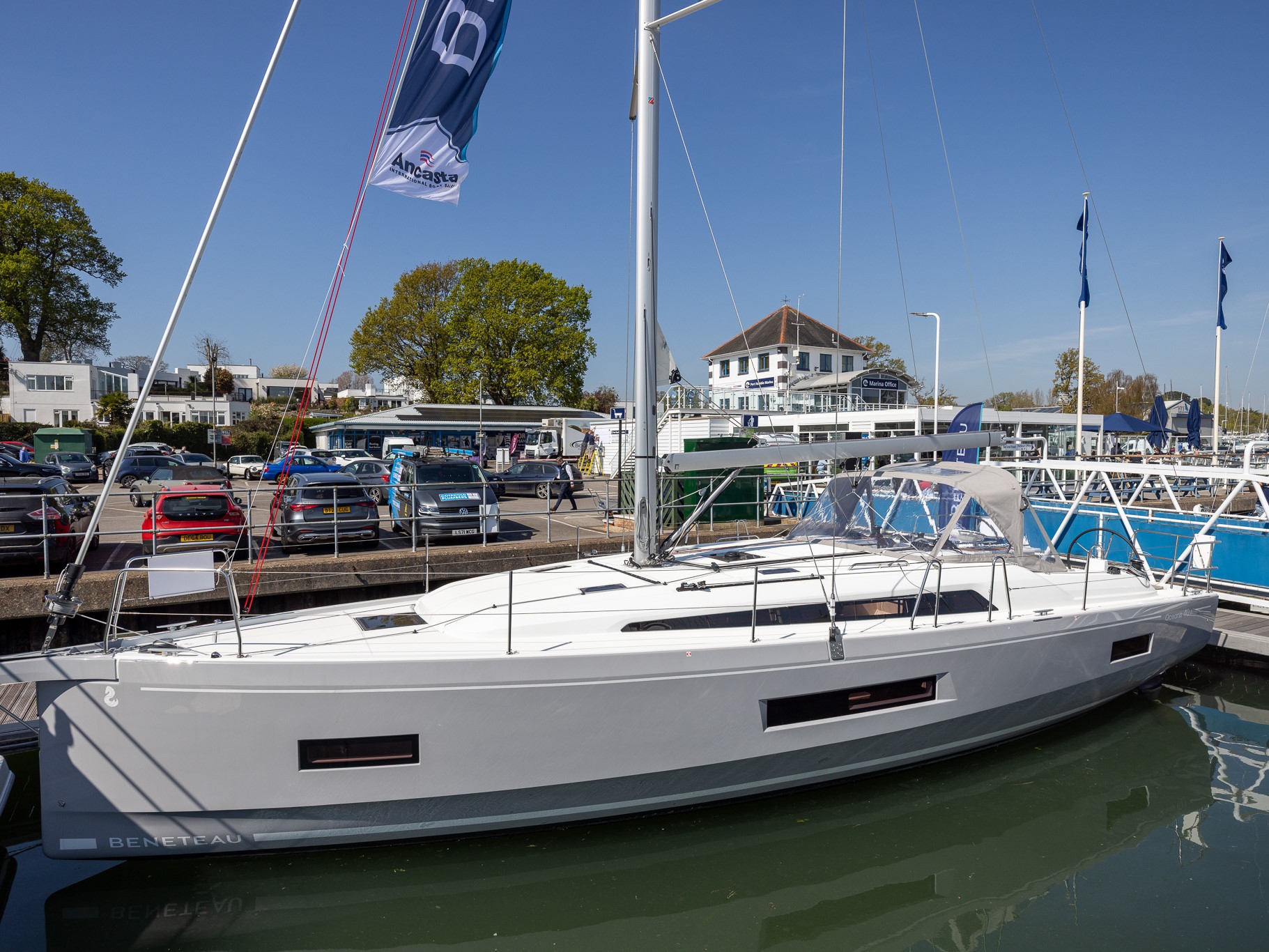

New Beneteau Oceanis 40.1

All new 2023 model Beneteau Oceanis 40.1 from the drawing board of Lombard with interior by Nauta Design. The Oceanis 40.1 offers an excellent combination of easy-to-handle sail plan, exciting and rewarding cruising plus spacious and flexible accommodation below decks.
This 3 cabin, 2 head layout 40.1 comes fully equipped with extras such as comprehensive Raymarine navigation electronics, deep keel, comfort trim level, retractable bow thruster plus much more. From her performance hull form to her twin wheel, twin rudder set up, the Beneteau Oceanis 40.1 represents the very latest in current yacht design. Specification is fully customisable and Ancasta is able to satisfy your every desire!

Comprehensive finance and insurance packages available

Please contact Ancasta Dartmouth on +44 (0) 1803 752498 or email [email protected] to discuss further.

360 Tour

Video

Build

2023 MODEL YEAR NEW BENETEAU OCEANIS 40.1 AVAILABLE FOR SPRING 2023
Naval Architect: Marc Lombard, outside & interior design: Nauta Design
Oceanis 40.1 comfort trim level
Oceanis 40.1 upwind pack and downwind pack
Oceanis 40.1 offshore electronics pack
Oceanis 40.1 mooring/anchoring pack

CONSTRUCTION:
White GRP hull
Deep Iron Keel

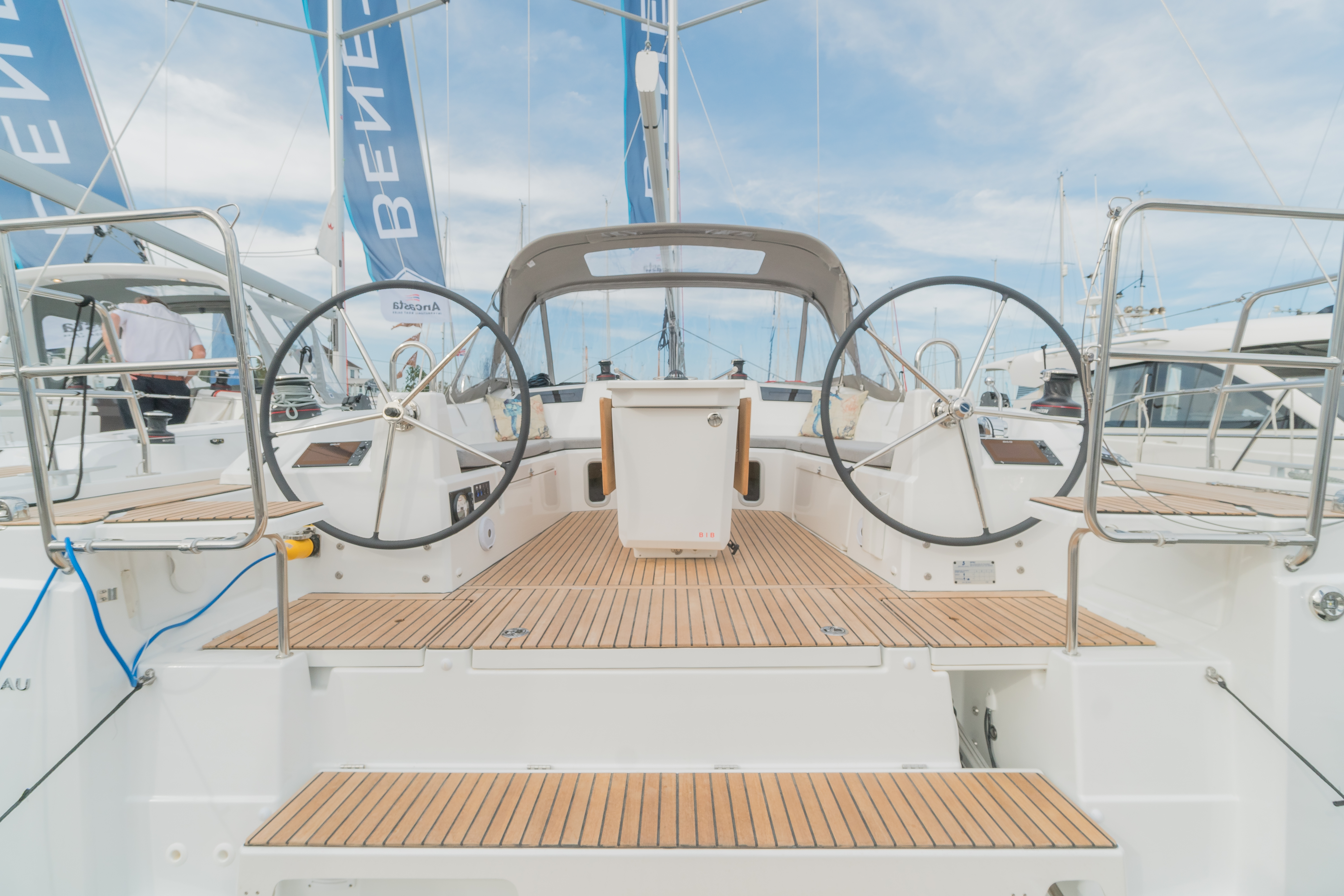

Twin wheel steering
Twin rudders

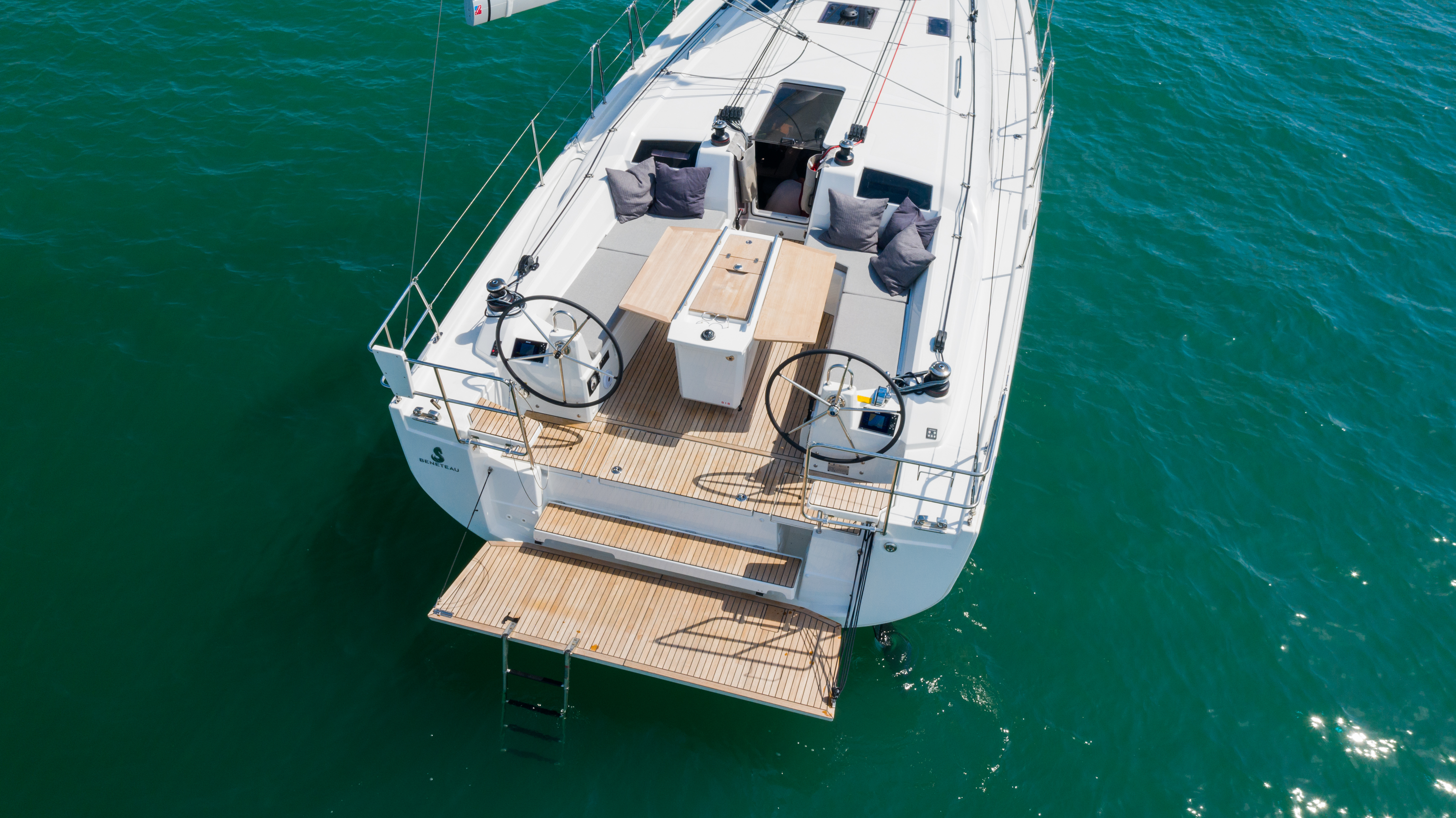

Electrically opening bathing platform & 2 remote controls
Side Boarding Gates
Solid wood helm seats

DIMENSIONS:
L.O.A 12.87m (42’3’’)
L.W.L. 11.70m (38’5’’)
Beam 4.18m (13’9’’)
Deep Iron Keel Draught: 2.17m (7’1”)
Deep ballast weight 2,007kg (4,423 lbs)
Air draft 18,33m (60’2’’)
Light displacement 8180kg (18,290 lbs)

ALL FIGURES ARE APPROXIMATE

Rig

RIGGING:
Anodised aluminium mast, deck stepped with in-mast furling system, 2 Aft swept spreaders
Anodised aluminium boom
Classic stainless steel wire standing rigging
Split backstay
Rigid boom vang with tackle
Complete running rigging: main halyard, genoa halyard with cleat on mast, boom topping lift with cleat on mast, mainsheet bridle
9 x clutches
2 x flag halyards
2 x halyard bags (comfort trim level)

WINCHES:
2 x self tailing coach roof winches (H40.2 STA)
2 x Genoa sheet winches

SAILS:
Dacron furling mainsail
Dacron furling genoa

OCEANIS 40.1 UP AND DOWNWIND PACK:
2 genoa winches
Additional clutches
Genoa sheet tracks on side decks
Dacron furling genoa in lieu of self-tacker
Asymmetrical Spinnaker Rigging / Code 0
GRPr bowsprit with integrated anchoring gear and bobstay (for Code 0 and asymmetric spinnaker)

Accommodation

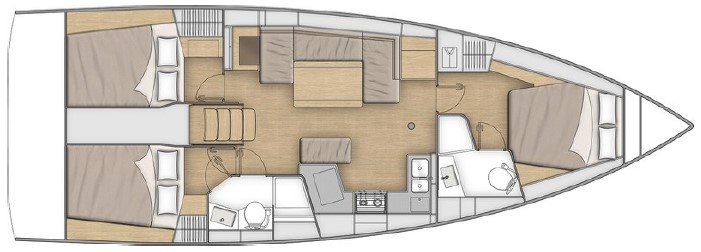

SLEEPS SIX IN THREE CABINS AND TWO HEADS
Comfort Trim Level
Interior woodwork white oak Alpi
Winner silver 139 upholstery in saloon
Beige padding in cabins
LED indirect lighting in saloon (Comfort Trim Level)
Fusion Stereo with interior and waterproof exterior speakers (Comfort Trim Level)
Dual USB sockets at chart table and each cabin (Comfort Trim Level)
Macadamia padding Upgraded to Beige Padding in cabins
Macadamia padding in saloons
Mosquito nets for all opening portholes (Comfort Trim Level)
Pleated blinds for saloon hull windows

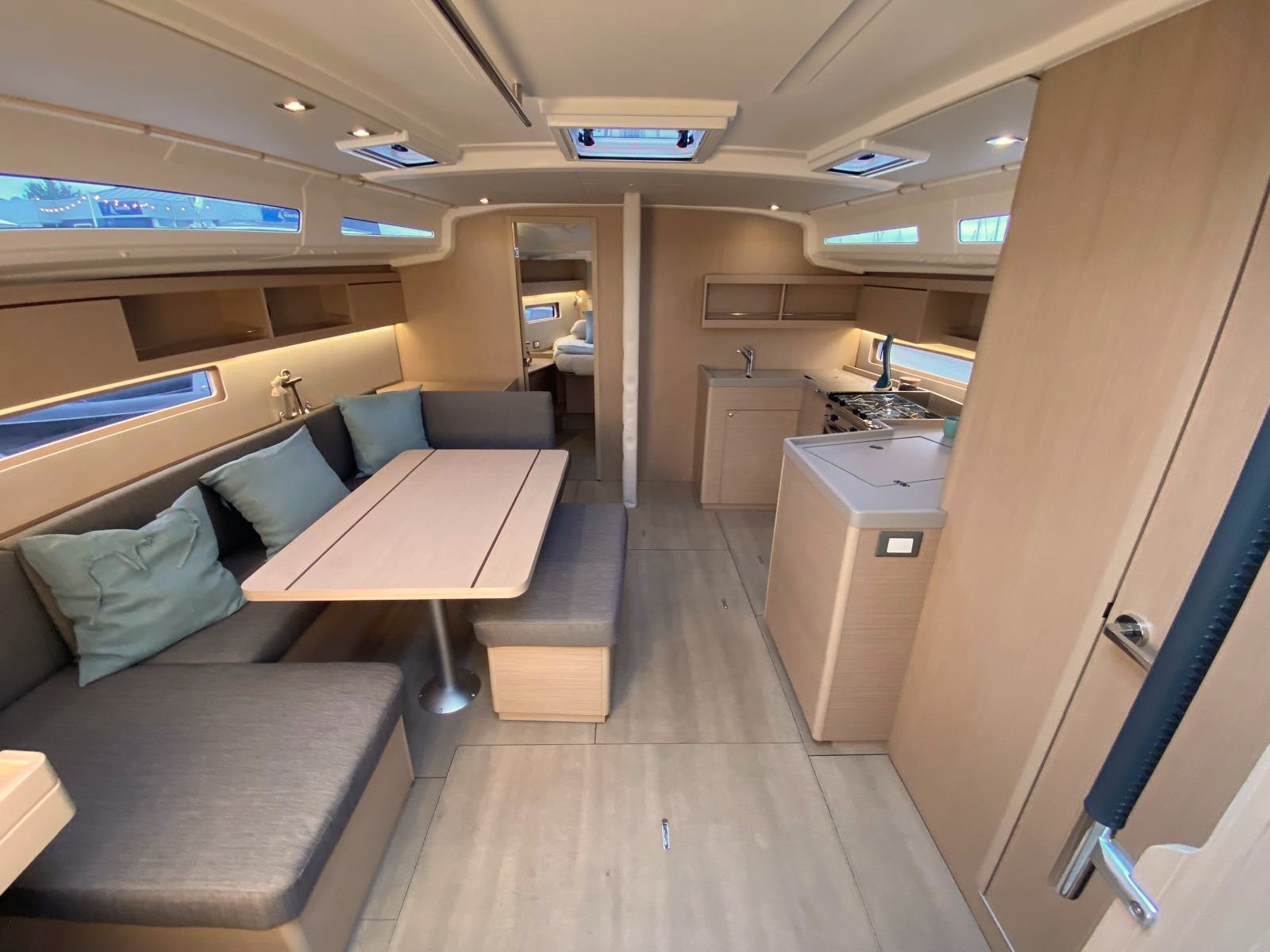

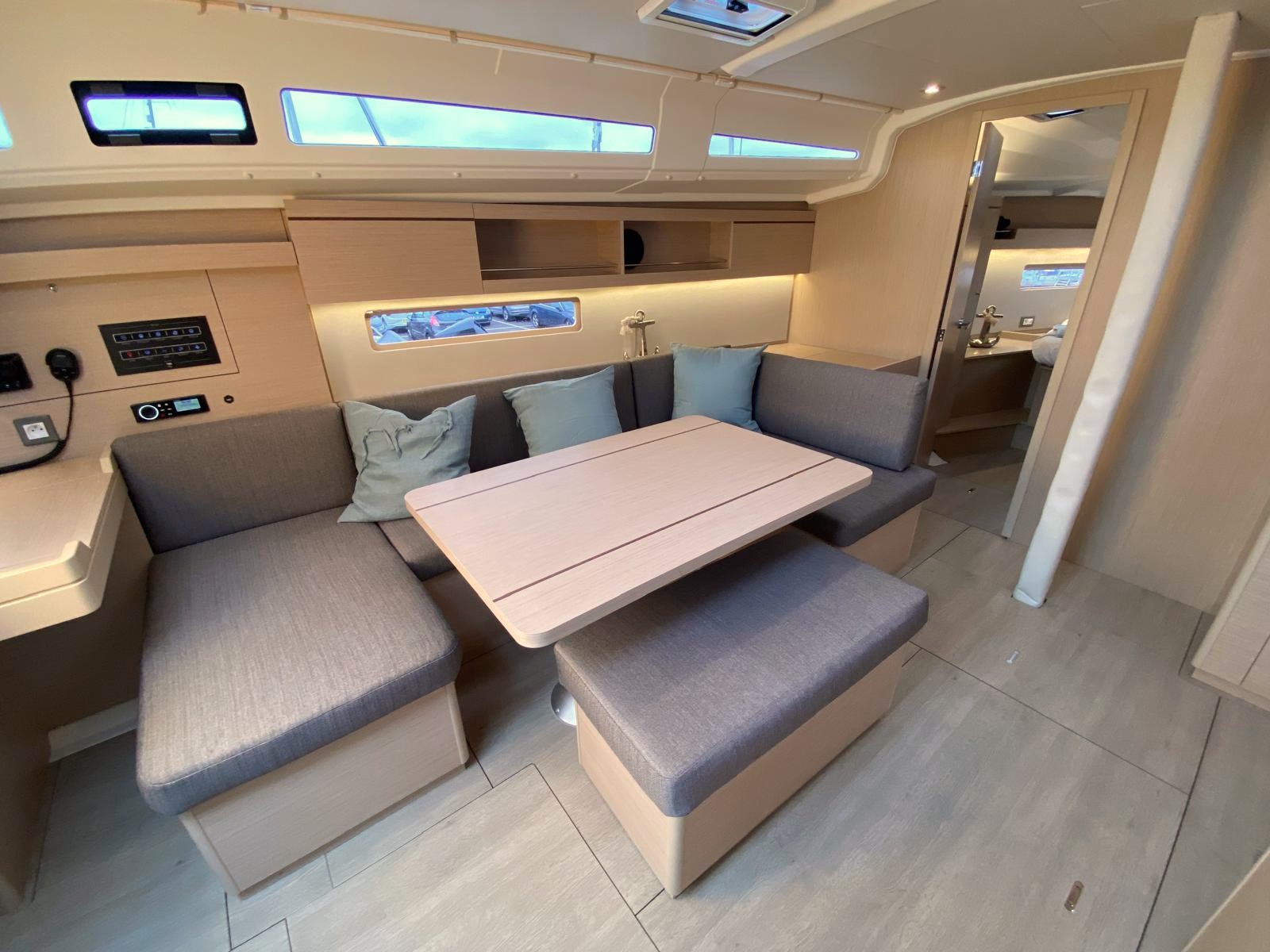

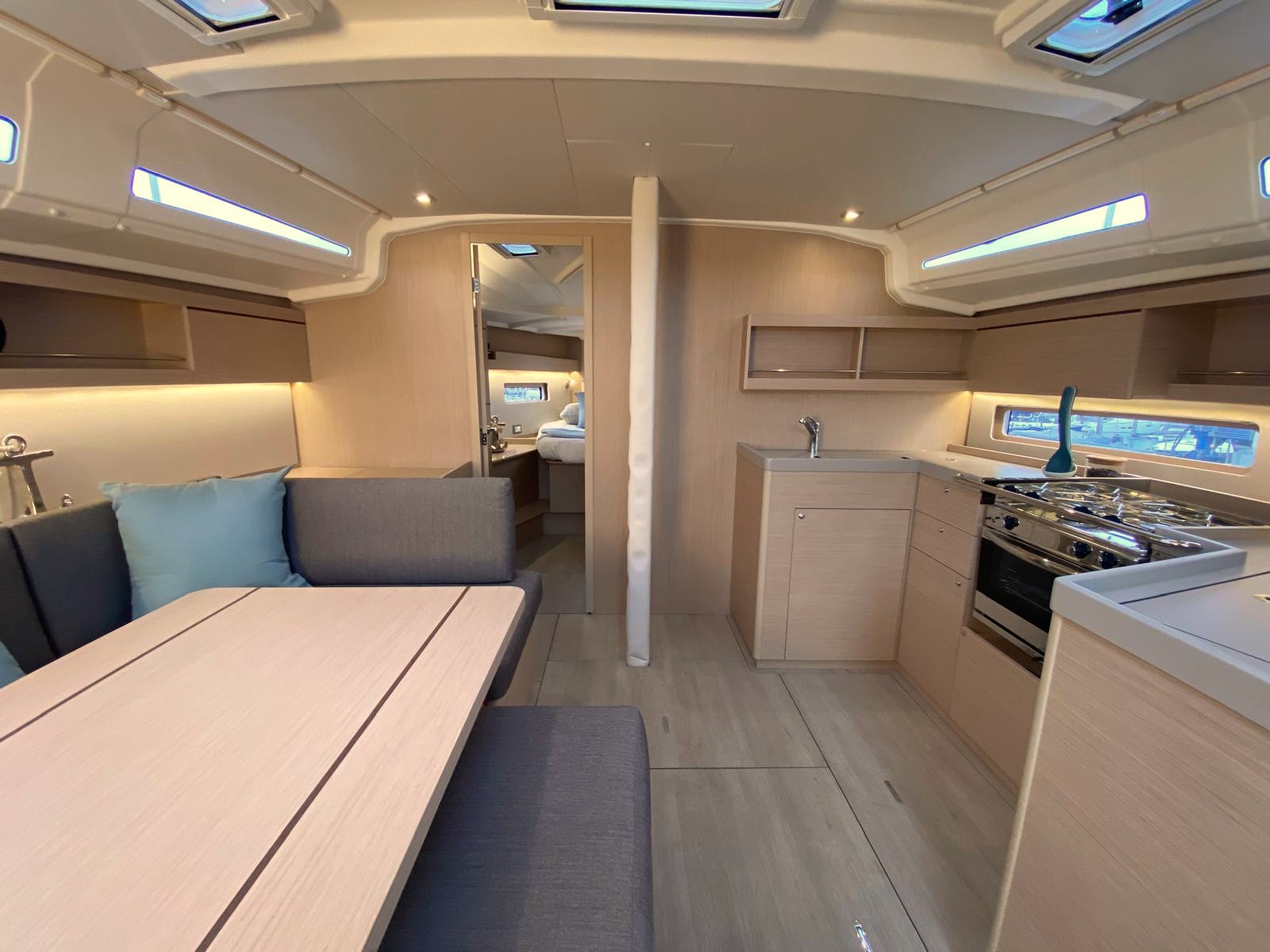

SALOON - PORT:
Headroom: 2,00m / 6’7’’
U shaped saloon bench - double density foam
Saloon table, wooden top, 2 fixed aluminum legs
Storage under bench seats
1 Hull porthole
2 Coaming windows with pleated blinds
2 Opening deck hatches with mosquito screen/blinds

CHART TABLE - PORT:
Headroom: 1,97m / 6’6’’
Nav table with fiddle
Switch panel on bulkhead for access to electrical functions
Stowage against the bulkhead below the chart table
1 Opening porthole in coaming
1 Fixed coaming window with pleated blind

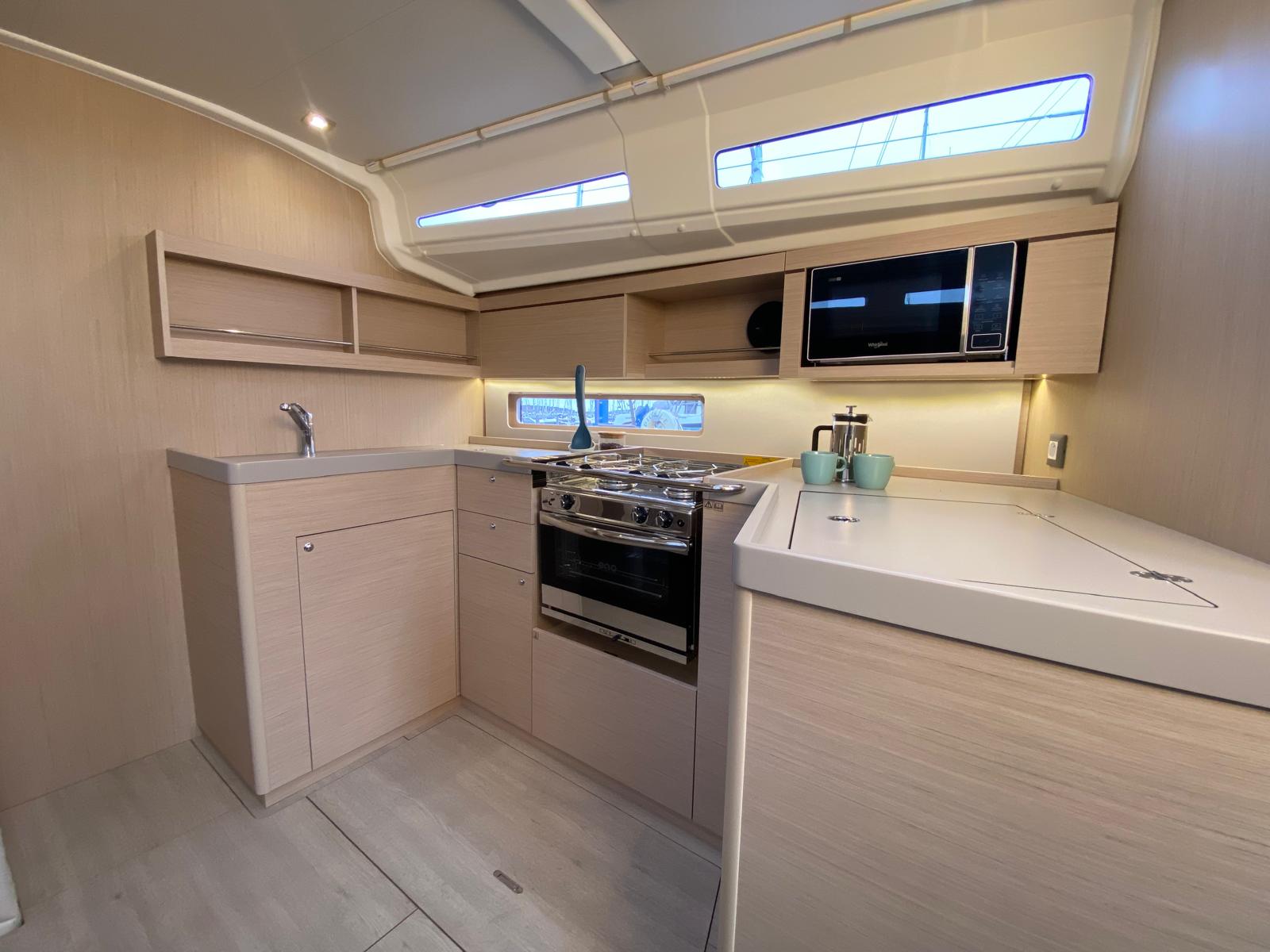

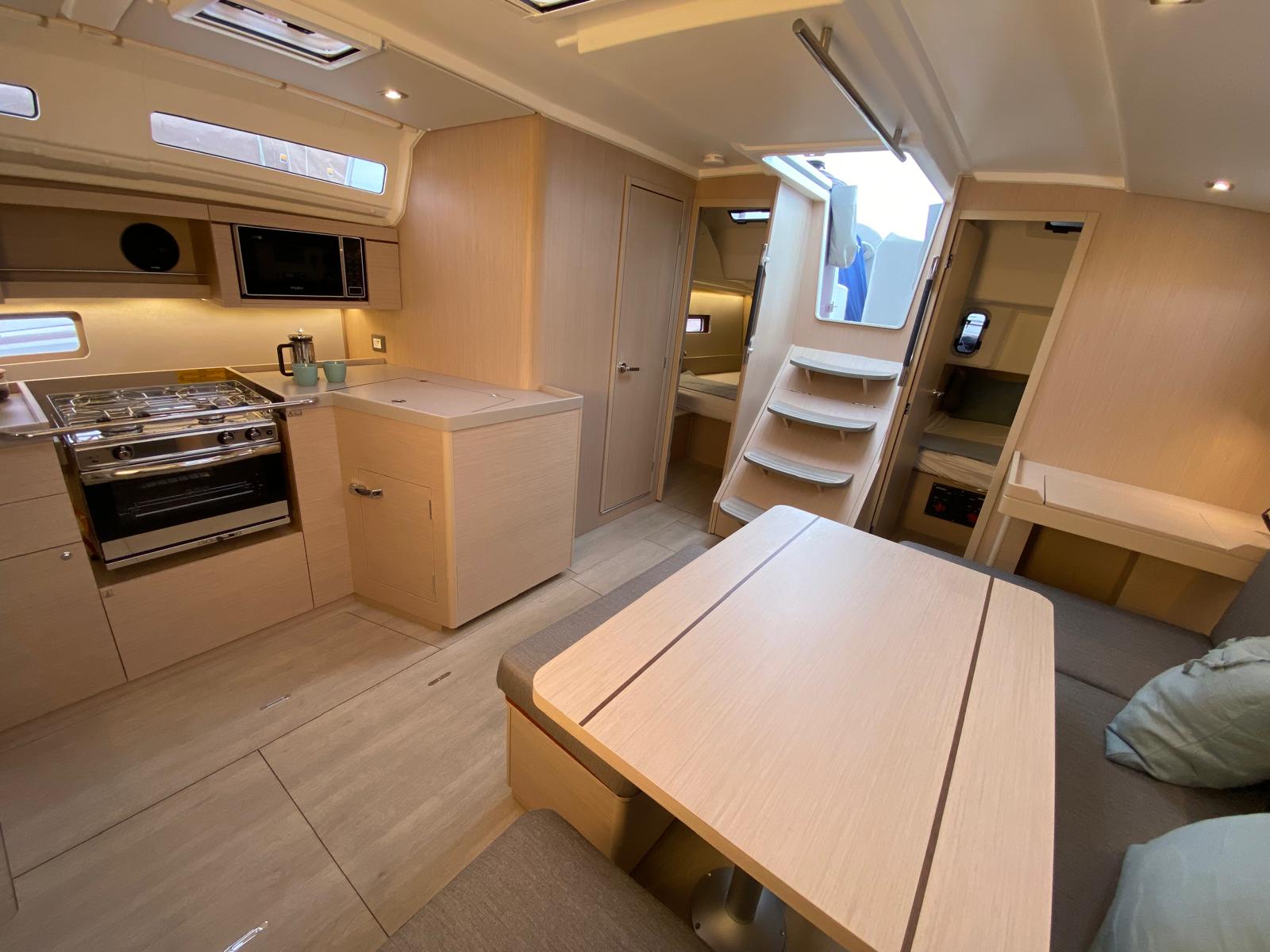

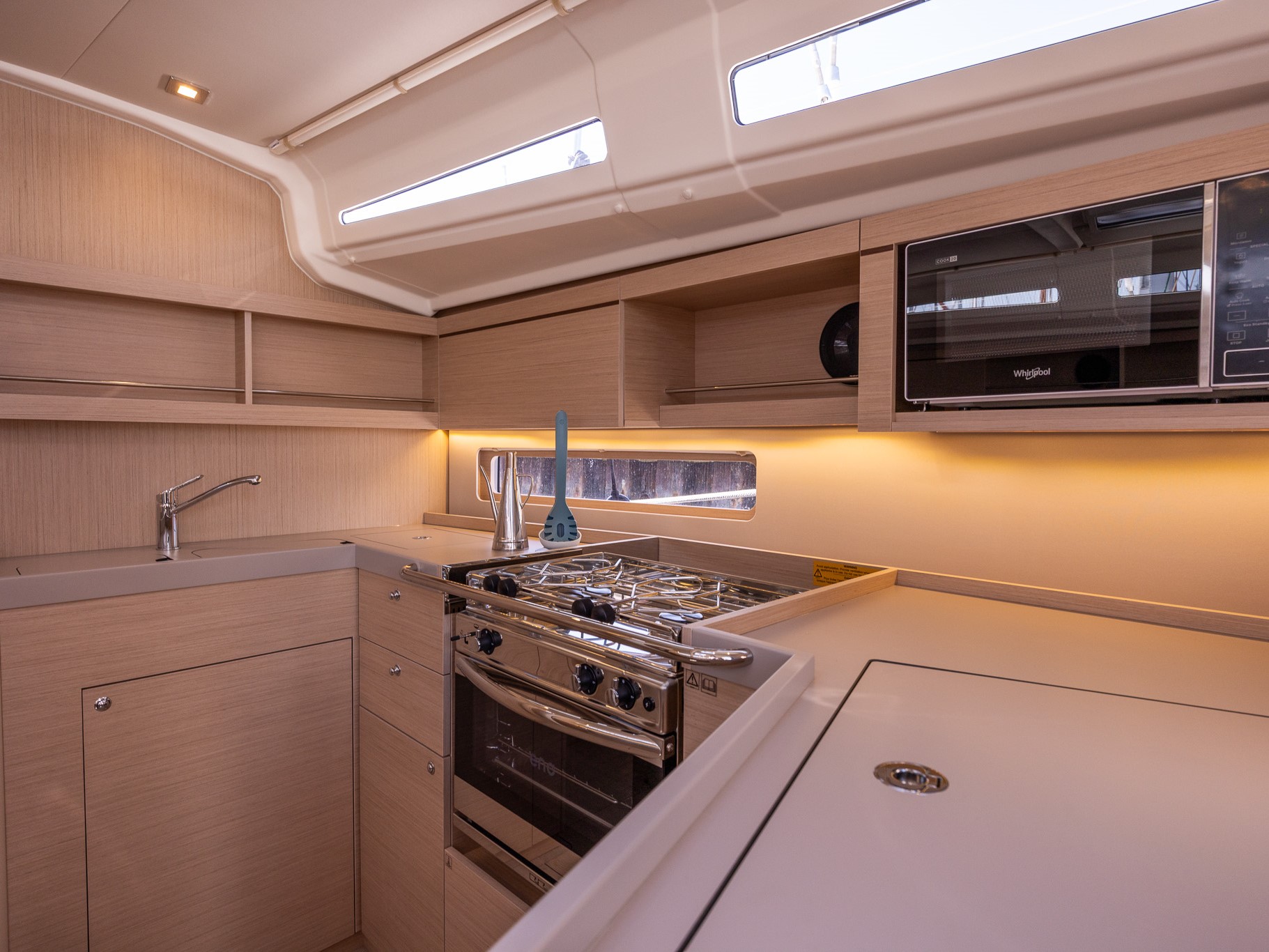

GALLEY - STARBOARD:
Headroom: 1,91m / 6’3’’
C-shaped galley
Stainless steel sink 2 rectangular basins - 1 Mixer tap with hot/cold pressurized water
Gas cooker 2 burners - Stainless steel oven and grill on gimbal - Stainless steel handrail (Comfort Trim Level)
190L / 50 US Gal fridge with icebox, top opening and front opening
Fitted lockers and closed shelving
Open shelving above stove and sink
Low-level stowage below sink
Bin with access on the work top
2 Coaming windows with pleated blinds
1 Hull porthole
1 Flush deck hatch with blind/mosquito net

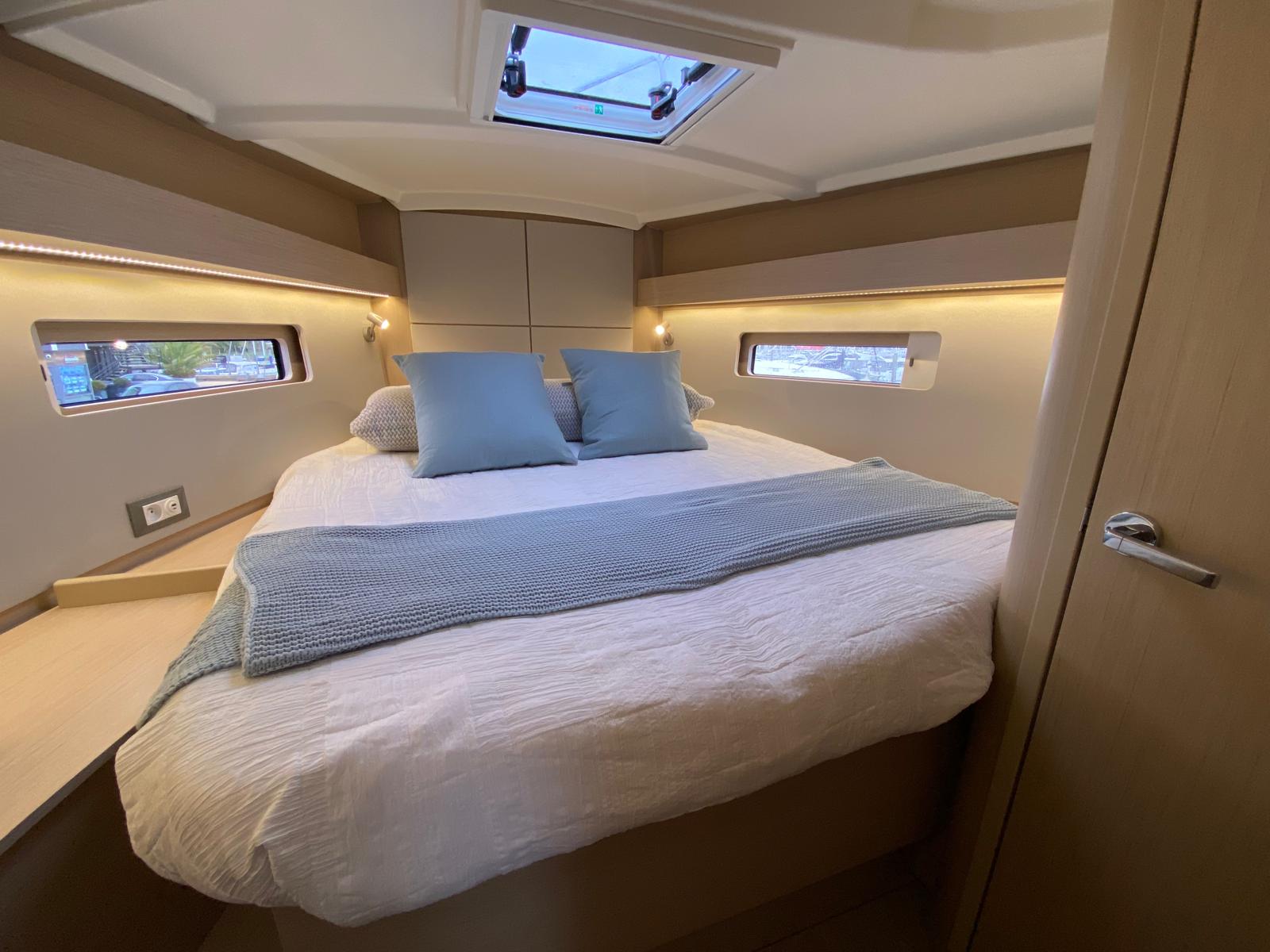

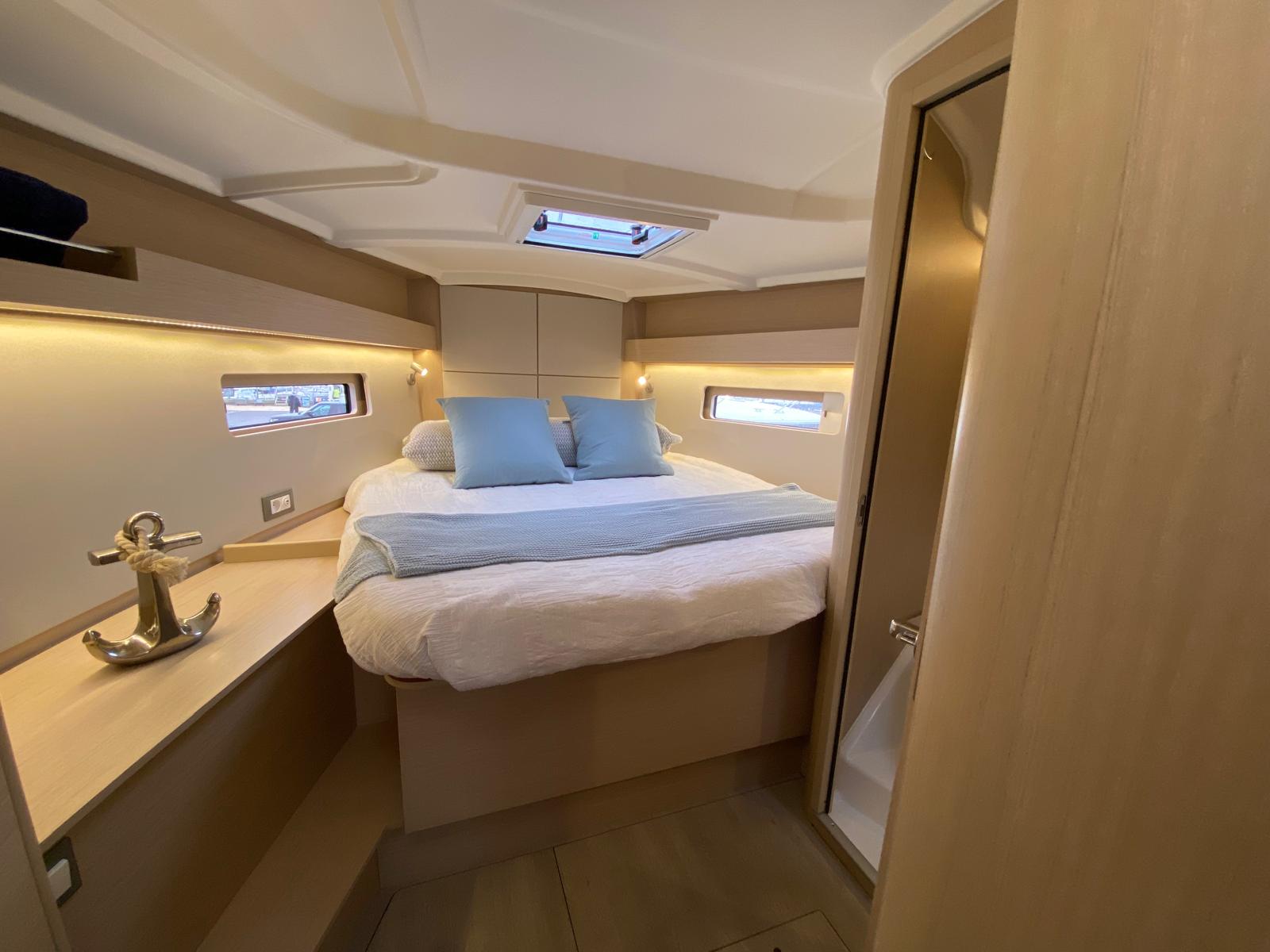

OWNER'S CABIN (Forward cabin):
Headroom: 1,94m / 6’4’’
1 Central double bed (2,03 x 1,60 - 1,31m / 6’8’’ x 5’3’’ - 4’4’’)
2 Hanger closets, open storage compartment along the hull
1 bedside table on each side of the bed
2 Spotlights on the headboard
3 Flush deck hatches with blind/mosquito net
2 Portholes with sliding blind

EN-SUITE:
Private entrance through forward cabin
Shower with Perspex door - self-draining storage tray - 1 mixer tap
1 Manual toilet
1 50 L / 131 US Gal rigid holding tank
1 Polyester basin - 1 Hot/cold water mixer tap
1 Cabinet + Storage space under the basin
1 Mirror
Toilet accessories
1 Deck hatch with blind/mosquito net

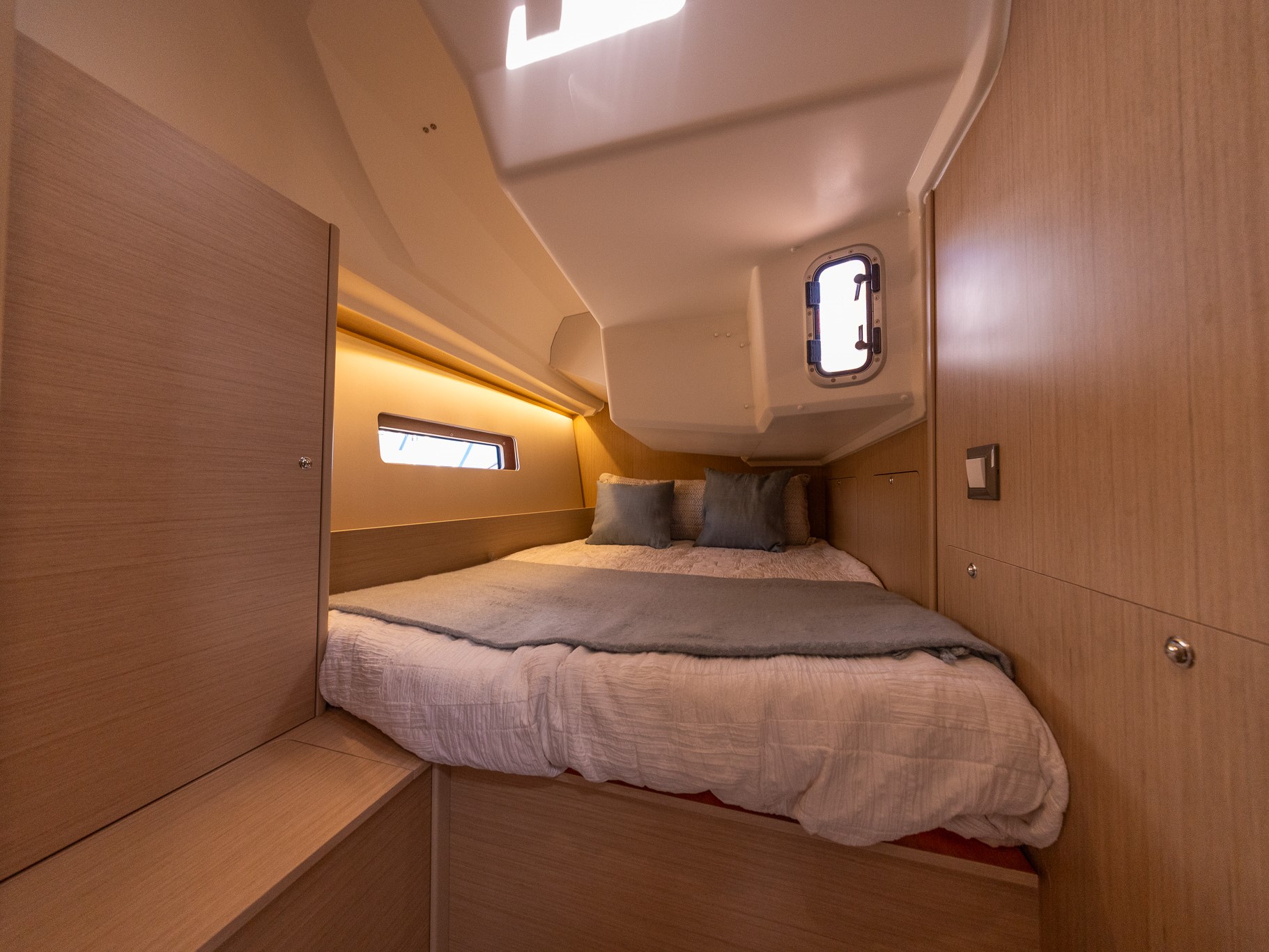

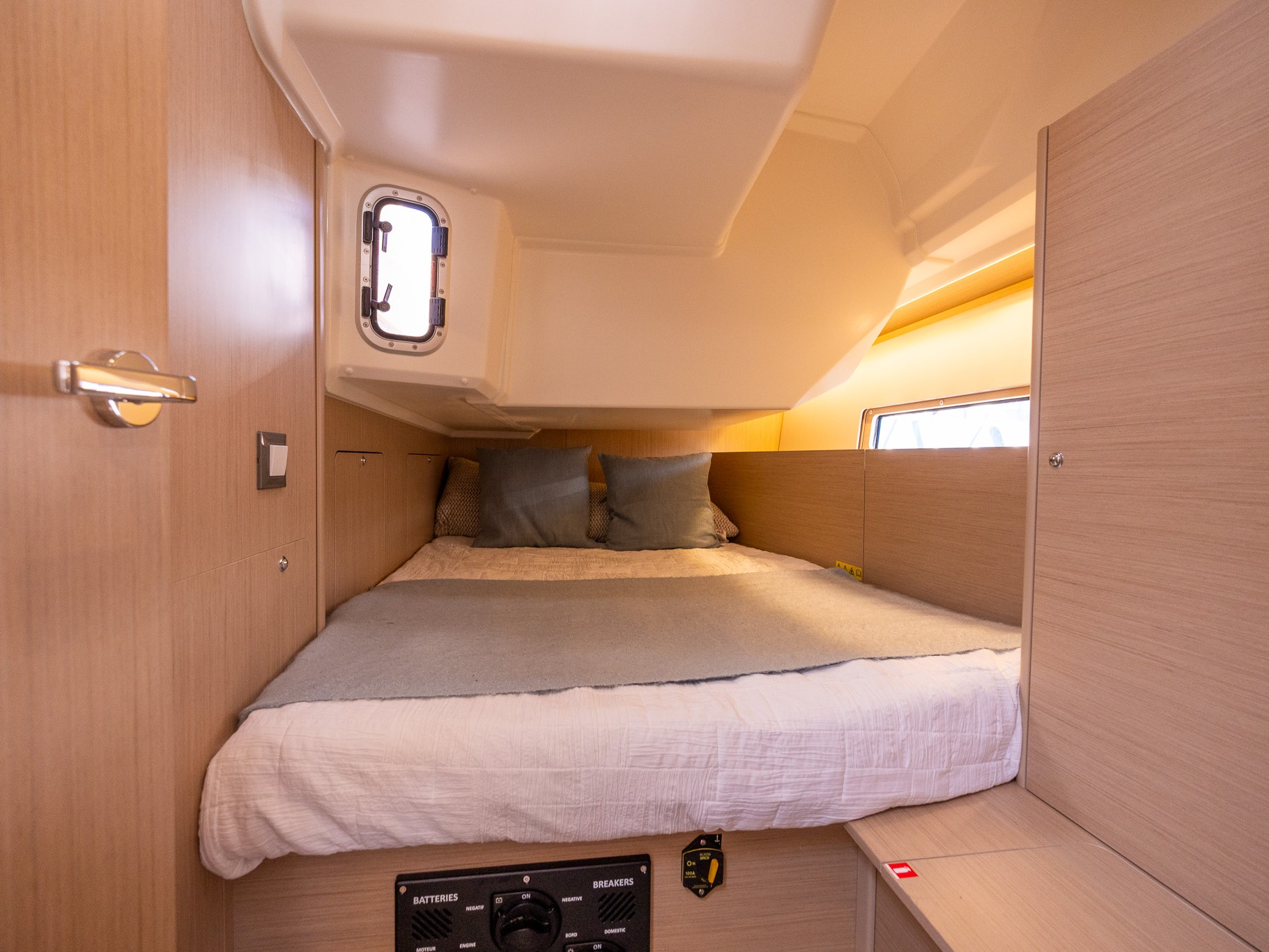

STARBOARD AFT CABIN:
Headroom: 1,93m / 6’4’’
1 Double bed (2,04 x 1,37 x 1,21m / 6’8’’ x 4’6’’ x 4’)
1 Hanging locker
1 Spotlight on the headboard
1 Hull porthole with curtain
1 Opening porthole below cockpit seat with curtain

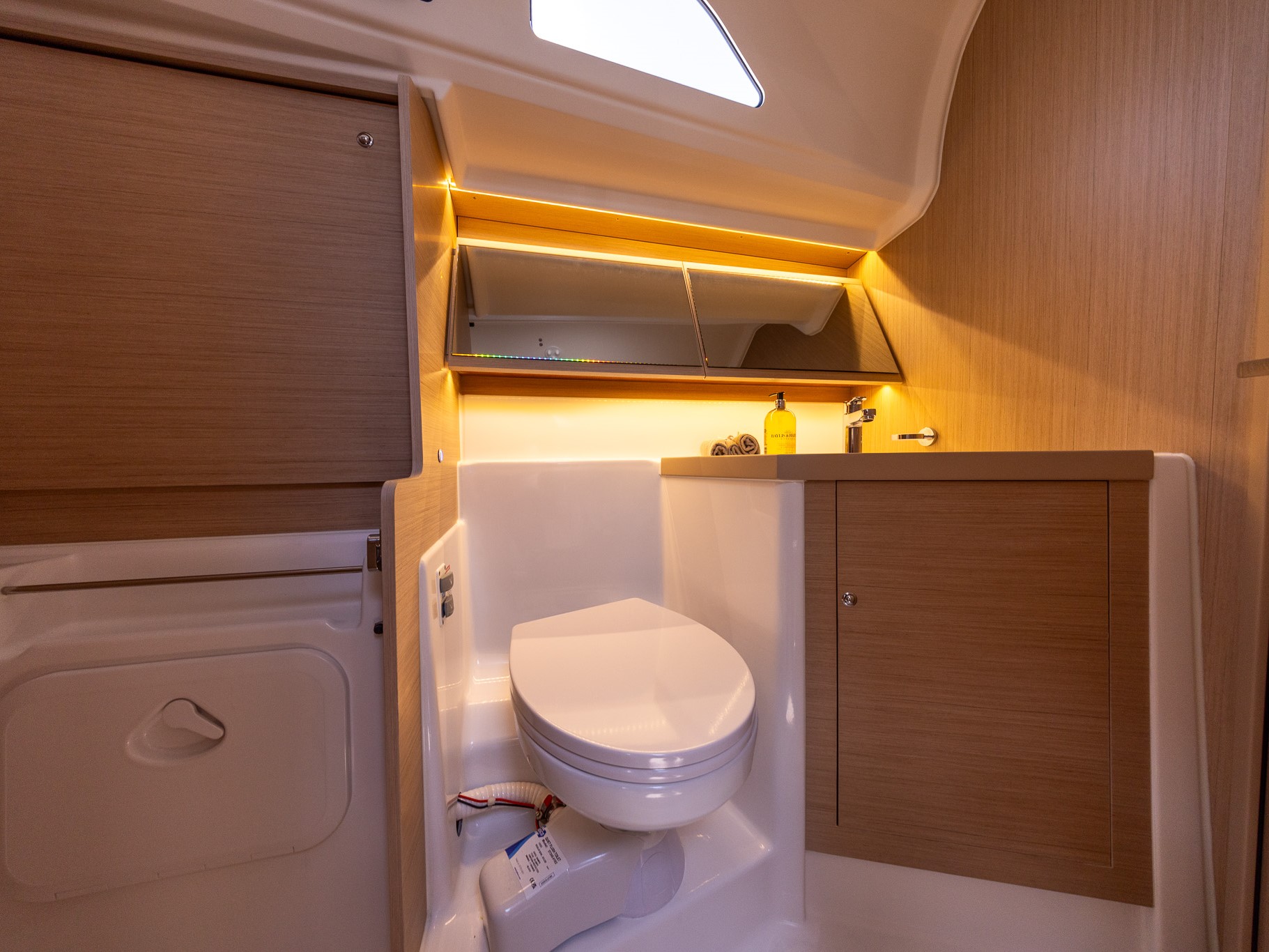

STARBOARD AFT HEAD COMPARTMENT:
Headroom: 1,95m / 6’5’’
Access from the saloon or the starboard aft cabin
Shower with Perspex door - self-draining storage tray - 1 mixer tap -
White polyester shower base
1 Manual toilet
1 80 L / 21 US Gal rigid holding tank
1 Polyester basin - 1 Hot/cold water mixer tap
1 Cabinet + Storage space under the basin
2 Mirrors
1 Opening porthole in coaming

PORT AFT CABIN:
Headroom: 1,93m / 6’4’’
1 Double bed (2,04 x 1,37 x 1,21m / 6’8’’ x 4’6’’ x 4’)
1 Hanging locker
1 Spotlight on the headboard
1 Hull porthole with curtain
1 Opening porthole below cockpit seat with curtain

All figures approximate

Machinery

YANMAR 4JH45 45HP INBOARD DIESEL ENGINE:
Shaft to three-bladed folding propeller
Retractable bow thruster (side power)

ELECTRICS:
Battery Charge Display (Comfort Trim Level)
12V circuit
All batteries upgraded to AGM (Comfort Trim Level)
2 additional service batteries (Comfort Trim Level)
4 x service batteries (115 Ah) - 1 x Engine battery (120 Ah)
12 V electrical panel on the chart table with single USB socket
Full 240V system - 6 interior sockets and shore power (Comfort Trim Level)
60am battery charger (Comfort Trim Level)

TANKAGE:
Rigid 195L diesel tank.
Rigid 195L freshwater tank - plus additional 330l water tank
Rigid black water holding tank for each WC

WATER SYSTEM:
Pressurized hot and cold water system
Hot & cold cockpit shower
40L electric calorifier using engine or shore power to heat water.

All figures approximate

Inventory

NAVIGATION AIDS:
Oceanis 40.1 offshore electronics pack (2023) - Raymarine
Axiom+ 7" MFD to port & stbd helm consoles
Sensor (speed, log, temp)
Wind sensor (windvane, anemometer)
Windex
P70s autopilot with control
Ray73 fixed VHF to chart table with AIS (receiver ONLY)
S100 wireless autopilot control
Navionics Platinum Plus cartridge

OCEANIS 40.1 MOORING / ANCHOR PACK:
Anchor - Delta 20kg
Anchor chain - 32m x 10mm
Anchor warp - 45m x 18mm
Mooring lines, pack of 4 -15m x 18mm
2x Fenders 760mm x 300mm
4 x Fenders 860mm x 230mm

GENERAL EQUIPMENT
Aft Fairleads
Cockpit windlass control with chain counter

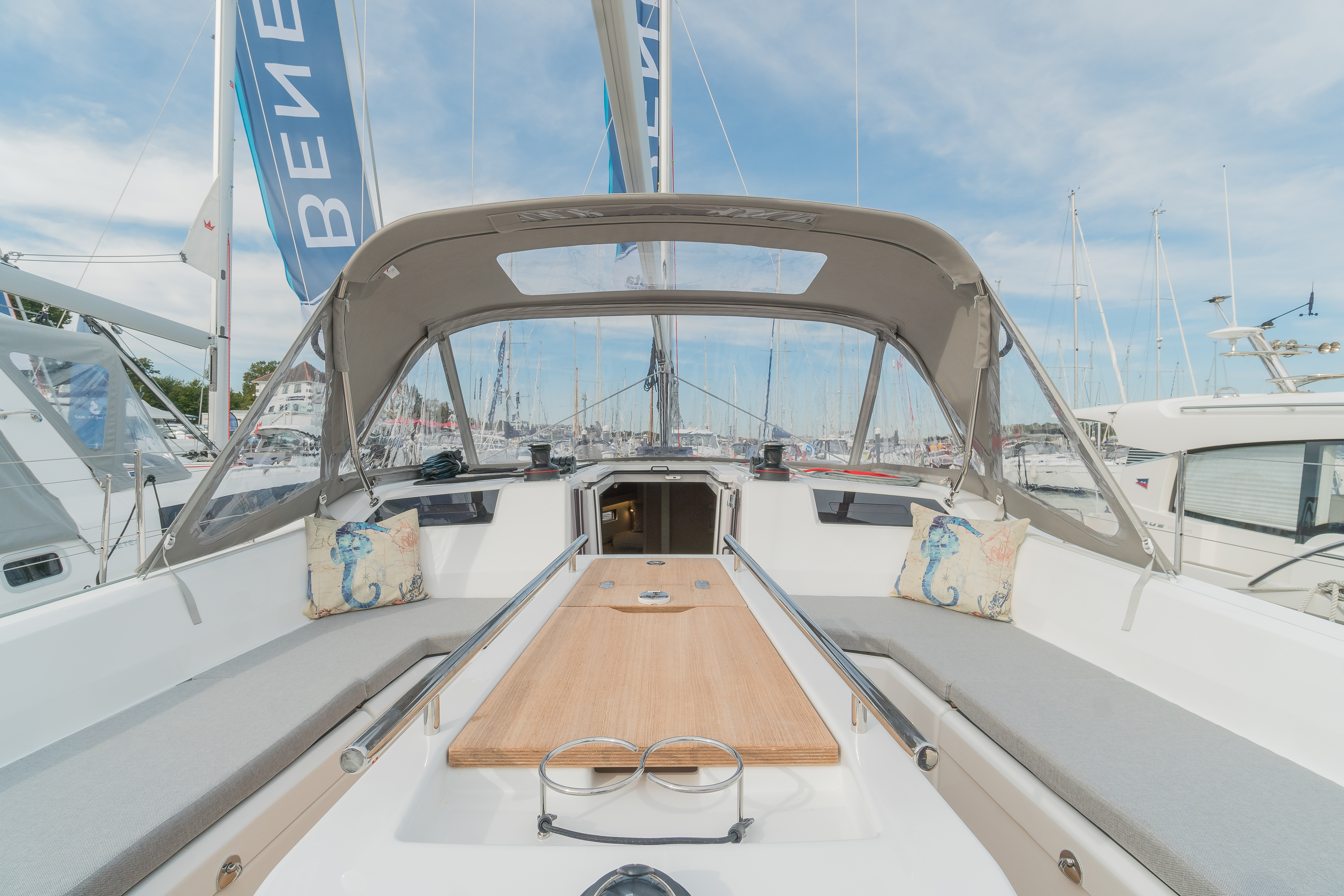

Luxe polyester/wood cockpit table with Cadet Grey cover
Opening cockpit portholes to both aft cabins
Pleated blinds for saloon hull windows
Luxe Coachroof Sprayhood - Cadet Grey
Steering Wheel Covers - Cadet Grey
Dolce 51 cockpit cushions

OCEANIS 40.1 COMFORT TRIM LEVEL:
Solid wood helm seats
2 x halyard bags
1000w windlass with remote control and cockpit control with counter
Hot / Cold Cockpit Shower
LED Courtesy Lighting in the cockpit
LED indirect lighting in saloon
Front Opening for galley icebox
Compact sink cover with chopping board
Fusion stereo with interior and exterior speakers
Dual USB socket at chart table and each cabin
