- Make McConaghy
- Model MC60
- Year 2020
- LOA 60ft/18m
- Class Multihull
- Hull Glass Reinforced Plastic
- Keel Multi-Hull
- Rig Sloop
- Engine Twin Diesel
- Drive Sail Drive
- Berths 6
- Cabins 3
- Ancasta Ref 46674
- Name NOBLE HOUSE
McConaghy MC60 | 2020
2,549,000 Tax Not Paid
|
Florida United States of America
DESIGN
Naval Architect: Ker Yacht Design
Interior Design: Design Unlimited
Composite Engineering approved by Bureau Veritas
Certificate CE
PRINCIPAL DIMENSIONS
LOA 18.3m
Max Beam 8.8m
Draft 1.5m - 3.2m
Height of mast(above WL) 28.3m
Upwind sail area 210 m2
Auxiliary power 2 x 80 HP
Fuel tanks capacity 650L
Fresh water capacity 650L
Headroom saloon 2.05m
Headroom hulls 2.05m
CONSTRUCTION
Built using a controlled vacuum infusion process with carbon fibre and E-glass in low load areas and Corecell foam engineered by Gurit.
Providing lightweight, strength and rigidity.
Composite centreboards featuring push-button deployment with three pre-set positions. Flush with hull when retracted.
Fully deployed : 3.2m
Mid-position: 2.05m
Fully retracted : 1.5m (rudder draft)
Carbon composite Longeron with integrated anchoring system
Bimini - carbon composite fixed bimini with Isenglass windows & sunshades
Balanced spade twin rudders with self aligning bearings
Frameless bi-folding doors with tempered safety glass between saloon and aft deck
Carbon stairs and handrails to fly bridge.
EXTERIOR FINISHES
Hull and deck painted in high quality two pack polyurethane coating in grey and white
Non-skid areas on the side decks
Lewmar hatches flush with deck, drained to waterline
Carbon stanchions spectra lifelines
Six (6) folding cleats
INTERIOR FINISHES
All joinery is custom built and finished to McConaghy Boats high quality standards
The modern interior is constructed using a mix of hand-painted surfaces, lightweight timber laminates with infused foam cores and soft fabric liners.
Blinds and screens pack (all side windows and overhead hatches, excluding forward facing windows in saloon and bi-fold doors). Including mosquito netting for all opening hatches.
DISCLAIMER
All dimensions, weights and capacities are estimates. In this transaction Ancasta is acting as Brokers only. We are informed this sale is not related to the Owner's business, trade or profession. Whilst every care is taken in their preparation the correctness of these particulars is not guaranteed. The particulars are intended only as a guide and they do not constitute a term of any contract. A prospective buyer is strongly advised to check the particulars where appropriate, at his own expense, to have the vessel fully surveyed and inspected.
SPARS and STANDING RIGGING
Marstrom Carbon fibre mast and V-boom with composite standing rigging, halyards and control lines
Harken Switch track with Rigging Projects headboard car
Carbon composite Longeron with integrated anchor system
Clear coat finish
HEADSAIL FURLERS
Reckman electric jib
Karver manual Code O/A Sail
WINCHES & SAIL CONTROLS
4 x Harken 70.3 STEP 24VDC Electric Radial
Harken Electric mainsail traveller line feed
Spinlock Clutches for Mainsail & Jib halyards & sheets
Composite running rigging
SAILS
North 3Di inventory
Mainsail - new 2024
Full batten Square Top 137m²
Self tacking Jib
Furling - 68m²
Code 0/Screecher
Furling - 183m²
Storm sail
The cabin interiors are constructed and finished to the same standard and style of the salon.

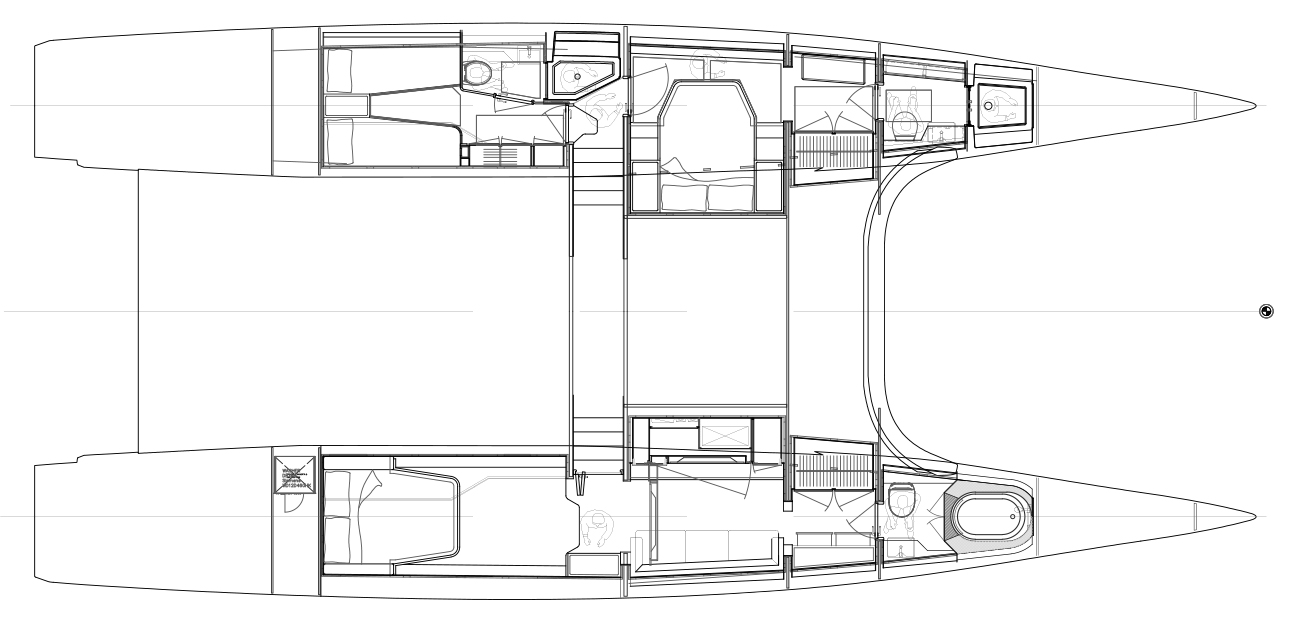

Three Cabins

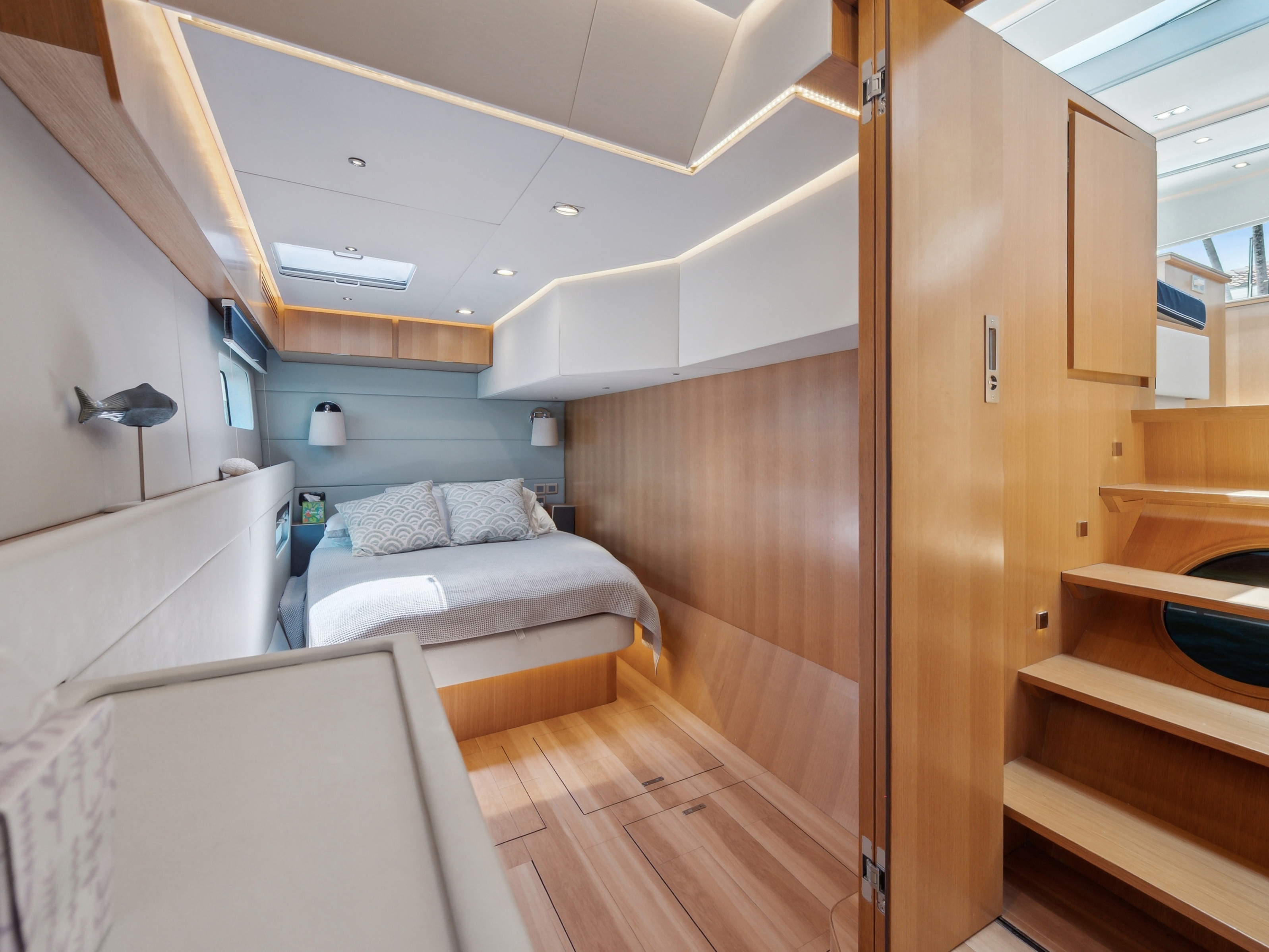

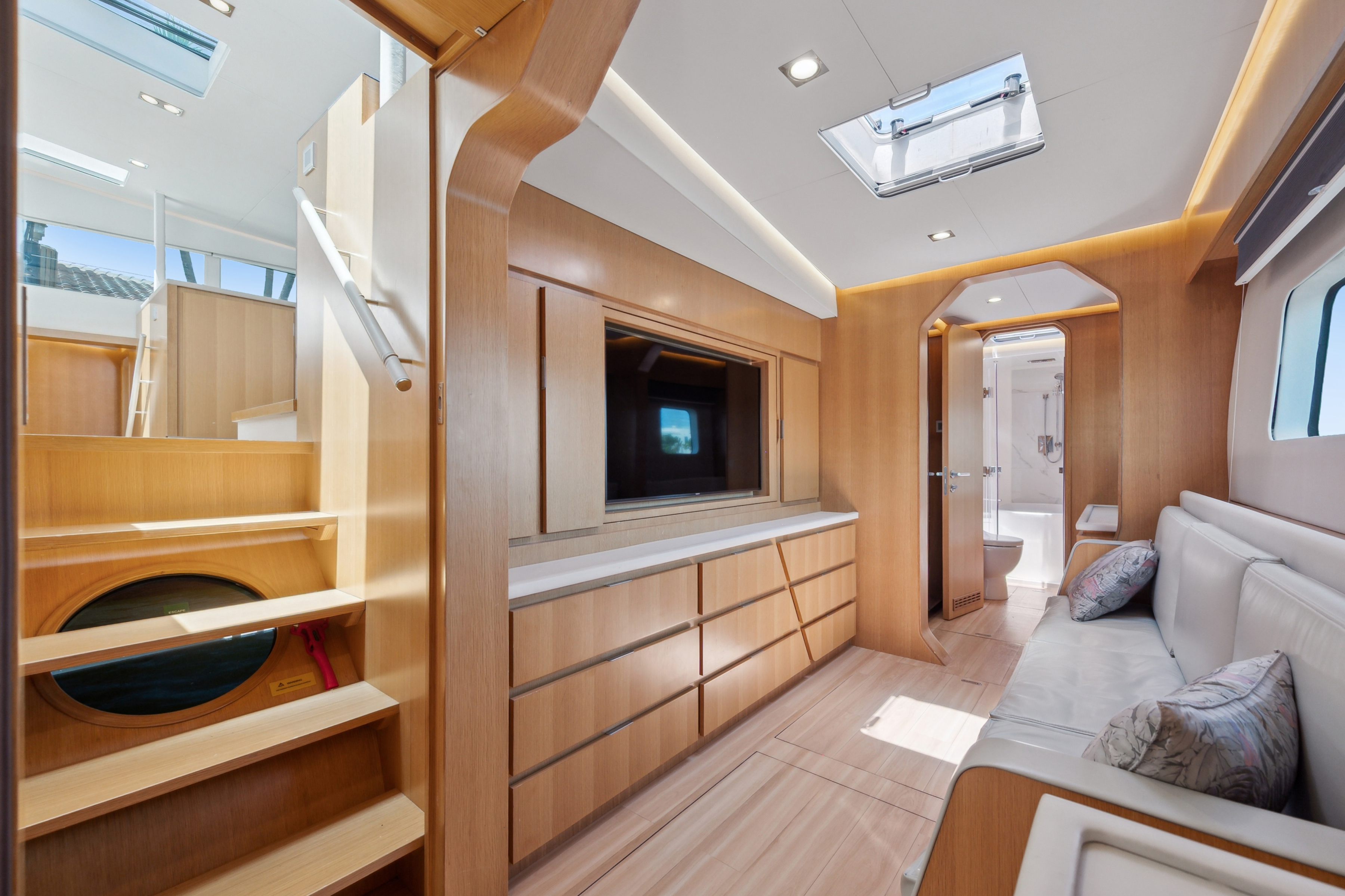

Starboard hull is Owner's hull. Double berth aft, settee, wardrobes and storage mid-ship, bathroom with bathtub and bidet forward.
Port hull has two guest cabins. Twin berth cabin with ensuite bathroom, aft. Seaview berth and spacious ensuite bathroom amidships and forward.
All cabins are fitted and finished with:
Ample storage
Tempered glass hull windows
Overhead opening hatches
Lights - overhead, reading, courtesy
110/230 VAC outlets and USB sockets
All Ensuites are fitted and finished with:
High quality shower/vanity fittings
Electric toilets
Vanity sink with cabinet
Full length mirror
Corian sole in showers

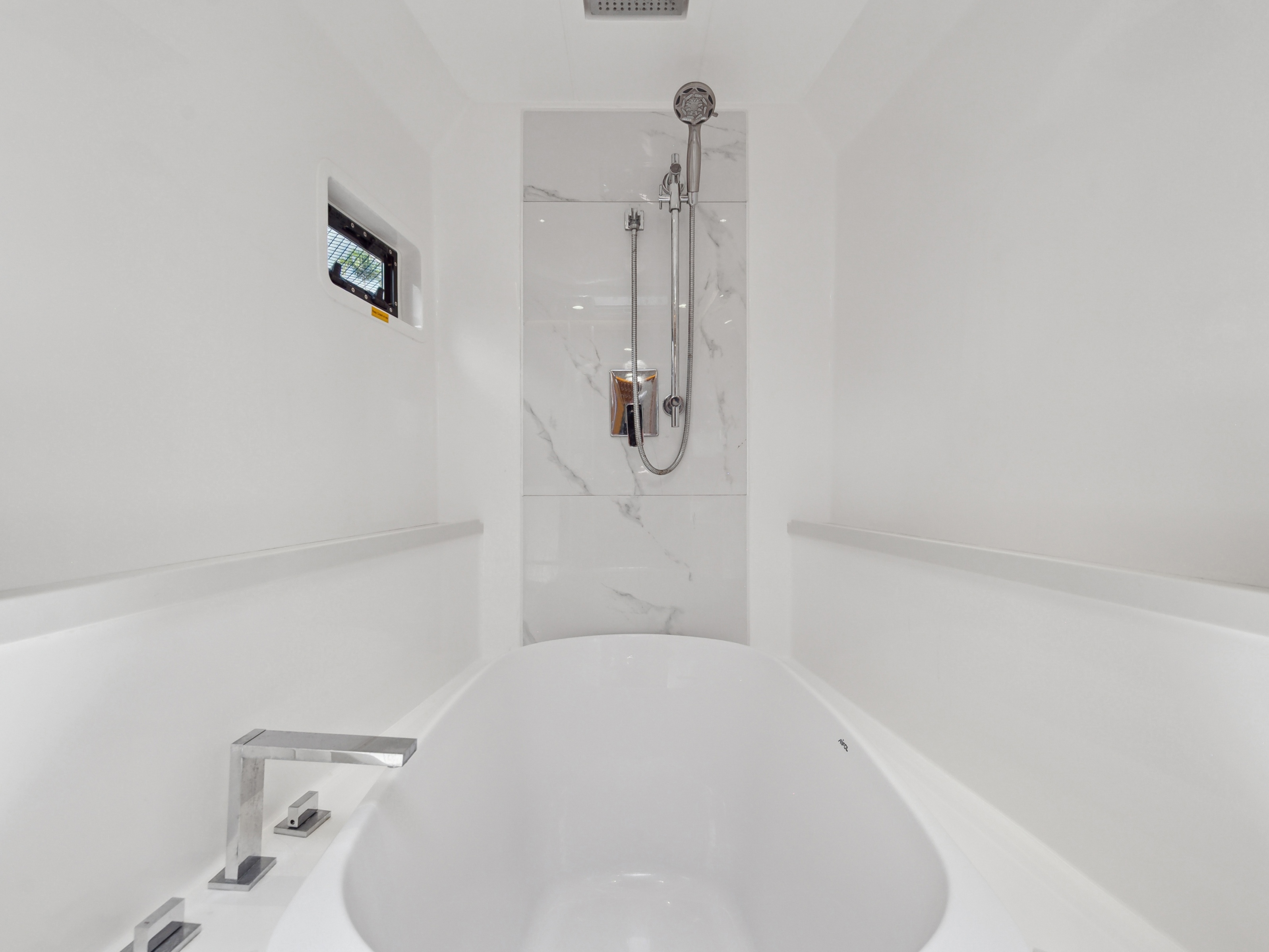

Custom bathtub in master cabin
110/230 VAC outlets and USB sockets
MAIN DECK
Electric sliding windows with safety locks both port and starboard
Overhead fixed skylights
Opening hatches at forward end of saloon
Frameless, bi-folding, tempered safety glass doors between saloon and aft deck
Aft deck, aft stairs, flybridge and salon sole all finished with teak

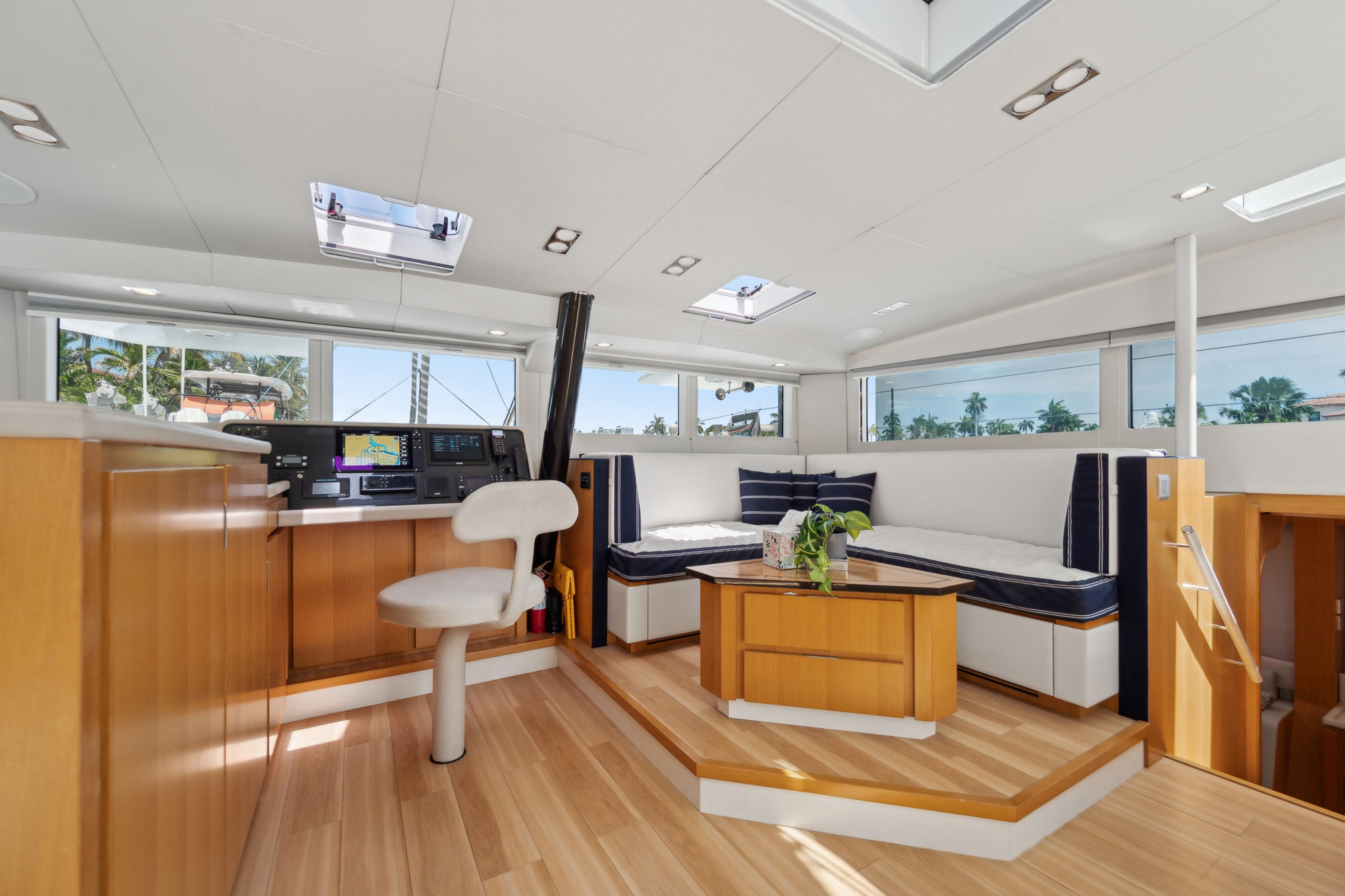

Saloon to Starboard
L-shape settee with cushions
Under seating storage
Telescoping Dining table with fold out extensions
Corner settee and small coffee table forward
Long overhead skylight
Overhead recessed lights, down lights and courtesy lighting at sole level
110/230 VAC and USB sockets
Navigation Station Forward
Customized layout in carbon finish
Raymarine display, autopilot control, i70 MFD, VHF
C-Zone monitoring system. Controls for Watermaker, Generator
Fusion Audio
110/230 VAC, 12 VDC and USB sockets
Remote battery switches
Hand embroidered pivoting Navigator's helm seat
Galley to Port and "The Island"
Custom Corian counter tops
Single bowl Stainless Steel sink
Mixer tap with Filtered water
Soap dispenser
2 - Isotherm SS Drawer Refrigerators 130L capacity each
2 - Isotherm SS Drawer Freezers - 90L capacity each
1- U-Line Wine Cooler - 24 bottle capacity
1- Isothern Icemaker
1- Smeg gas cooktop
1- Smeg gas/electric Oven
Storage 14 cabinets and 6 drawers under island and galley countertops, including built - in trash & recycle bins

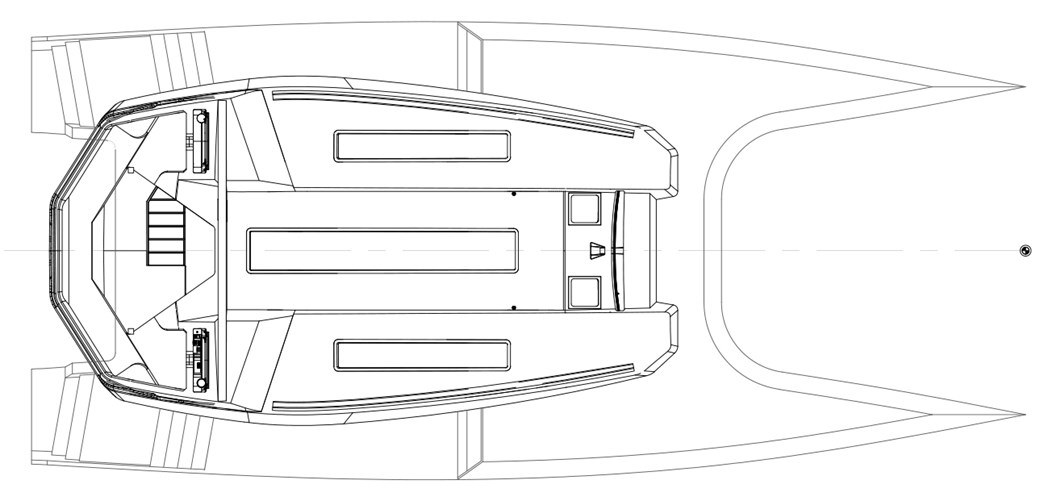

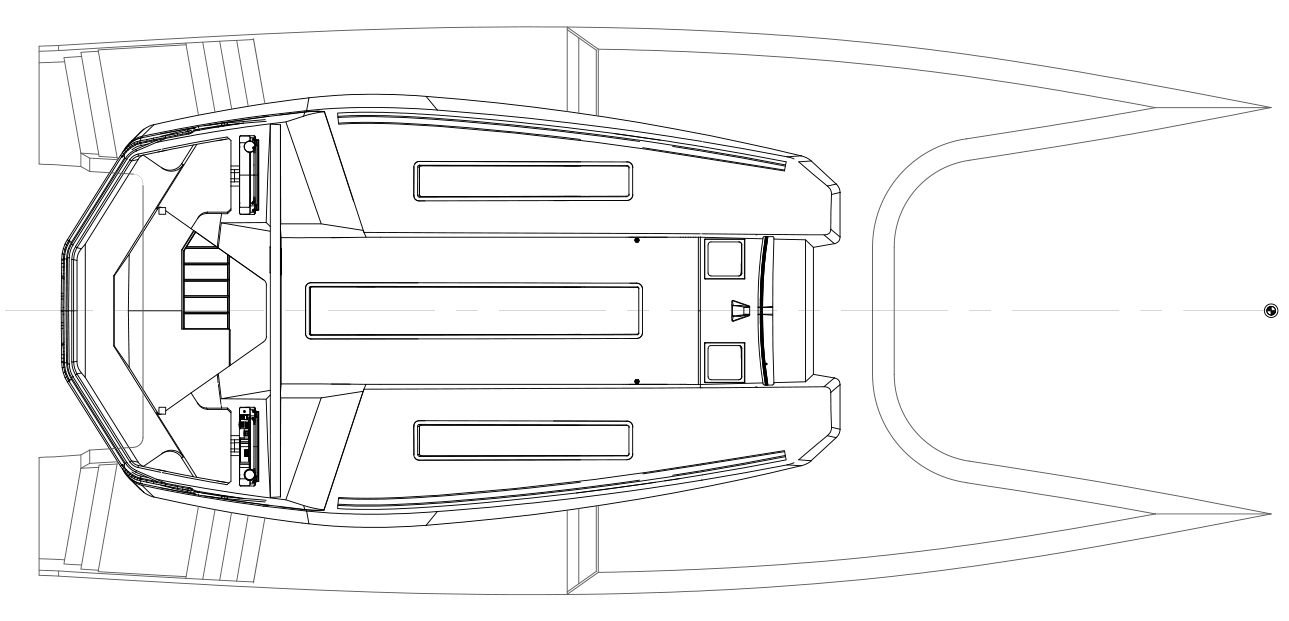

FLYBRIDGE AND HELM STATIONS
Twin helms stations with electronics/navigation and engine instruments & controls at both helms
Windlass control & counter
Twin McConaghy carbon fibre steering wheels
Main traveller located forward of helms
C-shaped seating area aft
Custom sheet and halyard bags
Courtesy lighting (red)
PROPULSION
Yanmar 4JH 80 HP
Yanmar Sail Drive
Gori 3 blade folding
Engine Hours (September 2025) - 800 hours
Fuel consumption 4 gallons/hour at 8+ knots in flat water

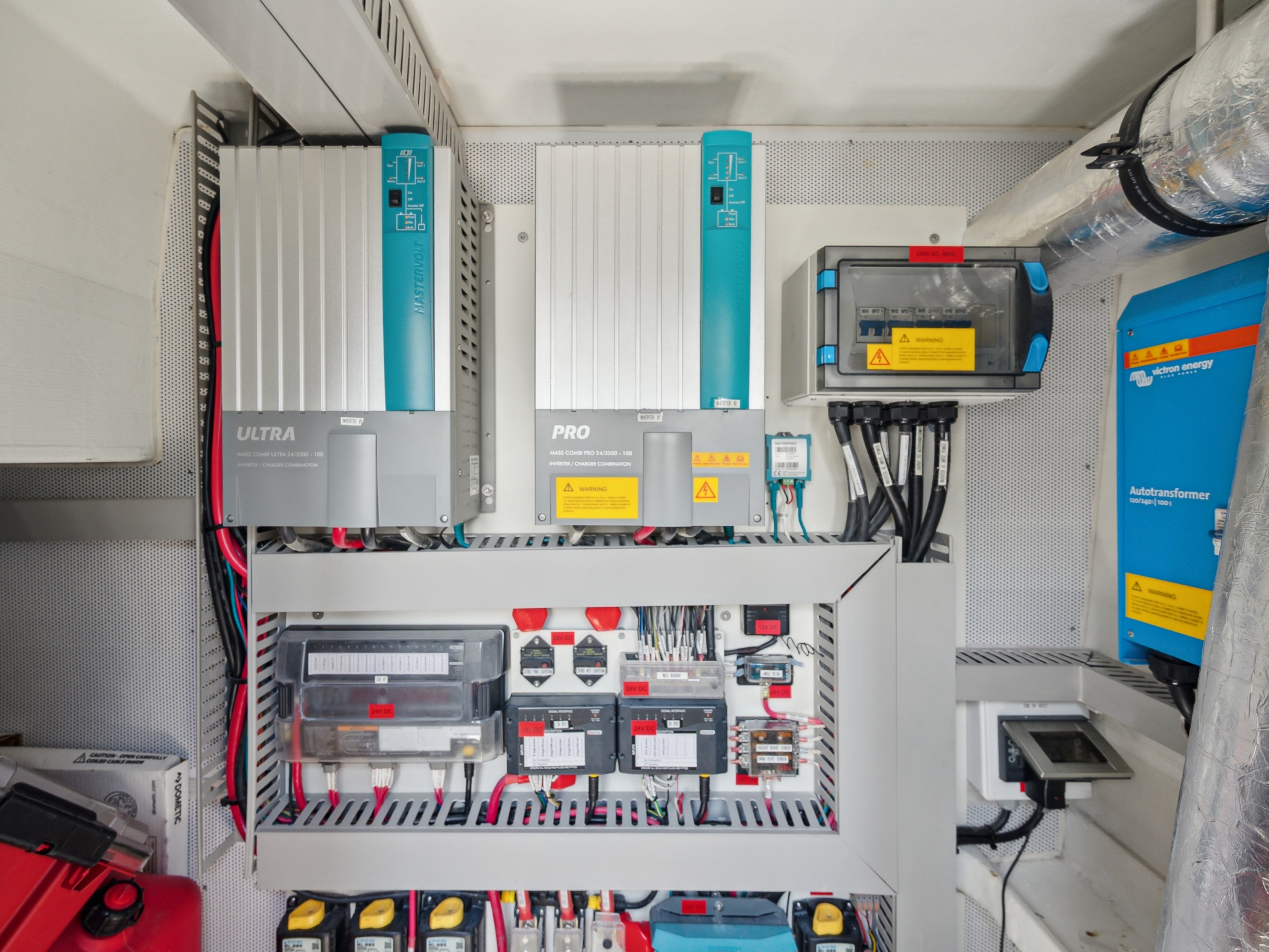

ELECTRICAL
110/230 VAC Supply
Shorepower cables - 240VAC/50 Amps x 2
Generator 15kW Fisher Panda 15000i - Hours (September 2025) - 1,480
Transformer 230/110 VAC
Galvanic Isolator
2 - MasterVolt 24/3500 Combination inverters
AC Switch panel with 16 switches
Sixteen - 110/230 VAC sockets
24 VDC Supply
Two - 200 amp 24V alternators
Two - MasterVolt 24V/3500W Battery Chargers
Six - 180 amp/hour Lithium Ion house batteries
Two - 12VDC AGM engine start batteries
One - 12VDC AGM Generator start battery
Nine - USB sockets x 2
AIRCONDITIONING
Dometic Chiller 70,000 BTU capacity
Six - Reverse Cycle Air Handlers with separate controls in each cabin and salon
INTERIOR and NAVIGATION LIGHTING and DC POWER
CZone DC Digital Switching System including touch screen, ipad compatible, voltage, tank, bilge and fuse alarms, lighting (switches
and dimmers),
Custom controls for centreboards and hydralic transom
Remote battery switches under nav station
Reading lights
Down lights
Cockpit Lights
Courtesy lighting
Navigation lights
Tank Sensor Monitors
NAVIGATION
B&G system
Display - Zeus 3S 12" Multi-Function Display
Radar - Broadband
Depth sounder x 2 with forward scanning in starboard hull
Autopilot
Communication
VHF - B&G w/ AIS NRS-2 with wireless remotes at both helm stations
VHF- Horizon HX890 handheld
Sat Phone - Lars Thrane LT-3100
Starlink
Wi-Fi
GPS - B&G
ENTERTAINMENT
Fusion MS-755 system with four speakers in saloon, two speakers on aft deck and two speakers on flybridge
2- Sony 55" TV's saloon and master cabin
KVH Sat Com
WiFi
PLUMBING
1 - Spectra Newport 1000 water maker with 150L/hr capacity
4 - Rule automatic bilge pumps (2,000 GPM each )
2 - Henderson MK 5 Universal Manual Bilge pump
1 - Pressurized hot & cold water system
3 - Isotherm water heaters – 60L tanks
1 - Whale Universal Pressure pump 18L/M 45PSI
1 - Deck wash pump salt/fresh water with outlets on aft and fore deck
Black water tanks approx 2 x 120L and 1 x 60L
Fresh water tanks approx 2 x 265L
Fresh Water Level Sensor
Holding tank sensor
RUDDERS AND STEERING
Balanced spade rudders
Self aligning bearings
Hydraulic steering
Emergency tiller
Glendinning wired helm and throttle control
DECK HARDWARE
8 - Lewmar flush hatches drained to waterline
Clear carbon composite stanchions with dyneema lifelines
Recessed coachroof handrails in clear carbon
Foredeck trampolines - dyneema
Deck fittings for Fuel, Water, Black water pump out
ANCHORING & MOORING
Lewmar V4V5 electric windlass - custom rebuild with superior stainless steel parts
40kg Lewmar Delta anchor, 80m chain with 1 meter Dynema strop securing chain to yacht
Chain counter at port helm
6 - Seasmart 300mm folding cleats
2 - stern cleats for Med mooring
4 - electric mooring winches
1 - McConaghy Carbon fibre passarelle with stanchions and handrails
SAFETY
1 - Liferaft Ocean Safety 8 man ISO 9650-1 Group A
8 - SOLAS lifejackets and 10- USCG approved lifejackets
1- Jon Buoy
1 - EPIRB - ACR 5/17/26 (expiriration date)
1- Engine room fire suppression (certified 04/2025)
7 - handheld fire extinguishers (certified 04/2025)
TENDER
Williams 395 with Rotax 90HP engine
