- Make GARCIA
- Model Garcia Passoa 47
- Year 1997
- LOA 47ft/14m
- Class Sailing Cruiser
- Hull Aluminium
- Keel Drop Keel/Centre Board
- Rig Sloop
- Engine Single Diesel
- Drive Shaft Drive
- Layout Aft Cockpit
- Berths 6
- Cabins 4
- Aft Cabins 2
- Ancasta Ref 48762
- Name Hespera
GARCIA Garcia Passoa 47 | 1997
195,000 Tax Paid
|
S. France France
.
GARCIA PASSOA 47 BUILT IN FRANCE IN 1997 BY GARCIA YACHTS
Design: Philippe Harlé & Alain Mortain
French Flag - EU VAT Paid - 3rd Owner
Aluminium construction for hull and deck.
Lifting keel
Bowthruster: Side Power 100 twin propeller tunnel thruster (8.4 hp thrust) 2015
Dinghy davits
DIMENSIONS
Length------------14.5m
Beam--------------4.31m
Draft---------------1.05m - 2.84m
Displacement----16000 kgs
CAPACITIES
Water-------------800 L
Hot water--------50 L
Fuel---------------550 L
Holding tank----25 L
SLOOP RIGGING
RIGGING
F740 Francespar mast, La Rochelle
F810 Francespar boom, La Rochelle
Standing rigging by Soromap, La Rochelle
10 Easylock maxi (piano) blocks + 4 on the mast.
Releaseable forestay on pelican hook
Fixed lower forestay for staysail
2 new textile backstays
SAILS
Fully battened mainsail on Lewmar ball bearing cars. Incidence sailmaker, La Rochelle
Profurl LC42 furling genoa - Tonnerre sailmaker, Lorient
Storm jib on self-tacking rail with cover. Tonnerre Lorient sailmaker
Solent Tonnerre Lorient sailmaker
Storm jib Tonnerre Lorient sailmaker
WINCHES
3 Andersen 42ST mast winches
2 Andersen 42ST deck winches
2 Andersen 58ST cockpit winches
SLEEPS 6 IN 4 CABINS + SALOON + SHOWER + HEAD
STARBOARD AFT CABIN
Single berth
Storage compartments

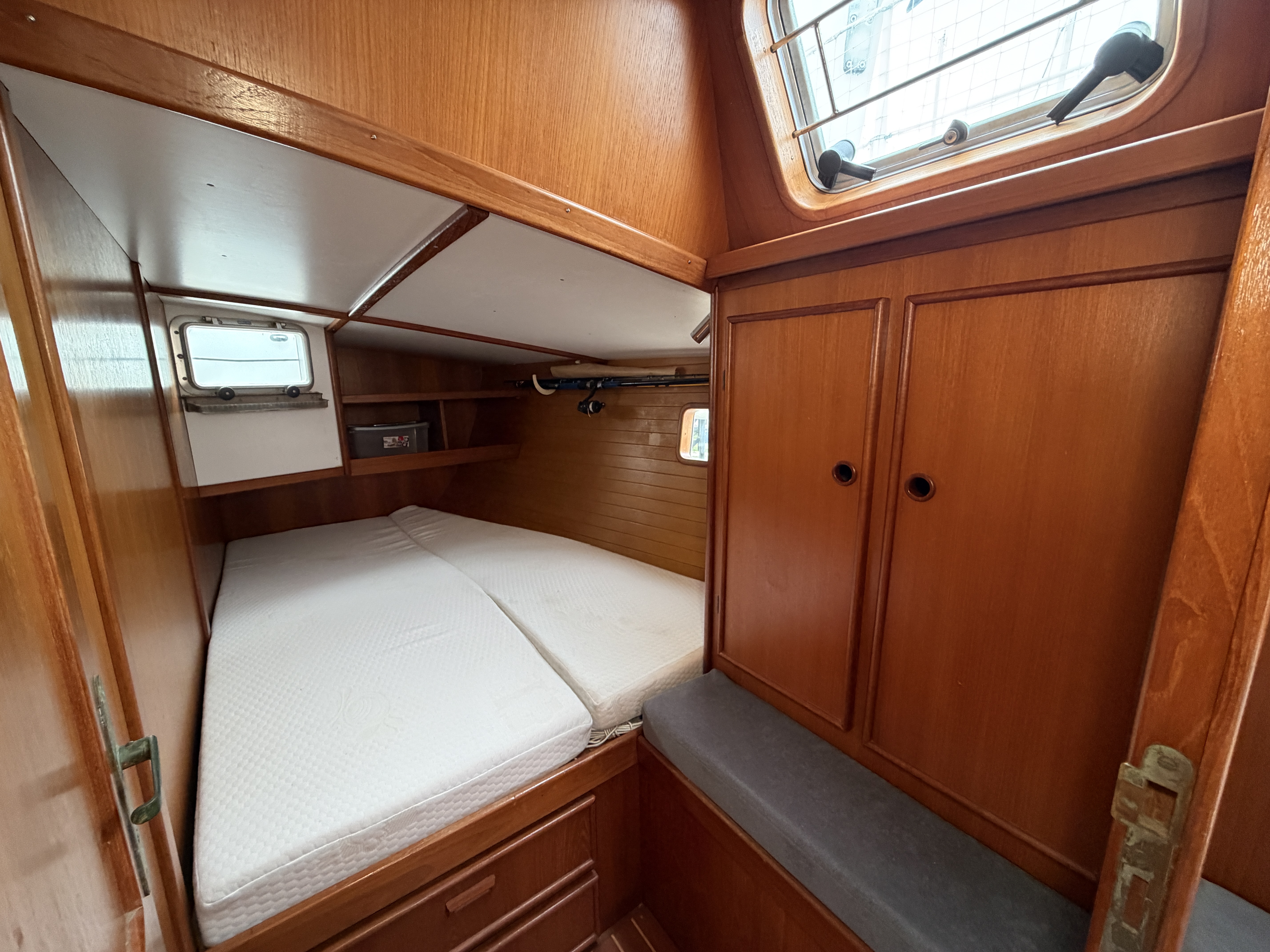

PORTSIDE AFT CABIN
Double berth
Storage compartments

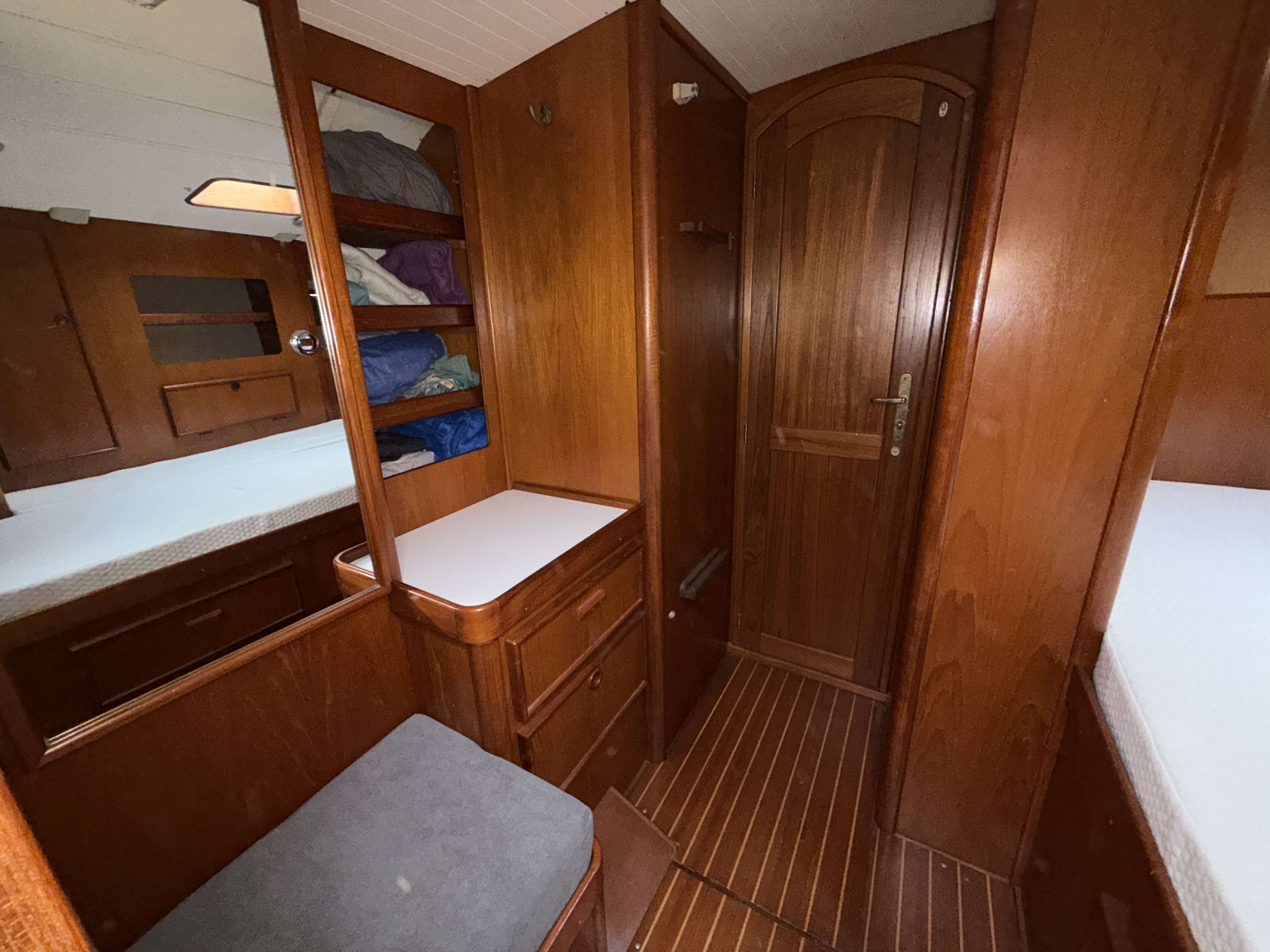

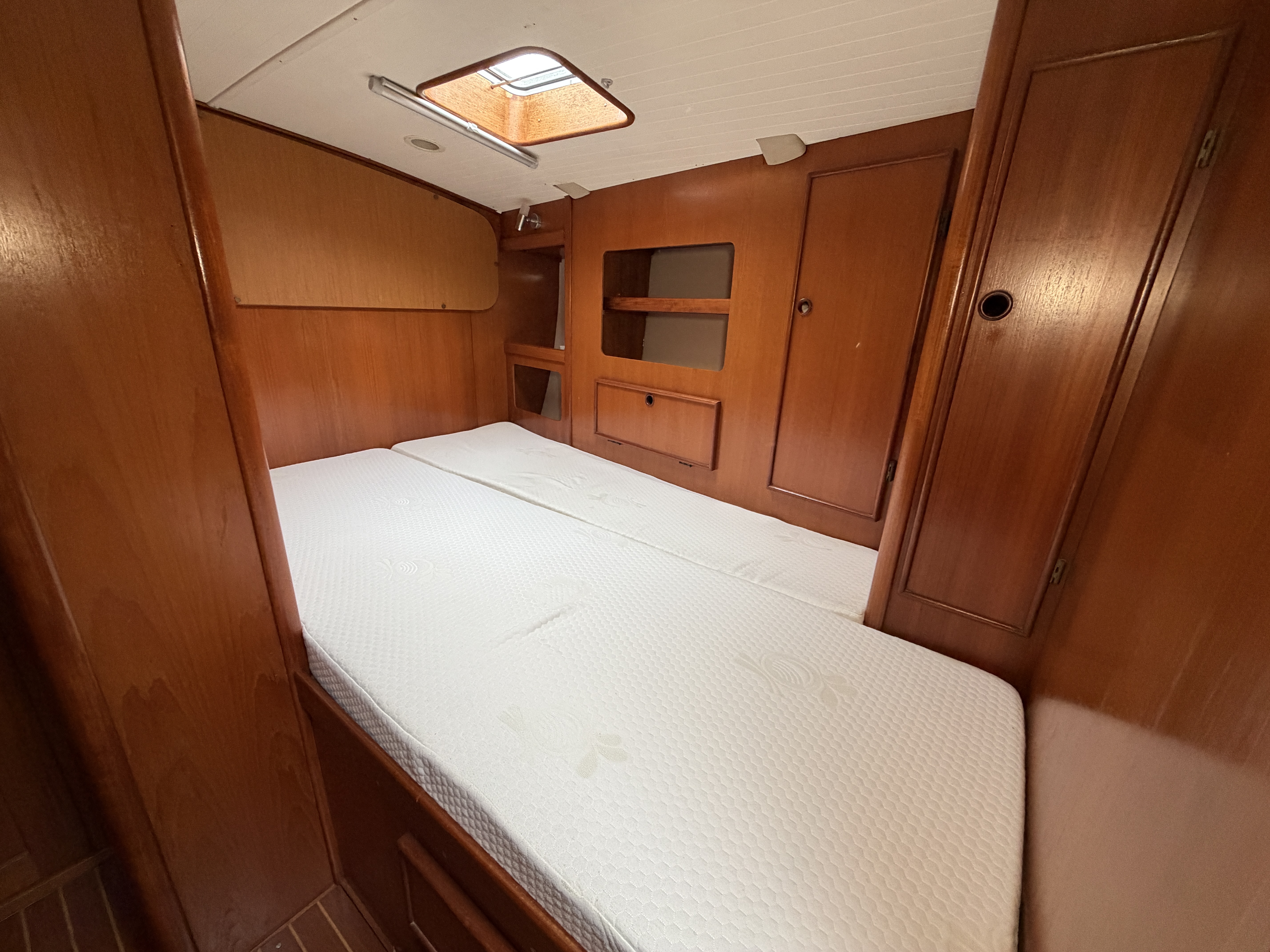

STARBOARD MID-SHIP CABIN
Double berth
Storage compartments

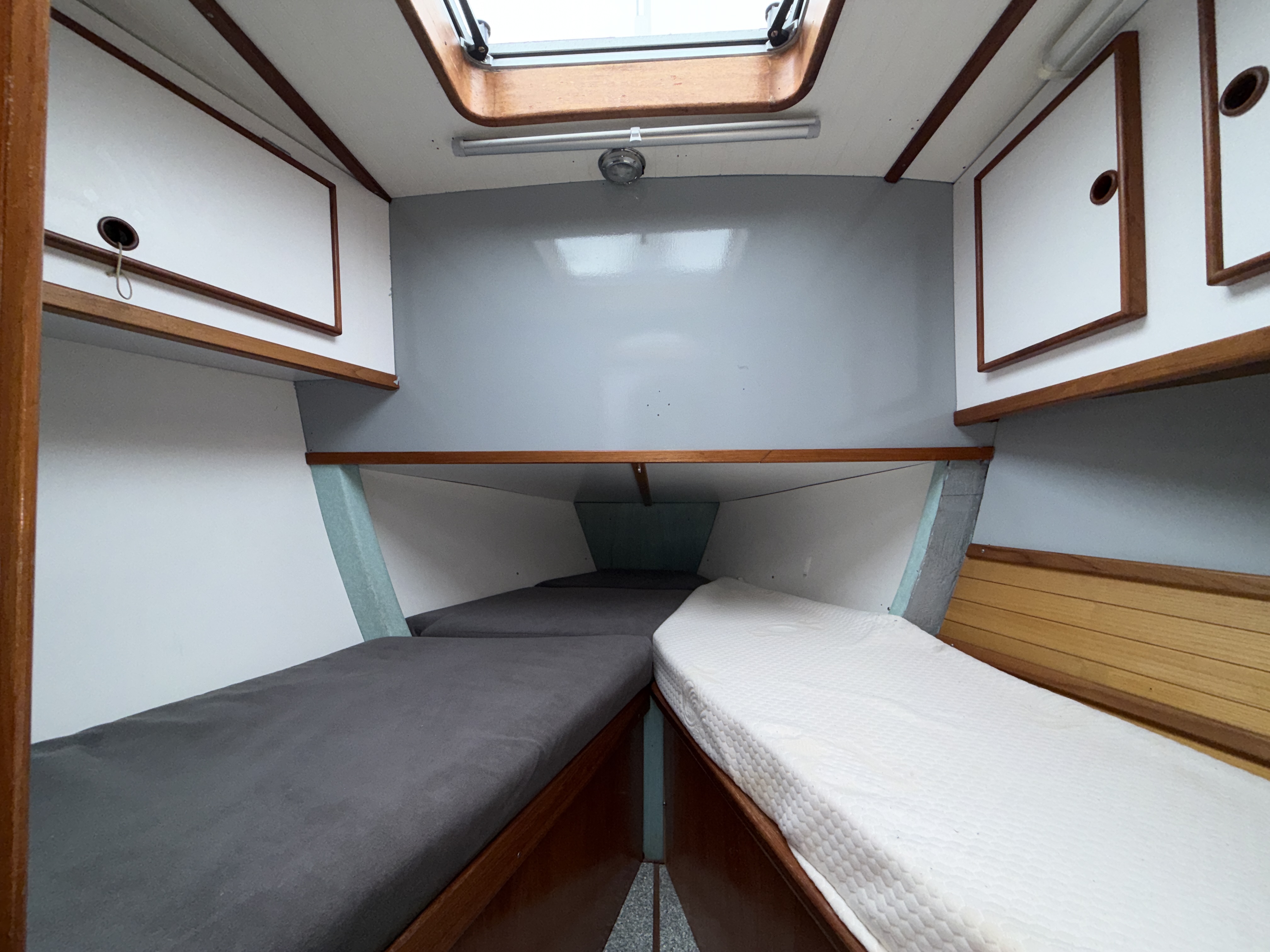

FORWARD CABIN
Two single berths
Storage compartments

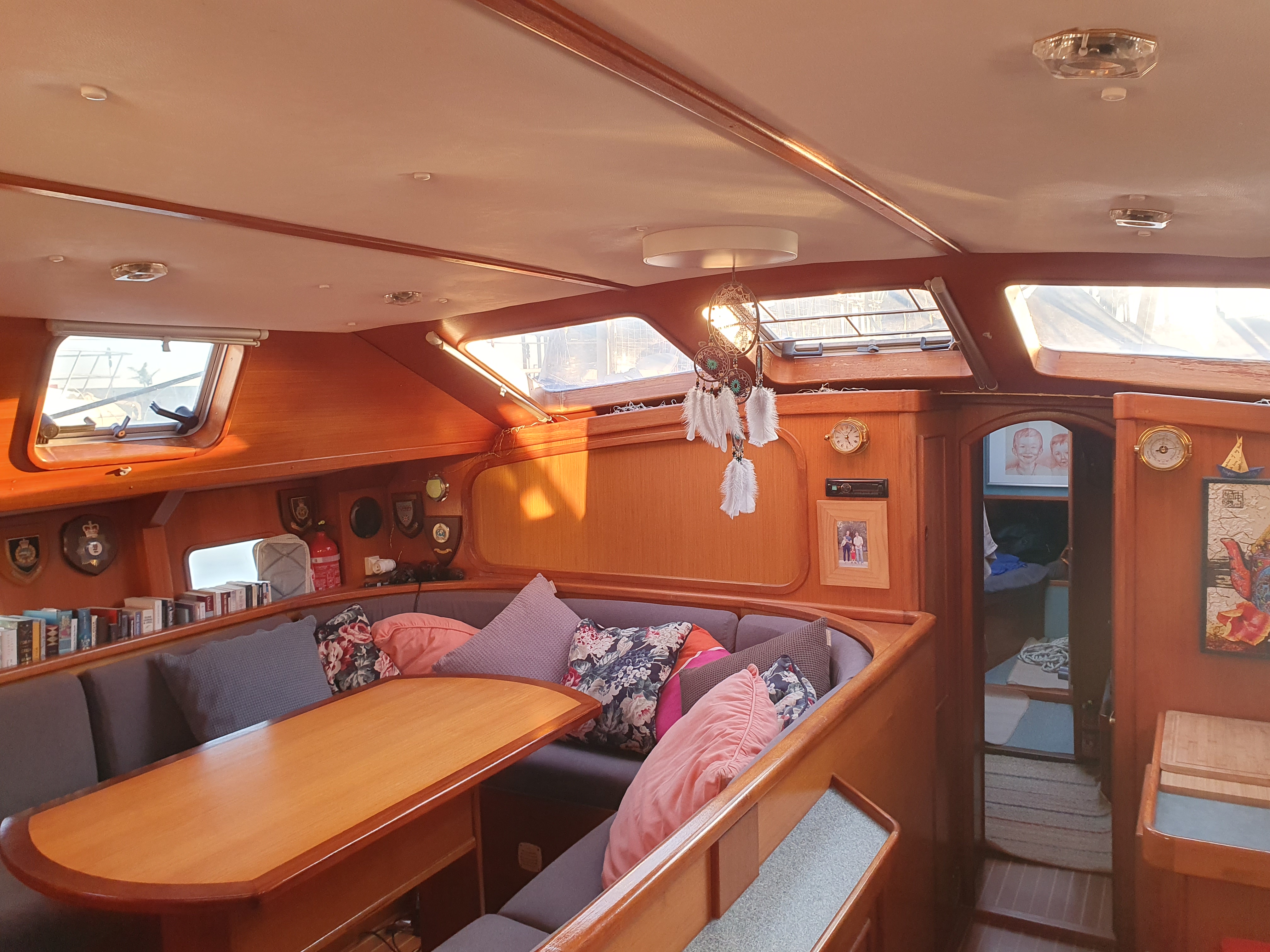

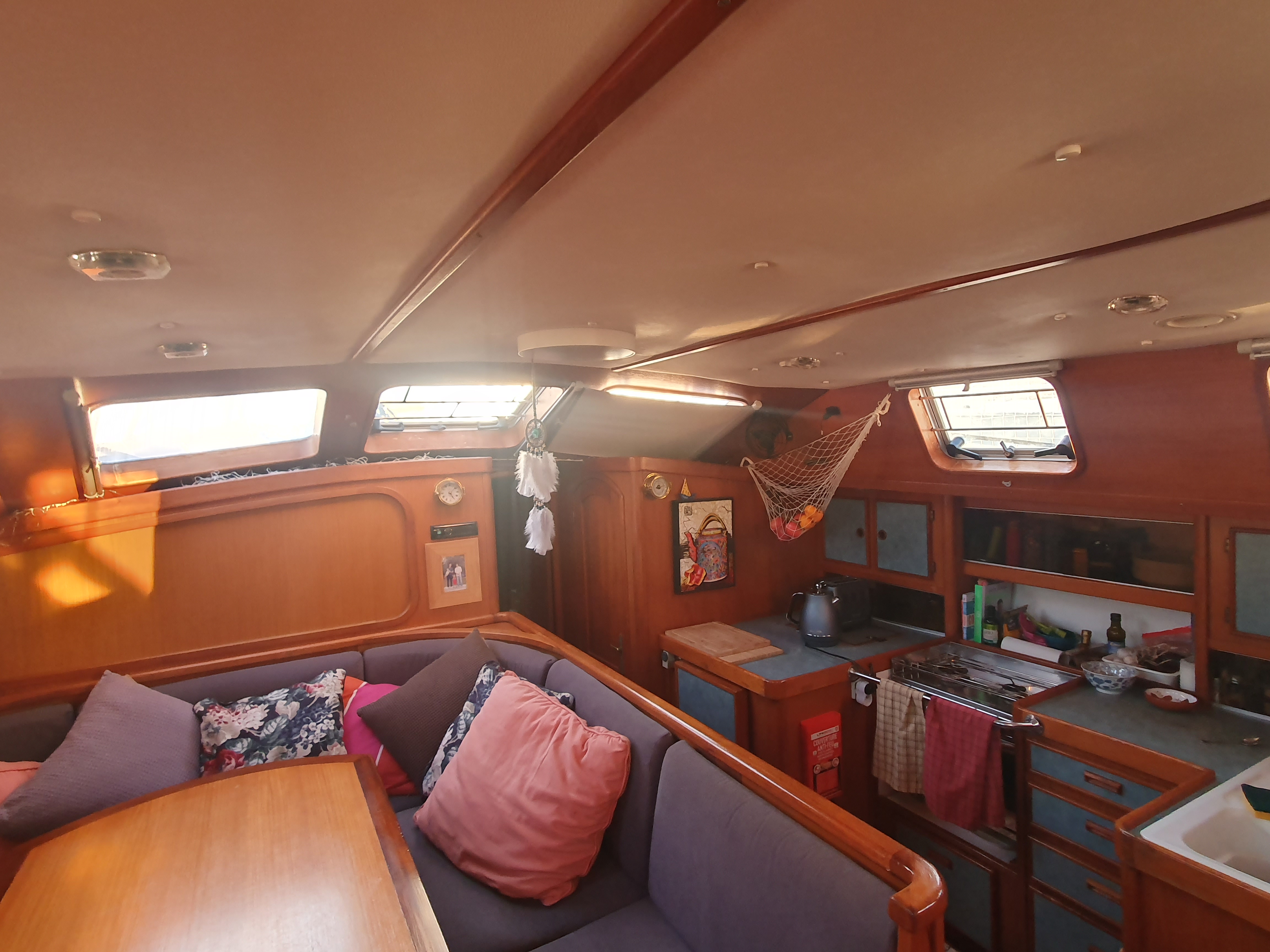

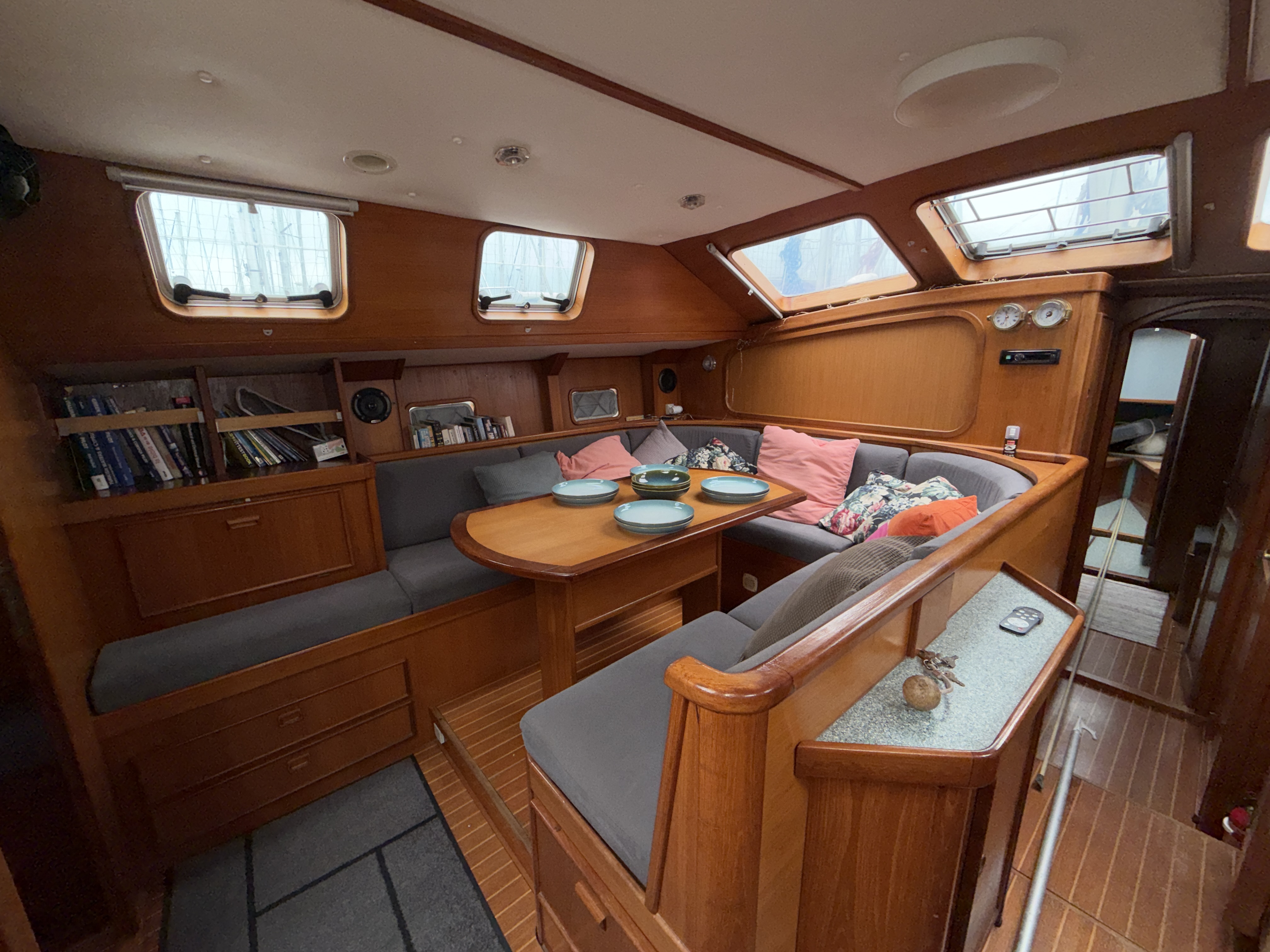

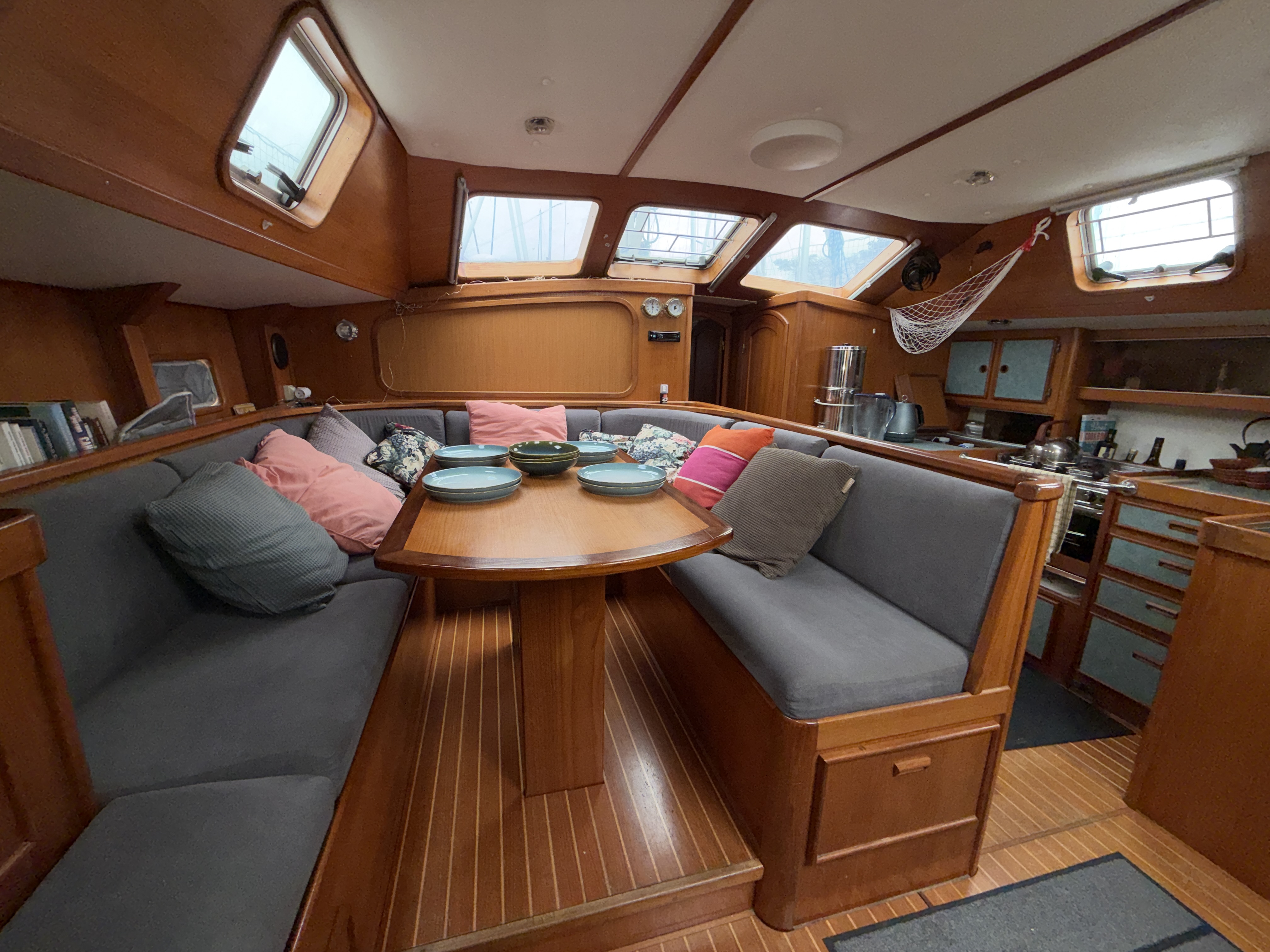

SALOON (PORTSIDE)
U-shaped settee for 6-8 pax
Storage compartments

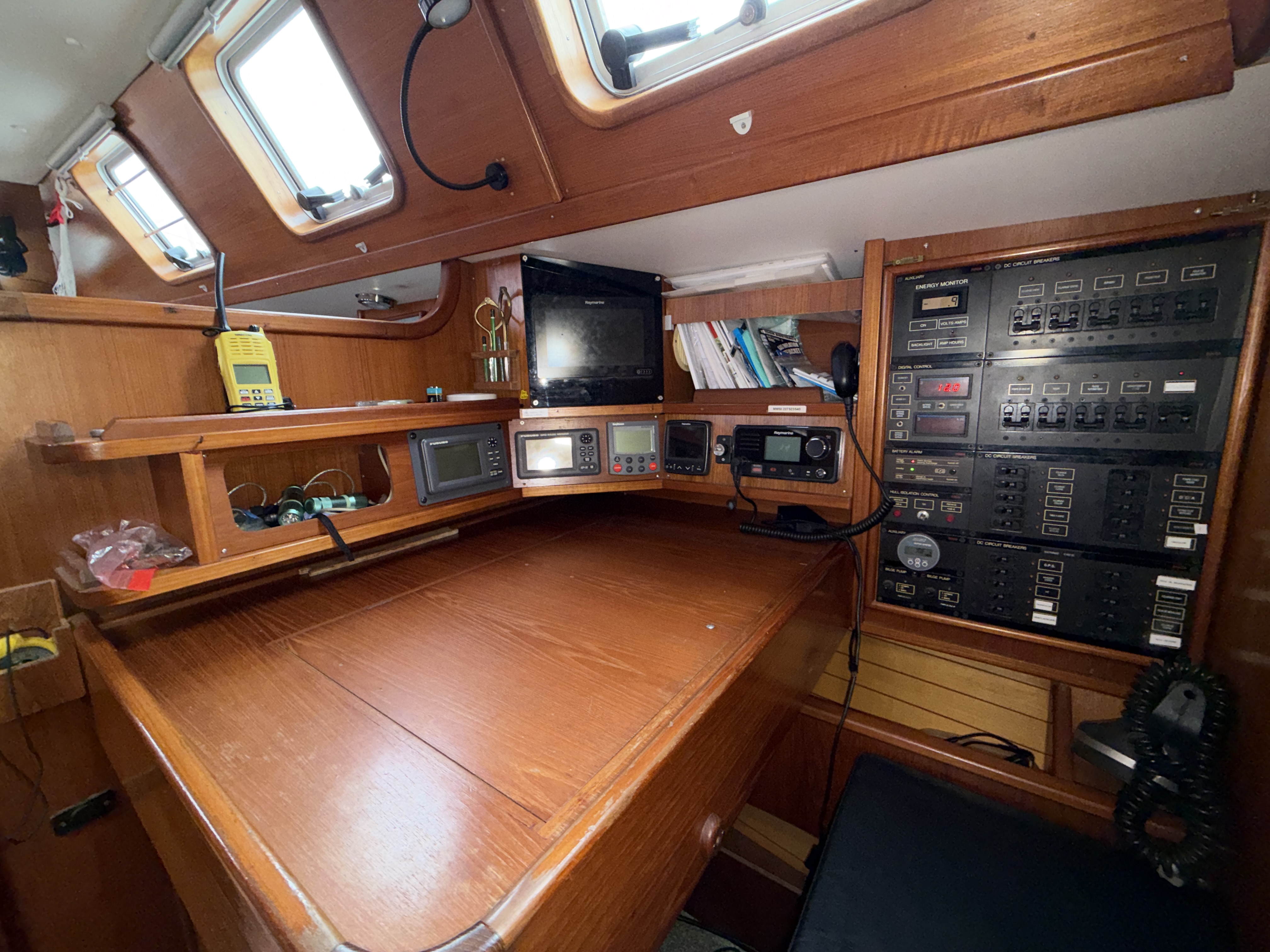

CHART TABLE
102x76cm table
Navigation electronics
Storage compartments

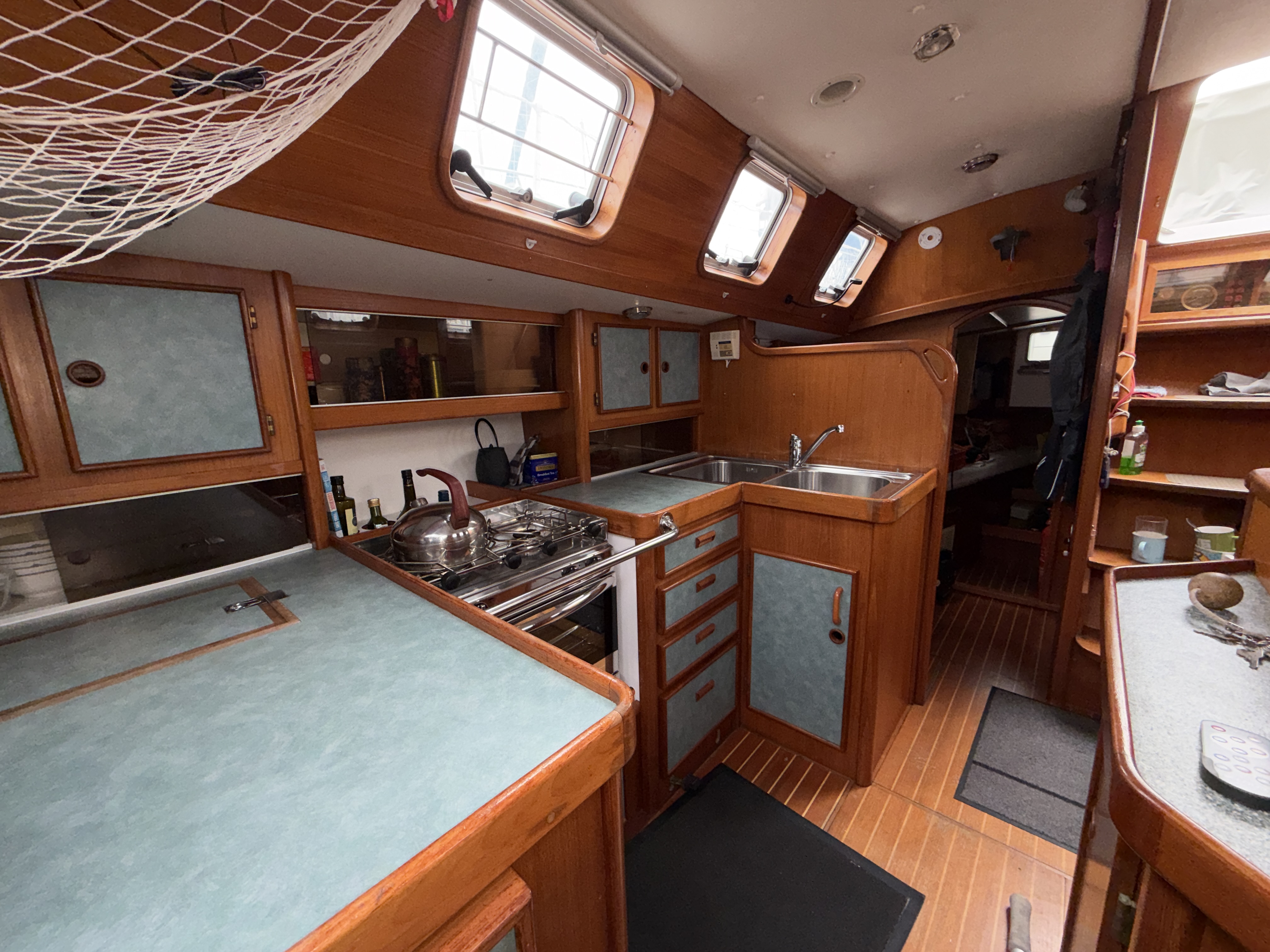

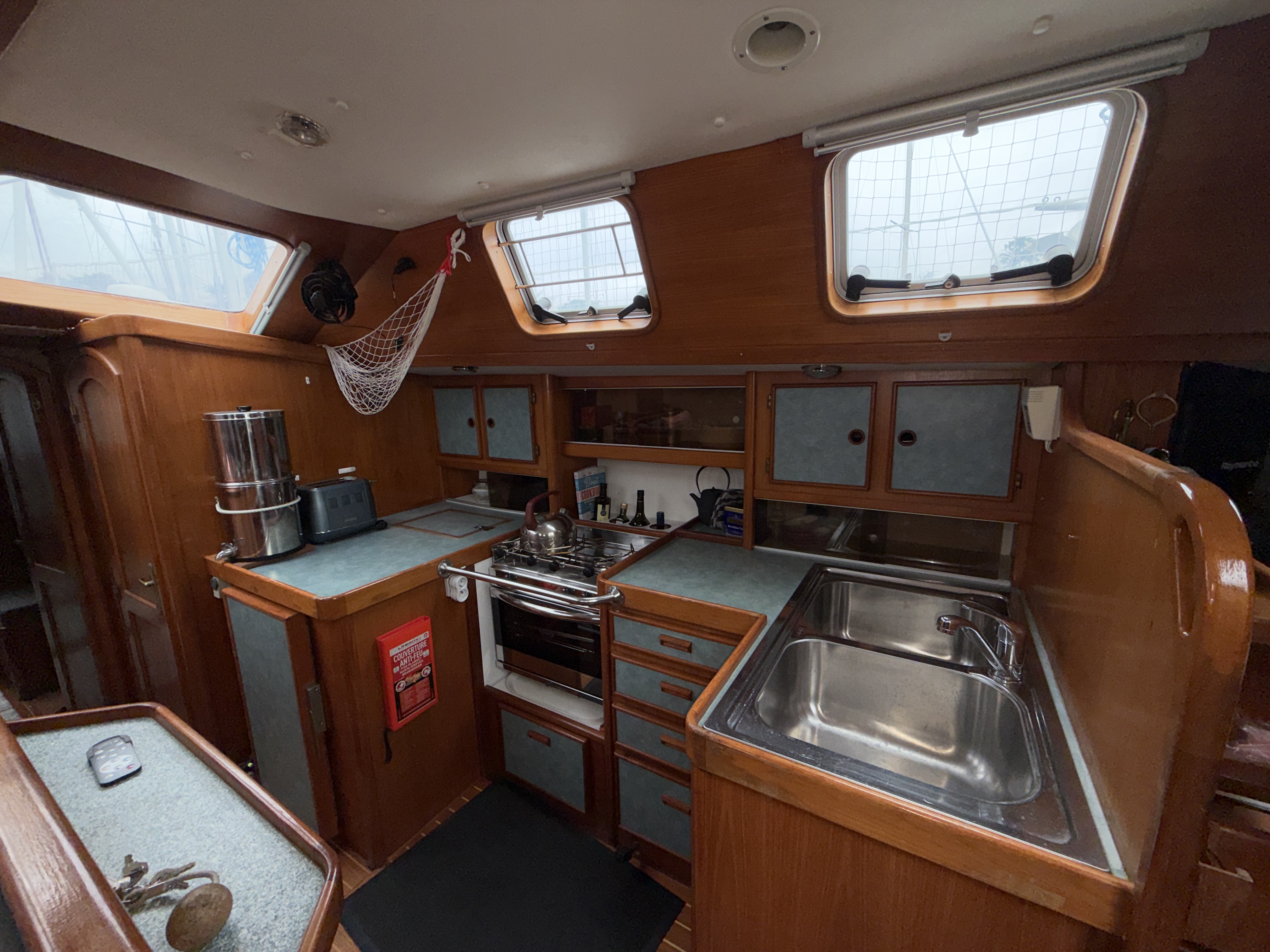

GALLEY (STARBOARD)
Front-load fridge
60 L Freezer
ENO Gas oven (linked to 13kg gas container)
ENO 2-burner stove (linked to 13kg gas container)
Storage compartments
Pressurized water

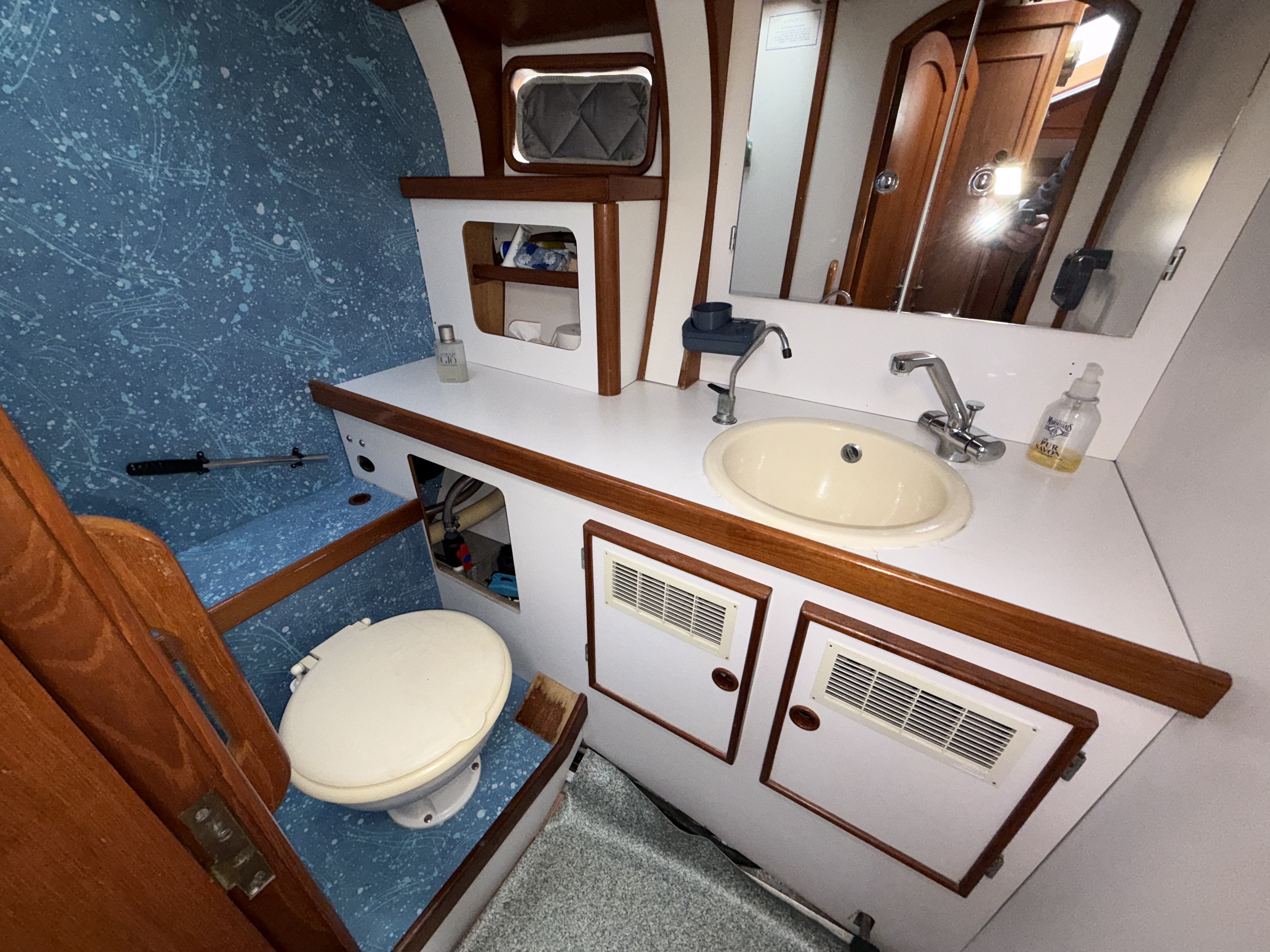

HEAD (PORTSIDE MID-SHIP)
Manual toilet
Storage compartments
Pressurized water
SHOWER
Shower
Storage compartments
Pressurized water
50L hot water
ENGINE

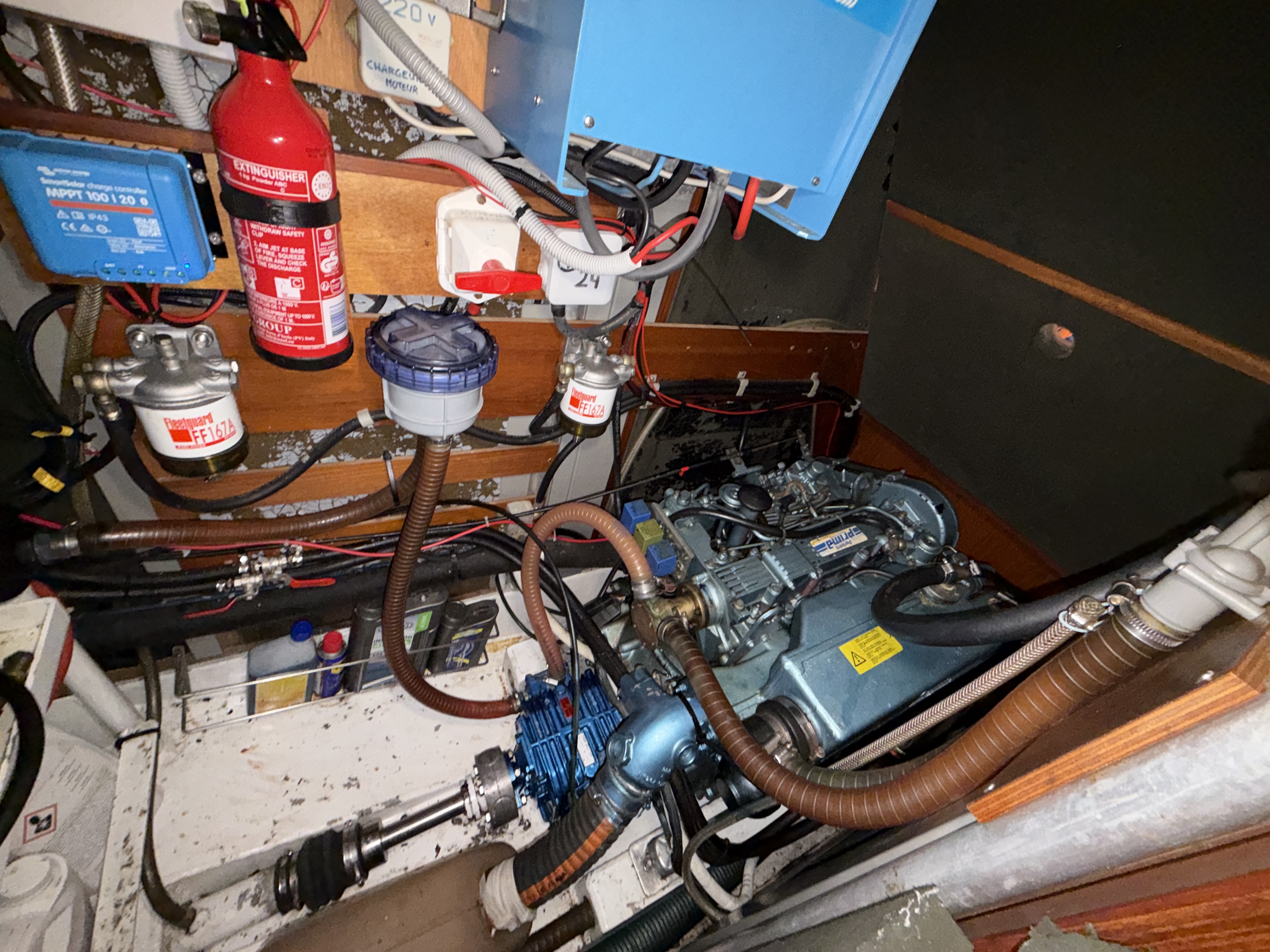

PERKINS PRIMA 60hp diesel (7700 hours)
Shaft drive to Aluminium C7BH-19;16 three-bladed propeller + one new spare propeller.
35 mm propeller shaft with new reinforced rotary joint and Vetus shaft damper.
ELECTRICITY

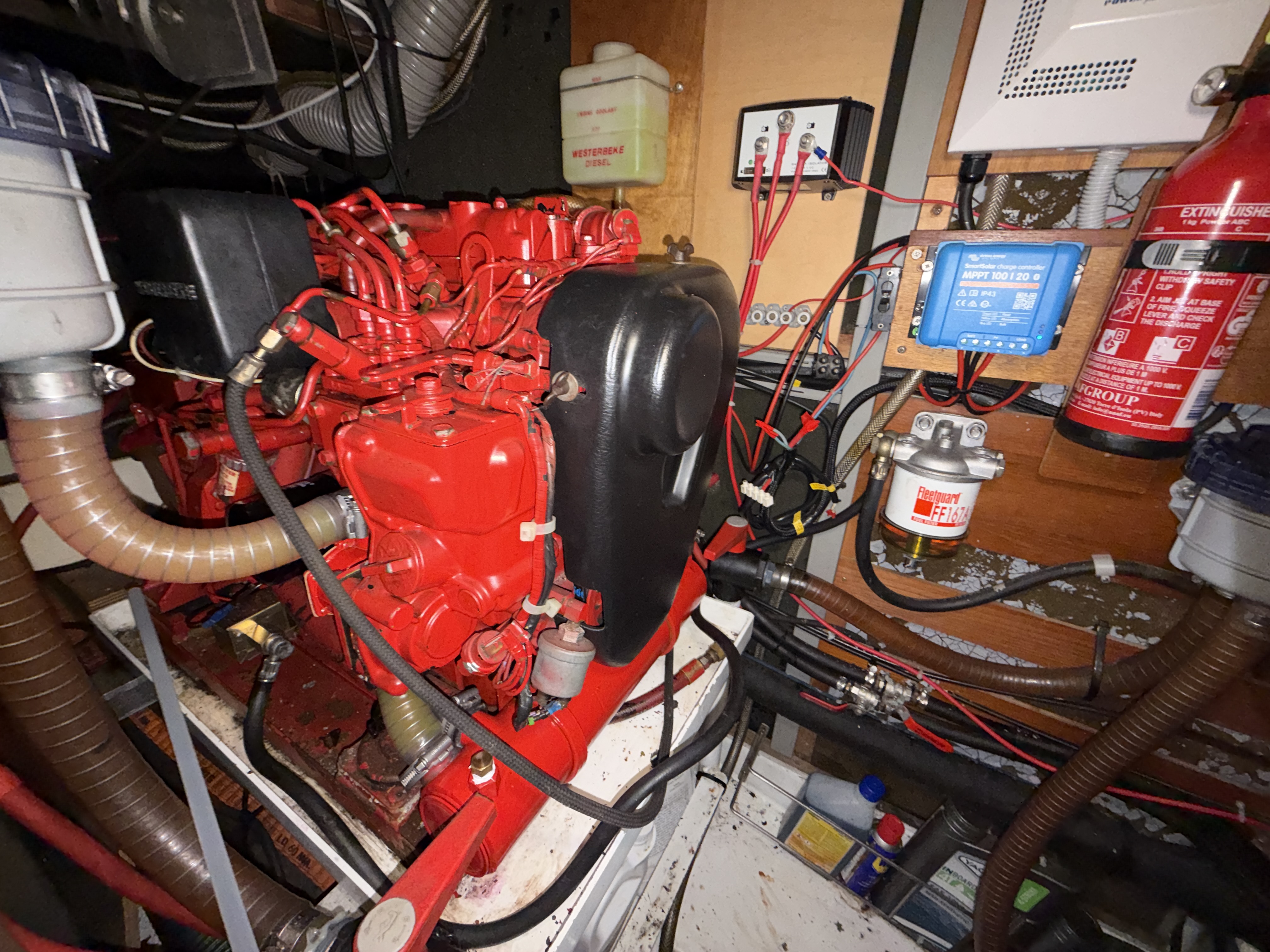

WESTERBEKE 5KVa Generator
220v shore power
2x 80ah bowthruster batteries
2 x 130ah house batteries
1 x engine start battery
1 x genset start battery
Solar panels
Inverter
NAVIGATION ELECTRONICS
Furuno GP 32 GPS
GPS sounder
2014 Furuno Navtex
Autohelm navigation centre, lock, speedometer, anemometer
Multifunction chart table repeater
Autohelm 6000 autopilot in working order
Autohelm 7000 backup autopilot
Autopilot repeater(s) at chart table
Lecomble and Schmit autopilot cylinder on steering gear
ICOM M56 VHF
GROUND TACKLE
260cm 3DTender dinghy on davits
YAMAHA 6hp 4-stroke outboard
Goiot 1500 W electric windlass.
Rocna 33 kg anchor(s) + 60 m of 12 mm chain (2014)
Britanny anchor(s) + 80 m of 22 mm cable
SAFETY EQUIPMENT
SEASAGE liferaft 6 pax
2 x bilge electric bilge pumps
1 x manual bilge pump
GENERAL EQUIPMENT
Bimini
Sprayhood
