- Make Beneteau
- Model Oceanis Yacht 62
- Year 2018
- LOA 63ft/19m
- Class Sailing Cruiser
- Hull Glass Reinforced Plastic
- Keel Fin Keel
- Rig Sloop
- Engine Single Diesel
- Drive Shaft Drive
- Layout Aft Cockpit
- Berths 6
- Cabins 4
- Aft Cabins 3
- Ancasta Ref 47010
- Name Manona

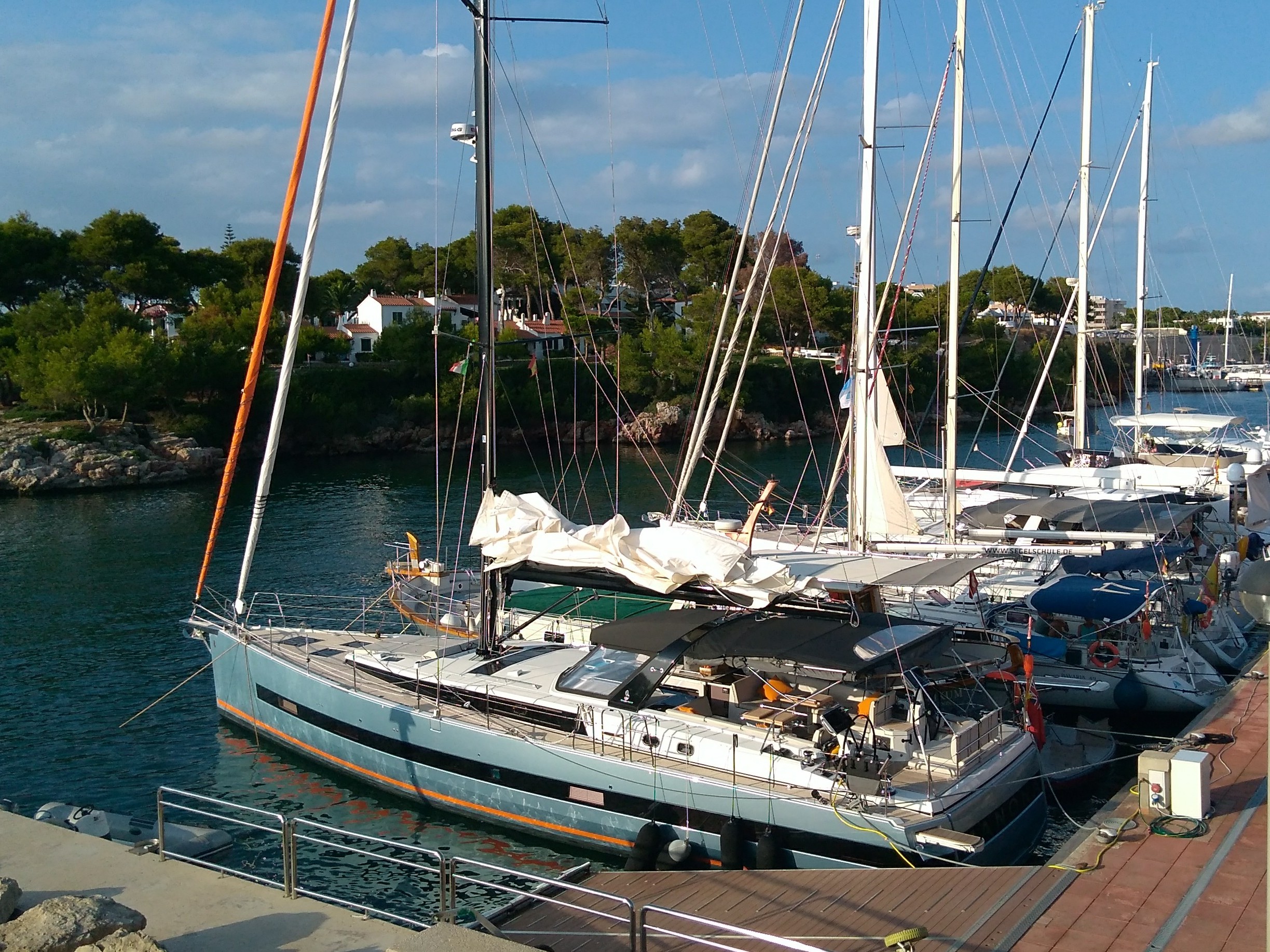

Beneteau Oceanis Yacht 62 | 2018
950,000 Tax Not Paid
|
Monfalcone Italy
Your account cannot save boats.
Amazingly well specified yacht which has been professionally maintained and never chartered. She is ready to set sail for this season and represents amazing value for money. Viewing at the Beneteau marina in Monfalcone.

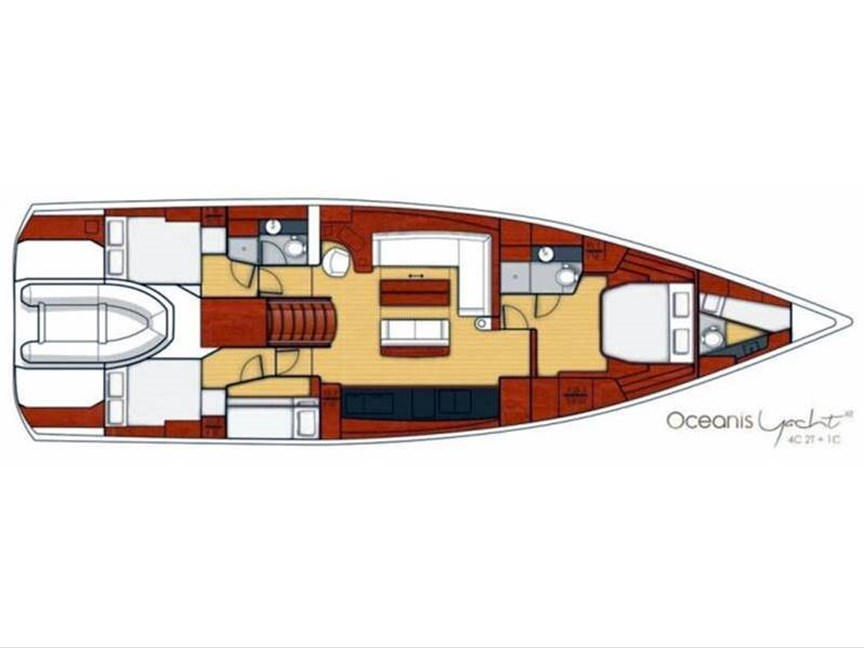

Layout
BENETEAU OCEANIS YACHT 62 - 2018
Naval Architect - Berret-Racoupeau Yacht Design
Interior Design - Pierangelo Andreani Design
EC CERTIFICATE
Category - A12/B14/C16
DIMENSIONS
L.O.A max - 19.07m 62'7"
Hull length - 18.12m 59'5"
L.W.L - 17.29m 56'9"
Beam - 5.33m 17'6"
Deep draught - 2.98 m or 9'-7"
Shallow ballast weight - 5,900kg 13,400lbs
Air draught - 27.4m 89'11"
Full displacement (EC) - 40 tons
CONSTRUCTION
Design in accordance with European Directive requirements and according to CE certification.
Composition: Polyester resin
• Infused balsa sandwich hull
• Infused solid laminate base of hull
• Deck in balsa and fiberglass sandwich covered in "diamond point" type non-slip surface on the side decks, foredeck and coachroof
• Screwed, glued and bolted polyester hull-to-deck joint
• Cast iron keel fixed with bolts and stainless steel backing plates
• Twin rudders hung with stainless steel stock
• Stunning metallic grey hull
• Underwater Lights
DECK FITTINGS

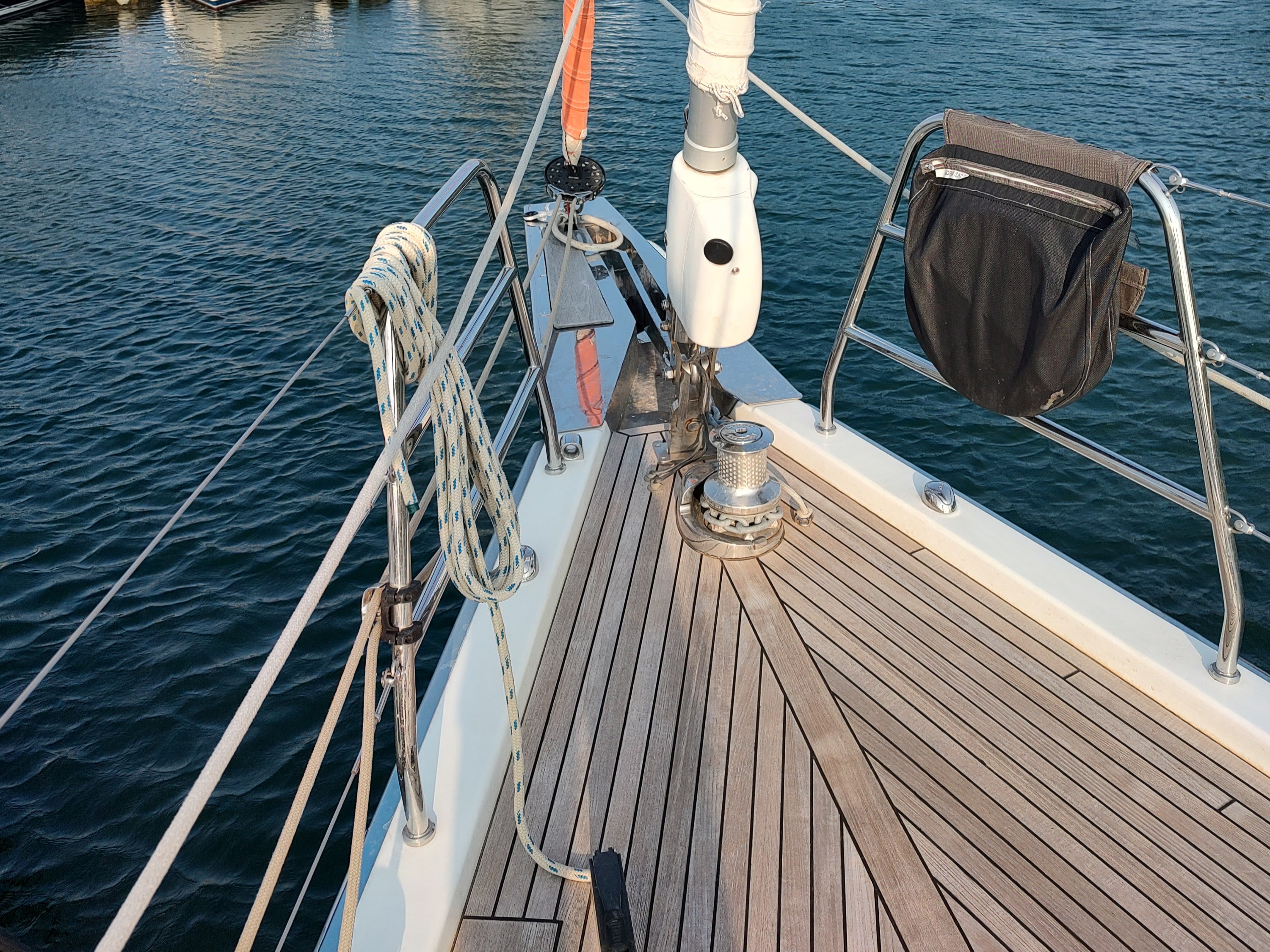

• Stainless steel bowsprit with single stem roller & tack for code 0 or spinnaker
• Bimini and arch
• Teak deck on cockpit sole and swim platform

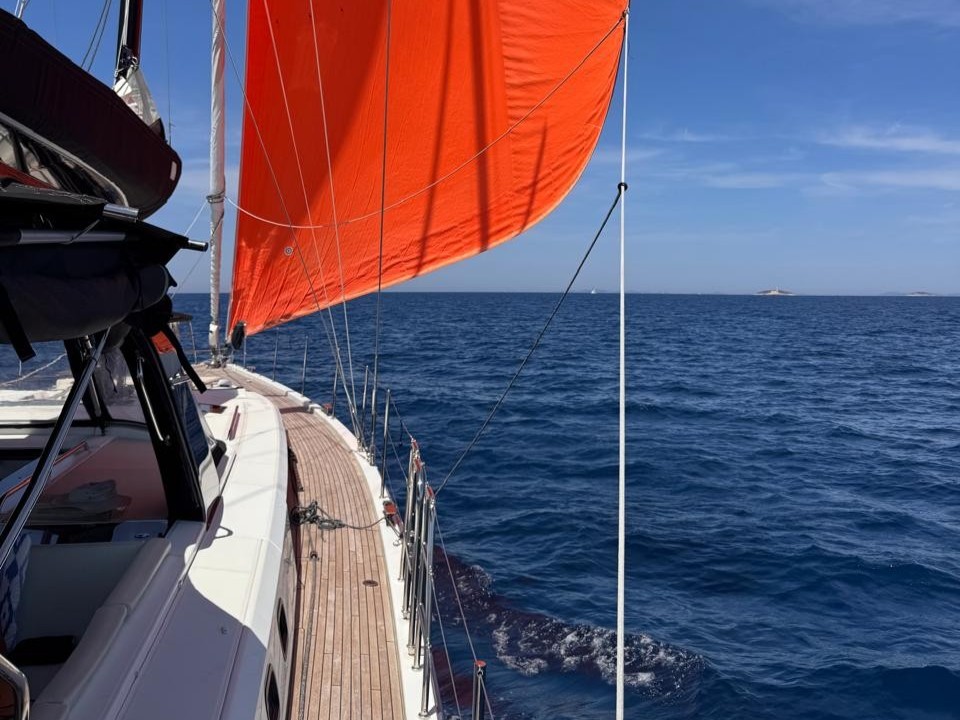

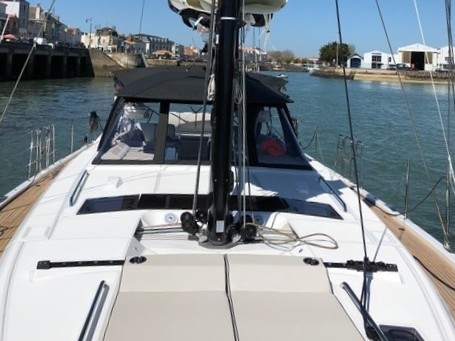

• Non-skid side decks and coach roof
• Aluminium deck cleats
• Stainless steel fairleads at transom
• Fresh/seawater pump for deck cleaning
• Side boarding ladder x 2
• Tender Loading System
• Black composite steering wheels
*All dimensions and weights are approximate
SLOOP RIG
DIMENSIONS
I - 23.59m 77'5"
J - 7.21m 23'8"
P - 23m 75'6"
E - 7m 23'
RIGGING
• Traditional 9/10ths tapered black painted aluminium mast - keel-stepped - 3 sets of swept back spreaders, steaming light
• Anodised Aluminium Boom
• Folding mast steps
• LED Spreader Lighting
• Stainless steel standing rigging
• Single backstay split to bridle (hydraulic option)
• Rigid boom vang (hydraulic option)
• Genoa furler (electrical option) - drum on deck
• 2 Stand-up blocks for mainsail on fixed composite arch
• Mainsheet
• 2:1 Dyneema Mainsail halyard
• Dyneema genoa halyard on tensioning rail
• Boom topping lift
• 2 Genoa sheets (2 single line reef - 1 dual line reef)
• 9 Jammers (2 as an option for staysail halyard and spinnaker halyard)
• 2 Rope tail bags
• Preparation for downwind sail rigging (asymmetrical spinnaker - Code 0)
SAILS by North Sails
• Dacron furling genoa, double thickness with UV protection strip
• Fully-battened Dacron mainsail with logo, double thickness
• Lazy Jack and Lazy Bag in Natural colour
WINCHES
(accessible from each helm station)
• 2 Genoa sheet manual winches (Code 0 / Spinnaker) - self tailing 70.2 STC
• 2 Manual manoeuvre winches - 46.2 STC
• 2 Speedgrip winch handles
• 2 Winch handle boxes
SLEEPS 6 IN 3 CABINS
This Oceanis Yacht 62 has air-conditioning throughout all the accommodation and living spaces, with a large and luxurious owners cabin forward with privacy entrance and two generous guest cabins aft. The Interior finish really must be seen in person to appreciate the remarkable condition and quality The joinery is Alpi Brushed Oak, the salon upholstery is Commando natural with Meteor piping. Manona is outfitted to an exceptionally high level for living aboard in utmost luxury while cruising the world in safety and comfort.
COCKPIT
• Self-draining cockpit, natural solid wood decked
• Liferaft stowage in locker in the cockpit sole
• 2 Lockers in the return of the cockpit seats, gas strut opening
• 1 Locker beside the port helm console
• 1 Gas locker beside the starboard helm console
• 2 Natural solid wood slatted cockpit benches

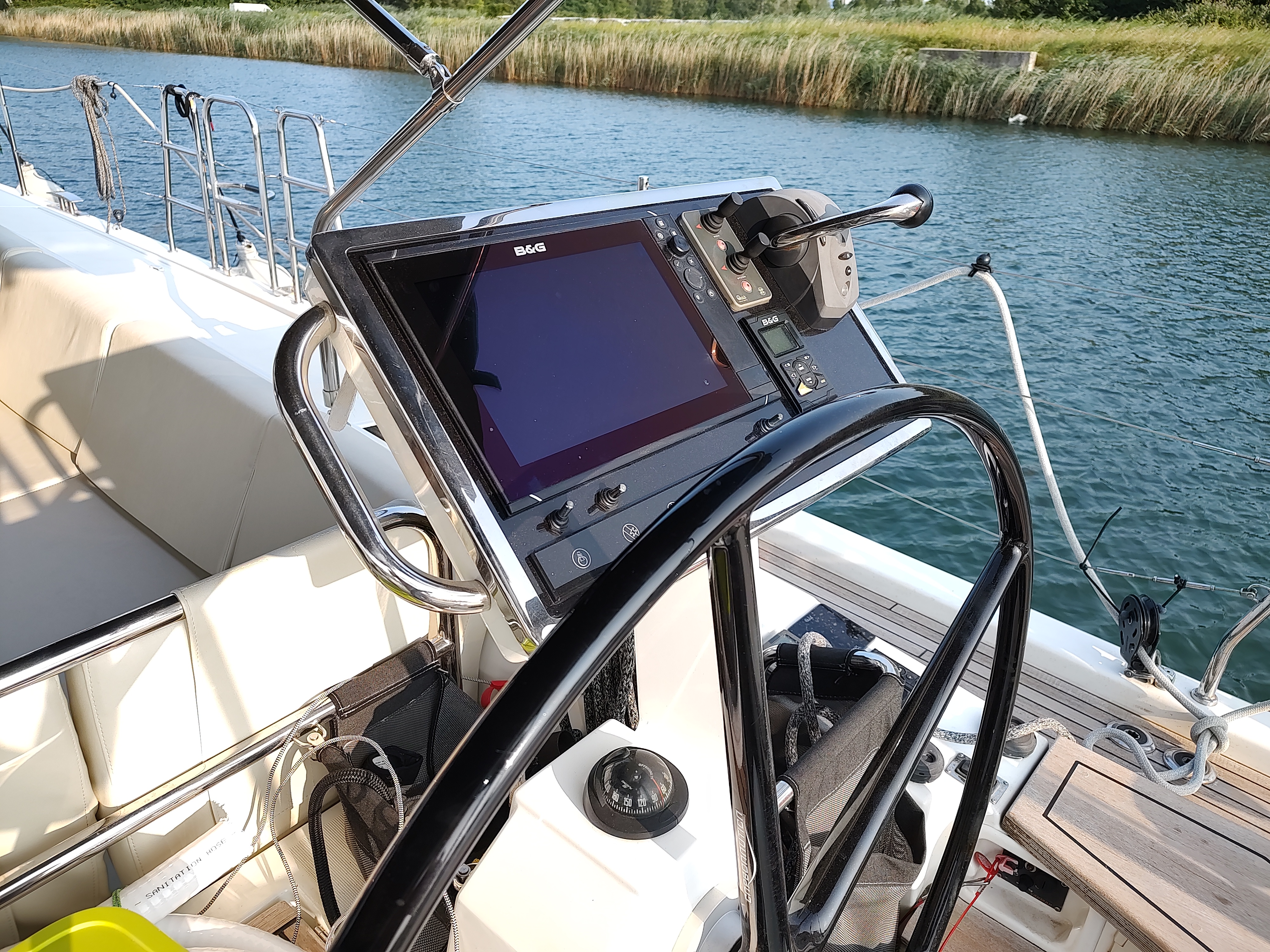

• 2 Helm stations:
- Steering wheels in stainless steel, 1100 mm / 3’7’’ diameter
- Leather covered
- Steering lock
- Cable transmission system
- Rope tail locker
- Cup holder
• Deck plates for tiller system - Emergency steering
• Engine throttle and control panel to starboard
• 2 Solid wood cockpit tables both with electric up and down and covers.
- Handrails
- Cup holders under leaves
• LED lighting under arch & LED lights in cockpit, transom, and forward sun pad
• PMMA companionway doors & sliding companionway hatch
COMPANIONWAY
• Headroom: 2,08 m / 6’10’’
• Wooden companionway with 6 moulded wood steps
• Meteor grey leather sheathed stainless steel companionway handrails

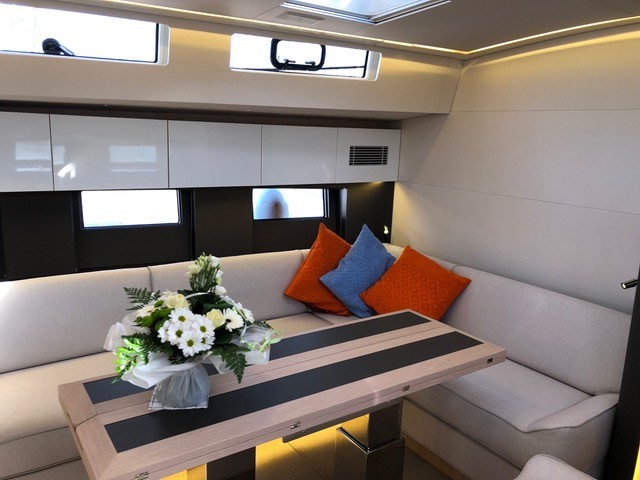

PORT SALOON
• Headroom: 2,06 m / 6’9’’
• L-shaped saloon bench seat with armrests
• Central settee with armrests
• Central unit with built in bar
• Folding saloon Luxe electrical table.
• Open storage compartment along the hull - Storage space under seats and sofa
• 1 Panoramic skylight with blackout blinds / mosquito nets at the forward
• 3 Large hull portholes with blackout blinds
• 1 Fixed coachroof side window with pleated blind
• 1 Opening porthole in side window
• Meteor grey mast cover, Built-in bookshelf, LED strip
• 3 LED reading lights
• 11 LED ceiling lights
• 1 LED strip lights under upper lockers
• 1 220 V socket
CHART TABLE (port side)
• Opening lid - miscellaneous locker - storage - Moulded wood fiddle with Météor leather sheathed stainless steel railing
• Swivelling navigator seat
• Electrical panel with all on-board functions, back-lit
• Navigation instrument panel (optional instruments)
• 1 coachroof window
• 2 USB charging sockets
• 1 LED reading light
• 3 LED ceiling lights
• 1 220 V socket
GALLEY
• Headroom: 2,06 m / 6’9’’
• 2 sheathed stainless steel handrails
• Oven / Grill / Hob with 3 burners on stainless steel Luxe mounting (retractable top and front)
• Cooler with cooling unit (1 x 300L - 2 openings from the top, 1 front door)
• Freezer 2 drawers 144L
• Microwave Oven
• Ice Maker
• Dishwasher
• Vacuum Cleaner System
• Washer / Dryer
• Cupboard and drawers for pans and lids
• Compartmental bins
• Lacquered upper units
• Corian Deep Mink work top with built-in fiddles
• Large rectangular stainless steel sink, with hot/cold water mixer tap (2 covers in Corian)
• 3 Hull portholes with blackout blinds
• 1 Fixed coachroof side window with blind
• 5 LED ceiling lights
• 1 LED strip light under upper lockers
• 2 x 2 Sockets 230V
TECHNICAL LOCKER
• Near the aft starboard cabin entrance
• Access to all the circuit breakers and electrical panel + generator room
• 3 LED ceiling lights
FORE CABIN ENTRANCE
• 1 Large storage cupboard, 2 doors (replaced by washer dryer of fridge depending on option)
• 1 Bottle storage under floor
• 1 LED ceiling light

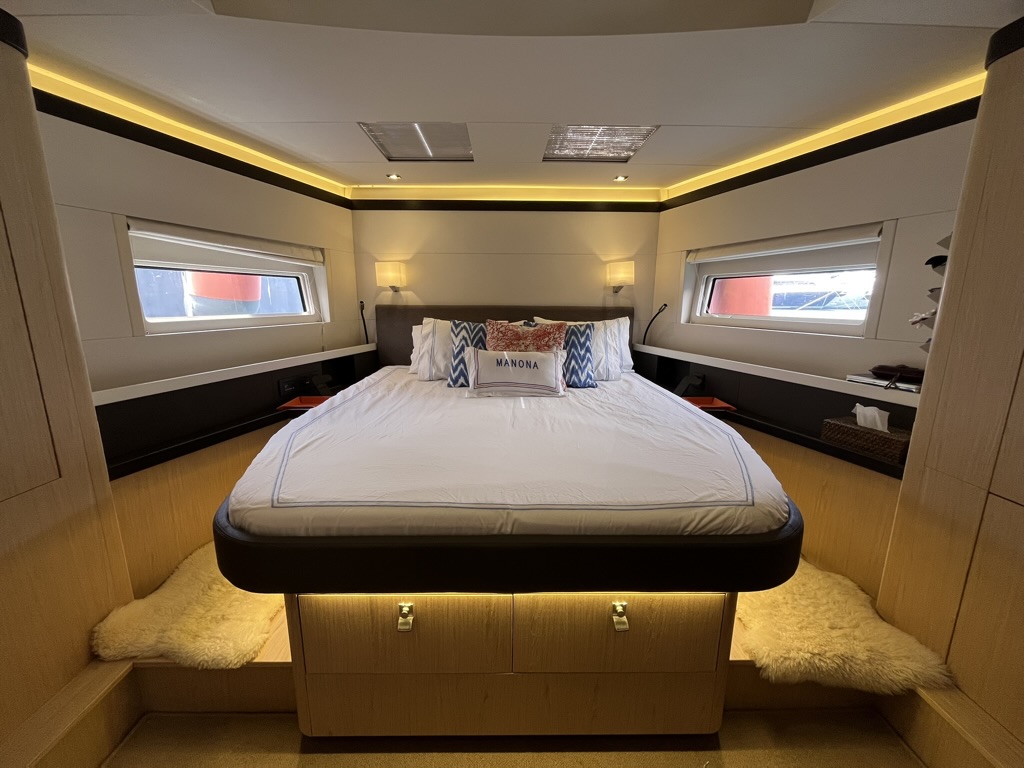

OWNERS CABIN
• Headroom: 2,11 m / 6’11’’
• Central double bed (2,05 x 1,72 m / 6’9’’ x 5’8’ - slatted bed base with 5" thick marine mattress
• Shelving - drawers - miscellaneous locker - 2 drawers under the bed
• Opening of the bed assisted by gas strut for technical equipment under the bed
• To starboard: wardrobe, cupboard, shoe cabinet - to port: hanging locker
• Large mirror on entrance bulkhead
• 2 Hull portholes with Roman blackout blinds
• 2 Opening deck hatches with blackout blinds / mosquito nets
• 4 Fixed coachroof windows with curtains
• Indirect lighting
• 5 LED ceiling lights
• 2 LED reading lights, 2 bedside lights
• 1 LED strip lights under upper lockers
• 1 Dorade
• 1 220 V socket, 4 USB ports
• Optional chest of drawers
• Safe
• Padded headboard

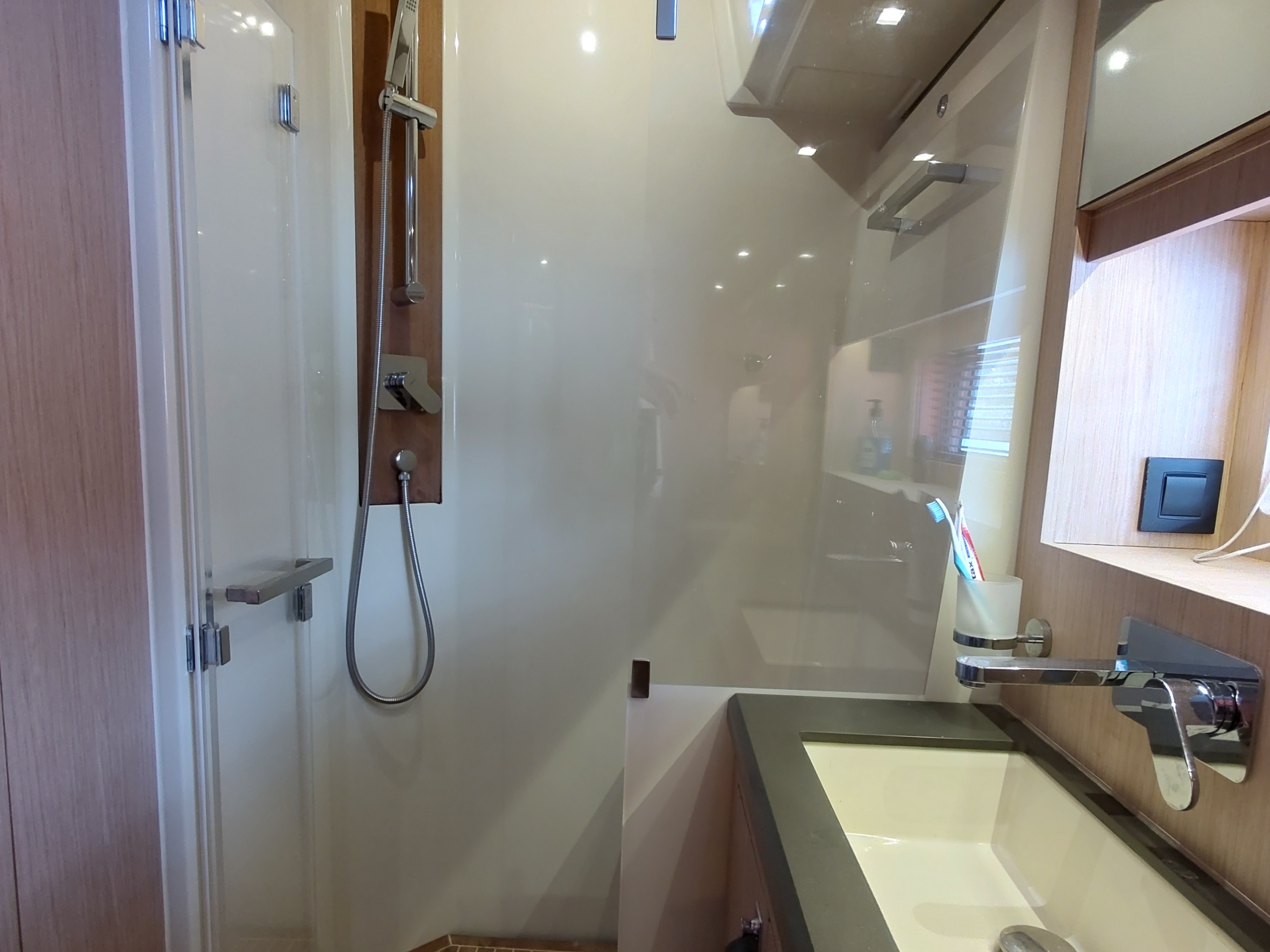

OWNERS HEADS COMPARTMENT
• Headroom: 2,21 m / 7’3’’
• Private head en-suite from forward cabin
• Separate shower: moulded shower tray - hot/cold water mixer tap - shower screen
• Teak slatted seat and shower flooring
• Tecma Electric toilet
• 1 Basin - Work top in Corian Deep Mink - hot/cold water mixer tap
• 2 Mirrors
• Toilet accessories - towel rail - peg
• Cupboards - shelving
• 1 Opening deck hatch with blackout blind / mosquito net
• 1 Fixed translucent coachroof window
• 1 Hull port with blackout blind
• 3 LED ceiling lights
• 1 LED strip light under mirrors
• 1 220 V socket
• 1 Dorade
PORT AFT CABIN
• Headroom: 1,91 m / 6’3’’
• 1 Double bed (2,42 x 1,40 m / 7’11’’ x 4’7’’) - slatted bed base with 5" thick marine mattress
• Hanging locker - Shelving - Drawer under the bed
• 1 Opening porthole into cockpit with blackout curtain
• 1 Opening porthole to coachroof with blackout blind
• 3 Hull portholes, 1 with a blackout curtain
• Light tunnel with 2 fixed windows, stowage compartment, technical access hatch and blackout blind
• 3 LED ceiling lights
• 2 LED reading lights
• 1 LED strip light in ceiling
• 1 230 V socket, 2 USB ports

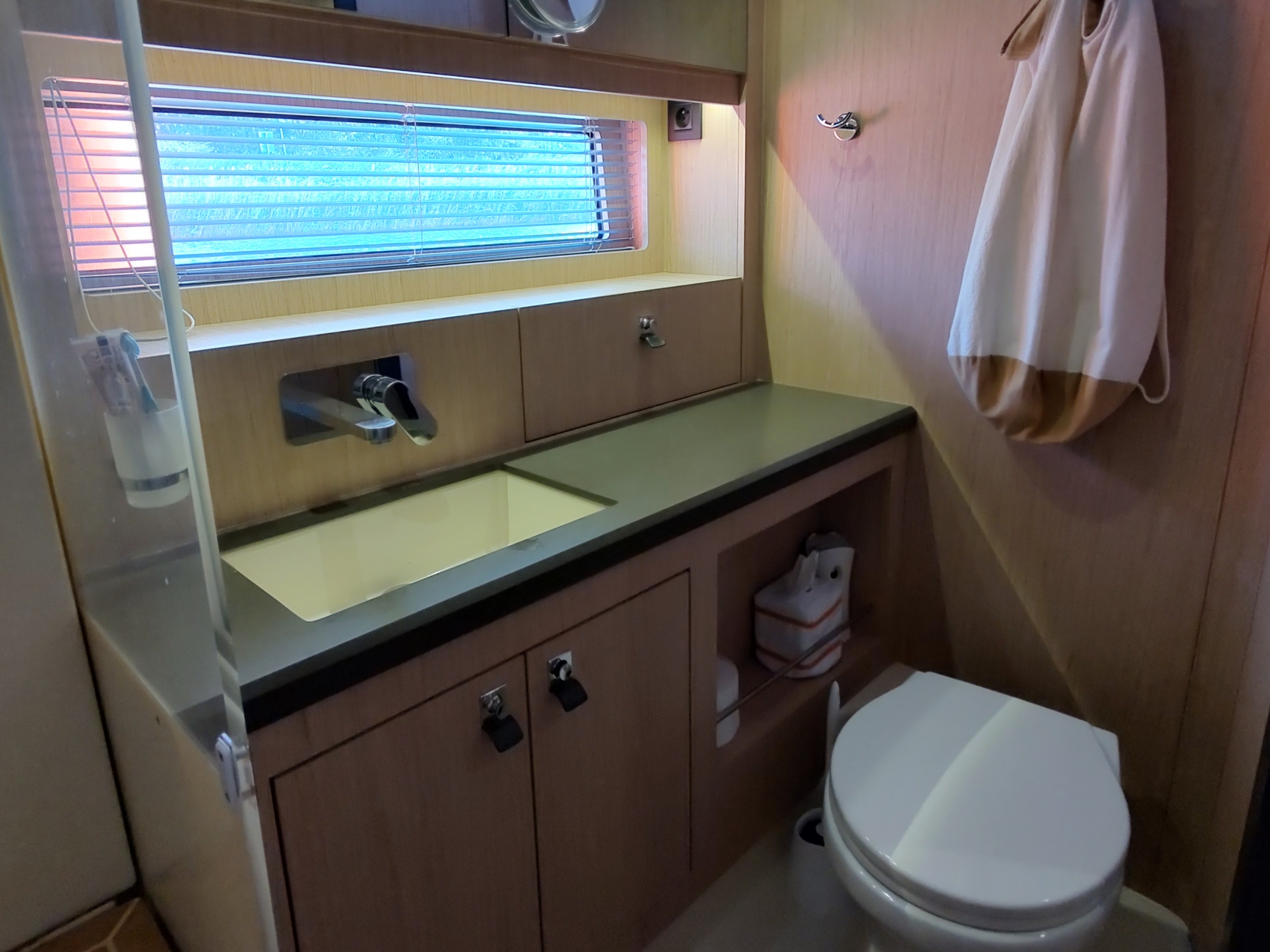

PORT AFT BATHROOM
• Headroom: 2,15 m / 7’1’’
• Private heads en-suite from the port side cabin + access through saloon
• Separate shower: moulded shower tray - hot/cold water mixer tap - shower screen
• Teak slatted seat and shower flooring
• Tecma Electric toilet
• 1 Washbasin - Work top in Corian Deep Mink - Hot/cold water mixer tap
• 2 Mirrors
• Toilet accessories - towel rail - peg
• Cupboards - shelving
• 1 Opening coachroof port with blackout blind
• 1 Hull port with blind
• 3 LED ceiling lights
• 1 LED strip light under mirrors
• 1 230 V socket
STARBOARD AFT CABIN
• Headroom: 1,91 m / 6’3’’
• 1 Double bed (2,04 x 1,40 m / 6’8’’ x 4’7’’) - slatted bed base with 5" thick marine mattress
• Hanging locker - shelving - drawer under the bed
• 1 Opening porthole into cockpit with blackout curtain
• 1 Opening porthole to coachroof with blackout blind
• 3 Hull portholes, 1 with a blackout curtain
• Light tunnel with 1 fixed windows, stowage compartment, technical access hatch and blackout blind
• 3 LED ceiling lights
• 2 LED reading lights
• 1 LED strip light in ceiling
• 1 220 V socket, 2 USB ports
STARBOARD AFT BATHROOM
• Headroom: 2,15 m / 7’1’’
• Private head compartment accessible from starboard aft cabin
• Tecma electric toilet
• 1 Washbasin -Vanity top in Corian Deep Mink - Hot/cold water mixer tap
• 2 Mirrors
• Toilet accessories - towel rail - peg
• Cupboards - shelving
• 1 Opening coachroof port with blackout blind
• 1 Hull port with blind
• 3 LED ceiling lights
• 1 LED strip light under mirrors
• 1 230 V socket
BUNK CABIN
• Headroom: 2,15 m / 7’1’’
• Bunk beds - marine mattress
• Shelving
• Full height hanging locker
• Storage under the floor
• 1 Opening coachroof port with blackout blind
• 1 Hull port with blind
• 3 LED ceiling lights
• 2 LED reading lights
• 1 230 V socket
FOREPEAK
• Access through T70 deck hatch
• Stainless steel ladder
• Sail, cushions, fenders, lines storage
• Direct access to the anchor well, Panel: T44
AFT COCKPIT
• Large stowage locker under aft central seat (optional outside galley module) - Gas strut opening
• 2 Lifting helms seats for access to the bathing platform steps
• Shore power socket
• 40L Cockpit Fridge near the port helm station
AFT TRANSOM
• Access to the sea from electric fully opening transom with gas strut, converting to bathing platform
• 1 Steps behind each helm station
• Access to the tender garage
• Solid wood bathing platform
• 1 Built-in stainless steel bathing ladder
• 1 Hot and cold cockpit shower
TENDER GARAGE
• 1 Access hatch in the cockpit sole between the 2 helm stations for access without opening aft platform
• Tender garage: 3,49 x 1,70 m / 11’5’’ x 5’7’’
• 3 Lights
• Canvas cover to close tender compartment and textile stowage bags
Propulsion
Engine Yanmar 6BY3 117KW 160 HP, 6 cylinders, propeller shaft
• Engine electrical control and switchboard at the starboard helm (dual controls on port side option)
• Engine hours circa 2,500
• Bow thruster
• Stern thruster
• Extra controls for thrusters on port side
• Engine compartment: foam soundproofing: 40mm - ventilation: 4 air intakes & 2 air extractors
• 1 Alternator (12 V - 150 Amps)
• 1 Alternator (24 V - 90 Amps)
• 3 Fuel tanks (2 x 230 L + 1 x 540 L / 2 x 61 US Gal +1x 143 US Gal) - Electronic gauge - 3 Deck fillers - Tank selection with "¼ turn" by-pass valves
• Filters: Sea water - Diesel - Water separator
• 3 feathering blades propeller
• Access to the engine compartment: Companionway (gas strut opening) & starboard machinery compartment
Generator
• 17.5 kW Cummins Onan
• Hours 2,250
Watermaker
• Capacity 100 l/h - 26 US gals/hr
Inverter
• 2000 VA
Air conditioning
• 48,000 BTU Chilled water air conditioning throughout the interior
Electrical
• 12 V circuit
• 24 V circuit
• 230 V circuit
• Ducts with mouse lines for threading cables of electrics or navigation electronics optional extras
• 1 230 V electrical panel: breaker - voltmeter
• 1 24 V electrical panel: breaker - voltmeter - water gauge - fuel gauge - 24 v charging current and consumption currentmeasurement
• Compartment for fitting electrical controls in starboard technical area
12 V circuit (engine start)
• Standard equipment:
• 1 Engine battery (12 V - 140 Amps)
• Battery switch (from the port side aft cabin)
• 1 Battery charger (12 V - 25 Amps) in starboard technical area
24 V circuit
• Standard equipment: electric windlass - pumps - navigation lights - lighting - refrigeration units
• 1 Service 24V battery set - 280 Amps (12 V - 4 x 140 Amperes batteries)
• Battery switch (from the port side aft cabin)
• Power distributor (24 V) in starboard technical area
• 1 Battery charger (24 V - 60 Amps) in starboard technical area230 V circuit
• Standard equipment: Sockets 230V - water heater
• Sockets 230V:
Forward cabin x 1, Fore head x 1, Port saloon x 1, Galley x 4, Chart table x 1, Port aft cabin x 1, Aft port head compartment x 1, Starboard aft cabin x 1, Aft starboard head compartment x 1 Lights
• LED interior lights: overhead lights, reading lights
• LED courtesy lights: under the companionway steps, in the hanging lockers
• Outside lighting:
- LED: 3 lighting under fixed arch, courtesy light in cockpit
- Standard bulb: deck floodlight at mid mast
- LED navigation lights - control from the chart table
- 1 LED all horizon mast head light
- 1 LED mid-mast automatic top light
- 1 LED stern light on aft starboard pulpit
NAVIGATION EQUIPMENT
ELECTRONIC PACK A
Port & Starboard Helm Station instruments
• B&G - Zeus 12" Multifunction display
• B&G H5000 control (Vessel management plus - log, speedo, temperature, wind data) and PC/WiFi interface
• B&G Autopilot with WR10 Wireless remote
• Météor grey leather sheathed stainless steel companionway handrails
Chart Table
• B&G - MO16T Multifunction display (GPS, Chartplotter, Chart reader, Navionics Silver charts)
• B&G ZC2 - series keyboard
• B&G Blackbox
• B&G Radar & Forward Scan Sounder
• B&G AIS 400
• B&G Fixed RS90 VHF, AIS Receiver and 2 H50 Handsets
ENTERTAINMENT
• Fusion stereo with Bose Speakers
• 40" TV in Saloon
DOCKING
• Integrated Hydraulic Pasarelle
• Air compressor to inflate/deflate fenders and tender
TENDER
• Tender with engine (please note Williams in pictures is not included)
• Integral tender garage
• Custom rollers allow tender to be stored fully inflated without removing the outboard
CANVAS

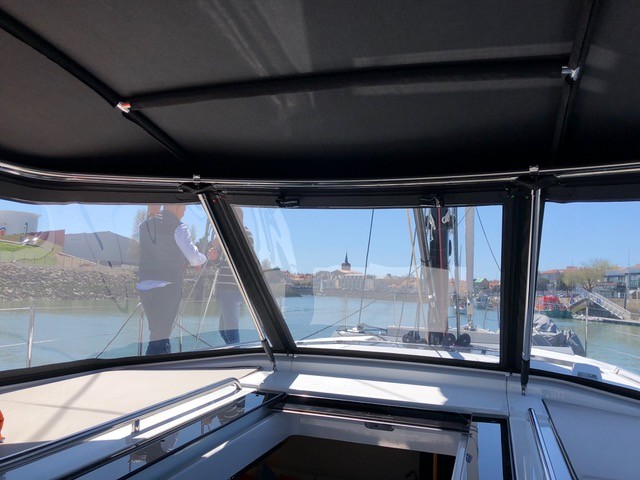

• Charcoal Pique spray hood for great visibility with adjustable opening for airflow when needed, protection when underway
• Luxe Cockpit Bimini - Charcoal Pique
• Complete Bimini Closing - Charcoal Pique
• Grey Steering, Console and Table covers
COCKPIT CUSHIONS
• Diamante snow cockpit upholstery
• Diamante snow forward sun mattresses
• Diamante snow sun mattresses for companionway
SAFETY ON DECK
• 1 Stainless steel pulpit in 2 parts, open at the bow (750mm - 28 mm diameter)
• 2 Stainless steel pushpits (750mm - 28 mm diameter)
• 1 Lifebuoys support bracke
• 1 Ensign mount
• Triple guard wires and stainless steel stanchions (Height: 750mm) - openings in guardrail to port and starboard
• 4 Stainless steel handrails on deck:
- 2 on the coachroof
- 2 each side of the forward sun pad
• 4 Stainless steel handrails on fixed arch
Ancasta are acting as brokers for the vendor who is not selling in the course of business unless otherwise stated. These details are prepared from information provided by the vendor and are intended only as a guide to give a fair description of the vessel but their accuracy cannot be guaranteed and they do not constitute part of any contract.
A prospective buyer is strongly advised to check the particulars and to have the vessel fully surveyed by a qualified marine surveyor. Details are supplied on the understanding that all negotiations shall be through Ancasta brokerages. This vessel is offered subject to prior sale, price change or withdrawal without notice. Please Note: where the vessel’s status shows as “Preliminary”, details of the vessel have not yet been confirmed by the Vendor.
Sign in or register an account to start saving boats
Don't have an account? Register
Broker Comments

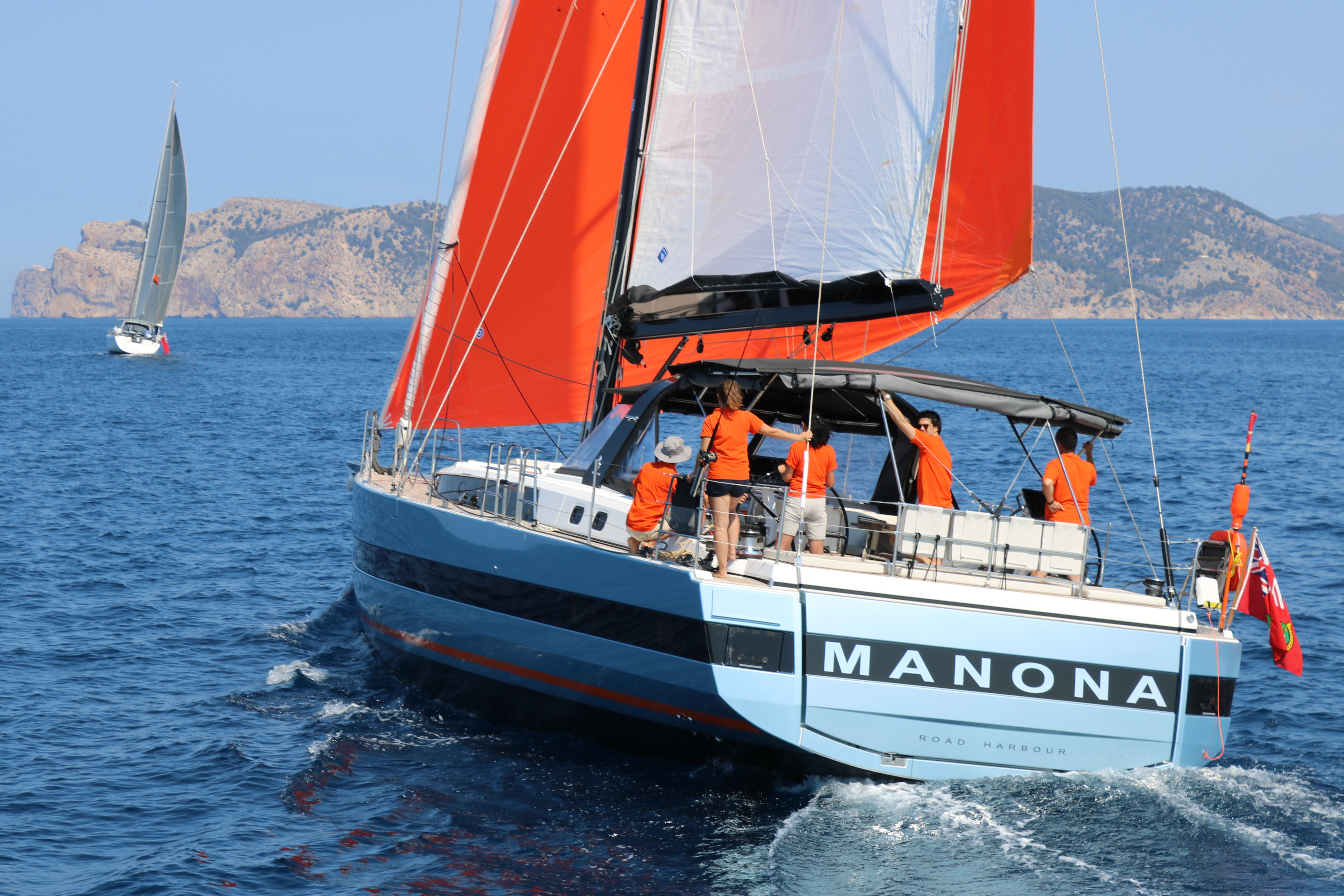

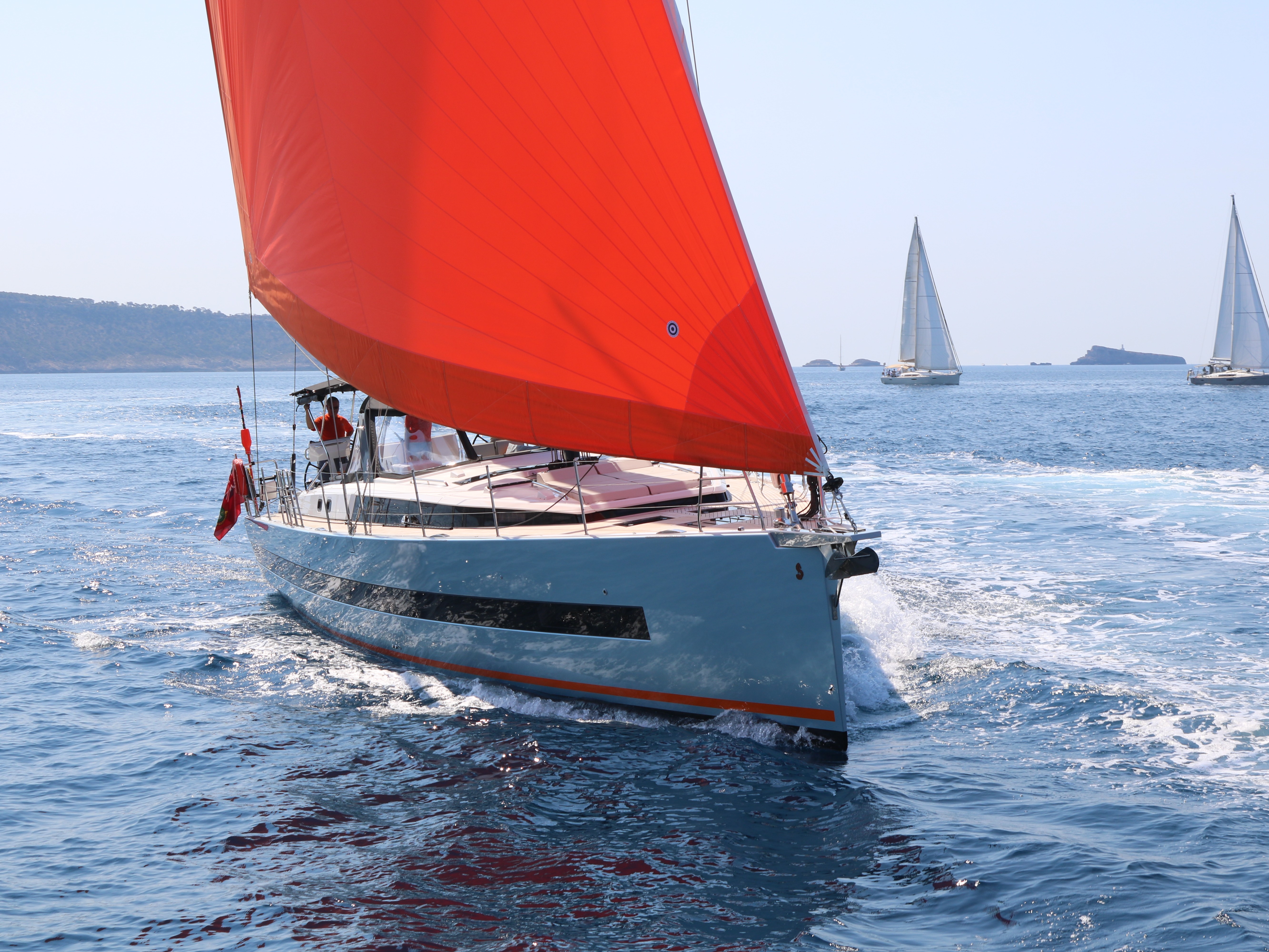

This new world designed by Beneteau stems from a collaboration between Berret Racoupeau Yacht Design and theItalian stylist Pierrangelo Andreani. The first in the range, the Oceanis Yacht 62 offers the key to a new art of having a wonderful time at sea together. The Oceanis Yacht has that distinctive line recognized by all. She is elegant on the water, encircled with large windows,and her appearance has everything you would expect of an exceptional boat. The Oceanis Yacht 62 has a reassuring design that is balanced and manoeuvrable, with a chined hull, twin rudders and a perfectly centred sail plan. The incredibly original layout of the Oceanis Yacht 62 is centred on a spacious saloon and separate spaces enjoying great privacy. Bathed in light by huge hull portholes, this luxuriously designed yacht offers noble materials and exclusive woodwork finishes.
