McConaghy MC63P Touring

3,780,000 Tax Not Paid | Factory
Enquire

Summary

  • Make McConaghy
  • Model MC63P Touring
  • Year 2023
  • LOA 63ft/19m
  • Class Multihull
  • Hull Carbon Fibre
  • Engine Twin Diesel
  • Drive Shaft Drives
  • Layout Flybridge
  • Berths 6
  • Cabins 4
  • Ancasta Ref 39194
  • Name McConaghy MC63P Touring

Overview

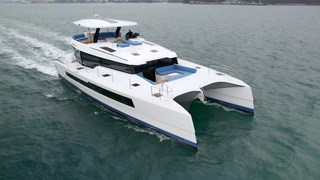

Lightweight, strong and with contemporary, progressive lines, the MC63p is the power cat of the modern era. This is a customisable cruising power cat that offers innovative design from a thoroughbred racing design house. The example price is for the 'Tourer' model, with
a huge list of options and customisation available

McConaghy’s carefully considered use of carbon and precise hull forms make for a particularly fuel-efficient vessel at low speeds but is capable of tops speeds in excess of 20kts making this the perfect platform for extended cruising in complete luxury and comfort. The exterior design and naval architecture comes from KER Design, and echoes the profile and progressive styling that’s seen across McConaghy’s multihull series.


Build

Designed by Ker Yacht Design and Built by McConaghy Boats

Constructed using a controlled vacuum infusion process and pressed panels of E-glass, carbon composite and Corecell for lightweight strength and rigidity.
Hull and deck painted in high quality two pack polyurethane coating in white as standard Included as Standard
Non-skid areas on the side decks
Twin rudders
Hydraulic Steering
The McConaghy Multihull range has Bureau Veritas classification for blue water sailing – the highest global rating.


LOA: 19.3m
Max Beam: 9.48m
Draft: 1.4m
Certificated: CE

Accommodation

FOLLOWING OPTIONS COME AS STANDARD

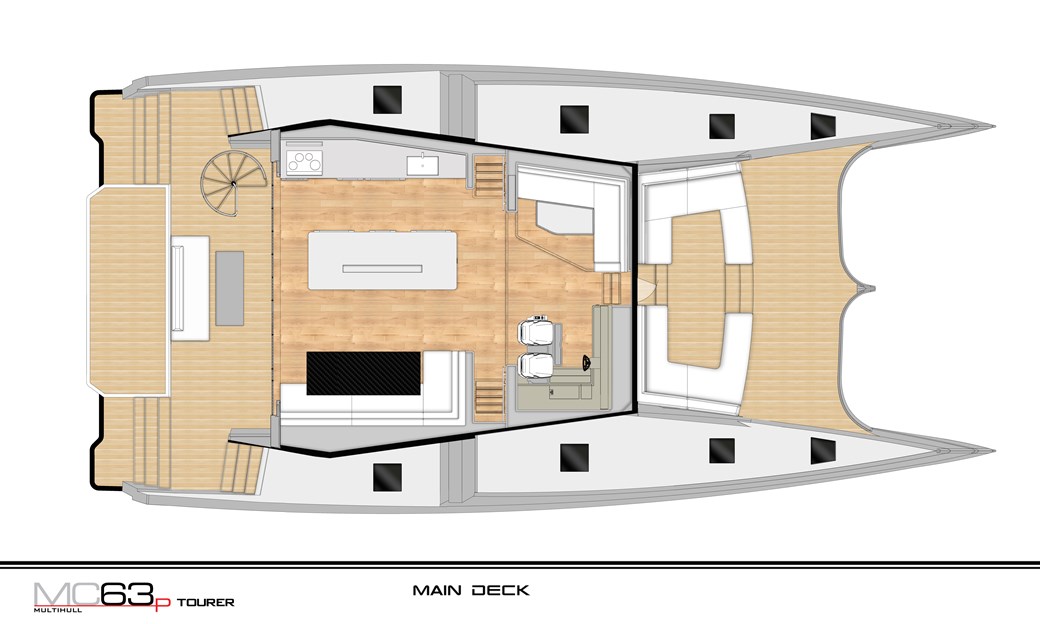

AFT MAIN DECK
Frameless, bi-folding, tempered safety glass doors between saloon and aft
deck
Aft deck settee with reversible lounge and table
Outdoor aft deck rain shower recessed into flybridge structure, hot/cold mixer
tap
Hydraulic swim platform / tenderlift with remote control, Seasmart tender
cleats, safety locks, folding padeyes (x4) and deck sockets for passrelle and
swim ladder
Recommend tender : OC350 (tender optional)
Telescopic swim ladder neatly housed in the transom
Note: Tender Davits optional

FWD DECK
Fwd cockpit door
Fwd settee, table and sunbed
Cushions for fwd settee & sunbed - Sunbrella & Weathermax foam

SALOON TO STARBOARD
Electric sliding main saloon windows
Recessed courtesy lighting at floor level
110/230V AC and USB Sockets

PORT SIDE GALLEY + ISLAND
Electric sliding saloon windows with safety locks
Expansive custom Corian counter tops
Stainless steel Isotherm 160L draw fridge
Stainless steel Isotherm 160L draw freezer

FLYBRIDGE
Enlarged flybridge, with offset spiral stairs to port,
sunbeds and a central dining
area with bench seat in front,
Central helm station
McConaghy carbon fibre steering wheel
Two (2) Seasmart folding foot steps to coachroof
Five (5) red courtesy lights
Note: Flybridge layout customizable.

FWD HEADS AND DRESSING ROOM
Vanity sink with cabinet
Full length mirror
Electric toilet as standard
110/230V AC Sockets

MID SHIP LOUNGE
Sofa
Seaward facing side windows
Custom cabinetry with soft close drawers
110/230 V Sockets and USB sockets

AFT OWNER CABIN
Double Berth with storage underneath and overhead lockers
Reading lights and lamps
Hull and Head liners
Recessed courtesy lighting at floor level
110/230V AC Sockets

FWD HEADS AND DRSSING ROOM
Forward Shower, Bathroom and Dressing Room
Large shower with quality fittings, Corian sole and inboard hatch
Seaward facing side windows
Sink with cabinet and hot/cold mixer tap
Electric toilet
110/230V AC and USB Sockets

MIDSHIP GUEST CABIN
Underdeck seaward facing double berth
Overhead recessed lights and down lights
Courtesy lighting at floor level
110/230V AC Sockets and USB sockets

AFT GUEST CABIN AND HEADS
Twin single berths, with insert to convert to large double
Hull and headliners
Large shower with quality fittings, Corian sole and overhead hatch
Sink with cabinet and hot/cold mixer tap
Electric toilet
Full length mirror
Ventilation fan
Overhead and ground level recessed lights and down lights
110/230V AC and USB Sockets

Machinery

ENGINE
Engines and propellers 2 x 375HP Yanmar with shaft drives
Electronic throttle control mounted to helm
Insulation in Engine rooms
Fresh water engine cooling system
Engine instrument panel at helm position
Fuel tanks, total approx. 2 x 1000L
Racor500 fuel filters
Exhaust waterlocks
Two (2) Fuel Level Sensors
Two (2) Deck Fillers

PLUMBING
Four (4) Rule automatic bilge pumps (2,000 GPM each )
Two (2) Henderson MK 5 Universal Manual Bilge pump
Hot & cold pressure water
Two (2) Isotherm water heaters – 40 Liter tanks slim
One (1) Whale Universal Pressure pump 18L/M 45PSI
Black water tanks, total approx 160L
Fresh water tanks, approx 800L
Fresh Water Level Sensor
Holding tank sensor
Power Supply
One (1) Galvanic Isolator
Two (2) 110Amp 24V alternators
Six (6) Lithium Ion BatteriesA439
Two (2) Main Engine Start Batteries

POWER SUPPLY
One (1) Galvanic Isolator Included as Standard
Two (2) 110Amp 24V alternators
Six (6) Lithium Ion Batteries
Two (2) Main Engine Start Batteries A441

Inventory

GENERAL EQUIPMENT
Frameless, bi-folding, tempered safety glass doors between saloon and aft deck
Clear carbon stairs and handrails to flybridge with illuminated steps
Aft deck settee with reversible lounge and table
Transom Steps, port and starboard, with discreet lighting
Outdoor aft deck rain shower recessed into flybridge structure, hot/cold mixer tap
Hydraulic swim platform / tenderlift with remote control, Seasmart tender cleats, safety locks, folding padeyes (x4) and deck sockets for passrelle and swim ladder
Recommend tender : OC350 (tender optional)
Telescopic swim ladder neatly housed in the transom
Fwd Deck
fwd cockpit door
Fwd settee, table and sunbed
Cushions for fwd settee & sunbed - Sunbrella & Weathermax foam

McCONAGHY COMPOSITE STATIONS
Stainless steel life lines
Two (2) deck water fillers
Two (2) deck fuel fillers
Two (2) deck waste pump-out
One (1) deck wash pump
Foredeck trampoline - black, grey or white

NAVIGATION STATION FORWARD
Recaro helm seats at the nav station
Navigation and electronics panel
12V and USB sockets
110/230V AC Sockets

RUDDER AND STEERING
Twin rudders
Hydraulic Steering

ANCHORING AND MOORING
One (1) Lewmar V5 electric windlass
One (1) 50kg anchor, 50m chain, and 50m warp
Six (6) x 300mm folding cleats

Finance Calculator

Ancasta are acting as brokers for the vendor who is not selling in the course of business unless otherwise stated. These details are prepared from information provided by the vendor and are intended only as a guide to give a fair description of the vessel but their accuracy cannot be guaranteed and they do not constitute part of any contract. A prospective buyer is strongly advised to check the particulars and to have the vessel fully surveyed by a qualified marine surveyor. Details are supplied on the understanding that all negotiations shall be through Ancasta brokerages. This vessel is offered subject to prior sale, price change or withdrawal without notice. Please Note: where the vessel’s status shows as “Preliminary”, details of the vessel have not yet been confirmed by the Vendor.
