- Make Ker
- Model 46+
- Year 2018
- LOA 46ft/14m
- Class Performance Sail
- Hull Carbon Fibre
- Keel Fin Keel
- Rig Sloop
- Engine Single Diesel
- Drive Sail Drive
- Layout Aft Cockpit
- Ancasta Ref 46720
- Name Denali 3
Ker 46+ For Sale | 2018
900,000
|
Michigan United States of America
Your account cannot save boats.
"Denali 3" is a Ker 46+ built by McConaghy Boats. First launched in 2018 she is the third generation Ker 46 design and the newest 46 out there.
An incredibly high spec boat from the very start, incorporating a low drag, high-volume bow design, full North Sails suite and a custom Southern Spars mast and boom package.
Still with her first owner, she has been campaigned without compromise both inshore and offshore and is a real stand out performer across a range of conditions and indeed rating rules.
A very exciting prospect for someone looking at serious, grand prix racing, but perhaps without the crew and budget limitations that a TP52 or similar can carry.
Layout
Denali is a 2018 Ker 46+, built by McConaghy Boats China and designed by British designer, Jason Ker.
The build was project managed by Wade Morgan and built at McConaghy Boats, as with all other highly successful Ker 46 designs.
The 46+ design is the 3rd evolution of the highly successful prototype (Tonnerre) and the mk1 designed Ker 46, of which 4 yachts were built and campaigned since 2010.

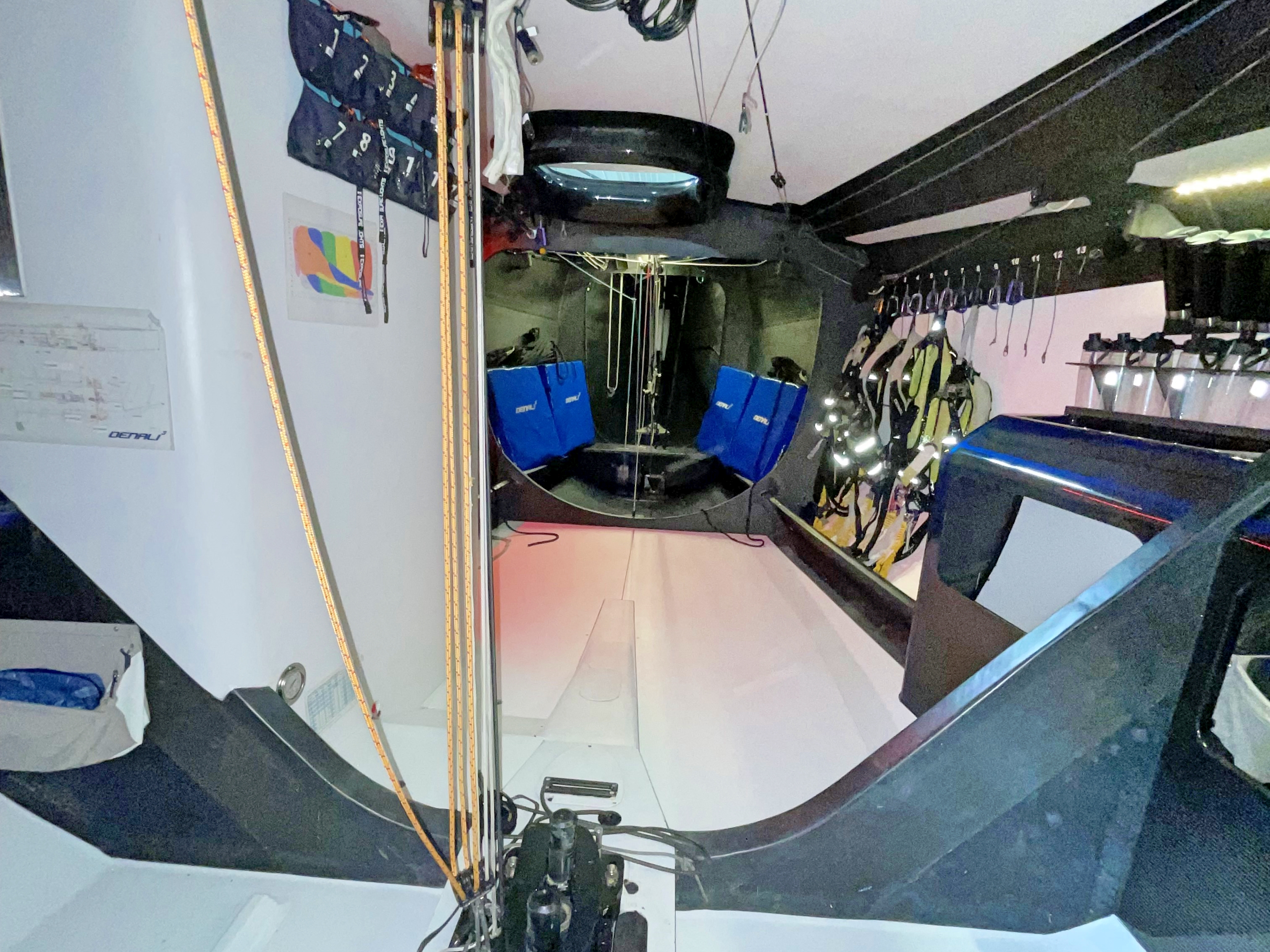

Denali is hull #2 of the 46+ design and incorporates several updates from the first 46+ build, the most noticeable being her low area, higher volume bow section.
Full carbon/foam construction, with pre-preg and vacuum consolidation, she is a full grand prix level build, that has proven herself during the last 6 years of campaigning.
General Specifications
LOA 13.9m
Beam 4.50m
Draft 3.35m
Displacement 5,500kg
ISO Structural CAT.A
Builder McConaghy Boats
Engine Power 40 hp
Fuel Capacity 61 L
Naval Architects Ker Design
Steering Systems
Autoclaved prepreg carbon rudder stock
Corecell foam cored carbon skin rudder blade
Autoclaved Carbon Fibre Tiller and Spinlock Tiller Extension
JP3 Upper and Lower self aligning rudder bearings

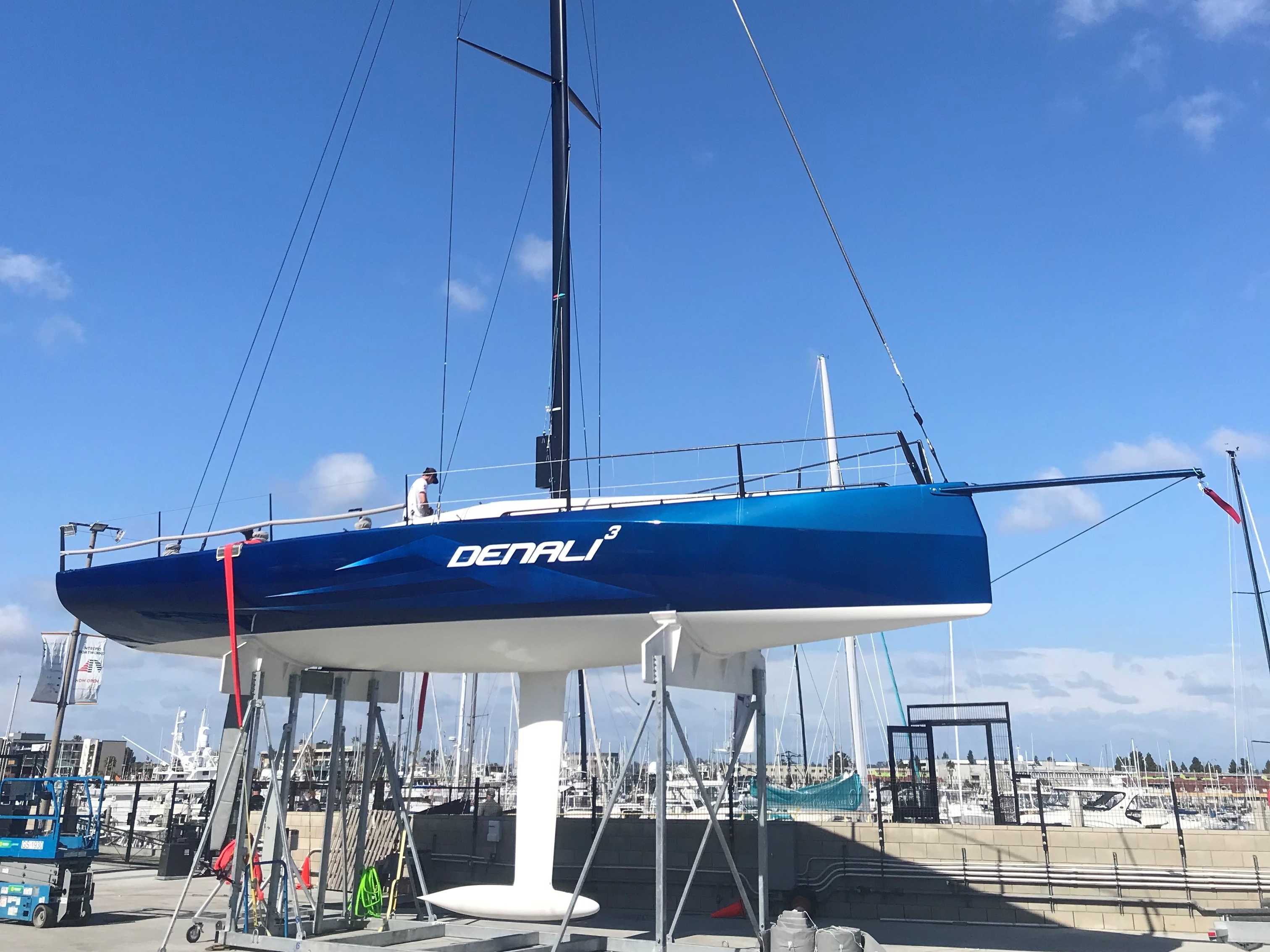

Keel and Bulb
Composite fin
Lead T-Bulb
Rudder
Version two design, with increased chord,
Sail Plan and Rig - Complete carbon, custom package from Southern Spars NZ.
P 18.75m
E 6.22m
J 5.41m
SPA 231m²
STL 8.2m
Denali 3 is fitted with 2 spreader mast tube that allows reefing (3) capability for offshore.
She is fitted with EC6 standing rigging (in service) that was new in 2019. Original set also included.
The mast and boom package on Denail has been designed to excel in reaching conditions, where the boat can win time against her main rivals, the TP52's
Without compromising upwind performance, the mast geometries were setup to carry a wider selection of reaching sails and thus she is configured with a 15/16th's style rig, that also promoted the use of a J0 sail.
Twin EC6 running backstays also facilitate a square top mainsail with the fitment of a deflector system for better trim control and forestay tension.
A grand prix running rigging package is also supplied with the boat, including extensive older spares.
Mainsail, Masthead spin (x2), Fractional and Jib halyard locks included.
Genoa staysail halyard conventional.
Denali is also fitted with the following upgrades;
Reaching strut
Gorilla headfoil system

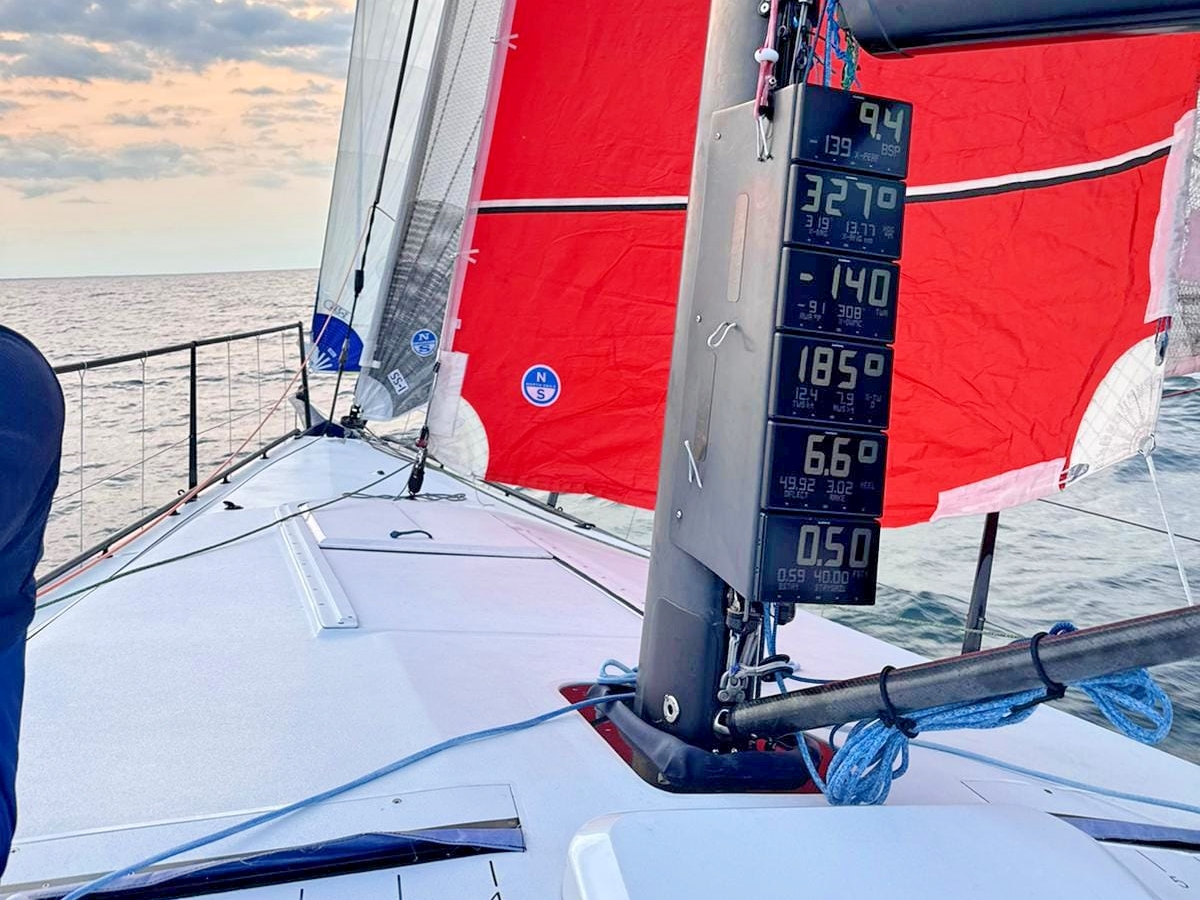

Custom mast instrument bracket
Hydraulic internal mast jacking system
Adjustable mast base
Low profile boom and vang fittings
Antal mast track system
Autoclaved carbon bowsprit with fixed bobstay
All sails designed and built by North Sails.
Designs from Magnus Doole, who is also a regular and key crew member, ensuring full and consistent development of the sail package onboard Denali.
Mainsails
M1 - 2 reefs 2018
M2 - 1 Reef 2019
M3 - 1 Reef 2021
Storm Trysail 2018

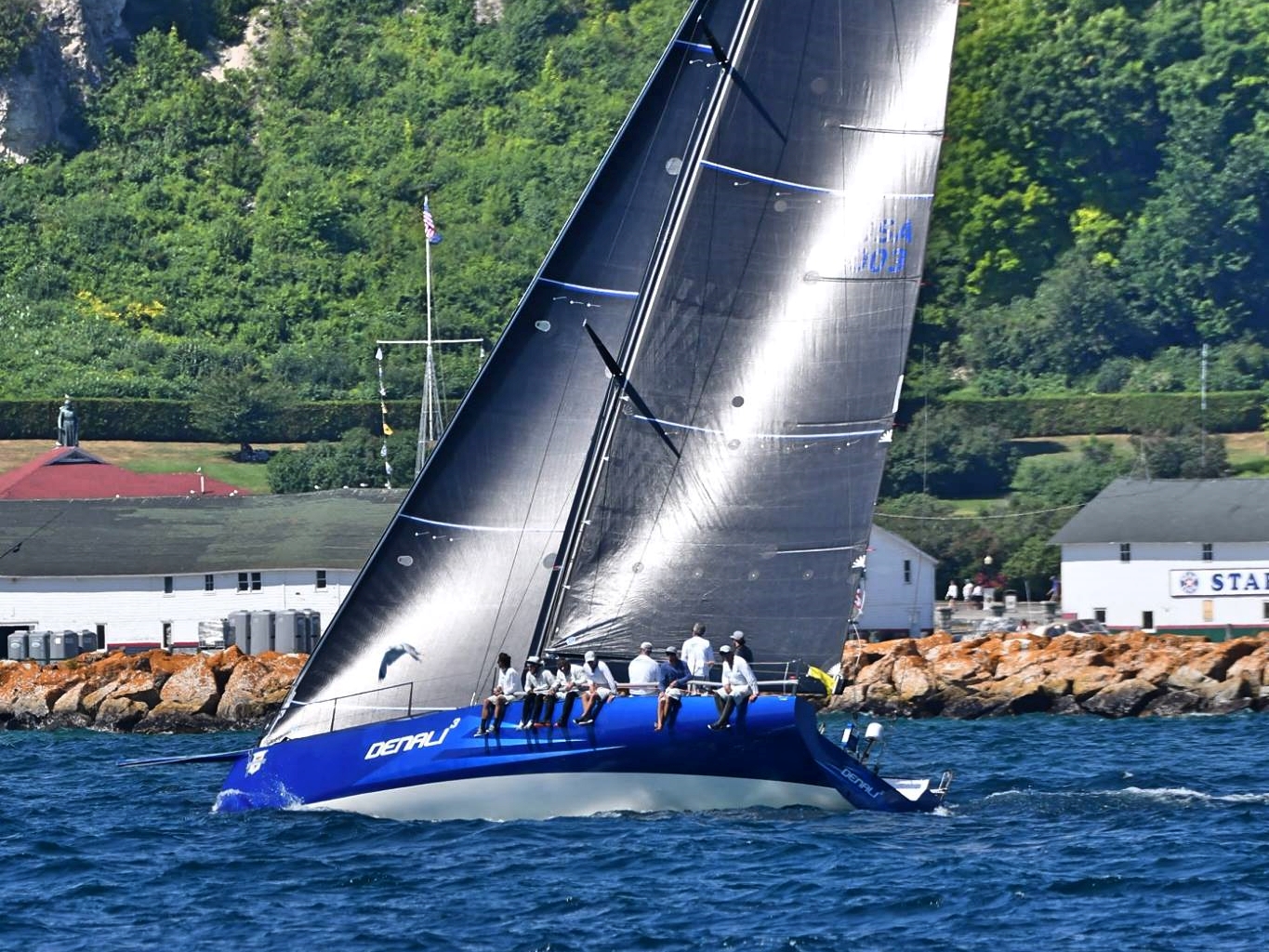

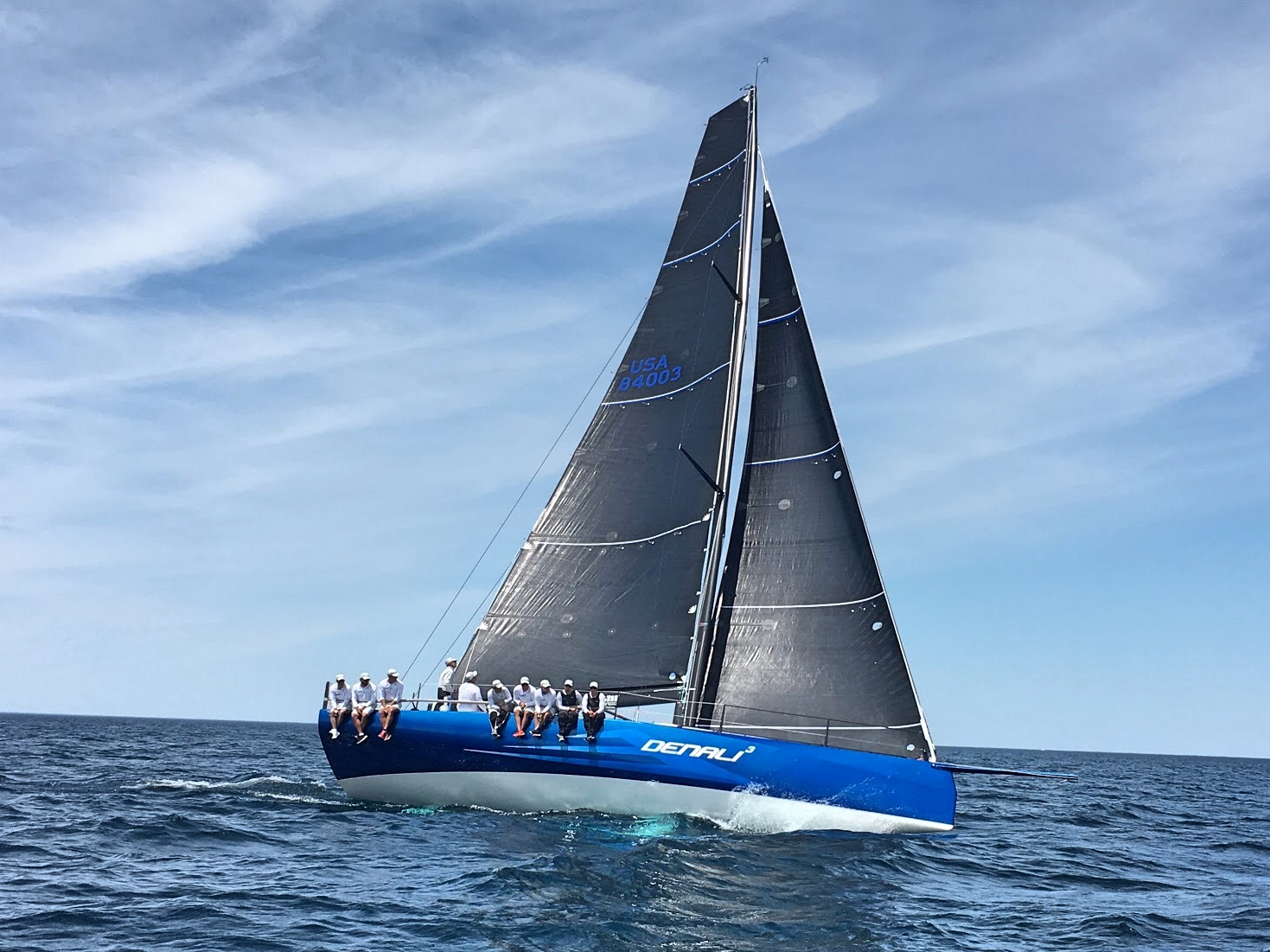

Upwind
J0-1 2018
R-Bill 2021
J0-3 2023
J1 2018
J1.5 2021
J2 2018
J2-22019
J2-3 2023
J3.5 2018
J OSR 2021
J4 2018
SS 2018
Normal GS 2018
SJ 2:1 instead of a GS 0218
SJS-2 2020
SJS-3 2024
Wind Seeker 2019
Spin Staysail 2018
Offshore Spin Staysail 2021
BR0 2024

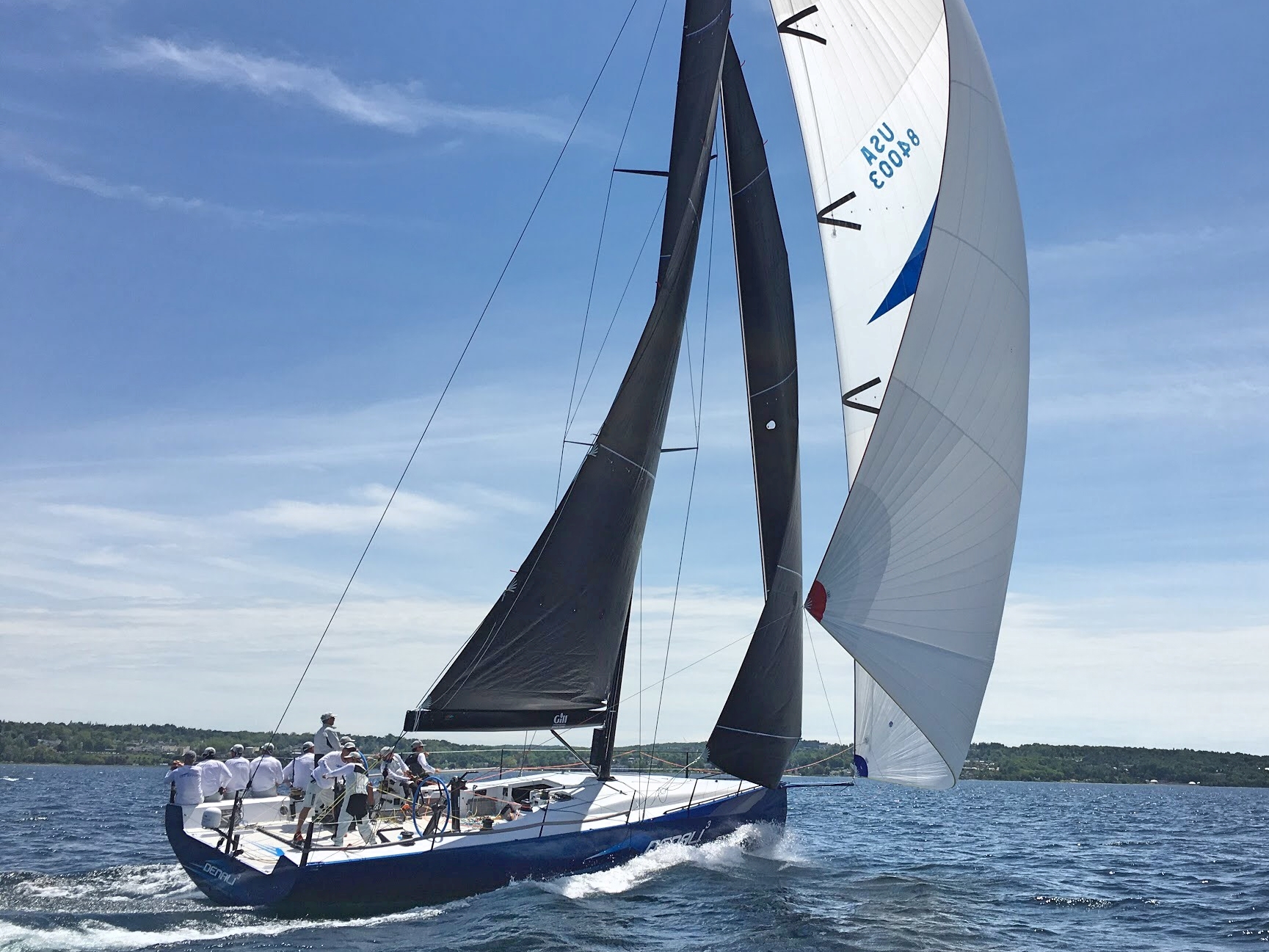

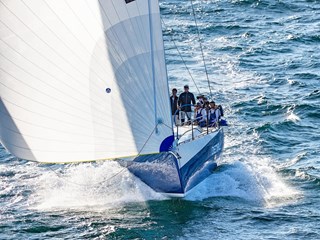

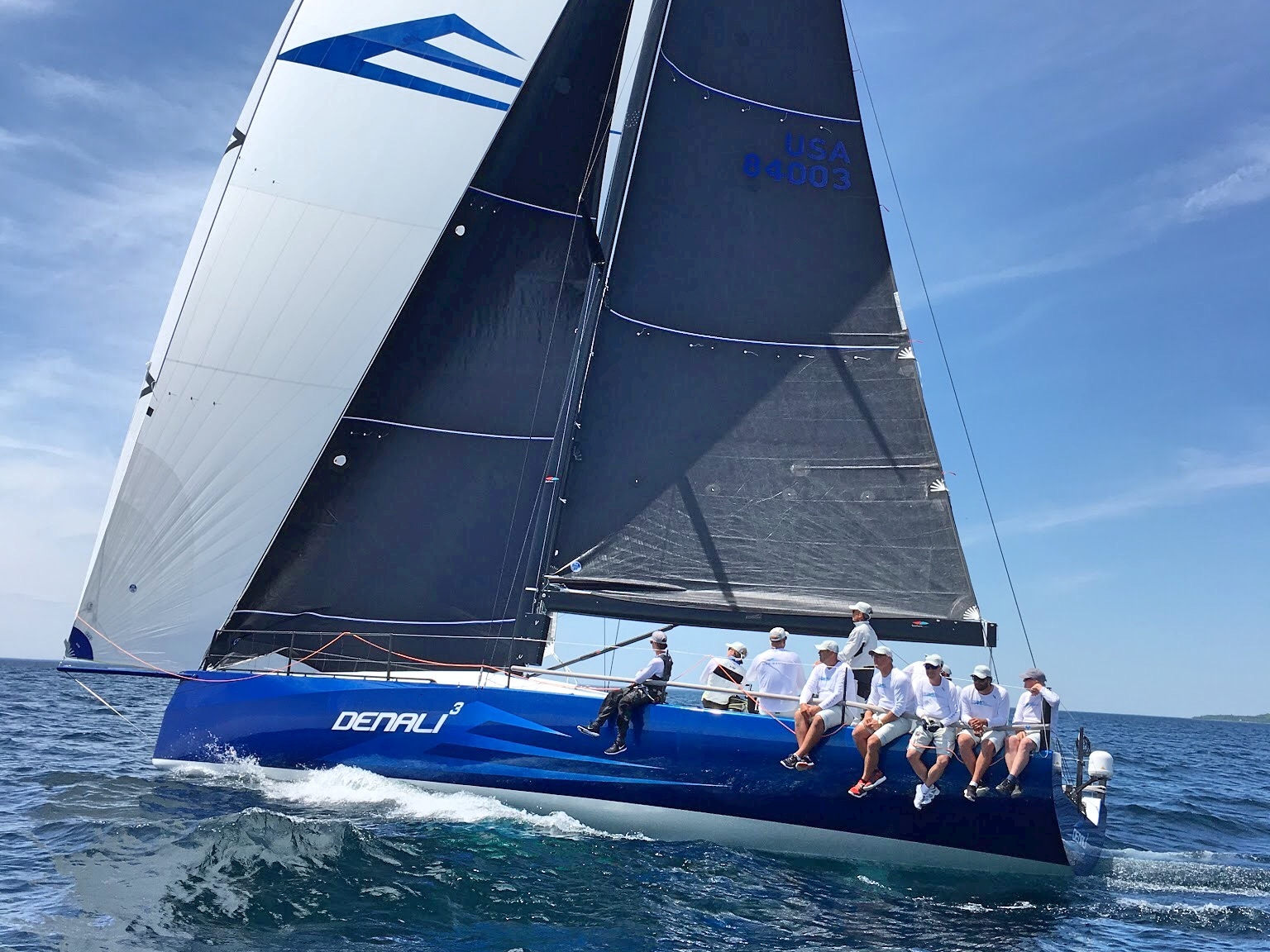

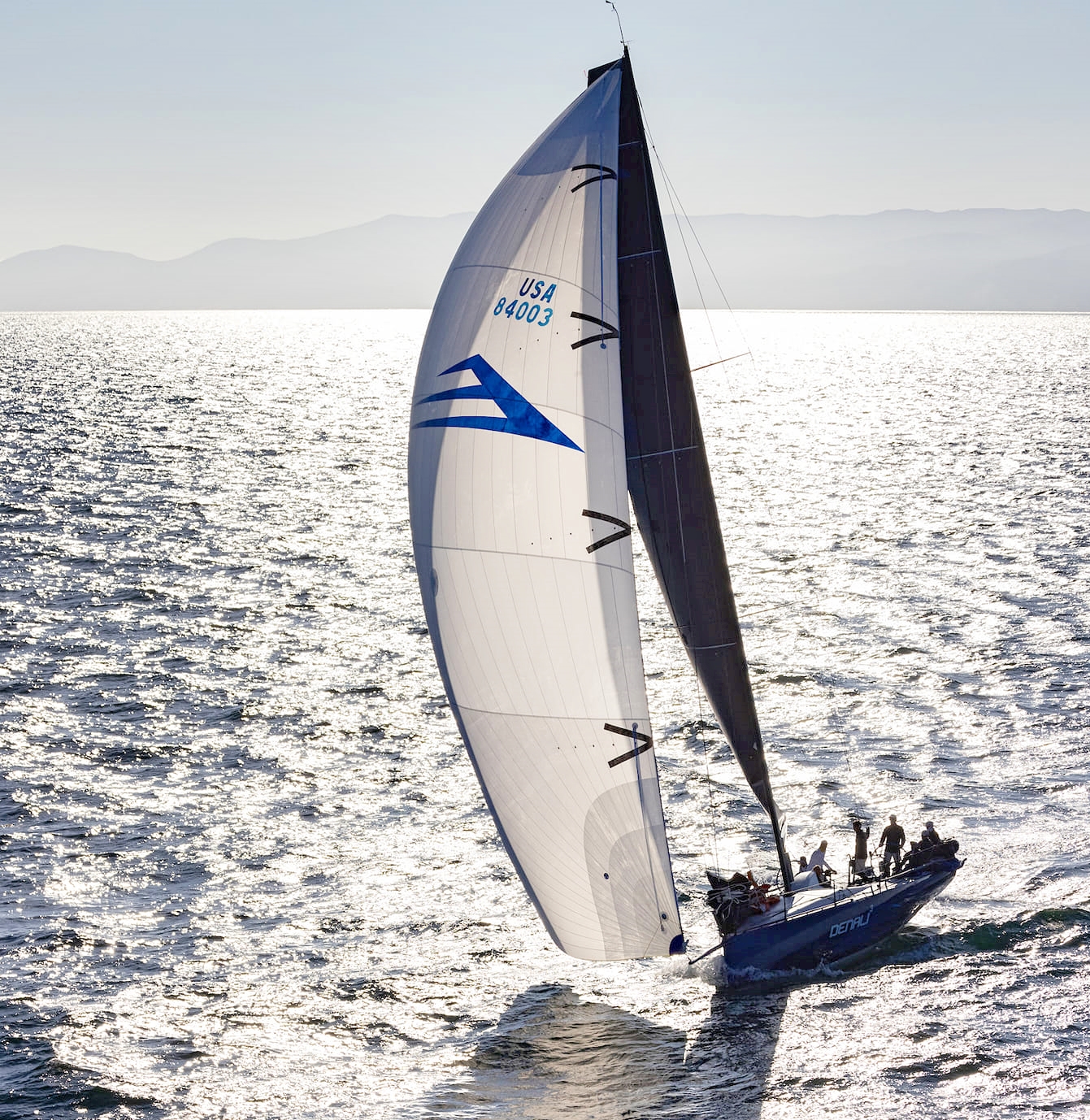

Downwind
LRH Tweener J Burns 2019
LRH Tweener R Burns 2021
IRC Helix - Pre RECUT 2018
IRC Helix 2019
A1 Soft sail 2018
A1 Cuben 2019
A1.5 2018
A2 2018
A2-2 2018
A2-Up 2021
A2-VMG 2021
A2-22 2023
A3 Cable Sail MH 2019
A3 Cable Sail 2023
A4 2018
A5 Laminate 2018
A6 2019
A Patron 2018

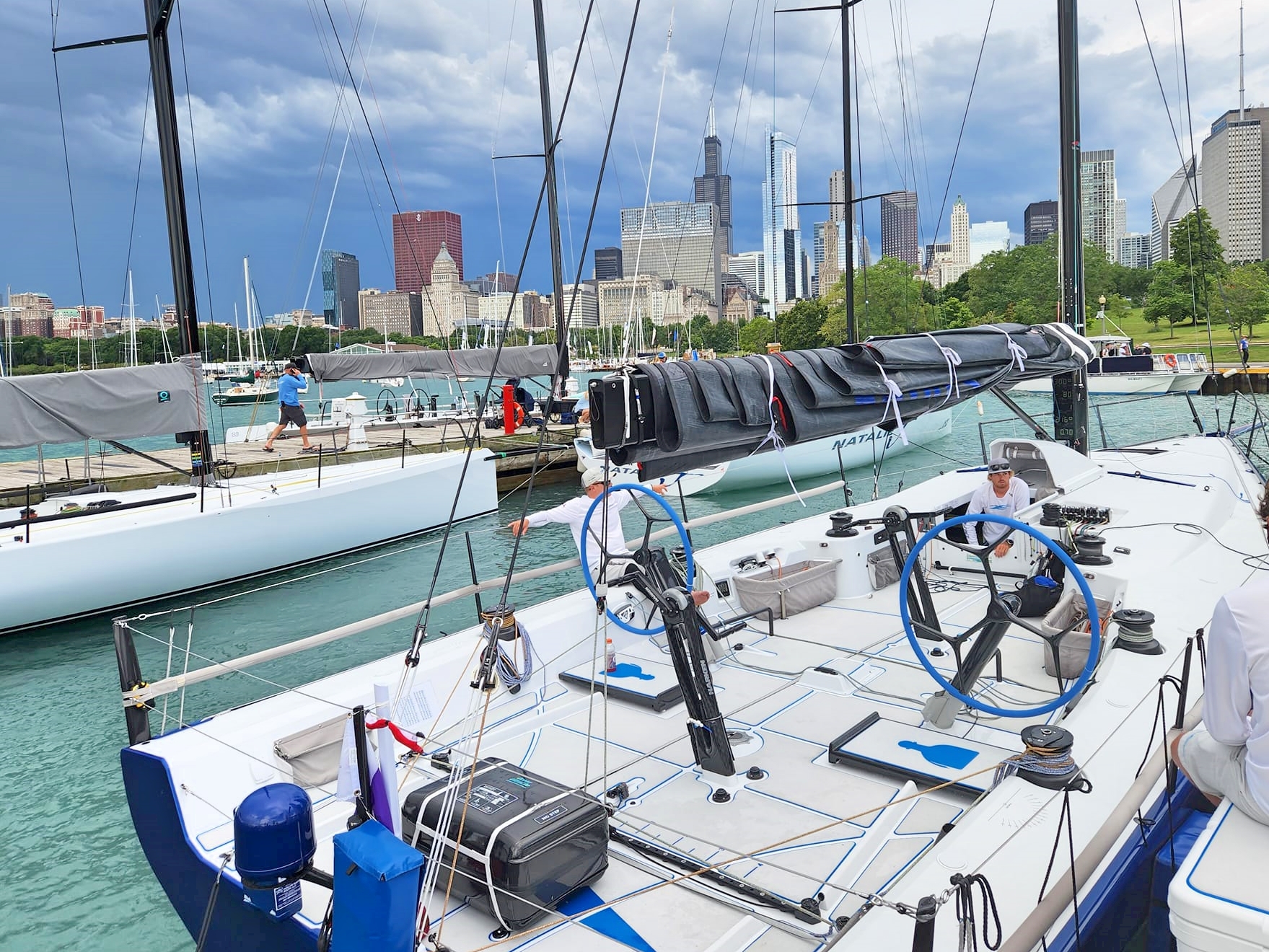

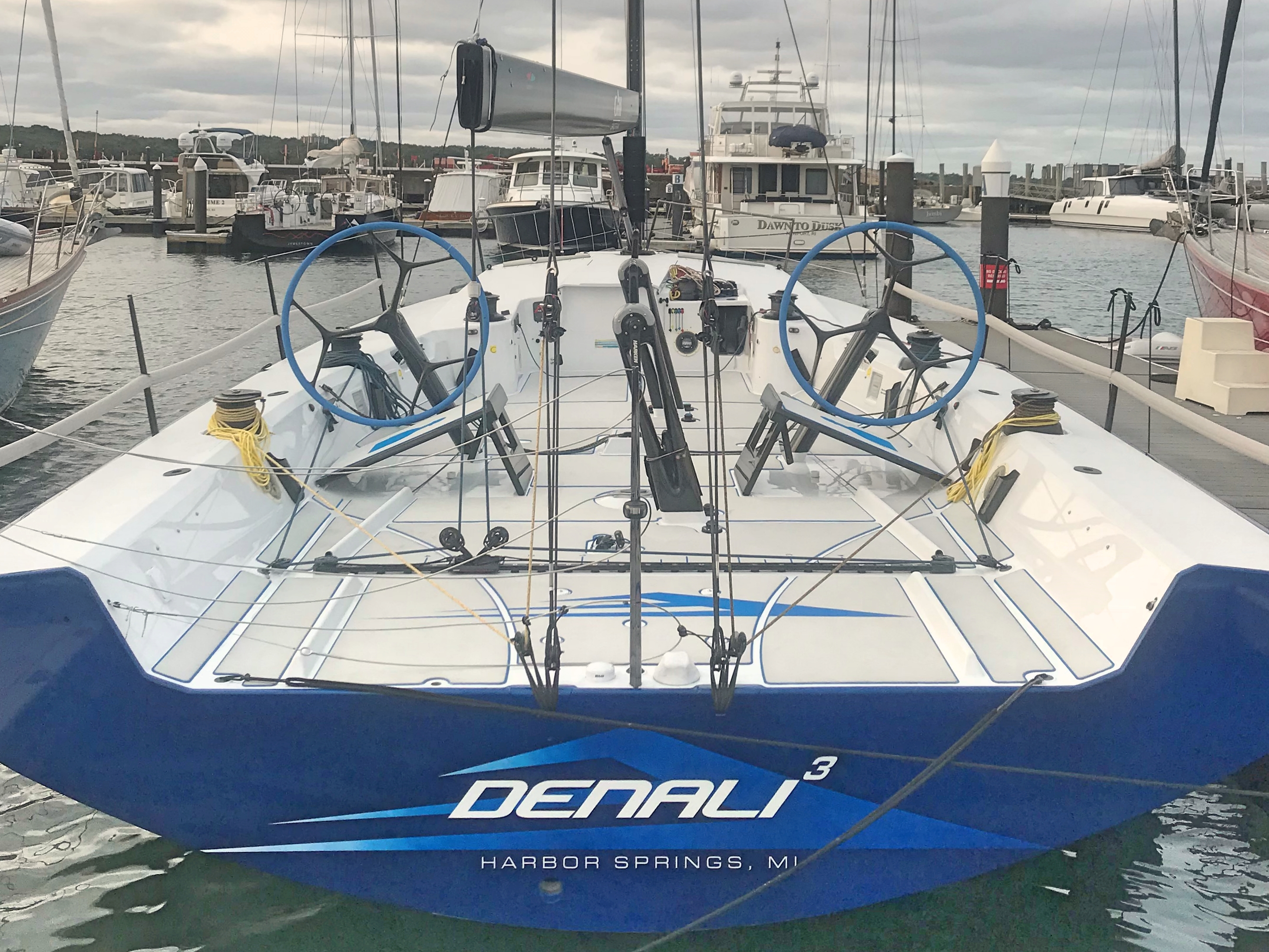

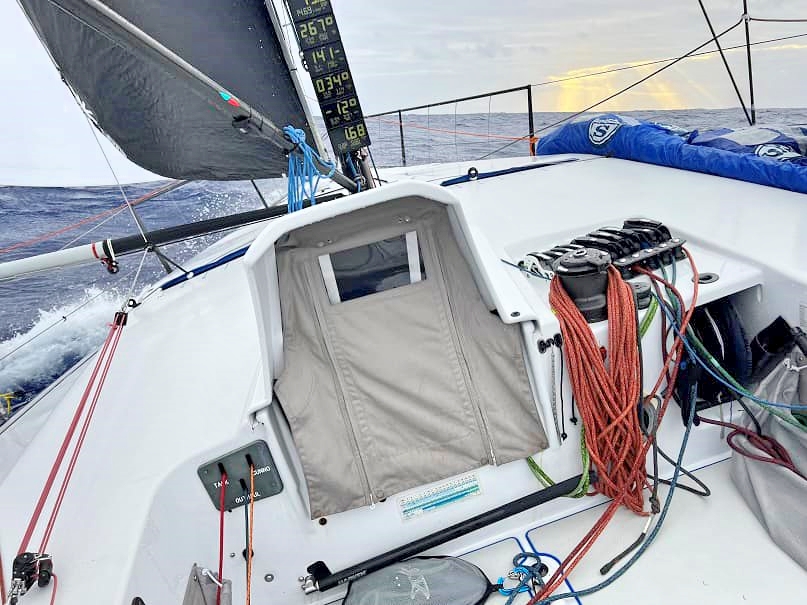

Deck Hardware
Comprehensive Harken Deck Gear Package - inc. lightweight soft shackles and carbon blocks
2 x Driven Primary Winches Harken 65.3 STR UD
2 x Harken MX Pedestals
1 x Pit Winches Harken 50.2 STP
2 x Main Sheet Winches Harken 50.2 STP
2 x Backstay Winches Harken 46.2 STP
Harken ‘Pro-Trim’ Traveler system fully encapsulated in deck stepped waterproof box
9 x Spinlock Clutches along with custom organizers
Composite Aerofoil Stanchions, Pushpit & Pulpit
Stainless Steel 1/19 wire lifelines, 5mm top, 4mm lower
5 x Clear dinghy hatches in cockpit sides for rope stowage
Sliding forward hatch with inflatable seal
String drop system lead to primary winch
McConaghy carbon winch handle pockets
Foredeck toe rails to ORC Standard
Further:
KZ4 4T furler #1
KZ4 4T furler #2
KZ4 4T furler #3
KZ4 Head swivel #1
KZ4 Head swivel #2
KZ4 Head swivel #3
KZ4 Head swivel #4
KZ SS Furler
KZ SS Head Swivel
KZ intigrator #1
KZ intigrator #2
Reaching strut - long
Reaching strut - Short
Inshore bow hatch
Spare Bow sprit
Stacking posts
Engine
40 hp Yanmar diesel engine with Sail Drive
2 Blade Folding Gori Propeller
Spinlock flush throttle control
61 Litre rigid plastic fuel tank with internal filler.

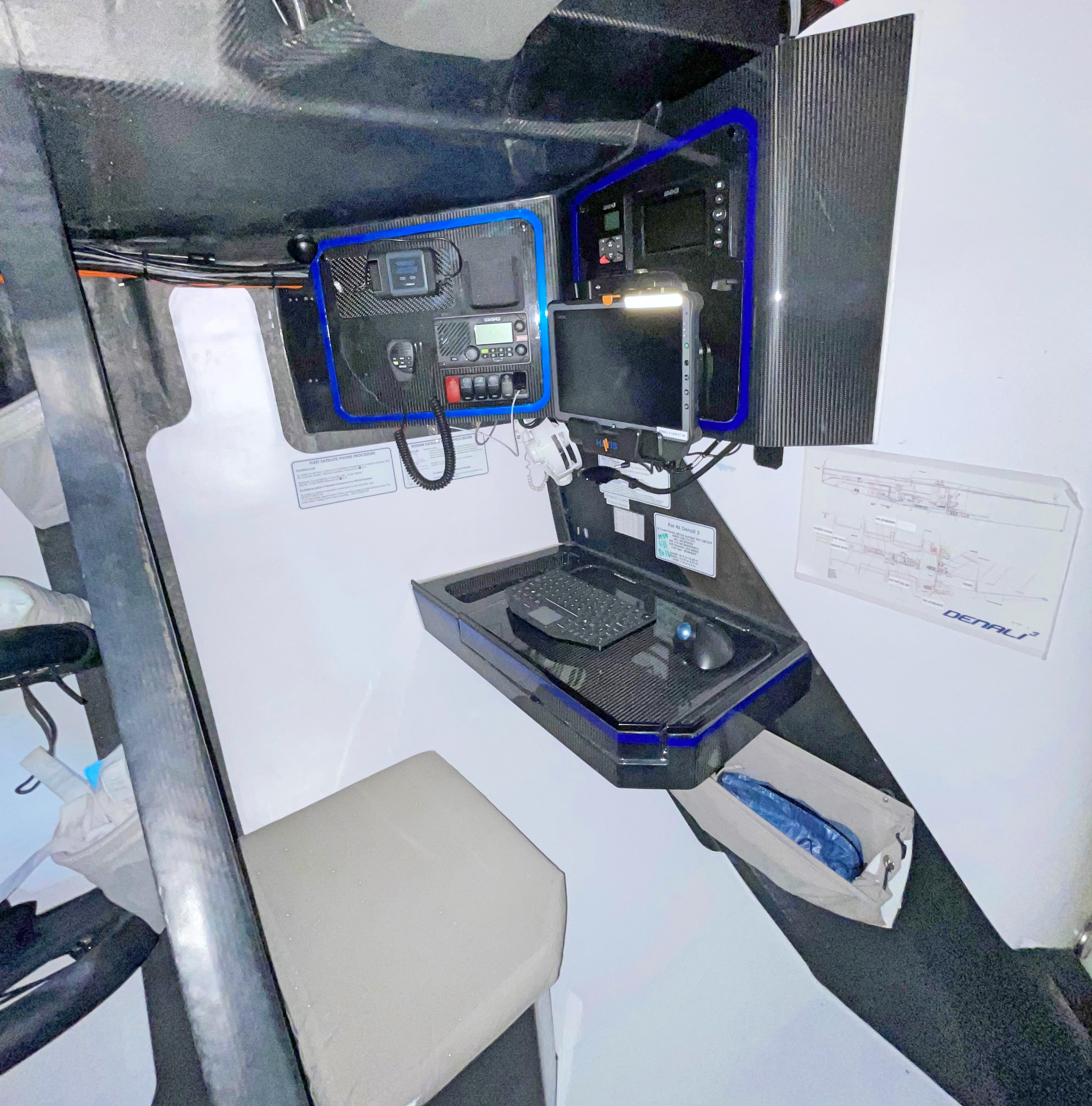

Electrical

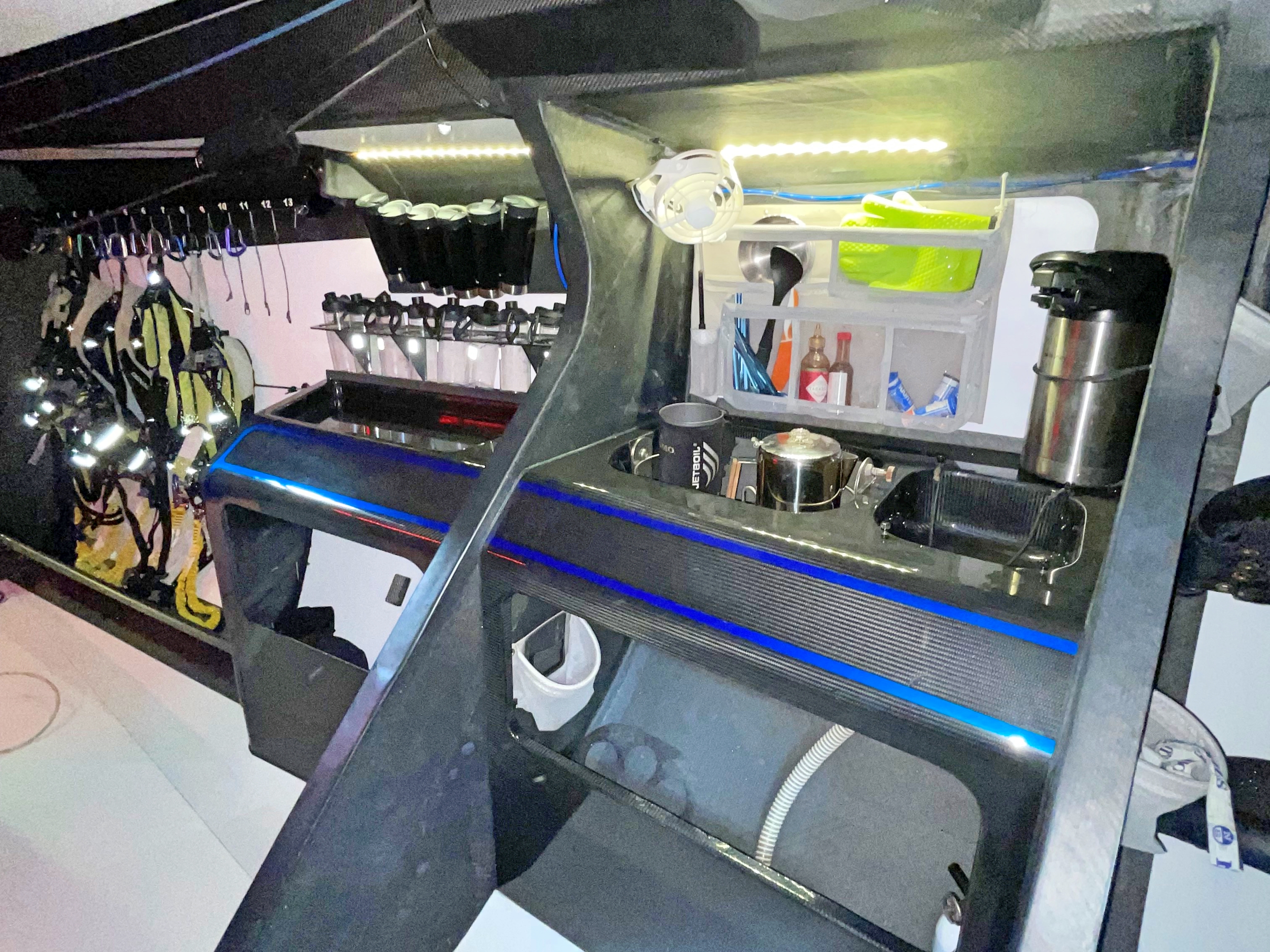

Red/white cabin lighting in saloon, galley, heads and navigation areas
12 volt DC switch panel Battery isolator/selection switch
2 x House Batteries
1 x Engine Battery
Navigation Lights mounted on pulpit and pushpit
Travel bags
Mast
Boom
Spreaders
Rudder #1
Rudder #2
Emergency Rudder
Bow sprit
Bow hatch
Main hatch
Stanchions
Life raft
Covers:
Cockpit
Side decks
Wheels/ steering pedestals
Harken Pedestals
Winch Covers
G foil Cover
Boom cover for mainsail
Boom tent
Canvas
Bottle Holders
Stacking bags
Galley organizer
Hiking pads
First Aid bag
Sheet bags
Original Sheet bags
Anchor bag
Offshore hatch soft door
Loft Custom waterproof spinnaker bag
Loft custom waterproof furling sail bag
Soft sail dock bag
Safety
MOM 8-A
MOM 8S
Parachute flares
Handheld flares
can flare
EPIRB
Yard Equipment
Boat cradle
Keel cradle
Mast carts
Mast cradle for shipping (wood)
10' Lifting strap
12' Lifting strap
Center point lifting gear
16' Travel lift lifting strap
20' Travel lift lifting strap
Spreader bar for standing rigging
Ratchet straps for traveling
shear line chocks
Ancasta are acting as brokers for the vendor who is not selling in the course of business unless otherwise stated. These details are prepared from information provided by the vendor and are intended only as a guide to give a fair description of the vessel but their accuracy cannot be guaranteed and they do not constitute part of any contract.
A prospective buyer is strongly advised to check the particulars and to have the vessel fully surveyed by a qualified marine surveyor. Details are supplied on the understanding that all negotiations shall be through Ancasta brokerages. This vessel is offered subject to prior sale, price change or withdrawal without notice. Please Note: where the vessel’s status shows as “Preliminary”, details of the vessel have not yet been confirmed by the Vendor.
Sign in or register an account to start saving boats
Don't have an account? Register
Broker Comments
Denali 3 is a superb racer that has given so much to the owner. Close to a full custom build, she has benefitted from all the Ker 46 design feedback that went before her and allowed the team to implement small changes throughout all areas of the boat, that has really helped push those final percentage performance points. We know from time, that these boats are just so capable in almost all weather and although this owner has developed the boat for ORCi and ORR racing, it wont take a lot to put her back into a full IRC mode either and could no doubt be a top RORC contender too. An exciting opportunity for any serious campaigners out there.
